Fabrication of a Polymer High-Aspect-Ratio Pillar Array Using UV Imprinting
Hidetoshi Shinohara 1,*, Hiroshi Goto 1, Takashi Kasahara 2 and Jun Mizuno 2
1
Nano Processing System Division, Toshiba Machine Co., Ltd., 2068-3, Ooka, Numazu, Shizuoka 410-8510, Japan; E-Mail: goto.hiroshi@toshiba-machine.co.jp
2
Institutes for Nanoscience and Nanotechnology, Waseda University, 513 Wasedatsurumaki-cho, Shinjyuku, Tokyo 162-0041, Japan; E-Mails: kasahara@shoji.comm.waseda.ac.jp (T.K.); mizuno@waseda.jp (J.M.)
*
Author to whom correspondence should be addressed; E-Mail: shinohara.hidetoshi@toshiba-machine.co.jp; Tel.: +81-55-926-5402; Fax: +81-55-925-6592.
Received: 30 January 2013; in revised form: 3 March 2013 / Accepted: 7 April 2013 /
Published: 17 April 2013

Abstract

: This paper presents UV imprinting methods for fabricating a high-aspect-ratio pillar array. A polydimethylsiloxane (PDMS) mold was selected as the UV imprinting mold. The pillar pattern was formed on a 50 × 50 mm2 area on a polyethylene terephthalate (PET) film without remarkable deformation. The aspect ratios of the pillar and space were about four and ten, respectively. The mold was placed into contact with a UV-curable resin under a reduced pressure, and the resin was cured by UV light irradiation after exposure to atmospheric pressure. The PDMS mold showed good mold releasability and high flexibility. By moderately pressing the mold before UV-curing, the thickness of the residual layer of the imprinted resin was reduced and the pattern was precisely imprinted. Both batch pressing and roll pressing are available.
Keywords:
high-aspect-ratio; UV imprinting; resin mold; polydimethylsiloxane

1. Introduction

Micro/nanofabrication technologies are indispensable for fabricating functional electronic, optical, medical and biochemical devices. Among these, high-aspect-ratio fabrication methods have been developed. These methods include deep-reactive ion etching (DRIE) [1,2], X-ray lithography [3,4,5], UV lithography [6,7,8,9] and laser abrasion [10,11]. Because these fabrication methods provide low-throughput and are not cost-effective, successive molding technologies, such as injection molding, hot embossing and UV imprinting [3,7,8,9,12,13,14,15,16,17,18,19,20,21,22,23] are required for mass production. However, molding high-aspect-ratio structures is challenging, because it is difficult to successfully demold the structure.

The fabricated master is often replicated in another material, and the replicated sample is used as a mold. Nickel is commonly used as a mold material, with such molds formed using electroplating. Generally, because the master is entirely etched after the electroplating process, only one nickel mold can be obtained from a master. On the other hand, polymer replica molds are more cost-effective, because it is expected that polymer materials can be used to replicate a master or a nickel mold many times. The polymer materials include polydimethylsiloxane (PDMS) [9,16,17], photocurable polymers [15,16,20,22] and thermoplastics [18,19,21]. The molds require good mold releasability during demolding. In addition, a flexible polymer mold is expected to be applied to a roll-to-roll or roll-to-sheet process, which is suitable for mass production [19,22,23].

In this study, UV imprinting methods for the fabrication of a high-aspect-ratio pillar array were demonstrated. The aspect ratios of the pillar and space were about four and ten, respectively. PDMS was selected for the mold, because of its good mold releasability and high flexibility. The following sections explain our experimental methodology, present and discuss our results and provide a conclusion.

2. Experimental Section

Figure 1 shows the design of a sample containing a high-aspect-ratio pillar array. The pattern area is 50 × 50 mm2. The dimensions of the square prism-type pillars are 43 × 43 × 170 µm3 and the pillars form a grid-like array with a 60 µm pitch.

Micromachines 04 00157 g001 1024
Figure 1. Design of sample having high-aspect-ratio pillar array.

Click here to enlarge figure

Figure 1. Design of sample having high-aspect-ratio pillar array.
Micromachines 04 00157 g001 1024

Figure 2 shows the fabrication process for the sample. The master pillar structure was fabricated on a silicon wafer (Figure 2a). A positive-type photoresist was patterned using a maskless lithographic system (STG-4(DL), Toshiba Machine Co., Ltd., Numadu, Japan). The silicon was etched by DRIE (MUE-21, Sumitomo Precision Products, Co., Ltd., Amagasaki, Japan). Next, the master was treated with an anti-sticking agent (Optool HD-1101Z, Daikin Industries, Ltd., Osaka, Japan). Then, a PDMS mold was cast from the silicon master (Figure 2b). The PDMS base (SIM260, Shin-Etsu Chemical Co., Ltd., Tokyo, Japan) and curing agent (CAT260, Shin-Etsu Chemical Co., Ltd., Tokyo, Japan) were mixed at a weight ratio of 10:1. After degassing in a vacuum chamber, the mixture was poured onto the master and degassed again. Then, a 100-µm-thick polyethylene terephthalate (PET) film (A4100, Toyobo Co., Ltd., Osaka, Japan) was applied to the uncured PDMS as a base film for the mold. The PET film had been treated with a primer (X-33-197, Shin-Etsu Chemical Co., Ltd., Tokyo, Japan) in advance. After curing at 80 °C for 1 h, the PDMS and PET were peeled off the master and baked again at 80 °C for 1 h. The thickness of the PDMS film was about 500 µm. Finally, a pillar array was UV-imprinted on the PET film using the PDMS mold (Figure 2c). The central wavelength of the UV used to cure the resin was 365 nm.

Micromachines 04 00157 g002 1024
Figure 2. Outline of fabrication process: (a) silicon master fabrication by deep-reactive ion etching (DRIE); (b) polydimethylsiloxane (PDMS) mold fabrication by casting; (c) sample fabrication by UV imprinting.

Click here to enlarge figure

Figure 2. Outline of fabrication process: (a) silicon master fabrication by deep-reactive ion etching (DRIE); (b) polydimethylsiloxane (PDMS) mold fabrication by casting; (c) sample fabrication by UV imprinting.
Micromachines 04 00157 g002 1024

Figure 3 shows the details of the UV imprinting processes. First, 1 mL of epoxy-type UV-curable resin was dropped onto a PET film. The dropped area was 50 × 50 mm2. The viscosity of this UV-curable resin was about 400 cps. The resin-coated PET film and the PDMS mold were set in a vacuum chamber (Figure 3a). The PET was placed manually on the center of a stage in the chamber to lay the pattern area of PDMS mold on the resin-coated area during the next process. The PDMS mold was fixed to a motor that could have its vertical movement controlled from outside the chamber. After evacuating the chamber to a chamber pressure of about 200 Pa, the mold was placed into contact with the UV-curable resin (Figure 3b). Then, the mold with the resin and PET substrate was taken out of the chamber and was pressed by rotating a roll from above (Figure 3c). The force applied to the mold by rotating the roll was about 14 N, which corresponds to the weight of the roll. Then, the resin was cured by UV light irradiation without any load (Figure 3d). Finally, the mold was peeled off manually along a roll with a diameter of 60 mm (Figure 3e). The above-mentioned process is called the roll press method. To evaluate the applied force effects, the batch press method, which is described below, was also examined. The resin-coated PET film and PDMS mold were set in UV imprinting equipment (ST50, Toshiba Machine Co., Ltd., Numadu, Japan) (Figure 3a). After evacuating the chamber, the mold was pressed at a set force, F1 (Figure 3f). The force was monitored by a load cell whose detection limit was 0.01 kN. After this, the resin was cured by irradiating UV light into the chamber while pressing the mold at force F2 (Figure 3g). Finally, the mold was peeled off along the roll (Figure 3e).

Micromachines 04 00157 g003 1024

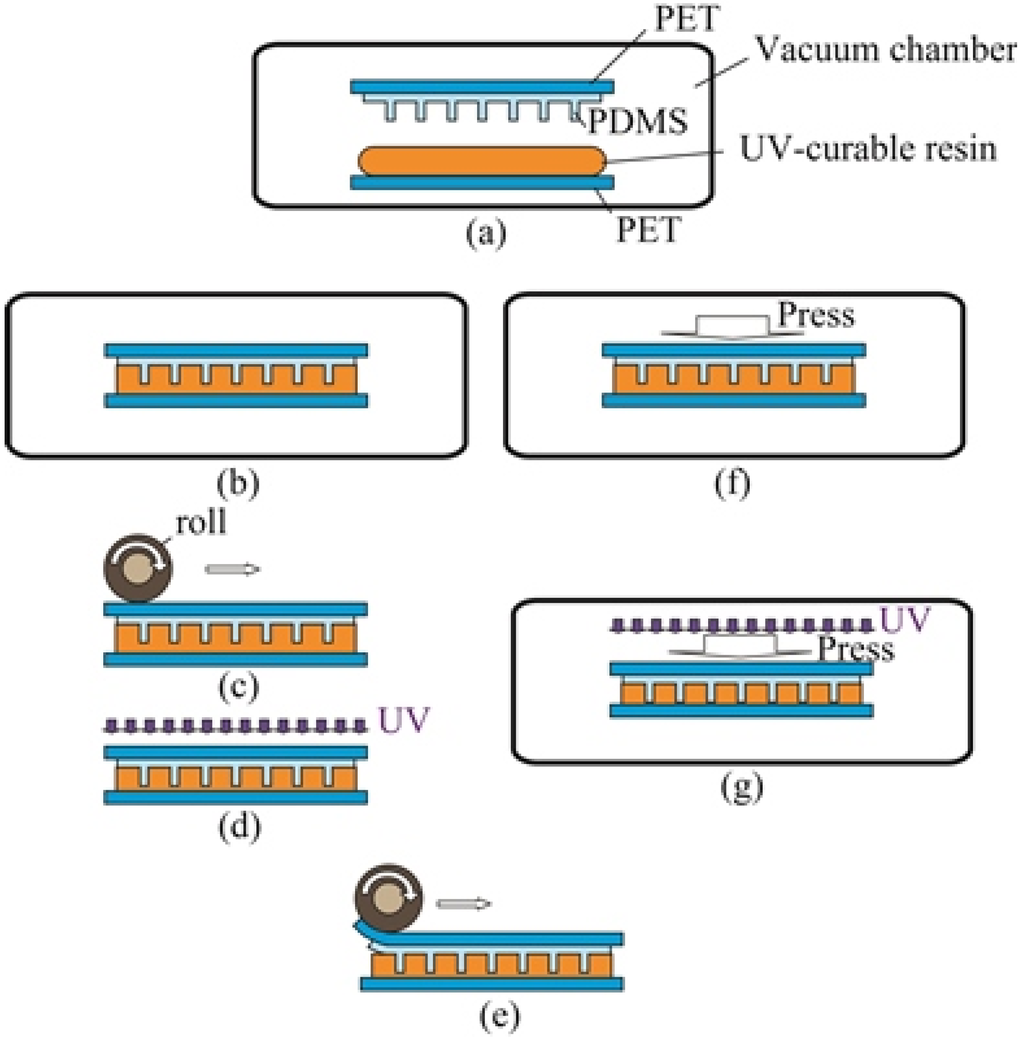

Figure 3. UV imprinting process: (a) placing PDMS mold and UV-curable resin-coated polyethylene terephthalate (PET) in a vacuum chamber; (b) moving mold and resin into contact under reduced pressure; (c) pressing by rotating roll; (d) UV irradiation; (e) peeling off mold along roll; (f) pressing mold and resin under reduced pressure; (g) UV irradiation and pressing. The roll press method includes (a), (b), (c), (d) and (e), and the batch press method includes (a), (f), (g) and (e).

Click here to enlarge figure

Figure 3. UV imprinting process: (a) placing PDMS mold and UV-curable resin-coated polyethylene terephthalate (PET) in a vacuum chamber; (b) moving mold and resin into contact under reduced pressure; (c) pressing by rotating roll; (d) UV irradiation; (e) peeling off mold along roll; (f) pressing mold and resin under reduced pressure; (g) UV irradiation and pressing. The roll press method includes (a), (b), (c), (d) and (e), and the batch press method includes (a), (f), (g) and (e).
Micromachines 04 00157 g003 1024

To evaluate the evacuation effect during the filling process (Figure 3b), a sample without evacuation was also prepared using the roll press method.

The heights, gaps and pitches of the pillars in the silicon master and imprinted sample were measured using a laser microscope (LEXT OLS3000, Olympus Co., Tokyo, Japan). As shown in Figure 4a, five points in the pattern area were measured: point #1 was at the center, while points #2–4 were about 5 mm inside the edge of the pattern area. A vertical scan was carried out with a 0.5-μm resolution for measuring the height. At each measurement point, two base points, the center of the straight groove (α) and the center of the cross-junction of the groove (β) were selected (Figure 4b).

The residual layer thickness (RLT) of the imprinted sample was measured from the scanning ion microscopic (SIM) image. This SIM image was obtained by using a focused ion beam system (FB-2100, Hitachi High-Technologies Co., Tokyo, Japan). The center of the pattern area was selected to measure the RLT. In the case of a sample fabricated by the roll press method, the uniformity of the RLT within a sample was also measured. The location from the edge of the pattern area (x) was defined as shown in Figure 4c, and 20 points (x = 6–46) were measured.

Micromachines 04 00157 g004 1024

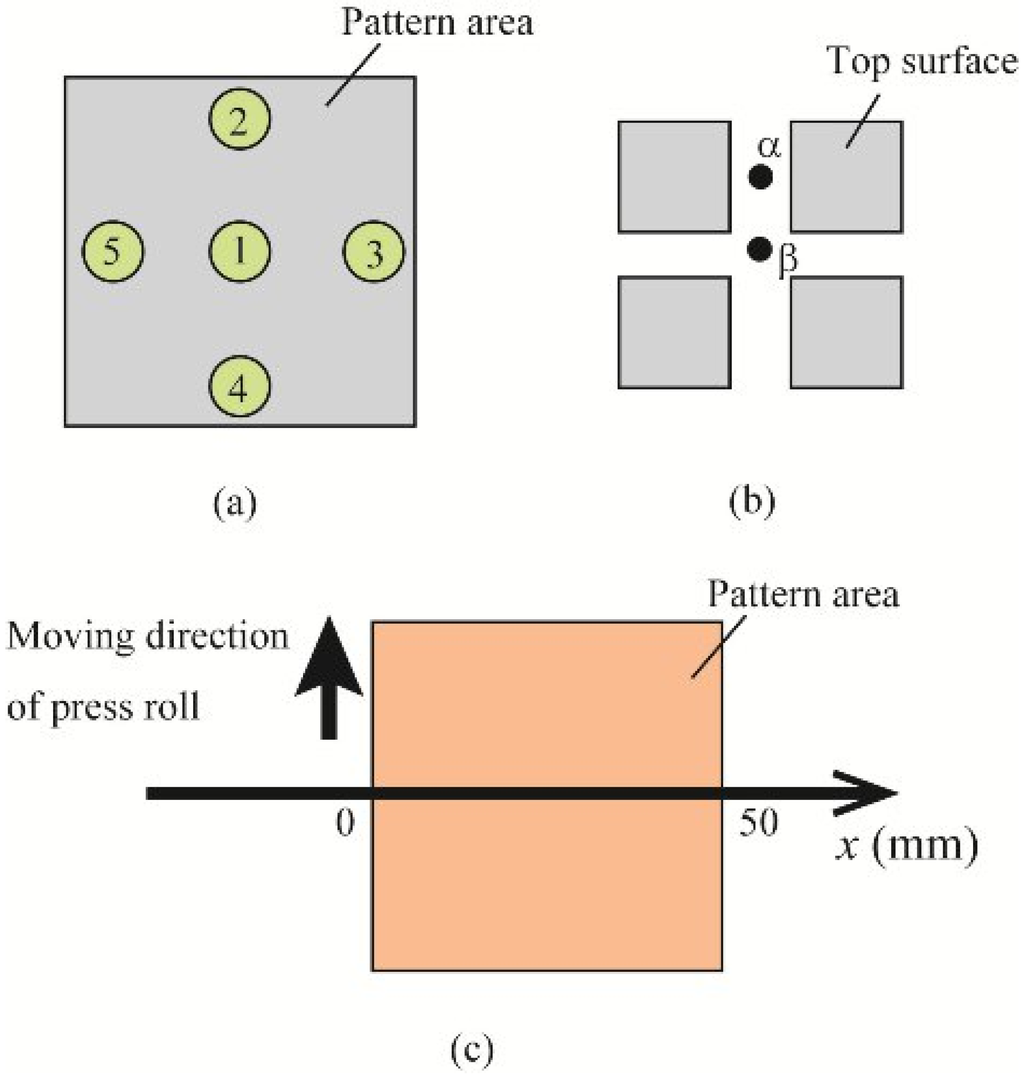

Figure 4. (a) Five measurement points for the silicon master and imprinted sample; (b) two base points for measuring pillar height; (c) definition of location from edge of pattern area (x) on the imprinted sample.

Click here to enlarge figure

Figure 4. (a) Five measurement points for the silicon master and imprinted sample; (b) two base points for measuring pillar height; (c) definition of location from edge of pattern area (x) on the imprinted sample.
Micromachines 04 00157 g004 1024

3. Results and Discussion

Figure 5 shows a photograph and SIM image of a sample imprinted by the roll press method. The pillar pattern was formed on the entire PET film area. Table 1 lists the pattern sizes on the silicon master and the UV imprinted sample. The height based at point α (hα) was different from that at point β (hβ), because of a microloading effect during DRIE [2,24]. The heights for the imprinted samples were 1–2 µm higher than those for the silicon master, while the gaps and pitches showed little difference. This suggests that a PDMS or UV-curable resin pattern elongates during the demolding (from the silicon master in the case of PDMS and from the PDMS master in the case of UV-curable resin).

Figure 6 shows SIM images of samples molded without evacuation in Figure 3b. The height of the pillar was only about 20 µm. This result indicates that filling the mold with resin under a reduced pressure was easier than under atmospheric pressure. The meniscus geometry in Figure 6 suggests that a higher applied force was required to fill the mold with resin, which caused deformation of the PDMS mold structure.

On the other hand, the generation of bubbles in the uncured resin was grossly observed during the pressing of the mold and resin under the reduced pressure (Figure 3b). After opening a leak valve in the chamber to expose it to atmospheric pressure, the generated bubbles decreased. These phenomena seem to have originated with the outgassing and gas absorption characteristics of PDMS. Thus, when the UV-curing was successively carried out under the reduced pressure (Figure 3g), an unfilled pattern region like that shown in Figure 6 was also often observed. A filled pattern like that shown in Figure 5 was obtained over the pattern area when UV was irradiated after exposure to atmospheric pressure (Figure 3d,g).

Micromachines 04 00157 g005 1024

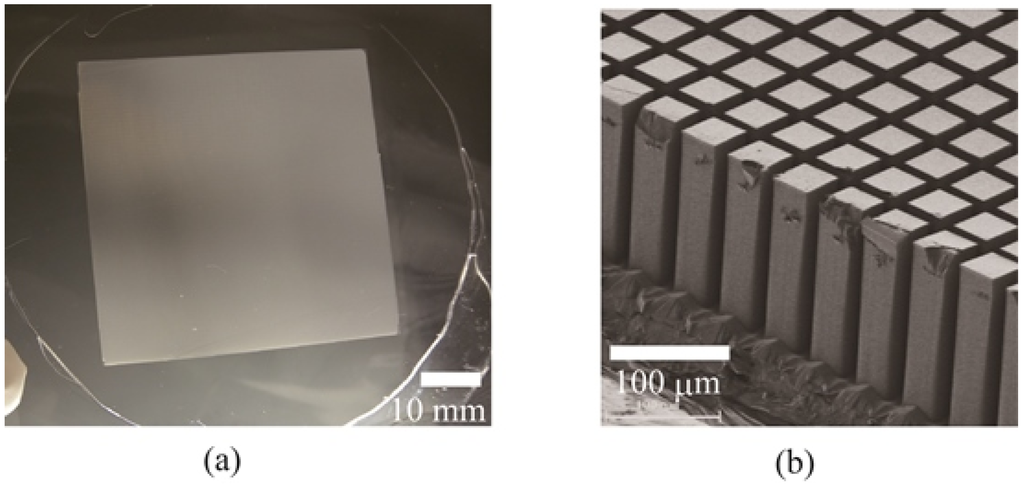

Figure 5. (a) Photograph and (b) Bird’s-eye SIM image of the UV-imprinted sample.

Click here to enlarge figure

Figure 5. (a) Photograph and (b) Bird’s-eye SIM image of the UV-imprinted sample.
Micromachines 04 00157 g005 1024
Table Table 1. Sizes of patterns on the silicon master and UV imprinted sample.

Click here to display table

Table 1. Sizes of patterns on the silicon master and UV imprinted sample.
Point No.Height (µm)Gap (µm)Pitch (µm)
hαhβ
Silicon master
1159.5167.516.959.9
2164.5170.516.959.9
3162.5170.516.959.9
4166.0172.016.759.7
5163.5171.016.959.7
Average163.2170.316.959.9
Imprinted sample
1161.0170.016.959.9
2164.5170.516.959.9
3164.0172.516.959.9
4166.5173.516.759.7
5165.5174.016.959.7
Average164.3172.116.959.9
Micromachines 04 00157 g006 1024

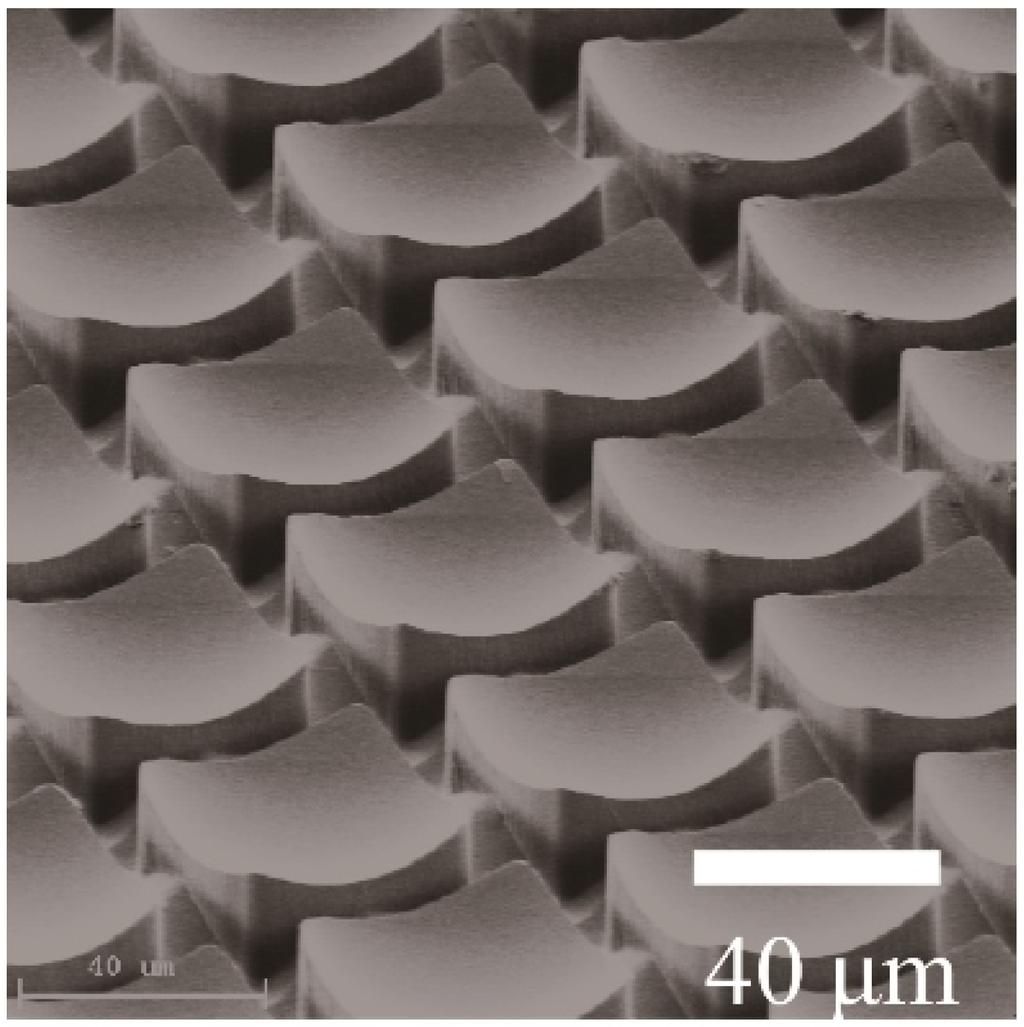

Figure 6. Bird’s-eye SIM images of the sample molded without evacuation.

Click here to enlarge figure

Figure 6. Bird’s-eye SIM images of the sample molded without evacuation.
Micromachines 04 00157 g006 1024
Micromachines 04 00157 g007 1024

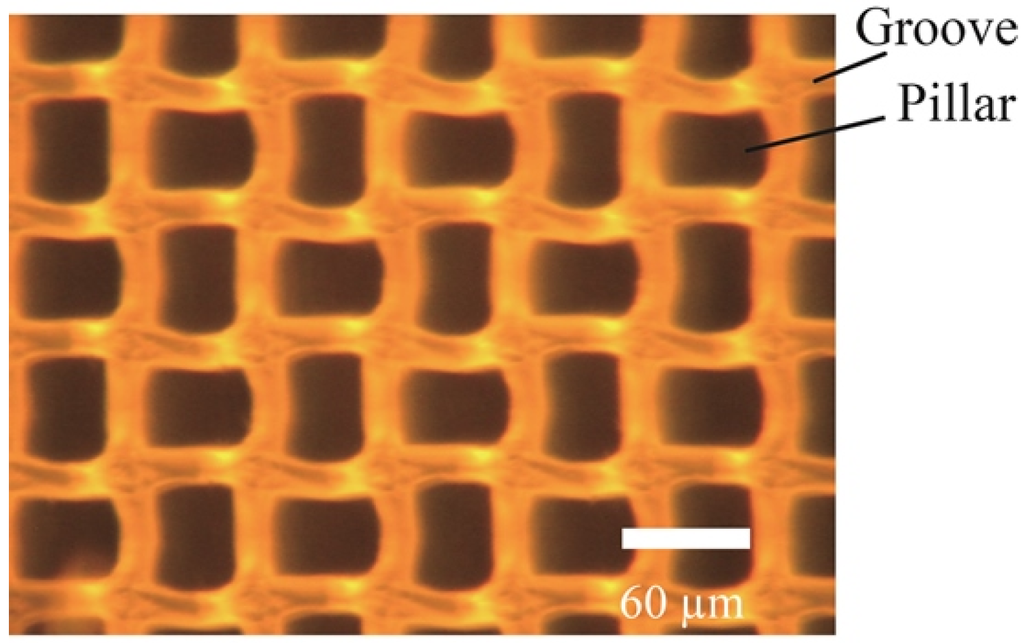

Figure 7. Photomicrograph of the sample imprinted at F1 = F2 = 0.50 kN.

Click here to enlarge figure

Figure 7. Photomicrograph of the sample imprinted at F1 = F2 = 0.50 kN.
Micromachines 04 00157 g007 1024

Figure 7 shows a photomicrograph of a sample imprinted at F1 = F2 = 0.50 kN. Deformation of the pillar structure was observed. This deformation originated with the deformation of the PDMS pattern during pressing. Thus, it disappeared when no force was applied during UV-curing (F2 = 0.00 kN). The following samples were all examined at F2 = 0.00 kN. Figure 8 shows cross-sectional SIM images of samples imprinted at various applied forces (F1). Two types of RLTs were defined, as shown in Figure 9a. The thicker (t1) and thinner (t2) RLTs correspond to the points at α and near β in Figure 4b, respectively. Each t1 is shown in Figure 8. The RLT decreased with an increase in F1 (Figure 8a–c). The applied pressures were 4 kPa at F1 = 0.01 kN and 180 kPa at F1 = 0.45 kN, given the fact that the pressed area was 50 × 50 mm2. The thickness of the roll pressed sample (Figure 8d) was close to that of the batch pressed sample at F1 = 0.45 kN, while the pressure was 3.2-times smaller (56 kPa), given the fact that the pressed area between the mold and roll was 5 × 50 mm2. Figure 9b shows the measured t1 and t2 within a sample. The average values of t1 and t2 were 12.4 ± 1.5 µm and 5.8 ± 2.0 µm, respectively. Note that these values may include a variation of the thickness of the as-coated resin. The value of t2 also included a variation based on the sectional location, with a thicker t2 found for a sectional location closer to the pillar. However, at least the residual layer corresponding to the difference between t1 and t2 (=6.5 µm) will remain, even if a higher force is applied in the roll press method. To further decrease RLT, the bottom geometry should be flatter. From this point of view, other master fabrication methods, such as X-ray lithography [3,4,5] and UV lithography [6,7,8,9], would be more appropriate than the DRIE method.

These results indicate that both the batch and roll press methods are available for fabricating this pillar array. For application to larger pattern areas, it is expected that the roll press process would be more appropriate than the batch process in terms of pressure uniformity [25,26]. In the roll press method, several independent product lines corresponding to Figure 3 will be required for mass production.

Micromachines 04 00157 g008 1024

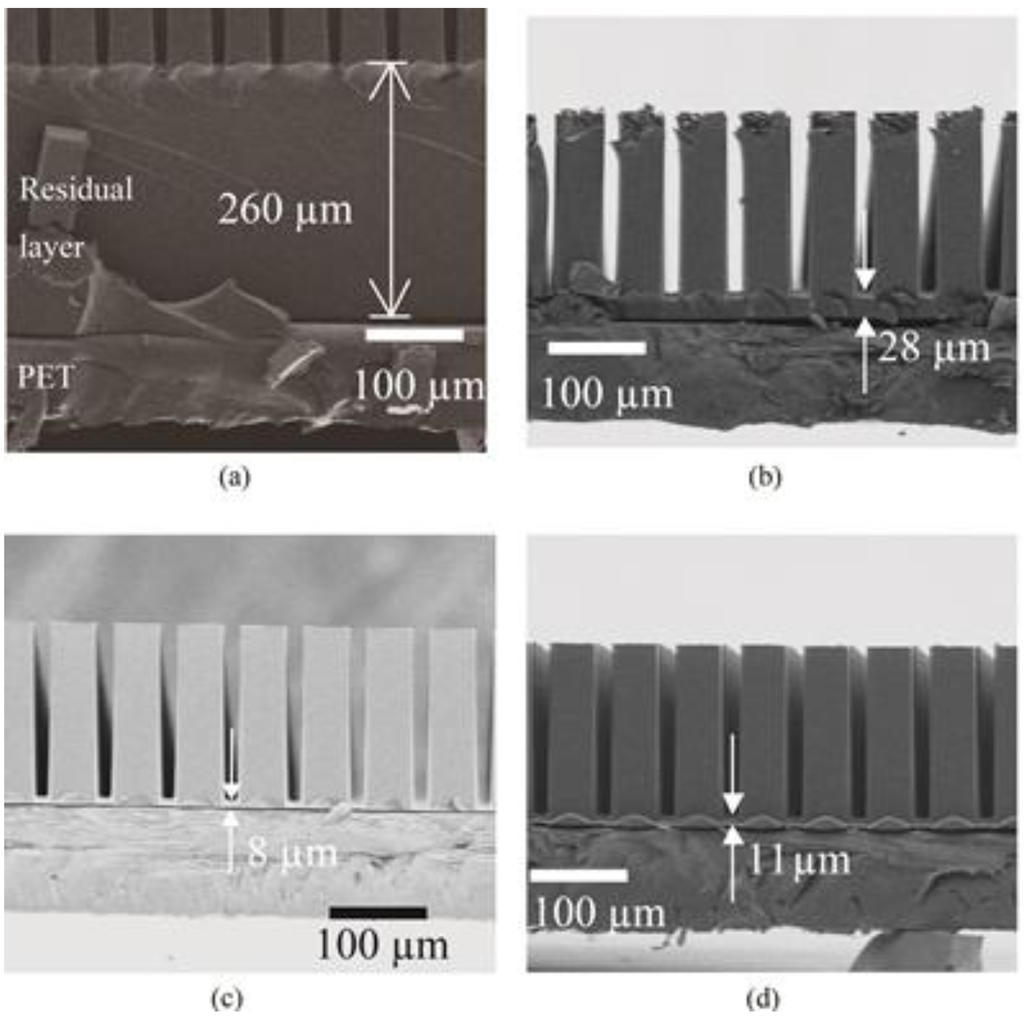

Figure 8. Cross-sectional SIM images of samples: (a) without pressing (with mold and resin simply in contact); with batch pressing at (b) F1 = 0.01 kN and (c) F1 = 0.45 kN; and (d) with roll pressing.

Click here to enlarge figure

Figure 8. Cross-sectional SIM images of samples: (a) without pressing (with mold and resin simply in contact); with batch pressing at (b) F1 = 0.01 kN and (c) F1 = 0.45 kN; and (d) with roll pressing.
Micromachines 04 00157 g008 1024
Micromachines 04 00157 g009 1024

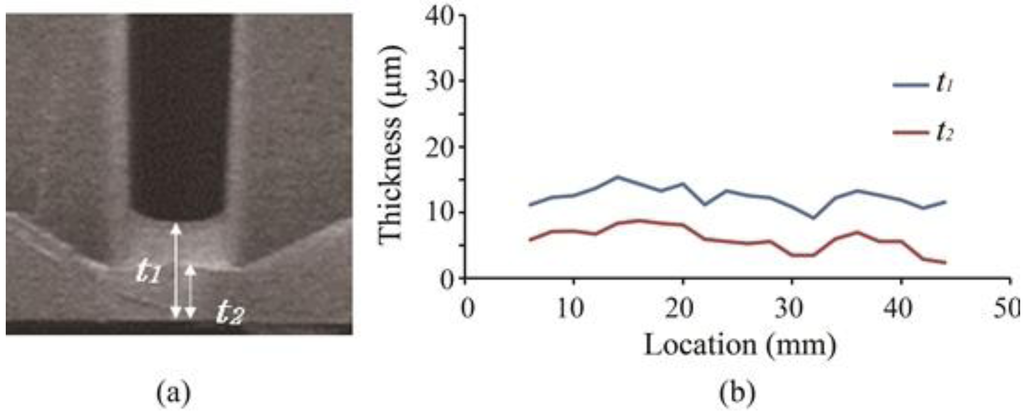

Figure 9. (a) Definitions of two types of residual layer thicknesses (RLTs) and (b) RLTs within the roll-pressed sample.

Click here to enlarge figure

Figure 9. (a) Definitions of two types of residual layer thicknesses (RLTs) and (b) RLTs within the roll-pressed sample.
Micromachines 04 00157 g009 1024

Because the cost of a PDMS mold, it could be used for UV imprinting over 10 times without remarkable pattern deformation. When used more than 10 times, the PDMS was often partially peeled away from the PET during demolding. The PDMS film at the border between the unpeeled and peeled portions was subject to irreversible stretching or tearing during the next demolding process. Thus, an improvement in the adhesion strength between the PDMS and the PET will be required for further multiple uses, which is important for cost reduction. Examples of alternatives include the sol-gel method [27] and a method that does not use a base film. In the latter case, the PDMS film would need to be thicker from the viewpoint of morphological stability and handling ability.

4. Conclusions

This paper presented UV imprinting methods for fabricating a high-aspect-ratio pillar array. A PDMS mold was placed into contact with UV-curable resin under a reduced pressure, and the mold was filled with the resin during exposure to atmospheric pressure. The pillar pattern was formed on the entire PET film area without remarkable deformation. The PDMS mold showed good mold releasability and high flexibility. By moderately pressing the mold before UV-curing, the thickness of the residual layer of the imprinted resin was reduced, and the pattern was precisely imprinted. These methods are applicable to fabricate optical and biomedical functional films. The roll press method is expected to be applied to fabricate larger area high-aspect-ratio structures that are suitable for mass-production.

References

  1. Volland, B.; Shi, F.; Hudek, P.; Heerlein, H.; Rangelow, I.W. Dry etching with gas chopping without rippled sidewalls. J. Vac. Sci. Technol. B 1999, 17, 2768–2771. [Google Scholar] [CrossRef]
  2. Rangelow, I.W. Critical tasks in high aspect ratio silicon dry etching for microelectromechanical systems. J. Vac. Sci. Technol. A 2003, 21, 1550–1562. [Google Scholar] [CrossRef]
  3. Becker, E.W.; Ehrfeld, W.; Hagmann, P.; Maner, A.; Münchmeyer, D. Fabrication of microstructures with high aspect ratios and great structural heights by synchrotron radiation lithography, galvanoforming, and plastic moulding (LIGA Process). Microelectron. Eng. 1986, 4, 35–56. [Google Scholar] [CrossRef]
  4. Maled, C.K.; Saile, V. Applications of LIGA technology to precision manufacturing of high-aspect-ratio micro-components and -systems: A review. Microelectron. J. 2004, 35, 131–143. [Google Scholar] [CrossRef]
  5. Mappes, T.; Achenbach, S.; Mohr, J. X-ray lithography for devices with high aspect ratio polymer submicron structures. Microelectron. Eng. 2007, 84, 1235–1239. [Google Scholar] [CrossRef]
  6. Yang, R.; Soper, S.A.; Wang, W. A new UV lithography photoresist based on composite of EPON resins 165 and 154 for fabrication of high-aspect-ratio microstructures. Sens. Actuators A 2007, 135, 625–636. [Google Scholar] [CrossRef]
  7. Daniel, J.H.; Sawant, A.; Teepe, M.; Shih, C.; Street, R.A.; Antonuk, L.E. Fabrication of high aspect-ratio polymer microstructures for large-area electronic portal X-ray imagers. Sens. Actuators A 2007, 140, 185–193. [Google Scholar] [CrossRef]
  8. Park, J.-H.; Choi, S.-O; Seo, S.; Choy, Y.B.; Prausnitz, M.R. A microneedle roller for transdermal drug delivery. Eur. J. Pharm. Biopharm. 2010, 76, 282–289. [Google Scholar] [CrossRef]
  9. Shao, G.; Wu, J.; Cai, Z.; Wang, W. Fabrication of elastomeric high-aspect-ratio microstructures using polydimethylsiloxane (PDMS) double casting technique. Sens. Actuators A 2012, 178, 230–236. [Google Scholar] [CrossRef]
  10. Zhang, Y.; Lowe, R.M.; Harvey, E.; Hannaford, P.; Endo, A. High aspect-ratio micromachining of polymers with an ultrafast laser. Appl. Surf. Sci. 2002, 186, 345–351. [Google Scholar] [CrossRef]
  11. Aoyagi, S.; Izumi, H.; Isono, Y.; Fukuda, M.; Ogawa, H. Laser fabrication of high aspect ratio thin holes on biodegradable polymer and its application to a microneedle. Sens. Actuators A 2007, 139, 293–302. [Google Scholar] [CrossRef]
  12. Becker, H.; Heim, U. Hot embossing as a method for the fabrication of polymer high aspect ratio structures. Sens. Actuators A 2000, 83, 130–135. [Google Scholar] [CrossRef]
  13. Gates, B.D.; Xu, Q.; Stewart, M.; Ryan, D.; Willson, C.G.; Whitesides, G.M. New approaches to nanofabrication: Molding, printing, and other techniques. Chem. Rev. 2005, 105, 1171–1196. [Google Scholar] [CrossRef]
  14. Trautmann, A.; Heuck, F.; Mueller, C.; Ruther, P.; Paul, O. Replication of microneedle arrays using vacuum casting and hot embossing. In Proceedings of the 13th International Conference on Solid-State SensorsActuators and Microsystems, Seoul, Korea, 5–9 June 2005; pp. 1420–1423.
  15. Ge, H.; Wu, W.; Li, Z.; Jung, G.-Y.; Olynick, D.; Chen, Y.; Liddle, J.A.; Wang, S.-Y.; Williams, R.S. Cross-linked polymer replica of a nanoimprint mold at 30 nm half-pitch. Nano Lett. 2005, 5, 179–182. [Google Scholar] [CrossRef]
  16. Mele, E.; Benedetto, F.D.; Persano, L.; Cingolani, R.; Pisignano, D. Polymer to polymer to polymer pattern transfer: Multiple molding for 100 nm scale lithography. J. Vac. Sci. Technol. B 2006, 24, 807–812. [Google Scholar]
  17. Block, I.D.; Chan, L.L.; Cunningham, B.T. Large-area submicron replica molding of porous low-k dielectric films and application to photonic crystal biosensor fabrication. Microelectron. Eng. 2007, 84, 603–608. [Google Scholar] [CrossRef]
  18. Hong, S.-H.; Hwang, J.-Y.; Lee, H.; Lee, H.-C.; Choi, K.-W. UV nanoimprint using flexible polymer template and substrate. Microelectron. Eng. 2009, 86, 295–298. [Google Scholar] [CrossRef]
  19. Shibazaki, T.; Shinohara, H.; Hirasawa, T.; Sakai, N.; Taniguchi, J.; Mizuno, J.; Shoji, S. Desktop type equipment of thermal-assisted UV roller imprinting. J. Photopolym. Sci. Technol. 2009, 22, 727–730. [Google Scholar] [CrossRef]
  20. Mizuno, J.; Li, L.; Kawaguchi, Y.; Tsunozaki, K.; Shinohara, H.; Shoji, S. Anti-sticking curing of fluorinated polymers for improvement of mold releasability. J. Photopolym. Sci. Technol. 2011, 24, 89–93. [Google Scholar] [CrossRef]
  21. Park, H.; Byeon, K.-J.; Jang, J.-J.; Nam, O.; Lee, H. Enhancement of photo- and electro-luminescence of GaN-based LED structure grown on a nanometer-scaled patterned sapphire substrate. Microelectron. Eng. 2011, 88, 3207–3213. [Google Scholar] [CrossRef]
  22. Shinohara, H.; Tashiro, T.; Ookawa, T.; Nishihara, H. High-throughput UV nanoimprint process using flexible resin mold for high-brightness light-emitting diodes. IEEJ Trans. Sens. Micromach. 2012, 132, 235–239. [Google Scholar] [CrossRef]
  23. Elsner, C.; Zajadacz, J.; Zimmer, K. Replication of 3D-microstructures with undercuts by UV-moulding. Microelectron. Eng. 2011, 88, 60–63. [Google Scholar] [CrossRef]
  24. Pelka, J. Three-dimensional simulation of ion-enhanced dry-etch processes. Microelectron. Eng. 1991, 14, 269–281. [Google Scholar] [CrossRef]
  25. Goto, H.; Hagiwara, A.; Ishibashi, K.; Kokubo, M.; Okuyama, H.; Fukuyama, S. Micro pattering using UV-nanoimprinting process. J. Photopolym. Sci. Technol. 2007, 20, 559–562. [Google Scholar] [CrossRef]
  26. Youn, S.-W.; Ogiwara, M.; Goto, H.; Takahashi, M.; Maeda, R. Prototype development of a roller imprint system and its application to large area polymer replication for a microstructured optical device. J. Mater. Process. Technol. 2008, 202, 76–85. [Google Scholar] [CrossRef]
  27. Suzuki, Y.; Yamada, M.; Seki, M. Sol–gel based fabrication of hybrid microfluidic devices composed of PDMS and thermoplastic substrates. Sens. Actuators B 2010, 148, 323–329. [Google Scholar] [CrossRef]
