Int. J. Environ. Res. Public Health 2012, 9(11), 4223-4240; doi:10.3390/ijerph9114223

Article
Integral Dose and Radiation-Induced Secondary Malignancies: Comparison between Stereotactic Body Radiation Therapy and Three-Dimensional Conformal Radiotherapy
Marco D’Arienzo 1,*, Stefano G. Masciullo 2, Vitaliana de Sanctis 2, Mattia F. Osti 2, Laura Chiacchiararelli 3 and Riccardo M. Enrici 2
1
National Institute of Ionizing Radiation Metrology, ENEA Casaccia Research Center, Rome, Italy/Via Anguillarese 201, Rome 00123, Italy
2
Radiation Oncology Department, Sant’Andrea Hospital, University of Rome La Sapienza/Via di Grottarossa, 1035-1039, Rome 00189, Italy; Email: masciullos@alice.it (S.G.M.); dsvita@libero.it (V.D.S.); mattiaosti@yahoo.it (M.F.O.); riccardo.maurizienrici@uniroma1.it (R.M.E.)
3
Medical Physics Department, Sant’Andrea Hospital, University of Rome La Sapienza/Via di Grottarossa, 1035-1039, Rome 00189, Italy; Email: laurac@ospedalesantandrea.it
*
Author to whom correspondence should be addressed; Email: marco.darienzo@enea.it; Tel.: +39-06-3048-4118; Fax: +39-06-3048-3558.
Received: 28 August 2012; in revised form: 15 October 2012 / Accepted: 19 October 2012 /
Published: 19 November 2012

Abstract

: The aim of the present paper is to compare the integral dose received by non-tumor tissue (NTID) in stereotactic body radiation therapy (SBRT) with modified LINAC with that received by three-dimensional conformal radiotherapy (3D-CRT), estimating possible correlations between NTID and radiation-induced secondary malignancy risk. Eight patients with intrathoracic lesions were treated with SBRT, 23 Gy × 1 fraction. All patients were then replanned for 3D-CRT, maintaining the same target coverage and applying a dose scheme of 2 Gy × 32 fractions. The dose equivalence between the different treatment modalities was achieved assuming α/β = 10Gy for tumor tissue and imposing the same biological effective dose (BED) on the target (BED = 76Gy10). Total NTIDs for both techniques was calculated considering α/β = 3Gy for healthy tissue. Excess absolute cancer risk (EAR) was calculated for various organs using a mechanistic model that includes fractionation effects. A paired two-tailed Student t-test was performed to determine statistically significant differences between the data (p ≤ 0.05). Our study indicates that despite the fact that for all patients integral dose is higher for SBRT treatments than 3D-CRT (p = 0.002), secondary cancer risk associated to SBRT patients is significantly smaller than that calculated for 3D-CRT (p = 0.001). This suggests that integral dose is not a good estimator for quantifying cancer induction. Indeed, for the model and parameters used, hypofractionated radiotherapy has the potential for secondary cancer reduction. The development of reliable secondary cancer risk models seems to be a key issue in fractionated radiotherapy. Further assessments of integral doses received with 3D-CRT and other special techniques are also strongly encouraged.
Keywords:
stereotactic body radiation therapy; integral dose; linear-quadratic model; biologically effective dose; BED; radio-induced secondary malignancies

Acronyms

3D-CRTThree Dimensional Conformal Radiation Therapy
BEDBiological Effective Dose
CTVClinical Target Volume
DVHDose Volume Histogram
EARExcess Absolute Risk
EQIDEquivalent Integral Dose
GTVGross Target Volume
IDIntegral Dose
IMRTIntensity Modulated Radiation Therapy
NTIDNormal Tissue Integral Dose
NTTNon Tumor Tissue
OAROrgan at Risk
OEDOrgan Equivalent Dose
PTVPlanning Target Volume
REDRisk Equivalent Dose
SBRTStereotactic Body Radiation Therapy
TPSTreatment Planning System

1. Introduction

Radiotherapy has been often described as a “two edged sword” because, if on one hand it is a major modality of cancer treatment, but on the other it can be a cause of cancer. During the past decade, radiation-induced secondary malignancies have become a major concern and recent studies have shown that radiotherapy treatment is associated with a small, though statistically significant, enhancement in the risk of secondary cancers. At present it is generally agreed that around 10% of patients may develop a second malignancy due to radiation therapy, even if this number is not known with much certainty and could range between 6% and 13% [1,2]. One of the largest study, carried out on about 29,000 patients which received radiotherapy after surgery of breast cancer, showed an increase of cancer risk in non-affected breast from 7.5% to 9.3% after 15 years [3]. Another study performed by Brenner et al. [4] in more than 120,000 patients with prostate cancer showed an increased cancer risk after radiotherapy of 6% if compared to the group that underwent only surgery.

Modern radiotherapy techniques are moving in the direction of optimizing the dose conformation to tumors meanwhile sparing the exposure of organs at risk and minimizing the radiation load to healthy tissues; this is usually obtained by improving patient positioning, target localization and providing sharp dose gradients. In this context, new high-precision technologies like intensity modulated radiotherapy (IMRT) and SBRT represent major advances in cancer treatment. The high degree of conformity associated with these techniques is often obtained by increasing the number of fields and using fixed-shape or dynamic conformal arc beams. This has important implications in the debate over the possible increase of secondary cancers due to radiation therapy, essentially for two reasons. Firstly, delivery of a specified dose from these special techniques requires the accelerator to be energized for longer (more monitor units are needed) and, as a consequence, the total body dose due to leakage radiation is increased by a factor of two or three [5]. Secondly, if on the one hand these techniques lead to tight dose conformations and sharp dose gradients, on the other they are likely to increase the integral dose exposure to non-tumor tissues since larger volumes of normal tissues can be exposed to lower doses [6].

The increase of energy deposition in healthy tissues might play a leading role in the induction of secondary cancers, especially in the light of past and recent literature data which show a possible correlation between integral dose and secondary malignancies [7,8,9,10].

The aim of this work was to compare the integral dose (ID) imparted by SBRT and 3D-CRT and establish possible correlations between integral dose calculated from differential DVHs and the increase of carcinogenic risk.

The ID attempts to describe energy deposition within the whole body and it is historically considered as a physical quantity capable of representing the “physical aggression” and risk of complications due to radiation therapy. Integral dose is the product of mass of tissue irradiated and absorbed dose. Although it is generally accepted that normal tissue complication risk and secondary malignancies risk increase as the ID increases, ID is rarely used in clinical practice to compare competing plans or to evaluate treatment outcome. At present, it is still unknown which increase of integral dose could be considered clinically acceptable; however, as a general rule, it is recommended to keep ID to a minimum, tumor dose being fixed and provided that normal tissues are not unacceptably compromised [11]. Over the last decade many studies have attempted to compare integral dose received by different x-ray irradiation techniques (e.g., IMRT vs. 3D-CRT). In these studies ID was calculated by DVHs or by the product of mean dose and irradiated volume [12,13,14,15,16]. However, in none of these studies was an attempt made to estimate the potential consequences of integral dose increase.

To our knowledge, there are no studies investigating ID in stereotactic body radiation therapy and comparing SBRT with “traditional” techniques. Generally, SBRT does not lead to unacceptable side effects if the serial organs are excluded from high dose regions and the organs at risk constraints are respected. Most importantly, we wondered whether an increase of ID may be related to an increase in secondary cancer risk. This issue is not trivial since ID calculation does not consider fractionation effects, which are supposed to play a key role in radiation-induced malignancies.

Furthermore, the induction of secondary cancers is a matter of interest in SBRT as the use of this technique might be extended to patients who live for many years after radiotherapy. Given the very encouraging results with the SBRT technique, phase III studies are in fact strongly needed in order to compare SBRT with surgery in operable patients [17]. Lastly, considering the dose-escalation and retreatment possibilities provided by SBRT, the overall integral dose might reach levels considerably higher than achieved with conventional planning techniques and delivery schemes.

2. Materials and Methods

2.1. Integral Dose Evaluation

The integral dose ID to an organ j divided into m voxels is given by the following equation:

Ijerph 09 04223 i001

where vkj, Dkj and ρkj are respectively the volume, dose and density of voxel k in organ j. If the voxels have all the same size and the organ can be assumed to have a uniform density, Equation (1) can be reduced to:

Ijerph 09 04223 i002
where Ijerph 09 04223 i003 is the mean organ dose. In this study, for all treatment plans integral dose was calculated through the differential DVH using Equation (1). Although for a proper evaluation of integral dose different density values should be considered for different structures and for different bins, for the sake of simplicity a constant density ρ = 1 g/cm3 was assumed for all bins.

By changing the fractionation scheme of a certain treatment plan, the ID also changes. The basic mathematics of fractionation change are given in the Appendix. Combining Equation (2) with Equation (A-5) (Appendix), it is possible to calculate the integral dose for a given fraction regimen which is biologically equivalent to another fractionation scheme; the new integral dose to an organ j divided into m voxels (denoted with subscript 2), which is now biologically equivalent to another fractionation scheme (denoted with subscript 1), is here called EQID (Equivalent Integral Dose). Assuming that the bin size and the density remain the same, EQID is defined by the equation:

Ijerph 09 04223 i004
where D1kj and d1kj represents respectively the total dose and the fraction dose of voxel k in organ j, and α/β is the specific organ radiation sensitivity.

2.2. Dose Response Relationship for Radiation Induced Second Malignancies

There is great uncertainty regarding the dose-response relationship for induced secondary cancers in radiation therapy [18,19,20]. Currently, no accurate risk model exists and some approximations are unavoidably necessary to model data.

At present, simple models that predict risk for radiation-induced malignancies for radiation therapy are based on conventional concepts derived from radiation protection. In particular, a linear extrapolation of cancer risks from intermediate to very low doses appears to be the generally accepted methodology in ICRP [21] and BEIR [22]. In this case, most of the available information are derived from atomic bomb (A-bomb) survivor studies. These models currently provide satisfactory estimates of solid tumor risk considering a population that received a single whole body exposure. Data from A-bomb survivors show that the risk of solid tumors for total body irradiation is linear up to about 2 Gy, reaching about 8% [6,23,24].

Nevertheless, radiation protection models have to be applied with extreme care to radiotherapy patients, since doses and dose rates are quite different from those received by A-bomb survivors. In fact, A-bomb survivors received a single dose exposure of radiation, whereas radiotherapy patients receive fractionated therapy over an extended period, thus allowing for some repair of DNA damage. Further, above 1 Gy, the A-bomb survivor data are better fitted by linear-quadratic or linear-quadratic-exponential models [25].

In the past, different authors have used the dose-response relationship for A-bomb survivors to assess induced secondary cancers in radiation therapy by applying a correction dose-rate effectiveness factor (DREF) to take into account exposure to different doses and dose rates [6,26].

In the present study secondary cancer risk estimations were performed applying the mechanistic model proposed by Schneider et al. [27,28,29,30] for predicting cancer induction after radiotherapy, therefore including fractionation effects.

The model is based on the linear-quadratic formalism, where inductions of carcinomas and sarcomas are modeled separately and described in terms of analytical functions. The linear quadratic model of cell kill is combined with the linear-no-threshold model for radiation induced cancer at low dose in order to determine a possible dose-response relationship for radiation-induced solid cancer for radiotherapy doses.

According to this approach, for any three-dimensional inhomogeneous dose distribution, the excess absolute risk (EAR) can be calculated using the formalism described in [30] and based on the concept of organ equivalent dose, OED [28]. This model has already been successfully applied to hypofractionated radiation therapy [31]. The general properties of the model applied are discussed elsewhere [30] and will not be repeated here. However, in the following an overview of the formalism is provided.

2.3. Evaluation of the Excess Absolute Risk for Carcinoma Induction

According to the model proposed by Schneider et al. [27,28,29,30], if the dose-volume histogram V (d) of an organ or region of interest is known, the excess absolute risk in that organ, EARorg, can be calculated as follows:

Ijerph 09 04223 i005
where VT is the total organ volume and β is the slope of the dose-response curve at low dose. The quantity Ijerph 09 04223 i006 is also known as organ equivalent dose (OED) over the whole organ volume [28,30].

The site-specific parameter β is taken from [30] and listed in Table 1 for each organ of interest in the present study. The modifying function μ (agex, agea) in Equation (4) contains the population dependent variables:

Ijerph 09 04223 i007

In this form the function μ (agex, agea) depends on the age at exposure (agex), the attained age (agea) and two organ-dependent parameters γe and γa, taken from [30] and listed in Table 1.

Table Table 1. Parameters used for EAR calculation according to Equations (4)–(7). For each organ, the parameters β (expressed as excess case per 10,000 PY/Gy), γe, γa and R were taken from [30]. For esophagus R = 0.5 was assumed since no specific R value is reported in [30].

Click here to display table

Table 1. Parameters used for EAR calculation according to Equations (4)–(7). For each organ, the parameters β (expressed as excess case per 10,000 PY/Gy), γe, γa and R were taken from [30]. For esophagus R = 0.5 was assumed since no specific R value is reported in [30].
OrganΒ *γeγaα/β (Gy)R
3D-CRTSBRT
All Solid74.0−0.0242.3830.170
Lung8.00.0024.2330.830
Rectum0.73−0.0242.3830.560
Esophagus3.2−0.0021.930.500
Small Intestine10−0.0566.930.090
Liver2.4−0.0213.630.290
Bladder3.8−0.0242.3830.060

The risk equivalent dose, RED (D), in Equation (4) for carcinoma induction can be calculated as follows [30]:

Ijerph 09 04223 i008
where R is the repopulation/repair-ability of tissues between two dose fractions. The parameter α' is defined as follows from the linear quadratic model:
Ijerph 09 04223 i009
where α and β are site-specific radiosensitivity parameters, DT is the prescribed dose to the target volume, dT is the corresponding fractionation dose and D is the absorbed dose to the organ or region of interest.

In the limit of R = 0 (no repair), Equation (6) becomes:

Ijerph 09 04223 i010

The repopulation parameter R in Equation (6) characterizes the repopulation/repairability of the tissue between two dose fractions. This allows two limiting cases: (1) the first one (bell-shaped dose-response curve) is obtained by neglecting any repopulation/repair effect (R = 0) and thus fractionation. This approach was used for EAR assessment in SBRT. (2) The second case (plateau dose response curve) is obtained considering full repopulation/repair (R = 1). EAR for 3D-CRT was evaluated considering R values ranging from 0.06 and 0.83, derived from [30] and reported in Table 1. For esophagus R = 0.5 was assumed since no specific R value is reported in [30].

2.4. Patient Selection and Treatment Planning

Eight patients with intrathoracic lesions were planned and treated with SBRT with a single-dose of 23 Gy. The integral doses to PTV and non tumor tissue (NTT) were then calculated. NTT was determined as “healthy tissue volume—tumor volume”, i.e.,

Ijerph 09 04223 i011

For each patient, the planning volumes were well within the planning CT scans, so that the irradiated normal tissues were included in the CT volumes.

All SBRT treatment were re-planned in standard 3D-CRT with a 2 Gy/fraction regimen biologically equivalent to a single-dose 23 Gy fraction treatment. For the present study, the total 3D-CRT dose was approximated to 64 Gy, delivered as 32 × 2 Gy fraction scheme (Appendix). Finally, Equation (1) was applied to calculate the equivalent 3D-CRT integral dose both for NTT and for PTV. Tumor integral dose was evaluated considering a standard α/β ratio of 10 Gy while the normalization of non-tumor integral doses were calculated assuming an α/β ratio of 3 Gy. Dose normalization for OARs was performed taking into account most recent literature α/β ratio for different organs.

The choice of these values was inevitably arbitrary since the α/β concept is a non-stochastic concept referring to cell killing and at present it is not known which α/β value might be related to a stochastic effect as the induction of tumors.

Dose voxels were obtained by differential DVH. For the differential DVH to be calculated, the volumes of interest (PTV, body, OARs) are divided into a volume grid made of equal-sized bins. The doses received by the single volume elements were provided straightforwardly by TPSs. Differential DVHs for NTT and PTVs are reported in Figure 1 and Figure 2 for both techniques.

Ijerph 09 04223 g001 1024
Figure 1. (a) Non tumor tissue differential DVH for SBRT. (b) Non tumor tissue differential DVH for 3D-CRT.

Click here to enlarge figure

Figure 1. (a) Non tumor tissue differential DVH for SBRT. (b) Non tumor tissue differential DVH for 3D-CRT.
Ijerph 09 04223 g001 1024
Ijerph 09 04223 g002 1024

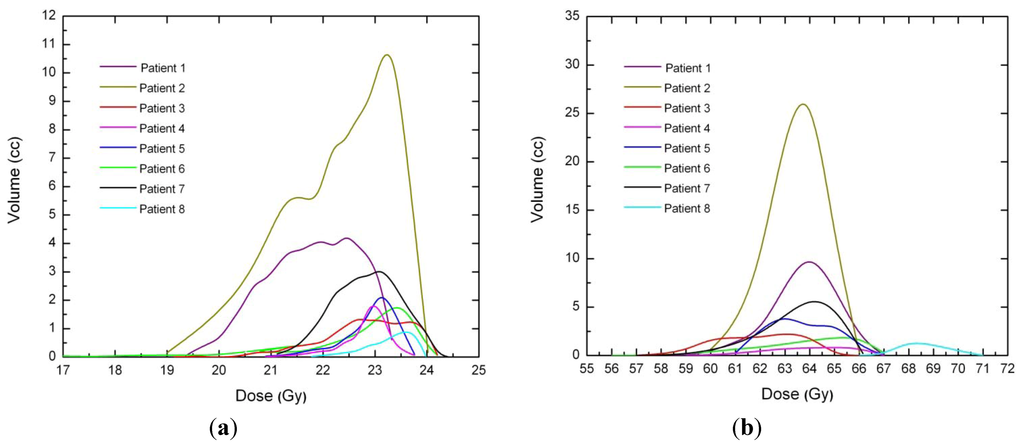

Figure 2. (a) PTV differential DVH for SBRT. (b) PTV differential DVH for 3D-CRT.

Click here to enlarge figure

Figure 2. (a) PTV differential DVH for SBRT. (b) PTV differential DVH for 3D-CRT.
Ijerph 09 04223 g002 1024

The maximum treated volume was 86.1 cm3 with a median volume of 33.2 cm3 (range between 1.5 cm3 and 86.1 cm3). CT images were acquired with a 4-D CT scanner (LightSpeed® RT and Advantage 4D® respiratory gating) and then registered in order to get a virtual dynamic volume which provided tumour displacements information. In all SBRT plans PTV was obtained expanding GTV (CTV = GTV) with a margin of 5–10 mm. CT slice thickness was 2.5 mm in all patients. For both techniques, OARs, PTV and Body minus PTV were then contoured by an experienced radiation oncologist. The structure “Body minus PTV” was used to calculate the overall non-tumour integral dose (NTID). All the structures were contoured in such a way as not to overlap with adjacent structures (i.e., every voxel was assigned to only one structure).

As for SBRT treatment plans, two to five monoisocentic non-coplanar arcs were used. In one case a treatment with eight non-coplanar fixed fields was planned. For all plans, prescription was 90% of the total dose (23 Gy). On the basis of the immobilization equipment, linear margins between BrainLab’s dynamic micromultileaf collimator and PTV were chosen to be 2 mm.

The same structures were then used for 3D-CRT treatment planning (TPS) with Eclipse® software (Eclipse 7.3.10 Varian, Palo Alto, CA, USA). A different number of coplanar fields were used depending upon the tumor localization. All treatment plans were performed for a 6 MV Varian DBX Linac. Linear margins between multileaf collimator and PTV was 5 mm in order to have adequate target coverage. Prescription dose ranged between 94% and 96% of the therapeutic dose (edge of the PTV encompassed by 89–91% isodose curve) and all plans were optimized in order to have mean target coverage at least 95% of the prescription dose.

As for the target, the same setup uncertainties for SBRT planning were considered for 3D-CRT. No margins were added for accounting ITV (Internal Target Volume) since the tumour volume was determined from 4D thoracic CT images, thus accounting for respiratory motion. CTV was obtained expanding GTV with a margin of 0.6–0.8 cm and PTV by a further expansion of 0.5–1.0 cm. A comparison between SBRT and 3D-CRT treatment plans is reported in Table 2.

Table Table 2. Geometrical features and fractionation schemes of SBRT and 3D-CRT plans generated with TPSs.

Click here to display table

Table 2. Geometrical features and fractionation schemes of SBRT and 3D-CRT plans generated with TPSs.
SBRT3D-CRT
Margins GTV → CTVnone0.6–0.8 cm
Margins CTV → PTV0.5–1.0 cm0.5–1.5 cm
Distance collimator-PTV2 mm5 mm
Prescription dose23 Gy × 1 fr to 90% isodose line2 Gy × 32 fr to 94–96% isodose line
Technique2–5 noncoplanar arcs or 8 fixed fields3–4 coplanar fields
Calculation algorithmPencilbeamPencilbeam
CollimatormicroMLCMLC
Linac Voltage6 MV6 MV

All plans were generated with commercially available treatment planning systems (TPS). 3D-CRT dose calculations were performed with Eclipse® implemented with pencil beam convolution algorithm and with BATHO methods for the inhomogeneity corrections. All SBRT plans were generated with BrainSCAN TPS (BrainSCANTM v.5.2.1, BrainLAB AG. Heimstetten, Germany) implemented with pencil beam algorithm and heterogeneity corrections as well.

All patients were treated with a 6 MV Varian DBX Linac since voltages below 6 MV are always recommended when irradiating tumors surrounded by lung because of the smaller penumbra widening. This recommendation is also suggested by the smaller difference found between the experimental and the predicted percentage depth doses (PDDs) inside the lung, when correction-based algorithms are used [32].

The dosimetric characteristics of both linear accelerators were measured during acceptance testing and commissioning and their consistency with dose calculated by respective TPSs were verified. Measurements have shown excellent agreement between dose delivered and that calculated by both TPSs, with absolute dose difference being consistently within 1.0% for Eclipse and within 0.9% for BrainLAB TPS. Analyses were performed by using a paired two-tailed Student t-test to determine if there was a significant difference (p ≤ 0.05) between the data.

3. Results and Discussion

As a result of the hypofractionated dose delivery scheme and the higher sensitivity to fractionation of late-responding tissues, in all SBRT plans the NTID increased compared to 3D-CRT plans (p = 0.002) (Table 3) while, as expected, no significant difference of ID to PTVs were observed between the techniques (Table 4), with p = 1. In fact, both for 3D-CRT and SBRT, the lesions were planned with the intent of providing the same target coverage and maintaining approximately the same tumor average dose.

Table Table 3. Non-Tumour Integral Dose (Gy × liter) and increase percentage of SBRT respect to 3D-CRT. Abbreviations: ID = integral dose; 3D-CRT = three-dimensional conformal radiotherapy; SBRT = stereotactic body radiation therapy; EQID = integral dose normalized. Statistically significant difference were found (p = 0.002).

Click here to display table

Table 3. Non-Tumour Integral Dose (Gy × liter) and increase percentage of SBRT respect to 3D-CRT. Abbreviations: ID = integral dose; 3D-CRT = three-dimensional conformal radiotherapy; SBRT = stereotactic body radiation therapy; EQID = integral dose normalized. Statistically significant difference were found (p = 0.002).
CasesNTT Volume3D-CRTSBRTID 3D-CRTSBRT EQID
(liters)TechniqueTechnique(2 Gy × 32)(23 Gy × 1, α/β = 3Gy)
Case 129.13 fixed fields8 fixed fields59.288.7 (+49.8%)
Case 223.42 fixed fields2 arcs67.9123.6 (+82%)
Case 335.34 fixed fields2 arcs31.851.5 (+61.9%)
Case 423.13 fixed fields3 arcs20.838.6 (+86%)
Case 525.13 fixed fields4 arcs40.278.0 (+83%)
Case 620.53 fixed fields4 arcs18.551.5 (+178%)
Case 730.83 fixed fields4 arcs33.9111.3 (+228%)
Case 820.53 fixed fields5 arcs18.533.6 (+81%)
Table Table 4. PTVs integral dose (Gy × liter). As expected, no significant difference of ID to PTVs were observed (p = 1).

Click here to display table

Table 4. PTVs integral dose (Gy × liter). As expected, no significant difference of ID to PTVs were observed (p = 1).
CasesPTVID 3D-CRTSBRT EQID
Volume (cl)(2 Gy × 32, α/β = 10 Gy)(23 Gy × 1, α/β = 10 Gy)
Case 1 473.022.90
Case 286.18.218.58
Case 312.50.860.76
Case 43.90.250.25
Case 514.40.860.88
Case 68.80.560.40
Case 723.71.521.50
Case 81.50.100.11

For each patient, EARs for the main organs of interest were calculated (Figure 3). As a general rule, EARs for SBRT patients are smaller than secondary cancer risk for patients that received standard conformal radiation therapy. Exceptions are represented by patients 5 and 6, where EARs for left lung (patients 5 and 6) and esophagus (patient 6) are higher for SBRT rather than 3D-CRT.

Secondary cancer risk for all solid tumors was also calculated for each patient (Figure 4). Except for patient 6, EARs for SBRT are systematically lower than EARs obtained for 3D-CRT.

As a general rule, non tumor integral dose depends on a number of factors. As reported by D’Souza [13] beam margin size and beam energy are the most relevant parameters, with smaller margin and higher energy consistently reducing NTID regardless of the number of beams. In the present study, given the same beam energy (6 MV), one would expect that the smaller margin used in SBRT (2 mm vs. 5 mm used in 3D-CRT) lead to a reduction of the NTID. Actually, the hypofractionated dose delivery scheme used in SBRT increases the (normalized) average dose to non tumor tissues, thus increasing the NTID as well; in fact, according to the dose normalization rule, low α/β ratio are more sensitive to higher dose per fraction. According to the same work, number of beams, beam direction and relative beam weight have little effect on NTID.

Ijerph 09 04223 g003 1024
Figure 3. Excess absolute cancer risk for each patient, for the OARs. EARs were calculated from DVHs according to Equation (1).

Click here to enlarge figure

Figure 3. Excess absolute cancer risk for each patient, for the OARs. EARs were calculated from DVHs according to Equation (1).
Ijerph 09 04223 g003 1024
Ijerph 09 04223 g004 1024
Figure 4. Excess absolute cancer risk for all solid tumors, for all patients.

Click here to enlarge figure

Figure 4. Excess absolute cancer risk for all solid tumors, for all patients.
Ijerph 09 04223 g004 1024

When evaluating radiation dose to healthy tissues, especially at sites remote from the treatment region, radiation leakage may represent an important factor, increasing integral dose to normal structures. Specifically, two main sources of leakage can be considered to increase the patient NTID: transmission of radiation through the collimator leaves and leakage through the primary collimation system. It is generally believed that leakage through the leaves of a conventional collimator might carry a significant contribution to peripheral integral dose (leakage is about 2.5% for 6 MV photon beams).

More specifically, leakage radiation might play a crucial role in some special techniques. A recent work by Petti et al. [33] showed that peripheral dose in CyberKnife radiosurgery is due largely to leakage radiation. They measured the radiation dose at different distances outside the treatment field finding that for distances larger than 40 cm from the field edge radiation leakage is the dominant component and is directly related to the number of MU delivered. Dose values due to leakage radiation resulted two to five times higher than those measured for the comparable gamma knife brain treatment, and up to a factor of four times larger those measured in the IMRT experiment.

Over the last decade integral dose has aroused a lively interest due to its alleged correlation with secondary cancers. Radiation-induced secondary malignancies are rare, but since treatment techniques improve and clinical outcomes are improving accordingly, secondary tumor risk after oncologic treatment might represent a relevant issue. Of course, the risk of secondary cancer induction from radiation treatments is likely not to be worrisome within a few years after treatment given the latency period of malignancies, but radiation-induced secondary cancer might be a relevant concern for those (especially young) patients whose progression free survival is greater than 5 years. Different works show that disease-free survival is rapidly increasing for patients which undergo SBRT; Uematsu and et al. [34] reported 5-year results of treatment of 50 patients with stage I NSCL finding a 3-year survival rate being as high as 66%, while Nagata et colleagues [35] found overall survival rates after 3 years for stage IA and IB lung cancer being 83% and 72%, respectively.

In the present paper we used a dose-response relationship for cancer induction that includes fractionation effects, therefore suitable for radiotherapy applications. Under the assumptions made and according to the model used our study indicates that despite the fact that for all patients integral dose is higher for SBRT treatments than 3D-CRT, secondary cancer risk associated to SBRT patients is significantly smaller than that calculated for 3D-CRT. This suggests that integral dose may not be a good estimator for quantifying cancer induction. This is imputable to the fact that in the case of SBRT the dose-response curve for carcinoma induction is highly non-linear. In the present study we assumed a bell-shaped behavior, consequently leading to lower cancer induction rates. Furthermore, integral dose does not consider fractionation at all, and fractionation is supposed to be directly correlated to an increased cancer risk [31]. Our findings are in agreement with a recent study by Schneider and colleagues [31] showing that hypofractionated radiotherapy has the potential for secondary cancer reduction.

It is worth noting that the results presented in this study are valid under the assumptions made: neither neutron dose nor leakage radiation accounted and risk calculations performed on the plane of interest for the treatment. In the present analysis a limitation of DVH computation might be represented by the use of Pencil Beam algorithm, which is known to have some drawbacks in low density media. Nevertheless, possible dosimetric inaccuracies are likely to affect DVH calculations (and the following DVH-related evaluations) in both TPS in the same magnitude. Despite the use of more advanced dose evaluations algorithm is encouraged for lung treatments (anisotropic analytical algorithm and collapsed cone convolution), pencil beam algorithm is still widely used and implemented in the clinical practice both for standard 3D-CRT and SBRT of lung malignancies [36,37]. In such case, voltages below 6 MV are always recommended and dose evaluations with heterogeneity corrections are necessary [38,39].

Finally, some consideration about the application of the linear-quadratic (LQ) model are needed. In fact, in radiotherapeutic applications, the LQ formalism is the tool most commonly used for quantitative predictions of dose/fractionations dependencies. Questions may arise when using the LQ model to describe dose response in the high dose per fraction range.

At present, the LQ model is reasonably well validated (experimentally and theoretically) and its use is reasonable up to several Grays per fraction. In addition, there is a fairly wide range of studies for which it is possible to test concordance with the LQ predictions in the 2 to 20 Gy range [35]. Different works show that different quantitative in vivo endpoints are consistent with LQ model over a wide range of doses per fraction, including those of interest in hypofractionation [40].

At higher doses the LQ model might have deficiencies and experimental survival curves suggest a purely linear rather than a continuation of the linear-quadratic shape (continuously bending) so LQ model may not properly evaluate the tumor dose, predicting more cell kill.

Caution is advised in the presence of bio-mathematical model which use radiobiological parameters. In fact, although mathematical models are widely used to compare different radiotherapy technique and different fractionation scheme, the radiobiological parameters on which they are funded are still not completely optimized, thus unavoidably introducing some degree of approximation.

4. Conclusions

Our results indicate that although NTID was greater in SBRT than in 3D-CRT, secondary cancer risk associated to SBRT patients is significantly smaller than that calculated for 3D-CRT. This suggests that integral dose may not be a good estimator for quantifying cancer induction.

The development of reliable secondary cancer risk models seems to be a key issue in fractionated radiotherapy and comparisons of integral dose received with 3D-CRT and other special techniques are strongly encouraged.

Appendix

Linear Quadratic Model and BED Formalism

In the classic Linear Quadratic (LQ) model, the cell fraction surviving an irradiation (SF) is described by the following function:

Ijerph 09 04223 i012
where d is the fraction dose (delivered as a single acute fraction), and α and β are tissue specific parameters which characterize the cell intrinsic radiosensitivity (the constant α is the loge cell kill per Gy of the initial linear component and β is the loge cell kill per Gy2 of the quadratic component of the survival curve). The α/β ratio represents the relative importance of the linear and quadratic terms. Early reacting tissues such as the skin, the intestinal epithelium, and tumours have a large α/β value of about 10 Gy, whereas late reacting tissues such as the brain and bone have a smaller α/β value of 2–3 Gy.

Given n fractions of the same dose d, the total surviving fraction SFtot is given by the product of the single surviving fractions (multiplication rule for independent events):

Ijerph 09 04223 i013

Thus the total biological effect E can be expressed as:

Ijerph 09 04223 i014

Biological Effective Dose (BED) is defined as the biological effect E divided by α:

Ijerph 09 04223 i015

BED has the dimensions of dose, and represents a quantity by which different fractionation regimens can be compared. In fact, two fractionation schedules are taken as “equivalent” if they give the same radiobiological effect. Two irradiation schedules with different fractionation (n1d1 and n2d2) can be compared by equating the BEDs for the two regimens:

Ijerph 09 04223 i016

Equation (A-5) was used to calculate the equivalent tumour dose for a standard fractionation regimen (3D-CRT), with d2 = 2Gy, which is biologically equivalent to a single-dose (n1 = 1) fraction SBRT treatment with d1 = 23Gy. If the tumour BED between 3D-CRT and SBRT is to be maintained constant, considering an α/β = 10Gy, Equation (A-6) becomes:

Ijerph 09 04223 i017

For the present study, D3D-CRT was approximated to 64 Gy, delivered as 32 × 2 Gy fraction scheme.

Conflict of Interest

The authors declare no conflict of interest.

Acknowledgements

The authors would like to thank Uwe Schneider for his helpful suggestions. His valuable comments helped to significantly improve the manuscript.

References

  1. Van Leeuwen, F.E.; Travis, L.B. Second Cancers. In Cancer: Principles and Practice of Oncology; Devita, V.T., Hellman, S., Rosenberg, S.A., Eds.; Lippincott, Williams & Wilkins: Philadelphia, PA, USA, 2004. [Google Scholar]
  2. Hall, E.J. Review of Essential and Topical Radiobiology. In Radiobiological Modelling in Radiation Oncology; Dale, R., Jones, B., Eds.; The British Institure of Radiology: London, UK, 2007. [Google Scholar]
  3. Clarke, M.; Collins, R.; Darby, S.; Davies, C.; Elphinstone, P.; Evans, E.; Godwin, J.; Gray, R.; Hicks, C.; James, S.; et al. Effects of radiotherapy and of differences in the extent of surgery for early breast cancer on local recurrence and 15-year survival: An overview of the randomised trials. Lancet 2005, 366, 2087–2106. [Google Scholar]
  4. Brenner, D.J.; Curtis, R.E.; Hall, E.J.; Ron, E. Second malignancies in prostate carcinoma patients after radiotherapy compared with surgery. Cancer 2000, 88, 398–406. [Google Scholar] [CrossRef]
  5. Followill, D.; Geis, P.; Boyer, A. Estimates of whole-body dose equivalent produced by beam intensity modulated conformal therapy. Int. J. Radiat. Oncol. Biol. Phys. 1997, 38, 667–672. [Google Scholar] [CrossRef]
  6. Hall, E.J.; Wuu, C.-S. Radiation-induced second cancers: The impact of 3D-CRT and IMRT. Int. J. Radiat. Oncol. Biol. Phys. 2003, 56, 83–88. [Google Scholar] [CrossRef]
  7. Karlsson, P.; Holmberg, E.; Samuelsson, A.; Johansson, K.-A.; Wallgren, A. Soft tissue sarcoma after treatment for breast cancer—A Swedish population-based study. Eur. J. Cancer 1998, 34, 2068–2075. [Google Scholar] [CrossRef]
  8. Nguyen, F.; Rubino, C.; Guerin, S.; Diallo, I.; Samand, A.; Hawkins, M.; Oberlin, O.; Lefkopoulos, D.; De Vathaire, F. Risk of a second malignant neoplasm after cancer in childhood treated with radiotherapy: Correlation with the integral dose restricted to the irradiated fields. Int. J. Radiat. Oncol. Biol. Phys. 2008, 70, 908–915. [Google Scholar] [CrossRef]
  9. Greco, C.; Wolden, S. Current status of radiotherapy with proton and light ion beams. Cancer 2007, 109, 1227–1238. [Google Scholar] [CrossRef]
  10. Engels, H.; Wambersie, A. Relative biological effectiveness of neutrons for cancer induction and other late effects: A review of radiobiological data. Rec. Res. Cancer Res. 1998, 150, 54–87. [Google Scholar] [CrossRef]
  11. Khan, F.M. The Physics of Radiation Therapy; Lippincott Williams & Wilkins: Philadelphia, PA, USA, 2003; pp. 429–430. [Google Scholar]
  12. Hermanto, U.; Frija, E.K.; Lii, M.J.; Chang, E.L.; Mahajan, A.; Woo, S.Y. Intensity-modulated radiotherapy (IMRT) and conventional three-dimensional conformal radiotherapy for high-grade gliomas: Does IMRT increase the integral dose to normal brain? Int. J. Radiat. Oncol. Biol. Phys. 2007, 67, 1135–1144. [Google Scholar] [CrossRef]
  13. D’Souza, W.D.; Rosen, II. Nontumor integral dose variation in conventional radiotherapy treatment planning. Med. Phys. 2003, 30, 2065–2071. [Google Scholar]
  14. Mock, U.; Georg, D.; Bogner, J.; Auberger, T.; Pötter, R. Treatment planning comparison of conventional, 3D conformal, and intensity-modulated photon (IMRT) and proton therapy for paranasal sinus carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2004, 58, 147–154. [Google Scholar] [CrossRef]
  15. Pirzkall, A.; Lohr, F.; Höss, A.; Wannenmacher, M.; Debus, J. Comparison of intensity modulated radiotherapy with conventional conformal radiotherapy for complex-shaped tumors. Int. J. Radiat. Oncol. Biol. Phys. 2000, 48, 1371–1380. [Google Scholar] [CrossRef]
  16. Lian, J.; Mackenzie, M.; Joseph, K.; Pervez, N.; Dundas, G.; Urtasun, R.; Pearcey, R. Assesement of extended-field radiotherapy for stage IIIC endometrial cancer using three-dimensional conformal radiotherapy, intensity-modulated radiotherapy, and helical tomotherapy. Int. J. Radiat. Oncol. Biol. Phys. 2008, 70, 935–943. [Google Scholar] [CrossRef]
  17. Lung Cancer STARS (Stereotactic Radiotherapy vs. Surgery) Trial, International Randomized Study to Compare CyberKnife Stereotactic Radiotherapy with Surgical Resection in Stage I Non-Small Cell Lung Cancer. Principal Investigator: Jack A. Roth, Department of Thoracic and Cardiovascular Surgery, MD Anderson Cancer Center. Clinical Trials.gov Identifier: NCT00840749. Available online: http://clinicaltrials.gov/ct2/show/NCT00840749 (accessed on 23 April 2012).
  18. Aird, E.G.A. Second cancer risk, concomitant exposures and IRMER. Brit. J. Radiol. 2004, 77, 983–985. [Google Scholar]
  19. Trott, K.R. Second Cancer after Radiotherapy. In Basics Clinical Radiobiology; van der Kogel, A., Joiner, M., Eds.; Hodder Arnold Publication: London, UK, 2008. [Google Scholar]
  20. Xu, X.G.; Bednarz, B.; Paganetti, H. A review of dosimetry studies on external-beam radiation treatment with respect to second cancer induction. Phys. Med. Biol. 2008, 53, R193. [Google Scholar] [CrossRef]
  21. The 2007 recommendations of the International Commission on Radiological Protection. ICRP Publication 103. Ann. ICRP 2007, 37, 1–332.
  22. Health Risks from Exposure to Low Levels of Ionizing Radiation: BEIR VII, Phase 2; National Academy Press: Washington, DC, USA, 2006.
  23. Shimizu, Y.; Kato, H.; Schull, W.J. Studies of the mortality of A-bomb survivors. 9. Mortality, 1950–1985: Part 2. Cancer mortality based on the recently revised doses (DS86). Radiat. Res. 1990, 121, 120–141. [Google Scholar]
  24. Pierce, D.A.; Shimizu, Y.; Preston, D.L.; Vaeth, M.; Mabuchi, K. Mabuchi, K. Studies of the mortality of atomic bomb survivors. Report 12, Part I. Cancer: 1950–1990. Radiat. Res. 1996, 146, 1–27. [Google Scholar] [CrossRef]
  25. Schneider, U. Modelling the risk of secondary malignancies after radiotherapy. Genes 2011, 2, 1033–1049. [Google Scholar] [CrossRef]
  26. Ruben, J.D.; Davis, S.; Evans, C.; Jones, P.; Gagliardi, F.; Haynes, M.; Hunter, A. The effect of intensity-modulated radiotherapy on radiation-induced second malignancies. Int. J. Radiat. Oncol. Biol. Phys. 2008, 70, 1530–1536. [Google Scholar] [CrossRef]
  27. Schneider, U.; Kaser-Hotz, B. Radiation risk estimates after radiotherapy: Applications of the organ equivalent dose concept to plateau dose-response relationships. Radiat.Environ. Biophys. 2005, 44, 235–239. [Google Scholar] [CrossRef]
  28. Schneider, U.; Zwahlen, D.; Ross, D.; Kaser-Hotz, B. Estimation of radiation-induced cancer from three-dimensional dose distributions: Concepts of organ equivalent dose. Int. J. Radiat. Oncol. Biol. Phys. 2005, 61, 1510–1515. [Google Scholar] [CrossRef]
  29. Schneider, U. Mechanistic model of radiation-induced cancer after fractionated radiotherapy using the linear quadratic formula. Med. Phys. 2009, 36, 1138–1143. [Google Scholar] [CrossRef]
  30. Schneider, U.; Sumila, M.; Robotka, J. Site-specific dose-response relationship for cancer induction from the combined Japanese A-bomb and Hogkin cohorts for doses relevant to radiotherapy. Theor. Biol. Med. Model. 2011, 8, 27. [Google Scholar] [CrossRef]
  31. Schneider, U.; Besserer, J.; Mack, A. Hypofractionated radiotherapy has the potential for second cancer reduction. Theor. Biol. Med. Model. 2010, 7, 4. [Google Scholar] [CrossRef]
  32. Carrasco, P.; Jornet, N.; Duch, M.A.; Weber, L.; Ginjaume, M.; Eudaldo, T.; Jurado, D.; Ruiz, A.; Ribas, M. Comparison of dose calculation algorithms in phantoms with lung equivalent heterogeneities under conditions of lateral electronic disequilibrium. Med. Phys. 2004, 31, 2899–2911. [Google Scholar]
  33. Petti, P.L.; Chuang, C.F.; Smith, V.; Larson, D.A. Peripheral doses in CyberKniferadiosurgery. Med. Phys. 2006, 33, 1770–1779. [Google Scholar] [CrossRef]
  34. Uematsu, M.; Shioda, A.; Suda, A.; Fukui, T.; Ozeki, Y.; Hama, Y.; Wong, J.R.; Kusano, S. Computer tomography guided frameless stereotactic radiotherapy for stage I nonsmall cell lung cancer: A 5 year experience. Int. J. Radiat. Oncol. Biol. Phys. 2001, 51, 666–670. [Google Scholar]
  35. Nagata, Y.; Takayama, K.; Matsuo, Y.; Norihisa, Y.; Mizowaki, T.; Sakamoto, T.; Sakamoto, M.; Mitsumori, M.; Shibuya, K.; Araki, N.; et al. Clinical outcomes of a Phase I/II study of 48 Gy of stereotactic body radiation therapy in 4 fractions for primary lung cancer using a stereotactic body frame. Int. J. Radiat. Oncol. Biol. Phys. 2005, 63, 1427–1431. [Google Scholar] [CrossRef]
  36. Herman, T.D.L.F.; Vlachaki, M.T.; Herman, T.S.; Hibbitts, K.; Stoner, J.A.; Ahmad, S. Stereotactic body radiation therapy (SBRT) and respiratory gating in lung cancer: Dosimetric and radiobiological considerations. J. Appl. Clin. Med. Phys. 2010, 11, 1. [Google Scholar]
  37. Hamamoto, Y.; Kataoka, M.; Yamashita, M. Local control of metastatic lung tumors treated with SBRT of 48 Gy in four fractions: In comparison with primary lung cancer. Jpn. J. Clin. Oncol. 2010, 40, 125–129. [Google Scholar] [CrossRef]
  38. Ekstrand, K.E.; Barnes, W.H. Pitfalls in the use of high energy x-rays to treat tumours in the lung. Int. J. Radiat. Oncol. Biol. Phys. 1990, 18, 249–252. [Google Scholar] [CrossRef]
  39. Hunt, M.A.; Desobry, G.E.; Fowble, B.; Coia, L.R. Effects of low-density lateral interfaces on soft-tissue doses. Int. J. Radiat. Oncol. Biol. Phys. 1997, 37, 475–482. [Google Scholar] [CrossRef]
  40. Brenner, D.J. The linear-quadratic model is an appropriate methodology for determining isoeffective doses at large doses per fraction. Semin. Radiat. Oncol. 2008, 18, 234–239. [Google Scholar] [CrossRef]
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
