Int. J. Environ. Res. Public Health 2013, 10(6), 2348-2369; doi:10.3390/ijerph10062348

Article
The Soundscape Quality in Some Urban Parks in Milan, Italy
Giovanni Brambilla 1,*, Veronica Gallo 1 and Giovanni Zambon 2
1
CNR Institute of Acoustics and Sensors “O.M. Corbino”, Via del Fosso del Cavaliere 100, Roma 00133, Italy; E-Mail: veronica.gallo@idasc.cnr.it
2
Deparment of Earth and Environmental Sciences, University of Milan-Bicocca, Piazza della Scienza 1, Milan 20126, Italy; E-Mail: giovanni.zambon@unimib.it
*
Author to whom correspondence should be addressed; E-Mail: giovanni.brambilla@idasc.cnr.it; Tel.: +39-06-4548-8030; Fax: +39-06-4548-8061.
Received: 3 March 2013; in revised form: 17 April 2013 / Accepted: 28 May 2013 /
Published: 6 June 2013

Abstract

: Urban parks play an important role in preserving and promoting the health of citizens who are often exposed to noise pollution and the stress of daily life. The present study describes the main results obtained from a survey performed in five urban parks in Milan. Measurements of the acoustic environment were carried out in 29 sites together with interviews with 231 users on certain aspects of the parks not limited to merely sound. Acoustic data show that the surveyed parks mostly do not comply with the noise limit issued by the Italian legislation on protected areas. The unweighted 1/3-octave spectrum centre of gravity G and LA50 perform satisfactorily in discriminating among the acoustic environments. Such clear distinction was not observed in the subjective ratings on the perceived quality of the soundscape, likely due to the influence by non-acoustic factors that act as mediators in the assessment. This hypothesis is supported by the collected data on the perceived quality of quietness, which was rated worse than that of the soundscape. Comparing acoustic data with ratings, the perceived quality of the total environment was found to be less dependent on LAeq than soundscape and quietness.
Keywords:
soundscape; perceived quality; urban parks

1. Introduction

Since the introduction of the “soundscape” concept by R.M. Schafer in the 1970s [1], many projects, e.g., the COST Action “Soundscape of European Cities and Landscapes” [2], and studies have dealt with the perception of the acoustic environment in a context, that is considering the interrelationships between person, activity, and place, in space and time. Thus, soundscape research is a step forward in noise control, as it does not conceive noise per se but rather reconceives the conditions and purposes of its production, perception, and evaluation, accounting for a human-centred point of view [3]. For this reason the soundscape approach treats the acoustic environment as a multi-dimensional entity composed of several audible sources, some of which enhance and others diminish the effects on overall soundscape quality [4]. In 2003, Lercher and Schulte-Fortkamp reviewed the relevance of soundscape research for the assessment of noise annoyance at the community level [5]. The soundscape approach can provide new insights into the existing annoyance data and new holistic research strategies having as a central issue the improvement of the relationship between the “aural space” and the living environment [3].

An interesting application of the soundscape approach deals with parks, particularly those in urban areas. Because Nature plays a vital role in human health and well-being, parks play an essential health-promoting role by providing individuals access to Nature [6,7]. Indeed, parks can help individuals recover, at least temporarily, from stress [8], and they offer opportunities for relaxation from the noise pollution to which the population is exposed in daily life. Unfortunately, urban parks are often surrounded by noisy areas due to the sound emission of road traffic, industries, and other sources. The extent of the park has an important influence on the tranquillity that can be achieved due to effects of distance in reducing traffic noise emanating from the boundary roads and the provision of a high percentage of natural features [9].

Awareness of the preservation and improvement of the environment quality in urban parks is increasing, as also addressed by the European Directive 2002/49/EC on the assessment and management of environmental noise [10], which, among its objectives, requires the preservation of environmental noise quality where it is good.

The studies adopting the soundscape approach in analysing the acoustic environment in urban green areas have been increasing in the last few years; for instance, see [4,11,12,13,14,15,16]. Among the several outcomes, good soundscape quality was found to be achieved if the road traffic noise exposure is below 50 dB(A) during daytime [4]. The importance of masking by natural sounds, such as sound produced by water [17,18], in improving the quality of the city park soundscape has also been reported [13]. Considering the non-acoustic factors, the reasons for coming and the activities carried out in the park have been shown to influence the perceived restoration achieved [12,19].

In Italy, there are few studies on city parks. The first investigation available in literature on the soundscape in urban parks was performed in three green areas in Naples [20]. The study found that noise levels were greatly influenced by the traffic on the surrounding busy roads, and the reported annoyance was also influenced by the subject’s expectation of hearing a sound in a specific environment.

The present study is an extension of the investigation carried out in Naples [20], as it was carried out using a similar experimental protocol, but the questionnaire used for the interviews to park users was modified and expanded on the basis of the previous experience. In particular, self-assessment of noisiness perceived at home and at workplace was added to investigate the influence of these environments on the ratings given on the other items. Measurements of the acoustic environment were performed in five parks in Milan. These parks differ from those in Naples because of the socio-cultural and climatic context and because the answer options provided for questions dealing with non-acoustic factors were different. The set of acoustic data and subjective ratings was more extensive than the investigation in Naples, and the statistical analysis was carried out in greater detail.

2. Method

The five parks selected in Milan are listed in Table 1 together with the predominant sound sources present during the survey and the sound monitoring. The locations of the parks within the city are shown in Figure 1.

Table Table 1. Urban parks in Milan surveyed in the study.

Click here to display table

Table 1. Urban parks in Milan surveyed in the study.
ParkCodeLocationPredominant sound sources
ForlaniniFSuburbanRoad traffic and aircraft fly-overs
NordNSuburbanRoad traffic and aircraft fly-overs
SempioneSCentral areaRoad traffic
TrennoTSuburbanRoad traffic and aircraft fly-overs
VeneziaVCentral areaRoad traffic
Ijerph 10 02348 g001 1024
Figure 1. Locations of the five parks in Milan.

Click here to enlarge figure

Figure 1. Locations of the five parks in Milan.
Ijerph 10 02348 g001 1024

Forlanini Park (F in Figure 1) is an urban garden on the outskirts of Milan close to Linate airport. This park has an area of 75 ha with no fence and is ideal for sporting activities such as jogging and biking. The “Lambro” river flows in the western part of the park and the “Salesina” pond is located in the eastern part.

Milan North Park (N in Figure 1) is a regional park of 600 ha in the northern suburbs of Milan. The park has 350 ha of green, including wooded areas, bushes, hedges and a small stretch of water. Free playgrounds are present together with several sports facilities (cycle track, Breda stadium, giant chess board, baseball, soccer, and basketball).

Sempione Park (S in Figure 1) is a historical urban park in downtown Milan. The park has an area of 38.6 ha and is completely bounded. Because of its location, it plays an important role in arts and free time for the citizens of Milan. Due to its proximity to the “Sforzesco” castle, the park is also a tourist attraction. The park area includes the Palace of Arts, the Civic Arena, the Milan Aquarium and the White Tower.

Trenno Park (T in Figure 1) has an area of 59 ha and is located in the western zone of Milan near the hippodrome. This park is a small part of a wider protected natural area (46,300 ha). Due to its flat surface, the park is ideal for training in athletics and biking. The park is crossed by an asphalt road beside a traditional fountain. Inside, there are facilities such as a botanical trail, playgrounds and bars.

Porta Venezia Park (V in Figure 1), currently named the Indro Montanelli (a famous Italian writer) Public Garden, is a historical park of 17.2 ha in the central area of Milan. It was the first park dedicated to collective entertainment and is completely bounded. Inside the park there are botanical trails, three playgrounds and two areas where dogs are allowed. Many sports can be practiced in the park, and it often hosts exhibits and public events. The Milan Planetarium and the Milan Natural Science Museum are inside the park.

Field Survey

In each of the five parks, locations most frequented by visitors were selected to measure the acoustic environment. The measurements were carried out during daylight hours on weekdays and Saturdays, as reported in Table 2. All the measurements were taken in summer (June and July) during sunny weather with light or no wind. In the chosen periods, the parks were largely frequented due to the hot climate and because of school holidays. In the Forlanini and Trenno parks, located in suburban zones and away from residential areas, only two sites were selected for acoustic measurements because the areas frequented by visitors were small and not largely attended. This was the reason for the limited number of interviewees (see Table 3).

Table Table 2. Sites selected for the acoustic measurements in the urban parks.

Click here to display table

Table 2. Sites selected for the acoustic measurements in the urban parks.
ParkCodeNo. of sites
WeekdaySaturdayTotal
ForlaniniF2-2
NordN639
SempioneS6410
TrennoT2-2
VeneziaV6-6
Total22729
Table Table 3. Subjects interviewed in the urban parks.

Click here to display table

Table 3. Subjects interviewed in the urban parks.
ParkCodeNo. of subjects
WeekdaySaturdayTotal
ForlaniniF15-15
NordN335891
SempioneS443074
TrennoT14-14
VeneziaV37-37
Total14388231

To match as closely as possible the subjective responses of park users to their experienced sound exposure in the park, face-to-face interviews were carried out with those present around the site where the acoustic monitoring was in progress simultaneously with the sound measurement. For this reason, the acoustic monitoring at each site lasted approximately 30 min, during which the operator took note of the predominant sound sources and of those producing noise events clearly audible in the ambient noise. Different sound sources were noticed during the noise measurements, including non-natural sources such as road traffic noise and aircraft fly-over.

The acoustic data collected included the time history of 1 s LAeq, the corresponding 1/3-octave band spectrum, the equivalent sound level LAeq in reference to the measurement time, some statistical levels (LA10, LA50, LA90, LA95), the LA10-LA90 difference as a descriptor of the “acoustic climate”, the number of sound events exceeding by 3 dB the statistical level LA50 (an index that correlates well with the number of vehicles heard at close distance [21]), and the unweighted spectrum centre of gravity G, proposed as a good measure for the degree of pollution of the acoustic environment with traffic noise [20] and calculated according to the following relationship [22]:

Ijerph 10 02348 i001
where Li is the unweighted sound pressure level in dB, measured for each 1/3-octave band-width Bi from 80 up to 8,000 Hz, as this frequency range includes most of the urban sonic environments.

The interviewees were selected randomly, and data were collected from 231 respondents, as reported in Table 3. The characteristics of the interviewees are summarised in Table 4, where the percentage in reference to the overall sample is also given.

Table Table 4. Characteristics of the respondents in the urban parks and percentage in reference to the total sample.

Click here to display table

Table 4. Characteristics of the respondents in the urban parks and percentage in reference to the total sample.
ParkCodeAgeGender
18–3030–60>60MaleFemale
ForlaniniF25887
NordN4732125437
SempioneS3528114727
TrennoT56386
VeneziaV917112017
Total98884513794
(42.4%)(38.1%)(19.5%)(59.3%)(40.7%)

The interviews were carried out according to a questionnaire modified from that applied in the above-mentioned study in Naples [20]. The questionnaire consisted of sixteen questions covering the following items:

  • interviewee’s personal data (age, gender, occupational status);

  • presence in the park: (i) preferred days to visit the the park (weekdays or weekends), (ii) weekly frequency (once, twice, all days, or occasionally), (iii) average duration of visit (less than one hour, between one and two hours, or more than two hours);

  • main reason for frequenting the park selected among seven answer options (reading, children, pets, walking, sport, nature, or tranquillity);

  • other urban parks frequented;

  • importance of certain aspects of a park that affect its pleasantness, namely, vegetation, clean air, cleanliness, security and quietness (explained to interviewees as the absence of “disturbing” sounds [23]);

  • rating the quality of the above aspects for each surveyed park, given on a scale from 1 (bad) to 5 (very good);

  • sounds expected to be heard in the park (voices, road traffic, aircraft fly-overs, or dogs barking) and annoyance due to these sounds given on a scale from 1 (not at all annoyed) to 5 (very much annoyed);

  • perceived quality of the area as a whole (explained to interviewees as the total environment) and of its soundscape (explained to interviewees as the perception of the acoustic environment), given on a 5-point scale from 1 (bad) to 5 (very good);

  • assessment of noisiness at home and at work, given on a 5-point scale from 1 (not at all) to 5 (very much).

3. Results and Discussion

3.1. Acoustic Environment

The variability of LAeq values measured in the selected sites chosen in the five parks is shown in Figure 2, where the box plot also reports the distribution of LA95 together with the number of measurement sites N for each park. The highest levels are observed for Venezia Park (V), located downtown and surrounded by busy roads, whereas Trenno Park (T) shows the lowest levels, likely due to its suburban location. It should be noted that, according to the Italian legislation on acoustic zoning [24], parks are classified as protected areas and that the daytime LAeq (6–22 h) must not exceed the limit of 50 dB(A). Figure 2, where this limit is represented by the green line, shows that the limit was exceeded at most of the surveyed sites. For instance, in Venezia Park the LAeq range is 56–70 dB(A) and the LA95 is never below 50 dB(A). Excluding the two parks where few measurements were taken (Forlanini and Trenno), the standard deviations of LAeq values were similar (approximately 6 dB). In addition, the distributions of the LAeq values show a slightly positive skewness (0.4–0.7), that is, the bulk of the values lie to the left of the mean. For comparison Figure 2 also shows the LAeq and LA95 variability observed in the previous study carried out in the three parks in Naples [20]. The values in these parks are within the range of those measured in the parks of Milan.

Ijerph 10 02348 g002 1024

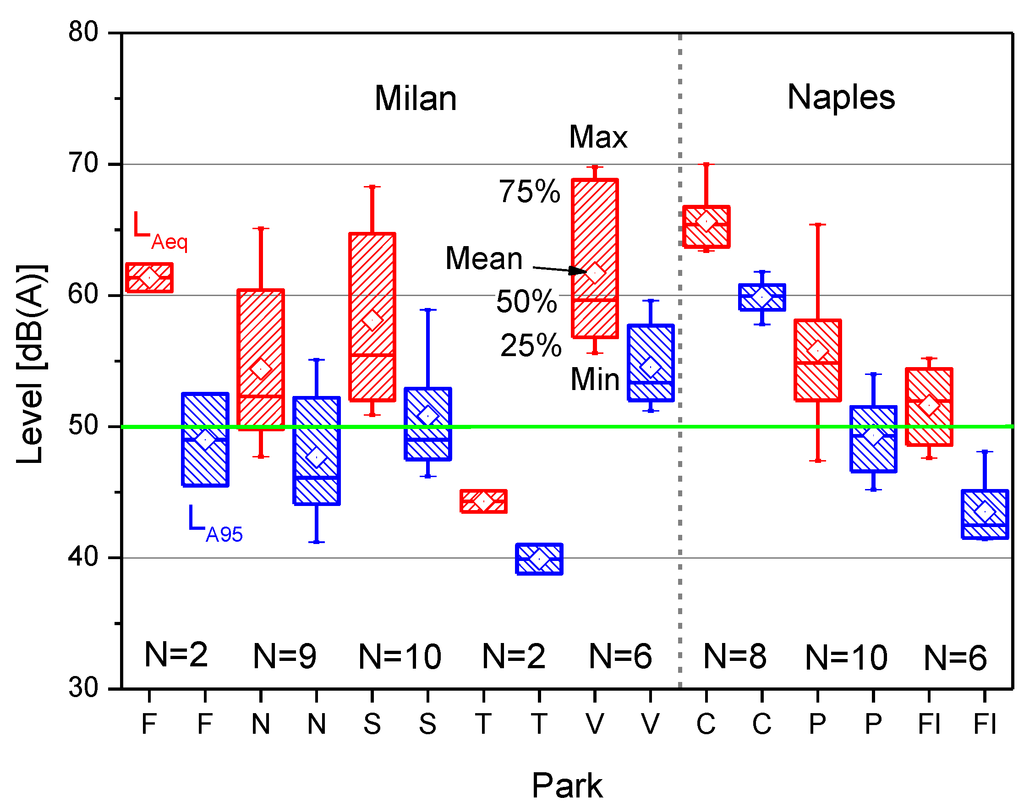

Figure 2. Box plot of LAeq (red) and LA95 (blue) levels measured in the parks in Milancompared with values observed in Naples [20]. (N = number of sites, green line = Italian daytime LAeq limit).

Click here to enlarge figure

Figure 2. Box plot of LAeq (red) and LA95 (blue) levels measured in the parks in Milancompared with values observed in Naples [20]. (N = number of sites, green line = Italian daytime LAeq limit).
Ijerph 10 02348 g002 1024

Because several sound events, including those produced by non-natural sources, were recorded in the ambient noise, the resulting soundscape may have been perceived to lose its feeling of quietness. These events were detected by the exceedance of the value LA50 + 3 dB, a threshold well correlated with the number of sound events produced by vehicles heard at close distance [21]. Indeed, most of the surveyed parks were surrounded by busy roads. The number of such events is plotted versus LAeq in Figure 3, which also shows the linear regression of data and the adjusted R2. The LAeq values increase with the number of events at a rate of 3 dB for every increment of approximately 10 events.

Ijerph 10 02348 g003 1024

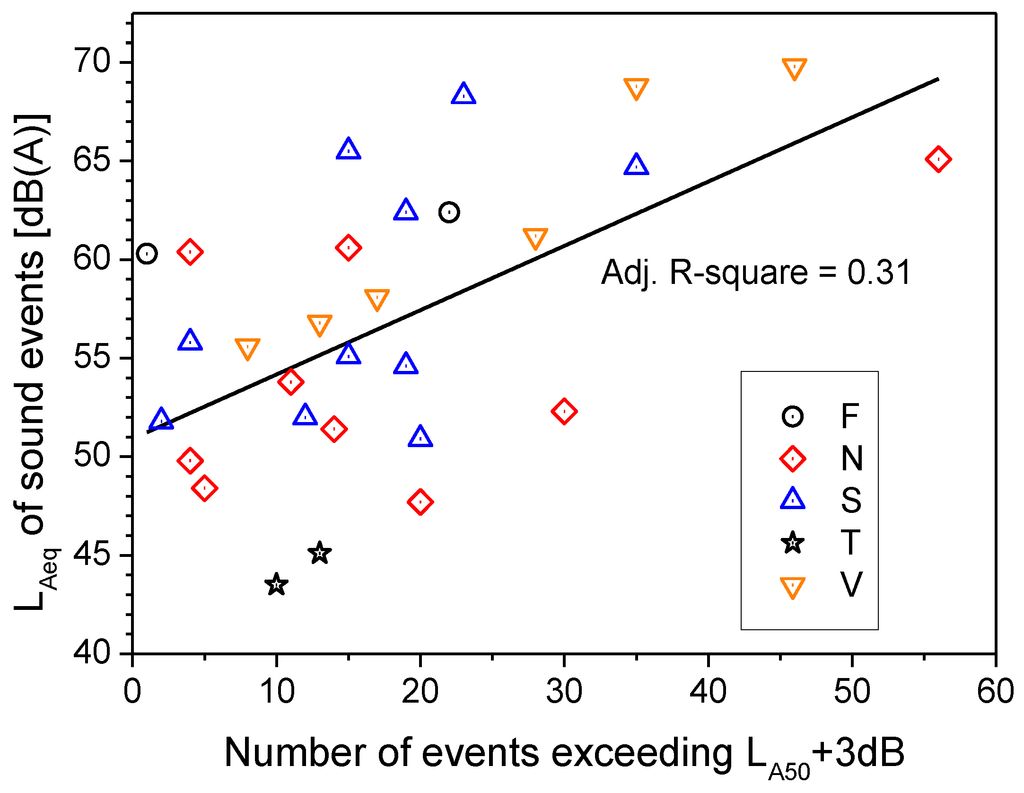

Figure 3. LAeq and number of sound events observed in the parks.

Click here to enlarge figure

Figure 3. LAeq and number of sound events observed in the parks.
Ijerph 10 02348 g003 1024

To look for common features of the acoustic environments of the parks, the sound descriptors LAeq, LA10, LA50, LA90, LA95, the difference LA10-LA90, and the unweighted spectrum centre of gravity G determined for the 29 sites were used as inputs for the hierarchical cluster analysis. This analysis was performed using the SPSS software on the above data normalised by the following algorithm:

Ijerph 10 02348 i002
where xt is the normalised value with a range between C and D (set to C = 0 and D = 1) of the input variable x, which is between the maximum and minimum values xmax and xmin. The Ward algorithm for agglomerative clustering was applied; at each step, the method merges the pairs of clusters with minimum cluster distance. Because the Ward method was selected, the squared Euclidean distance was set as a metric of distance between pairs of observations. The range of solutions for clustering was chosen between eight and two groups, and that corresponding to five clusters was chosen for a straightforward comparison with the belonging of the sites to each park. Analysis of variance (ANOVA) showed that all seven input variables were significant for the above clustering. To check the robustness of the clustering output, the K-means procedure was also applied, taking as initial centroids those resulting from the hierarchical clustering and the same number of clusters. The results were identical to those previously obtained, confirming the robustness of the chosen clustering. As shown in Table 5, there is no complete correspondence between the sites in each park and their cluster membership. The majority of sites in Venezia Park are in cluster 1, whereas all the sites in Trenno Park and the majority of those in Nord Park are in cluster 3, whose groups had the highest number of sites.

Table Table 5. Percentage of sites in parks occurring in each cluster.

Click here to display table

Table 5. Percentage of sites in parks occurring in each cluster.
ParkCluster membership
12345
(8 sites)(2 sites)(12 sites)(5 sites)(2 sites)
F50.050.0000
N22.2066.711.10
S10.010.040.020.020.0
T0010000
V66.70033.30

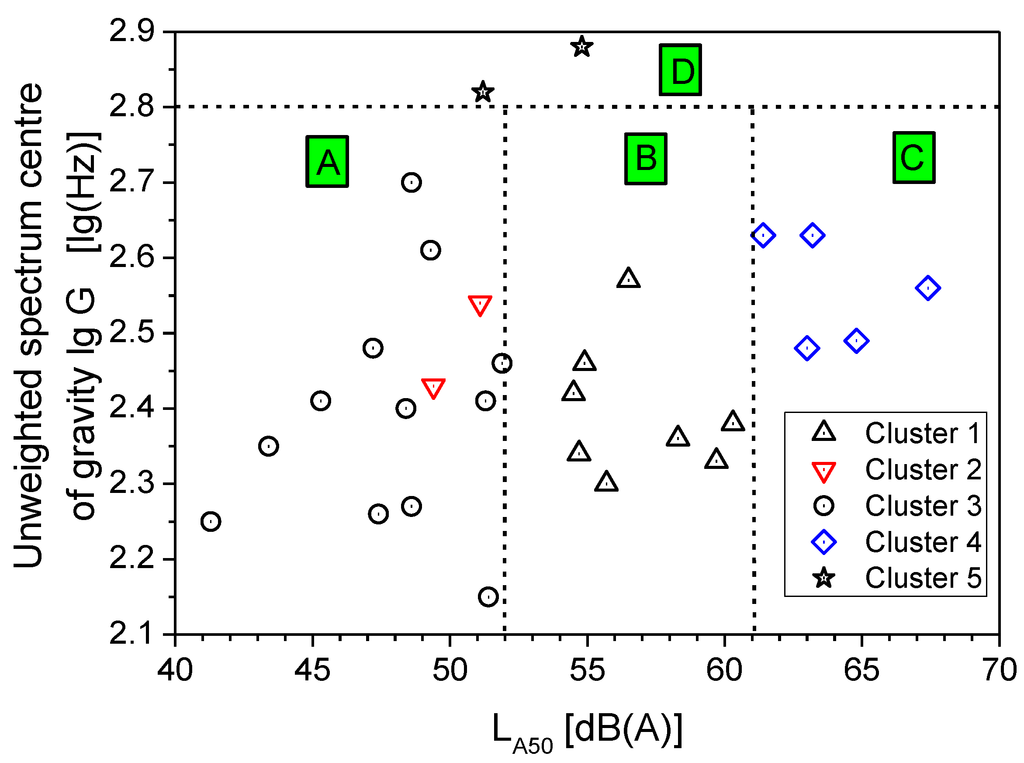

Among the sound descriptors used for clustering, the statistical level LA50 has been indicated as highly important for assessing the quality of a quiet rural soundscape [21]. The LA50 values measured in the parks are plotted in Figure 4 versus the unweighted 1/3-octave spectrum centre of gravity lg(G) for all the sites. Considering the cluster memberships of the sites, a distinction can be made according to the intervals for the lg(G) and LA50 values. Four regions in particular, named A to D in the plot, can be distinguished according to the limit values reported in Table 6, where the percentage of sites in each cluster is given for every region. The values of lg(G) > 2.8, already proposed as indicators of good quality for a quiet rural soundscape [21], correspond in this study to the sites in Sempione Park, which were far from the border and the surrounding roads. In addition, the measurements were taken on Saturday, when the road traffic is usually less busy than that on weekdays.

Ijerph 10 02348 g004 1024
Figure 4. Centre of gravity G versus LA50 and cluster memberships of sites.

Click here to enlarge figure

Figure 4. Centre of gravity G versus LA50 and cluster memberships of sites.
Ijerph 10 02348 g004 1024
Table Table 6. Intervals of the centre of gravity G and LA50 and the percentage of cluster memberships.

Click here to display table

Table 6. Intervals of the centre of gravity G and LA50 and the percentage of cluster memberships.
RegionCluster membership
12345
(8 sites)(2 sites)(12 sites)(5 sites)(2 sites)
AlgG ≤ 2.8 and LA50 ≤ 52010010000
BlgG ≤ 2.8 and 52 < LA50 ≤ 611000000
ClgG ≤ 2.8 and LA50 > 610001000
DlgG > 2.80000100

3.2. Subjective Responses

The data from the questionnaires collected in all five parks show that 61% of the interviewees reported a preference for staying in the park on weekdays and 73% frequented the park weekly (from once per week up to all days) for a visit longer than 2 h (53% of subjects). Considering these responses, together with the observed habit to visit the same park most frequently (63% of subjects), it is likely that the collected subjective ratings were outcomes of their consolidated experience of the park rather than of occasional experiences.

The most frequent reasons for visiting the park were, in descending order, seeking tranquillity (29%), walking (15%), kids and nature (14%), reading (12%), sport (9%) and pets (7%), as shown in Table 7, where the data are reported for each park and are differentiated between weekdays and Saturdays for the Nord and Sempione parks. With the sole exception of Forlanini Park, where the main reason for being in the park was largely pets, tranquillity was the predominant motivation, although this motivation was equal to that of sport at Trenno Park. Differences in motivations were observed between weekdays and Saturdays for the two parks monitored on these days (Nord and Sempione). In Nord, the motivation “tranquillity” was reported by 43% of the respondents on Saturdays and by 20% on weekdays, whereas in Sempione the corresponding values were 33% (Saturdays) and 20% (weekdays).

For the pleasantness of a park, the aspects considered most and least important are reported in Figure 5. As shown, 32% of the respondents reported vegetation as the most important aspect, whereas quietness was rated the least important by 42% of the subjects. For respondents going to the park for tranquillity, quietness was rated the most and least important aspect by 8% and 39% respectively. From this outcome, the feeling of tranquillity appears to be influenced not only by quietness, but also by other non-acoustic features, such as the visual feature [25].

Table Table 7. Occurrence of main motivation for being in the park.

Click here to display table

Table 7. Occurrence of main motivation for being in the park.
ParkMotivation to be in the park
ReadingChildrenPetsWalkingSportNatureTranquillity
F1193010
NWeekday2616576
Saturday141771325
Total310213122031
SWeekday9848339
Saturday63142410
Total15115125719
T1201424
V88061212
Total28321635223266
Ijerph 10 02348 g005 1024

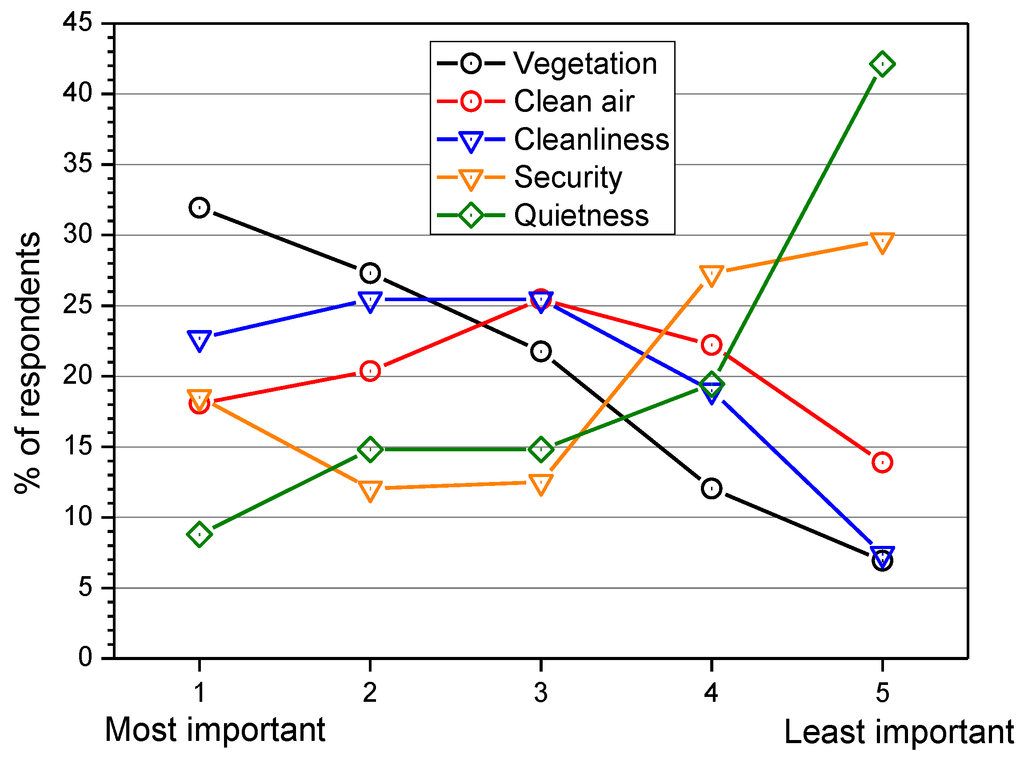

Figure 5. Importance of certain aspects for a park’s pleasantness.

Click here to enlarge figure

Figure 5. Importance of certain aspects for a park’s pleasantness.
Ijerph 10 02348 g005 1024

As shown in Figure 6, the quality of the above five aspects in the surveyed parks was largely judged positively by the interviewees. For instance, vegetation and quietness were rated “good” by 45% and 31% of subjects, respectively. Considering the 19 respondents (8% of the total sample, see Figure 5) who rated quietness as the most important aspect of a park for its pleasantness, 58% judged the perceived quality of this aspect as “good” (26%) and “very good” (32%) in the surveyed park.

Voices and dogs barking were the sounds most expected in the park (79% and 63% of respondents. respectively), but noise from aircraft fly-over and road traffic was also expected (33% and 29%, respectively) because of the environmental context within which the parks are located. Nevertheless, these sounds were reported as “highly annoying” by 19% (road traffic) and 16% (aircraft fly-overs) of the respondents, percentages much higher than those observed for dogs barking (5%) and voices (4%) as shown in Figure 7. Thus, as shown in other surveys [4,17], natural sounds (voices and dogs barking in the present study) produce less annoyance than technological sounds (road traffic and aircraft fly-overs in the present study).

Ijerph 10 02348 g006 1024
Figure 6. Perceived quality of certain aspects of the parks.

Click here to enlarge figure

Figure 6. Perceived quality of certain aspects of the parks.
Ijerph 10 02348 g006 1024
Ijerph 10 02348 g007 1024

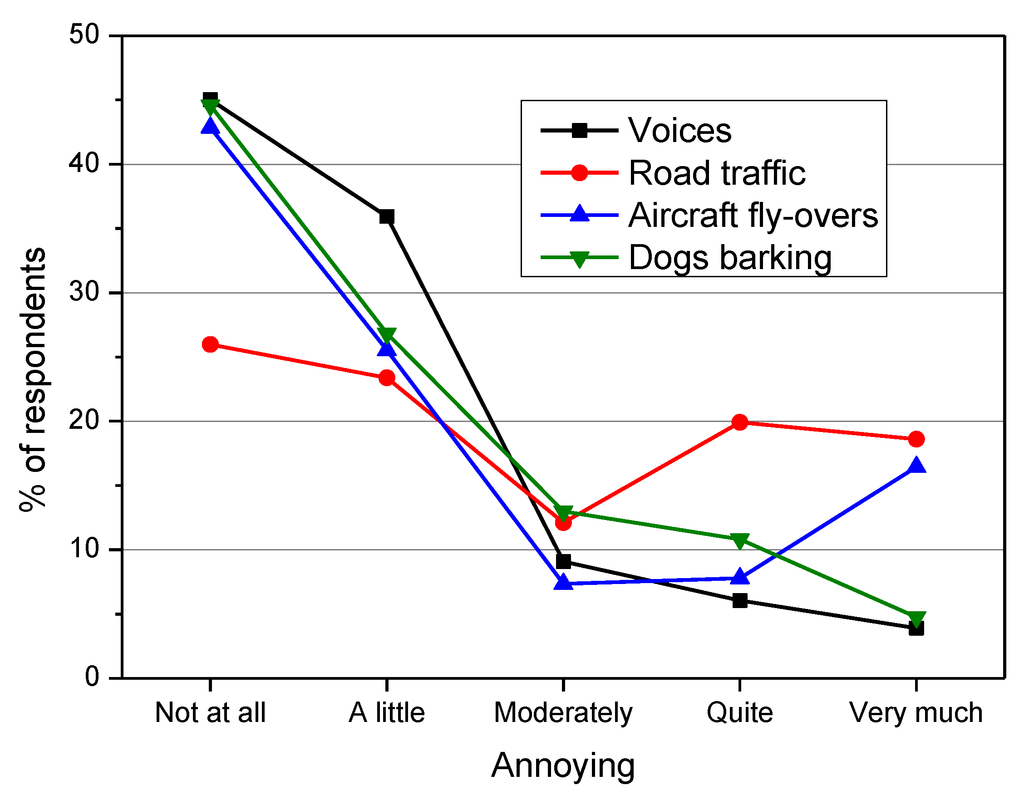

Figure 7. Reported annoyance of sounds heard in the parks.

Click here to enlarge figure

Figure 7. Reported annoyance of sounds heard in the parks.
Ijerph 10 02348 g007 1024

The 231 × 9 data matrix formed by the subjective ratings obtained for the nine variables dealing with the quality of vegetation, clean air, cleanliness, security and quietness, and reported annoyance due to voices, road traffic, aircraft fly-overs and dogs barking was subjected to principal component analysis (PCA). The Kaiser-Meyer-Olkin measure of sampling adequacy (MSA test) showed values less than 0.7 for all the variables and for the overall MSA (MSA = 0.58). Thus, the PCA was considered meaningless and not carried out.

Figure 8 reports the perceived quality of the soundscape versus the quality of quietness in terms of the number of respondents (proportional to the area of circles in Figure 8) for each combination of attributes. The same attribute given for quietness and soundscape (circles along the diagonal) was reported by 99 subjects (43%). Forty-one respondents (18%) judged the quality of quietness better than the soundscape (region B in Figure 8) and 91 (39%) found otherwise (region A in Figure 8). The obtained Spearman’s rank order correlation between quietness and soundscape quality, rs = 0.250, was significant at the 0.01 level.

Ijerph 10 02348 g008 1024
Figure 8. Perceived quality of soundscape versus that of quietness.

Click here to enlarge figure

Figure 8. Perceived quality of soundscape versus that of quietness.
Ijerph 10 02348 g008 1024

This result confirms that soundscape has a wider meaning than quietness, the latter being more directly related to either no loud or unwanted sounds. Because sound levels within urban parks are frequently not low, it seems more appropriate to evaluate them from the point of view of “acoustic quality” rather than of “quietness” only [26].

Figure 9 shows the perceived quality of the soundscape versus the quality of the total environment in terms of the number of respondents for each combination of attributes (area of circles proportional to this number). The same attribute for environment and soundscape (circles along the diagonal) was reported by 120 subjects (52%), 99 (43%) judged the quality of the total environment better than the soundscape (region B in the plot) and 12 (5%) found otherwise (region A in the plot). The obtained Spearman’s rank order correlation between total environment and soundscape quality, rs = −0.061, was not significant. From this outcome, the perceived quality of the total environment seems to be determined not only by the soundscape but also by other several factors and their interactions concurring to form the sensorial perception.

Considering the motivation of being in the park, Figure 10 shows that, on average, the perceived quality of the total environment (black boxes with heights corresponding to ±1 standard deviation) is judged better than that of the soundscape (blue boxes) and has lower variability. The median values are around the attribute “good”. Low ratings on the quality of the total environment were observed more frequently for the “sport” motivation, perhaps due to the lack of facilities for such activities, and the corresponding assessment of the perceived soundscape quality was even worse, similar to that given for the “reading” motivation. This result is most likely due to the interference of sounds in the concentration required for reading. Regarding the “tranquillity” motivation, no significant differences (at the 95% confidence level) were observed between ratings on the perceived quality of the total environment and soundscape given on weekdays and Saturdays in the Nord and Sempione parks.

Ijerph 10 02348 g009 1024
Figure 9. Perceived quality of the soundscape versus that of the total environment.

Click here to enlarge figure

Figure 9. Perceived quality of the soundscape versus that of the total environment.
Ijerph 10 02348 g009 1024
Ijerph 10 02348 g010 1024
Figure 10. Perceived quality of the soundscape and total environment versus motivations for visiting the parks.

Click here to enlarge figure

Figure 10. Perceived quality of the soundscape and total environment versus motivations for visiting the parks.
Ijerph 10 02348 g010 1024

The reported noisiness of the environments where the interviewees live and work is plotted in Figure 11 for each attribute, where the most frequent response was “a little noisy” for both home and workplace. For comparison with the perceived quality of the soundscape, Figure 12 shows the statistics of the responses for every level of noisiness. The median values are independent of the environment (home and work) and correspond to the “good” attribute. The ratings given on the perceived quality of the total environment are more positive, between “good” and “very good” (Figure 13). The median values correspond to the “good” attribute, with the exception of a very noisy workplace, for which the rating on the perceived quality of the total environment is better (median value equals to “very good”).

Ijerph 10 02348 g011 1024

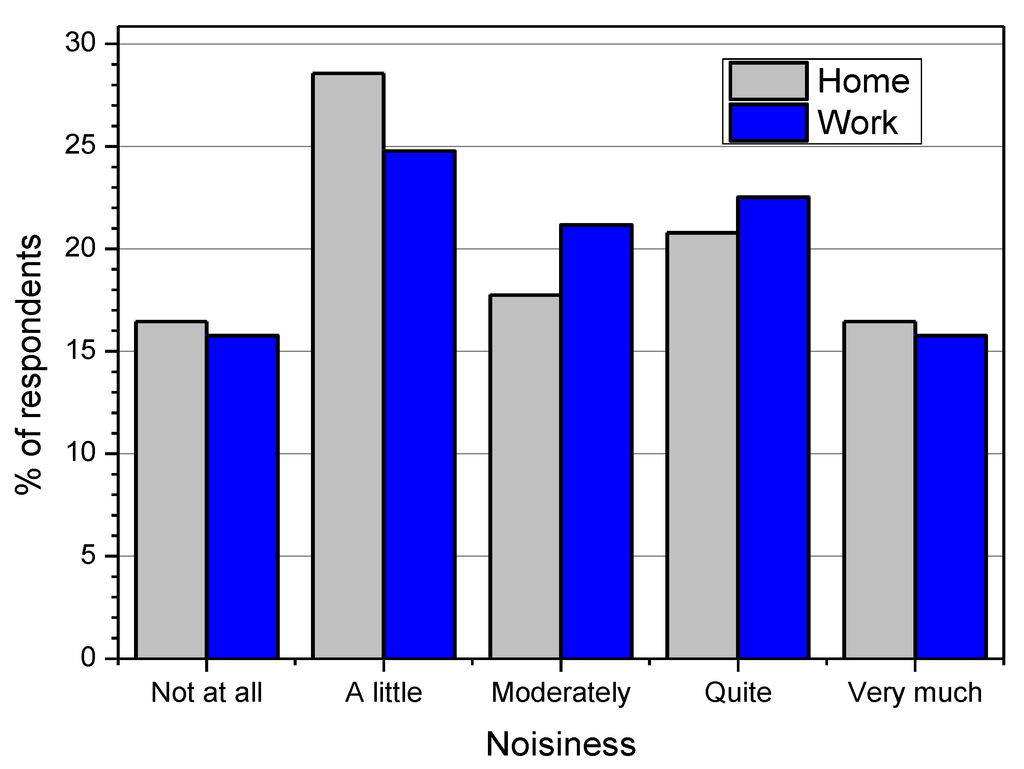

Figure 11. Noisiness of home and workplace reported by the interviewees.

Click here to enlarge figure

Figure 11. Noisiness of home and workplace reported by the interviewees.
Ijerph 10 02348 g011 1024
Ijerph 10 02348 g012 1024

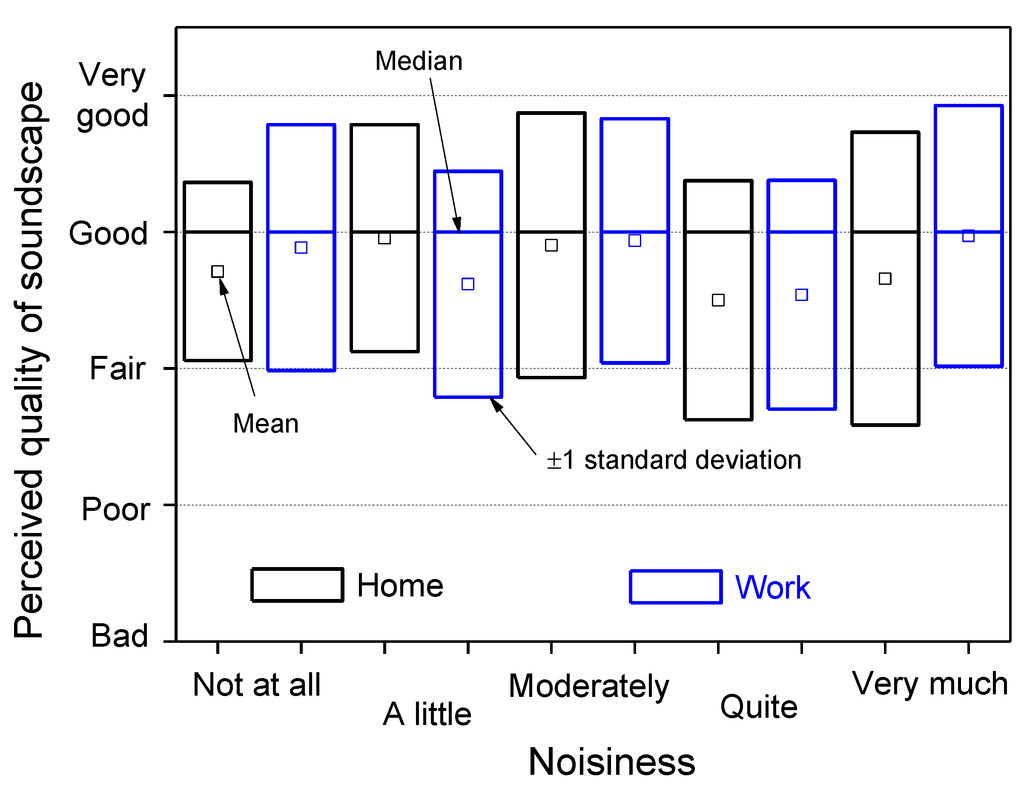

Figure 12. Perceived quality of soundscape versus noisiness at home and workplace.

Click here to enlarge figure

Figure 12. Perceived quality of soundscape versus noisiness at home and workplace.
Ijerph 10 02348 g012 1024

3.3. Relationship between Acoustic Measures and Subjective Responses

The subjective ratings and the acoustic measurements were compared to reveal potential relationships. The data on “good” and “very good” perceived quality of quietness were pooled, and the corresponding percentages of respondents (black diamonds in Figure 14) are plotted versus LAeq. The perceived quality decreases with increasing LAeq, as shown by the linear regression line (dashed black line) at a rate of approximately 7% for every increase of 3 dB in LAeq.

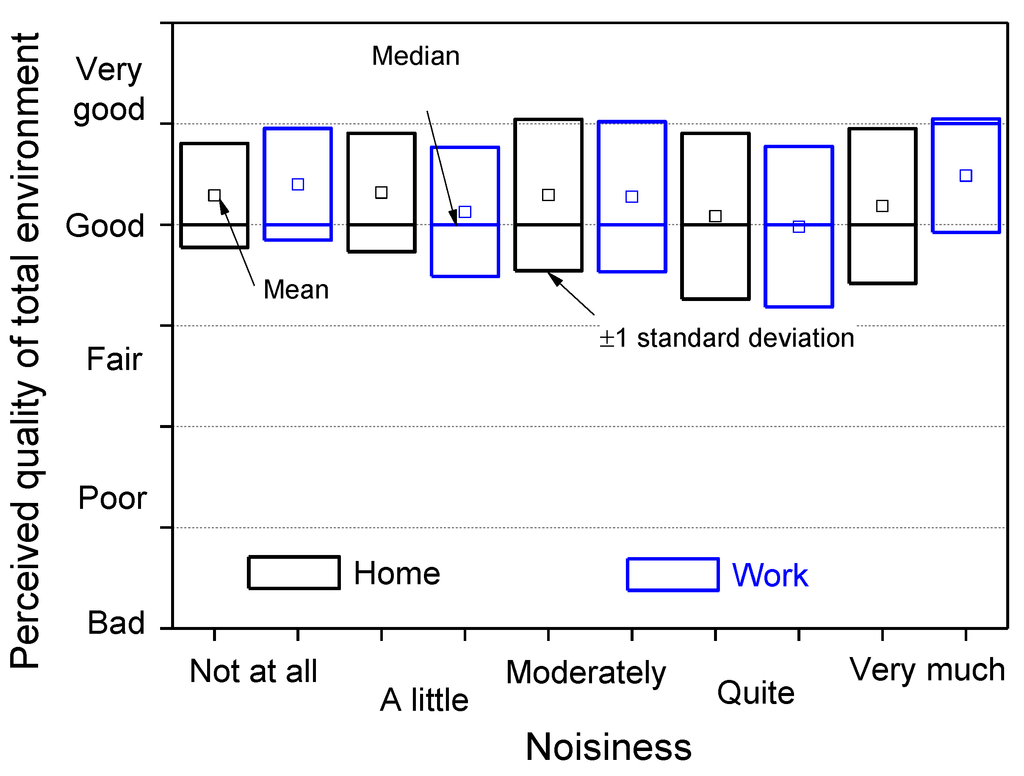

Ijerph 10 02348 g013 1024
Figure 13. Perceived quality of total environment versus noisiness at home and at workplace.

Click here to enlarge figure

Figure 13. Perceived quality of total environment versus noisiness at home and at workplace.
Ijerph 10 02348 g013 1024
Ijerph 10 02348 g014 1024

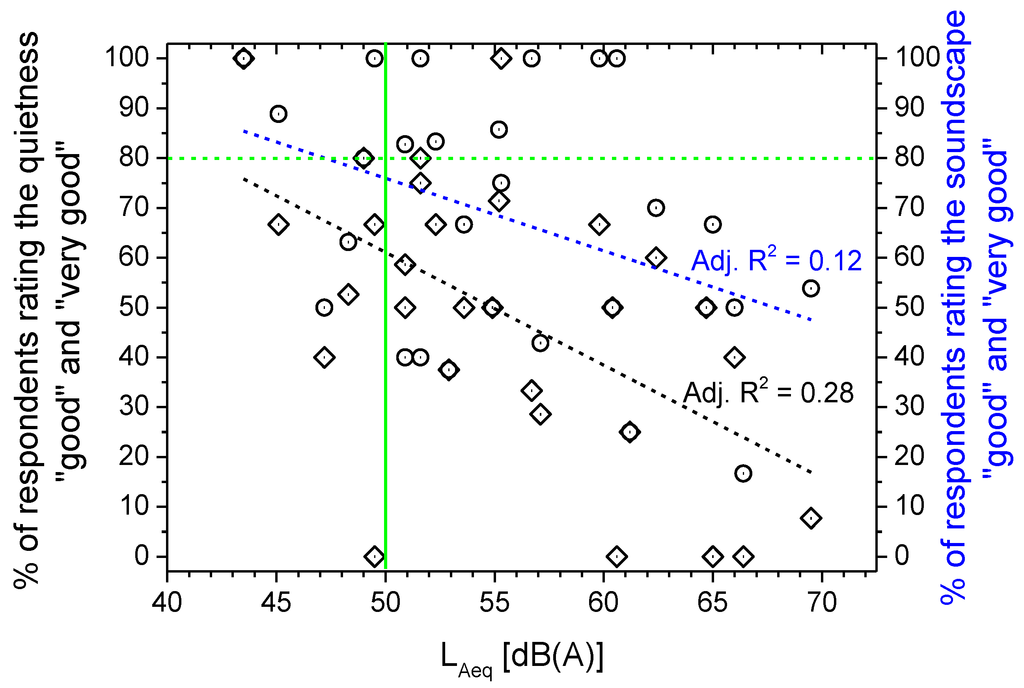

Figure 14. Perceived quality of quietness and soundscape versus LAeq of the parks.

Click here to enlarge figure

Figure 14. Perceived quality of quietness and soundscape versus LAeq of the parks.
Ijerph 10 02348 g014 1024

The noise limit of 50 dB(A) for day-time (6–22 h) LAeq established by the Italian legislation for parks [24] is indicated by the green line in Figure 14. Of the interviewees exposed to LAeq levels below this limit, 57% rated the perceived quality of quietness in the parks as “good” and “very good”, whereas the percentage falls to 47% for those exposed to higher LAeq levels.

For each of the 29 sites monitored in the parks, Figure 14 also shows the percentage of subjects reporting a “good” and “very good” perceived quality of the soundscape (blue circles) plotted versus the corresponding LAeq. Comparing these data with those corresponding to the perceived quality of quietness (black diamonds) at the same LAeq level, the soundscape was rated better than quietness in 19 out of 29 sites, worse in three and equal in seven. The good soundscape quality decreases with increasing LAeq, as shown in Figure 14 by the linear regression line (dashed blue line), at a rate of approximately 4% for every increase of 3 dB in LAeq, which is less steep than that observed for quietness. In only 38% of the sites was the percentage of respondents above 80% (dashed green line in Figure 14), the threshold established by the Swedish Environmental Protection Agency for defining a “quiet area” [27], and this percentage decreases to 14% if the Italian day-time limit of LAeq = 50 dB(A) (green line in Figure 14) is considered.

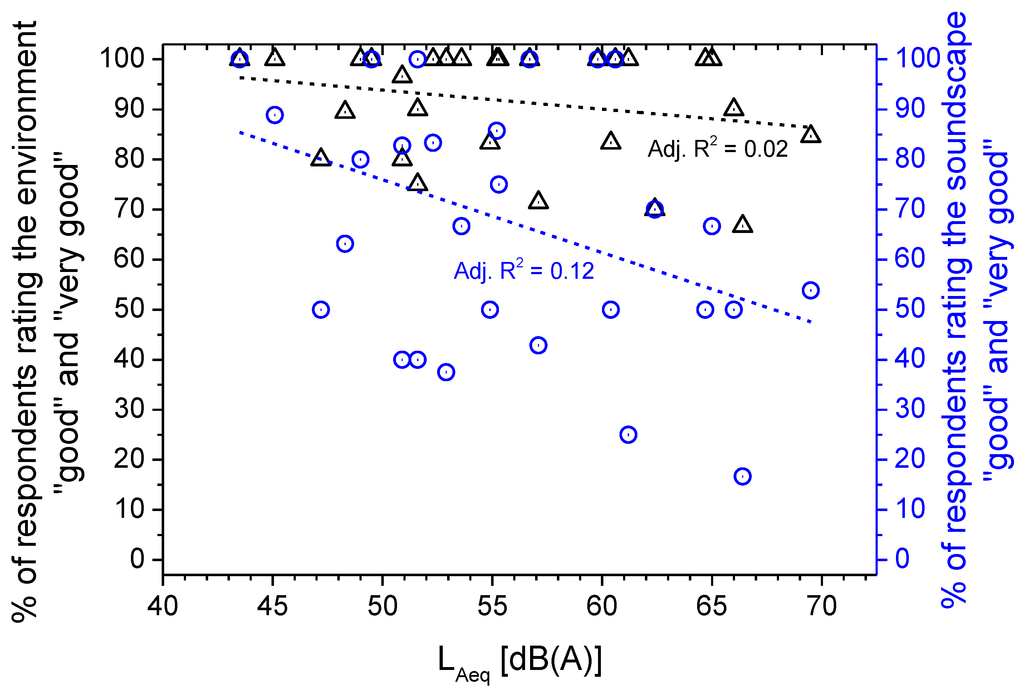

Figure 15 shows the percentage of subjects reporting “good” and “very good” perceived quality of the total environment (black triangles) plotted versus the corresponding LAeq. Comparing these data with those corresponding to the perceived quality of the soundscape (blue circles) at the same LAeq level, the total environment was rated better than the soundscape in 21 of 29 sites, being worse at one site and equal at seven. The good quality of the total environment decreases with increasing LAeq, as shown in Figure 15 by the linear regression line (dashed black line), at a rate of approximately 1% for every increase of 3 dB in LAeq, which is even less steep than that observed for both soundscape and quietness.

Ijerph 10 02348 g015 1024
Figure 15. Perceived quality of soundscape and of total environment versus LAeq of the parks.

Click here to enlarge figure

Figure 15. Perceived quality of soundscape and of total environment versus LAeq of the parks.
Ijerph 10 02348 g015 1024

Further analysis dealt with a comparison of the subjective assessment of the perceived quality of the soundscape with the classification of the acoustic environments described in Figure 4 based on specific values of LA50 and lg(G). The results, reported in Figure 16, show that ratings obtained for the sites within region C have a median value, corresponding to “fair” quality, worse than that of the other three regions, which corresponds to “good”. It has to be point out that region C has the greatest boundary value for LA50 (61 dB(A)) and values of log(G) below 2.8. However, the subjective ratings do not provide a distinction among the regions as clear as that obtained by the LA50 and lg(G) descriptors, as large overlapping occurs when taking into account the rating variability. This reduced discrimination of perceived soundscape quality may be due to the influence on subjective ratings by other non acoustic factors that act as mediators and moderators in the assessment.

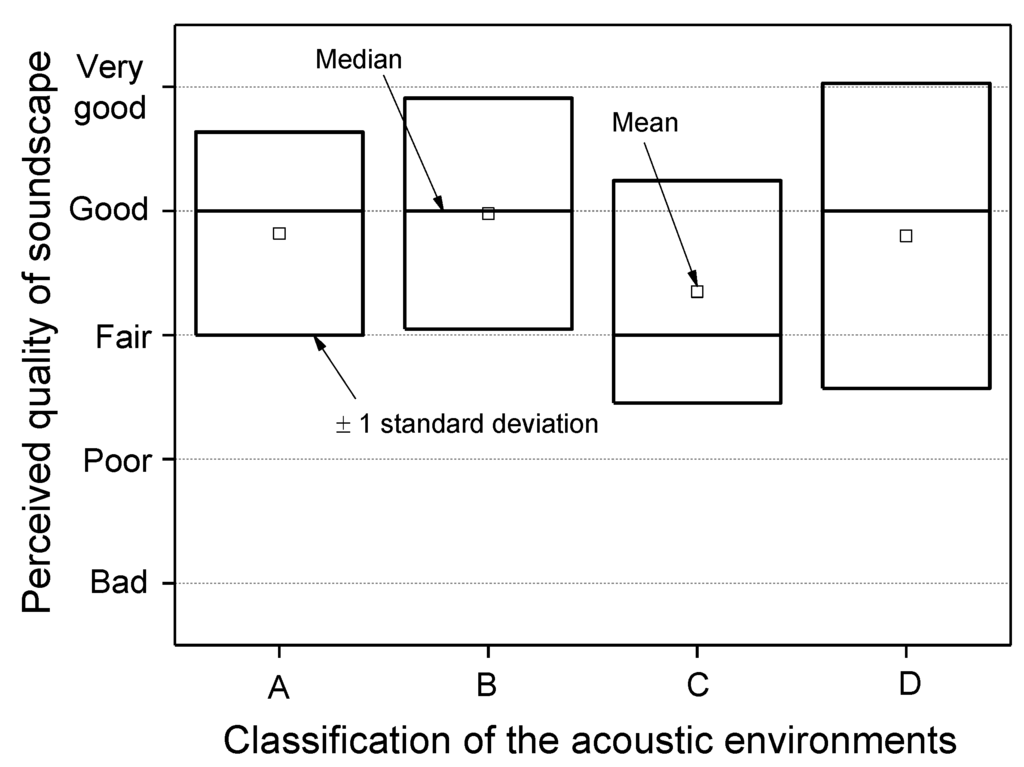

In order to assist future soundscape design in green areas a numerical model to predict the perceived quality would be helpful. For this purpose the correlation matrix of the percentage of respondents reporting a “good” and “very good” perceived quality of the soundscape, the seven sound descriptors already described as input of the cluster analysis and the number of sound events detected by the threshold LA50 + 3 dB has been determined. As shown in Table 8 and in Figure 17, there is a strong positive correlation among all the acoustic descriptors, with the exception of lg(G). All the descriptors have a negative correlation with the perceived soundscape good quality (PSGQ), that is their increase leads to a decrease of PSGQ.

Ijerph 10 02348 g016 1024
Figure 16. Perceived quality of the soundscape compared with classification based on values of LA50 and lg(G).

Click here to enlarge figure

Figure 16. Perceived quality of the soundscape compared with classification based on values of LA50 and lg(G).
Ijerph 10 02348 g016 1024
Table Table 8. Pearson’s correlation coefficient and their significance (p-value).

Click here to display table

Table 8. Pearson’s correlation coefficient and their significance (p-value).
PSGQLAeqLA10LA50LA90LA95LA10−LA90N. eventslg(G)
PSGQ1.000
LAeq−0.418
(0.012)
1.000
LA10−0.411
(0.013)
0.984
(0.000)
1.000
LA50−0.372
(0.023)
0.896
(0.000)
0.933
(0.000)
1.000
LA90−0.335
(0.038)
0.868
(0.000)
0.892
(0.000)
0.982
(0.000)
1.000
LA95−0.322
(0.044)
0.859
(0.000)
0.880
(0.000)
0.971
(0.000)
0.999
(0.000)
1.000
LA10 − LA90−0.321
(0.045)
0.660
(0.000)
0.654
(0.000)
0.359
(0.028)
0.241
(0.104)
0.217
(0.129)
1.000
No. events−0.396
(0.017)
0.561
(0.001)
0.628
(0.000)
0.582
(0.000)
0.467
(0.005)
0.441
(0.008)
0.567
(0.001)
1.000
lg(G)−0.324
(0.043)
0.294
(0.061)
0.279
(0.071)
0.255
(0.091)
0.258
(0.088)
0.263
(0.084)
0.167
(0.193)
0.283
(0.068)
1.000
Ijerph 10 02348 g017 1024
Figure 17. Scatter plot matrix between perceived good soundscape quality (PSGQ), the 7 acoustic descriptors (D = LA10 – LA90) and number of sound events “n”.

Click here to enlarge figure

Figure 17. Scatter plot matrix between perceived good soundscape quality (PSGQ), the 7 acoustic descriptors (D = LA10 – LA90) and number of sound events “n”.
Ijerph 10 02348 g017 1024

The model obtained by linear multiple regression, summarized in Table 9, explains only about 30% of the variance. In particular, as shown in Figure 18, the model overstimates the perceived soundscape good quality (PSGQ) at percentage of respondents below 50% (positive differences between predicted and observed PSGQ) and, contrariwise, tends to underestimate at percentages above 50%. The linear regression of the differences between predicted and observed PSGQ is also reported in Figure 18 (grey line), together with bands at 95% confidence level.

Table Table 9. Multiple linear regression analysis relating perceived soundscape good quality (percentage of respondents) and acoustic parameters.

Click here to display table

Table 9. Multiple linear regression analysis relating perceived soundscape good quality (percentage of respondents) and acoustic parameters.
Independent variablesMultiple regression coefficientsStandardized multiple regression coefficients βR2R2 adjusted
Value bStandard error b
LAeq−2.9154.786−0.8260.292 *0.056
LA505.88111.6181.533
LA90−36.07745.817−8.104
LA9532.95134.7887.105
D = LA10 − LA902.0296.1930.272
No. events n−0.5120.640−0.263
lg(G)−32.92430.655−0.218
Intercept174.84581.132

* p-value = 0.002 < 0.01.

Ijerph 10 02348 g018 1024

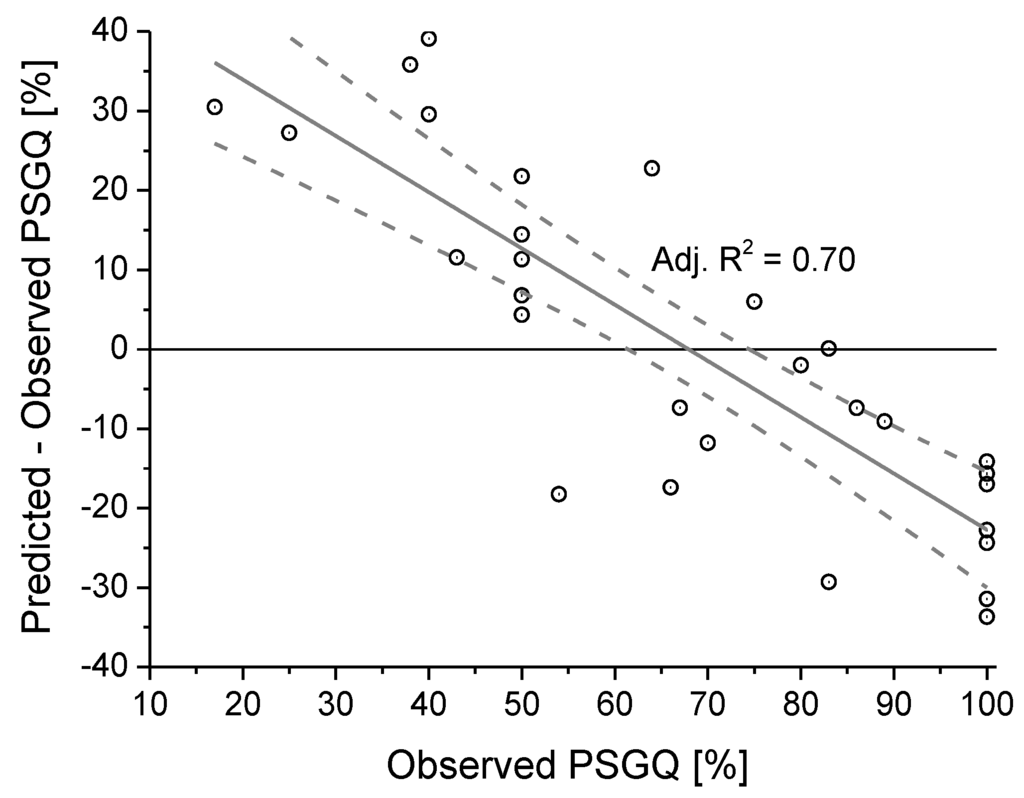

Figure 18. Accuracy of the model obtained by the multiple linear regression.

Click here to enlarge figure

Figure 18. Accuracy of the model obtained by the multiple linear regression.
Ijerph 10 02348 g018 1024

4. Conclusions

The survey carried out in the five urban parks in Milan has shown that the acoustic environment of these areas may reduce, or even lose, the feeling of quietness, in part because of the several sound events observed in the ambient noise produced by numerous sources, from natural to technological. Thus, the important function played by parks in preserving or promoting the health of users can be deteriorated and less efficient. Among the acoustic descriptors considered, the unweighted 1/3-octave spectrum centre of gravity G and LA50 performed satisfactorily in discriminating among the acoustic environments, in agreement with the outcome of cluster analysis. Four regions in particular can be distinguished corresponding to intervals for lg(G) and LA50 values.

Among the several results obtained from the subjective ratings, the most frequent reason for visiting the park was to seek tranquillity (29%); quietness was the least important aspect for the pleasantness of a park (42%). In the surveyed parks, the quality of the proposed aspects of the park (vegetation, clean air, cleanliness, security and quietness) was mainly judged “good” by the interviewees. Natural sounds (voices and dogs barking) were less annoying than technological sounds (road traffic and aircraft fly-overs).

The quality of quietness was rated worse than that of soundscape by 39% of the respondents, confirming that soundscape has a broader meaning than quietness, the latter being more directly related to no loud or unwanted sounds and being only one aspect of the soundscape. On the other hand, the perceived quality of the total environment was rated better than the soundscape (43% of respondents), likely because the former is determined by several factors (and their interactions) concurrent with determining the sensorial perception.

The collected data on noisiness at home and the workplace show that these environments generally seem to have no influence on the perceived quality of the soundscape, likely because both were mostly rated as little noisy.

The subjective ratings on the perceived quality of the soundscape do not provide a distinction among the acoustic environments as clearly as that obtained by the LA50 and lg(G) descriptors, as large overlapping occurs when taking into account the rating variability. This reduced discrimination may be due to the influence on subjective ratings by other non acoustic factors that act as mediators and moderators in the assessment.

The perceived quality of quietness decreases with increasing LAeq at a rate of approximately 7% for every increase of 3 dB in LAeq. The same trend was observed for that of soundscape and total environment, though less steeply, at a rate of approximately 4% and 1%, respectively, for every 3 dB increase in LAeq.

It has to be addressed that the described survey is only a case study and, therefore, the results are limited to the local situation and they cannot be straightforwardly extended to other environments and green areas. Confirmations and more insights can be obtained from further investigations in order to increase the sampling dimensions. Notwithstanding these limitations, the applied methodology has confirmed that the soundscape approach can provide information useful for planning effective strategies aimed at preserving and improving the quality of urban parks. Because they are even more exposed to pollution and surrounded by extending urban areas, preserving, and hopefully improving, their essential health-promoting function is a challenge but also a need.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Schafer, R.M. The Tuning of the World; Knopf: New York, NY, USA, 1977. [Google Scholar]
  2. Soundscape of European Cities and Landscapes. Available online: http://soundscape-cost.org/index.php (accessed on 24 December 2012).
  3. Schulte-Fortkamp, B.; Dubois, D. Recent advances in soundscape research. Acta Acust. United Ac. 2006, 92, V–VIII. [Google Scholar]
  4. Nilsson, M.E.; Berglund, B. Soundscape quality in suburban green areas and city parks. Acta Acust. United Ac. 2006, 92, 903–911. [Google Scholar]
  5. Lercher, P.; Schulte-Fortkamp, B. The Relevance of Soundscape Research to the Assessment of Noise Annoyance at the Community Level. In Proceedings of the 8th International Congress on Noise as a Public Health Problem, Rotterdam, The Netherlands, 29 June–3 July 2003.
  6. Maller, C.; Townsend, M.; Pryor, A.; Brown, P.; Leger, L. Healthy nature healthy people: “Contact with nature” as an upstream health promotion intervention for populations. Health Promot. Int. 2006, 21, 45–54. [Google Scholar]
  7. Hartig, T.; Mang, M.; Evans, G.W. Restorative effects of natural environment experiences. Environ. Behav. 1991, 23, 3–26. [Google Scholar]
  8. Alvarsson, J.J.; Wiens, S.; Nilsson, M.E. Stress recovery during exposure to nature sound and environmental noise. Int. J. Environ. Res. Public Health 2010, 7, 1036–1046. [Google Scholar]
  9. Watts, G.; Pheasant, R.; Horoshenkov, K. Tranquil Spaces in a Metropolitan Area. In Proceedings of the 20th International Congress on Acoustics, Sydney, Australia, 23–27 August 2010.
  10. Directive 2002/49/EC of the European Parliament and of the Council of 25 June 2002 Relating to the Assessment and Management of Environmental Noise. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=CELEX:32002L0049:en:NOT (accessed on 2 June 2013).
  11. Ge, J.; Hokao, K. Research on the sound environment of urban open space from the viewpoint of soundscape—A case study of Saga Forest Park, Japan. Acta Acust. United Ac. 2004, 90, 555–563. [Google Scholar]
  12. Payne, S.R. Are Perceived Soundscapes within Urban Parks Restorative? In Proceedings of Acoustics’08, Paris, France, 29 June–4 July 2008.
  13. Nilsson, M.E.; Alvarsson, J.; Rådsten-Ekman, M.; Bolin, K. Auditory masking of wanted and unwanted sounds in a city park. Noise Control Eng. J. 2010, 58, 524–531. [Google Scholar]
  14. Tse, M.S.; Chau, C.K.; Choy, Y.S.; Tsui, W.K.; Chan, C.N.; Tang, S.K. Perception of urban park soundscape. J. Acoust. Soc. Am. 2012, 131, 2762–2771. [Google Scholar]
  15. Szeremeta, B.; Trombetta Zannin, P.H. Analysis and evaluation of soundscapes in public parks through interviews and measurement of noise. Sci. Total Environ. 2009, 407, 6143–6149. [Google Scholar]
  16. Irvine, K.N.; Devine-Wright, P.; Payne, S.R.; Fuller, R.A.; Painter, B.; Gaston, K.J. Green space, soundscape and urban sustainability: An interdisciplinary, empirical study. Local Environ. 2009, 14, 155–172. [Google Scholar]
  17. Jeon, J.Y.; Lee, P.J.; You, J.; Kang, J. Acoustical characteristics of water sounds for soundscape enhancement in urban open spaces. J. Acoust. Soc. Am. 2012, 131, 2101–2109. [Google Scholar]
  18. Jeon, J.Y.; Lee, P.J.; You, J.; Kang, J. Perceptual assessment of quality of urban soundscapes with combined noise sources and water sounds. J. Acoust. Soc. Am. 2010, 127, 1357–1366. [Google Scholar]
  19. Jeon, J.Y.; Lee, P.J.; Hong, J.Y.; Cabrera, D. Non-auditory factors affecting urban soundscape evaluation. J. Acoust. Soc. Am. 2011, 130, 3761–3770. [Google Scholar]
  20. Brambilla, G.; Maffei, L. Responses to noise in urban parks and in rural quiet areas. Acta Acust. United Ac. 2006, 92, 881–886. [Google Scholar]
  21. De Coensel, B.; Botteldooren, D. The quiet rural soundscape and how to characterize it. Acta Acust. United Ac. 2006, 92, 887–897. [Google Scholar]
  22. Raimbault, M.; Lavandier, C.; Bérengier, M. Ambient sound assessment of urban environments: Field studies in two French cities. Appl. Acoust. 2003, 64, 1241–1256. [Google Scholar]
  23. De Coensel, B. Introducing the Temporal Aspect in Environmental Soundscape Research. Ph.D. Thesis, Ghent University, Belgium, February, 2007. [Google Scholar]
  24. Decree Prime Minister 14 November 1997. Determinazione dei valori limite delle sorgenti sonore (Noise limits of sound sources). Official J. Ital. Republic 1997, 280, 7–9.
  25. Pheasant, R.J.; Watts, G.R.; Horoshenkov, K.V. Validation of a tranquillity rating prediction tool. Acta Acust. United Ac. 2009, 95, 1024–1031. [Google Scholar]
  26. Brown, L. Rethinking “Quiet Areas” as “Areas of High Acoustic Quality”. In Proceedings of the 35th International Congress and Exposition on Noise Control Engineering InterNoise, Honolulu, HI, USA, 3–6 December 2006.
  27. Swedish Environmental Protection Agency. Ljudkvalitet i natur-och kulturmiljöer (Sound Quality in Natural and Cultural Environments); Naturvårdsverket: Stockholm, Sweden, 2005. Swedish EPA report 5440.
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
