Sensors 2009, 9(8), 6219-6231; doi:10.3390/s90806219

Article
Manufacture of Micromirror Arrays Using a CMOS-MEMS Technique
Pin-Hsu Kao 1, Ching-Liang Dai 1,*, Cheng-Chih Hsu 2 and Chyan-Chyi Wu 3
1
Department of Mechanical Engineering, National Chung Hsing University, Taichung, 402 Taiwan; E-Mail: d9461402@mail.nchu.edu.tw (P.-H.K.)
2
Department of Electro-Optical Engineering, Yuan Ze University, Taoyuan, 320 Taiwan; E-Mail: cchsu@saturn.yzu.edu.tw (C.-C.H.)
3
Department of Mechanical and Electro-Mechanical Engineering, Tamkang University, Tamsui, 251 Taiwan; E-Mail: ccwu@mail.tku.edu.tw (C.-C.W.)
*
Author to whom correspondence should be addressed; E-Mail: cldai@dragon.nchu.edu.tw; Tel.: +886-4-22840433; Fax: +886-4-22877170
Received: 29 June 2009; in revised form: 25 July 2009 / Accepted: 3 August 2009 /
Published: 6 August 2009

Abstract

: In this study we used the commercial 0.35 μm CMOS (complementary metal oxide semiconductor) process and simple maskless post-processing to fabricate an array of micromirrors exhibiting high natural frequency. The micromirrors were manufactured from aluminum; the sacrificial layer was silicon dioxide. Because we fabricated the micromirror arrays using the standard CMOS process, they have the potential to be integrated with circuitry on a chip. For post-processing we used an etchant to remove the sacrificial layer and thereby suspend the micromirrors. The micromirror array contained a circular membrane and four fixed beams set symmetrically around and below the circular mirror; these four fan-shaped electrodes controlled the tilting of the micromirror. A MEMS (microelectromechanical system) motion analysis system and a confocal 3D-surface topography were used to characterize the properties and configuration of the micromirror array. Each micromirror could be rotated in four independent directions. Experimentally, we found that the micromirror had a tilting angle of about 2.55° when applying a driving voltage of 40 V. The natural frequency of the micromirrors was 59.1 kHz.
Keywords:
micromirror array; microactuator; CMOS-MEMS

1. Introduction

The popularity of portable computers, mobile communication devices, and personal electronics is growing rapidly, with many consumers desiring bright, high-resolution, large-viewing-area, and compact displays. The main challenges when fabricating portable displays and microvision systems are the size, power consumption, and the choice of manufacturing process. Microelectromechanical systems (MEMS) technology, mostly developed during the past two decades, can be used to overcome these challenges.

Micromirrors are among the important optical devices used in scanned display and image systems. They are also applied widely in projection display systems [1], optical scanners [2], optical waveguides [3], and optical switches [4,5], and for signal processing in rear-projection televisions [6]. Micromirrors allow scanners in point-to-point scanning to produce distortion-corrected images on highly curved surfaces. For example, Chiou and Lin [7] developed a torsion micromirror device possessing multiple driving electrodes to investigate the effect on the tilting angle of the arrangement of driving electrodes. Jang and Kim [8] presented a digitally operated micromirror array possessing a torsional spring; they studied the deviations in pull-in voltages obtained using different spring sizes, finding they were clearly affected by the mirror gap and the spring width. Several studies have revealed the feasibility of manufacturing micromirrors using surface or bulk micromachining processes. For instance, Al-Aribe and Knopf [9] proposed a MEMS torsion micromirror for use in optical switches. In general, however, MEMS-based micromirrors may possess some problematic features, such as high process complexity, high driving voltages, high power consumption, and difficulty in combining them with circuits on chips. Standard complementary metal oxide semiconductor (CMOS) processes allow the fabrication of small devices; the CMOS-MEMS technique is the name of the commercial CMOS process used to fabricate MEMS devices [1013]. Micromirrors manufactured using the CMOS-MEMS technique have many advantageous properties, including stable processing, ready integration with circuits, and low cost.

Many actuation methods can be used on MEMS actuators, including thermoelectric, pressured, magnetic, and electrostatic force methods. Among these approaches, the electrostatic force method is the most popular for achieving rapid response times, low power consumption, and simple electronics. Many researchers have developed electrostatic actuating micromirrors, such as Texas Instruments’ digital micromirror device (DMD) [14], AT&T’s optical switches [15], and Cheng and co-worker’s mirror integrated with circuitry [16]. Herein, we discuss a rotatable micromirror array that is driven using electrostatic forces.

In this paper, we present a surface-micromachined and rotatable micromirror array fabricated using the commercial 0.35 μm CMOS process. The post-CMOS process in this work that requires only one maskless wet etching process is simpler than that of Cheng et al. [16]. Thereby, the post-process is easy to execute and low cost. Many electrostatically actuated micromirrors not only rotate but also displace downward when they are actuated. We introduce a center pin to prevent such downward displacement. The natural frequency of this micromirror array is suitable for commercial project displays in which the dot pitch is sufficiently small to provide high resolution.

2. Design and Simulation

Figure 1 displays a schematic representation of a micromirror in our array. Material of the mirror is aluminum. Its structure is circular, suspended and supported by four fixed beams and one pin. The pin, located at the center of the micromirror, is a holder providing the tilt stability of the micromirror; its diameter is 0.5 μm. The diameter of the mirror is 100 μm; each supported beam is 60 μm long, 2 μm wide and 0.5 μm thick. Four quarter-circle fixed electrodes, which are the driving units used to tilt the mirror, are located below the suspended mirror; each fixed electrode controlled one tilting direction. The mirror is actuated by electrostatic force, the strength of which is given by:

F = ε AV 2 2 d 2
where ε is the permittivity, A is the overlapping area, d is the distance of the parallel electrodes, and V is the driving voltage applied to the fixed electrode and the mirror.

When a dc bias is applied to the mirror and the fixed electrode, the mirror tilted toward the fixed electrode, allowing the mirror to be rotated in the x and y directions. Because the gap between the mirror and the driving electrode is 2.6 μm, the permittivity in air is 8.85 × 10−12 F/m, and the overlapping area is 1,590 μm2, Equation (1) suggests that the electrostatic force of 1.2759 μN would result under an applied driving voltage of 40 V.

Figure 2(a) presents a model of the dynamic motion of a micromirror suspended and fixed by four cantilever beams. The micromirror is positioned flat and horizontal to the surface in the absence of a driving voltage. As shown in Figure 2(b), the micromirror is tilted upon applying a driving voltage. Among the four cantilever beams, two are transformed into springs (k) and the other two are equal to torsion springs (kt). If applying an ac voltage of Vsinωt to the micromirror, the micromirror produces a harmonic motion. The lower electrodes are quarter-circle shape, so their center of gravity are at the position of 4 2 3 π r. From Newton’s law, the equation of motion of the micromirror is given by:

I m θ ¨ + c θ ˙ + ( 2 kr 2 + 2 k t + k p ) θ = 4 2 3 π   rF   sin   ω t
and:
I m = 1 4   mr 2
k = 12 EI L 3
k t = GJ L
k p = 4 EI p L p
where θ represents the rotated angle of the mirror when the driving voltage is applied; θ̇ is the angular velocity; θ̈ is the angular acceleration; and F is defined by Equation (1); Im is the mass moment of inertia of the mirror; c is the air damping; r is the radius of the mirror, m is the mass of the mirror; E is the Young’s modulus of the cantilever beams and the pin, I is the moment of inertia of the cantilever beams; G is the shear modulus of the torsion bars; J is the polar moment of inertia of the torsion bars; L is the length of the cantilever beams and the torsion bars; kp is the stiffness of the pin; Ip is the moment of inertia of the pin; and Lp is the length of the pin. Equation (2) can be written as:
θ ¨ + 2 ς ω n θ ˙ + ω n θ = M 0   sin   ω t
and:
k e = 2 kr 2 + 2 k t + k p
ς = c 2 I m   ω n
ω n = k e I m
M 0 = 4 2 rF 3 π I m
where ke represents the equivalent stiffness of the mirror; ζ is the damping ratio; ωn is the natural frequency of the mirror, and M0 is the moment. The particular solution of Equation (7) can be expressed as [17]:
θ ( t ) = Θ   sin ( ω t ϕ )
and:
Θ = M 0 k e ( 1 r ω 2 ) 2 + ( 2 ς r ω ) 2
where Θ and ϕ are the amplitude and phase angle of the response, respectively; rω is the frequency ratio and rω = ω/ωn. The maximum amplitude occurs when r ω = 1 2 ς 2 [17] Substituting r ω = 1 2 ς 2 and Equations (1) and (11) into Equation (13), the maximum amplitude of the rotated angle in the micromirror can be obtained:
Θ max = 2 ε rAV 2 3 π d 2   k e ς 1 ς 2

In the design, the equivalent stiffness of the mirror, ke, is about 1.35 × 10−9 N-m/rad, and the overlapping area of the electrodes, A, is 1,590 μm2. Figure 3 shows the maximum amplitude of the micromirror with different damping ratios, which is evaluated by Equation (14). In addition to the equivalent stiffness and the geometric shape of the mirror, the maximum rotated angle of the mirror depends on the driving voltage and the damping ratio.

The resonant frequency of the micromirror is given by:

f = ω n 2 π = 1 2 π k e I m

In accordance with Equation (15), we know that the resonant frequency of the mirror changes as the effective stiffness and the mass moment of inertia of the mirror vary. The equivalent stiffness in Equation (8) contains three factors of k, kt and kp. so it is not easy to determine the values of k, kt and kp according to the equivalent stiffness. In order to easier determine the values of k, kt and kp, the dimensionless resonant frequency is introduced. Substituting Equations (3) and (8) into Equation (15), the dimensionless resonant frequency of the micromirror can be obtained:

f 1 2 π k m = 2 2 + α + 2 β
and:
α = k p kr 2
β = k t kr 2
where α and β are the stiffness ratio. Figure 4 shows the dimensionless resonant frequency of the micromirror, which is computed by Equation (16). The results depict that the dimensionless resonant frequency of the micromirror are 4.47 and 10 corresponding to the stiffness ratios of 0 and 10, respectively, at α = 3.

In our design, the value of E is 70 GPa; I is 2.08 × 10−26 m4; G is 28 GPa; L is 60 μm; Ip is 3.07 × 10−27 m4; Lp is 1.4 μm and J is 3.54 × 10−25 m4. We substitute these values into Equations (4), (5) and (6), the stiffness of the cantilever beams, the torsion bars and the pin can be evaluated, and the results are k = 0.081 N/m, kt = 1.646 × 10−10 N-m/rad and kp = 6.136 × 10−10 N-m/rad. According to Equations (17) and (18) with r = 50 μm, we yield that the stiffness ratio of α and β are 3 and 0.81, respectively. As shown in Figure 4, the dimensionless resonant frequency is 5.14 at α = 3 and β = 0.81. The mass of the mirror is 1.158 × 10−11 kg, so we calculate the resonant frequency of the micromirror to be 68.7 kHz. All symbols are listed in Table 1, and the material and geometric properties in the micromirrors are summarized in Table 2.

3. Fabrication of the Micromirror Array

The micromirror array was manufactured using the commercial CMOS process of the Taiwan Semiconductor Manufacturing Company (TSMC), according to the micromirror layout defined in Figure 1. Figure 5(a) displays the cross-section of the micromirror after completion of the CMOS process. Because the mirror was fabricated from aluminum, which was highly optically reflective (>90%) [16], it could reduce the degree of optical signal loss resulting from transmission. After performing the standard CMOS process, we obtained the final structure of the micromirror by applying a post-processing procedure to remove the sacrificial layer, and to suspend the mirror. The material of sacrificial layer was silicon dioxide. Figure 5(b) presents the mirror after completion of the post-process. First, we cleaned the sample with acetone to remove any impurities. Next, we used an oxide etchant of Silox [18] to remove the sacrificial layer in which the mirror was embedded. In order to avoid the sticking problem, the mirror was immersed in isopropyl alcohol for 20 min and baked in oven at 100 °C for 30 min after the wet etching process.

Figures 6(a) and (b) shows SEM (scanning electron microscopy) images of the micromirror array and a single mirror, respectively, after completion of the post-process. Figure 6(c) reveals that the sacrificial layer was removed and the micromirror was successfully suspended. Figure 7 displays the fixed electrodes positioned below the suspended mirror and the supportive pin located at the center of the mirror, revealing that they were not damaged during the wet etching process. The etching time control is very important for the undercut problem. A test-key was used to monitor the etch-stop time and to avoid over etching and undercut problems

4. Results and Discussion

The profile of the mirror is an important characteristic affecting its performance. We employed a confocal surface optical scan system—a 3D high-resolution, non-contact surface measurement system (Nanofocus) featuring a microscope and a PZT (lead zirconate titanate) actuator—to detect the configuration of the mirror. This system had the ability to calculate the out-of-plane displacement and tilting angle and establish the 3D configuration automatically. The dot pitch is another important parameter affecting the quality of display systems [19]. For a high-resolution display system, the dot pitch is limited to 250 μm.

Figure 8(a) presents the profile of the mirror in the absence of a driving voltage. The deformation of this mirror was less than 100 nm, i.e., the mirror was flat and not rotated in the initial state. When the driving voltage was less than 15 V, the displacement of the mirror was small; the largest displacement occurred when the driving voltage was 40 V. Figure 8(b) displays the profile of the mirror under a driving voltage of 40 V. The measured result showed that the displacement of the mirror edge was about 2.10 μm at a driving voltage of 40 V, and the tilting angle of the mirror was about 2.55°. Figure 9 reveals the measured tilting angle of the micromirror under various driving voltages. The results depicted that the tilting angle of the mirror was about 0.24° and 0.95° at the driving voltage of 15 V and 30 V, respectively. Furthermore, we employed finite element method (FEM) software (Coventor Ware) to simulate the tilting angle of the micromirror, and the simulated tilting angle of the micromirror under different driving voltages was shown in Figure 9. The simulated results presented that the tilting angle of the mirror was about 0.21° and 0.74° at the driving voltage of 15 V and 30 V, respectively. As shown in Figure 9, the simulated and measured tilting angles for the micromirror were similar under various driving voltages; the slight differences between individual mirrors resulted from variations in the etching during post-processing. The stiffness of the beams decreased because of the post-process etching, leading to that the measured values being larger than the simulated ones.

We employed a MEMS motion analysis system to detect the frequency response of the micromirrors. This measurement system includes a function generator that can apply high-amplitude ac voltages and a microscope to observe the motion of the micromirror. The analyzer takes many images every second to determine the displacement and frequency response of the vibratile object. Figure 10 reveals the frequency response of the micromirror measured by the MEMS motion analysis system. The measured results showed that the resonant frequency of the micromirror was 59.1 kHz.

The vertical axis scan rate is a measure of how many times a display can refresh its whole frame. For video applications, the resolution standards [e.g., SVGA (800 × 600)] require a frame refresh rate of 60 Hz. In this situation, the line rate (horizontal scan) of an SVGA display is 36,000 lines per second. Using a bidirectional-scanning technique, a horizontal scanner operating at 18 kHz requires a scanner retracing rate of 19 – 20 kHz [19]. In future, it is likely that consumers will demand higher resolution and more-fluent video play; therefore, the development of micromirror arrays exhibiting high resonant frequency and small dot pitches will be critical to enable commercially viable displays.

5. Conclusions

We have fabricated a micromirror array using the commercial 0.35 μm CMOS process and the post-process. Because this fabrication technique was compatible with the CMOS process, such micromirror arrays have potential to be integrated with circuitry on a chip. The low-cost post-processing method involved simple wet etching with a Silox etchant to etch the sacrificial layer. In the absence of a driving voltage, the micromirror array was very flat (deformation: <100 nm). The mirror was rotatable in four independent directions. The experimental results showed that the tilting angle of the micromirror was about 2.55° under an applied driving voltage of 40 V, and the resonant frequency of the micromirror was 59.1 kHz.

The authors would like to thank National Center for High-performance Computing (NCHC) for chip simulation, National Chip Implementation Center (CIC) for chip fabrication, and the National Science Council of the Republic of China for financially supporting this research under Contract No NSC 97-2221-E-005-056.

References

  1. Hoskinson, R.; Stoeber, B. High-dynamic range image projection using an auxiliary MEMS mirror array. Opt. Express 2008, 16, 7361–7368. [Google Scholar]
  2. Li, L.; Begbie, M.; Brown, G.; Uttamchandani, D. Design, simulation and characterization of a MEMS optical scanner. J. Micromec. Microen 2007, 17, 1781–1787. [Google Scholar]
  3. Lee, W.J.; Hwang, S.H.; Lim, J.W.; Rho, B.S. Polymeric waveguide film with embedded mirror for multilayer optical circuits. Photon. Technol. Lett 2009, 21, 12–14. [Google Scholar]
  4. Lee, H.S.; Cho, C.; Cho, M.W. Magnetostrictive micro mirrors for an optical switch Matrix. Sensors 2007, 7, 2174–2182. [Google Scholar]
  5. Yang, J.B.; Su, X.Y. Optical implementation of a polarization-independent bidirectional 3×3 optical switch. Photon. Network Commun 2008, 15, 153–158. [Google Scholar]
  6. Liao, C.D.; Tsai, J.C. The evolution of MEMS displays. IEEE Transac. Indust. Electron 2009, 56, 1057–1065. [Google Scholar]
  7. Chiou, J.C.; Lin, Y.C. A multiple electrostatic electrodes torsion micromirror device with linear stepping angle effect. J. Microelectromech. Syst 2003, 12, 913–920. [Google Scholar]
  8. Jang, Y.H.; Kim, Y.K. Pull-in voltage uniformity analysis of digitally operated micromirror array with torsional springs. J. Micromech. Microeng 2009, 19, 1–11. [Google Scholar]
  9. Al-Aribe, K.; Knopf, G.K. Neural network control of a MEMS torsion micromirror. Proceedings of 2005 IEEE Conference on Control Applications, Toronto, Ont., Canada, August 28–31, 2005; pp. 737–742.
  10. Liu, M.C.; Dai, C.L.; Chan, C.H.; Wu, C.C. Manufacture of a polyaniline nanofiber ammonia sensor integrated with a readout circuit using the CMOS-MEMS technique”. Sensors 2009, 9, 869–880. [Google Scholar]
  11. Dai, C.L.; Tai, Y.W.; Kao, P.H. Modeling and fabrication of micro FET pressure sensor with circuits. Sensors 2007, 7, 3386–3398. [Google Scholar]
  12. Kim, J.W.; Takao, H.; Sawada, K.; Ishida, M. Integrated inductors for RF transmitters in CMOS/MEMS smart microsensor systems. Sensors 2007, 7, 1387–1398. [Google Scholar]
  13. Kao, P.H.; Dai, C.L.; Hsu, C.C.; Lee, C.Y. Fabrication and characterization of a tunable in-plane resonator with low driving voltage. Sensors 2009, 9, 2062–2075. [Google Scholar]
  14. Monk, D.W.; Gale, R.O. The digital micromirror device for projection display. Microelectron. Eng 1995, 27, 489–493. [Google Scholar]
  15. Bishop, D.J.; Giles, C.R.; Austin, G.P. The Lucent Lambda Router: MEMS technology of the future here today. IEEE Commun. Mag 2002, 40, 75–79. [Google Scholar]
  16. Cheng, Y.C.; Dai, C.L.; Lee, C.Y.; Chen, P.H.; Chang, P.Z. A MEMS micromirror fabricated using CMOS post-process. Sens. Actuat. A 2005, 120, 573–581. [Google Scholar]
  17. Rao, S.S. Mechanical Vibration; Addison-Wesley Publishing Co: Reading, MA, USA, 1990; p. 137. [Google Scholar]
  18. Dai, C.L. A maskless wet etching silicon dioxide post-CMOS process and its application. Microelectron. Eng 2006, 83, 2543–2550. [Google Scholar]
  19. Milanovic, V.; Castelino, K.; McCormick, D.T. Highly adaptable MEMS-based display with wide projection angle. IEEE Int. Conf. Micro Electro Mech. Syst 2007, 2, 143–146. [Google Scholar]
Sensors 09 06219f1 1024

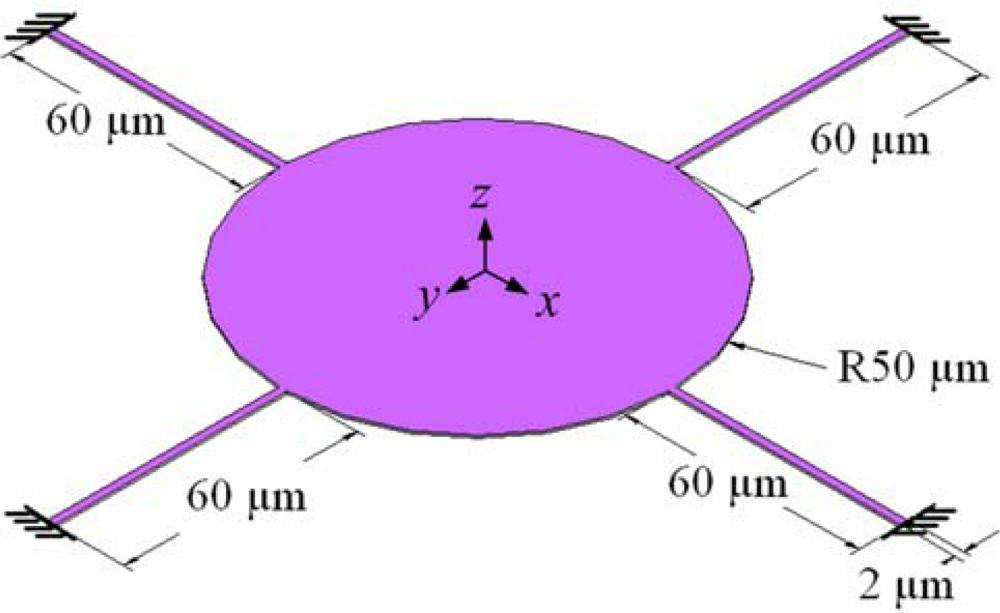

Figure 1. Schematic representation of the micromirror.

Click here to enlarge figure

Figure 1. Schematic representation of the micromirror.
Sensors 09 06219f1 1024
Sensors 09 06219f2 1024

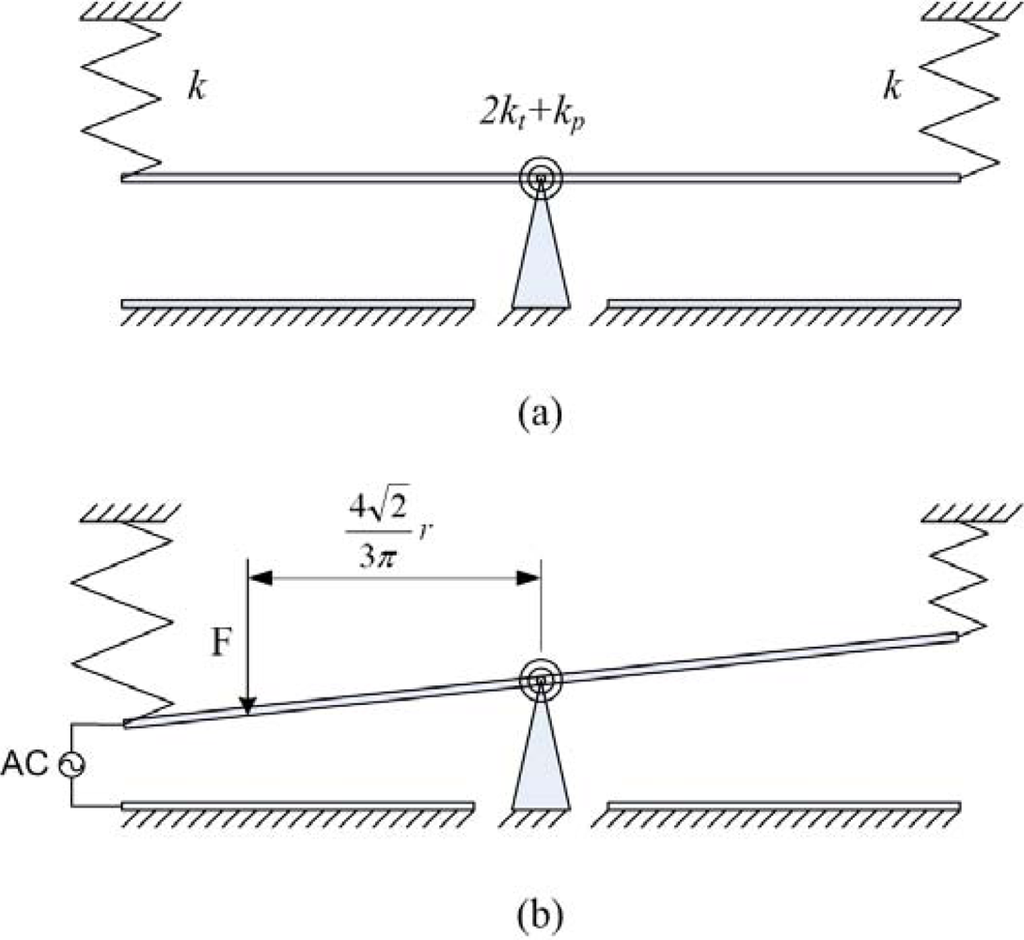

Figure 2. Dynamic model of a micromirror operated in the (a) absence and (b) presence of a driving voltage.

Click here to enlarge figure

Figure 2. Dynamic model of a micromirror operated in the (a) absence and (b) presence of a driving voltage.
Sensors 09 06219f2 1024
Sensors 09 06219f3 1024
Figure 3. Maximum amplitude of the rotated angle in the micromirror at different damping ratios.

Click here to enlarge figure

Figure 3. Maximum amplitude of the rotated angle in the micromirror at different damping ratios.
Sensors 09 06219f3 1024
Sensors 09 06219f4 1024

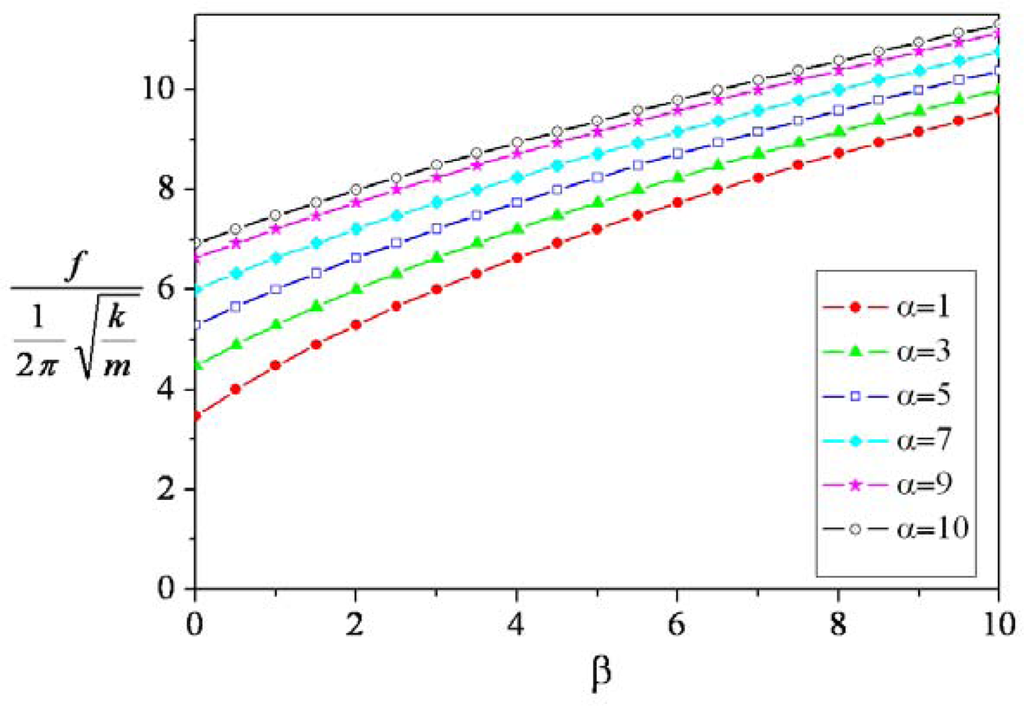

Figure 4. Dimensionless resonant frequency vs. stiffness ratio.

Click here to enlarge figure

Figure 4. Dimensionless resonant frequency vs. stiffness ratio.
Sensors 09 06219f4 1024
Sensors 09 06219f5 1024

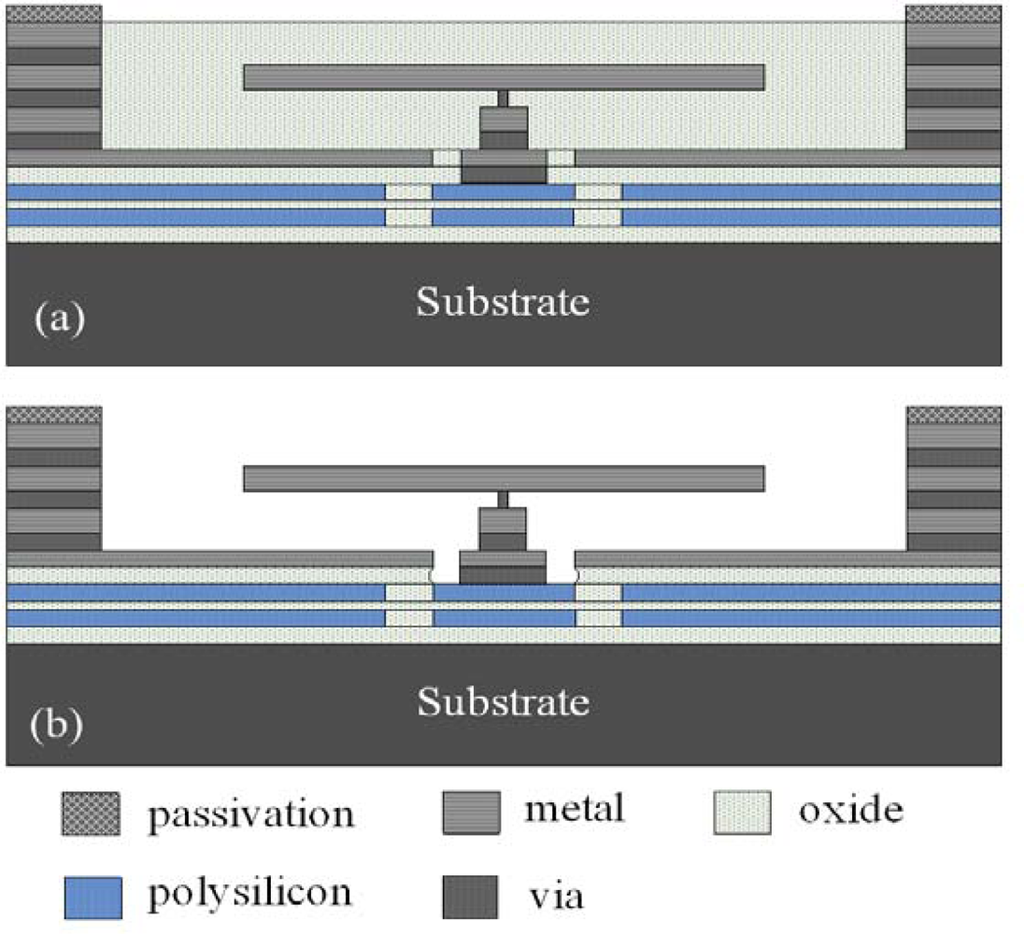

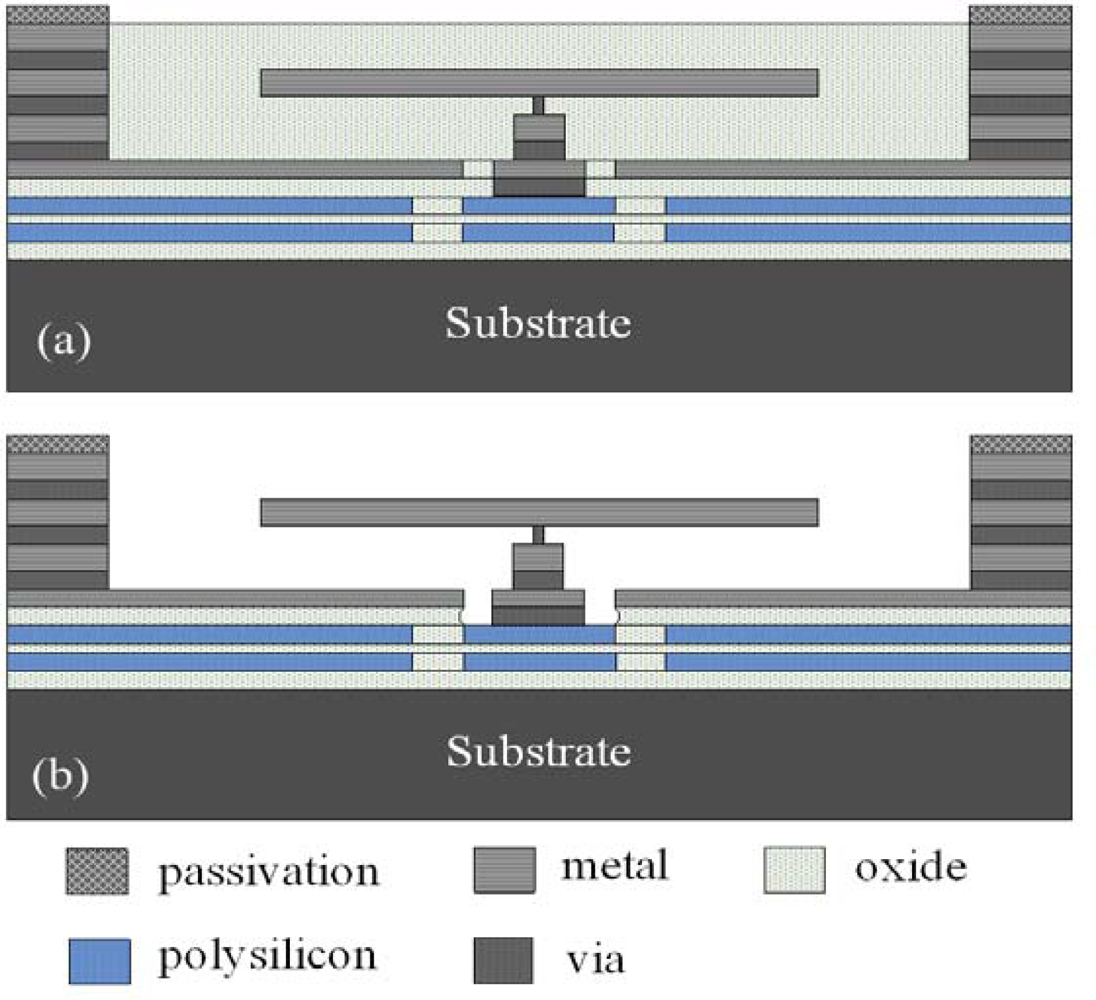

Figure 5. Process flow of the micromirror: (a) after completion of the CMOS process; (b) after completion of the post-process.

Click here to enlarge figure

Figure 5. Process flow of the micromirror: (a) after completion of the CMOS process; (b) after completion of the post-process.
Sensors 09 06219f5 1024
Sensors 09 06219f6 1024

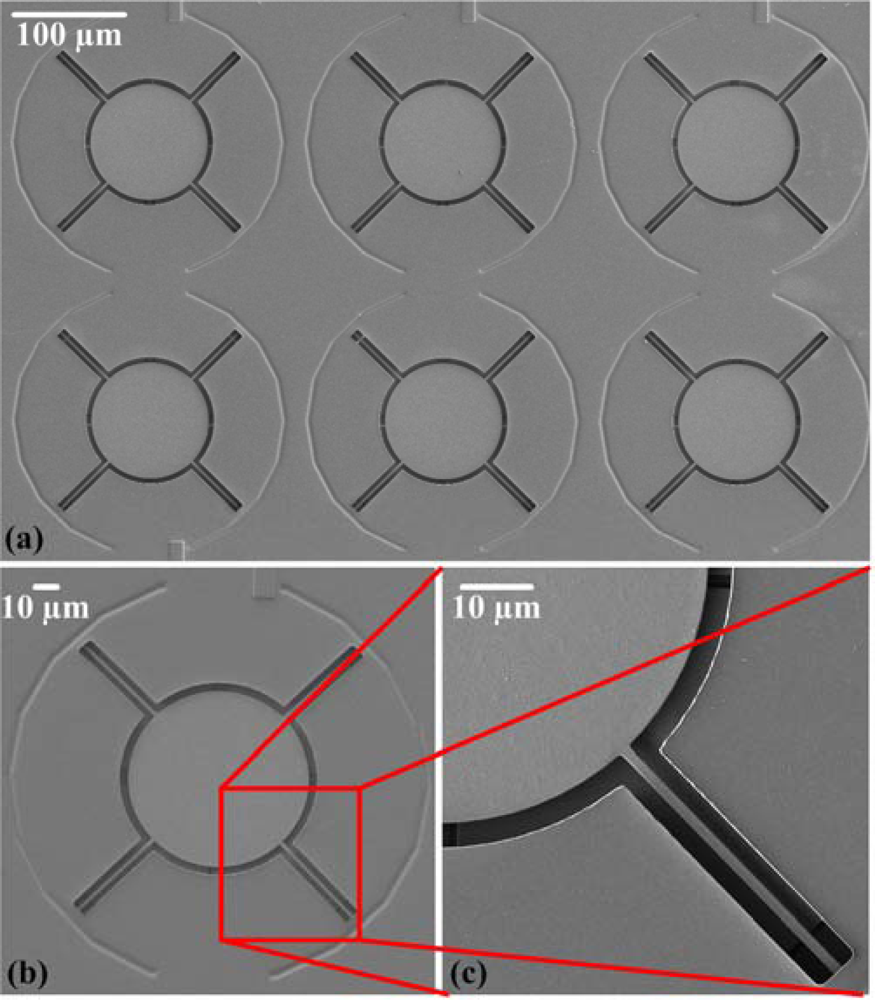

Figure 6. SEM images of (a) the micromirror array, (b) a single mirror, and (c) the beams of the micromirror array, after the post-processing.

Click here to enlarge figure

Figure 6. SEM images of (a) the micromirror array, (b) a single mirror, and (c) the beams of the micromirror array, after the post-processing.
Sensors 09 06219f6 1024
Sensors 09 06219f7 1024

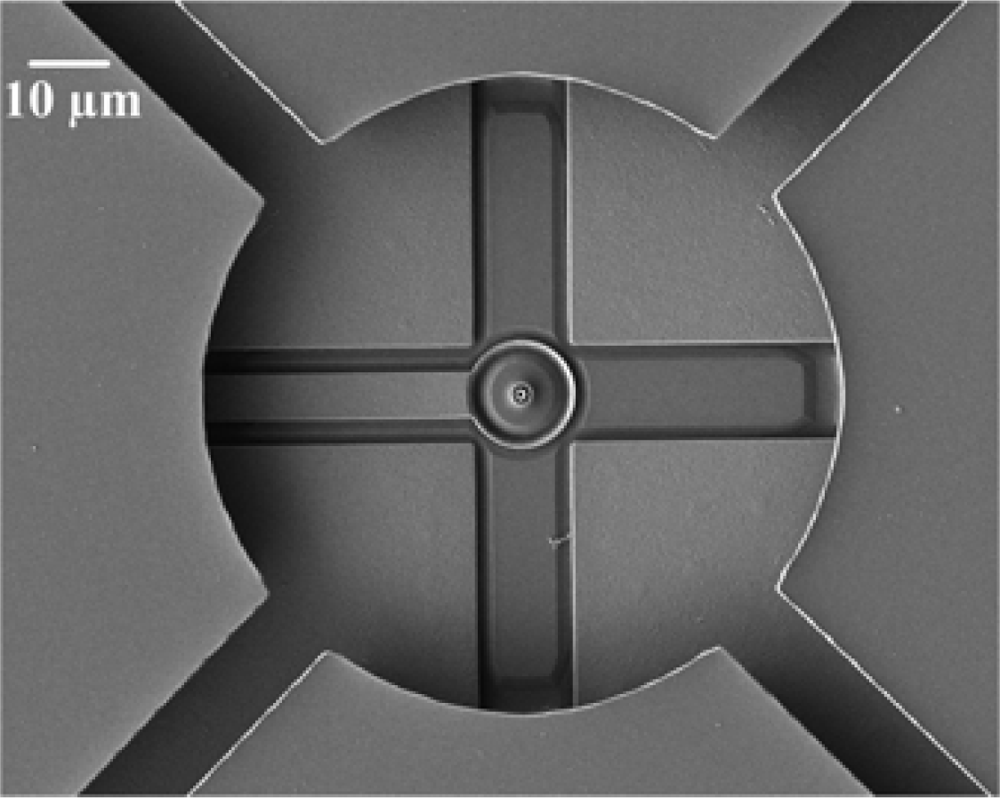

Figure 7. SEM image of the driving electrodes and pin supporter under the micromirror.

Click here to enlarge figure

Figure 7. SEM image of the driving electrodes and pin supporter under the micromirror.
Sensors 09 06219f7 1024
Sensors 09 06219f8 1024

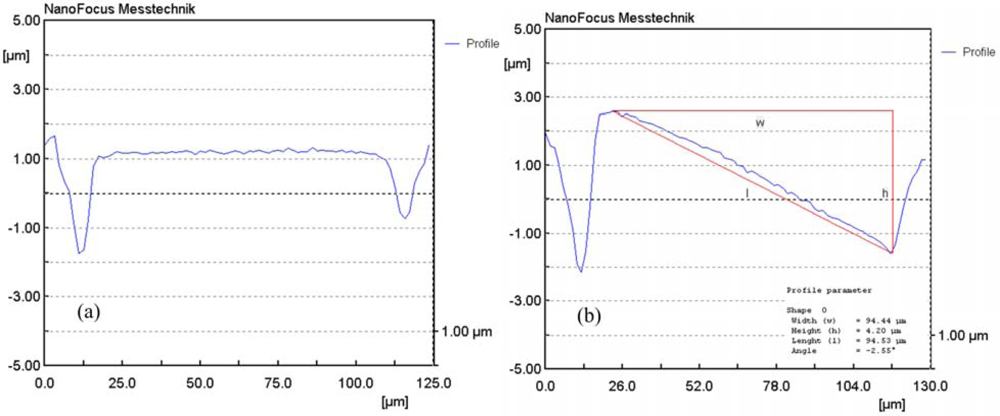

Figure 8. Profile of the micromirror (a) in the absence of a driving voltage and (b) under a driving voltage of 40 V, measured using a confocal surface optical scan system.

Click here to enlarge figure

Figure 8. Profile of the micromirror (a) in the absence of a driving voltage and (b) under a driving voltage of 40 V, measured using a confocal surface optical scan system.
Sensors 09 06219f8 1024
Sensors 09 06219f9 1024

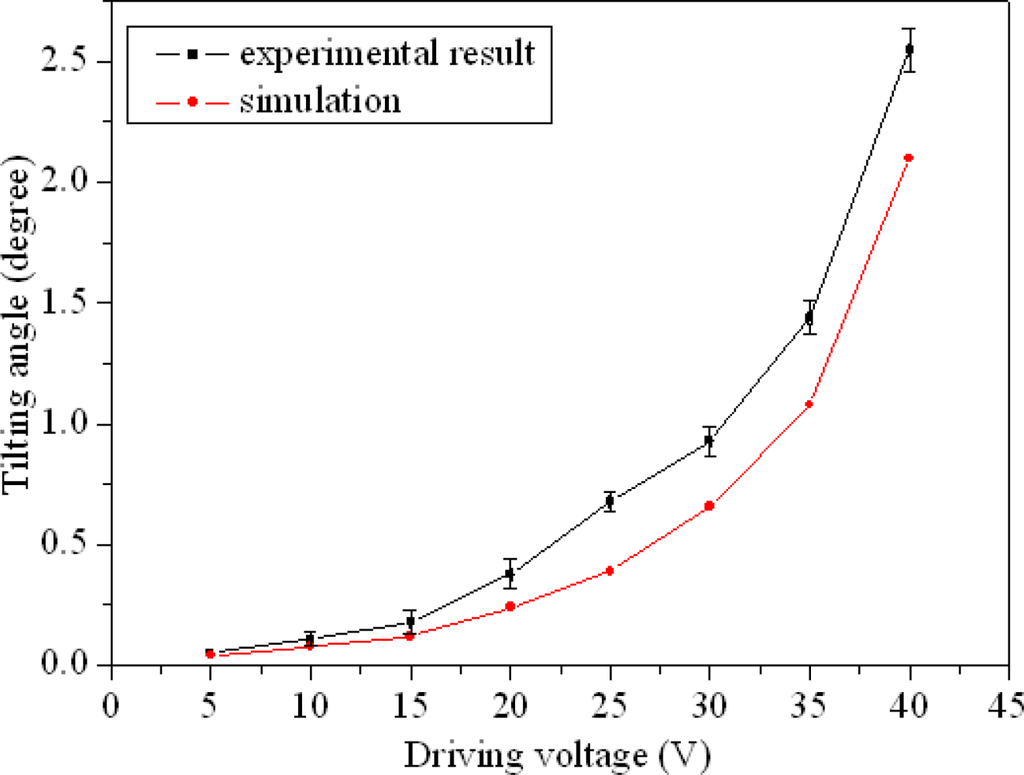

Figure 9. Tilting angles of the mirror at various driving voltages.

Click here to enlarge figure

Figure 9. Tilting angles of the mirror at various driving voltages.
Sensors 09 06219f9 1024
Sensors 09 06219f10 1024

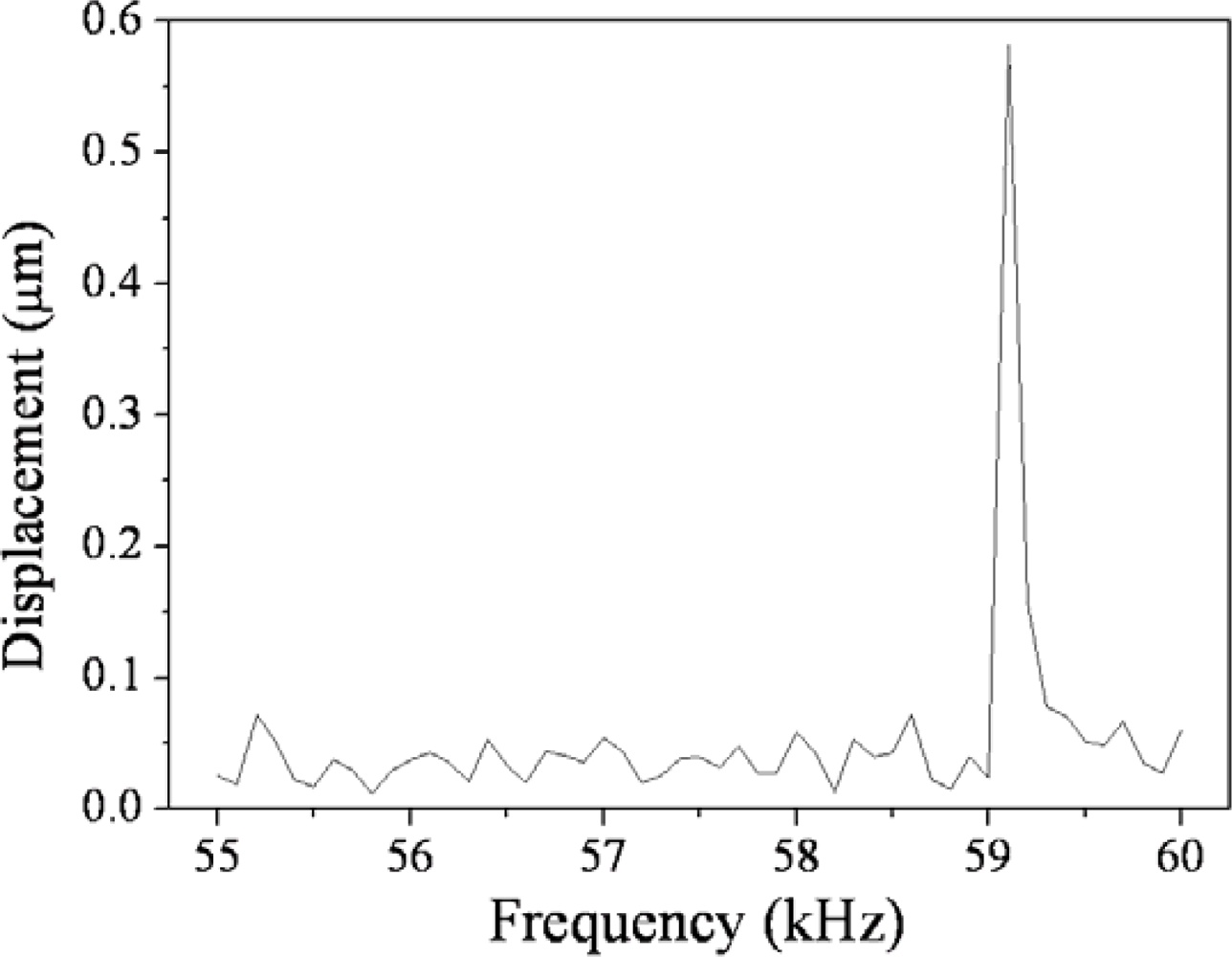

Figure 10. Frequency response of the micromirror.

Click here to enlarge figure

Figure 10. Frequency response of the micromirror.
Sensors 09 06219f10 1024
Table Table 1. List of symbols.

Click here to display table

Table 1. List of symbols.
SymbolDescription
Aoverlapping area of the electrodes
cair damping
ddistance of the parallel electrodes
EYoung’s modulus of the cantilever beams and the pin
Gshear modulus of the torsion bars
Imoment of inertia of the cantilever beams
Ipmoment of inertia of the pin
Immass moment of inertia of the mirror
Jpolar moment of inertia of the torsion bars
kstiffness of spring
ktstiffness of torsion spring
kpstiffness of pin
keequivalent stiffness of the mirror
Llength of the cantilever beams and the torsion bars
Lplength of the pin
M0moment
mmass of the mirror
rradius of the mirror
Vdriving voltage
θrotated angle of the mirror
θ̇angular velocity
θ̈angular acceleration
εpermittivity
βstiffness ratio
ζdamping ratio
ωnnatural frequency of the mirror
Θamplitude of the response
ϕphase angle of the response
rωfrequency ratio
Table Table 2. Material and geometric properties in the micromirrors.

Click here to display table

Table 2. Material and geometric properties in the micromirrors.
PropertyValue
A1590 μm2
d2.6 μm
E70 GPa
G28 GPa
I2.08 × 10−26 m4
Ip3.07 × 10−27 m4
J3.54 × 10−25 m4
k0.081 N/m
kt1.647 × 10−10 N-m/rad
kp6.136 × 10−10 N-m/rad
ke1.35 × 10−9 N-m/rad
L60 μm
Lp1.4 μm
m1.158 × 10−11 kg
r50 μm
V0 ∼ 40 V
ε8.85 × 10−12 F/m
