Performance of a Diaphragmed Microlens for a Packaged Microspectrometer
Joe Lo 1
, Shih-Jui Chen 2 , Qiyin Fang 3, 4 , Thanassis Papaioannou 3 , Eun-Sok Kim 2 , Martin Gundersen 2 and Laura Marcu 5,*
, Shih-Jui Chen 2 , Qiyin Fang 3, 4 , Thanassis Papaioannou 3 , Eun-Sok Kim 2 , Martin Gundersen 2 and Laura Marcu 5,*
1
Biomedical Engineering, University of Southern California, Los Angeles, CA, USA
2 Electrical Engineering and Electrophysics, University of Southern California, Los Angeles, CA USA
3 Cedars Sinai Medical Center, Los Angeles, CA, USA
4 Engineering Physics, McMaster University, Hamilton, Ontario, Canada
5 Biomedical Engineering, University of California at Davis, USA
2 Electrical Engineering and Electrophysics, University of Southern California, Los Angeles, CA USA
3 Cedars Sinai Medical Center, Los Angeles, CA, USA
4 Engineering Physics, McMaster University, Hamilton, Ontario, Canada
5 Biomedical Engineering, University of California at Davis, USA
* Author to whom correspondence should be addressed.
Received: 4 November 2008; in revised form: 9 January 2009 / Accepted: 4 February 2009 / Published: 6 February 2009
(This article belongs to the Special Issue BioMEMS)
Download PDF Full-Text [861 KB, uploaded 6 February 2009 09:11 CET]

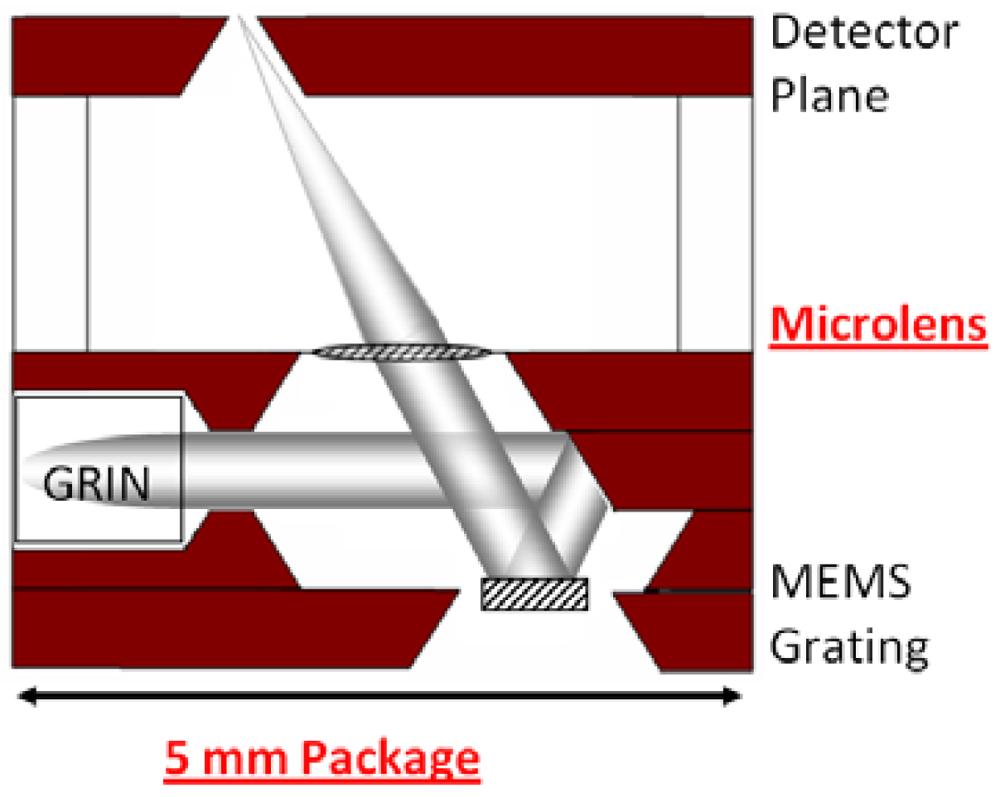

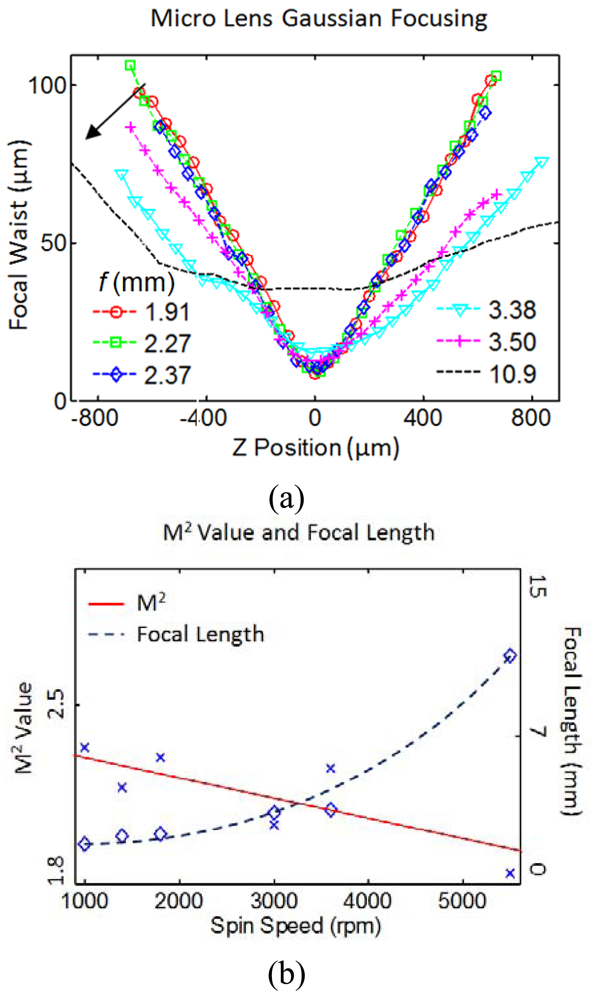

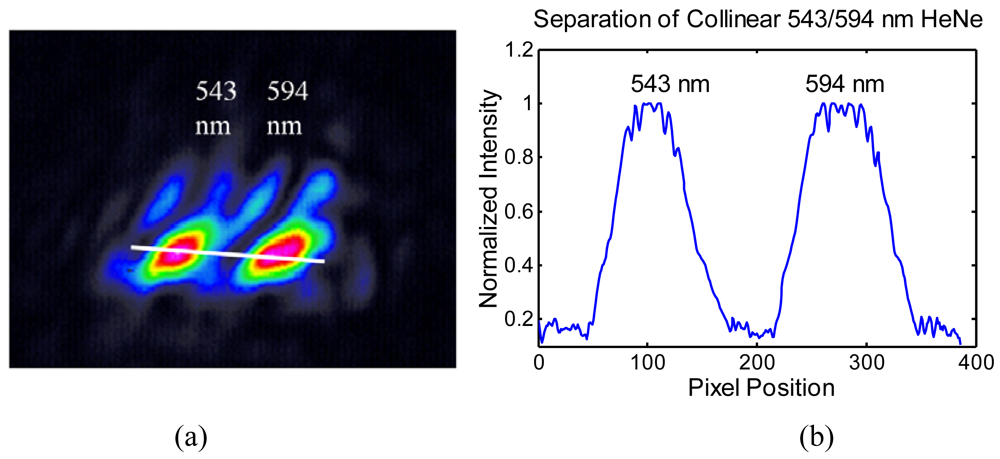

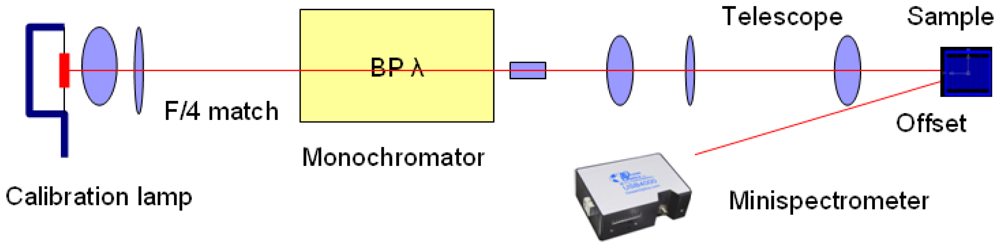

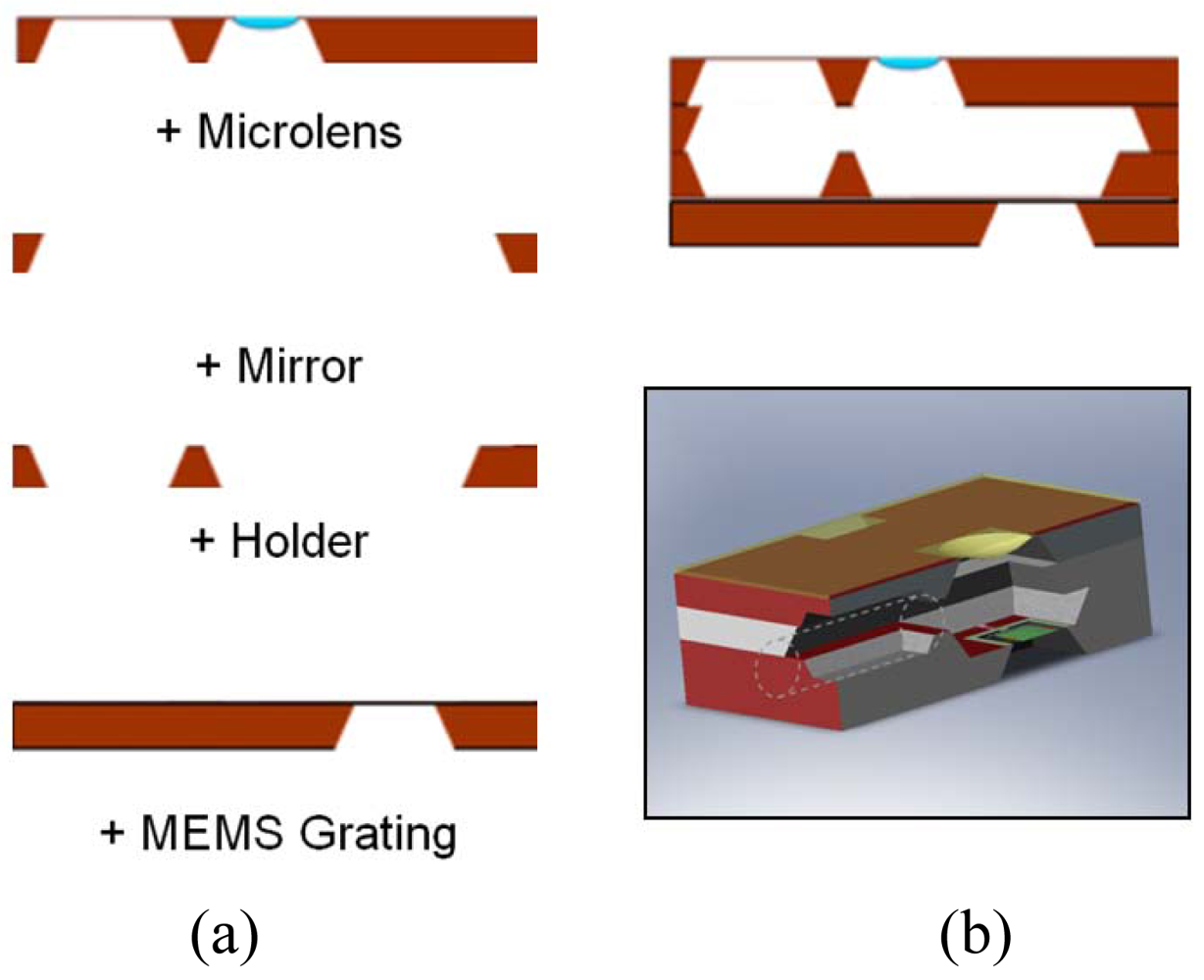

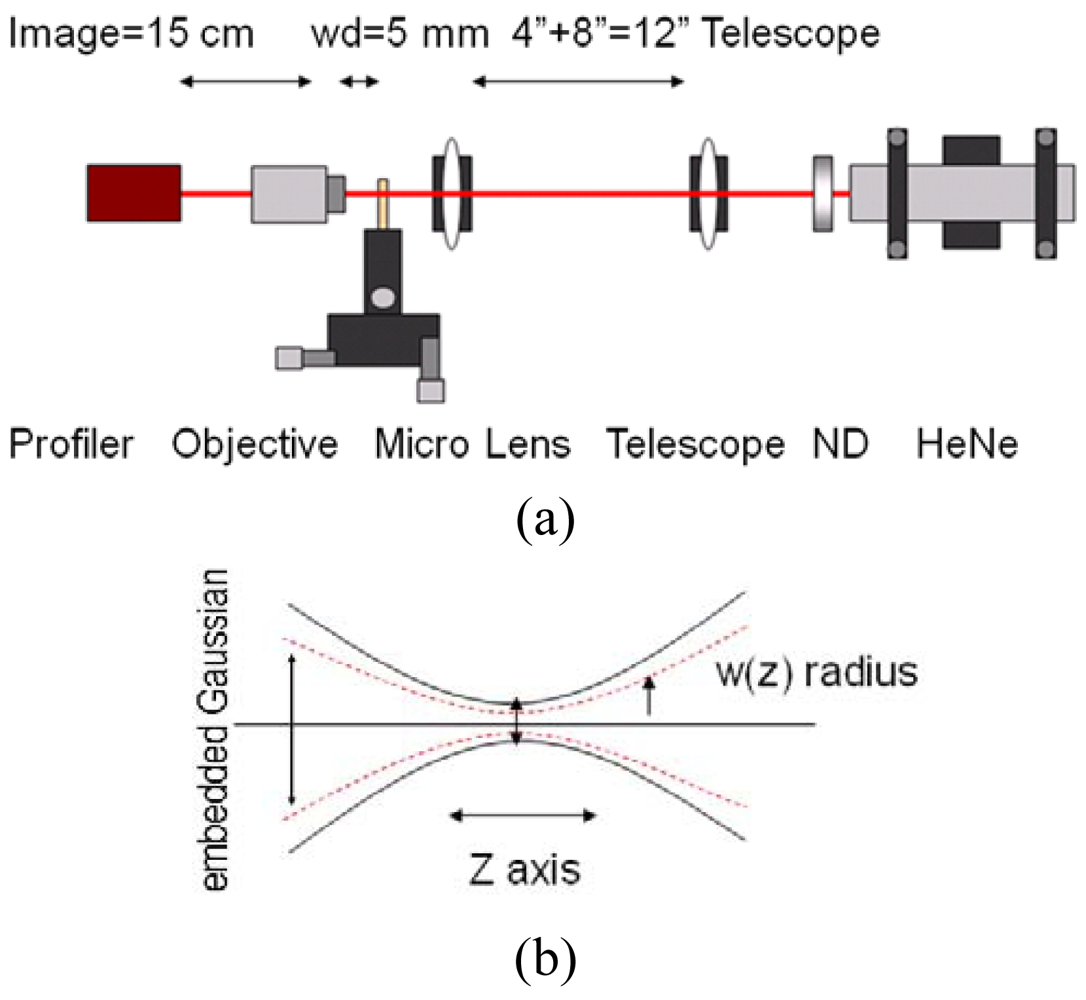

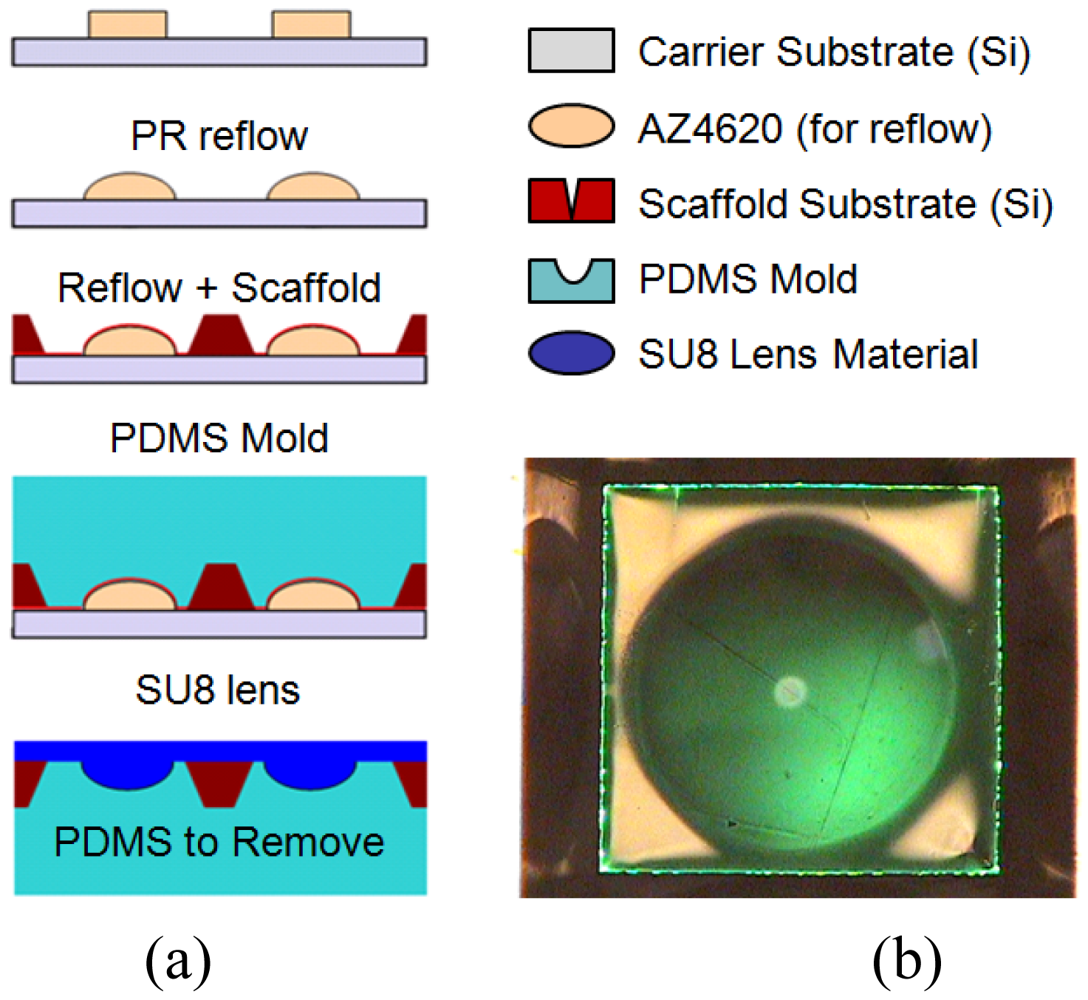

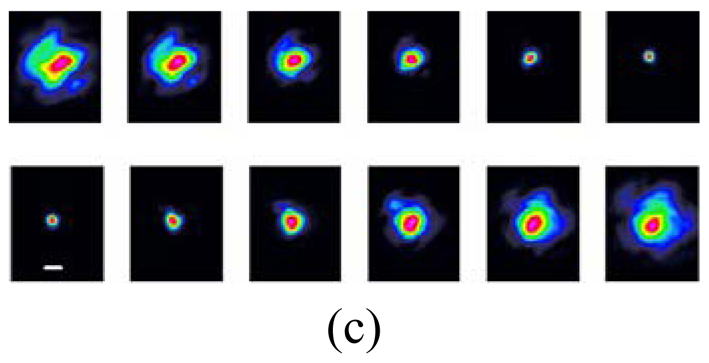

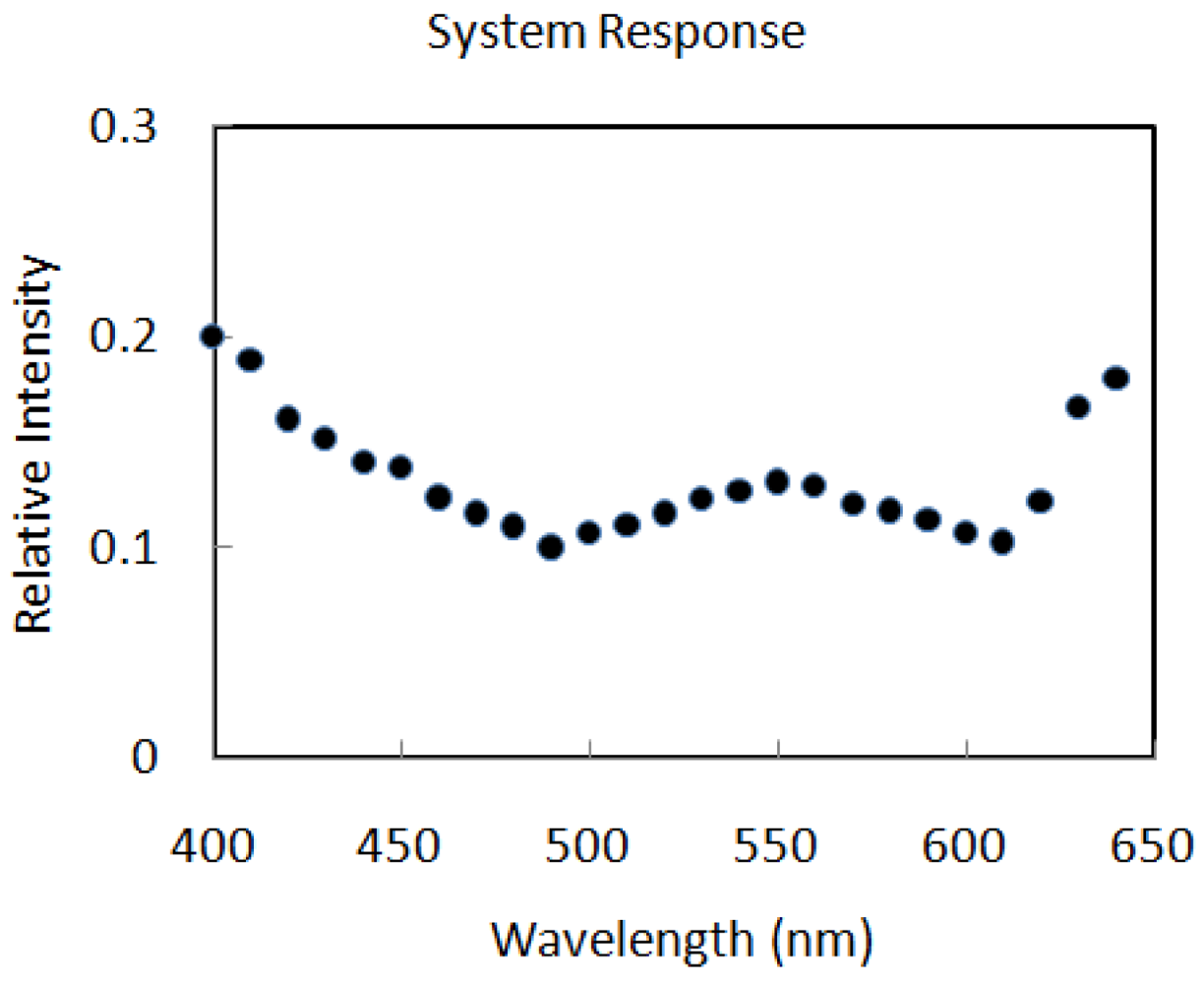

Abstract: This paper describes the design, fabrication, packaging and testing of a microlens integrated in a multi-layered MEMS microspectrometer. The microlens was fabricated using modified PDMS molding to form a suspended lens diaphragm. Gaussian beam propagation model was used to measure the focal length and quantify M2 value of the microlens. A tunable calibration source was set up to measure the response of the packaged device. Dual wavelength separation by the packaged device was demonstrated by CCD imaging and beam profiling of the spectroscopic output. We demonstrated specific techniques to measure critical parameters of microoptics systems for future optimization of spectroscopic devices
Keywords: Microoptics; microlens; MEMS; spectroscopy; Gaussian propagation
