Sensors 2006, 6(9), 1118-1127; doi:10.3390/s6091118
Article

Influence of Shielding Arrangement on ECT Sensors

1,* , 2
 and 3
Received: 15 May 2006; Accepted: 21 September 2006 / Published: 22 September 2006
(This article belongs to the Special Issue Sensors in Flow Analysis)
Download PDF [882 KB, uploaded 21 June 2014]

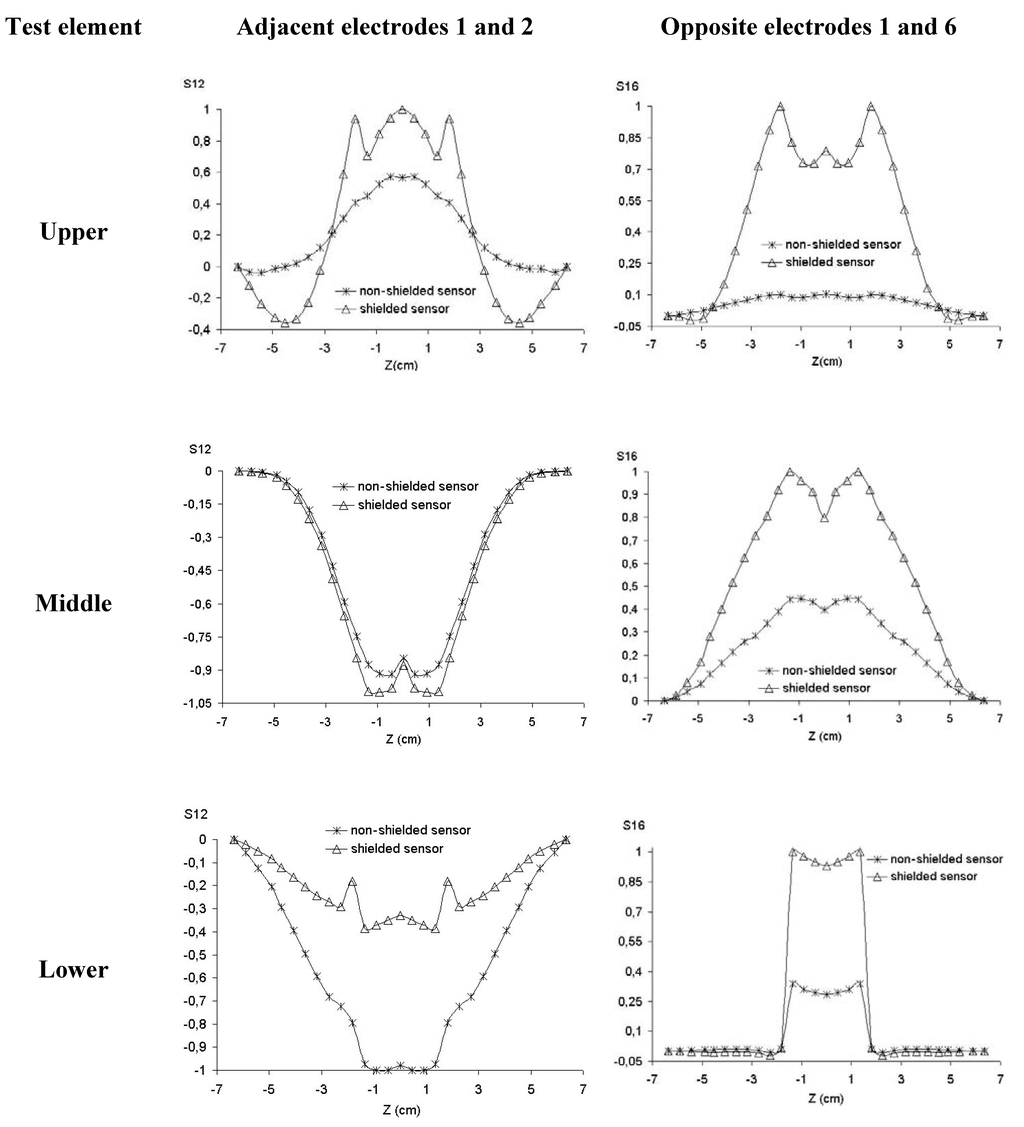

Abstract: This paper presents a full 3D study of a shielded ECT sensor. The spatialresolution and effective sensing field are obtained by means of Finite Element Methodbased simulations and are the compared to a conventional sensor's characteristics. Aneffective improvement was found in the sensitivity in the pipe cross-section, resulting inenhanced quality of the reconstructed image. The sensing field along the axis of the sensoralso presents better behaviour for a shielded sensor.
Keywords: Electrical Capacitance Tomography sensor; Finite Element Method; shielding arrangement; standing capacitance; sensitivity map; sensing field; reconstructed image Electrical Capacitance Tomography sensor; Finite Element Method; shielding arrangement; standing capacitance; sensitivity map; sensing field; reconstructed image
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
