Sensors 2017, 17(11), 2497; https://doi.org/10.3390/s17112497

Precise Measurement of Gas Volumes by Means of Low-Offset MEMS Flow Sensors with μL/min Resolution

1
IEIIT-PISA, CNR, Via G. Caruso 16, 56122 Pisa, Italy
2
Department of Ingegneria dell’Informazione, University of Pisa, 56122 Pisa, Italy
*
Author to whom correspondence should be addressed.
Received: 6 October 2017 / Revised: 26 October 2017 / Accepted: 27 October 2017 / Published: 31 October 2017
(This article belongs to the Special Issue Integrated MEMS Sensors for the IoT Era)
View Full-Text   |   Download PDF [4230 KB, uploaded 31 October 2017]   |

Abstract

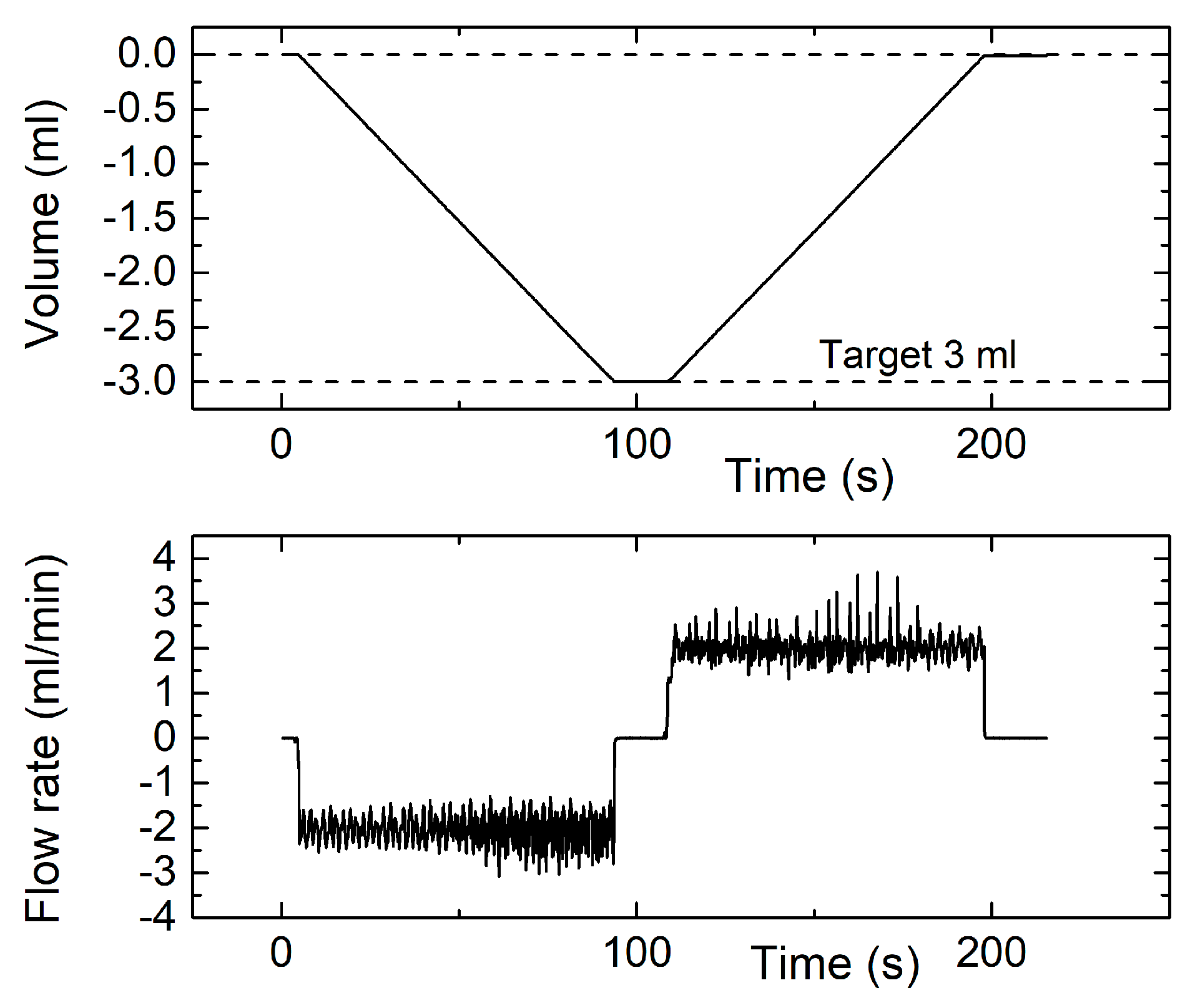

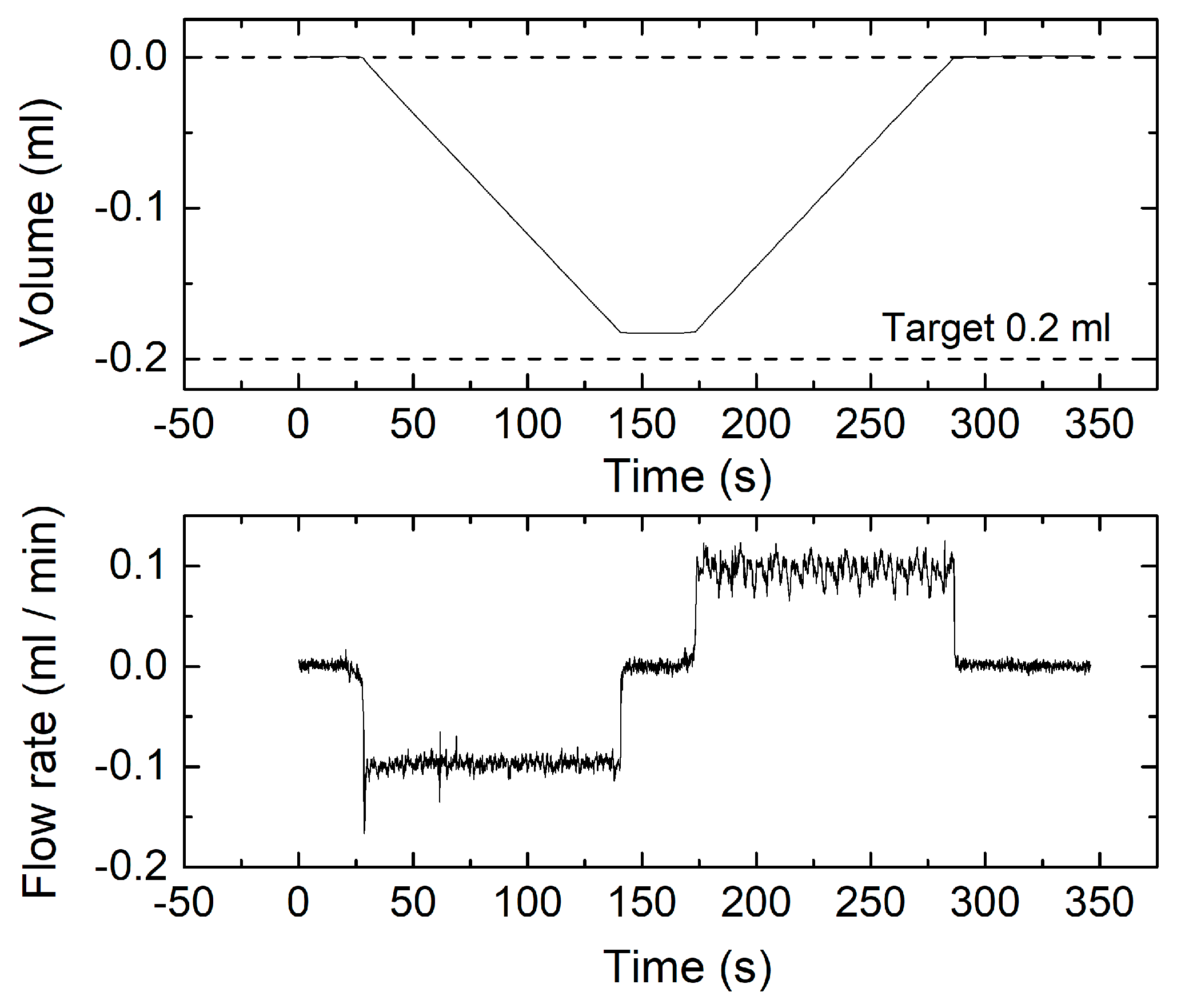

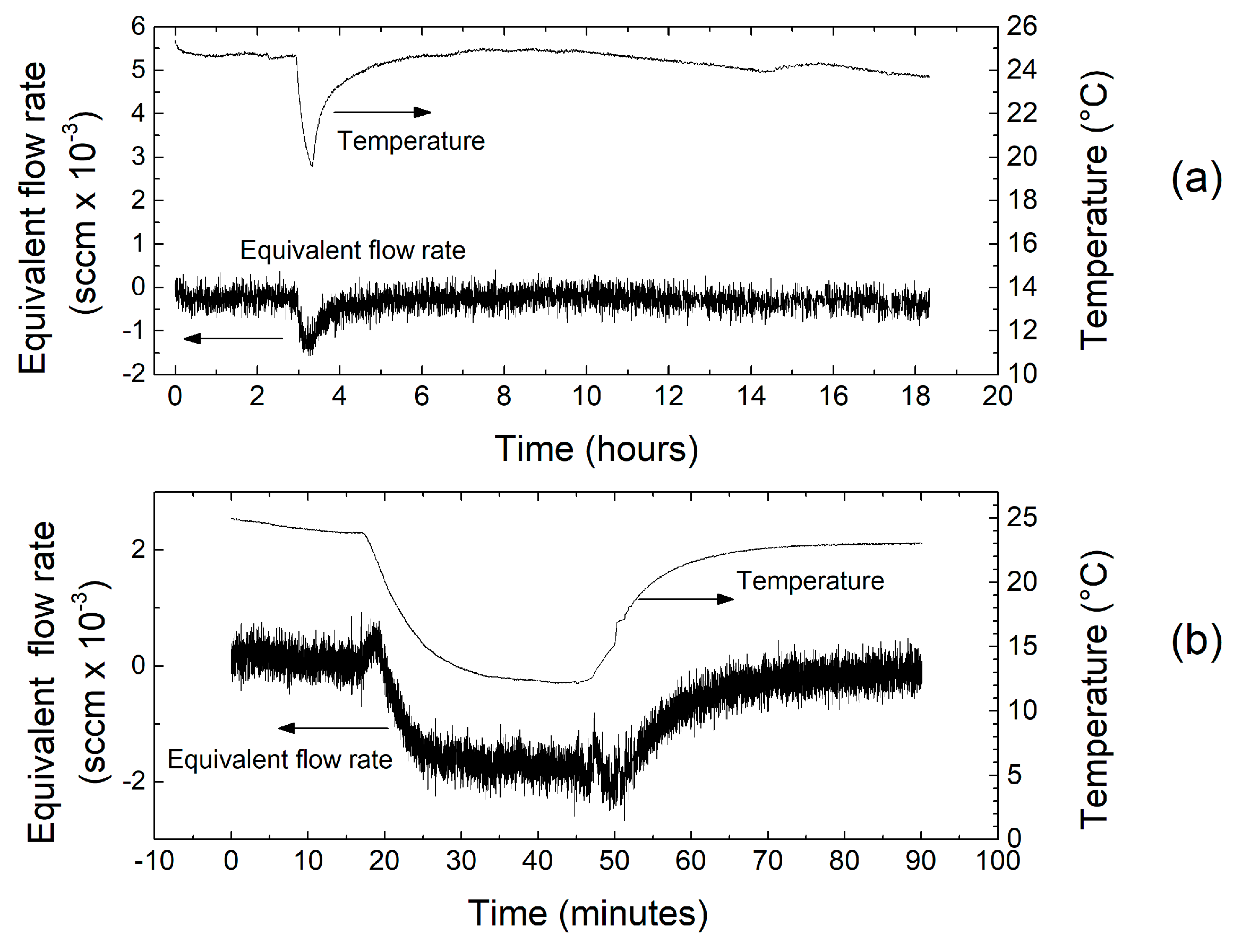

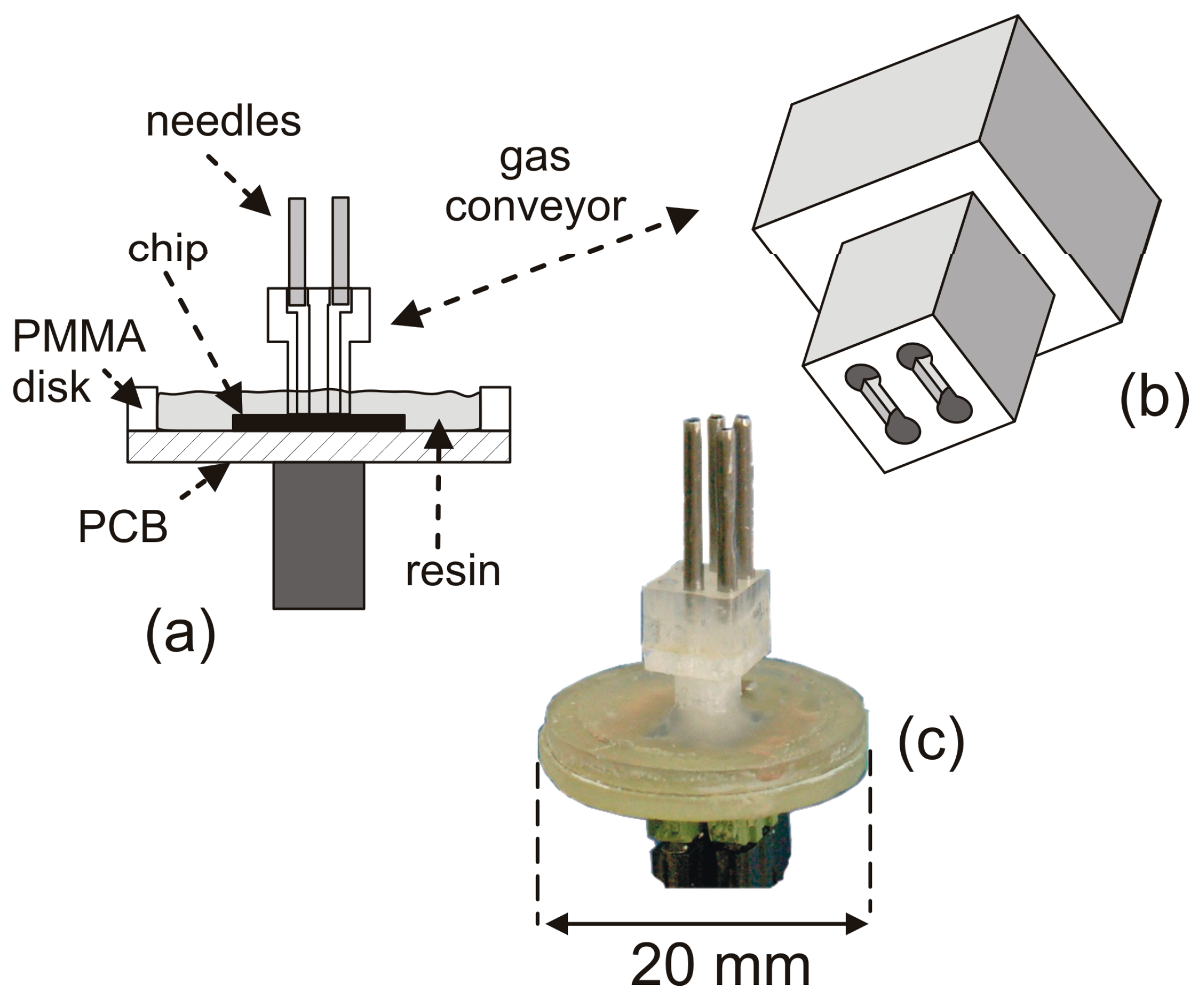

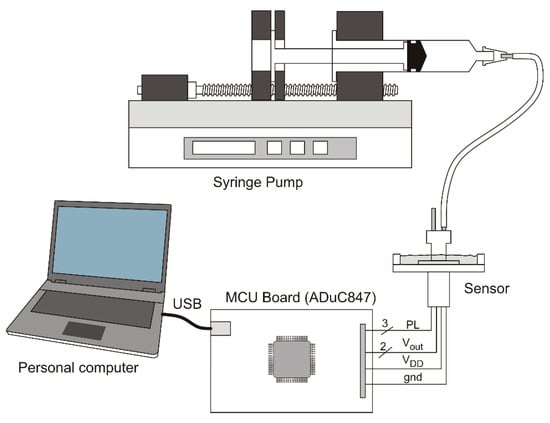

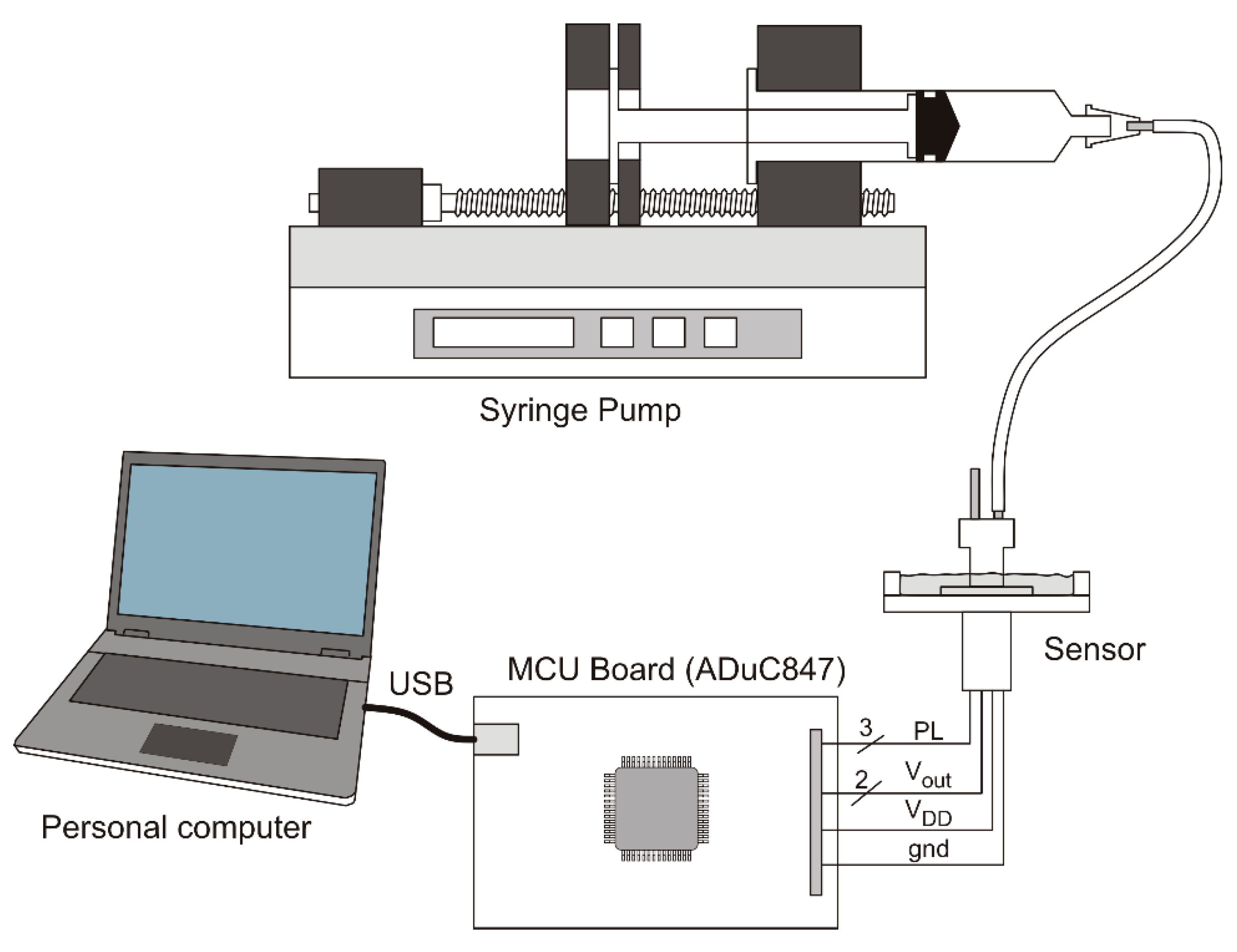

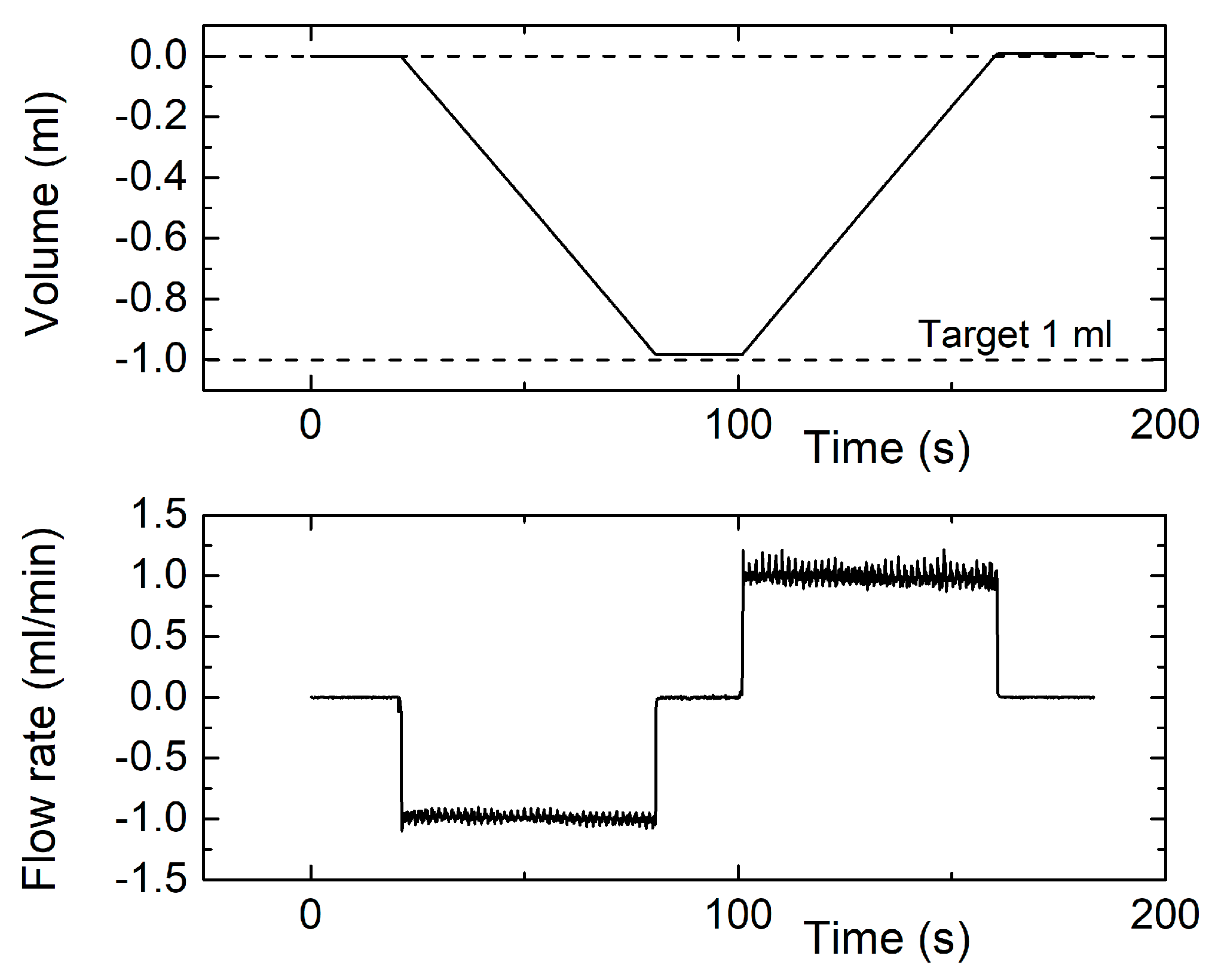

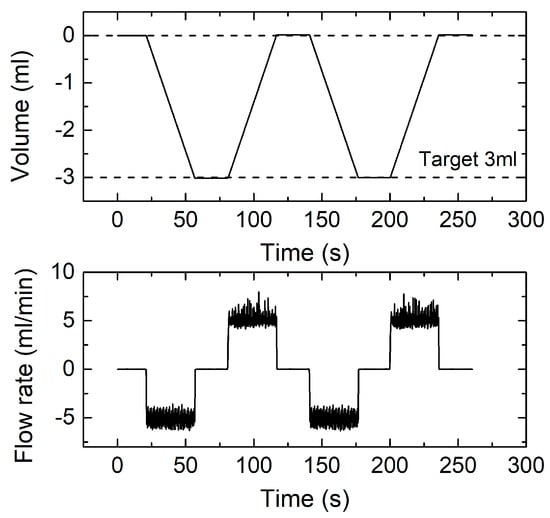

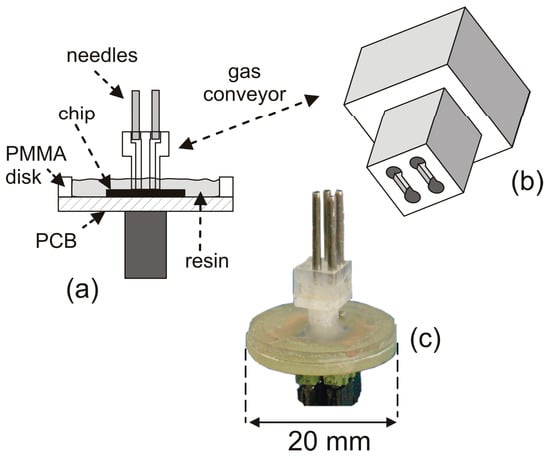

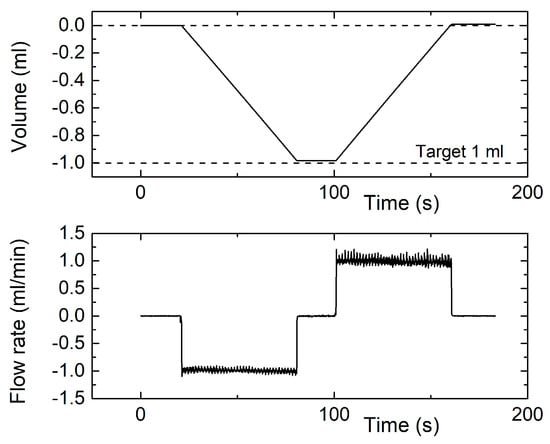

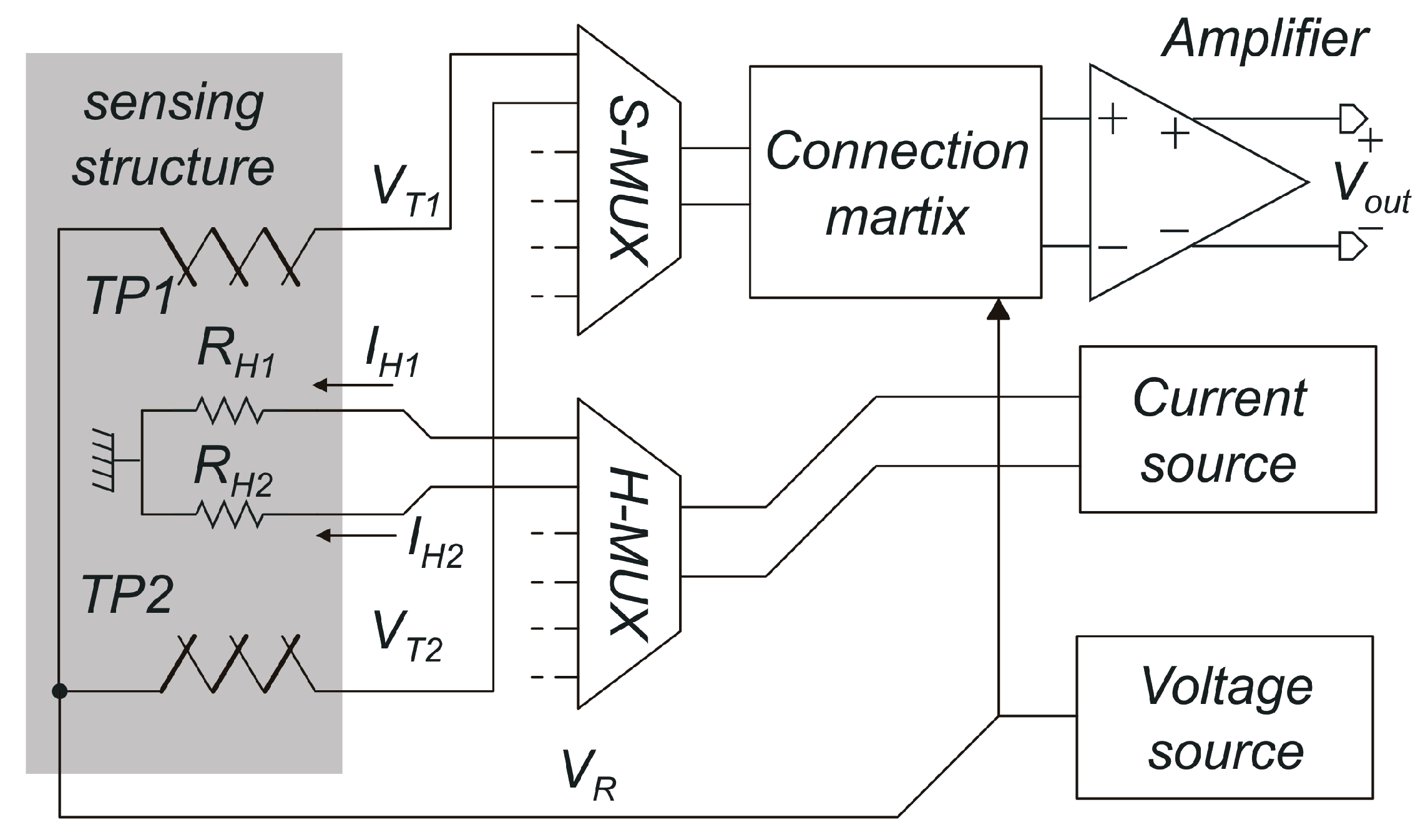

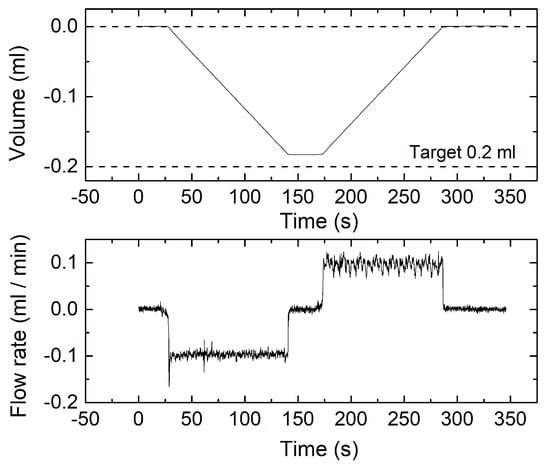

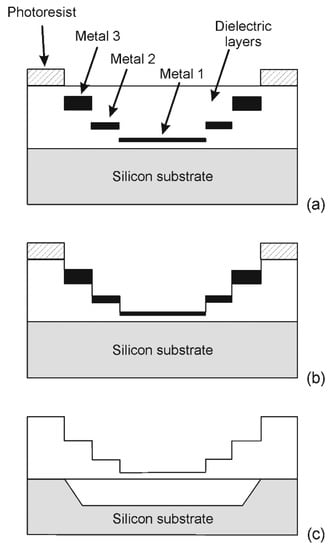

Experiments devoted to evaluate the performance of a MEMS thermal flow sensor in measuring gas volumes are described. The sensor is a single-chip platform, including several sensing structures and a low-offset, low-noise readout interface. A recently proposed offset compensation approach is implemented obtaining low temperature drift and excellent long time stability. The sensor is fabricated by applying a simple micromachining procedure to a chip produced using the BCD6s process of STMicroelectronics. Application of a gas conveyor allowed inclusion of the sensing structure into a channel of sub-millimeter cross-section. The results of measurements performed by making controlled air volumes pass through the sensor channel in both directions at rates from 0.1 to 5 mL/min are described. View Full-Text
Keywords: gas volume measurement; MEMS flow sensor; thermal flow sensor; system on a chip gas volume measurement; MEMS flow sensor; thermal flow sensor; system on a chip
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Piotto, M.; Del Cesta, S.; Bruschi, P. Precise Measurement of Gas Volumes by Means of Low-Offset MEMS Flow Sensors with μL/min Resolution. Sensors 2017, 17, 2497.
