Open AccessTechnical Note
Sensors 2017, 17(10), 2305; https://doi.org/10.3390/s17102305

Some Hardware and Instrumentation Aspects of the Development of an Automation System for Jar Tests in Drinking Water Treatment

Department of Electrical Engineering, Electronics and Automation, University of Extremadura, Avenida de Elvas, s/n, 06006 Badajoz, Spain
*
Author to whom correspondence should be addressed.
Received: 25 July 2017 / Revised: 7 September 2017 / Accepted: 9 October 2017 / Published: 11 October 2017
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [10505 KB, uploaded 11 October 2017]   |

Abstract

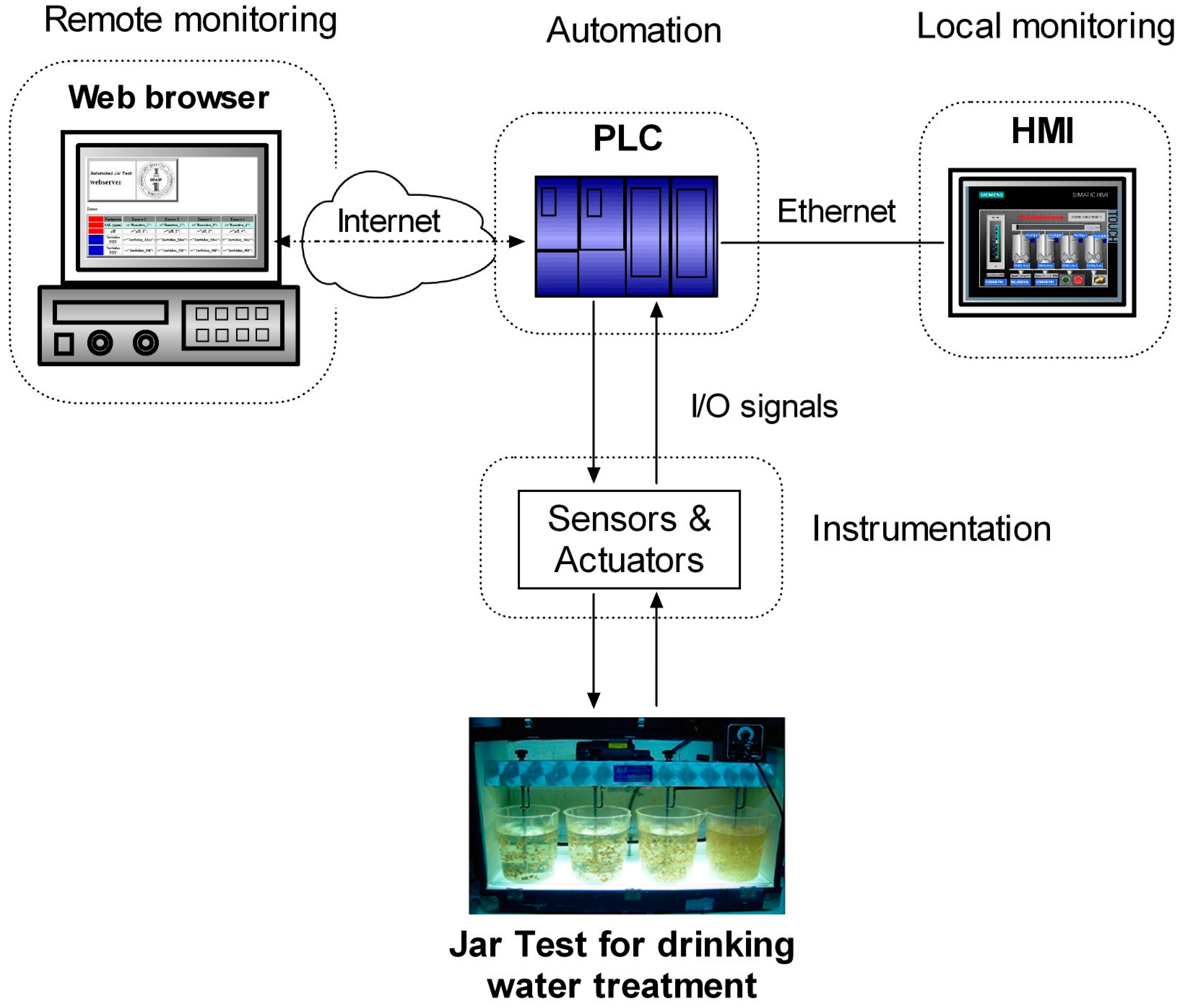

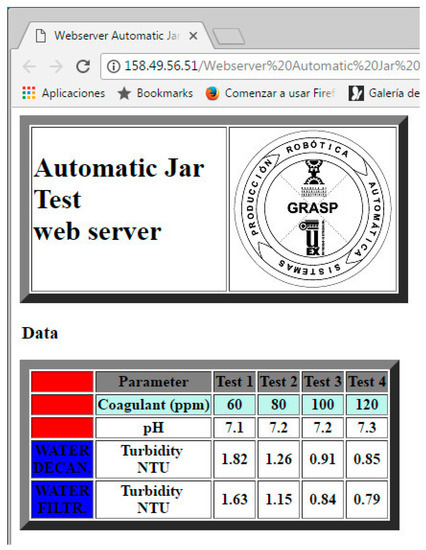

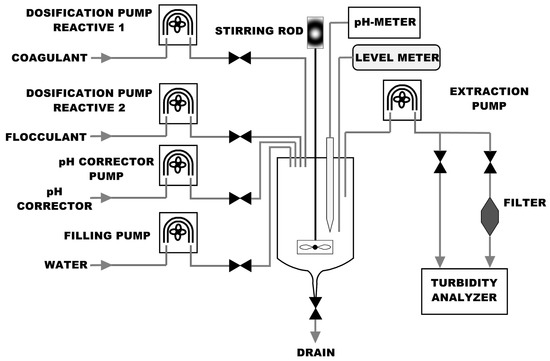

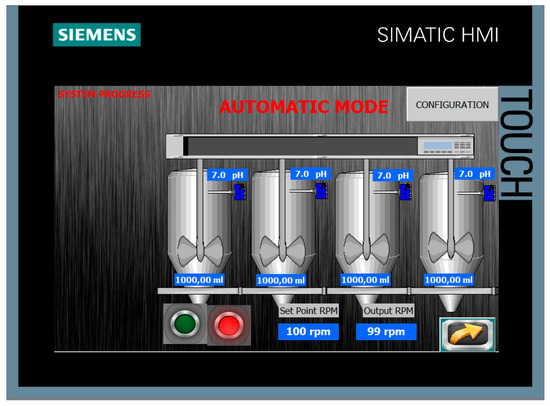

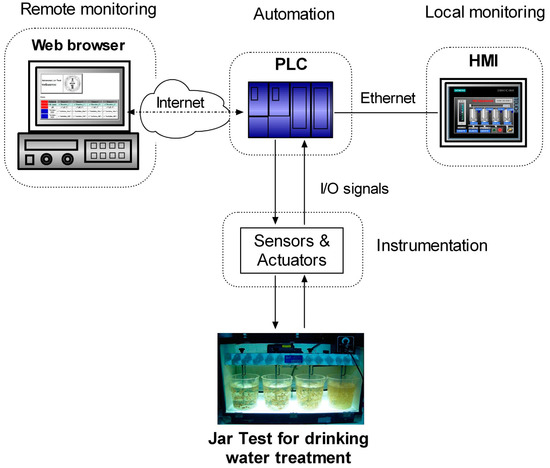

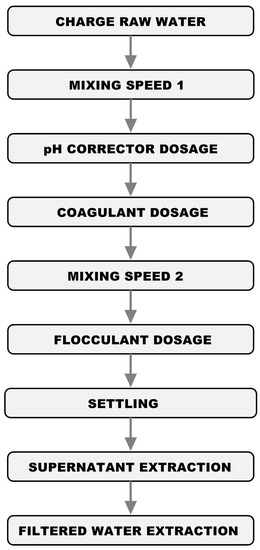

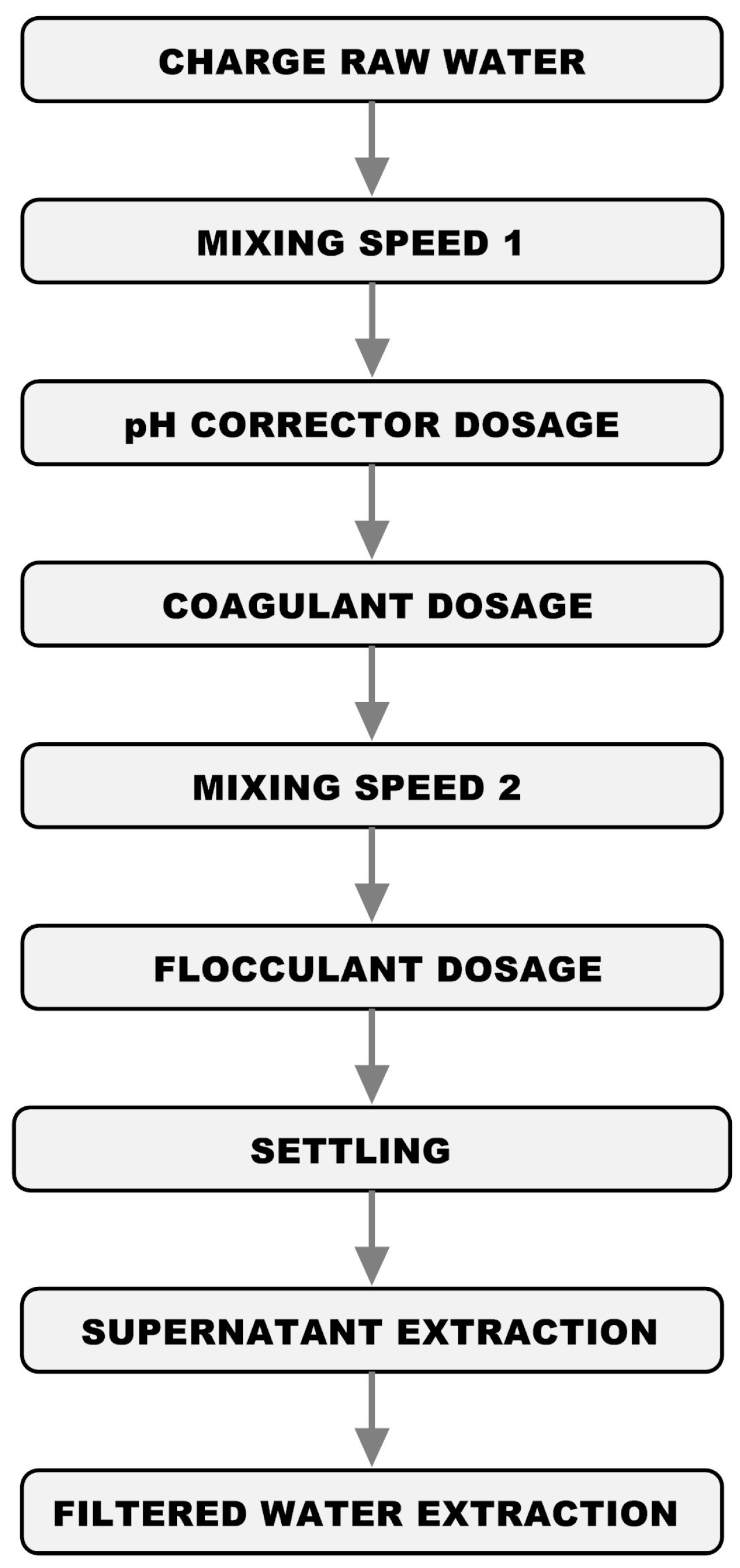

The so-called Jar Test (JT) plays a vital role in the drinking water and wastewater treatments for establishing the dosage of flocculants and coagulant. This test is a well-proved laboratory instrumental procedure performed by trained personnel. In this work, a completely novel system for the automation and monitoring of a JT devoted to drinking water treatment is presented. It has been implemented using an industrial programmable controller and sensors and instruments specifically selected for this purpose. Once the parameters of the test have been entered, the stages that compose the JT (stirring, coagulant addition, etc.) are sequentially performed without human intervention. Moreover, all the involved measurements from sensors are collected and made accessible for continuous monitoring of the process. By means of the proposed system, the JT procedure is conducted fully automatically and can be locally and remotely monitored in real-time. Furthermore, the developed system constitutes a portable laboratory that offers advantageous features like scalability and transportability. The proposed system is described focusing on hardware and instrumentation aspects, and successful results are reported. View Full-Text
Keywords: jar test; automation; monitoring; instrumentation; water treatment jar test; automation; monitoring; instrumentation; water treatment
