Thermal Balance Analysis of a Micro-Thermoelectric Gas Sensor Using Catalytic Combustion of Hydrogen

AIST, 2266-98 Anagahora, Shimo-Shidami, Moriyama-ku, Nagoya 463-8560, Japan
Author to whom correspondence should be addressed.
Received: 16 December 2013 / Revised: 13 January 2014 / Accepted: 14 January 2014 / Published: 21 January 2014
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [868 KB, uploaded 21 June 2014]   |

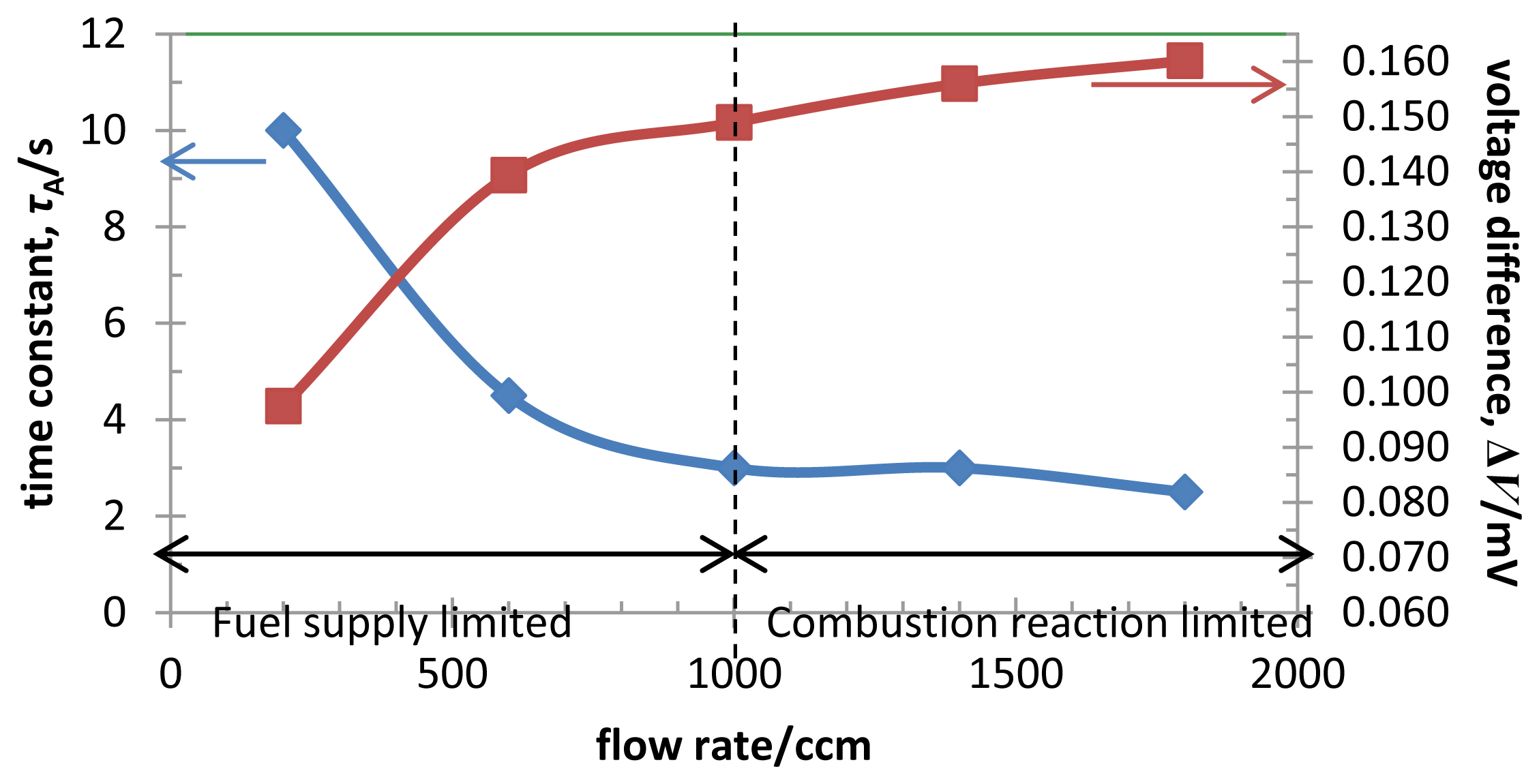

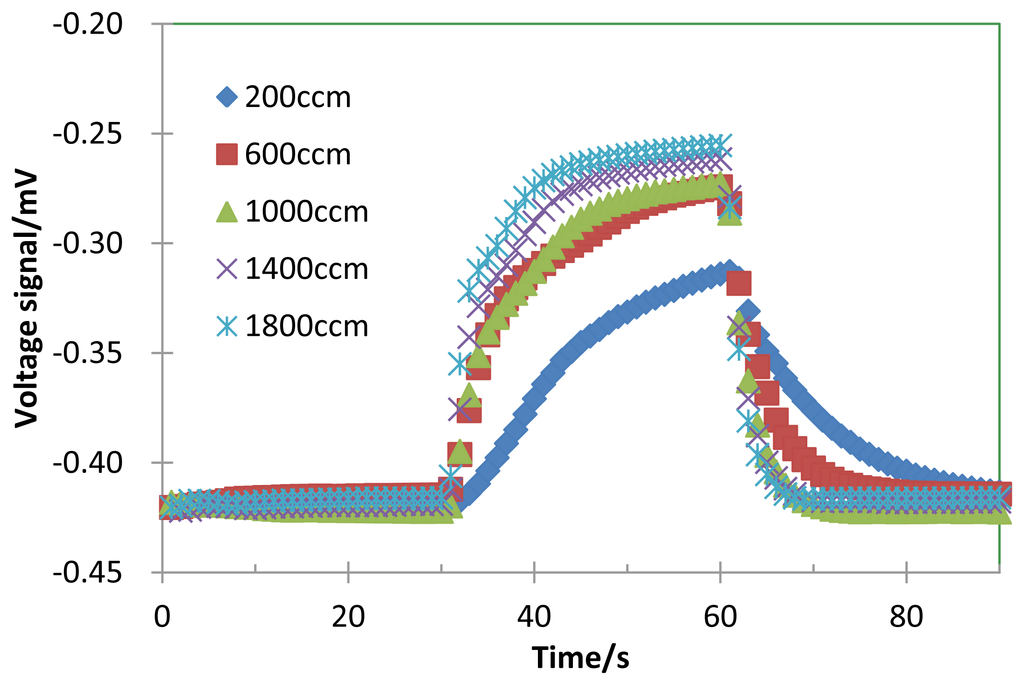

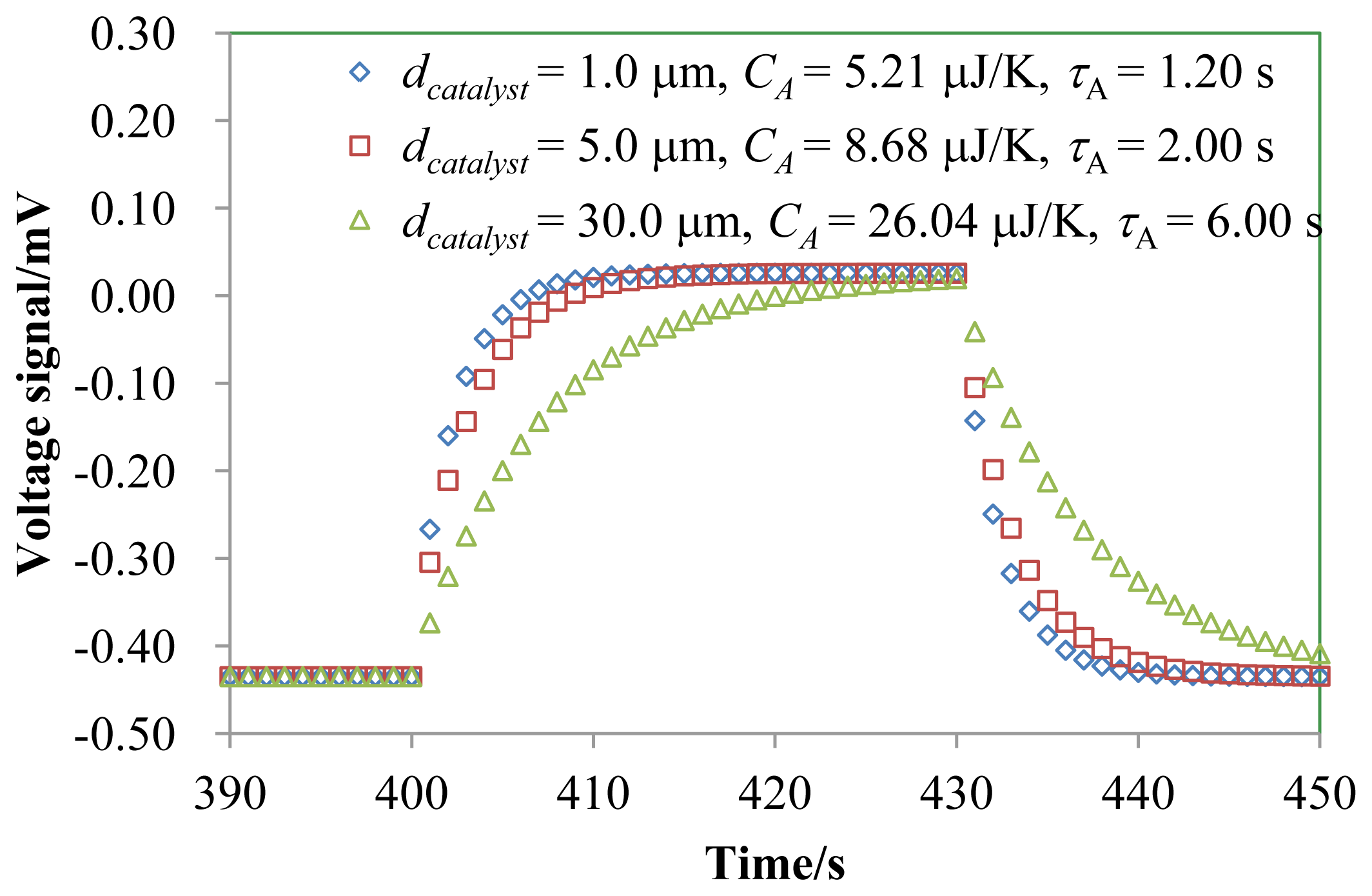

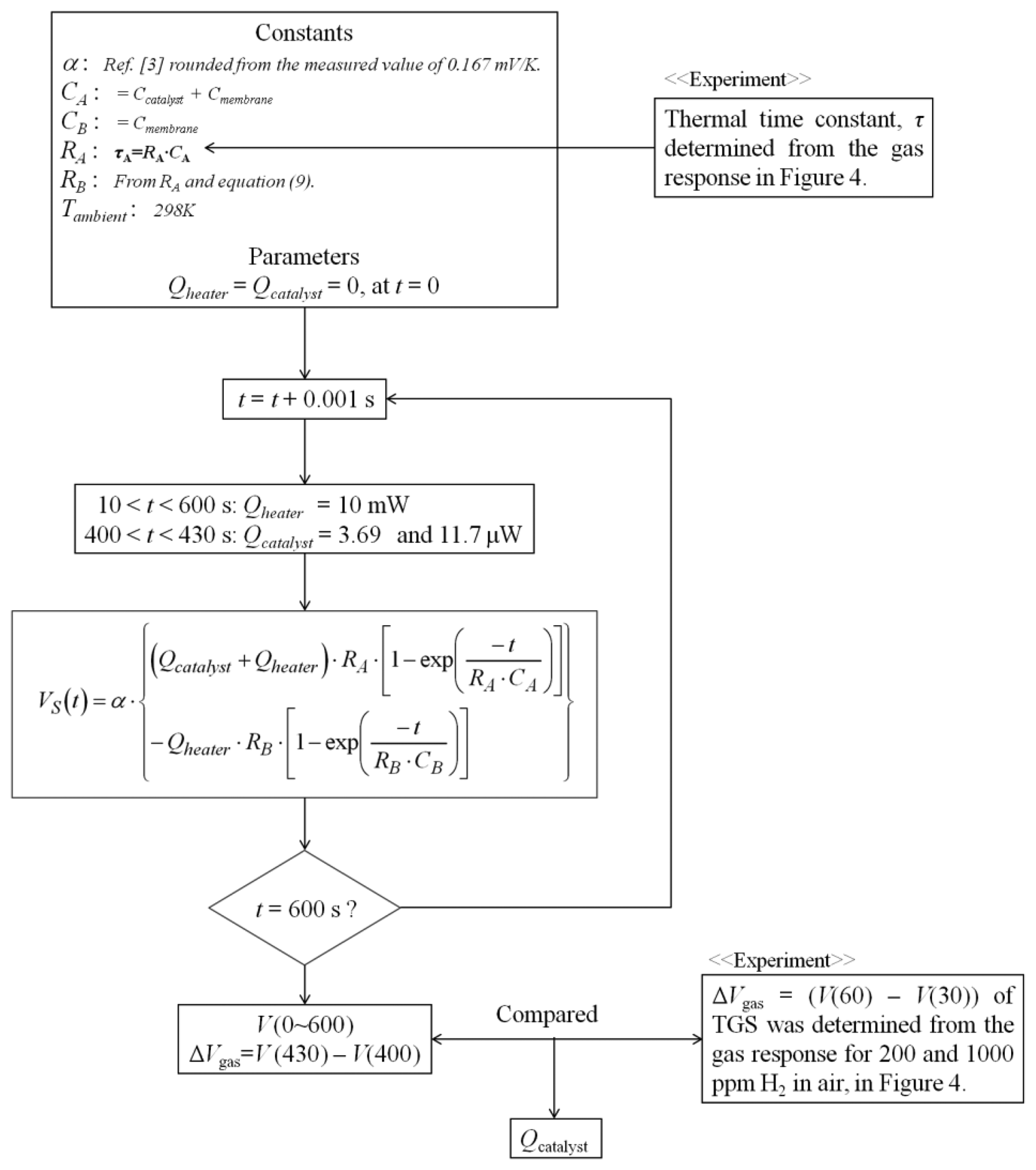

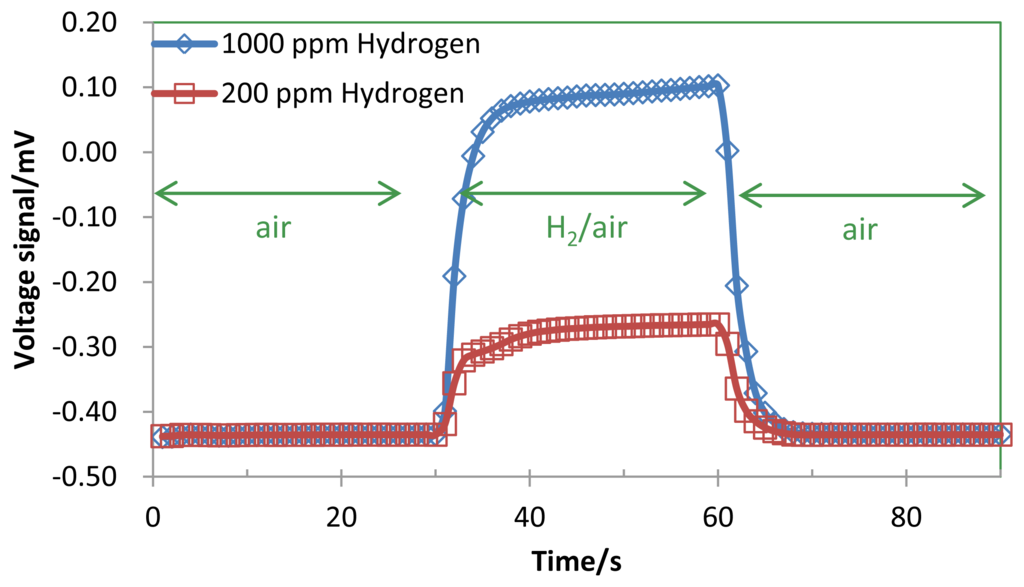

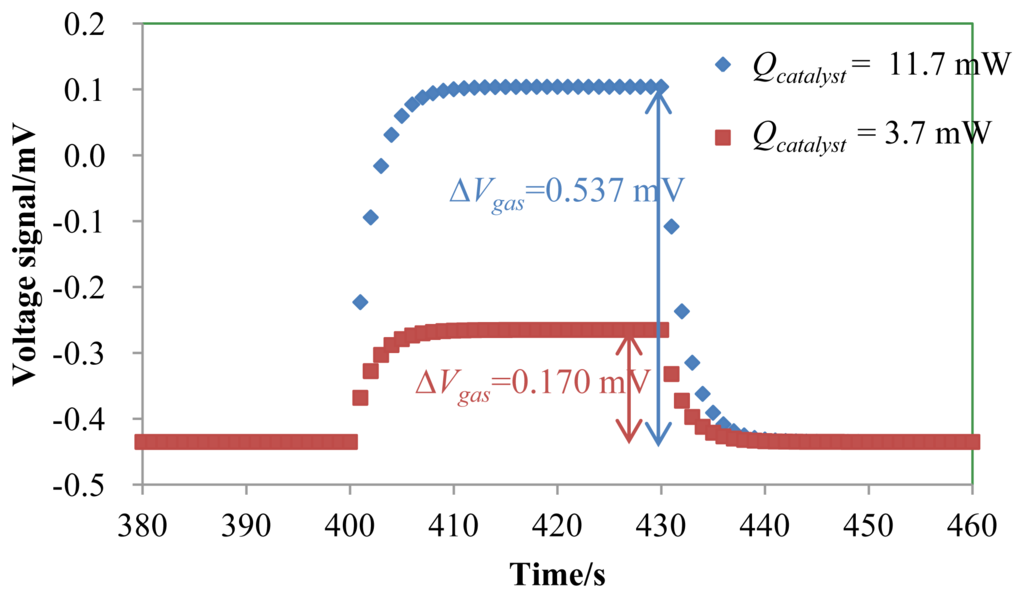

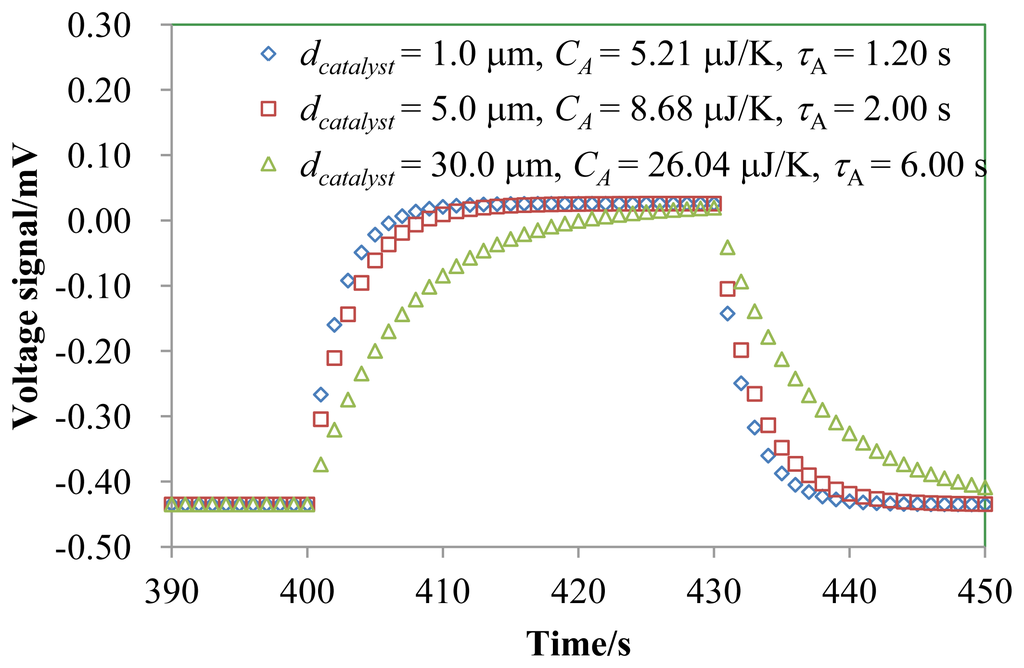

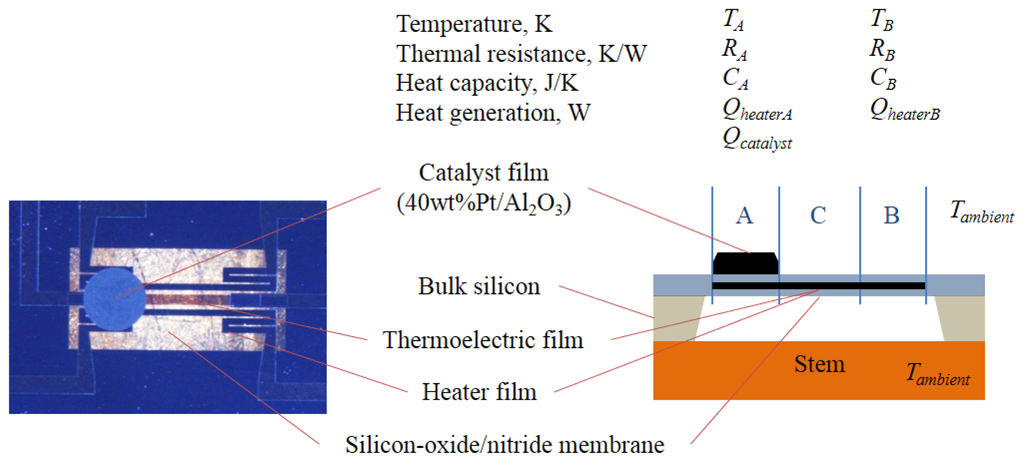

A thermoelectric gas sensor (TGS) with a combustion catalyst is a calorimetric sensor that changes the small heat of catalytic combustion into a signal voltage. We analyzed the thermal balance of a TGS to quantitatively estimate the sensor parameters. The voltage signal of a TGS was simulated, and the heat balance was calculated at two sections across the thermoelectric film of a TGS. The thermal resistances in the two sections were estimated from the thermal time constants of the experimental signal curves of the TGS. The catalytic combustion heat Qcatalyst required for 1 mV of ∆Vgas was calculated to be 46.1 μW. Using these parameters, we find from simulations for the device performance that the expected Qcatalyst for 200 and 1,000 ppm H2 was 3.69 μW and 11.7 μW, respectively.
Keywords: thermoelectric gas sensor; combustion catalyst; thermal balance thermoelectric gas sensor; combustion catalyst; thermal balance
