Sensors 2013, 13(7), 9132-9147; doi:10.3390/s130709132
Article

A New Full Pose Measurement Method for Robot Calibration

1 Graduate School of Electrical Engineering, University of Ulsan, Mugeo 2-Dong, Namgu, Ulsan City 680-749, Korea 2 School of Electrical Engineering, University of Ulsan, Mugeo 2-Dong, Namgu, Ulsan City 680-749, Korea
* Author to whom correspondence should be addressed.
Received: 1 April 2013; in revised form: 6 May 2013 / Accepted: 15 July 2013 / Published: 16 July 2013
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [679 KB, uploaded 16 July 2013 11:05 CEST]

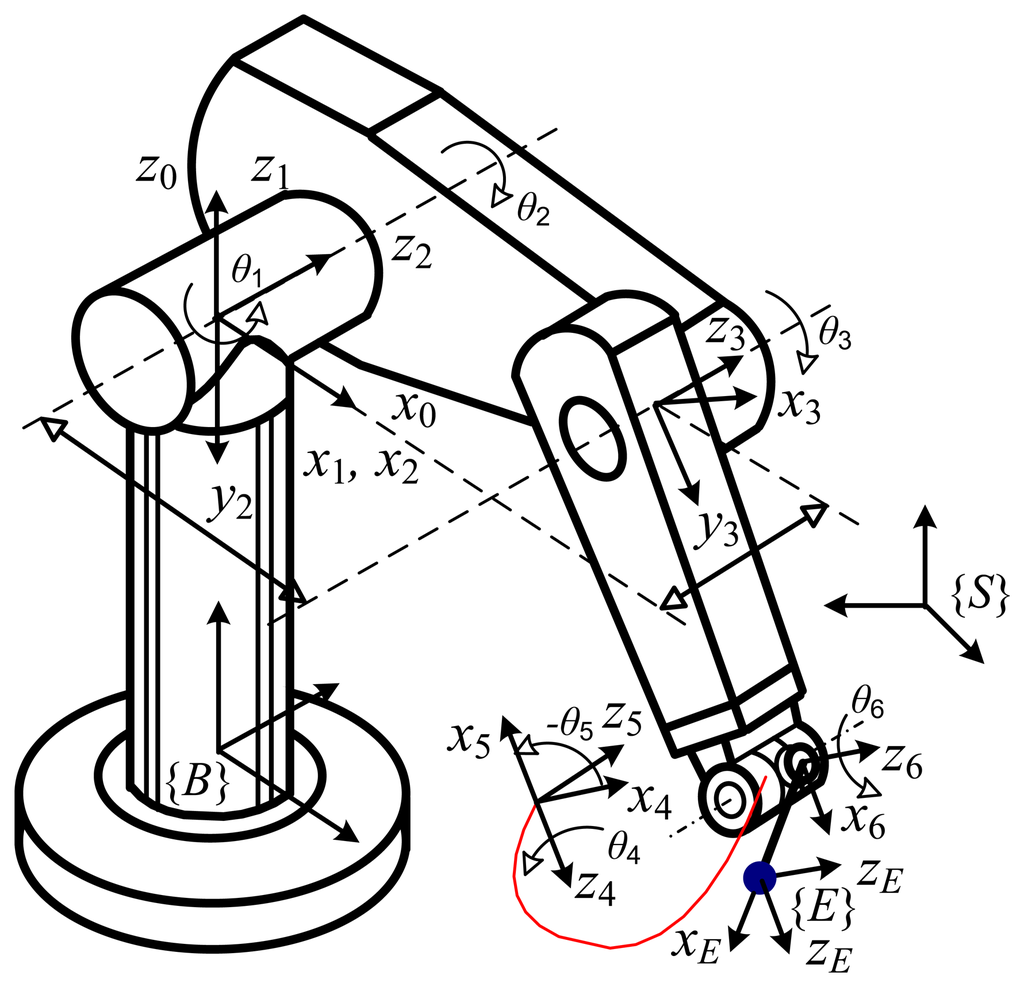

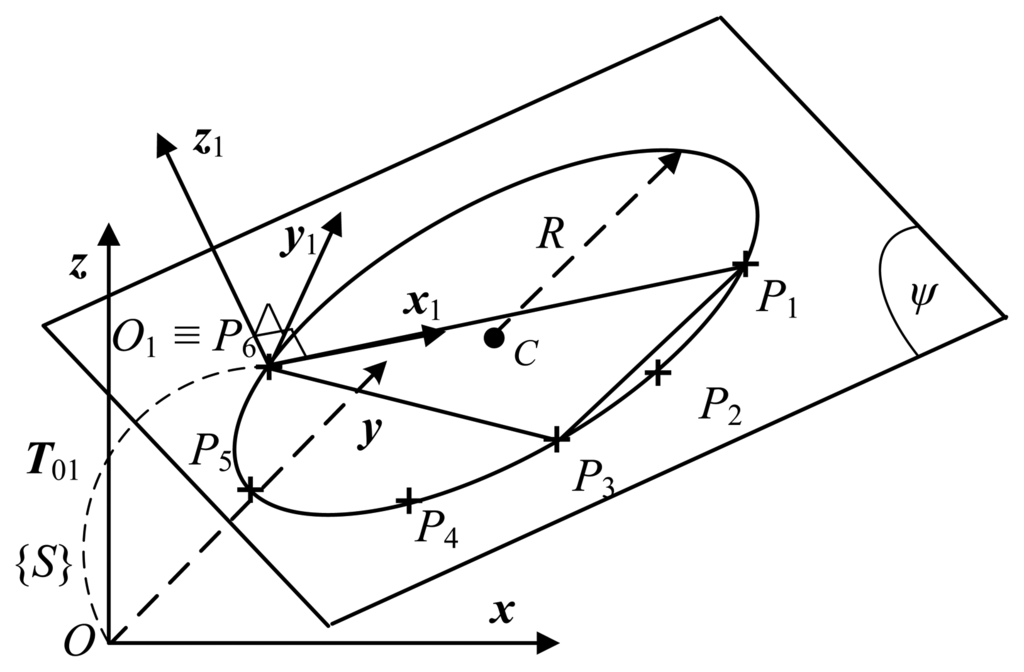

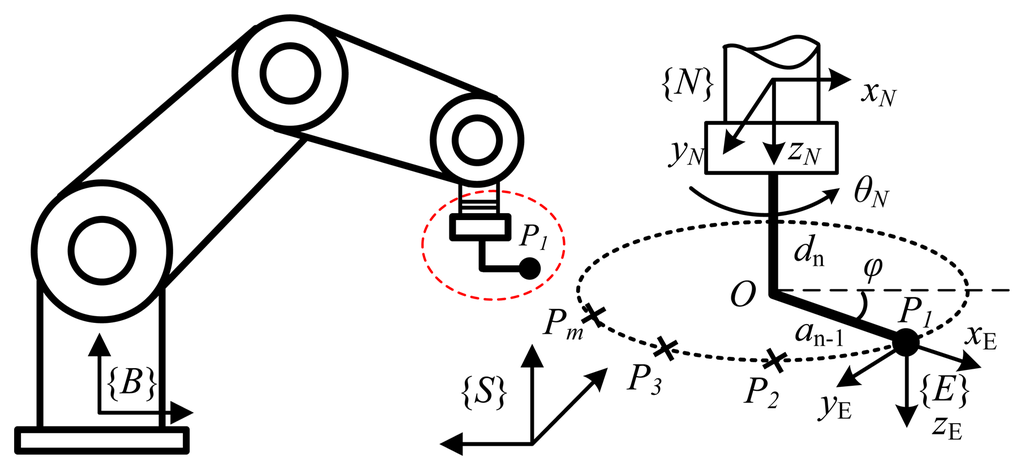

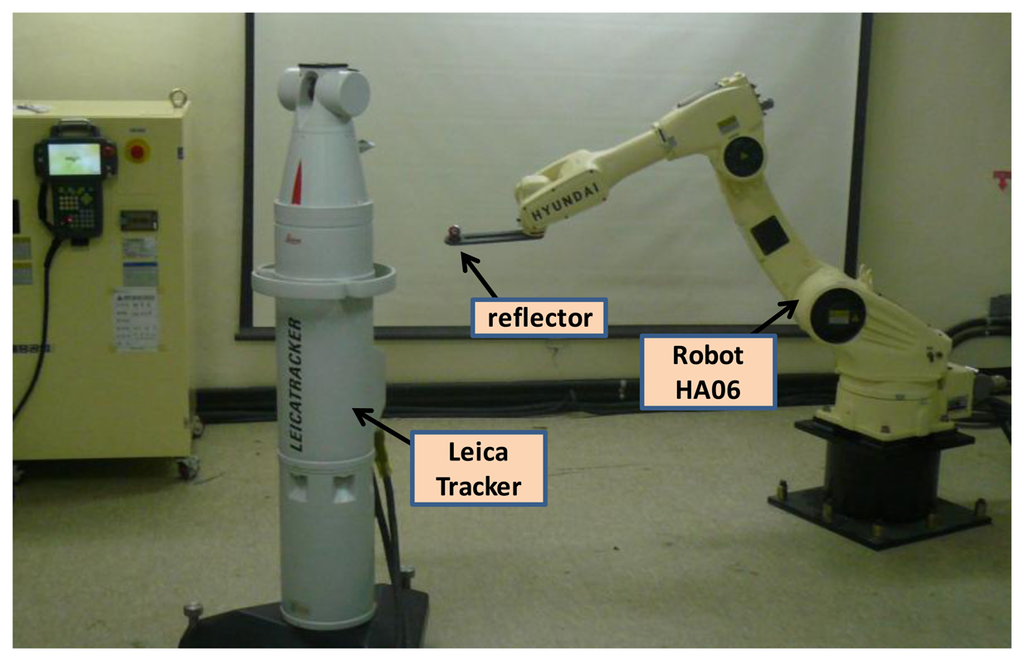

Abstract: Identification of robot kinematic errors during the calibration process often requires accurate full pose measurements (position and orientation) of robot end-effectors in Cartesian space. This paper proposes a new method of full pose measurement of robot end-effectors for calibration. This method is based on an analysis of the features of a set of target points (placed on a rotating end-effector) on a circular trajectory. The accurate measurement is validated by computational simulation results from the Puma robot. Moreover, experimental calibration and validation results for the Hyundai HA-06 robot prove the effectiveness, correctness, and reliability of the proposed method. This method can be applied to robots that have entirely revolute joints or to robots for which only the last joint is revolute.
Keywords: full pose measurement; robotic manipulator; robot calibration
