Sensors 2013, 13(11), 14583-14600; doi:10.3390/s131114583
Article

A Novel INS and Doppler Sensors Calibration Method for Long Range Underwater Vehicle Navigation

1 College of Mechatronics and Automation, National University of Defense Technology, Changsha 410073, China 2 School of Civil and Environmental Engineering, University of New South Wales, Sydney, NSW 2052, Australia
* Author to whom correspondence should be addressed.
Received: 10 August 2013; in revised form: 11 September 2013 / Accepted: 17 October 2013 / Published: 28 October 2013
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [786 KB, uploaded 28 October 2013 14:29 CET]

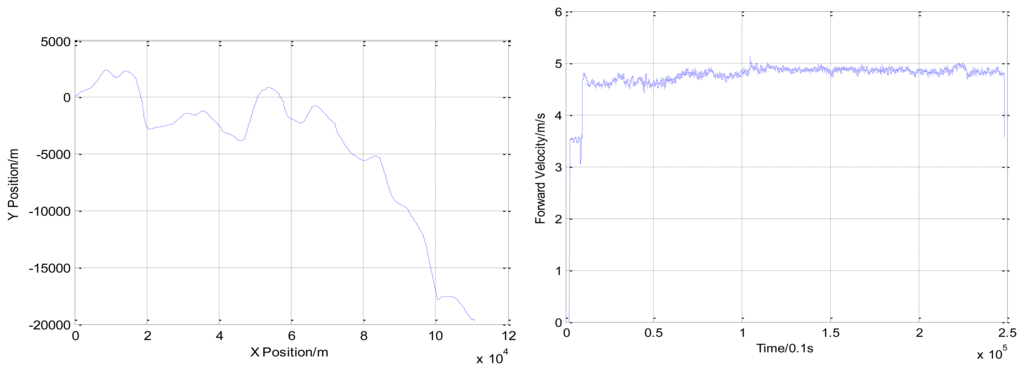

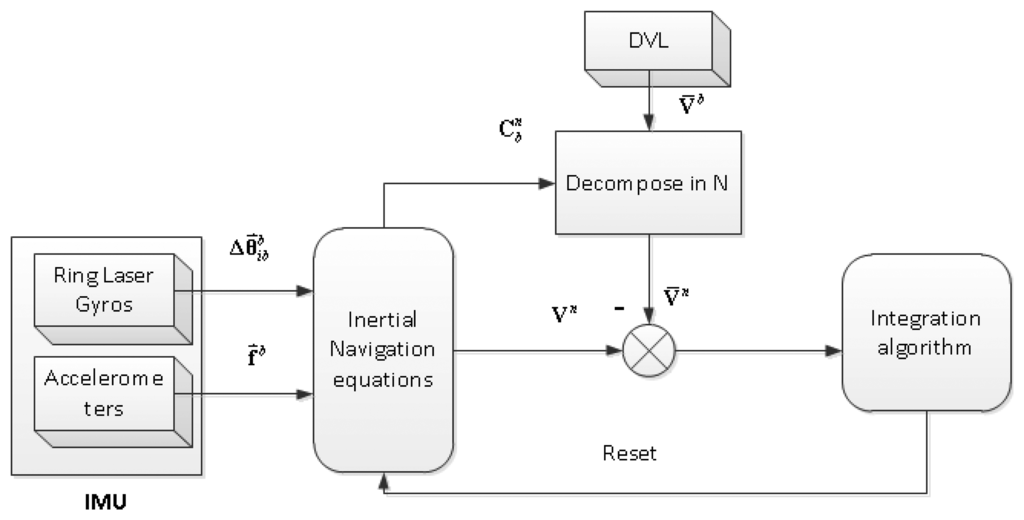

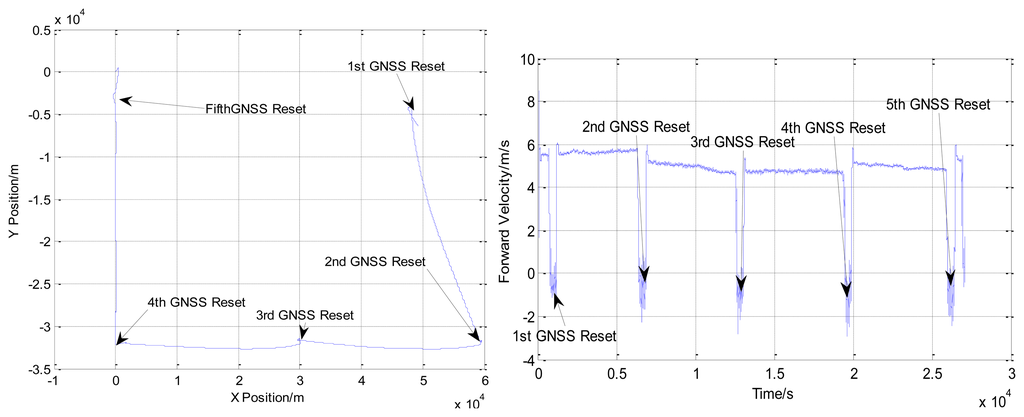

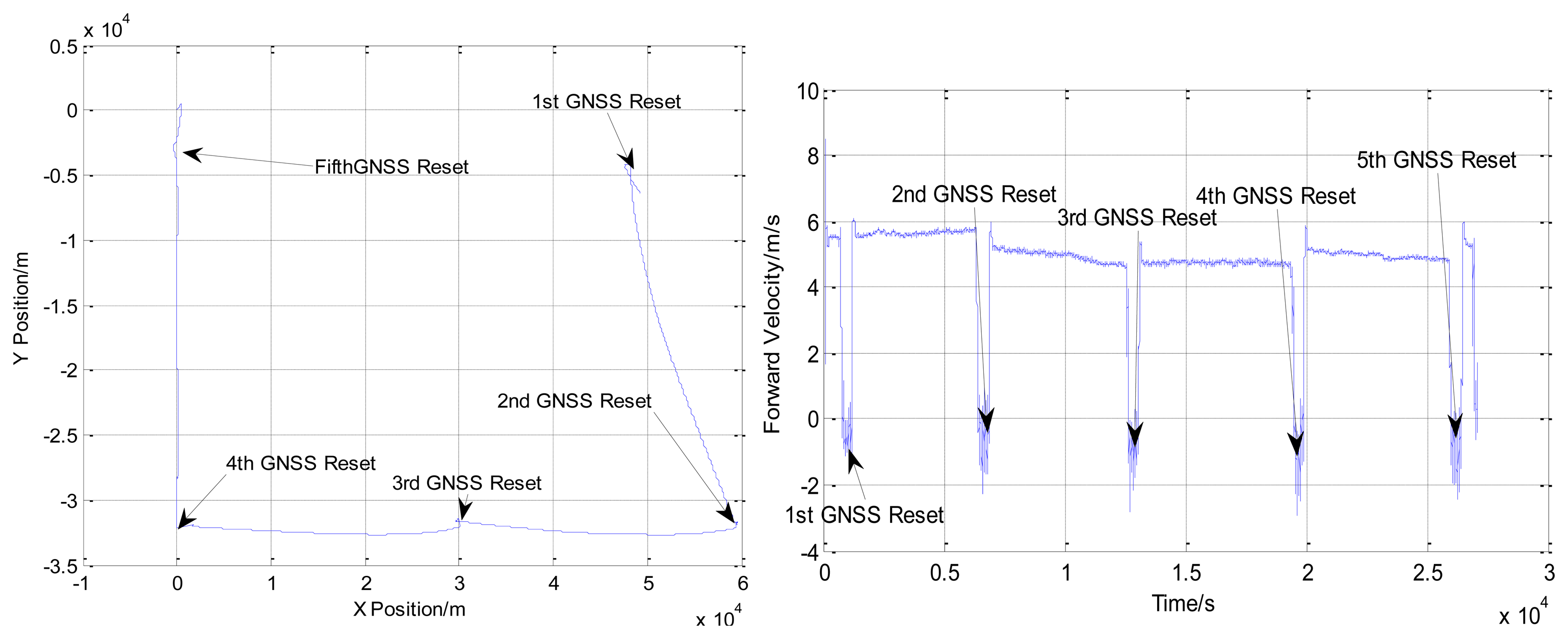

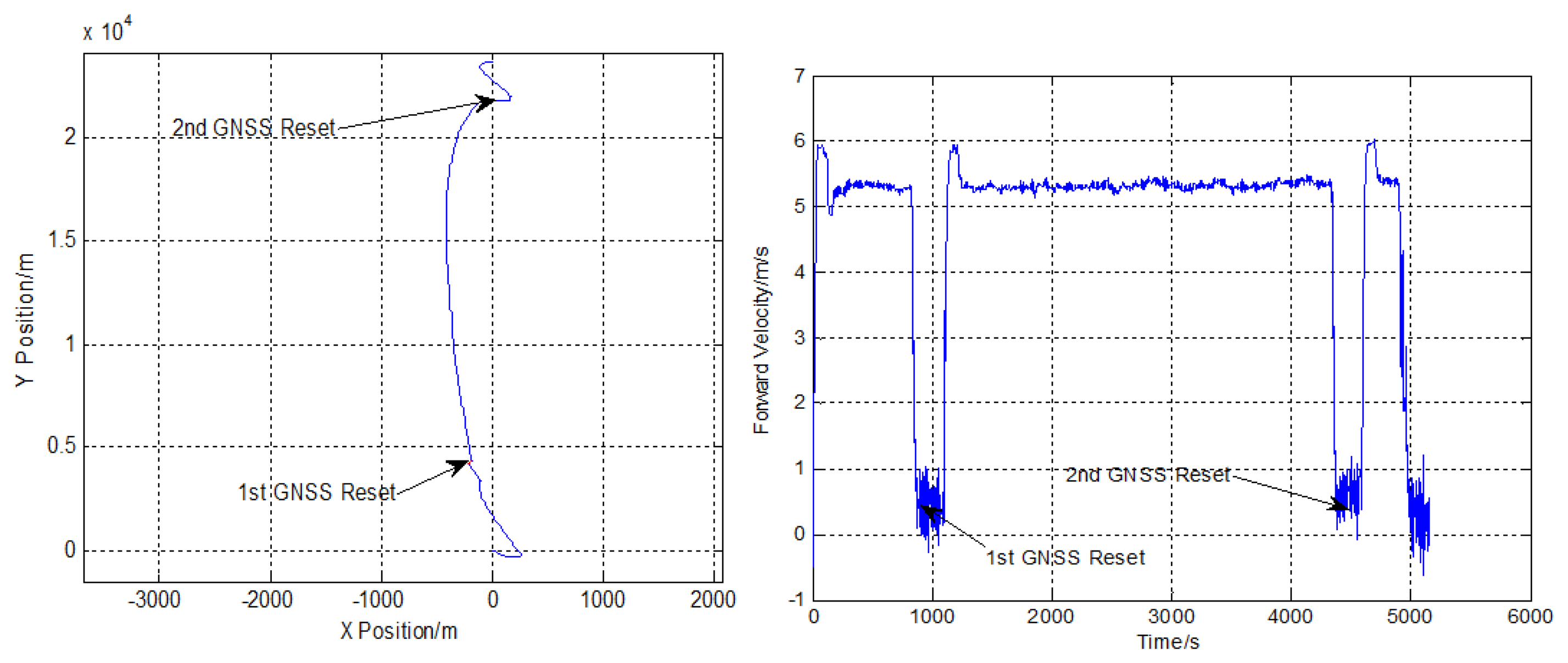

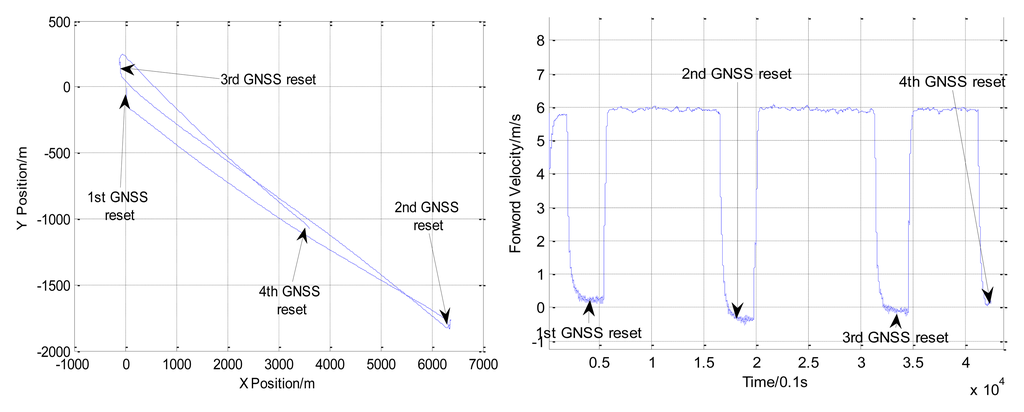

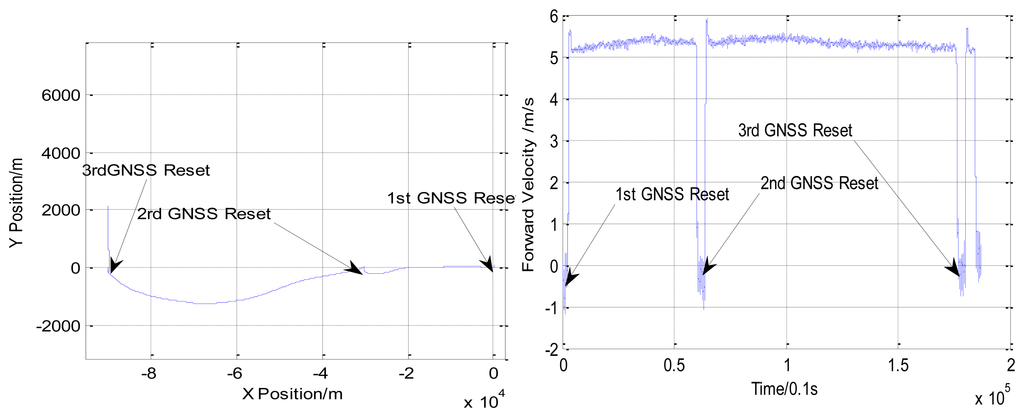

Abstract: Since the drifts of Inertial Navigation System (INS) solutions are inevitable and also grow over time, a Doppler Velocity Log (DVL) is used to aid the INS to restrain its error growth. Therefore, INS/DVL integration is a common approach for Autonomous Underwater Vehicle (AUV) navigation. The parameters including the scale factor of DVL and misalignments between INS and DVL are key factors which limit the accuracy of the INS/DVL integration. In this paper, a novel parameter calibration method is proposed. An iterative implementation of the method is designed to reduce the error caused by INS initial alignment. Furthermore, a simplified INS/DVL integration scheme is employed. The proposed method is evaluated with both river trial and sea trial data sets. Using 0.03°/h(1σ) ring laser gyroscopes, 5 × 10−5 g(1σ) quartz accelerometers and DVL with accuracy 0.5% V ± 0.5 cm/s, INS/DVL integrated navigation can reach an accuracy of about 1‰ of distance travelled (CEP) in a river trial and 2‰ of distance travelled (CEP) in a sea trial.
Keywords: inertial navigation system; Doppler velocity log; integrated navigation; autonomous underwater vehicle; parameters calibration; iterative implementation

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Tang, K.; Wang, J.; Li, W.; Wu, W. A Novel INS and Doppler Sensors Calibration Method for Long Range Underwater Vehicle Navigation. Sensors 2013, 13, 14583-14600.

AMA Style

Tang K, Wang J, Li W, Wu W. A Novel INS and Doppler Sensors Calibration Method for Long Range Underwater Vehicle Navigation. Sensors. 2013; 13(11):14583-14600.

Chicago/Turabian Style

Tang, Kanghua; Wang, Jinling; Li, Wanli; Wu, Wenqi. 2013. "A Novel INS and Doppler Sensors Calibration Method for Long Range Underwater Vehicle Navigation." Sensors 13, no. 11: 14583-14600.
