Next Article in Journal
A Network Coding Based Routing Protocol for Underwater Sensor Networks
Previous Article in Journal
An Instrument for In Situ Measuring the Volume Scattering Function of Water: Design, Calibration and Primary Experiments
Sensors 2012, 12(4), 4534-4558; doi:10.3390/s120404534
Article

The Application of LiDAR to Assessment of Rooftop Solar Photovoltaic Deployment Potential in a Municipal District Unit

1
, 2,* , 3
 and 4
1 Department of Geography and Environment, Boston University, Boston, MA 02215, USA 2 Department of Materials Science & Engineering and Department of Electrical & Computer Engineering, Michigan Technological University, 1400 Townsend Dr., Houghton, MI 49931, USA 3 Department of Geological Sciences & Geological Engineering, Queen’s University, Kingston, ON K7L 3N6, Canada 4 Department of Geography, Queen’s University, Kingston, ON K7L 3N6, Canada
* Author to whom correspondence should be addressed.
Received: 9 February 2012 / Revised: 28 March 2012 / Accepted: 29 March 2012 / Published: 10 April 2012
(This article belongs to the Section Remote Sensors)
View Full-Text   |   Download PDF [753 KB, uploaded 21 June 2014]   |   Browse Figures

Abstract

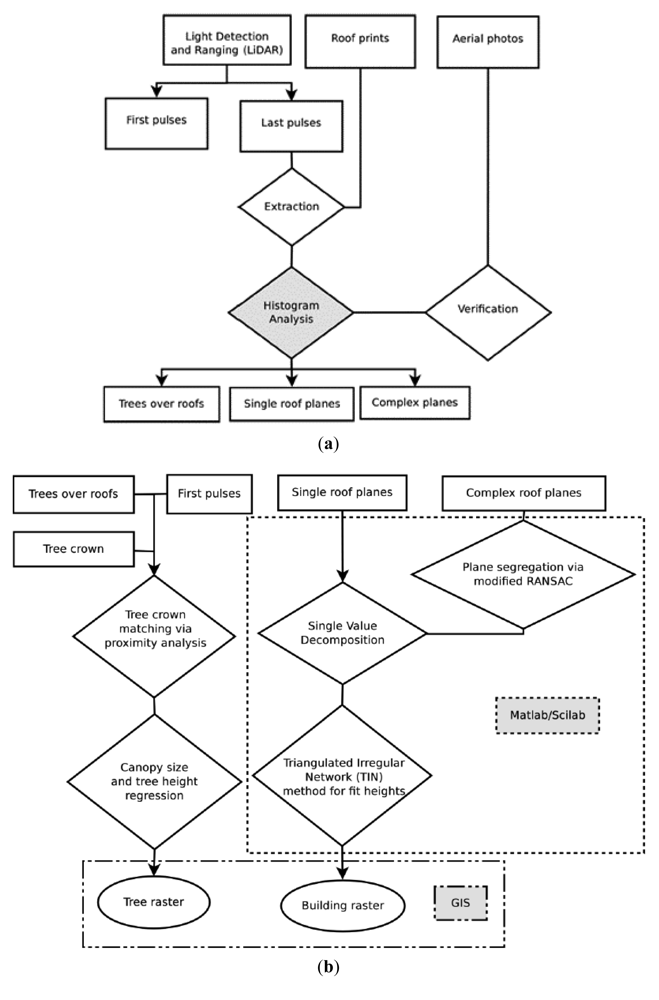

A methodology is provided for the application of Light Detection and Ranging (LiDAR) to automated solar photovoltaic (PV) deployment analysis on the regional scale. Challenges in urban information extraction and management for solar PV deployment assessment are determined and quantitative solutions are offered. This paper provides the following contributions: (i) a methodology that is consistent with recommendations from existing literature advocating the integration of cross-disciplinary competences in remote sensing (RS), GIS, computer vision and urban environmental studies; (ii) a robust methodology that can work with low-resolution, incomprehensive data and reconstruct vegetation and building separately, but concurrently; (iii) recommendations for future generation of software. A case study is presented as an example of the methodology. Experience from the case study such as the trade-off between time consumption and data quality are discussed to highlight a need for connectivity between demographic information, electrical engineering schemes and GIS and a typical factor of solar useful roofs extracted per method. Finally, conclusions are developed to provide a final methodology to extract the most useful information from the lowest resolution and least comprehensive data to provide solar electric assessments over large areas, which can be adapted anywhere in the world.
Keywords: airborne laser scanning; ALS; Digital Surface Model; DSM; Light Detection and Ranging; LiDAR; roof extraction; photovoltaic airborne laser scanning; ALS; Digital Surface Model; DSM; Light Detection and Ranging; LiDAR; roof extraction; photovoltaic
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Export to BibTeX |
EndNote


MDPI and ACS Style

Nguyen, H.T.; Pearce, J.M.; Harrap, R.; Barber, G. The Application of LiDAR to Assessment of Rooftop Solar Photovoltaic Deployment Potential in a Municipal District Unit. Sensors 2012, 12, 4534-4558.
