Open AccessArticle
Sensors 2012, 12(10), 14068-14083; doi:10.3390/s121014068

FPGA-Based Multiprocessor System for Injection Molding Control

HSPdigital-CA Mecatronica, Facultad de Ingenieria, Universidad Autonoma de Queretaro, Campus San Juan del Rio, Rio Moctezuma 249, Col. San Cayetano, 76807 San Juan del Rio, Qro., Mexico
*
Author to whom correspondence should be addressed.
Received: 13 August 2012 / Revised: 27 September 2012 / Accepted: 12 October 2012 / Published: 18 October 2012
(This article belongs to the Section Sensor Networks)
View Full-Text   |   Download PDF [636 KB, uploaded 21 June 2014]   |

Abstract

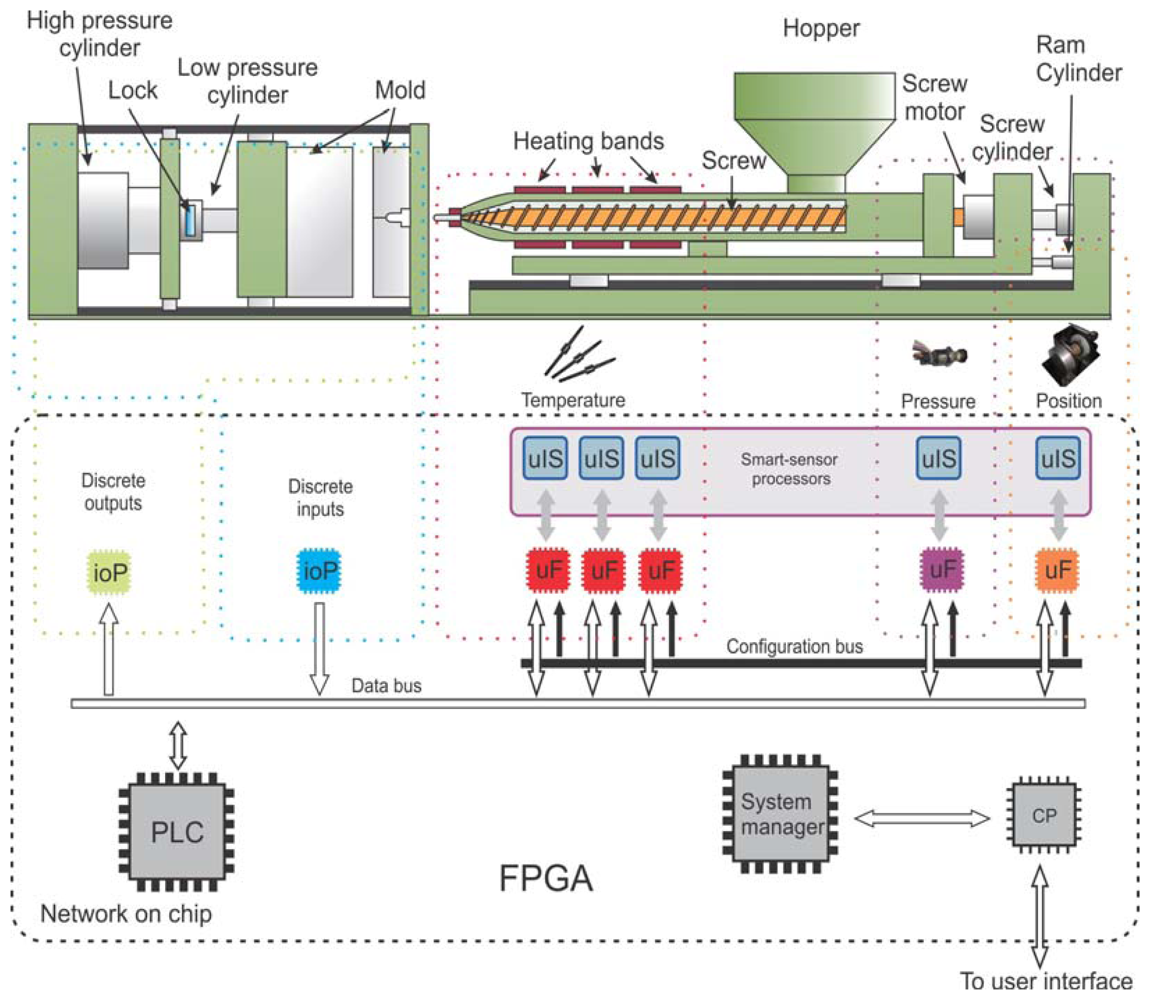

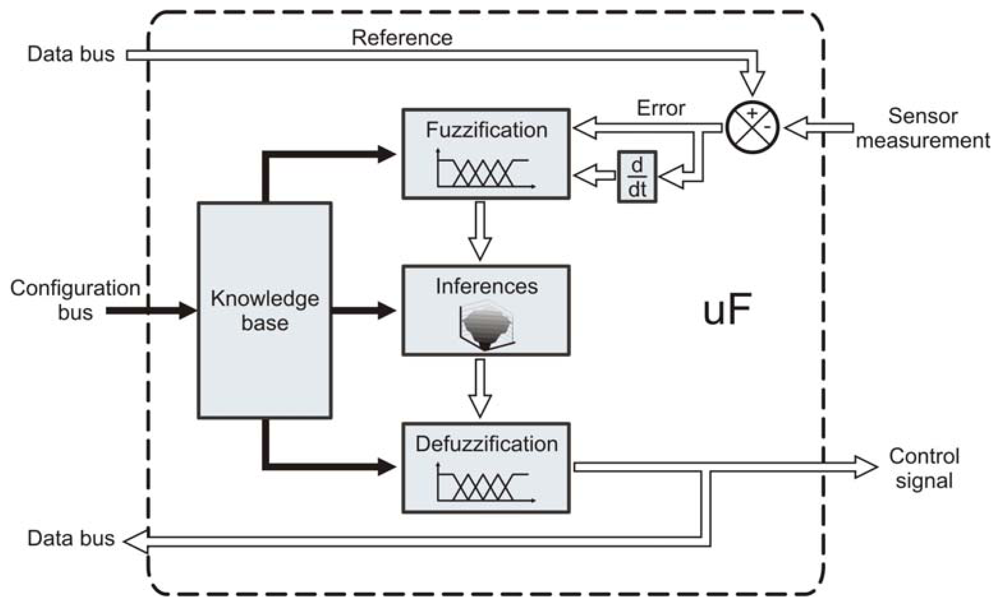

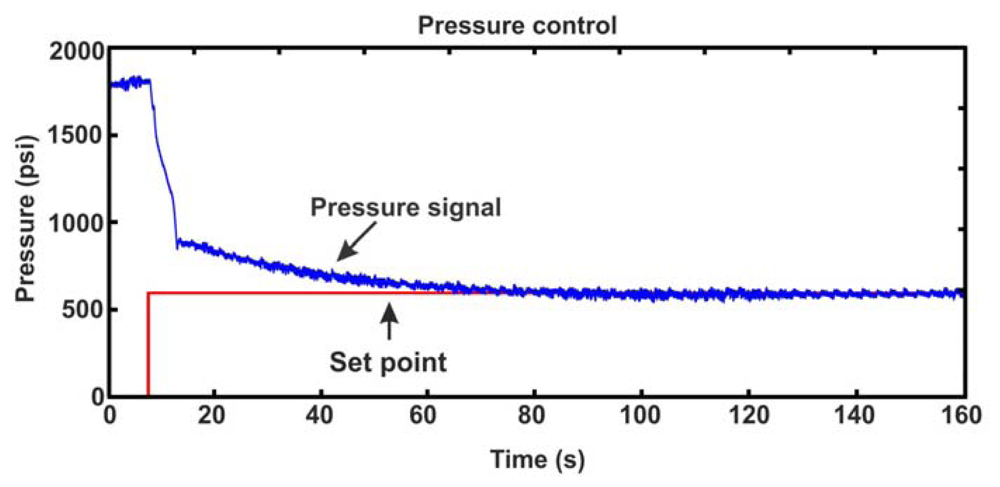

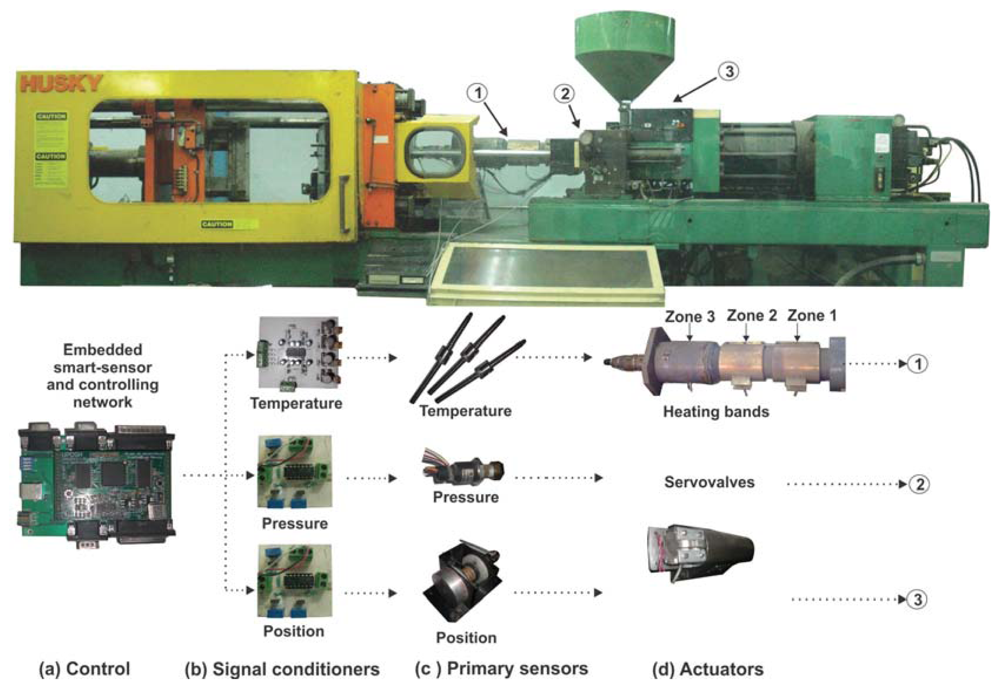

The plastic industry is a very important manufacturing sector and injection molding is a widely used forming method in that industry. The contribution of this work is the development of a strategy to retrofit control of an injection molding machine based on an embedded system microprocessors sensor network on a field programmable gate array (FPGA) device. Six types of embedded processors are included in the system: a smart-sensor processor, a micro fuzzy logic controller, a programmable logic controller, a system manager, an IO processor and a communication processor. Temperature, pressure and position are controlled by the proposed system and experimentation results show its feasibility and robustness. As validation of the present work, a particular sample was successfully injected. View Full-Text
Keywords: smart-sensor; sensor network; FPGA; plastic injection molding smart-sensor; sensor network; FPGA; plastic injection molding
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
