Sensors 2012, 12(10), 14053-14067; doi:10.3390/s121014053
Article

Cooperative Suction by Vertical Capillary Array Pump for Controlling Flow Profiles of Microfluidic Sensor Chips

* , * ,
,
 and
NTT Microsystem Integration Laboratories, Nippon Telegraph and Telephone Corporation (NTT), Morinosato-Wakamiya, Atsugi-shi, Kanagawa 2430198, Japan
* Authors to whom correspondence should be addressed.
Received: 23 August 2012 / Revised: 27 September 2012 / Accepted: 10 October 2012 / Published: 18 October 2012
(This article belongs to the Special Issue Microfluidic Devices)
View Full-Text   |   Download PDF [677 KB, 21 June 2014; original version 21 June 2014]   |   Browse Figures
SciFeed

Abstract

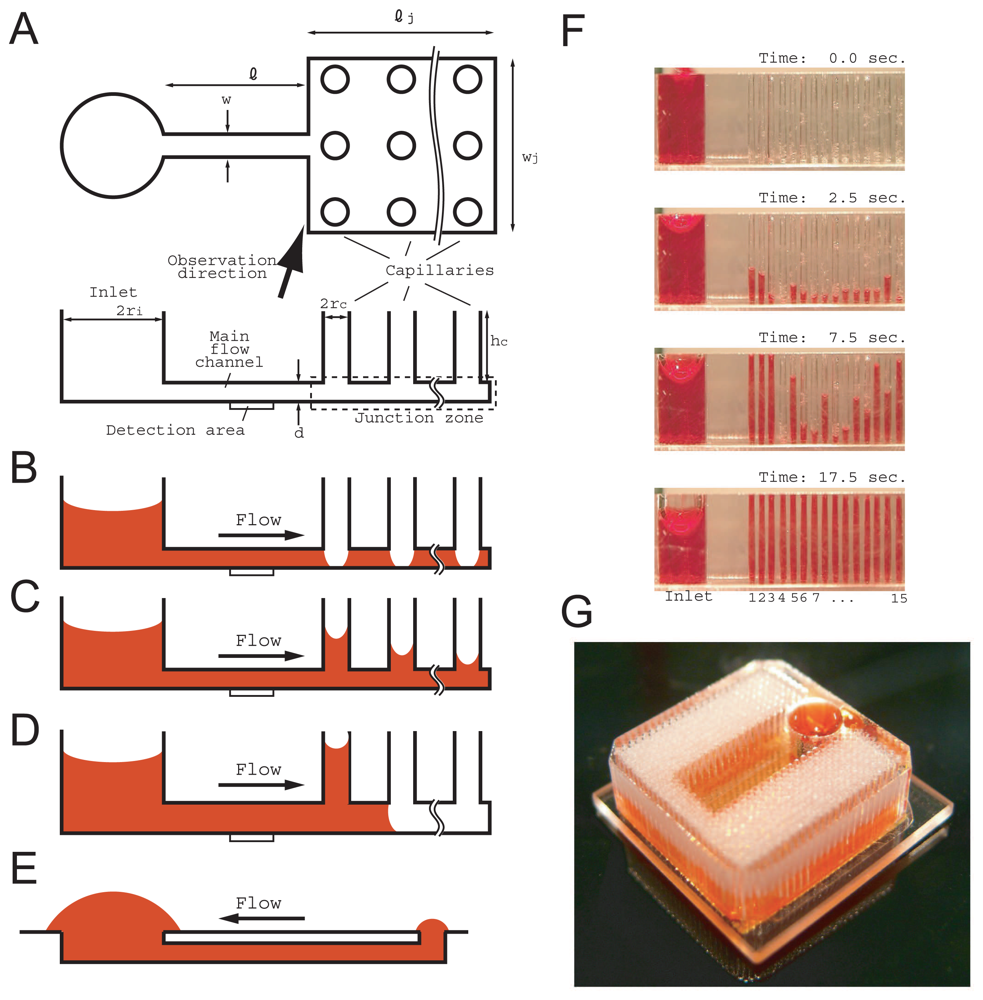

A passive pump consisting of integrated vertical capillaries has been developed for a microfluidic chip as an useful component with an excellent flow volume and flow rate. A fluidic chip built into a passive pump was used by connecting the bottoms of all the capillaries to a top surface consisting of a thin layer channel in the microfluidic chip where the thin layer channel depth was smaller than the capillary radius. As a result the vertical capillaries drew fluid cooperatively rather than independently, thus exerting the maximum suction efficiency at every instance. This meant that a flow rate was realized that exhibited little variation and without any external power or operation. A microfluidic chip built into this passive pump had the ability to achieve a quasi-steady rather than a rapidly decreasing flow rate, which is a universal flow characteristic in an ordinary capillary.
Keywords: microfluidics; capillary; flow rate; passive pump microfluidics; capillary; flow rate; passive pump
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
