Sheathless Size-Based Acoustic Particle Separation
Department of Mechanical Engineering, University of South Florida, Tampa, FL 33620, USA
Center for Biomedical Engineering, Department of Medicine, Brigham and Women’s Hospital, Harvard Medical School, Boston, MA 02115, USA
Harvard-MIT Health Sciences and Technology, Cambridge, MA 02139, USA
Department of Mechanical Engineering, University of Akron, Akron, OH 44325, USA
* Authors to whom correspondence should be addressed.
Received: 23 November 2011; in revised form: 4 January 2012 / Accepted: 14 January 2012 / Published: 16 January 2012

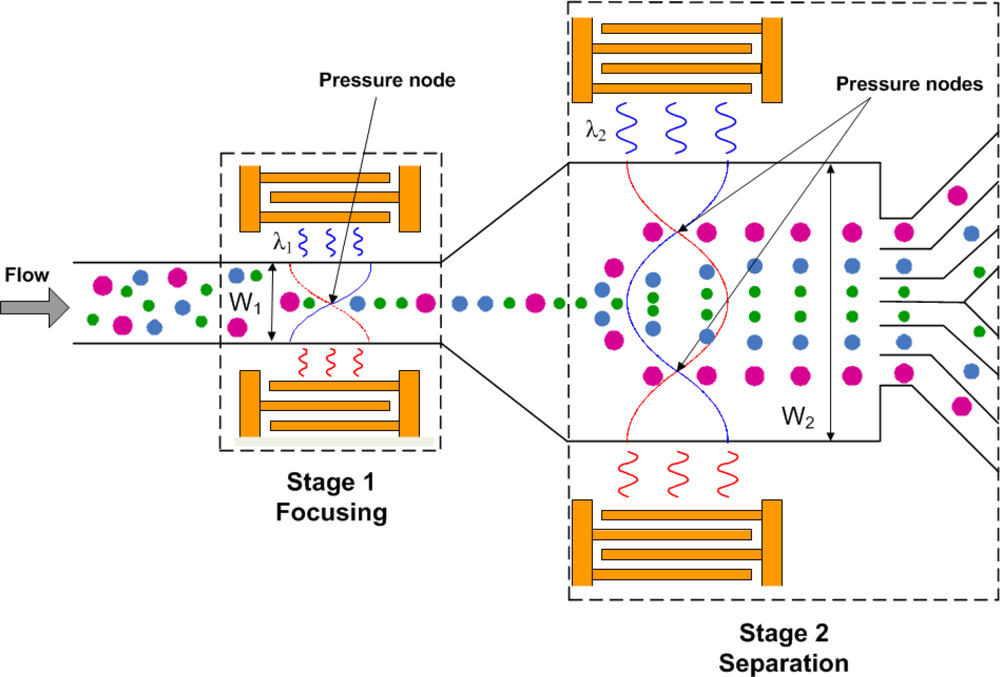

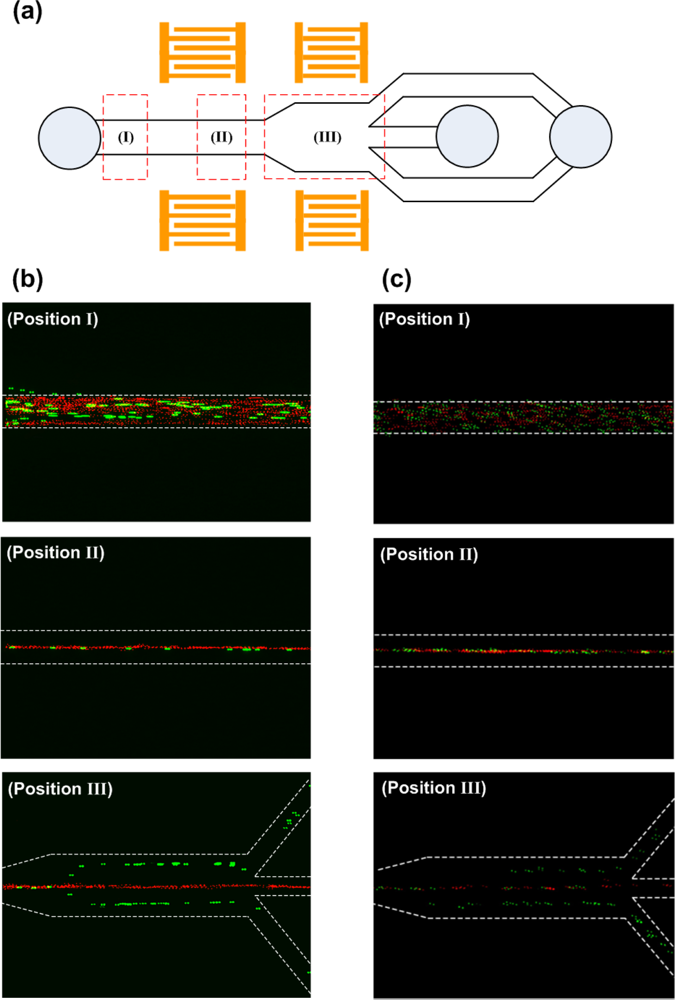

Abstract: Particle separation is of great interest in many biological and biomedical applications. Flow-based methods have been used to sort particles and cells. However, the main challenge with flow based particle separation systems is the need for a sheath flow for successful operation. Existence of the sheath liquid dilutes the analyte, necessitates precise flow control between sample and sheath flow, requires a complicated design to create sheath flow and separation efficiency depends on the sheath liquid composition. In this paper, we present a microfluidic platform for sheathless particle separation using standing surface acoustic waves. In this platform, particles are first lined up at the center of the channel without introducing any external sheath flow. The particles are then entered into the second stage where particles are driven towards the off-center pressure nodes for size based separation. The larger particles are exposed to more lateral displacement in the channel due to the acoustic force differences. Consequently, different-size particles are separated into multiple collection outlets. The prominent feature of the present microfluidic platform is that the device does not require the use of the sheath flow for positioning and aligning of particles. Instead, the sheathless flow focusing and separation are integrated within a single microfluidic device and accomplished simultaneously. In this paper, we demonstrated two different particle size-resolution separations; (1) 3 µm and 10 µm and (2) 3 µm and 5 µm. Also, the effects of the input power, the flow rate, and particle concentration on the separation efficiency were investigated. These technologies have potential to impact broadly various areas including the essential microfluidic components for lab-on-a-chip system and integrated biological and biomedical applications.
Keywords: standing surface acoustic wave; sheathless; size-based; separation
