Sensors 2011, 11(5), 5158-5182; doi:10.3390/s110505158
Article

Tree Classification with Fused Mobile Laser Scanning and Hyperspectral Data

Received: 18 March 2011; in revised form: 28 April 2011 / Accepted: 5 May 2011 / Published: 11 May 2011
(This article belongs to the Special Issue Sensors in Agriculture and Forestry)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

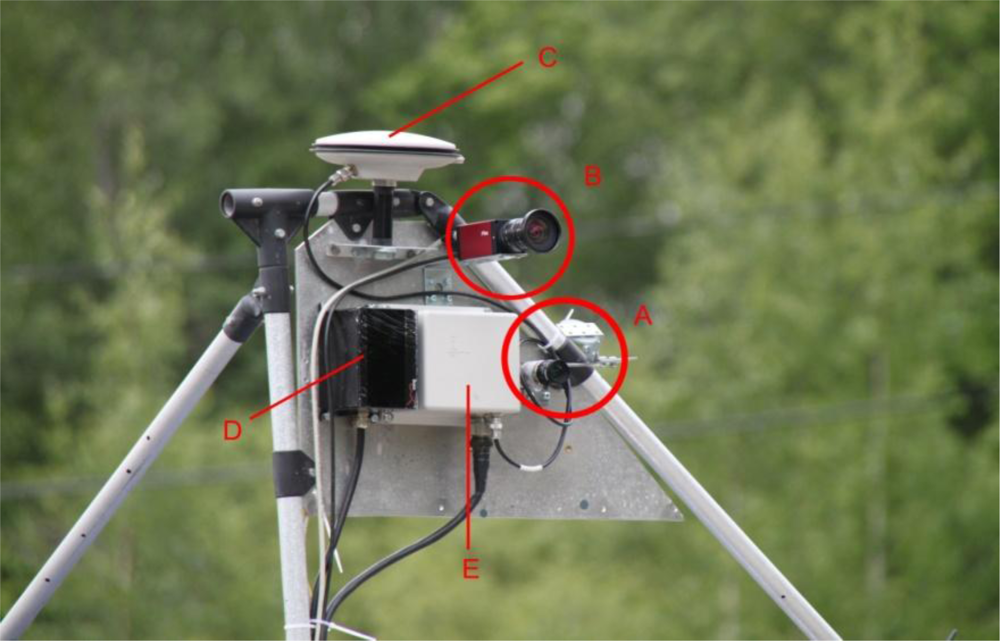

Abstract: Mobile Laser Scanning data were collected simultaneously with hyperspectral data using the Finnish Geodetic Institute Sensei system. The data were tested for tree species classification. The test area was an urban garden in the City of Espoo, Finland. Point clouds representing 168 individual tree specimens of 23 tree species were determined manually. The classification of the trees was done using first only the spatial data from point clouds, then with only the spectral data obtained with a spectrometer, and finally with the combined spatial and hyperspectral data from both sensors. Two classification tests were performed: the separation of coniferous and deciduous trees, and the identification of individual tree species. All determined tree specimens were used in distinguishing coniferous and deciduous trees. A subset of 133 trees and 10 tree species was used in the tree species classification. The best classification results for the fused data were 95.8% for the separation of the coniferous and deciduous classes. The best overall tree species classification succeeded with 83.5% accuracy for the best tested fused data feature combination. The respective results for paired structural features derived from the laser point cloud were 90.5% for the separation of the coniferous and deciduous classes and 65.4% for the species classification. Classification accuracies with paired hyperspectral reflectance value data were 90.5% for the separation of coniferous and deciduous classes and 62.4% for different species. The results are among the first of their kind and they show that mobile collected fused data outperformed single-sensor data in both classification tests and by a significant margin.
Keywords: mobile laser scanning; classification; data fusion; hyperspectrum; forestry
PDF Full-text Download PDF Full-Text [891 KB, uploaded 21 June 2014 03:44 CEST]

Export to BibTeX |
EndNote


MDPI and ACS Style

Puttonen, E.; Jaakkola, A.; Litkey, P.; Hyyppä, J. Tree Classification with Fused Mobile Laser Scanning and Hyperspectral Data. Sensors 2011, 11, 5158-5182.

AMA Style

Puttonen E, Jaakkola A, Litkey P, Hyyppä J. Tree Classification with Fused Mobile Laser Scanning and Hyperspectral Data. Sensors. 2011; 11(5):5158-5182.

Chicago/Turabian Style

Puttonen, Eetu; Jaakkola, Anttoni; Litkey, Paula; Hyyppä, Juha. 2011. "Tree Classification with Fused Mobile Laser Scanning and Hyperspectral Data." Sensors 11, no. 5: 5158-5182.
