Sensors 2010, 10(9), 8119-8128; doi:10.3390/s100908119

A Magnetostrictive Composite-Fiber Bragg Grating Sensor

1
Department of Mechanical Engineering, Pontifical Catholic University of Rio de Janeiro, Rua Marquês de São Vicente 225, Gávea 22453-900, Rio de Janeiro, RJ, Brazil
2
Department of Physics, Pontifical Catholic University of Rio de Janeiro, Rua Marquês de São Vicente 225, Gávea 22453-900, Rio de Janeiro, RJ, Brazil
*
Author to whom correspondence should be addressed.
Received: 10 July 2010 / Revised: 30 July 2010 / Accepted: 15 August 2010 / Published: 30 August 2010
(This article belongs to the Special Issue Advanced Embedded Sensors)
View Full-Text   |   Download PDF [805 KB, uploaded 21 June 2014]   |

Abstract

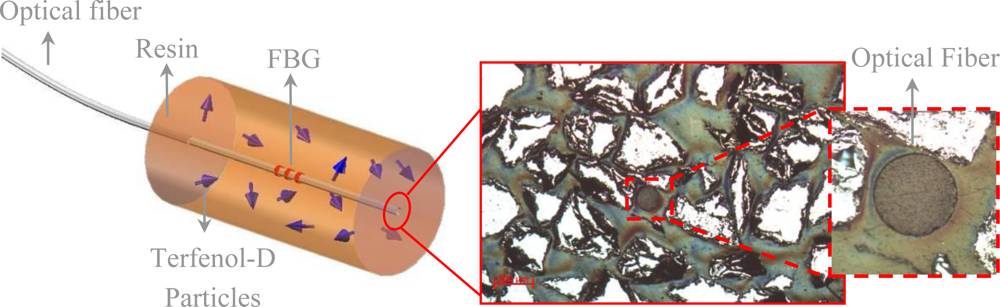

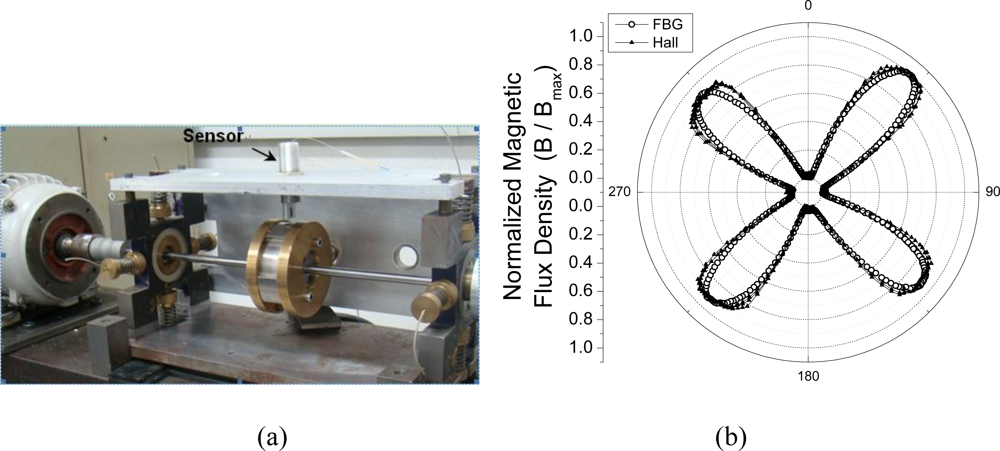

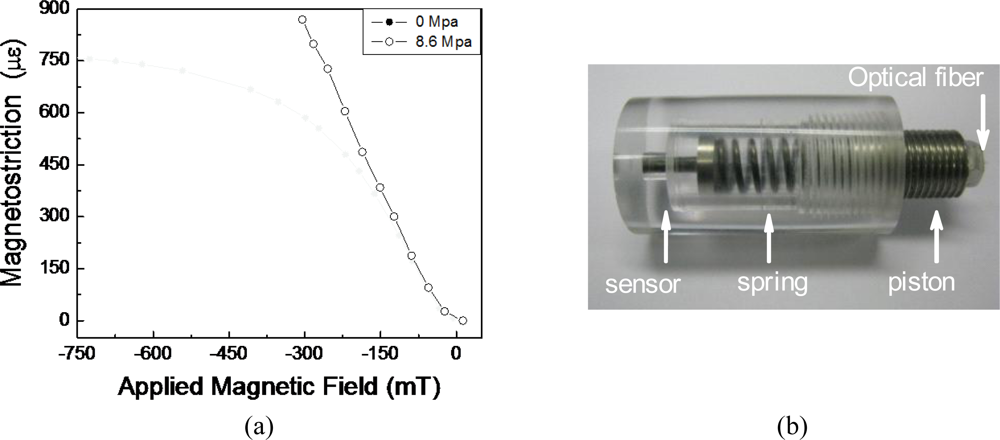

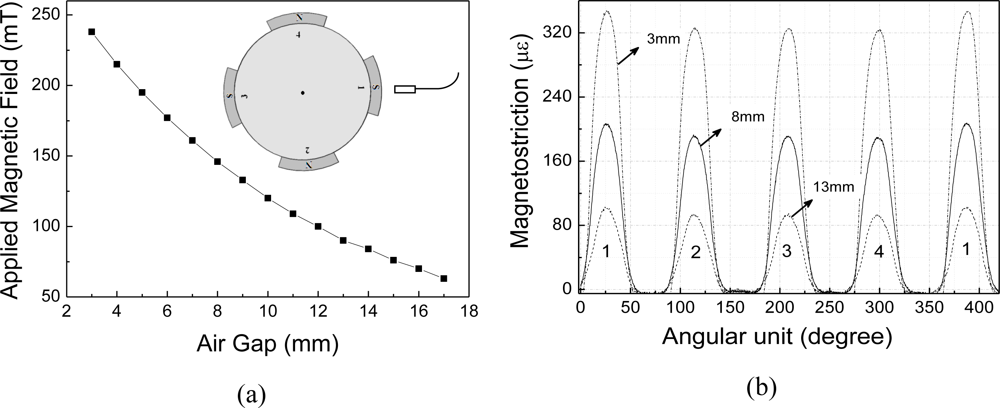

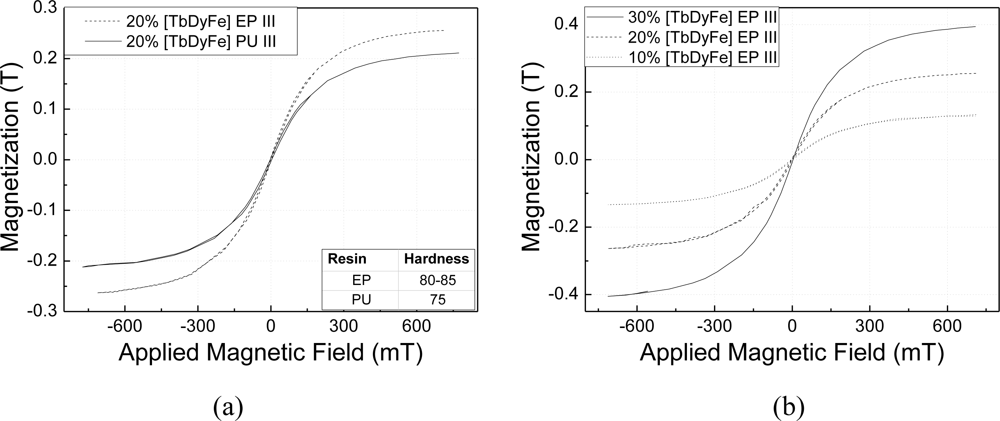

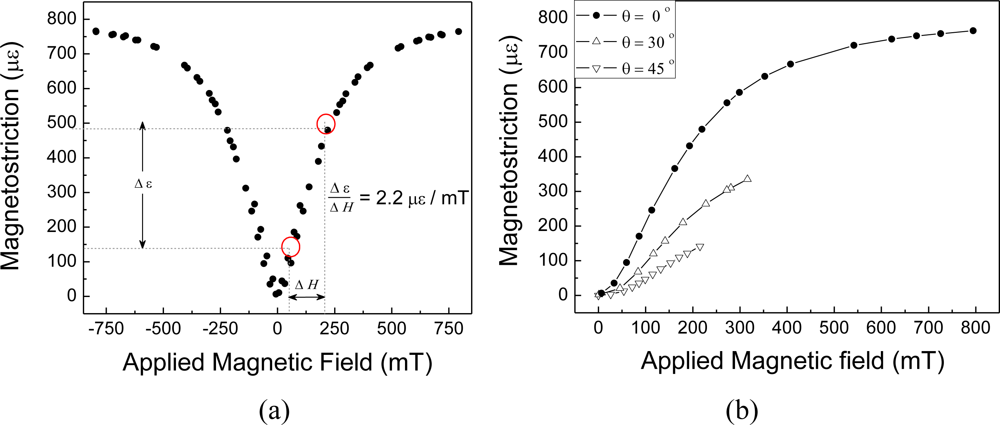

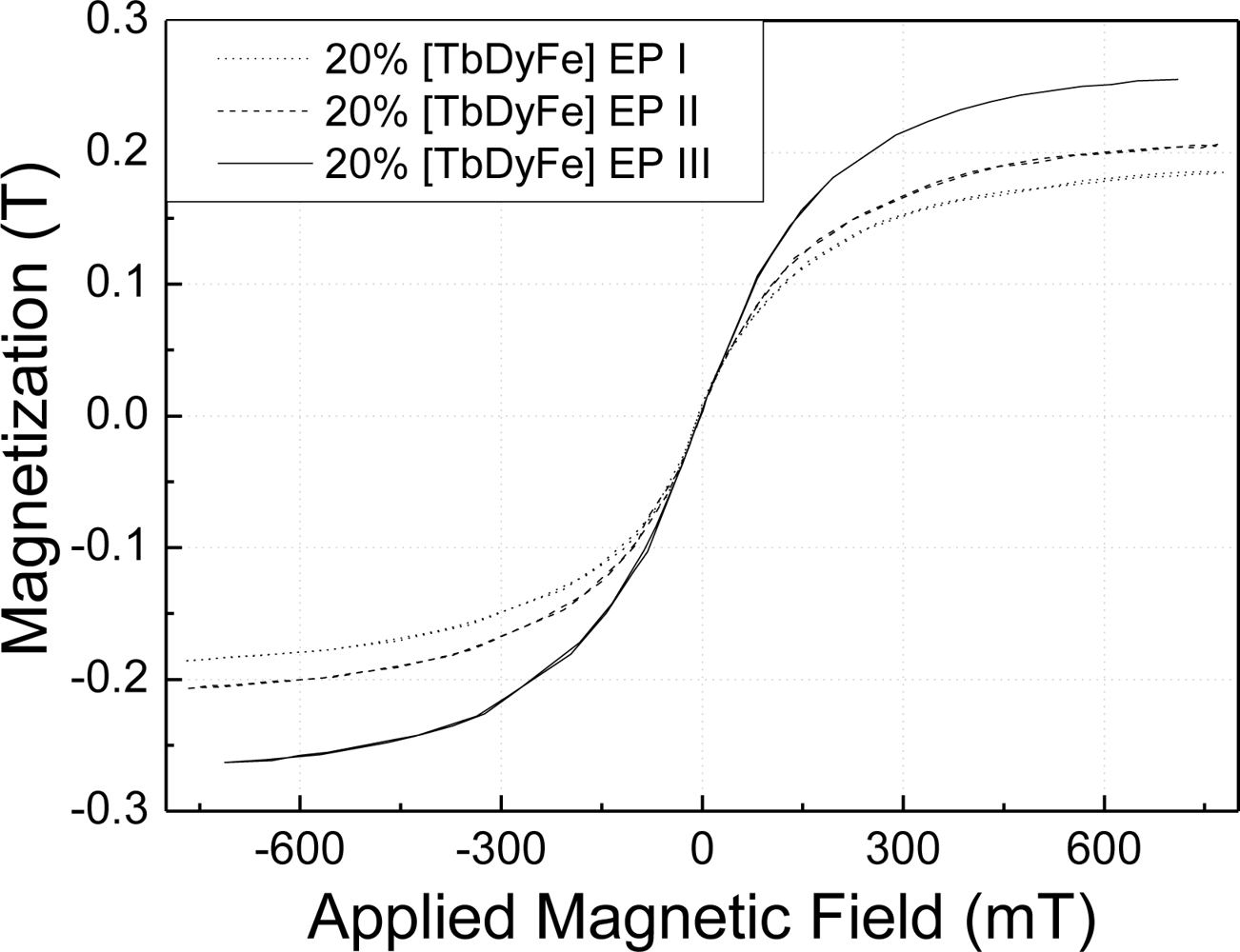

This paper presents a light and compact optical fiber Bragg Grating sensor for DC and AC magnetic field measurements. The fiber is coated by a thick layer of a magnetostrictive composite consisting of particles of Terfenol-D dispersed in a polymeric matrix. Among the different compositions for the coating that were tested, the best magnetostrictive response was obtained using an epoxy resin as binder and a 30% volume fraction of Terfenol-D particles with sizes ranging from 212 to 300 µm. The effect of a compressive preload in the sensor was also investigated. The achieved resolution was 0.4 mT without a preload or 0.3 mT with a compressive pre-stress of 8.6 MPa. The sensor was tested at magnetic fields of up to 750 mT under static conditions. Dynamic measurements were conducted with a magnetic unbalanced four-pole rotor View Full-Text
Keywords: magnetic field sensor; fiber Bragg grating; magnetostrictive composite magnetic field sensor; fiber Bragg grating; magnetostrictive composite
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Quintero, S.M.M.; Braga, A.M.B.; Weber, H.I.; Bruno, A.C.; Araújo, J.F.D.F. A Magnetostrictive Composite-Fiber Bragg Grating Sensor. Sensors 2010, 10, 8119-8128.
