Design, Fabrication, and Testing of a Bulk Micromachined Inertial Measurement Unit
Honglong Chang *, Qiang Shen , Zhiguang Zhou , Jianbing Xie , Qinghua Jiang and Weizheng Yuan
Micro and Nano Electromechanical System Laboratory, Northwestern Polytechnical University, 127#, Youyi West Road, Xi’an, Shaanxi, China; E-Mail: yuanwz@nwpu.edu.cn (W.-Z.Y.)
*
Author to whom correspondence should be addressed; E-Mail: changhl@nwpu.edu.cn; Tel.: +86-29-88492841; Fax: +86-29-88495102.
Received: 22 February 2010; in revised form: 17 March 2010 / Accepted: 6 April 2010 /
Published: 14 April 2010

Abstract

: A bulk micromachined inertial measurement unit (MIMU) is presented in this paper. Three single-axis accelerometers and three single-axis gyroscopes were simultaneously fabricated on a silicon wafer using a bulk micromachining process; the wafer is smaller than one square centimeter. In particular, a global area optimization method based on the relationship between the sensitivity and layout area was proposed to determine the layout configuration of the six sensors. The scale factors of the X/Y-axis accelerometer and Z-axis accelerometer are about 213.3 mV/g and 226.9 mV/g, respectively. The scale factors of the X/Y-axis gyroscope and Z-axis gyroscope are about 2.2 mV/°/s and 10.8 mV/°/s, respectively. The bias stability of the X/Y-axis gyroscope and the Z-axis gyroscope are about 2135 deg/h and 80 deg/h, respectively. Finally, the resolutions of X/Y-axis accelerometers, Z-axis accelerometers, X/Y-axis gyroscopes, and Z-axis gyroscopes are 0.0012   g / Hz, 0.0011   g / Hz, 0.314   °   / s / Hz, and 0.008   °   / s / Hz, respectively.
Keywords:
MEMS; MIMU; bulk micromachining; gyroscope; accelerometer

1. Introduction

Inertial navigation requires a measurement with six degrees of freedom (DOF) in three-dimensional space, namely the ability to move forward or backward, up or down, left or right (translation in three perpendicular axes) combined with rotation about three perpendicular axes (pitch, yaw, roll). A micromachined inertial measurement unit (MIMU) is used to output signals proportional to the rotation and translational motion of a carrier in six DOFs from, respectively, micromachined angular rate sensors and acceleration sensors. Traditionally, these separated inertial sensors are mechanically mounted orthogonally in one or two substrates to output the three-axis angular rate and acceleration measurement signals [1]. In this mechanical assembling process, it is difficult to achieve exact mutual orthogonality between the sensors. Orthogonality aberrations degrade the accuracy of the subsequent processes, such as attitude determination or inertial navigation. A variety of multi-axis inertial sensors, such as tri-axis micro gyroscopes [24] or tri-axis micro accelerometers [58], can alleviate this misalignment problem in MIMU. Moreover, such technology allows the MIMU to be even smaller because the multi-axis sensing only requires one inertial mass. However, the cross-axis coupling within the multi-axis sensor limits the performance of the sensor. Designing a tri-axis sensor with only one inertial mass is a challenging task and requires a creative, clever design.

Integrated MIMU (IMIMU) technology can avoid the misalignment problem without tri-axis sensors. In IMIMU, different single-axis inertial sensors are fabricated simultaneously on a single chip with a surface or bulk micromachining process. Thus, the mutual orthogonality in IMIMU is inherently guaranteed by the design. Additionally, compared with tri-axis sensors, a single-axis inertial sensor is more rugged, and easier to design. Furthermore, cross coupling within a tri-axis sensor is successfully avoided. The first IMIMU was implemented using a surface micromachining process in 1998 [9]. It integrates three accelerometers, a dual-axis gyroscope, and a Z-axis gyroscope into a 1-cm2 chip, including the interface circuitry. Luo Hao integrated two accelerometers and a gyroscope into a single chip using a surface process in 2003 [10]. It did not include an X/Y-axis gyroscope or a Z-axis accelerometer. Currently, surface micromachined IMIMUs have been commercialized successfully by Analog Devices, Inc (Norwood, MA, USA).

However, there is no report on bulk micromachined IMIMU so far. The major difficulty is the lack of a mature monolithic bulk micromachining process. Some monolithic bulk processes have emerged recently [1115]. Unfortunately, they are not mature enough to realize a complex device like IMIMU. It is widely accepted that the bulk process could achieve better performance than the surface process for the inertial sensor. Today, inertial sensors with the highest accuracy [16,17] are nearly all fabricated by bulk micromachining process, where the larger proof mass can reduce mechanical noise to improve performance. Therefore, people usually utilize a two-chip integration scheme to realize bulk micromachined MIMU. In this two-chip approach, the six mechanical sensing elements are simultaneously fabricated on a chip and packaged with a circuit chip that reads out the various signals and generates the corresponding signal. Donato Cardarelli proposed a two-level conceptual MIMU design scheme based on the standard dissolved wafer process in 2002 [18]. However, no further fabrication or test results with this bulk micromachined MIMU have been reported. In our previous work [19], we established a two-chip MIMU using a bulk micromachining process. However, the yield rate of fabricating the mechanical chip is very low, which partially explains why there has not been a commercial bulk micromachined MIMU until now.

There are many difficulties when fabricating the six inertial sensors simultaneously through the bulk micromachining process. First, there is a tradeoff between area limitation and sensor performance. For a single inertial sensor, greater area usually means better performance because the performance is usually proportional to the inertial mass. However, greater area reduces the accuracy of micromachining process. In our bulk process, the minimum line width is 2 μm when the layout area is less than 8 mm × 8 mm. However, the minimum line width will become 10 μm when the layout area is larger than 10 mm × 10 mm. Therefore, a trade-off must be made to optimize a total of six sensors in a limited area. Secondly, the reactive ion etching (RIE) lag effect [20,21], which does not appear as a major problem in the surface micromachining, and notching effect [22] in deep RIE (DRIE) are challenges when generating a bulk micromachined MIMU. The six sensors inevitably have different line widths. Consequently, different etching depths caused by the RIE lag effect definitely hurt the performance of inertial sensors. Finally, the residual stress caused by the anodic bonding and chemical mechanical planarization (CMP) in the bulk process [2324] cause a large mode mismatch for gyroscopes, which is a fatal bug for gyroscopes. In this paper, we present solutions to these problems to establish a bulk micromachined two-chip MIMU based on our previous work.

2. Topologies Selection for the Inertial Sensors Based on a Two-Structure-Layer Bulk Process

The proposed MIMU integrates two chips, as shown in Figure 1, where the letters A and G represent the accelerometer and gyroscope, respectively. The mechanical sensing element chip consists of sensing structures for six single-axis inertial sensors, i.e., three accelerometers and three gyroscopes. While the interface circuit chip consists of the six interface circuits that match the corresponding sensors. The two chips are packaged together to form the final MIMU device.

The first step when designing the bulk micromachined MIMU is to determine its topology for each single-axis inertial sensor based on a bulk process. The sandwich process or other processes with more than three structure layers are very complex and greatly reduce the yield rate to MIMU. A two-structure-layer process, as shown in Figure 2, is used to design the MIMU. Fabrication begins with a P-type single-crystalline silicon wafer. First, the photo resist (PR) is coated on the wafer to form the mask of anchors, as shown in step (a). In step (b), inductively coupled plasma (ICP) etching is used to etch shallow trenches to form anchors, and in step (c), PR is coated on the glass wafer. In step (d), a deep trench is wet etched on the glass wafer to increase the distance between the proof mass and the substrate. In step (e), a layer of metal is sputtered on the glass to form electrodes. In step (f), anodic bonding is used to bond the glass and silicon wafer together. At this step chemical mechanical polishing is used to reduce the thickness of the silicon wafer to meet the actual demand. In step (g), PR is coated on the back side of the silicon wafer. Finally, in step (h), ICP is used again to form moving structures, such as comb drives or damping holes.

It is obvious that the major process flow is similar to our previous one [19]. However, some improvements have been proposed to ensure an acceptable MIMU yield rate. The thickness of the proof mass was reduced to 65 microns from 80 microns. One additional mask was provided to add a trench in the glass to increase the distance between the proof mass and the substrate for some sensors, including the Z-axis gyroscope and X/Y-axis accelerometer. Thus, the slide film damping in these devices is greatly reduced to improve the quality factors for Z-axis gyroscopes because the MIMU is packaged at one atmosphere.

In this study, we use the most typical topologies for inertial sensors instead of novel designs to ensure a better yield rate because they have been verified in many ways. There are many typical topologies for accelerometers [2530]. Most lateral accelerometers fabricated by surface or bulk micromachining processes can be used as the X/Y-axis accelerometer in the proposed MIMU. The vertical accelerometers, which require the sandwich process, cannot be used as the Z-axis accelerometer in the proposed MIMU. Finally the topologies of the accelerometers are chosen as shown in Figure 3. After experimental verification with the previous MIMU, the topologies are proved to be effective and are still used in this version of MIMU.

There are also many typical topologies for gyroscopes [3136] that are compatible with the above-mentioned process flow. In the current version, there are many essential improvements on gyroscopes to increase the yield rate of the MIMU. The vibrating wheel gyroscope in the previous version was difficult to fabricate. Thus, we used the tuning fork gyroscope instead [31]. The Z-axis gyroscope with interdigitated electrodes in the sense mode [32] was difficult to fabricate because the large metal electrodes in the glass wafer are hard to remove. Therefore, we used a symmetrical Z-axis gyroscope topology [33] to replace it. Finally, the topologies of the gyroscopes are chosen as shown in Figure 4.

3. Layout Optimization for the Mechanical Sensing Elements

After choosing a feasible topology for each inertial sensor, we must determine the dimensions for each sensor. However, the MIMU consists of six separated inertial sensors, which means the usual device optimization approaches, such as a genetic algorithm (GA) [36] or simulated annealing algorithm (SAA) [37], are not suitable to be applied directly to MIMU design. Therefore, area occupations for each sensor should be determined first before the detailed design for the single sensor. In this paper, we propose an area optimization approach to establish the layout configuration for MIMU.

3.1. Common Geometry Patterns for MIMU

To alleviate the RIE lag effect in the bulk micromachining process, the geometry patterns for the six sensors should be set as close as possible. As a result, the inertial masses, the suspension beams, the damping holes, and the comb capacitors should be given a very similar geometry pattern with very close dimensions, which we call common geometry patterns.

Some common geometry patterns are simply determined by the process rules. For example, the gap and the width of comb fingers in comb drives or comb capacitors are both set as 4 microns to obtain the maximum capacitance in a limited area. In addition to these two parameters, we also set the overlap and the length of comb fingers in an identical configuration as shown in Table 1.

Some common patterns, such as resonant frequency and inertial mass, are mainly determined by the requirements of the sensor. It is important to choose a common resonant frequency for these inertial sensors according to the requirements because the sensitivity depends on it. In this paper, 4,000 Hz is selected initially for these sensors to ensure both a large sensitivity and adequate resistance to disturbances. The area of the inertial mass is also an important parameter because it is related to either the initial capacitance or capacitance variance. It is mainly determined by the capacitance detection capability. Consequently, the suspension beams for these inertial sensors also have a common configuration initially. Two kinds of beams largely determine the spring constant of the corresponding working modes: bending beams and torsional beams, which are used to determine the spring constant of the Z-axis accelerometer and the sense mode of X/Y-axis gyroscope. We provide a list of initial empirical values for these suspension beams in Table 1. These common geometry patterns not only alleviate the RIE lag effect but also simplify the deduction of the relationship between sensitivity and layout area.

3.2. Sensitivity versus Layout Area

Because there is an area limitation to design inertial sensors using the bulk micromachining process, it is useful to find the relationship between the performance and the area. We deduce a simplified relationship between the sensitivity and the layout area with some assumptions and some available dimensions.

The sensitivity and resonant frequency of the X/Y-axis accelerometer can be described as the following:

S ay = Δ c a = 1 ω ay 2 n ε 0 l cay h d cay 2
ω ay = 4 E w bay 3 ρ w may l may l bay 3
where lmay, wmay, lbay, wbay, lcay, dcay are shown in Figure 3 (a); lmay and wmay are the length and width of the inertial mass of the X/Y-axis accelerometer; lbay and wbay are the length and width of the bending beams; lcay is the overlap of the comb fingers; dcay is the gap between capacitor plate; n is the number of comb fingers; h is the thickness of the structure; ωay is the natural resonant frequency of the X/Y-axis accelerometer; ε0 is the dielectric constant of the air; E is Young’s modulus of silicon; and ρ is density of silicon.

It can be seen from Equation (1) that the sensitivity of the X/Y-axis accelerometer is proportional to the number of comb fingers, which is evident in some parameters, such as the overlap, thickness and gap, which are shown in Table 1. As for the biased comb capacitors, ldc is usually set to be much bigger than the gap dcay; here, ldc = dcay. To ensure the inertial mass of the accelerometer is large enough, we assumed that the area occupied by the biased comb capacitors is about a quarter of the total area of the accelerometer. Therefore, we can assume that the sensitivity of the X/Y-axis accelerometer is only related to its area. To further simplify the relationship, we assumed that the area of the X/Y-axis accelerometer is represented by an equivalent square with an equivalent side length. Consequently, the equivalent side length for X/Y-axis accelerometer is approximated as L ay = 2 × n × l cay × d cay × 4 × 4 when the area occupied by the fingers is ignored.

As for the Z-axis accelerometer, the sensitivity and resonant frequency formulas are:

S za = Δ C a = 3 2 ω za 2 w haz w maz ( l haz l maz ) 2 { 2 ( l haz l maz ) 3 + ( 1 w haz w maz ) ( l haz l maz ) 3 } ε l maz w maz ( 1 ( l haz l maz ) 2 ) d 0 2
ω za = 6 G β w baz 3 ρ l baz w maz l maz 3 ( 2 ( l haz l maz ) 3 + ( 1 w haz w maz ) ( l haz l maz ) 3 )
where lbaz, wbaz, lmaz ,wmaz, lhaz ,whaz are shown in Figure 3 (b); lbaz and wbaz are the length and width of the bending beams, respectively; lmaz and wmaz are the length and width of the inertial mass, respectively; lhaz and whaz are the length and width of the hole, respectively; d0 is the gap between structure and the substrate; ωza is the natural resonant frequency of the Z-axis accelerometer; G is torsion modulus; and β is torsion coefficient.

It can be seen from Equation (3) that the sensitivity of the Z-axis accelerometer is related to the area of the inertial mass (lmaz × wmaz) and the ratio lhaz/lmaz. The sensitivity reaches its maximum when the ratio is about 0.7. Furthermore, in order to ensure a large stiffness in the Z-axis direction, we set whaz = 0.5 × wmaz. Therefore, we can obtain an equivalent side length for the Z-axis accelerometer, L az = 2 w maz × l maz, with a similar assumption.

For the X/Y-axis gyroscope, the sensitivity and resonant frequency formulas are:

S gy = 4 × ( 39 64 ) 2 ε 2 ρ h 2 l mgy w mgy 2 ( l mgy + 2 l bgy ) 2 ω dgy ( μ * l cgy h l mgy d 0 2 + μ * w mgy ( l mgy + 2 l bgy ) d cgy 2 d 0 ) c s V p v a
ω dgy = 256 E w bgy 3 39 ρ ( l mgy + 2 l bgy ) w mgy l bgy 3
ω sgy = 128 G β w tgy 3 39 ρ w mgy l tgy ( l mgy + 2 l bgy ) ( w mgy 2 + l cgy ) 2
where lmgy, wmgy, lbgy, wbgy, ltgy, wtgy, lcgy are shown in Figure 4 (a); ltgy and wtgy are the length and width of the torsion beams, respectively; dcgy is the width of the comb fingers; d0 is the gap between structure and substrate; h is thickness of the structure; ωdgy is the natural resonant frequency of drive mode; ωsgy is natural resonant frequency of sense mode; ρ is the density of the silicon; μ* is the dynamic viscosity of the air; Vp is DC voltage; and va is the AC voltage.

It can be seen from Equation (5) that the sensitivity of the X/Y-axis gyroscope is related to its area of inertial mass because the beam dimensions of the beams were given a group of initial values. An equivalent side length for the X/Y-axis gyroscope can be given as L gy = 2 × ( w mgy + l cgy ) ( l mgy + 2 l bgy ).

As for the Z-axis gyroscope, the sensitivity and resonant frequency formulas are :

S gz = 2 ρ ε 0 2 ω gz h 3 ( μ * l cgz h l mgz + μ * d cgz 2 d 0 ) 2 V p v a
ω gz = 8 E w bgz 3 ρ l mgz 2 l bgz 3
where lmgz, wmgz, lbgz, wbgz are shown in Figure 4 (b); dcgz is the width of the comb fingers; h is thickness of the structure; ωgz is the natural resonant frequency of the Z-axis gyroscope; and Vp is DC voltage; va is AC voltage.

It can be seen from Equation (8) that the sensitivity of the Z-axis gyroscope is related to its area of inertial mass because the beam dimensions were given a group of initial values. An equivalent side length for Z-axis gyroscope can be given as Lgz = lmgz + 2 × (lbgz − 50).

All the formulas for the equivalent side length are listed in Table 2. Based on these formulas, the sensitivity is dependent on just one variable related to its area. We can use this relationship in our global optimization to determine the layout configuration for these six sensors.

3.3. Global Optimization Process for MIMU

A global optimization approach is proposed to determine the layout configuration for inertial sensors in MIMU, as shown in Figure 5. The optimization begins with the requirements analysis. The requirements usually reflect the sensitivity when considering the capacitance detection capability. Then, we can use the relationship between the sensitivity and the equivalent side length to get a rough layout. The layout configuration must be adjusted further according to the relationship between the resonant frequency and the area. Then, we can get a finer layout configuration for these six inertial sensors. Given the layout configuration obtained in the global optimization stage, we can design each single sensor carefully, as usual.

As for our design case, the accuracy of the accelerometers and gyroscopes are expected to reach a navigation level [38], in which the resolution of accelerometers is about 10−6 g and the resolution of gyroscopes is about 10−4 °/s. If the detection capability of the capacitive interface circuit can reach 10−19 F, then the sensitivity of gyroscopes should be larger than 10−15 F/o/s and the sensitivity of the accelerometers should be larger than 10−14 F/g. Before the optimization, the natural resonant frequency of each inertial sensor was chosen as 4,000 Hz. Using the relationship between the sensitivity and equivalent side length, as plotted in Figure 6, we obtain a rough layout configuration in which the equivalent side length was determined to be 3,000–3,500 μm. This area satisfies the sensitivity requirements for both gyroscopes and accelerometers. However it is difficult to assign six sensors with a side length of about 3,500 μm within a 10,000 μm × 10,000 μm square. Therefore, we reduced the area of the accelerometers. To make the accelerometers meet the sensitivity requirements, the natural resonant frequency of the accelerometers must be reduced. Therefore, we generated a new layout configuration based on Figure 7, in which the equivalent side length of accelerometers was about 1,500–2,000 μm. Some available material or process parameters used in the optimization are listed in Table 3.

After getting the rough layout configuration, we need to prove that the natural resonant frequencies meet the requirements using the equivalent side length in the rough layout configuration. The actual natural resonant frequency of the inertial sensor versus the layout area is plotted in Figure 8. It is obvious that the frequency of the Z-axis gyroscope is 4,000 Hz when the equivalent side length is about 3,000 μm. However the frequency of the sense mode for the X/Y-axis gyroscope is not more than 2,000 Hz. We simply increased the frequency to 4,000 Hz by reducing the length of the torsional beams. The Z-axis accelerometer meets the frequency requirements for the given area. Therefore, we set the equivalent side length of the Z-axis accelerometer to be about 1,500 μm. The X/Y-axis accelerometer took the folded beams. Therefore, the stiffness adjustment could be made easily to meet the frequency requirements without considering the equivalent side length. Thus, we do not plot the X/Y-axis accelerometer here.

3.4. Device Optimization Results for MIMU

After obtaining the global layout configuration for the six inertial sensors, the various device optimization approaches can be used to determine the final layout of MIMU within the given area. Because the design in this stage is very common, we skip the details and give the final dimensions of MIMU in Tables 47. We obtained the final layout configuration of the mechanical chip as shown in Figure 9 and Table 8.

4. Interface Circuit Design for Inertial Sensors

Various interface circuit design schemes exist. Here, we took some typical ones for accelerometers (Figure 10) and gyroscopes (Figure 11) in the MIMU. However, there are six different single-axis sensors in MIMU; the various signals will experience crosstalk. Therefore, special design in the interface circuit chip is needed to suppress the crosstalk. In addition to the necessary shielding, the proper choice of interface circuit frequency for the different sensors is also very helpful in suppressing crosstalk. Usually the noises of the operational amplifiers decrease with a higher frequency. Thus, we set the frequency of the interface circuit for gyroscopes to be higher than that of the accelerometers because the gyroscope is less sensitive than the accelerometer. Such a configuration is very helpful in reducing noise in the circuit.

As in the mechanical chip, a proper layout in the circuit chip can suppress crosstalk. The circuits for the gyroscopes were placed next to the circuits for the accelerometers. Furthermore, the circuits with similar frequencies were separated. The final layout configuration of the interface circuit chip is shown in Figure 12.

5. Fabrication and Test of the Bulk-Micromachined MIMU

We used the process flow shown in Figure 2 to fabricate the designed MIMU. The fabricated chip is shown in Figure 13. We used the circuit board shown in Figure 14 to test the MIMU.

The frequency responses of the six sensors are shown in Figure 15. It can be observed that the resonant frequencies of the X/Y-axis accelerometer and Z-axis accelerometer are about 2,506 Hz and 2,084 Hz, respectively. The resonant frequencies of the drive mode and sense mode for the X/Y-axis gyroscope are 4,032 Hz and 4,048 Hz, respectively. The resonant frequencies of the drive mode and sense mode for the Z-axis gyroscope are 5,090 Hz and 5,132 Hz, respectively.

The scale factor plots of the six sensors are shown in Figure 16. It can be seen that the scale factors of the X/Y-axis accelerometer and Z-axis accelerometer are about 213.3 mV/g and 226.9 mV/g, respectively. The big nonlinearity exists just because the rough test method based on a triangle ruler. The accelerometers were tiled 0°, 30°, 45°, 60°, 90°, 270°, 300°, 315°, 330°, 360°, respectively, through a triangle ruler to generate multiple acceleration input. The scale factors of the X/Y-axis gyroscope and Z-axis gyroscope are about 2.2 mV/°/s and 10.8 mV/°/s, respectively.

Plots of the Allan variance analysis for the gyroscopes are shown in Figure 17. It can be seen that the bias stability of the X/Y-axis gyroscope and the Z-axis gyroscope are about 2,135 deg/h and 80 deg/h, respectively.

The noise floors of the six sensors are shown in Figure 18. It can be observed that the power spectral densities of the noise for X/Y-axis accelerometers, Z-axis accelerometers, X/Y-axis gyroscopes, and Z-axis gyroscopes are 258.7 μ V / Hz, 247.8 μ V / Hz, 692.4   μ V / Hz, and 86.3   μ V / Hz, respectively. Consequently the resolutions of X/Y-axis accelerometers, Z-axis accelerometers, X/Y-axis gyroscopes, and Z-axis gyroscopes are 0.0012   g / Hz, 0.0011   g / Hz, 0.314   ° / s / Hz, and 0.008   ° / s / Hz, respectively.

It is obvious that the performance is far from the navigation level [38]. The major reason for this low performance lies in the capacitive detection circuit. There are a significant amount of noise that reduces the capacitance detection capability far below the expected 10−19 F. If the interface circuit were improved, the performance of the sensors would be much better. Another phenomenon is that the performance of the X/Y-axis gyroscope is much worse than that of the Z-axis gyroscope, primarily because the big squeeze film damping for the out-of-plane motion in the sense mode of the X/Y-axis gyroscope is packaged at one atmosphere. The large damping greatly reduced the quality of the sense mode. In the future, the X/Y-axis gyroscope needs to be improved further to obtain a better performance, e.g., by using a larger layout area or a smaller resonant frequency, if identical performance is required for all three gyroscopes.

6. Conclusions

In this paper, we demonstrated a miniature bulk micromachined MIMU; a detailed design, the fabrication process and testing were all discussed for the first time. The proposed global area optimization approach is proved to be very effective to determine the layout configuration of the six single-axis sensors in the mechanical element chip. Moreover, the widely used common geometry patterns are also proved to effectively alleviate the RIE lag effect in bulk micromachining process. The test results show that the current MIMU achieves medium accuracy. With an improved interface circuit, this technology can yield better performance than the surface micromachined MIMU.

The authors gratefully acknowledge Chinese Hi-Tech Research and Development Program’s financial support (Contract No.2009AA04Z320), Xi’an Applied Materials Innovation Fund of China’s financial support (No. XA-AM-200801), and the Chinese National Science Foundation’s financial support (Contract No. 60976087).

References and Notes

  1. Kourepenis, A.; Connelly, J.; Sitomer, J. Low cost MEMS inertial measurement unit. Proceedings of ION NTM, San Diego, CA, USA, January 26–28, 2004; pp. 246–251.
  2. John, J.D.; Vinay, T. Novel concept of a single-mass adaptively controlled tri-axial angular rate sensor. IEEE Sens. J 2006, 6, 588–595.
  3. Nan, C.T. Fabrication and analysis of a micro-machined tri-axis gyroscope. J. Micromech. Microeng 2008, 18, 150–164.
  4. Nan, C.T.; Chung, Y.; Chih, C.L. Design and dynamics of an innovative micro gyroscope against coupling effects. Microsyst. Technol 2008, 14, 295–306.
  5. Zou, Q.; Tan, W.; Eun, S.K.; Loeb, G.E. Single-and tri-axis piezoelectric-bimorph accelerometers. J. Microelectromech. Syst 2008, 17, 45–57.
  6. Kwon, K.J.; Park, S.K. A bulk-micromachined three-axis accelerometer using silicon direct bonding technology and polysilicon layer. Sens. Actuat. A-Phys 1998, 66, 250–255.
  7. Junseok, C.; Kulah, H.; Ajafi, K. A monolithic three-axis micro-g micromachined silicon capacitive accelerometer. J. Microelectromech. Syst 2005, 14, 235–242.
  8. Qu, H.W.; Fang, D.Y.; Xie, H.K. A monolithic CMOS-MEMS 3-axis accelerometer with a low-noise, low-power dual-chopper amplifier. IEEE Sens. J 2008, 8, 1511–1518.
  9. Allen, J.; Kinney, R.; Sarsfield, J.; Daily, M.; Ellis, J.; Smith, J. Integrated micro electro-mechanical sensor development for inertial applications. Proceedings of IEEE PLANS, Rancho Mirage, CA, USA, April 20–23, 1998; pp. 9–16.
  10. Hao, L.; Fedder, G.; Carley, L. Integrated multiple-device IMU system with continuous-time sensing circuitry. Proceedings of IEEE International Solid-State Circuits, San Francisco, CA, USA, February 2003; pp. 191–205.
  11. Yong, Z.; Guizhen, Y.; Jie, F.; Xuesong, L.; Jian, Z.; Yangyuan, W. Post-CMOS process for high-aspect-ratio monolithically integrated single crystal silicon microstructures. Proceedings of Tranducers’05, Seoul, Korea, June 5–9, 2005; pp. 1130–1133.
  12. Xie, H.K.; Zhu, X.; Gabriel, K.J.; Fedder, G.K. Post-CMOS processing for high-aspect-ratio integrated silicon microstructures. J. Microelectromech. Syst 2002, 11, 93–101.
  13. Alandry, B.; Dumas, N.; Latorre, L.; Mailly, F.; Nouet, P. A CMOS multi-sensor system for 3D orientation determination. Proceedings of IEEE Computer Society Annual on VLSI, Montpellier, France, April 7–9, 2008; pp. 57–62.
  14. Xie, H.K.; Fedder, G.K. Fabrication, characterization, and analysis of a DRIE COMS-MEMS gyroscope. IEEE Sens. J 2003, 3, 622–631.
  15. Qu, H.W.; Xie, H.K. Process development for CMOS-MEMS sensors with robust electrically isolated bulk silicon microstructures. J. Microelectromech. Syst 2007, 16, 1152–1161.
  16. Ajit, S.M.; Mohammad, F.Z.; Mark, Z.C.; Farrokh, A.Z. A 0.1/HR bias drift electronically matched tuning fork microgyroscope. Proceedings of IEEE MEMS, Tucson, AZ, USA, January 13–17, 2008; pp. 6–9.
  17. Weinberg, M.S.; Kourepenis, A. Error sources in in-plane silicon tuning-fork MEMS gyroscopes. J. Microelectromech. Syst 2006, 15, 479–491.
  18. Cardarelli, D. An integrated MEMS inertial measurement unit. Proceedings of IEEE PLNS, Los Angeles, CA, USA, April 15–18, 2002; pp. 314–319.
  19. Chang, H.L.; Yuan, W.Z.; Cui, J.Q.; Jiang, Q.H.; Zhang, P.; Li, Q.; Yang, F. One Bulk Micromachined Single-Chip Inertial Measurement Unit. Proceedings of IEEE Sensors, Daegu, Korea, October 22–25, 2006; pp. 1485–1488.
  20. Gottscho, R.A.; Jurgensen, C.W. Microscopic uniformity in plasma etching. J. Vac. Sci. Technol. B 1992, 10, 2133–2147.
  21. Jansen, H.; De Boer, M.; Wiegerink, R.; Tas, N.; Smulders, E.; Neagu, C.; Elwenspoek, M. RIE lag in high aspect ratio trench etching of silicon. Microelectron. Eng 1997, 35, 45–50.
  22. Hwang, G.S.; Giapis, K.P. On the origin of the notching effect during etching in uniform high density plasmas. J. Vac. Sci. Technol. B 1997, 15, 70–87.
  23. Cozma, A.; Puers, B. Characterization of the electrostatic bonding of silicon and pyrex glass. J. Micromech. Microeng 1995, 5, 98–102.
  24. Srinivasa-Murthy, C.; Wang, D.; Beaudoin, S.P.; Bibby, T.; Holland, K.; Cale, T.S. Stress distribution in chemical mechanical polishing. Thin Solid Films 1997, 308–309, 533–537.
  25. Innam, L.; Gil, H.Y.; Jungyul, P.K.; Seonho, S.K.; Kukjin, C.B.; Kyo-Il, L. Development and analysis of the vertical capacitive accelerometer. Sens. Actuat. A-Phys 2005, 119, 8–18.
  26. Junseok, C.; Haluk, K.A.; Khalil, N.F. A hybrid silicon-on-glass (SOG) lateral micro-accelerometer with CMOS readout circuitry. Proceedings of IEEE MEMS, Las Vegas, NV, USA, January 20–24, 2002; pp. 623–626.
  27. Yazdi, N.; Ayazi, F.; Najafi, K. Micromachined inertial sensors. Proc. IEEE 1998, 86, 1640–1659.
  28. Yazdi, N.; Najafi, K.; Salian, A.S. A high-sensitivity silicon accelerometer with a folded-electrode structure. J. Microelectromech. Syst 2003, 12, 479–486.
  29. Selvakumar, A.; Najafi, K. A high-sensitivity z-axis capacitive silicon microaccelerometer with a torsional suspension. J. Microelectromech. Syst 1998, 7, 192–200.
  30. Lee, I.; Yoon, G.H.; Park, J.; Seok, S.; Chun, K.; Lee, K. Development and analysis of the vertical capacitive accelerometer. Sens. Actuat. A 2005, 119, 8–18.
  31. Bernstein, J.; Cho, S.; King, A.T.; Kourepenis, A.; Mace, P.; Weinberg, M. A micromachined comb-drive tuning fork rate gyroscope. Proceedings of IEEE MEMS, Fort Lauderdale, FL, USA, February 7–10, 1993; pp. 143–148.
  32. Chen, Y.; Jiao, J.; Xiong, B.; Che, L.; Li, X.; Wang, Y. A novel tuning fork gyroscope with high Q-factors working at atmospheric pressure. Microsyst. Technol 2005, 11, 111–116.
  33. Said, E.A.; Kivanc, A.; Tayfun, A. A high-performance silicon-on-insulator MEMS gyroscope operating at atmospheric pressure. Sens. Actuat. A-Phys 2007, 135, 34–42.
  34. Kim, J.; Park, S.; Kwak, D.; Ko, H.; Cho, D.D. An x-axis single-crystalline silicon microgyroscope fabricated by the extended SBM process. J. Microelectromech. Syst 2005, 14, 444–455.
  35. Acar, C.; Shkel, A.M. Inherently robust micromachined gyroscopes with 2-DOF Sense-Mode oscillator. J. Microelectromech. Syst 2006, 15, 380–387.
  36. Yuan, W.Z.; Chang, H.L.; Li, W.J. Application of an optimization methodology for multidisciplinary system design of microgyroscopes. Microsyst. Technol 2006, 12, 315–323.
  37. Ongkodjojo, A.; Francis, E.H.T. Global optimization and design for microelectromechanical systems devices based on simulated annealing. J. Micromech. Microengineer 2002, 12, 878–897.
  38. Beeby, S.; Ensell, G.; Kraft, M.; White, N. MEMS Mechanical Sensors, 1st ed ed.; Artech House: Boston, MA, USA/London, UK, 2004; pp. 174–175.
Sensors 10 03835f1 200
Figure 1. Schematic of the two-chip integration scheme.

Click here to enlarge figure

Figure 1. Schematic of the two-chip integration scheme.
Sensors 10 03835f1 1024
Sensors 10 03835f2 200

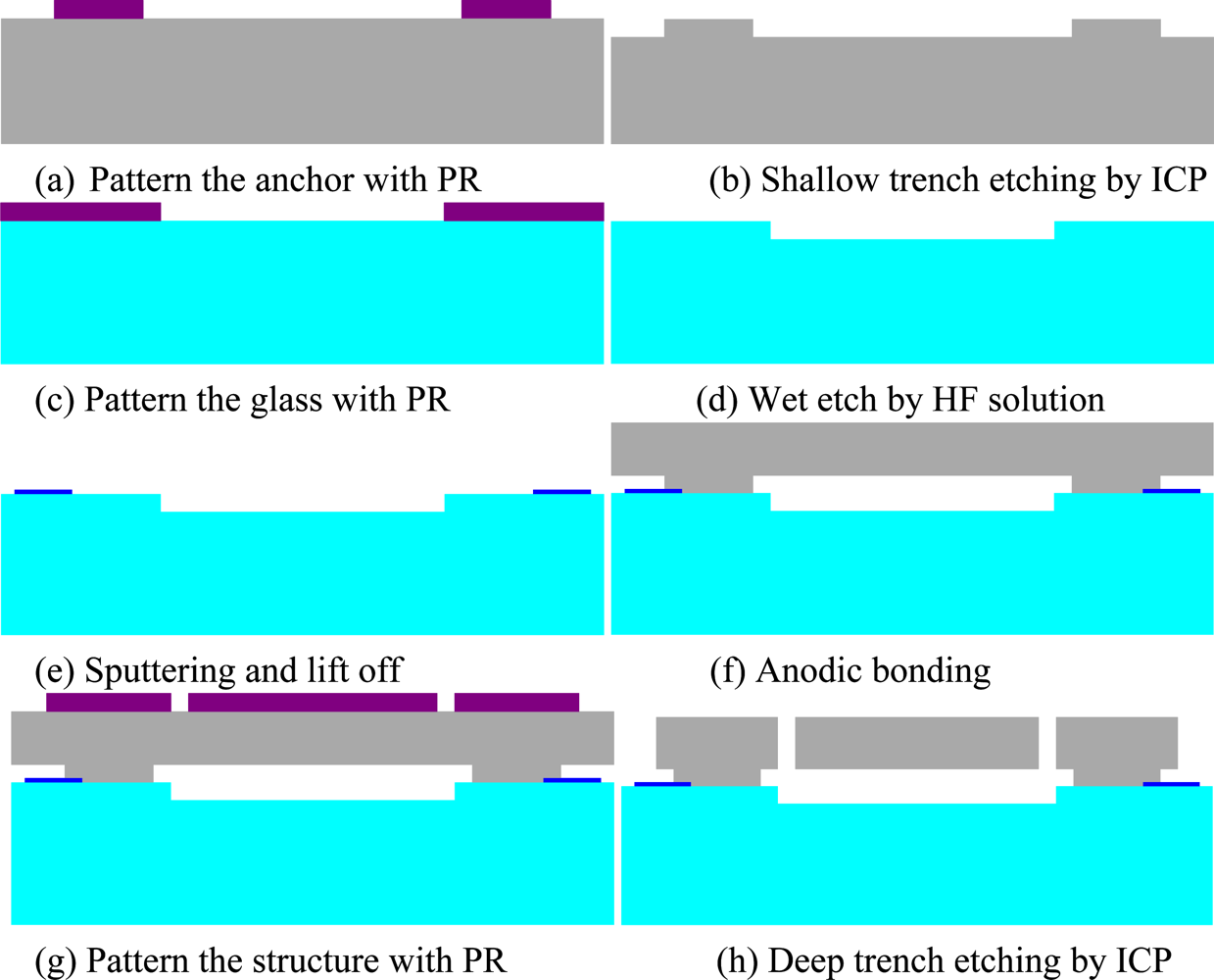

Figure 2. The process flow for the mechanical sensing element chip.

Click here to enlarge figure

Figure 2. The process flow for the mechanical sensing element chip.
Sensors 10 03835f2 1024
Sensors 10 03835f3 200

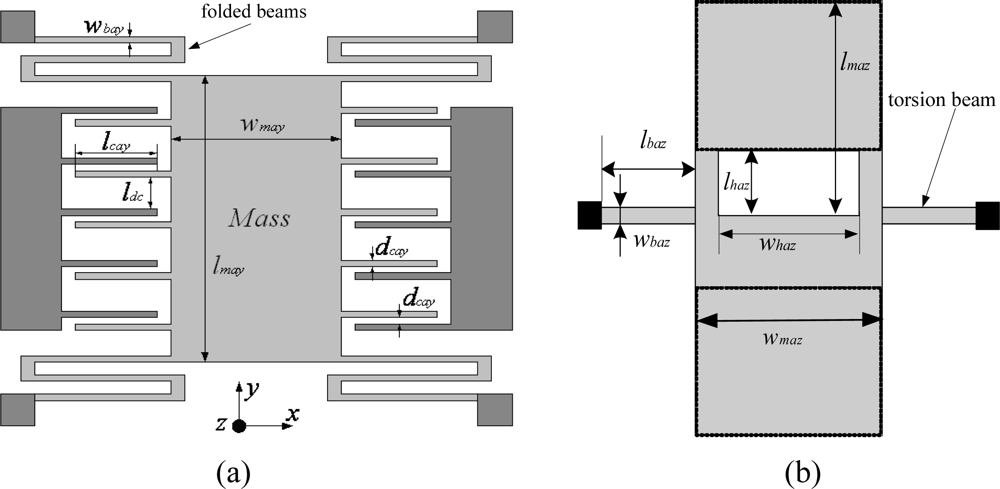

Figure 3. (a) The topology of the X/Y-axis accelerometer. (b) The topology of the Z-axis accelerometer.

Click here to enlarge figure

Figure 3. (a) The topology of the X/Y-axis accelerometer. (b) The topology of the Z-axis accelerometer.
Sensors 10 03835f3 1024
Sensors 10 03835f4 200

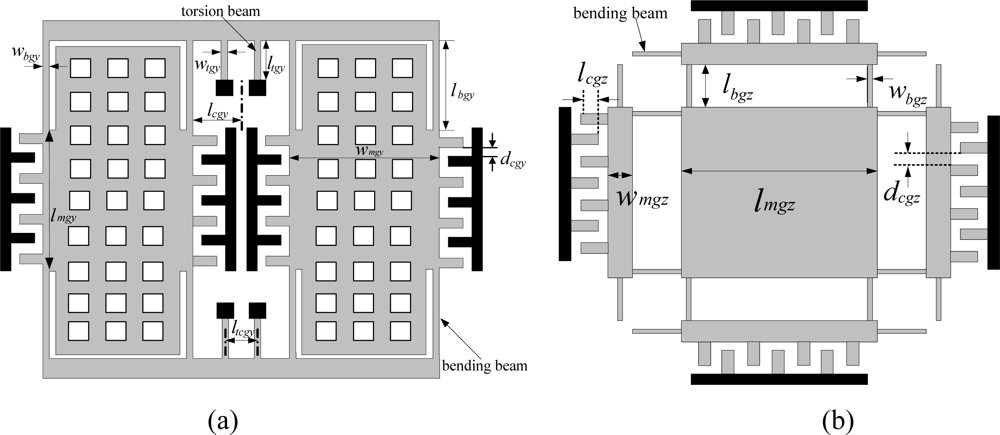

Figure 4. (a) X/Y-axis gyroscope topology in the two-chip MIMU. (b) Z-axis gyroscope topology in the two-chip MIMU.

Click here to enlarge figure

Figure 4. (a) X/Y-axis gyroscope topology in the two-chip MIMU. (b) Z-axis gyroscope topology in the two-chip MIMU.
Sensors 10 03835f4 1024
Sensors 10 03835f5 200

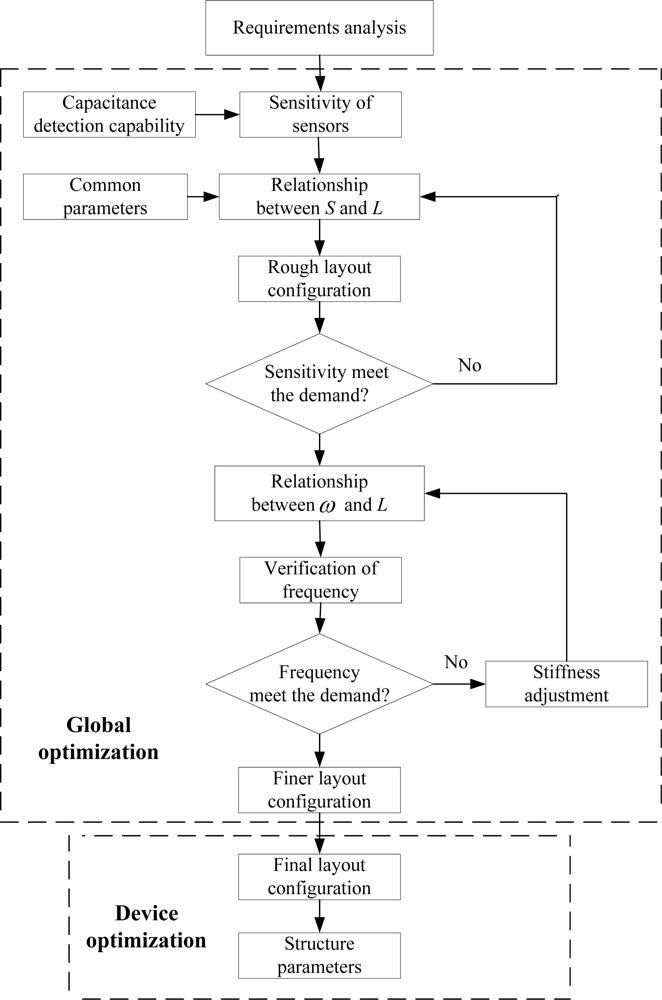

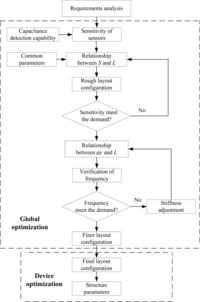

Figure 5. The flow of the proposed global optimization approach.

Click here to enlarge figure

Figure 5. The flow of the proposed global optimization approach.
Sensors 10 03835f5 1024
Sensors 10 03835f6 200

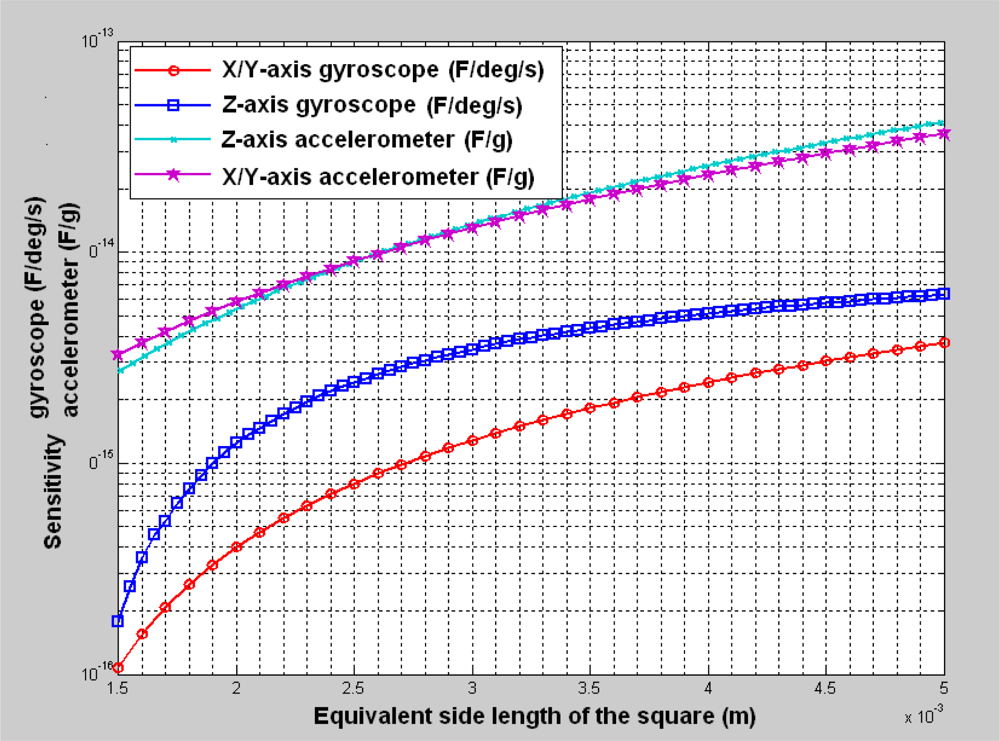

Figure 6. The sensitivity versus layout area; the natural frequency of each inertial sensor is chosen as 4,000 Hz.

Click here to enlarge figure

Figure 6. The sensitivity versus layout area; the natural frequency of each inertial sensor is chosen as 4,000 Hz.
Sensors 10 03835f6 1024
Sensors 10 03835f7 200

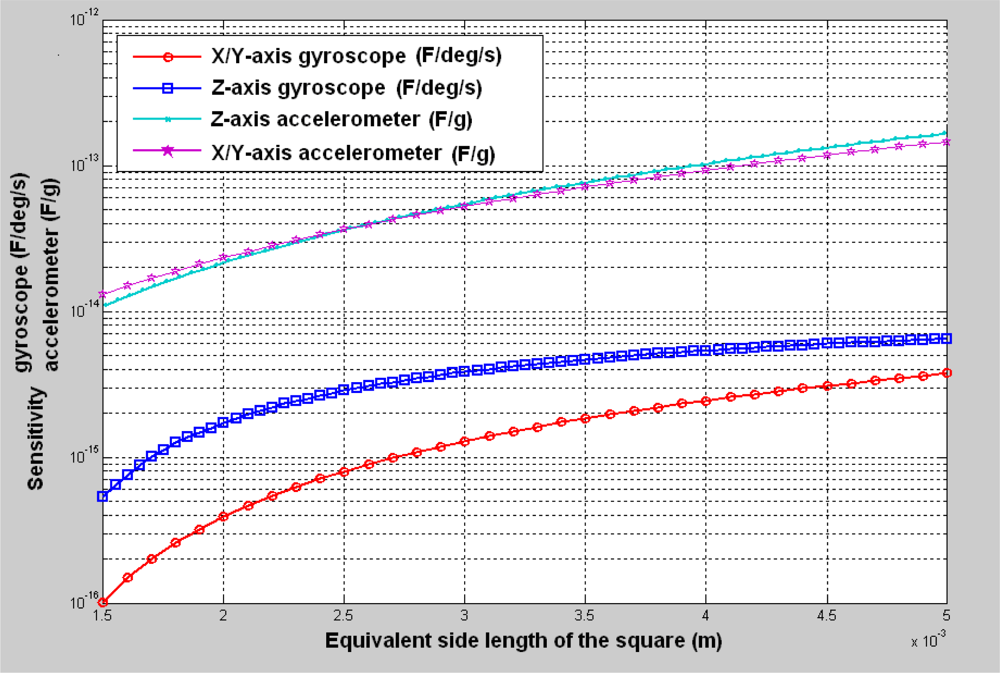

Figure 7. The sensitivity versus layout area; the natural frequency of the accelerometers is 2,000 Hz, and the natural frequency of the gyroscopes is 4,000 Hz.

Click here to enlarge figure

Figure 7. The sensitivity versus layout area; the natural frequency of the accelerometers is 2,000 Hz, and the natural frequency of the gyroscopes is 4,000 Hz.
Sensors 10 03835f7 1024
Sensors 10 03835f8 200

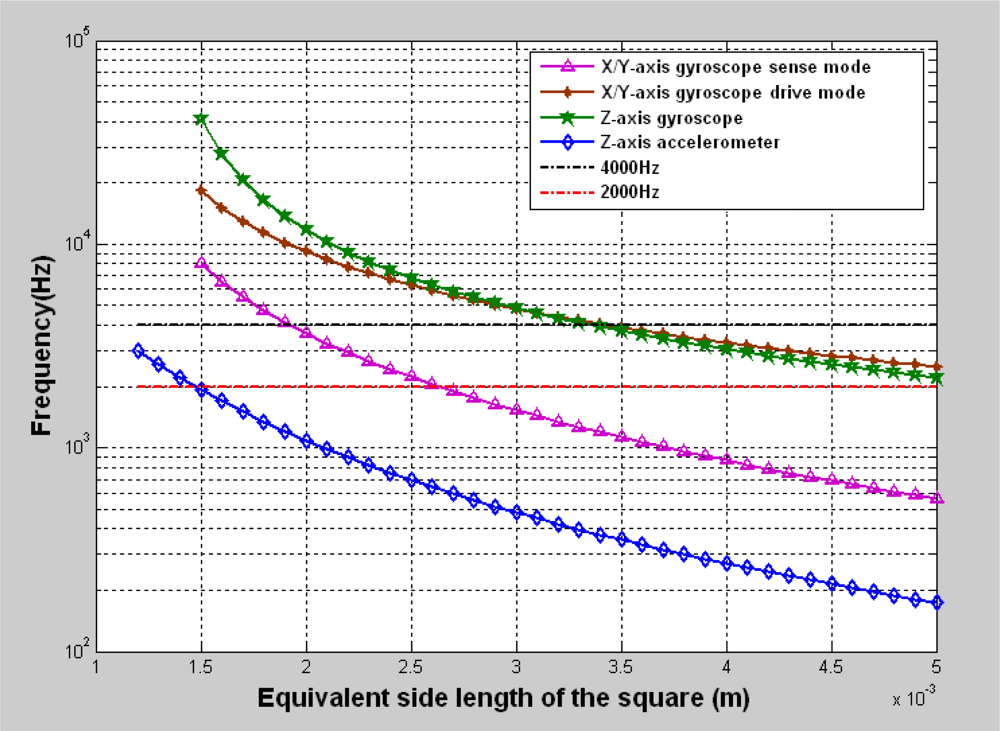

Figure 8. The natural resonant frequencies of the inertial sensors versus the layout area.

Click here to enlarge figure

Figure 8. The natural resonant frequencies of the inertial sensors versus the layout area.
Sensors 10 03835f8 1024
Sensors 10 03835f9 200

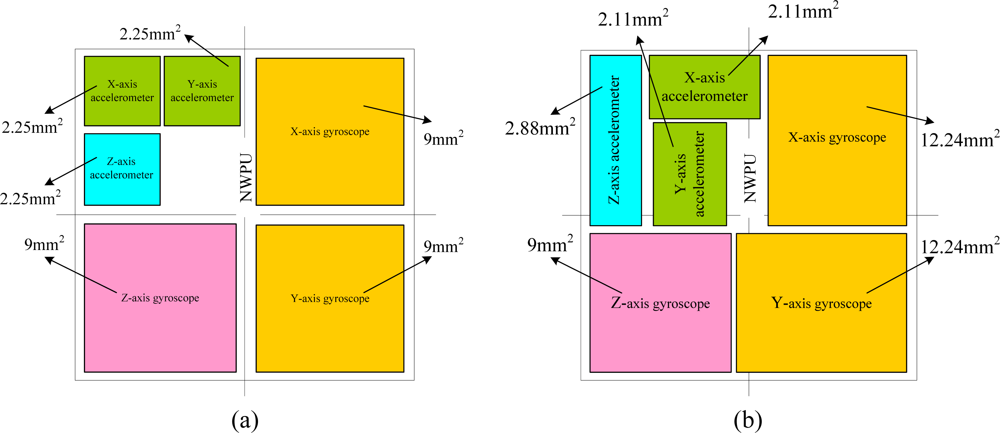

Figure 9. Layout configuration of the mechanical sensing element chip. (a) The layout configuration after global optimization. (b) The final layout configuration after device optimization.

Click here to enlarge figure

Figure 9. Layout configuration of the mechanical sensing element chip. (a) The layout configuration after global optimization. (b) The final layout configuration after device optimization.
Sensors 10 03835f9 1024
Sensors 10 03835f10 200

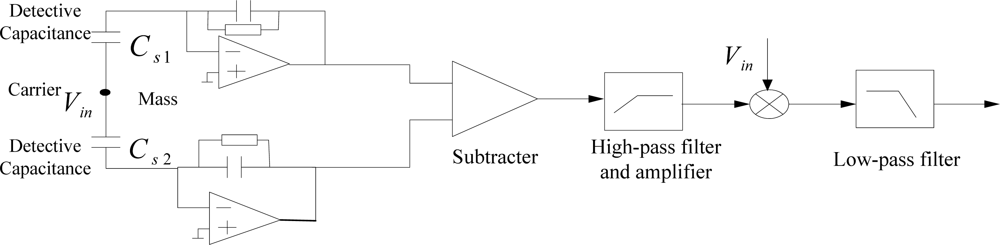

Figure 10. The interface circuit block diagram for the accelerometers.

Click here to enlarge figure

Figure 10. The interface circuit block diagram for the accelerometers.
Sensors 10 03835f10 1024
Sensors 10 03835f11 200

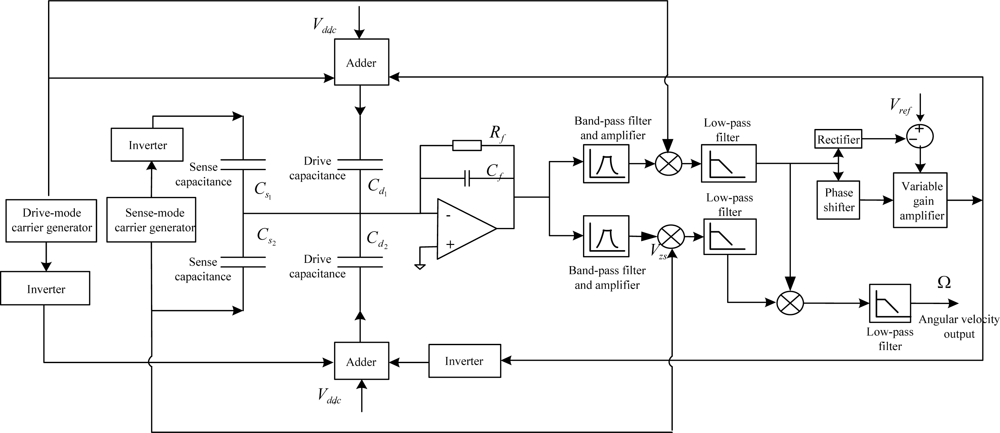

Figure 11. The interface circuit block diagram for the gyroscopes.

Click here to enlarge figure

Figure 11. The interface circuit block diagram for the gyroscopes.
Sensors 10 03835f11 1024
Sensors 10 03835f12 200

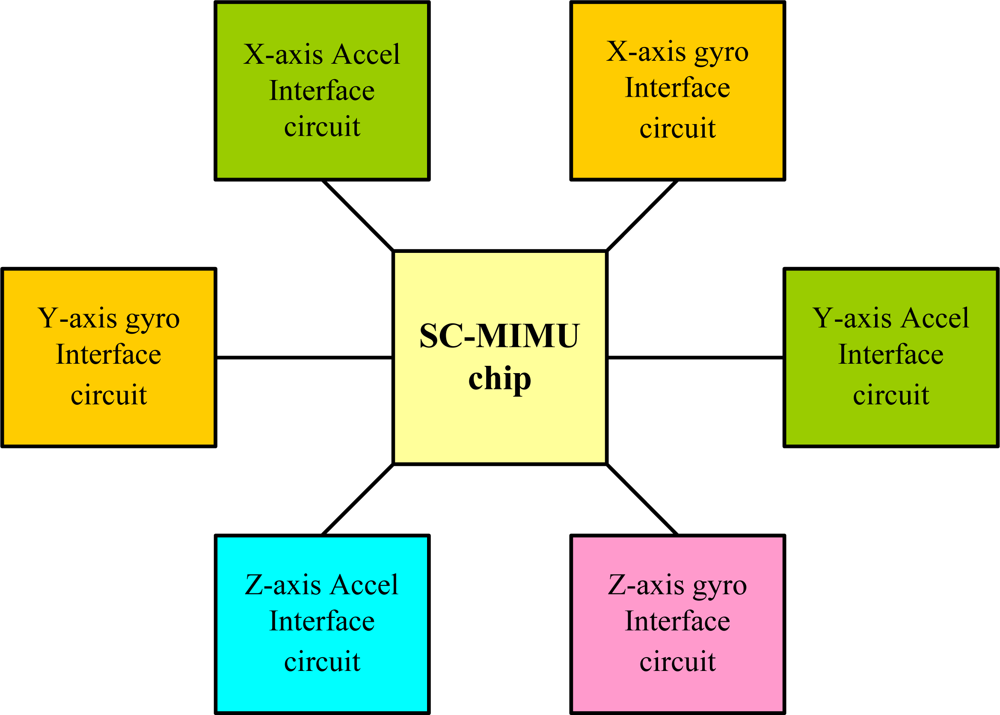

Figure 12. Layout configuration of the interface circuit chip in MIMU.

Click here to enlarge figure

Figure 12. Layout configuration of the interface circuit chip in MIMU.
Sensors 10 03835f12 1024
Sensors 10 03835f13 200

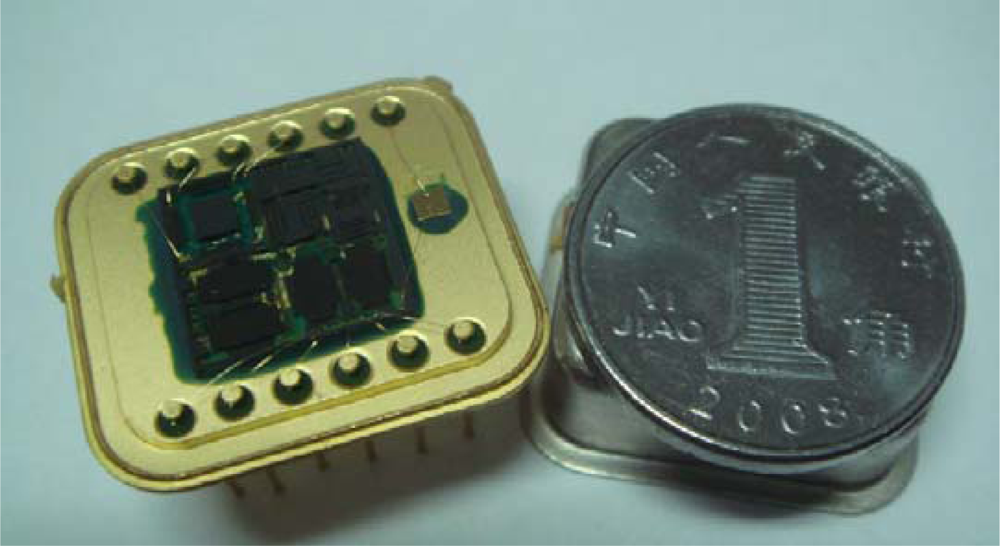

Figure 13. Photo of the final MIMU.

Click here to enlarge figure

Figure 13. Photo of the final MIMU.
Sensors 10 03835f13 1024
Sensors 10 03835f14 200

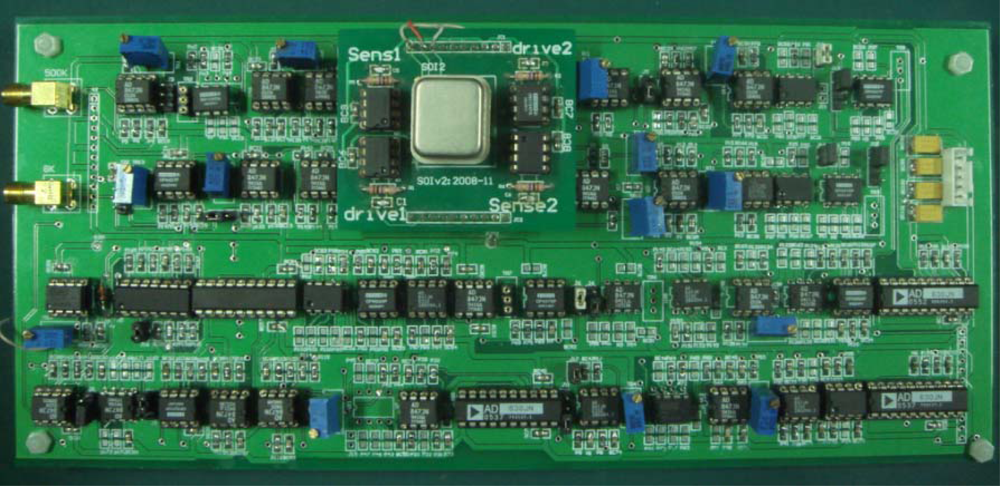

Figure 14. Photo of a test circuit board for MIMU.

Click here to enlarge figure

Figure 14. Photo of a test circuit board for MIMU.
Sensors 10 03835f14 1024
Sensors 10 03835f15 200

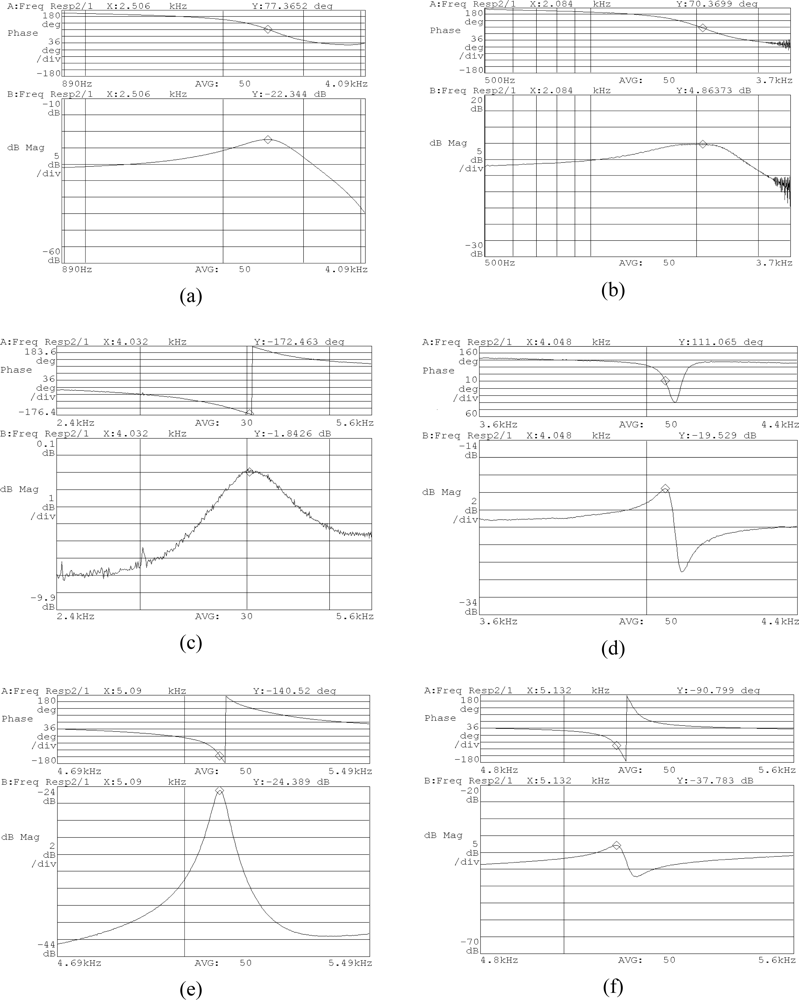

Figure 15. The frequency responses of the six inertial sensors. (a) X/Y-axis accelerometer; (b) Z-axis accelerometer; (c) X/Y-axis gyroscope in drive mode; (d) X/Y-axis gyroscope in sense mode; (e) Z-axis gyroscope in drive mode; (f) Z-axis gyroscope in sense mode.

Click here to enlarge figure

Figure 15. The frequency responses of the six inertial sensors. (a) X/Y-axis accelerometer; (b) Z-axis accelerometer; (c) X/Y-axis gyroscope in drive mode; (d) X/Y-axis gyroscope in sense mode; (e) Z-axis gyroscope in drive mode; (f) Z-axis gyroscope in sense mode.
Sensors 10 03835f15 1024
Sensors 10 03835f16 200

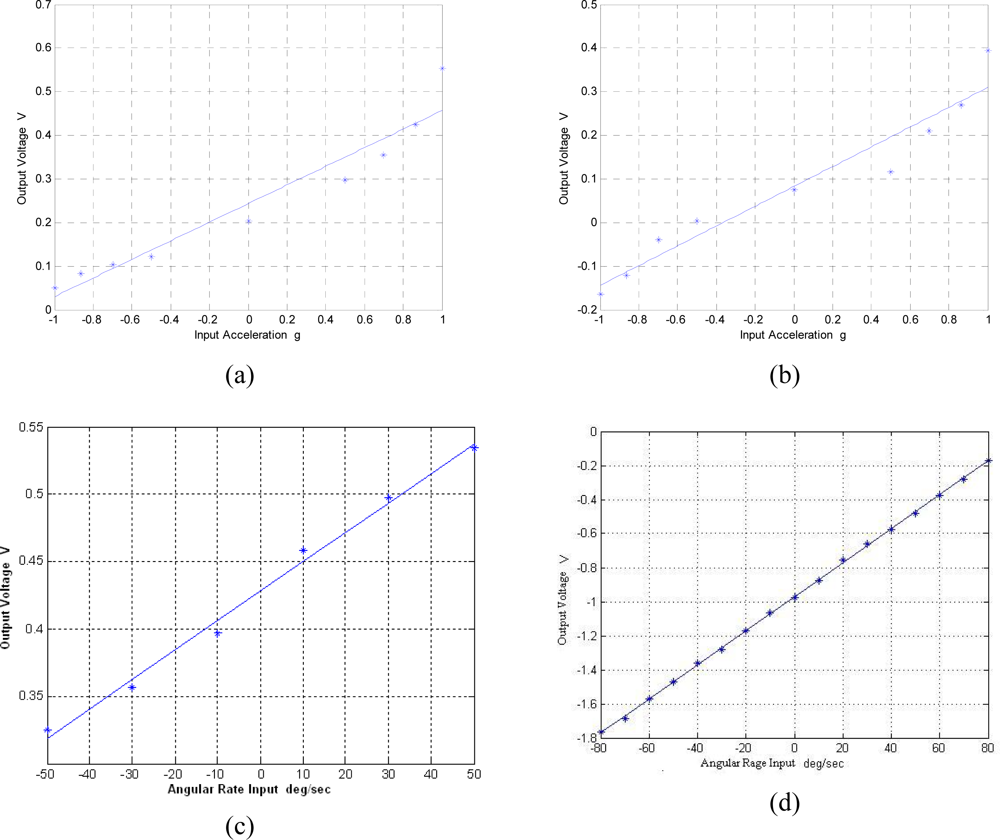

Figure 16. Scale factors for the six sensors in the MIMU. (a) X/Y-axis accelerometer; (b) Z-axis accelerometer; (c) X/Y-axis gyroscope; (d) Z-axis gyroscope.

Click here to enlarge figure

Figure 16. Scale factors for the six sensors in the MIMU. (a) X/Y-axis accelerometer; (b) Z-axis accelerometer; (c) X/Y-axis gyroscope; (d) Z-axis gyroscope.
Sensors 10 03835f16 1024
Sensors 10 03835f17 200

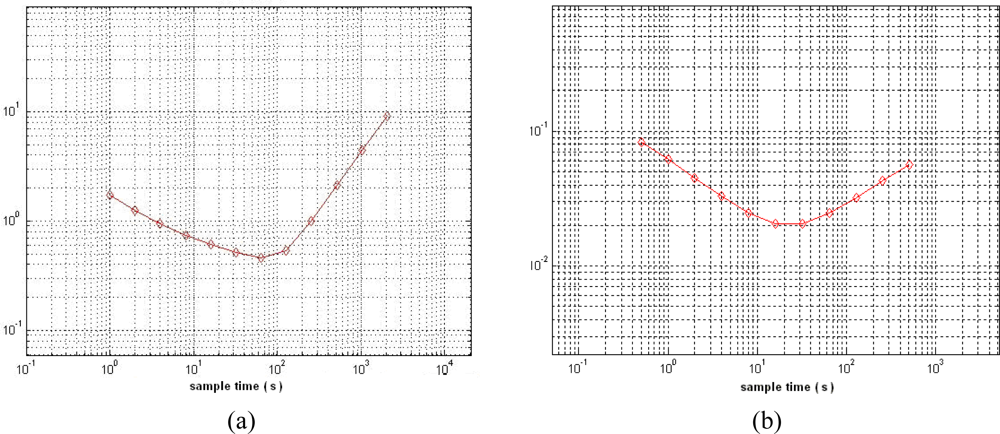

Figure 17. Plots of Allan variance for gyroscopes. (a) X/Y-axis gyroscope; (b) Z-axis gyroscope.

Click here to enlarge figure

Figure 17. Plots of Allan variance for gyroscopes. (a) X/Y-axis gyroscope; (b) Z-axis gyroscope.
Sensors 10 03835f17 1024
Sensors 10 03835f18 200

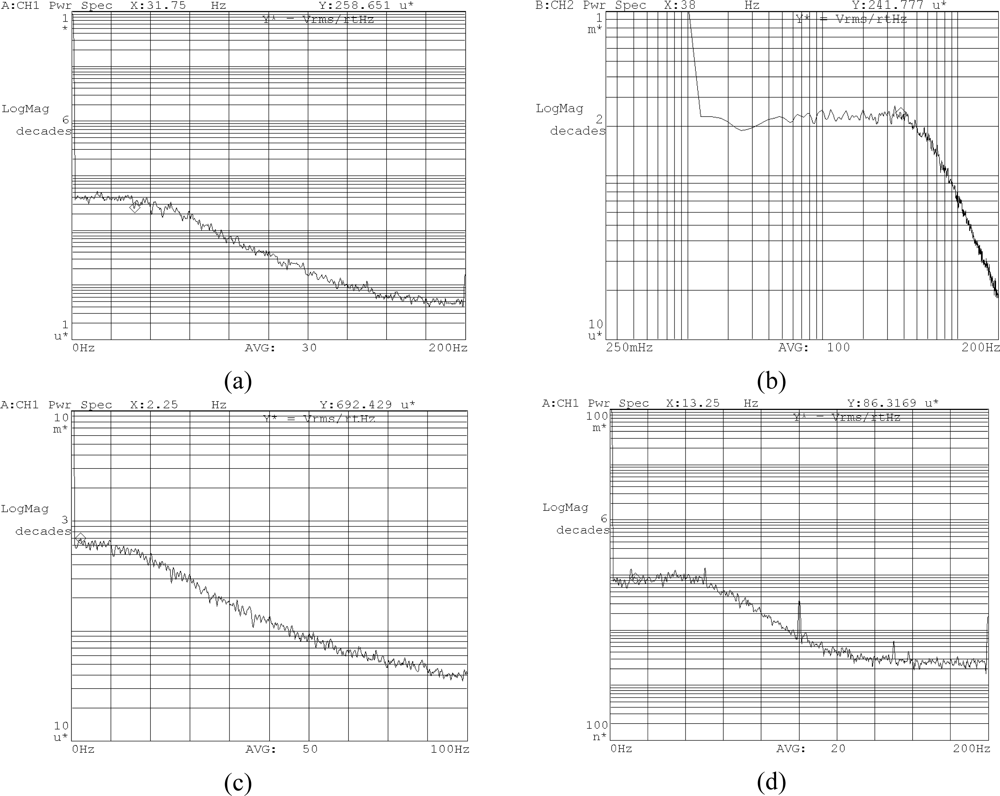

Figure 18. The noise floors of the six sensors in the MIMU. (a) X/Y-axis accelerometer; (b) Z-axis accelerometer; (c) X/Y-axis gyroscope; (d) Z-axis gyroscope.

Click here to enlarge figure

Figure 18. The noise floors of the six sensors in the MIMU. (a) X/Y-axis accelerometer; (b) Z-axis accelerometer; (c) X/Y-axis gyroscope; (d) Z-axis gyroscope.
Sensors 10 03835f18 1024
Table Table 1. The common geometry configuration for MIMU.

Click here to display table

Table 1. The common geometry configuration for MIMU.
ParametersValues
The overlap of comb fingers80 μm
Length of comb fingers160 μm
Width of comb fingers4 μm
Gap between comb fingers4 μm
Gap between the structure and substrate3 μm
Thickness of structure65 μm
Length of torsional beams≤300 μm
Width of torsional beams≥20 μm
Length of bending beams≤550 μm
Width of bending beams≥10 μm
Table Table 2. The side length of the equivalent square for sensors in the MIMU.

Click here to display table

Table 2. The side length of the equivalent square for sensors in the MIMU.
Name of SensorsSide LengthNotes
X/Y-axis Accelerometer L ax = 2 × n × l cay × d cay × 4 × 4lcay =80μm; dcay=4μm
Z-axis Accelerometer L az = 2 w maz × l mazlmaz = wmaz
X/Y-axis Gyroscope L gy = 2 × ( w mgy + l cgy ) ( l mgy + 2 l bgy )wmgy = lmgy; lcgy =500μm; lbgy =550
Z-axis GyroscopeLgz = lmgz + 2 × (lbgz − 50)lbgz =550
Table Table 3. The common parameters for MIMU optimization.

Click here to display table

Table 3. The common parameters for MIMU optimization.
ParametersValues
The material density of the silicon2.33 × 103 kg/m3
Young’s modulus130 Gpa
Poisson’s ratio0.22
Shear modulus53.3 GPa
Packaging pressure1 atm
Area limit for MIMU10 mm × 10 mm
Table Table 4. Dimensions of X/Y-axis accelerometer.

Click here to display table

Table 4. Dimensions of X/Y-axis accelerometer.
lmay2,000 μmdcay4 μm
wmay780 μmlcay80 μm
Folded beamsConsists of nine beams, each with a length of 360 μm.
Table Table 5. Dimensions of Z-axis accelerometer.

Click here to display table

Table 5. Dimensions of Z-axis accelerometer.
lbaz170 μmwmaz1,200 μm
wbaz20 μmlhaz1,300 μm
whaz540 μmlmaz2,000 μm
Table Table 6. Dimensions of X/Y-axis gyroscope.

Click here to display table

Table 6. Dimensions of X/Y-axis gyroscope.
lbgy530 μmwtgy20 μm
wbgy10 μmlmgy2,000 μm
lcgy500 μmwmgy1,500 μm
ltgy200 μmdcgy4 μm
Table Table 7. Dimensions of Z-axis gyroscope.

Click here to display table

Table 7. Dimensions of Z-axis gyroscope.
lbgz520 μmlmgz2,000 μm
wbgz10 μmlcgz80 μm
dcgz4 μmlcgz160 μm
Table Table 8. Comparison of the equivalent side length with parameters adjusted.

Click here to display table

Table 8. Comparison of the equivalent side length with parameters adjusted.
Global Layout ConfigurationFinal Layout Configuration
X/Y-axis Accelerometer1,500 μm1,452 μm
Z-axis Accelerometer1,500 μm1,697 μm
X/Y-axis Gyroscope3,000 μm3,498 μm
Z-axis Gyroscope3,000 μm3,000 μm
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
