Int. J. Mol. Sci. 2013, 14(8), 17122-17146; doi:10.3390/ijms140817122
Published: 20 August 2013
Abstract: Bacterial quorum sensing molecules not only grant the communication within bacterial communities, but also influence eukaryotic hosts. N-acyl-homoserine lactones (AHLs) produced by pathogenic or beneficial bacteria were shown to induce diverse reactions in animals and plants. In plants, the reaction to AHLs depends on the length of the lipid side chain. Here we investigated the impact of two bacteria on Arabidopsis thaliana, which usually enter a close symbiosis with plants from the Fabaceae (legumes) family and produce a long-chain AHL (Sinorhizobium meliloti) or a short-chain AHL (Rhizobium etli). We demonstrate that, similarly to the reaction to pure AHL molecules, the impact, which the inoculation with rhizosphere bacteria has on plants, depends on the type of the produced AHL. The inoculation with oxo-C14-HSL-producing S. meliloti strains enhanced plant resistance towards pathogenic bacteria, whereas the inoculation with an AttM lactonase-expressing S. meliloti strain did not. Inoculation with the oxo-C8-HSL-producing R. etli had no impact on the resistance, which is in agreement with our previous hypothesis. In addition, plants seem to influence the availability of AHLs in the rhizosphere. Taken together, this report provides new insights in the role of N-acyl-homoserine lactones in the inter-kingdom communication at the root surface.
Many Gram-negative bacteria use N-acyl-homoserine lactones (AHLs) for their intra-population communication. Such communication between bacterial individuals, termed quorum sensing (QS), was discovered more than 40 years ago [1,2]. Today, we understand very well the mechanisms of QS within the bacterial populations. Notably, QS molecules used by beneficial or pathogenic bacteria have also impact on the eukaryotic host. The first indication that QS-molecules of rhizosphere bacteria influence plant defense responses came from a study on the interaction between Serratia liquefaciens MG1 and tomato (Solanum lycopersicum) . Serratia liquefaciens MG1 produces C4- and C6-homoserine lactones when colonizing the root surface . Colonization of the root surface with S. liquefaciens induced systemic resistance against the leaf-pathogenic fungus Alternaria alternata in tomato, whereas the AHL-negative S. liquefaciens mutant MG44 was not able to induce such resistance . In a similar manner, colonization with the AHL-producing Serratia plymuthica wild-type strain HRO-C48 protected cucumber plants (Cucumis sativus) from the damping-off disease caused by the oomycete Pythium aphanidermatum, as well as tomato and bean (Phaseolus vulgaris) from infection with Botrytis cinerea, the causing agent of gray mold . Similar to the study with S. liquefaciens MG44 and tomato, the authors demonstrated that the splI− mutant of S. plymuthica, impaired in the production of AHLs, could not provide protection against P. aphanidermatum and B. cinerea. These results provide evidence that AHLs play an important role in the induction of plant defences. However, contradictory results were reported for the interaction between Arabidopsis thaliana and S. liquefaciens MG1 and its AHL-negative mutant MG44 . Because the resistance against the pathogenic bacterium Pseudomonas syringae on A. thaliana leaves was not differently induced by the S. liquefaciens wild type and its AHL-negative mutant, the authors suggested an AHL-independent resistance increasing effect against P. syringae caused by root colonization with S. liquefaciens . Thus, bacteria-plant interaction experiments with living microbial cells have to be interpreted very carefully, since different bacteria can induce different plant responses independently of the QS auto-inducer system. A helpful mean to circumvent this disturbing overlap effect was the use of pure AHL-compounds.
AHLs vary in the length of the lipid side chain and the substitution on the C3-atom (O- or OH-group). The length of the lipid side chain is important for the reaction of plants. C4-HSL, C6-HSL, oxo-C6-HSL and oxo-C8-HSL promoted growth of Arabidopsis [6–8]. Oxo-C10-HSL induced the formation of adventitious roots in mung beans . On the other hand, oxo-C14-HSL and to a lesser extend OH-C14-HSL induced resistance in Arabidopsis and barley plants towards biotrophic and hemibiotrophic pathogens . Likewise, oxo-C12-HSL has a resistance-inducing potential, though weaker than C14-HSL derivatives . Comparison of five different AHLs differing in the length of their lipid side chain, which ranged from 6 to 14 carbons, on plant growth revealed clear differences.
We here report the effect of long-chain oxo-C14-HSL-producing Sinorhizobium meliloti on plant resistance. We show that the effect is dependent on the presence and type of the AHL, since only the inoculation with S. meliloti strains producing oxo-C14-HSL had a positive effect on Arabidopsis resistance towards pathogenic bacteria. In contrast, inoculation with an AHL-negative S. meliloti strain or an oxo-C8-HSL-producing Rhizobium etli was not able to enhance resistance. Remarkably, the impact of AHLs on plant resistance is independent of the native host-symbiont system, as shown by the influence on Arabidopsis, which is not forming nodules and not a symbiotic host for both S. meliloti and R. etli. In addition, our results suggest that plants influence the amount of QS molecules in the rhizosphere and therefore might interfere with the bacterial intercellular communication.

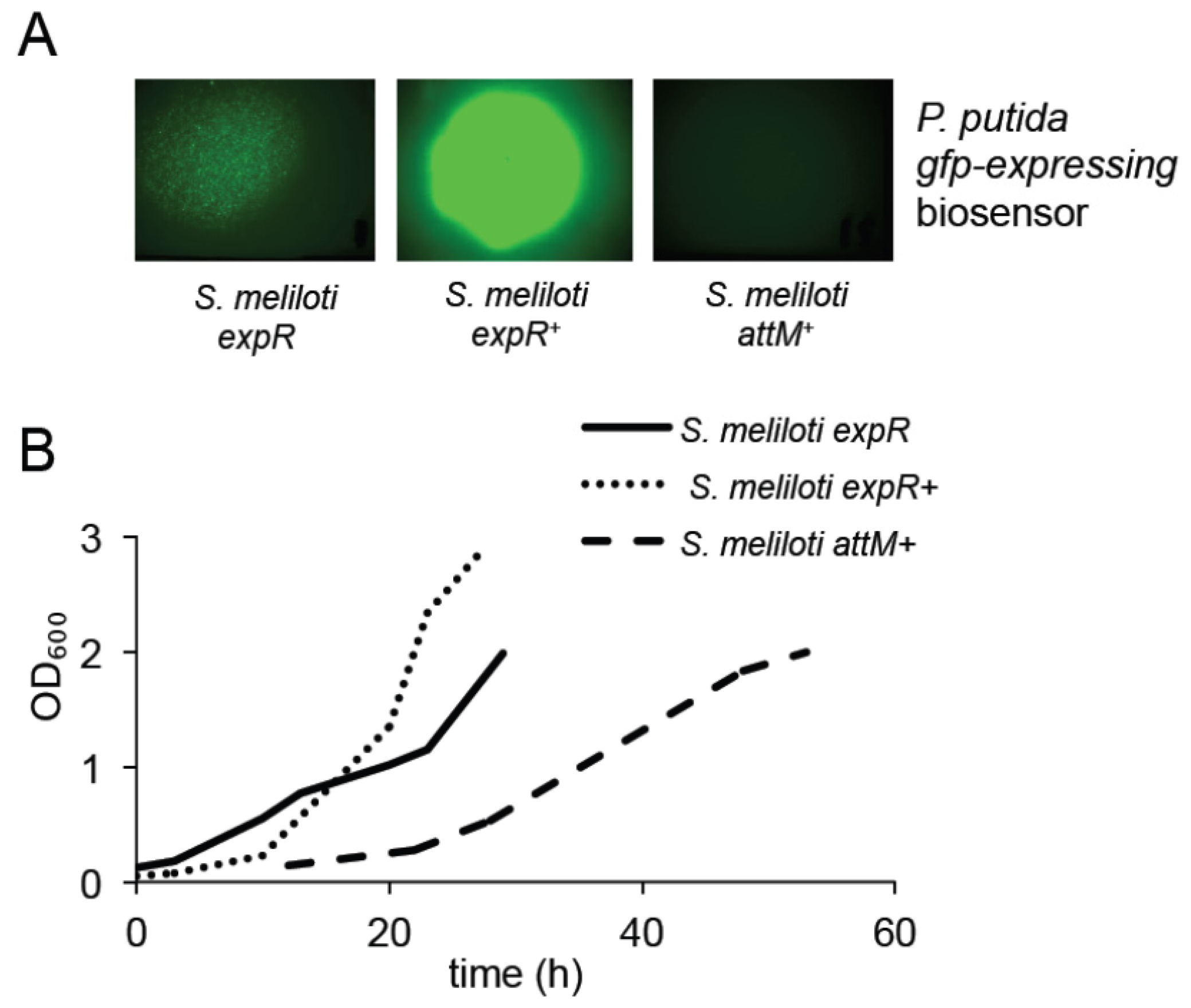

2.1. S. meliloti Rm2011 Produces N-3-Oxo-Tetradecanoyl-l-Homoserine Lactone (oxo-C14-HSL)
In our previous report we showed that long-chain AHLs (e.g., oxo-C14-HSL) induce resistance in A. thaliana towards hemibiotrophic and biotrophic pathogens . S. meliloti produces different long-chain AHLs  and was therefore a good candidate to study the interaction between A. thaliana and long-chain AHLs produced by rhizosphere bacteria. To commence this study, we determined which AHLs are synthesized in our conditions by S. meliloti Rm2011, a natural mutant with insertion in one of the AHL receptor genes, expR . In order to define the type of AHLs, we used an LC-MS/MS approach. Bacteria were grown in 80 ml of TY medium  and the cell-free culture supernatant was used for the analysis. As standards, we used commercially available C6-, oxo-C8-, oxo-C10-, oxo-C12-, and oxo-C14-HSL. We detected oxo-C14-HSL (Figure 1), confirming the previous results with other S. meliloti strains including the closely related strain Rm1021, which is also an expR mutant . The identity of oxo-C14-HSL was confirmed by the presence of two pseudomolecular ions m/z 326.2 ([M + H]+) and 348.2 ([M + Na]+). The pseudomolecular ion 326.2 ([M + H]+) was subsequently selected as a precursor for unambiguous HR-MS/MS identification m/z: 326.2327 (C12H19NO4, [M + H]+), 225.1819 (C14H25O2+), 183.1717 (C12H23O+), 102.0524 (C4H8NO2+), 74.0591 (C3H8NO+), 56.0492 (C3H6N+). All diagnostic adduct and fragment ions listed above were confirmed by analyzing the reference standard.
2.2. Expression of the AttM Lactonase Abolishes AHL Accumulation in S. meliloti
Since the eventual aim of this study was to investigate the AHL-dependent interaction between bacteria and plants, we aimed at an AHL-negative strain of S. meliloti, which could be used as a control in our study. The Agrobacterium tumefaciens attM gene encoding a lactonase, an enzyme hydrolyzing the lactone ring of an AHL molecule, was chosen for expression in S. meliloti in order to achieve this purpose. After initial check of resistance (data not shown), the kanamycin-resistance conferring, broad host range plasmid pBBR2-attM was constructed and introduced into the E. coli S17-1 strain  used subsequently for conjugation with S. meliloti Rm2011. The resulting AHL-negative strain was tested for AHL accumulation using the bacterial biosensor strain Pseudomonas putida KS35 which expresses lasB::gfp in an AHL-dependent manner . S. meliloti was grown until OD600 nm = 1.3, and AHLs were extracted from culture filtrate. Extracted AHLs were redissolved in Me2CO (acetone) and applied onto lawns of biosensor bacteria, which recognize oxo-C14-HSL (Figure S1). S. meliloti Rm2011 (pBBR2-attM) called hereafter attM+, showed no detectable AHL accumulation (Figure 2A). In addition, we tested how the lack of AHLs influences the growth of rhizobia. The S. meliloti attM strain, unable to produce a detectable amount of oxo-C14-HSL, shows delayed growth if compared to the reference strains (S. meliloti Rm2011, ectopically expressing the expR gene from the pWBexpR plasmid, called hereafter expR+) , or even to the strain with a naturally occurring mutation in the AHL receptor-coding gene expR (S. meliloti Rm2011 expR)  producing reduced amount of oxo-C14-HSL when compared to the S. meliloti expR+ strain (Figure 2B).
2.3. Plants Impact on AHL Concentration

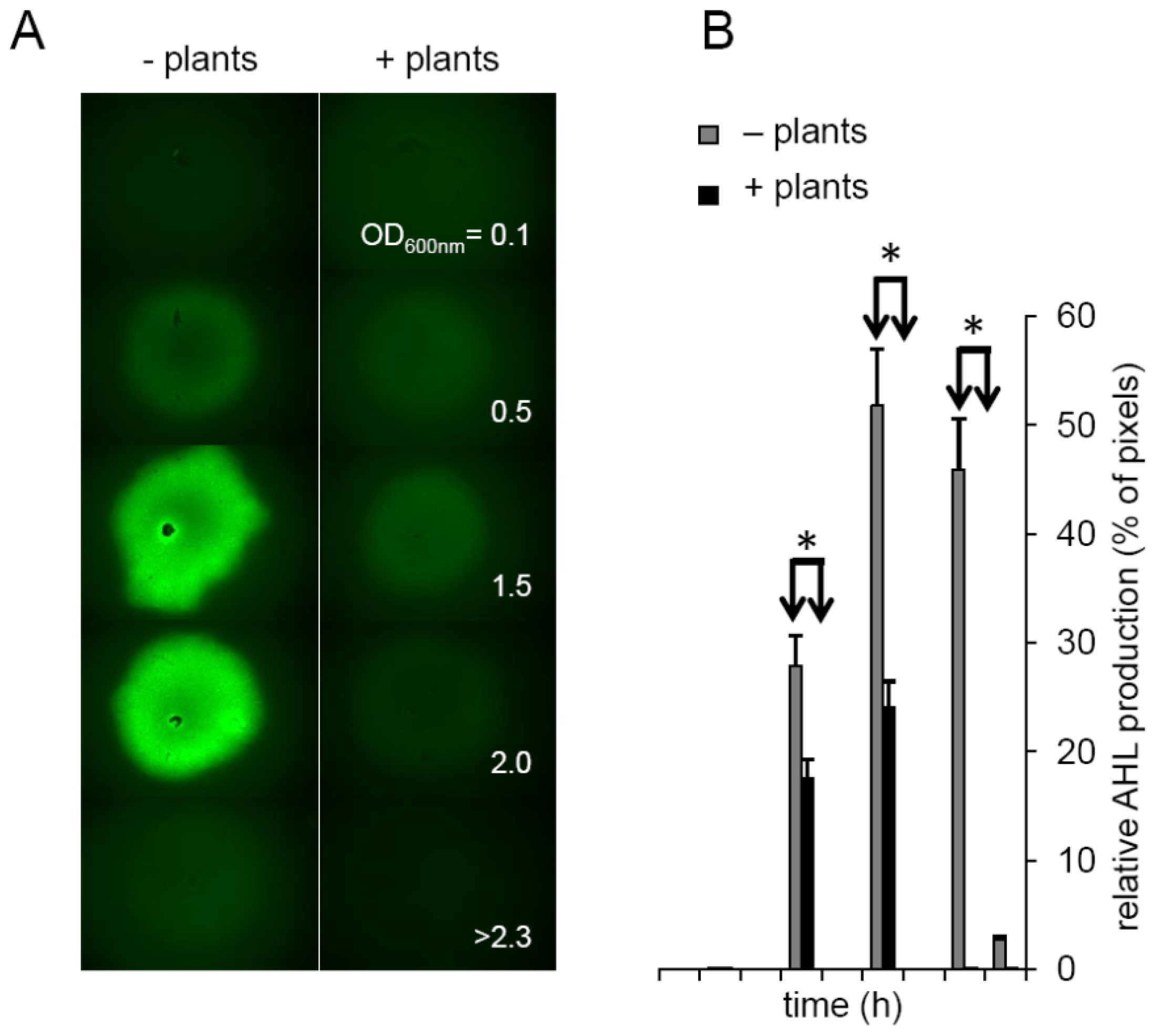

Next, we addressed the question whether plants influence the concentration of AHLs in their surroundings. To this end, we monitored the concentration of oxo-C14-HSL produced by S. meliloti Rm2011 expR+ in bacterial culture in the presence or absence of A. thaliana. AHLs were monitored in filtrates from bacterial cultures grown at 22 °C until the OD600 nm = 2.3. After extraction with CHCl3, the solvent was evaporated and the residue resuspended in Me2CO. AHLs were applied onto a lawn of the bacterial gfp-expressing biosensor strain P. putida KS35. The GFP signal was analyzed 2 h thereafter and quantified using the segmentation algorithm (Figure 3A,B). The concentration of oxo-C14-HSL reached a maximum at the late exponential phase (OD600 nm = 1.5) and decreased during the stationary phase (at OD600 nm > 2.3) (Figure 3A,B). However, if Arabidopsis plants were co-cultivated together with the S. meliloti bacteria, the AHL concentration peak was missing and the amount of AHLs was reduced (Figure 3A,B). This result suggests that plants have a negative impact on either the AHL production, on their stability or availability. Whether the effect originates from Arabidopsis-produced lactonases, inhibition of AHL production or adhesion of AHLs to plant cell walls is not yet known. The answer to this question requires further tests.

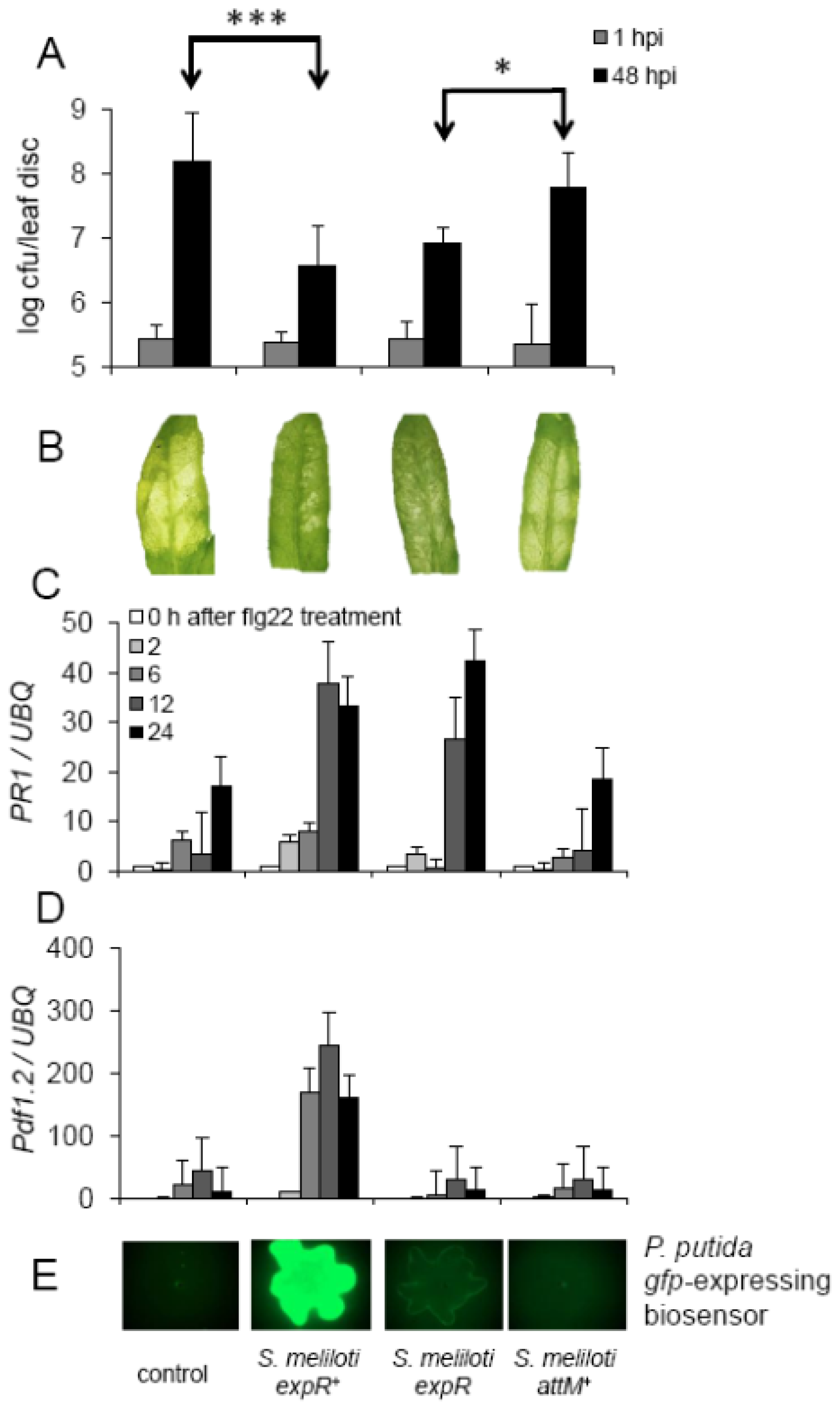

2.4. Oxo-C14-HSL Produced by S. meliloti Enhances Resistance of Arabidopsis Plants
Long-chain AHLs (e.g., oxo-C14-HSL) were shown to increase the resistance of barley and Arabidopsis plants towards hemibiotrophic pathogens; however, they show no effect on plant development [8,10]. To further substantiate our observation, we tested the impact of inoculation with S. meliloti strains producing oxo-C14-HSL on Arabidopsis resistance towards Pseudomonas syringae pv tomato (Pst) bacteria. We chose Arabidopsis rather than the native host of S. meliloti, Medicago tuncatula, in order to avoid effects related to nodulation and N2-fixation. The rhizosphere of soil-grown Arabidopsis plants was inoculated with different S. meliloti strains during a three-week period prior to the challenge. Pst bacteria were infiltrated into leaves and colony forming units (cfu) number was monitored one and 48 h after infiltration. In plants pre-treated with S. meliloti expR+, the proliferation of Pst bacteria was significantly slower than in control plants (Figure 4A). Moreover, the resistance-inducing effect seems to be AHL-dependent since pre-treatment with strains producing less or no oxo-C14-HSL (S. meliloti expR or S. meliloti attM+, respectively) has a reduced or no effect on resistance (Figure 4A).

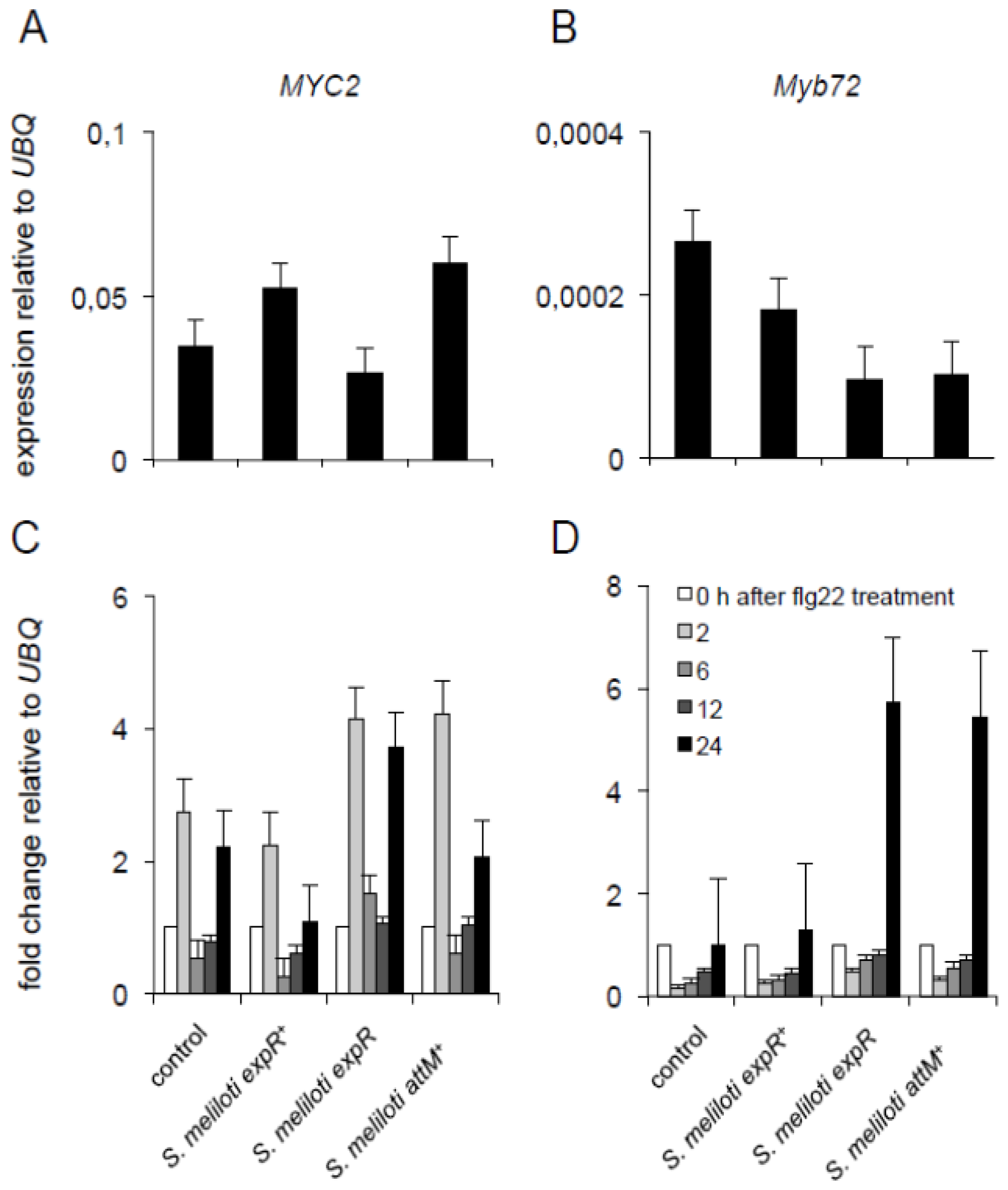

The expression profiles of two pathogenesis-related (PR) genes: PR1 and Pdf1.2, were in agreement with those results. Challenge with flg22 induced the expression of PR1 24 h after treatment in all plants (Figure 4C). However, in plants pre-treated with extract originating from S. meliloti expR+ or S. meliloti expR, the induction of PR1 was drastically increased (Figure 4C). Similarly, expression of Pdf1.2 was increased in plants pre-treated with extract from S. meliloti expR+, though not in control or plants pre-treated with extract from S. meliloti strains producing less or no AHLs, S. meliloti expR or S. meliloti attM+ (Figure 4D). Together with the induced resistance towards Pst, these results suggest that the pre-treatment with the S. meliloti strains producing oxo-C14-HSL (Figure 4E) prime Arabidopsis plants for better defense responses. In such primed state plants are able to respond in a faster and/or stronger way to a secondary challenge (e.g., pathogen infection).
Notably, this priming seems to be independent of the previously described priming mechanisms. The inoculation with AHL extracts from S. meliloti expR+ culture neither has an impact on the expression of the ISR associated MYC2 and Myb72 transcriptions factors (Figure 5A,B), nor on their expression of those genes after a secondary challenge with flg22 (Figure 5C,D) if compared to control plants. Nevertheless, we observed an increase in the expression of both Myb72 and MYC2 after the challenge with flg22, in plants pretreated with extracts from either S. meliloti expR or S. meliloti attM+ (Figure 5C,D). These results suggest that the long-chain oxo-C14-HSL from S. meliloti interferes with the flg22-induced expression of both ISR associated genes, a phenomenon observed also for the treatment with pure oxo-C14-HSL . The exact mechanism of this interaction is still not clear.

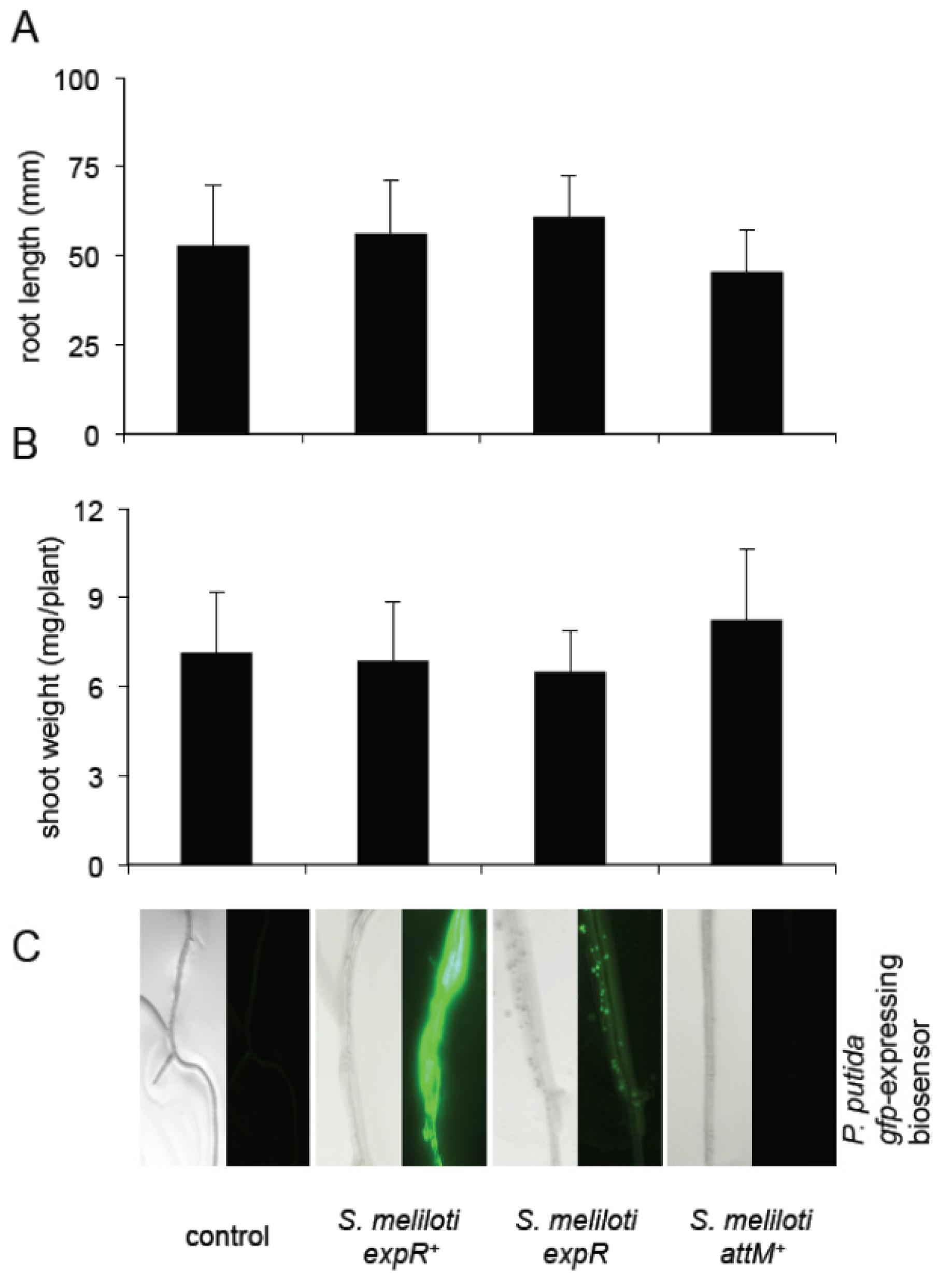

Next, we examined whether the inoculation with S. meliloli has an impact on Arabidopsis growth. To this end, we transferred one-week-old seedlings on vertical plates and inoculated them with S. meliloti expR+, S. meliloti expR, and S. meliloti attM+. The root tip positions were measured during 9 days after inoculation and pants weight was measured after 15 days. We observed no differences between the control plants and any of the treatments (Figure 6), suggesting that neither the S. meliloti nor its long-chain AHL has an impact on Arabidopsis growth.
2.5. Oxo-C8-HSL Produced by R. etli Has only Moderate Impact on Arabidopsis Growth
Previous reports on short-chain (C6-HSL and oxo-C8-HSL) AHLs influence on plants suggested that those molecules possess a growth-promoting effect [6,8,17]. Therefore, in the second part of this study, we addressed the question whether the presence of rhizobia producing short-chain AHLs would have a positive impact on plants. R. etli was previously shown to produce oxo-C8-HSL and was chosen in this study . In the first step, we verified the nature of the AHLs produced by R. etli 11541 under our conditions. A peak overlapping with oxo-C8-HSL was identified by LC-MS. The presence of oxo-C8-HSL was subsequently confirmed by MS/MS (Figure 7). This result is in line with the previous reports on AHL production by R. etli. The identity of oxo-C8-HSL was unambiguously confirmed by the presence of the following adduct ions m/z: 241.9 ([M + H]+), 264.0 ([M + Na]+), 483.0 ([2M + H]+) and 505.1 ([2M + Na]+). The pseudomolecular ion 241.9 ([M + H]+) was subsequently selected as a precursor ion for unambiguous HR-MS/MS identification m/z: 242.1326 (C12H19NO4, [M + H]+), 141.0898 (C8H13O2+), 102.0532 (C4H8NO2+), 74.0587 (C3H8NO+), 71.0829 (C5H11+) and 56.0491 (C3H6N+). All diagnostic adduct and fragment ions listed above were confirmed by analyzing the reference standard. In addition, in analogy to S. meliloti, we constructed two AHL-negative strains in which the accumulation of oxo-C8-HSL was abolished due to the expression of the attM lactonase gene of A. tumefaciens using two different pBBR-variants conferring kanamycin and gentamicin resistance, respectively (Figure S2).

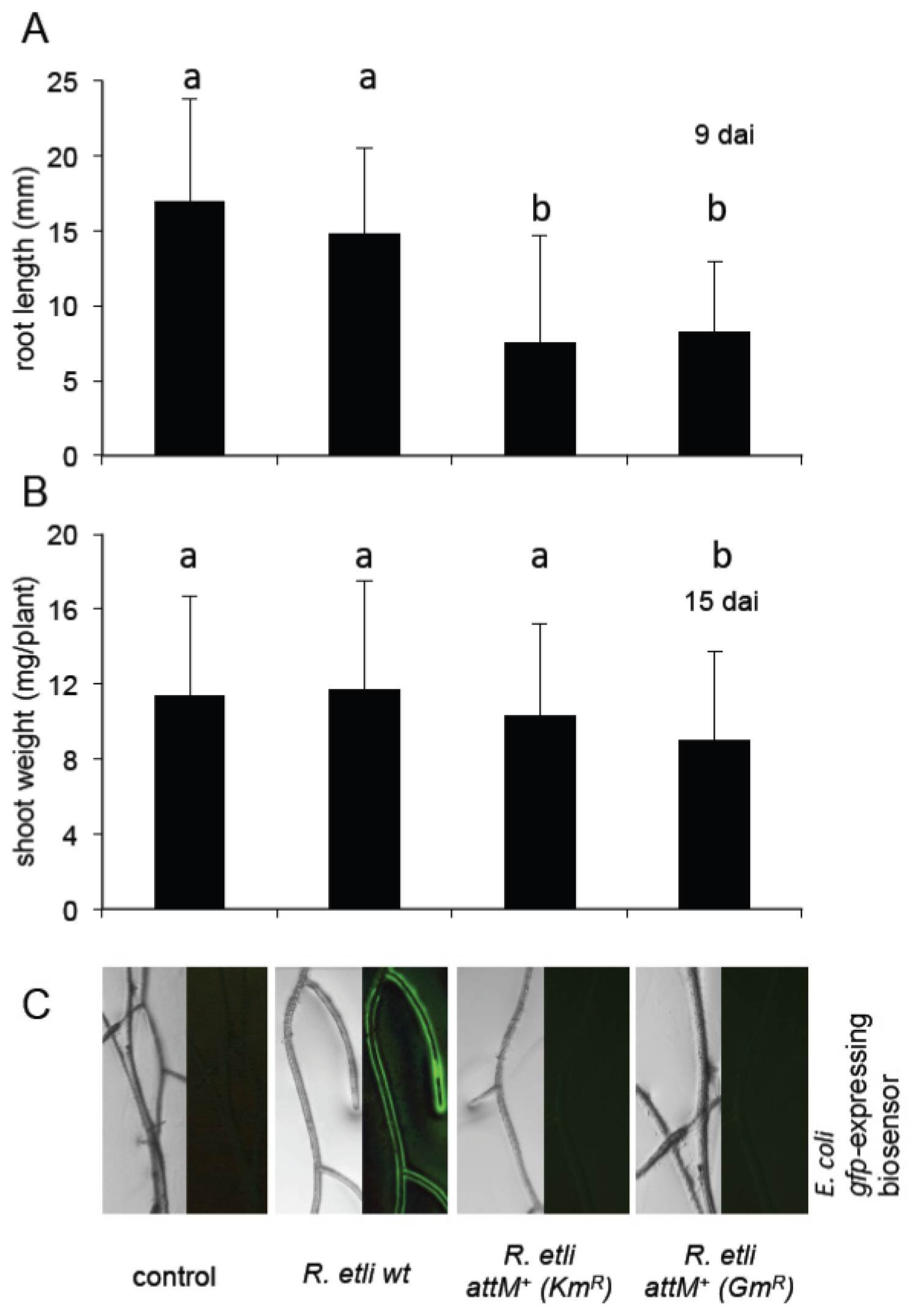

In the next step, we assessed whether the oxo-C8-HSL produced by R. etli (Figure 7) influences the growth of Arabidopsis. In line with the tests with S. meliloti, we chose Arabidopsis rather than the native host (Phaseolus vulgaris) in order to avoid the nodulation and N2-fixation related phenotype, which could mask the AHL effect. Besides, R. etli had been already reported to be a plant growth promoting rhizobacterium (PGPR) on non-legume plants . To verify the effect of R. etli-originated oxo-C8-HSL, one-week-old Arabidopsis seedlings were transferred to a vertical growth system (square Petri dishes with half MS medium and no sucrose supply) and inoculated with R. etli wild type (wt), R. etli attM+ (KmR), and R. etli attM+ (GmR) (OD600 nm < 0.1), 10 mM MgCl2 solution was used as a control. The root tip position was measured every 3rd day. After 9 days we observed no differences between plants inoculated with R. etli wt and those treated with MgCl2 solution (Figure 8A). However, plants inoculated with both lactonase-expressing strains: R. etli attM+ (KmR) and R. etli attM+ (GmR) showed significantly shorter roots (Figure 8A). Likewise, the shoot weight measured 15 days after inoculation was similar between controls and R. etli wt treated plants (Figure 8B). In contrast, plants inoculated with R. etli attM+ (GmR) had significantly lighter rosettes (Figure 8B). We hypothesize that the oxo-C8-HSL produced by the wild type R. etli strain (Figure 8C) balances the otherwise negative impact of R. etli colonization on Arabidopsis growth.
A possible explanation why Arabidopsis reacts to R. etli colonization with a growth inhibition could be an induced defense mechanism. To prove this assumption we tested the resistance towards the hemi-biotrophic Pst bacteria. Two different infection methods with Pst were chosen: infiltration and spray-inoculation. Soil-grown Arabidopsis Col-0 wild type plants were watered with R. etli wt, R. etli attM+ (KmR) and R. etli attM+ (GmR) (OD < 0.1) suspension during three weeks prior challenge with Pst bacteria. Cfu of Pst were analyzed one and 48 h after infiltration in leaf discs. We observed no differences in the resistance or susceptibility towards Pst (Figure S3A). Similarly, the spray-inoculation of hydroponically grown Arabidopsis with Pst revealed no difference in the resistance towards this pathogen (Figure S3B), suggesting that R. etli has no influence on the resistance towards P. syringae in Arabidopsis plants.
In this report, we investigated the impact of bacteria-originated AHLs at defense responses and growth of A. thaliana. Both bacterial species used in this study are well-studied rhizobia entering close symbiosis with legumes. On the one hand, we chose S. meliloti, which produces several AHLs, including oxo-C14-HSL [11,20]. As recently shown, long-chain AHLs induce resistance in Arabidopsis and barley plants [8,10]. Here, we show the positive effect of a strain producing high amounts of oxo-C14-HSL (S. meliloti expR+) on plant resistance. As expected, this bacterial strain has no influence on plant growth. We propose an AHL-induced priming as the mechanism of increased resistance. Interestingly the AHL-induced priming seems to be different from the priming induced by other PGPR, as shown by the expression of MYC2 and Myb72 transcription factors [21,22]. Notably, the AHL synthase (sinI) and AHL receptor (expR) expressed in free-living rhizobia are repressed in bacteria living in a symbiosis with the native host M. truncatula . We therefore hypothesize, that in case of nodule-living bacteria the AHL-priming effect is missing. On the other hand, we confirmed our previous findings that short-chain AHLs, like oxo-C8-HSL from R. etli, have no resistance-inducing activity. Unfortunately, the expected positive effect of bacterial oxo-C8-HSL on plant growth is only very moderate; indicating that the interaction between plant and rhizobia depends on more signals than AHLs. Taken together this study provides new arguments supporting the observation that plants respond to bacterial AHLs and that this response depends on the length of the AHLs.
3.1. AHL Production in S. meliloti and R. etli
The impact of bacterial AHLs on plants was postulated in several independent studies [3,6,10,17,24]. However, only recent results indicated that different molecules might have different influence on plant hosts . Others and our studies suggested that the short-chain AHLs increase the growth of Arabidopsis plants [6–8,17], whereas the long-chain AHLs reinforce the plant resistance against biotrophic and hemibiotrophic pathogens . Therefore, the fact that the bacteria chosen in this study produce either long or short-chain AHLs allowed to verify our previous hypothesis on AHLs bi-functionality in respect to plant reactions . Very remarkable was the specificity in the AHL type. Both bacterial species, S. meliloti and R. etli, were already examined in this regard, the AHLs identified in this report were previously reported to be within the palette of homoserine lactones produced by the respective bacterial species [11,18,20].
3.2. Systemic Induction of Arabidopsis Resistance by S. meliloti Treatment
Previous studies have shown that S. meliloti produces different long-chain AHLs including 3-oxo-C14-, C16-, 3-oxo-C16-, C16:1-, and 3-oxo-C16:1-HSL [26,27]. In this study, we confirmed the presence of oxo-C14-HSL in S. meliloti culture. Because of the previously observed, positive impact of oxo-C14-HSL treatment on Arabidopsis and barley resistance , we expected that S. meliloti strains producing oxo-C14-HSL will have positive effect on Arabidopsis resistance. Indeed, co-cultivation of Arabidopsis plants with the S. meliloti expR+ strain, which produces high amounts of oxo-C14-HSL, significantly enhances the resistance towards the pathogenic Pst bacteria. In addition, also the S. meliloti expR, which produces lower amount of oxo-C14-HSL, has a similar, positive impact on plant resistance. In the same context, plants pretreated with the lactonase-expressing S. meliloti attM+ strain showed increased Pst proliferation when compared to plants pretreated with the oxo-C14-HSL- producing S. meliloti strains. These results indicate an involvement of the AHL in the resistance conferred by S. meliloti. Similar results have been obtained by Schuhegger et al. , these authors reported the induction of resistance against the fungal leaf pathogen Alternaria alternata, in tomato plants pretreated with Serratia liquefaciens MG1. Furthermore, they indicated that the AHL-negative mutant of S. liquefaciens MG44 was less effective in induction of resistance against A. alternata . Intriguing is the fact that although the major AHL produced by S. liquefaciens is the short-chain C6-HSL , it appears to confer resistance to a necrotrophic pathogen. Unfortunately, we were not able to verify this effect with pure AHL or the oxo-C8-HSL-producing R. etli strain (data not shown), leaving the question on the impact of short-chain AHLs on resistance towards necrotrophic pathogens open. Interesting to note are the different capabilities of moving throughout a plant of short and long-chain AHLs, while the short-chain C6-HSL was found in shoot of Arabidopsis when applied to root, the long-chain AHL oxo-C14-HSL was not . In addition, also the substitutions in the lipid chain play a role in induced resistance , indicating that besides the specific response to a given AHL, plants possess also systemic signal, which regulates the AHL-priming.
3.3. Growth Inducing Capacities
Short-chain AHL was shown to promote growth in Arabidopsis plants [6–8,17]. Depending on the exact length, the possible effect may include also alteration in root hair morphology and thickening of roots . The short-chain oxo-C8-HSL produced by R. etli (this work and ) encouraged us to test whether the inoculation with AHL-producing bacteria has effect similar to the pure molecule. As concluded above, despite the fact that it has been already reported to be a plant growth promoting rhizobacterium (PGPR) on the non-legume tomato and pepper plants , R. etli has a negative effect on Arabidopsis growth. However, this negative impact is possibly contra-balanced with the positive effect of oxo-C8-HSL produced by this bacterium. Such compensation phenomenon could be the explanation for the reduced growth of plants pretreated with the lactonase-expressing strains (R. etli attM+, KmR and GmR), in comparison to growth at nearly control level of plants pretreated with the wild type R. etli producing short-chain AHL. These results appear to be in line with reports that only a few rhizobacteria are known to be naturally associated with Arabidopsis roots, and only few showed positive growth effects . As expected, treatment with S. meliloti has no influence on the growth of Arabidopsis. Neither the S. meliloti expR+, producing high levels of AHLs, nor the AHL-negative (S. meliloti attM+) strain influenced the growth rate of Arabidopsis.
3.4. Impact of Plant on AHL Production
Several previous reports demonstrated the effect of AHLs on biofilm formation in bacterial communities. Recently, a model assuming the role of autoinducers in promotion of highly adaptable, spatial heterogeneity in populations was suggested . Notably, the presence of plants diminished the concentration of AHL in bacterial culture, without major effect on the bacterial proliferation (Figure S4). While some explanations are possible: adhesion to root surface or a residual lactonase activity of the five phosphogluconolactonases encoded on Arabidopsis genome, the most probable is however a quorum quenching (QQ) activity of root exudates. Such activity was already reported for several higher plants and algae [31–36]. Between many unidentified QS-mimicking and QQ molecules in root exudates, halogenated furanones, L-canavanine and flavan-3-ol catechin have been identified as plant-originated inhibitors of QS [34–36]. Especially the halogenated furanones from the red alga Delisea pulchra act directly at the AHL reception site by facilitating the degradation of the AHL-LuxR complex and therefore inhibiting of QS-depending processes . Whether higher plants secret similar compounds was not yet reported. A screening for QS active substances in the native host of S. meliloti, Medicago truncatula, revealed 15 to 20 substances, which either activate or inhibit QS . A similar study identified QS-interfering activities in exudates from rice and bean plants ; however, the nature of those molecules remains undetermined. Whether Arabidopsis exudates compound(s) with similar activity is probable, though not yet proven. Very intriguing is also the possibility that plant-originated molecules influence not only the perception or stability of QS molecules, but also the synthesis.
Taken together this report demonstrates the dependence of the plant reaction to rhizobia on the type of AHL, produced by those bacteria. The AHL-priming effect detected in plants pre-treated with oxo-C14-HSL producing S. meliloti strains shows that the complex interaction between bacteria and plants goes further than the perception of MAMPs and effectors or even NOD factors. Additional experiments shall clarify the mechanisms of AHL-priming and its potential in agriculture.
4. Experimental Section
Wild type Arabidopsis thaliana Col-0 (ecotype Columbia) was obtained from The Nottingham Arabidopsis Stock Center (NASC), NASC ID: N60000. Plants were either grown on soil under short-day conditions (8/16 h light regime, at 21 °C) or in sterile condition on half MS medium supplemented with 0.8% agar at 21 °C. For systemic approach, plants were grown in sterile hydroponics culture using half MS medium without sucrose, assuring the separation between roots and shoot parts.
4.2. Bacterial Strains and Growth Conditions
R. etli 11541 wild type was obtained from DSMZ (German Collection of Microorganisms and Cell Cultures) in Braunschweig, Germany. S. meliloti Rm2011, an expR mutant (expR), was obtained from A. Becker. S. meliloti Rm2011 expR+ containing the pWBexpR plasmid was obtained from M. McIntosh. All used S. meliloti strains are resistant to streptomycin (250 μg/μL).
R. etli (pBBR2-attM), R. etli (pBBR5-attM) and S. meliloti (pBBR2-attM) carrying the lactonase gene attM from Agrobacterium tumefaciens were obtained by conjugation with Escherichia coli S17-1 carrying attM on pBBR1MCS-2 (conferring kanamycin resistance, KmR) or pBBR1MCS-5 (conferring gentamicin resistance, GmR) plasmids .
Rhizobia were grown in 5 mL culture in a 50 mL Erlenmeyer flask under 100 rpm constant agitation at 21 °C in TY medium . The OD was measured every 4 h using 50 μL, we performed dilutions for ODs above 0.8.
4.3. AHL Detection and Quantification
All solvents used for LC/MS analyses, acetonitrile (MeCN, 99.9%), and formic acid (FA, 98%), were of LC/MS grade from Sigma-Aldrich (Steinheim, Germany). Water was purified by a Merck-Millipore Milli-Q Synthesis A10 system (Merck-Millipore, Schwalbach/Ts., Germany).

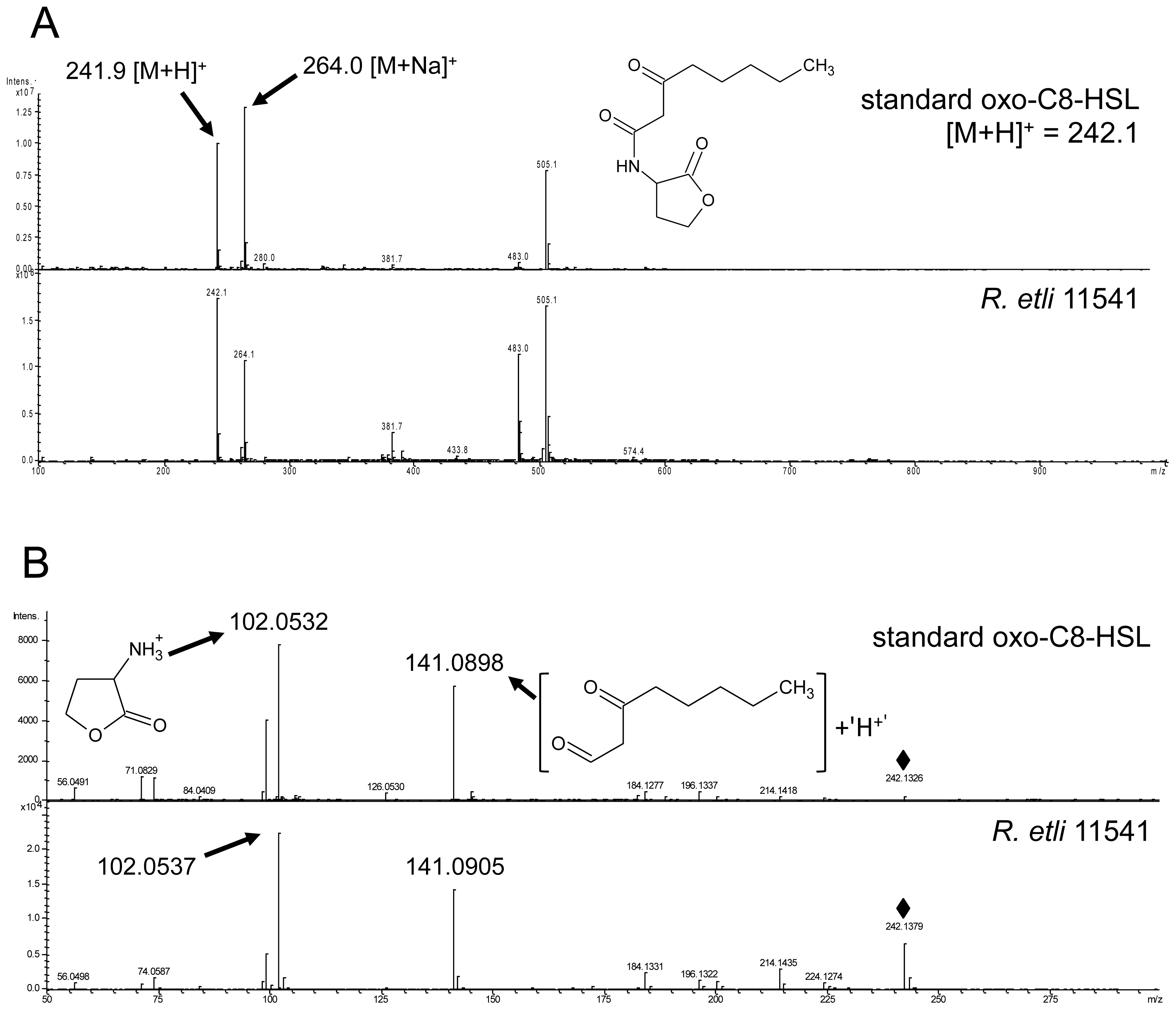

In order to identify the type of AHLs produced by R. etli and S. meliloti, bacteria were grown on TY media (OD600 nm ≈ 0.8) with the respective antibiotics in a large scale (80 mL). The cultures were centrifuged to remove the bacterial cells, and 5 mL CHCl3 was added for extraction of AHLs. AHL extract were evaporated and redissolved in 80% MeCN, vortexed, placed for 15 min in an ultrasonic bath (Sonorex, Bandelin, Berlin, Germany) and centrifuged for 15 min at 21,000× g (Mikro 220R, Hettich, Tuttlingen, Germany). For LC/MS analysis and fractionation, two mass spectrometers, both from Bruker Daltonics (Bremen, Germany), were used. Both instruments were controlled by the HyStar software (version 3.2, SR 2, Bruker Daltonics, Bremen, Germany, 2012). The instruments were equipped with an orthogonal ESI source.
For separation and fractionation of different AHL-types, an amaZon ETD Ion-Trap MS, coupled to a Dionex UltiMate 3000 HPLC (Dionex, Idstein, Germany), has been used. Samples were separated on an Acclaim 120 C18, 3 μm, 120 Å, 4.6 × 150 mm column (Dionex, Idstein, Germany) at a flow rate of 1 mL/min and at 35 °C. Eluent A consisted of H2O + 0.1% FA, eluent B of 80% MeCN + 0.1% FA. Samples of 150 μL were injected. A linear gradient of 5%–100% B in 40 min was used. The source parameters were adjusted as follows: capillary voltage 4500 V; end plate offset 500 V; nebulizer 1 bar, dry gas 8 L/min with a dry temperature of 200 °C. The mass accuracy of the low-resolution system is ±0.2 Da. Before injection into the Ion-Trap MS, the flow was split: one third was used for monitoring of the different AHLs in the positive ion mode using a full scan from m/z 100 to 2000. Two thirds were used to fractionate the samples. Over a time period of 80 min, fractions were collected every 30 s. These fractions were evaporated using ultra-speed vacuum centrifugation and redissolved in 80% Me2CO (acetone) in order to be suitable for the GFP biosensor bacteria assay described below. Only bioactive fractions were used for subsequent identification.
A high-resolution microTOF-Q II mass spectrometer was used for identification of bioactive secondary metabolites. For direct infusion experiments, samples were applied via syringe pump at a flow rate of 180 μL/h. The source parameters were adjusted as follows: capillary 4500 V, end plate offset 500 V, nebulizer 0.4 Bar, dry gas 4 L/min, dry temprature 180 °C. The ion optics were adjusted as follows: funnel 1 RF 200 Vpp, funnel 2 RF 200 Vpp, ISCID energy 0 eV, hexapole RF 100 Vpp, ion energy 3 eV, collision RF 180 Vpp, collision energy 8 eV, transfer time 80 μs, and pre puls storage 7 μs. The mass accuracy of the high-resolution system is ±10 mDa. Positive-mode MS/MS experiments were performed in the m/z range from 50 to 500. Precursor ions were fragmented at collision energy of 20–30 eV. Data interpretation was performed using the DataAnalysis software (version 4.0 SP 5, Bruker Daltonic, Bremen, Germany, 2012). Standards of C6-, oxo-C8-, oxo-C10-, oxo-C12-, and oxo-C14-HSLs from Sigma-Aldrich were used as reference standards in both systems.
4.3.3. AHL Detection Using Biosensor Bacteria
AHLs were extracted either from the liquid medium where plants were growing (as described in plant growth conditions) or from bacterial culture. All extractions were performed by adding CHCl3, centrifugation, and discarding the aqueous phase. CHCl3 was evaporated using ultra-speed vacuum centrifugation and the residue was redissolved in Me2CO. In order to detect AHLs production, two reporter bacteria were used: Escherichia coli MT102 (pJBA89), which is able to detect all side chain lengths of AHLs, and P. putida KS35 that can perceive only long-chain AHLs. These gfp-expressing biosensor bacteria were grown on LB medium with the corresponding antibiotics over night at 21 °C and plated on LB agar plates for one more night. Five microliters of extracted and redissolved AHLs were dropped on the plates containing a lawn of the reporter bacteria and detection of GFP expression was done after 2 h by fluorescence binocular microscope.
4.4. Segmentation Algorithm
In order to objectively analyze the fluorescence response of the reporter bacteria a full automatic algorithm has been developed which returns the relative AHL production as a percentage of all pixels in the microscopic images. The key idea is to segment the image into two disjoint region sets. The first one will represent the fluorescing bacteria (foreground) and the second one the non-fluorescing parts (background) in the image. Given this segmentation, the quotient between the size of the foreground region set and the whole image size is the relative AHL production. The segmentation algorithm is an adaptation of the work presented in . Here, an energy functional is minimized, whose minimum is a binary image representing the segmentation result. As input for this process, a user defines on an arbitrary image the foreground and background region. The algorithm trains from this a model how pixels and its neighbors appear for a given region. This model was used to evaluate all microscope images.
4.5. Growth Promotion Assay
One-week-old Arabidopsis seedlings were transferred into half MS square plates without sucrose. The root tip position was marked and 10 μL of bacterial cultures (OD600 nm < 0.1) were dropped on the root tip. Root length was measured manually every 3rd day. The roots and leaves weight was measured at the end of the experiment. The bacterial treatments included the indicated bacterial strains as well as MgCl2 used as a control.
4.6. Pathogenicity Assays
Two methods for Pseudomonas syringae pv. tomato DC3000 (Pst) quantification were tested. Roots of 6-week-old Arabidopsis thaliana Col-0 grown in a sterile systemic system were pretreated with rhizobia bacteria. After 3 days, shoots were spray-inoculated with Pst at OD600 nm = 0.1 in 10 mM MgSO4, 0.02% Silwet77. Leaves were harvested after 1 h and 96 h post inoculation (hpi) and homogenized. A serial of dilutions with (10 mM MgSO4) from the homogenized plant materials was made and dropped on King’s B medium. The colony forming units (cfu) of Pst were counted 2 days later in order to assess the proliferation of Pst. In the second approach Arabidopsis plants were grown on soil for four weeks as described under plant growth conditions. Plants have been pretreated 3 times with (1–4 mL) of bacterial cultures grown until exponential phase. Three days after the last treatment, leaves where infiltrated with Pst (OD 600 nm = 0.01) diluted in 10 mM MgSO4. A biopsy punch was used to prepare leaf discs with 5 mm diameter at 1 hpi and 48 hpi. The leaf discs have been homogenized, diluted and used as described in the first pathogenicity assay to count the cfu of Pst.
4.7. Gene Expression Analysis
We used quantitative RT-PCR for all gene expression analyses. Total RNA was extracted with 1 mL Trizol (PeqLab, Erlangen, Germany) according to manufactures’ protocol. Two μg of total RNA was used for DNaseI digestion. cDNA synthesis was followed according to the qScript cDNA Synthesis Kit from Quanta BioScience Inc. (Gaithersburg, MD, USA). In order to check the efficiency of the reverse transcription, a semi-quantitative amplification of the actin2 transcript (cycles: 28, annealing temp. 55 °C) was performed. A positive genomic DNA control was included to verify the purity of cDNA samples from a genomic DNA. Fifty nanogram cDNA was used for quantitative RT-PCR (Applied Biosystems 7500 real-time PCR system, Foster City, CA, USA). Annealing temperature was set to 60 °C in every qRT-PCR and the cycle number was set to 42. All expression values were normalized to the expression of UBQ gene and to the 0 hours post infection (hpi) values. Quantitative RT-PCR was done using specific primers: At5g25760 (UBQ) fwd.: GCTTGGAGTCCTGCTTGGACG rev.: CGCAGTTAAGAGGACTGTCCGGC; PR1 fwd.: GGAGCGGTAGGCGTAGGTCCC, rev.: CCCACGAGGATCATAGTTGC; Pdf1.2 frw.: GTTTGCTTCCATCATCACC, rev.: GGGACGTAACAGATACACTTG; Myb72 frw.: TCATGATCTGCTTTTGTGCTTTG, rev.: ACGAGATCAAAAACGTGTGGAAC; MYC2 frw.: TCATGATCTGCTTTTGTGCTTTG, rev.: ACGAGATCAAAAACGTGTGGAAC.
The interaction between root-associated bacteria and plants encompasses many levels. In addition to the well-studied symbiotic interaction between members from the Fabaceae family and rhizobia and the diverse pathogenic bacteria and their hosts, we present here the impact of bacterial quorum sensing molecules on plants resistance. In agreement with observations done on the impact of pure molecules from the acyl-homoserine lactones group on plants, we show here that also bacteria-originated molecules have similar qualities. The inoculation with long-chain AHL (oxo-C14-HSL) producing S. meliloti strains enhances the resistance of Arabidopsis plants, while inoculation with a strain unable to accumulate oxo-C14-HSL did not have this effect. Moreover, the resistance enhancement depends on the length of the acyl side chain because the inoculation with short-chain (oxo-C8-HSL) producing R. etli had no effect on the defense mechanism. These results indicate that plant perceive the AHL in diversified manner. In addition, the AHL-producing bacteria could hold a potential for future agricultural applications.
Detection and quantification of standard AHLs using the bacterial biosensor strains P. putida KS35 and E. coli E. coli MT102 (pJBA89). (a) The GFP-based system using the P. putida KS35 and E. coli MT102 (pJBA89) strains. AHLs were purchased from Sigma-Aldrich, resuspended in Me2CO at concentrations as indicated and 5 μL of the solution were applied onto bacterial lawns; (b) Quantification of the GFP photographs using the segmentation algorithm .
Production of AHL in R. etli strains used in this work. Different strains of R. etli were tested for AHL production using the bacterial biosensor E. coli MT102 (pJBA89) (A) AHLs produced by the indicated R. etli strains were extracted with CHCl3 and applied onto a lawn of the E. coli biosensor. The GFP signal was observed 2 h thereafter. R. etli attM+(KmR) and R. etli attM+(GmR) are strains expressing the attM gene from A. tumefaciens coding for a lactonase; (B) Growth curves of the R. etli strains. Bacteria were grown in 5 mL culture with constant agitation (100 rpm) at 21 °C. OD600 nm was measured every 4 h.
R. etli strains have no impact on Arabidopsis resistance towards P. syringae bacteria. Proliferation of the plant pathogenic P. syringae DC3000 (Pst) on plants pretreated with MgCl2 (control) or different R. etli strains, producing different quantities of oxo-C8-HSL. (A) Pst bacteria were infiltrated into Arabidopsis leaves. OD600 nm = 0.01; (B) Arabidopsis plants were spray-inoculated with Pst bacterial solution, OD600 nm = 0.1; (C) AHL production in R. etli strains used in the above experiments detected by the bacterial biosensor strain of E. coli. Student’s t-test revealed no differences between the treatments at p ≥ 0.05, as indicated by the letters in (A) and (B).
The authors would like to thank Prof. Anton Hartmann (Helmholtz Center Munich, Germany) for providing the biosensor bacterial strains used in this work. We are grateful to M. McIntosh and A. Becker (Centre of Synthetic Microbiology, Marburg, Germany) for proving the plasmid pWBexpR and the strain S. meliloti Rm2011. The work of KHK and AS was supported by the Bundesanstalt für Landwirtschaft und Ernährung (BLE) grant Nr. 2811NA033.
Conflicts of Interest
The authors declare no conflict of interest.
