Molecules 2017, 22(5), 828; doi:10.3390/molecules22050828

Article
New Glycosides from the Fruits of Nicandra physaloides
Key Laboratory of Chinese Materia Medica (Ministry of Education), Heilongjiang University of Chinese Medicine, Harbin 150040, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Isabel C. F. R. Ferreira
Received: 9 April 2017 / Accepted: 16 May 2017 / Published: 17 May 2017

Abstract

:
Three new glycosides (13) and 15 known ones (418) were isolated and identified from the fruits of Nicandra physaloides. The structures of these compounds were established by 1D and 2D NMR spectra and HR-ESI-MS. The compounds (418) were the first time isolated from the Nicandra genus and they (except 8, 10, 14) exhibited inhibitions on the NO release of LPS-induced RAW 264.7 cells with IC50 values from 26.9 to 47.5 μM.
Keywords:
Nicandra physaloides; phenyl-glycosides; fat glycosides; RAW 264.7; inflammation

1. Introduction

Nicandra physaloides (L.) Gaertn (Solanaceae) was recorded in the Dictionary of Medicinal Plants [1], as being an annual herb of monotypic genus, sweet and acerbity, bitter and natural in flavor, which possessed the various effects of sedation, eliminating phlegm, heat-clearing and detoxifying. Modern researchers have indicated that Nicandra physaloides was reported being taken as analgesic, vermifuge, antibacterial agent, antipyretic, diuretic and mydriatic [2,3,4] and applied to the treatments of hydrophobia, psychosis, epilepsy, rheumatoid arthritis, nasosinusitis, influenza, urinary tract infection, sore and furuncle [5,6]. Meanwhile, it was used in folk medicine for sedation, eliminating phlegm, heat-clearing and detoxifying. Equally important, the Chinese Herbal Medicine Anthology of Yun Nan recorded that the fruits of Nicandra physaloides (L.) Gaertn possessed the effects of dispelling wind and anti-inflammation. However, the effective material basic was unclear and indistinct [7,8]. As a part of our ongoing research on structurally diverse and anti-inflammatory ingredients from Nicandra physaloides, our study led to the isolation of three new compounds, Nicglycoside A–C (13), along with fifteen known ones including benzyl α-l-arabinopyranosyl-(1→6)-β-d-glucopyranoside (4) [9], 6-O-l-arabinopyranosyl-β-d-glucopyr-anoside (5) [10], 2-Phenylethyl-β-d-glucopyranoside (6) [11], (+)-phenylethyl-8-O-α-l-rhamnopyr-anoside (7) [12,13], Salidroside (4-hydroxy-2-Phenylethyl-O-β-d-glucopyranoside, 8) [14], phenethanol-β-d-gentiobioside (9) [15], Forsythoside E (3,4-dihydroxyl-2-Phenylethyl-O-β-l-arabinopyranosyl-(1→6)-β-d-glucopyranoside, 10) [16], and phenethylalcohol 8-O-β-d-glucopyranosyl-(1→2)-[O-α-l-arabinopyranosyl-(1→6)]-O-β-d-glucopyranoside (11) [17], Helicide (4-β-d-galactopyranosyloxy-benzaldehyde, 12) [18], picein (1-[4-(β-d-glucopyranosyloxy-)phenyl]-ethanone, 13) [19], benzoic acid-β-d-gentiobioside (14) [14], butyl-β-d-glucopyranoside (15) [20], Foliachinenoside I (3-methylbutyl-4-O-α-l-arabinopyranosyl(1→6)-β-d-glucopyranoside, 16) [21], (Z)-3-Hexenyl-1-O-β-d-glucopyranose (17) [22] and (Z)-3-hexenyl O-α-arabinopyranosyl-(1→6)-O-β-d-glucopyranoside (18) [23], respectively (Figure 1, Table S1). This article is the first time that the phenyl-glycosides and fat glycosides from the fruits of Nicandra physaloides have been studied and reported. Here, the isolation and structural elucidation of compounds 118, as well as their anti-inflammatory activities, were elaborated and provided.

2. Results

2.1. Structure Elucidation

Compound 1 possessed the molecular formula of C19H28O10 according to the HR-ESI-MS at m/z 417.1755 [M + H]+. The 1H-NMR spectrum (Table 1) of 1 showed the characteristic signals of mono-substituted benzene ring at δH 7.24 (4H, overlap, H-2, 3, 5, 6) and 7.16 (m, H-4). In addition, two protons signals of anomeric carbon of β-galactose and α-arabinose were observed at δH 4.65 (d, J = 7.9 Hz, H-1′) and 4.29 (d, J = 6.8 Hz, H-1′′), respectively. Combined with the DEPT, 13C-NMR spectrum of 1 showed 19 signals, including a group of benzene at δC 140.2, 130.0 (2 × C), 129.4 (2 × C) and 127.2, two methylene signals at δC 71.8 and 37.3, and two groups of galactopyranose and arabinopyranose glycosyls at δC 102.0, 72.3, 72.8, 68.8, 74.5, 69.8 and 105.2, 72.4, 74.2, 69.5, 66.7. The HMBC correlations (Figure 2) between H-1′ and C-8, H-1′′ and C-6′ suggested the attachment position of the galactosyl at C-8 and C-1′′ of arabinose at C-6′ of galactosyl [24]. Assignments of all groups of 1 were achieved by 1H-1H COSY, HSQC and HMBC (Figure 2). The absolute configuration of the glycosyls group of compound 1 was determined by GC analysis according to the same tR at 12.9 and 32.5 min with standard l-arabinopyranose and d-galactopyranoside, respectively. From the above data, the structure of 1 was elucidated as 2-phenylethyl O-α-l-arabinopyranosyl-(1→6)-β-d-galactopyranoside, named Nicglycoside A.
Compound 2 was obtained as an amorphous powder with the molecular formula assigned as C17H30O10 by positive HR-ESI-MS from the [M + H]+ signal at m/z 395.1901, indicating 3 degrees of unsaturation The 1H-NMR spectrum (Table 1) of 2 showed two groups characteristic signals of galactose and arabinose glycosyls at δH 4.61 (1H, d, J = 8.0 Hz, H-1′) and 4.30 (1H, d, J = 6.7, H-1′′), which were in accordance with the glycosyl of compound 1; a pair signals of double bonds δH 5.42 (2H, m), three methylene at δH 2.07 (2H, m), 2.37 (2H, m), 3.52(1H, o), 3.84 (1H, o) and one methyl at δH 0.96 (3H, t, 7.6). In the 13C-NMR, the glycosyl signals of galactopyranose and arabinopyranose existed at δC 102.0, 72.3, 72.8, 68.8, 74.4, 69.8 and 105.2, 72.4, 74.2, 69.5, 66.7. The HMBC correlations (Figure 2) between H-1′ and C-6, H-1′′ and C-6′ suggested the attachment position of the galactosyl was at C-6 and C-6′ of galactosyl was substituted connecting with the C-1′′ of arabinose. Its absolute configurations of the glycosyls group were determined by GC analysis as with the compound 1. From the above data and combined with the literatures [24,25], the structure of 2 was elucidated as (Z)-hex-3-en-1-ol-α-l-arabinopyranosyl-(1→6)-β-d-galactopyranoside, named Nicglycoside B.
Compound 3 possessed the molecular formula of C23H40O15 according to the HR-ESI-MS at m/z 557.2419 [M + H]+. The 1H-NMR spectrum (Table 1) of 3 showed three characteristic signals of glycosyls at δH 4.59 (1H, d, J = 7.8 Hz, H-1′), and 4.30 (1H, d, J = 6.7, H-1′′), and 4.43 (1H, d, J = 7.6, H-1′′′), assigned to glucose, arabinose and glucose, respectively. Moreover, a group of parent nucleus signals existed in accordance with 2 at δH 5.42 (2H, m), 2.08 (2H, m), 2.36 (2H, m), 3.52 (1H, o), 3.84 (1H, o) and 0.97 (3H, t, 7.6). Combined with the DEPT, 13C-NMR spectrum of 3 showed 23 signals, including a fatly chain group, which is the same as compound 2, at δC 14.7, 21.6, 134.5, 126.0, 28.8, 70.6, and two groups of glucose and a group of arabinose glycosyls at δC 105.0, 83.0, 78.2, 71.4, 77.7, 62.7, 103.0, 76.0, 77.7, 71.4, 76.7, 69.5 and 105.1, 72.4, 74.2, 69.5, 66.7. The HMBC correlations between H-1′ and C-6, H-1′′ and C-6′, and H-1′′′ and C-2′ suggested the attachment position of the arabinosyl at C-8 and C-1′′ of glucose at C-6′ of glucose. Assignments of all groups of 3 were achieved by 1H-1H COSY, HSQC and HMBC (Figure 2). The absolute configuration of the glycosyls group of compound 3 was determined by GC analysis according to the same tR at 16.8 min and 12.9 min with standard d-glucose and l-arabinose, respectively. From the above data and combined with the literature [26,27], the structure of 3 was elucidated as (Z)-3-hexenyl O-β-d-glucopyranosyl-(1→2)-O-α-l-arabinopyranosyl-(1→6)-O-β-d-glucopyranoside, named Nicglycoside C.

2.2. Anti-Inflammatory Activity

All compounds 118 were evaluated for their anti-inflammatory activities (Table 2) inhibiting NO production of LPS-induced RAW 264.7 cells in vitro [27]. NO, as a key pro-inflammatory mediator, could suppress inducible enzyme expression via inhibition of the mitogen-activated protein kinase pathway and nuclear translocation of critical transcription factors [28,29]. The results suggested that the isolated compounds (118) possessed different degrees of activities in inhibiting NO production. For the compounds with the same mother nucleuses (1, 5, 6, 7, 9, 11), compounds 7 and 11 showed weaker activities than others, which might be due to the moieties of rhamnose or trisaccharide. Compounds 8 and 10 showed weaker activities than other phenylethanoid glycosides, which might be ascribed to the hydroxy-substituted benzene rings.

3. Experimental Section

3.1. General Experimental Procedures

UV spectra were recorded on a Shimadzu UV-1601 instrument. HR-ESI-MS was performed on a Waters Xevo-TOF-MSTM.1D and 2D NMR spectra using a Bruker DPX 400 instrument with TMS as an internal standard. Preparative HPLC (Waters, Milford MA, USA, 515-2414) was performed on Sunfire (10 μm, 19 × 250 mm, Waters). ODS was obtained from YMC Company Ltd., Japan. Silica gel was used Qingdao Marine Chemical Ltd., Qingdao, China. All the solvents were of analytical grade and were purchased from Tianjinfuyu Company Ltd., Tianjin, China. ELISA reader was used from PerkinElmer, Waltham, MA, USA. The RAW 264.7 cells were from China Center for Type Culture Collection in Wuhan University, Hubei, China. DMEM was purchased from Corning, New York, NY, USA. The integrant biological agents were prepared, such as, MTT (Biotopped, Beijing, China), LPS (Sigma-Aldrich, St. Louis, MO, USA), DMSO (Sigma-Aldrich), Penicillin Streptomycin Solution (Corning, New York, NY, USA), Fetal bovine serum (Sijiqing, Hangzhou, China), NMMA (Sigma-Aldrich), Sulfanilic acid anhydrous (Tianli, Tianjin, China), N-(1-naphthyl) enylenediamine dihydrochloride (Damao, Tianjin, China), PBS (Biotopped).

3.2. Plant Material

The fruits of Nicandra physaloides (L.) Gaertn were harvested from Harbin, Heilongjiang Province of China, in September 2014, which was identified by Prof. Ruifeng Fan of Heilongjiang University of Chinese Medicine. The voucher specimen (20140911) had been deposited at Heilongjiang University of Chinese Medicine.

3.3. Extration and Isolation

The dry fruits (15 kg) of Nicandra physaloides were extracted with 70% ethanol 3 times and the condensed crude (1167.2 g) was fractioned by AB-8 macroporous resin column chromatography and eluted with 10% EtOH (439.5 g), 30% EtOH (209.4 g) and 95% EtOH (176.1 g). The 10% EtOH elution (100.0 g) was concentrated and separated. Thirteen obtained fractions (Fr. I-XIII) were combined based on the TLCs. Fr. V was separated by ODS chromatography, eluted with H2O/MeOH (0:1 to 0:1), to afford Fr. V-1 to V-17. Fr. V-9 was subjected to ODS chromatography (H2O/MeOH, 1:0 to 0:1) to afford 3 (12 mg), 10 (8 mg) 12 (9 mg) and 15 (10 mg). Fr. V-16 was separated by ODS chromatography (H2O/MeOH, 1:0 to 0:1) to afford Fr. V-16-1 to V-16-10. Fr. V-16-2 was purified by to afford 2 (10 mg), 4 (8 mg), 5 (9 mg) and 17 (9 mg). Fr. VI was separated by ODS chromatography, eluted with H2O/MeOH (0:1 to 0:1), to afford Fr. VI-1 to VI-10. Fr. VI-5 were purified by preparative HPLC to afford 9 (11 mg), 13 (8 mg), 16 (12 mg) and 18 (10 mg). Fr. X was purified by ODS chromatography (H2O/MeOH, 1:0 to 0:1), to afford Fr. X-1 to X-15. Fr. X-11 and X-13 were repeatedly subjected to ODS chromatography (H2O/MeOH, 1:0 to 0:1) and then purified by preparative HPLC to afford 1 (12 mg), 6 (9 mg), 7 (10 mg), 8 (11 mg), 11 (9 mg) and 14 (9 mg), respectively.
Nicglycoside A (1). White amorphous powder. [ α ] D 25 −8.9 (c = 1.30, MeOH); IR (KBr) 3435, 2921, 1750, 1260 cm−1; UV (MeOH) λmax 212, 258, 271 nm; 1H- and 13C-NMR (MeOH, 400, 100 MHz) data, see Table 1; HR-ESI-MS m/z 417.1755 [M + H]+ (calcd. for C19H29O10, 417.1761) (Figures S1 and S2).
Nicglycoside B (2). White amorphous powder. [ α ] D 25 −46.4 (c = 1.57, MeOH); IR (KBr) 1732, 1464, 1263, 710 cm−1; 1H- and 13C-NMR (MeOH, 400, 100 MHz) data, see Table 1; HR-ESI-MS m/z 395.1901 [M + H]+ (calcd. for C17H31O10, 395.1917) (Figures S3 and S4).
Nicglycoside C (3). White amorphous powder [ α ] D 25 −51.8 (c = 1.60, MeOH); IR(KBr) 1730, 1458, 1260, 704 cm−1; 1H- and 13C-NMR (MeOH, 400, 100MHz) data, see Table 1; HR-ESI-MS m/z 557.2419 [M + H]+ (calcd. for C23H41O15, 557.2445) (Figures S5 and S6).

3.4. Acid Hydrolysis and GC Analysis

The isolated glycosides (118) (2.0 mg) were refluxed with 2 mL H2O and 2 N aqueous 1 mL HCl for water bath (3 h). Then, the reaction mixtures were extracted with ethyl acetate for 3 times (5 mL). The aqueous layer was neutralized and evaporated with MeOH and then dissolved in anhydrous pyridine (5 mL) and treated with l-cysteine methyl ester hydrochloride (1.5 mg). After being stirred for 1 h at 60 °C, the mixture was added into 150 μL of HMDS–TMCS (3:1) and then stirred for another 30 min at 60 °C. The supernatant was concentrated under N2 stream after being centrifuged off. The residue was partitioned between n-hexane and H2O (0.1 mL each), and the hexane layer (1 μL) was analyzed by GC [30,31], respectively. The configurations of d-glucose for compounds 318 were determined by the same tR of standard d-glucose (tR = 16.8 min), l-arabinose for compounds 15, 16, 18 (tR = 12.9 min), d-galactose for compound 12 (tR = 32.5 min), and l-rhamnose for compound 7, 10 (tR = 14.8 min).

3.5. Anti-Inflammatory Assays

RAW 264.7 cells were cultivated at densities of 5 × 105 cell/wells in 96-well for 24 h, then discarded the supernatants and stimulated by LPS (100 μL, 1 μg/mL) to generate NO for cultivating 24 h. Following incubation of the demonstrated time, the amount of sable nitrite, the end product of NO generation by activated cells, were determined by a modification of the Griess reaction [32,33]. The cells were treated with 100 μL of the compounds by the final concentration of 5, 25, 50, 100 and 200 μg/mL. Briefly, 100 μL of culture supernatants from control or stimulated macrophages were transferred to 96-well plates. Supernatants were mixed with 50 μL of 1% sulfanilic acid anhydrous in 85% phosphoric acid, incubated for 10 min at room temperature, shielded from light, followed by 50 μL of 1 mg/mL N-(1-naphthyl) ethylenediamine dihydrochloride for 10 min incubation in light proof. The absorbance was measured at 540 nm using an ELISA reader, and nitrite concentration was determined by comparison with a sodium nitrite standard curve. NMMA was used as a positive control. No isolates did showed an effect on the assay systems with the final concentration 0.2 (v/v) in DMSO and the MTT assay revealed no significant cytotoxic effects (over 90% cells survival) on cells treated with above compounds at concentrations up to 200 μg/mL.

4. Conclusions

As described in the introduction, Nicandra physaloides possessed many kinds of bioactivities such as heat-clearing, detoxifying, antipyresis, and anti-inflammation, and was applied to the treatments of rheumatoid arthritis, and so on. This study obtained the 18 glycosides compounds from the Nicandra physaloides fruits, including phenyl-glycosides and fat glycosides. Meanwhile, many researchers have reported that the aromatic glycosides and phenyl-glycosides show significant anti-inflammatory activities [34,35,36,37]. Thus, the anti-inflammatory activities of the compounds were evaluated, some of which showed significant activities. These results indicated that these glycosides compounds could be the pharmacodynamic material basis for anti-inflammation from the Nicandra physaloides fruits, and played important roles in the treatments of inflammatory diseases such as rheumatoid arthritis, nasosinusitis, influenza, urinary tract infection, sore and furuncle. The systematic studies on the composition in this manuscript will be the foundations and references of further research. We have made contributions to discovering active ingredients and leading compounds and provided experimental and scientific basis of drug design and drug discovery of the Nicandra physaloides.

Supplementary Materials

The following are available online: Figures S1–S6 and Table S1: The 13C-NMR data of Compounds 418.

Acknowledgments

This work was financed by the Changjiang Scholars Back-Up Program of Heilongjiang Universities Colleges (2013CJHB006) and Research Program of Chinese Medicine of Heilongjiang (ZHY16-091).

Author Contributions

H.-W.G. and H.-X.K. designed the experiments; Y.L., H.-B.J. and Y.-G.C. performed the experiments; Y.L. and S.-W.L. wrote the paper. Z.-P.X. and B.-Y.Y modified the paper; All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
HR-ESI-MSHigh-resolution electrospray ionization mass spectrometry
NMRNuclear magnetic resonance
DEPTDistortionless Enhancement by Polarization Transfer
HMBCHeteronuclear multiple bond correlation
1H-1H COSYCorrelation spectroscopy
HSQCHeteronuclear multiple quantum coherence
GCGas chromatography
tRRetention time
NMMANG-monomethyl Arginine
UVUltraviolet
TMSTetramethylsilane
HPLCHigh performance liquid chromatography
ODSOctadecylsilyl
ELISAEnzyme-linked immunosorbent assay
DMEMDulbecco’s modified eagle medium
MTT3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide
LPSLipopolysaccharides
DMSODimethyl sulfoxide
PBSPhosphate buffer saline
EtOHEthyl alcohol
TLCThin Layer Chromatography
MeOHMethanol
HMDS-TMCSHexamethyldisi lazane-trimethylchlorosilane

References

  1. Nanjing University of Chinese Medicine. Dictionary of Medicinal Plants; Shanghai Science and Technology Publishing House: Shanghai, China, 2006. [Google Scholar]
  2. Xie, Z.W.; Deng, J.L.; Li, T.C. Quanguo Zhongcaoyao Huibian; People’s Medical Publishing House: Beijing, China, 1987. [Google Scholar]
  3. Tu, G.Y.; Wang, Z.W.; Ou, H. Study on Rheological Properties of Mixed Xanthan Gum and Gum in Seed of Nicandra physaloides (L.) Gaertn. Nat. Prod. Res. Dev. 2010, 22, 285–288. [Google Scholar]
  4. Fan, Z.Y.; Zhang, L.Q.; Li, L.H. Effect of different medium on inducement and differentiation of Nicandra physaloides. J. Ankang Univ. 2008, 5, 83–84. [Google Scholar]
  5. Gunasekera, S.P.; Cordell, G.A.; Farnsworth, N.R. Plant anticancer agents XX.* constituents of Nicandra physalodes. Planta Med. 1981, 43, 389–391. [Google Scholar] [CrossRef] [PubMed]
  6. Devi, P.; Meera, R.; Muthumani, P. Evaluation of alcoholic and aqueous extracts of Nicandra physalodes leaves for diuretic activity. Int. J. Pharm. Biol. Arch. 2010, 1, 331–334. [Google Scholar]
  7. Begley, M.J.; Crombie, L.; Ham, P.J. Constitution of four novel methyl steroid relatives (ring-D aromatic) from the insect repellent plant Nicandra physaloides; X-ray analysis of Nic-10. J. Chem. Soc. Chem. Commun. 1972, 22, 1250–1251. [Google Scholar] [CrossRef]
  8. Zhao, G.T. Study on the chemical constituents and bioactivities of the seeds of Momordica charantia and niacin. Kunming Univ. Sci. Technol. 2015. [Google Scholar]
  9. Kawahara, E.; Fujii, M.; Kato, K. Chemoenzymatic synthesis of naturally occurring benzyl 6-O-glycosyl-β-d-glucopyranosides. Chem. Pharm. Bull. 2005, 53, 1058–1061. [Google Scholar] [CrossRef] [PubMed]
  10. Wu, Y.H.; Xiao, B.; Fu, H.Z.; Xu, Y. Phytochemical study of Asparagus officinalis. Mod. Chin. Med. 2016, 18, 1571–1573. [Google Scholar]
  11. Umehara, K.; Hattori, I.; Miyase, T. Studies on the Constituents of Leaves of Citrus unshiu MARCOV. Chem. Pharm. Bull. 1988, 36, 5004–5008. [Google Scholar] [CrossRef]
  12. Wang, F.Q.; Han, S.S.; Hu, S.; Xue, Y.B.; Wang, J.P.; Xu, H.F.; Chen, L.; Zhang, G.; Zhang, Y.H. Two new secondary metabolites from Xylaria sp. CFCC 87468. Molecules 2014, 19, 1250–1257. [Google Scholar] [CrossRef] [PubMed]
  13. Boaventura, M.A.D.; Galotta, A.L.Q.A. Polar constituents of Euterpe precatoria roots and their plant growth activity. Chem. Nat. Compd. 2009, 45, 588–589. [Google Scholar] [CrossRef]
  14. Wang, J.; Xia, F.; Sun, J.; Jiang, Y.; Tu, P.F. Chemical constituents of Aquilaria sinensis (Lour.) Gilg. China J. Chin. Mater. Med. 2013, 38, 3299–3303. [Google Scholar]
  15. Wang, L.B.; Wang, C.; Sun, S.C.; Xu, B.; Wu, L.J. Chemical constituents in the lipid-lowering fraction of flos Helichrysum arenarium (III). Chin. J. Med. Chem. 2012, 22, 220–222. [Google Scholar]
  16. Endo, K.; Hikino, H. Structures of rengyol, rengyoxide, and rengyolone, new cyclohexylethane derivatives from Forsythia suspensa fruits. Can. J. Chem. 1984, 62, 2011–2014. [Google Scholar] [CrossRef]
  17. Masateru, O.; Shiono, Y.; Tanaka, T.; Masuoka, C.; Shin, Y. Three new aromatic glycosides from the ripe fruit of cherry tomato. J. Nat. Med. 2010, 64, 500–505. [Google Scholar]
  18. Wu, T.; Li, Y.; Kong, D.Y.; Li, H.T. Chemical constituents of Helicia nilagirica Beed. Chin. Pharm. J. 2010, 45, 1224–1227. [Google Scholar]
  19. Wu, Z.J.; Ouyang, M.A.; Wang, S.B. Two new phenolic water-soluble constituents from branch bark of Davidia involucrata. Nat. Prod. Res. 2008, 22, 483–488. [Google Scholar] [CrossRef] [PubMed]
  20. Zhu, W.M.; Li, S.L.; Zhao, Q.; Hao, X.J. Butyl acetals from medicinal plant, Winchia calophylla (Apocynaceae). Acta Bot. Yunnanica 2007, 29, 708–712. [Google Scholar]
  21. Nakamura, S.; Zhang, Y.; Matsuda, H.; Ninomiya, K.; Muraoka, O.; Yoshikawa, M. Chemical Structures and Hepatoprotective Effects of Constituents from the Leaves of Salacia chinensis. Chem. Pharm. Bull. 2011, 59, 1020–1028. [Google Scholar] [CrossRef] [PubMed]
  22. Mizutani, K.; Yuda, M.; Tanaka, O.; Saruwatari, Y.; Fuwa, T.; Jia, M.R.; Ling, Y.K.; Pu, X.F. Chemical studies on the Chinese traditional medicine, dangshen. I. Isolation of (Z)-3- and (E)-2-hexenyl β-d-glucosides. Chem. Pharm. Bull. 1988, 36, 2689–2690. [Google Scholar] [CrossRef] [PubMed]
  23. Yang, D.S.; Li, Z.L.; Wang, X.; Yang, Y.P.; Peng, W.B.; Liu, K.C.; Li, X.L. Chemical constituents from roots of Campanumoea javanica and their antiangiogeneic activities. Chin. Tradit. Herb Drugs 2015, 4, 470–475. [Google Scholar]
  24. Wang, S.F.; Ghisalberti, E.L.; Smith, J.R. Bioactive isoflavonols and other components from Trifolium subterraneum. J. Nat. Prod. 1998, 61, 508–510. [Google Scholar] [CrossRef]
  25. Kijima, H.; Ide, T.; Otsuka, H.; Ogimi, C.; Takushi, A.; Takeda, Y. Water-soluble phenolic glycosides from leaves of Alangium premnifolium. Phytochemistry 1997, 44, 1551–1557. [Google Scholar] [CrossRef]
  26. Ding, Y.; Liang, C.; Choi, E.M.; Ra, J.C.; Kim, Y.H. Chemical constituents from Artemisia iwayomogi increase the function of osteoblastic MC3T3-E1 cells. Nat. Prod. Sci. 2009, 15, 192–197. [Google Scholar]
  27. Takashi, T.; Osamu, T.; Lin, W.Z.; Zhou, J.; Hiroyuki, A. Sweet and bitter glycosides of the Chinese plant drug, bai-yun-shen (roots of Salvia digitaloides). Chem. Pharm. Bull. 1983, 31, 780–783. [Google Scholar]
  28. Kellum, J.A.; Song, M.; Li, J. Lactic and hydrochloric acids induce different patterns of inflammatory response in LPS-stimulated RAW 264.7 cells. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2004, 286, R686–R692. [Google Scholar] [CrossRef] [PubMed]
  29. Ahmad, S.; Israf, D.A.; Lajis, N.H. Cardamonin, inhibits pro-inflammatory mediators in activated RAW 264.7 cells and whole blood. Eur. J. Pharmacol. 2006, 538, 188–194. [Google Scholar] [CrossRef] [PubMed]
  30. Wu, S.B.; Meyer, R.S.; Whitaker, B.D.; Litt, A.; Kennelly, E.J. Antioxidant glucosylated caffeoylquinic acid derivatives in the invasive tropica soda apple, Solanum viarum. J. Nat. Prod. 2012, 75, 2246–2250. [Google Scholar] [CrossRef] [PubMed]
  31. Yang, B.Y.; Guo, R.; Li, T. Five withanolides from the leaves of Datura metel L. and their inhibitory effects on nitric oxide production. Molecules 2014, 19, 4548–4559. [Google Scholar] [CrossRef] [PubMed]
  32. Green, L.C.; Wagner, D.A.; Glogowski, J.; Skipper, P.L.; Wishnok, J.S.; Tannenbaum, S.R. Analysis of nitrate, nitrite, and [15N]nitrate in biological fluids. Anal. Biochem. 1982, 126, 131–138. [Google Scholar] [CrossRef]
  33. Yang, B.Y.; Guo, R.; Li, T.; Wu, J.J.; Zhang, J.; Liu, Y.; Wang, Q.H.; Kuang, H.X. New anti-inflammatory withanolides from the leaves of Datura metel L. Steroids 2014, 87, 26–34. [Google Scholar] [CrossRef] [PubMed]
  34. Julião, L.D.S.; Piccinelli, A.L.; Marzocco, S. Phenylethanoid Glycosides from Lantana fucata with in Vitro Anti-inflammatory Activity. J. Nat. Prod. 2009, 72, 1424. [Google Scholar]
  35. Chen, C.H.; Song, T.Y.; Liang, Y.C. Acteoside and 6-O-acetylacteoside downregulate cell adhesion molecules induced by il-1β through inhibition of ERK and JNK in human vascular endothelial cells. J. Agric. Food Chem. 2009, 57, 8852–8859. [Google Scholar] [CrossRef] [PubMed]
  36. Ai-Zhi, W.U.; Lin, C.Z. Progress in Structure-activity Relationship of Phenylethanoid Glycosides. Nat. Prod. Res. Dev. 2013, 1, 862–865. [Google Scholar]
  37. Zheng, X.K.; Liu, Y.Y.; Feng, W.S. Development in research of natural phenylethanoid glycosides. Chin. J. New Drugs 2011, 20, 230–234. [Google Scholar]
  • Sample Availability: Samples of the compounds are available from the authors.

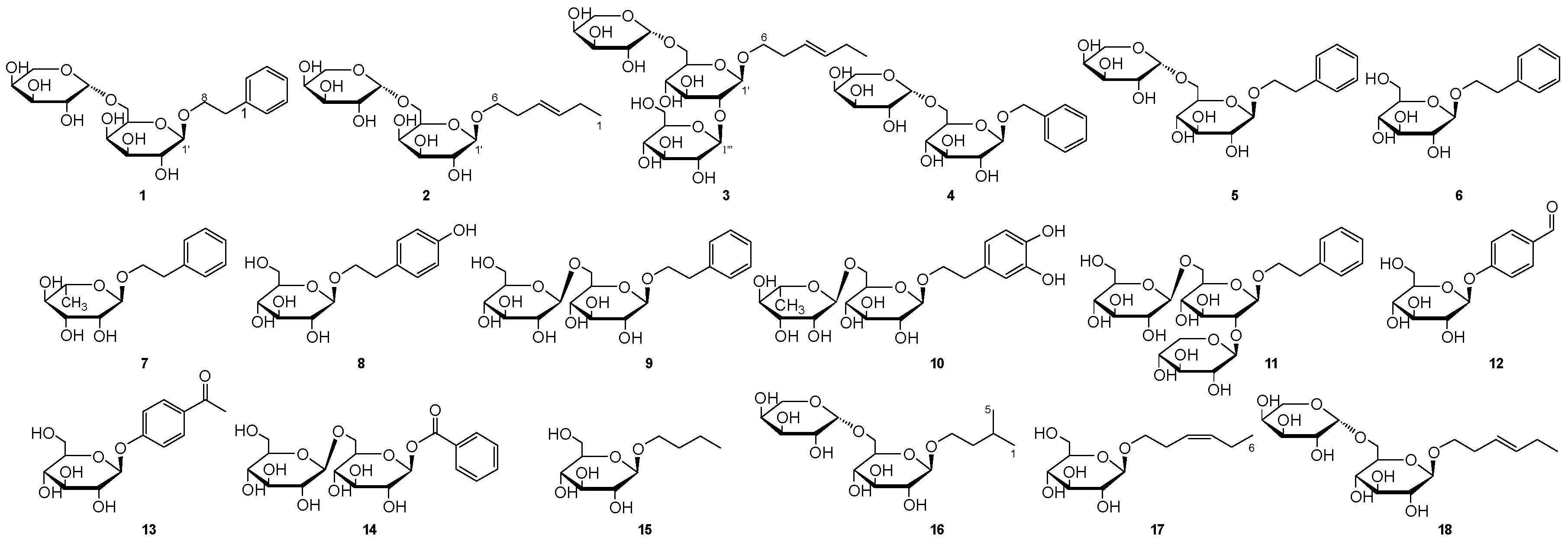

Figure 1. Structures of compounds 118 from Nicandra physaloides.
Figure 1. Structures of compounds 118 from Nicandra physaloides.
Molecules 22 00828 g001

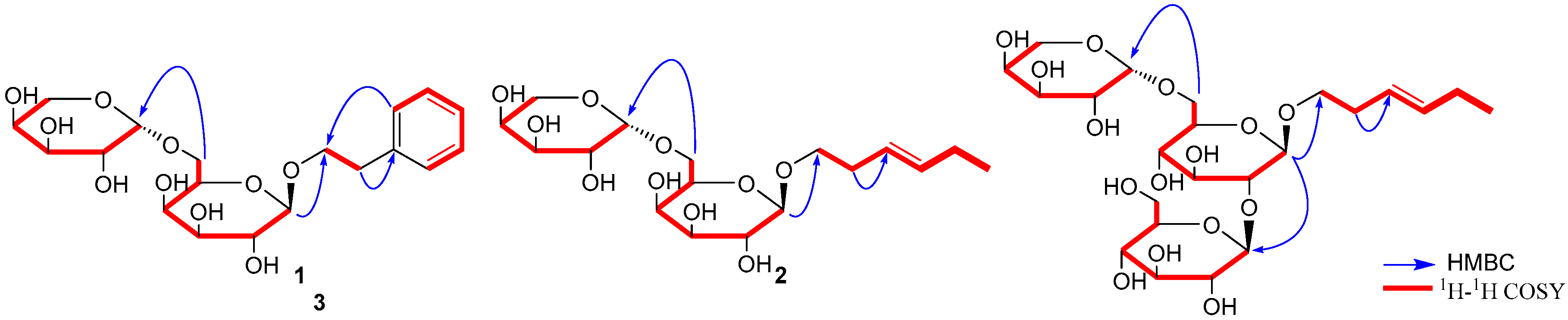

Figure 2. Key HMBC and 1H-1H COSY correlations of compound 13.
Figure 2. Key HMBC and 1H-1H COSY correlations of compound 13.
Molecules 22 00828 g002
Table 1. 1H- and 13C-NMR Data of 13 (CD3OD).
Table 1. 1H- and 13C-NMR Data of 13 (CD3OD).
No.123
δCδH mult (J, Hz)δCδH mult (J, Hz)δCδH mult (J, Hz)
1140.2 14.60.96 (3H, t, 7.6)14.70.97 (3H, t, 7.6)
2129.47.24 overlap21.62.07 (2H, m)21.62.08 (2H, m)
3130.07.24 overlap134.55.42 (m)134.55.42 (m)
4127.27.16 (m)125.95.42 (m)126.05.42 (m)
5130.07.24 overlap28.82.37 (2H, m)28.82.38 (2H, m)
6129.47.24 overlap70.63.52 overlap70.63.54 overlap
3.84 overlap 3.85 overlap
737.32.92 (t, 7.4)
871.83.74 overlap
4.07 overlap
1′102.04.65 (d, 7.9)102.04.61 (d, 8.0)105.04.59 (d, 7.8)
2′72.33.34 overlap72.33.51 (m)83.03.20–3.80 (m)
3′72.84.04 (m)72.84.05 (m)78.23.20–3.80 (m)
4′68.83.55 (m)68.83.55 (m)71.43.20–3.80 (m)
5′74.53.83 (m)74.43.82 (m)77.73.20–3.80 (m)
6′69.84.09 overlap69.84.06 (dd, 11.2, 2.0)69.54.09 (dd, 11.2, 1.9)
3.70 overlap 3.72 (dd, 11.2, 5.0) 3.70 (dd, 11.4, 5.1)
1″105.24.29 (d, 6.7)105.24.30 (d, 6.7)105.14.30 (d, 6.7)
2″72.43.57 (m)72.43.59 (m)72.43.20–3.80 (m)
3″74.23.47 (m)74.23.50 (m)74.23.20–3.80 (m)
4″69.53.78 (m)69.53.80 (m)69.53.20–3.80 (m)
5″66.73.50 (dd,12.5,3.2)66.73.52 overlap66.73.51 overlap
3.85 (dd,12.5,2.0) 3.87 overlap 3.87 overlap
1″′ 103.04.43 (d, 7.6)
2″′ 76.03.20–3.80 (m)
3″′ 77.73.20–3.80 (m)
4″′ 71.43.20–3.80 (m)
5″′ 76.73.20–3.80 (m)
6″′ 62.73.52 overlap
3.87 overlap
Table 2. Inhibitory on NO production in LPS-induced RAW 264.7 cells of compounds 118.
Table 2. Inhibitory on NO production in LPS-induced RAW 264.7 cells of compounds 118.
CompoundsIC50 (μM)CompoundsIC50 (μM)
NMMA b19.6 ± 2.4
Compound 131.1 ± 3.5Compound 10>50
Compound 232.9 ± 5.6Compound 1141.7 ± 7.6
Compound 341.2 ± 4.1Compound 1229.8 ± 5.7
Compound 430.2 ± 4.7Compound 1336.6 ± 3.9
Compound 526.9 ± 5.1Compound 14>50
Compound 637.5 ± 4.7Compound 1525.1 ± 4.4
Compound 741.2 ± 6.6Compound 1638.9 ± 5.9
Compound 8>50Compound 1733.4 ± 2.7
Compound 934.8 ± 6.3Compound 1831.4 ± 4.2
IC50 was defined as the concentration that resulted in a 50% inhibition on NO production. The IC50 greater than 50 μM was deemed inactive. b Positive control.
