Molecules 2017, 22(3), 408; doi:10.3390/molecules22030408

Determination of the Clean Air Delivery Rate (CADR) of Photocatalytic Oxidation (PCO) Purifiers for Indoor Air Pollutants Using a Closed-Loop Reactor. Part II: Experimental Results

1
UMR CNRS 6144 GEPEA, IMT Atlantique, La Chantrerie, 4 rue Alfred Kastler, CS 20722, 44307 Nantes CEDEX 3, France
2
IMT Lille-Douai, Université de Lille, SAGE, F-59000 Lille, France
*
Author to whom correspondence should be addressed.
Academic Editor: Pierre Pichat
Received: 16 December 2016 / Revised: 15 February 2017 / Accepted: 2 March 2017 / Published: 6 March 2017
(This article belongs to the Special Issue Photon-involving Purification of Water and Air)
View Full-Text   |   Download PDF [3455 KB, uploaded 6 March 2017]   |

Abstract

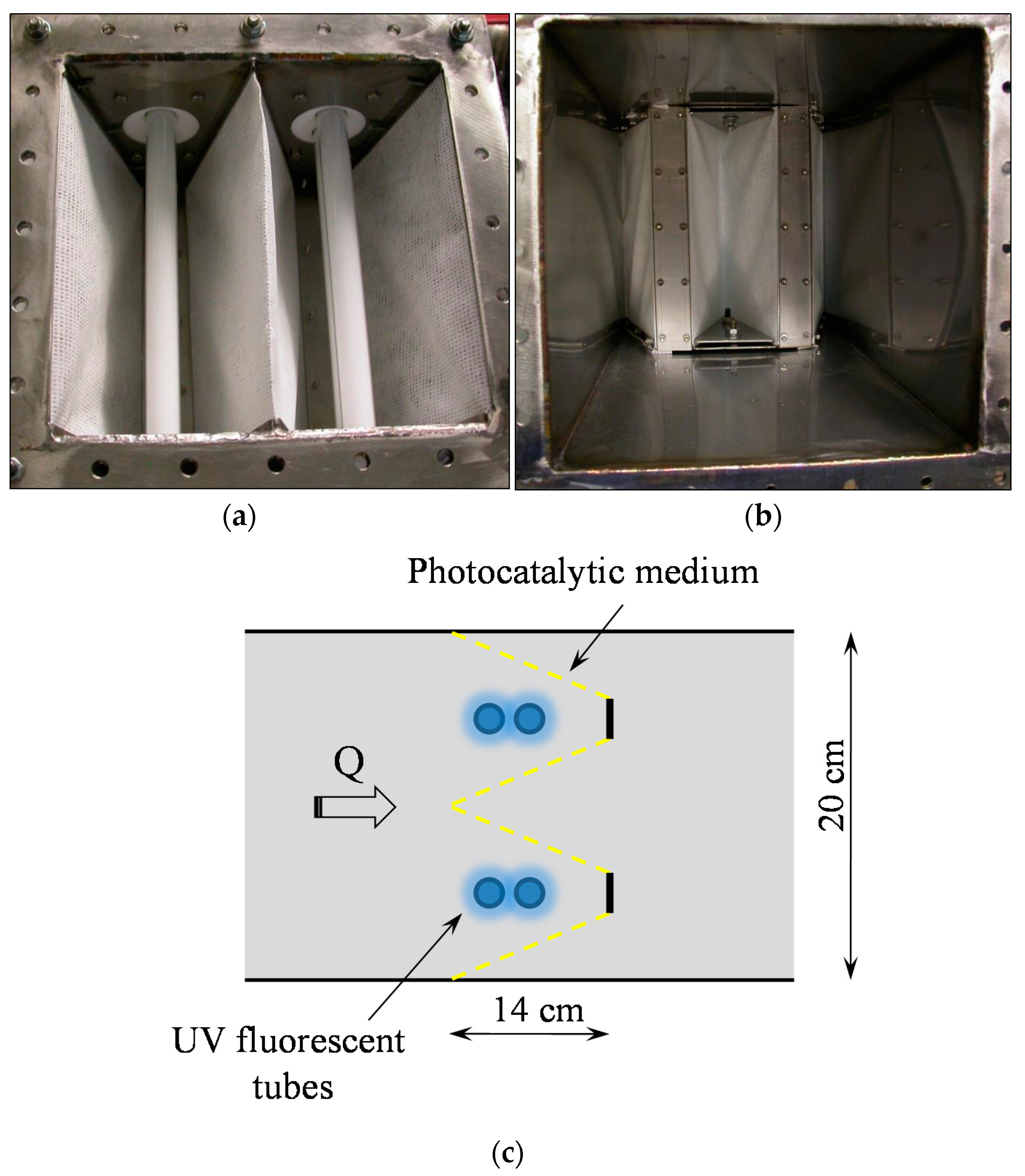

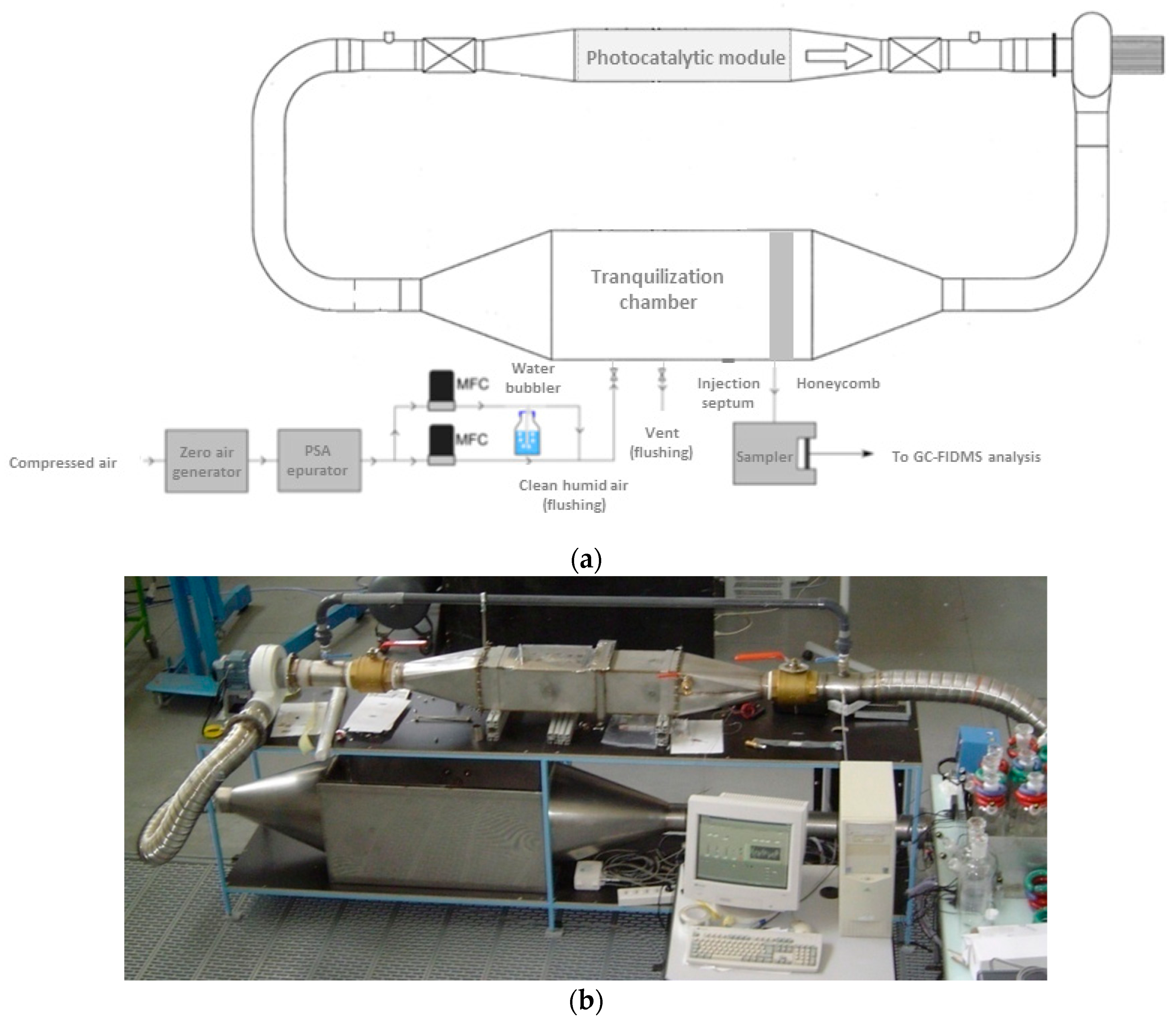

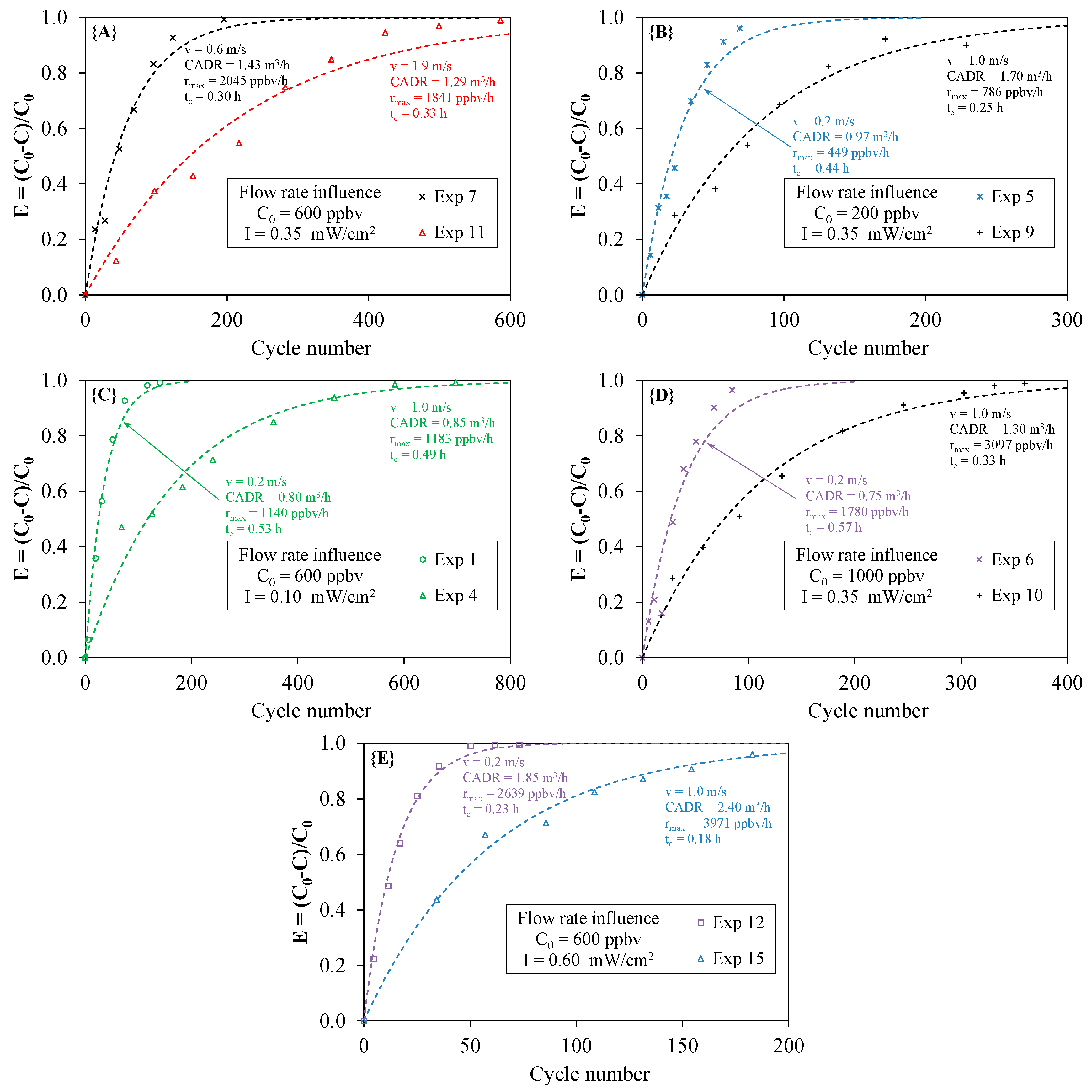

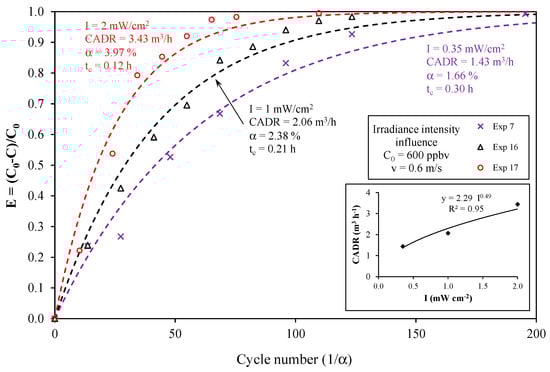

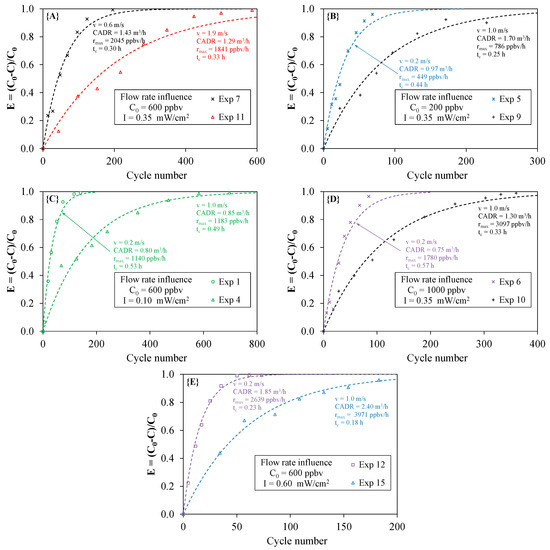

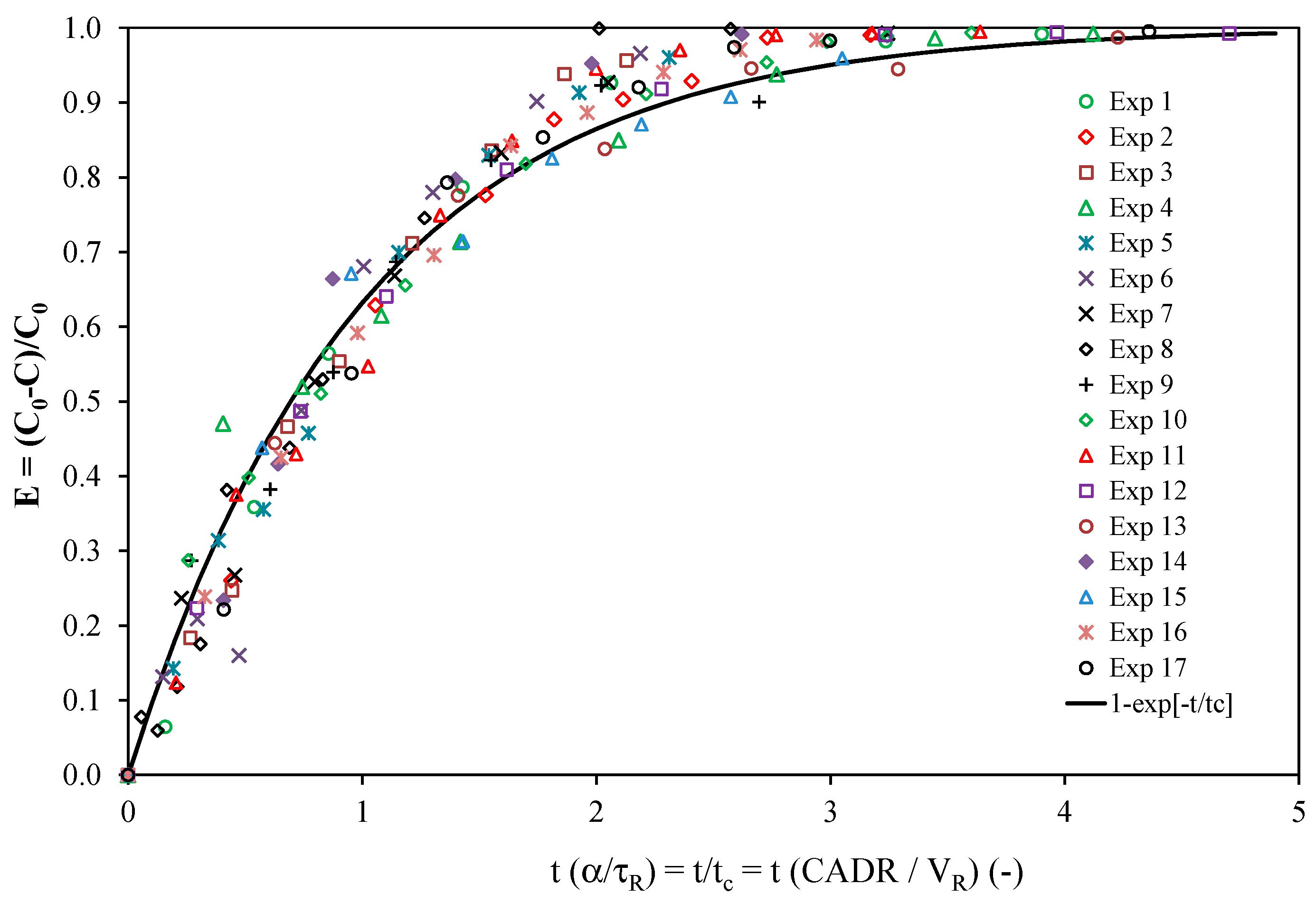

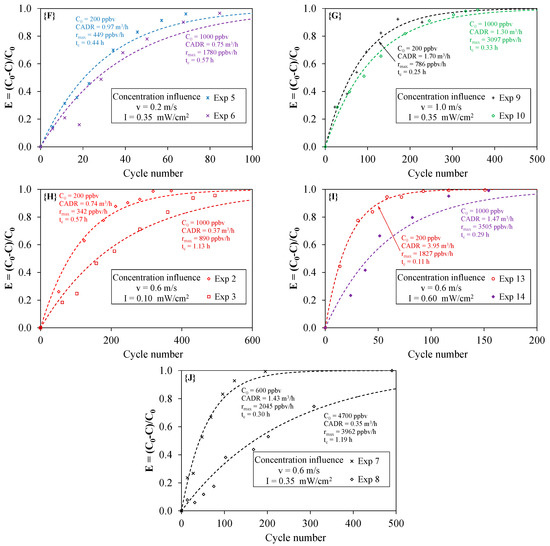

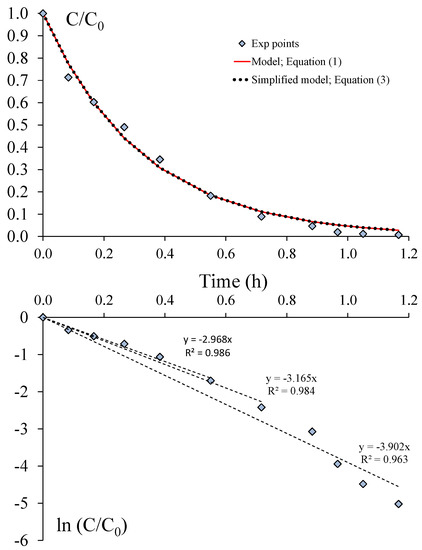

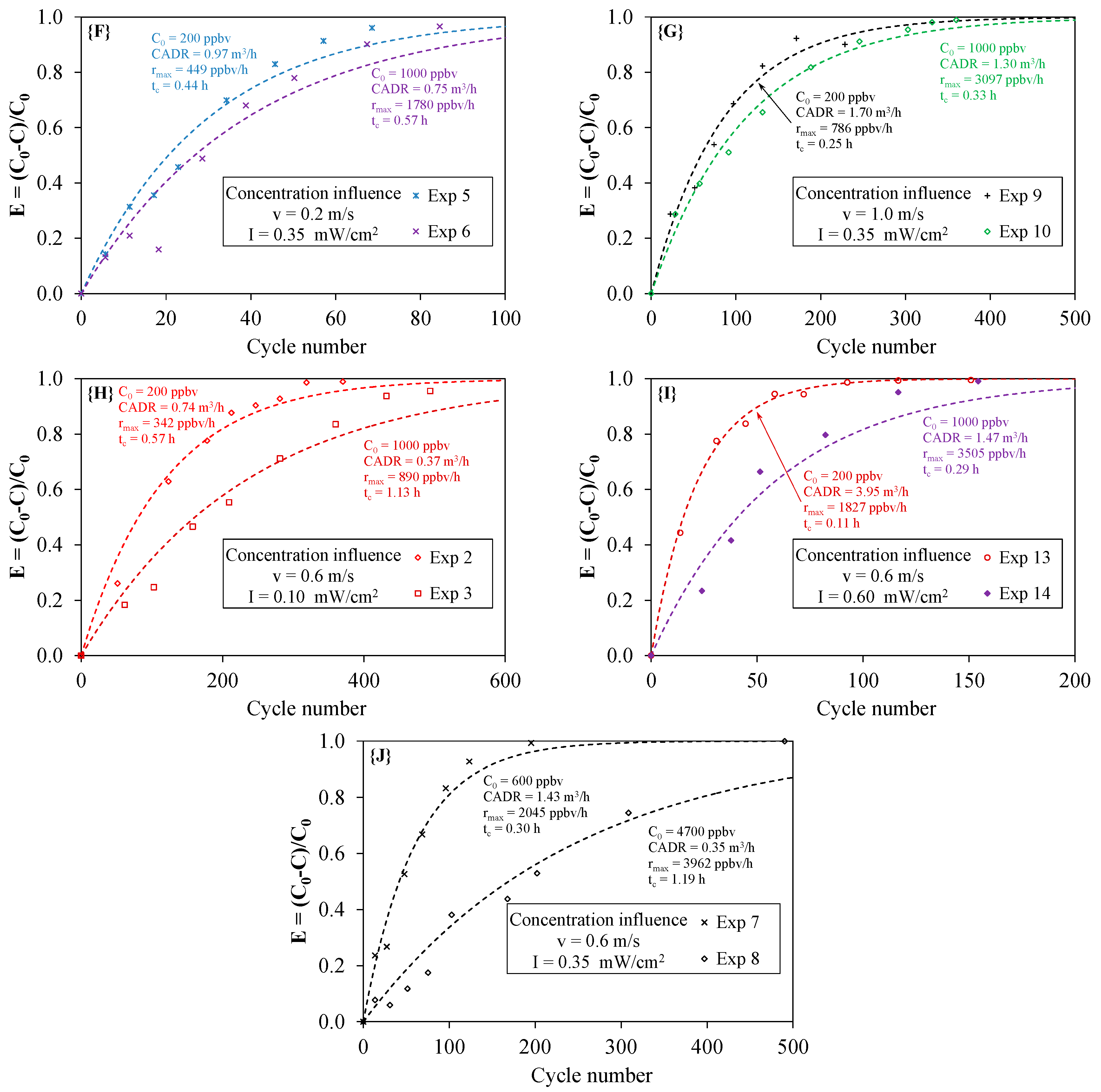

The performances of a laboratory PhotoCatalytic Oxidation (PCO) device were determined using a recirculation closed-loop pilot reactor. The closed-loop system was modeled by associating equations related to two ideal reactors: a perfectly mixed reservoir with a volume of VR = 0.42 m3 and a plug flow system corresponding to the PCO device with a volume of VP = 5.6 × 10−3 m3. The PCO device was composed of a pleated photocatalytic filter (1100 cm2) and two 18-W UVA fluorescent tubes. The Clean Air Delivery Rate (CADR) of the apparatus was measured under different operating conditions. The influence of three operating parameters was investigated: (i) light irradiance I from 0.10 to 2.0 mW·cm−2; (ii) air velocity v from 0.2 to 1.9 m·s−1; and (iii) initial toluene concentration C0 (200, 600, 1000 and 4700 ppbv). The results showed that the conditions needed to apply a first-order decay model to the experimental data (described in Part I) were fulfilled. The CADR values, ranging from 0.35 to 3.95 m3·h−1, were mainly dependent on the light irradiance intensity. A square root influence of the light irradiance was observed. Although the CADR of the PCO device inserted in the closed-loop reactor did not theoretically depend on the flow rate (see Part I), the experimental results did not enable the confirmation of this prediction. The initial concentration was also a parameter influencing the CADR, as well as the toluene degradation rate. The maximum degradation rate rmax ranged from 342 to 4894 ppbv/h. Finally, this study evidenced that a recirculation closed-loop pilot could be used to develop a reliable standard test method to assess the effectiveness of PCO devices. View Full-Text
Keywords: photocatalysis; Clean Air Delivery Rate (CADR); indoor air quality; Volatile Organic Compounds (VOCs); air cleaner photocatalysis; Clean Air Delivery Rate (CADR); indoor air quality; Volatile Organic Compounds (VOCs); air cleaner
