Next Article in Journal
The Oligomeric Form of the Escherichia coli Dps Protein Depends on the Availability of Iron Ions
Previous Article in Journal
Effects of Chitooligosaccharide Coating Combined with Selected Ionic Polymers on the Stimulation of Ornithogalum saundersiae Growth
Previous Article in Special Issue
Design of Novel, Water Soluble and Highly Luminescent Europium Labels with Potential to Enhance Immunoassay Sensitivities
Article Menu

Export Article

Molecules 2017, 22(11), 1902; doi:10.3390/molecules22111902

Review
Lanthanide Photoluminescence in Heterometallic Polycyanidometallate-Based Coordination Networks
Szymon Chorazy *, Maciej Wyczesany and Barbara Sieklucka
Faculty of Chemistry, Jagiellonian University in Kraków, Gronostajowa 2, 30-387 Kraków, Poland
*
Correspondence: Tel.: +48-12-686-2479
Received: 16 October 2017 / Accepted: 2 November 2017 / Published: 4 November 2017

Abstract

:
Solid-state functional luminescent materials arouse an enormous scientific interest due to their diverse applications in lighting, display devices, photonics, optical communication, low energy scintillation, optical storage, light conversion, or photovoltaics. Among all types of solid luminophors, the emissive coordination polymers, especially those based on luminescent trivalent lanthanide ions, exhibit a particularly large scope of light-emitting functionalities, fruitfully investigated in the aspects of chemical sensing, display devices, and bioimaging. Here, we present the complete overview of one of the promising families of photoluminescent coordination compounds, that are heterometallic d–f cyanido-bridged networks composed of lanthanide(3+) ions connected through cyanide bridges with polycyanidometallates of d-block metal ions. We are showing that the combination of cationic lanthanide complexes of selected inorganic and organic ligands with anionic homoligand [M(CN)x]n (x = 2, 4, 6 and 8) or heteroligand [M(L)(CN)4]2− (L = bidentate organic ligand, M = transition metal ions) anions is the efficient route towards the emissive coordination networks revealing important optical properties, including 4f-metal-centred visible and near-infrared emission sensitized through metal-to-metal and/or ligand-to-metal energy transfer processes, and multi-coloured photoluminescence switchable by external stimuli such as excitation wavelength, temperature, or pressure.
Keywords:
functional materials; crystal engineering; coordination networks; poly-cyanidometallates; lanthanides; photoluminescence

1. Introduction

Luminescent materials, that are able to emit the light due to absorption of photons, electric current, chemical reactions, or a mechanical action, are applied in the numerous aspects of science, technology, and everyday life. They are utilized in cathode ray or fluorescent tubes, X-ray detectors, lighting and display devices, optical communication, low-energy scintillation, optical storage, light conversion, photovoltaics, chemical sensing, bioimaging, and molecular thermometry [1,2,3,4,5,6]. Considering the construction of light-emitting devices, there are several particularly desired optical functionalities, including white-light emission (WLE), multi-coloured tunable emission, long-lived near-infrared (NIR) phosphorescence, and the non-linear optical property of up-conversion luminescence (UCL) [7,8,9,10]. These functionalities are efficiently realized by the photo- and electroluminescent materials, which are the most attractive in the application aspects [1,2,3,4,5,6].
Among the functional photoluminescent materials, the prime role has been played by traditional inorganic solids, such as oxides, fluorites, and silicates, that can incorporate emissive metal centres, mainly trivalent lanthanide ions revealing a wide range of photoluminescence ranging from UV for Gd3+, through visible for Eu3+ or Tb3+, to NIR light for Nd3+ or Yb3+ [2]. Photoluminescence was also broadly investigated for organic molecules, especially those built of the expanded system of aromatic rings [1]. Organic chromophores were applied for the preparation of luminescent lanthanide complexes where the organic part serves as an antenna for sensitization of 4f-centred emission through the energy transfer process [11]. Lately, the increasing interest is devoted to the luminescent metal-organic frameworks (MOFs), that belong to the broader group of luminescent coordination polymers (CPs) [12,13,14]. MOFs are composed of metal ions or clusters bonded by organic linkers into the three-dimensional coordination networks, while CPs are generally built of metal centres and organic ligands combined infinitely in at least one direction. Metal-organic frameworks have been intensively investigated in the context of their highly porous character of a potential application in hydrogen storage, selective gas adsorption, and gas sensing [15,16]. More importantly, MOFs can reveal diverse ligand-based, metal-based, charge transfer, or guest-induced photoluminescence due to their multi-component structure [13].
As opposed to classical inorganic solid luminophors, the synthesis of luminescent MOFs can be straightforward, often without applying high temperature or pressure. Their structures are predictable, and can be rationally design through a molecular building block approach. They are transformable into the nanoscale, and can be post-synthetically modified by thermal or chemical treatment. Luminescent MOFs were also found to be efficient platforms for multifunctionality by fruitful addition of magnetic, optical or catalytic functionalities [16]. All these features made MOFs attractive as the luminescent objects, particularly appealing in the aspects of chemical sensing, biomedicine and light-emitting devices [12,13,14]. Of a special interest are lanthanide-based MOFs which were found to exhibit a large scope of luminescent effects, including white-light and tunable visible emission, as well as NIR and up-conversion luminescence [17,18,19,20].
All the positive characteristics of luminescent MOFs can be similarly ascribed to the specific group of coordination systems based on polycyanidometallates. They are constructed of the anionic polycyanidometallate complexes of transition metal ions which are combined through cyanide (CN) molecular bridges with the cationic complexes of various 3d/4d/4f metal ions. Depending on the synthetic conditions, and the addition of supporting organic ligands, they are able to form three-dimensional coordination networks, similar to those characteristic of typical MOFs, but also they can give two- or one-dimensional coordination polymers, and discrete polynuclear clusters of diverse topologies [21,22,23,24]. Cyanide bridges offer the close and strong connection between two different neighbouring metal centres which was fruitfully explored in the induction of strong exchange magnetic coupling [25,26]. This feature is attractive for the photoluminescent properties as the short inorganic CN linker can strongly couple two metal centres inducing the efficient metal-to-metal energy transfer process. This sounds promising considering the reported polycyanidometallates of 3d/4d/5d metal ions which were found to be strong absorbers of UV light, exhibiting often weak absorption in the visible and NIR ranges. Such spectroscopic behaviour makes them the great candidates for the sensitization of luminescent trivalent lanthanide ions. In addition, some of the polycyanidometallates of transition metal ions reveal the intrinsic photoluminescent properties related to the metal-centred (MC) d-d transitions, the metal-to-ligand charge transfer (MLCT), or the opposite ligand-to-metal charge transfer (LMCT) effects [27,28,29,30,31,32,33].
Heterometallic polycyanidometallate-based coordination networks have been extensively studied in the last decades due to their extraordinary magnetic properties, including strong exchange coupling, long-range magnetic ordering, and strong magnetic anisotropy [25,26,34,35,36,37]. The other fascinating physical functionalities, such as photoinduced magnetic and magneto-optical phenomena, microporosity, catalytic activity, ferroelectricity, and ionic conductivity have been found for the cyanido-bridged coordination compounds [38,39,40,41,42]. Primarily, these properties were investigated within the classical group of three-dimensional bimetallic coordination frameworks based on hexacyanidometallates, called Prussian Blue Analogues (PBAs) [43]. However, the last several years brought the increasing attention pointed to the heterometallic coordination architectures based on other polycyanidometallates, including the homoligand tetracyanido- metallates of PtII/PdII, heptacyanidometallates of MoIII/ReIV, and octacyanidometallates of MoIV/V, WIV/V, ReV, NbIV, and the heteroligand [M(L)x(CN)y]n cyanide complexes with blocking organic ligand, L [44,45,46,47,48,49]. As a result, a variety of the [M(CN)x]n-based heterometallic coordination networks were reported, and many extraordinary magnetic, optical, and magneto-optical effects have been presented [50,51,52,53,54]. Some of the polycyanidometallates were also employed in the construction of luminescent functional materials, most successfully realized by combining cyanide metal complexes with lanthanide(3+) ions. Thus, in this review, we present the complete overview of luminescent heterometallic cyanido-bridged networks incorporating 4f metal ions with the emphasis on their structural features and optical properties, including sensitized and/or tunable emission. We focus and discuss only on the lanthanide-containing coordination systems based on polycyanido- metallates for which the photoluminescent properties have been recognized. This review covers the literature sources from 1970s, when this scientific area started, to September 2017.

2. Dicyanidometallates, [MI(CN)2] (M = Ag, Au)

Thanks to the d1° valence electron configuration, dicyanidoargentate(I) and dicyanidoaurate(I) ions are almost colourless as they do not efficiently absorb the visible light. In addition, they are photoluminescent in the visible range due to their metal-to-ligand charge transfer (MLCT) transition [27,28]. They were found to be attractive for the sensitization of lanthanide(3+) luminescence, which was precisely investigated for the family of classical three-dimensional [LnIII(H2O)3][MI(CN)2]3 (Ln = La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy; M = Ag, Au) coordination polymers (Figure 1, Table 1) [55,56,57,58,59,60,61,62,63,64,65,66,67,68,69]. These compounds are composed of the alternately arranged LnIII and MI (M = Ag, Au) centres bonded through cyanide bridges (Figure 1a). Each lanthanide(3+) ion coordinates six cyanides aligned in the nearly trigonal prismatic geometry, and three additional water molecules completing the nine-coordinated metal complex. The whole network is further propagated by the almost linear [MI(CN)2] linkages which produce the hexagonal-type of 3D coordination network (Figure 1a) [60]. Under the UV light excitation, dicyanidometallates(I), closely connected with lanthanides, transfer the energy to the 4f metal centre resulting in the sensitized photoluminescence. The significant [MI(CN)2] -to-Ln3+ energy transfer (ET) process was detected for the Pr-, Eu-, Tb-, and Dy-containing LnAg/LnAu networks [55,56,59,61,65]. For EuAu compound, the efficient ET effect was found under an ambient pressure, and the emission spectrum is dominated by the sharp peaks of Eu3+ (Figure 1b). Interestingly, the increase of pressure leads to the shift of the [AuI(CN)2]-based broad emission towards the lower energies which weakens the spectral overlap with Eu3+, and the efficiency of the radiationless energy transfer. Therefore, with increasing pressure, the [AuI(CN)2]-based luminescent component increases, coexisting with the Eu3+ emission, and the complete domination of the broad dicyanidoaurate(I) emission is observed above 50 kbar [57]. The similar effect, but caused by the temperature change, was reported for TbAu analogue. In this material, the cooling procedure leads to the red shift of [AuI(CN)2]-based emission increasing the spectral overlap with the absorption band of TbIII which produces the enhanced 4f-centred photoluminescence (Figure 1b) [58]. For the lanthanide(3+) ions, which do not reveal the visible emission (La, Nd, Gd), the related 3D LnAg and LnAu networks exhibit the [MI(CN)2]-centred luminescence, also sensitive to the changes of pressure and temperature [58,62,64]. Moreover, the composition-dependent visible photo- luminescence was presented for the mixed trimetallic LaAgAu and TbAgAu compounds [62,63]. For Ce3+ and Sm3+, the very weak energy transfer from 4d/5d to 4f metal centres was detected, resulting in the complex UV-Vis emission signal of the mixed Ln3+ and [MI(CN)2] origins [66,67,68,69]. In the case of Sm3+, even the reverse Sm(III) to Au(I) energy transfer could be postulated [69].
The combination of dicyanidoaurates(I) with lanthanide(3+) ions in the non-aqueous solution hampered the crystallization of the 3D network, and gave cyanido-bridged (nBu4N)2[LnIII(NO3)4] [AuI(CN)2] (Ln = Ce, Nd, Sm, Gd, Eu, Tb, Dy) zig-zag chains (Figure 2) [67,68,69,70]. For this coordination topology, unlike to the related 3D LnAu networks, there is no efficient energy transfer between [AuI(CN)2] and LnIII complexes, and both entities act as two separate emissive sources. This was explained by the spatial separation of the 1D bimetallic LnAu coordination polymers by the [nBu4N]+ cations. It causes the lack of aurophilic Au–Au interactions (Figure 2a), playing the presumably important role in the ET process within the 3D LnAu networks [67]. Therefore, taking advantage of the intrinsic properties of both luminescent 5d and 4f (Sm, Eu, Tb, Dy) metal complexes embedded in such cyanido-bridged chains, the multi-coloured composition-dependent emission, including the white light, was fruitfully achieved (Figure 2b) [67,68,69,70]. Moreover, the related trimetallic mixed 5d-4f-4f’ compounds enabled the adjustment of the emission colour to the very broad range of the visible spectrum between red colour characteristic of EuAu chains, green emission typical for TbAu chains, up to the deep violet detected for CeAu analogues, for which mainly the UV-violet CeIII-centred emission was found (Figure 2b) [68,69]. In addition, the selective excitation of the AuI- or LnIII-based emission transitions was also achievable, as exemplified by the multi-coloured photoluminescence of the mixed Ce0.33Eu0.17Tb0.5Au chains (Figure 2b) [69].
The further reduction of coordination dimensionality for lanthanide(III)–dicyanidometallates(I) compounds was achieved by the implementation of N,N,N-tridentate 2,2’:6’2”-terpyridine (terpy) ligand. The resulting discrete dinuclear [LnIII(terpy)(H2O)(NO3)2][AuI(CN)2] (Ln = Sm, Eu, Gd, Tb, Dy, Ho, Er, Yb) molecules exhibit the various lanthanide-dependent emission properties [71,72]. In the case of EuAu and TbAu, the dominant visible 4f-centred luminescence was detected due to the efficient intramolecular terpy-to-Ln3+ and partial AuI-to-Ln3+ energy transfer effects. It is accompanied by the residual broad green emission related to the transitions of the [AuI(CN)2]2 dimeric excimers that are formed between the cyanido-bridged molecules. The AuI-based emission is dominant for the other lanthanides where the ET processes to 4f metal centre are much less favoured [72]. In GdAu analogue involving Gd3+ ion, not luminescent in the visible range, the [AuI(CN)2]2-based green emission is also observed but the emission spectrum is dominated by the other intense red photoluminescence, presumably assigned to the formation of an excited state exciplex of the closely stacked intermolecular terpy ligands [71].
The interesting metal-metal-ligand interactions were observed in the series of coordination systems built of dicyanidoaurate(I) ions, and lanthanide(III) complexes with N,N,N-tridentate bis(benzimidazole)pyridine (bpp) ligands [73]. Depending on the synthetic conditions, the cyanido-bridged tetranuclear [LnIII(bbp)2][AuI(CN)2]3·2MeCN (Ln = Eu, Gd) molecules, or linear [LnIII(bbp)(NO3)2][AuI(CN)2]·MeCN (Ln = Eu, Gd, Tb) chains were obtained. For Eu- and Tb-containing species the dominant 4f-centred photoluminescence was achieved, and the efficient bbp-to-Ln3+ energy transfer was postulated, while the [Au(CN)2] ions are rather optically silent in this particular case. However, due to the present Au–Au interactions observed between the tetranuclear {LnAu3} molecules, the violet [Au(CN)2]-based emission could be detected but only for the GdAu analogue. Such 5d-centred photoluminescence was not observed for the cyanido-bridged LnAu chains lacking of the aurophilic interactions. All the related Gd-containing materials show additionally green emission of the bbp ligands. Photoluminescent dicyanidometallate-based coordination systems involving lanthanide ions are summarized in Table 1.

3. Tetracyanidometallates, [MII(CN)4]2− (M = Ni, Pd, Pt)

Among the square planar tetracyanidometallates(II) of group 10 metals, the tetracyanido- platinate(II) ion arouses the greatest interest in the construction of photoluminescent materials as it reveals the strong visible emission. It originates from the metal-to-metal-to-ligand charge transfer (MMLCT) transitions of the one-dimensional [PtII(CN)4]2− stacks controlled by the short Pt–Pt contacts [29]. As this emission is closely related to the alignment of square planar metal complexes, it was found to be strongly anisotropic, and the change of the light polarization induces the drastic 3change in the intensity of a few emission components assignable to the various electronic transitions. As a result, the colour of [PtII(CN)4]2− photoluminescence is polarization-dependent, and varies in the broad range from approximately blue to red.
This phenomenon was nicely investigated for the family of classical cyanido-bridged [LnIII(H2O)n]2[PtII(CN)4]·2{PtII(CN)4}·9H2O (n = 6, Ln = La–Lu; n = 5.5, Ln = Eu, Tb) networks (Figure 3, Table 2) [74,75,76,77,78,79]. They are constructed of the coordination layers of a 6-membered metal rings topology based on PtII and LnIII centres bridged by cyanide ligands within the ab plane (Figure 3a). The cyanido-bridged layers are further connected by the close Pt–Pt interactions giving the 1D [PtII(CN)4]2− stacks arranged along c crystallographic axis. For most of the lanthanide(3+) ions, such LnPt networks reveal mainly the strong and polarization-dependent broad emission of the [PtII(CN)4]2− stacks [74,75,76,77]. The emission colour and intensity were found to be dependent on the type of accompanied lanthanide(3+) ions due to the influence of the characteristic excited states of 4f metal ions amending the non-radiative processes within the bimetallic networks [75,77]. Moreover, the LuPt network exhibits the strong impact of the applied magnetic field on the PtII-based photoluminescence due to the role of 4f orbitals of LuIII, while the other lanthanides show only very weak emission changes upon the variable magnetic field [76].
In contrast to the other 4f metal ions, SmPt and EuPt networks reveal the strong lanthanide photoluminescence in the visible range indicating the efficient [PtII(CN)4]2−-to-Ln3+ energy transfer mechanism (Figure 3b) [75,77,78,79]. The polarization-dependent PtII-based green to orange emission is still observed but significantly decreased through the radiationless energy transfer. The sensitization process towards Sm3+ and Eu3+ was reported to be sensitive to the hydrostatic pressure. Its increase induces the red shift of the PtII-centred emission reducing the spectral overlap with Ln3+ absorption states that leads to the gradual disappearance of the 4f-centred emission [78,79]. The similar effect is caused by the increase of temperature, clearly hampering the lanthanide photoluminescence [79]. The strong influence of the Pt–Pt distances on the optical properties was proved by comparison of the closely related [ErIII(H2O)6]2[PtII(CN)4]·2{PtII(CN)4}·9H2O and [ErIII(H2O)5(SO4)]2[PtII(CN)4]·{PtII(CN)4}·1.5H2O networks [74]. They differ in the amount of [PtII(CN)4]2− ions occupying the space between the cyanido-bridged layers of an identical 6-membered metal rings topology. The sulfate-containing network shows the smaller number of tetracyanidoplatinates(II) ions resulting in the longer Pt–Pt distances within the one-dimensional metal-metal stacks which induces the significant blue shift of the polarization-dependent PtII-centred emission [74].
Following the promising optical properties of 3D LnIII–[PtII(CN)4]2− networks, a considerable number of the related d–f cyanido-bridged coordination polymers revealing photoluminescent functionalities were reported (Table 2) [80,81,82,83,84,85,86,87,88]. The insertion of 2,2’:6’2”-terpyridine (terpy) into the self-assembled LnIII–PtII system resulted in the one-dimensional [LnIII(terpy)(H2O)2(NO3)][PtII(CN)4n(solvent) (Ln = Eu, Tb) zig-zag chains (Figure 4a) [81,87]. Under UV light excitation of various wavelengths, the EuPt chains exhibits exclusively the sharp emission peaks assigned to EuIII which clearly indicates the efficient dual acceptor–donor intramolecular energy transfer from both terpy ligand and [PtII(CN)4]2− ions to 4f metal centre (Figure 4b) [81]. On the contrary, the TbPt chains shows the dual visible photoluminescence, the green 4f-centred and the blue [PtII(CN)4]2−- based emission. Thus, only the terpy-to-Tb3+ energy transfer is efficient while the analogous PtII-to-Tb3+ process is partial. It leaves two distinguishable emission sources that can be selectively induced, giving the excitation-dependent visible photoluminescence (Figure 4b) [87]. The crucial role of direct coordination of both terpy and [PtII(CN)4]2− ions to the 4f metal centre was precisely investigated for the EuIII–terpy–PtII system, for which three different crystalline phases, two cyanido-bridged chains, a zig-zag-type [EuIII(terpy)(H2O)2(NO3)][PtII(CN)4]·MeCN, and a ladder-type [EuIII(terpy)(H2O)3]2 [PtII(CN)4]3·2H2O, along with an ionic salt, [EuIII(terpy)(H2O)2(CH3COO)2]2·{PtII(CN)4}·3H2O, were obtained. For the EuPt one-dimensional coordination polymers, both terpy and cyanide complex are directly bonded to EuIII giving the efficient energy transfer, while the ionic EuPt salt reveals only terpy-to-Eu3+ energy transfer, with the additional green luminescence related to the non-coordinated [PtII(CN)4]2− ions [82]. The similar effect was also presented for the TbIII–PtII systems with terpy and its 4’-chloro-2,2’:6’2”-terpyridine (terpyCl) derivative. The related cyanido-bridged chains, bearing the directly bonded organic ligand, 4f and 5d metal centres, reveal at least partial dual terpy- and PtII-to-Tb3+ energy transfers while the ionic salts with non-coordinated tetracyanidoplatinates(II) show the green Tb3+ emission sensitized only by terpy, and the other coordinated ligands [87].
The MMLCT emission of [PtII(CN)4]2− ions is strongly determined by the presence of short Pt–Pt contacts. Thus, it is weakened for the compounds lacking of such platinophilic interactions, leaving the possibility to observe the separate 4f- and ligand-centred photoluminescence. Such a situation was found in several tetracyanidometallate-based d–f coordination systems with various organic ligands (Table 2) [80,83,84,85]. For instance, the Ln3+ (Ln = Er, Yb) complexes with tetraphenylporphyrinate dianion combined with various tetracyanidometallates resulted in the trinuclear [LnIII(tpp)(dmf)n]2[MII(CN)4] (Ln = Er, Yb; M = Ni, Pd, Pt) molecules, for which the exclusively red tpp-based emission along with the characteristic Er3+ and Yb3+ NIR phosphorescence peaks were observed [80]. Similar effects of 4f-centred emission realized by a simple direct f-f excitation or organic ligand-to-Ln3+ energy transfer were detected for a series of the ionic salts of lanthanide(3+) ions with dimethylsulfoxide, 1,10-phenanthroline (phen) and 2,2’-bipyridine accompanied by non-coordinated tetracyanidometallates, and for the trinuclear {LnIII2PtII} molecules with the supporting phen ligand [84,85]. Only in the [EuIII(dmf)2(terpy)(H2O)2(NO3)]·{PtII(CN)4} ionic salt without platinophilic interactions, the weak PtII-based visible emission along with the stronger terpy-sensitized EuIII photoluminescence could be detected [83]. On the other hand, two- dimensional K[LnIII(H2O)6]2[PtII(CN)4]3·{PtII(CN)4}·5.5H2O (Ln = La, Pr, Nd) honeycomb networks bearing the numerous [PtII(CN)4]2− stacks gives the PtII-based green emission, very strong for LaPt, and partially impaired by the excited states of PrIII and NdIII in PrPt and NdPt, respectively [88].
Tetracyanidoplatinate(II) together with dicyanidoaurate(II) were also employed in construction of trimetallic TbIII–PtII–AuI coordination networks [86]. The resulting K2[TbIII(H2O)4][PtII(CN)4]2·{AuI(CN)2}·2H2O layers are composed of TbIII bridged by cyanides to PtII which produces the 2D coordination polymer of an 8-membered metal rings topology. The non-cyanido-bridging [AuI(CN)2] moieties are stacked within one type of metal rings, and interact with [PtII(CN)4]2− by Pt–Au and Au–Au short contacts. This results in the formation of {Au2Pt4} metallophilic clusters of their own blue emission. Moreover, these clusters are able to sensitize green Tb3+ emission. Upon the addition of 2,2’-bipyridine (2,2’-bpy), the cyanido-bridged heterotrinuclear [TbIII(2,2’-bpy)(H2O)4] [PtII(CN)4][AuI(CN)2]·1.5(2,2’-bpy)·2H2O molecules were achieved. The {TbIIIPtIIAuI} molecules are also aggregated through Au–Au and Au–Pt interactions, and the tetrameric {Au2Pt2} metallophilic clusters were detected. This material reveals the green Tb3+ emission with {Au2Pt2}-to-Tb3+ energy transfer, and the additional violet 2,2’-bpy emission, proving that [AuI(CN)2], [PtII(CN)4]2−, and their metallophilic clusters can serve as good sensitizers for the lanthanide(3+) photoluminescence [86].

4. Hexacyanidometallates, [MIII(CN)6]3− (M = Cr, Co)

Among the rich diversity of reported hexacyanidometallates [43], only hexacyanido- chromate(III) and hexacyanidocobaltate(III) ions were applied in the construction of photoluminescent d–f coordination networks (Figure 5 and Figure 6, Table 3) [89,90,91,92,93,94,95,96,97,98,99,100]. They reveal the near-infrared and red emission bands, respectively, due to their metal-centred d-d electronic transitions [30,31]. In combination with trivalent lanthanide ions, they form the three-dimensional cyanido-bridged [LnIII(H2O)n][MIII(CN)6]·2H2O (M = Cr, Co; n = 3, Ln = La–Nd; n =2, Nd–Lu) networks with all cyanides bridging to the neighbouring 9- or 8-coordinated 4f metal centres [89,90]. The GdCo and GdCr networks exhibit the d-metal-centred characteristic photoluminescence, observed even at room temperature due to the heavy atom effect [91]. Among the other analogues, the emission properties of the EuCo network was only reported, and red Eu3+ photoluminescence sensitized by the Co3+-to-Eu3+ energy transfer was presented [92,93]. It suggested that [CoIII(CN)6]3− can be a reasonable sensitizer for the visible photoluminescence of 4f metal ions.
Hexacyanidometallates of Co3+ and Cr3+ exhibit their own emission close to the edge between visible and NIR ranges, so they were expected to be good sensitizers for NIR-emitting lanthanide(3+) ions. It was accurately proved for the cyanido-bridged [LnIII(dmf)4(H2O)2][CrIII(CN)6nH2O (Ln = Nd, Gd, Yb) chains, and dinuclear [LnIII(dmf)4(H2O)3][CoIII(CN)6nH2O (Ln = Nd, Gd, Yb) molecules [94,95]. The NdCr, NdCo, YbCr, and YbCo materials show the NIR emission of Nd3+ or Yb3+, and the lack of the expected d-metal-centred luminescence which indicates the efficient Cr3+-to-Ln3+ and Co3+-to-Ln3+ intramolecular energy transfer processes.
The first reports on photoluminescent hexacyanido-bridged d–f materials were expanded by the implementation of various pyrimidine and pyridine derivatives that control the coordination topology [96,97,98,99,100]. The combination of 3-hydroxypyridine (3-OHpy) with DyIII and [CoIII(CN)6]3− produced the cyanido-bridged [DyIII(3-OHpy)2(H2O)4][CoIII(CN)6]·H2O zig-zag chains (Figure 5a), exhibiting the room temperature white-light DyIII emission realized by the complex excitation involving not only direct f-f transitions, but also Co3+-to-Dy3+ and 3-OHpy-to-Dy3+ energy transfer pathways (Figure 5b) [96]. This topology was also reported for trimetallic [EuIIIxTbIII1-x (3-OHpy)2(H2O)4][CoIII(CN)6]·H2O materials showing the multi-coloured 4f-centred emission. The colour of luminescence is tuned between red, orange and yellow to green, by the compound’s composition, that is the Eu/Tb ratio governing the intensity of red Eu3+ and green Tb3+ emission components (Figure 5b) [97]. Multi-coloured emission is also realized for the trimetallic EuTbCo chains by the selection of the appropriate wavelengths of UV light controlling the intensities of Eu3+ and Tb3+ emission characteristics. Moreover, the 4f-centred photoluminescence is, here, enhanced by the energy transfer occurring from both [CoIII(CN)6]3− and 3-OHpy to lanthanide(3+) ions, and the efficiencies of these radiationless effects play a vital role in the observed switchable emission.
The replacement of 3-hydroxypyridine by 4-hydroxypyridine (4-OHpy) in the DyIII–[CoIII(CN)6]3− system resulted in the dramatic change of the structure towards the cyanido-bridged [DyIII(4-OHpy)2(H2O)3][CoIII(CN)6]·0.5H2O layered framework of a 6-membered metal rings topology. It exhibits the yellow DyIII emission sensitized by the [CoIII(CN)6]3− complex through intramolecular energy transfer. However, in contrast to 3-OHpy, the 4-OHpy ligand is not suitable sensitizer for DyIII, and its intrinsic greenish-blue phosphorescence was detected. As a result, the multi-coloured yellow to greenish-blue emission switchable by excitation light, governing the ligand- and Dy3+-based luminescent components, was achieved [98]. The layered network but of a square grid topology was prepared by the application of pyrimidine N-oxide (pmmo) with the Nd3+ and [CrIII(CN)6]3− ions (Figure 6a) [99]. The resulting [NdIII(pmmo)2(H2O)3][CrIII(CN)6] material reveals the strong NIR Nd3+-centred emission under the UV excitation. The observed excitation spectrum is dominated by the broad complex band assigned to the absorption of pmmo and [CrIII(CN)6]3− (Figure 6a). This, together with the disappearance of the expected green phosphorescence of organic ligand, and NIR emission of a cyanide complex, proved the efficient energy transfer from both organic and inorganic building blocks. The similar dual donor intramolecular energy transfer related to the direct coordination of the organic ligand and hexacyanidometallate to 4f metal was presented for almost linear [YbIII(3-pyone)2(H2O)2][CoIII(CN)6] (3-pyone = 3-pyridone) chains (Figure 6b) [100]. Under the UV excitation, they show typical NIR Yb3+ emission, enhanced by the radiationless energy transfer from 3-pyone and [CoIII(CN)6]3− to 4f metal ion, which proves that hexacyanidocobaltate(III) is particularly attractive photoluminescent metalloligand being a good sensitizer for both visible light- and NIR-emitting lanthanide(3+) ions.

5. Octacyanidometallates, [MIV/V(CN)8]4−/3− (M = Mo, W)

Octacyanidometallate complexes of Mo(IV,V) and W(IV,V) are not emissive as their numerous d-d and charge transfer (ligand-to-metal or metal-ligand) electronic transitions were found to be rather photoreactive which was utilized in the construction of photomagnetic materials [23]. These cyanide complexes offer, however, very light yellow colour as their absorption bands are shifted to the UV range. It enables the observation of visible and NIR photoluminescence of accompanying emissive chromophores [32]. In effect, a considerable number of photoluminescent d–f coordination networks based on octacyanidometallates were reported (Figure 7 and Figure 8, Table 4) [101,102,103,104,105,106,107,108,109,110]. In the aqueous solution, trivalent lanthanide(3+) and [MV(CN)8]3− ions produce the cyanido-bridged [LnIII(H2O)5][MV(CN)8] (Ln = Sm, Eu, Gd, Tb; M = Mo, W) layered frameworks of a square grid topology [101,102,103]. Such EuMo and EuW layers exhibit the specific Eu3+ emission realized partially by direct f-f excitation, and the more sophisticated energy transfer from O-Eu (EuMo) or O-W (EuW) ligand-to-metal charge transfer (LMCT) bands situated in the UV range [101]. In the analogous TbMo and TbW compounds, the green emission of Tb3+ was detected after the excitation by the UV light, related to the Tb-based d–f and f–f electronic transitions [101,102]. Similar Eu3+ or Tb3+ emission was reported for the mixed [EuIII0.5GdIII0.5(H2O)5][WV(CN)8] and [SmIII0.5TbIII0.5(H2O)5][WV(CN)8] networks. The trimetallic [EuIII0.5TbIII0.5(H2O)5] [WV(CN)8] framework exhibits both red Eu3+ and green Tb3+ emission peaks realized by the LMCT, O-Eu or W-related, excitation, and the additional Tb3+-to-Eu3+ intermetallic energy transfer occurring through the [WV(CN)8]3− moieties [103]. The emission of Nd3+ was also possible to detect within the family of octacyanidometallate-based materials, as reported for the cyanido-bridged [NdIII(phen)2(dmf)2(H2O)][MoV(CN)8]·2H2O and [NdIII(phen)(dmf)5][MV(CN)8xH2O (M = Mo, W; phen = 1,10-phenanthroline) chains showing NIR emission of 4f metal ion sensitized by phen ligand [104].
The interesting luminescent functionalites were presented for the three-dimensional hybrid inorganic-organic [LnIII2(mpca)2(MeOH)2(H2O)6][MoIV(CN)8xMeOH (Ln = Nd, Eu, Tb; mpca = 5-methyl-2-pyrazine carboxylic acid) networks where cyanido-bridged layers are connected in the third direction by organic mpca linkers [105]. They reveal the strong 4f-metal centred photoluminescence sensitized by mpca ligands while [MoIV(CN)8]4− serves as an inorganic linker stabilizing the 3D coordination network. Moreover, the Eu3+ emission was found to be strongly sensitive to the amount of water molecules occupying the interstitial space within the crystal structure. Therefore, the emission intensity of the EuMo network increases significantly with decreasing humidity of the air around the solid sample, which makes this material an efficient humidity sensor working in the whole relative humidity range from 0 to 100% [106].
The implementation of the enantiopure derivatives of 2,2’-(2,6-pyridinediyl)bis(2-oxazoline) (pybox) molecule into the LnIII–[WV(CN)8]3− systems resulted in the formation of chiral cyanido-bridged [LnIII(iPr-pybox)(dmf)4][WV(CN)8]·dmf·4H2O (Ln = Nd, Eu, Gd; iPr-pybox = (SS)- or (RR)-2,2’-(2,6-pyridinediyl)bis(4-isopropyl-2-oxazoline); Figure 7a) and [LnIII(ind-pybox)(dmf)4] [WV(CN)8]·5MeCN·4MeOH (Ln = Nd, Gd; ind-pybox = (SRSR)- or (RSRS)-2,6-bis[8H-indeno[1,2-d]oxazolin-2-yl]pyridine) helices [107,108]. Taking advantage of both luminescent Ln3+ and pybox ligand, the Eu(iPr-pybox)W chains reveal the thermal switching between red Eu3+ emission predominant at low temperature due to the effective ligand-to-metal energy transfer, and blue iPr-pybox-centred photoluminescence prevailing at room temperature, as the energy back transfer to ligand is operating at higher temperatures (Figure 7b) [107]. The GdW helices with iPr-pybox, and the more expanded ind-pybox ligands, exhibit exclusively the ligand-based red phosphorescence. The NdW chains show the 4f-metal-centred NIR emission enhanced by the pybox-to-Nd3+ energy transfer process [108].
The rich scope of diverse lanthanides(3+) photoluminescence, and their interaction with organic 2,2’-bis(2-oxazoline) (box) organic chromophore was beautifully presented in the cyanido-bridged [LnIII(box)n(dmf)m][MV(CN)8x(solvent) (Ln = Ce–Dy, n = 2, m = 2; Ln = Ho–Yb, n = 1, m = 3; M = Mo, W) layers of a mixed 4- and 8-membered metal rings topology, showing the unusual sliding of coordination layers depending on lanthanides [109,110]. The TbW derivative, named [TbIII(box)2(dmf)2][WV(CN)8]·H2O (Figure 8a), reveals the excitation-dependent visible luminescence switchable between Tb3+ green emission induced under the deep UV excitation of the interconfigurational d-f transition of the 4f-metal centre, and red box-based phosphorescence detected for the UV excitation around 340 nm that directs the energy mainly towards the ligand excited states (Figure 8b) [109]. Similar effect was found for the analogous TbMo system while the other members of the LnMo family showed lanthanide-dependent visible and/or NIR emission. For PrMo, SmMo, EuMo and HoMo, the box-to-Ln3+ energy transfer induced the 4f-centred visible emission ranging from green for Ho3+, orange for Sm3+, to red for Pr3+ and Eu3+. The ligand-to-metal energy transfer is also responsible for the observation of characteristic emission peaks in the NIR range for several compounds, PrMo, NdMo, SmMo, HoMo and YbMo layers [110].

6. Heteroligand Tetracyanidometallates, [MII(L)(CN)4]2− (M = Ru, Os)

Beside the homoligand polycyanidometallates, [M(CN)x]n− (x = 2, 4, 6, and 8), the photo-luminescent d–f coordination networks were prepared using the heteroligand tetracyanidometallate complexes, [MII(L)(CN)4]2− (M = Ru, Os), where two positions of the octahedron are blocked by the aromatic N,N-bidentate organic ligands, L [111,112,113,114,115,116,117,118,119]. Depending on the selected L ligand, exemplified by 2,2’-bipyridine (2,2’-bpy), 1,10-phenanthroline (phen), or 2,2’-bipyrimidine (bpym), these heteroligand cyanide complexes of RuII and OsII reveal the intrinsic green to red emission of the metal-to-ligand charge transfer (MLCT) origin [33]. Due to their energy position close to the red region of the visible spectrum, the MLCT excited states of [MII(L)(CN)4]2− (M = Ru, Os) ions were found to be suitable for the sensitization of NIR-emitting lanthanide(3+) ions (Figure 9 and Figure 10, Table 5) [111,112,113,114,115,116,117]. It was firstly presented for the yellow emissive [RuII(2,2’-bpy)(CN)4]2− anions which combined with 4f metal ions in the aqueous solution produced the cyanido-bridged trinuclear K[LnIII(H2O)n][RuII(2,2’-bpy)(CN)4]2·9H2O (n = 7, Ln = Pr; n = 6, Ln = Er, Yb) molecules, or the two-dimensional [LnIII(H2O)4]2[RuII(2,2’-bpy)(CN)4]3·nH2O (Ln = Gd, Nd) layered frameworks of a mixed 4- and 12-membered metal rings topology. While the yellow MLCT emission was detected in GdRu, the NIR 4f-centred emission, enhanced by efficient Ru2+-to-Ln3+ energy transfer, was observed for PrRu, ErRu, YbRu and NdRu materials. Using the experimentally determined degree of quenching of the RuII-based emission, the rates of metal-to-metal energy transfer could be estimated. The fastest energy transfer was found for NdRu, the slowest for YbRu, while the intermediate values were assigned to PrRu and ErRu, which was rationalized on the basis of the spectral overlap between the available excited f–f states with the Ru2+ emission band [112].
The tetracyanidoruthenate(II) complex bearing 2,2’-bipyrimidine (bpym) ligand, [RuII(bpym) (CN)4]2−, forms with lanthanide(3+) ions two types of coordination polymers. The lighter 4f metal ions of Nd3+, Sm3+ and Gd3+ gave the helical [LnIII(H2O)5(NO3)][RuII(bpym)(CN)4] chains, while the heavier Er3+ and Yb3+ produced the cyanido-bridged [LnIII2(H2O)7.5(NO3)1.5][RuII(bpym)(CN)4]2·5.5H2O layers of a complex cross-linked square-based chains topology [113]. The red RuII-based emission was found for GdRu, while all the NIR-emitting Ln3+ ions (Nd, Er, Yb) reveal their own photoluminescence, efficiently sensitized by the [RuII(bpym)(CN)4]2− moieties, with the better spectroscopic overlap and resulting energy transfer efficiency for ErRu and RuYb when compared with the yellow emissive [RuII(2,2’-bpy)(CN)4]2− anions. In addition, a different, expanded dinuclear bpym-bridged [{RuII(CN)4}2(bpym)]4− anion were prepared, and successfully applied for the construction of heterometallic d–f coordination networks. The hybrid inorganic-organic [LnIII(H2O)5(NO3)]2[{RuII(CN)4}2(bpym)]·3H2O (Ln = Nd, Sm) ladder chains, and three-dimensional [LnIII1.5(H2O)7][{RuII(CN)4}2(bpym)]·(NO3nH2O (Ln = Eu, Gd, Yb) networks of a mixed 2D cyanido-bridged, and an 1D bpym-bridged connectivity, were isolated. They revealed the analogous sensitized near-infrared 4f-metal-centred emission [113].
The bimetallic 4d–4f coordination systems involving [RuII(L)(CN)4]2− ions offer a rich structural diversity as the blocking L ligand and four potentially bridging cyanides can result in the various low dimensional molecular systems. Moreover, the large lanthanide(3+) ions reveal high coordination numbers that the supporting organic ligands could be also introduced. It was fruitfully presented for a series of zero-, one- and two-dimensional cyanido-bridged networks based on [RuII(phen)(CN)4]2− (phen = 1,10-phenanthroline) anion [114]. Using the phen molecule as the ligand coordinated both to the 4d and 4f metal centres, the cyanido-bridged [LnIII(phen)(H2O)3]2 [RuII(phen)(CN)4]·14H2O (Ln = Nd, Gd, Er, Yb) layers of a corrugated honeycomb topology were obtained (Figure 9a). The GdRu layers reveal the strong MLCT red emission of [RuII(phen)(CN)4]2− which is significantly quenched for the analogous NdRu, ErRu, and YbRu coordination frameworks due to the Ru2+-to-Ln3+ energy transfer process (Figure 9b). The MLCT band completely disappears for NdRu as the high density of low-lying f–f excited states of Nd3+ accepting the energy from RuII. For ErRu and YbRu derivatives, the rate of d–f energy transfer, and the resulting the degree of quenching of the MLCT luminescence, decreased due to the smaller number of accessible excited f–f states (Figure 9b) [114]. The similar sensitized NIR emission was found for the other phen- containing cyanido-bridged hexanuclear K2[LnIII(phen)2(H2O)]2[RuII(phen)(CN)4]4·n(solvent) (Ln = Pr, Nd, Er, Yb) molecules, prepared under the modified synthetic conditions. The application of other ancillary oligopyridine ligands, including 2,2’:6’2”-terpyridine (terpy) and 2,2’-bipyrimidine (bpym), resulted in the formation of one-dimensional cyanido-bridged [LnIII(terpy)(H2O)3]2 [RuII(phen)(CN)4]3·nH2O (Ln = Pr, Nd, Er, Yb) and [LnIII2(bpym)(H2O)7][RuII(phen)(CN)4]3·nsolvent (Ln = Nd, Er, Yb) networks of a ladder chain, and a hybrid chain of squares topologies, respectively. They all exhibit the characteristic 4f-metal-centetered NIR emission enhanced by the Ru2+-to-Ln3+ energy transfer. It was proved that blocking polypyridine ligands hamper the coordination of cyanides and water molecules to the 4f metal ions, not only amending the structural topology but also visibly increasing lanthanide(III)-based emission lifetimes when compared to the networks without these supporting ligands [114].
The particularly efficient sensitization of both Nd3+ and Yb3+ was achieved for the heterometallic d–f coordination networks based on tetracyanidoruthenates(II) bearing the expanded aromatic system of hexaazatriphenylene (HAT) (Figure 10) [115,116]. The simplest metal-cyanide complex of this family, [RuII(CN)4(HAT)]2− was combined with lanthanide(3+) ions giving the hybrid layered [LnIII(H2O)5]2[RuII(HAT)(CN)4nH2O framework of a 12-membered metal rings topology for larger lanthanides of Nd, Sm, Eu, Gd, or the one-dimensional cyanido-bridged [YbIII2(H2O)9(NO3)2][RuII (HAT)(CN)4]·2(NO3)·6.5H2O ladders bearing smaller Yb3+ ions. Using the other cyanide precursor of [{RuII(CN)4}2(HAT)]4− with two tetracyanidoruthenates(II) attached to a single HAT, the very different hybrid [YbIII3(H2O)2(NO3)][{RuII(CN)4}2(HAT)]2·20H2O layers of 6-membered metal rings topology were synthesized. The most expanded [{RuII(CN)4}3(HAT)]6− anion, offering three RuII centres linked by a single HAT, and 12 potentially bridging cyanide ligands, was mixed with lanthanide(3+) ions producing the three-dimensional [LnIII(H2O)4]2[{RuII(CN)4}3(HAT)]·13H2O (Ln = Nd, Gd, Yb) pillared network. They are constructed of the hybrid HAT-cyanide heterometallic layers connected in the perpendicular direction by additional cyanide linkages (Figure 10a) [115,116]. When Gd3+ ion was used as the lanthanide centre, all the RuII(HAT)-containing networks reveal the strong MLCT photoluminescence in the red range, which was substantially quenched by the insertion of NIR-emitting Nd3+ and Yb3+ ions. As a result, the strong near-infrared emission was observed, while the residual RuII-based emission was around 100 times weaker than for the GdRu compounds (Figure 10b) [116].
The heteroligand [OsII(phen)(CN)4]2− ion, built of 5d OsII metal centre, reveals the red MLCT emission, shifted towards lower energy as compared to [RuII(phen)(CN)4]2−, which was presented for the layered [GdIII(H2O)4(MeOH)][OsII(phen)(CN)4]1.5·4H2O framework of a 12-membered metal rings topology [117]. This makes the tetracyanidoosmate(II) an even more efficient sensitizer for NIR-emitting lanthanide(3+) ions than the related tetracyanidoruthenate(II) due to the expected better spectroscopic overlap of Os2+-based emission with the absorption peaks of the 4f metal ions. This prediction was checked for the family of cyanido-bridged coordination systems, including hexanuclear Na2[LnIII(phen)2(H2O)]2[OsII(phen)(CN)4]4·4MeOH·17H2O (Ln = Pr, Nd, Er, Yb) clusters, one-dimensional [LnIII2(bpym)(H2O)7][OsII(phen)(CN)4]3·MeOH·13H2O (Ln = Er, Yb) hybrid chain of squares, and the intricate [NdIII4(bpym)2(H2O)12(MeOH)][OsII(phen)(CN)4]6·6MeOH·19.5H2O coordination layers. For all these species, the NIR lanthanide-based emission was sensitized by the Os2+-to-Ln3+ energy transfer of distinguishable rates depending on 4f metal ion. The rates of Os2+-to-Ln3+ energy transfer were found to be an order of magnitude faster than the rates of Ru2+-to-Ln3+ energy transfer previously observed in similar heterometallic d–f cyanido- bridged networks [117].
The innovative luminescent functionality of heteroligand tetracyanidometallates was shown for the [RuII(tBubpy)(CN)4]2− ion bearing the tert-butyl derivative of 2,2’-bipyridine [118,119]. This anion embedded in the bimetallic K[LnIII(H2O)4][RuII(tBubpy)(CN)4]2·8H2O (Ln = Pr, Nd, Sm, Eu) chain of {Ln2Ru2} molecular squares exhibits the orange emission of a typical metal-to-ligand charge transfer (MLCT) origin. The intensity of this photoluminescence detected for the bulk solid sample, and the polymeric film, was reported to be strongly dependent on the presence of gaseous amine molecules, which additionally sensitize the RuII-based emission. Therefore, this material found the analytical application as an efficient and sensitive chemodosimetric detector of biogenic amine odorants including histamine, putrescine, spermidine, and ammonia, indicating a great potential of the polycyanidometallate-based d–f coordination networks in chemical and biochemical sensing based on the spectrofluorometric detection [119].

7. Other Cyanide-Containing Building Blocks

The photoluminescent cyanido-bridged coordination networks incorporating trivalent lanthanide ions were achieved by a few non-typical cyanide-building blocks (Figure 11 and Figure 12, Table 6) [120,121,122,123]. For instance, the solvothermal reaction of a chemically modified salen-type ligand, N,N’-ethylene bis[4-(ethylamino)salicylideneimine] (L1), with erbium(III) chloride and copper(I) cyanide in a non-aqueous methanol-acetonitrile solution resulted in the isolation of an unprecedented [ErIIICuII2(L1)2(Cl)2][CuI4(CN)5(MeCN)4] supramolecular network. It is composed of the two-dimensional homometallic CuI-based cyanido-bridged layers of a 10-membered metal rings topology with the trinuclear salen-ligand-bridged {ErIIICuII2L12Cl2} clusters occupying the interlayer space (Figure 11a) [120]. This material reveals NIR Er3+-centred emission under the visible light excitation, slightly weakened when compared with the reference cyanide-free {ErIII2(H2L)4} molecule due to the partial Er3+-to-Cu2+ f–d energy transfer (Figure 11b). This work showed that a cuprous cyanide network serves as a stabilizing agent for the formation of unique NIR-emitting {ErIIICuII2L12Cl2} clusters, non-isolable under cyanide-free synthetic conditions [120].
The rare organometallic heteroligand dicyanidoiridate(III) anion, [IrIII(ppy)2(CN)2], with four coordination sites blocked by two anions of 2-phenylpyridine (ppy), was also tested as a novel cyanide-containing metal complex for d–f photoluminescent materials [121]. The self-assembly of this specific dicyanidometallate with the excess of lanthanide(3+) ions resulted in a series of cyanido-bridged tetranuclear [LnIII(H2O)2(MeCN)(NO3)2]2[IrIII(ppy)2(CN)2]2·4MeCN (Ln = La, Pr, Nd), {N(PPh3)2}2[EuIII2(H2O)(NO3)6][IrIII(ppy)2(CN)2]2·5MeCN, and [GdIII(NO3)2(H2O)2]2[IrIII(ppy)2 (CN)2]2 molecules which structural details depend on the attached lanthanide(3+) ions. In all these materials, the broad green [IrIII(ppy)2(CN)2]-based emission was detected, the strongest for the UV-emissive Gd3+, and much weaker for visible-light-emissive Eu3+, and NIR-emitting Nd3+. It suggested the presence of Ir3+-to-Eu3+ and Ir3+-to-Nd3+ energy transfer processes, but the sensitized Eu3+ or Nd3+ could not be detected indicating the additional quenching effect, presumably involving the water molecules existing in the crystal structure [121].
Non-heterometallic, however, cyanido-bridged photoluminescent coordination networks were obtained by combining trivalent lanthanide ions with inorganic tetracyanidoborate, [BIII(CN)4] anionic building block, and its heteroligand pentafluoroethyltricyanidoborate(III), {[C2F5BIII(CN)3] derivative [122,123]. The rare-earth metal oxide or hydroxides mixed with tetracyanidoboronic acid, H[B(CN)4nH2O produced the cyanido-bridged dinuclear [LnIII(H2O)7][B(CN)4]·2{B(CN)4}(Ln = Tb, Dy) molecules where tetracyanidoborate(III) serves as a ligand, and a crystallization counterion. The TbB and DyB compounds reveal the intense sharp peaks of their characteristic visible photoluminescence, realized by direct intrashell f–f excitation, and interconfigurational f–d excitation pathways [121]. Thus, [BIII(CN)4] serves only as a supporting inorganic ligand without the significant emission or sensitizing effect. Much more pronounced role in the photoluminescent effect is played by its structurally modified derivative, that is pentafluoroethyltricyanidoborate(III) ion, [C2F5BIII(CN)3] [123]. This anionic building block combined with lanthanide(3+) ions resulted in the formation of a hydrated cyanido-bridged [LnIII{C2F5B(CN)3}3(H2O)3](Ln = La, Eu, Ho) layered framework showing the topology of cross-linked {Ln2B2}-square-based chains (Figure 12a). Upon thermal dehydration, this material could be transformed into the anhydrous three-dimensional cyanido-bridged [LnIII{C2F5B(CN)3}](Ln = La, Eu, Ho) hexagonal network built of nine-coordinated Ln3+ ions which coordination sphere is fully occupied by cyanide ligands of bridging [C2F5BIII(CN)3] anions (Figure 12b). The LaB anhydrous network exhibits the broad greenish-blue UV-light-induced photoluminescence of tricyanidoborate(III) anions. This emission is also observed for HoB analogues but the intense reabsorption effect was detected as the several characteristic f–f lines situated within the broad emission band of the anion. It suggested the lack of efficient [C2F5BIII(CN)3]- to-Ho3+ energy transfer. On the contrary, the sensitization effect was found for the hydrated and anhydrous EuB networks that show the strong 4f-metal-centred emission, and the complete quenching of the borate-based luminescence (Figure 12c). Due to the removal of water molecules, which presence typically decreases the lanthanide(3+) emission, the anhydrous phase reveals almost three times stronger photoluminescence than the related hydrated species. All these results proved that pentafluoroethyltricyanidoborate(III) anion is a promising luminescent cyanide building block for sensitization of the visible photoluminescence of lanthanide(3+) ions.

8. Conclusions

We have presented a detailed overview of lanthanide photoluminescence in coordination networks based on polycyanidometallates. To best of our knowledge, this is the first systematic catalogue of the state of the art in the investigation of photoluminescent d–f cyanido-bridged systems.
Selected groups of polycyanidometallates are suitable for construction of photoluminescent coordination frameworks that can explore intrinsic optical properties of lanthanide(3+) ions. Among them, the dicyanidometallates of AuI and AgI are luminescent in the visible range due to the metal-to-ligand charge transfer (MLCT) transitions. Such emission, found in 4d/5d–4f coordination polymers, and facilitated by the presence of Au–Au interactions, was shown to be dependent on pressure and temperature. Dicyanidometallates are good sensitizers for visible emission of 4f-metal ions, and the resulting emission can be tuned by external stimuli such as pressure, temperature, or light excitation. Thus, the multi-coloured tunable photoluminescence is the main application of [MI(CN)2]-based d–f systems, taking also into account the possible insertion of organic ligands, introducing additional energy transfer pathways, or separate emission components. Similar luminescence was achievable for tetracyanidoplatinate(II) ions revealing the visible emission due to the metal-to-metal-to-ligand charge transfer (MMLCT) transitions related to the Pt–Pt interactions. This emission is dependent on temperature, pressure, and light polarization due to the anisotropic character of these square planar polycyanido- metallates. [PtII(CN)4]2− is a good sensitizer for some lanthanide(3+) ions, including Eu3+, Sm3+, or Tb3+. The tetracyanidoplatinate(II)-based systems offer a structural diversity due to the ancillary organic ligands, modifying the 4f-metal-centred emission.
The octahedral hexacyanidometallates of CoIII and CrIII are luminescent in the red and NIR ranges, respectively. They can enhance NIR lanthanide(3+) emission by the energy transfer. [CoIII(CN)6]3− can also sensitize visible 4f-metal-centred luminescence. They offer six cyanides to create extended networks, and leave the coordination sites on lanthanides that can be occupied by organic ligands. Thus, various optical functionalities were achieved, as exemplified by white light emission of DyIII–CoIII compound, excitation- and composition-switchable multi-coloured emission in EuIII–TbIII–CoIII chains, and dual-donor NIR emission in NdIII–CrIII and YbIII–CoIII networks.
Despite their non-luminescent character, octacyanidometallates of MoIV/V and WIV/V were fruitfully applied in the synthesis of photoluminescent d–f coordination systems. Due to the optical transparency in the Vis–NIR range, their cyanido-bridged networks with lanthanides could reveal the rich spectrum of intrinsic properties of 4f metal ions, and the sensitization effects on supporting organic ligands. [M(CN)8]n ions offer a great structural flexibility, so a number of d–f coordination networks could be rationally designed. As a result, such attractive functionalities as thermal switching of blue–red emission in EuIII–WV helices, excitation-tunable green–red luminescence in TbIII–WV layers, or humidity sensor based on red emissive EuIII–MoIV network, were reported.
The heteroligand tetracyanidometallates of RuII and OsII, [MII(CN)4(L)]2− are photoluminescent in the visible range due to the metal-to-ligand charge transfer (MLCT) transition. These anions are good sensitizers for NIR-emitting lanthanide(3+) ions. Their emission energy can be tuned by the blocking ligand L, thus, the selection of appropriate organic part governs the efficiency of the Ru2+/Os2+-to-Ln3+ energy transfer process. Metal center also plays a vital role, and the OsII-based cyanide complexes were proved to be better sensitizers for NIR emission than the analogous RuII species. The ancillary organic ligands can be, here, inserted to amend the structural features, and facilitate the characteristics of energy transfer. Lately, the heteroligand tetracyanidoruthenate(II) embedded in d–f cyanido-bridged networks has successfully been applied in the chemodosimetric detection of biogenic amines utilizing a selective sensitization of its visible MLCT emission.
Among other cyanide-containing building blocks, the cuprous cyanide networks was found to stabilize NIR-emitting salen-based ErIII–CuIII clusters, while the green emissive heteroligand dicyanidoiridate(III) bearing two blocking bidentate ligands were tested as possible sensitizers for lanthanide(3+) luminescence. In addition, the inorganic tetracyanidoborate anion was used for the construction of photoluminescent TbIII- and DyIII-based molecules, however, without a strong impact on the emission properties. On the contrary, its modified analogue, pentafluoroethyltri- cyanidoborate(III) ion, [C2F5BIII(CN)3] is greenish-blue emissive, and efficiently sensitizes the Eu3+ luminescence within the cyanido-bridged two- or three-dimensional coordination networks.
In summary, we have gathered all reported photoluminescent polycyanidometallate-based coordination systems incorporating lanthanide ions. We have shown that cyanide metal complexes are useful for the preparation of emissive solids revealing such functionalities as lanthanide- centred Vis–NIR photoluminescence, sensitized through metal-to-metal and/or ligand-to-metal energy transfer effects, and multi-coloured emission tuned by external stimuli of excitation wavelength, temperature, and pressure. There is still several challenges in this area, including the detailed investigation of structural and electronic features governing the sensitization process involving cyanide complexes, and the preparation of novel luminescent polycyanidometallates of improved optical properties, and affinity to lanthanide(3+) ions. The particularly promising future work comprises of searching for multifunctional photoluminescent materials that can exhibit the undiscovered physical cross-effects, as polycyanidometallate-based heterometallic coordination networks showed a diversity of physical properties, such as magnetic anisotropy leading to slow magnetic relaxation, magnetic ordering, spin transitions, catalytic activity, ferroelectricity, and ionic conductivity, that in some cases lead to the unprecedented physical phenomena [38,39,40,41,42,50].

Acknowledgments

This work was financed by the National Science Centre, Poland within the SONATA 11 project, grant no. 2016/21/D/ST5/01634. B.S. is grateful for the financial support of the National Science Centre, Poland within the OPUS-8 project, grant no. 2014/15/ST5/04465.

Author Contributions

S.C.: conception, literature search, and manuscript preparation; M.W.: literature structural search and manuscript preparation; B.S.: review of the manuscript and contribution to the manuscript preparation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hwang, S.-H.; Moorefield, C.N.; Newkome, G.R. Dendritic macromolecules for organic light-emitting diodes. Chem. Soc. Rev. 2008, 37, 2543–2557. [Google Scholar] [CrossRef] [PubMed]
  2. Binnemans, K. Lanthanide-Based Luminescent Hybrid Materials. Chem. Rev. 2009, 109, 4283–4374. [Google Scholar] [CrossRef] [PubMed]
  3. Carlos, L.D.; Ferreira, R.A.S.; de Zea Bermudez, V.; Ribeiro, S.J.L. Lanthanide-Containing Light-Emitting Organic-Inorganic Hybrids: A Bet on the Future. Adv. Mater. 2009, 21, 509–534. [Google Scholar] [CrossRef] [PubMed]
  4. Eliseeva, S.V.; Bünzli, J.-C.G. Lanthanide luminescence for functional materials and bio-sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef] [PubMed]
  5. Carlos, L.D.; Ferreira, R.A.S.; de Zea Bermudez, V.; Julian-Lopez, B.; Escribano, P. Progress on lanthanide-based organic-inorganic hybrid phosphors. Chem. Soc. Rev. 2011, 40, 536–549. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, X.; Yin, J.; Yoon, J. Recent Advances in Development of Chiral Fluorescent and Colorimetric Sensors. Chem. Rev. 2014, 114, 4918–4959. [Google Scholar] [CrossRef] [PubMed]
  7. Shang, M.; Li, C.; Jin, L. How to produce white light in a single-phase host? Chem. Soc. Rev. 2014, 43, 1372–1386. [Google Scholar] [CrossRef] [PubMed]
  8. Zhou, K.; Liu, H.; Zhang, S.; Huang, X.; Wang, Y.; Huang, G.; Sumer, B.D.; Gao, J. Multicolored pH-Tunable and Activable Florescence Nanoplatform Responsive to Physiologic pH Stimuli. J. Am. Chem. Soc. 2012, 134, 7803–7811. [Google Scholar] [CrossRef] [PubMed]
  9. Xiang, H.; Cheng, J.; Ma, X.; Zhou, X.; Chruma, J.J. Near-infrared phosphorescence: materials and applications. Chem. Soc. Rev. 2013, 42, 6128–6185. [Google Scholar] [CrossRef] [PubMed]
  10. Zhou, J.; Liu, Q.; Feng, W.; Sun, Y.; Li, F. Upconversion Luminescent Materials: Advances and Applications. Chem. Rev. 2015, 115, 395–465. [Google Scholar] [CrossRef] [PubMed]
  11. Zucchi, G.; Maury, O.; Thuery, P.; Gumy, F.; Bünzli, J.-C.G.; Ephritikhine, M. 2,2’-Bipyrimidine as Efficient Sensitizer of the Solid-State Luminescence of Lanthanide and Uranyl Ions form Visible to Near-Infrared. Chem. Eur. J. 2009, 15, 9686–9696. [Google Scholar] [CrossRef] [PubMed]
  12. Rocha, J.; Carlos, L.D.; Almeida Paz, F.A.; Ananias, D. Luminescent multifunctional lanthanides-based metal-organic frameworks. Chem. Soc. Rev. 2011, 40, 926–940. [Google Scholar] [CrossRef] [PubMed]
  13. Cui, Y.; Yue, Y.; Qian, G.; Chen, B. Luminescent Functional Metal–Organic Frameworks. Chem. Rev. 2012, 112, 1126–1162. [Google Scholar] [CrossRef] [PubMed]
  14. Hu, Z.; Deibert, B.J.; Li, J. Luminescent metal–organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed]
  15. Rowsell, J.L.C.; Yaghi, O.M. Strategies for Hydrogen Storage in Metal–Organic Frameworks. Angew. Chem. Int. Ed. 2005, 44, 4670–4679. [Google Scholar] [CrossRef] [PubMed]
  16. Cui, Y.; Li, B.; He, H.; Zhou, W.; Chen, B.; Qian, G. Metal–Organic Frameworks as Platforms for Functional Materials. Acc. Chem. Res. 2016, 49, 483–493. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, Y.-W.; Zhang, F.-Q.; Zhang, X.-M. Single Component Lanthanide Hybrids Based on Metal–Organic Framework for Near-Ultraviolet White Light LED. ACS Appl. Mater. Interfaces 2016, 8, 24123–24130. [Google Scholar] [CrossRef] [PubMed]
  18. Guo, H.; Zhu, Y.; Qiu, S.; Lercher, J.A.; Zhang, H. Coordination Modulation Induced Synthesis of Nanoscale Eu1-xTbx-Metal–Organic Frameworks for Luminescent Thin Films. Adv. Mater. 2010, 22, 4190–4192. [Google Scholar] [CrossRef] [PubMed]
  19. White, K.A.; Chengelis, D.A.; Zeller, M.; Geib, S.J.; Szakos, J.; Petoud, S.; Rosi, N.L. Near-infrared emitting ytterbium metal–organic frameworks with tunable excitation properties. Chem. Commun. 2009, 4506–4508. [Google Scholar] [CrossRef] [PubMed]
  20. Yang, J.; Yue, Q.; Li, G.-D.; Cao, J.-J.; Li, G.-H.; Chen, J.-S. Structures, Photoluminescence, Up-Conversion, and Magnetism of 2D and 3D Rare-Earth Coordination Polymers with Multicarboxylate Linkages. Inorg. Chem. 2006, 45, 2857–2865. [Google Scholar] [CrossRef] [PubMed]
  21. Ohba, M.; Okawa, H. Synthesis and magnetism of multi-dimensional cyanide-bridged bimetallic assemblies. Coord. Chem. Rev. 2000, 198, 313–328. [Google Scholar] [CrossRef]
  22. Wang, X.-Y.; Avendano, C.; Dunbar, K.R. Molecular magnetic materials based on 4d and 5d transition metals. Chem. Soc. Rev. 2011, 40, 3213–3238. [Google Scholar] [CrossRef] [PubMed]
  23. Nowicka, B.; Korzeniak, T.; Stefańczyk, O.; Pinkowicz, D.; Chorazy, S.; Podgajny, R.; Sieklucka, B. The impact of ligands upon topology and functionality of octacyanidometallate-based assemblies. Coord. Chem. Rev. 2012, 256, 1946–1971. [Google Scholar] [CrossRef]
  24. Wang, S.; Ding, X.-H.; Li, Y.-H.; Huang, W. Dicyanometalate chemistry: A type of versatile building block for the construction of cyanide-bridged molecular architectures. Coord. Chem. Rev. 2012, 256, 439–464. [Google Scholar] [CrossRef]
  25. Hatlevik, O.; Buschmann, W.E.; Zhang, J.; Manson, J.L.; Miller, J.S. Enhancement of the Magnetic Ordering Temperature and Air Stability of a Mixed Valent Vanadium Hexacyanochromate(III) Magnet to 99 °C (372 K). Adv. Mater. 1999, 11, 914–918. [Google Scholar] [CrossRef]
  26. Pinkowicz, D.; Southerland, H.; Wang, X.-Y.; Dunbar, K.R. Record Antiferromagnetic Coupling for a 3d/4d Cyanide-Bridged Compound. J. Am. Chem. Soc. 2014, 136, 9922–9924. [Google Scholar] [CrossRef] [PubMed]
  27. Nagasundaram, N.; Roper, G.; Biscoe, J.; Chai, J.W.; Patterson, H.H.; Blom, N.; Ludi, A. Single-Crystal Luminescence Study of the Layered Compound KAu(CN)2. Inorg. Chem. 1986, 25, 2947–2951. [Google Scholar] [CrossRef]
  28. Omary, M.A.; Patterson, H.H. Temperature-Dependent Photoluminescence Properties of Tl[Ag(CN)2]: Formation of Luminescent Metal–Metal-Bonded Inorganic Exciplexes in the Solid State. Inorg. Chem. 1998, 37, 1060–1066. [Google Scholar] [CrossRef]
  29. Yersin, H.; Gliemann, G.; Rössler, U. On the nature of energy bands in tetracyanoplatinates. Solid State Commun. 1977, 21, 915–918. [Google Scholar] [CrossRef]
  30. Dannöhl-Fickler, R.; Kelm, H.; Wasgestian, F. Solvent and temperature dependence of the phosphorescence decay time of hexacyanochromate(III). J. Lumin. 1975, 10, 103–112. [Google Scholar] [CrossRef]
  31. Viaene, L.; D’Olieslager, J. Luminescence from and absorption by the 3T1g level of the hexacyanocobaltate(III) ion. Inorg. Chem. 1987, 26, 960–962. [Google Scholar] [CrossRef]
  32. Isci, H.; Roy Mason, W. Electronic absorption and MCD spectra for octacyanometallate complexes M(CN)8n−, M = Mo(IV), W(IV), n = 4 and Mo(V), W(V), n = 3. Inorg. Chim. Acta 2004, 357, 4065–4072. [Google Scholar] [CrossRef]
  33. Timpson, C.J.; Bignozzi, C.A.; Sulliva, B.P.; Kober, E.M.; Meyer, T.J. Influence of Solvent on the Spectroscopic Properties of Cyano Complexes of Ruthenium(II). J. Phys. Chem. 1996, 100, 2915–2925. [Google Scholar] [CrossRef]
  34. Shiga, T.; Okawa, H.; Kitagawa, S.; Ohba, M. Stepwise Synthesis and Magnetic Control of Trimetallic Magnets [Co2Ln(L)2(H2O)4][Cr(CN)6nH2O (Ln = La, Gd; H2L = 2,6-Di(acetoacetyl)pyridine) with 3+D Pillared-Layer Structure. J. Am. Chem. Soc. 2006, 128, 16426–16427. [Google Scholar] [CrossRef] [PubMed]
  35. Feng, X.; Liu, J.; Harris, T.D.; Hill, S.; Long, J.R. Slow Magnetic Relaxation Induced by a Large Transverse Zero-Field Splitting in a MnIIReIV(CN)2 Single-Chain Magnet. J. Am. Chem. Soc. 2012, 134, 7521–7529. [Google Scholar] [CrossRef] [PubMed]
  36. Chorazy, S.; Podgajny, R.; Majcher, A.M.; Nitek, W.; Rams, M.; Suturina, E.A.; Ungur, L.; Chibotaru, L.D.; Sieklucka, B. Magnetic anisotropy of CoII–WV ferromagnet: single crystal and ab initio study. CrystEngComm 2013, 15, 2378–2385. [Google Scholar] [CrossRef]
  37. Dhers, S.; Costes, J.-P.; Guionneau, P.; Paulsen, C.; Vendier, L.; Sutter, J.-P. On the importance of ferromagnetic exchange between transition metals in field-free SMMs: examples of ring-shaped hetero-trimetallic [(LnNi2){W(CN)8}]2 compounds. Chem. Commun. 2015, 51, 7875–7878. [Google Scholar] [CrossRef] [PubMed]
  38. Hoshino, N.; Iijima, F.; Newton, G.N.; Yoshida, N.; Shiga, T.; Nojiri, H.; Nakao, A.; Kumai, R.; Murakami, Y.; Oshio, H. Three-way switching in a cyanide-bridged [CoFe] chain. Nat. Chem. 2012, 4, 921–926. [Google Scholar] [CrossRef] [PubMed]
  39. Martinez-Garcia, R.; Knobel, M.; Reguera, E. Modification of the magnetic properties in molecular magnets based on Prussian blue analogues through adsorbed species. J. Phys.: Condens. Matter 2006, 18, 11243–11254. [Google Scholar] [CrossRef]
  40. Aratani, Y.; Oyama, K.; Suenobu, T.; Yamada, Y.; Fukuzumi, S. Photocatalytic Hydroxylation of Benzene by Dioxygen to Phenol with a Cyano-Bridged Complex Containing FeII and RuII Incorporated in Mesoporous Silica–Alumina. Inorg. Chem. 2016, 55, 5780–5786. [Google Scholar] [CrossRef] [PubMed]
  41. Ohkoshi, S.; Tokoro, H.; Matsuda, T.; Takahashi, H.; Irie, H.; Hashimoto, K. Coexistence of ferroelectricity and ferromagnetism in a rubidium manganese hexacyanoferrate. Angew. Chem. Int. Ed. 2007, 46, 3238–3241. [Google Scholar] [CrossRef] [PubMed]
  42. Ohkoshi, S.; Nakagawa, S.; Tomono, K.; Imoto, K.; Tsunobuchi, Y.; Tokoro, H. High proton conductivity in Prussian blue analogs and the interference effect by magnetic ordering. J. Am. Chem. Soc. 2010, 132, 6620–6621. [Google Scholar] [CrossRef] [PubMed]
  43. Tokoro, H.; Ohkoshi, S. Novel magnetic functionalities on Prussian blue analogs. Dalton Trans. 2011, 40, 6825–6833. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, W.; Wang, L.; Su, Y.-J.; Chen, Y.-C.; Tucek, J.; Zboril, R.; Ni, Z.-P.; Tong, M.-L. Hysteretic Spin Crossover in Two-Dimensional (2D) Hoffmann-Type Coordination Polymers. Inorg. Chem. 2015, 54, 8711–8716. [Google Scholar] [CrossRef] [PubMed]
  45. Qian, K.; Huang, X.-C.; Zhou, C.; You, X.-Z.; Wang, X.-Y.; Dunbar, K.R. A Single-Molecule Magnet Based on Heptacyanomolybdate with Highest Energy Barrier for a Cyanide Compound. Inorg. Chem. 2013, 135, 13302–13305. [Google Scholar] [CrossRef] [PubMed]
  46. Chorazy, S.; Podgajny, R.; Nogaś, W.; Buda, S.; Nitek, W.; Mlynarski, J.; Rams, M.; Kozieł, M.; Juszyńska, E.; Vieru, V.; et al. Optical Activity and Dehydration-Driven Switching of Magnetic Properties in Enantiopure Cyanido-Bridged Trigonal Bipyramids. Inorg. Chem. 2015, 54, 5784–5794. [Google Scholar] [CrossRef] [PubMed]
  47. Chorazy, S.; Podgajny, R.; Nakabayashi, K.; Stanek, J.; Rams, M.; Sieklucka, B.; Ohkoshi, S. FeII spin-crossover phenomenon in the pentadecanuclear {Fe9[Re(CN)8]6} spherical cluster. Angew. Chem. Int. Ed. 2015, 54, 5093–5097. [Google Scholar] [CrossRef] [PubMed]
  48. Alexandru, M.-G.; Visinescu, D.; Marino, N.; De Munno, G.; Vallejo, J.; Lloret, F.; Julve, M. Cyanido-Bearing Cobalt(II/III) Metalloligands – Synthesis, Crystal Structure, and Magnetic Properties. Eur. J. Inorg. Chem. 2014, 4564–4572. [Google Scholar] [CrossRef]
  49. Alexandru, M.-G.; Visinescu, D.; Shova, S.; Andruh, M.; Lloret, F.; Julve, M. Synthesis, Crystal Structures, and Magnetic Properties of Two Novel Cyanido-Bridged Heterotrimetallic {CuIIMnIICrIII} Complexes. Inorg. Chem. 2017, 56, 2258–2269. [Google Scholar] [CrossRef] [PubMed]
  50. Ohkoshi, S.; Takano, S.; Imoto, K.; Yoshikiyo, M.; Namai, A.; Tokoro, H. 90-degree optical switching of output second harmonic light in chiral photomagnet. Nat. Photonics 2014, 8, 65–71. [Google Scholar] [CrossRef]
  51. Tsunobuchi, Y.; Kosaka, W.; Nuida, T.; Ohkoshi, S. Magnetization-induced second harmonic generation in a three dimensional manganese octacyanoniobate-based pyroelectric ferrimagnet. CrystEngComm 2009, 11, 2051–2053. [Google Scholar] [CrossRef]
  52. Koumousi, E.S.; Jeon, I.-R.; Gao, Q.; Dechambenoit, P.; Woodruff, D.N.; Merzeau, P.; Buisson, L.; Jia, X.; Li, D.; Volatron, F.; et al. Metal-to-Metal Electron Transfer in Co/Fe Prussian Blue Molecular Analogues: The Ultimate Miniaturization. J. Am. Chem. Soc. 2014, 136, 15461–15464. [Google Scholar] [CrossRef] [PubMed]
  53. Chorazy, S.; Podgajny, R.; Nitek, W.; Fic, T.; Görlich, E.; Rams, M.; Sieklucka, B. Natural and magnetic optical activity of 2-D chiral cyanido-bridged MnII-NbIV molecular ferrimagnets. Chem. Commun. 2013, 49, 6731–6733. [Google Scholar] [CrossRef] [PubMed]
  54. Chorazy, S.; Reczyński, M.; Podgajny, R.; Nogaś, W.; Buda, S.; Rams, M.; Nitek, W.; Nowicka, B.; Mlynarski, J.; Ohkoshi, S.; et al. Implementation of Chirality into High-Spin Ferromagnetic CoII9WV6 and NiII9WV6 Cyanido-Bridged Clusters. Cryst. Growth Des. 2015, 15, 3573–3581. [Google Scholar] [CrossRef]
  55. Assefa, Z.; Shankle, G.; Patterson, H.H.; Reynolds, R. Photoluminescence Studies of Lanthanide Ion Complexes of Gold and Silver Dicyanides: A New Low-Dimensional Solid-State Class for Nonradiative Excited-State Energy Transfer. Inorg. Chem. 1994, 33, 2187–2195. [Google Scholar] [CrossRef]
  56. Assefa, Z.; Patterson, H.H. Photoluminescence Studies of Lanthanide Ion Complexes of Gold and Silver Dicyanides. 2. A New Low-Dimensional Solid-State Class for Nonradiative Excited-State Energy Transfer. Inorg. Chem. 1994, 33, 6194–6200. [Google Scholar] [CrossRef]
  57. Yersin, H.; Trümbach, D.; Strasser, J.; Patterson, H.H.; Assefa, Z. Tunable Radiationless Energy Transfer in Eu[Au(CN)2]3·3H2O by High Pressure. Inorg. Chem. 1998, 37, 3209–3216. [Google Scholar] [CrossRef]
  58. Rawashdeh-Omary, M.A.; Larochelle, C.L.; Patterson, H.H. Tunable Energy Transfer from Dicyanoaurate(I) and Dicyanoargenate(I) Donor Ions to Terbium(III) Acceptor Ions in Pure Crystals. Inorg. Chem. 2000, 39, 4527–4534. [Google Scholar] [CrossRef]
  59. Colis, J.C.F.; Staples, R.; Tripp, C.; Labrecque, D.; Patterson, H.H. Metallophilic Interactions in Closed-Shell d1° Metal–Metal Dicyanide Bonded Luminescent Systems Eu[AgxAu1–x(CN)2]3 and Their Tunability for Excited State Energy Transfer. J. Phys. Chem. B 2005, 109, 102–109. [Google Scholar] [CrossRef] [PubMed]
  60. Colis, J.C.F.; Larochelle, C.; Staples, R.; Herbst-Irmer, R.; Patterson, H. Structural studies of lanthanide ion complexes of pure gold, pure silver and mixed metal (gold–silver) dicyanides. Dalton Trans. 2005, 675–679. [Google Scholar] [CrossRef] [PubMed]
  61. Tanner, P.A.; Zhou, X.; Wong, W.-T.; Kratzer, C.; Yersin, H. Structure and Spectroscopy of Tb[Au(CN)2]3·3H2O. J. Phys. Chem. B 2005, 109, 13083–13090. [Google Scholar] [CrossRef] [PubMed]
  62. Larochelle, C.L.; Patterson, H.H. Tunable photoluminescence for a novel silver–gold mixed metal system. Chem. Phys. Lett. 2006, 429, 440–444. [Google Scholar] [CrossRef]
  63. Lu, H.; Yson, R.; Ford, J.; Tracy, H.J.; Carrier, A.B.; Keller, A.; Mullin, J.L.; Poissan, M.J.; Sawan, S.; Patterson, H.H. Tunable energy transfer from d1° heterobimetallic dicyanide(I) dono ions to terbium(III) acceptor ions in luminescent Tb[AgxAu1–x(CN)2]3 (x = 0 → 1). Chem. Phys. Lett. 2007, 443, 55–60. [Google Scholar] [CrossRef]
  64. Assefa, Z.; Kalachnikova, K.; Haire, R.G.; Sykora, R.E. Hydrothermal synthesis, structural, Raman, and luminescence studies of Am[M(CN)2]3·3H2O and Nd[M.(CN)2]3·3H2O (M = Ag, Au): Bimetallic coordination polymers containing both trans-plutonium and transition metal elements. J. Solid State Chem. 2007, 180, 3121–3129. [Google Scholar] [CrossRef]
  65. Assefa, Z.; Haire, R.G.; Sykora, R.E. Hydrothermal synthesis, structural, Raman, and luminescence studies of Cm[M(CN)2]3·3H2O and Pr[M.(CN)2]3·3H2O (M = Ag, Au) 2. Bimetallic coordination polymers containing both trans-plutonium and transition metal elements. J. Solid State Chem. 2008, 181, 382–391. [Google Scholar] [CrossRef]
  66. Larochelle, C.L.; Krebs, J.K. Synthesis and spectral properties of Ce[Ag(CN)2]3. Opt. Mater. 2008, 30, 1446–1450. [Google Scholar] [CrossRef]
  67. Ahern, J.C.; Roberts, R.J.; Follansbee, P.; McLaughlin, J.; Leznoff, D.B.; Patterson, H.H. Structure and Emissive Properties of Heterobimetallic Ln–Au Coordination Polymers: Role of Tb and Eu in Non-aurophilic [nBu4N]2[Ln(NO3)4Au(CN)2] versus Aurophilic Ln[Au(CN)2]3·3H2O/3D2O Chains. Inorg. Chem. 2014, 53, 7571–7579. [Google Scholar] [CrossRef] [PubMed]
  68. Roberts, R.J.; Ahern, J.C.; Patterson, H.H.; Leznoff, D.B. Ce/Au(CN)2-Based Coordination Polymers Containing and Lacking Aurophilic Interactions. Eur. J. Inorg. Chem. 2016, 2082–2087. [Google Scholar] [CrossRef]
  69. Roberts, R.J.; Le, D.; Leznoff, D.B. Color-Tunable and White-Light Luminescence in Lanthanide–Dicyanoaurate Coordination Polymers. Inorg. Chem. 2017, 56, 7948–7959. [Google Scholar] [CrossRef] [PubMed]
  70. Roberts, R.J.; Li, X.; Lacey, T.F.; Pan, Z.; Patterson, H.H.; Leznoff, D.B. Heterobimetallic lanthanide–gold coordination polymers: structure and emissive properties of isomorphous [nBu4N]2[Ln(NO3)4Au(CN)2] 1-D chains. Dalton Trans. 2012, 41, 6992–6997. [Google Scholar] [CrossRef] [PubMed]
  71. Thomas, R.B.; Smith, P.A.; Jaleel, A.; Vogel, P.; Crawford, C.; Assefa, Z.; Sykora, R.E. Synthesis, Structural, and Photoluminescence Studies of Gd(terpy)(H2O)(NO3)2M(CN)2 (M = Au, Ag) Complexes: Multiple Emissions from Intra- and Intermolecular Excimers and Exciplexes. Inorg. Chem. 2012, 51, 3399–3408. [Google Scholar] [CrossRef] [PubMed]
  72. White, F.; Pham, L.N.; Xiang, K.R.; Thomas, R.; Vogel, P.; Crawford, C.; Assefa, Z.; Sykora, R.E. Synthesis, structures, and photoluminescence properties of lanthanide dicyanoaurates containing dimeric aurophilic interactions. Inorg. Chim. Acta 2014, 414, 240–249. [Google Scholar] [CrossRef]
  73. Thompson, J.R.; Roberts, R.J.; Williams, V.; Leznoff, D.B. Birefrigent, emissive coordination polymers incorporating bis(benzimidazole)pyridine as an anisotropic building block. CrystEngComm 2013, 15, 9387–9393. [Google Scholar] [CrossRef]
  74. Loosli, A.; Wermuth, M.; Güdel, H.-U.; Capelli, S.; Hauser, J.; Bürgi, H.-B. Crystal Structure and Optical Spectroscopy of Er2[Pt(CN)4]3·21H2O and Er2[Pt(CN)4]2·SO4·11.5H2O. Inorg. Chem. 2000, 39, 2289–2293. [Google Scholar] [CrossRef] [PubMed]
  75. Von Ammon, W.; Gliemann, G. The influence of CT states and energy transfer on the luminescence of Ln2[Pt(CN)4]3·yH2O single crystals. J. Chem. Phys. 1982, 77, 2266–2272. [Google Scholar] [CrossRef]
  76. Von Ammon, W.; Hidvegi, I.; Gliemann, G. Magnetic field effects on the luminescence of Ln2[Pt(CN)4]3·yH2O single crystals. J. Chem. Phys. 1982, 80, 2837–2844. [Google Scholar] [CrossRef]
  77. Yersin, H. Energy transfer from linear stacks of tetracyanoplatinates(II) to rare earth ions. J. Chem. Phys. 1978, 68, 4707–4713. [Google Scholar] [CrossRef]
  78. Yersin, H.; von Ammon, W.; Stock, M.; Gliemann, G. Non-radiative energy transfer from tunable donor states to Eu3+ ions. J. Lumin. 1979, 18/19, 774–778. [Google Scholar] [CrossRef]
  79. Yersin, H.; Stock, M. Donor and acceptor state selectivity in resonant energy transfer. J. Chem. Phys. 1982, 76, 2136–2138. [Google Scholar] [CrossRef]
  80. Zhu, X.; Wong, W.-K.; Guo, J.; Wong, W.-Y.; Zhang, J.-P. Reactivity of Cationic Lanthanide(III) Monoporphyrinates towards Anionic Cyanometallates – Preparation, Crystal Structure, and Luminescence Properties of Cyanido-Bridged Di- and Trinuclear d–f Complexes. Eur. J. Inorg. Chem. 2008, 3515–3523. [Google Scholar] [CrossRef]
  81. Maynard, B.A.; Kalachnikova, K.; Whitehead, K.; Assefa, Z.; Sykora, R.E. Intramolecular Energy Transfer in a One-Dimensional Europium Tetracyanoplatinate. Inorg. Chem. 2008, 47, 1895–1897. [Google Scholar] [CrossRef] [PubMed]
  82. Maynard, B.A.; Smith, P.A.; Ladner, L.; Jaleel, A.; Beedoe, N.; Crawford, C.; Assefa, Z.; Sykora, R.E. Emission Enhancement through Dual Donor Sensitization: Modulation of Structural and Spectroscopic Properties in a Series of Europium Tetracyanoplatinates. Inorg. Chem. 2009, 48, 6425–6435. [Google Scholar] [CrossRef] [PubMed]
  83. Stojanovic, M.; Robinson, N.J.; Chen, X.; Smith, P.A.; Sykora, R.E. Synthesis, structures, and photoluminescence properties of novel lanthanide tetracyanoplatinates lacking Pt–Pt interactions. J. Solid State Chem. 2010, 183, 933–939. [Google Scholar] [CrossRef]
  84. Stojanovic, M.; Robinson, N.J.; Assefa, Z.; Sykora, R.E. Structural analysis and photoluminescence properties of low dimensional lanthanide tetracyanometallates. Inorg. Chim. Acta 2011, 376, 414–421. [Google Scholar] [CrossRef]
  85. Stojanovic, M.; Robinson, N.J.; Chen, X.; Sykora, R.E. Reduction of structural dimensionality through incorporation of auxillary ligands in lanthanide tetracyanoplatinates. Inorg. Chim. Acta 2011, 370, 513–518. [Google Scholar] [CrossRef]
  86. Ladner, L.; Ngo, T.; Crawford, C.; Assefa, Z.; Sykora, R.E. Solid-State Photoluminescence Sensitization of Tb3+ by Novel Au2Pt2 and Au2Pt4 Cyanide Clusters. Inorg. Chem. 2011, 50, 2199–2206. [Google Scholar] [CrossRef] [PubMed]
  87. Smith, P.A.; Crawford, C.; Beedoe, N.; Assefa, Z.; Sykora, R.E. Synthesis, Crystal Structures, and Dual Donor Luminescence Sensitization in Novel Terbium Tetracyanoplatinates. Inorg. Chem. 2012, 51, 12230–12241. [Google Scholar] [CrossRef] [PubMed]
  88. Robinson, N.J.; Smith, P.A.; Grant, S.; Whitehead, K.; Crawford, C.; Assefa, Z.; Sykora, R.E. Novel tetracyanoplatinates with the larger Ln3+ ions: Synthesis, structures, and photoluminescence properties of KLn[Pt(CN)4]2·8.75H2O (Ln = La, Pr, Nd). Inorg. Chim. Acta 2013, 394, 459–465. [Google Scholar] [CrossRef]
  89. Hulliger, F.; Landolt, M.; Vetsch, H. Rare-Earth Ferricyanides and Chromicyanides LnT(CN)6·nH2O. J. Solid State Chem. 1976, 18, 283–291. [Google Scholar] [CrossRef]
  90. Hulliger, F.; Landolt, M.; Vetsch, H. Rare-Earth Cobalticyanides LnCo(CN)6·nH2O. J. Solid State Chem. 1976, 18, 307–312. [Google Scholar] [CrossRef]
  91. Kunkely, H.; Vogler, A. Optical properties of GdIII[MIII(CN)6] with M=Cr and Co. Phosphorescence from ligand-field states of [M(CN)6]3− under ambient conditions. Inorg. Chem. Commun. 2004, 7, 770–772. [Google Scholar] [CrossRef]
  92. Kondo, N.; Yokoyama, A.; Kurihara, M.; Sakamoto, M.; Yamada, M.; Miyake, M.; Ohsuma, T.; Aono, H.; Sadaoka, Y. Florescent Property of Bulk- and Nanocrystals of Cyanide-bridged Eu(III)Co(III) Heteronuclear Coordination Polymer. Chem. Lett. 2004, 33, 1182–1183. [Google Scholar] [CrossRef]
  93. Zhou, X.; Duan, C.-K.; Tanner, P.A. Luminescence and crystal field analysis of Eu3+ in Eu[Co(CN)6]·4H2O. J. Phys. Chem. Solids 2007, 68, 1921–1925. [Google Scholar] [CrossRef]
  94. Lazarides, T.; Davies, G.M.; Adams, H.; Sabatini, C.; Barigelletti, F.; Barbieri, A.; Pope, S.J.A.; Faulkner, S.; Ward, M.D. Ligand-field excited states of hexacyanochromate and hexacyanocobaltate as sensitizers for near-infrared luminescence from Nd(III) and Yb(III) in cyanide-bridged d–f assemblies. Photochem. Photobiol. Sci. 2007, 6, 1152–1157. [Google Scholar] [CrossRef] [PubMed]
  95. Figuerola, A.; Diaz, C.; Ribas, J.; Tangoulis, V.; Granell, J.; Lloret, F.; Mahia, J.; Maestro, M. Synthesis and Characterization of Heterodinuclear Ln3+–Fe3+ and Ln3+–Co3+ Complexes, Bridged by Cyanide Ligand (Ln3+ = Lanthanide Ions). Nature of the Magnetic Interaction in the Ln3+–Fe3+ Complexes. Inorg. Chem. 2003, 42, 641–649. [Google Scholar] [CrossRef] [PubMed]
  96. Chorazy, S.; Rams, M.; Nakabayashi, K.; Sieklucka, B.; Ohkoshi, S. White Light Emissive DyIII Single-Molecule Magnets Sensititized by Diamagnetic [CoIII(CN)6]3− Linkers. Chem. Eur. J. 2016, 22, 7371–7375. [Google Scholar] [CrossRef] [PubMed]
  97. Chorazy, S.; Kumar, K.; Nakabayashi, K.; Sieklucka, B.; Ohkoshi, S. Fine Tuning of Multicolored Photoluminescence in Crystalline Magnetic Materials Constructed of Trimetallic EuxTb1-x[Co(CN)6] Cyanido-Bridged Chains. Inorg. Chem. 2017, 56, 5239–5252. [Google Scholar] [CrossRef] [PubMed]
  98. Chorazy, S.; Wang, J.; Ohkoshi, S. Yellow to greenish-blue colour-tunable photoluminescence and 4f-centered slow magnetic relaxation in a cyanido-bridged DyIII(4-hydroxypyridine)–CoIII layered material. Chem. Commun. 2016, 52, 10795–10798. [Google Scholar] [CrossRef] [PubMed]
  99. Chorazy, S.; Sieklucka, B.; Ohkoshi, S. Near-Infrared Photoluminescence in Hexacyanido-Bridged Nd–Cr Layered Ferromagnet. Cryst. Growth Des. 2016, 16, 4918–4925. [Google Scholar] [CrossRef]
  100. Chorazy, S.; Rams, M.; Wang, J.; Sieklucka, B.; Ohkoshi, S. Octahedral Yb(III) complexes embedded in [CoIII(CN)6]-bridged coordination chains: combining sensitized near-infrared fluorescence with slow magnetic relaxation. Dalton Trans. 2017, 46, 13668–13672. [Google Scholar] [CrossRef] [PubMed]
  101. Chelebaeva, E.; Larionova, J.; Guari, Y.; Ferreira, R.A.S.; Carlos, L.D.; Almeida Paz, F.A.; Trifonov, A.; Guerin, C. Luminescent and Magnetic Cyano-Bridged Coordination Polymers Containing 4d–4f Ions: Toward Multifunctional Materials. Inorg. Chem. 2009, 48, 5983–5995. [Google Scholar] [CrossRef] [PubMed]
  102. Chelebaeva, E.; Larionova, J.; Guari, Y.; Ferreira, R.A.S.; Carlos, L.D.; Almeida Paz, F.A.; Trifonov, A.; Guerin, C. A Luminescent and Magnetic Cyano-Bridged Tb3+–Mo5+ Coordination Polymer: toward Multifunctional Materials. Inorg. Chem. 2008, 47, 775–777. [Google Scholar] [CrossRef] [PubMed]
  103. Chelebaeva, E.; Long, J.; Larionova, J.; Ferreira, R.A.S.; Carlos, L.D.; Almeida Paz, F.A.; Gomes, J.B.R.; Trifonov, A.; Guerin, C.; Guari, Y. Bifunctional Mixed-Lanthanide Cyano-Bridged Coordination Polymers Ln0.5Ln’0.5(H2O)5[W(CN)8] (Ln/Ln’ = Eu3+/Tb3+, Eu3+/Gd3+, Tb3+/Sm3+). Inorg. Chem. 2012, 51, 9005–9016. [Google Scholar] [CrossRef] [PubMed]
  104. Long, J.; Chelebaeva, E.; Larionova, J.; Guari, Y.; Ferreira, R.A.S.; Carlos, L.D.; Almeida Paz, F.A.; Trifonov, A.; Guerin, C. Near-Infrared Luminescent and Magnetic Cyano-Bridged Coordination Polymers Nd(phen)n(DMF)m[M(CN)8] (M = Mo, W). Inorg. Chem. 2011, 50, 9924–9926. [Google Scholar] [CrossRef] [PubMed]
  105. Tanase, S.; Mittelmeijer-Hazeleger, M.C.; Rothenberg, G.; Mathoniere, C.; Jubera, V.; Smits, J.M.M.; de Gelder, R. A facile building-block synthesis of multifunctional lanthanide MOFs. J. Mater. Chem. 2011, 21, 15544–15551. [Google Scholar] [CrossRef]
  106. Gao, Y.; Jing, P.; Yan, N.; Hilbers, M.; Zhang, H.; Rothenberg, G.; Tanase, S. Dual-mode humidity detection using a lanthanide-based metal-organic framework: towards multifunctional humidity sensors. Chem. Commun. 2017, 53, 4465–4468. [Google Scholar] [CrossRef] [PubMed]
  107. Chorazy, S.; Nakabayashi, K.; Ozaki, N.; Pełka, R.; Fic, T.; Mlynarski, J.; Sieklucka, B.; Ohkoshi, S. Thermal switching between blue and red luminescence in magnetic chiral cyanido-bridged EuIII–WV coordination helices. RSC Adv. 2013, 3, 1065–1068. [Google Scholar] [CrossRef]
  108. Chorazy, S.; Nakabayashi, K.; Arczynski, M.; Pełka, R.; Ohkoshi, S.; Sieklucka, B. Multifunctionality in Bimetallic LnIII[WV(CN)8]3− (Ln = Gd, Nd) Coordination Helices: Optical Activity, Luminescence, and Magnetic Coupling. Chem. Eur. J. 2014, 20, 7144–7159. [Google Scholar] [CrossRef] [PubMed]
  109. Chorazy, S.; Nakabayashi, K.; Ohkoshi, S.; Sieklucka, B. Green to Red Luminescence Switchable by Excitation Light in Cyanido-Bridged TbIII–WV Ferromagnet. Chem. Mater. 2014, 26, 4072–4075. [Google Scholar] [CrossRef]
  110. Chorazy, S.; Arczynski, M.; Nakabayashi, K.; Sieklucka, B.; Ohkoshi, S. Visible to Near-Infrared Emission from LnIII(Bis-oxazoline)–[MoV(CN)8] (Ln = Ce–Yb) Magnetic Coordination Polymers Showing Unusual Lanthanide-Dependent Sliding of Cyanido-Bridged Layers. Inorg. Chem. 2015, 54, 4724–4736. [Google Scholar] [CrossRef] [PubMed]
  111. Miller, T.A.; Jeffery, J.C.; Ward, M.D.; Adams, H.; Pope, S.J.A.; Faulkner, S. Photoinduced Ru–Yb energy transfer and sensitized near-IR luminescence in a coordination polymer containing co-crystallised [Ru(bipy)(CN)4]2− and Yb(III) units. Dalton Trans. 2004, 10, 1524–1526. [Google Scholar] [CrossRef] [PubMed]
  112. Davies, G.M.; Pope, S.J.A.; Adams, H.; Faulkner, S.; Ward, M.D. Structural and Photphysical Properties of Coordination Networks Combining [Ru(bipy)(CN)4]2− Anions and Lanthanide(III) Cations: Rates of Photoinduced Ru-to-Lanthanide Energy Transfer and Sensitized Near-Infrared Luminescence. Inorg. Chem. 2005, 44, 4656–4665. [Google Scholar] [CrossRef] [PubMed]
  113. Herrera, J.-M.; Pope, S.J.A.; Adams, H.; Faulkner, S.; Ward, M.D. Structural and Photophysical Properties of Coordination Networks Combining [Ru(Bpym)(CN)4]2− or [{Ru(CN)4}2(μ-bpym)]4− Anions (bpym = 2,2’-Bipyrimidine) with Lanthanide(III) Cations: Sensitized Near-Infrared Luminescence from Yb(III), Nd(III), and Er(III) Following Ru-to-Lanthanide Energy Transfer. Inorg. Chem. 2006, 45, 3895–3904. [Google Scholar] [PubMed]
  114. Baca, S.G.; Adams, H.; Sykes, D.; Faulkner, S.; Ward, M.D. Three-component coordination networks based on [Ru(phen)(CN)4]2− anions, near-infrared luminescent lanthanide(III) cations, and ancillary oligopyridine ligands: structures and photophysical properties. Dalton Trans. 2007, 2419–2430. [Google Scholar] [CrossRef]
  115. Herrera, J.-M.; Ward, M.D.; Adams, H.; Poper, S.J.A.; Faulkner, S. Polynuclear cyanoruthenate chromophores based on hexaazatriphenylene containing up to twelve cyanides: photophysical and structural properties. Chem. Commun. 2006, 1851–1853. [Google Scholar] [CrossRef] [PubMed]
  116. Herrera, J.-M.; Pope, S.J.A.; Meijer, A.J.H.M.; Easun, T.L.; Adams, H.; Alsindi, W.Z.; Sun, X.-Z.; George, M.W.; Faulkner, S.; Ward, M.D. Photophysical and Structural Properties of Cyanoruthenate Complexes of Hexaazatriphenylene. J. Am. Chem. Soc. 2007, 129, 11491–11504. [Google Scholar] [CrossRef] [PubMed]
  117. Baca, S.G.; Pope, S.J.A.; Adams, H.; Ward, M.D. Cyanide-Bridged Os(II)/Ln(III) Coordination Networks Containing [Os(phen)(CN)4]2− as an Energy Donor: Structural and Photophysical Properties. Inorg. Chem. 2008, 47, 3736–3747. [Google Scholar] [CrossRef] [PubMed]
  118. Chow, C.-F.; Kong, H.-K.; Leung, S.-W.; Chiu, B.K.W.; Koo, C.-K.; Lei, E.N.Y.; Lam, M.H.W.; Wong, W.-T.; Wong, W.-Y. Heterobimetallic Ru(II)–Eu(III) Complex as Chemodosimeter for Selective Biogenic Amine Odorants Detection in Fish Sample. Anal. Chem. 2011, 83, 289–296. [Google Scholar] [CrossRef] [PubMed]
  119. Chow, C.-F.; Lam, M.H.W.; Wong, W.-Y. Design and Synthesis of Heterobimetallic Ru(II)–Ln(III) Complexes as Chemodosimetric Ensembles for the Detection of Biogenic Amine Odorants. Anal. Chem. 2013, 85, 8246–8253. [Google Scholar] [CrossRef] [PubMed]
  120. Shu, Y.-B.; Liu, W.-S. A lanthanide salen “square prism” and a wrapped exo-lanthanide salen “double-decker”. Dalton Trans. 2015, 44, 6353–6357. [Google Scholar] [CrossRef] [PubMed]
  121. Ali, N.M.; MacLeod, V.L.; Jennison, P.; Sazanovich, I.V.; Hunter, C.A.; Weinstein, J.A.; Ward, M.D. Luminescent cyanometallates based on phenylpyridine-Ir(III) units: solvatochromism, metallochromism, and energy transfer in Ir/Ln and Ir/Re complexes. Dalton Trans. 2012, 41, 2408–2419. [Google Scholar] [CrossRef] [PubMed]
  122. Falk, F.; Hackbarth, L.; Lochbrunner, S.; Marciniak, H.; Köckerling, M. Rare-Earth Tetracyanidoborate Salts – Structural Features and Properties Including Luminescence of [RE(H2O)8][B(CN)4]3·nH2O and [RE(H2O)71-N-B(CN)4}][B(CN)4]2 (RE = Y, Tb, Dy, Ho, Er, Tm, Yb, Lu; n ≤ 3). Eur. J. Inorg. Chem. 2016, 2016, 469–476. [Google Scholar] [CrossRef]
  123. Ribbeck, T.; Zottnick, S.H.; Kerpen, C.; Landmann, J.; Ignat’ev, N.V.; Müller-Buschbaum, K.; Finze, M. Anhydrous, Homoleptic Lanthanide Frameworks with the Pentafluoroethyltricyanoborate Anion. Inorg. Chem. 2017, 56, 2278–2286. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Crystal structure and optical properties of three-dimensional [LnIII(H2O)3][MI(CN)2]3 (Ln = La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy; M = Ag, Au) cyanido-bridged coordination polymers: (a) the views of the representative fragment of the structure together with the views of the whole network along a and c crystallographic directions, (b) the low-temperature (T = 20 K, λexc = 364 nm) pressure-dependent emission spectra of EuAu network, and the temperature-dependent emission spectra of TbAu compound (λexc = 350 nm). Colours for the structural diagrams: Ln, red; Ag/Au, dark blue; CN, blue; H2O, grey [57,58,60]. Reprinted with permission from Inorg. Chem. 1998, 37, 3209–3316. Copyright 1998 American Chemical Society. Reprinted with permission from Inorg. Chem. 2000, 39, 4527–4534. Copyright 2000 American Chemical Society.
Figure 1. Crystal structure and optical properties of three-dimensional [LnIII(H2O)3][MI(CN)2]3 (Ln = La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy; M = Ag, Au) cyanido-bridged coordination polymers: (a) the views of the representative fragment of the structure together with the views of the whole network along a and c crystallographic directions, (b) the low-temperature (T = 20 K, λexc = 364 nm) pressure-dependent emission spectra of EuAu network, and the temperature-dependent emission spectra of TbAu compound (λexc = 350 nm). Colours for the structural diagrams: Ln, red; Ag/Au, dark blue; CN, blue; H2O, grey [57,58,60]. Reprinted with permission from Inorg. Chem. 1998, 37, 3209–3316. Copyright 1998 American Chemical Society. Reprinted with permission from Inorg. Chem. 2000, 39, 4527–4534. Copyright 2000 American Chemical Society.
Molecules 22 01902 g001
Figure 2. Crystal structure and optical properties of cyanido-bridged (nBu4N)2[LnIII(NO3)4][AuI(CN)2] (Ln = Ce, Nd, Sm, Gd, Eu, Tb, Dy) chains: (a) the views of the single coordination chain, and the arrangement of chains, (b) the multi-coloured lanthanide-dependent emission of LnAu chains together with the related photos under UV light (top), and the multi-coloured temperature- and excitation-dependent emission of Ce0.33Eu0.17Tb0.5Au chains together with the photo under UV light, all presented on the CIE 1931 chromaticity diagram. Colours for the structural diagrams: Ln, red; Au, dark blue; CN, blue; NO3 and nBu4N+, orange [67,69]. Reprinted with permission from Inorg. Chem. 2017, 56, 7948–7959. Copyright 2017 American Chemical Society.
Figure 2. Crystal structure and optical properties of cyanido-bridged (nBu4N)2[LnIII(NO3)4][AuI(CN)2] (Ln = Ce, Nd, Sm, Gd, Eu, Tb, Dy) chains: (a) the views of the single coordination chain, and the arrangement of chains, (b) the multi-coloured lanthanide-dependent emission of LnAu chains together with the related photos under UV light (top), and the multi-coloured temperature- and excitation-dependent emission of Ce0.33Eu0.17Tb0.5Au chains together with the photo under UV light, all presented on the CIE 1931 chromaticity diagram. Colours for the structural diagrams: Ln, red; Au, dark blue; CN, blue; NO3 and nBu4N+, orange [67,69]. Reprinted with permission from Inorg. Chem. 2017, 56, 7948–7959. Copyright 2017 American Chemical Society.
Molecules 22 01902 g002
Figure 3. Crystal structure and optical properties of [LnIII(H2O)6]2[PtII(CN)4]·2{PtII(CN)4}·9H2O (Ln = La–Lu) layered cyanido-bridged networks: (a) the views of the single coordination layer, and the arrangement of the layers and the interlayer [PtII(CN)4]2− counterions, (b) the polarization- and lanthanide-dependent emission spectra of SmPt, EuPt and the related reference BaPt networks (T = 80 K, λexc = 364 nm). Colours for the structural diagrams: Ln, red; Pt, dark blue; CN, blue; H2O, grey; Pt-Pt interaction, dark blue stick [74,77]. Adapted from J. Chem. Phys. 1978, 68, 4707–4713, with the permission of AIP Publishing.
Figure 3. Crystal structure and optical properties of [LnIII(H2O)6]2[PtII(CN)4]·2{PtII(CN)4}·9H2O (Ln = La–Lu) layered cyanido-bridged networks: (a) the views of the single coordination layer, and the arrangement of the layers and the interlayer [PtII(CN)4]2− counterions, (b) the polarization- and lanthanide-dependent emission spectra of SmPt, EuPt and the related reference BaPt networks (T = 80 K, λexc = 364 nm). Colours for the structural diagrams: Ln, red; Pt, dark blue; CN, blue; H2O, grey; Pt-Pt interaction, dark blue stick [74,77]. Adapted from J. Chem. Phys. 1978, 68, 4707–4713, with the permission of AIP Publishing.
Molecules 22 01902 g003
Figure 4. Crystal structure and optical properties of [LnIII(terpy)(H2O)2(NO3)][PtII(CN)4n(solvent) (Ln = Eu, Tb; terpy = 2,2’:6’2”-terpyridine) cyanido-bridged chains: (a) the views of the single coordination chain, and the arrangement of chains, (b) the low temperature (T = 77 K) excitation-variable emission spectra for EuPt and TbPt compounds, with the related excitation spectra shown for TbPt. Colours for the structural diagram: Ln, red; Pt, dark blue; CN, blue; terpy, orange; NO3 and H2O, grey. [81,87] Reprinted with permission from Inorg. Chem. 2008, 47, 1895–1897. Copyright 2008 American Chemical Society. Reprinted with permission from Inorg. Chem. 2012, 51, 12230–12241. Copyright 2012 American Chemical Society.
Figure 4. Crystal structure and optical properties of [LnIII(terpy)(H2O)2(NO3)][PtII(CN)4n(solvent) (Ln = Eu, Tb; terpy = 2,2’:6’2”-terpyridine) cyanido-bridged chains: (a) the views of the single coordination chain, and the arrangement of chains, (b) the low temperature (T = 77 K) excitation-variable emission spectra for EuPt and TbPt compounds, with the related excitation spectra shown for TbPt. Colours for the structural diagram: Ln, red; Pt, dark blue; CN, blue; terpy, orange; NO3 and H2O, grey. [81,87] Reprinted with permission from Inorg. Chem. 2008, 47, 1895–1897. Copyright 2008 American Chemical Society. Reprinted with permission from Inorg. Chem. 2012, 51, 12230–12241. Copyright 2012 American Chemical Society.
Molecules 22 01902 g004

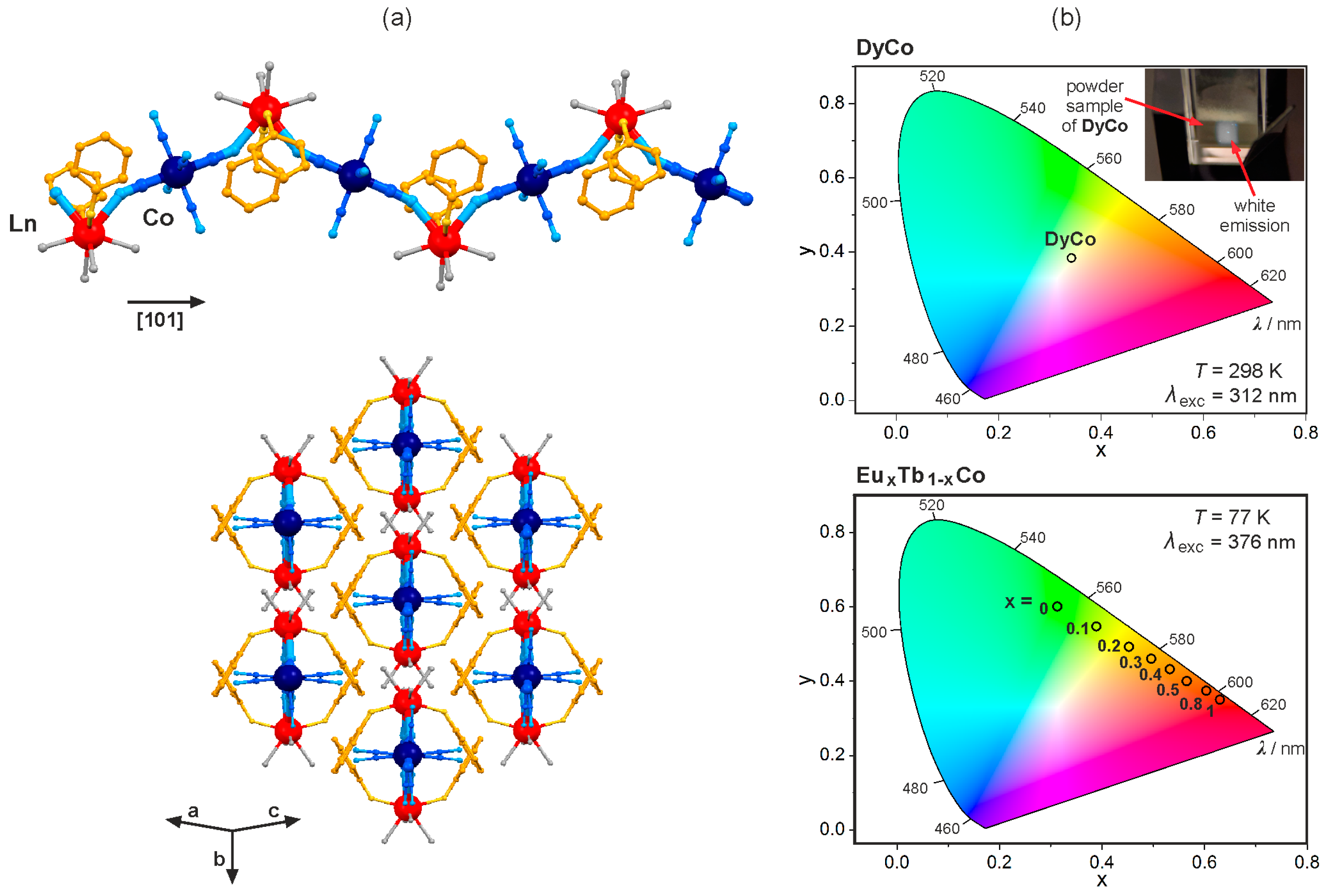

Figure 5. Crystal structure and optical properties of [LnIII(3-OHpy)2(H2O)4][CoIII(CN)6]·H2O (Ln = Eu, Tb, Dy; 3-OHpy = 3-hydroxypyridine) cyanido-bridged chains: (a) the views of the coordination chain, and the arrangement of chains; (b) the white light emission of DyCo chains and the related photo (top), the multi-coloured composition-dependent emission of EuxTb1-Co (bottom), all shown on the CIE 1931 chromaticity diagram. Colours for the structural diagram: Ln, red; W, dark blue; CN, blue; 3-OHpy, orange; H2O, grey [96,97].
Figure 5. Crystal structure and optical properties of [LnIII(3-OHpy)2(H2O)4][CoIII(CN)6]·H2O (Ln = Eu, Tb, Dy; 3-OHpy = 3-hydroxypyridine) cyanido-bridged chains: (a) the views of the coordination chain, and the arrangement of chains; (b) the white light emission of DyCo chains and the related photo (top), the multi-coloured composition-dependent emission of EuxTb1-Co (bottom), all shown on the CIE 1931 chromaticity diagram. Colours for the structural diagram: Ln, red; W, dark blue; CN, blue; 3-OHpy, orange; H2O, grey [96,97].
Molecules 22 01902 g005

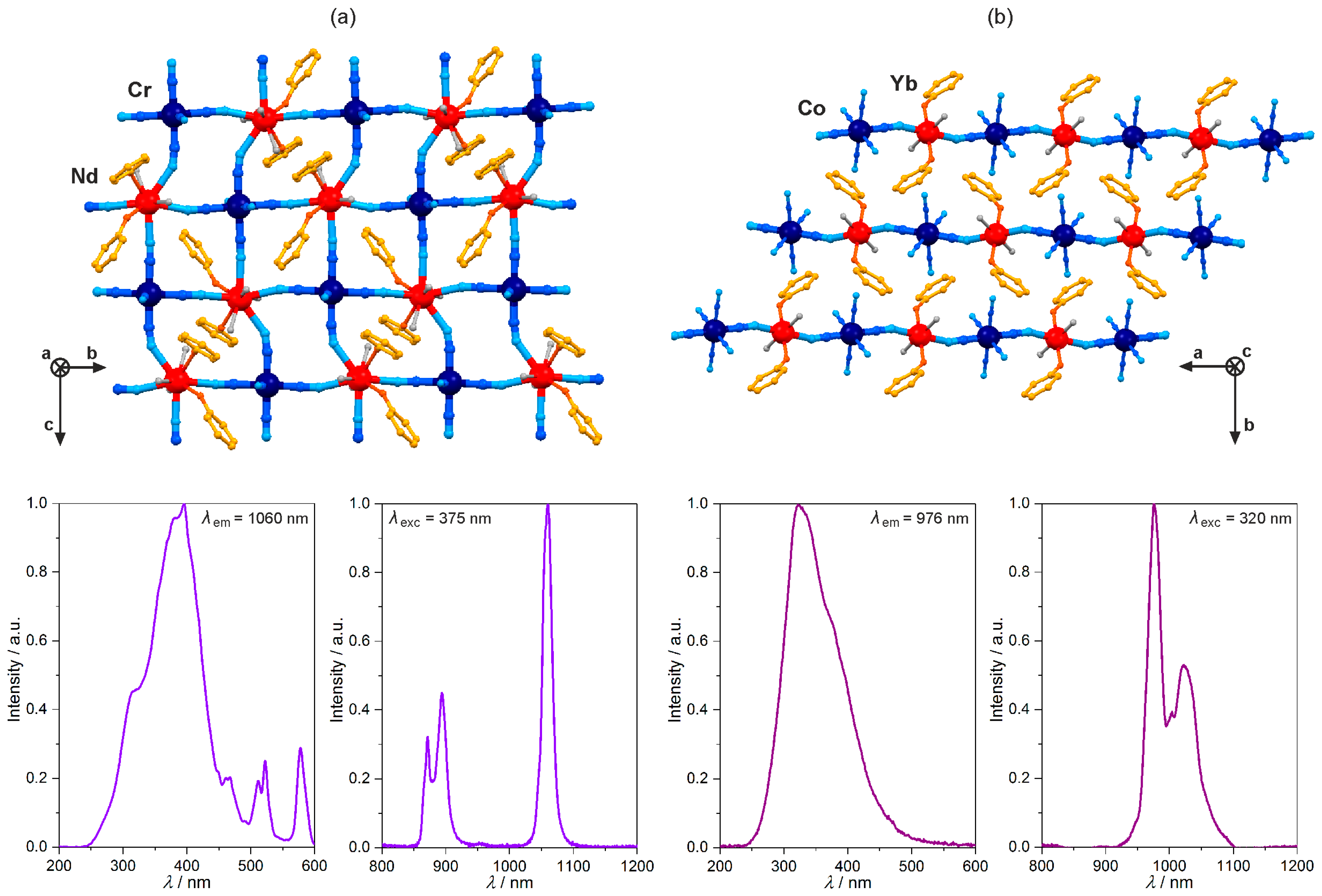

Figure 6. Crystal structure and optical properties of near-infrared (NIR)-emitting cyanido-bridged [NdIII(pmmo)2 (H2O)3][CrIII(CN)6] (a) (pmmo = pyrimidine N-oxide) and [YbIII(3-pyone)2(H2O)2][CoIII(CN)6] (b) (3-pyone = 3-pyridone) coordination polymers. The top part of the figure shows the respective coordination skeletons of square grid layers (a) and nearly linear chains (b), while the bottom part presents the room temperature excitation and NIR-emission spectra under the indicated wavelength conditions. Colours for the structural diagrams: Nd/Yb, red; Co/Cr, dark blue; CN, blue; pmmo/3-pyone, orange; H2O, grey [99,100].
Figure 6. Crystal structure and optical properties of near-infrared (NIR)-emitting cyanido-bridged [NdIII(pmmo)2 (H2O)3][CrIII(CN)6] (a) (pmmo = pyrimidine N-oxide) and [YbIII(3-pyone)2(H2O)2][CoIII(CN)6] (b) (3-pyone = 3-pyridone) coordination polymers. The top part of the figure shows the respective coordination skeletons of square grid layers (a) and nearly linear chains (b), while the bottom part presents the room temperature excitation and NIR-emission spectra under the indicated wavelength conditions. Colours for the structural diagrams: Nd/Yb, red; Co/Cr, dark blue; CN, blue; pmmo/3-pyone, orange; H2O, grey [99,100].
Molecules 22 01902 g006

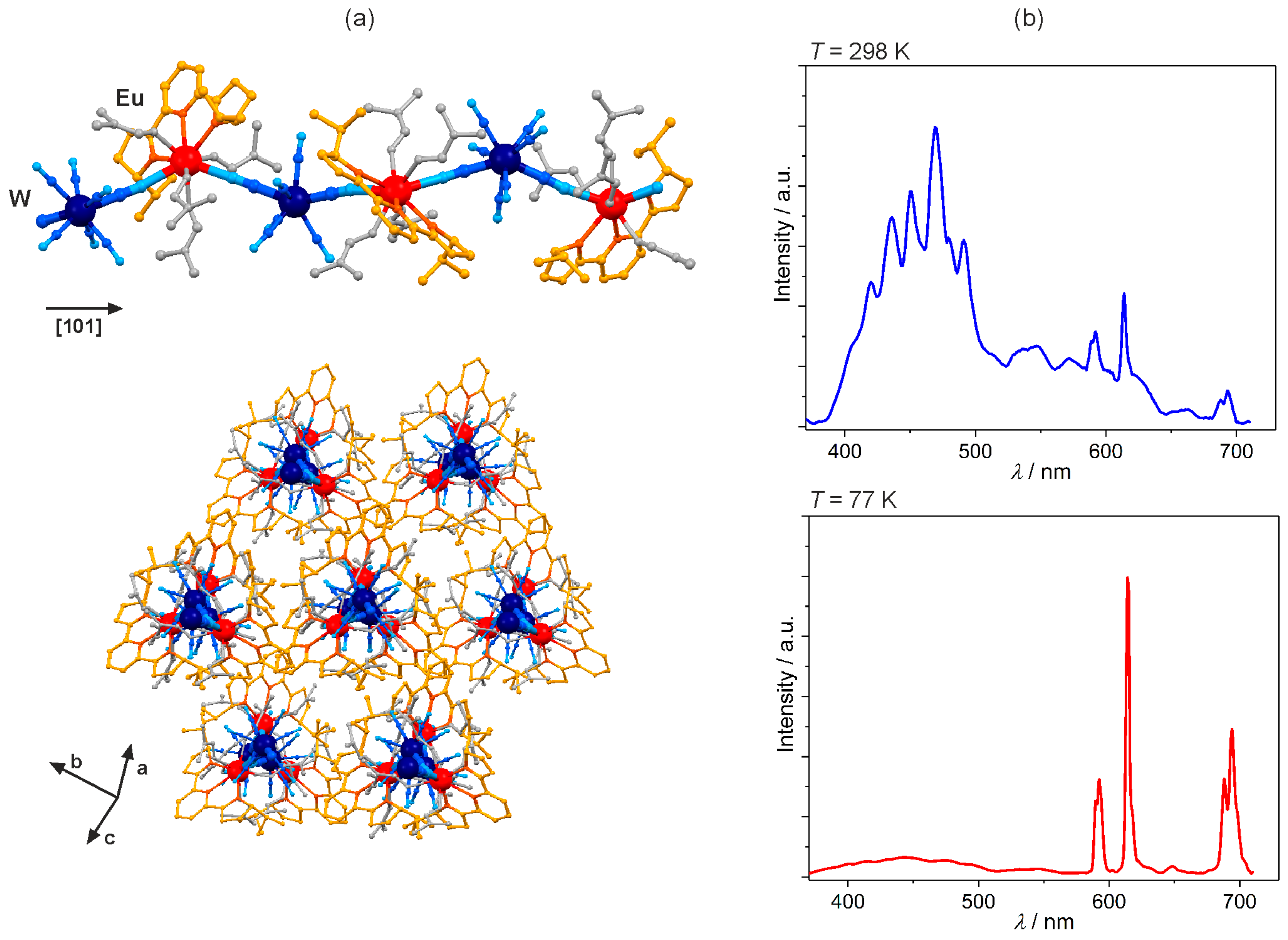

Figure 7. Crystal structure and optical properties of chiral [EuIII(RR-iPr-pybox)(dmf)4][WV(CN)8]·dmf·8H2O (RR-iPr-pybox = RR-2,2’-(2,6-pyridinediyl)bis(4-isopropyl-2-oxazoline)) cyanido-bridged chains: (a) the views of the single chiral helical chain, and the arrangement of chains, (b) the temperature-dependent emission spectra collected under the UV light excitation of 340 nm. Colours for the structural diagram: Eu, red; W, dark blue; CN, blue; RR-iPr-pybox, orange; dmf, grey [107].
Figure 7. Crystal structure and optical properties of chiral [EuIII(RR-iPr-pybox)(dmf)4][WV(CN)8]·dmf·8H2O (RR-iPr-pybox = RR-2,2’-(2,6-pyridinediyl)bis(4-isopropyl-2-oxazoline)) cyanido-bridged chains: (a) the views of the single chiral helical chain, and the arrangement of chains, (b) the temperature-dependent emission spectra collected under the UV light excitation of 340 nm. Colours for the structural diagram: Eu, red; W, dark blue; CN, blue; RR-iPr-pybox, orange; dmf, grey [107].
Molecules 22 01902 g007

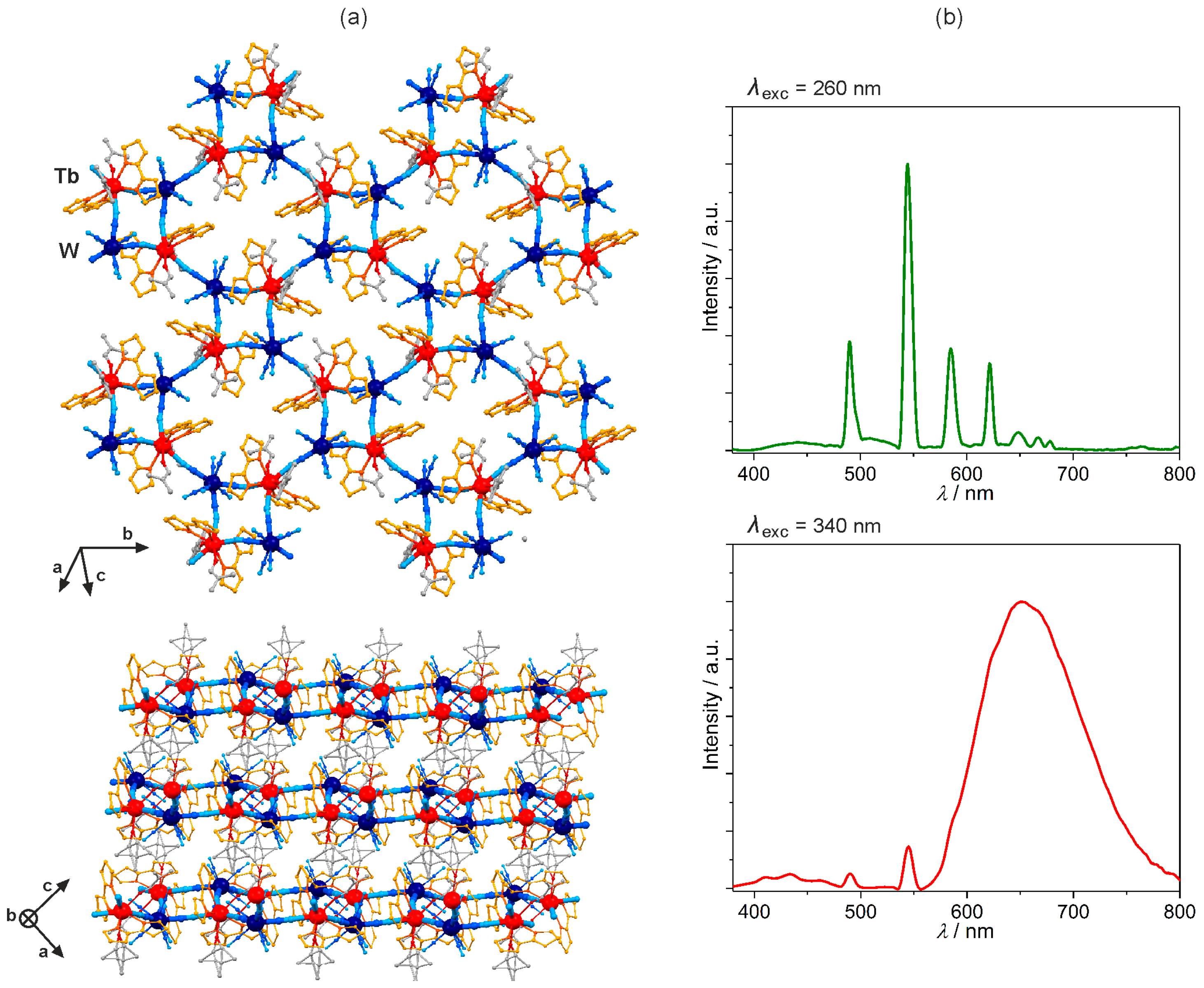

Figure 8. Crystal structure and optical properties of two-dimensional [TbIII(box)2(dmf)2] [WV(CN)8]·H2O (box = 2,2’-bis(2-oxazoline)) coordination polymers: (a) the views of the single cyanido-bridged layer, and the arrangement of layers, (b) the excitation-dependent emission spectra collected at T = 77 K. Colours for the structural diagram: Tb, red; W, dark blue; CN, blue; box, orange; dmf, grey [109].
Figure 8. Crystal structure and optical properties of two-dimensional [TbIII(box)2(dmf)2] [WV(CN)8]·H2O (box = 2,2’-bis(2-oxazoline)) coordination polymers: (a) the views of the single cyanido-bridged layer, and the arrangement of layers, (b) the excitation-dependent emission spectra collected at T = 77 K. Colours for the structural diagram: Tb, red; W, dark blue; CN, blue; box, orange; dmf, grey [109].
Molecules 22 01902 g008

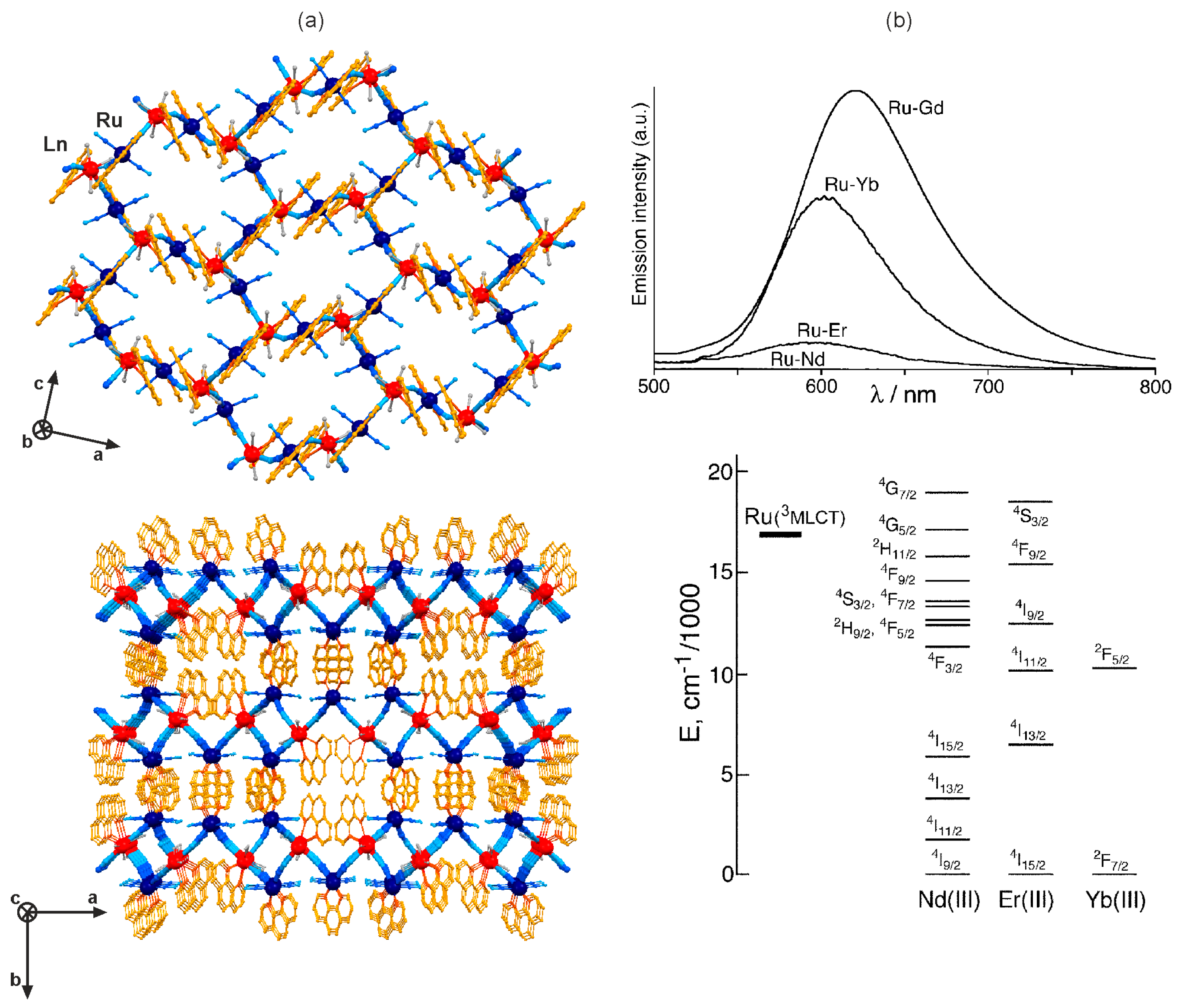

Figure 9. Crystal structure and optical properties of two-dimensional [LnIII(phen)(H2O)3]2 [RuII(phen)(CN)4]·14H2O (Ln = Nd, Gd, Er, Yb; phen = 1,10-phenanthroline) coordination polymers: (a) the views of the cyanido-bridged layer, and the arrangement of layers, (b) the lanthanide- dependent room temperature emission spectra in the visible range together with the related energy level diagram. Colours for the structural diagram: Ln, red; Ru, dark blue; CN, blue; phen, orange; H2O, grey. Adapted from Ref. [114] with permission from The Royal Society of Chemistry.
Figure 9. Crystal structure and optical properties of two-dimensional [LnIII(phen)(H2O)3]2 [RuII(phen)(CN)4]·14H2O (Ln = Nd, Gd, Er, Yb; phen = 1,10-phenanthroline) coordination polymers: (a) the views of the cyanido-bridged layer, and the arrangement of layers, (b) the lanthanide- dependent room temperature emission spectra in the visible range together with the related energy level diagram. Colours for the structural diagram: Ln, red; Ru, dark blue; CN, blue; phen, orange; H2O, grey. Adapted from Ref. [114] with permission from The Royal Society of Chemistry.
Molecules 22 01902 g009
Figure 10. Crystal structure and optical properties of three-dimensional [LnIII(H2O)4]2 [{RuII(CN)4}3(HAT)]·13H2O4 (Ln = Nd, Gd, Yb; HAT = hexaazatriphenylene) coordination networks: (a) the view of the whole network along the b crystallographic direction, and the detailed view of the layered fragment of the 3D network situated within the (101) plane, (b) the lanthanide-dependent room temperature emission spectra in the visible range. Colours for the structural diagram: Ln, red; Ru, dark blue; CN, blue; HAT, orange; H2O, grey [116]. Reprinted with permission from J. Am. Chem. Soc. 2007, 129, 11491–11504. Copyright 2007 American Chemical Society.
Figure 10. Crystal structure and optical properties of three-dimensional [LnIII(H2O)4]2 [{RuII(CN)4}3(HAT)]·13H2O4 (Ln = Nd, Gd, Yb; HAT = hexaazatriphenylene) coordination networks: (a) the view of the whole network along the b crystallographic direction, and the detailed view of the layered fragment of the 3D network situated within the (101) plane, (b) the lanthanide-dependent room temperature emission spectra in the visible range. Colours for the structural diagram: Ln, red; Ru, dark blue; CN, blue; HAT, orange; H2O, grey [116]. Reprinted with permission from J. Am. Chem. Soc. 2007, 129, 11491–11504. Copyright 2007 American Chemical Society.
Molecules 22 01902 g010
Figure 11. Crystal structure and optical properties of supramolecular [ErIIICuII2(L1)2(Cl)2][CuI4(CN)5(MeCN)4] (L1 = N,N’-ethylene bis[4-(ethylamino)salicylideneimine anion) network: (a) the structural views of two main components, including the fragment of the cyanido-bridged CuI-based layer and the {ErIIICuI2} molecule, and their arrangement in the supramolecular network, (b) the room temperature excitation and emission spectra of the reference cyanide-free {ErIII2(H2L)4} molecule (black and purple lines), and the presented supramolecular network (red and light purple lines). Colours for the structural diagram: Er, red; Cu, dark blue; CN−, blue; L1, orange; Cl−, light green. Adapted from Ref. [120] with permission from The Royal Society of Chemistry.
Figure 11. Crystal structure and optical properties of supramolecular [ErIIICuII2(L1)2(Cl)2][CuI4(CN)5(MeCN)4] (L1 = N,N’-ethylene bis[4-(ethylamino)salicylideneimine anion) network: (a) the structural views of two main components, including the fragment of the cyanido-bridged CuI-based layer and the {ErIIICuI2} molecule, and their arrangement in the supramolecular network, (b) the room temperature excitation and emission spectra of the reference cyanide-free {ErIII2(H2L)4} molecule (black and purple lines), and the presented supramolecular network (red and light purple lines). Colours for the structural diagram: Er, red; Cu, dark blue; CN−, blue; L1, orange; Cl−, light green. Adapted from Ref. [120] with permission from The Royal Society of Chemistry.
Molecules 22 01902 g011
Figure 12. Crystal structure and optical properties of two-dimensional [LnIII{C2F5B(CN)3}3(H2O)3](Ln = La, Eu, Ho) coordination polymer (a,c), and the related anhydrous three-dimensional [LnIII{C2F5B(CN)3] (Ln = La, Eu, Ho) coordination network (b,c): (a) the views of the single layer, and the arrangement of layers, (b) the views of the 3D cyanido-bridged network along c and b crystallographic axes, (c) the room temperature excitation and emission spectra of the 2D LnB layer (solid lines), and 3D LnB network (dotted lines). Colours for the structural diagram: Ln, red; B, dark blue; CN, blue; C2F5, orange; H2O, grey [123]. Reprinted with permission from Inorg. Chem. 2017, 56, 2278–2286. Copyright 2017 American Chemical Society.
Figure 12. Crystal structure and optical properties of two-dimensional [LnIII{C2F5B(CN)3}3(H2O)3](Ln = La, Eu, Ho) coordination polymer (a,c), and the related anhydrous three-dimensional [LnIII{C2F5B(CN)3] (Ln = La, Eu, Ho) coordination network (b,c): (a) the views of the single layer, and the arrangement of layers, (b) the views of the 3D cyanido-bridged network along c and b crystallographic axes, (c) the room temperature excitation and emission spectra of the 2D LnB layer (solid lines), and 3D LnB network (dotted lines). Colours for the structural diagram: Ln, red; B, dark blue; CN, blue; C2F5, orange; H2O, grey [123]. Reprinted with permission from Inorg. Chem. 2017, 56, 2278–2286. Copyright 2017 American Chemical Society.
Molecules 22 01902 g012
Table 1. Photoluminescent dicyanidometallate-based compounds containing lanthanide ions.
Table 1. Photoluminescent dicyanidometallate-based compounds containing lanthanide ions.
CompoundStructural Type 1Luminescent PropertyRef.
[LnIII(H2O)3][MI(CN)2]3 (Ln = La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy; M = Ag, Au)3D networkVisible Ln3+ (Pr, Eu, Tb, Dy) emission with pressure- and temperature-dependent [M(CN)2] -to-Ln3+ ET.2 UV-Vis pressure- and temperature- tunable emission of [M(CN)2] (MLCT) 3 for LnM (Ln = La, Nd, Gd). UV-Vis mixed Ln3+ (Ce, Sm) and [Au(CN)2] emission.[55,56,57,58,59,60,61,62,63,64,65,66,67,68,69]
(nBu4N)2[LnIII(NO3)4][AuI(CN)2] (Ln = Ce, Nd, Sm, Gd, Eu, Tb, Dy)1D zig-zag chainUV-violet [Au(CN)2] emission for NdAu and GdAu. Excitation- and composition- tunable visible [Au(CN)2] and Ln3+ (Sm, Eu, Tb, Dy) emission in LnAu. UV-violet Ce3+ emission in CeAu.[67,68,69,70]
[LnIII(terpy)(H2O)(NO3)2][AuI(CN)2] 4 (Ln = Sm, Eu, Gd, Tb, Dy, Ho, Er, Yb)0D dinuclear moleculeVisible Ln3+ (Sm, Eu, Tb, Dy) and green [AuI(CN)2] emission with terpy-to-Ln3+ and partial [Au(CN)2] -to-Ln3+ ET. Mixed green [Au(CN)2] and red terpy-based emission in GdAu.[71,72]
[LnIII(bbp)2][AuI(CN)2]3·2MeCN 5 (Ln = Eu, Gd)0D tetranuclear moleculeRed Eu3+ (EuAu) emission with bbp-to-Ln3+ ET. Mixed violet [Au(CN)2] and green bbp emission in GdAu.[73]
[LnIII(bbp)(NO3)2][AuI(CN)2]·MeCN (Ln = Eu, Gd, Tb)1D linear chainGreen Tb3+ (GdAu) or red Eu3+ (EuAu) emission with bbp-to-Ln3+ ET. Green bbp-based emission in GdAu.[73]
1 cyanido-bridged skeleton, excluding the Ag–Ag or Au–Au short contacts; 2 ET = energy transfer; 3 MLCT = metal-to-ligand charge transfer; 4 terpy = 2,2’:6’2”-terpyridine; 5 bbp = bis(benzimidazole)pyridine.
Table 2. Photoluminescent tetracyanidometallate-based compounds containing lanthanide ions.
Table 2. Photoluminescent tetracyanidometallate-based compounds containing lanthanide ions.
CompoundStructural Type 1Luminescent PropertyRef.
[LnIII(H2O)6]2[PtII(CN)4]·2{PtII(CN)4}·9H2O (Ln = La–Lu)2D 6-membered metal ringsVisible polarization-dependent emission from 1D [Pt(CN)4]2− stacks (MMLCT) 2.[74,75,76]
[LnIII2(H2O)11][PtII(CN)4]·2{PtII(CN)4}·10H2O (Ln = Sm, Eu)2D 6-membered metal ringsPolarization-dependent green to orange emission from 1D [Pt(CN)4]2− stacks. Red Eu3+ (EuPt) or Sm3+ (SmPt) emission with temperature- and pressure-dependent [Pt(CN)4]2−-to-Ln3+ ET.3[74,77,78,79]
[ErIII(H2O)5(SO4)]2[PtII(CN)4]·{PtII(CN)4}·1.5H2O2D 6-membered metal ringsPolarization-dependent green to orange emission from 1D [Pt(CN)4]2− stacks.[74]
[LnIII(tpp)(dmf)n]2[MII(CN)4] 4 (Ln = Er, Yb; M = Ni, Pd, Pt)0D trinuclear moleculeRed tpp, and NIR Er3+ (ErM) or Yb3+ (YbM) emission.[80]
[EuIII(terpy)(H2O)2(NO3)][PtII(CN)4]·MeCN 51D zig-zag chainRed Eu3+ emission with terpy-to-Eu3+ and [Pt(CN)4]2−-to-Eu3+ ET.[81,82]
[EuIII(terpy)(H2O)3]2[PtII(CN)4]3·2H2O1D ladder chainRed Eu3+ emission with terpy-to-Eu3+ and [Pt(CN)4]2−-to-Eu3+ ET.[82]
[EuIII(terpy)(H2O)2(CH3COO)2]2·{PtII(CN)4}·3H2O0D ionic saltRed Eu3+ emission with terpy-to-Eu3+ ET; additional emission from [Pt(CN)4]2−.[82]
[EuIII(dmf)2(terpy)(H2O)2(NO3)]·{PtII(CN)4} 60D ionic saltRed Eu3+ emission with terpy-to-Eu3+ ET; additional emission from [Pt(CN)4]2−.[83]
[LnIII(dmso)4(H2O)3][MII(CN)4]·0.5{MII(CN)4}·2H2O 7 (Ln = Eu, Tb; M = Pd, Pt)0D ionic saltRed Eu3+ (EuM) or green Tb3+ (TbM) emission with direct f-f excitation.[84]
[LnIII(dmso)2(phen)(H2O)3]2[PtII(CN)4]·2{PtII(CN)4}·2(phen)·4H2O 8 (Ln = Eu, Tb, Yb)0D trinuclear moleculeRed Eu3+ (EuPt) or green Tb3+ (TbPt) emission with phen-to-Ln3+ ET.[85]
[LnIII(dmf)3(phen)(H2O)2(NO3)]·{PtII(CN)4} (Ln = La, Eu, Tb)0D ionic saltRed Eu3+ (EuPt) or green Tb3+ (TbPt) emission with phen-to-Ln3+ ET.[85]
[LnIII(dmf)3(2,2’-bpy)(H2O)2(NO3)]·{PtII(CN)4} 9 (Ln = La, Sm, Eu, Tb)0D ionic saltRed Eu3+ (EuPt) or green Tb3+ (TbPt) emission with 2,2’-bpy-to-Ln3+ ET.[85]
K2[TbIII(H2O)4][PtII(CN)4]2·{AuI(CN)2}·2H2O2D 8-membered metal ringsGreen Tb3+ emission with {Au2Pt4}-to-Tb3+ ET; additional weak blue {Au2Pt4} emission.[86]
[TbIII(2,2’-bpy)(H2O)4][PtII(CN)4][AuI(CN)2]·1.5(2,2’-bpy)·2H2O0D trinuclear moleculeGreen Tb3+ emission with {Au2Pt2}-to-Tb3+ ET; additional weak violet 2,2’-bpy emission.[86]
[TbIII(terpy)(H2O)2(NO3)][PtII(CN)4n(solvent)1D zig-zag chainGreen Tb3+ emission with terpy-to-Tb3+ ET; additional blue [Pt(CN)4]2− emission.[87]
[TbIII(terpyCl)(H2O)2(NO3)][PtII(CN)4]·2.5H2O 101D zig-zag chainGreen Tb3+ emission with terpyCl-to-Tb3+ ET; additional blue [Pt(CN)4]2− emission.[87]
[TbIII(terpy)(H2O)2(CH3COO)2]2·{PtII(CN)4}·4H2O0D ionic saltGreen Tb3+ emission with terpy-to-Tb3+ and CH3COO-to-Tb3+ ET.[87]
[TbIII2(terpy)2(H2O)2(CH3COO)5]·{PtII(CN)4}·7H2O0D ionic saltGreen Tb3+ emission with terpy-to-Tb3+ and CH3COO-to-Tb3+ ET.[87]
K[LnIII(H2O)6]2[PtII(CN)4]3·{PtII(CN)4}·5.5H2O (Ln = La, Pr, Nd)2D honeycombGreen emission from 1D [Pt(CN)4]2− stacks (MMLCT).[88]
1 cyanido-bridged skeleton, excluding the Pt–Pt and the analogus M–M short contacts; 2 MMLCT = metal-metal-to-ligand charge transfer; 3 ET = energy transfer; 4 terpy = 2,2’:6’2”-terpyridine; 5 tpp = tetraphenylporphyrinate dianion; 6 dmf = N,N-dimethylformamide; 7 dmso = dimethylsulfoxide; 8 phen = 1,10-phenanthroline; 9 2,2’-bpy = 2,2’-bipyridine; 10 terpyCl = 4’-chloro-2,2’:6’2”-terpyridine.
Table 3. Photoluminescent hexacyanidometallate-based compounds containing lanthanide ions.
Table 3. Photoluminescent hexacyanidometallate-based compounds containing lanthanide ions.
CompoundStructural TypeLuminescent PropertyRef.
[GdIII(H2O)2][MIII(CN)6]·2H2O (M = Cr, Co)3D networkRed Co3+(GdCo) or NIR Cr3+ (GdCr) emission.[89,90,91]
[EuIII(H2O)2][CoIII(CN)6]·2H2O3D networkRed Eu3+ emission with Co3+-to-Eu3+ ET 1.[92,93]
[LnIII(dmf)4(H2O)2][CrIII(CN)6nH2O (Ln = Nd, Gd, Yb) 21D chainNIR Nd3+ (NdCr) or Yb3+ (YbCr) emission with Cr3+-to-Nd3+ and Cr3+-to-Yb3+ ET; NIR Cr3+ emission (GdCr).[94]
[LnIII(dmf)4(H2O)3][CoIII(CN)6nH2O (Ln = Nd, Gd, Yb)20D dinuclear moleculeNIR Nd3+ (NdCo) or Yb3+ (YbCo) emission with Co3+-to-Nd3+ and Co3+-to-Yb3+ ET; red Co3+ emission (GdCo).[94,95]
[DyIII(3-OHpy)2(H2O)4][CoIII(CN)6]·H2O 31D zig-zag chainWhite light Dy3+ emission with direct f-f excitation, Co3+-to-Dy3+ and 3-OHpy-to-Dy3+ ET.[96]
[EuIIIxTbIII1-x(3-OHpy)2(H2O)4][CoIII(CN)6]·H2O31D zig-zag chainExcitation and Eu/Tb ratio switching from red Eu3+ to green Tb3+ emission with Co3+-to-Ln3+ ET.[97]
[DyIII(4-OHpy)2(H2O)3][CoIII(CN)6]·0.5H2O 42D 6-membered metal ringsExcitation switching from yellow Dy3+ emission with Co3+-to-Dy3+ ET, to greenish- blue 4-OHpy emission.[98]
[NdIII(pmmo)2(H2O)3][CrIII(CN)6] 52D square gridNIR Nd3+ emission with Cr3+-to-Nd3+ and pmmo-to-Nd3+ ET.[99]
[YbIII(3-pyone)2(H2O)2][CoIII(CN)6] 61D chainNIR Yb3+ emission with Co3+-to-Yb3+ and 3-pyone-to-Yb3+ ET.[100]
1 ET = energy transfer; 2 dmf = N,N-dimethylformamide; 3 3-OHpy = 3-hydroxypyridine; 4 4-OHpy = 4-hydroxypyridine; 5 pmmo = pyrimidine N-oxide; 6 3-pyone = 3-pyridone.
Table 4. Photoluminescent octacyanidometallate-based compounds containing lanthanide ions.
Table 4. Photoluminescent octacyanidometallate-based compounds containing lanthanide ions.
CompoundStructural typeLuminescent propertyRef.
[EuIII(H2O)5][MV(CN)8] (M = Mo, W)2D square gridRed Eu3+ emission with O-Eu (EuMo) or O-W (EuW) LMCT1 and direct f-f excitation.[101]
[TbIII(H2O)5][MV(CN)8] (M = Mo, W)2D square gridGreen Tb3+ emission with Tb-based f-d and f-f excitation.[101,102]
[EuIII0.5GdIII0.5(H2O)5][WV(CN)8]2D square gridRed Eu3+ emission with dominant LMCT (O-Eu or W-related) excitation.[103]
[EuIII0.5TbIII0.5(H2O)5][WV(CN)8]2D square gridRed Eu3+ and green Tb3+ emission with LMCT (O-Eu or W-related) excitation and additional Tb3+-to-Eu3+ ET.2[103]
[SmIII0.5TbIII0.5(H2O)5][WV(CN)8]2D square gridGreen Tb3+ emission with Tb-based f-d and f-f excitation.[103]
[NdIII(phen)2(dmf)2(H2O)][MoV(CN)8]·2H2O3,41D chainNIR Nd3+ emission with phen-to-Nd3+ ET.[104]
[NdIII(phen)(dmf)5][MV(CN)8xH2O (M = Mo, W)1D chainNIR Nd3+ emission with direct f-f excitation, phen-to-Nd3+ ET.[104]
[LnIII2(mpca)2(MeOH)2(H2O)6][MoIV(CN)8xMeOH5 (Ln = Nd, Eu, Tb)3D hybrid I2O1 networkRed Eu3+ (EuMo), green Tb3+ (TbMo) and NIR Nd3+ emission with mpca-to-Ln3+ ET, and humidity-dependent intensity of Eu3+ emission.[105,106]
[EuIII(iPr-pybox)(dmf)4][WV(CN)8]·dmf·8H2O61D helical chainThermal switching between red Eu3+ and blue iPr-pybox emission.[107]
[LnIII(iPr-pybox)(dmf)4][WV(CN)8]·dmf·4H2O (Ln = Nd, Gd)1D helical chainNIR Nd3+ emission with pybox-to-Nd3+ ET(NdW); red iPr-pybox emission (GdW).[108]
[LnIII(ind-pybox)(dmf)4][WV(CN)8]·5MeCN·4MeOH7 (Ln = Nd, Gd)1D helical chainNIR Nd3+ emission with direct f-f excitation and pybox-to-Nd3+ ET (NdW); red ind-pybox emission (GdW).[109]
[TbIII(box)2(dmf)2][WV(CN)8]·H2O82D mixed 4- and 8-membered metal ringsExcitation switching between green Tb3+ and red box emission.[109]
[LnIII(box)n(dmf)m][MoV(CN)8x(solvent) (Ln = Ce–Dy, n = 2, m = 2; Ln = Ho–Yb, n = 1, m = 3)2D mixed 4- and 8-membered metal ringsVisible Ln3+(Pr, Sm, Eu, Ho) or NIR Ln3+ (Pr, Nd, Sm, Ho, Yb) emission with direct f-f excitation and box-to-Ln3+ ET.[110]
1 LMCT = ligand-to-metal charge transfer; 2 ET = energy transfer; 3 phen = 1,10-phenanthroline; 4 dmf = N,N-dimethylformamide; 5 mpca = 5-methyl-2-pyrazine carboxylic acid; 6 iPr-pybox = (SS)- or (RR)-2,2’-(2,6-pyridinediyl)bis(4-isopropyl-2-oxazoline); 7 ind-pybox = (SRSR)- or (RSRS)-2,6-bis[8H-indeno[1,2-d]oxazolin-2-yl]pyridine; 8 box = 2,2’-bis(2-oxazoline).
Table 5. Photoluminescent coordination compounds containing lanthanide ions and heteroligand tetracyanidometallates.
Table 5. Photoluminescent coordination compounds containing lanthanide ions and heteroligand tetracyanidometallates.
CompoundStructural typeLuminescent propertyRef.
K[LnIII(H2O)n][RuII(2,2’-bpy)(CN)4]2·9H2O1 (n = 7, Ln = Pr; n = 6, Ln = Er, Yb)0D trinuclear moleculeNIR Ln3+ (Ln = Pr, Er, Yb) emission with Ru2+-to-Ln3+ ET.2[111,112]
[LnIII(H2O)4]2[RuII(2,2’-bpy)(CN)4]3·nH2O (Ln = Gd, Nd)2D mixed 4- and 12-membered metal ringsNIR Nd3+ emission (NdRu) with Ru2+-to-Nd3+ ET. Yellow [Ru(2,2’-bpy)(CN)4]2− emission in GdRu (MLCT).3[112]
[LnIII(H2O)5(NO3)][RuII(bpym)(CN)4]5 (Ln = Nd, Sm, Gd)1D helical chainNIR Nd3+ emission (NdRu) with Ru2+-to-Nd3+ ET. Red [Ru(bpym)(CN)4]2− emission in GdRu (MLCT).[113]
[LnIII2(H2O)7.5(NO3)1.5][RuII(bpym)(CN)4]2·5.5H2O (Ln = Er, Yb)2D cross-linked square-based chainsNIR Ln3+ (Ln = Er, Yb) emission with Ru2+-to-Ln3+ ET.[113]
[LnIII(H2O)5(NO3)]2[{RuII(CN)4}2 (bpym)]·3H2O (Ln = Nd, Sm)1D hybrid ladder chainNIR Nd3+ emission in NdRu with Ru2+-to-Nd3+ ET.[113]
[LnIII1.5(H2O)7][{RuII(CN)4}2(bpym)]·(NO3nH2O (Ln = Eu, Gd, Yb)3D hybrid I2O1 networkNIR Yb3+ emission (YbRu) with Ru2+-to-Yb3+ ET. Red [{RuII(CN)4}2(bpym)]4− emission in GdRu (MLCT).[113]
K2[LnIII(phen)2(H2O)]2[RuII(phen)(CN)4]4·n(solvent)6 (Ln = Pr, Nd, Er, Yb)0D hexanuclearNIR Ln3+ (Ln = Nd, Er, Yb) emission with Ru2+-to-Ln3+ ET.[114]
[LnIII(phen)(H2O)3]2[RuII(phen)(CN)4]·14H2O (Ln = Nd, Gd, Er, Yb)2D honeycombNIR Ln3+ (Ln = Nd, Er, Yb) emission with Ru2+-to-Ln3+ ET. Red [Ru(phen)(CN)4]2− emission in GdRu (MLCT).[114]
[LnIII(terpy)(H2O)3]2[RuII(phen)(CN)4]3·nH2O7 (Ln = Pr, Nd, Er, Yb)1D ladder chainNIR Ln3+ (Ln = Nd, Er, Yb) emission with Ru2+-to-Ln3+ ET.[114]
[LnIII2(bpym)(H2O)7][RuII(phen)(CN)4]3·nsolvent (Ln = Nd, Er, Yb)1D hybrid chain of squaresNIR Ln3+ (Ln = Nd, Er, Yb) emission with Ru2+-to-Ln3+ ET.[114]
[NdIII(H2O)5]2[{RuII(CN)4}3(HAT)]·13H2O43D pillared networkNIR Nd3+ emission with Ru2+-to-Nd3+ ET.[115]
[LnIII(H2O)5]2[RuII(HAT)(CN)4nH2O (Ln = Nd, Sm, Eu, Gd)2D hybrid of 12-membered metal ringsNIR Nd3+ emission (NdRu) with Ru2+-to-Nd3+ ET. Red [Ru(bpym)(CN)4]2− emission in GdRu (MLCT).[116]
[YbIII2(H2O)9(NO3)2][RuII(HAT)(CN)4]·2(NO3)·6.5H2O1D ladder chainNIR Yb3+ emission with Ru2+-to-Yb3+ ET.[116]
[YbIII3(H2O)2(NO3)][{RuII(CN)4}2(HAT)]2·20H2O2D hybrid 6-membered metal ringsNIR Yb3+ emission with Ru2+-to-Yb3+ ET.[116]
[LnIII(H2O)4]2[{RuII(CN)4}3(HAT)]·13H2O4 (Ln = Nd, Gd, Yb)3D pillared networkNIR Ln3+ (Ln = Nd, Yb) emission with Ru2+-to-Ln3+ ET.[116]
[GdIII(H2O)4(MeOH)][OsII(phen)(CN)4]1.5·4H2O2D 12-membered metal ringsRed [Os(phen)(CN)4]2− emission (MLCT).[117]
Na2[LnIII(phen)2(H2O)]2[OsII(phen)(CN)4]4·4MeOH·17H2O (Ln = Pr, Nd, Er, Yb)0D hexanuclearNIR Ln3+ (Ln = Nd, Er, Yb) emission with Os2+-to-Ln3+ ET.[117]
[LnIII2(bpym)(H2O)7][OsII(phen)(CN)4]3·MeOH·13H2O (Ln = Er, Yb)1D hybrid chain of squaresNIR Ln3+ (Ln = Er, Yb) emission with Os2+-to-Ln3+ ET.[117]
[NdIII4(bpym)2(H2O)12(MeOH)] [OsII(phen)(CN)4]6·6MeOH·19.5H2O2D mixed 3-, 4-, 6-, and 14-membered metal ringsNIR Nd3+ emission with Os2+-to-Nd3+ ET. Red[117]
K[LnIII(H2O)4][RuII(tBubpy)(CN)4]2·8H2O8 (Ln = Pr, Nd, Sm, Eu)1D chain of squaresOrange [Ru(tBubpy)(CN)4]2− emission (MLCT); selective sensitization by gaseous amine molecules.[118,119]
1 2,2’-bpy = 2,2’-bipyridine; 2 ET = energy transfer; 3 MLCT = metal-to-ligand charge transfer; 4 HAT = hexaazatriphenylene; 5 bpym = 2,2’-bipyrimidine; 6 phen = 1,10 = phenanthroline; 7 terpy = 2,2’:6’2”-terpyridine; 8 tBubpy = 4,4’-di-tert-butyl-2,2’-bipyridine.
Table 6. Photoluminescent coordination compounds composed of lanthanide ions and other cyanide-containing building blocks.
Table 6. Photoluminescent coordination compounds composed of lanthanide ions and other cyanide-containing building blocks.
CompoundStructural typeLuminescent propertyRef.
[ErIIICuII2(L1)2(Cl)2][CuI4(CN)5(MeCN)4]12D Cu-cyanide 10-membered metal rings, and trinuclear {ErCu2}+ counterionsNIR Er3+ emission under the visible excitation.[120]
[LnIII(H2O)2(MeCN)(NO3)2]2[IrIII(ppy)2(CN)2]2·4MeCN2 (Ln = La, Pr, Nd)0D tetranuclear moleculeGreen [IrIII(ppy)2(CN)2] emission in NdIr, weakened by partial Ir3+-to-Nd3+ ET.3 [121]
{N(PPh3)2}2[EuIII2(H2O)(NO3)6][IrIII(ppy)2(CN)2]2·5MeCN0D tetranuclear moleculeGreen [IrIII(ppy)2(CN)2] emission, weakened by partial Ir3+-to-Eu3+ ET.3[121]
[GdIII(NO3)2(H2O)2]2[IrIII(ppy)2(CN)2]20D tetranuclear moleculeGreen [IrIII(ppy)2(CN)2] emission.[121]
[LnIII(H2O)7][B(CN)4]·2{B(CN)4} (Ln = Tb, Dy)0D dinuclear moleculeGreen Tb3+ (TbB) or yellow Dy3+ (DyB) emission under direct f-f, and f-d excitations.[122]
[LnIII{C2F5B(CN)3}3(H2O)3] (Ln = La, Eu, Ho)2D cross-linked square-based chainsRed Eu3+ emission in EuB with [C2F5B(CN)3]-to-Eu3+ energy transfer.[123]
[LnIII{C2F5B(CN)3}] (Ln = La, Eu, Ho)3D networkGreenish-blue [C2F5B(CN)3] emission in LaB and HoB with reabsorption effect in HoB. Red Eu3+ emission in EuB EuB with [C2F5B(CN)3]-to-Eu3+ energy transfer.[123]
1 L1 = N,N’-ethylene bis[4-(ethylamino)salicylideneimine] anion; 2 ppy = anion of 2-phenylpyridine; 3 ET = energy transfer.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
