Molecules 2017, 22(10), 1628; doi:10.3390/molecules22101628

Article
Ionic Liquid-Catalyzed Green Protocol for Multi-Component Synthesis of Dihydropyrano[2,3-c]pyrazoles as Potential Anticancer Scaffolds
Urja D. Nimbalkar 1, Julio A. Seijas 2Orcid, Maria Pilar Vazquez-Tato 2, Manoj G. Damale 3, Jaiprakash N. Sangshetti 4 and Anna Pratima G. Nikalje 4,*
1
Maulana Azad Post Graduate and Research Centre, Dr. Rafiq Zakaria Campus, Rauza Baug, Aurangabad 431001, India
2
Departamento de Química Orgánica, Facultad de Ciencias, Universidad of Santiago de Compostela, Alfonso X el Sabio, 27002 Lugo, Spain
3
Shreeyash Institute of Pharmaceutical Education and Research, Aurangabad 431010, India
4
Y.B. Chavan College of Pharmacy, Dr. Rafiq Zakaria Campus, Rauza Baug, Aurangabad 431001, India
*
Correspondence: Tel.: +91-9168929111
Received: 1 August 2017 / Accepted: 24 September 2017 / Published: 28 September 2017

Abstract

:
A series of 6-amino-4-substituted-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles 5aj were synthesized via one-pot, four-component condensation reactions of aryl aldehydes 1aj, propanedinitrile (2), hydrazine hydrate (3) and ethyl acetoacetate (4) under solvent-free conditions. We report herein the use of the Brønsted acid ionic liquid (BAIL) triethylammonium hydrogen sulphate [Et3NH][HSO4] as catalyst for this multi-component synthesis. Compared with the available reaction methodology, this new method has consistent advantages, including excellent yields, a short reaction time, mild reaction conditions and catalyst reusability. Selected synthesized derivatives were evaluated for in vitro anticancer activity against four human cancer cell lines viz. melanoma cancer cell line (SK-MEL-2), breast cancer cell line(MDA-MB-231), leukemia cancer cell line (K-562) and cervical cancer cell line (HeLa). Compounds 5b, 5d, 5g, 5h and 5j exhibited promising anticancer activity against all selected human cancer cell lines, except HeLa. Molecular docking studies also confirmed 5b and 5d as good lead molecules. An in silico ADMET study of the synthesized anticancer agents indicated good oral drug-like behavior and non-toxic nature.
Keywords:
ionic liquid; multi-component synthesis; dihydropyrano[2,3-c]pyrazoles; anticancer activity; ADMET prediction; molecular docking study

1. Introduction

According to data from the World Health Organization (WHO), more than 13% of all deaths worldwide are directly caused by cancer every year, making cancer one of the most public-threatening diseases [1,2]. As per the annual report of the U.S. NIH on the status of cancer from 1975–2014, though cancer death rates continue to decrease in the United States, even then, progress in reducing death rates and improving survival is limited for several cancer types, underscoring the need for intensified efforts to discover new strategies for its prevention, early detection and treatment and to apply proven preventive measures broadly and equitably. This necessitates continued cancer drug discovery efforts [3]. Chemotherapy is still the main treatment for cancer and existing chemotherapeutic agents are accompanied by various detrimental side effects. This clearly motivates the crucial need to design novel chemotherapeutic agents with more compelling antitumor activities and reduced side effects. Pyrazoles are an important class of heterocycles exhibiting numerous biological activities and a widely studied scaffold for their anticancer activity, especially on the human cancer cell lines SK-MEL-2, MDA-MB-231, K-562 and HeLa [4,5,6,7,8,9,10]. It has been proven by many studies that pyranopyrazoles obtained by coupling pyran rings with pyrazoles have importance for their potential to show numerous biological activities [11,12,13,14], including anticancer activity [15,16,17,18,19]. Hadi Adibi et al. [20] reported the in vitro anticancer activity of pyaranopyrazoles against human liver carcinoma (HepG2), human mouth carcinoma (KB), human colon adenocarcinoma (SW48), and human lung carcinoma (A549) cell lines. Mona Kamel [21] reported in vitro anticancer activity against human gastric cancer (NUGC), human colon cancer (DLD1), human liver cancer (HA22T and HEPG2), nasopharyngeal carcinoma (HONE1), and human breast cancer (MCF). However, our literature survey indicated that the potential in vitro anticancer activity of pyranopyazoles against SK-MEL-2, MDA-MB-231, K-562 and HeLa had not yet explored for, therefore, the above cell lines were selected for anticancer evaluation. In continuation of our search for green synthesis methods for novel heterocycles as anticancer agents [22,23,24] we report herein the ionic liquid-assisted multi-component synthesis of ten dihydropyrano[2,3-c]pyrazoles derivatives. The research protocol was designed taking into consideration the existing anticancer drugs containing a pyrazole ring as an important pharmacophore. In this research work the pyrazole ring was coupled with 6-amino-2H-pyran-5-carbonitrile. Thus, the designed structure contains coupled important pharmacophores like pyrazoles, pyrans, amino groups and nitrile groups. These coupled synthesized derivatives have exhibited excellent in vitro anticancer activity. The design protocol is given in Figure 1.
Synthesis of dihydropyrano[2,3-c]pyrazoles can be achieved by various methodologies. Several catalysts including trimethylamine [25,26,27], piperazine [28], piperidine [29], N-methylmorpholine [30], heteropolyacids [31], glycine [32], per-6-amino-β-cyclodextrin [33], Mg/Al hydrotalcite [34], nanosized magnesium oxide [35], L-proline [36], γ-alumina [37], sodium benzoate [38], Amberlyst A21 [39] and CTACl [40], [Bmim]BF4 [41], PS-PTSA [42], urea [43] and ethanol and water (1:1) [44] are reported in the literature. Ionic liquids have gained importance as green solvent for organic transformations [45,46,47] due to their special properties, including good solvating capability, negligible vapor pressure, non-inflammable, ease of recyclability, controlled miscibility and high thermal stability [48,49]. Use of the Brønsted acid ionic liquid (BAIL) triethylammonium hydrogen sulphate ([Et3NH][HSO4] [50,51,52,53,54,55,56,57,58,59,60] as a catalyst should be advantageous due to its non-toxic nature, low cost, easy preparation from readily available starting materials, stability in water and air, easy separation and reusability [61,62].
In the area of synthetic organic chemistry, multi-component reactions between three or more components in one pot to give new ‘drug-like’ molecules with the essential parts of all the initial reactants represent a time honored efficient and prominent tool. Multi-component reactions offer significant advantages such as variety of convergent synthesis of complex organic compounds, facile mechanism, atom economy, low cost, shorter reaction and work-up time, easy purification processes and minimum wastage that all contribute to an environmentally friendly method of synthesis of simple and complex building blocks [63,64]. In continuation to our earlier efforts [65] studying ionic liquid-assisted synthesis, herein we report multi-component reactions for the synthesis of 6-amino-4-substituted-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles 5aj giving excellent yields using the ionic liquid [Et3NH][HSO4] as a catalyst as well as the reaction medium. Numerous classes of heterocycles such as pyrazoles, chromones, indolines, stilbene derivatives have exhibited anticancer activity and their potential was evaluated against human cancer cell lines viz. melanoma (SK-MEL-2), breast cancer (MDA-MB-231), leukemia (K-562) and cervical cancer (HeLa) cell lines. Their molecular basis of inhibition was determined by docking against tubulin in place of co-crystallized ligand molecule. In the present study, the synthesized compounds were evaluated for in vitro anticancer activity by the SRB assay against the four aforementioned human cancer cell lines using Adriamycin (ADR) as a standard reference drug and based on this assumption the synthesized compounds were docked in the active site of tubulin to find a possible mode of inhibition.

2. Results

2.1. Chemistry

All the final 6-amino-4-substituted-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile compounds 5aj were synthesized following the procedure depicted in Scheme 1. All the reactants were added in one pot in equimolar ratios starting with a substituted aromatic aldehydes 1aj (1 mmol), propanedinitrile (2, 1 mmol), hydrazine hydrate (3, 1 mmol) and ethylacetoacetate (4, 1 mmol) in 20 mol % ionicl iquid [Et3NH][HSO4] as a reaction catalyst as well as the reaction medium and the mixture was stirred at room temperature for 15 min. After completion of the reaction, which was followed by TLC analysis, the reaction was quenched with crushed ice and the mixture extracted with ethyl acetate. The obtained products 5aj were recrystallized from ethanol and the corresponding target compounds 5aj were obtained in good yields, as mentioned in Table S4, provided in the Supplementary File. The structures of the final products were confirmed on the basis of their respective analytical and spectral data. Spectra of the synthesized compounds are provided in the Supplementary Data, File S: 1. The drawn structures of each of the final compounds 5aj along with their IUPAC names are given in Supplementary Data, File S: 5.
Taking into consideration the significance of green chemistry, efforts were directed towards the use of all green reaction media. The model reaction was performed separately in various green solvents viz. (1) polyethylene glycol, (2) deep eutectic solvent of choline chloride: urea [66], (3) the ionic liquid N-methyl pyridiniumtosylate [67] and (4) the ionic liquid triethylammonium hydrogen sulfate [Et3NH][HSO4] [68].
For the selection of reaction medium and optimization of the reaction temperature and time of completion of the reactions, the model reaction was carried out in four sets with four green reaction media containing four components in one pot using p-chlorobenzaldehyde (1b) propanedinitrile (2), hydrazine hydrate (3) and ethylacetoacetate (4) as the reactants. The temperature required for each set of reactions, completion time and percent yield of product 5b varies in each set as indicated in Table 1. The ionic liquid triethylammonium hydrogen sulphate ([Et3NH][HSO4]) was found to be the most suitable medium for the synthesis. Its use facilitated the reaction without the use of hazardous solvents, higher temperature, convetional refluxing method and gave the maximum yield amongst the tested solvents as shown in the Table 1.
Without the use of solvent/catalyst, noproduct formation was observed. Therefore, the catalyst [Et3NH][HSO4], was added in a model reaction in gradually increasing amounts to determine the optimum concentration of the selected ionic liquid.
With different concentrations of [Et3NH][HSO4], viz., 0, 5, 10, 15, 20 and 25 mol % 6-amino-4-(4-chlorophenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile 5b was obtained in 0%, 50%, 65%, 70%, 94% and 85% yield, respectively, as shown in Table 2. A concentration of 20 mol % of [Et3NH][HSO4] was thus optimal for the reaction and hence it is selected for the synthesis of further derivatives of the series 5aj.
After completion of the reaction, the reusability of the residual ionic liquid was determined by washing it with diethyl ether and drying under vacuum at 60 °C. The recovered ionic liquid could be used for at least four times without much loss of catalytic activity, as shown in Table 3.
Thus, the multi-component, one pot condensations of 6-amino-4-(substituted phenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile were successfully completed using 20 mol % of the Brønsted acid ionic liquid [Et3NH][HSO4], as a catalyst and also as a green medium at room temperature for 15 min with excellent yield.
A plausible mechanism for the ionic liquid-catalyzed synthesis of the 2,4-dihydropyrano[2,3-c]pyrazoles is shown in Figure 2. The Brønsted acid ionic liquid triethylammonium hydrogen sulphate increases the electrophilicity of the carbonyl carbon of the aromatic aldehydes 1aj. The conjugate base of the ionic liquid abstracts a proton from the active methylene group of propanedinitrile (2) to form a carbanion.
This carbanion attacks the electrophilic carbonyl carbon of the aromatic aldehydes in a Knoevenagel condensation reaction to give benzylidenepropanedinitrile as an intermediate. Hydrazine hydrate (3) and ethylacetoacetate (4) undergoes an acid-catalyzed condensation to give a pyrazolone. Michael addition between the pyrazolone and benzylidenepropanedinitrile followed by an acid-catalyzed intramolecular cyclization gives the final 6-amino-4-(substituted phenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile products 5aj.

2.2. In Vitro Anticancer Activity

The in vitro anticancer activities of the 6-amino-4-(substituted phenyl)-3-methyl-2,4-dihydro-pyrano[2,3-c]pyrazole-5-carbonitrile derivatives were examined against four human cancer cell lines, representing tumors of different origin. Each cell line melanoma (SK-MEL-2), breast (MDA-MB-231), leukemia (K-562) and cervix (HeLa) was incubated in culture medium with varying concentrations of the compounds and the effect was measured by a SRB assay, using the anticancer drug ADR as positive control. The GI50 values obtained with the selected cell lines are summarized in Table 4. The synthesized derivatives exhibited excellent anticancer activity against the tested cell lines except for the HeLa cell line. Compound 5b has shown most potent anticancer activity, followed by 5d.
In the in vitro anticancer activity, on the basis of results of growth inhibition curve plotted against molar concentration of synthesized derivatives for each selected cancer cell lines and the images of in vitro anticancer activity data are provided in Supplementary Data, File S2: In vitro anticancer activity images and File S3: Graphical representation of growth inhibition curve.

2.3. Molecular Docking

In order to explore the binding affinity, binding mode and molecular interactions of the synthesized derivatives a molecular docking study was carried out. Tubulin α/β heterodimer represents an important drug target in breast cancer [69]. Tubulin heterodimers of α- and β-tubulin (50 kDa each in size) are the basic structural components of microtubules which are hollow tubes of approximately 25 nm in diameter. Microtubules are cytoskeletal polymers involved in many cell functions such as mitosis, organization of intracellular structure and intracellular transport, as well as ciliary and flagellar motility. α,β dimer in relation to the polarity of the microtubule lattice displays β-tubulin monomer at the plus end and the α-tubulin is exposed at the minus end. In humans, there are six α-tubulin isotypes of and seven β-tubulin isotypes, and the level of expression of each isotype varies in different tissues and cells [70,71,72]. Of course, tubulin-binding drugs have different affinities for different isotypes, which affects the overall efficacy in different cancers. There are many chemically diverse compounds that bind to the tubulin–microtubule system. Tubulin-binding agents are potent mitotic poisons [73,74]. To perform our molecular docking study a three dimensional X-ray crystal structure of tubulin complex with colchicine (PDB ID: 1SA0) and a stathmin-like domain was used [75]. The docking study was carried out using the Surflex-Dock module of the Sybyl 2.1.1 package following the standard procedure.
To present the details of the docking scores shown in Table 4 the following terms are used: (a) total score as a total docking score; (b) crash score as degree of inappropriate penetration by the ligand into the protein and of interpenetration between ligand atoms that are separated by rotatable bonds of compounds; (c) polar score gives an idea about the contribution of the polar non-hydrogen bonding interactions to the total score.
All the synthesized compounds that were evaluated for anticancer activity on the cell lines have shown very good total docking scores, indicating the binding interactions in the active site and affinity of compounds and the target protein. The compounds that showed high cell toxicity indicated by their GI50 values on the cell lines all had very high total docking scores, polar scores and low crash scores indicating non-covalent interactions such as hydrogen bond interactions and π interactions [76].
The detailed analysis of binding affinity (−logki) values and the molecular interactions of dihydropyrano[2,3-c]pyrazole derivatives such as 5b (6.4039) and 5d (5.4734) suggests that they are the most active among all the synthesized derivatives and compared with the reference co-crystallized ligand CL2. The compounds 5g, 5h and 5j had weak potential cytotoxicity indicated by low total docking scores, polar scores and high crash scores. The most active dihydropyrano[2,3-c]pyrazole derivatives 5b and 5d have shown efficient binding mode and penetration of the active site cavity by forming hydrogen bond interactions with active site residues such as ASP111, TYR113, LYS114,SER153 and CME166 as shown in Figure 3a,b. The most active derivative 5b interacts with active site residue ASP111 and SER153 forming hydrogen bond interactions with the -NH2 groups of the dihydropyrano moiety with a distance of 2.03 Å and 2.77 Å, respectively. The amino acids LYS114 and CME166 formed hydrogen bonds with the cyano group and pyrazole nitrogen with distances of 2.33 Å and 2.33 Å, respectively. The hydrophobic amino acid TYR113 formed π interactions, π-π stacked and π-alkyl interactions with the chlorosubstituent and the aryl ring. The second most active dihydropyrano[2,3-c]pyrazole derivative 5d (5.4734) formed hydrogen bonds and π interactions with amino acids such as GLU33, ALA35, TYR64 CME166 and ASP167. On the basis of GI50 activity data and molecular docking analysis, it was found that the dihydropyrano[2,3-c]pyrazole derivatives 5b and 5d have the potential to inhibit enzyme tubulin α/β.

2.4. Prediction of ADMET Properties

An in silico ADMET study was performed to evaluate the pharmacokinetics and safety potential of the synthesized dihydropyrano[2,3-c]pyrazole derivative 5aj. To predict the ADMET properties the ADMET predictor FAFDrugs2 which runs on Linux OS was used. This tool is freely available and used for in silico ADMET filtering [77,78]. In particular, we have calculated the compliance of synthesized compounds to Lipinski’s Rule of Five [79].
This approach has been widely used as a filter for lead molecules that could be further developed for drug design programs. We have assessed parameters like molecular percent absorption (%ABS < 100), weight (MW < 500), partition coefficient (logP < 5), number of rotatable bonds (<10), number of rigid bonds (<25) and ratio of H/C (<1). All the above mentioned parameters indicate the oral bio-availability and good intestinal absorption [80]. The values obtained are listed in Table 5.
Topological polar surface area (TPSA) i.e., the surface of any polar atoms, and molecular weight are the descriptors that are correlated with passive molecular transport through membranes that allows prediction of the route of transport of drugs through the barrier membranes in the intestine and blood-brain barrier (BBB). The percentage of absorption (% ABS) was calculated using TPSA by using the formula % ABS = 109 − (0.345 × TPSA) [81]. All the synthesized compounds exhibited a very good % ABS, ranging from 62.93% to 78.64%. The values of partition coefficient (logP < 5), number of rotatable bonds (<10), number of rigid bonds (<25) and ratio of H/C (<1) determine the absorption performance through the lipophilic phospholipid membranes and toxicity. None of the dihydropyrano[2,3-c]pyrazole derivatives 5a–j violated Lipinski’s Rule of Five. All the dihydropyrano[2,3-c]pyrazole derivatives thus have the potential to be developed as an orally active drug candidate and could be potentially active anticancer drug candidates against the tested SK-MEL-2 melanoma cancer cell line, K-562 leukemia cell line and MAD-MB-321 breast cancer cell line.

3. Discussion

The results indicated that out of the ten synthesized derivatives compound 5b, 5d, 5h, 5g and 5j exhibited significant cancer cell growth inhibition against the SK-MEL-2, MDA-MB-231 and K-562 cancer cell lines. Compound 5b, which has chlorine as an electron-donating group at the para position of the phenyl ring exhibited excellent in vitro anticancer activity against the SK-MEL-2, MDA-MB-231 and K-562 cell line with GI50 concentrations of <0.1 µM, 0.74 µM and 11.20 µM, respectively. Compound 5d bearing a strong electron-donating and lipophilic methoxy group at the para position of the phenyl ring also exhibited excellent anticancer activity against the melanoma, leukemia and breast cancer cell lines, with GI50 concentrations of <0.1 µM, 6.41 µM and 25.76 µM, respectively. Compound 5g which bears two lipophilic and electron-donating methoxy groups at the meta and para positions of the phenyl ring, however showed moderate activity against the breast cancer, melanoma and leukemia cell lines, with GI50 concentrations of 2.02 µM, 2.92 µM and 40.73 µM, respectively, which may be due to the steric hindrance of the large substituent. Compound 5h having a strong electron-withdrawing nitro group at the meta position of the phenyl ring also exhibited good anticancer activity against the three cell lines, with GI50 concentrations of 0.12 µM, 4.57 µM and 49.84 µM, respectively. Compound 5j having benzyloxy group at para position exhibited excellent anticancer activity against cancer cell line SK-MEL-2 with <0.1 µM and moderate activity against K-562 and MDA-MB-231cell lines with concentration of 9.47 µM and 66.65 µM, respectively. No anticancer activity was observed against the HeLa cell line for any of the synthesized compounds.
According to the molecular docking study, the binding affinity (−logki) values and molecular interactions of the dihydropyrano[2,3-c]pyrazole derivatives 5b and 5d are 6.4039 and 5.4734 respectively, suggesting that they are the most active anticancer derivatives amongst all the synthesized derivatives when compared with the reference co-crystallized ligand CL2.
On the basis of in vitro anticancer activity and molecular docking as well as in silico ADMET study, it can be concluded that 6-amino-4-(substituted phenyl)-3-methyl-2,4-dihydropyrano[2,3-c] pyrazole-5-carbonitriles have potential to be developed as anticancer drug and can act as an excellent scaffold for lead optimization.

4. Materials and Methods

4.1. General Information

All the chemicals used for the synthesis were procured from Merck (Mumbai, India), Sigma (Mumbai, India), HiMedia (Mumbai, India) or Qualigens (Mumbai, India) and used without further purification. The progress of each reaction was monitored by ascending thin layer chromatography (TLC) using pre-coated silica gel F254 Alumina TLC Plates (Merck) and the spots were visualized with UV light and iodine vapor. Elemental analyses (C, H, and N) were done with a Flashea 112 analyzer (Shimadzu, Mumbai, India) and all analyses were consistent (within 0.4%) with theoretical values. IR spectra were recorded on a PS 4000 FTIR instrument (Jasco, Tokyo, Japan) using KBr pellets. 1H-(400 MHz) and 13C-NMR (100 MHz) spectra were recorded in DMSO-d6 on an Avance 400 NMR spectrometer (Bruker, Billerica, MA, USA) fitted with an Aspect 3000 computer and all the chemical shifts (δ ppm) were referred to internal TMS for 1H and the solvent signal for 13C-NMR. 1H-NMR data are reported in the order of chemical shift, multiplicity (s, singlet; d, doublet; t, triplet; q, quartet; br, broad; br s, broad singlet; m, multiplet and/or multiple resonance), number of protons. A Micro TOF-Q-II (Bruker Daltonics, Billerica, MA, USA) with electron spray ionization (ESI) was used to obtain the HRMS data.

4.2. Synthesis of [Et3NH][HSO4]

Sulphuric acid (98% solution of 0.02 mol) in water was dropped into triethylamine (0.02 mol) with stirring at 60 °C for 1 h. After the addition was complete, the reaction mixture was stirred for another 1 h at 70 °C. The water was removed by heating the residue at 80–90 °C under high vacuum until the weight of the residue remained constant.

4.3. Synthesis of 6-Amino-4-(substituted phenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles

A mixture of substituted aromatic benzaldehyde 1aj (1 mmol), malononitrile (2, 1 mmol), hydrazine hydrate (3, 1 mmol), and ethyl acetoacetate (4, 1 mmol) was added to 20 mol % [Et3NH][HSO4] and then the reaction mixture was stirred at room temperature. Progress of the reaction was monitored by TLC (ethyl acetate:n-hexane 1:9). After 15 min of stirring, the reaction was quenched with crushed ice and the mixture was extracted with ethyl acetate. The obtained crude compounds were recrystallized from ethanol. An important feature of this method is that all the synthesized derivatives were obtained in excellent yields.
6-Amino-3-methyl-4-phenyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5a). Yield: 88%; m.p.: 240–242 °C; IR νmax (cm−1): 3406 and 3157 (NH2, NH), 3022 (Ar–H), 2936 (C–H), 2208 (C≡N), 1598 (C=N), 1152 and 1215 (C–O–C); 1H-NMR δ ppm: 1.86 (s, 3H, –CH3), 4.51 (s, 1H, –CH–), 6.99–7.76 (m, 5H, aromatic ring) 8.45 (s, 2H, –NH2), and 12.02 (s, 1H, –NH); 13C-NMR δ ppm: 8.85, 34.69, 57.67, 96.48, 112.57, 119.69, 127.35, 134.73, 153.84, and 159.45; MS (ESI) m/z 252.10 (100.0%), 253.10 (16.6%), 254.11 (1.3%); Elemental analysis: calculated for C14H12N4O (C, H, N) 66.65, 4.79, 22.21, Found: 66.67, 4.75, 22.21.
6-Amino-4-(4-chlorophenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5b). Yield: 94%; m.p.: 228–230 °C; IR νmax (cm−1): 3474 and 3220 (NH2 and NH)), 3050 (Ar–H), 2960 (C–H), 2208 (C≡N), 1598 (C=N), 1152 and 1215 (C–O–C), 744 (C–Cl); 1H-NMR δ ppm: 1.80 (s, 3H, –CH3), 4.58 (s, 1H, –CH–), 7.68–7.73 (m, 4H, Ar–H), 8.2 (s, 2H, –NH2), 12.06 (s, 1H, –NH); 13C-NMR δ ppm: 9.72, 38.18, 56.82, 98.0, 120.5, 129.5, 131.1, 132.3, 135.4, 144.2, 154.6, 160.8; MS (ESI) m/z 286.06 (100.0%), 288.06 (M + 2) (32.2%), 287.07 (15.3%); Elemental analysis: calculated for C14H11ClN4O (C, H, N, Cl) 58.65, 3.87, 19.54, 12.32, Found: 58.61, 3.82, 19.50, 12.30.
6-Amino-4-(4-fluorophenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5c). Yield: 92%; m.p.: 172–174 °C; IR νmax (cm−1): 3344 and 3290 (NH2, NH), 3280 (Ar–H), 2999 (C–H), 2222 (C≡N), 1640 (CN), 1260 (C–F), 1160 and 1220 (C–O–C); 1H-NMR δ ppm: 1.92 (s, 3H, –CH3), 4.6 (s, 1H, –CH–), 7.12–7.21 (m, 4H, Ar–H), 7.88 (s, 2H, –NH2), 12.04 (s, 1H, –NH); 13C-NMR δ ppm: 13.13, 25.5, 59.2, 113.4, 115.4, 115.8, 117.3, 130.6, 130.9, 132.2, 139.1, 159.9, 163.7, 176.1; MS (ESI) m/z 270.09 (100.0%), 271.10 (15.3%), 271.09 (1.5%); Elemental analysis: calculated for C14H11FN4O (C, H, N, F) 62.22, 4.10, 20.73, 7.03, Found: 62.22, 4.10, 20.73, 7.00.
6-Amino-4-(4-methoxyphenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5d). Yield: 94%; m.p.: 203–207 °C; IR νmax (cm−1): 3483 and 3255 (NH2, NH), 3107 (Ar–H), 2930 (C–H), 2191 (C≡N), 1598 (C=N), 1450 (C–OCH3), 1152 and 1215 (C–O–C); 1H-NMR δ ppm: 1.79 (s, 3H, –CH3), 3.74 (s, 3H, –OCH3), 4.51 (s, 1H, –CH–), 6.80–7.0 (m, 4H, Ar–H), 8.2 (s, 2H, –NH2), 12.0 (s, 1H, –NH); 13C-NMR δ ppm: 9.5, 37.5, 55.4, 58.4, 98.1, 114.7, 121.2, 129.8, 145.5, 147.8, 155.3, 159.9, 163.0; MS (ESI) m/z 282.11 (100.0%), 283.12 (16.5%), 284.12 (1.7%); Elemental analysis: calculated for C15H14N4O2 (C, H, N) 63.82, 5.00, 19.85, Found: 63.78, 5.05, 19.82.
6-Amino-4-(4-hydroxyphenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5e). Yield: 88%; m.p.: 219 to 221 °C; IR νmax (cm−1): 3500 (OH) 3455 and 3242 (NH2, NH), 3170 (Ar–H), 2940 (C–H), 2198 (C≡N), 1600 (C=N), 1145 and 1200 (C–O–C); 1H-NMR δ ppm: 2.00 (s, 3H, –CH3), 4.46 (s, 1H, –CH–), 5.44 (s 1H, –OH), 6.33–7.06 (m, 4H, Ar–H), 8.52 (s, 2H, –NH2), 11.90 (s, 1H, –NH); 13C-NMR δ ppm: 12.0, 25.0, 59.0, 113.6, 119.5, 121.0, 130.2, 141.5, 155.4, 163.5, 179.1, MS (ESI) m/z 268.10 (100.0%), 269.10 (15.4%), 270.10 (1.7%); Elemental analysis: calculated for C14H12N4O2 (C, H, N) 62.68, 4.51, 20.88, Found: 62.70, 4.48, 20.87.
6-Amino-4-(4-hydroxy-3-methoxyhenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5f). Yield: 85%; m.p.: 232 to 234 °C; IR νmax (cm−1): 3500 (OH), 3333 and 3221 (NH2, NH), 3177 (Ar–H), 2830 (C–H), 2308 (C≡N), 1590 (C=N), 1440 (C–OCH3), 1200 and 1222 (C–O–C); 1H-NMR δ ppm: 2.00 (s, 3H, CH3), 3.80 (s, 3H, –OCH3), 4.46 (s, 1H, –CH–), 5.44 (s, 1H, –OH), 6.33–7.06 (m, 3H, Ar–H), 8.50 (s, 2H, –NH2), 11.95 (s, 1H, –NH); 13C-NMR δ ppm: 12.0, 25.0, 56.1, 59.0, 113.6, 115.8, 119.5, 127.0, 130.2, 141.5, 143.8, 147.4, 155.4, 163.5, 179.1; MS (ESI) m/z 298.11 (100.0%), 299.11 (16.5%), 300.11 (2.1%); Elemental analysis: calculated for C15H14N4O3 (C, H, N) 60.40, 4.73, 18.78, Found: 60.38, 4.70, 18.75.
6-Amino-4-(3,4-dimethoxyphenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5g). Yield: 87%; m.p.: 185 to 187 °C; IR νmax (cm−1): 3332 and 3220 (NH2, NH), 3190 (Ar–H), 2850 (C–H), 2218 (C≡N), 1580 (C=N), 1400 (C–OCH3), 1190 and 1225 (C–O–C); 1H-NMR δ ppm: 2.07 (s, 3H, CH3), 3.70 (s, 6H, (–OCH3)2), 4.61 (s, 1H, –CH–), 6.80–7.16 (m, 3H, Ar–H), 7.52 (s, 2H, –NH2), 11.99 (s, 1H, –NH); 13C-NMR δ ppm: 11.5, 24.5, 55.4, 56.1, 70.4, 114.7, 115.2, 127.8, 129.2, 140.5, 143.8, 153.3; 159.9, 160.0, 176.1; MS (ESI) m/z 312.12 (100.0%), 313.13 (17.6%), 314.13 (2.1%); Elemental analysis: calculated for C16H16N4O3 (C, H, N) 61.53, 5.16, 17.94, Found: 61.50, 5.12, 17.92.
6-Amino-3-methyl-4-(4-nitrophenyl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5h). Yield: 88%; m.p.: 188–190 °C; IR νmax (cm−1): 3351 and 3312 (NH2, NH), 3222 (Ar–H), 2936 (C–H), 2208 (C≡N), 1598 (C=N), 1345 (NO2), 1152 and 1215 (C–O–C); 1H-NMR δ ppm: 2.03 (s, 3H, CH3), 4.75 (s, 1H, –CH–), 7.54–8.65 (m, 4H, Ar–H), 8.45 (s, 2H, –NH2), 11.88 (s, 1H, –NH); 13C-NMR δ ppm: 11.9, 26.3, 71.4, 112.4, 121.3, 127.6, 133.1, 141.6, 144.9, 151.4, 159.0, 165.1; MS (ESI) m/z 297.09 (100.0%), 298.09 (15.4%), 299.09 (2.0%); Elemental analysis: calculated for C14H11N5O3 (C, H, N) 56.56, 3.73, 23.56, Found: 56.58, 3.70, 23.52.
6-Amino-3-methyl-4-(thiophen-2-yl)-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5i). Yield: 89%; m.p.: 222 to 224 °C; IR νmax (cm−1): 3344 and 3289 (NH2, NH), 2191 (thiophene ring), 1647 (C≡N), 1600 (C=N), 1145–1014(–C–O–C–); 1H-NMR δ ppm: 1.92 (s, 3H, –CH3), 4.91 (s, 1H, –CH–), 6.40–7.45 (m, 3H, thiophene), 8.59 (s, 2H, –NH2), 12.11 (s, 1H, –NH); 13C-NMR δ ppm: 8.4, 30.2, 56.4, 95.9, 119.2, 123.1, 124.8, 139.5, 139.8, 148.0, 163.9, 177.2; MS (ESI) m/z 258.06 (100.0%), 259.06 (13.9%), 260.05 (4.5%); Elemental analysis: calculated for C12H10N4OS (C, H, N, S) 55.80, 3.90, 21.69, 12.41, Found: 55.82, 3.88, 21.72, 12.39.
6-Amino-4-(4-(benzyloxy)phenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (5j). Yield: 88%; m.p.: 212 to 214 °C; IR νmax (cm−1): 3333 and 3200 (NH2, NH), 3222 (Ar–H), 3055.25 (C–H), 2208 (C≡N), 1598 (C=N), 1152 and 1215 (C–O–C); 1H-NMR δ ppm: 1.93 (s, 3H, –CH3), 4.75 (s, 1H, –CH–), 5.14 (s, 2H, –CH2–), 6.38–7.47 (m, 9H, Ar–H), 8.12 (s, 2H, –NH2), 11.88 (s, 1H, –NH); 13C-NMR δ ppm: 13.3, 25.5, 59.2, 70.8, 113.4, 114.3, 117.3, 127.1, 128.9, 130.1, 136.7, 139.1, 156.0, 163.7, 176.8; MS (ESI) m/z 358.14 (100.0%), 359.15 (23.0%), 360.15 (2.9%); Elemental analysis: calculated for C21H18N4O2 (C, H, N) 70.38, 5.06, 15.63, Found: 70.40, 5.10, 15.70.

4.4. Evaluation of In Vitro Anticancer Activity

The in vitro anticancer activity [82] of the newly synthesized compounds in four concentrations was carried out by the Sulforhodamine B (SRB) assay against four human cancer cell lines viz., melanoma (SK-MEL-2), breast (MDA-MB-231), leukemia (K-562) and cervix (HeLa). The cells were maintained in RPMI 1640 medium supplemented with 10% fetal bovine serum and 2 mM L-glutamine. Briefly, 5 × 103 cells/well were inoculated into 96-well microtiter plates and incubated at 37 °C in a CO2 incubator for 24 h. The next day cells were exposed to different concentrations of test samples and incubated under standard conditions for 48 h. After incubation, cells were fixed by the gentle addition of 50 µL of cold 30% (w/v) trichloroacetic acid (TCA) and incubated for 60 min at 4 °C. The supernatant was decanted and plates were washed gently under the tap water and air dried at room temperature. 50 µL of 0.4% (w/v) Sulforhodamine B (SRB) solution in 1% acetic acid was added to each of the wells, and plates were incubated for 20 min at room temperature. After staining, unbound dye was recovered and the residual dye was removed by washing with 1% acetic acid. The plates were air dried. Bound stain was subsequently eluted with 100 µL of 10 mM trizma base, and the absorbance was read on an ELISA plate reader (Model Sunrise, Tecan, Seestrasse 103, Mannedorf, Switzerland) at a wavelength of 540 nm with 690 nm reference wavelength. The optical density of treated cells were compared with that of the control cells and growth inhibition was calculated as a percent value.

4.5. Molecular Docking Study

The molecular docking study was initiated with the sketching of the 2D form of the structures of all synthesized compounds using the sketch modules of SYBYL-X 2.1.1 (Certara. L.P., Princeton, NJ, USA) The 2D forms of the compounds were then subjected to the ligand library preparation module by using the Surface preparation protocol for searching which generates single lowest strain energy tautomer/stereoisomers and all necessary structural properties were added and the final prepared conformations are stored in SYBYL-Mol2 file format. To perform molecular docking a three dimensional X-ray crystal structure of tubulin (PDB ID: 1SA0 Resolution 3.58 Å) complex with colchicine and a stathmin-like domain was used. The selected target protein was subjected to the prepare protein structure module from the Biopolymer menu were they analyzed for termini treatment, hydrogen addition, protonation, type, atoms type, charge addition, and side chain fixation. The target protein was subjected to staged minimization by keeping the default parameters and selecting the Tripos force field. The co-crystallized ligand molecules were extracted from the target protein and saved as reference ligand to define molecular docking similarly with other substructures and water molecules are removed and the final prepared target protein structures was stored in Mol2 file format. Molecular docking was defined after the target protein structure ligand library are prepared. The Surflex-Dock module of SYBYL 2.1.1 molecular docking was used to define ligand docking. The docking mode was selected as a Surflex-Dock control file (.sfxc) which contains information about the protein and the method used to generate the protomol. The protomol is constructed using the co-crystallized ligand as a reference. The prepared ligand library was used as source of ligands and Surflex docking input options are set as the defaults with a search density of 6.00, number of spin alignments at 12 and output options maximum number of poses per ligand as of 1 and minimum RSMD between final poses at 0.50 Å. Nice level was set to 0 and the number of processors was used for molecular docking was 2 and the molecular docking result was saved in the docking directory.

4.6. In Silico ADMET Prediction

A computational study of the synthesized compounds 5aj was performed for prediction of ADMET properties. The absorption, distribution, metabolism, excretion and toxicity (ADMET) properties of all the compounds were predicted using the ADMET predictor FAFDrugs2 (Lagorce et al. Paris, France) which runs on the Linux OS. In the present study, we have calculated the molecular volume (MV), molecular weight (MW), predicted octanol-water partition coefficient (log Po/w), number of hydrogen bond acceptors (n-ON), number of hydrogen bonds donors (n-OHNH), percentage of human oral absorption (% ABS), Van der Waals surface area of polar nitrogen and oxygen atoms (polar surface area), and LogS (water solubility).

5. Conclusions

In the current study, we have developed an easy, efficient, and green synthetic protocol to prepare 6-amino-4-(substituted phenyl)-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles 5aj by one pot condensations of various aromatic aldehydes, propanedinitrile, hydrazine hydrate and ethyl acetoacetate and using the ionic liquid triethylammonium hydrogen sulphate ([Et3NH][HSO4]) as a green reaction medium and also as the catalyst. This method overcomes the disadvantages associated with conventional refluxing which requires many hours for completion of the reaction and also avoids the use of harmful solvents and reagents for synthesis. The remarkable benefits of this synthetic strategy are as follows: (1) reactions were carried at room temperature and require much less time for completion hence this methodology saves time and electricity, (2) the use of a non-toxic and economically feasible catalyst which avoids the use of conventional hazardous solvents, (3) and shortened work-up procedure.
Moreover, the synthesized compounds exhibited excellent to good activity against melanoma, breast and leukemia cancer cell lines. Our computational molecular docking study demonstrated that 5b and 5d are the most active amongst the synthesized derivatives and have the potential for cytotoxic action towards cancer cells, supporting the experimental anticancer activity results. Compound 5b showed excellent in vitro anticancer activity against a melanoma (SK-MEL-2) and breast cancer cell line (MDA-MB-231) with concentrations of <0.1 and 0.74 µM, respectively, also proved by the docking score of 6.4039 which shows that it inhibits enzyme tubulin α/β. Compound 5d showed excellent in vitro anticancer activity against a melanoma (SK-MEL-2) cell line at a concentration <0.1 µM and similarly, it also inhibits the enzyme tubulin α/β with a docking score of 5.4734. In conclusion, compounds 5b and 5d not only give good docking scores, but also show growth inhibition concentration 50% (GI50) anticancer activity even at a very low concentration <0.1 µM. As compared to the standard drug ADR, these derivatives were found to be the competent moieties with potent anticancer activity. Predictions of pharmacokinetic parameters suggest that the synthesized compounds have high oral drug bioavailability potential. Thus, the results of the molecular docking study and anticancer activity data of these 6-amino-4-(substituted phenyl)-3-methyl-2,4-dihydro-pyrano[2,3-c]pyrazole-5-carbonitriles proves that these compounds have potential to be developed as lead anticancer molecules and can act as an excellent scaffold for lead optimization and drug discovery.

Supplementary Materials

The following are available online, S1: Spectral data, S2: images, S3: Graphs, S4: Table, S5: Compound structures with names.

Acknowledgments

The authors are thankful to Fatima Rafiq Zakaria, Chairman, Maulana Azad Educational Trust, Maqdoom Farooqui, Principal, Maulana Azad Postgraduate and Research Centre, Aurangabad and ZahidZaheer, Principal, Y.B. Chavan College of Pharmacy, RafiqZakaria Campus, Aurangabad 431 001 (M.S.), India for providing the laboratory facility. Authors are thankful to Jyoti Kode for her cooperation in in vitro anti-cancer activity evaluation of synthesized derivatives at Anti-Cancer Drug screening facility (ACDSF) at ACTREC, Tata Memorial Centre, Navi Mumbai. UDN is very much thankful to Babasaheb Ambedkar Research and Training Institute (BARTI, Pune, India) for financial support.

Author Contributions

U.D.N. research student, A.P.G.N. research guide, J.A.S. and M.P.V.-T. co-operated for spectral analysis, J.N.S. and M.G.D. for molecular docking study and ADMET reports.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anand, P.; Kunnumakkara, A.B.; Sundaram, C.; Harikumar, K.B.; Tharakan, S.T.; Lai, O.S.; Sung, B.; Aggarwal, B.B. Cancer is a preventable disease that requires major lifestyle changes. Pharm. Res. 2008, 25, 2097–2116. [Google Scholar] [CrossRef] [PubMed]
  2. Bertram, G.; Katzung, L. Basic and Clinical Pharmacology; McGraw-Hill Medical Publication Division: New York, NY, USA, 2010; Volume 11, pp. 1091–1116. [Google Scholar]
  3. Jemal, A.; Ward, E.M.; Johnson, C.J.; Cronin, K.A.; Ma, J.; Ryerson, A.B.; Mariotto, A.; Lake, A.J.; Wilson, R.; Sherman, R.L.; et al. Annual report to the nation on the status of cancer, 1975–2014, featuring survival. J. Natl. Cancer Inst. 2017, 109. [Google Scholar] [CrossRef] [PubMed]
  4. Abd El-Karim, S.S.; Anwar, M.M.; Mohamed, N.A.; Nasr, T.; Elseginy, S.A. Design, synthesis, biological evaluation and molecular docking studies of novel benzofuran-pyrazole derivatives as anticancer agents. Bioorg. Chem. 2015, 63, 1–12. [Google Scholar] [CrossRef] [PubMed]
  5. Fahmy, H.H.; Srour, A.M.; Ismail, M.A.; Khater, M.A.; Serrya, R.A.; El-Manawaty, M.A. Design and synthesis of some new tri-substituted pyrazole derivatives as anticancer agents. Res. Chem. Intermed. 2016, 42, 6881–6892. [Google Scholar] [CrossRef]
  6. Fahmy, H.H.; Khalifa, N.M.; Ismail, M.M.; El-Sahrawy, H.M.; Nossier, E.S. Biological validation of novel polysubstituted pyrazole candidates with in vitro anticancer activities. Molecules 2016, 21, 271. [Google Scholar] [CrossRef] [PubMed]
  7. Rahmi, K.U. Design, synthesis, characterization, and anti-proliferative activity of novel pyrazole-3-carboxylic acid derivatives. Monatsh. Chem. 2015, 146, 1743–1749. [Google Scholar]
  8. Anam, A.; Abad, A.; Mohd, A.; Shamsuzzaman. Review: Biologically active pyrazole derivatives. New J. Chem. 2017, 41, 16–41. [Google Scholar]
  9. Lehmann, T.P. Cell-specific cytotoxic effect of pyrazole derivatives on breast cancer cell lines MCF7 and MDA-MB-231. J. Physiol. Pharmacol. 2017, 68, 201–207. [Google Scholar] [PubMed]
  10. El-Gamal, M.I.; Abdel-Maksoud, M.S.; Gamal El-Din, M.M.; Shin, J.S.; Lee, K.T.; Ho Yoo, K.; Oh, C.H. Synthesis, in vitro Anti-proliferative and Anti-inflammatory Activities, and Kinase Inhibitory effects of New 1,3,4-triarylpyrazole Derivatives. Anti-Cancer Agents Med. Chem. 2017, 17, 75–84. [Google Scholar]
  11. Elguero, J.; Goya, P.; Jagerovic, N.; Silva, A.M.S. Pyrazoles as drugs: Facts and fantasies. In Targets in Heterocyclic Systems; Attanasi, O.A., Spinelli, D., Eds.; Royal Society of Chemistry: Cambridge, UK, 2002; Volume 6, pp. 52–98. [Google Scholar]
  12. Singh, S.K.; Reddy, P.G.; Rao, K.S.; Lohray, B.B.; Misra, P.; Rajjak, S.A.; Rao, Y.K. Venkatewarlu, A. Polar substitutions in the benzenesulfonamide ring of celecoxib afford a potent 1,5-diarylpyrazole class of COX-2 inhibitors. Bioorg. Med. Chem. Lett. 2004, 14, 499–504. [Google Scholar] [CrossRef] [PubMed]
  13. Qvortrup, K.; Jensen, J.F.; Sørensen, M.S.; Kouskoumvekaki, I.; Petersen, R.K.; Taboureau, O.; Kristiansen, K.; Nielsen, T.E. Synthesis and biological evaluation of dihydropyrano[2,3-c]pyrazoles as a new class of PPARγ partial agonists. PLoS ONE 2017, 12, e0162642. [Google Scholar] [CrossRef] [PubMed]
  14. Kaur, M.; Kaur, A.; Mankotia, S.; Singh, H.; Singh, A.; Singh, J.; Gupta, M.; Sharma, S.; Nepali, K.; Singh Bedi, P.M. Synthesis, screening and docking of fused pyrano[3,2-d]pyrimidine derivatives as xanthine oxidase inhibitor. Eur. J. Med. Chem. 2017, 131, 14–28. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, J.L.; Liu, D.; Zhang, Z.J.; Shan, S.; Han, X.; Srinivasula, S.M.; Croce, C.M.; Alnemri, E.S.; Huang, Z. Structure-based discovery of an organic compound that bind Bc1-2 protein and induces apoptosis of tumor cells. Proc. Natl. Acad. Sci. USA 2000, 97, 7124–7129. [Google Scholar] [CrossRef] [PubMed]
  16. Mohamed, N.R.; Khaireldin, N.Y.; Fahmyb, A.F.; El-Sayeda, A.A.F. Facile synthesis of fused nitrogen containing heterocycles as anticancer agents. Der. Pharm. Chem. 2010, 2, 400–417. [Google Scholar]
  17. Erugu, Y.; Sangepu, B.; Varre, K.; Pamanji, R.; Bomma, Y.; Janapala, V.R.; Srinivasarao, V.; Tigulla, P.; Jetti, V.R. Design, an efficient ecofriendly synthesis of spirooxindole derivatives and their anticancer activity supported by molecular docking studies. World J. Pharm. Pharm. Sci. 2014, 3, 1895–1914. [Google Scholar]
  18. Soad, K.S.; Magda, F.M.; Ahmed, F.D.; Ahmed, H.M.E.; Ismail, A.A. Molecular docking simulation and anticancer assessment on human breast carcinoma cell line using novel bis(1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile)andis(1,4-dihydropyrazolo[4′,3′:5,6]pyrano[2,3-b]pyridine-6-carbonitrile) derivatives. Bioorg. Chem. 2017. [Google Scholar] [CrossRef]
  19. Pantsar, T.; Singha, P.; Tapio, J.N.; Koshevoy, I.; Leppänen, J.; Poso, A.; Juha, M.A.N.; Pasonen-Seppänen, S.; Savinainen, J.R.; Laitinen, T.; et al. Design, synthesis, and biological evaluation of 2,4-dihydropyrano[2,3-c]pyrazole derivatives as autotaxin inhibitors. Eur. J. Pharm. Sci. 2017. [Google Scholar] [CrossRef]
  20. Adibi, H.; Hosseinzadeh, L.; Farhadi, S.; Ahmadi, F. Synthesis and cytotoxic evaluation of6-amino-4-aryl-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-carbonitrile derivatives using borax with potential anticancer effects. J. Rep. Pharm. Sci. 2013, 2, 116–124. [Google Scholar]
  21. Kamel, M.M. Convenient synthesis, characterization, cytotoxicity and toxicity of pyrazole derivatives. Acta Chim. Slov. 2015, 62, 136–151. [Google Scholar] [CrossRef] [PubMed]
  22. Tiwari, S.V.; Seijas, J.A.; Vazquez-Tato, M.P.; Sarkate, A.P.; Lokwani, D.K.; Nikalje, A.G. Ultrasound mediated one-pot, three component synthesis, docking and ADME prediction of novel 5-amino-2-(4-chlorophenyl)-7-substitutedphenyl-8,8a-dihydro-7H-(1,3,4)thiadiazolo(3,2)pyrimidine-6-carbonitrile derivatives as anticancer agents. Molecules 2016, 21, 894. [Google Scholar] [CrossRef] [PubMed]
  23. Nikalje, A.G.; Tiwari, S.V.; Tupe, J.G.; Vyas, V.K.; Qureshi, G. Ultrasound assisted-synthesis and biological evaluation of piperazinylprop-1-en-2-yloxy-2h-chromen-2-ones as cytotoxic agents. Lett. Drug Des. Discov. 2017, 14. [Google Scholar] [CrossRef]
  24. Tiwari, S.V.; Siddiqui, S.; Seijas, J.A.; Vazquez-Tato, M.P.; Sarkate, A.P.; Lokwani, D.K.; Nikalje, A.G. Microwave-assisted facile synthesis, anticancer evaluation and docking study of N-((5-(substituted methylene amino)-1,3,4-thiadiazol-2-yl)methyl)benzamide derivatives. Molecules 2017, 22, 995. [Google Scholar] [CrossRef] [PubMed]
  25. Junek, H.; Aigner, H. Synthesenmit Nitrilen, XXXV. Reaktionen von Tetracyanathylen mit Heterocyclen. Eur. J. Inorg. Chem. 1973, 106, 914–921. [Google Scholar]
  26. Sharanin, Y.A.; Sharanina, L.G.; Puzanova, V.V. Nitrile cyclization reactions. VII. Synthesis of 6-amino-4-aryl-3-methyl-5-cyano-1H,4H-pyrazolo[3,4-B]pyrans. Z. Chem. Inform. 1983, 19, 2609–2615. [Google Scholar] [CrossRef]
  27. Sharanin, Y.A.; Sharanina, L.G.; Puzanova, V.V. Nitrile cyclization reactions. VII. synthesis of 6-amino-4-aryl-3-methyl-5-cyano-1H,4H-pyrazolo(3,4-B) pyrans. J. Org. Chem. USSR (Engl. Transl.) 1983, 19, 221. [Google Scholar] [CrossRef]
  28. Peng, Y.; Song, G.; Dou, R. Surface cleaning under combined microwave and ultrasound irradiation: Flash synthesis of 4H-pyrano[2,3-c]pyrazoles in aqueous media. Green Chem. 2006, 8, 573–575. [Google Scholar] [CrossRef]
  29. Vasuki, G.; Kumaravel, K. Rapid four component reaction in water: Synthesis of pyranopyrazoles. Tetrahedron Lett. 2008, 49, 5636–5638. [Google Scholar] [CrossRef]
  30. Lehmann, F.; Holm, S.L.; Laufer, M.S. Three-component combinatorial synthesis of novel dihydropyrano[2,3-c]pyrazoles. J. Comb. Chem. 2008, 10, 364–367. [Google Scholar] [CrossRef] [PubMed]
  31. Heravi, M.M.; Ghods, A.; Derikvand, F.; Bakhtiari, K.; Bammoharram, F.F. H14 [NaP 5W 30 O 110] catalyzed one-pot three-component synthesis of dihydropyrano[2,3-c]pyrazole and pyrano[2,3-d]pyrimidine derivatives. J. Iran. Chem. Soc. 2010, 7, 615–620. [Google Scholar] [CrossRef]
  32. Reddy, M.B.M.; Jayashankara, V.P.; Pasha, M.A. Glycine-catalyzed efficient synthesis of pyranopyrazoles via one-pot multicomponent reaction. Synth. Commun. 2010, 40, 2930–2934. [Google Scholar] [CrossRef]
  33. Kanagaraj, K.; Pitchumani, K. Solvent-free multicomponent synthesis of pyrano-pyrazoles: Per-6-amino-β-cyclodextrin as a remarkable catalyst and host. Tetrahedron Lett. 2010, 51, 3312–3316. [Google Scholar] [CrossRef]
  34. Samant, S.D.; Patil, N.R.; Kshirsagar, S.W. Mg-Al Hydrotalcite as a first heterogeneous basic catalyst for the synthesis of 4H-pyrano[2,3-c]pyrazoles through a four-component reaction. Synth. Commun. 2011, 41, 1320–1325. [Google Scholar]
  35. Babaie, M.; Sheibani, H. Nanosized magnesium oxide as a highly effective heterogeneous base catalyst for the rapid synthesis of pyranopyrazoles via a tandem four-component reaction. Arab. J. Chem. 2011, 4, 159–162. [Google Scholar] [CrossRef]
  36. Mecadon, H.; Rohman, M.R.; Kharbangar, I.; Laloo, B.M.; Kharkongor, I.; Rajbangshi, M.; Myrboh, B. L-Proline as an efficient catalyst for the multi-component synthesis of 6-amino-4-alkyl/aryl-3-methyl-2,4-dihydropyrano[2,3-F]pyrazole-5-carbonitriles in water. Tetrahedron Lett. 2011, 52, 3228–3231. [Google Scholar] [CrossRef]
  37. Mecadon, H.; Rohman, M.R.; Rajbangshi, M.; Myrboh, B. γ-Alumina as a recyclable catalyst for the four-component synthesis of 6-amino-4-alkyl/aryl-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles in aqueous medium. Tetrahedron Lett. 2011, 52, 2523–2525. [Google Scholar] [CrossRef]
  38. Kiyani, H.; Samimi, H.A.; Ghorbani, F.; Esmaieli, S. One-pot, four-component synthesis of pyrano[2,3-c]pyrazoles catalyzed by sodium benzoate in aqueous medium. Curr. Chem. Lett. 2013, 2, 197–206. [Google Scholar] [CrossRef]
  39. Bihani, M.; Bora, P.P.; Bez, G.; Askari, H. Amberlyst A21 catalyzed chromatography free method for multicomponent synthesis of dihydropyrano[2,3-F]pyrazoles in ethanol. ACS Sustain. Chem. Eng. 2013, 1, 440–447. [Google Scholar] [CrossRef]
  40. Wu, M.; Feng, Q.; Wan, D.; Ma, J. CTACl as catalyst for four-component, one-pot synthesis of pyranopyrazole derivatives in aqueous medium. Synth. Commun. 2013, 43, 1721–1726. [Google Scholar] [CrossRef]
  41. Yakaiah, S.; Buchappa, G.; Durgaprasad, K.; Ravibabu, K.; Aparna, P. Ionic liquid catalyzed one-pot three component synthesis of dihydropyrano[2,3-c]pyrazole under green condtion. Asian J. Chem. 2016, 28, 2441–2445. [Google Scholar] [CrossRef]
  42. Chaudhari, M.A.; Gujar, J.B.; Kawade, D.S.; Jogdand, N.R.; Shingare, M.S. A highly efficient and sustainable synthesis of dihydropyrano[2,3-c]pyrazoles using polystyrene-supported p-toluenesulfonic acid as reusable catalyst. Cogent Chem. 2015, 1, 1063830. [Google Scholar] [CrossRef]
  43. Brahmachari, G.; Banerjee, B. Facile and one-pot access to diverse and densely functionalized2-amino-3-cyano-4h-pyrans and pyran-annulated heterocyclic scaffolds via an eco-friendly multicomponent reaction at room temperature using urea as a novel organo-catalyst. ACS Sustain. Chem. Eng. 2014, 2, 411–422. [Google Scholar] [CrossRef]
  44. Mandha, S.R.; Siliverib, S.; Allaa, M.; Bommenaa, V.R.; Bomminenib, M.R.; Balasubramanian, S. Eco-friendly synthesis and biological evaluation of substituted pyrano[2,3-c]pyrazoles. Bioorg. Med. Chem. Lett. 2012, 22, 5272–5278. [Google Scholar] [CrossRef] [PubMed]
  45. Siddiqui, Z.N.; Khan, K. [Et3NH][HSO4]-catalyzed efficient, eco-friendly, and sustainable synthesis of quinoline derivatives via knoevenagel condensation. ACS Sustain. Chem. Eng. 2014, 2, 1187–1194. [Google Scholar] [CrossRef]
  46. Hailes, H.C. Reaction solvent selection: The potential of water as a solvent for organic transformations. Org. Process Res. Dev. 2007, 11, 114–120. [Google Scholar] [CrossRef]
  47. El-Tamany, E.S.; El-Shahed, F.A.; Mohamed, B.H. Synthesis and biological activity of some pyrazole derivatives. J. Serb. Chem. Soc. 1999, 64, 9–18. [Google Scholar]
  48. Lei, Z.; Dai, C.; Chen, B. Gas solubility in ionic liquids. Chem. Rev. 2014, 114, 1289–1326. [Google Scholar] [CrossRef] [PubMed]
  49. Fedorov, M.V.; Kornyshev, A.A. Ionic liquids at electrified interfaces. Chem. Rev. 2014, 114, 2978–3036. [Google Scholar] [CrossRef] [PubMed]
  50. Jiang, H.; Wang, C.; Li, H.; Wang, Y. Preparation of dialkoxypropanes in simple ammonium ionic liquids. Green Chem. 2006, 8, 1076–1079. [Google Scholar] [CrossRef]
  51. Wang, C.; Guo, L.; Li, H.; Wang, Y.; Weng, J.; Wu, L. Preparation of simple ammonium ionic liquids and their application in the cracking of dialkoxypropanes. Green Chem. 2006, 8, 603–607. [Google Scholar] [CrossRef]
  52. Weng, J.; Wang, C.; Li, H.; Wang, Y. Novel quaternary ammonium ionic liquids and their use as dual solvent-catalysts in the hydrolytic reaction. Green Chem. 2006, 8, 96–99. [Google Scholar] [CrossRef]
  53. Ganeshpure, P.A.; George, G.; Das, J. Brønsted acidic ionic liquids derived from alkylamines as catalysts andmediums for Fischer esterification: Study of structure-activity relationship. J. Mol. Catal. A Chem. 2008, 279, 182–186. [Google Scholar] [CrossRef]
  54. Wang, C.; Zhao, W.; Li, H.; Guo, L. Solvent-free synthesis of unsaturated ketones by Saucy-Marbet reaction with simple ammonium ionic liquid as the catalyst. Green Chem. 2009, 11, 843–847. [Google Scholar] [CrossRef]
  55. Rajendran, A.; Raghupathy, D.; Priyadarshini, M.A. Domino Green Synthesis of Bis (indolyl) methane catalyzed by ionic liquid [Et3NH][HSO4]. Int. J. ChemTech. Res. 2011, 3, 298–302. [Google Scholar]
  56. Kermani, E.T.; Khabazzadeh, H.; Jazinizadeh, T. Friedländer synthesis of poly-substituted quinolines in the presence of triethylammonium hydrogen sulfate [Et3NH][HSO4] as a highly efficient, and cost effective acidic ionic liquid catalyst. J. Heterocycl. Chem. 2011, 48, 1192–1196. [Google Scholar] [CrossRef]
  57. Suryawanshi, N.S.; Jain, P.; Singhal, M.; Khan, I. Mannich synthesis under ionic liquid [Et3NH][HSO4]. Catal. J. Appl. Chem. 2012, 1, 18–23. [Google Scholar] [CrossRef]
  58. Khabazzadeh, H.; Kermani, E.T.; Jazinizadeh, T. An efficient synthesis of 3,4-dihydropyrimidin-2(1H)-ones catalyzed by molten [Et3NH][HSO4]. Arab. J. Chem. 2012, 5, 485–488. [Google Scholar] [CrossRef]
  59. Zhou, Z.; Deng, X. [Et3NH][HSO4] Catalyzed efficient and green synthesis of 1,8-dioxo-octahydroxanthenes. J. Mol. Catal. A Chem. 2013, 367, 99–102. [Google Scholar] [CrossRef]
  60. Malla, A.M.; Parveen, M.; Ahmad, F.; Azaz, S.; Alam, M. [Et3NH][HSO4]-catalyzed eco-friendly and expeditious synthesis of thiazolidine and oxazolidine derivatives. RSC Adv. 2015, 5, 19552–19569. [Google Scholar] [CrossRef]
  61. Han, X.X.; Du, H.; Hung, C.T.; Liu, L.L.; Wu, P.H.; Ren, D.H.; Huang, S.J.; Liu, S.B. Syntheses of novel halogen-free Brønsted—Lewis acidic ionic liquid catalysts and their applications for synthesis of methyl caprylate. Green Chem. 2015, 17, 499–508. [Google Scholar] [CrossRef]
  62. Subhedar, D.D.; Shaikh, M.H.; Arkile, M.A.; Yeware, A.; Sarkar, D.; Shingate, B.B. Facile synthesis of 1,3-thiazolidin-4-ones as antitubercular agents. Bioorg. Med. Chem. Lett. 2016, 26, 1704–1708. [Google Scholar] [CrossRef] [PubMed]
  63. Gu, Y. Multicomponent reactions in unconventional solvents: State of the art. Green Chem. 2012, 14, 2091–2128. [Google Scholar] [CrossRef]
  64. Prasanna, P.; Perumal, S.; Menéndez, J.C. Chemodivergent, multicomponent domino reactions in aqueous media: L-proline catalyzed assembly of densely functionalized 4H-pyrano[2,3-c]pyrazoles and bispyrazolylpropanoates from simple, acyclic starting materials. Green Chem. 2013, 15, 1292–1299. [Google Scholar] [CrossRef]
  65. Tiwari, S.V.; Nikalje, A.G.; Lokwani, D.K.; Sarkate, A.P.; Jamir, K. Synthesis, biological evaluation, molecular docking study and acute oral toxicity study of coupled Imidazolyl-Pyrimidine derivatives. Lett. Drug Des. Discov. 2017, 14. [Google Scholar] [CrossRef]
  66. Smith, E.L.; Abbott, A.P.; Ryder, K.S. Deep eutectic solvents (DESs) and their applications. Chem. Rev. 2014, 114, 11060–11082. [Google Scholar] [CrossRef] [PubMed]
  67. Nimbalkar, U.D.; Nikalje, A.G.; Netankar, P.D.; Lingampalle, D.L. Ionic liquid mediated synthesis of 5-arylidine-2,4-thiazolidinedionesand antibacterial evaluation. J. Med. Chem. Drug Discov. 2015, 1, 331–342. [Google Scholar]
  68. Shaikh, M.H.; Subhedar, D.D.; Khan, F.A.K.; Sangshetti, J.N.; Shingate, B.B. [Et3NH][HSO4]-catalyzed one-pot, solvent-free synthesis and biological evaluation of a-amino phosphonates. Res. Chem. Intermed. 2016, 2, 5115–5131. [Google Scholar] [CrossRef]
  69. Lin, C.M.; Ho, H.H.; Pettit, G.R.; Hamel, E. Antimitotic natural products combretastatin A-4 and combretastatin A-2: Studies on the mechanism of their inhibition of the binding of colchicine to tubulin. Biochemistry 1989, 28, 6984–6991. [Google Scholar] [CrossRef] [PubMed]
  70. Lewis, S.A.; Gilmartin, M.E.; Hall, J.L.; Cowan, N.J. Three expressed sequences within the human betatubulin multigene family each define a distinct isotype. J. Mol. Biol. 1985, 182, 11–20. [Google Scholar] [CrossRef]
  71. Nicoletti, M.I.; Valoti, G.; Giannakakou, P.; Zhan, Z.; Kim, J.H.; Lucchini, V.; Landoni, F.; Mayo, J.G.; Giavazzi, R.; Fojo, T. Expression of beta-tubulin isotypes in human ovarian carcinoma xenografts and in a sub-panel of human cancer cell lines from the NCI-Anticancer Drug Screen: Correlation with sensitivity to microtubule active agents. Clin. Cancer Res. 2001, 7, 2912–2922. [Google Scholar] [PubMed]
  72. McKean, P.G.; Vaughan, S.; Gull, K. The extended tubulin superfamily. J. Cell Sci. 2001, 114, 2723–2733. [Google Scholar] [PubMed]
  73. Perez, E.A. Microtubule inhibitors: Differentiating tubulin-inhibiting agents based on mechanisms of action, clinical activity, and resistance. Mol. Cancer Ther. 2009, 8, 2086–2095. [Google Scholar] [CrossRef] [PubMed]
  74. Kavallaris, M. Cancer. Nat. Rev. 2010, 10, 1–12. [Google Scholar]
  75. Chaudhary, A.; Sharma, P.P.; Bhardwaj, G.; Jain, V.; Bharatam, P.V.; Shrivastav, B.; Roy, R.K. Synthesis, biological evaluation, and molecular modeling studies of novel heterocyclic compounds as anti-proliferative agents. Med. Chem. Res. 2013, 12, 5654–5669. [Google Scholar] [CrossRef]
  76. Huang, Y.; Hickey, R.P.; Yeh, J.L.; Liu, D.; Dadak, A.; Young, L.H.; Johnson, R.S.; Giordano, F.J. Cardiacmyocyte-specific HIF-1alpha deletion alters vascularization, energy availability, calcium flux, and contractility in the normoxic heart. FASEB J. 2004, 18, 1138–1140. [Google Scholar] [PubMed]
  77. Lagorce, D.; Sperandio, H.; Miteva, M.; Villoutreix, B.O. FAF-Drugs2: Free ADME/tox filtering tool to assist drug discovery and chemical biology project. BMC Biol. Inform. 2008, 9, 396. [Google Scholar] [CrossRef] [PubMed]
  78. Sangshetti, J.; Khan, F.; Chouthe, R.; Damale, M.; Shinde, D. Synthesis, docking and ADMET prediction of novel 5-((5-substituted-1-H-1,2,4-triazol-3-yl)methyl)-4,5,6,7-tetrahydrothieno[3,2-c]pyridine as antifungal agents. Chin. Chem. Lett. 2014, 25, 1033–1038. [Google Scholar] [CrossRef]
  79. Lipinski, C.; Lombardo, F.; Dominy, B. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
  80. Zhao, Y.H.; Abraham, M.H.; Lee, J.; Hersey, A.; Luscombe, C.N.; Beek, G.; Sherborne, B.; Cooper, I. Rate-limited steps of human oral absorption and QSAR studies. Pharm. Res. 2002, 19, 1446–1457. [Google Scholar] [CrossRef] [PubMed]
  81. Ertl, P.; Rohde, B.; Selzer, P. Fast calculation of molecular polar surface area as a sum of fragment-based contributions and its application to the prediction of drug transport properties. J. Med. Chem. 2000, 43, 3714–3747. [Google Scholar] [CrossRef] [PubMed]
  82. Vichai, V.; Kirtikara, K. Sulforhodamine B colorimetric assay for cytotoxicity screening. Nat. Protoc. 2006, 1, 1112. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not available.
Figure 1. Design protocol for the target molecules.
Figure 1. Design protocol for the target molecules.
Molecules 22 01628 g001

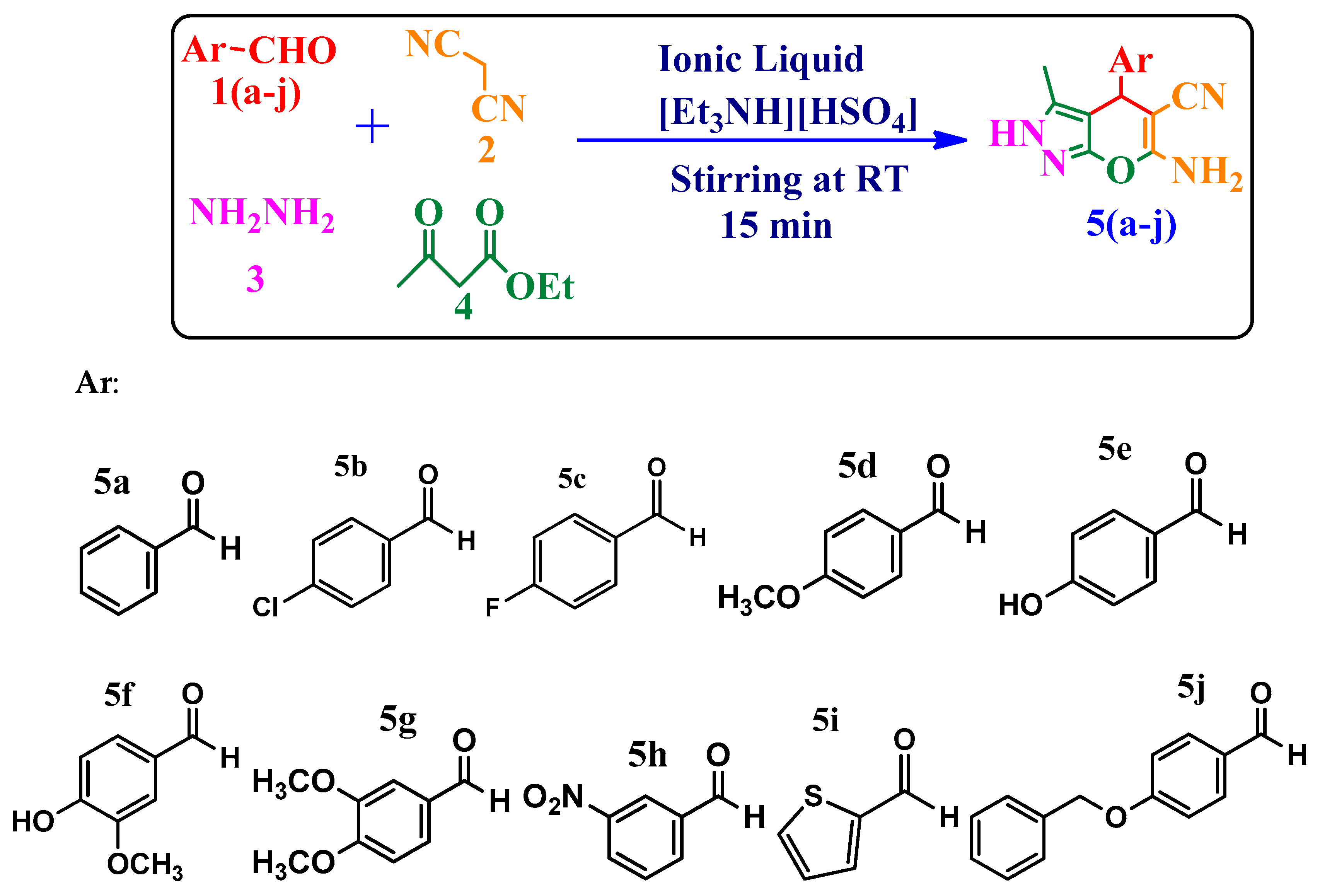

Scheme 1. One pot, four component synthesis of 6-amino-4-substituted-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles 5aj.
Scheme 1. One pot, four component synthesis of 6-amino-4-substituted-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitriles 5aj.
Molecules 22 01628 sch001
Figure 2. Plausible mechanism for the synthesis of 2,4-dihydropyrano[2,3-c]pyrazole.
Figure 2. Plausible mechanism for the synthesis of 2,4-dihydropyrano[2,3-c]pyrazole.
Molecules 22 01628 g002

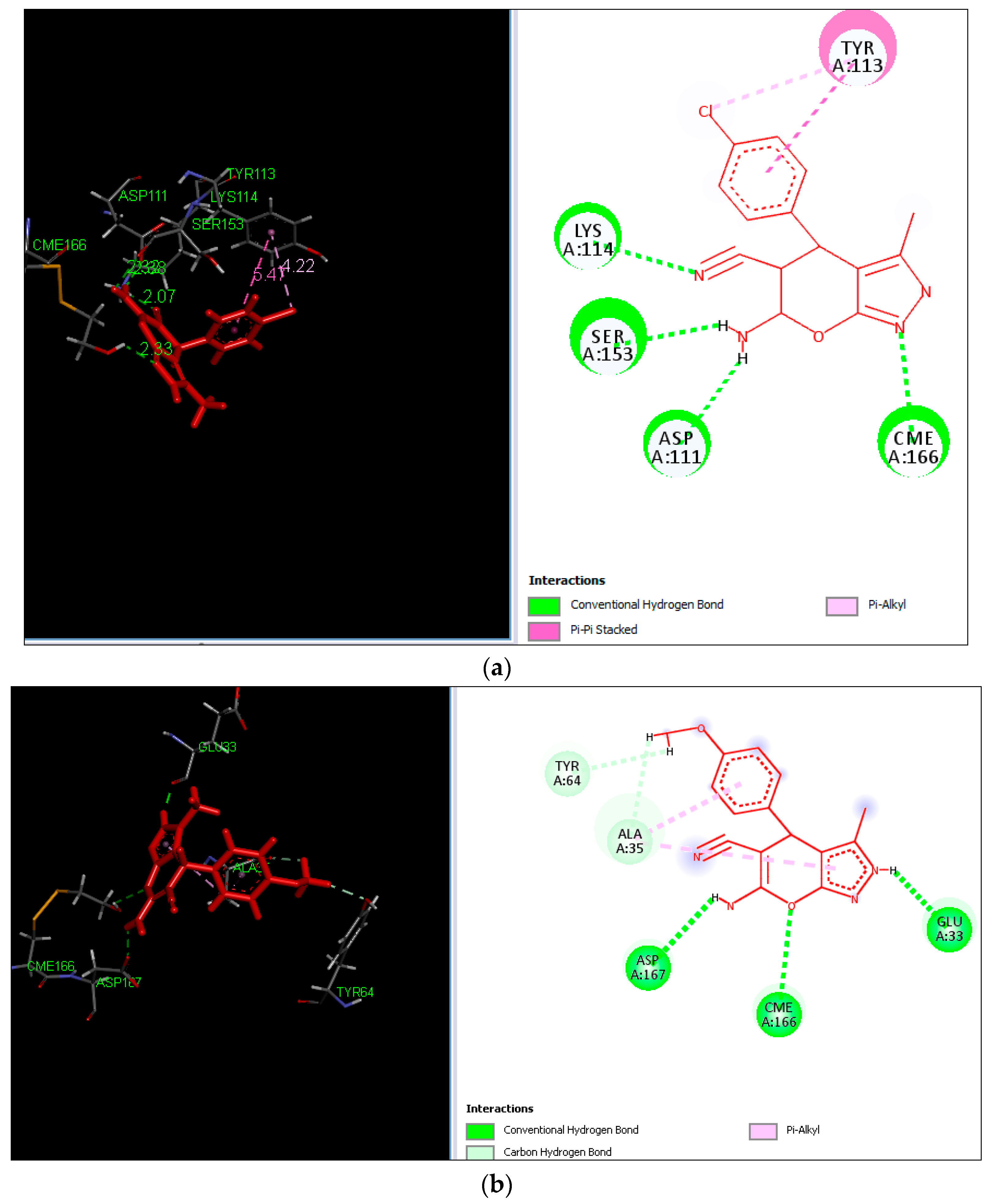

Figure 3. Binding poses and molecular interactions of (a) compound 5b and (b) compound 5d into the active site of tubulin.
Figure 3. Binding poses and molecular interactions of (a) compound 5b and (b) compound 5d into the active site of tubulin.
Molecules 22 01628 g003
Table 1. Selection of reaction media for the synthesis of compound 5b.
Table 1. Selection of reaction media for the synthesis of compound 5b.
SolventTemperature (°C)Time (min)Yield (%)
Polyethylene glycol (PEG)806072
Deep eutectic solvent of cholinechloride:urea802092
Ionic liquid (N-methylpyridiniumtosylate)1207562
Ionic liquid (triethylammonium hydrogen sulphate[Et3NH][HSO4])R.T.1594
R.T. = Room temperature.
Table 2. Effect of ionic liquid concentration on reaction time and yield of 5b.
Table 2. Effect of ionic liquid concentration on reaction time and yield of 5b.
[Et3NH][HSO4] mol %Time (min)Yield (%)
-6000
55050
104565
151570
201594
251585
Table 3. Reusability of the ionic liquid in the model reaction synthesis of 5b.
Table 3. Reusability of the ionic liquid in the model reaction synthesis of 5b.
RunTime (min)Yield (%)
11594
21582
31578
41575
Table 4. In vitro anticancer activity and molecular docking of selected synthesized compounds.
Table 4. In vitro anticancer activity and molecular docking of selected synthesized compounds.
CompoundsGI50 Against Cancer Cell Line in µMTotal Score -LogkiCrash ScorePolar Score
MAD-MB-231HeLaSK-MEL-2K-562
5b0.74>100<0.111.26.4039−0.98012.0598
5d25.76>100<0.16.415.4734−1.38714.449
5g2.02>1002.9240.734.6919−0.42095.4948
5h49.84>1000.124.574.5247−0.1843.7291
5j66.65>100<0.19.474.6555−0.73693.5549
ADR<0.10.03<0.1<0.1NANANA
CL2NANANANA5.1969−0.87483.5552
CL2: Co-crystallized ligand and Adriamycin (ADR), the standard drug used for the anticancer activity assays.
Table 5. In silico physicochemical (drug-likeliness) properties of the synthesized compounds 5aj with reference ligand CL2.
Table 5. In silico physicochemical (drug-likeliness) properties of the synthesized compounds 5aj with reference ligand CL2.
Lig_ID%ABS (<100%)MW (<500)LogP (<5)PSA (<150)n-RotB (<10)n-RigB (<25)HBD (<5)HBA (<10)RatioH/C (<1)Toxicity
5a78.64252.32.6487.72117220.357Non Toxic
5b78.64286.73.2987.72117220.428Non Toxic
5c78.64270.32.7887.72117220.428Non Toxic
5d75.55282.32.6596.95217230.4Non Toxic
5e71.76268.32.34108117330.428Non Toxic
5f68.57298.32.35117.2217340.466Non Toxic
5g72.37312.32.65106.2317240.437Non Toxic
5h62.93297.33.07127.7218240.571Non Toxic
5i78.64258.32.7116116230.5Non Toxic
5j75.55358.44.2296.95423230.5Non Toxic
CL275252.32.6487.72117220.357Non Toxic
% ABS: Percent absorption, MW: molecular weight, LogP: logarithm of partition coefficient of compound between n-octanol and water, PSA: Polar surface area, n-Rot Bond: number of rotatable bonds, n-Rig Bond: number of rigid bonds, HBA: hydrogen bond acceptors and HBD: hydrogen bond donor.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
