Article

Intramolecular Conversions of (Aminoferrocenylpenta-1,4-dienyl)-ferrocenylcarbenes: Synthesis of Diferrocenylmono-, bi-, tricycles and Amino(diferrocenyl)hexa-1,3,5-trienes

1
Facultad de Química, Universidad Nacional Autónoma de México, Cd. Universitaria, Coyoacán, México D.F. 04510, Mexico
2
Centro de Investigación y Desarrollo Tecnológico en Electroquímica S.C. Parque Tecnológico Querétaro, Pedro de Escobedo, Querétaro 76703, Mexico
3
N. D. Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences, 47 Leninsky prosp., Moscow 119991, Russia
4
Instituto de Química, Universidad Nacional Autónoma de México, Cd. Universitaria, Coyoacán, México D.F. 04510, Mexico
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(7), 5574-5590; https://doi.org/10.3390/molecules16075574
Submission received: 23 May 2011 / Revised: 18 June 2011 / Accepted: 28 June 2011 / Published: 30 June 2011

Abstract

:
Synthesis of 3,4-diferrocenyltoluene (7), 1-morpholino- and 1-piperidino-2,3-diferrocenylbicyclo[3.1.0]hex-2-enes 8a, 8b, 1-morpholino- and 1-piperidino-7-ferrocenyl-3,4-ferrocenobicyclo[3.2.1]oct-6-enes 9a, 9b, 2- and 3-amino(diferrocenyl)-hexa-1,3,5-trienes 10a,b, 11a,b by reactions of amino(diferrocenyl)cyclopropenylium tetrafluoro-borates with 1-methylprop-2-enylmagnesium chloride at 80 °C is described. The structures of the compounds obtained were determined by IR, 1H- and 13C-NMR spectroscopy and mass spectrometry. X-ray diffraction data for 1-piperidino-7-ferrocenyl-3,4-ferroceno-bicyclo[3.2.1]oct-6-ene (9b), 2-morpholino- and 2-piperidino-1,3-diferrocenyl-4-methyl-hexa-1,3,5-trienes 10a and 10b is presented. The electrochemical behaviour of compounds 7, 8a, 10a and 10b was investigated by means of cyclic voltammetry and square wave voltammetry. For 7 and 8a two electrochemical processes (I-II), attributed to the oxidation of the ferrocene moieties were found. On the other hand for compounds 10a and 10b a single electron transfer for both ferrocene groups and the electrochemical generation of the monocation and dication species were detected.

1. Introduction

Diferrocenylcyclopropenylium cations with heterosubstituents in the small ring have recently been described [1,2,3,4,5,6]. These include 1-ethoxy-, 1-diethylamino-, 1-morpholino-, 1-piperidino-2,3-diferrocenylcyclopropenylium tetrafluoroborates and 2,3-diferrocenyl-1-methylsulfanylcyclo-propenylium iodide. Thus, it was established that the reactions of 1-ethoxy-2,3-diferrocenyl-cyclopropenylium tetrafluoroborate with orghanolithium compounds are regioselective (the nucleophilic attacks of the anionic reagents on cyclopropenylium cation are directed at both C-1 centers of the three-carbon ring) to yield 3,3-dialkyl-1,2-diferrocenylcyclopropenes [1]. We have shown that the reactions of the 2,3-diferrocenyl-1-methylsulfanylcyclopropenylium iodide with RLi and RMgX are nonregioselective to yield diferrocenylcycloropenes in low yields (~10%–l20%), the major products being 2,3 diferrocenyl-1-methylsulfanyl-1,3-dienes and -1,3,5-trienes (~60%–l70%) [4].
On the whole, salts of the 1-morpholino- or 1-piperidino-2,3-diferrocenylcyclopropenylium series are little studied in both the synthetic and practical aspects. Previously it has been shown that 2,3-diferrocenyl-1-morpholinocyclopropenylium tetrafluoroborate (1a) reacted with β-dicarbonyl compounds and sodium cyanamide to afford initially the adducts of the nucleophiles at the small ring, i.e., tetrasubstituted diferrocenylcyclopropenes 2a–d [5,6,7] (Scheme 1).

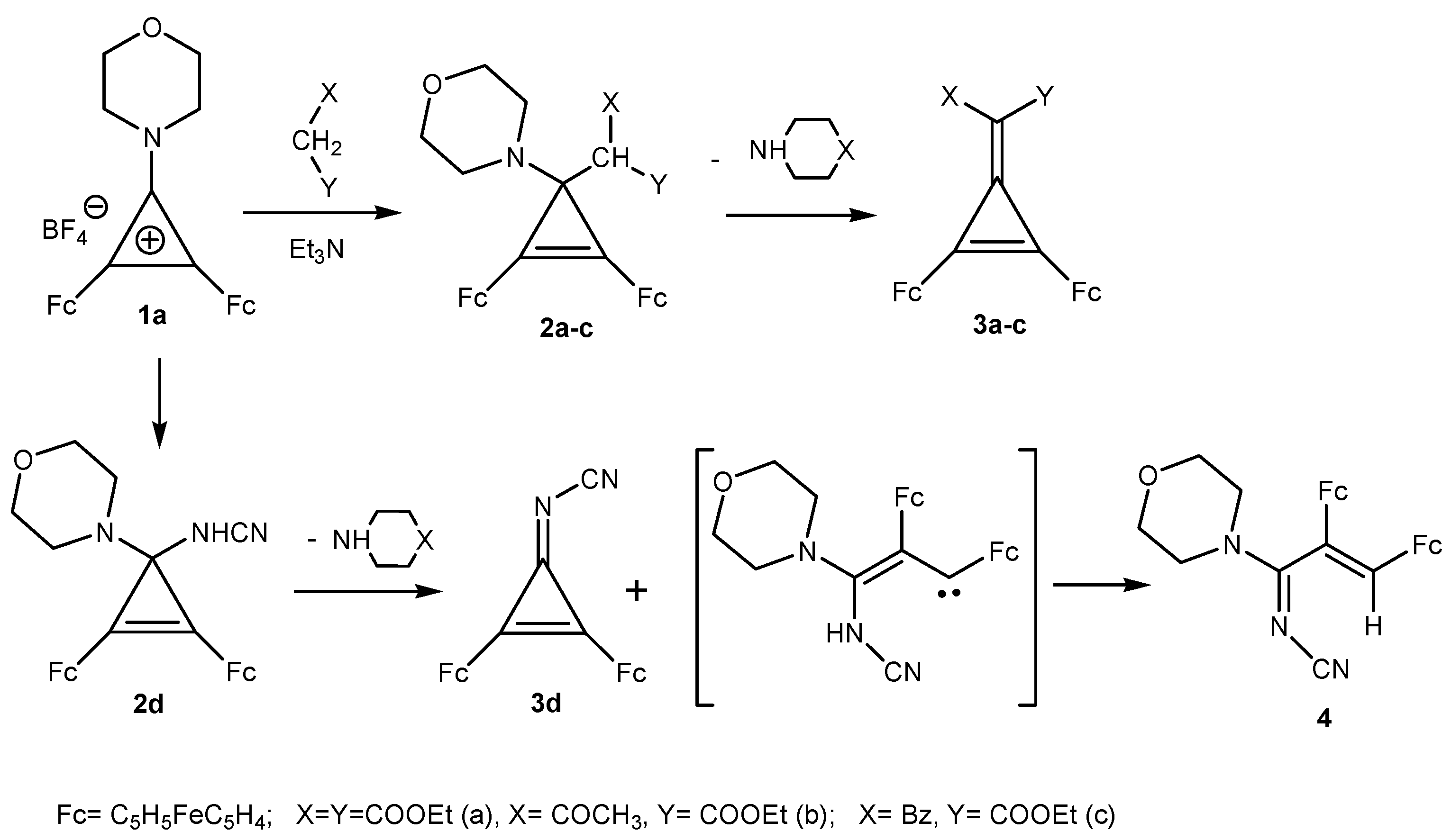

Scheme 1. Reaction of 2,3-diferrocenyl-1-morpholinocyclopropenylium tetrafluoroborate 1a with β-dicarbonyl compounds.
Scheme 1. Reaction of 2,3-diferrocenyl-1-morpholinocyclopropenylium tetrafluoroborate 1a with β-dicarbonyl compounds.
Molecules 16 05574 g008
Elimination of morpholine from cyclopropenes 2a–c then resulted in 1,2-diferrocenyl-3-(disubstituted)methylidenecyclopropenes 3a–c. Under the reaction conditions, 3-cyanimino-1,2-diferrocenylcyclopropene (3d) and a linear conjugated product 4 formed from compound 2d. In these reactions, the final products result from the regioselective attack of the nucleophiles on the C(1) atom of the three-membered ring of the cation 1a.
The interest in these compounds, especially with heteroaryl substituents in their molecules, may stem from the peculiarities of their chemical behavior due to the mutual effects of the ferrocene system and the heterocyclic fragment [8]. These effects may result in the emergence of diverse valuable properties, such as biological activity, dyeing ability, possible use as propellant additives or light-sensitive materials, redox switching receptors in supramolecular chemistry, etc., which have previously been observed for a number of heteroarylferrocenes [8].

2. Results and Discussion

2.1. Synthesis of Diferrocenylmono-, bi-, tricycles and Amino(diferrocenyl)hexa-1,3,5-trienes

Here we report investigations into the reactions of 2,3-diferrocenyl-1-morpholino(pipe-ridino)cyclopropenylium tetrafluoroborates 1a, b with 1-methylprop-2-enylmagnesium chloride 5 (Scheme 2).

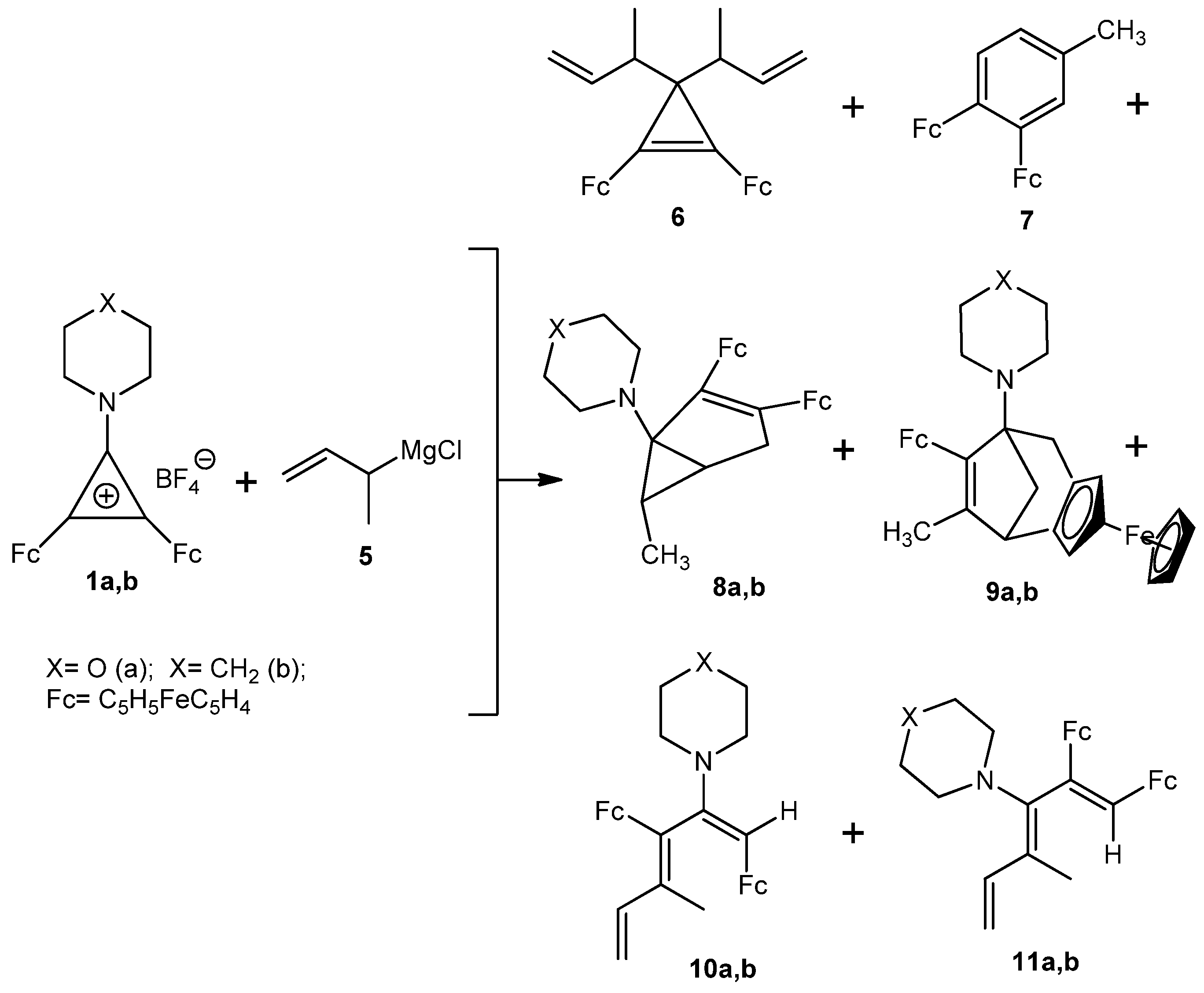

Scheme 2. Reaction of 2,3-diferrocenyl-1-morpholino(piperidino)cyclopropenylium tetrafluoroborates 1a,b with 1-methylprop-2-enylmagnesium chloride 5.
Scheme 2. Reaction of 2,3-diferrocenyl-1-morpholino(piperidino)cyclopropenylium tetrafluoroborates 1a,b with 1-methylprop-2-enylmagnesium chloride 5.
Molecules 16 05574 g009
According to a standard procedure [5,6,7], 2,3-diferrocenylcyclopropenone [9] was first converted into 1-ethoxy-2,3-diferrocenylcyclopropenylium tetrafluoroborate and then to tetrafluoroborates 1a,b [1,2], which served as the starting materials in the present study.
We found that tetrafluoroborate 1a reacted with an excess of 1-methylprop-2-enylmagnesium chloride 5 to afford a complex mixture of reaction products, the main ones being 3,3-bis(1-methylprop-2-enyl)-1,2-diferrocenylcyclopropene (6), 3,4-diferrocenyltoluene (7), 2,3-diferrocenyl-6-methyl-1-morpholinobicyclo[3.1.0]hex-2-ene (8a), 7-ferrocenyl-6-methyl-1-morpholino-3,4-ferrocenobicyclo-[3.2.1]oct-6-ene (9a), (E,E)-1,3-diferrocenyl-4-methyl-2-morpholinohexa-1,3,5-triene (10a), and (Z,E)-1,2-diferrocenyl-4-methyl-3-morpholinohexa-1,3,5-triene (11a) (Scheme 2). Analogously tetrafluoroborate 1b reacted with the Grignard reagent 5 to give compounds 6, 7, 8b, 9b, 10b, and 11b (Scheme 2).
Both reaction mixtures were separated by column chromatography on alumina, and the structures of the isolated products were established based on the data from UV, IR, and 1H- and 13C-NMR spectroscopy, mass spectrometry, and elemental analysis. The physicochemical characteristics of compounds 6 and 7 corroborate completely their structures.
We attempted to assign endo forms of compounds 8a and 8b based on previously reported criteria [10,11,12]. Thus, compounds 8a and 8b were characterized as endo isomers based on the fact that the signals from three of the protons of the C5H4 groups are observed at higher field than the singlets from the protons of the C5H5 groups [10]; the 1H-NMR spectra of compounds 8a and 8b each contain characteristic doublets for the protons of the methyl group (δ 1.04 and 0.97 ppm), two doublets of doublets for the methylene fragment, two multiplets for the methine fragments (δ 0.94 and 1.77; 0.89 and 1.76 ppm) [11], signals for the protons of the morpholine or piperidine substituents, two singlets for unsubstituted cyclopentadienyl rings and the appropriate number of multiplet signals for two substituted C5H4 moieties of the ferrocenyl substituents. The 13C-NMR spectra of compounds 8a and 8b each contained two signals for CipsoFc belonging to two ferrocene fragments, as well as the necessary number of signals for cyclopropyl-fragments δ 13.12, 20.54 ppm (2CH), 20.63 (CH3) from 8a, and δ 12.92, 20.26 (2CH), 21.34 ppm (CH3) from 8b [12]. The position of the heterocyclic substituents at the C(1) carbon atom of the bicycles 8a,b was established based on the data from 1H-NMR spectra with a one-dimensional NOE experiment, which showed the interaction of the protons of the two CH groups with the 2-CH2-protons of the heterocycles, that completely corroborated their structures. Additional proof of the structures of compounds 9a and 9b was obtained from X-ray diffraction analysis of a single crystal of compound 9b, which was grown by crystallization from CH2Cl2. A general view of 9b is shown in Figure 1a, the character of packing of molecules in a crystal is shown in Figure 1b, and the main geometrical parameters are given in Table 1. Data from the X-ray analysis proved the structure of 9b as 7-ferrocenyl-3,4-ferroceno-6-methyl-1-piperidinobicyclo-[3.2.1]oct-6-ene.
As inferred from the 1H-NMR spectra of trienes 10a and 10b, they are formed as single isomers. The spectra contained each signals for the olefinic protons of the –CH= fragments and the protons of the terminal =CH2 group, singlets for the CH3– group and two C5H5 fragments, as well as multiplets for the protons of the heterocyclic substituents. The data from 13C-NMR spectroscopy of these compounds are in full accord with the proposed structures; however, the positions of the ferrocenyl and heterocyclic substituents remained uncertain.

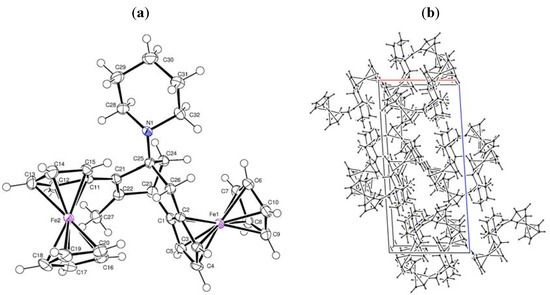

Figure 1. (a) X-ray crystal structure of 9b; (b) Crystal packing of 9b.
Figure 1. (a) X-ray crystal structure of 9b; (b) Crystal packing of 9b.
Molecules 16 05574 g001
Table 1. Selected bond lengths and bond angles for 9b, 10a and 10b.
Table 1. Selected bond lengths and bond angles for 9b, 10a and 10b.
Selected bond lengths (Å)Selected bond angles (°)
9b
C(21)-C(22)1.346(4)C(2)-C(1)-C(23)117.9(3)
C(22)-C(23)1.526(4)C(1)-C(2)-C(26)122.9(3)
C(23)-C(24)1.530(4)C(1)-C(23)-C(22)105.8(2)
C(24)-C(25)1.541(4)C(23)-C(22)-C(21)109.9(3)
C(25)-C(26)1.561(4)C(22)-C(21)-C(25)109.4(3)
C(25)-N(1)1.473(4)C(21)-C(25)-C(26)106.7(2)
C(26)-C(2)1.514(4)C(21)-C(22)-C(27)130.0(3)
C(1)-C(2)1.430(4)C(27)-C(22)-C(23)119.2(3)
C(22)-C(27)1.506(4)C(22)-C(23)-C(24)101.1(2)
10a
C(21)-C(22)1.317(6)C(21)-C(22)-C(23)122.8(4)
C(22)-C(23)1.469(5)C(22)-C(23)-C(24)121.8(3)
C(23)-C(24)1.353(5)C(23)-C(24)-C(25)121.3(3)
C(24)-C(25)1.518(4)C(24)-C(25)-C(26)123.2(3)
C(25)-C(26)1.336(5)C(22)-C(23)-C(27)115.8(3)
C(23)-C(27)1.495(5)C(24)-C(23)-C(27)122.4(3)
C(25)-N(1)1.423(4)C(24)-C(25)-N(1)113.6(3)
C(26)-C(1)1.475(5)N(1)-C(25)-C(26)122.7(3)
C(24)-C(11)1.489(4)C(25)-C(26)-C(1)128.7(3)
10b
C(22)-N(1)1.414(3)C(26)-C(25)-C(24)125.9(2)
C(22)-C(23)1.501(3)C(25)-C(24)-C(23)122.1(2)
C(23)-C(24)1.343(3)C(25)-C(24)-C(27)115.8(2)
C(24)-C(25)1.468(3)C(27)-C(24)-C(23)122.1(2)
C(21)-C(22)1.343(3)C(24)-C(23)-C(22)121.3(2)
C(25)-C(26)1.326(3)C(23)-C(22)-C(21)122.7(2)
C(24)-C(27)1.510(3)C(21)-C(22)-N(1)123.1(2)
C(23)-C(1)1.480(3)N(1)-C(22)-C(23)113.90(19)
C(21)-C(11)1.462(3)C(24)-C(23)-C(1)125.7(2)
To address this issue, we performed X-ray diffraction analysis of their single crystals grown by crystallization from dichloromethane. The general views of the molecules 10a and 10b are shown in Figure 2a,b and Figure 3a,b, respectively, and the main geometrical parameters are given in Table 1. Data from the X-ray analysis demonstrated that 10a is (E,E)-1,3-diferrocenyl-4-methyl-2-morpholino-hexa-1,3,5-triene, and 10b is (E,E)-1,3-diferrocenyl-4-methyl-2-piperidinohexa-1,3,5-triene.

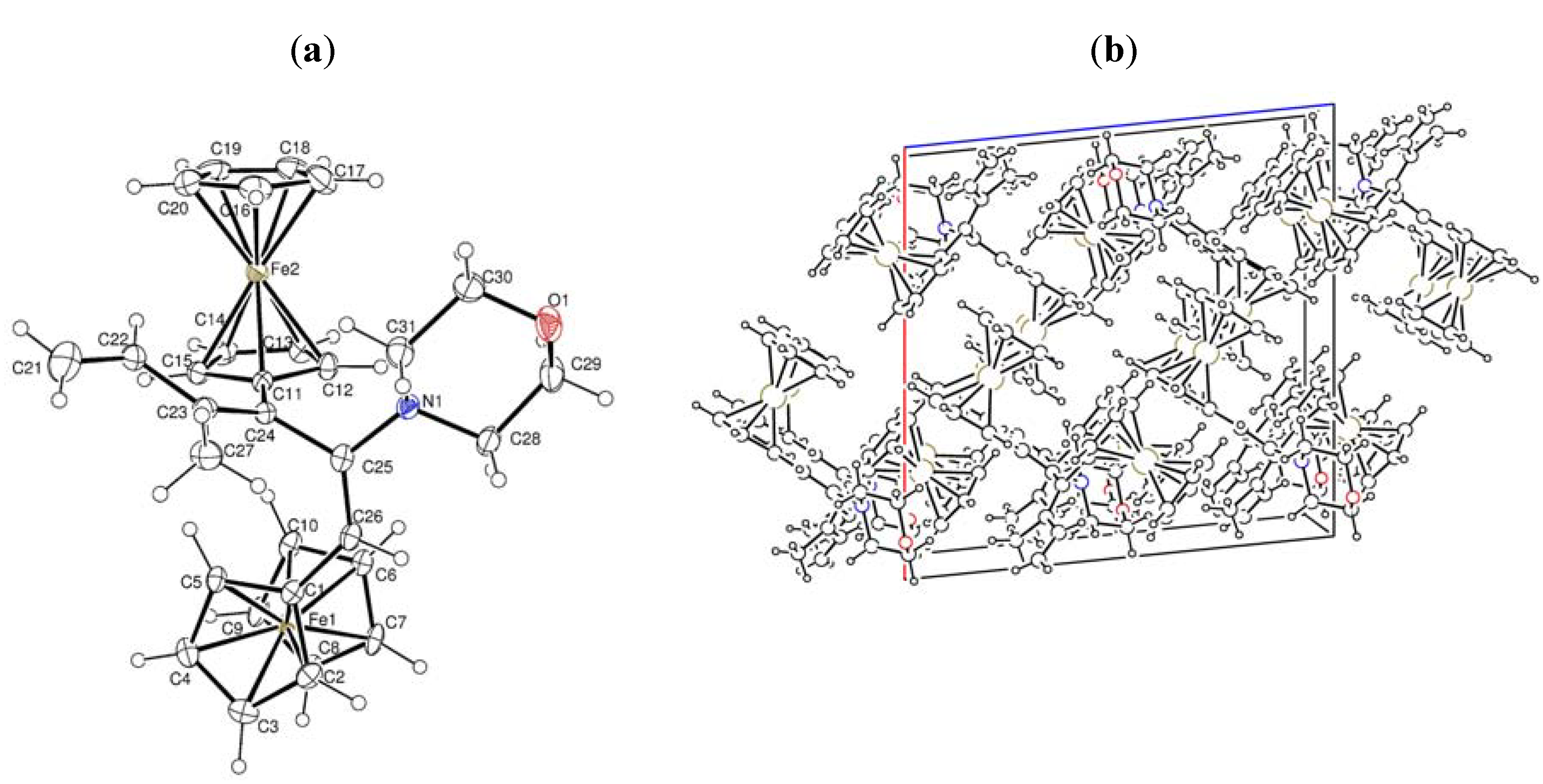

Figure 2. (a) X-ray crystal structure of 10a; (b) Crystal packing of 10a.
Figure 2. (a) X-ray crystal structure of 10a; (b) Crystal packing of 10a.
Molecules 16 05574 g002

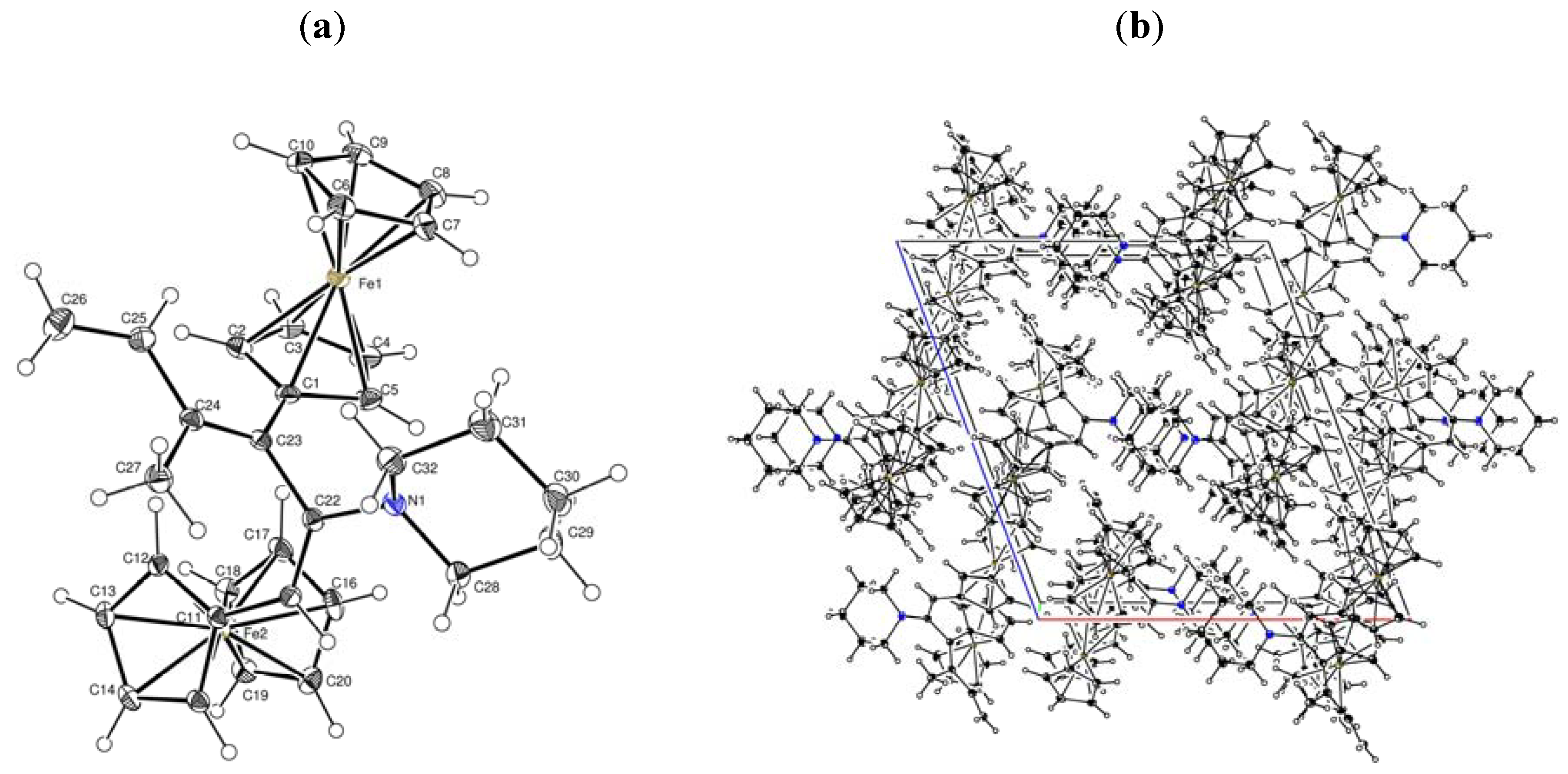

Figure 3. (a) X-ray crystal structure of 10b; (b) Crystal packing of 10b.
Figure 3. (a) X-ray crystal structure of 10b; (b) Crystal packing of 10b.
Molecules 16 05574 g003
Compounds 11a and 11b were isolated as single geometrical isomers of (Z,E)-1,2-diferrocenyl-3-heteryl-4-methylhexa-1,3,5-trienes as inferred from the following data: the 1H and 13C-NMR spectra of each of them contain signals for two ferrocenyl, one methyl, and one heterocyclic substituents, two olefinic –CH= and one terminal CH2= group. Presumably, the Z-arrangement of two ferrocenyl groups at the C(2) = C(1) double bond was assigned based on comparison with cis-positions of two Fc-substituents in bicyclic products 8a,b. The E-configuration of the C(3) = C(4) double bond was assigned based on comparison with E-configuration of the C(3) = C(4) in trienes 10a,b.
The most feasible mechanism of the formation of compounds 6, 7, 8a,b, and 11a,b involves the initial nucleophilic attack of the 1-methylprop-2-enyl anion on the heteroaryl-substituted carbon atom of the three-carbon ring of the cations 1a and 1b to afford unstable 1,2-diferrocenyl-3-heteroaryl-3-(1-methylprop-2-enyl)cyclopropenes 12a,b (Scheme 3).

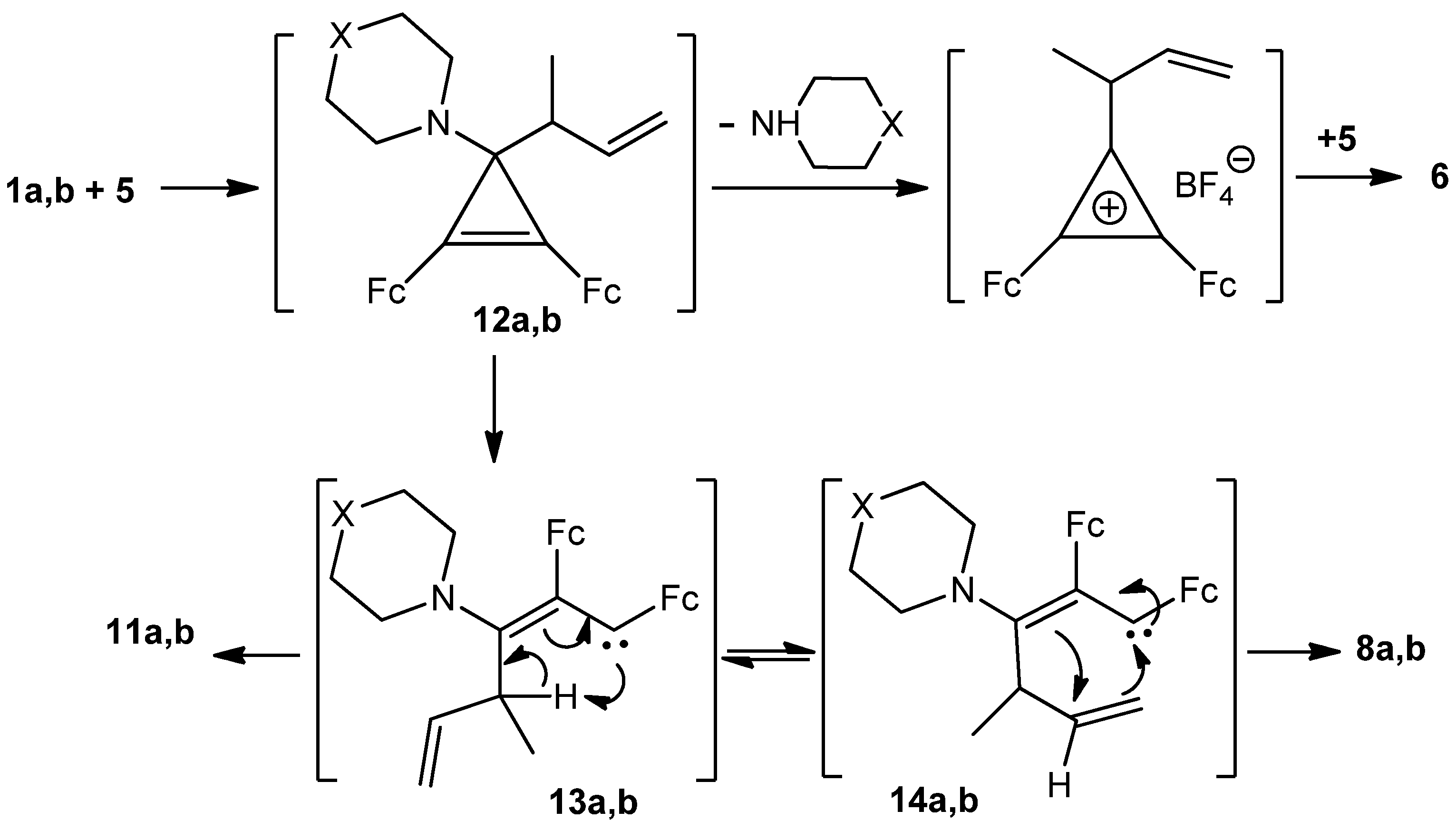

Scheme 3. Plausible mechanism of the formation of 6, 8a,b and 11a,b.
Scheme 3. Plausible mechanism of the formation of 6, 8a,b and 11a,b.
Molecules 16 05574 g010
The transformation of cyclopropenes with retention of the 3-membered ring and elimination of the heterocyclic substituents results in cyclopropene 6 (Scheme 3). Opening of the cyclopropene ring gives rise to bicyclic 8a,b and linear triene products 11a,b via 1,2-diferrocenyl-3-heterylallylcarbenes 13a,b. In our opinion, cyclization of carbenes in their configuration 13a,b leads to bicyclic compounds 8a,b, while it is the intramolecular transformation of these carbenes in the configuration 14a,b results in (Z,E)-1,2-diferrocenyl-3-heteryl-4-methylhexa-1,3,5-trienes 11a,b (Scheme 3). On the other hand, intramolecular transformation of carbenes 14a,b with the loss of a heterocyclic substituent (Scheme 4) affords 3,4-diferrocenyltoluene 7 via transient 2,3-diferrocenyl-6-methylcyclohexa-2,5-dienylcarbene 15 (Scheme 4). Putative formation mechanisms of compounds 9a,b and 10a,b are depicted in Scheme 5.

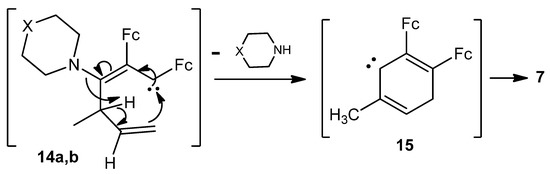

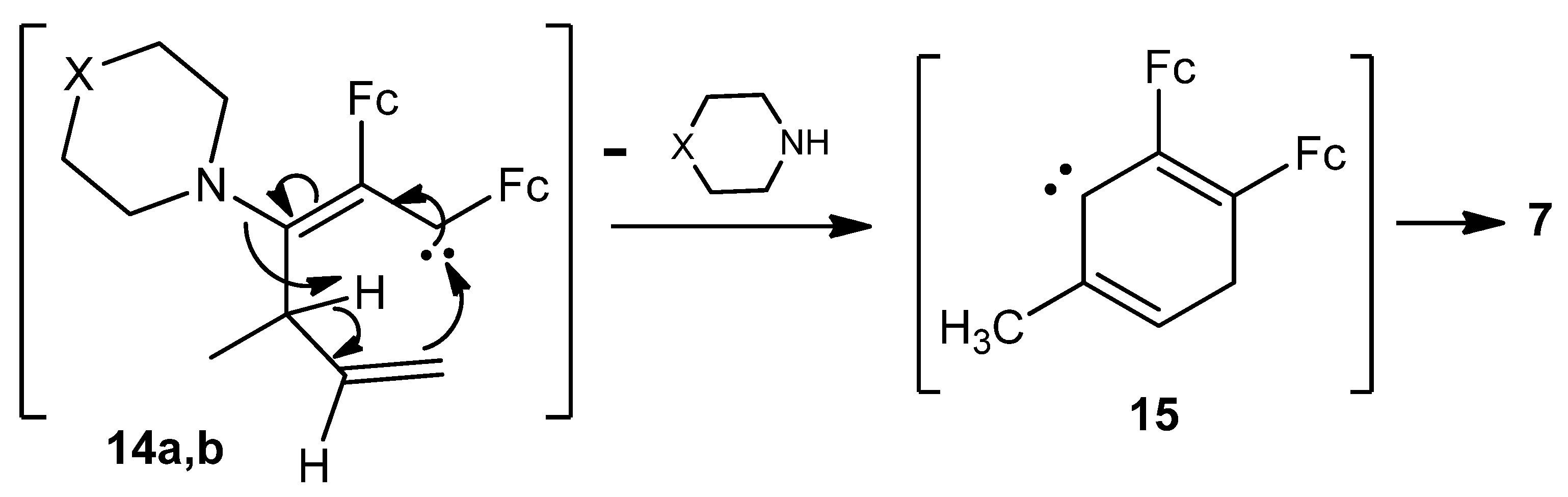

Scheme 4. Plausible mechanism of the formation of 7.
Scheme 4. Plausible mechanism of the formation of 7.
Molecules 16 05574 g011

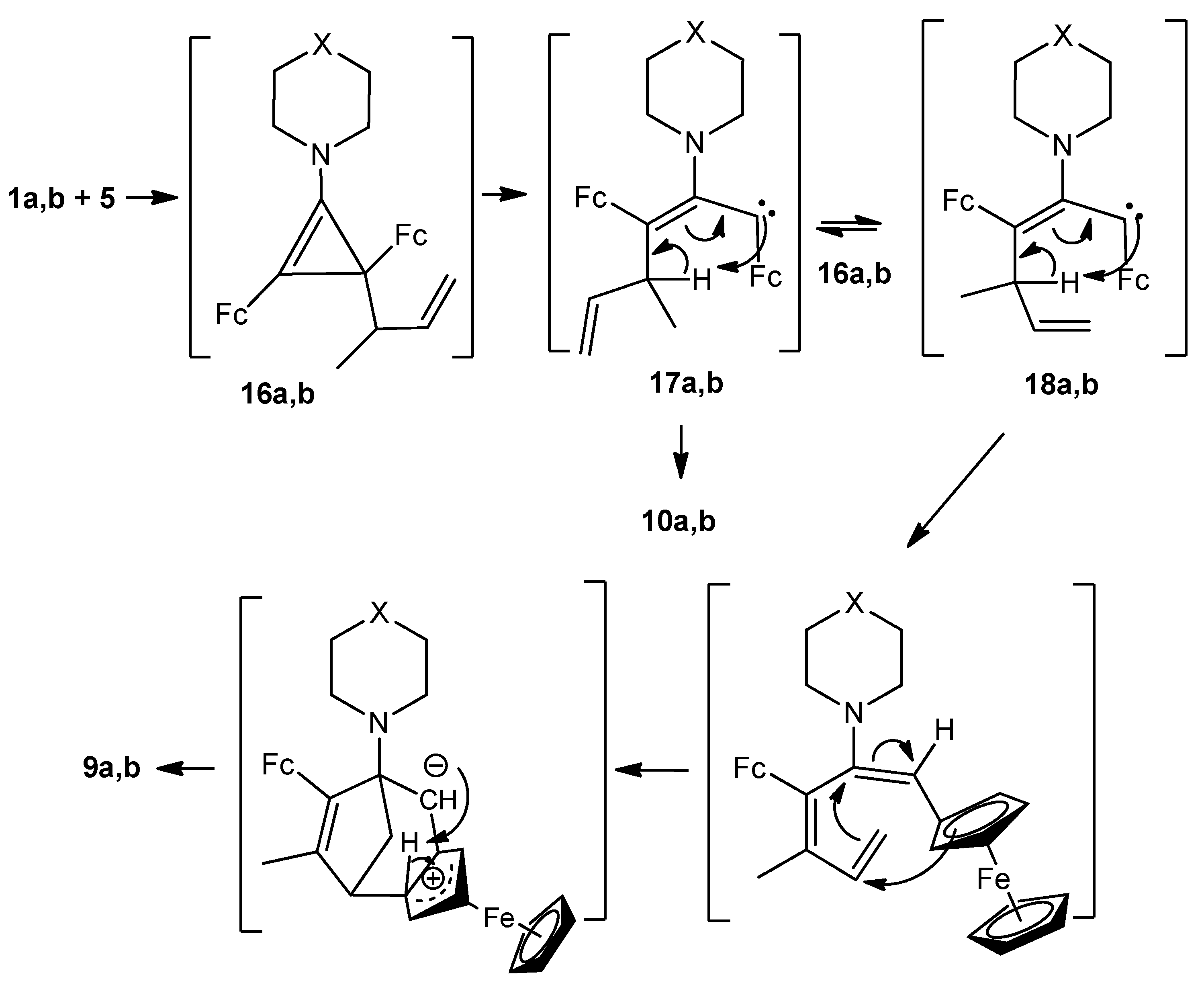

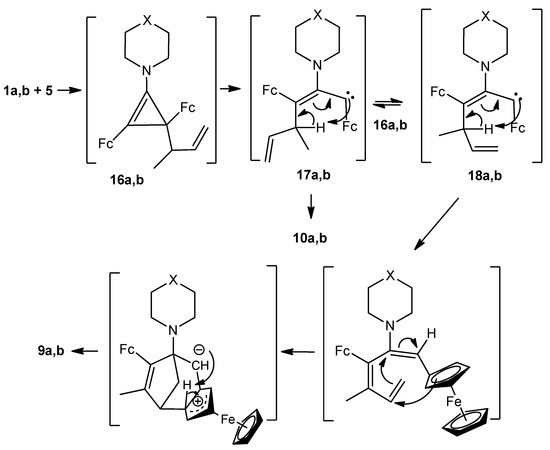

Scheme 5. Plausible mechanism of the formation of 9a,b and 10a,b.
Scheme 5. Plausible mechanism of the formation of 9a,b and 10a,b.
Molecules 16 05574 g012
The primary nucleophilic attack on the C(2) atom of cyclopropenylium cations 1a,b affords unstable tetrasubstituted cyclopropenes 16a,b. Small-ring opening in these transient species proceeds via 1,3-diferrocenyl-2-heterylallylcarbenes 17a,b and 18a,b, their intramolecular transformations result in tricyclic 9a,b and linear 10a,b final products. Compounds 9a,b formed, like bicyclic products 8a,b, from carbenes with configuration 18a,b, while configuration 17a,b of these carbenes gives rise to trienes 10a,b.

2.2. Electrochemistry

In the framework of this work, we studied electrochemical behavior of compounds 7, 8a, 10a and 10b by means of cyclic voltammetry and square wave voltammetry. Figure 4 shows a typical voltammogram of compound 7 obtained in a platinum electrode. Two oxidation signals (Ia and IIa) with its complementary reduction signals (Ic and IIc) were detected. The anodic and cathodic peak potential values were independent of scan rate, which indicates the reversibility of the two processes. The logarithmic values of peak current and scan rate were linearly dependent, with a slope near 0.5; this behaviour is characteristic for a diffusion-controlled process. This evidence indicates that processes I and II are attributed to two consecutive electron transfers of ferrocene moieties.
In order to obtain the formal electrode potential for both processes, square wave voltammetry experiments were carried out (Figure 5). The obtained values were E0’ (I) = 0.004 V/Fc-Fc+ and E0’ (II) = 0.232 V/Fc-Fc+ with its corresponding difference ΔE0’ (II-I) = 0.228 V and comproportionation constant Kcom of 7151.3 [13,14]. The electrochemical response of 8a was similar than those described above for 7.

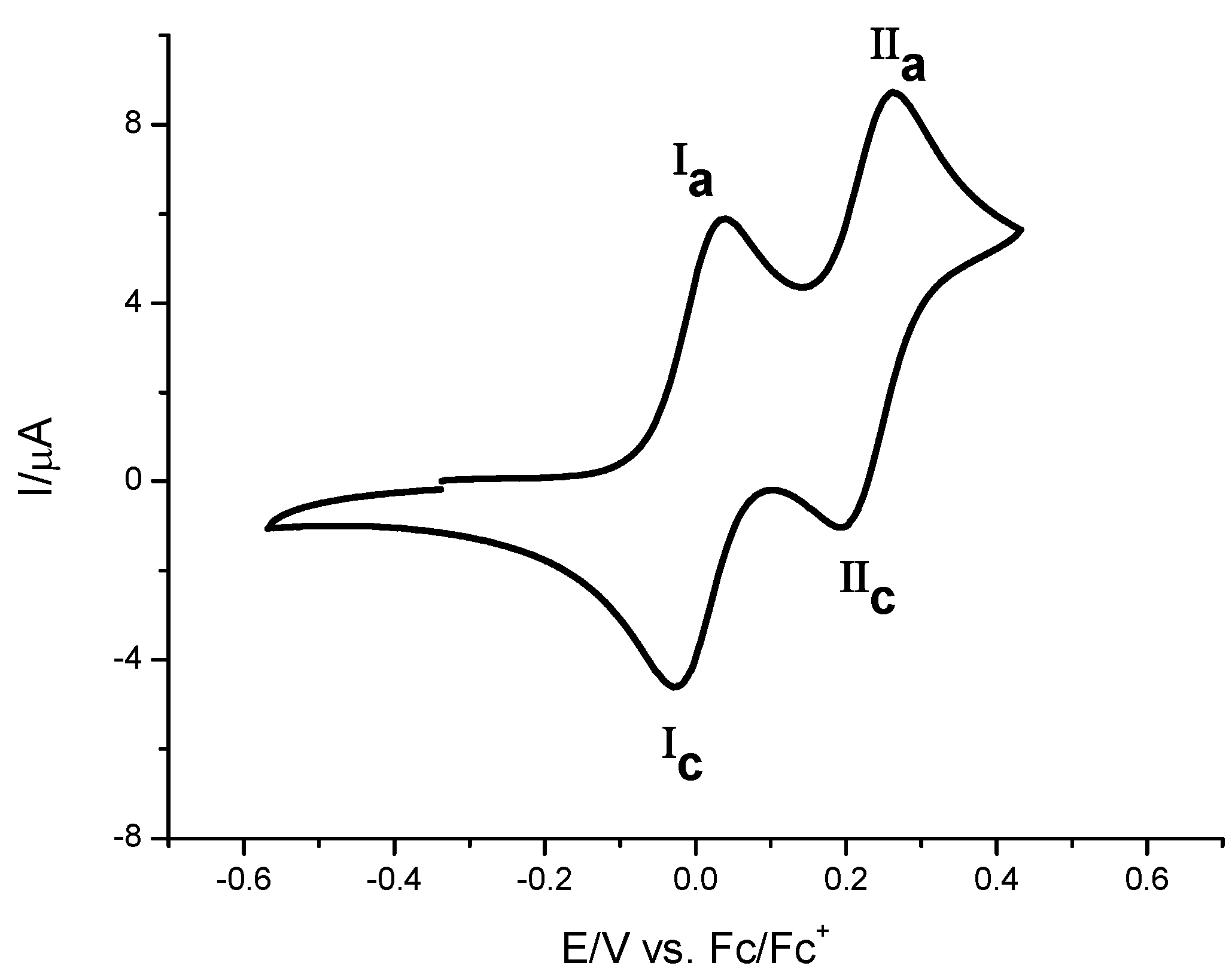

Figure 4. Cyclic voltammograms obtained for 7 in the presence of 0.1 M TBABF4 in acetonitrile. Scan rate 0.5 V s−1. The scan potential was initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Figure 4. Cyclic voltammograms obtained for 7 in the presence of 0.1 M TBABF4 in acetonitrile. Scan rate 0.5 V s−1. The scan potential was initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Molecules 16 05574 g004

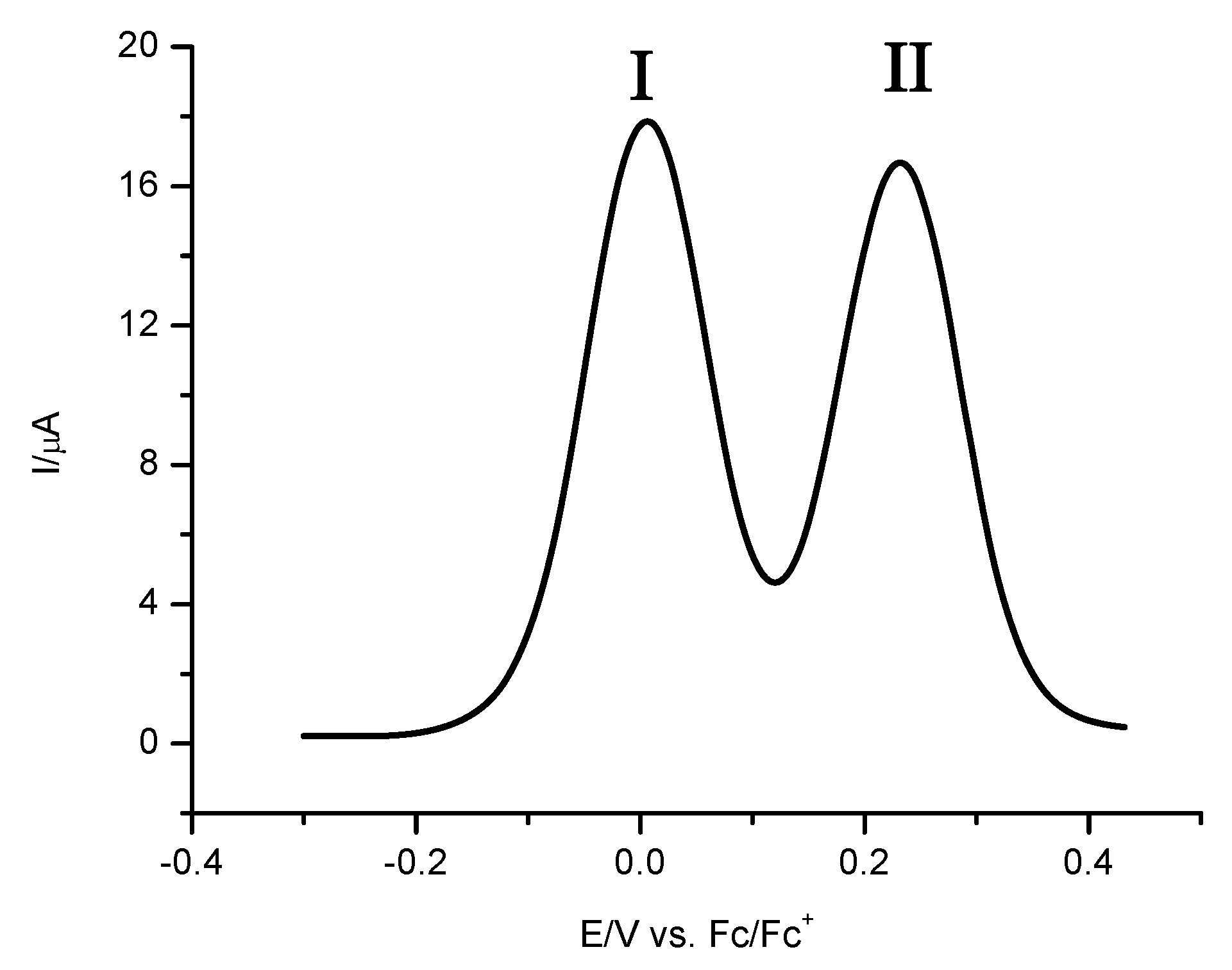

Figure 5. Square wave voltammetry obtained for 7 in the presence of 0.1 M TBABF4 in acetonitrile. Amplitude of 50 mV with a frequency of 10 Hz and initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Figure 5. Square wave voltammetry obtained for 7 in the presence of 0.1 M TBABF4 in acetonitrile. Amplitude of 50 mV with a frequency of 10 Hz and initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Molecules 16 05574 g005
The estimated values of E0’ (I) and E0’ (II) were 0.058 and = 0.159 V/Fc-Fc+ with ΔE0’ (II-I) = 0.101 V and Kcom= 51.4. The highest value of ΔE0’ (II-I) for 7, compared with the obtained value for 8a, can be explained in terms of an increase in the electron density in ferrocene moieties due to the presence of an aromatic ring and the activating properties of the methyl substituent in 7. This fact suggests that in the Kcom values electron withdrawing an electron donating effects must be consider. Also, the difference in the conjugation manner in compounds 7 and 8a could be the reason for the difference in ΔE0’ (II-I) values. Figure 6 presents cyclic voltammoamperometric response of compound 10a. When the potential scan was initiated in the positive direction, three oxidation signals (Ia, IIa, and II’’a) were observed, and when the potential scan was reversed, two reduction signals (Ic and IIc) were also observed. We propose that the electrochemical process I with its corresponding oxidation and reduction signals, Ia and Ic, are attributed to electron transfer ferronece/ferricium+ for both moieties. This is in agreement with the fact that a single electrochemical process is observed when there is no electronic communication between two redox centers, due to the long distance within a molecule, as occurs in compound 10a (Figure 6).

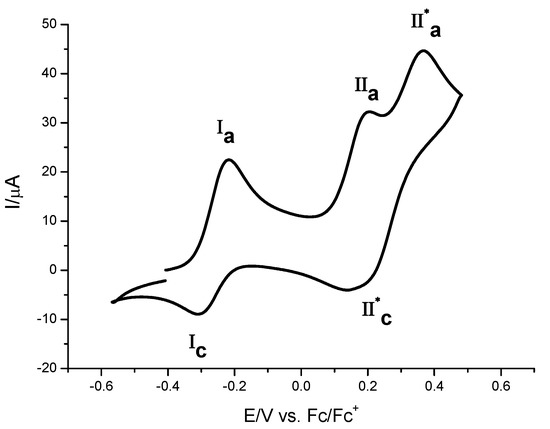

Figure 6. Cyclic voltammograms obtained for 10a in the presence of 0.1 M TBABF4 in acetonitrile. Scan rate 0.5 V s−1. The scan potential was initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Figure 6. Cyclic voltammograms obtained for 10a in the presence of 0.1 M TBABF4 in acetonitrile. Scan rate 0.5 V s−1. The scan potential was initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Molecules 16 05574 g006
On the other hand, based on studies reported previously for molecules with conjugated double bonds, the processes IIa and II’’a can be related to electrochemical generation of the monocation and dication species [15,16,17,18,19,20,21]. Controlled potential coulommetry experiments acquired at potential step corresponding to anodic peak potential values for processes I, and II, led us to calculate the value of two electrons transferred for each process. The formal electrode potential values were evaluated also using square wave voltammetry experiments (Figure 7).

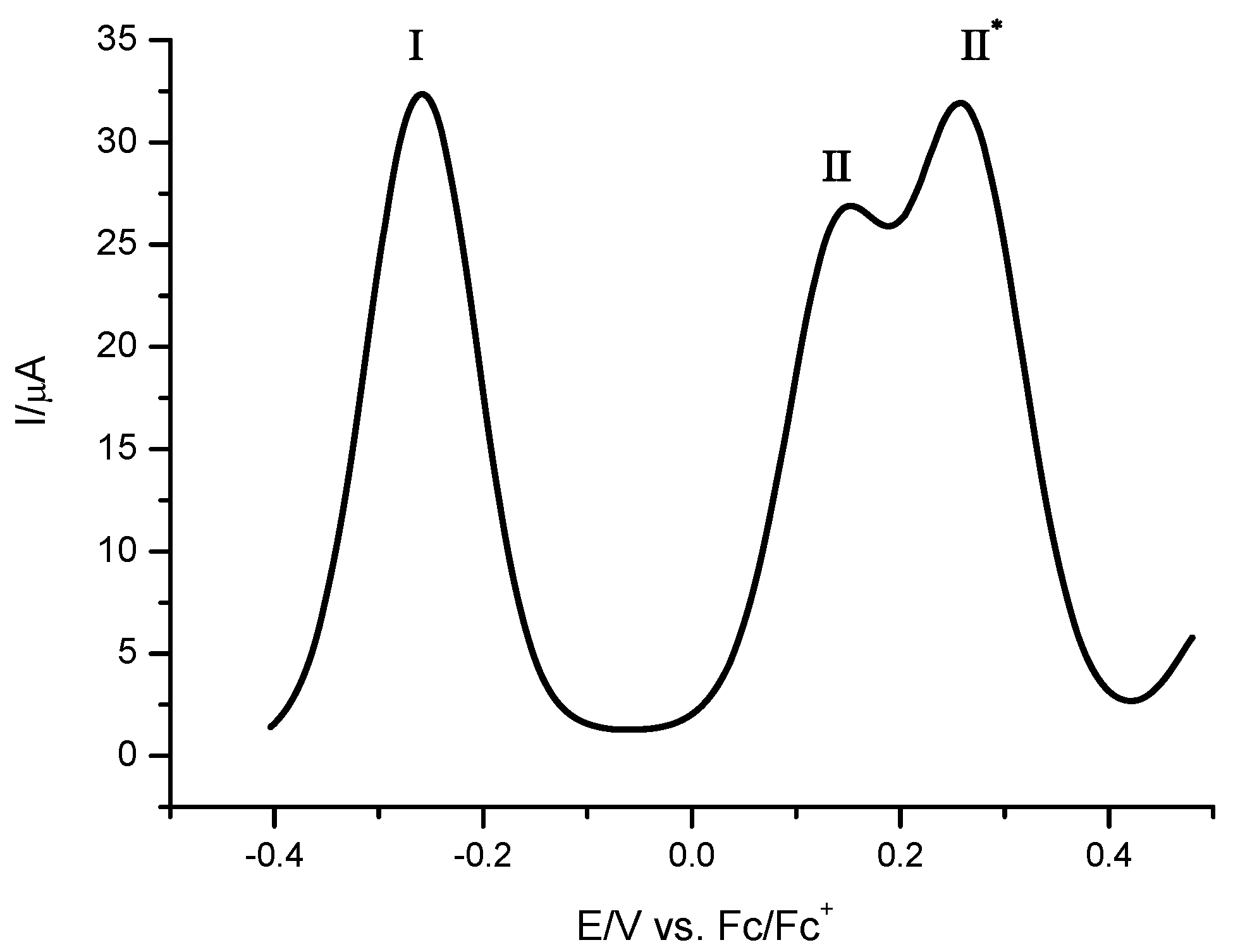

Figure 7. Square wave voltammetry obtained for 10a in the presence of 0.1 M TBABF4 in acetonitrile. Amplitude of 50 mV with a frequency of 10 Hz and initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Figure 7. Square wave voltammetry obtained for 10a in the presence of 0.1 M TBABF4 in acetonitrile. Amplitude of 50 mV with a frequency of 10 Hz and initiated from Eocp in the positive direction. The working electrode used was a platinum disc.
Molecules 16 05574 g007
The values for E0’ (I), E0’ (II), and E0’ (II*) were −0.260, 0.152, and 0.256 V/Fc-Fc+, respectively. The electrochemical response of compound 10b is similar that obtained for 10a. However, different values of formal electrode potentials were observed. Table 2 shows a summary of electrochemical behaviour of compounds 7, 8a, 10a and 10b.
Table 2. Formal electrode potential E0 (I), E0 (II) and Δ E0 (II-I), and constant Kcom for compounds 7, 8a, 10a, and 10b.
Table 2. Formal electrode potential E0 (I), E0 (II) and Δ E0 (II-I), and constant Kcom for compounds 7, 8a, 10a, and 10b.
CompoundE0(Ι) aE0 (II) aE0 (ΙΙ) bE0 (ΙΙ) c
70.0040.232
8a0.0580.101V
10a −0.260 d 0.1520.256
10b−0.328 d 0.1360.240

3. Experimental

3.1. General

All the solvents were dried according to standard procedures [22] and were freshly distilled before use. Column chromatography and TLC were carried out on alumina (Brockmann activity III). The 1H and 13C-NMR spectra of the compounds 6, 7 8a,b, 11a,b were recorded on a Unity Inova Varian spectrometer (300 and 75 MHz) for solutions in CDCl3, with Me4Si as the internal standard. The IR spectra were measured with an FTIR spectrophotometer (Spectrum RXI Perkin-Elmer instruments) using KBr pellets. UV spectra were recorded on a Specord UV-VIS spectrophotometer.The mass spectra were obtained on a Varian MAT CH-6 instrument (EI MS, 70 eV). A LECO CHNS-900 Elementar Analysensysteme was used for elemental analyses.
Electrochemical measurements were carried out in acetonitrile containing 0.1 M tetra-n-butyl-ammonium tetrafluoroborate (TBABF4) with sample concentration c.a. 1 mM. An Epsilon-BAS potentiostat/galvanostat was used for all experiments. A typical three-electrode array was employed; using a platinum disk as working electrode and a platinum wire as counter-electrode. A silver wire immersed in acetonitrile solution with 0.1 M tetra-n-butylammonium chloride (TBACl) was used as a pseudo reference electrode. Before each measurement all solutions were bubbled with nitrogen. Cyclic voltammetry experiments were acquired from the open circuit potential (Eocp) to positive direction, at different scan rates (from 0.1 to 0.5 V s−1). Square wave voltammetry experiments using amplitude of 50 mV with a frequency of 10 Hz were also performed. All potentials were reported versus the Fc/Fc+ couple, according to the IUPAC convention [23].
The following reagents were purchased from Aldrich: Tetrachlorocycloropropene, 98%; ferrocene, 98%; triethyloxonium tetrafluoroborate, 1.0 M solution in dichloromethane; morpholine, 99.5%; piperidine, 99%; 1-methyl-2-propenylmagnesium chloride, 0.5M solution in tetrahydrofuran. Ethoxy-(diferrocenyl)cyclopropenylium tetrafluoroborate was obtained by treating 2,3-diferrocenylcyclo-propenone [2] in dichloromethane with triethyloxonium tetrafluoroborate. Diferrocenyl(morpholino)- or (piperidino)cyclopropenylium tetrafluoroborates 1a,b were obtained from ethoxy(diferrocenyl)-cyclopropenylium tetrafluoroborate and morpholine or piperidine in dichloromethane [1].
Reactions of diferrocenyl(morpholino)- or (piperidino)cyclopropenylium tetrafluoroborates 1a,b with 1-methyl-2-propenylmagnesium chloride (5). 1-Methyl-2-propenylmagnesium chloride (5, 20.0 mL of a 0.5 M solution in tetrahydrofuran) was added to a suspension of salt 1a or 1b (5.0 mmol) in dry benzene (100 mL) and the mixture was stirred in an inert dry atmosphere (~70–80 °C) until complete dissolution of the salts 1a,b occurred (~6–8 h). The excess of the organometallic compound was quenched with water (20 mL), the organic layer was separated, concentrated, and the residue was chromatographed on alumina (Brockmann activity III, hexane-dichloromethane, 7:1) to give compounds 6, 7, 8a11a and 8b11b.
Reactions of diferrocenyl(morpholino)- or (piperidino)cyclopropenylium tetrafluoroborates 1a,b with 1-methyl-2-propenylmagnesium chloride (5). 1-Methyl-2-propenylmagnesium chloride (5, 20.0 mL of a 0.5 M solution in tetrahydrofuran) was added to a suspension of salt 1a or 1b (5.0 mmol) in dry benzene (100 mL) and the mixture was stirred in an inert dry atmosphere (~70–80 °C) until complete dissolution of the salts 1a,b occurred (~6–8 h). The excess of the organometallic compound was quenched with water (20 mL), the organic layer was separated, concentrated, and the residue was chromatographed on alumina (Brockmann activity III, hexane-dichloromethane, 7:1) to give compounds 6, 7, 8a11a and 8b11b.
1,2-Diferrocenyl-3,3-di-(3-buten-2-yl)cyclopropene (6). Orange powder, yield: 0.18–0.26 g (7%–10%), m.p. 103–104 °C (hexane); 1H-NMR: 0.88 (d, 3H, CH3, J = 6.9 Hz), 1.11 (d, 3H, CH3, J = 6.9 Hz), 2.65 (m, 2H, 2CH), 4.19 (s, 5H, C5H5), 4.21 (s, 5H, C5H5), 4.34 (m, 3H, C5H4), 4.36 (m, 3H, C5H4), 4.52 (m, 2H, C5H4), 4.97–5.04 (m, 4H, 2CH2=), 5.84–5.98 (m, 2H, 2CH=); 13C-NMR: 18.63, 18.81 (2CH3), 42.66, 43.19 (2CH), 45.06 (C), 69.32, 69.37 (2C5H5), 68.91, 69.00, 69.04, 69.08, 69.27, 69.42, 69.44, 69.46 (2C5H4), 76.04 (2CipsoFc), 112.58, 112.88 (2CH2=), 144.87, 144.95 (2CH=), 144.56 (2C); MS: m / z 516 [M]+. Anal. Calcd. for C31H32Fe2: C, 72.11; H, 6.25; Fe, 21.64%. Found: C, 72.23; H, 6.17; Fe, 21.81.
3,4-Diferrocenyltoluene (7). Orange powder, yield: 0.12–0.18 g (5%–8%), m.p. 124–125 °C; 1H-NMR: 2.40 (s, 3H, CH3), 4.00 (s, 5H, C5H5), 4.02 (s, 5H, C5H5), 4.04 (m, 2H, C5H4), 4.06 (m, 2H, C5H4), 4.09 (m, 4H, C5H4), 7.03 (d, 1H, C6H3J = 8.4 Hz), 7.55 (s, 1H, C6H3), 7.62 (d, 1H, C6H3J = 8.4 Hz); 13C-NMR: 21.17 (CH3), 69.32, 69.37 (2C5H5), 67.08, 6715, 70.56, 70.65 (2C5H4), 87.81, 87.83 (2CipsoFc), 126.54, 131.24, 131.87 (C6H3), 134.28, 134.93, 136.99 (3Cipso); MS: m / z 460 [M]+. Anal. Calcd. for C27H24Fe2: C, 70.47; H, 5.26; Fe, 24.27. Found: C, 70.36; H, 5.40; Fe, 24.15.
2,3-Diferrocenyl-6-methyl-1-morpholinobicyclo[3.1.0]hex-2-ene (8a). Orange oil, yield: 0.27 g (10%); IR (KBr): 484, 755, 817, 876, 906, 969, 1002, 1031, 1044, 1106, 1119, 1172, 1220, 1263, 1302, 1360, 1449, 1614, 1714, 2250, 2734, 2851, 2955, 3093 cm−1; 1H-NMR: 0.94 (m, 1H, CH), 1.04 (d, 3H, CH3, J = 6.9 Hz), 1.77 (m, 1H, CH), 2.35 (dd, 1H, CH2, J = 4.8, 16.5 Hz), 2.63 (dd, 1H, CH2, J = 6.6, 16.5 Hz), 2.78 (m, 4H, 2 CH2), 3.48 (m, 4H, 2 CH2), 3.91 (s, 5H, C5H5), 4.00 (s, 5H, C5H5), 3.84 (m, 2H, C5H4), 3.89 (m, 2H, C5H4), 3.94 (m, 2H, C5H4), 4.04 (m, 2H, C5H4); 13C-NMR: 13.12, 20.54 (2CH), 20.63 (CH3), 34.23 (CH2), 40.38, 50.13 (4CH2), 65.09 (C), 68.43, 68.75 (2C5H5), 67.21, 67.42, 67.61, 67.89, 68.52, 68.91, 69.54, 69.71 (2C5H4), 82.80, 83.14 (2CipsoFc), 133.45, 135.12 (2C); MS: m / z 547 [M]+. Anal. Calcd. for C31H33Fe2NO: C, 68.03; H, 6.08; Fe, 20.41; N, 2.56. Found: C, 67.96; H, 6.13; Fe, 20.55; N, 2.60.
7-Ferrocenyl-3,4-ferroceno-6-methyl-1-morpholinobicyclo[3.2.1]oct-6-ene (9a). Orange crystals, yield: 0.82 g (30%), m.p. 167–168 °C; IR (KBr): 497, 802, 809, 820, 998, 1025, 1106, 1153, 1304, 1390, 1442, 1465, 1630, 1715, 1768, 2184, 2793, 2918, 2952, 2976, 3075, 3107 cm−1; 1H-NMR: 1.75 (dd, 1H, CH2, J = 5.7, 13.8 Hz), 1.85 (s, 3H, CH3), 1.98 (dd, 1H, CH2, J = 8.4, 13.8 Hz), 2.36 (d, 1H, CH2, J = 12.6 Hz), 2.62 (d, 1H, CH2, J = 12.6 Hz), 2.70 (m, 2H, CH2), 2.93 (m, 1H, CH), 3.66 (m, 4H, 2CH2), 3.88 (m, 4H, 2CH2), 3.93 (s, 5H, C5H5), 4.04 (s, 5H, C5H5), 3.41 (m, 1H), 3.82 (m, 1H), 4.06 (m, 1H), 4.28 (m, 2H), 4.35 (m, 1H), 5.30 (m, 1H) (C5H4, C5H3); 13C-NMR: 17.01 (CH3), 35.16, 36.66 (2CH2), 46.31 (CH), 57.42, 67.71 (4 CH2), 68.95 (C), 68.68, 69.36 (2C5H5), 67.14, 67.29, 67.87, 69.49, 70.22, 70.87, 72.91 (C5H4, C5H3), 76.83, 80.06, 93.47 (3CipsoFc), 136.22, 139.37 (2C); MS: m / z 547 [M]+. Anal. Calcd. for C31H33Fe2NO: C, 68.03; H, 6.08; Fe, 20.41; N, 2.56. Found: C, 68.14; H, 5.97; Fe, 20.32; N, 2.41.
E,E-1,3-Diferrocenyl-4-methyl-2-morpholinohexa-1,3,5-triene (10a). Orange crystals, yield: 0.62 g (22%), m.p. 174–176 °C. λmax (CHCl3, 20 °C) 211, 282 nm; IR (KBr): 490, 817, 906, 1000, 1026, 1044, 1106, 1119, 1166, 1220, 1276, 1374, 1444, 1581, 1615, 1819, 2049, 2185, 2730, 2816, 2853, 2947, 3079, 3091 cm−1; 1H-NMR: 1.77 (s, 3H, CH3), 2.92 (m, 4H, 2CH2), 3.68 (m, 4H, 2CH2), 4.00 (s, 5H, C5H5), 4.14 (s, 5H, C5H5), 4.05 (m, 2H, C5H4), 4.17 (m, 1H, C5H4), 4.22 (m, 1H, C5H4), 4.24 (m, 1H, C5H4), 4.33 (m, 1H, C5H4), 4.35 (m, 1H, C5H4), 4.37 (m, 1H, C5H4), 5.11 (s, 1H, CH=), 5.29 (dd, 1H, CH2=, J = 1.2, 11.1 Hz), 5.35 (dd, 1H, CH2=, J = 1.2, 17.4 Hz), 7.89 (dd, 1H, CH=, J = 11.1, 17.4 Hz); 13C-NMR: 16.60 (CH3), 48.17, 67.15 (4CH2), 69.01, 69.39 (2C5H5), 67.18, 67.30, 67.62, 67.66, 67.95 (2C), 70.95, 71.52 (2C5H4), 84.96, 85.23 (2CipsoFc), 113.86 (CH2=), 100.24, 137.15 (2CH=), 132.68, 134.15, 147.82 (3C); MS: m / z 547 [M]+. Anal. Calcd. for C31H33Fe2NO: C, 68.03; H, 6.08; Fe, 20.41; N, 2.56. Found: C, 68.09; H, 6.14; Fe, 20.53; N, 2.38.
Z,E-1,2-Diferrocenyl-4-methyl-3-morpholinohexa-1,3,5-trienes (11a). Orange oil, yield: 0.33 g (12%). λmax (CHCl3, 20 °C) 211, 292 nm; IR (KBr): 493, 815, 822, 865, 896, 1000, 1026, 1106, 1119, 1163, 1226, 1249, 1301, 1386, 1446, 1625, 1651, 2298, 2852, 2956, 3091 cm−1; 1H-NMR: 1.95 (s, 3H, CH3), 3.17 (m, 4H, 2CH2), 3.60–3.73 (m, 4H, 2CH2), 4.01 (s, 5H, C5H5), 4.08 (s, 5H, C5H5), 3.97 (m, 2H, C5H4), 4.20 (m, 2H, C5H4), 4.28 (m, 2H, C5H4), 4.37 (m, 2H, C5H4), 5.15 (dd, 1H, CH2=, J = 0.9, 11.4 Hz), 5.36 (dd, 1H, CH2=, J = 0.9, 16.8 Hz), 6.25 (s, 1H, CH=), 7.03 (dd, 1H, CH=, J = 11.4, 16.8 Hz); 13C-NMR: 15.87 (CH3), 45,84, 65.13 (4CH2), 68.88, 69.12 (2C5H5), 68.46, 68.81, 69.34, 70.12 (2C5H4), 80.76, 82.60 (2CipsoFc), 116.72 (CH2=), 128.62, 134.06 (2CH=), 132.42, 133.74, 148.13 (3C); MS: m / z 547 [M]+. Anal. Calcd. for C31H33Fe2NO: C, 68.03; H, 6.08; Fe, 20.41; N, 2.56. Found: C, 67.87; H, 6.01; Fe, 20.31; N, 2.24.
2,3-Diferrocenyl-6-methyl-1-piperidinobicyclo[3.1.0]hex-2-ene (8b). Orange oil, yield: 0.22 g (8%); IR (KBr): 487, 761, 815, 874, 906, 966, 1001, 1017, 1024, 1103, 1117, 1175, 1214, 1263, 1303, 1360, 1444, 1617, 1716, 2247, 2723, 2867, 2909, 3093 cm−1; 1H-NMR: 0.89 (m, 1H, CH), 0.97 (d, 3H, CH3, J = 6.9 Hz), 1.49 (m, 2H, CH2), 1.76 (m, 1H, CH), 2.27 (dd, 1H, CH2, J = 4.5, 16.2 Hz), 2.46 (dd, 1H, CH2, J = 6.6, 16.2 Hz), 2.63 (m, 4H, 2CH2), 3.04 (m, 4H, 2CH2), 3.87 (s, 5H, C5H5), 3.98 (s, 5H, C5H5), 3.82 (m, 2H, C5H4), 3.92 (m, 2H, C5H4), 4.00 (m, 2H, C5H4), 4.02 (m, 2H, C5H4); 13C-NMR: 12.92, 20.46 (2CH), 21.34 (CH3), 32.45 (CH2), 47.56 (5CH2), 33.87, 40.19 (5CH2), 64.17 (C), 68.36, 68.59 (2C5H5), 67.19, 67.40, 67.54, 67.82, 68.73, 68.99, 69.32, 69.34 (2C5H4), 82.54, 82.87 (2CipsoFc), 132.62, 133.91 (2C); MS: m / z 545 [M]+. Anal. Calcd. for C32H35Fe2N: C, 70.48; H, 6.47; Fe, 20.48; N, 2.57. Found: C, 70.32; H, 6.54; Fe, 20.31; N, 2.35.
7-Ferrocenyl-3,4-ferroceno-6-methyl-1-piperidinobicyclo[3.2.1]oct-6-ene (9b). Orange crystals, yield: 0.84 g (31%), m.p. 198–199 °C; IR (KBr): 498, 801, 810, 819, 999, 1024, 1105, 1153, 1307, 1394, 1439, 1464, 1629, 1715, 1764, 2184, 2797, 2912, 2941, 2971, 3075, 3103 cm−1; 1H-NMR: 0.87 (m, 2H, CH2), 1.44 (m, 4H, 2CH2), 1.85 (s, 3H, CH3), 2.11 (m, 4H, 2CH2), 2.21 (dd, 1H, CH2, J = 5.1, 9.6 Hz), 2.33 (d, 1H, CH2, J = 9.6 Hz), 2.69 (d, 1H, CH2, J = 15.6 Hz), 2.92(d, 1H, CH, J = 5.1 Hz), 3.27 (d, 1H, CH2, J = 15.6 Hz), 3.74 (s, 5H, C5H5), 4.08 (s, 5H, C5H5), 3.94 (m, 1H), 3.97 (m, 2H), 4.07 (m, 2H), 4.31 (m, 1H), 4.97 (m, 1H), 5.30 (C5H4, C5H3); 13C-NMR: 15.99 (CH3), 25.65, 29.96, 36.54 (3CH2), 45.00 (CH), 26.99, 48.44 (4CH2), 68.82 (C), 68.68, 69.36 (2C5H5), 63.14, 64.61, 66.58, 67.12, 67.37, 67.78, 75.07 (C5H4, C5H3), 80.34, 83.90, 91.81 (3CipsoFc), 131.42, 141.58 (2C); MS: m / z 545 [M]+. Anal. Calcd. for C32H35Fe2N: C, 70.48; H, 6.47; Fe, 20.48; N, 2.57. Found: C, 70.57; H, 6.32; Fe, 20.53; N, 2.65.
E,E-1,3-Diferrocenyl-4-methyl-2-piperidinohexa-1,3,5-triene (10b). Orange crystals, yield: 0.57 g (21%), m.p. 206–207 °C; λmax (CHCl3, 20 °C) 211, 293 nm; IR (KBr): 492, 819, 903, 1004, 1024, 1046, 1106, 1121, 1163, 1225, 1277, 1375, 1444, 1580, 1621, 1820, 2037, 2191, 2728, 2815, 2839, 2952, 3081, 3093 cm−1; 1H-NMR: 1.53 (m, 6H, 3CH2), 1.74 (s, 3H, CH3), 2.96 (m, 4H, 2CH2), 3.97 (s, 5H, C5H5), 4.15 (s, 5H, C5H5), 4.01 (m, 2H, C5H4), 4.12 (m, 1H, C5H4), 4.20 (m, 1H, C5H4), 4.22 (m, 1H, C5H4), 4.34 (m, 1H, C5H4), 4.36 (m, 1H, C5H4), 4.37 (m, 1H, C5H4), 5.05 (s, 1H, CH=), 5.24 (dd, 1H, CH2=, J = 1.5, 11.1 Hz), 5.31 (dd, 1H, CH2=, J = 1.5, 17.4 Hz), 7.84 (dd, 1H, CH=, J = 11.1, 17.4 Hz); 13C-NMR: 16.48 (CH3), 24.76 (CH2), 26.35, 44.86 (4CH2), 68.98, 69.39 (2C5H5), 67.03, 67.43, 67.53, 67.69, 67.90, 69.37, 70.88, 71.78 (2C5H4), 85.43, 85.91 (2CipsoFc), 113.35 (CH2=), 99.29, 137.44 (2CH=), 133.50, 133.79, 148.87 (3C); MS: m / z 545 [M]+. Anal. Calcd. for C32H35Fe2N: C, 70.48; H, 6.47; Fe, 20.48; N, 2.57. Found: C, 70.37; H, 6.58; Fe, 20.61; N, 2.49.
Z,E-1,2-Diferrocenyl-4-methyl-3-piperidinohexa-1,3,5-trienes (11b). Orange oil, yield: 0.43 g (16%). λmax(CHCl3, 20 °C) 211, 294 nm; IR (KBr): 489, 812, 818, 860, 896, 1006, 1021, 1103, 1121, 1163, 1224, 1251, 1302, 1385, 1443, 1625, 1648, 2294, 2855, 2962, 3093 cm−1; 1H-NMR: 1.02–1.21 (m, 2H, CH2), 1.34–1.45 (m, 4H, 2CH2), 1.90 (s, 3H, CH3), 2.35 (m, 4H, 2 CH2), 4.00 (s, 5H, C5H5), 4.09 (s, 5H, C5H5), 3.85 (m, 2H, C5H4), 3.93 (m, 2H, C5H4), 4.13 (m, 2H, C5H4), 4.22 (m, 2H, C5H4), 5.12 (dd, 1H, CH2=, J = 1.2, 11.1 Hz), 5.24 (dd, 1H, CH2=, J = 1.2, 17.4 Hz), 6.18 (s, 1H, CH=), 6.97 (dd, 1H, CH=, J = 11.1, 17.4 Hz); 13C-NMR: 15.63, (CH3), 20.67 (CH2), 25.95, 37.86 (4CH2), 68.47, 69.02 (2C5H5), 68.17, 68.23, 69.25, 70.01 (2C5H4), 81.04, 82.47 (2CipsoFc), 116.74 (CH2=), 126.63, 130.13 (2CH=), 131.65, 134.01, 147.29 (3C); MS: m / z 545 [M]+. Anal. Calcd. for C32H35Fe2N: C, 70.48; H, 6.47; Fe, 20.48; N, 2.57. Found: C, 70.55; H, 6.34; Fe, 20.60; N, 2.61.

3.2. Crystal structures of 9b, 10a and 10b

Crystals of 9b, 10a and 10b were obtained from dichloromethane. The unit cell parameters and the X-ray diffraction intensities of 10a were recorded on a Siemens P4 diffractometer, of 9b and 10b on a Gemini (detector Atlas CCD, Cryojet N2) diffractometer. The structure of compounds 9b, 10a and 10b were solved by the direct method (SHELXS [24]) and refined using full-matrix least-squares on F2.
Crystal data for C32H35Fe2N (9b): M = 545.31 g mol−1, monoclinic P21/n, a = 10.5528(9), b = 10.3965(9), c = 22.888(2) Å, α = 90, β = 93.605(10), γ = 90o, V = 2506.1(4) Å3, T = 130(2) K, Z = 4,ρ = 1.445 Mg/m3, λ (Mo − Kα) = 0.71073 Å, F(000) = 1144, absorption coefficient 9.429 mm−1, crystal size 0.444 × 0.2658 × 0.1397 mm3, index ranges −12 ≤ h ≤ 12, −12 ≤ k ≤ 8, −27 ≤ l ≤ 27, scan range 3.87 ≤ θ ≤ 68.09o, 4574 independent reflections, Rint = 0.0757, 14354 total reflections, 318 refinable parameters, final R indices [I > 2σ(I)] R1 = 0.0487, wR2 = 0.1299, R indices (all data) R1 = 0.0588, wR2 = 0.1388, goodness-of-fit on F2 1.083, largest difference peak and hole 0.482/−0.915 eÅ−3.
Crystal data for C31H33Fe2NO (10a): M = 547.28 g mol−1, monoclinic P21/c, a = 15.602(1), b = 10.598(2), c = 15.362(1) Å, α = 90, β = 95.844(5), γ = 90o, V = 2526.9(5) Å3, T = 298(2) K, Z = 4, ρ = 1.439 Mg/m3, λ (Mo − Kα) = 0.71073 Å, F(000) = 1144, absorption coefficient 1.173 mm−1, crystal size 0.6003 × 0.4151 × 0.0545 mm3, index ranges −15 ≤ h ≤ 19, −13 ≤ k ≤ 9, −19 ≤ l ≤ 18, scan range 3.25 ≤ θ ≤ 26.62o, 5270 independent reflections, Rint = 0.0456, 11939 total reflections, 317 refinable parameters, final R indices [I > 2σ(I)] R1 = 0.0551, wR2 = 0.1644, R indices (all data) R1 = 0.0715, wR2 = 0.1781, goodness-of-fit on F2 1.090, largest difference peak and hole 1.348/−0.600 eÅ−3.
Crystal data for C32H35Fe2N (10b): M = 545.31 g mol−1, monoclinic P21/c, a = 15.5360(5), b = 10.2960(2), c = 16.8430(5) Å, α = 90, β = 110.613(3), γ = 90o, V = 2521.70(12) Å3, T = 130(2) K, Z = 4, ρ = 1.436 Mg/m3, λ (Mo − Kα) = 0.71073 Å, F(000) = 1144, absorption coefficient 1.172 mm−1, crystal size 0.5175 × 0.1764 × 0.1143 mm3, index ranges −15 ≤ h ≤ 19, −11 ≤ k ≤ 12, −20 ≤ l ≤ 20, scan range 3.43 ≤ θ ≤ 26.06o, 4978 independent reflections, Rint = 0.0442, 18609 total reflections, 317 refinable parameters, final R indices [I > 2σ(I)] R1 = 0.0382, wR2 = 0.0979, R indices (all data) R1 = 0.0502, wR2 = 0.1020, goodness-of-fit on F2 0.990, largest difference peak and hole 0.830/−0.498 eÅ−3.
CCDC-804034 (for 9b), CCDC-804035 (for 10a) and CCDC-804036 (for 10b) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge at www.ccdc.cam.ac.uk/const/retrieving.html [or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambrige CB2 IEZ, UK (Fax: +44-1223-336033; Email: [email protected] or www: http://www.ccdc.cam.ac.uk).

4. Conclusions

The reactions of 1-amino-2,3-diferrocenylcyclopropenylium cations 1a,b with strong C-nucleophiles are nonregioselective (unlike the reactions with β-dicarbonyl compounds). The carbanions attack the C(1) and C(2) atoms of the cyclopropenylium cations with equal probability to afford two types of tetrasubstituted cyclopropenes, viz., 3-amino-1,2-diferrocenyl- and 1-amino-2,3-diferrocenylcyclopropenes. Intramolecular transformations of the latter formed due to opening of the three-membered ring giving rise to two types of diferrocenylvinylcarbene species 13a,b, 14a,b, 15 and 17a,b, 18a,b differing in location of ferrocenyl, methyl, allyl and heteroaryl substituents in the carbon chain. Their intramolecular conversions to cyclic, bicyclic, tricyclic and linear final products certainly form the basis for further investigations in the fields of theoretical and synthetic organic chemistry, the search for new methods for an access to practically valuable materials.
The electrochemical behaviour of compounds 7, 8a, 10a and 10b was investigated by means of cyclic voltammetry and square wave voltammetry. For 7 and 8a two electrochemical processes (I-II), attributed to the oxidation of the ferrocene moieties were found. On the other hand for compounds 10a and 10b a single electron transfer for both ferrocene groups and the electrochemical generation of the monocation and dication species were detected.

Acknowledgments

This work was supported by the CONACyT (Mexico, grant Number 100970). The authors are grateful to E. A. Vázquez López for his technical assistance.

Conflict of Interest

The authors declare no conflict of interest.

References and Notes

  1. Klimova, E.I.; Klimova, B.T.; Hernández Ortega, S.; Méndez Iturbide, D.; García Marquez, A.; Martínez García, M. Diferrocenylcyclopropenyl cations. Synthesis, structures, and some chemical properties. J. Organomet. Chem. 2005, 690, 3332–3335. [Google Scholar]
  2. Klimova, E.I.; Klimova, T.; Betanzos Lara, S.; Dominguez Chavez, J.; Hernández Ortega, S.; Toscano, A.; Martínez García, M. Synthesis of stable 1-ethoxy-2,3-diferrocenylcyclopropenylium tetrafluoroborate and its reactions with lithium reagent. J. Organomet. Chem. 2006, 691, 1–8. [Google Scholar]
  3. Klimova, B.T.; Martínez García, M.; Ortiz-Frade, L.; Hernández Ortega, S.; Toscano, R.A.; Klimova, E.I. Synthesis, structures and some chemical and electrochemical properties of E-1,2-diferrocenyl-3-methylthioprop-2-enone and its ketals. J. Organomet. Chem. 2006, 691, 2872–2882. [Google Scholar] [CrossRef]
  4. Klimova Berestneva, T.; Klimova, E.I.; Mèndez Stivalet, J.M.; Hernandez Ortega, S.; Martìnez Garcia, M. Diferrocenyl(methylthio)cyclopropenylium iodide in the synthesis of 2,3-diferrocenyl-1-methylthio-1,3-dienes and -1,3,5-trienes. Eur. J. Org. Chem. 2005, 4406–4413. [Google Scholar]
  5. Klimova, E.I.; Klimova Berestneva, T.; Hernandez-Ortega, S.; Ortiz-Frade, L.A.; Backinowsky, L.V.; Martínez García, M. Synthesis of 1,2-diferrocenyl-3-(diacylmethylidene)cyclopropenes and 1,1-diacyl-2,3-diferrocenyl-4-methylsulfanylbuta-1,3-dienes, their structures and electrochemical properties. J. Organomet. Chem. 2008, 693, 1215–1224. [Google Scholar] [CrossRef]
  6. Klimova, E.I.; Mendez Stivalet, J.M.; Klimova Berestneva, T.; Flores Alamo, M.; Backinowsky, L.V.; Ortiz Frade, L.; Martìnez García, M. Reactions of diferrocenylmorpholino- and methylsulfanyl-cyclopropenylium salts with β-dicarbonyl compounds and diethyl malonate. Syn. Commun. 2010, 40, 839–854. [Google Scholar] [CrossRef]
  7. Klimova, E.I.; Klimova, T.; Flores Alamo, M.; Backinowsky, L.V.; Martìnez García, M. Intramolecular transformations of 3-cyanoamino- and 3-cyanoimino-1,2-diferrocenylcyclopropenes. Molecules 2009, 14, 3161–3175. [Google Scholar] [CrossRef]
  8. Schvekhgeimer, M.-G.A. Heterylferrocenes. Russ. Chem. Rev. 1996, 65, 80–112. [Google Scholar]
  9. Klimova, E.I.; Klimova, T.; Ruiz Ramirez, L.; Cinquantini, A.; Corsini, M.; Zanello, P.; Hernandez Ortega, S.; Martinez Garcia, M. 2,3-Diferrocenylcyclopropenone: Synthesis, structure and some chemical and electrochemical properties. Eur. J. Org. Chem. 2003, 4265–4275. [Google Scholar]
  10. Klimova, E.I.; Ruiz Ramirez, L.; Martinez García, M.; Espinosa, R.G.; Meleshonkova, N.N. Synthesis of biologically active compounds based on 2-ferocenylmethylene-3-quinuclidone. Russ. Chem. Bull. 1996, 45, 2602–2609. [Google Scholar] [CrossRef]
  11. Klimova, E.I.; Sazonova, V.A.; Pushin, A.N. Reaction of 1,2-diferrocenylcyclopropanes with trityl tetrafluoroborate. Zh. Obshch. Khim. 1987, 57, 2336–2342. [Google Scholar]
  12. Nesmeyanov, A.N.; Klimova, E.I.; Struchkov, Yu.T.; Postnov, V.N.; Andrianov, V.G.; Postnov, V.N.; Sazonova, V.A. Cyclopropanes with a ferrocenyl group. J. Organomet. Chem. 1979, 178, 343–348. [Google Scholar]
  13. Bard, A.J.; Faulkner, L.R. Electrochemical Methods: Fundamentals and Applications, 2nd ed; John Wiley and Sons: New York, NY, USA, 2001; Volume Chapter 5. [Google Scholar]
  14. Zanello, P. Inorganic Electrochemistry, Theory, Practice and Application; The Royal Society of Chemistry: Cambridge, UK, 2003. [Google Scholar]
  15. Ferguson, G.; Glidewell, C.; Opromolla, G.; Zakaria, C.M.; Zanello, P. The redox behavior of some bis-ferrocenyl compounds: Cristal and molecular structures of diferrocenylmethane and diferrocenylmethanol. J. Organomet. Chem. 1996, 517, 183–186. [Google Scholar]
  16. Khaled, M.; Hadjipetrou, A.; Kispert, L. Electrochemical and electron paramagnetic resonance studies of carotenoid cation radicals and dications: effect of deuteration. J. Phys. Chem. 1990, 94, 5164–5169. [Google Scholar] [CrossRef]
  17. Khaled, M.; Hadjipetrou, A.; Kispert, L.D; Allendoerfer, R.D. Simultaneous electrochemical and electron paramagnetic resonance studies of carotenoid cation radicals and dications. J. Phys. Chem. 1991, 95, 2438–2442. [Google Scholar] [CrossRef]
  18. Jeevarajan, A.S.; Khaled, M.; Kispert, L.D. Simultaneous electrochemical and electron paramagnetic resonance studies of carotenoids: Effect of electron donating and accepting substituents. J. Phys. Chem. 1994, 98, 7777–7781. [Google Scholar]
  19. Gao, G.; Jeevarajan, A.S.; Kispert, L.D. Cyclyc voltammetry and spectroelectrochemical studies of cation radical and dication adsorption behaviour for 7,7’-diphenyl-7,7’-diapocarotene. J. Electroanal. Chem. 1996, 411, 51–56. [Google Scholar] [CrossRef]
  20. Jeevarajan, A.S.; Kispert, L.D. Electrochemical oxidation of carotenoids containing donor-acceptor substituents. J. Electroanal. Chem. 1996, 411, 57–66. [Google Scholar] [CrossRef]
  21. Blanchard, P.; Brisset, H.; Riou, A.; Hierle, R.; Roncali, J. Bridget 1,6-dithienylhexa-1,3,5-trienes as highly photoluminescent and stable thiophene-based π-conjugated systems. J. Org. Chem. 1998, 63, 8310–8319. [Google Scholar] [CrossRef]
  22. Robin, M.B.; Day, P. Mixed valence chemistry. A survey and classification. Adv. Inorg. Chem. Radiochem. 1967, 10, 247–422. [Google Scholar] [CrossRef]
  23. Gritzner, G.; Küta, J. Recommendations on reporting electrode potentials in nonaqueous solvets. Pure Appl. Chem. 1984, 54, 461–466. [Google Scholar] [CrossRef]
  24. Sheldrick, G.M. SHELXL-97, Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 1994. [Google Scholar]
  • Samples Availability: Samples of the compounds 8a, 9b, 10a,b are available from the authors.
