Article

Enantioselective Addition of Allyltin Reagents to Amino Aldehydes Catalyzed with Bis(oxazolinyl)phenylrhodium(III) Aqua Complexes

1
Institute for Materials Chemistry and Engineering, Kyushu University, 6-1 Kasuga-koen, Kasuga, Fukuoka 816-8580, Japan
2
School of Materials Science, Toyohashi University of Technology, Tempaku-cho, Toyohashi, Aichi 441-8580, Japan
3
Department of Applied Chemistry, Graduate School of Engineering, Nagoya University, Chikusa, Nagoya 464-8603, Japan
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(7), 5387-5401; https://doi.org/10.3390/molecules16075387
Submission received: 30 May 2011 / Revised: 20 June 2011 / Accepted: 23 June 2011 / Published: 27 June 2011
(This article belongs to the Special Issue Catalytic Asymmetric Synthesis)

Abstract

:
Bis(oxazolinyl)phenylrhodium(III) aqua complexes, (Phebox)RhX2(H2O) [X = Cl, Br], were found to be efficient Lewis acid catalysts for the enantioselective addition of allyl- and methallyltributyltin reagents to amino aldehydes. The reactions proceed smoothly in the presence of 5–10 mol % of (Phebox)RhX2(H2O) complex at ambient temperature to give the corresponding amino alcohols with modest to good enantioselectivity (up to 94% ee).

1. Introduction

The development of enantioselective synthesis of chiral homoallylic alcohols containing amino-functional groups is of great importance to synthetic organic and medicinal chemistry. Despite much effort directed at enantioselective allylation of aldehydes [1,2,3], there are only a few systems for enantioselective allylation of amino aldehydes as substrates because the high coordination ability of amino groups to the metal species often leads to deactivation of chiral allylmetals or catalysts. Therefore, most of these reactions need a stoichiometric amount of chiral sources. For examples, Brown [4] and Chen [5] reported the utility of allylboron reagents (Figure 1, AC) for the reaction with pyridinecarboxaldehydes and 1-methyl-2-pyrrolecarboxaldehyde [4,5]. Denmark and co-workers developed a new reaction system for the allylation of aldehydes, but the enantioselectivity of the reaction with 4-dimethylaminobenzaldehyde was not so high (Figure 1, D) [6]. The other one is a catalytic reaction using 20 mol % of BINOL-derived chiral titanium complex/allyltributyltin via transmetalation mechanism reported by Umani-Ronchi (Figure 1, E) [7].

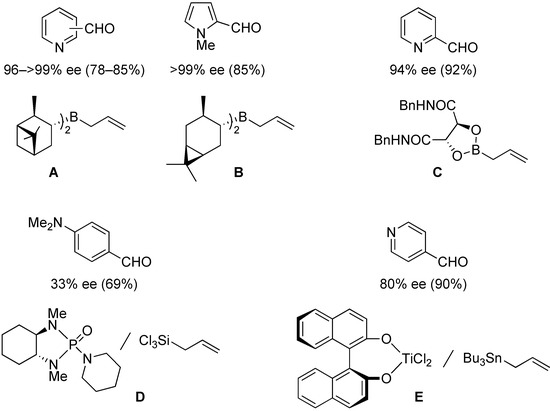

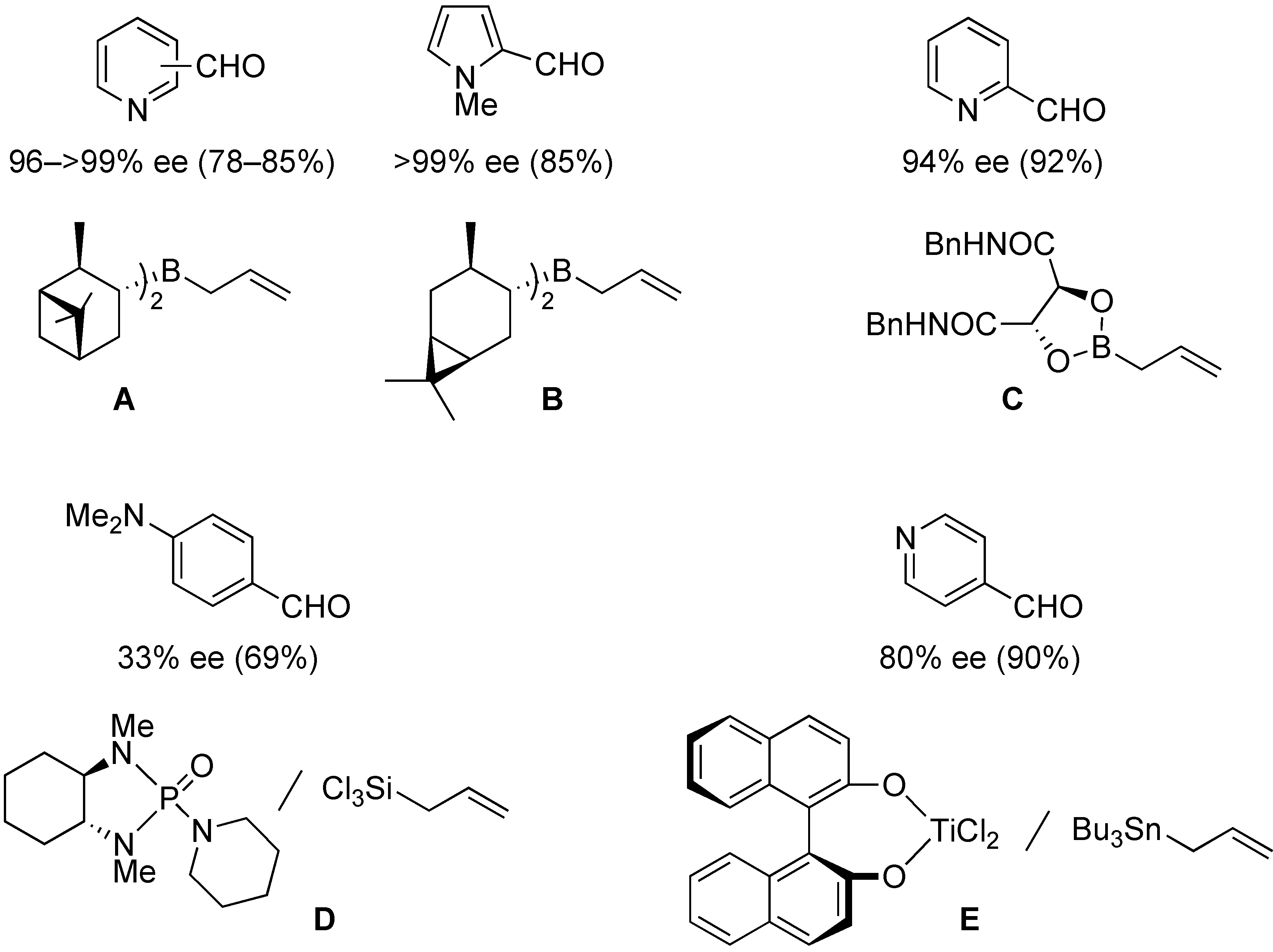

Figure 1. Chiral allylmetal reagents for the asymmetric allylation of amino aldehydes.
Figure 1. Chiral allylmetal reagents for the asymmetric allylation of amino aldehydes.
Molecules 16 05387 g001
We have previously developed a meridional tridentate ligand, 2,6-bis(oxazolinyl)phenyl derivative (abbreviated to Phebox) as a chiral N–C–N pincer type ligand with one central covalent bond to a metal [8,9,10,11,12,13,14], and have demonstrated that rhodium(III) aqua complexes bearing the Phebox ligand, (Phebox)RhX2(H2O) [1: X = Cl, 2: X = Br], acted as recoverable chiral Lewis acid catalysts for the enantioselective addition of allylic tributyltin reagents to aldehydes [15,16,17] and the asymmetric hetero Diels-Alder reactions of Danishefsky’s dienes and glyoxylates [18]. During the course of our studies on the Phebox-Rh(III) system as a chiral transition metal Lewis acid, we have found that tertiary amines such as N,N-diisopropylethylamine or triethylamine cannot bind to the rhodium atom [19]. This discovery encouraged us to use these air-stable and water-tolerant complexes 1 and 2 for the allylation of amino aldehydes as substrates. We wish to report herein the Lewis acid-catalyzed enantioselective addition of allyl- and methallyltributyltin reagents to aldehydes containing amino-functional groups (Scheme 1).

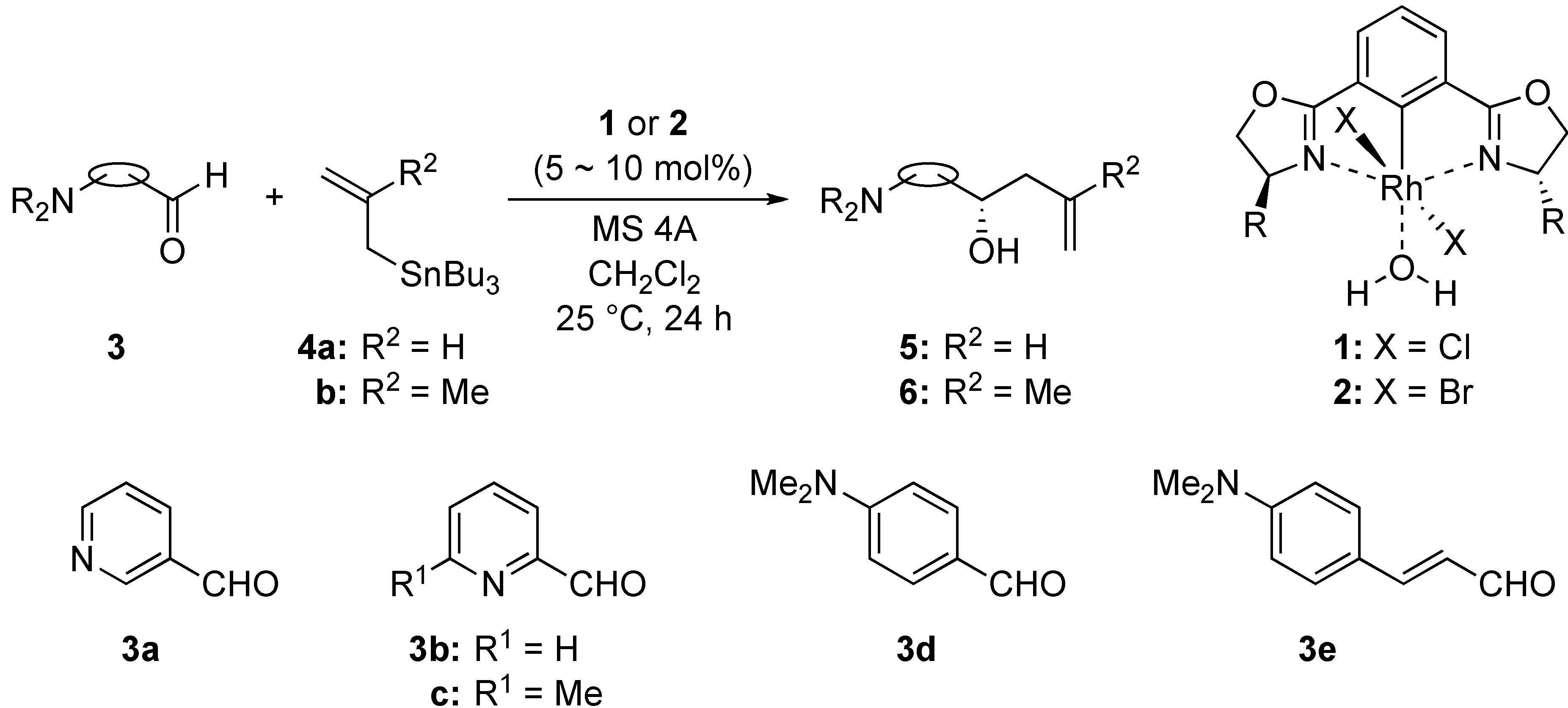

Scheme 1. Enantioselective addition of allyltin reagents to amino aldehydes catalyzed with (Phebox)RhX2(H2O) complexes (X = Cl, Br).
Scheme 1. Enantioselective addition of allyltin reagents to amino aldehydes catalyzed with (Phebox)RhX2(H2O) complexes (X = Cl, Br).
Molecules 16 05387 g003

2. Results and Discussion

2.1. NMR Studies, Isolation, and X-ray Analysis of Phebox-Rh(III)–Amino Aldehyde Complexes

First, we checked the complexation between Phebox-Rh(III) complex i-Pr-1 and amino aldehydes 3ae by 1H and 13C-NMR. Selected 1H and 13C-NMR data in CDCl3are listed in Table 1. Although rigid complexation was not clearly observed between i-Pr-1 and 6-methyl-2-pyridinecarboxaldehyde (3c) (Entry 3), 1H- and 13C-NMR spectra of the other cases showed formation of new complexes. From the NMR spectra of a mixture of i-Pr-1 and 3a, the pyridine’s nitrogen atom exclusively forms σ-complexes with the (i-Pr-Phebox)RhCl2 fragment; the signals of the protons for 2- and 6-positions of the pyridine ring (H2 and H6) appeared at lower field than those of the uncomplexed (free) 3a (from δ 9.08 to 10.30 ppm for H2, and from δ 8.85 to 10.08 ppm for H6, respectively) (Entry 1). This amine complex was stable enough to be purified by silica gel chromatography and was eventually characterized by a single-crystal X-ray diffraction (Figure 2, Table 2). In the case of the reaction of i-Pr-1 and 3b, H6 and the formyl proton (Hf) both appeared as broad signals at lower field (δ 9.11 for H6 and 10.34 ppm for Hf) than those of free 3b(δ 8.77 for H6 and 10.07 ppm for Hf) (Entry 2). These results indicate that the coordination of 3b to the (i-Pr-Phebox)RhCl2 fragment is an equilibrium between the pyridinic nitrogen and carbonyl oxygen. In contrast to the pyridinecarboxaldehydes, solutions of 4-dimethylaminobenzaldehyde (3d) and 4-dimethylaminocinnamaldehyde (3e) in the presence of i-Pr-1 showed rigid formation of C=O/σ type aldehyde complexes. For example, the signals assignable to the dimethylamino group were not changed, but the signals of the formyl proton (Hf) and carbon (Cf) of coordinated 3d appeared at lower field than the uncomplexed (free) 3d (from δ 9.74 to 9.92 ppm for Hf, and from δ 190.4 to 207.2 ppm for Cf, respectively) (Entry 4). Similar lower field shifts of Hf and Cf along with the olefinic protons Hα and Hβ (Hα = α-proton, Hβ = β-proton) were also observed for the mixture of i-Pr-1 and 3e in 1H and 13C NMR (ΔHα = +0.27 ppm, ΔHβ = +0.14 ppm, ΔHf = +0.77 ppm, ΔCf = +2.9 ppm, respectively) (Entry 5). It is widely known that chemical shifts of vinylic protons (Hα and Hβ), formyl proton (Hf) and carbon (Cf) of enals bound to Lewis acids by the carbonyl oxygen appear at lower field than those of free enals [20,21,22]. These lower-field shifts of Hα, Hβ, Hf and Cf are also observed in the reaction of i-Pr-1 and (E)-cinnamaldehyde [16]. The above NMR and X-ray studies thus indicated that the (Phebox)RhCl2 fragment, generated by releasing H2O from (Phebox)RhCl2(H2O), captures amino aldehydes 3b–e at the carbonyl oxygen to form aldehyde complexes (Scheme 2).
Table 1. Selected spectroscopic data for free amino aldehydes 3 and mixtures of i-Pr-1 and 3.
Table 1. Selected spectroscopic data for free amino aldehydes 3 and mixtures of i-Pr-1 and 3.
Entry δ (ppm) aΔ (ppm) b
3i-Pr-1 and 3
1 Molecules 16 05387 i001H2: 9.08H2: 10.30+1.22
H6: 8.85H6: 10.08+1.23
Hf: 10.12Hf: 10.27+0.15
Cf: 190.8Cf: 189.8–1.0
2 Molecules 16 05387 i002H6: 8.77H6: 9.11 (br)+0.34
Hf: 10.07Hf: 10.34 (br)+0.27
3 Molecules 16 05387 i003HMe: 2.66HMe: 2.660.00
Hf: 10.04Hf: 10.06+0.02
CMe: 24.5CMe: 24.50.0
Cf: 193.1Cf: 194.1+1.0
4 Molecules 16 05387 i004HMe: 3.09HMe: 3.11+0.02
Hf: 9.74Hf: 9.92+0.18
CN: 40.2CN: 40.20.0
Cf: 190.4Cf: 207.2+16.8
5 Molecules 16 05387 i005Hα: 6.54Hα: 6.81+0.27
Hβ: 7.38Hβ: 7.52+0.14
HMe: 3.05HMe: 3.07+0.02
Hf: 9.09Hf: 9.86+0.77
CN: 40.2CN: 40.20.0
Cf: 193.8Cf: 196.7+2.9
a Observed at 400 MHz for 1H-NMR and 100 MHz for 13C-NMR in CDCl3 at ambient temperature; b Calculated by δ (i-Pr-1 and 3) – δ (3).

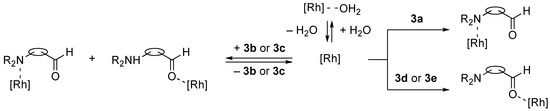

Scheme 2. Complexation between (Phebox)RhCl2 fragment ([Rh]) and amino aldehydes.
Scheme 2. Complexation between (Phebox)RhCl2 fragment ([Rh]) and amino aldehydes.
Molecules 16 05387 g004

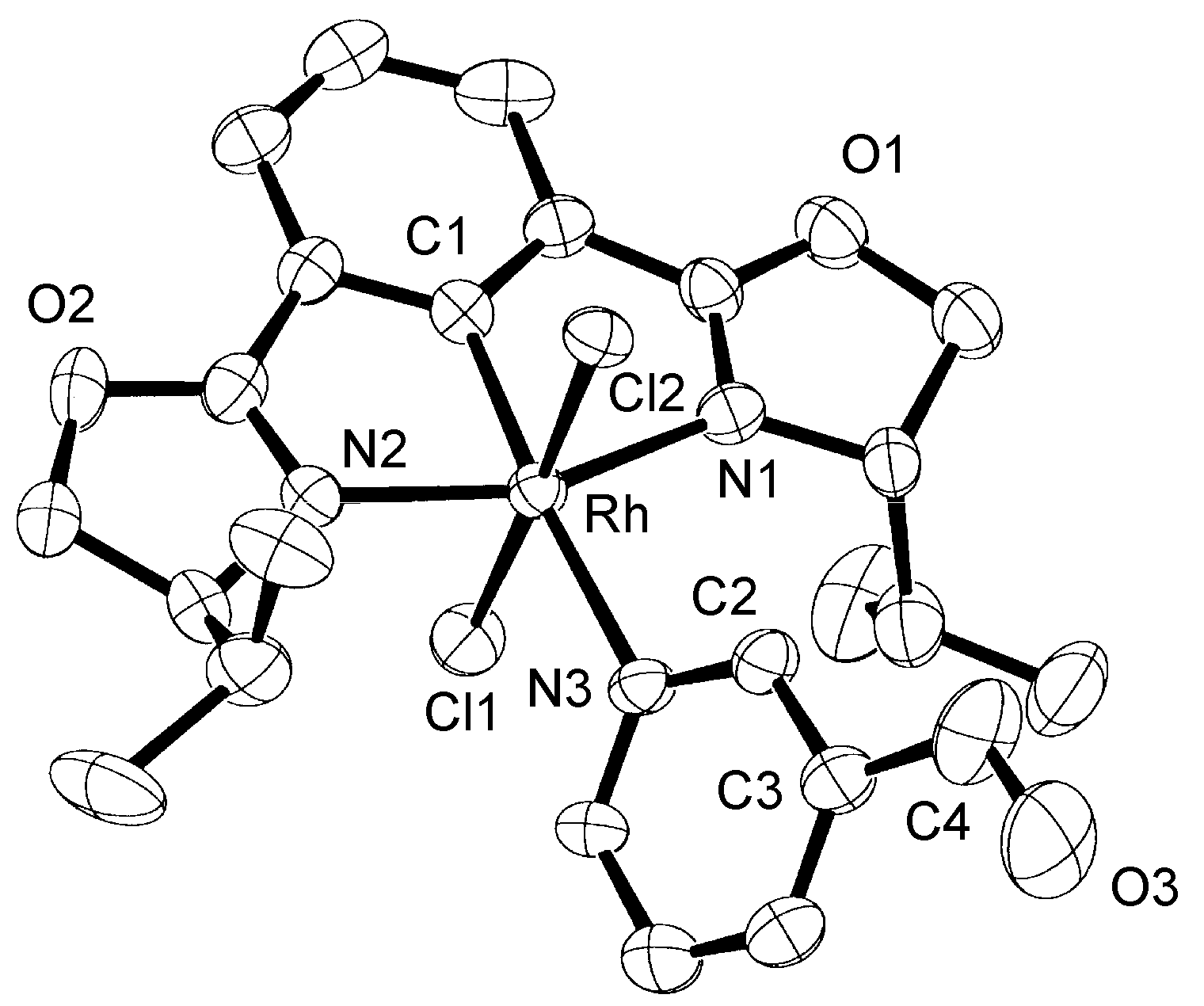

Figure 2. Molecular structure of (i-Pr-Phebox)RhCl2(κ-3a): there are two independent molecules and one H2O in the unit cell.
Figure 2. Molecular structure of (i-Pr-Phebox)RhCl2(κ-3a): there are two independent molecules and one H2O in the unit cell.
Molecules 16 05387 g002
Table 2. Selected bond distances (Å) and angles (deg) for (i-Pr-Phebox)RhCl2(κ-3a).a
Table 2. Selected bond distances (Å) and angles (deg) for (i-Pr-Phebox)RhCl2(κ-3a).a
Rh–C11.93(1) [1.89(1)]Rh–N12.05(1) [2.06(1)]
Rh–Cl12.340(4) [2.334(4)]Rh–N22.05(1) [2.09(1)]
Rh–Cl22.334(4) [2.351(4)]Rh–N32.21(1) [2.27(1)]
C4–O31.25(3) [1.27(4)]
C1–Rh–N3175.2(6) [178.0(5)]N1–Rh–N3–C254(1) [90(1)]
Cl1–Rh–Cl2178.0(2) [177.2(2)]O3–C4–C3–C2−175(2) [19(3)]
N1–Rh–N2158.4(5) [157.6(5)]
a Bond distances and angles of the second molecule are given in brackets.

2.2. Phebox-Rh(III)-Catalyzed Enantioselective Addition of Allyltributyltin to Amino Aldehydes

We also examined the Phebox-Rh(III)-catalyzed reaction of amino aldehydes and allyltributyltin. Allyltributyltin (4a) was added to a suspension of 4Å molecular sieves (MS 4A), amino aldehydes 3be and 5–10 mol % of (S,S)-(Phebox)RhX2(H2O) complexes (1 or 2) in dichloromethane at 25 °C for 24 h. These results are summarized in Table 3. First, the reaction of pyridine-2-carboxaldehyde (3b) proceeded smoothly, but the isolated yield of the allylated product 5b was only 14% after purification of the crude material by silica gel chromatography (Entry 1). This result indicates that the alkoxystananne 5b-Snformed in the reaction mixture is stable and hardly hydrolyzed under the usual workup process (see Experimental section). Consequently, we adopted a new procedure for conversion of 5b-Sn to the acetate derivative 5b-Ac by treatment with acetic anhydride (Scheme 3). In this manner, 5b-Ac was obtained in good to high yields and with moderate enantioselectivity (Entries 2, 3, 5, and 6). The absolute configuration of 5b-Ac obtained by (S,S)-Phebox-derived Rh(III) complexes was determined to be S by comparison of the optical rotation value with literature data [23]. In the case of the reaction using (S,S)-Ph-1, however, ca. 50% of 3b was recovered after silica gel chromatography and (R)-5b-Ac was formed as a major enantiomer (Entry 4). Finally, an enantioselectivity of up to 59% ee was achieved using 10 mol % of the i-Pr- and Me-Phebox-derived dibromide complexes (Entries 5 and 6). In the cases of the other aldehydes 3ce, the products were obtained as a homoallylic alcohol in good to high yields. The reactions of 6-methyl-2-pyridinecarboxaldehyde (3c) and 4-dimethylaminocinnamaldehyde (3e) afforded the corresponding amino alcohols 5c and 5e with good enantioselectivity by using the dibromide complexes (5c: 84% ee with Ph-2, and 5e: 88% ee with Bn-2, respectively) (entries 9 and 15). In sharp contrast, the dichloride complexes showed higher enantioselectivity (84% ee for Me-1, and 81% ee for s-Bu-1, respectively) than the parent dibromide one (72% ee for Me-2) in the allylation reaction of 4-dimethylamino- benzaldehyde (3d) (Entries 10–12). We also examined the reaction of 3-pyridinecarboxaldehyde (3a), however, no allylated product was obtained and the amine complex, (i-Pr-Phebox)RhCl2(κ-3a), free 3a, and allyltributyltin (4a) were detected by 1H-NMR of the crude material.

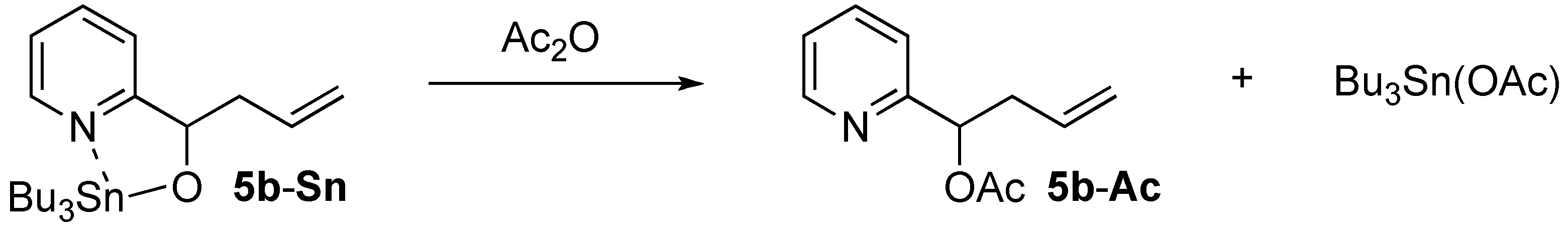

Scheme 3. Conversion of 5b-Sn to 5b-Ac by treatment with Ac2O.
Scheme 3. Conversion of 5b-Sn to 5b-Ac by treatment with Ac2O.
Molecules 16 05387 g005
Table 3. Enantioselective addition of allyltributyltin 4a to amino aldehydes3be.a
Table 3. Enantioselective addition of allyltributyltin 4a to amino aldehydes3be.a
EntryAldehydeCatalystProduct% Yield% eeb (config.) c
1 Molecules 16 05387 i006i-Pr-15b1442 (S)
2 di-Pr-15b-Ac9953 (S)
3 dMe- 15b-Ac9956 (S)
4 dPh- 15b-Ac4521 (R)
5 di-Pr-25b-Ac8159 (S)
6 dMe- 25b-Ac8559 (S)
7 Molecules 16 05387 i007i-Pr-15c9469 (S)e
8Ph- 15c8975 (S)e
9Ph- 25c9784 (S)e
10 Molecules 16 05387 i008Me- 15d8084 (S)
11s-Bu-15d6781 (S)
12Me- 25d4272 (S)
13 Molecules 16 05387 i009Bn- 15e8081 (S)e
14s-Bu-15e6180 (S)e
15Bn- 25e4488 (S)e
a All reactions were carried out using 0.5 mmol of 3, 0.75 mmol of 4, and 0.025 mmol (5 mol %) of 1 or 0.05 mmol (10 mol %) of 2 in 2 mL of dichloromethane in the presence of MS 4A (250 mg) at 25 °C for 24 h; b Determined by chiral HPLC analysis using Daicel CHIRALCEL OD; c Assignment by comparison of the sign of optically rotation with reported value; d 0.6 mmol of acetic anhydride was added; e Assignment by analogy.

2.3. Phebox-Rh(III)-Catalyzed Enantioselective Addition of Methallyltributyltin to Amino Aldehydes

Table 4 summarizes the results obtained for the methallylation of amino aldehydes 3be catalyzed with Phebox-Rh(III) complexes in dichloromethane in the presence of MS 4A at 25 °C for 24 h. In the reactions of pyridinecarboxaldehydes 3b and 3c, the enantiomeric excesses of the methallylated products 6b-Ac and 6c were moderate (51% ee for 6b-Ac, and 45% ee for 6c, respectively) (Entries 1–10). Similar to the reaction of pyridine-2-carboxaldehyde 3b and allyltributyltin (Table 2, Entry 4), (S,S)-Ph-1 afforded the opposite (R)-6b-Ac as a major enantiomer (Entry 3). Compared to the reactions with pyridinecarboxaldehydes 3b and 3c, the (S,S)-Phebox-Rh-catalyzed reactions of 4-dimethyl-aminobenzaldehyde (3d) and 4-dimethylaminocinnamaldehyde (3e) with methallyltributyltin (4b) afforded the corresponding (S)-products with good to high enantioselectivity (90% ee for 6d and 94% ee for 6e, respectively) (Entries 11–17). Incidentally, the Phebox-Rh(III) aqua complexes 1 and 2 can be recovered almost quantitatively from the reaction media by silica gel column chromatography.
Table 4. Enantioselective addition of methallyltributyltin 4b to amino aldehydes 3be.a
Table 4. Enantioselective addition of methallyltributyltin 4b to amino aldehydes 3be.a
EntryAldehydeCatalystProduct% Yield% ee b (config.) c
1 d Molecules 16 05387 i010Bn- 16b-Ac7915 (S)
2 dMe- 16b-Ac7641 (S)
3 dPh- 16b-Ac1824 (R)
4 ds-Bu-16b-Ac52<2 (–)
5 dMe- 26b-Ac4845 (S)
6 ds-Bu-26b-Ac2251 (S)
7 Molecules 16 05387 i011Me- 16c6045 (S)e
8s-Bu-16c3611 (S)e
9Me- 26c2110 (S)e
10s-Bu-26c2626 (S)e
11 Molecules 16 05387 i012i-Pr-16d8485 (S)e
12Bn- 16d7990 (S)e
13s-Bu-16d6887 (S)e
14Bn- 26d5263 (S)e
15 Molecules 16 05387 i013i-Pr-16e5280 (S)e
16s-Bu-16e7484 (S)e
17s-Bu-26e2094 (S)e
a All reactions were carried out using 0.5 mmol of 3, 0.75 mmol of 4, and 0.025 mmol (5 mol %) of 1 or 0.05 mmol (10 mol %) of 2 in 2 mL of dichloromethane in the presence of MS 4A (250 mg) at 25 °C for 24 h; b Determined by chiral HPLC analysis using Daicel CHIRALCEL OD; c Assignment by comparison of the sign of optically rotation with reported value; d 0.6 mmol of acetic anhydride was added; e Assignment by analogy.

3. Experimental

3.1. General

Anhydrous dichloromethane was purchased from Kanto Chemical Co. Carbon tetrabromide, all aldehydes and allyltributyltin were purchased from Tokyo Chemical Industry Co., Ltd. 1H and 13C NMR spectra were measured on a VARIAN Inova-400 (400 MHz) spectrometer. 1H-NMR (400 MHz) chemical shifts were described in parts per million downfield from tetramethylsilane used as an internal standard (δ = 0) in CDCl3, unless otherwise noted. 13C-NMR (100 MHz) chemical shifts were expressed in parts per million with reference to the residual solvent peak as an internal standard (δ = 77.1 for CDCl3), unless otherwise noted. IR spectra were measured on a JASCO FT/IR-230 spectrometer. Melting points were measured on a Yanaco MP-J3 apparatus. Elemental analyses were measured on a Yanaco CHN CORDER MT-6 instrument. High performance liquid chromatography (HPLC) analyses were performed with a JASCO PU-980 HPLC pump, UV-975 and 980 UV/VIS detector, and CO-966 column thermostat (at 25 °C) using a Daicel CHIRALCEL OD column. Optical rotations were measured on a JASCO DIP-140 polarimeter. Column chromatography was performed with silica gel (Merck, Art. No. 7734). Analytical thin-layer chromatography (TLC) was performed on glass plates and aluminum sheets pre-coated with silica gel (Merck, Kieselgel 60 F-254, layer thicknesses 0.25 and 0.2 mm, respectively). Visualization was accomplished by UV light (254 nm), anisaldehyde, and phosphomolybdic acid. All reactions were carried out under a nitrogen or argon atmosphere. (Phebox)SnMe3, (Phebox)RhCl2(H2O) 1 and (Bn-Phebox)RhBr2(H2O) (Bn-2) were prepared by our method [16,18,24]. [(c-octene)2RhCl]2[25] and methallyltributyltin [26] were prepared by the literature methods.

3.2. General Procedure for the Synthesis of (Phebox)RhBr2(H2O) Complexes

To a stirred solution of (R-Phebox)SnMe3 and [(c-octene)2RhCl]2 in dichloromethane was added tetrabromomethane [ca. 8 equivalents with respect to (R-Phebox)SnMe3] at ambient temperature for 24 h. Then the reaction mixture was concentrated under reduced pressure. Purification of the residue by silica gel chromatography gave (R-Phebox)RhBr2(H2O) (R-2).
(i-Pr-Phebox)RhBr2(H2O) (i-Pr-2). 51% yield. Pale yellow solid. mp. 167 °C (decomp); IR (KBr) ν 3474, 2959, 1622, 1485, 1391, 961, 745 cm−1; 1H-NMR (CDCl3) δ 0.94 (d, J = 6.5 Hz, 6H), 0.96 (d, J = 7.0 Hz, 6H), 2.42 (qqd, J = 7.0, 6.5, 2.5 Hz, 2H), 3.43 (bs, 2H), 4.30 (td, J = 8.3, 2.5 Hz, 2H), 4.71 (d, J = 8.3 Hz, 4H), 7.25 (t, J = 7.6 Hz, 1H), 7.58 (d, J = 7.6 Hz, 2H); 13C-NMR (CDCl3) δ 15.4, 19.6, 29.1, 67.5, 71.3, 123.1, 128.1, 131.5, 170.9 (d, JRh-C = 4.1 Hz), 178.8 (d, JRh-C = 24.2 Hz); Anal. C18H25N2O3Br2Rh: Found C 37.31, H 4.33, N 4.74%; Calcd C 37.27, H 4.34, N 4.83%.
(Me-Phebox)RhBr2(H2O) (Me-2). 58% yield. Orange solid; mp. >300 °C (decomp); IR (KBr) ν 3397, 3009, 2822, 1617, 1485, 1397, 1148, 958, 739 cm−1; 1H-NMR (CD3OD) δ 1.50 (d, J = 6.7 Hz, 6H), 3.32 (bs, 2H), 4.34 (ddq, J = 8.8, 7.7, 6.7 Hz, 2H), 4.45 (dd, J = 8.5, 7.7 Hz, 2H), 5.02 (dd, J = 8.8, 8.5 Hz, 2H), 7.24 (t, J = 7.7 Hz, 1H), 7.58 (d, J = 7.7 Hz, 2H); 13C-NMR (CD3OD) δ 19.3, 58.6, 77.7, 122.3, 126.9, 132.4, 171.1 (d, JRh-C = 3.7 Hz), 182.2 (d, JRh-C = 20.0 Hz); Anal. C14H17N2O3Br2Rh: Found C 32.04, H 3.39, N 5.27%; Calcd C 32.09, H 3.27, N 5.35%.
(Ph-Phebox)RhBr2(H2O) (Ph-2). 37% yield. Pale yellow solid. mp. 189 °C (decomp); IR (KBr) ν 3452, 2980, 2825, 1613, 1485, 1326, 1149, 968 cm−1; 1H-NMR (CDCl3) δ 1.79 (bs, 2H), 4.58 (dd, J = 10.4, 8.6 Hz, 2H), 5.18 (dd, J = 10.2, 8.6 Hz, 2H), 5.31 (dd, J = 10.4, 10.2 Hz, 2H), 7.35-7.46 (m, 7H), 7.46-7.74 (m, 4H), 7.72 (d, J = 7.7 Hz, 2H); 13C-NMR (CDCl3) δ 31.7, 67.1, 76.8, 123.3, 128.5, 128.8, 128.9, 131.4, 137.4, 172.5 (d, JRh-C = 4.2 Hz), 180.4 (d, JRh-C = 21.1 Hz); Anal. C24H21N2O3Br2Rh: Found C 44.48, H 3.19, N 4.30%; Calcd C 44.47, H 3.27, N 4.32%.
(s-Bu-Phebox)RhBr2(H2O) (s-Bu-2). 21% yield. Pale yellow solid. mp. 119 °C (decomp); IR (KBr) ν 3448, 2968, 2822, 1617, 1484, 1394, 1145, 963 cm−1; 1H-NMR (CDCl3) δ 0.96 (d, J = 6.8 Hz, 6H), 1.00 (t, J = 7.3 Hz, 6H), 1.24 (m, 2H), 1.39 (m, 2H), 2.17 (m, 2H), 3.43 (bs, 2H), 4.34 (ddd, J = 9.9, 6.7, 3.2 Hz, 2H), 4.69 (dd, J = 8.8, 6.7 Hz, 2H), 4.74 (dd, J = 9.9, 8.8 Hz, 2H), 7.26 (t, J = 7.7 Hz, 1H), 7.59 (d, J = 7.7 Hz, 2H); 3C-NMR (CDCl3) δ 12.0, 12.8, 35.8, 66.4, 71.4, 77.4, 123.4, 128.2, 131.4, 170.7 (d, JRh-C = 4.2 Hz), 176.9 (d, JRh-C = 24.5 Hz); Anal. C20H29N2O3Br2Rh: Found C 39.51, H 4.73, N 4.63%; Calcd C 39.50, H 4.81, N 4.61%.

3.3. General Procedure for the Catalytic Enantioselective Addition of Allyl- or Methallyltributyltin to Aldehydes Catalyzed with (Phebox)RhX2(H2O) Complexes

To a suspension of MS 4A (250 mg) in dichloromethane (2 mL) was added (Phebox)RhX2(H2O) complex (0.025-0.05 mmol, 5-10 mol %), amino aldehyde (0.5 mmol) and allyl- or methallyltributyltin (0.75 mmol) at 25 °C. After it was stirred for 24 h at that temperature, the reaction mixture was concentrated under reduced pressure. Purification of the residue by silica gel chromatography gave homoallylic alcohol: the enantioselectivity was determined by chiral HPLC analysis.
1-(2-Pyridyl)-3-buten-1-ol (5b) [4,5]. [α]D20 −27.1° (c 1.22, CHCl3) for 42% ee: lit. 4 [α]D23 −32.5° (c 3.5, EtOH) for ≥99% ee, 1S; IR (neat) ν 3267, 2922, 1733, 1699, 164, 1562, 1474, 1066, 702 cm−1; 1H- NMR (CDCl3) δ 2.48 (ddddd, J = 14.5, 7.3, 6.9, 1.3, 1.1 Hz, 1H), 2.63 (ddddd, J = 14.5, 6.9, 4.7, 1.4, 1.2 Hz, 1H), 4.07 (bs, 1H), 4.81 (bs, 1H), 5.09 (dddd, J = 10.1, 2.0, 1.2, 1.1 Hz, 1H), 5.11 (dddd, J = 17.2, 2.0, 1.4, 1.3 Hz, 1H), 5.83 (dddd, J = 17.2, 10.1, 7.3, 6.9 Hz, 1H), 7.20 (ddd, J = 7.5, 4.9, 1.2 Hz, 1H), 7.28 (ddd, J = 7.8, 1.2, 1.0 Hz, 1H), 7.68 (ddd, J = 7.8, 7.5, 1.5 Hz, 1H), 8.54 (ddd, J = 4.9, 1.5, 1.0 Hz, 1H); 13C-NMR (CDCl3) δ 43.0, 72.3, 118.1, 120.5, 122.4, 134.2, 136.7, 148.4, 161.4. Enantiomeric excess was determined by after conversion to the corresponding acetate 5b-Ac.
1-Acetoxy-1-(2-pyridyl)-3-butene (5b-Ac) [23]. IR (neat) ν 1738, 1592, 1372, 1235, 1047, 921 cm−1; 1H-NMR (CDCl3) δ 2.13 (s, 3H), 2.69 (ddddd, J = 14.3, 7.5, 6.9, 1.3, 1.1 Hz, 1H), 2.76 (ddddd, J = 14.3, 7.1, 5.8, 1.4, 1.2 Hz, 1H), 5.04 (dddd, J = 10.2, 1.9, 1.2, 1.1 Hz, 1H), 5.08 (dddd, J = 17.2, 1.9, 1.4, 1.3 Hz, 1H), 5.74 (dddd, J = 17.2, 10.2, 7.1, 6.9 Hz, 1H), 5.86 (dd, J = 7.5, 5.8 Hz, 1H), 7.20 (ddd, J = 7.6, 4.8, 1.3 Hz, 1H), 7.30 (ddd, J = 7.9, 1.3, 0.9 Hz, 1H), 7.67 (ddd, J = 7.9, 7.6, 1.8 Hz, 1H), 8.60 (ddd, J = 4.8, 1.8, 0.9 Hz, 1H); 13C-NMR (CDCl3) δ 21.2, 39.2, 75.7, 118.2, 121.3, 122.8, 133.2, 136.7, 149.5, 158.9, 170.4; [α]D20 −40.8° (c 1.10, CHCl3) for 59% ee: lit. [α]D25 +75° (c 2.01, CHCl3) for 92% ee, 1R [23]; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 9:1, flow rate 0.5 mL/min. tR = 10.2 min (R), 12.8 min (S).
1-(6-Methyl-2-pyridyl)-3-buten-1-ol (5c). IR (neat) ν 3417, 2907, 1642, 1594, 1459, 1066, 799 cm−1; 1H-NMR (CDCl3) δ 2.45 (dtt, J = 14.2, 7.0, 1.1 Hz, 1H), 2.55 (s, 3H), 2.61 (dddt, J = 14.2, 6.9, 4.8, 1.1 Hz, 1H), 4.40 (d, J = 4.8 Hz, 1H), 4.76 (dt, J = 7.0, 4.8 Hz, 1H), 5.01 (ddt, J = 10.1, 2.0, 1.2 Hz, 1H), 5.12 (ddt, J = 17.1, 2.0, 1.5 Hz, 1H), 5.85 (ddt, J = 17.1, 10.1, 7.0 Hz, 1H), 7.04 (d, J = 7.7 Hz, 1H), 7.06 (d, J = 7.7 Hz, 1H), 7.56 (t, J = 7.7 Hz, 1H); 13C-NMR (CDCl3) δ 24.4, 43.1, 71.9, 117.3, 117.8, 121.9, 134.5, 136.9, 157.1, 160.5; Anal. C10H13NO: Found C 73.69, H 8.15, N 8.49%; Calcd C 73.59, H 8.03, N 8.58%; [α]D25 −14.7° (c 0.95, CHCl3) for 84% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 30:1, flow rate 0.5 mL/min. tR = 12.0 min (R), 13.8 min (S).
1-(p-Dimethylaminophenyl)-3-buten-1-ol (5d) [7]. IR (neat) ν 3435, 2802, 1614, 1522, 1348, 1162, 1052, 915, 819 cm−1; 1H-NMR (CDCl3) δ 1.89 (d, J = 2.6 Hz, 1H), 2.45-2.58 (m, 2H), 2.95 (s, 6H), 4.65 (ddd, J = 7.1, 6.2, 2.6 Hz, 1H), 5.11 (dm, J = 10.2 Hz, 1H), 5.15 (dm, J = 17.2 Hz, 1H), 5.82 (dddd, J = 17.2, 10.2, 7.3, 6.9 Hz, 1H), 6.72 (d, J = 8.8 Hz, 2H), 7.24 (d, J = 8.8 Hz, 2H); 13C-NMR (CDCl3) δ 40.7, 73.4, 112.6, 117.9, 126.9, 131.9, 135.1, 150.3; [α]D24 −51.8° (c 0.35, CHCl3) for 84% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 9:1, flow rate 0.5 mL/min. tR = 15.9 min (minor), 18.5 min (major).
(E)-1-(p-Dimethylaminophenyl)-1,5-hexadien-3-ol (5e). IR (neat) ν 3674, 1730, 1610, 1522, 1437, 1352, 968, 806 cm−1; 1H-NMR (CDCl3) δ 1.75 (d, J = 3.7 Hz, 1H), 2.36 (ddddd, J = 14.0, 7.4, 6.9, 1.1, 1.0 Hz, 1H), 2.43 (ddddd, J = 14.0, 6.8, 5.4, 1.4, 1.2 Hz, 1H), 2.95 (s, 6H), 4.31 (dddd, J = 7.2, 6.9, 5.4, 3.7 Hz, 1H), 5.14 (dddd, J = 10.2, 2.1, 1.2, 1.0 Hz, 1H), 5.17 (dddd, J = 17.1, 2.1, 1.4, 1.1 Hz, 1H), 5.86 (dddd, J = 17.1, 10.2, 7.4, 6.8 Hz, 1H), 6.03 (dd, J = 15.8, 6.9 Hz, 1H), 6.50 (d, J = 15.8 Hz, 1H), 6.67 (d, J = 8.9 Hz, 2H), 7.27 (d, J = 8.9 Hz, 2H); 13C-NMR (CDCl3) δ 40.6, 42.2, 72.4, 112.5, 118.2, 125.1, 127.2, 127.5, 130.8, 134.5, 150.3; Anal. C14H19NO: Found C 77.30, H 8.89, N 6.44%; Calcd C 77.38, H 8.81, N 6.45%; [α]D25 −21.5° (c 1.08, CHCl3) for 88% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 9:1, flow rate 0.5 mL/min. tR = 20.0 min (minor), 21.1 min (major).
1-Acetoxy-1-(2-pyridyl)-3-methyl-3-butene (6b-Ac). IR (neat) ν 3076, 2933, 1742, 1651, 1591, 1472, 1236, 894 cm−1; 1H-NMR (CDCl3) δ 1.77 (s, 3H), 2.11 (s, 3H), 2.65 (d, J = 6.8 Hz, 2H), 4.72 (bs, 1H), 4.79 (bs, 1H), 5.98 (t, J = 6.8 Hz, 1H), 7.20 (dd, J = 7.7, 4.8 Hz, 1H), 7.31 (d, J = 7.7 Hz, 1H), 7.67 (td, J = 7.7, 1.7 Hz, 1H), 8.60 (dd, J = 4.8, 1.7 Hz, 1H); 13C-NMR (CDCl3) δ 21.1, 22.6, 74.7, 113.7, 121.2, 122.8, 136.7, 141.2, 149.5, 159.3, 170.4; Anal. C12H15NO2: Found C 70.29, H 7.29, N 6.76%; Calcd C 70.22, H 7.37, N 6.82%; [α]D26 −37.5° (c 1.08, CHCl3) for 51% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 50:1, flow rate 0.5 mL/min. tR = 17.8 min (R), 21.0 min (S).
1-(6-Methyl-2-pyridyl)-3-methyl-3-buten-1-ol (6c). IR (neat) ν 3399, 2924, 1645, 1591, 1458, 1156, 889 cm−1; 1H-NMR (CDCl3) δ 1.82 (bs, 3H), 2.37 (dd, J = 14.0, 8.8 Hz, 1H), 2.52 (dd, J = 14.0, 4.4 Hz, 1H), 2.55 (s, 3H), 4.14 (d, J = 4.4 Hz, 1H), 4.81 (bs, 1H), 4.85 (dt, J = 8.8, 4.4 Hz, 1H), 4.89 (bs, 1H), 7.04 (d, J = 7.8 Hz, 1H), 7.08 (d, J = 7.8 Hz, 1H), 7.56 (t, J = 7.8 Hz, 1H); 13C- NMR (CDCl3) δ 22.7, 24.4, 47.4, 70.9, 113.6, 117.3, 121.9, 136.9, 142.5, 157.2, 161.1; Anal. C11H15NO: Found C 74.58, H 8.53, N 7.80%; Calcd C 74.54, H 8.53, N 7.90%; [α]D20 −29.1° (c 1.37, CHCl3) for 45% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 30:1, flow rate 0.5 mL/min. tR = 12.5 min (R), 13.5 min (S).
1-(p-Dimethylaminophenyl)-3-methyl-3-buten-1-ol (6d). White solid. mp. 28–30 °C; IR (neat) ν 3251, 2886, 2800, 1524, 1442, 1350, 1162, 1054, 816 cm−1; 1H-NMR (CDCl3) δ 1.79 (bs, 3H), 1.98 (bs, 1H), 2.39 (dd, J = 14.1, 4.4 Hz, 1H), 2.48 (dd, J = 14.1, 9.2 Hz, 1H), 2.94 (s, 6H), 4.74 (ddd, J = 9.2, 4.4, 1.5 Hz, 1H), 4.85 (bs, 1H), 4.90 (bs, 1H), 6.73 (d, J = 8.8 Hz, 2H), 7.26 (d, J = 8.8 Hz, 2H); 13C-NMR (CDCl3) δ 22.5, 40.8, 48.0, 71.4, 112.6, 113.7, 126.9, 132.0, 142.9; Anal. C13H19NO: Found C 76.07, H 9.29, N 6.77%; Calcd C 76.06, H 9.33, N 6.82%; [α]D19 −55.7° (c 1.41, CHCl3) for 90% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 9:1, flow rate 0.5 mL/min. tR = 15.0 min (R), 17.4 min (S).
(E)-1-(p-Dimethylaminophenyl)-3-methyl-1,5-hexadien-3-ol (6e). IR (neat) ν 3631, 3397, 2926, 2801, 1611, 1447, 1167, 965, 804 cm−1; 1H-NMR (CDCl3) δ 1.79 (d, J = 2.8 Hz, 1H), 1.80 (bs, 3H), 2.34 (d, J = 6.6 Hz, 2H), 2.96 (s, 6H), 4.40 (tdd, J = 6.6, 6.6, 2.8 Hz, 1H), 4.85 (bs, 1H), 4.90 (bs, 1H), 6.03 (dd, J = 15.7, 6.6 Hz, 1H), 6.54 (d, J = 15.7 Hz, 1H),6.68 (d, J = 8.8 Hz, 2H), 7.28 (d, J = 8.8 Hz, 2H); 13C-NMR (CDCl3) δ 22.7, 40.6, 46.5, 70.6, 112.5, 113.6, 125.3, 127.6, 130.0, 130.5, 142.4, 150.3; Anal. C15H21NO: Found C 76.07, H 9.29, N 6.77%; Calcd C 76.06, H 9.33, N 6.82%; [α]D20 −30.2° (c 1.66, CHCl3) for 84% ee; Daicel CHIRALCEL OD, UV Detector 254 nm, hexane/i-PrOH = 9:1, flow rate 0.5 mL/min. tR = 20.0 min (R), 21.1 min (S).

3.4. Synthesis and X-ray Analysis of (i-Pr-Phebox)RhCl2 (κ-3a)

(i-Pr-Phebox)RhCl2 (κ-3a). To a stirred solution of i-Pr-1 (200 mg, 0.41 mmol) in dichloromethane (5 mL) was added 3a (39 μL, 0.41 mmol) at ambient temperature. After it was stirred for 2 h, the mixture was concentrated under reduced pressure. Purification of the residue by silica gel chromatography (dichloromethane/ether = 1:1) gave (i-Pr-Phebox)RhCl2(κ-3a) in 84% yield (200 mg). Orange solid. mp. 203-205 °C (decomp); IR (KBr) ν 2958, 1711, 1620, 1485, 1394, 1214, 963, 739 cm−1; 1H-NMR (CDCl3) δ 0.64 (d, J = 6.8 Hz, 6H), 0.73 (d, J = 6.8 Hz, 6H), 1.37 (dsept, J = 2.8, 6.8 Hz, 2H), 4.04 (ddd, J = 10.0, 6.4, 2.8 Hz, 2H), 4.62 (dd, J = 8.8, 6.4 Hz, 2H), 4.74 (dd, J = 10.0, 8.8 Hz, 2H), 7.30 (t, J = 7.6 Hz, 1H), 7.65 (d, J = 7.6 Hz, 2H), 7.79 (dd, J = 7.6, 5.6 Hz, 1H), 8.49 (dd, J = 7.6, 1.6 Hz, 1H), 10.07 (dd, J = 5.6, 1.6 Hz, 1H), 10.27 (s, 1H), 10.30 (d, J = 1.6 Hz, 1H); 13C-NMR (CDCl3) δ 15.1, 19.2, 29.4, 66.9, 71.1, 123.3, 125.2, 128.1, 131.6, 132.6, 136.6, 155.1, 157.2, 172.4 (JRh-C = 3.4 Hz), 185.9 (JRh-C = 19.7 Hz), 189.8; Anal. C24H28Cl2N3O3Rh: Found C 49.62, H 4.86, N 7.22%; Calcd C 49.67, H 4.86, N 7.24%. X-ray-quality crystals of (i-Pr-Phebox)RhCl2(κ-3a) was obtained from benzene-ether-hexane at room temperature and mounted in glass capillary. Diffraction experiments were performed on a Rigaku AFC-7R four-circle diffractometer equipped with graphite-monochromated Mo K〈 radiation; ᄂ = 0.71069 Å. The lattice parameters and an orientation matrix were obtained and refined from 25 machine-centered reflections with 29.82 < 2╰ < 29.97°. Intensity data were collected using a ᄀ-2╰ scan technique, and three standard reflections were recorded every 150 reflections. The data were corrected for Lorentz and polarization effects. The structure was solved by direct methods [27] and expanded using Fourier techniques [28]. The non-hydrogen atoms were refined anisotropically. Hydrogen atoms were included but not refined. The final cycle of full-matrix least-squares refinement was based on 5306 observed reflections (I > 3∫(I)) and 598 variable parameters. Neutral atom scattering factors were taken from Cromer and Waber [29]. All calculations were performed using the teXsan crystallographic software package [30]. Final refinement details are collected in Table 5 and the numbering scheme employed is shown in Figure 2, which was drawn with ORTEP at 30% probability ellipsoid. Crystallographic data (excluding structure factors) for the structures reported in this paper have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC-826794. Copies of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB21EZ, UK (fax: (+44)1223-336-033; Email: [email protected]).
Table 5. Crystallographic data and structure refinement for (i-Pr-Phebox)RhCl2(κ-3a).
Table 5. Crystallographic data and structure refinement for (i-Pr-Phebox)RhCl2(κ-3a).
Empirical FormulaC48H58N6O7Cl4Rh2Temperature23.0 °C
Formula Weight1178.65Scan typeω -2 θ
Crystal Dimensions0.15 × 0.5 × 0.5 mmScan Width94
3 tan θ deg
Crystal Systemmonoclinic2θmax55.0 deg
Lattice TypeC-centeredNo. of ReflectionTotal: 6787
Lattice Parameters: a18.307(4) Åmeasured
b 14.886(5) ÅNo. of Unique data6581 (Rint = 0.018)
c 21.056(4) ÅStructure SolutionDirect methods
β 106.55(2) degRefinementFull-matrix
Volume5500(2) Å3least squares
Space GroupC2 (#5)No. of Observations5306 (I>3σ(I))
Z value4No. of Variables598
Dcalcd 1.423 g/cm3Reflection/Parameter 8.87
F(000)2408.00Ratio
μ(Mo Kα)8.44 cm−1Residuals: R; Rw0.058; 0.077
λ 0.71069 Å

4. Conclusions

In this paper, we have described the catalytic enantioselective addition of allyl- and methallyltributyltin reagents to amino aldehydes catalyzed with air-stable and water tolerant chiral Phebox-Rh(III) aqua complexes. The reactions proceed under mild conditions to afford the corresponding homoallylic alcohols with modest to good enantioselectivity (up to 94% ee), and these aqua complexes can be recovered from the reaction media by column chromatography. We have clarified that the chiral (Phebox)RhX2 fragments (X = Cl, Br), generated by releasing water molecule from (Phebox)RhX2(H2O), capture amino aldehydes at the carbonyl oxygen and the reaction proceeded via a Lewis acid mechanism.

Acknowledgements

This work was partly supported by a Grant-in-Aid for Scientific Research from the Ministry of Education, Science and Culture, Japan.

References and Notes

  1. Roush, W.R. Allyl Organometallics. In Comprehensive Organic Synthesis; Trost, B.M., Fleming, I., Heathcock, C.H., Eds.; Pergamon Press: Oxford, UK, 1991; Volume 2, pp. 1–55. [Google Scholar]
  2. Yamamoto, Y.; Asao, N. Selective Reactions using Allylic Metals. Chem. Rev. 1993, 93, 2207–2293. [Google Scholar] [CrossRef]
  3. Yanagisawa, A. Allylation of Carbonyl Groups. In Comprehensive Asymmetric Catalysis; Jacobsen, E.N., Pfaltz, A., Yamamoto, H., Eds.; Springer: Heidelberg, Germany, 1999; Volume 2, pp. 965–982. [Google Scholar]
  4. Racherla, U.S.; Liao, Y.; Brown, C.H. Chiral Synthesis via Organoboranes. 36. Exceptionally Enantioselective Allylboration of Representative Heterocyclic Aldehydes at −100 °C under Salt-Free Conditions. J. Org. Chem. 1992, 57, 6614–6617. [Google Scholar]
  5. Chen, W.; Liu, Y.; Chen, Z. A Highly Efficient and Practical New Allylboronate Tetramide for the Asymmetric Allylboration of Achiral Aldehydes. Eur. J. Org. Chem. 2005, 1665–1668. [Google Scholar]
  6. Denmark, S.E.; Coe, D.M.; Pratt, N.E.; Griedel, B.D. Asymmetric Allylation of Aldehydes with Chiral Lewis Bases. J. Org. Chem. 1994, 59, 6161–6163. [Google Scholar] [CrossRef]
  7. Costa, A.L.; Piazza, M.G.; Tagliavini, E.; Trombini, C.; Umani-Ronchi, A. Catalytic Asymmetric Synthesis of Homoallylic Alcohols. J. Am. Chem. Soc. 1993, 115, 7001–7002. [Google Scholar]
  8. Motoyama, Y.; Nishiyama, H. Asymmetric Reactions with Chiral Bis(oxazolinyl)phenyl-Rh, -Pt, and -Pd Complexes and Their Lewis Acid Activity. In Latest Frontiers of Organic Synthesis; Kobayashi, Y., Ed.; Research Signpost: Kerala, India, 2002; pp. 1–24. [Google Scholar]
  9. Nishiyama, H. Synthesis and Use of Bisoxazolinyl-phenyl Pincers. Chem. Soc. Rev. 2007, 36, 1133–1141. [Google Scholar] [CrossRef]
  10. Stark, M.A.; Richards, C.J. Synthesis and Application of Cationic 2,6-Bis(2-oxazolilyl)phenylpalladium(II) Complexes. Tetrahedron Lett. 1997, 38, 5881–5884. [Google Scholar] [CrossRef]
  11. Denmark, S.E.; Stavenger, R.A.; Faucher, A.-M.; Edwards, J.P. Cyclopropanation with Diazomethane and Bis(oxazoline)palladium(II) Complexes. J. Org. Chem. 1997, 62, 3375–3389. [Google Scholar] [CrossRef]
  12. Stol, M.; Snelders, D.J.M.; de Pater, J.J.M.; van Klink, G.P.M.; Kooijman, H.; Spek, A.L.; van Koten, G. Organometallics 2005, 24, 743–749.
  13. Kimura, T.; Uozumi, Y. Synthesis of [2,6-Bis(2-oxazolinyl)phenyl]palladium Complexes via the Ligand Introduction Route. Organometallics 2008, 27, 5159–5162. [Google Scholar] [CrossRef]
  14. Chuchuryukin, A.V.; Huang, R.; Lutz, M.; Chadwick, J.C.; Spek, A.L.; van Koten, G. NCN-Pincer Metal Complexes (Ti, Cr, V, Zr, Hf, and Nb) of the Phebox Ligand (S,S)-2,6-Bis(4’-isopropyl-2’-oxazolinyl)phenyl. Organometallics 2011, 30, 2819–2830. [Google Scholar] [CrossRef]
  15. Motoyama, Y.; Narusawa, H.; Nishiyama, H. Chiral Bis(oxazolinyl)phenylrhodium(III) Complexes as Lewis Acid Catalysts for Enantioselective Allylation of Aldehydes. Chem. Commun. 1999, 131–132. [Google Scholar]
  16. Motoyama, Y.; Okano, M.; Narusawa, H.; Makihara, N.; Aoki, K.; Nishiyama, H. Bis(oxazolinyl)phenylrhodium(III) Aqua Complexes: Synthesis, Structure, Enantioselective Allylation of Aldehydes and Mechanistic Studies. Organometallics 2001, 20, 1580–1591. [Google Scholar] [CrossRef]
  17. Motoyama, Y.; Nishiyama, H. Bis(oxazolinyl)phenylrhodium(III) Aqua Complex: Efficiency in Enantioselective Addition of Methallyltributyltin to Aldehydes under Aerobic Conditions. Synlett 2003, 1883–1885. [Google Scholar] [CrossRef]
  18. Motoyama, Y.; Koga, Y.; Nishiyama, H. Asymmetric Hetero Diels-Alder Reaction of Danishefsky’s Dienes and Glyoxylates with Chiral Bis(oxazolinyl)phenylrhodium(III) Aqua Complexes, and Its Mechanistic Studies. Tetrahedron 2001, 57, 853–860. [Google Scholar] [CrossRef]
  19. Motoyama, Y.; Koga, Y.; Kobayashi, K.; Aoki, K.; Nishiyama, H. Novel Asymmetric Michael Addition of α-Cyanopropionates to Acrolein by the Use of a Bis(oxazolinyl)phenylstannane-Derived Rhodium(III) Complex as a Chiral Lewis Acid Catalyst. Chem. Eur. J. 2002, 8, 2968–2975. [Google Scholar] [CrossRef]
  20. Furukawa, J.; Kobayashi, E.; Nagata, S.; Moritani, T. C-13 NMR Spectroscopy of Acrylic Monomer and Lewis Acid Complexes. J. Polym. Sci. A. Polym. Chem. 1974, 12, 1799–1807. [Google Scholar]
  21. Kuran, W.; Pasynkiewicz, S.; Florjanczyk, K.; Lusztyk, E. Vinyl Monomer Complexes in Copolymerization Processes – Studies on Complexes of Acrylonitrile and Methyl Methacrylate with Lewis Acids. Macromol. Chem. 1976, 177, 2627–2635. [Google Scholar] [CrossRef]
  22. Childs, R.F.; Mulholland, D.L.; Nixon, A. The Lewis Acid Complexes of α,β-Unsaturated Carbonyl and Nitrile Compounds 1. A Nuclear Magnetic-Resonance Study. Can. J. Chem. 1982, 60, 801–808. [Google Scholar] [CrossRef]
  23. Uenishi, J.; Hiraoka, T.; Hata, S.; Nishiwaki, K.; Yonemitsu, O.; Nakamura, K.; Tsukube, H. Chiral Pyridines: Optical Resolution of 1-(2-Pyridyl)- and 1-[6-(2,2’-Bipyridyl)]ethanols by Lipase-Catalyzed Enantioselective Acetylation. J. Org. Chem. 1998, 63, 2481–2487. [Google Scholar] [CrossRef]
  24. Motoyama, Y.; Kawakami, H.; Shimozono, K.; Aoki, K.; Nishiyama, H. Synthesis and X-ray Crystal Structures of Bis(oxazolinyl)phenyl-Derived Chiral Palladium(II) and Platinum(II) and –(IV) Complexes and Their Use in the Catalytic Asymmetric Aldol-Type Condensation of Isocyanides and Aldehydes. Orgnometallics 2002, 21, 3408–3414. [Google Scholar] [CrossRef]
  25. van der Ent, A.; Onderdelinden, A.C. Chlorobis(cyclooctene)rhodium(I) and Chlorobis(cyclooctene)iridium(I) Complexes. Inorg. Synth. 1990, 28, 90–92. [Google Scholar] [CrossRef]
  26. Still, W.C. Stannylation/Destannylation. Preparation of α-Alkoxy Organolithium Reagents and Synthesis of Dendrolasin via a Carbonyl Carbanion Equivalent. J. Am. Chem. Soc. 1978, 100, 1481–1487. [Google Scholar] [CrossRef]
  27. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Guagliardi, A.; Burla, M.; Polidori, G.; Camalli, M. SIR92: A new tool for crystal structure determination and refinement. J. Appl. Crystalogr. 1994, 27, 435. [Google Scholar]
  28. Beurskens, P.T.; Admiraal, G.; Beurskens, G.; Bosman, W.P.; Garcia-Granda, S.; Gould, R.O.; Smits, J.M.M.; Smykalla, C. DIRDIF92: The DIRDIF Program System; Technical Report of the Crystallography Laboratory, University of Nijmegen: The Netherlands, 1992.
  29. Cromer, D.T.; Waber, J.T. International Tables for X-ray Crystallography; Kynoch Press: Birmingham, UK, 1974; Volume 4. [Google Scholar]
  30. teXane: Crystal Structure Analysis Package, Molecular Structure Corporation: The Woodlands, TX, USA, 1985 & 1992.
  • Sample availability: Samples of the complexes 1 and 2 are available from the authors.
