Biomolecules 2013, 3(4), 741-777; doi:10.3390/biom3040741

Review
Biocatalytic Synthesis of Chiral Alcohols and Amino Acids for Development of Pharmaceuticals
Ramesh N. Patel
SLRP Associates Consultation in Biotechnology, 572 Cabot Hill Road, Bridgewater, NJ 08807, USA; E-Mail: rameshpatelphd@yahoo.com; Tel.: +1-908-725-5738
Received: 23 August 2013; in revised form: 22 September 2013 / Accepted: 23 September 2013 /
Published: 2 October 2013

Abstract

: Chirality is a key factor in the safety and efficacy of many drug products and thus the production of single enantiomers of drug intermediates and drugs has become increasingly important in the pharmaceutical industry. There has been an increasing awareness of the enormous potential of microorganisms and enzymes derived there from for the transformation of synthetic chemicals with high chemo-, regio- and enatioselectivities. In this article, biocatalytic processes are described for the synthesis of chiral alcohols and unntural aminoacids for pharmaceuticals.
Keywords:
biocatalysis; enzymatic processes; chiral intermediates; drugs development

1. Introduction

For preparation of drugs and their intermediates, the synthesis of single enantiomers has become increasingly important in the pharmaceutical industry [1]. Single enantiomers can be produced by either by chemical or biocatalytic routes. The advantages of biocatalysis over chemical synthesis are that enzyme-catalyzed reactions are often highly enantioselective and regioselective. They can be carried out under mild conditions at ambient temperature and atmospheric pressure, thus avoiding the use of more extreme reaction conditions which could cause problems with isomerization, racemization, epimerization, and rearrangement of compound. Microbial cells and wide variety and class of enzymes derived there from can be used for chiral synthesis. Enzymes can be immobilized and reused for many cycles. In addition, enzymes can be over expressed to make biocatalytic processes economically efficient, and enzymes with modified activity can be tailor-made. Directed evolution of biocatalysts can lead to increased enzyme activity, selectivity and stability [2,3,4,5,6,7,8,9,10,11,12,13,14,15]. A number of review articles [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31] have been published on the use of enzymes in organic synthesis. This chapter provides some examples of the use of enzymes for the synthesis chiral alcohols, unnatural amino acids, and amines for synthesis of phamaceuticals.

2. Enzymatic Preparation of Chiral Alcohols

2.1. Hydroxy Buspirone (Antianxiety Drug): Enzymatic Preparation of 6-Hydroxybuspirone

Buspirone (Buspar®, 1, Figure 1) is a drug used for treatment of anxiety and depression that is thought to produce its effects by binding to the serotonin 5HT1A receptor [32,33,34]. Mainly as a result of hydroxylation reactions, it is extensively converted to various metabolites and blood concentrations return to low levels a few hours after dosing [35]. A major metabolite, 6-hydroxybuspirone 2, produced by the action of liver cytochrome P450 CYP3A4, is present at much higher concentrations in human blood than buspirone itself. For development of 6-hydroxybuspirone as a potential antianxiety drug, preparation and testing of the two enantiomers as well as the racemate was of interest. An enantioselective microbial reduction process was developed for reduction of 6-oxobuspirone 3, to either (R)- and (S)-6-hydroxybuspirone 2. About 150 microbial cultures were screened for the enantioselective reduction of 3. Rhizopus stolonifer SC 13898, Neurospora crassa SC 13816, Mucor racemosus SC 16198, and Pseudomonas putida SC 13817 gave >50% reaction yields and >95% e.e.s of (S)-6-hydroxybuspirone. The yeast strains Hansenula polymorpha SC 13845 and Candida maltosa SC 16112 gave (R)-6-hydroxybuspirone 2 in >60% reaction yield and >97% e.e. [36]. The NADP-dependent (R)-reductase (RHBR) from Hansenula polymorpha SC 13845 was purified to homogeneity, its N-terminal and internal sequences were determined and cloned and expressed in Escherichia coli. To regenerate the cofactor NADPH required for reduction we have also cloned and expressed the glucose-6-phosphate dehydrogenase gene from Saccharomyces cerevisiae in Escherichia coli. Recombinant cultures expressing (R)-reductase (RHBR) catalyzed the reduction of 6-ketobuspirone to (R)-6-hydroxybuspirone in 99% yield and 99.9% e.e. at 50 g/L substrate input [37].

Biomolecules 03 00741 g001 1024

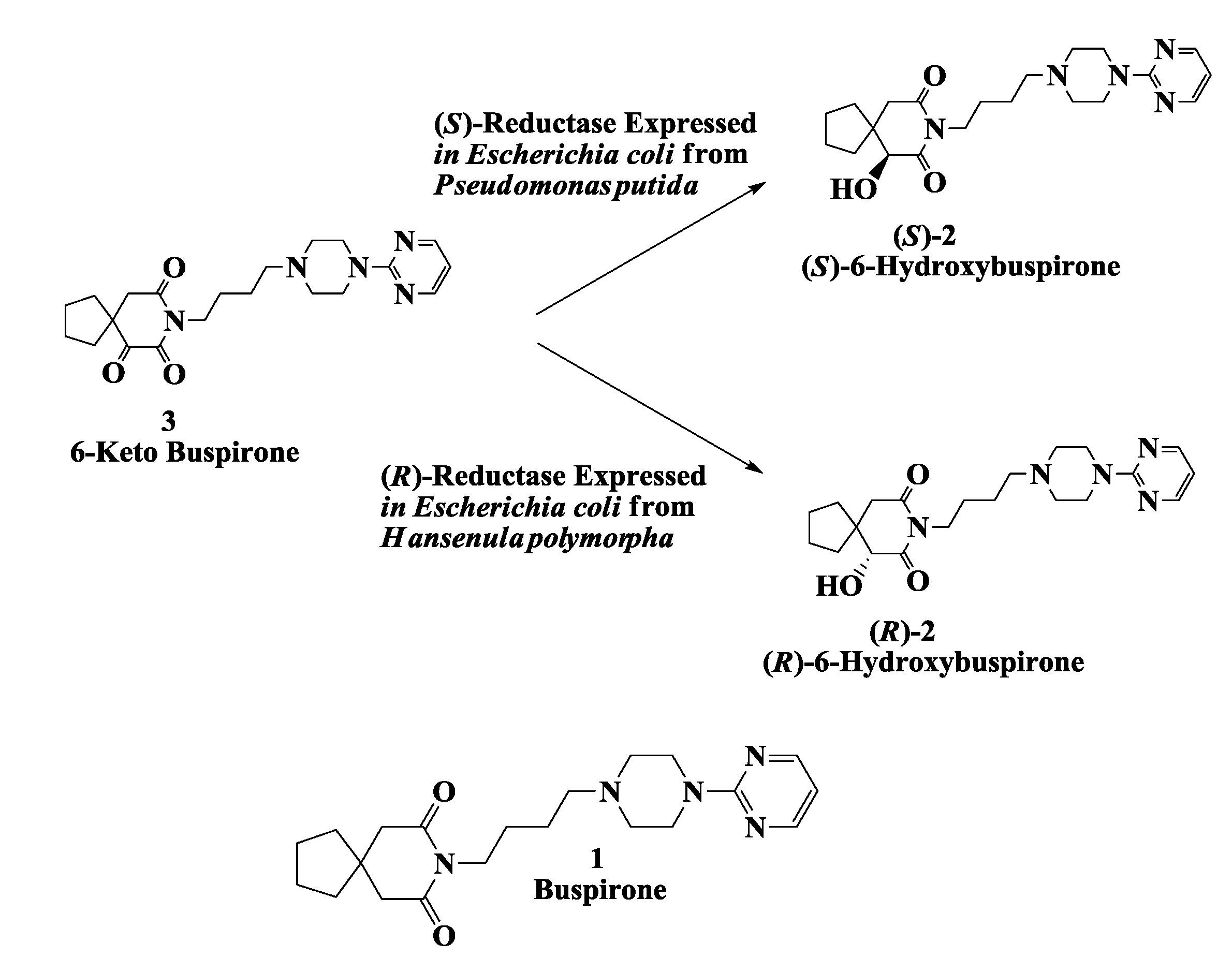

Figure 1. Hydroxy buspirone (antianxiety drug): Enzymatic preparation of 6-hydroxybuspirone.

Click here to enlarge figure

Figure 1. Hydroxy buspirone (antianxiety drug): Enzymatic preparation of 6-hydroxybuspirone.
Biomolecules 03 00741 g001 1024

The NAD-dependent (S)-reductase (SHBR) from Pseudomonas putida SC 16269 was also purified to homogeneity, its N-terminal and internal sequences were determined and cloned and expressed in Escherichia coli. To regenerate the cofactor NADH required for reduction we have also cloned and expressed the NAD+ dependent formate dehydrogenase gene from Pichia pastoris in Escherichia coli. Recombinant Escherichia coli expressing (S)-reductase was used to catalyze the reduction of 6-ketobuspirone to (S)-6-hydroxybuspirone, in >98% yield and >99.8% e.e. at 50 g/L substrate input [37].

2.2. Cholesterol Lowering Agents: Enzymatic Preparation of (3S,5R)-Dihydroxy-6-(Benzyloxy) Hexanoic Acid, Ethyl Ester 4

Compound 4 (Figure 2) is a key chiral intermediate required for the chemical synthesis of compound 5, Arotvastatin 6, and Rosuvastatin all are anticholesterol drugs which acts by inhibition of HMG CoA reductase [38,39,40,41,42].

Biomolecules 03 00741 g002 1024

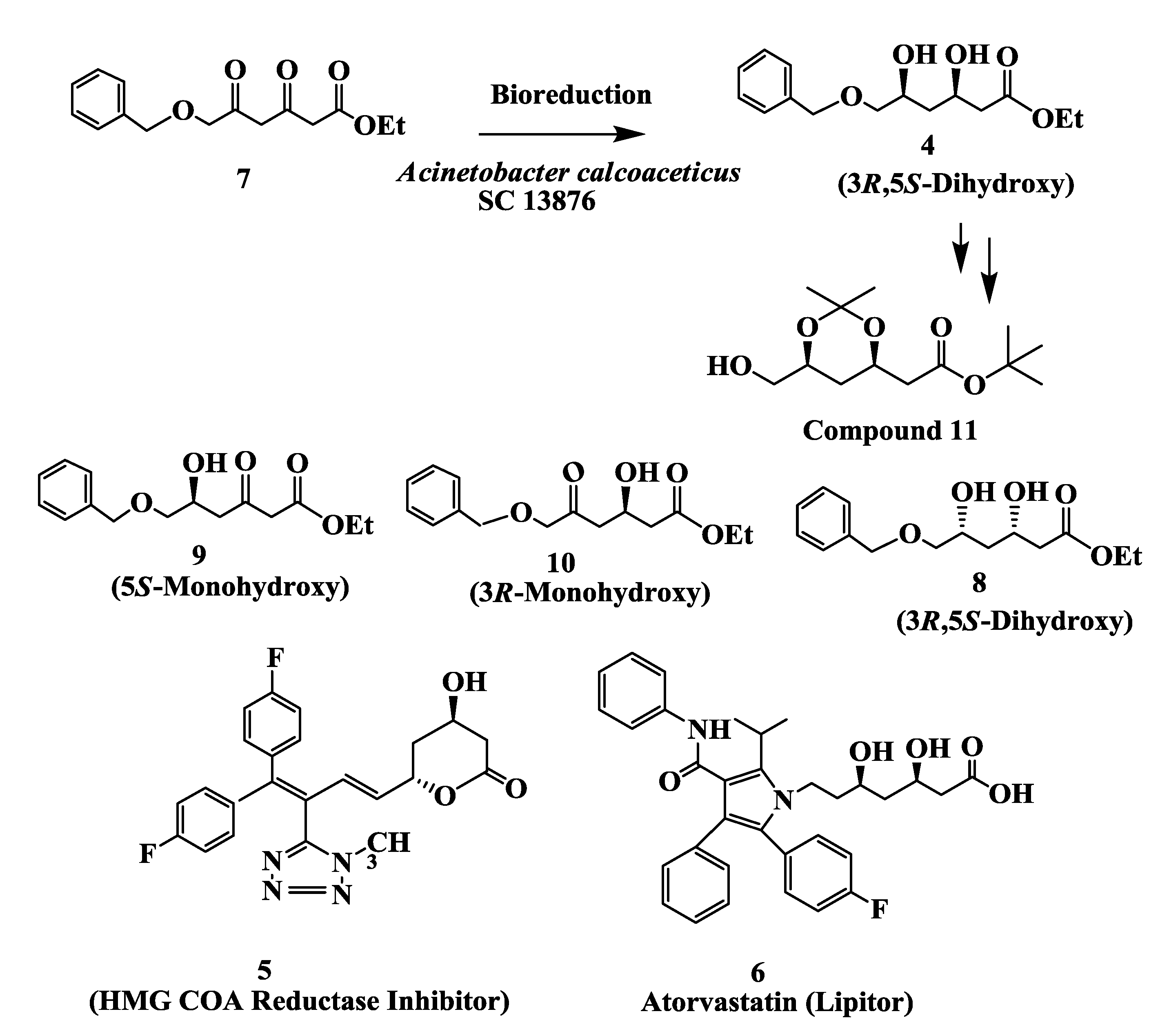

Figure 2. Cholesterol lowering agents: Enzymatic preparation of (3S,5R)-dihydroxy-6- (benzyloxy) hexanoic acid, ethyl ester.

Click here to enlarge figure

Figure 2. Cholesterol lowering agents: Enzymatic preparation of (3S,5R)-dihydroxy-6- (benzyloxy) hexanoic acid, ethyl ester.
Biomolecules 03 00741 g002 1024

The enantioselective reduction of a diketone 3,5-dioxo-6-(benzyloxy) hexanoic acid, ethyl ester 7 to (3R,5S)-dihydroxy-6-(benzyloxy) hexanoic acid, ethyl ester 4 (Figure 2) was demonstrated by cell suspensions of Acinetobacter calcoaceticus SC 13876 [39,43]. On reduction of 7 by cell suspensions, the syn-4 and anti-8 dihydroxy esters were formed in the ratio of about 87:13, 83:17, 76:24 after 24 h at 2, 5 and 10 g/L of substrate input, respectively. There was no significant peak due to a monohydroxy ester. Chiral HPLC determined that the desired (3R,5S)-4 was the major product with 99.4% e.e. Almost complete (>95%) conversion of the ethyl diketoester 7 to dihydroxy ester 4 in 24 h was seen up to a substrate concentration of 10 g/L and cell concentration of 200 g/L [39,43].

A mixture of ethyl 3-keto-5-hydroxy 9 (major) and 5-keto-3-hydroxy 10 (minor) was obtained from partial microbial reduction of ketoester 7. These two mixtures were subjected to microbial reduction by Acinetobacter sp SC13874 cells for 6 h (incomplete reduction). The reduction provided the dihydroxy esters with the isomeric composition. The results indicated that the second reduction of the monohydroxy compound by SC13874 cells was quite enantiospecific. Reduction of the 3-keto-5-hydroxy 9 provided predominantly the (3R)-hydroxy, while reduction of the 3-hydroxy-5-keto ester 10 provided predominantly the (5S)-hydroxy compound [43].

Cell extracts of A. calcoaceticus SC 13876 in the presence of NAD+, glucose, and glucose dehydrogenase reduced 7 to the corresponding monohydroxy compounds [3-hydroxy-5-oxo-6-(benzyloxy) hexanoic acid ethyl ester 9 and 5-hydroxy-3-oxo-6-(benzyloxy) hexanoic acid ethyl ester 10]. Both 9 and 10 were further reduced to the (3R,5S)-dihydroxy compound 4 in 92% yield and 99% e.e. by cell extracts. (3R,5S)-4 was converted to 11, a key chiral intermediate for the synthesis of compound 5 and Atorvastatin 6. Three different ketoreductases were purified to homogeneity from cell extracts of A. calcoaceticus SC 13876 and their biochemical properties were compared. Reductase I only catalyzes the reduction of ethyl diketoester 7 to its monohydroxy products whereas reductase II catalyzes the formation of dihydroxy products from monohydroxy substrates. A third reductase (III) was identified which catalyzes the reduction of diketoester 7 to syn-(3R,5S)-dihydroxy ester 4 [44], which now has been cloned and expressed in E. coli [44] and the reduction of diketoester 7 to syn-(3R,5S)-dihydroxy ester 4 was demonstrated by recombinant enzyme at 50 g/L substrate input with 10 g/L cell suspensions.

2.3. Atorvastatin: Enzymatic Preparation of (R)-4-Cyano-3-Hydroxybutyrate

An enzymatic process for the preparation of ethyl (R)-4-cyano-3-hydroxybutyric acid 12 (Figure 3), a key intermediate for the synthesis of Atorvastatin 6 was developed by Codexis [45]. In this process, first the enzymatic synthesis of ethyl (S)-4-chloro-3-hydroxybutyric acid derivatives 13 was carried out by ketoreductase-catalyzed conversion of 4-chloro-3-ketobutyric acid derivatives 14 [46]. The genes encoding halohydrin dehydrogenase from Agrobacterium tumefaciens, ketoreductase from Candida magnoliae, glucose dehydrogenase from Bacillus subtilis and formate dehydrogenase from Candida boidinii were separately cloned into Escherichia coli BL21. Each enzyme was then produced by fermentation, isolated and characterized. Then ethyl (R)-4-cyano-3-hydroxybutyrate 12 (Figure 3) was prepared from ethyl 4-chloroacetoacetate 14 by the following procedure: Ethyl 4-chloroacetoacetate 14 was incubated at pH 7.0 with ketoreductase, glucose dehydrogenase, and NADP+ for 40 h to produce ethyl (S)-4-chloro-3-hydroxybutyrate 13 which was extracted with ethyl acetate, dried, filtered and concentrated to yield ~97% pure ester. The dried ethyl (S)-4-chloro-3-hydroxybutyrate 13 was dissolved in phosphate buffer and mixed with halohydrin dehalogenase and sodium cyanide at pH 8.0. After 57 h, essentially pure ethyl (R)-4-cyano-3-hydroxybutyrate 12, an intermediate used in HMG-CoA reductase inhibitors syntheses, was recovered [45].

Biomolecules 03 00741 g003 1024

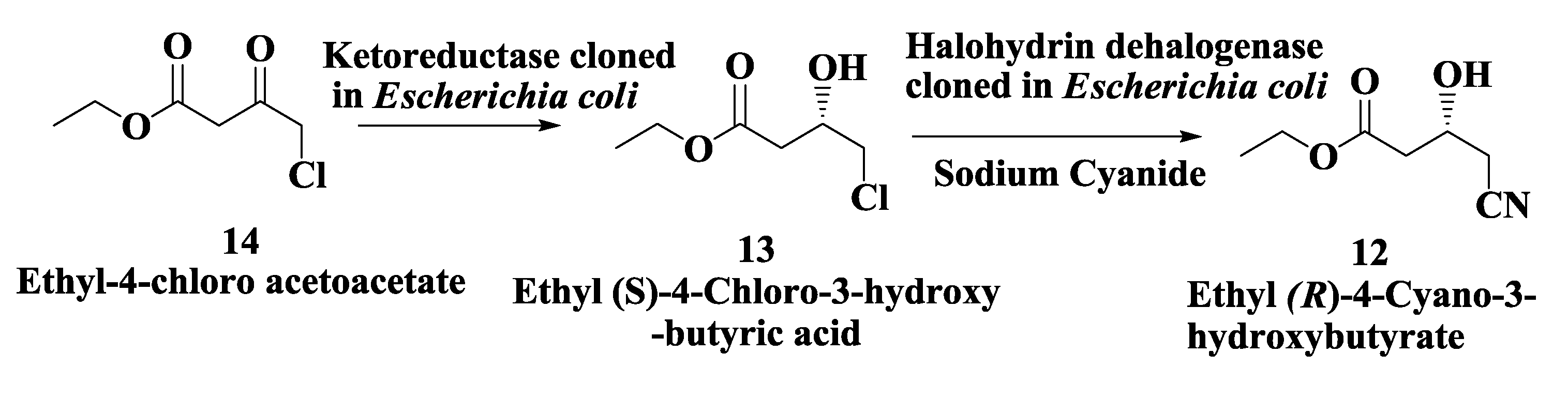

Figure 3. Atorvastatin: Enzymatic preparation of (R)-4-cyano-3-hydroxybutyrate.

Click here to enlarge figure

Figure 3. Atorvastatin: Enzymatic preparation of (R)-4-cyano-3-hydroxybutyrate.
Biomolecules 03 00741 g003 1024

2.4. Preparation of (S)-4-Chloro-3-Hydroxybutanoic Acid Methyl Ester

(S)-4-chloro-3-hydroxybutanoic acid methyl ester 15 (Figure 4) is a key chiral intermediate in the total chemical synthesis of 16, an inhibitor of HMG CoA reductase [46,47]. The reduction of 4-chloro-3-oxobutanoic acid methyl ester 17 to (S)-4-chloro-3-hydroxybutanoic acid methyl ester 15 (Figure 4) by cell suspensions of Geotrichum candidum SC 5469. In the biotransformation process, a reaction yield of 95% and e.e. of 96% were obtained for (S)-15 by glucose-, acetate- or glycerol-grown cells (10% w/v) of G. candidum SC 5469 at 10 g/L substrate input. The e.e. of (S)-15 was increased to 98% by heat-treatment of cell-suspensions (55 °C for 30 min) prior to conducting the bioreduction of 17 [48].

Biomolecules 03 00741 g004 1024

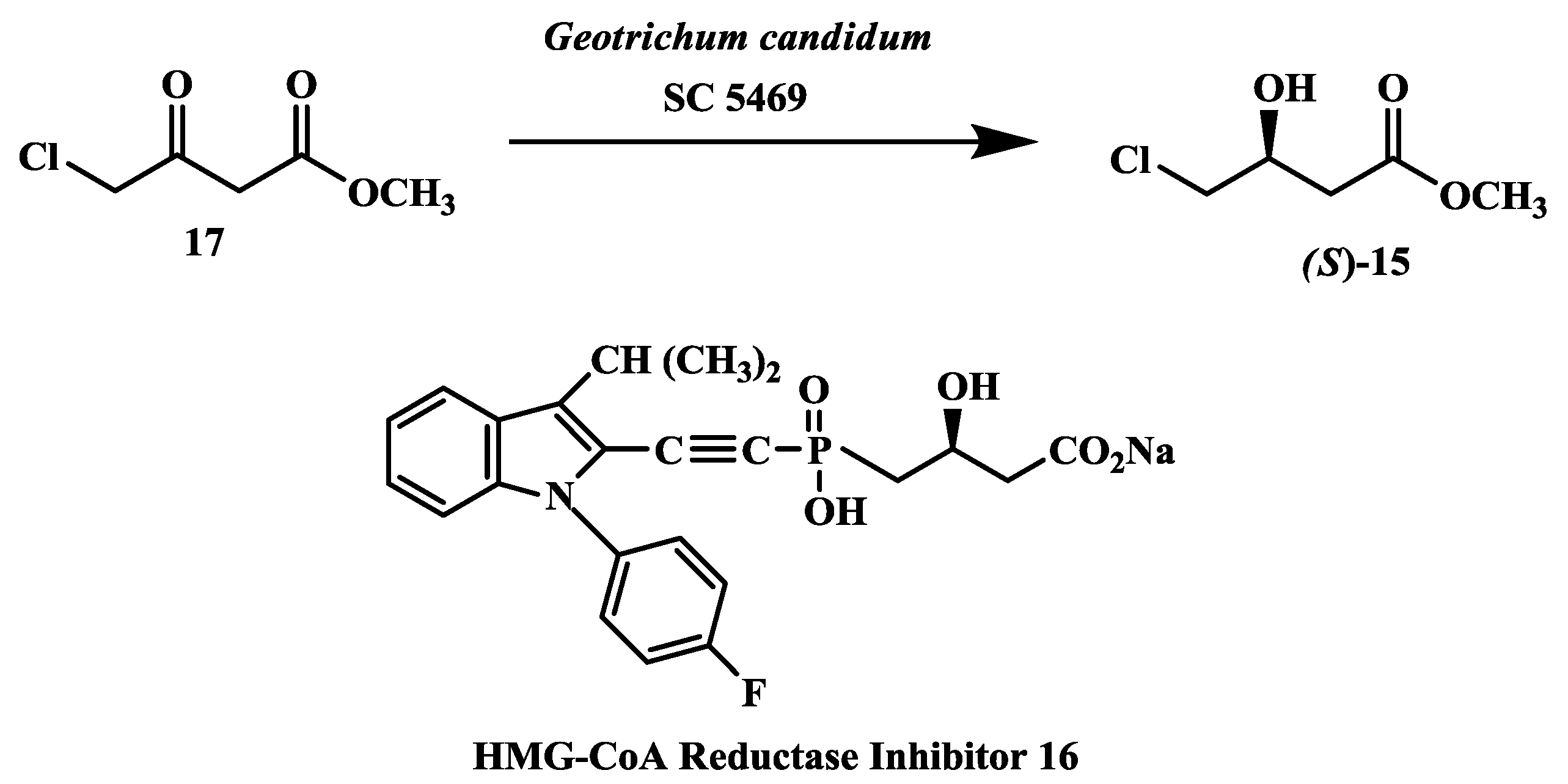

Figure 4. Chloesterol lowering agents: Preparation of (S)-4-chloro-3-hydroxybutanoic acid methyl ester.

Click here to enlarge figure

Figure 4. Chloesterol lowering agents: Preparation of (S)-4-chloro-3-hydroxybutanoic acid methyl ester.
Biomolecules 03 00741 g004 1024

In an alternate approach, the asymmetric reduction of ethyl 4-chloroacetoacetate to (S)-4-chloro-3-hydroxybutonoate was demonstrated by a secondary alcohol dehydrogenase (PfODH) from Pichia finlandica. The gene encoding PfODH was cloned from P. finlandica and over expressed in Escherichia coli. Formate dehydrogenase was used to regenerate the cofactor NADH required for this reaction. Using recombinant E. coli coexpressing both PfODH and formate dehydrogenase from Mycobacetrium sp. produced to (S)-4-chloro-3-hydroxybutonoate in 98.5% yield and 99% e.e. at 32 g/L substrate input [49].

2.5. Rhinovirus Protease Inhibitor: Enzymatic Process for the Preparation of (R)-3-(4-Fluorophenyl)-2-Hydroxy Propionic Acid

(R)-3-(4-fluorophenyl)-2-hydroxy propionic acid 18 (Figure 5) is a building block for the synthesis of AG7088, a rhinovirus protease inhibitor 19 [50,51]. The preparation of 18 using a biocatalytic reduction of 20 in a membrane reactor [52]. A continuous enzymatic process for an efficient synthesis of (R)-3-(4-fluorophenyl)-2-hydroxy propionic acid at multikilogram scale with a high space-time yield (560 g/L/day) using a membrane reactor. The product was generated in excellent enantiomeric excess (e.e. > 99.9%) and good overall yield (68%–72%).

Biomolecules 03 00741 g005 1024
Figure 5. Rhinovirus protease inhibitor: Enzymatic process for the preparation of (R)-3-(4-fluorophenyl)-2-hydroxy propionic acid.

Click here to enlarge figure

Figure 5. Rhinovirus protease inhibitor: Enzymatic process for the preparation of (R)-3-(4-fluorophenyl)-2-hydroxy propionic acid.
Biomolecules 03 00741 g005 1024

Using this method, an overall quantity of 23 kg of 18 was prepared. The key step was an aqueous enzymatic reduction using D-lactate dehydrogenase (D-LDH) and formate dehydrogenase (FDH). Mechanistically, the keto acid salt 20 is stereoselectively reduced to the corresponding R-hydroxy acid 18 in the presence of D-lactate dehydrogenase by NADH. The cofactor itself is oxidized to NAD+ in the process. Subsequently, in the presence of formate dehydrogenase, NAD+ is reduced back to NADH by ammonium formate, which was oxidized to CO2 and NH3. In this fashion the expensive cofactor NAD+ is regenerated by FDH, and only a catalytic amount of NAD+ was required [52].

2.6. Enzymatic Preparation of Chiral Intermediates for Atazanavir

Atazanavir 21 (Figure 6) is an acyclic aza-peptidomimetic, a potent HIV protease inhibitor [53,54] approved by the Food and Drug Administration for treatment of Auto Immune Diseases (AIDS). An enzymatic process was developed for the preparation of (1S,2R)-[3-chloro-2-hydroxy-1-(phenylmethyl) propyl]carbamic acid, 1,1-dimethylethyl ester 22 , a key chiral intermediate required for the total synthesis of the HIV protease inhibitor atazanavir. The diastereoselective reduction of (1S)-[3-chloro-2-oxo-1-(phenylmethyl)propyl] carbamic acid, 1,1-dimethylethyl ester 23 was carried out using Rhodococcus, Brevibacterium, and Hansenula strains to provide 22. Three strains of Rhodococcus gave >90% yield with a diastereomeric purity of >98% and an e.e. of 99.4% [55]. An efficient single-stage fermentation-biotransformation process was developed for the reduction of ketone 23 with cells of Rhodococcus erythropolis SC 13845 to yield 22 in 95% with a diasteromeric purity of 98.2% and an e.e. of 99.4% at substrate input of 10 g/L. The reduction process was further improved by generating mutants and selection of desired mutant for conversion of 23 to (1S,2R)-22 at substrate input of 60 g/L [56]. (1S,2R)-22 was converted to epoxide 24 and used in the synthesis of atazanavir. Chemical reduction of chloroketone 23 using NaBH4 produces the undesired chlorohydrin diastereomer [57].

Biomolecules 03 00741 g006 1024
Figure 6. Atazanavir (antiviral agent): Enzymatic reparation of (1S,2R)-[3-chloro-2-hydroxy-1-(phenylmethyl) propyl]-carbamic acid,1,1-dimethyl-ethyl ester.

Click here to enlarge figure

Figure 6. Atazanavir (antiviral agent): Enzymatic reparation of (1S,2R)-[3-chloro-2-hydroxy-1-(phenylmethyl) propyl]-carbamic acid,1,1-dimethyl-ethyl ester.
Biomolecules 03 00741 g006 1024

2.7. Enzymatic Reduction Process for Synthesis of Montelukast Intermediate

The discovery of the biological activity of the slow reacting substance of anaphylaxis (SRS-A) and its relation to the leukotrienes (LTC4, LTD4, and LTE4) and asthma, the search for leukotriene antagonists has been intensive. As part of an ongoing program for the development of specific LTD4 antagonists for the treatment of asthma and other associated diseases at Merck have identified Montelukast 25 (Figure 7) as LTD4 antagonist [58,59,60].

Biomolecules 03 00741 g007 1024

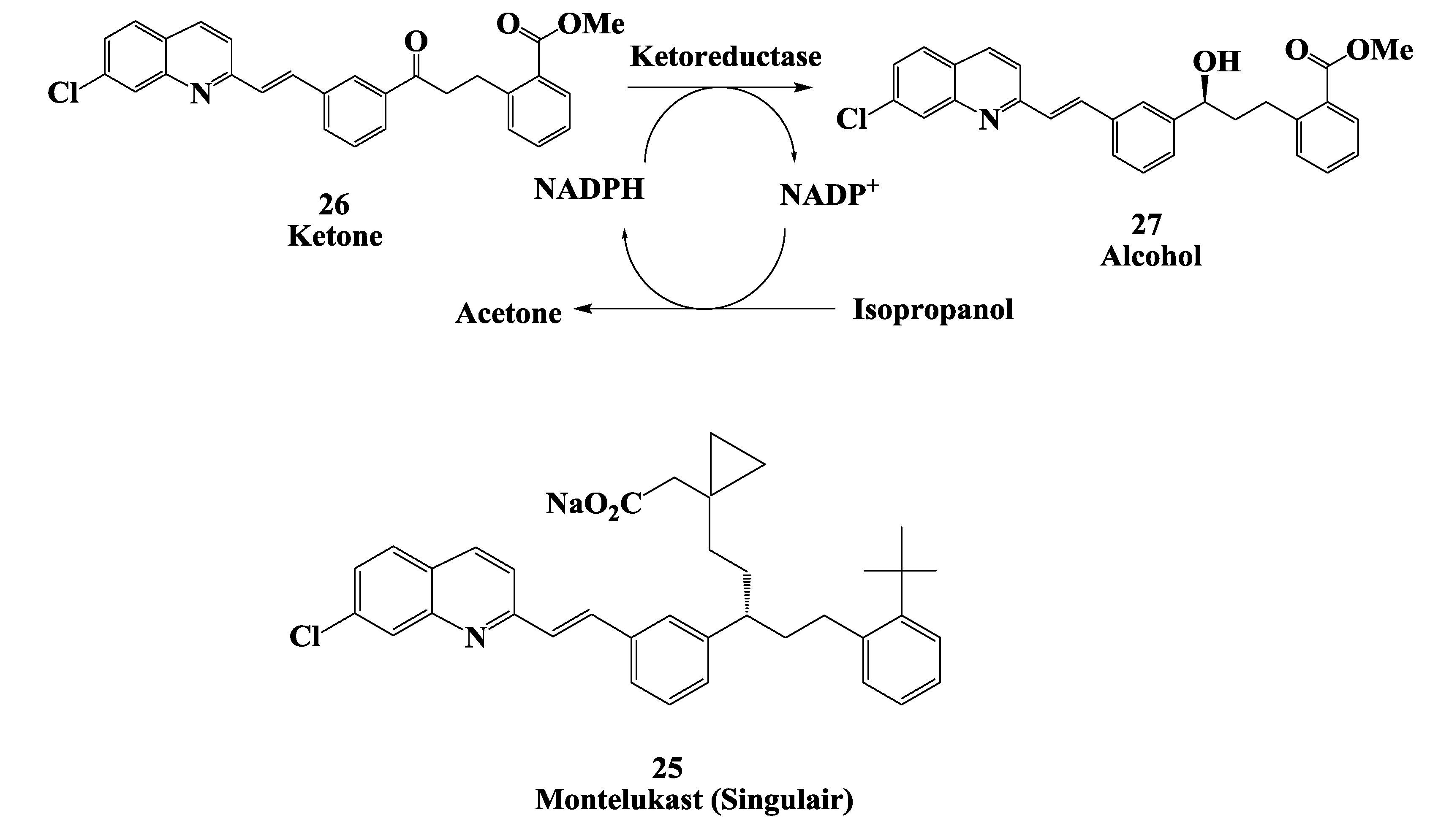

Figure 7. Enzymatic reduction process for synthesis (S)-alcohol 27 for Montelukast intermediate.

Click here to enlarge figure

Figure 7. Enzymatic reduction process for synthesis (S)-alcohol 27 for Montelukast intermediate.
Biomolecules 03 00741 g007 1024

Merck has described the synthetic route for the production of montelukast, using a stereoselective reduction of a ketone 26 to the (S)-alcohol 27 as the key step. The alcohol subsequently undergoes a Sn2 displacement with a thiol to give the R-configured final product [59,60]. The reduction of the ketone 26 to produce the chiral alcohol 27 requires stoichiometric amounts of the chiral reducing agent (−)-flchlorodiisopino campheylborane [(−)-DIP-chloride]. (−)-DIP-chloride is selective and avoids the side reactions but it is corrosive and moisture-sensitive, causing burns if it is allowed to contact the skin. The reaction must be carried out at −20 to −25 °C to achieve the best stereoselectivity. The quench and extractive work-up generate large volumes of waste solvent, due to the product’s low solubility. The potential advantages of biocatalytic transformation of ketone to alcohol were recognized early on by researchers at Merck. However, only two microorganisms were identified as having activity on the bulky and hydrophobic substrate [61]. Due to several reasons, an enzyme-catalyzed process for reduction of the ketone 26 was developed by Codexis. A ketoreductase was developed by directed evolution by high throughput screens using a slurry of the ketone substrate and high isopropanol concentration. Beneficial mutations among the various improved mutants were recombined in each round, and new mutations were made guided by ProSAR. The productivity of the final enzyme was improved 2,000-fold and stability was also substantially increased [62].

The final process was carried out as a slurry-to-slurry reaction at 45 °C, with the sparingly soluble ketone 26 being converted to an almost equally insoluble alcohol 27 at a concentration of 100 g/L substrate in aqueous isopropanol and toluene. A reaction yield of 99.3% and enantiomeric excess of 99.9% was obtained for alcohol 27 [62].

2.8. Anticancer Drug: Enzymatic Preparation of C-13 Paclitaxel Side-Chain Synthon

Among the antimitotic agents, paclitaxel (taxol®) 28 (Figure 8), a complex, polycyclic diterpene, exhibits a unique mode of action on microtubule proteins responsible for the formation of the spindle during cell division. Various types of cancers have been treated with paclitaxel and it was approved for use by the FDA for treatment of ovarian cancer and metastatic breast cancer [63,64,65]. A key precursor for the paclitaxel semi-synthetic process is the chiral C-13 paclitaxel side-chain 29. An enzymatic enantioselective microbial reduction of 2-keto-3-(N-benzoylamino)-3-phenyl propionic acid ethyl ester 30 to yield (2R,3S)-N-benzoyl-3-phenyl isoserine ethyl ester 29 was demonstrated using two strains of Hansenula [66]. Preparative-scale bioreduction of ketone 30 was demonstrated using cell suspensions of Hansenula polymorpha SC 13865 and Hansenula fabianii SC 13894 in independent experiments. In both batches, a reaction yield of >80% and e.e.s of >94% were obtained for (2R,3S)-29. In a single-stage process, cells of H. fabianii were grown in a 15-L fermentor for 48 h, then the bioreduction process was initiated by addition of 30 g of substrate and 250 g of glucose and continued for 72 h. A reaction yield of 88% with an e.e. of 95% was obtained for (2R,3S)-29.

2.9. Antipsychotic Drug: Enzymatic Reduction of 1-(4-Fluorophenyl)4-[4-(5-Fluoro-2-Pyrimidinyl)1-Piperazinyl]-1-Butanone

The sigma receptor system in the brain and endocrine tissue has been target for development of new class of antipsychotic drugs [67,68]. Compound (R)-31 (Figure 9) is a sigma ligand and has a high affinity for sigma binding site and antipsychotic efficacy. The enantioselective microbial reduction process was developed for the conversion of ketone 32 to both enantiomers of alcohol 31 [69]. Various microorganisms screened for the enatioselective reduction of 1-(4-fluorophenyl)4-[4-(5-fluoro-2-pyrimidinyl)1-piperazinyl]-1butanone 32. From this screen, Mortierella ramanniana ATCC 38191 was identified to predominantly reduced compound 32 to (R)-31, while Pullularia pullulans ATCC 16623 was identified to predominantly reduced compound 32 to (S)-31. A single stage fermentation/biotransformation process was developed. Cells of M. ramanniana were grown in a 20-L fermentor and after 40 h growth period, the biotransformation process was initiated by addition of 40 g ketone 32 and 400 g glucose. The biotransformation process was completed in 24 h with a reaction yield of 100% and an e.e. of 98.9% for (R)-31. At the end of the biotransformation process, cells were removed by filtration and product was recovered from the filtrate in overall 80% yield [69].

Biomolecules 03 00741 g008 1024

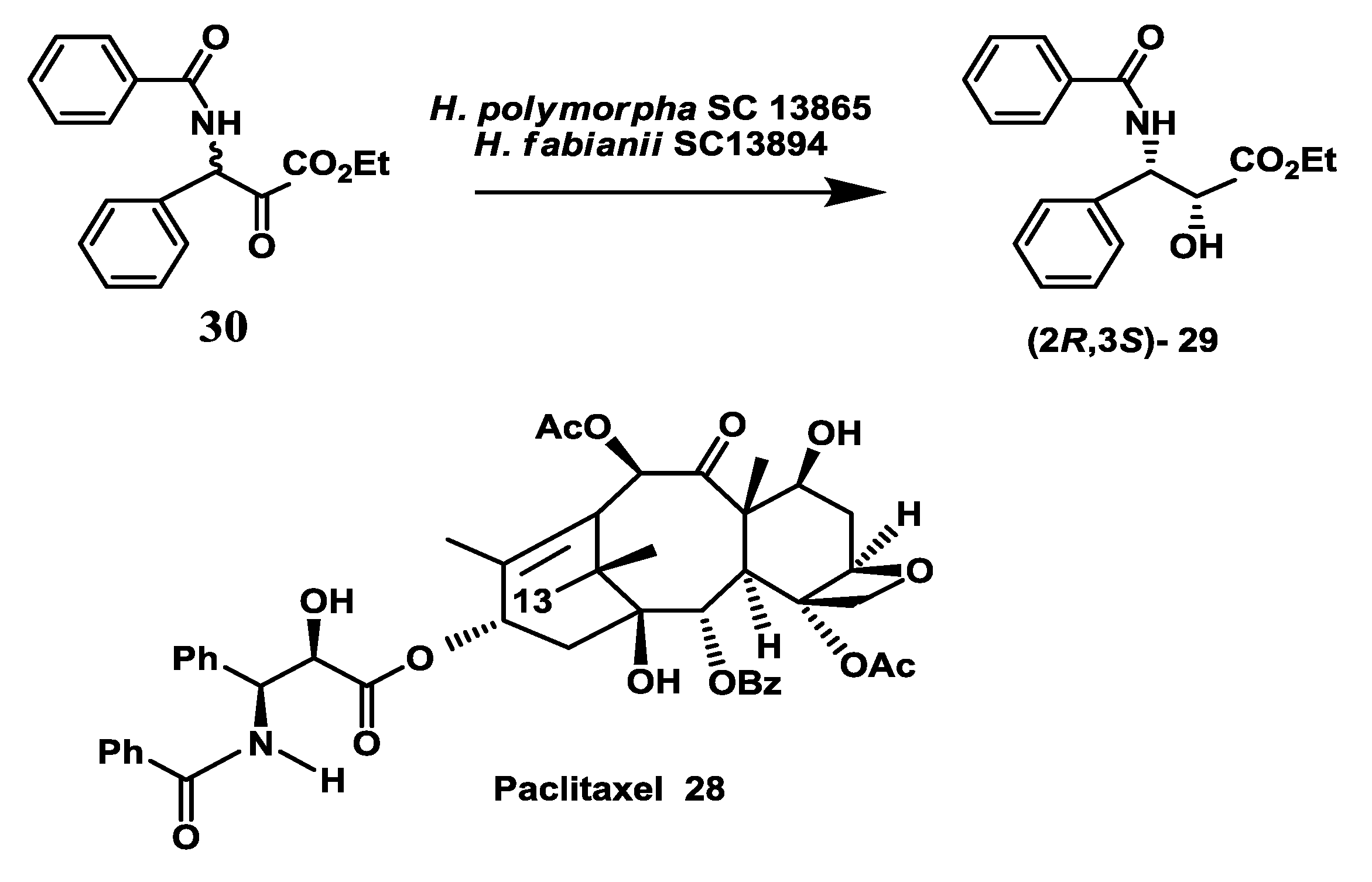

Figure 8. Anticancer drug: Enzymatic preparation of C-13 paclitaxel side-chain synthon.

Click here to enlarge figure

Figure 8. Anticancer drug: Enzymatic preparation of C-13 paclitaxel side-chain synthon.
Biomolecules 03 00741 g008 1024
Biomolecules 03 00741 g009 1024

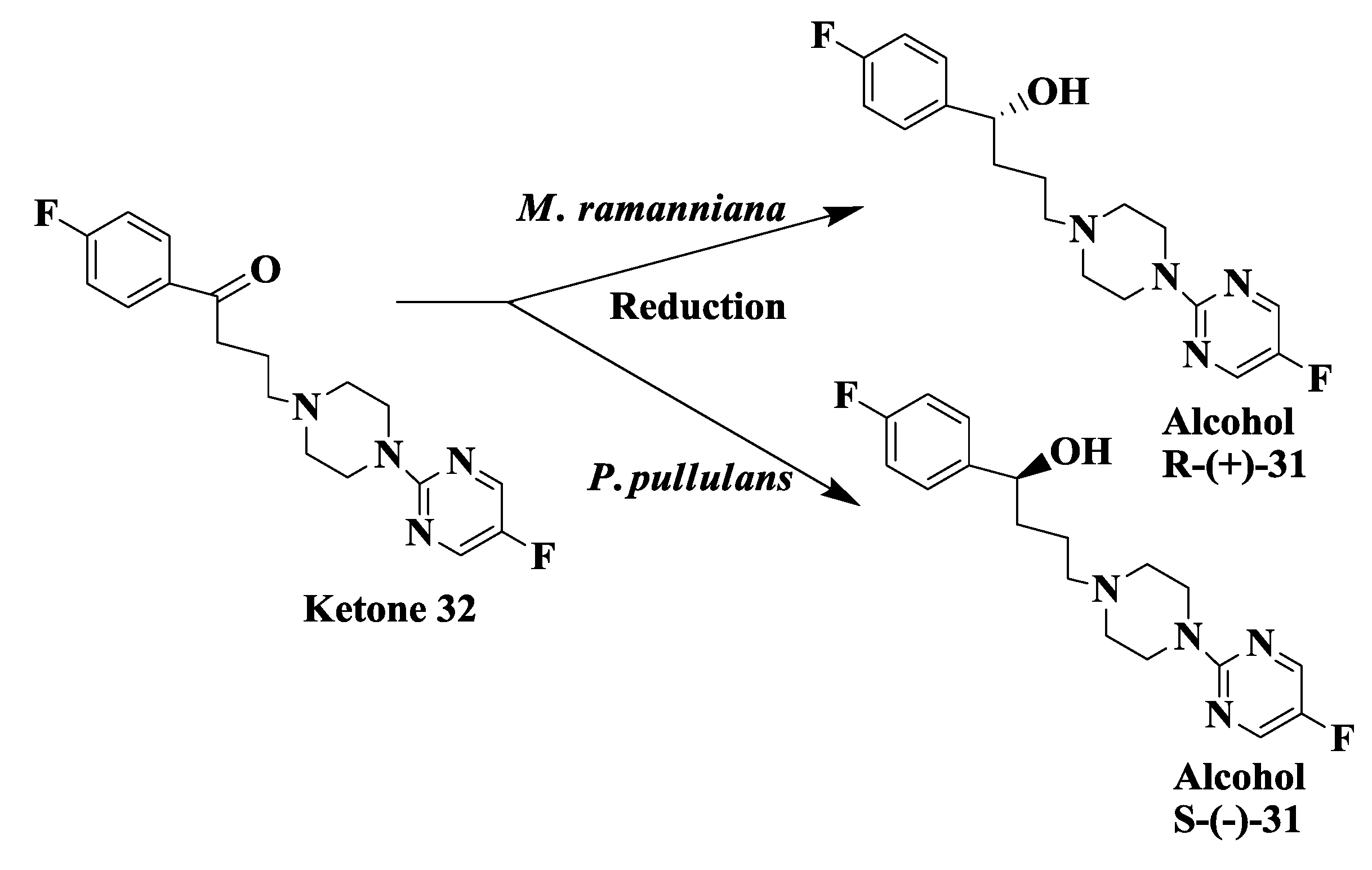

Figure 9. Antipsychotic drug: Enzymatic reduction of 1-(4-fluorophenyl)4-[4-(5-fluoro-2-pyrimidinyl)1-piperazinyl]-1-butanone.

Click here to enlarge figure

Figure 9. Antipsychotic drug: Enzymatic reduction of 1-(4-fluorophenyl)4-[4-(5-fluoro-2-pyrimidinyl)1-piperazinyl]-1-butanone.
Biomolecules 03 00741 g009 1024

2.10. Retinoic Acid Receptpor Agonist: Enzymatic Preparation of 2-(R)-Hydroxy-2-(1',2',3',4'-Tetrahydro-1',1',4',4'-Tetramethyl-6'-Naphthalenyl)Acetate

Retinoic acid and its natural and synthetic analogs (retinoids) exert a wide variety of biological effects by binding to or activating a specific receptor or sets of receptors [70]. They have been shown to effect cellular growth and differentiation and are promising drugs for the treatment of cancers [71]. A few retinoids are already in clinical use for the treatment of dermatological diseases such as acne and psoriasis. (R)-3-Fluoro-4-[[hydroxy-(5,6,7,8-tetrahydro-5,5,8,8-tetramethyl-2-naphthalenyl)-acetyl]amino]benzoic acid 33 (Figure 10) is a retinoic acid receptor gamma-specific agonist potentially useful as a dermatological and anticancer drug [72].

Biomolecules 03 00741 g010 1024

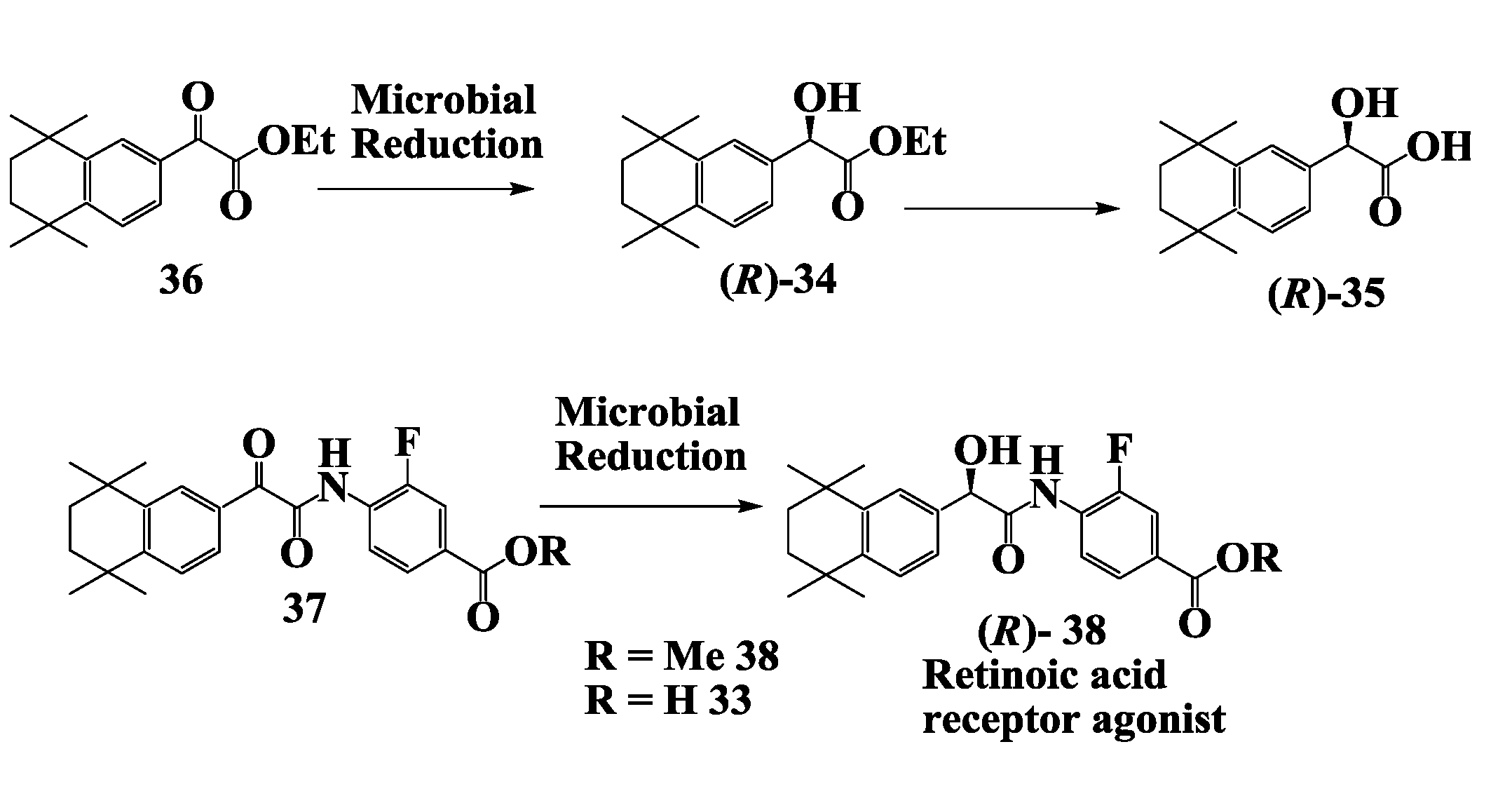

Figure 10. Retinoic acid receptor agonist: Enzymatic preparation of 2-(R)-hydroxy-2-(1',2',3',4'-tetrahydro-1',1',4',4'-tetramethyl-6'-naphthalenyl)acetate.

Click here to enlarge figure

Figure 10. Retinoic acid receptor agonist: Enzymatic preparation of 2-(R)-hydroxy-2-(1',2',3',4'-tetrahydro-1',1',4',4'-tetramethyl-6'-naphthalenyl)acetate.
Biomolecules 03 00741 g010 1024

Ethyl 2-(R)-hydroxy-2-(1',2',3',4'-tetrahydro-1',1',4',4'-tetramethyl-6'-naphthalenyl)acetate 34 and the corresponding acid 35 were prepared as intermediates in the synthesis of the retinoic acid receptor gamma-specific agonist [73]. Enantioselective microbial reduction of ethyl 2-oxo-2-(1',2',3',4'-tetrahydro-1',1',4',4'-tetramethyl-6-naphthalenyl) acetate 36 to alcohol 34 was carried out using Aureobasidium pullulans SC 13849 in 98% yield and with an e.e. of 96%. At the end of the reaction, hydroxyester 34 was adsorbed onto XAD-16 resin and, after filtration, recovered in 94% yield from the resin with acetonitrile extraction. The recovered (R)-hydroxyester 34 was treated with Chirazyme L-2 or pig liver esterase to convert it to the corresponding (R)-hydroxyacid 35 in quantitative yield. The enantioselective microbial reduction of ketoamide 37 to the corresponding (R)-hydroxyamide 38 by A. pullulans SC 13849 has also been demonstrated [73].

2.11. Anti-Alzheimer’s Drugs: Enzymatic Reduction of 5-Oxohexanoate and 5-Oxohexanenitrile

Ethyl-(S)-5-hydroxyhexanoate 39 and (S)-5-hydroxyhexanenitrile 40 (Figure 11) are key chiral intermediates in the synthesis of anti-Alzheimer’s drugs [74]. Both chiral compounds have been prepared by enantioselective reduction of ethyl-5-oxohexanoate 41 and 5-oxohexanenitrile 42 by Pichia methanolica SC 16116 [75]. Reaction yields of 80%–90% and >95% e.e.s were obtained for each compound. In an alternate approach, the enzymatic resolution of racemic 5-hydroxyhexane nitrile 43 by enzymatic succinylation was demonstrated using immobilized lipase PS-30 to obtain (S)-5-hydroxyhexanenitrile 40 in 35% yield (maximum yield is 50%). (S)-5-Acetoxy-hexanenitrile 44 was prepared by enantioselective enzymatic hydrolysis of racemic 5-acetoxyhexanenitrile 45 by Candida antarctica lipase. A reaction yield of 42% and an e.e. of >99% were obtained [75].

Biomolecules 03 00741 g011 1024

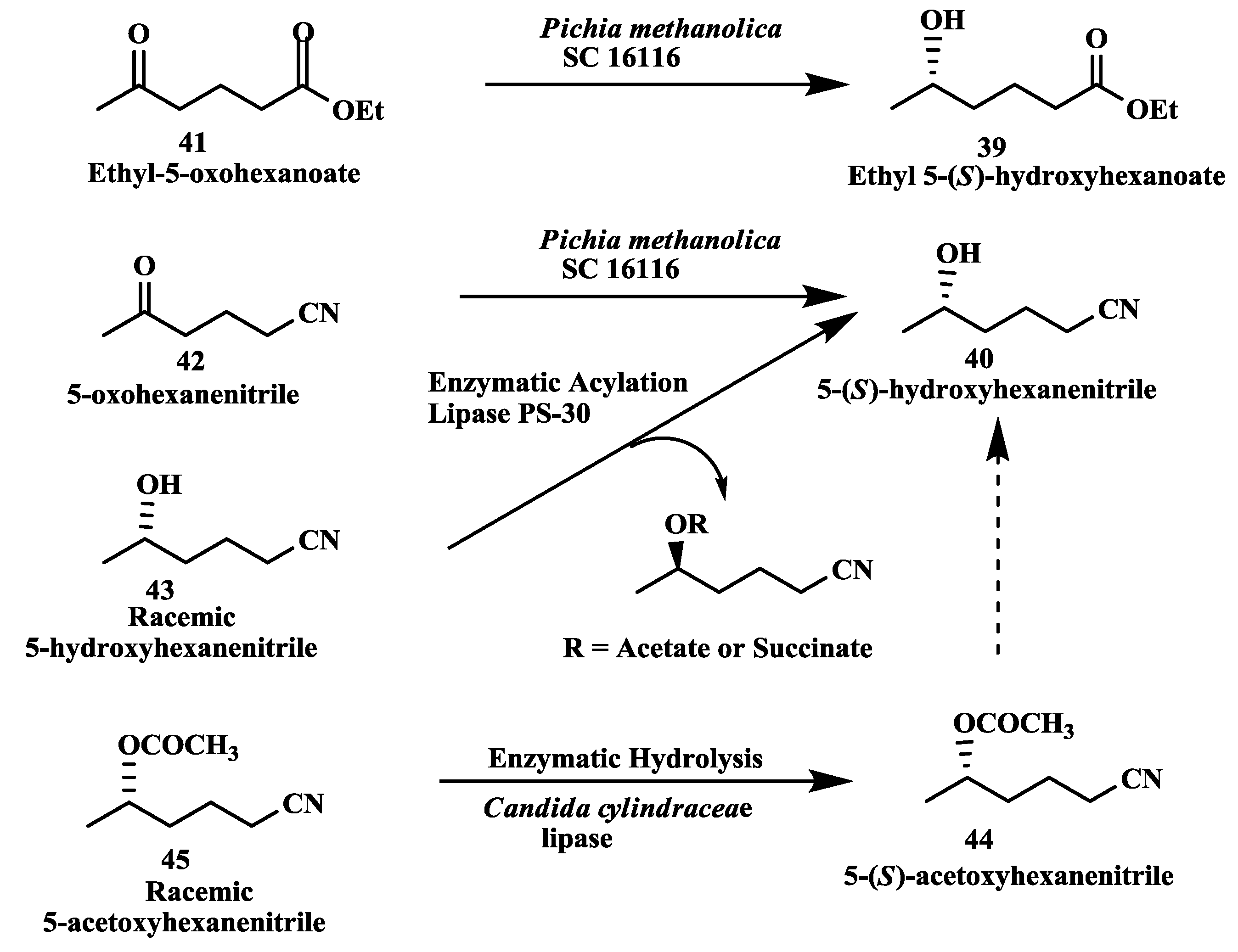

Figure 11. Anti-Alzheimer’s drugs: Enzymatic reduction of 5-oxohexanoate and 5-oxohexanenitrile.

Click here to enlarge figure

Figure 11. Anti-Alzheimer’s drugs: Enzymatic reduction of 5-oxohexanoate and 5-oxohexanenitrile.
Biomolecules 03 00741 g011 1024

2.12. Enantioselective Microbial Reduction of Substituted Acetophenone

The chiral intermediates (S)-1-(2'-bromo-4'-fluorophenyl)ethanol 46 and (S)-methyl 4-(2'-acetyl-5'-fluorophenyl)-butanol 47 are potential intermediates for the synthesis of several potential anti-Alzheimer’s drugs [76]. The chiral intermediate (S)-1-(2'-bromo-4'-fluoro phenyl)ethanol 46 (Figure 12A) was prepared by the enantioselective microbial reduction of 2-bromo-4-fluoro acetophenone 48 [77]. Organisms from genus Candida, Hansenula, Pichia, Rhodotorula, Saccharomyces, Sphingomonas and Baker’s yeast reduced 48 to 46 in >90% yield and 99% enantiomeric excess (e.e.).

Biomolecules 03 00741 g012 1024

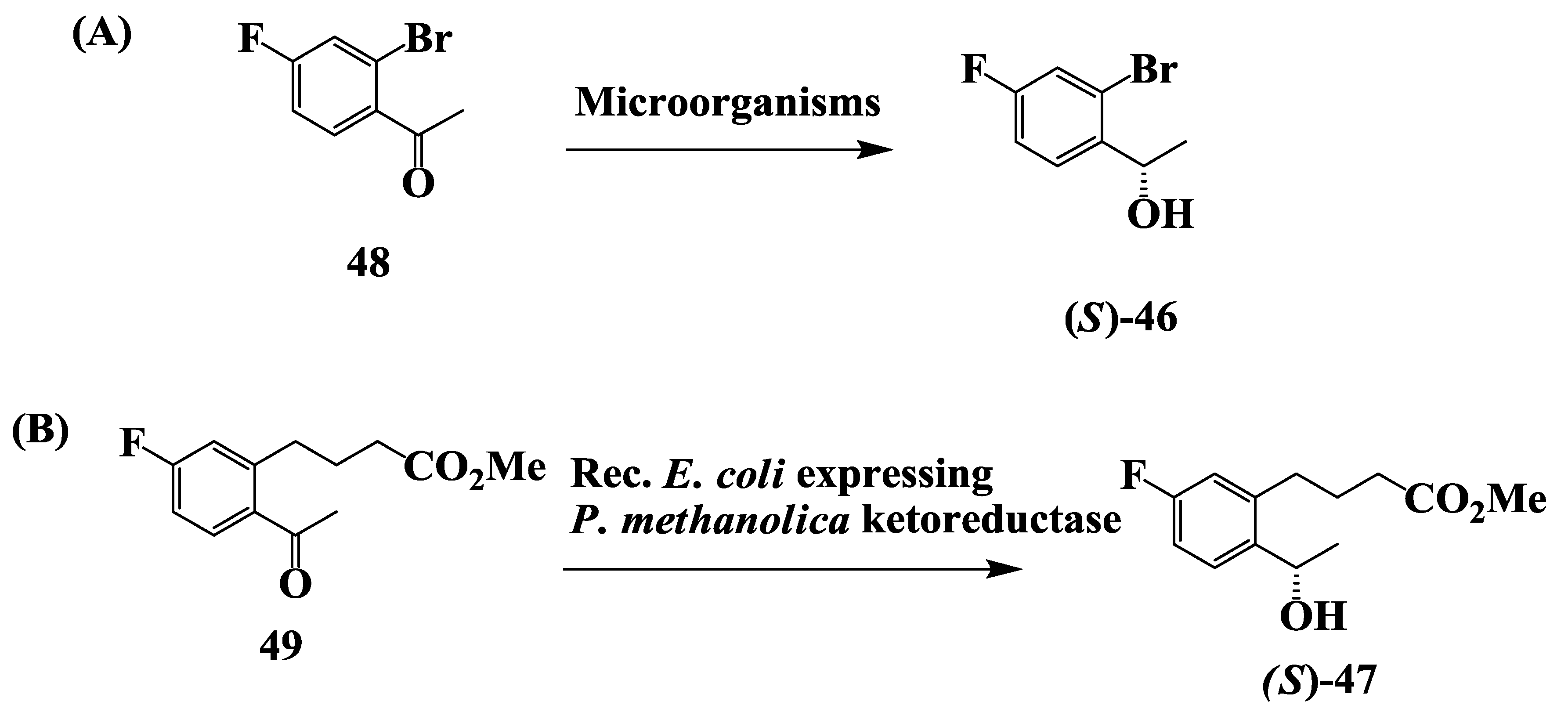

Figure 12. (A) Anti-Alzheimer’s drugs: Enantioselective microbial reduction of substituted acetophenone; (B) Enantioselective microbial reduction of methyl-4-(2'-acetyl-5'-fluorophenyl) butanoates.

Click here to enlarge figure

Figure 12. (A) Anti-Alzheimer’s drugs: Enantioselective microbial reduction of substituted acetophenone; (B) Enantioselective microbial reduction of methyl-4-(2'-acetyl-5'-fluorophenyl) butanoates.
Biomolecules 03 00741 g012 1024

In an alternate approach, the enantioselective microbial reduction of methyl-4-(2'-acetyl-5'-fluorophenyl) butanoates 49 (Figure 12B) was demonstrated using strains of Candida and Pichia. Reaction yields of 40%–53% and e.e.s of 90%–99% were obtained for the corresponding (S)-hydroxy esters 47. The reductase which catalyzed the enantioselective reduction of ketoesters was purified to homogeneity from cell extracts of Pichia methanolica SC 13825. It was cloned and expressed in Escherichia coli and recombinant cultures were used for the enantioselective reduction of the keto-methyl ester 49 to the corresponding (S)-hydroxy methyl ester 47. On preparative scale, a reaction yield of 98% with an enantiomeric excess of 99% for 47 was obtained [77].

2.13. Anticancer Drug: Enzymatic Preparation of (S)-2-Chloro-1-(3-Chlorophenyl)Ethanol

The synthesis of the leading candidate compound 50 [78] in an anticancer program (IGF-1 receptor inhibitors) [79,80] required (S)-2-chloro-1-(3-chlorophenyl)ethanol 51 (Figure 13) as an intermediate. Other possible candidate compounds used are analogs of (S)-alcohol 51. From microbial screen of the reduction of ketone 52 to (S)-alcohol 51, two cultures namely Hansenula polymorpha SC13824 (73.8% enantiomeric excess) and Rhodococcus globerulus SC SC16305 (71.8% enantiomeric excess) were identified that had the highest enantioselectivity. A ketoreductase from Hansenula polymorpha, after purification to homogeneity, gave (S)-alcohol 51 with 100% ee [81]. The ketoreductase was cloned and expressed in E. coli together with a glucose-6-phosphate dehydrogenase from Saccharomyces cerevisiae to allow regeneration of the NADPH required for the reduction process. An extract of E. coli containing the two recombinant enzymes was used to reduce 2-chloro-1-(3-chloro-4fluorophenyl)ethanone 52. Intact E. coli cells provided with glucose were used to prepare (S)-2-chloro-1-(3-chloro-4-fluorophenyl)ethanol 51 in 89% yield with 100% e.e. [81].

Biomolecules 03 00741 g013 1024

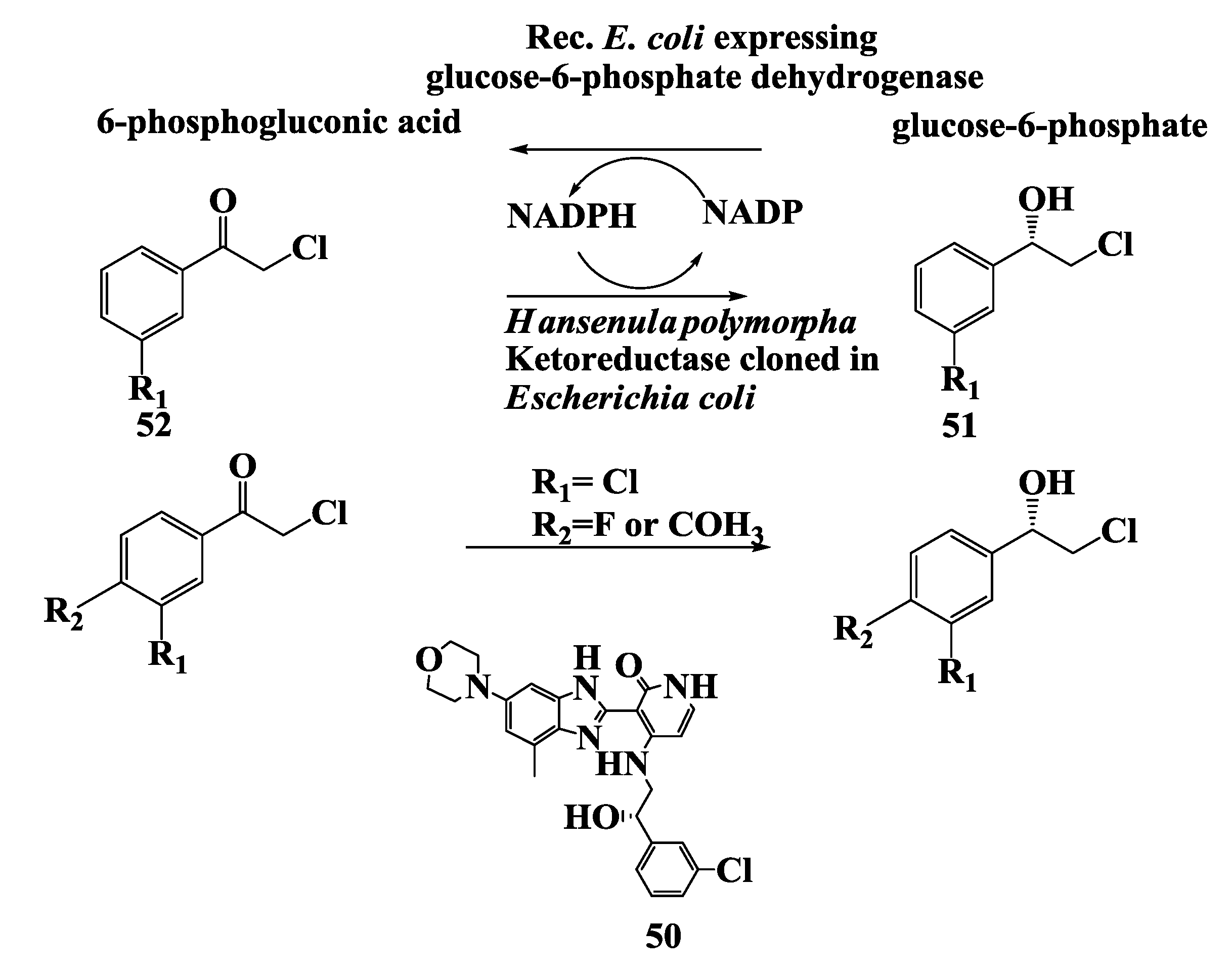

Figure 13. Anticancer drug: Enzymatic preparation of (S)-2-chloro-1-(3-chlorophenyl)ethanol.

Click here to enlarge figure

Figure 13. Anticancer drug: Enzymatic preparation of (S)-2-chloro-1-(3-chlorophenyl)ethanol.
Biomolecules 03 00741 g013 1024

2.14. Thrombin Inhibitor: Enzymatic Preparation of (R)-2-Hydroxy-3,3-Dimethylbutanoic Acid

Thrombin is a trypsin-like protease enzyme that plays a critical role in intrinsic and extrinsic blood coagulation. As a result of the enzymatic activation of numerous coagulation factors, thrombin is activated to cleave fibrinogen, producing fibrin, which is directly responsible for blood clotting. An imbalance between these factors and their endogenous activators and inhibitors can give rise to a number of disease states such as myocardial infarction, unstable angina, stroke, ischemia, restenosis following angioplasty, pulmonary embolism, deep vein thrombosis, and arterial thrombosis [82,83]. Consequently, the aggressive search for a potent, selective, and bioavailable thrombin inhibitor is widespread [84]. An intensive effort by Merck has led to the identification of thrombin inhibitor 53 [85]. The synthesis of 53 required a key chiral intermediate (R)-hydroxy ester 54. An enzymatic process was developed for the asymmetric reduction of ketoester 55 to (R)-54 using commercially available ketoreductase KRED1001 (Figure 14). The cofactor NADPH required for this reaction was regenerated using glucose dehydrogenase. The hydroxy ester (R)-54 was isolated as an oil and then saponified to the corresponding enantiomerically pure hydroxy acid (R)-56 without epimerization [86]. The enantiomerically pure (R)-56 was obtained in 82% isolated yield (>99.5% e.e.).

Biomolecules 03 00741 g014 1024
Figure 14. Thrombin inhibitor: Enzymatic preparation of (R)-2-Hydroxy-3,3-dimethylbutanoic acid.

Click here to enlarge figure

Figure 14. Thrombin inhibitor: Enzymatic preparation of (R)-2-Hydroxy-3,3-dimethylbutanoic acid.
Biomolecules 03 00741 g014 1024

2.15. Endothelin Receptor Antagonist: Enantioselective Microbial Reduction of Keto Ester and Chloroketone

Endothelin is present in elevated levels in the blood of patients with hypertension, acute myocardial infarction and pulmonary hypertension. Two endothelin receptor sub-types have been identified which bind endothelin, thus causing vasoconstriction [87,88]. Endothelin receptor antagonists such as compound 57 (Figure 15) have potential therapeutic value. Synthesis of compound 57 required two key chiral intermediates (S)-alcohols 58 and 59. Enantioselective microbial reduction of a ketoester 60 and a chlorinated ketone 61 to their corresponding (S)-alcohols 58 and 59 was demonstrated using Pichia delftensis MY 1569 and Rhodotorula piliminae ATCC 32762 to afford desired products in >98% e.e. and >99% e.e, respectively [89]. Reductions were scaled up to 23 L to produce the desired (S)-alcohols in 88% and 97% yields, respectively.

Biomolecules 03 00741 g015 1024

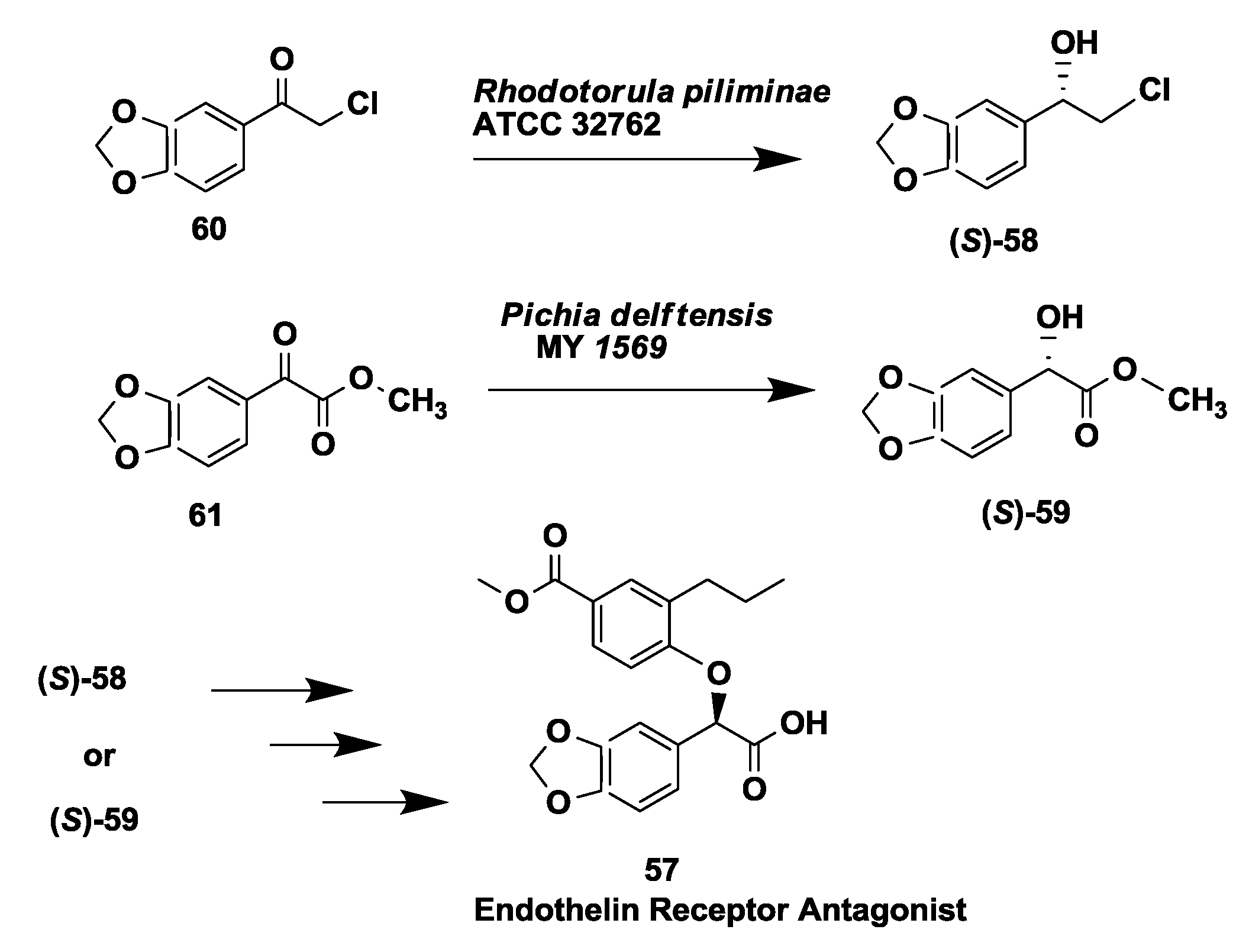

Figure 15. Endothelin receptor antagonist: Enantioselective microbial reduction of keto ester and chloroketone.

Click here to enlarge figure

Figure 15. Endothelin receptor antagonist: Enantioselective microbial reduction of keto ester and chloroketone.
Biomolecules 03 00741 g015 1024

2.16. Calcium Channel Blocker: Preparation of [(3R-cis)-1,3,4,5-Tetrahydro-3-Hydroxy-4-(4-Methoxyphenyl)-6-(Trifluromethyl)-2H-1-Benzazepin-2-One]

Diltiazem 62 (Figure 16) a benzothiazepinone calcium channel blocking agent that inhibits influx of extracellular calcium through L-type voltage-operated calcium channels, has been widely used clinically in the treatment of hypertension and angina [90]. Since diltiazem has a relatively short duration of action [91], an 8-chloro derivative recently has been introduced into the clinic as a more potent analogue [92]. Lack of extended duration of action and little information on structure-activity relationships in this class of compounds led Floyd et al. [93] to prepare isosteric 1-benzazepin-2-ones; this led to identification of (cis)-3-(acetoxy)-1-[2-(dimethylamino)ethyl]-1,3,4,5-tetrahydro-4-(4-methoxyphenyl)-6-trifluoromethyl)-2H-1-benzazepin-2-one 63 as a longer lasting and more potent antihypertensive agent. A key intermediate in the synthesis of this compound was (3R-cis)-1,3,4,5-tetrahydro-3-hydroxy-4-(4-methoxyphenyl)-6-(trifluromethyl)-2H-1-benzazepin-2-one 64. An enantioselective process was developed for the reduction of 4,5-dihydro-4-(4-methoxyphenyl)-6-(trifluoromethyl)-1H-1-benzazepin-2,3-dione 65 to 64 using Nocardia salmonicolor SC 6310, in 96% reaction yield with 99.8% e.e. [94].

Biomolecules 03 00741 g016 1024

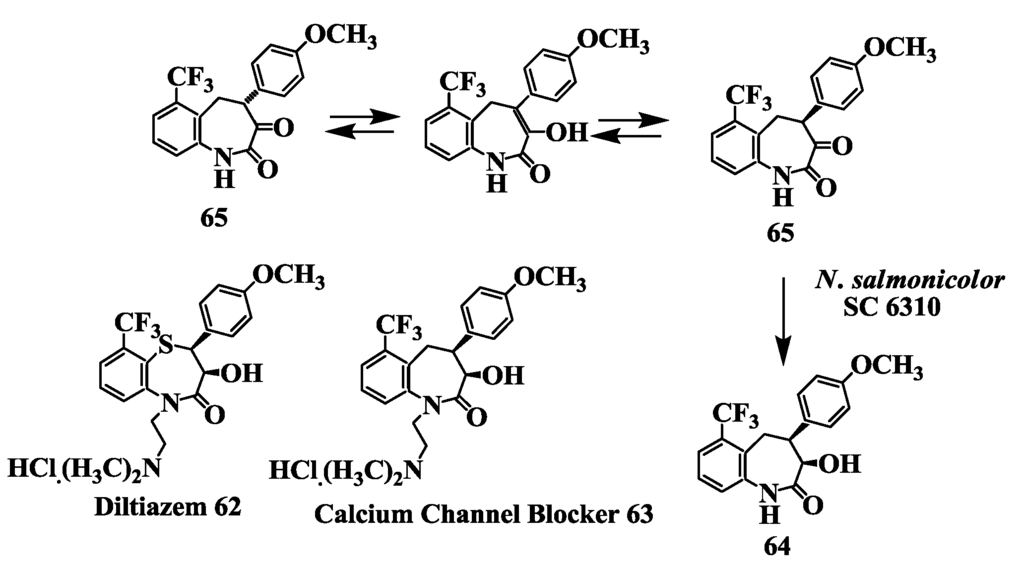

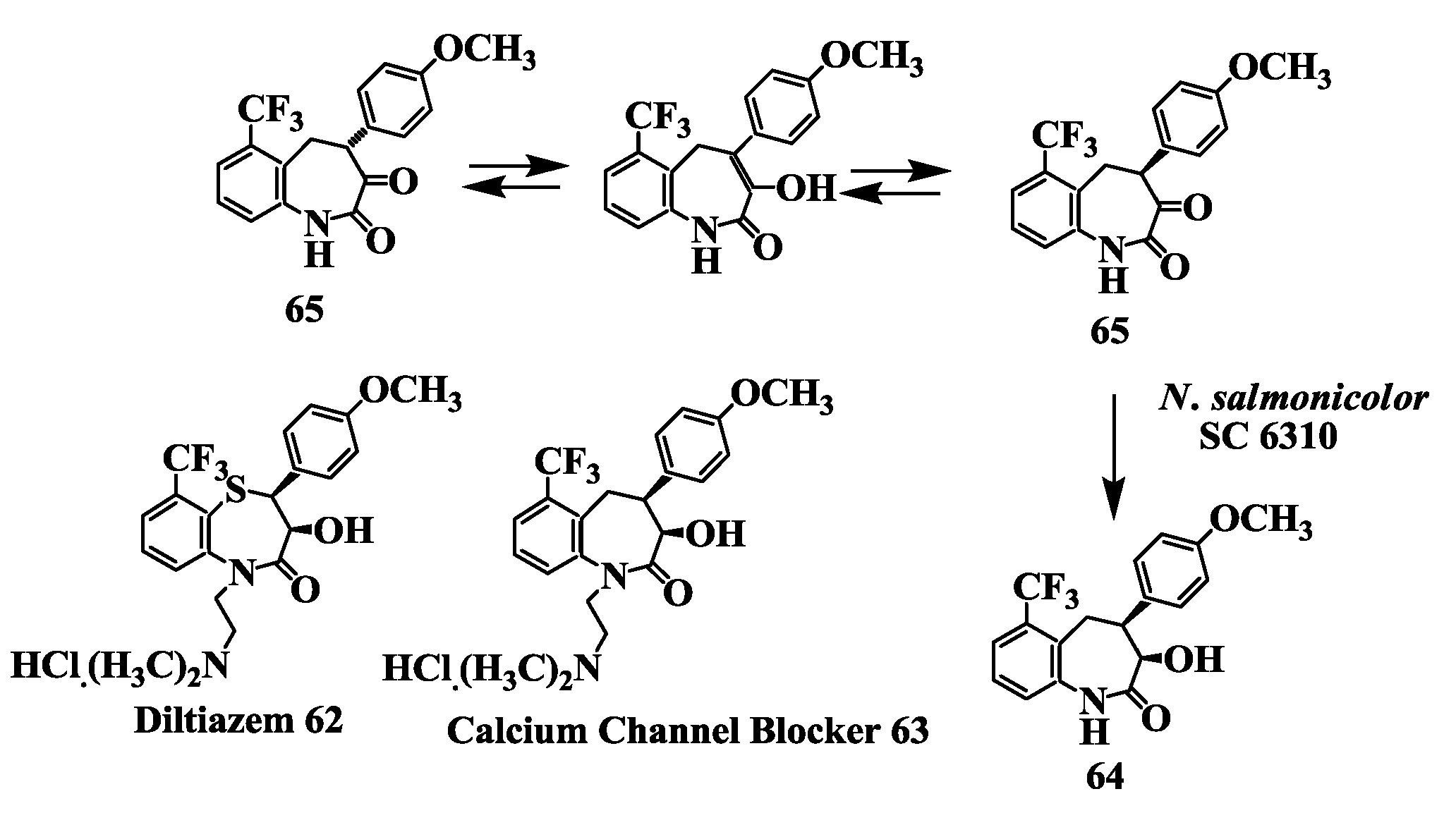

Figure 16. Calcium channel blocker: Preparation of [(3R-cis)-1,3,4,5-tetrahydro-3-hydroxy-4-(4-methoxyphenyl)-6-(trifluromethyl)-2H-1-benzazepin-2-one].

Click here to enlarge figure

Figure 16. Calcium channel blocker: Preparation of [(3R-cis)-1,3,4,5-tetrahydro-3-hydroxy-4-(4-methoxyphenyl)-6-(trifluromethyl)-2H-1-benzazepin-2-one].
Biomolecules 03 00741 g016 1024

2.17. β3-Receptor Agonist: Reduction of 4-Benzyloxy-3-Methanesulfonylamino-2'-Bromo-Acetophenone

β3-Adrenergic receptors are found on the cell surfaces of both white and brown adipocytes and are responsible for lipolysis, thermogenesis, and relaxation of intestinal smooth muscle [95]. Consequently, several research groups are engaged in developing selective β3 agonists for the treatment of gastrointestinal disorders, type II diabetes, and obesity [96,97]. Biocatalytic syntheses of chiral intermediates required for the total synthesis of β3 receptor agonists 66 (Figure 17) has been demonstrated [98].

Biomolecules 03 00741 g017 1024

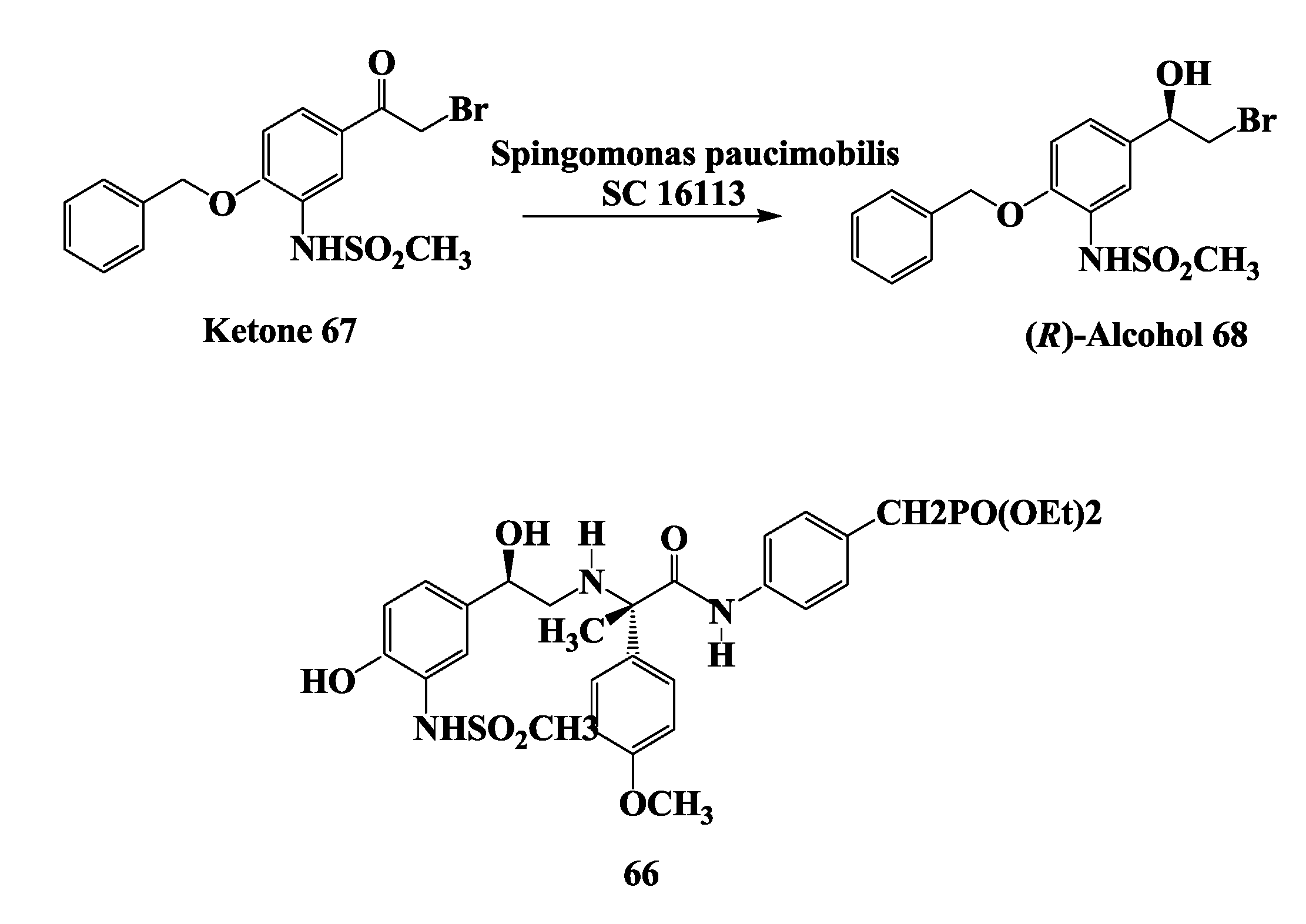

Figure 17. β3-Receptor agonist: Reduction of 4-benzyloxy-3-methanesulfonylamino-2-bromo-acetophenone.

Click here to enlarge figure

Figure 17. β3-Receptor agonist: Reduction of 4-benzyloxy-3-methanesulfonylamino-2-bromo-acetophenone.
Biomolecules 03 00741 g017 1024

The microbial reduction of 4-benzyloxy-3-methanesulfonylamino-2'-bromo-acetophenone 67 to the corresponding (R)-alcohol 68 has been demonstrated [98] using Sphingomonas. paucimobilis SC 16113. The growth of S. paucimobilis SC 16113 was carried out in a 750-L fermentor and harvested cells (60 kg) were used to conduct the biotransformation in 10-L and 200-L preparative batches using 20% (wt/vol, wet cells). In some batches, the fermentation broth was concentrated 3-fold by microfilteration and subsequently washed with buffer by diafilteration and used directly in the bioreduction process. In all the batches, reaction yields of >85% and e.e.s. of >98% were obtained. The isolation of alcohol 68 from the 200-L batch gave 320 g (80% yield) of product with an e.e. of 99.5%.

In an alternate process, frozen cells of S. paucimobilis SC 16113 were used with XAD-16 hydrophobic resin (50 g/L) adsorbed substrate at 10 g/L concentration. In this process, an average reaction yield of 85% and an e.e. of >99% were obtained for alcohol 68. At the end of the biotransformation, the reaction mixture was filtered on a 100 mesh (150 μm) stainless steel screen, and the resin retained by the screen was washed with water. The product was then desorbed from the resin with acetonitrile and crystallized in 75% overall yield with a 99.8% e.e.[98].

2.18. Penem and Carbapenem: Enzymatic Preparation of (R)-1,3-Butanediol and (R)-4-Chloro-3-Hydroxybutonoate

(R)-1,3-Butanediol 69 (Figure 18) is a key starting material of azetidinone derivatives 70, which are key chiral intermediates for the synthesis of penem 71 and carbapenem antibiotics [99]. From a microbial screen, the Candida parapsilosis strain IFO 1396 was identified which produced (R)-1,3-butanediol from the racemate. The (S)-1,3-butanediol oxidizing enzyme (CpSADH) which produced (R)-1,3-butanediol from the racemate was cloned in Escherichia coli. The recombinant culture catalyzed the enantioselective oxidation of secondary alcohols and also catalyzed the asymmetric reduction of aromatic and aliphatic ketones to their corresponding (S)-secondary alcohols. Using the recombinant enzyme, (R)-1,3-butanediol was produced in 97% yield and 95% e.e. using 150 g/L input of the racemate. Recombinant enzyme (CpSADH) was also used for reduction of ethyl 4-chloroacetoacetate 72 to produce ethyl-(R)-4-chloro-3-hydroxybutonoate 73 in 95% yield and 99% e.e. using 36 g/L substrate input. Isopropanol was used to regenerate the NADH required for this reduction. Ethyl-(R)-4-chloro-3-hydroxybutonoate is useful for the synthesis of L-carnitine 74 and (R)-4-hydroxyl pyrrolidone 75 [100,101]).

Biomolecules 03 00741 g018 1024

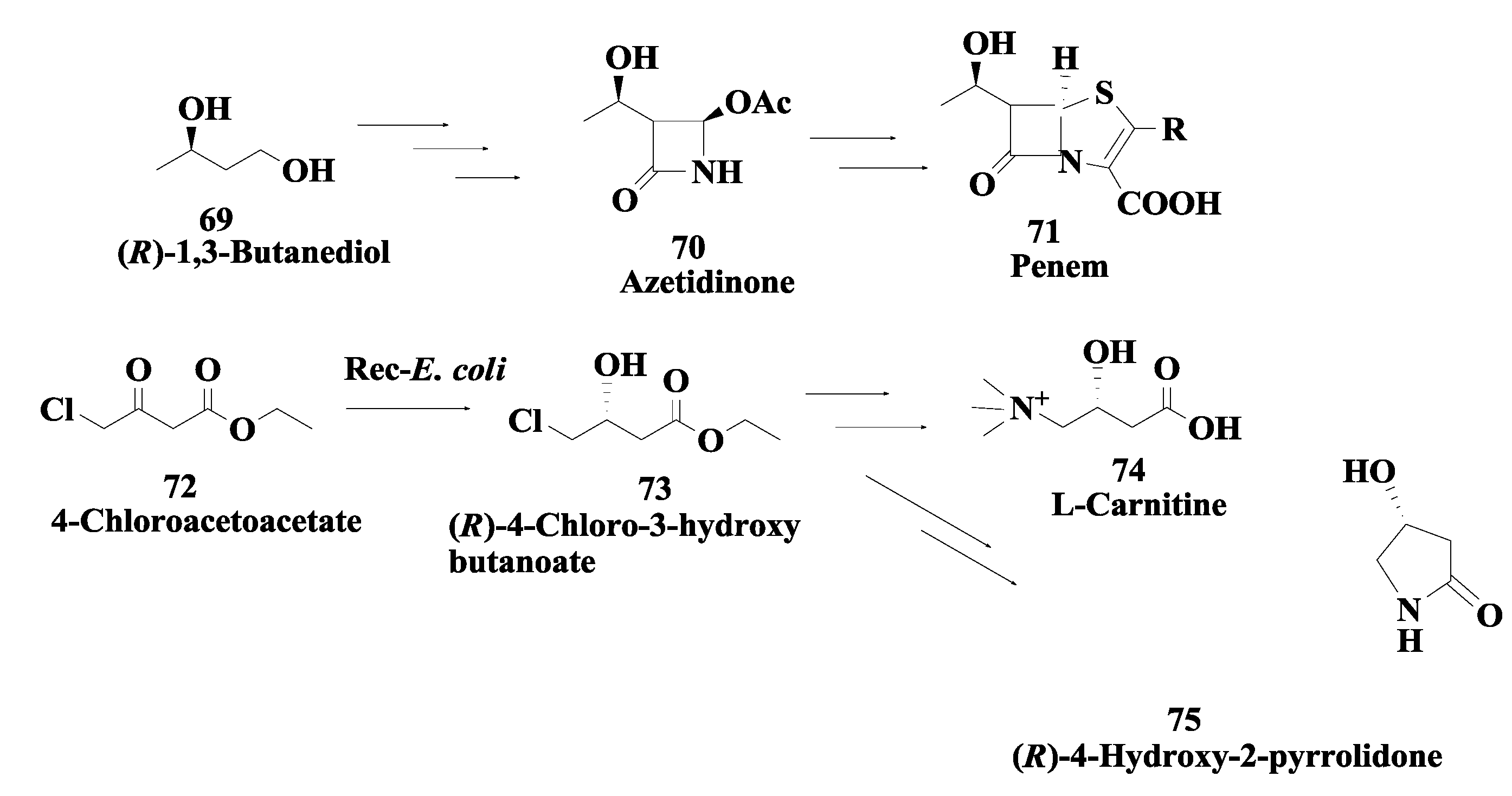

Figure 18. Penem and carbapenem: Enzymatic preparation of (R)-1,3-butanediol and (R)-4-chloro-3-hydroxybutonoate.

Click here to enlarge figure

Figure 18. Penem and carbapenem: Enzymatic preparation of (R)-1,3-butanediol and (R)-4-chloro-3-hydroxybutonoate.
Biomolecules 03 00741 g018 1024

2.19. Integrin Receptor Agonist: Enzymatic Preparation of (R)-Allylic Alcohol

(R)-allylic alcohol 76 (Figure 19) was required as an intermediate for the synthesis of a desired monanoic derivate useful as an integrin receptor antagonist for the inhibition of bone desorption and treatment of osteoporosis [102]. A pilot scale whole cell process was developed for the enantioselective 1,2-reduction of prochiral alpha,beta-unsaturated ketone 77 to (R) allylic alcohol, (R)-76 using Candida chilensis [103]. Initial development showed high enantiomeric excess (>95%) but low product yield (10%). Further process development, using a combination of statistically designed screening and optimization experiments, improved the desired alcohol yield to 90%. The fermentation growth stage, particularly medium composition and growth pH, had a significant impact on the bioconversion while process characterization identified diverse challenges including the presence of multiple enzymes, substrate/product toxicity, and biphasic cellular morphology. Manipulating the fermentation media allowed control of the whole cell morphology to a predominantly unicellular broth, away from the viscous pseudohyphae, which were detrimental to the bioconversion. The activity of a competing enzyme, which produced the undesired saturated ketone 78 and (R)-saturated alcohol 79, was minimized to < or =5% by controlling the reaction pH, temperature, substrate concentration, and biomass level. Despite the toxicity effects limiting the volumetric productivity, a reproducible and saleable process was demonstrated at pilot scale with high enantioselectivity (e.e. > 95%) and overall yield greater than 80% [104]. The whole cell approach proved to be a valuable alternative to chemical reduction routes.

Biomolecules 03 00741 g019 1024

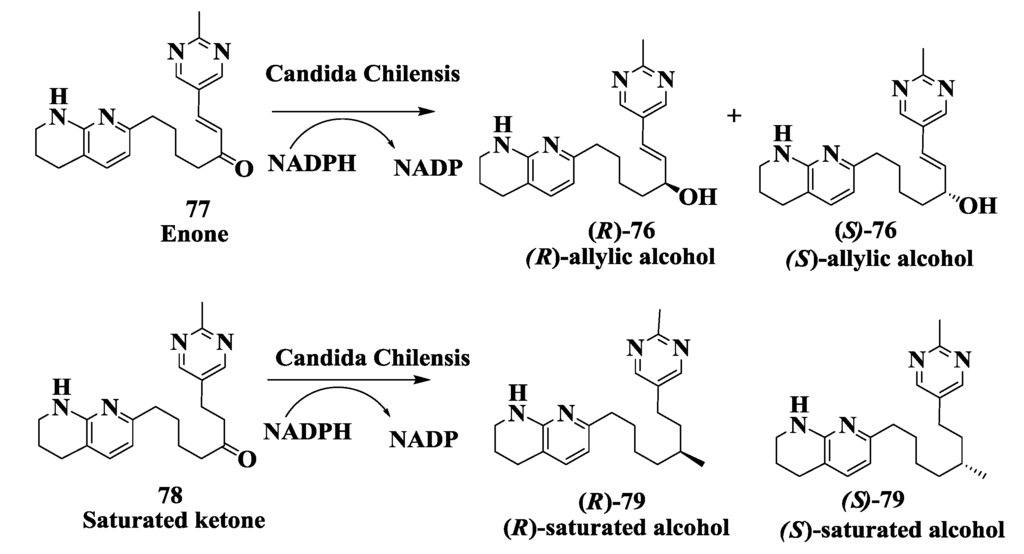

Figure 19. Integrin receptor agonist: Enzymatic preparation of (R)-allylic alcohol.

Click here to enlarge figure

Figure 19. Integrin receptor agonist: Enzymatic preparation of (R)-allylic alcohol.
Biomolecules 03 00741 g019 1024

2.20. NK1 Receptor Antagonists: Enzymatic Synthesis of (S)-3,5-Bistrifluoromethylphenyl Ethanol

The synthesis of (S)-3,5-bistrifluoromethylphenyl ethanol, (S)-80, (Figure 20), an intermediate for the synthesis of NK-1 receptor antagonists 81 [104] was demonstrated from a ketone 82 via asymmetric enzymatic reduction process [105]. The isolated enzyme alcohol dehydrogenase from Rhodococcus erythropolis reduced the poorly water soluble substrate with an excellent enantiomeric excess (>99.9%) and good conversion (>98%). The optimized process was demonstrated up to pilot scale using concentration (390 mM) using a easy isolation process achieving overall isolation yields (>90%). Process improvements at preparative scale, demonstrated increase in the substrate input to 580 mM achieving a space time yield of 260 g/L/day [105].

Biomolecules 03 00741 g020 1024

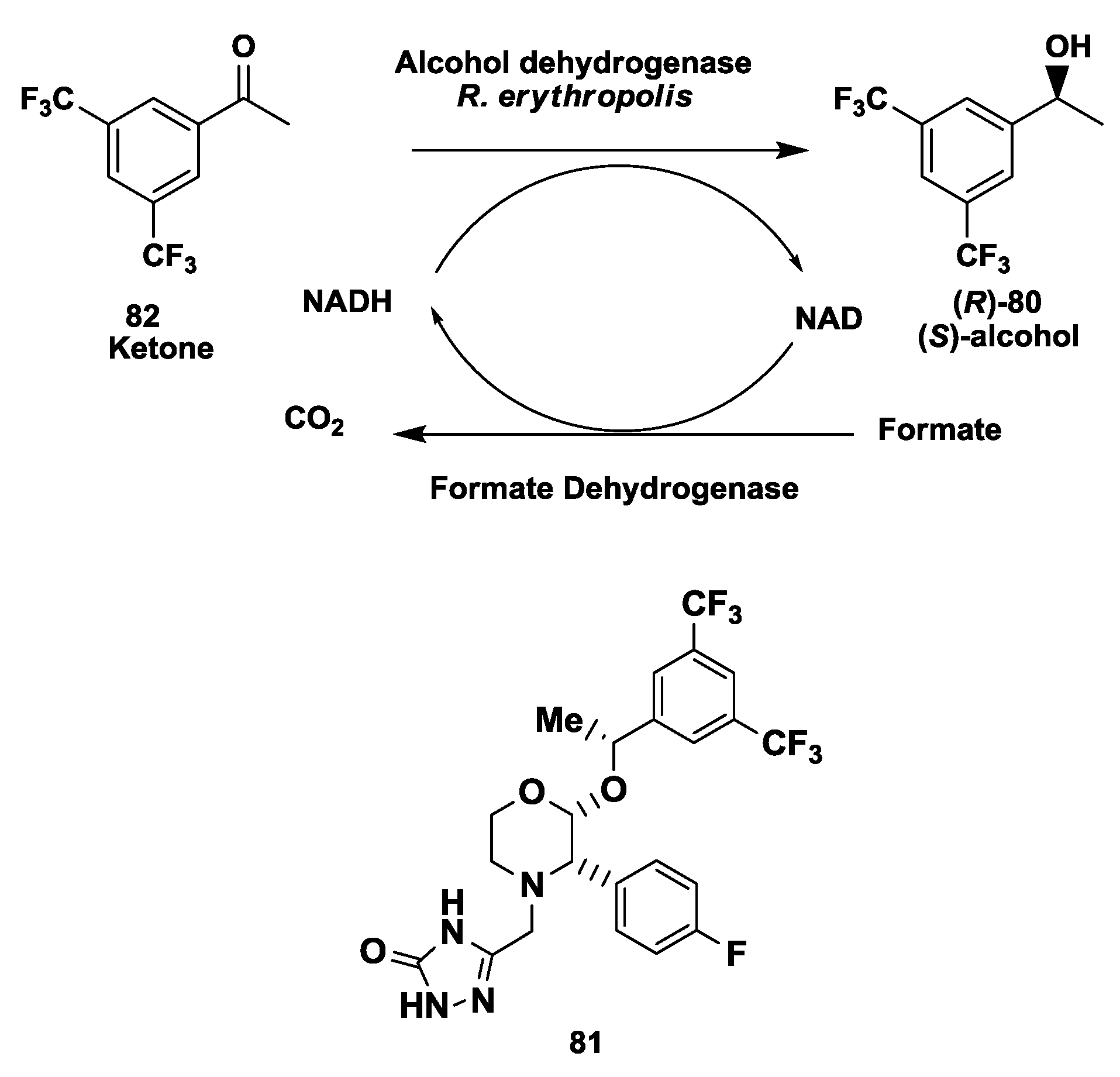

Figure 20. NK1 receptor antagonists: Enzymatic synthesis of (S)-3,5-bistrifluoromethylphenyl ethanol.

Click here to enlarge figure

Figure 20. NK1 receptor antagonists: Enzymatic synthesis of (S)-3,5-bistrifluoromethylphenyl ethanol.
Biomolecules 03 00741 g020 1024

3. Enzymatic Preparation of Chiral Amino Acids

The reductive amination of α-keto acids using amino acid dehydrogenases to be one of the most useful methods because the enzymes have good stability, broad substrate specificity and very high enantioselectivity and can be used at high substrate concentrations as keto acids are soluble in aqueous system. The reductive aminations process coupled to an enzymatic cofactor regeneration system are most prominent method for preparation of chiral amino acids. For most enzymes, the required cofactor is NADH but NADPH is required in some cases. Yeast formate dehydrogenase is commonly used for NADH regeneration and glucose dehydrogenase usually from Bacillus species may be used for either NADH or NADPH regeneration. There are excellent reviews on the amino acid dehydrogenases and examples of their synthetic utilities [106,107,108,109].

3.1. Tigemonam: Enzymatic Synthesis of (S)-β-Hydroxyvaline

(S)-β-hydroxyvaline 83 (Figure 21), is a key chiral intermediate required for the total synthesis of orally active monobactam [110], Tigemonam 84. Chiral amino acids have been made from corresponding keto acids by reductive amination process [111]. The synthesis of (S)-β-hydroxyvaline 83 from α-keto-β-hydroxyisovalerate 85 by reductive amination using leucine dehydrogenase from Bacillus sphaericus ATCC 4525 has been demonstrated [112]. The NADH required for this reaction was regenerated by either formate dehydrogenase from Candida boidinii or glucose dehydrogenase from Bacillus megaterium. The required substrate 85 was generated either from α-keto-β-bromoisovalerate or its ethyl esters by hydrolysis with sodium hydroxide in situ. In this process, an overall reaction yield of 98% and an enantiomeric excess of 99.8% were obtained for the L-β-hydroxyvaline 83.

Biomolecules 03 00741 g021 1024

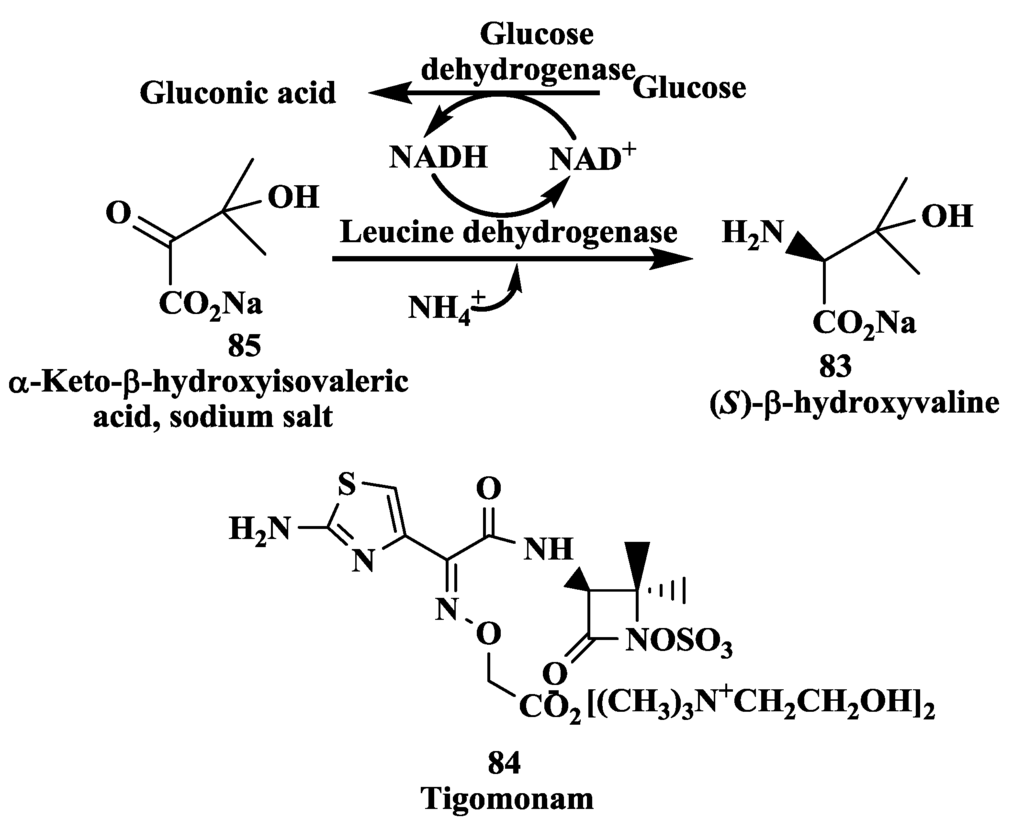

Figure 21. Tigemonam: Enzymatic synthesis of (S)-β-hydroxyvaline.

Click here to enlarge figure

Figure 21. Tigemonam: Enzymatic synthesis of (S)-β-hydroxyvaline.
Biomolecules 03 00741 g021 1024

3.2. Atazanavir: Enzymatic Synthesis of (S)-Tertiary-Leucine

Atazanavir 86 is an acyclic aza-peptidomimetic, a potent HIV protease inhibitor [53,54]. Synthesis of atazanavir required (S)-tertiary leucine 87 (Figure 22). An enzymatic reductive amination of ketoacid 88 to amino acid 87 by recombinant Escherichia coli expressing leucine dehydrogenase from Thermoactinimyces intermedius has been demonstrated. The reaction required ammonia and NADH as a cofactor. NAD produced during the reaction was converted back to NADH using recombinant Escherichia coli expressing formate dehydrogenase from Pichia pastoris. A reaction yield of >95% with an e.e. of >99.5% was obtained for 87 at 100 g/L substrate [113]. Leucine dehydrogenase from Bacillus strain has also been cloned and expressed and used in reductive amination process [114,115].

Biomolecules 03 00741 g022 1024
Figure 22. Atazanavir (anti-viral agent): Enzymatic synthesis of (S)-tertiary-leucine.

Click here to enlarge figure

Figure 22. Atazanavir (anti-viral agent): Enzymatic synthesis of (S)-tertiary-leucine.
Biomolecules 03 00741 g022 1024

3.3. Vanlev: Enzymatic Synthesis of (S)-6-Hydroxynorleucine

Vanlev 89 (Figure 23) is an antihypertensive drug which acts by inhibiting angiotensin-converting enzyme (ACE) and neutral endopeptidase (NEP) [116]. (S)-6-Hydroxynorleucine 90 is a key intermediate in the synthesis of Vanlev. The synthesis and complete conversion of 2-keto-6-hydroxyhexanoic acid 91 to (S)-6-hydroxynorleucine 90 was demonstrated by reductive amination using beef liver glutamate dehydrogenase [117]. As depicted, compound 91, in equilibrium with 2-hydroxytetrahydropyran-2-carboxylic acid sodium salt 92, was converted to 90. The reaction requires ammonia and NADH. NAD produced during the reaction was recycled to NADH by the oxidation of glucose to gluconic acid using glucose dehydrogenase from Bacillus megaterium. The reaction was complete in about 3 h at 100 g/L substrate input with a reaction yields of 92% and e.e. of 99.8% for (S)-6-hydroxynorleucine. The synthesis and isolation of keto acid 91 required several steps. In a second, more convenient process the ketoacid was prepared by treatment of racemic 6-hydroxy norleucine 90 [produced by hydrolysis of 5-(4-hydroxybutyl) hydantoin 93] with (R)-amino acid oxidase (Figure 24) After the e.e. of the unreacted (S)-6-hydroxynorleucine had risen to 99.8%, the reductive amination procedure was used to convert the mixture containing the 2-keto-6-hydroxyhexanoic acid entirely to (S)-6-hydroxynorleucine in 97% yield with 99.8% e.e. from racemic 6-hydroxynorleucine at 100 g/L substrate input [117]. The (S)-6-hydroxynorleucine prepared by the enzymatic process was converted chemically to Valev 89 [118].

Biomolecules 03 00741 g023 1024

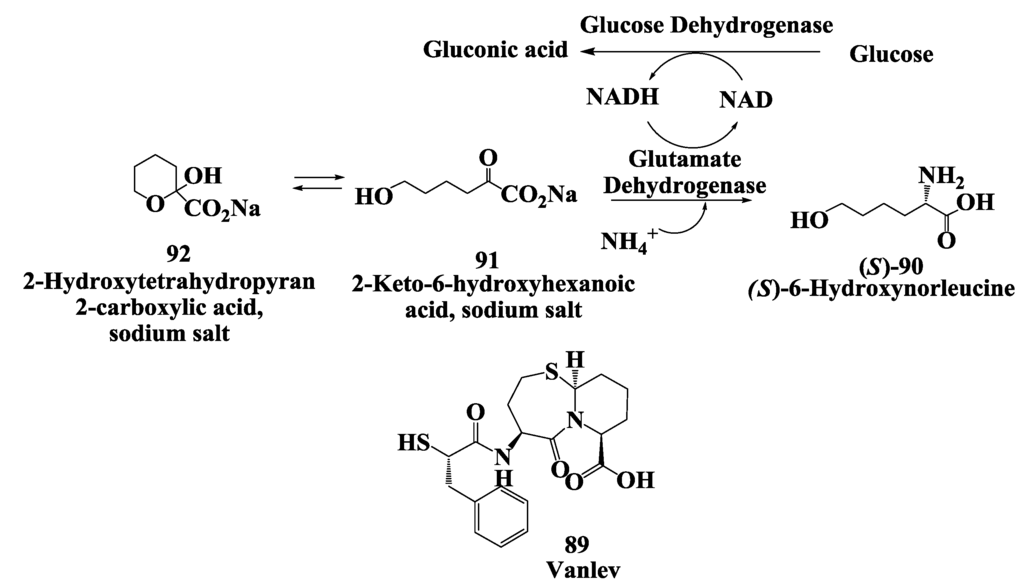

Figure 23. Vanlev: Enzymatic synthesis of (S)-6-hydroxynorleucine by reductive amination.

Click here to enlarge figure

Figure 23. Vanlev: Enzymatic synthesis of (S)-6-hydroxynorleucine by reductive amination.
Biomolecules 03 00741 g023 1024
Biomolecules 03 00741 g024 1024

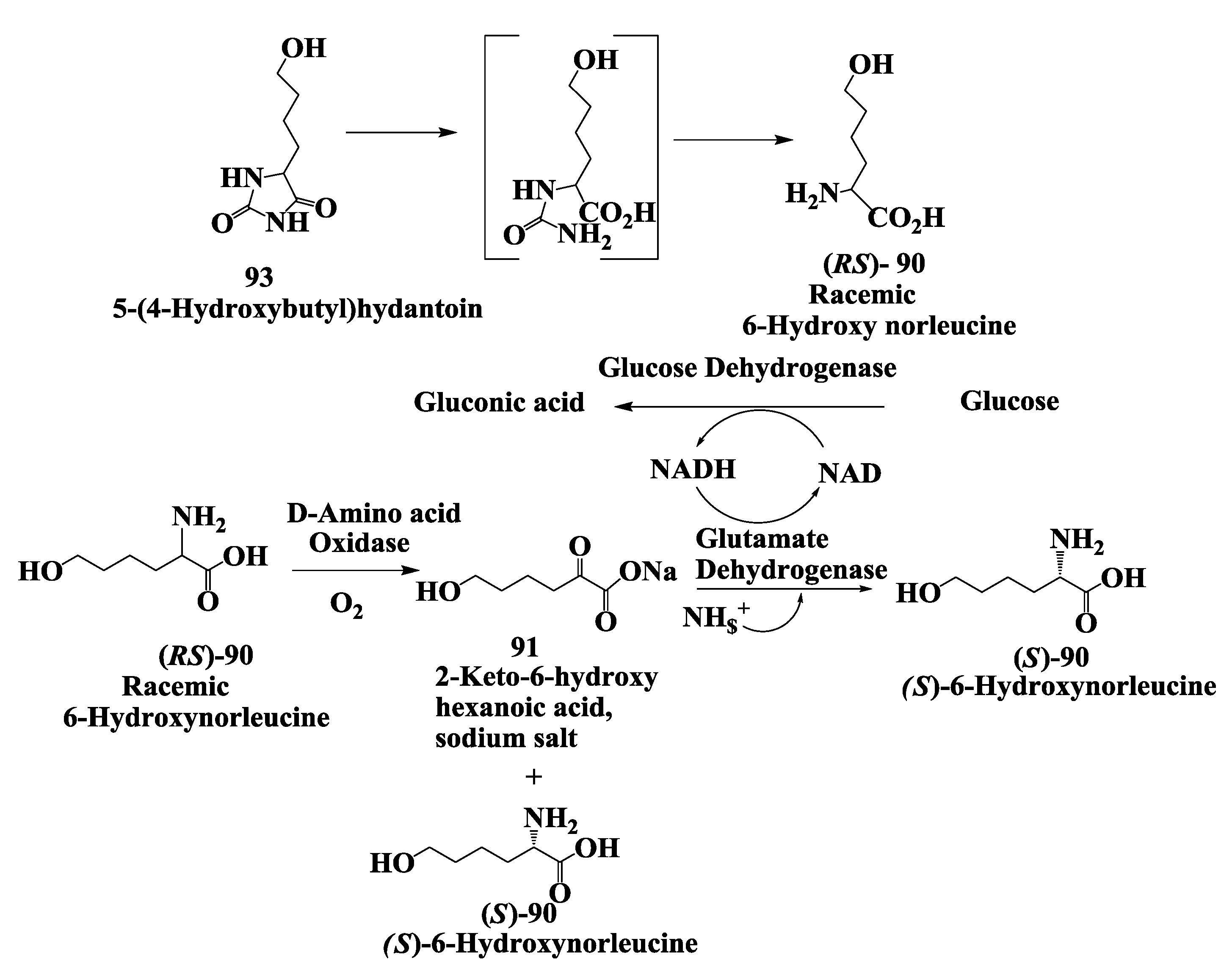

Figure 24. Vanlev: Enzymatic conversion of racemic 6-hydroxy norleucine to (S)-6-hydroxymorleucine.

Click here to enlarge figure

Figure 24. Vanlev: Enzymatic conversion of racemic 6-hydroxy norleucine to (S)-6-hydroxymorleucine.
Biomolecules 03 00741 g024 1024

3.4. Vanlev: Enzymatic Synthesis of Allysine Ethylene Acetal

(S)-2-Amino-5-(1,3-dioxolan-2-yl)-pentanoic acid [(S)-allysine ethylene acetal] 94 (Figure 25) is one of three building blocks used in an alternative synthesis of Vanlev 89. Synthesis of 94 was demonstrated by reductive amination of ketoacid acetal 95 using phenylalanine dehydrogenase [PDH] from Thermoactinomyces intermedius [119]. The reaction required ammonia and NADH; NAD produced during the reaction was recyled to NADH by the oxidation of formate to CO2 using formate dehydrogenase [FDH]. T. intermedius PDH was cloned and expressed in Escherichia coli and recombinant culture was used as a source of PDH. Expression of T. intermedius PDH in P. pastoris, inducible by methanol, allowed generation of both enzymes in a single fermentation as methanol grown cells of P. pastoris also contained formate dehydrogease. A total of 197 kg of 94 was produced in three 1,600-L batches using a 5% concentration of substrate 95 with an average yield of 91 M % and e.e. >98% [119]. (S)-allysine ethylene acetal was converted to Vanlev 89 [118].

Biomolecules 03 00741 g025 1024

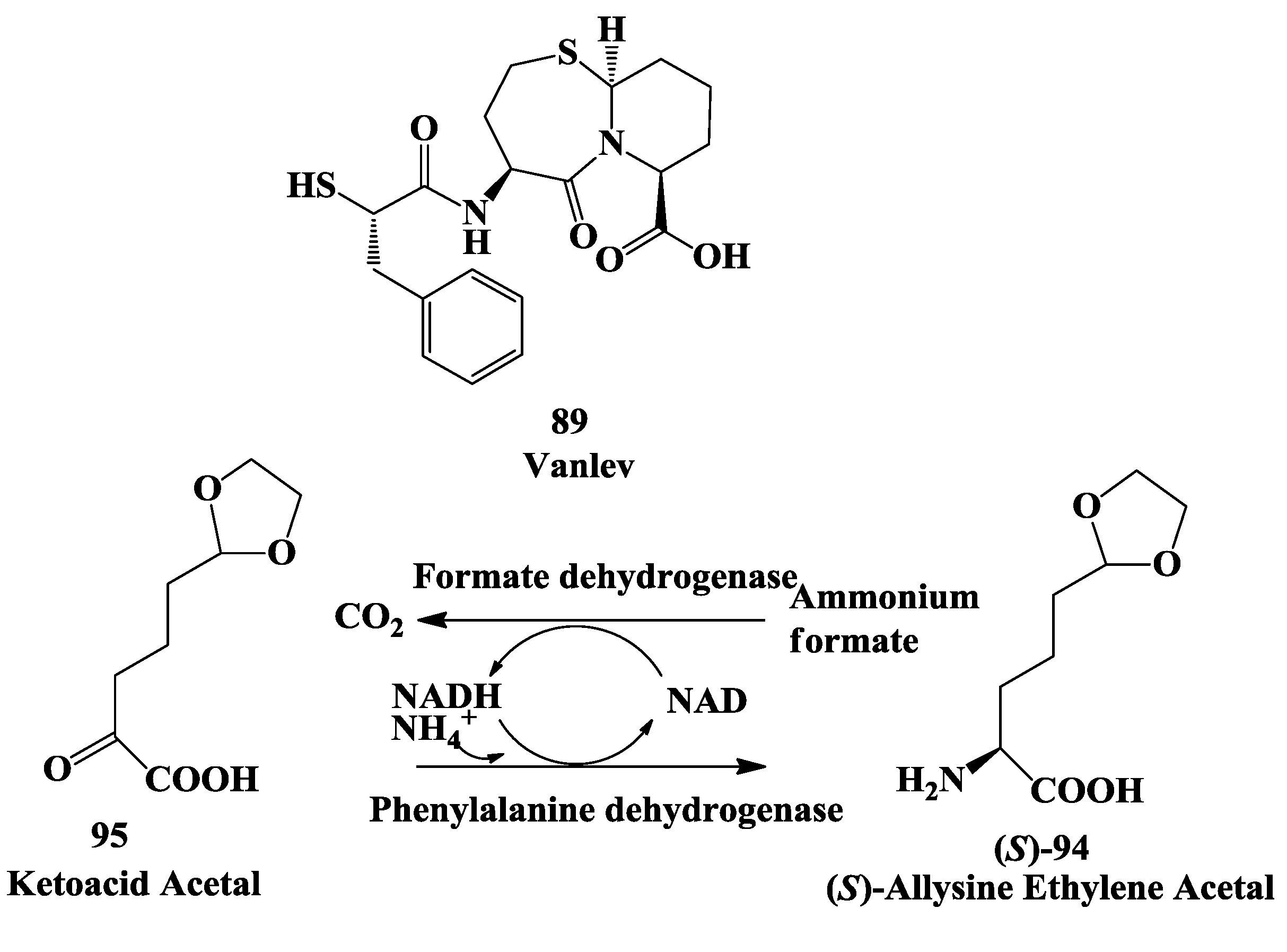

Figure 25. Vanlev: Enzymatic synthesis of allysine ethylene acetal.

Click here to enlarge figure

Figure 25. Vanlev: Enzymatic synthesis of allysine ethylene acetal.
Biomolecules 03 00741 g025 1024

3.5. Saxagliptin: Enzymatic Reductive Amination of 2-(3-Hydroxy-1-Adamantyl)-2-Oxoethanoic Acid

Dipeptidyl peptidase 4 (DPP-4) is a ubiquitous proline-specific serine protease responsible for the rapid inactivation of incretins, including glucagon-like peptide 1 (GLP-1) and glucose-dependent insulinotropic peptide. To alleviate the inactivation of GLP-1, inhibitors of DPP-IV are being evaluated for their ability to provide improved control of blood glucose for diabetics [120,121,122,123]. Januvia developed by Merck is a marketed DPP4 Inhibitor [122].

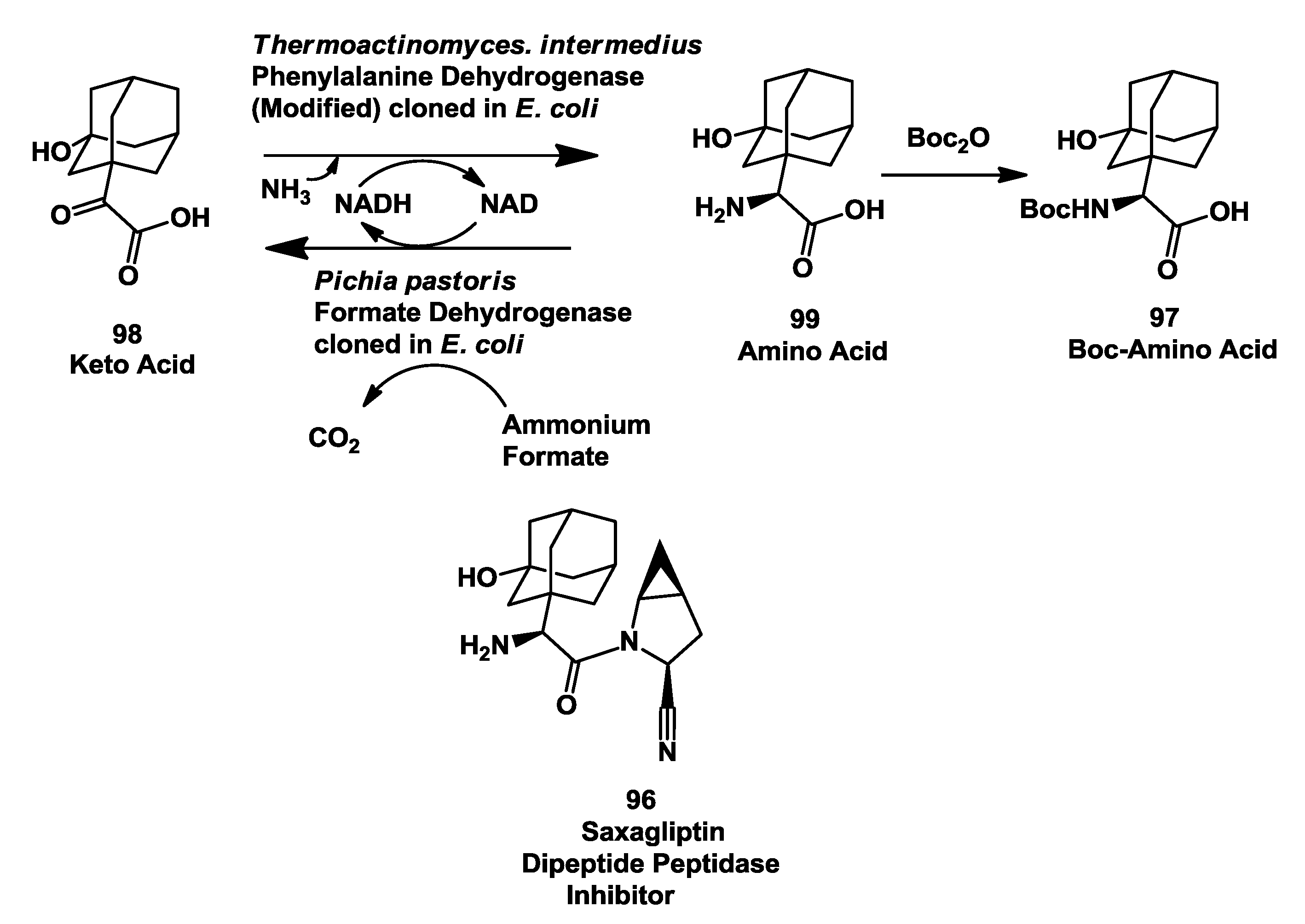

Saxagliptin 96 [121,122] (Figure 26), a DPP-IV inhibitor developed by Bristol-Myers Squibb and now approved for type 2 diabetic treatment by Food and Drug administration, requires (S)-N-boc-3-hydroxyadamantylglycine 97 as an intermediate. A process for conversion of the keto acids 98 to the corresponding amino acid 99 using (S)-amino acid dehydrogenases was developed. A modified form of a recombinant phenylalanine dehydrogenase cloned from Thermoactinomyces intermedius and expressed in Pichia pastoris or Escherichia coli was used for this process. NAD produced during the reaction was recycled to NADH using formate dehydrogenase. The modified phenylalanine dehydrogenase contains two amino acid changes at the C-terminus and a 12 amino acid extension of the C-terminus [124].

Production of multi-kg batches was originally carried out with extracts of Pichia pastoris expressing the modified phenylalanine dehydrogenase from Thermoactinomyces intermedius and endogenous formate dehydrogenase. The reductive amination process was further scaled up using a preparation of the two enzymes expressed in single recombinant E. coli. The amino acid 99 was directly protected as its boc derivative without isolation to afford intermediate. Yields before isolation were close to 98% with 100% e.e. [124].

Biomolecules 03 00741 g026 1024
Figure 26. Saxagliptin: Enzymatic reductive amination of 2-(3-hydroxy-1-adamantyl)-2-oxoethanoic acid.

Click here to enlarge figure

Figure 26. Saxagliptin: Enzymatic reductive amination of 2-(3-hydroxy-1-adamantyl)-2-oxoethanoic acid.
Biomolecules 03 00741 g026 1024

Reductive amination was also conducted using cell extracts from E.coli strain SC16496 expressing PDHmod and cloned FDH from Pichia pastoris. Cell extracts after polyethyleneamine treatment, clarification and concentration were used to complete the reaction in 30 h with >96% yield and >99.9% e.e. of product 99. This process has now been used to prepare several hundred kg of boc-protected amino acid 97 to support the development of Saxagliptin [124].

3.6. Enzymatic Synthesis of (S)-Neopentylglycine

The enantioselective synthesis of (S)-neopentylglycine 100 (Figure 27) has been developed by Groeger et al. [125]. Recombinant whole cell containing leucine dehydrogenase and formate dehydrogenase was used in the reductive amination of the corresponding α-keto acid 101. The desired (S)-neopentylglycine was obtained with >95% conversion and a high enantioselectivity of >99% e.e. at substrate concentrations of up to 88 g/L. Spiroheterocyclic compounds [morpholine-4-carboxylic acid amides of heterocyclic cyclohexylalanine and neopentylglycine derivatives and their analogs] are useful as reversible inhibitors of cysteine proteases such as cathepsin S useful in the treatment of variety of autoimmune diseases [126].

Biomolecules 03 00741 g027 1024

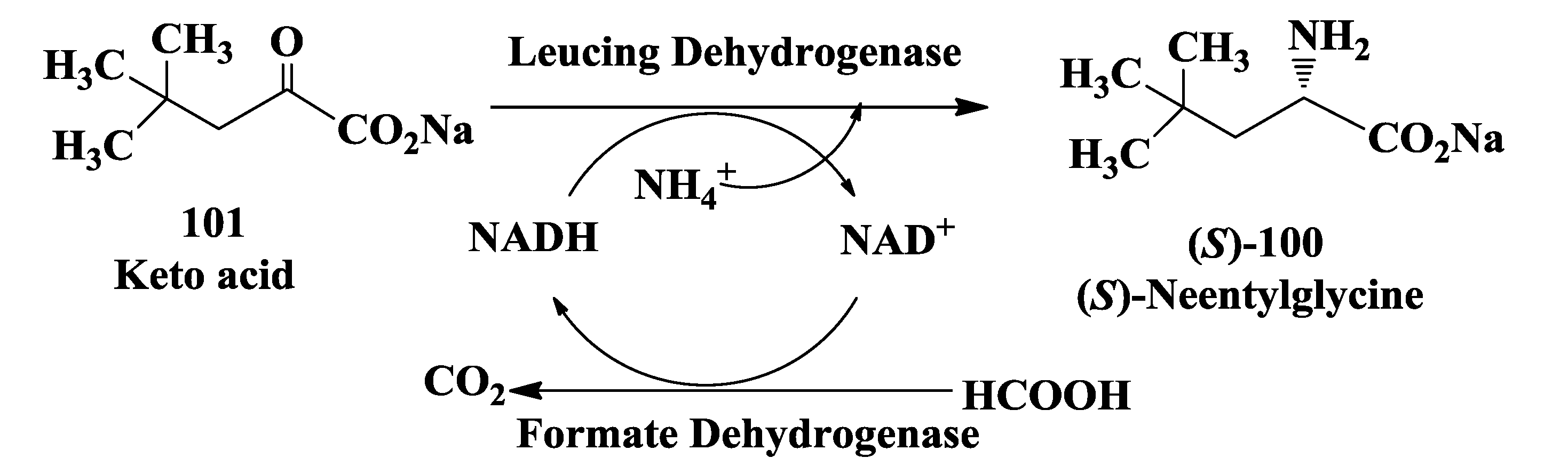

Figure 27. Enzymatic synthesis of (S)-neopentylglycine.

Click here to enlarge figure

Figure 27. Enzymatic synthesis of (S)-neopentylglycine.
Biomolecules 03 00741 g027 1024

3.7. Glucogen like Peptide: Enzymatic Deracemization Racemic Amino Acid to (S)-Amino Acid

The (S)-amino-3-[3-{6-(2-methylphenyl)}pyridyl]-propionic acid 102 (Figure 28) is a key intermediate required for synthesis of GLP-1 mimics or GLP-1 receptor modulators. Such receptor modulators are potentially useful for the treatment of type II diabetes treatment [127,128].

Biomolecules 03 00741 g028 1024

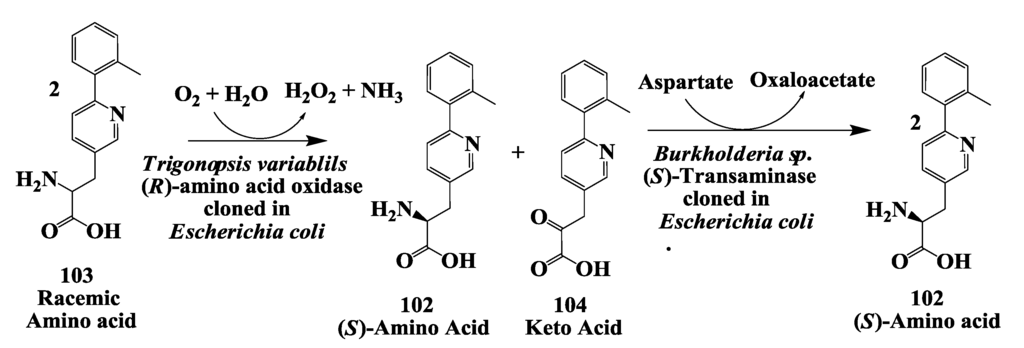

Figure 28. Glucogen like peptide: The (S)-amino-3-[3-{6-(2-methylphenyl)}pyridyl]-propionic acid.

Click here to enlarge figure

Figure 28. Glucogen like peptide: The (S)-amino-3-[3-{6-(2-methylphenyl)}pyridyl]-propionic acid.
Biomolecules 03 00741 g028 1024

(S)-Amino-3-[3-{6-(2-methylphenyl)}pyridyl]-propionic acid was prepared by enzymatic deracemization process [129] in 72% isolated yield with >99.4% e.e. from racemic amino acid 103 using combination of two enzymes (R)-amino acid oxidase from Trigonopsis variabilis expressed in Escherichia coli and (S)-aminotransferase from Sporosarcina ureae cloned and expressed in Escherichia coli. (S)-aspartate was used as amino donor. A (S)-aminotransferase was also purified from a soil organism identified as Burkholderia sp. and cloned and expressed in Escherichia coli and used in this process [131]. In enzymatic process racemic amino acid was first treated with (R)-amino acid oxidase for 4 h to convert racemic amino acid to mixture of (S)-amino acid and keto acid 104. Subsequently in the same reaction mixture (S)-aminotransferase was charged to convert keto acid 104 to (S)-amino acid 102 to get 85% yield at the end of the biotransformation process. This process was scaled up to 100 L scale at a substrate input of 1.5 kg.

In an alternate process, the enzymatic dynamic resolution of racemic amino acid 103 was also demonstrated. (R)-selective oxidation with celite-immobilized (R)-amino acid oxidase from Trigonopsis variabilis expressed in Escherichia coli in combination with chemical imine reduction with borane-ammonia gave a 75% in process yield and 100 e.e. of (S)-amino acid 102 [129].

3.8. Preparation of (R)-Amino Acid

(R)-Amino acids are increasingly becoming important building blocks in the production of pharmaceuticals and fine chemicals, and as chiral directing auxiliaries and chiral synthons in organic synthesis [130,131]. Using both rational and random mutagenesis, Rozzell and Novick [132] have created the broad substrate range, nicotinamide cofactor dependent, and highly stereoselective (R)-amino acid dehydrogenase. This new enzyme is capable of producing (R)-amino acids via the reductive amination of the corresponding 2-keto acid with ammonia. This biocatalyst was the result of three rounds of mutagenesis and screening performed on the enzyme meso-diaminopimelate (R)-dehydrogenase from Corynebacterium glutamicum. The first round targeted the active site of the wild-type enzyme and produced mutants that were no longer strictly dependent on the native substrate. The second and third rounds produced mutants that had an increased substrate range including straight- and branched-aliphatic amino acids and aromatic amino acids. The very high selectivity toward the (R)-enantiomer (95% to >99% e.e.) was shown to be preserved three rounds of mutagenesis and screening [132]. This new enzyme was active against variety of amino acids could complement and improve upon current methods for (R)-amino acid synthesis. The synthesis of (R)-cyclohexylalanine 105 (Figure 29) was developed by reductive amination of cyclohexylpyruvate 106 to yield (R)-105 in 98% yield and >99% e.e. (R)-105 is a potential chiral intermediate for the synthesis of thrombin inhibitor Inogatran 107 [133].

Biomolecules 03 00741 g029 1024

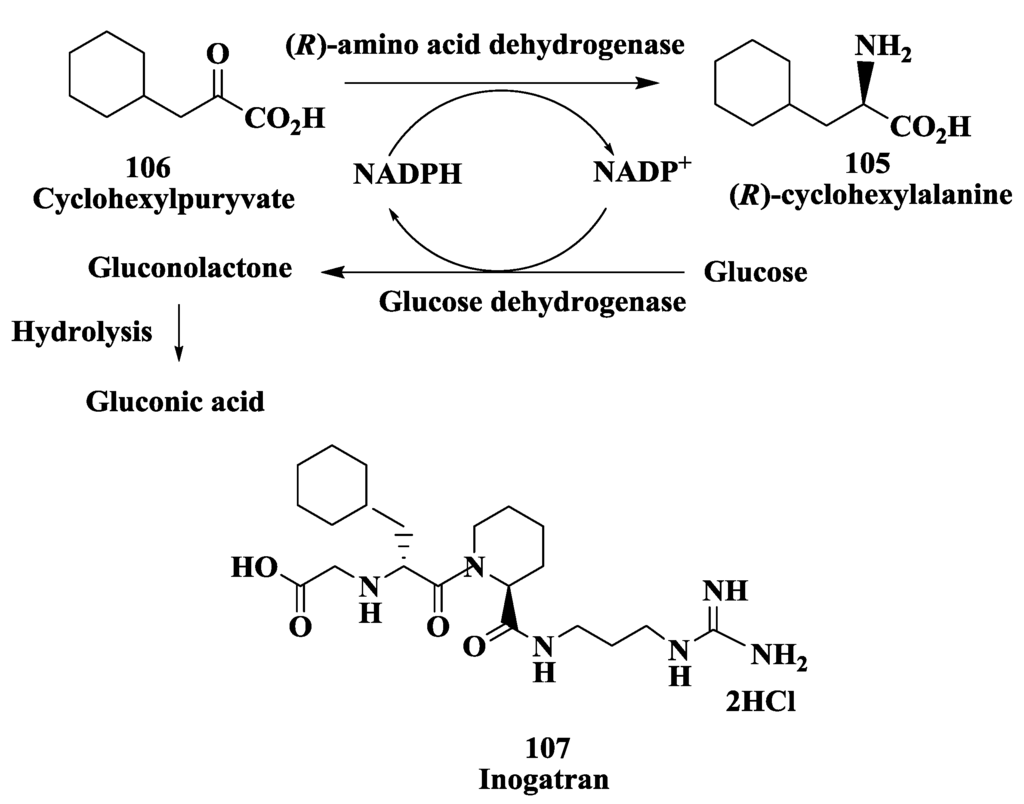

Figure 29. Thrombin inhibitor inogatran: Enzymatic synthesis of (R)-cyclohexylalanine.

Click here to enlarge figure

Figure 29. Thrombin inhibitor inogatran: Enzymatic synthesis of (R)-cyclohexylalanine.
Biomolecules 03 00741 g029 1024

The deracemisation of DL-amino acids using L-amino acid oxidase from Proteus myxofaciens and amine-boranes as chemical reducing agents has been investigated. Amine-boranes were found to be of particular interest in terms of reactivity and chemoselectivity compared to sodium borohydride and cyanoborohydride. Starting from the racemic amino acids, a range of D-amino acids were prepared in yields of up to 90% and e.e. >99% [134].

3.9. Calcitonin Gene-Related Peptide Receptors (Antimigraine Drugs): Enzymatic Deracemization Process

The (R)-amino acid (R)-2-amino-3-(7-methyl-1 H-indazol-5-yl)propanoic acid (R)-108, (Figure 30) is a key intermediate needed for synthesis of antagonists of calcitonin gene-related peptide receptors 109 [135] Such antagonists are potentially useful for the treatment of migraine and other maladies [135,136].

(R)-Amino acid 108 was prepared in 68% isolated yield with >99% e.e. from racemic amino acid 110 using (S)-amino acid oxidase from Proteus mirabilis expressed in Escherichia coli in combination with a commercially available (R)-transaminase using (R)-alanine as amino donor [137]. The (R)-enantiomer was also prepared in 79% isolated yield with >99% e.e. from the corresponding keto acid 111 using the (R)-transaminase with racemic alanine as the amino donor. The rate and yield of this reaction could be accelerated by addition of lactate dehydrogenase (with NAD+, formate and formate dehydrogenase to regenerate NADH) to remove the inhibitory pyruvate produced during the reaction. A (R)-transaminase was identified and purified from a soil organism identified as Bacillus thuringiensis and cloned and expressed in Escherichia coli. The recombinant (R)-transaminase was very effective for the preparation of (R)-108 and gave a nearly complete conversion of 111 to (R)-108 without the need for additional enzymes for pyruvate removal [137].

Biomolecules 03 00741 g030 1024

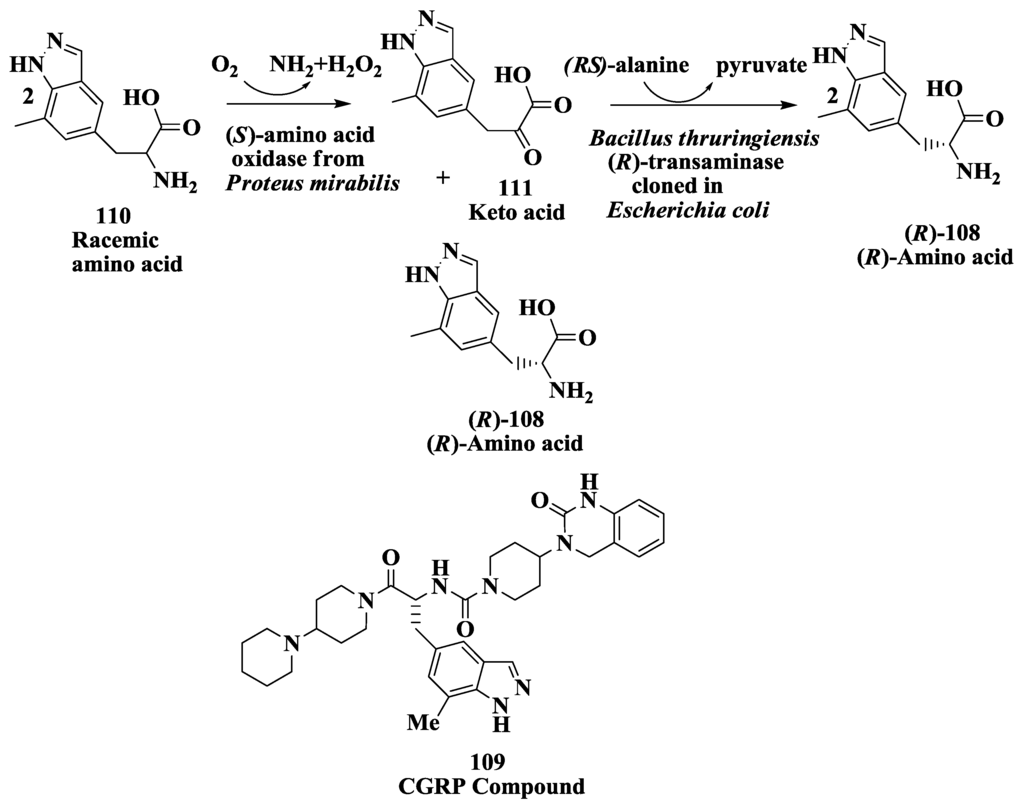

Figure 30. Calcitonin gene-related peptide receptors (antimigraine drugs): Enzymatic preparation of (R)-2-amino-3-(7-methyl-1H-indazol-5-yl)propanoic acid.

Click here to enlarge figure

Figure 30. Calcitonin gene-related peptide receptors (antimigraine drugs): Enzymatic preparation of (R)-2-amino-3-(7-methyl-1H-indazol-5-yl)propanoic acid.
Biomolecules 03 00741 g030 1024

3.10. Corticotropin Releasing Factor (CRF)-1 Receptor Antagonist: Enzymatic Resolution by Transaminase

(R)-amines synthesis for Anxiety and depression are psychiatric disorders that constitute a major health concern worldwide. While numerous marketed treatments exits for both disorders, there continue to be need agents which may have increased efficacy and/or reduced side-effect profiles [138,139,140]. CRF-1 receptor antagonists have been proposed as novel pharmacological treatments for depression, anxiety and stress disorders [138,139,140,141]. (R)-sec-butylamine 112 and (R)-1-cyclopropylethylamine 113 (Figure 31) are key chiral intermediates for the synthesis of CRF-1 receptor antagonists such as 114 [141,142].

Biomolecules 03 00741 g031 1024

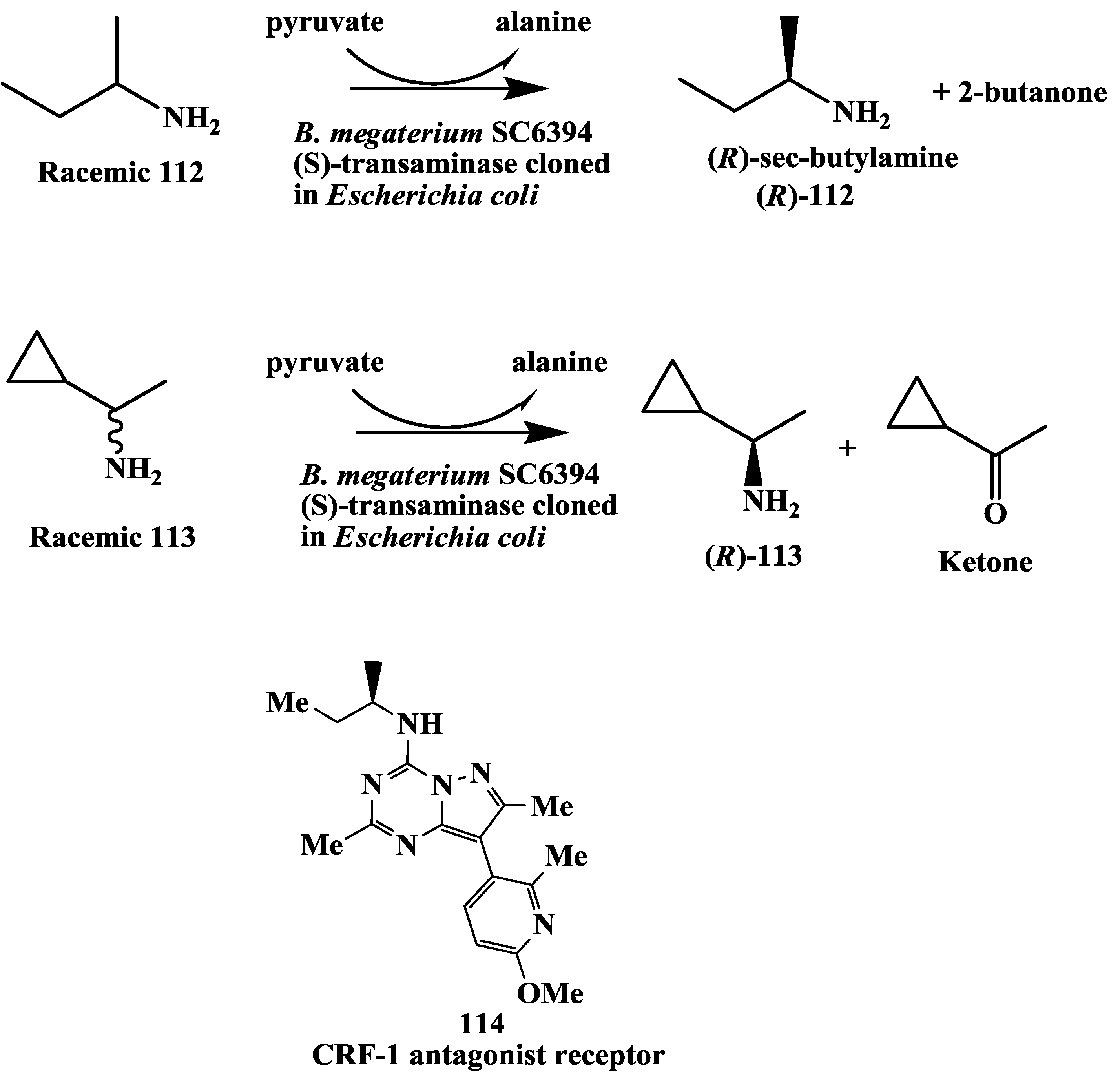

Figure 31. Corticotropin releasing factor (CRF)-1 receptor antagonist: Enzymatic synthesis of (R)-1-cyclopropylethylamine and (R)-sec-butylamine.

Click here to enlarge figure

Figure 31. Corticotropin releasing factor (CRF)-1 receptor antagonist: Enzymatic synthesis of (R)-1-cyclopropylethylamine and (R)-sec-butylamine.
Biomolecules 03 00741 g031 1024

We have developed enzymatic resolution process for the preparation of (R)-sec-butylamine and (R)-1-cyclopropylethylamine [143]. Screening was carried out to identify strains useful for the preparation of (R)-1-cyclopropylethylamine and (R)-sec-butylamine from the racemic amines with an (S)-specific transaminase. Several Bacillus megaterium strains as well as several soil isolates were found to have the desired activity for the resolution of the racemic amines to give the (R)-enantiomers. Using an extract of the best strain, Bacillus megaterium SC6394, the reaction was shown to be a transamination requiring pyruvate as amino acceptor and pyridoxal phosphate as a cofactor. Initial batches of both amines were produced using whole cells of Bacillus megaterium SC6394. The transaminase was purified to homogeneity to obtain N-terminal as well as internal amino acid sequences. The sequences were used to design polymerase chain reaction (PCR) primers to enable cloning and expression of the transaminase in Escherichia coli SC16578. In contrast to using Bacillus megaterium process, pH control and aeration were not required for the resolution of sec-butylamine and an excess of pyruvate was not consumed by the recombinant cells. The resolution of sec-butylamine (0.68 M) using whole cells of Escherichia coli SC16578 was scaled up to give (R)-sec-butylamine 1/2 H2SO4 in 46.6% isolated yield with 99.2% e.e. An alternative isolation procedure was also used to isolate (R)-sec-butylamine as the free base. Using the same recombinant (S)-tansaminase, (R)-1-cyclopropylethylamine was obtained in 42% isolated yield (theoretical max. 50%) and 99% e.e. [143].

4. Conclusions

The production of single enantiomers of drug intermediates is increasingly important in the pharmaceutical industry. Biocatalysis provides organic chemists an alternate opportunity to prepare pharmaceutically important chiral compounds. The examples presented in this review are only from a few selected articles for synthresis of chiral alcohols and unnatural amino acids. Different types of biocatalytic reactions are capable of generating a wide variety of chiral compounds useful in the development of drugs. The use of hydrolytic enzymes such as lipases, esterases, proteases, dehalogenases, acylases, amidases, nitrilases, epoxide hydrolases, and decarboxylases for the resolution of variety of racemic compounds and in the asymmetric synthesis of enantiomerically enriched chiral compounds. Dehydrogenases and aminotransferases has been successfully used along with cofactors and cofactor regenerating enzymes for the synthesis of chiral alcohols, aminoalcohols, amino acids and amines. Aldolases and decarboxylases have been effectively used in asymmetric synthesis by aldol condensation and acyloin condensation reactions. Monoxygenases have been used in enantioselective and regioselective hydroxylation, epoxidation, sulfoxidation and Baeyer-Villiger reactions. Dioxygenases have been used in the chemo-enzymatic synthesis of chiral diols. Enzymatic deracemization, dynamic resolution and stereoinversion, to achieve >50% yield and high e.e. by combination of chemo- and/or biocatalysts in sequential reactions or by a single biocatalyst. In the course of the last decade, progress in biochemistry, protein chemistry, molecular cloning, random and site-directed mutagenesis, directed evolution of biocatalysts under desired process conditions has opened up unlimited access to a variety of enzymes and microbial cultures as tools in organic synthesis. Future of bicatalysis for synthesis of chiral compounds looks very promising.

Acknowledgments

The author would like to acknowledge Ronald Hanson, Animesh Goswami, Amit Banerjee, Venkata Nanduri, Jeffrey Howell, Steven Goldeberg, Robert Johnston, Mary-Jo Donovan, Dana Cazzulino, Thomas Tully, Thomas LaPorte, Lawrence Parker, John Wasylyk, Michael Montana, Ronald Eiring, Rapheal Ko, Linda Chu, Clyde McNamee, Michael Montana for research collaboration.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Food and Drug Administration. FDA’s statement for the development of new stereoisomeric drugs. Chirality 1992, 4, 338–340. [CrossRef]
  2. Oliver, M.; Voigt, C.A.; Arnold, F.H. Enzyme engineering by directed evolution. In Enzyme Catalysis in Organic Synthesis, 2nd ed.; VCH: New York, USA, 2002; Volume 1, pp. 95–138. [Google Scholar]
  3. Kazlauskas, R.J. Enhancing catalytic promiscuity for biocatalysis. Curr. Opin. Chem. Biol. 2005, 9, 195–201. [Google Scholar] [CrossRef]
  4. Schmidt, M.; Bauman, M.; Henke, E.; Konarzycka-Bessler, M.; Bornscheuer, U.T. Directed evolution of lipases and esterases. Meth. Enzymol. 2004, 388, 199–207. [Google Scholar] [CrossRef]
  5. Reetz, M.T.; Torre, C.; Eipper, A.; Lohmer, R.; Hermes, M.; Brunner, B.; Maichele, A.; Brunner, B.; Arand, M.; Cronin, A.; et al. Enhancing the enantioselectivity of an epoxide hydrolase by directed evolution. Org. Lett. 2004, 6, 177–180. [Google Scholar] [CrossRef]
  6. Rubin-Pitel, S.B.; Zhao, H. Recent advances in biocatalysis by directed enzyme evolution. Comb. Chem. High T. Scr. 2006, 9, 247–257. [Google Scholar]
  7. Pollard, D.J.; Woodley, J.M. Biocatalysis for pharmaceutical intermediates: The future is now. Trends Biotechnol. 2007, 25, 66–73. [Google Scholar] [CrossRef]
  8. Otey, C.R.; Bandara, G.; Lalonde, J.; Takahashi, K.; Arnold, F.H. Preparation of human metabolites of propranolol using laboratory-evolved bacterial cytochromes P450. Biotechnol. Bioeng. 2006, 93, 494–499. [Google Scholar] [CrossRef]
  9. Huisman, G.W.; Lalonde, J.J. Enzyme evolution for chemical process applications. In Biocatalysis in the Pharmaceutical and Biotechnology Industries; Patel, R.N., Ed.; CRC Press: Boca Raton, FL, USA, 2007; pp. 717–742. [Google Scholar]
  10. Arnold, F.; Volkov, A. Directed evolution of biocatalysts. Curr. Opin. Chem. Biol. 1999, 3, 54–59. [Google Scholar] [CrossRef]
  11. Patten, P.A.; Howard, R.J.; Stemmer, W.P. Applications of DNA shuffling to pharmaceuticals and vaccines. Curr. Opin. Biotechnol. 1997, 8, 724–733. [Google Scholar] [CrossRef]
  12. Hibbert, E.G.; Baganz, F.; Hailes, H.C.; Ward, J.M.; Lye, G.J.; Woodley, J.M.; Dalby, P.A. Directed evolution of biocatalytic processes. Biomol. Eng. 2005, 22, 11–19. [Google Scholar] [CrossRef]
  13. Sylvestre, J.; Chautard, H.; Cedrone, F.M. Directed evolution of biocatalysts. Org. Process Res. Dev. 2006, 10, 562–571. [Google Scholar] [CrossRef]
  14. Turner, N.J. Directed evolution drives the next generation of biocatalysts. Nat. Chem. Biol. 2009, 5, 567–573. [Google Scholar] [CrossRef]
  15. Bornscheuer, U.T.; Huisman, G.W.; Kazlauskas, R.J.; Lutz, S.; Moore, J.C.; Robins, K. Engineering the third wave of biocatalysis. Nature 2012, 485, 185–194. [Google Scholar] [CrossRef]
  16. Wells, A.S.; Finch, G.L.; Michels, P.C.; Wong, J.W. Use of enzymes in the manufacture of active pharmaceutical ingredients—A science and safety-based approach to ensure patient safety and drug quality. Org. Process Res. Dev. 2012, 16, 1986–1993. [Google Scholar] [CrossRef]
  17. Reetz, M.T. Biocatalysis in organic chemistry and biotechnology: Past, present, and future. J. Am. Chem. Soc. 2013, 135, 12480–12496. [Google Scholar] [CrossRef]
  18. Huisman, G.W.; Collier, S.J. On the development of new biocatalytic processes for practical pharmaceutical synthesis. Curr. Opin. Chem. Biol. 2013, 17, 284–292. [Google Scholar] [CrossRef]
  19. Bryan, M.C.; Dillon, B.; Hamann, L.G.; Hughes, G.J.; Kopach, M.E.; Peterson, E.A.; Pourashraf, M.; Raheem, I.; Richardson, P.; Richter, D.; et al. Sustainable practices in medicinal chemistry: Current state and future directions. J. Med. Chem. 2013, 56, 6007–6021. [Google Scholar] [CrossRef]
  20. DiCosimo, R. Nitrilases and nitrile hydratases. In Biocatalysis in the Pharmaceutical and Biotechnology Industries; Patel, R.N., Ed.; CRC Press: Boca Raton, FL, USA, 2007; pp. 1–26. [Google Scholar]
  21. Patel, R.N. Biocatalysis: Synthesis of chiral intermediates for pharmaceuticals. Curr. Org. Chem. 2006, 10, 1289–1321. [Google Scholar] [CrossRef]
  22. Simeo, Y.; Kroutil, W.; Faber, K. Biocatalytic deracemization: Dynamic resolution, stereoinversion, enantioconvergent processes, and cyclic deracemization. In Biocatalysis in the Pharmaceutical and Biotechnology Industries; Patel, R.N., Ed.; CRC Press: Boca Raton, FL, USA, 2007; pp. 27–51. [Google Scholar]
  23. Patel, R.N. Biocatalysis: Synthesis of key intermediates for development of pharmaceuticals. ACS Catal. 2011, 1, 1056–1074. [Google Scholar] [CrossRef]
  24. Turner, N.J. Enzyme catalyzed deracemization and dynamic kinetic resolution reactions. Curr. Opin. Chem. Biol. 2004, 8, 114–119. [Google Scholar] [CrossRef]
  25. Ishige, T.; Honda, K.; Shimizu, S. Whole organism biocatalysis. Curr. Opin. Chem. Biol. 2005, 9, 174–180. [Google Scholar] [CrossRef]
  26. Zhao, H.; Chockalingom, K.; Chen, Z. Directed evolution of enzymes and pathways for industrial biocatalysis. Curr. Opin. Biotechnol. 2002, 13, 104–110. [Google Scholar] [CrossRef]
  27. Schulze, B.; Wubbolts, M. Biocatalysis for industrial production of fine chemicals. Curr. Opin. Biotechnol. 1999, 10, 609–611. [Google Scholar] [CrossRef]
  28. Steinreiber, A.; Faber, K. Microbial epoxide hydrolases for preparative biotransformations. Curr. Opin. Biotechnol. 2001, 12, 552–558. [Google Scholar] [CrossRef]
  29. Tao, J.; Xu, J.-H. Biocatalysis in development of green pharmaceutical processes. Curr. Opin. Chem. Biol. 2009, 13, 43–50. [Google Scholar] [CrossRef]
  30. Patel, R.N. Biocatalytic hydrolysis (esters, amides, epoxides, nitriles) and biocatalytic dynamic kinetic resolution. In Comprehensive Chirality; 2012; Volume 10, pp. 288–317. [Google Scholar]
  31. Patel, R.N. Biocatalytic routes to chiral intermediates for development of drugs. In Biocatalysis for Green Chemistry and Chemical Process Development; Tao, J., Kazlauskas, R., Eds.; John Wiley & Sons, Inc.: Hoboken, USA city, 2010. [Google Scholar]
  32. Jajoo, H.; Mayol, R.; LaBudde, J.; Blair, I. Metabolism of the antianxiety drug buspirone in human subjects. Drug Metab. Dispos. 1989, 17, 634–640. [Google Scholar]
  33. Mayol, R. Buspirone Metabolite for the Alleviation of Anxiety. US6150365A, 6 June 2000. [Google Scholar]
  34. Yevich, J.; New, J.; Lobeck, W.; Dextraze, P.; Bernstein, E.; Taylor, D.; Yocca, F.; Eison, M.; Temple, D., Jr. Synthesis and biological characterization of α-(4-fluorophenyl)-4-(5-fluoro-2-pyrimidinyl)-1-piperazinebutanol and analogs as potential atypical antipsychotic agents. J. Med. Chem. 1992, 35, 4516–4525. [Google Scholar] [CrossRef]
  35. Yevich, J.; Mayol, R.; Li, J.; Yocca, F. (S)-6-Hydroxy-Buspirone for Treatment of Anxiety, Depression and Related Disorders. US2003022899, 30 January 2003. [Google Scholar]
  36. Patel, R.; Chu, L.; Nanduri, V.; Jianqing, L.; Kotnis, A.; Parker, W.; Liu, M.; Mueller, R. Enantioselective microbial reduction of 6-oxo-8-[4-[4-(2-pyrimidinyl)-1-piperazinyl]butyl]-8-azaspiro[4.5]decane-7,9-dione. Tetrahedron Asymmetry 2005, 16, 2778–2783. [Google Scholar] [CrossRef]
  37. Goldberg, S.; Nanduri, V.; Chu, L.; Johnston, R.; Patel, R. Enantioselective microbial reduction of 6-oxo-8-[4-[4-(2-pyrimidinyl)-1-piperazinyl]butyl]-8-azaspiro[4.5]decane-7,9-dione: Cloning and expression of reductases. Enzyme Microb. Technol. 2006, 39, 1441–1450. [Google Scholar] [CrossRef]
  38. Patel, R.N.; Banerjee, A.; McNamee, C.; Brzozowski, D.; Hanson, R.; Szarka, L. Enantioselective microbial reduction of 3,5-dioxo-6-(benzyloxy) hexanoic acid, ethyl ester. Enzyme Microb. Technol. 1993, 15, 1014–1021. [Google Scholar] [CrossRef]
  39. Sit, S.; Parker, R.; Motoe, I.; Balsubramanian, H.; Cott, C.; Brown, P.; Harte, W.; Thompson, M.; Wright, J. Synthesis, biological profile, and quantitative structure activity relationship of a series of novel 3-hydroxy-3-methylglutaryl coenzyme A reductase inhibitors. J. Med. Chem. 1990, 33, 2982–2999. [Google Scholar] [CrossRef]
  40. Roth, B.D. The discovery and development of atorvastatin, a potent novel hypolipidemic agent. Prog. Med. Chem. 2002, 40, 1–22. [Google Scholar] [CrossRef]
  41. Law, M.; Rudinka, A.R. Statin safety: A systematic review. Am. J. Cardiol. 2006, 97(8A), 52C–60C. [Google Scholar]
  42. McTaggart, F.; Buckett, L.; Davidson, R.; Holdgate, G.; McCormick, A.; Schneck, D.; Smith, G.; Warwick, M. Preclinical and clinical pharmacology of Rosuvastatin, a new 3-hydroxy-3-methylglutaryl coenzyme A reductase inhibitor. Am. J. Cardiol. 2001, 87, 28B–32B. [Google Scholar]
  43. Guo, Z.; Chen, Y.; Goswami, A.; Hanson, R.L.; Patel, R.N. Synthesis of ethyl and t-butyl (3R,5S)-dihydroxy-6-benzyloxyhexanoates via diastereo- and enantioselective microbial reduction. Tetrahedron Asymmetry 2006, 17, 1589–1602. [Google Scholar] [CrossRef]
  44. Goldberg, S.; Guo, Z.; Chen, S.; Goswami, A.; Patel, R.N. Synthesis of ethyl-(3R,5S)-dihydroxy-6-benzyloxyhexanoates via diastereo- and enantioselective microbial reduction: Cloning and expression of ketoreductase III from Acinetobacter sp. SC 13874. Enzyme Microb. Technol. 2008, 43, 544–549. [Google Scholar] [CrossRef]
  45. Davis, S.; Christopher, G.; John, H.; Gray, D.; Gruber, J.; Huisman, G.; Ma, S.; Newman, L.; Sheldon, R. Enzymatic Processes for the Production of 4-Substituted 3-Hydroxybutyric Acid Derivatives. US 7807423B2, 5 October 2010. [Google Scholar]
  46. Jagoda, E.; Stouffer, B.; Ogan, M.; Tsay, H.M.; Turabi, N.; Mantha, S.; Yost, F.; Tu, J.I. Radioimmunoassay for hydroxyphosphinyl-3-hydroxybutanoic acid (SQ 33,600), a hypocholesterolemia agent. Ther. Drug Monit. 1993, 15, 213–219. [Google Scholar] [CrossRef]
  47. Wang, D.I.; Arnold, M.E.; Jemal, M.; Cohen, A.I. Determination of SQ 33,600, a phosphinic acid containing HMG CoA reductase inhibitor, in human serum by high-performance liquid chromatography combined with ionspray mass spectrometry. Biol. Mass Spectrom. 1992, 21, 189–194. [Google Scholar] [CrossRef]
  48. Patel, R.; McNamee, C.; Banerjee, A.; Howell, J.; Robison, R.; Szarka, L. Stereoselective reduction of β-keto ester by Geotrich candidum. Enzyme Microb. Technol. 1992, 14, 731–738. [Google Scholar] [CrossRef]
  49. Matsuyama, A.; Yamamoto, H.; Kobayashi, Y. Practical application of recombinant whole-cell biocatalysts for the manufacturing of pharmaceutical intermediates such as chiral alcohols. Org. Process Res. Dev. 2002, 6, 558–561. [Google Scholar] [CrossRef]
  50. Zalman, L.S.; Brothers, M.A.; Dragovich, P.S.; Zhou, R.; Prins, T.J.; Worland, S.T.; Patick, A.K. Inhibition of human rhinovirus-induced cytokine production by AG7088, a human rhinovirus 3C protease inhibitor. Antimicrob. Agents Chemother. 2000, 44, 1236–1241. [Google Scholar] [CrossRef]
  51. Dragovich, P.S.; Prins, T.J.; Zhou, R.; Webber, S.E.; Marakovits, J.T.; Fuhrman, S.A.; Patick, A.K.; Matthews, D.A.; Lee, C.A.; Ford, C.E.; et al. Structure-based design, synthesis, and biological evaluation of irreversible human rhinovirus 3C protease inhibitors. 4. incorporation of P1 lactam moieties as l-glutamine replacements. J. Med. Chem. 1999, 42, 1213–1224. [Google Scholar] [CrossRef]
  52. Tao, J.; McGee, K. Development of a continuous enzymatic process for the preparation of (R)-3-(4-fluorophenyl)-2-hydroxy propionic acid. Org. Process Res. Dev. 2002, 6, 520–524. [Google Scholar] [CrossRef]
  53. Bold, G.; Faessler, A.; Capraro, H.-G.; Cozens, R.; Klimkait, T.; Lazdins, J.; JMestan, J.; Poncioni, B.; Roesel, J.; Stover, D.; et al. New aza-dipeptide analogs as potent and orally absorbed HIV-1 protease inhibitors: Candidates for clinical development. J. Med. Chem. 1998, 41, 3387–3401. [Google Scholar] [CrossRef]
  54. Robinson, B.S.; Riccardi, K.A.; Gong, Y.F.; Guo, Q.; Stock, D.A.; Blair, W.S.; Terry, B.J.; Deminie, C.A.; Djang, F.; Colonno, R.J.; et al. BMS-232632, a highly potent human immunodeficiency virus protease inhibitor that can be used in combination with other available antiretroviral agents. Antimicrob. Agents Chemother. 2000, 44, 2093–2099. [Google Scholar] [CrossRef]
  55. Patel, R.N.; Chu, L.; Mueller, R.H. Diastereoselective microbial reduction of (S)-[3-chloro-2-oxo-1-(phenylmethyl)propyl]carbamic acid, 1,1-dimethylethyl ester. Tetrahedron Asymmetry 2003, 14, 3105–3109. [Google Scholar] [CrossRef]
  56. Bowers, N.I.; Skonezny, P.M.; Stein, G.L.; Franceschini, T.; Chiang, S.-J.; Anderson, W.L.; You, L.; Xing, Z. Pocess for preparing (2R,3S)-1,2-epoxy-3-(protected)amino-4-substituted butane and intermediates thereof. WO 2006127180 A1, 30 November 2006. [Google Scholar]
  57. Xu, Z.; Singh, J.; Schwinden, M.D.; Zheng, B.; Kissick, T.P.; Patel, B.; Humora, M.J.; Quiroz, F.; Dong, L.; Hsieh, D.-M.; et al. Process research and development for an efficient synthesis of the HIV protease inhibitor BMS-232632. Org. Process Res. Dev. 2002, 6, 323–328. [Google Scholar] [CrossRef]
  58. King, A.O.; Corley, E.G.; Anderson, R.K.; Larsen, R.D.; Verhoeven, T.R.; Reider, P.J.; Xiang, Y.B.; Belley, M.; Leblanc, Y.; Labelle, M.; et al. An efficient synthesis of LTD4 antagonist L-699,392. J. Org. Chem. 1993, 58, 3731–3735. [Google Scholar] [CrossRef]
  59. Shinkai, I.; King, A.O.; Larsen, R.D. Practical asymmetric synthesis of LTD4 antagonist. Pure Appl. Chem. 1994, 66, 1551–1556. [Google Scholar] [CrossRef]
  60. Zhao, M.; King, A.O.; Larsen, R.D.; Verhoeven, T.R.; Reider, P.J. A convenient and economical method for the preparation of DIP-Chloride™ and its application in the asymmetric reduction of aralkyl ketones. Tetrahedron Lett. 1997, 36, 2641–2644. [Google Scholar]
  61. Shafiee, A.; Motamedi, H.; King, A. Purification, characterization and immobilization of an NADPH-dependent enzyme involved in the chiral specific reduction of the keto ester M, an intermediate in the synthesis of an anti-asthma drug, Montelukast, from Microbacterium campoquemadoensis (MB5614). Appl. Microbiol. Biotechnol. 1998, 49, 709–717. [Google Scholar] [CrossRef]
  62. Liang, J.; Lalonde, J.; Borup, B.; Mitchell, V.; Mundorff, E.; Trinh, N.; Kochrekar, D.A.; Cherat, R.N.; Pai, G.G. Development of a biocatalytic process as an alternative to the (−)-DIP-Cl-mediated asymmetric reduction of a key intermediate of Montelukast. Org. Proc. Res. Dev. 2010, 14, 193–198. [Google Scholar] [CrossRef]
  63. Holton, R.; Biediger, R.; Joatman, P. Semisynthesis of taxol and taxotere. In Taxol: Science and Application; Suffness, M., Ed.; CRC press: NewYork, NY, USA, 1995; pp. 97–123. [Google Scholar]
  64. Kingston, D. Natural taxoids: Structure and chemistry. In Taxol: Science and Application; Suffness, M., Ed.; CRC press: NewYork, NY, USA, 1995; pp. 287–317. [Google Scholar]
  65. Patel, R. Tour de paclitaxel: Biocatalysis for semisynthesis. Annu. Rev. Microbiol. 1995, 98, 361–395. [Google Scholar]
  66. Patel, R.; Banerjee, A.; Howell, J.; McNamee, C.; Brozozowski, D.; Mirfakhrae, D.; Nanduri, V.; Thottathil, J.; Szarka, L. Microbial synthesis of (2R,3S)-N-benzoyl-3-phenyl isoserine ethyl ester-a taxol side-chain synthon. Tetrahedron Asymmetry 1993, 4, 2069–2084. [Google Scholar] [CrossRef]
  67. Junie, J.L.; Leonard, B.E. Drugs acting on sigma and phencyclidine receptors: A review of their nature, function, and possible therapeutic importance. Clin. Neuropharmacol. 1989, 12, 353–374. [Google Scholar] [CrossRef]
  68. Ferris, C.D.; Hirsch, D.J.; Brooks, B.P.; Snyder, S.H. σ Receptors: From molecule to man. J. Neurochem. 1991, 57, 729–737. [Google Scholar] [CrossRef]
  69. Patel, R.N.; Banerjee, A.; Liu, M.; Hanson, R.; Ko, R.; Howell, J.; Szarka, L. Microbial reduction of 1-(4-fluorophenyl)-4-[4-(5-fluoro-2-pyrimidinyl)-1-piperazinyl]butan-1-one. Biotechnol. Appl. Biochem. 1993, 17, 139–153. [Google Scholar]
  70. Kagechika, H.; Kawachi, E.; Hashimoto, Y.; Shudo, K.; Himi, T. Retinobenzoic acids. 1. Structure-activity relationships of aromatic amides with retinoidal activity. J. Med. Chem. 1989, 32, 2583–2588. [Google Scholar]
  71. Kagechika, H.; Shudo, K. Retinoids. Vitamin A for clinical applications. Farumashia 1990, 26, 35–40. [Google Scholar]
  72. Moon, R.C.; Mehta, R.G. Anticarcinogenic effects of retinoids in animals. Adv. Exp. Med. Biol. 1986, 206, 399–411. [Google Scholar]
  73. Patel, R.N.; Chu, L.; Chidambaram, R.; Zhu, J.; Kant, J. Enantioselective microbial reduction of 2-oxo-2-(1',2',3',4'-tetrahydro-1',1',4',4'-tetramethyl-6'-naphthalenyl)acetic acid and its ethyl ester. Tetrahedron Asymmetry 2002, 13, 349–355. [Google Scholar] [CrossRef]
  74. Prasad, C.V.C.; Wallace, O.B.; Noonan, J.W.; Sloan, C.P.; Lau, W.; Vig, S.; Parker, M.F.; Smith, D.W.; Hansel, S.B.; Polson, C.T.; et al. Hydroxytriamides as potent γ-secretase inhibitors. Bioorg. Med. Chem. Lett. 2004, 14, 3361–3371. [Google Scholar]
  75. Nanduri, V.B.; Hanson, R.L.; Goswami, A.; Wasylyk, J.M.; LaPorte, T.L.; Katipally, K.; Chung, H.-J.; Patel, R.N. Biochemical approaches to the synthesis of ethyl 5-(S)-hydroxyhexanoate and 5-(S)-hydroxyhexanenitrile. Enzyme Microb. Technol. 2001, 28, 632–636. [Google Scholar] [CrossRef]
  76. Schenk, D.G.; Seubert, P. Potential treatment opportunities for Alzheimer’s disease through inhibition of secretases and Aβ immunization. J. Mol. Neurosci. 2001, 17, 259–267. [Google Scholar] [CrossRef]
  77. Patel, R.N.; Goswami, A.; Chu, L.; Donovan, M.J.; Nanduri, V.; Goldberg, S.; Johnston, R.; Siva, P.J.; Nielsen, B.; Fan, J.; et al. Enantioselective microbial reduction of substituted acetophenones. Tetrahedron Asymmetry 2004, 15, 1247–1258. [Google Scholar] [CrossRef]
  78. Wittman, M.; Carboni, J.M.; Attar, R.; Balasubramanian, B.; Balimane, P.; Brassil, P.; Beaulieu, F.; Chang, C.; Clarke, W.; Dell, J.; et al. Discovery of a 1H-Benzoimidazol-2-yl)-1H-pyridin-2-one (BMS-536924) inhibitor of insulin-like growth factor I receptor kinase with in vivo antitumor activity. J. Med. Chem. 2005, 48, 5639–5643. [Google Scholar] [CrossRef]
  79. Carboni, J.M.; Hurlburt, W.W.; Gottardis, M.M. Synergistic methods and compositions for treating cancer. WO 2004030625 A2, 15 April 2004. [Google Scholar]
  80. Beaulieu, F.; Ouellet, C.; Zimmermann, K.; Velaparthi, U.; Wittman, M.D. Novel tyrosine kinase inhibitors. WO 2004063151 A3, 9 December 2004. [Google Scholar]
  81. Hanson, R.L.; Goldberg, S.; Goswami, A.; Tully, T.P.; Patel, R.N. Purification and cloning of a ketoreductase used for the preparation of chiral alcohols. Adv. Synth. Catal. 2005, 347, 1073–1080. [Google Scholar] [CrossRef]
  82. Vacca, J.P. New advances in the discovery of thrombin and factor Xa inhibitors. Curr. Opin. Chem. Biol. 2000, 4, 394–400. [Google Scholar] [CrossRef]
  83. Gladwell, T.D. Bivalirudin: A direct thrombin inhibitor. Clin. Ther. 2002, 24, 38–58. [Google Scholar] [CrossRef]
  84. Fevig, J.M.; Wexler, R.R. Anticoagulants: Thrombin and factor Xa inhibitors. Annu. Rep. Med. Chem. 1999, 34, 81–100. [Google Scholar] [CrossRef]
  85. Williams, P.D.; Coburn, C.; Burgey, C.; Morrissette, M.M. Preparation of Triazolopyrimidines as Thrombin Inhibitors. WO 2002064211 A1, 22 August 2002. [Google Scholar]
  86. Nelson, T.D.; LeBlond, C.R.; Frantz, D.E.; Matty, L.; Mitten, J.V.; Weaver, D.G.; Moore, J.C; Kim, J.M.; Boyd, R.; Kim, P.-Y.; et al. Stereoselective synthesis of a potent thrombin inhibitor by a novel P2-P3 lactone ring opening. J. Org. Chem. 2004, 69, 3620–3627. [Google Scholar] [CrossRef]
  87. Fukuroda, T.; Nishikibe, M. Enhancement of pulmonary artery contraction induced by endothelin-β receptor antagonism. J. Cardiovasc. Pharmacol. 1998, 31, S169–S171. [Google Scholar] [CrossRef]
  88. Sumner, M.J.; Cannon, T.R.; Mundin, J.W.; White, D.G.; Watts, I.S. Endothelin ETA and ETB receptors mediate vascular smooth muscle contraction. Br. J. Pharmacol. 1992, 107, 858–860. [Google Scholar] [CrossRef]
  89. Krulewicz, B.; Tschaen, D.; Devine, P.; Lee, S.S.; Roberge, C.; Greasham, R.; Chartrain, M. Asymmetric biosynthesis of key aromatic intermediates in the synthesis of an endothelin receptor antagonist. Biocatal. Biotransformation 2001, 19, 267–279. [Google Scholar] [CrossRef]
  90. Chaffman, M.; Brogden, R.N. Diltiazem. A review of its pharmacological properties and therapeutic efficacy. Drugs 1985, 29, 387–390. [Google Scholar] [CrossRef]
  91. Kawai, C.; Konishi, T.; Matsuyama, E.; Okazaki, H. Comparative effects of three calcium antagonists, diatiazem, verapamil and nifedipine, on the sinoatrial and atrioventricular nodes. Experimental and clinical studies. Circulation 1981, 63, 1035–1038. [Google Scholar] [CrossRef]
  92. Isshiki, T.; Pegram, B.; Frohlich, E. Immediate and prolonged hemodynamic effects of TA-3090 on spontaneously hypertensive (SHR) and normal Wistar-Kyoto (WKY) rats. Cardiovasc. Drug Ther. 1988, 2, 539–544. [Google Scholar] [CrossRef]
  93. Das, J.; Floyd, D.M.; Kimball, D.; Duff, K.J.; Lago, M.W.; Moquin, R.V.; Gougoutas, J.Z. Benzazepinone calcium channel blockers. 3. Synthesis and structure-activity studies of 3-alkylbenzazepinones. J. Med. Chem. 1992, 35, 773–780. [Google Scholar] [CrossRef]
  94. Patel, R.N.; Robison, R.S.; Szarka, L.J.; Kloss, J.; Thottathil, J.K.; Mueller, R.H. Stereospecific microbial reduction of 4,5-dihydro-4-(4-methoxyphenyl)-6-(trifluoromethyl-1H-1)-benzazepin-2-one. Enzyme Microb. Technol. 1991, 13, 906–912. [Google Scholar] [CrossRef]
  95. Arch, J.R.S. β3-adrenoceptors and other putative atypical β-adrenoceptors. Pharmacol. Rev. Commun. 1997, 9, 141–148. [Google Scholar]
  96. Bloom, J.D.; Datta, M.D.; Johnson, B.D.; Wissner, A.; Bruns, M.G.; Largis, E.E.; Dolan, J.A.; Claus, T.H. Disodium (R,R)5-[2-(3-chlorophenyl)-2-hydroxyethyl]amino]propyl]-1,3-benzodioxole-2,2-dicarboxylate. A potent b-adrenergic agonist virtually specific for β3 receptors. J. Med. Chem. 1989, 35, 3081–3084. [Google Scholar]
  97. Fisher, L.G.; Sher, P.M.; Skwish, S.; Michael, I.M.; Seiler, S.; Dickinson, K.E.J. BMS-187257, a potent, selective, and novel heterocyclic β-3 adrenergic receptor agonist. Bioorg. Med. Chem. Lett. 1994, 6, 2253–2258. [Google Scholar]
  98. Patel, R.N.; Banerjee, A.; Chu, L.; Brzozowski, D.; Nanduri, V.; Szarka, L.J. Microbial synthesis of chiral intermediates for β-3-receptor agonists. J. Am. Oil Chem. Soc. 1998, 75, 1473–1482. [Google Scholar] [CrossRef]
  99. Iwata, H.; Tanaka, R.; Ishiguro, M. Structures of the alkaline hydrolysis products of penem antibiotic, SUN5555. J. Antibiot. 1990, 43, 901–903. [Google Scholar] [CrossRef]
  100. Jean-Paul Vandecasteele, J.-P. Enzymatic synthesis of l-carnitine by reduction of an achiral precursor: The problem of reduced nicotinamide adenine dinucleotide recycling. Appl. Environ. Microbiol. 1980, 39, 327–334. [Google Scholar]
  101. Yamamoto, H; Matsuyama, A.; Kobayashi, Y. Synthesis of (R)-1,3-butanediol by enantioselective oxidation using whole recombinant Escherichia coli cells expressing (S)-specific secondary alcohol dehydrogenase. Biosci Biotechnol Biochem. 2002, 66, 925–927. [Google Scholar] [CrossRef]
  102. Coleman, P.J.; Brashear, K.M.; Askew, B.C. Nonpeptide α vβ 3 antagonists. Part 11: Discovery and preclinical evaluation of potent α vβ3 antagonists for the prevention and treatment of osteoporosis. J. Med. Chem. 2004, 47, 4829–4837. [Google Scholar] [CrossRef]
  103. Pollard, D.J.; Telari, K.; Lane, J.; Humphrey, G.; McWilliams, C.; Nidositko, S.; Salmon, P.; Moore, J. Asymmetric reduction of alpha, beta-unsaturated ketone to (R) allylic alcohol by Candida chilensis. Biotechnol. Bioeng. 2006, 93, 674–684. [Google Scholar] [CrossRef]
  104. Brands, K.M.J.; Payack, J.F.; Rosen, J.D.; Nelson, T.D.; Candelario, A.; Huffman, M.A.; Zhao, M.M.; Bridgette, J.L.; Zhiguo, C.J.; Song, D.M.; et al. Efficient synthesis of NK1 receptor antagonist aprepitant using a crystallization-induced diastereoselective transformation. J. Am. Chem. Soc. 2003, 125, 2129–2135. [Google Scholar] [CrossRef]
  105. Pollard, D.; Truppo, M.; Pollard, J.; Chen, C.-Y.; Moore, J. Effective synthesis of (S)-3,5-bistrifluoro methylphenyl ethanol by asymmetric enzymatic reduction. Tetrahedron Asymmetry 2006, 17, 554–559. [Google Scholar] [CrossRef]
  106. Patel, R.N. Chemo-enzymatic synthesis of pharmaceutical intermediates. Expert Opin. Drug Dis. Dev. 2008, 3, 187–245. [Google Scholar] [CrossRef]
  107. Ohshima, T.; Soda, K. Stereoselective Biocatalysis: Amino Acid Dehydrogenases and Their Applications in Stereoselective Biocatalysis; Patel, R.N., Ed.; Marcel and Dekker Pub: New York, New York, USA, 2000; pp. 877–903. [Google Scholar]
  108. Wandrey, C.; Wichman, R.; Leuchtenberger, W. Continuous Enzymic Transformation of Water-Soluble α-Keto Carboxylic Acids into the Corresponding Amino Acids. EP 0023346 B1, 13 July 1983. [Google Scholar]
  109. Brunhuber, N.M.; Blanchard, J.S. The biochemistry and enzymology of amino acid dehydrogenases. Crit. Rev. Biochem. Mol. Biol. 1994, 29, 415–467. [Google Scholar] [CrossRef]
  110. Gordon, E.M.; Ondetti, M.A.; Pluscec, J.; Cimarusti, C.M.; Bonner, D.P.; Sykes, R.B. O-Sulfated β-lactam hydroxamic acids (monosulfactams). Novel monocyclic β-lactam antibiotics of synthetic origin. J. Am. Chem. Soc. 1982, 104, 6053–6060. [Google Scholar]
  111. Godfrey, J.D.; Mueller, R.H.; van Langen, D.J. β-Lactam synthesis: Cyclization versus 1,2-acyl migration-cyclization. The mechanism of the 1,2-acyl migration-cyclization. Tetrahedron Lett. 1986, 27, 2793–2796. [Google Scholar] [CrossRef]
  112. Hanson, R.L.; Singh, J.; Kissick, T.P.; Patel, R.N.; Szarka, L.; Mueller, R. Synthesis of L-β-hydroxyvaline from α-keto-β-hydroxyisovalerate using leucine dehydrogenase from Bacillus species. Bioorg. Chem. 1990, 18, 116–130. [Google Scholar] [CrossRef]
  113. Hanson, R.; Goldberg, S.; Patel, R. (unpublished results).
  114. Stoyan, T.; Recktenwald, A.; Kula, M.R. Cloning, sequencing and overexpression of the leucine dehydrogenase gene from Bacillus cereus. J. Biotechnol. 1997, 54, 77–80. [Google Scholar] [CrossRef]
  115. Menzel, A.; Werner, H.; Altenbuchner, J.; Groger, H. From enzymes to “designer bugs” in reductive amination: A new process for the synthesis of L-tert-leucine using a whole cell. Eng. Life Sci. 2004, 4, 573–576. [Google Scholar] [CrossRef]
  116. Robl, J.; Sun, C.; Stevenson, J.; Ryono, D.; Simpkins, L.; Cimarusti, M.; Dejneka, T.; Slusarchyk, W.; Chao, S.; Stratton, L.; et al. Dual metalloprotease inhibitors: Mercaptoacetyl-based fused heterocyclic dipeptide mimetics as inhibitors of angiotensin-converting enzyme and neutral endopeptidase. J. Med. Chem. 1997, 40, 1570–1577. [Google Scholar] [CrossRef]
  117. Hanson, R.L.; Schwinden, M.D.; Banerjee, A.; Brzozowski, D.B.; Chen, B.-C.; Patel, B.P.; McNamee, C.G.; Kodersha, G.A.; Kronenthal, D.R.; Patel, R.N.; et al. Enzymatic synthesis of L-6-hydroxynorleucine. Bioorg. Med. Chem. 1999, 7, 2247–2252. [Google Scholar] [CrossRef]
  118. Patel, R. Enzymatic synthesis of chiral intermediates for Omapatrilat, an antihypertensive drug. Biomol. Eng. 2001, 17, 167–182. [Google Scholar] [CrossRef]
  119. Hanson, R.L.; Howell, J.; LaPorte, T.; Donovan, M.; Cazzulino, D.; Zannella, V.; Montana, M.; Nanduri, V.; Schwarz, S.; Eiring, R.; et al. Synthesis of allylsine ethylene acetal using phenylalanine dehydrogenase from Thermoactinomyces intermedius. Enzyme Microb. Technol. 2000, 26, 348–358. [Google Scholar] [CrossRef]
  120. Gallwitz, B. Glucagon-like peptide-1-based therapies for the treatment of type 2 diabetes mellitus. Treat. Endocrinol. 2005, 4, 361–370. [Google Scholar] [CrossRef]
  121. Sinclair, E.M.; Drucker, D.J. Glucagon-like peptide 1 receptor agonists and dipeptidyl peptidase IV inhibitors: New therapeutic agents for the treatment of type 2 diabetes. Curr. Opin. Endocrinol. Diabet. 2005, 12, 146–151. [Google Scholar] [CrossRef]
  122. Augeri, D.J.; Robl, J.A.; Betebenner, D.A.; Magnin, D.R.; Khanna, A.; Robertson, J.G.; Wang, A.; Simpkins, L.M.; Taunk, P.; Huang, Q.; et al. A highly potent, long-acting, orally active dipeptidyl peptidase IV inhibitor for the treatment of type 2 diabetes. J. Med. Chem. 2005, 48, 5025–5037. [Google Scholar] [CrossRef]
  123. Augeri, D.J.; Betebenner, D.A.; Hamann, L.G.; Magnin, D. R.; Robl, J.A.; Sulsky, R.B. Cyclopropyl-fused pyrrolidine-based inhibitors of dipeptidyl iv, processes for their preparation and their use. WO 2001068603 A2, 20 September 2001. [Google Scholar]
  124. Hanson, R.L.; Goldberg, S.L.; Brzozowski, D.B.; Tully, T.P.; Cazzulino, D.; Parker, W.L.; Lyngberg, O.K.; Vu, T.C.; Wong, M.K.; Patel, R.N. Preparation of an amino acid intermediate for the dipeptidyl peptidase IV inhibitor, saxagliptin, using a modified phenylalanine dehydro genase. Adv. Synth. Catal. 2007, 349, 1369–1378. [Google Scholar] [CrossRef]
  125. Groeger, H.; May, O.; Werner, H.; Menzel, A.; Altenbuchner, J. A “second-generation process” for the synthesis of L-neopentylglycine: Asymmetric reductive amination using a recombinant whole cell catalyst. Org. Process Res. Dev. 2006, 10, 666–669. [Google Scholar] [CrossRef]
  126. Emmanuel, M.J.; Frye, L.L.; Hickey, E.R.; Liu, W.; Morwick, T.M.; Spero, D.M.; Sun, S.; Thomson, D.S.; Ward, Y.D.; Young, E.R.R. Novel Spiroheterocyclic Compounds [Morpholine-4-Carboxylic Acid Amides of Heterocyclic Cyclohexylalanine and Neopentylglycine Derivatives and Their Analogs], Useful as Reversible Inhibitors of Cysteine Proteases such as Cathepsin S. WO 2001019816 A1 22 May 2001. [Google Scholar]
  127. Haque, T.S.; Ewing, W.R.; Mapelli, C.; Lee, V.G.; Sulsky, R.B.; Riexinger, D.J.; Martinez, R.L.; Zhu, Y.Z. Human Glucagon-like-Peptide-1 Modulators and Their Use in the Treatment of Diabetes and Related Conditions. WO2007082264, A2, 11 January 2007. [Google Scholar]
  128. Qian, F.; Ewing, W.R.; Mapelli, C.; Riexinger, D.J.; Lee, V.G.; Sulsky, R.B.; Zhu, Y.; Haque, T.S.; Martinez, R.L.; Naringrekar, V.; et al. Sustained release GLP-1 receptor modulators. US 20070099835 A1, 3 May 2007. [Google Scholar]
  129. Chen, Y.; Goldberg, S.L.; Hanson, R.L.; Parker, W.L.; Gill, I.; Tully, T.P.; Montana, M.; Goswami, A.; Patel, R.N. Enzymatic preparation of an (S)-amino acid from a racemic amino acid. Org. Process Res. Dev. 2011, 15, 241–248. [Google Scholar] [CrossRef]
  130. Straathof, A.J.J.; Panke, S.A. The production of fine chemicals by biotransformations. Curr. Opin. Biotechnol. 2002, 13, 548–556. [Google Scholar] [CrossRef]
  131. Bommarius, A.S.; Schwarm, M.; Drauz, K. Biocatalysis to amino acid-based chiral pharmaceuticals-examples and perspectives. J. Mol. Catal. B Enzym. 1998, 5, 1–11. [Google Scholar] [CrossRef]
  132. Vedha-Peters, K.; Gunawardana, M.; Rozzell, J.D.; Novick, S.J. Creation of a broad-range and highly stereoselective D-amino acid dehydrogenase for the one-step synthesis of D-amino acids. J. Am. Chem. Soc. 2006, 128, 10923–10929. [Google Scholar]
  133. Gustafsson, D.; Elg, M.; Lenfors, S.; Boerjesson, I.; Teger-Nilsso, A.-C. Effects of inogatran, a new low-molecular-weight thrombin inhibitor, in rat models of venous and arterial thrombosis, thrombolysis and bleeding time. Blood Coagul. Fibrinolysis 1996, 7, 69–79. [Google Scholar] [CrossRef]
  134. Alexandre, F.-R.; Pantaleone, D.P.; Taylor, P.P.; Fotheringham, I.G.; Ager, D.J.; Turner, N.J. Amine-boranes: Effective reducing agents for the deracemisation of DL-amino acids using L-amino acid oxidase from Proteus myxofaciens. Tetrahedron Lett. 2002, 43, 707–710. [Google Scholar]
  135. Chaturvedula, P.V.; Chen, L.; Civiello, R.; Degnan, A.P.; Dubowchik, G.M.; Han, X.; Jiang, J.J.; Macor, J.E.; Poindexter, G.S.; Tora, G.O.; et al. Anti-Migraine Spirocycles. US 7842808 B2, 5 January 2007. [Google Scholar]
  136. Han, X.; Civiello, R.L.; Conway, C.M.; Cook, D.A.; Davis, C.D.; Macci, R.; Pin, S.S.; Ren, S.X.; Schartman, R.; Signor, L.J.; Thalody, G.; Widmann, K.A.; Xu, C.; Chaturvedula, P.V.; Macor, J.E.; Dubowchik, G.M. The synthesis and SAR of calcitonin gene-related peptide (CGRP) receptor antagonists derived from tyrosine surrogates. Part 1. Bioorg Med Chem Lett. 2012, 22, 4723–4727. [Google Scholar] [CrossRef]
  137. Hanson, R.L.; Davis, B.L.; Goldberg, S.L.; Johnston, R.M.; Parker, W.L.; Tully, T.P.; Montana, M.A.; Patel, R.N. Enzymatic preparation of a D-amino acid from a racemic amino acid or keto acid. Org. Process Res. Dev. 2008, 12, 1119–1129. [Google Scholar] [CrossRef]
  138. Ising, M.; Zimmermann, U.S.; Künzel, H.E.; Uhr, M.; Foster, A.C.; Learned-Coughlin, S.M.; Holsboer, F.; Grigoriadis, D.E. High-affinity CRF1 receptor antagonist NBI-34041: Preclinical and clinical data suggest safety and efficacy in attenuating elevated stress response. Neuropsychopharmacology 2007, 32, 1941–1949. [Google Scholar] [CrossRef]
  139. Overstreet, D.H.; Griebel, G. Antidepressant-like effects of CRF1 receptor antagonist SSR125543 in an animal model of depression. Eur. J. Pharmacol. 2004, 497, 49–53. [Google Scholar] [CrossRef]
  140. Tache, Y.; Martinez, V.; Wang, L.; Million, M. CRF1 receptor signaling pathways are involved in stress-related alterations of colonic function and viscerosensitivity: Implications for irritable bowel syndrome. Br. J. Phamacol. 2004, 141, 1321–1330. [Google Scholar] [CrossRef]
  141. Yu, W.-L.; Lawrence, F.; Wong, H.; Lelas, S.; Zhang, G.; Lindner, M.D.; Wallace, T.; McElroy, J.; Lodge, N.J.; Gilligan, P.; et al. The pharmacology of DMP696 and DMP904, non-peptidergic CRF1 receptor antagonists. CNS Drug Rev. 2006, 11, 21–52. [Google Scholar] [CrossRef]
  142. Gilligan, P.J.; Clarke, T.; He, L.; Lelas, S.; Li, Y.-W.; Heman, K.; Fitzgerald, L.; Miller, K.; Zhang, G.; Marshall, A.; et al. 8-(4-Methoxyphenyl)pyrazolo[1,5-a]-1,3,5-triazines: Selective and centrally active corticotropin-releasing factor receptor-1 (CRF1) antagonists. J. Med. Chem. 2009, 52, 3084–3092. [Google Scholar] [CrossRef]
  143. Hanson, R.L.; Davis, B.L.; Chen, Y.; Goldberg, S.L.; Parker, W.L.; Tully, T.P.; Montana, M.A.; Patel, R.N. Preparation of (R)-amines from racemic amines with an (S)-amine transaminase from Bacillus megaterium. Adv. Synth. Catal. 2008, 350, 1367–1375. [Google Scholar] [CrossRef]
Biomolecules EISSN 2218-273X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
