Coatings 2018, 8(5), 187; https://doi.org/10.3390/coatings8050187

Influence of Lamellar Interface Morphology on Cracking Resistance of Plasma-Sprayed YSZ Coatings

1
Key Laboratory of Pressure System and Safety, Ministry of Education, East China University of Science and Technology, Shanghai 200237, China
2
Shanghai Baosteel Industry Technological Service Co., Ltd., Shanghai 201900, China
*
Author to whom correspondence should be addressed.
Received: 21 March 2018 / Revised: 4 May 2018 / Accepted: 11 May 2018 / Published: 15 May 2018
(This article belongs to the Special Issue Coatings for Harsh Environments)
View Full-Text   |   Download PDF [21837 KB, uploaded 24 May 2018]   |

Abstract

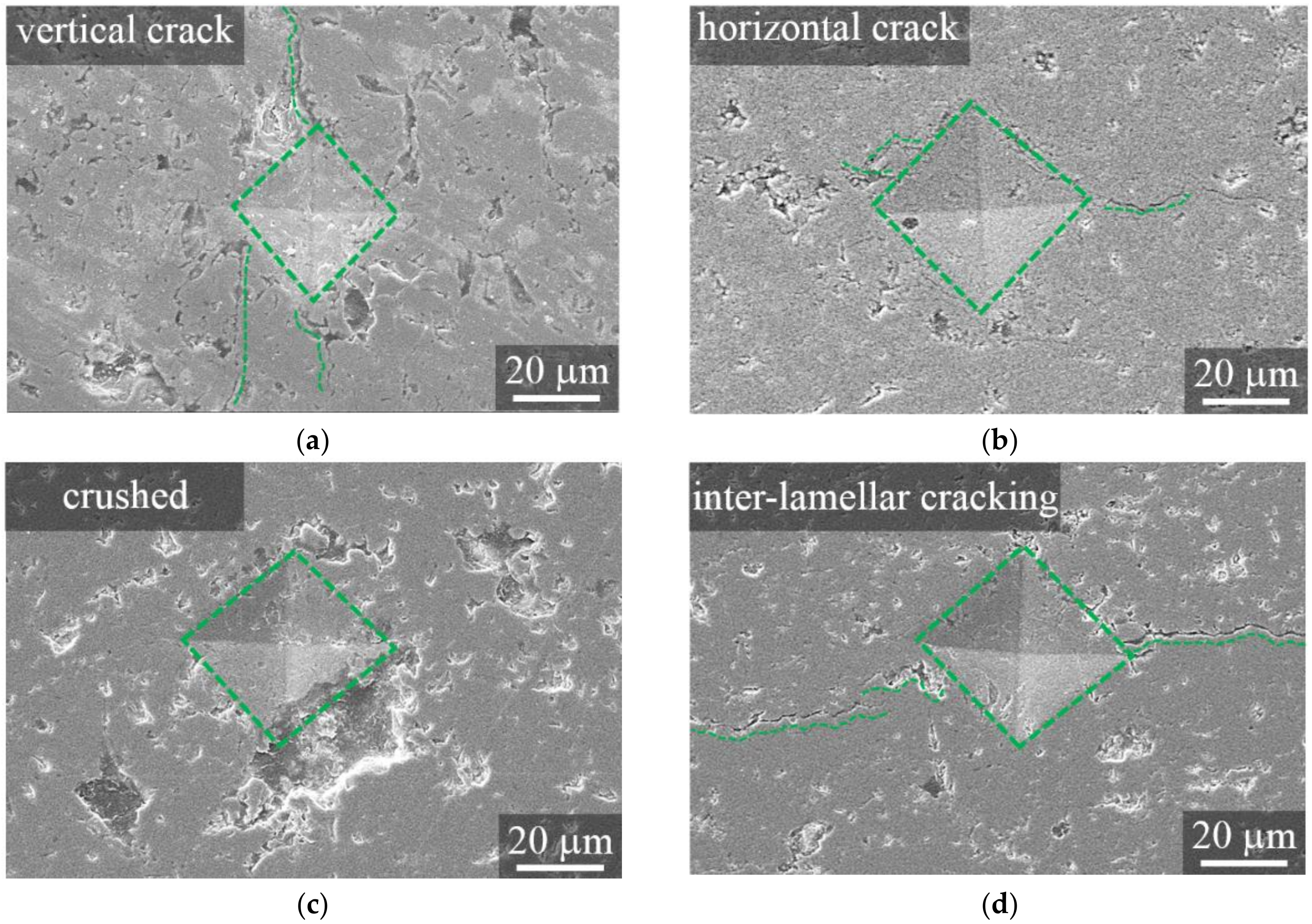

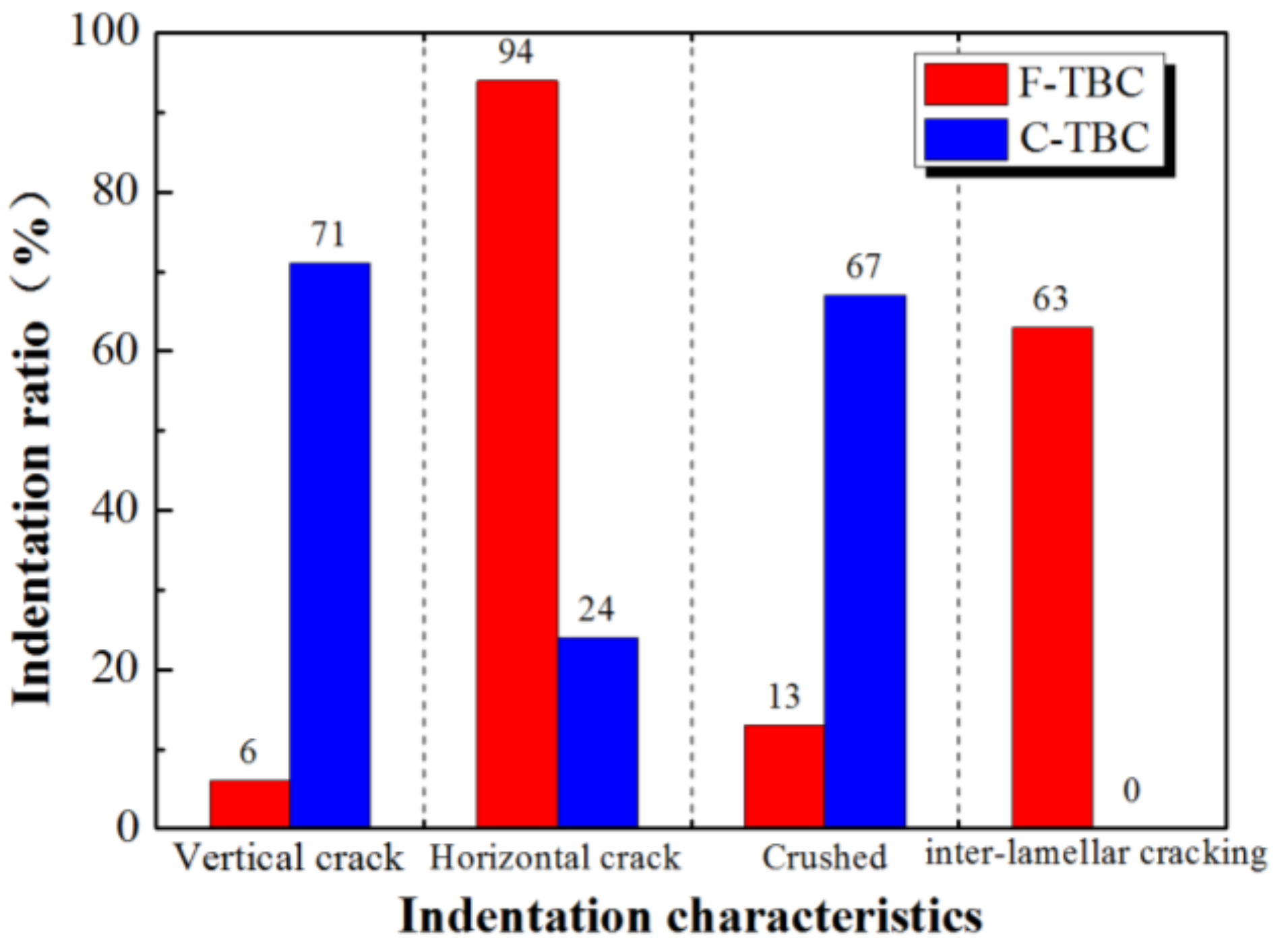

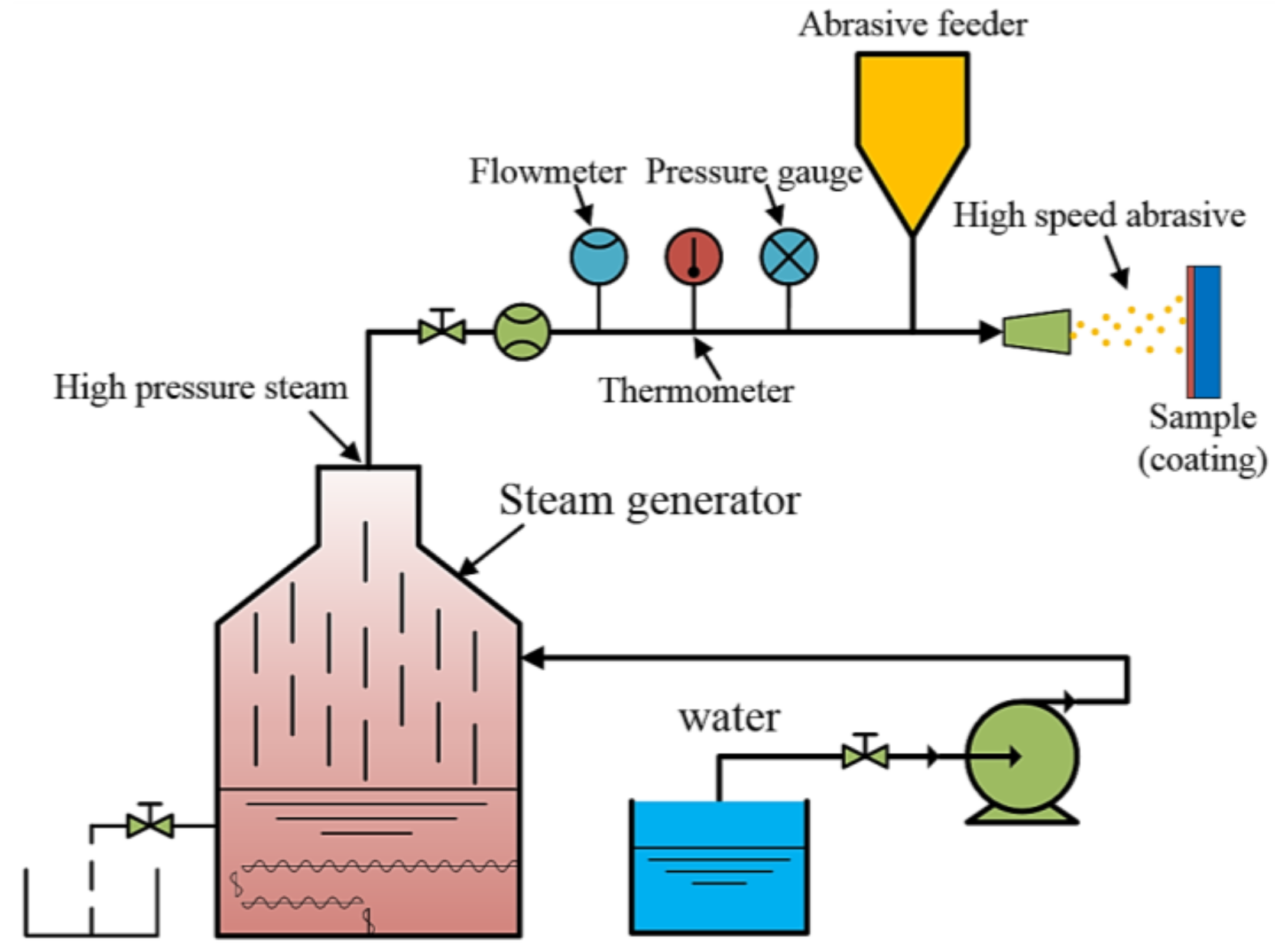

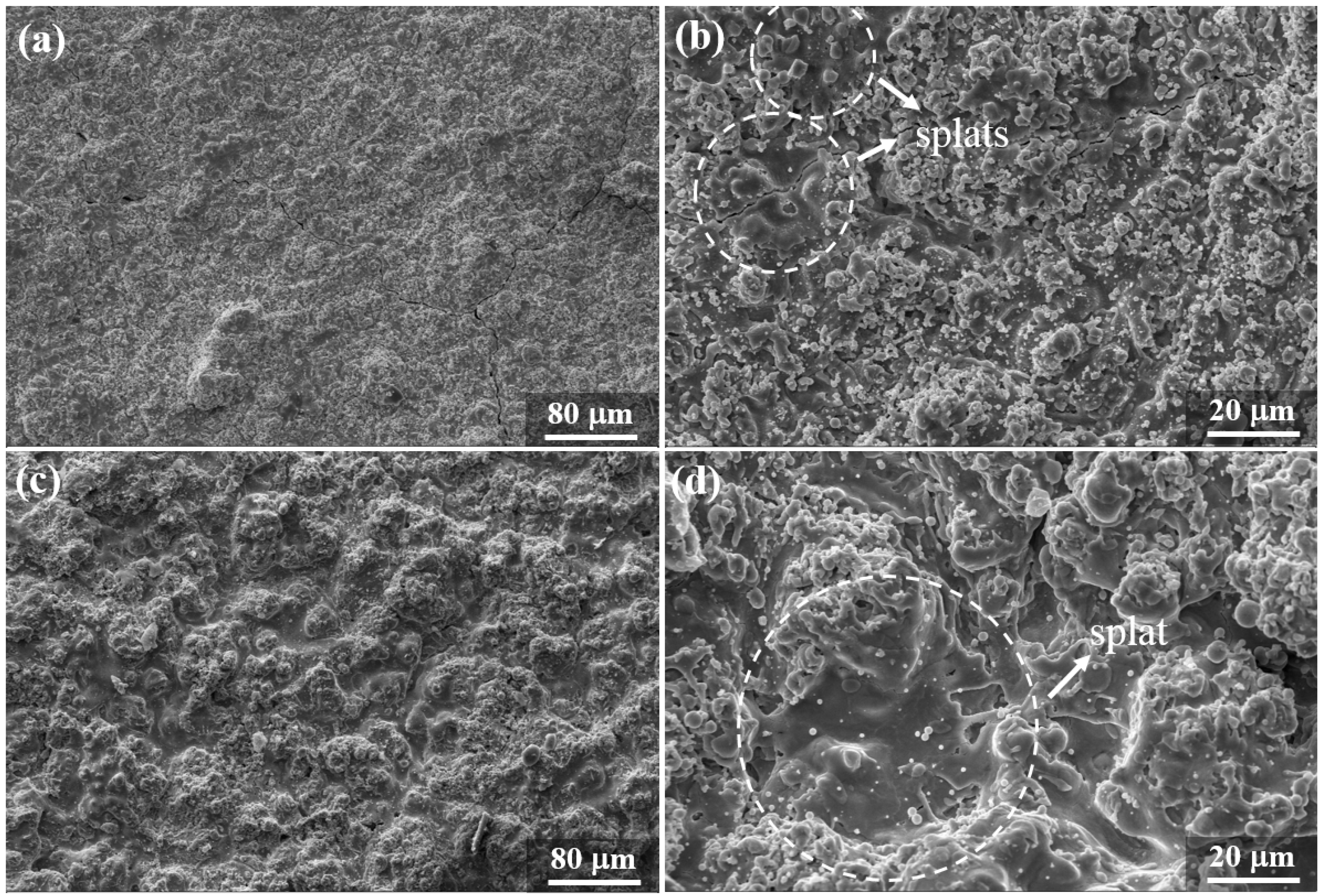

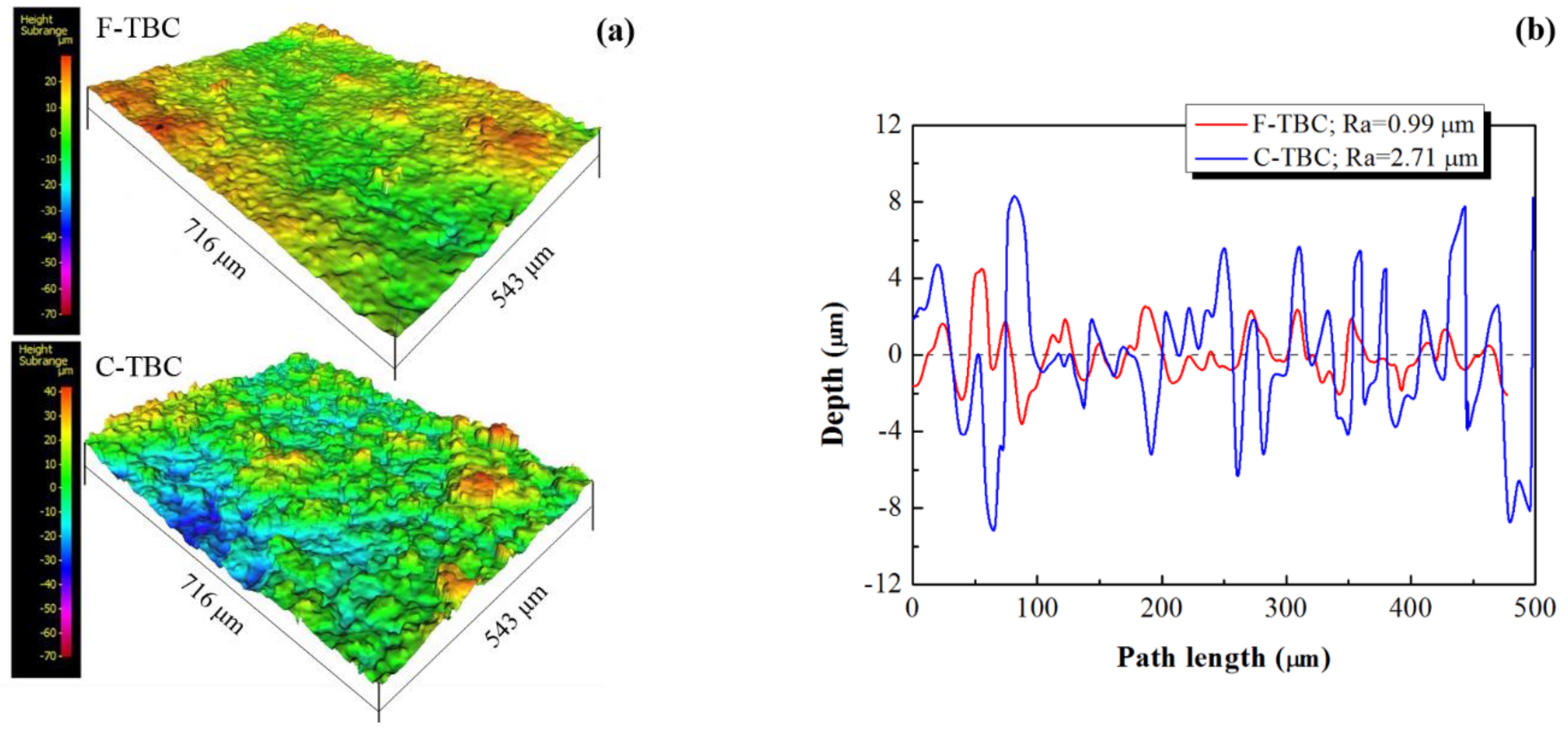

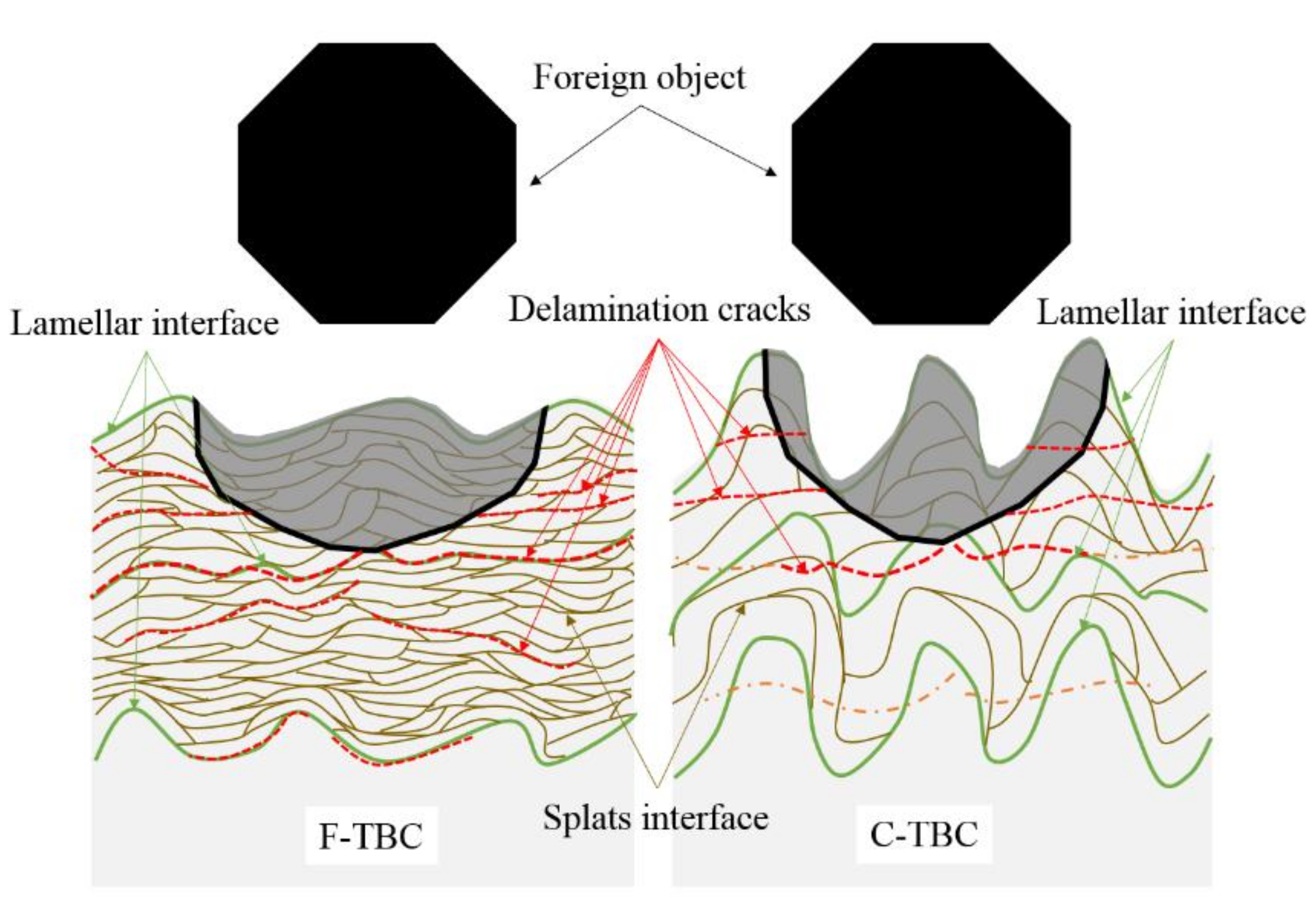

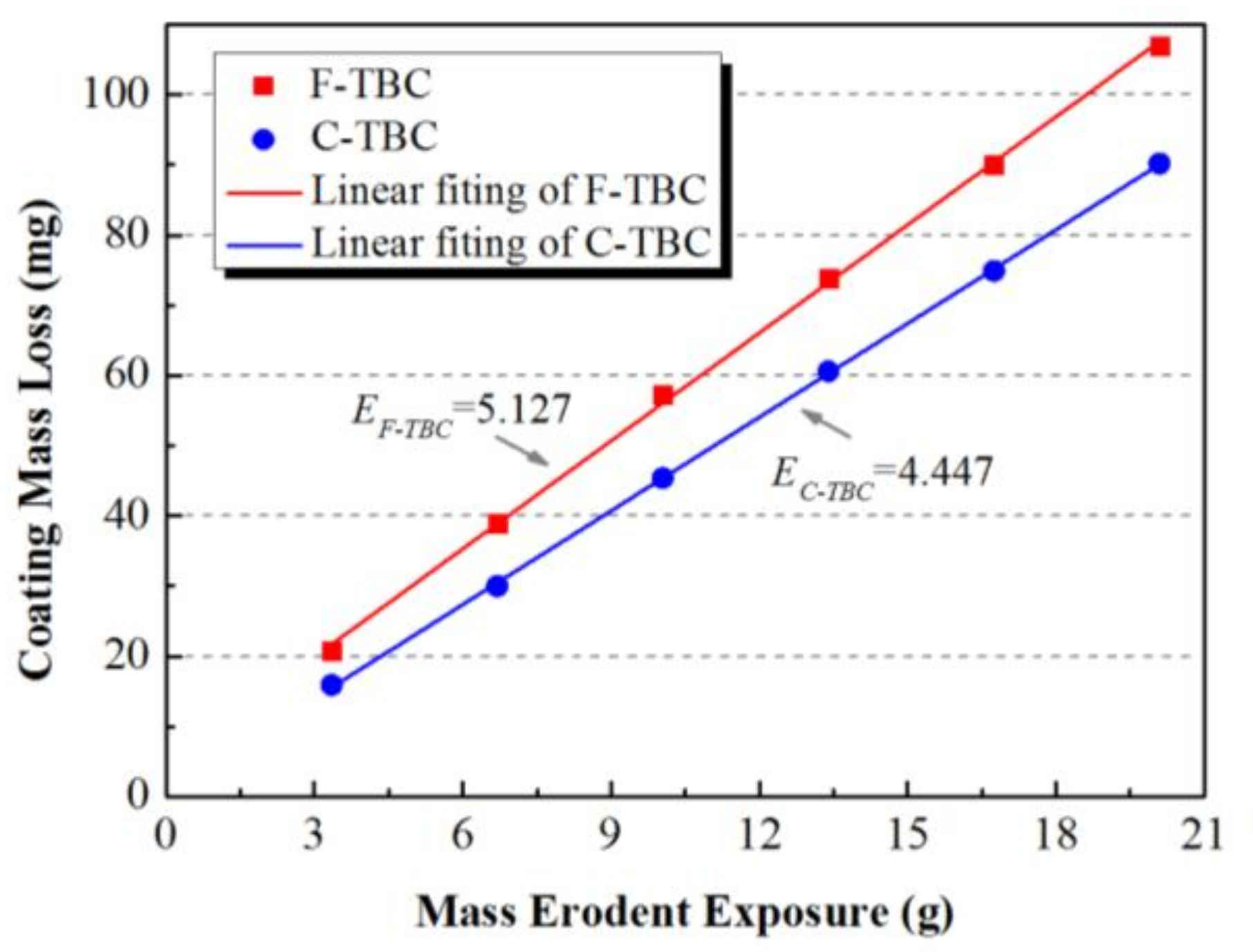

Splat morphology is an important factor that influences the mechanical properties and durability of thermal barrier coatings (TBCs). In this study, yttria-stabilized zirconia (YSZ) coatings with different lamellar interface morphologies were deposited by atmospheric plasma spraying (APS) using feedstocks with different particle sizes. The influence of lamellar interface roughness on the cracking resistance of the coatings was investigated. Furthermore, the thermal shock and erosion resistance of coatings deposited by two different powders was evaluated. It was found that the particle size of the feedstock powder affects the stacking morphology of the splat that forms the coating. Coatings fabricated from coarse YSZ powders (45–60 μm) show a relatively rough inter-lamellar surface, with a roughness about 3 times greater than those faricated from fine powders (15–25 μm). Coatings prepared with fine powders tend to form large cracks parallel to the substrate direction under indentation, while no cracking phenomena were found in coatings prepared with coarse powders. Due to the higher cracking resistance, coatings prepared with coarse powders show better thermal shock and erosion resistances than those with fine powders. The results of this study provide a reference for the design and optimization of the microstructure of TBCs. View Full-Text
Keywords: YSZ; particle size; lamellar interface; cracking resistance; thermal shocks; erosion YSZ; particle size; lamellar interface; cracking resistance; thermal shocks; erosion
Figures

Figure 1
