Coatings 2011, 1(2), 88-107; doi:10.3390/coatings1020088

In Situ Fabrication of AlN Coating by Reactive Plasma Spraying of Al/AlN Powder

1,* , 2
Received: 1 August 2011 / Revised: 22 September 2011 / Accepted: 26 September 2011 / Published: 3 October 2011
(This article belongs to the Special Issue Advanced Thermal Spray Coatings for Emerging Applications)
View Full-Text   |   Download PDF [2851 KB, uploaded 3 October 2011]   |   Browse Figures

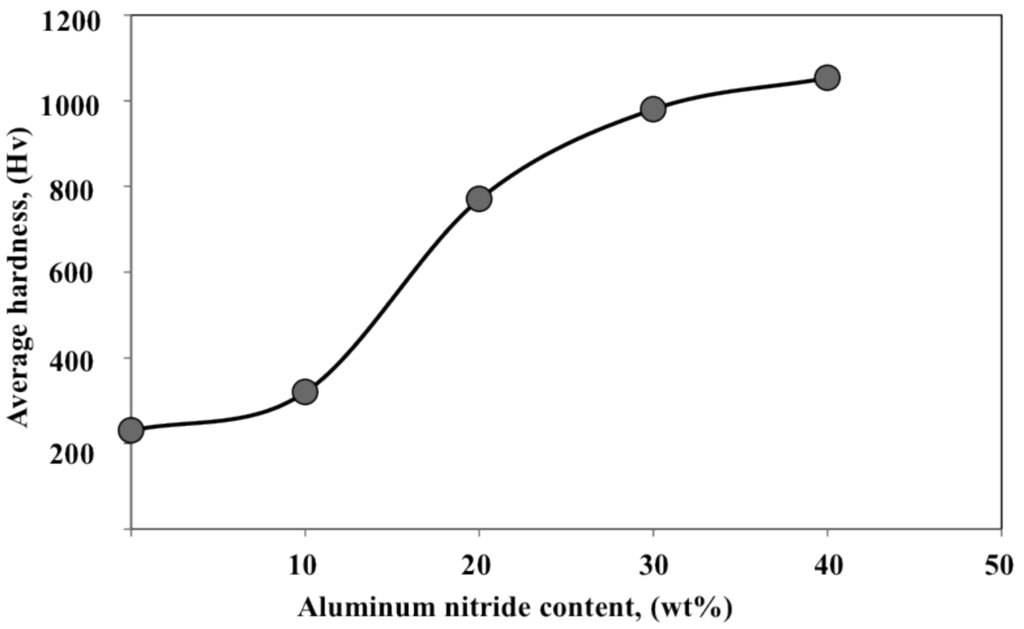

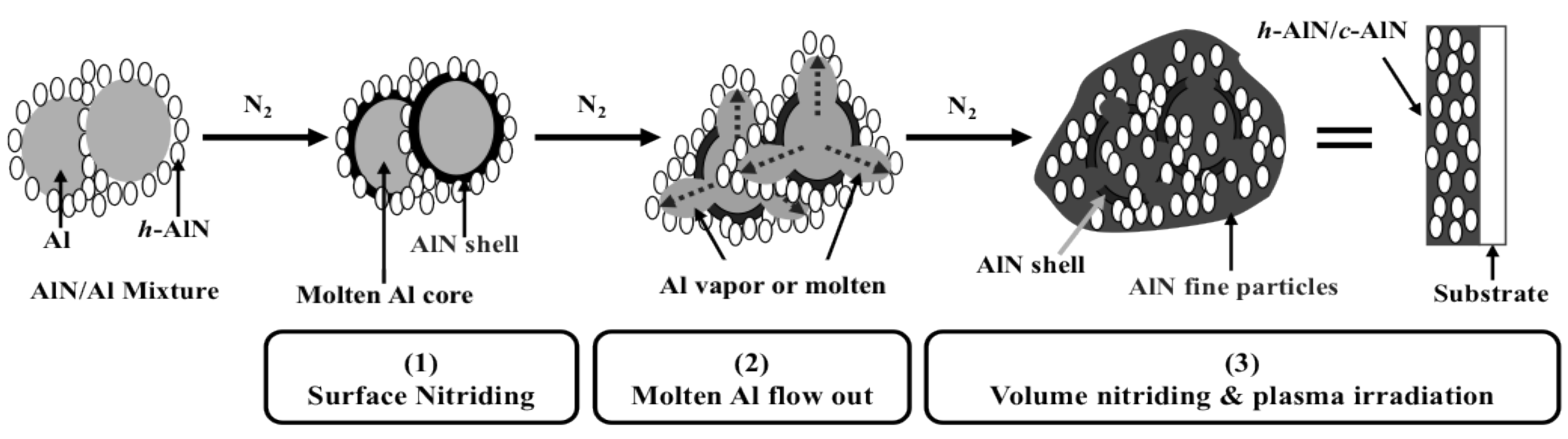

Reactive plasma spraying is a promising technology for the in situ formation of aluminum nitride (AlN) coatings. Recently, it became possible to fabricate cubic-AlN-(c-AlN) based coatings through reactive plasma spraying of Al powder in an ambient atmosphere. However, it was difficult to fabricate a coating with high AlN content and suitable thickness due to the coalescence of the Al particles. In this study, the influence of using AlN additive (h-AlN) to increase the AlN content of the coating and improve the reaction process was investigated. The simple mixing of Al and AlN powders was not suitable for fabricating AlN coatings through reactive plasma spraying. However, it was possible to prepare a homogenously mixed, agglomerated and dispersed Al/AlN mixture (which enabled in-flight interaction between the powder and the surrounding plasma) by wet-mixing in a planetary mill. Increasing the AlN content in the mixture prevented coalescence and increased the nitride content gradually. Using 30 to 40 wt% AlN was sufficient to fabricate a thick (more than 200 µm) AlN coating with high hardness (approximately 1000 Hv). The AlN additive prevented the coalescence of Al metal and enhanced post-deposition nitriding through N2 plasma irradiation by allowing the nitriding species in the plasma to impinge on a larger Al surface area. Using AlN as a feedstock additive was found to be a suitable method for fabricating AlN coatings by reactive plasma spraying. Moreover, the fabricated coatings consist of hexagonal (h-AlN), c-AlN (rock-salt and zinc-blend phases) and certain oxides: aluminum oxynitride (Al5O6N), cubic sphalerite Al23O27N5 (ALON) and Al2O3. The zinc-blend c-AlN and ALON phases were attributed to the transformation of the h-AlN feedstock during the reactive plasma spraying. Thus, the zinc-blend c-AlN and ALON phases were not included in the feedstock and were not formed through nitriding of the Al.
Keywords: reactive plasma spray; feedstock additives; aluminum nitride coating; zinc-blend cubic-AlN reactive plasma spray; feedstock additives; aluminum nitride coating; zinc-blend cubic-AlN
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
MDPI and ACS Style

Shahien, M.; Yamada, M.; Yasui, T.; Fukumoto, M. In Situ Fabrication of AlN Coating by Reactive Plasma Spraying of Al/AlN Powder. Coatings 2011, 1, 88-107.
