Nanomaterials 2017, 7(10), 289; doi:10.3390/nano7100289

Article
Tuning the Electronic Conductivity in Hydrothermally Grown Rutile TiO2 Nanowires: Effect of Heat Treatment in Different Environments
Alena Folger 1, Julian Kalb 2, Lukas Schmidt-Mende 2Orcid and Christina Scheu 1,3,*
1
Max-Planck-Institut für Eisenforschung GmbH, Max-Planck-Str. 1, 40237 Düsseldorf, Germany
2
Department of Physics, University of Konstanz, POB 680, 78457 Konstanz, Germany
3
Materials Analytics, RWTH Aachen University, Kopernikusstr. 10, 52074 Aachen, Germany
*
Correspondence: Tel.: +49-211-6792-720
Received: 28 August 2017 / Accepted: 19 September 2017 / Published: 23 September 2017

Abstract

:
Hydrothermally grown rutile TiO2 nanowires are intrinsically full of lattice defects, especially oxygen vacancies. These vacancies have a significant influence on the structural and electronic properties of the nanowires. In this study, we report a post-growth heat treatment in different environments that allows control of the distribution of these defects inside the nanowire, and thus gives direct access to tuning of the properties of rutile TiO2 nanowires. A detailed transmission electron microscopy study is used to analyze the structural changes inside the nanowires which are correlated to the measured optical and electrical properties. The highly defective as-grown nanowire arrays have a white appearance and show typical semiconducting properties with n-type conductivity, which is related to the high density of oxygen vacancies. Heat treatment in air atmosphere leads to a vacancy condensation and results in nanowires which possess insulating properties, whereas heat treatment in N2 atmosphere leads to nanowire arrays that appear black and show almost metal-like conductivity. We link this high conductivity to a TiO2−x shell which forms during the annealing process due to the slightly reducing N2 environment.
Keywords:
black TiO2; nanowire; conductivity; electron energy loss spectroscopy; oxygen vacancy; defects

1. Introduction

Nanostructured titanium dioxide (TiO2) is a promising material in the field of energy conversion and storage [1]. In most TiO2 applications, the efficiency of the device is determined by three consecutive processes: light absorption, charge separation, and electron transport. Although TiO2 is widely used for energy applications, the efficiency of bare TiO2 is limited by a wide band gap of around 3 eV [2] and a relatively low electron conductivity [3,4]. To overcome these limitations, defect engineering can be used to optimize the optical band gap and the electrical properties. In combination with an optimized geometry, which can be derived from theoretical calculations [5], defect engineering enables the fabrication of highly active devices.
Defects can be introduced in TiO2 by metal [6] and nonmetal [7,8] impurities or dopants. However, this approach has the drawback that the dopants, especially d-block transition metals, also act as recombination centers for the generated electron hole pairs [9], which in turn lowers the efficiency of the device. Other approaches to produce defective TiO2 without doping are mediated by the incorporation of Ti3+ and oxygen vacancies (Ovac) via reduction [10,11,12], which might introduce surface disorder in addition [13,14,15]. Most approaches use hydrogen environment and elevated temperatures [14,16,17] or a hydrogen plasma [18,19] to produce defective TiO2. Similar types of defective TiO2 can be obtained if active metals, such as Zn [10,20], Al [21], or Mg [22], are used as a reductant. However, these harsh reductive conditions are not mandatory to obtain defective TiO2. Instead, black TiO2 nanoparticles with surface disorder can be obtained by annealing amorphous nanoparticles in Ar gas [13]. Concededly, there are no reports which show that crystalline TiO2, e.g., rutile TiO2 nanowires (NWs), can be reduced in an oxygen-deficient atmosphere, such as vacuum, Ar, or N2.
The effect of defect engineering on the optical band gap and the apparent color, which can be tuned from yellow over blue to black, has been studied extensively [16,23,24]. Apart from that, reports about how structural changes, such as the introduction of Ovac or surface disorder, influence the electrical properties are rare. So far, Nowotny and co-workers studied the influence of defect disorder on the semiconducting properties of rutile TiO2 and found a strong effect on the electrical properties [25,26,27]. Especially, a high amount of Ovac, which is intrinsically found in rutile TiO2, leads to strong n-type characteristics. In addition, the influence of Ovac on the conducting properties of TiO2 NWs was evaluated by intensity-modulated photocurrent spectroscopy. For oxygen-deficient NWs, two electron-transport modes, a trap-free mode in the core and a trap-limited mode near the surface, were detected [28]. Recently, Lü et al. [29] investigated the effect of the surface disorder on the electrical properties. On a 40 nm thick bilayer structure of crystalline anatase (≈20 nm) and amorphous TiO2 (20 nm), which serves as a model system, they found a metallic conductivity at the interface between the crystalline and the amorphous part. These results give a first hint on the electrical properties of the defective, black TiO2. Admittedly, in this model system the amorphous layer does not represent the surface disorder found in black TiO2 adequately. It is much thicker and does not show any ordering phenomena [29].
In this work, we present how the electrical properties of TiO2 NW arrays, incorporating rutile TiO2 NWs with different defect states, can be changed. A detailed analysis of the nanostructure and the local chemical environment of three differently treated NW arrays, in combination with our results from ultraviolet-visible (UV–Vis) and current-voltage (IV) measurements, leads to a better understanding of the underlying mechanism that are responsible for the electronic properties of defective TiO2. The results show how TiO2 NWs, which are intrinsically n-type semiconductors in the as-grown state, can be converted to almost insulating TiO2 NWs or NWs with a metal-like conductivity simply by using an appropriate atmosphere for the post-growth annealing.

2. Results

2.1. (Internal) Nanostructure and Local Chemical Environment

Scanning electron microscopy (SEM) investigations (Figure 1) reveal that the NW arrays of the three samples consist of NWs which grow almost perpendicular to the fluorine tin oxide (FTO) substrate and are of similar size (diameter of as-grown: 164 ± 31 nm, annealed in air: 172 ± 16 nm, annealed in N2: 157 ± 28 nm). The high magnification SEM images in the insets of Figure 1 disclose slight morphological changes at the tip of the NWs. The as-grown NWs (Figure 1a) possess a rough tip, which is built by a bundle of nanofibers, as shown before by Wisnet et al. [30]. This structure is removed for the NWs annealed in air (Figure 1b), which have a much smoother surface. The tip of the NWs annealed in N2 looks like an intermediate state between the as-grown NWs and the NWs annealed in air, although it was annealed at the same temperature for the same time. For the NWs annealed in N2, the nanofiber bundle is still visible at the tip (Figure 1c), but not as prevalent as in the as-grown NWs.
The high-angle annular dark-field scanning transmission electron microscopy ((S)TEM) images in Figure 2, all taken from the central part of appropriate NWs, show more significant changes inside the NWs due to the annealing. While the as-grown NW is built by a bundle of nanofibers, as indicated from the SEM image, the annealed NWs are a single-crystalline material, which is interspersed with voids [31,32]. Nevertheless, SEM showed that even for the annealed NWs there are still residuals of the former nanofiber bundle at the tip (Figure 1b,c). The NW annealed in air does not show any further changes besides the voids, whereas the NW annealed in N2 has internal voids and in addition a distinct core-shell like structure with an approximately 10 nm thick shell. A similar shell can be detected for as-grown NWs and NWs annealed in air but it is only 1–3 nm thick. Although the nanostructures of the three NWs differ, no changes in crystallography can be detected. The diffraction patterns in the insets of Figure 2 correspond to rutile TiO2 acquired in the [ 1 1 ¯ 0 ] zone axis and deviate only by the streaking in the diffraction peaks in [110] direction, which is visible for the as-grown NW. This streaking arises from the nanofiber bundle and the high defect density in the as-grown NW [30]. Thus, neither the heat treatment in air nor in N2 leads to a phase transformation.
Despite the changes in the nanostructure, there are also differences in the local chemical environment of the three different NWs close to the surface. Figure 3a–c shows electron energy-loss (EEL) spectra of the Ti-L2,3 edge with different distances to the surface. Close to the surface (yellow lines), the Ti-L2,3 edge is shifted to lower energies by around 1 eV and the energy loss near edge fine structure (ELNES) shows that the splitting of the L2 and L3 peaks into a doublet is not resolved. This t2g-eg splitting is typical for rutile TiO2 and results from a distorted octahedral surrounding of Ti by oxygen ions [33], but cannot be detected for Ti close to the surface. Instead, the Ti-L2,3-edge is formed by broad peaks. Depending on the heat treatment, the typical ELNES of rutile TiO2 occurs closer or more far away from the surface. For the NWs annealed in air, the ELNES shows the typical shape of rutile TiO2 with a pronounced t2g-eg splitting after moving 1.8 nm towards the center (orange line in Figure 3b). For the as-grown NW, the broad L2 and L3 peaks in the ELNES are observed in the first 2.9 nm of the surface region (red line in Figure 3b). The NW annealed in N2 has the largest region (up to 4.8 nm, dark red line in Figure 3c), where one can find an ELNES without pronounced t2g-eg splitting. Moving farer away from the surface, the ELNES of the as-grown NW and the NW annealed in air does not change anymore, but for the NW annealed in N2 one can see that 10.4 nm away from the surface (light cyan line in Figure 3c), the ELNES changes again. Following the method described by Stroyanov et al. [34], the Ti-L2,3 edge is used to calculate the amount of Ti4+ relative to the total amount of Ti, which is mainly a sum of Ti4+ and Ti3+. Figure 3d–f are overlays of the resulting Ti4+ gradients with a STEM image of the analyzed NW area. The shift of the Ti-L2,3 edge towards lower energies close to the surface is related to a lower amount of Ti4+ in this area. Thus, close to the surface, the NWs are not fully oxidized. Inside the NW, the as-grown NW and the NW annealed in air have a constant amount of Ti4+ of around 80%. For the NW annealed in N2, the changes of the ELNES around 10.4 nm are also linked to a lower amount of Ti4+ and the overlay in Figure 3f shows that this decrease of Ti4+ is closely related to the core-shell interface. The lack of Ti4+ results in an off-stoichiometric TiO2−x. In the following, the shell material will be denoted as TiO2−x to account for the high oxygen deficiency.
To study the core-shell structure in more detail, Figure 4a shows a high resolution (HR) TEM image of a NW annealed in N2. This NW has a comparable thick shell to facilitate the analysis. One can see that the NW consists not only of a core and a shell, but of four distinctive areas. The rutile TiO2 core and the crystalline TiO2−x shell are separated by a defective interface area and the shell is covered with a disordered surface layer. Around 80% of the NW volume can be assigned to the core, which is rutile. The shell is also crystalline and covers around 20% of the NW volume. The high resolution annular bright-field STEM image in Figure 4b shows no differences in the crystal structure of the rutile core and the shell, except a small change in the d-spacing between {110} planes (core: d110 = 3.33 Å, shell: d110 = 3.29 Å). Although the electron energy-loss spectroscopy (EELS) analysis shows that the shell consists of off-stoichiometric TiO2−x, no inhomogeneity in the oxygen distribution can be detected in the annular bright field STEM image (Figure 4b). Thus, an ordering of a significant amount of Ovac in this part of the NW is unlikely, as it would lead to periodic changes in the atomic columns, which should be visible in annular bright-field STEM. However, in all imaging conditions, this shell appears in a different contrast compared to the core. In the shell area, a sample thickness of 110 nm is derived using the low-loss EEL spectrum and assuming an inelastic mean free path of 276 nm for rutile TiO2 [35]. Considering an error of around 10% for the thickness determination by EELS [36], this thickness estimation is in good agreement with the total thickness of the analyzed NW, which is also shown in Figure 2c (around 100 nm). Thus, the changes in contrast cannot be related to a thickness effect but might be related to a change in the density of the material. The contrast changes might also be affected by the incorporation of nitrogen, but EELS measurements in the shell area show no incorporation of nitrogen within our detection limits of ≈1 at%. It is noteworthy that this observation cannot be confirmed by methods other than EELS with high lateral resolution because the nitrogen and the titanium signal overlap in other spectroscopic techniques, such as Auger and wavelength dispersive X-ray spectroscopy. The defective area, which can be seen in the HR TEM image of Figure 4a between the TiO2 core and the TiO2−x shell is around 1.9 ± 0.3 nm thick. The disordered surface layer of the NW has a thickness of 2.2 ± 0.3 nm and is not completely amorphous, but shows some periodicity perpendicular to the [001] direction. Figure 4c is an intensity profile of Figure 4a in the first 4 nm next to the vacuum and perpendicular to the NW surface. This profile shows two periodic areas, but with different periodicity. The periodicity of the TiO2−x shell corresponds to the lattice spacing of {110} planes in rutile TiO2. Closer to the vacuum, there is a second material, which is also periodic to a certain extent, but the related lattice distances are much bigger (≈5 Å). This in-plane ordering in an amorphous phase is due to the underlying substrate periodicity and has been observed for other systems as well [37].

2.2. Optical and Electrical Properties

The changes in the internal nanostructure, which are induced by annealing in different environments, influence the optical properties of the NWs. While the NW arrays incorporating as-grown NWs or NWs annealed in air appear white, the NW arrays annealed in N2 are black. This color change indicates more light absorption in the visible range for the NWs annealed in N2. Figure 5a shows Tauc plots for direct allowed band gap transitions of the three different NW arrays. The as-grown NWs have a band gap of 2.98 ± 0.06 eV, which is in good agreement with previous measurements [32]. The band gap of NWs annealed in air is significantly reduced to 2.59 ± 0.04 eV, but for the NWs annealed in N2, the obtained direct band gap is again 2.96 ± 0.03 eV. In addition, there is an indirect transition for the NWs annealed in N2 with an indirect band gap of around 2.57 ± 0.02 eV (inset in Figure 5a). In contrast, no strong indirect transition can be detected for the as-grown NWs and the NWs annealed in air. Absorption spectra allow not only the determination of the band gap but are also suitable to measure the so-called Urbach energy, which is a measure of the disorder in materials and leads to additional states within the band gap [38]. The Urbach energy of the as-grown NWs and the NWs annealed in air and in N2 is 0.61 ± 0.01 eV, 0.55 ± 0.01 eV, and 1.65 ± 0.01 eV, respectively. Since UV–Vis can only probe the band gap on a large scale and as the results might be influenced by the periodicity of the NW array, and the resulting interference effects, additional band gap measurements were performed using EELS. Figure 5b shows the corresponding zero-loss subtracted low-loss EEL spectra of the different NWs. The band gap values derived from the EELS measurements (as-grown: 2.93 ± 0.12 eV, annealed in air 2.41 ± 0.06 eV, annealed in N2 2.66 ± 0.14 eV) are in good agreement with the values obtained by UV-Vis, considering the indirect transition for the NW annealed in N2.
Besides the optical properties of the NWs, the electronic properties are affected by the heat treatments. Figure 6a shows the IV-characteristics of the as-grown NWs, the NWs annealed in air, and the NWs annealed in N2. Significant differences in the electronic properties of the three devices regarding the conduction limiting mechanisms can be observed.
The as-grown NWs block the transient current for electrical fields between 0 and 12 kV/cm (petrol line, Figure 6a). At higher electrical fields, the transient current is increasing exponentially and is hence affected by Schottky emission (petrol line, Figure 6b). For an increasing negative bias, the IV-characteristic turns quickly from an exponential increase into an increase that is proportional to the squared electric field arising from a space-charge-limited current (Figure 6d) [39]. Thus, the Schottky barrier at the PtIr/TiO2 interface is smaller than the one at the FTO/TiO2 interface.
TiO2 NWs annealed in air block the transient current for electrical fields between −25 kV/cm and at least 100 kV/cm (red line, Figure 6a,b), which corresponds to the highest applicable bias in the employed setup. The IV-characteristics of the PtIr/TiO2 interface become completely exponential and hence the transient current is limited by a Schottky emission across the whole measured bias range (red line, Figure 6b) [39].
In contrast, the transient current of the NWs annealed in N2 is not blocked at any bias, which indicates an almost complete vanishing of both Schottky barriers (green line, Figure 6b). Only at very low, negative fields up to roughly −2 kV/cm, we found a Fowler–Nordheim tunneling behavior for the electrons passing from the PtIr tip to the TiO2 NW (Figure 6c). For larger field amplitudes, the transient current becomes linear, showing a relatively large ohmic resistance (green line, Figure 6a). However, the slope and thus the absolute ohmic resistance depends on the applied voltage.

3. Discussion

Our results show that different heat treatments change the nanostructure and the properties of hydrothermally grown rutile TiO2 NWs significantly. In the following, the interaction of the structural changes on the properties will be discussed.
As-grown NWs are intensively studied and used in many application and thus serve as a reference in this work. The detailed electron microscopic analysis showed that these NWs are rutile TiO2, but contrary to many reports [40], they are not single-crystalline [30,32]. Instead, they show a meso-crystalline structure that is built by a bundle of nanofibers and incorporate many crystal defects [30], especially a high amount of Ovac [32]. The optical band gap of around 3 eV is in accordance with literature values for rutile TiO2 [2], but the Urbach energy of 0.61 eV is much larger than reported for single-crystalline rutile TiO2 nanoparticles [41], and can be assigned to the high defect disorder of the Ovac and other structural defects. In addition, the Ovac influences the electronic properties, as they are prominent electron donors that tune TiO2 into an n-type semiconductor [42,43,44]. The Ovac in as-grown TiO2 NWs have two effects on the electronic properties. In the first instance, the local donor density moves the Fermi level upward, closer to the conduction band minimum. As a consequence, the summit of the Schottky barrier between the metallic cathode and the TiO2 drops with increasing electron donor density close to the interface. In addition, an increased number of Ovac lowers the resistivity of TiO2 by increasing the number of mobile electrons in the conduction band [45,46] and thus the as-grown rutile TiO2 NWs show n-type conductivity.
As shown in a previous study, TiO2 NWs annealed in air have a significantly reduced density of Ovac in the crystal structure, as vacancy condensation takes place during the heat treatment [32]. The NWs are single-crystalline and the rutile crystal structure of the NWs annealed in air is almost Ovac free. In addition, the vacancies close to the NW surface are vanished due to the oxygen atmosphere during the heat treatment, resulting in NWs that have only a 1.8 nm thick surface layer, which deviates from the perfect rutile TiO2 environment, as shown by changes in the ELNES. These changes during the heat treatment influence the optical and electronic properties of the NW array, as both the amount of trap states and electron donors incorporated in the crystal structure are significantly reduced. This deduction is verified by the UV-Vis measurements, which show that the band gap as well as the Urbach energy shrink. The reduced band gap can be assigned to less Ovac in the crystalline rutile TiO2 [47] and a high Ti3+ concentration in the defective area surrounding each void [32]. It is noteworthy that these NWs appear white although the band gap indicates absorption in the visible blue regime. This effect is related to a strong light scattering, which is caused by the high refractive index of TiO2 [48]. Furthermore, a reduced Urbach energy indicates less disorder. However, Urbach energy is still higher than expected for a single-crystalline rutile nanoparticle [41]. This deviation results from the 1.8 nm thick surface layer covering the NWs and a defective, Ti3+ rich area surrounding each void [32]. Concurrently, the transient current is blocked over a broad range of electrical fields. Only for highly negative electrical fields a Schottky emission-limited current can be detected. These results are in good accordance with the discussion above. As the density of Ovac is significantly reduced in the rutile crystal structure of NWs annealed in air, the Schottky barrier heights and the bulk resistance are expected to increase. Nevertheless, at high negative electrical fields the Schottky barrier can still be passed. We assume a constant work function for the PtIr tip and the FTO substrate for all experiments, so the Schottky barrier is mainly influenced by the Fermi level of the TiO2 NWs. Structural inhomogeneity at the TiO2 NW tip surface might influence the Schottky barrier, but SEM analysis showed that the surface of the NWs annealed in air is the smoothest, so we assume only a minor contribution of surface inhomogeneity on the height of the Schottky barrier.
Annealing in N2 changes the distribution of Ovac as well. According to the TEM results presented in this work, the NWs annealed in N2 have a complex core-shell structure. From these results, it is reasonable to assume that the defect density in the core, which is riddled by voids, is similar to the defect density of the NWs annealed in air. Consequently, the electronic properties of the core, possessing a low defect density, are similar to the electronic properties of NWs annealed in air. However, the IV-characteristics measured for the NWs annealed in N2 differ strongly from those, measured for the NWs annealed in air. Thus, the core of the NW annealed in N2 has no significant influence on the conductivity in these NWs. The Fowler–Nordheim tunneling behavior that occurs at low electrical fields is supposed to be a result of a disordered surface layer (Figure 4a,c) covering the metal-like TiO2−x shell. For strong electric fields, the influence of this ultra-thin layer is negligible. Without this metallization, the Schottky barrier is much thicker and Schottky emission, as observed for the as-grown NWs, instead of tunneling dominates. The metal-like behavior of the shell is in good agreement with the black color of the NW array, as absorption throughout the entire spectral range is common for metals. Several observations indicate that the metallization takes place in a confined volume. Firstly, the optical measurements are still dominated by the properties known for white TiO2. It is known that the transmittance of light of thin metal films drops below 20% for films being thicker than about 10–20 nm [49]. As our NW arrays show a high transmittance, it is reasonable to assume that the metallic part in the NWs annealed in N2 does not exceed 20 nm. In addition, the ohmic resistance measured for these NWs is relatively large. Such large ohmic resistances stem from the tiny cross-sections of the highly conductive part of the NWs annealed in N2. According to the TEM and EELS results, NWs annealed in N2 are covered by a TiO2−x shell that contains a very high amount of Ovac, as the vacancies cannot be removed at the surface due to the slightly reducing environment of the N2 atmosphere. Although an incorporation of N cannot be ruled out completely due to the EELS detection limit of around 1%, we assume no influence of a potential N doping (which would be below 1 at% of N) on the electrical properties. This assumption is based on the fact that changes in the electronic properties for TiO2−2xNx were only detected for N incorporation higher than 5 at% N [50]. Such high concentrations can be excluded due to the absence of an N K-edge in the EEL spectra throughout the NW, although it is not possible to confirm this result with other methods due to signal overlap. Nevertheless, even undoped but strongly reduced TiO2−x, as found in the shell of the NW annealed in N2, is highly conductive [26,44]. Hence, it is reasonable to assume that the TiO2−x shell is responsible for the unusual properties of these NWs, but due to the small dimensions it is difficult to localize the origin of these effects within the shell. According to the TEM results, the shell can be divided in three parts, namely the disordered surface layer (2.2 nm), the crystalline TiO2−x shell (8–20 nm) and a defective interfacial area between the TiO2−x shell and the TiO2 core (1.9 nm). The high Urbach energy measured for these NWs originates from the high degree of disorder in the surface layer. Similar surface layers were found in various black TiO2 nanomaterials and seem to be the origin of the black color [16]. This change in color is mainly related to the presence of a big Urbach tail at the upper part of the valence band [16]. These results are in good accordance with the high Urbach energy which was measured for NWs annealed in N2. The metallization and the high transient current might result from the entire shell but there are some indications that it is confined on the defective interface between the TiO2−x shell and the TiO2 core. The EELS analysis showed a higher concentration of Ti3+ at this interface, which might arise from a great amount of Ovac confined at this interface. Both are electron donor type defects and can lead to high conductivity. Lü et al. found a similar conducting interface at the homojunction of a bilayer thin film. This homojunction is formed between an oxygen-deficient, amorphous TiO2−x layer with around 20 nm thickness and a comparable thick layer of anatase TiO2 [29]. Our experimental setup does not allow direct proof of this assumption, but the results obtained in this study give evidence that not the entire shell, but a conductive interface might be responsible for the highly conducting properties of the black NWs annealed in N2. In addition, there is a certain hysteresis of the IV characteristics, which indicates that the Ovac are able to drift through the TiO2−x shell. This effect is well known from resistive switching [51,52,53] and might be the reason why the Ovac cannot be detected by annular bright field STEM. Due to the high mobility of the Ovac, their density at the PtIr/TiO2 and FTO/TiO2 interfaces differ slightly, resulting in the observed asymmetry of the IV characteristics for positive and negative applied bias.

4. Materials and Methods

4.1. Synthesis Procedure

TiO2 NW arrays were synthesized by a hydrothermal procedure adapted from Liu et al. [40]. All chemicals were used as supplied without further purification. In a typical synthesis, 250 μL titanium butoxide (Ti(nOBu)4), Sigma-Aldrich, St. Louis, MI, USA) was dropped into a mixture of 5 mL concentrated hydrochloric acid (37 wt%, analytical grade, Sigma-Aldrich) and 5 mL deionized water under vigorous stirring. Ultrasonically cleaned (isopropyl alcohol, acetone, ethanol) FTO substrates were placed vertically in a Teflon liner, which was filled with the growth solution and placed into a steel autoclave. The hydrothermal reaction was performed at 150 °C for 4.5 h. Afterwards, the autoclave was cooled down to room temperature. The FTO substrates, covered with TiO2 NW arrays, were rinsed with deionized water and dried with compressed air. Heat treatment of the samples was performed at 500 °C (50 °C/min ramp up to 500 °C) on an Anton Paar DHS 1100 (Anton Paar, Graz, Austria) heating stage. For the TiO2 NWs annealed in N2, a constant N2 atmosphere of 1.35 bar was applied during the experiment, whereas the other sample was annealed in air.

4.2. Characterization

SEM analysis: The morphology of the NW arrays in top-view was investigated using a Zeiss AURIGA Modular CrossBeam workstation (Zeiss, Oberkochen, Germany) equipped with an in-lens detector. All measurements were carried out at 4 kV.
TEM analysis: TEM was applied for the morphological and crystallographic analysis. The TiO2 nanowires were scraped off the FTO substrate and the resulting powder was dispersed on a copper grid with a holy carbon film. A Philipps CM20 (FEI, Hillsboro, OR, USA) and a Jeol JEM-2200FS field emission gun instrument (Jeol, Akishima, Japan), both operated at 200 kV, were used for conventional bright field TEM, selected area electron diffraction, and HR TEM.
STEM images and EELS data were acquired at 300 kV with a FEI Titan Themis 60–300 (FEI, Hillsboro, OR, USA) equipped with a high brightness field emission (XFEG™) source, a monochromator, an aberration-corrector for the probe-forming lens system, a BRUKER EDS Super X detector, and a high-resolution energy filter (post-column Quantum ERS energy filter). EEL spectra were acquired in STEM mode with a dispersion of 0.1 eV per channel. To measure the band gap on a local scale, low-loss spectra in monochromated STEM mode were acquired with a dispersion of 0.01 eV. An energy resolution of 0.3 eV, as determined by the full-width at half maximum of the zero-loss peak, was obtained. Using a power-law fit, the tail of the zero-loss peak was removed and the band gap was extracted according to the linear fit method [54]. For all EELS measurements, the convergence semi angle was 23.8 mrad and the collection semi-angle was 35 mrad. All EELS data were taken using the dual-channel acquisition technique [55] and the spectra were corrected for dark current and channel-to-channel gain variation [56]. The background was removed using a standard power law fit [56].
EEL spectra of the Ti-L2,3 edge were used to determine the Ti3+/Ti4+ ratio with high lateral resolution. Therefore, a calibration technique of Stoyanov et al. [34]. was used. It is based on the position and intensities of the Ti L2 and L3 white lines.
UV-Vis spectroscopy: A PerkinElmer Lambda 800 spectrometer (PerkinElmer, Waltham, MA, USA) in transmission mode was utilized to measure the absorption spectra in a wavelength range of 350–850 nm. The step size was 1 nm. The detected UV–Vis data were used to determine direct and indirect band gaps using Tauc plots [57] and to calculate the Urbach energy [38] of the different samples.
IV characteristics: Qualitative information about the electronic properties of the investigated TiO2 NWs was obtained by IV-measurements. A platinum-iridium (PtIr) (4:1) tip served as a top electrode. The IV-characteristics of the transient current through the PtIr/TiO2/FTO sandwich were determined. The tip was taken because typical deposition techniques used for flat metal electrodes would infiltrate the interspace between the NWs and cause shorts. The tip was placed manually and softly on the NW array and pushed by its own weight (0.1 g) on a bunch of NWs during the measurement. The bottom contact was established by removing the NWs using a diamond writer and connecting the uncovered FTO with a thin insulated copper wire and a drop of silver paste. The sample holder was transferred into a vacuum chamber, where the humid air was replaced by dry nitrogen during several pumping and purging steps. A Keithley 2401 (Ketihly Instruments, Cleveland, OH, USA) was used as a voltage source and to measure the transient current. In the presented graphic, a positive electric field is pointing from the PtIr tip towards the FTO and the IV-curves were obtained by changing the field from negative to positive values.

5. Conclusions

In this study, we propose heat treatments in different environments in order to manipulate the structure of hydrothermally grown rutile TiO2 NWs in such a way that their optical and electrical properties can be tailored. The as-grown NWs incorporate a high amount of defects, especially Ovac, which are responsible for the n-type conductivity in these NWs. Independent of the environment, the heat treatment leads to a condensation of these vacancies and to the formation of single-crystalline, lattice defect free, rutile TiO2 NWs that incorporate voids. The absence of Ovac results in a blocking of the transient current and concurrently improves the optical properties by decreasing the band gap and Urbach energy. For an oxidizing environment, such as air, the resulting NWs are almost insulating. Although NWs annealed in N2 contain up to around 80% of an insulating rutile TiO2 core, their properties are completely different. They possess a black color and an almost metal-like conductivity. These properties are related to the slightly reducing atmosphere of N2 during the heat treatment. It inhibits the vanishing of the surface-near Ovac and thus a core-shell structure with a highly oxygen deficient shell is formed.

Acknowledgments

This work was funded by the German Research Foundation (DFG). The authors thank Christian Liebscher and Siyuan Zhang for their help during EELS band gap measurements and Benjamin Breitbach for performing the heating at the Anton Paar Heating device.

Author Contributions

Alena Folger, Julian Kalb, Lukas Schmidt-Mende and Christina Scheu conceived and designed the experiments; Alena Folger did the synthesis and performed the SEM, TEM, and UV measurements and Julian Kalb performed the IV measurements; Alena Folger and Julian Kalb analyzed the data of the respective experiments; Alena Folger, Julian Kalb, Lukas Schmidt-Mende, and Christina Scheu interpreted and discussed the data, Alena Folger wrote the paper with contributions from Julian Kalb, all authors have given approval to the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Weng, Z.; Guo, H.; Liu, X.; Wu, S.; Yeung, K.W.K.; Chu, P.K. Nanostructured TiO2 for energy conversion and storage. RSC Adv. 2013, 3, 24758. [Google Scholar] [CrossRef]
  2. Scanlon, D.O.; Dunnill, C.W.; Buckeridge, J.; Shevlin, S.A.; Logsdail, A.J.; Woodley, S.M.; Catlow, C.R.A.; Powell, M.J.; Palgrave, R.G.; Parkin, I.P.; et al. Band alignment of rutile and anatase TiO2. Nat. Mater. 2013, 12, 798–801. [Google Scholar] [CrossRef] [PubMed]
  3. Yukio, K.; Ryozo, A.; Kichinosuke, Y. Electrical properties of rutile (TiO2) thin film. Jpn. J. Appl. Phys. 1971, 10, 976. [Google Scholar]
  4. Tang, H.; Prasad, K.; Sanjinès, R.; Schmid, P.E.; Lévy, F. Electrical and optical properties of TiO2 anatase thin films. J. Appl. Phys. 1994, 75, 2042–2047. [Google Scholar] [CrossRef]
  5. Liu, B.; Nakata, K.; Liu, S.; Sakai, M.; Ochiai, T.; Murakami, T.; Takagi, K.; Fujishima, A. Theoretical kinetic analysis of heterogeneous photocatalysis by TiO2 nanotube arrays: The effects of nanotube geometry on photocatalytic activity. J. Phys. Chem. C 2012, 116, 7471–7479. [Google Scholar] [CrossRef]
  6. Liu, B.; Chen, H.M.; Liu, C.; Andrews, S.C.; Hahn, C.; Yang, P. Large-scale synthesis of transition-metal-doped TiO2 nanowires with controllable overpotential. J. Am. Chem. Soc. 2013, 135, 9995–9998. [Google Scholar] [CrossRef] [PubMed]
  7. Ansari, S.A.; Khan, M.M.; Ansari, M.O.; Cho, M.H. Nitrogen-doped titanium dioxide (n-doped TiO2) for visible light photocatalysis. New J. Chem. 2016, 40, 3000–3009. [Google Scholar] [CrossRef]
  8. Lin, T.; Yang, C.; Wang, Z.; Yin, H.; Lü, X.; Huang, F.; Lin, J.; Xie, X.; Jiang, M. Effective nonmetal incorporation in black titania with enhanced solar energy utilization. Energy Environ. Sci. 2014, 7, 967. [Google Scholar] [CrossRef]
  9. Choi, W.; Termin, A.; Hoffmann, M.R. The role of metal ion dopants in quantum-sized TiO2: Correlation between photoreactivity and charge carrier recombination dynamics. J. Phys. Chem. 1994, 98, 13669–13679. [Google Scholar] [CrossRef]
  10. Zheng, Z.; Huang, B.; Meng, X.; Wang, J.; Wang, S.; Lou, Z.; Wang, Z.; Qin, X.; Zhang, X.; Dai, Y. Metallic zinc-assisted synthesis of Ti3+ self-doped TiO2 with tunable phase composition and visible-light photocatalytic activity. Chem. Commun. 2013, 49, 868–870. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, X.; Bi, Y. In situ preparation of oxygen-deficient TiO2 microspheres with modified {001} facets for enhanced photocatalytic activity. RSC Adv. 2017, 7, 9902–9907. [Google Scholar] [CrossRef]
  12. Ullattil, S.G.; Periyat, P. A ‘one pot’ gel combustion strategy towards Ti3+ self-doped ‘black’ anatase TiO2−x solar photocatalyst. J. Mater. Chem. A 2016, 4, 5854–5858. [Google Scholar] [CrossRef]
  13. Tian, M.; Mahjouri-Samani, M.; Eres, G.; Sachan, R.; Yoon, M.; Chisholm, M.F.; Wang, K.; Puretzky, A.A.; Rouleau, C.M.; Geohegan, D.B.; et al. Structure and formation mechanism of black TiO2 nanoparticles. ACS Nano 2015, 9, 10482–10488. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, X.; Liu, L.; Yu, P.Y.; Mao, S.S. Increasing solar absorption for photocatalysis with black hydrogenated titanium dioxide nanocrystals. Science 2011, 331, 746–750. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, X.; Liu, L.; Liu, Z.; Marcus, M.A.; Wang, W.C.; Oyler, N.A.; Grass, M.E.; Mao, B.; Glans, P.A.; Yu, P.Y.; et al. Properties of disorder-engineered black titanium dioxide nanoparticles through hydrogenation. Sci. Rep. 2013, 3, 1510. [Google Scholar] [CrossRef] [PubMed]
  16. Naldoni, A.; Allieta, M.; Santangelo, S.; Marelli, M.; Fabbri, F.; Cappelli, S.; Bianchi, C.L.; Psaro, R.; Dal Santo, V. Effect of nature and location of defects on bandgap narrowing in black TiO2 nanoparticles. J. Am. Chem. Soc. 2012, 134, 7600–7603. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, N.; Schneider, C.; Freitag, D.; Hartmann, M.; Venkatesan, U.; Muller, J.; Spiecker, E.; Schmuki, P. Black TiO2 nanotubes: Cocatalyst-free open-circuit hydrogen generation. Nano Lett. 2014, 14, 3309–3313. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, Z.; Yang, C.; Lin, T.; Yin, H.; Chen, P.; Wan, D.; Xu, F.; Huang, F.; Lin, J.; Xie, X.; et al. H-doped black titania with very high solar absorption and excellent photocatalysis enhanced by localized surface plasmon resonance. Adv. Funct. Mater. 2013, 23, 5444–5450. [Google Scholar] [CrossRef]
  19. Lepcha, A.; Maccato, C.; Mettenbörger, A.; Andreu, T.; Mayrhofer, L.; Walter, M.; Olthof, S.; Ruoko, T.P.; Klein, A.; Moseler, M.; et al. Electrospun black titania nanofibers: Influence of hydrogen plasma-induced disorder on the electronic structure and photoelectrochemical performance. J. Phys. Chem. C 2015, 119, 18835–18842. [Google Scholar] [CrossRef]
  20. Zhao, Z.; Tan, H.; Zhao, H.; Lv, Y.; Zhou, L.J.; Song, Y.; Sun, Z. Reduced TiO2 rutile nanorods with well-defined facets and their visible-light photocatalytic activity. Chem. Commun. 2014, 50, 2755–2757. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, Z.; Yang, C.; Lin, T.; Yin, H.; Chen, P.; Wan, D.; Xu, F.; Huang, F.; Lin, J.; Xie, X.; et al. Visible-light photocatalytic, solar thermal and photoelectrochemical properties of aluminium-reduced black titania. Energy Environ. Sci. 2013, 6, 3007. [Google Scholar] [CrossRef]
  22. Sinhamahapatra, A.; Jeon, J.-P.; Yu, J.-S. A new approach to prepare highly active and stable black titania for visible light-assisted hydrogen production. Energy Environ. Sci. 2015, 8, 3539–3544. [Google Scholar] [CrossRef]
  23. Das, T.K.; Ilaiyaraja, P.; Mocherla, P.S.V.; Bhalerao, G.M.; Sudakar, C. Influence of surface disorder, oxygen defects and bandgap in TiO2 nanostructures on the photovoltaic properties of dye sensitized solar cells. Sol. Energy Mater. Sol. Cells 2016, 144, 194–209. [Google Scholar] [CrossRef]
  24. Shah, M.W.; Zhu, Y.; Fan, X.; Zhao, J.; Li, Y.; Asim, S.; Wang, C. Facile synthesis of defective TiO2−x nanocrystals with high surface area and tailoring bandgap for visible-light photocatalysis. Sci. Rep. 2015, 5. [Google Scholar] [CrossRef]
  25. Nowotny, M.K.; Sheppard, L.R.; Bak, T.; Nowotny, J. Defect chemistry of titanium dioxide. Application of defect engineering in processing of TiO2-based photocatalysts. J. Phys. Chem. C 2008, 112, 5275–5300. [Google Scholar] [CrossRef]
  26. Bak, T.; Bogdanoff, P.; Fiechter, S.; Nowotny, J. Defect engineering of titanium dioxide: Full defect disorder. Adv. Appl. Ceram. 2013, 111, 62–71. [Google Scholar] [CrossRef]
  27. Nowotny, J.; Bak, T.; Burg, T. Electrical properties of polycrystalline TiO2 at elevated temperatures. Electrical conductivity. Phys. Status Solidi B 2007, 244, 2037–2054. [Google Scholar] [CrossRef]
  28. Chen, H.; Wei, Z.; Yan, K.; Bai, Y.; Yang, S. Unveiling two electron-transport modes in oxygen-deficient TiO2 nanowires and their influence on photoelectrochemical operation. J. Phys. Chem. Lett. 2014, 5, 2890–2896. [Google Scholar] [CrossRef] [PubMed]
  29. Lu, X.; Chen, A.; Luo, Y.; Lu, P.; Dai, Y.; Enriquez, E.; Dowden, P.; Xu, H.; Kotula, P.G.; Azad, A.K.; et al. Conducting interface in oxide homojunction: Understanding of superior properties in black TiO2. Nano Lett. 2016, 16, 5751–5755. [Google Scholar] [CrossRef] [PubMed]
  30. Wisnet, A.; Betzler, S.B.; Zucker, R.V.; Dorman, J.A.; Wagatha, P.; Matich, S.; Okunishi, E.; Schmidt-Mende, L.; Scheu, C. Model for hydrothermal growth of rutile wires and the associated development of defect structures. Cryst. Growth Des. 2014, 14, 4658–4663. [Google Scholar] [CrossRef]
  31. Wisnet, A.; Bader, K.; Betzler, S.B.; Handloser, M.; Ehrenreich, P.; Pfadler, T.; Weickert, J.; Hartschuh, A.; Schmidt-Mende, L.; Scheu, C.; et al. Defeating loss mechanisms in 1D TiO2-based hybrid solar cells. Adv. Funct. Mater. 2015, 25, 2601–2608. [Google Scholar] [CrossRef]
  32. Folger, A.; Ebbinghaus, P.; Erbe, A.; Scheu, C. Role of vacancy condensation in the formation of voids in rutile TiO2 nanowires. ACS Appl. Mater. Interfaces 2017, 9, 13471–13479. [Google Scholar] [CrossRef] [PubMed]
  33. Brydson, R.; Sauer, H.; Engel, W.; Thomass, J.M.; Zeitler, E.; Kosugi, N.; Kuroda, H. Electron energy loss and X-ray absorption spectroscopy of rutile and anatase: A test of structural sensitivity. J. Phys. Condens. Matter 1989, 1, 797–812. [Google Scholar] [CrossRef]
  34. Stoyanov, E.; Langenhorst, F.; Steinle-Neumann, G. The effect of valence state and site geometry on Ti L3,2 and O K electron energy-loss spectra of TixOy phases. Am. Mineral. 2007, 92, 577–586. [Google Scholar] [CrossRef]
  35. Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths (IMFPs). IV. Evaluation of calculated IMFPs and of the predictive IMFP formula TPP-2 for electron energies between 50 and 2000 eV. Surf. Interface Anal. 1993, 20, 77–89. [Google Scholar] [CrossRef]
  36. Egerton, R.F.; Cheng, S.C. Measurement of local thickness by electron energy-loss spectroscopy. Ultramicroscopy 1987, 21, 231–244. [Google Scholar] [CrossRef]
  37. Oh, S.H.; Kauffmann, Y.; Scheu, C.; Kaplan, W.D.; Ruhle, M. Ordered liquid aluminum at the interface with sapphire. Science 2005, 310, 661–663. [Google Scholar] [CrossRef] [PubMed]
  38. Dow, J.D.; Redfield, D. Toward a unified theory of urbach's rule and exponential absorption edges. Phys. Rev. B 1972, 5, 594–610. [Google Scholar] [CrossRef]
  39. Chiu, F.-C. A review on conduction mechanisms in dielectric films. Adv. Mater. Sci. Eng. 2014, 2014, 1–18. [Google Scholar] [CrossRef]
  40. Liu, B.; Aydil, E.S. Growth of oriented single-crystalline rutile TiO2 nanorods on transparent conducting substrates for dye-sensitized solar cells. J. Am. Chem. Soc. 2009, 131, 3985–3990. [Google Scholar] [CrossRef] [PubMed]
  41. Choudhury, B.; Choudhury, A. Oxygen defect dependent variation of band gap, urbach energy and luminescence property of anatase, anatase—Rutile mixed phase and of rutile phases of TiO2 nanoparticles. Phys. E Low Dimens. Syst. Nanostruct. 2014, 56, 364–371. [Google Scholar] [CrossRef]
  42. Kofstad, P. Nonstoichiometry, diffusion, and electrical conductivity in binary metal oxides. Mater. Corros. Werkst. Korros. 1974, 25, 801–802. [Google Scholar]
  43. Soerensen, O.T. Nonstoichiometric Oxides; Elsevier Science: Amsterdam, The Netherlands, 2012. [Google Scholar]
  44. Nowotny, M.K.; Bak, T.; Nowotny, J. Electrical properties and defect chemistry of TiO2 single crystal. I. Electrical conductivity. J. Phys. Chem. B 2006, 110, 16270–16282. [Google Scholar] [CrossRef] [PubMed]
  45. Austin, I.G.; Mott, N.F. Metallic and nonmetallic behavior in transition metal oxides. Science 1970, 168, 71–77. [Google Scholar] [CrossRef] [PubMed]
  46. Klusek, Z.; Pierzgalski, S.; Datta, S. Insulator–metal transition on heavily reduced TiO2 (110) surface studied by high temperature-scanning tunnelling spectroscopy (HT-STS). Appl. Surf. Sci. 2004, 221, 120–128. [Google Scholar] [CrossRef]
  47. Lei, Y.; Leng, Y.; Yang, P.; Wan, G.; Huang, N. Theoretical calculation and experimental study of influence of oxygen vacancy on the electronic structure and hemocompatibility of rutile TiO2. Sci. China Ser. E Technol. Sci. 2009, 52, 2742–2748. [Google Scholar] [CrossRef]
  48. Bhatt, P.J.; Tomar, L.J.; Desai, R.K.; Chakrabarty, B.S. Pure single crystallographic form of TiO2 nanoparticles: Preparation and characterization. AIP Conf. Proc. 2015, 1667. [Google Scholar] [CrossRef]
  49. Axelevitch, A.; Gorenstein, B.; Golan, G. Investigation of optical transmission in thin metal films. Phys. Procedia 2012, 32, 1–13. [Google Scholar] [CrossRef]
  50. Koslowski, U.; Ellmer, K.; Bogdanoff, P.; Dittrich, T.; Guminskaya, T.; Tributsch, H. Structural, electrical, optical, and photoelectrochemical properties of thin titanium oxinitride films (TiO2–2xNx with 0 ≤ x ≤ 1). J. Vac. Sci. Technol. A Vac. Surf. Films 2006, 24, 2199–2205. [Google Scholar] [CrossRef]
  51. Kwon, D.H.; Kim, K.M.; Jang, J.H.; Jeon, J.M.; Lee, M.H.; Kim, G.H.; Li, X.S.; Park, G.S.; Lee, B.; Han, S.; et al. Atomic structure of conducting nanofilaments in TiO2 resistive switching memory. Nat. Nanotechnol. 2010, 5, 148–153. [Google Scholar] [CrossRef] [PubMed]
  52. Kim, K.M.; Jeong, D.S.; Hwang, C.S. Nanofilamentary resistive switching in binary oxide system: A review on the present status and outlook. Nanotechnology 2011, 22, 254002. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, F.; Gan, X.; Li, X.; Wu, L.; Gao, X.; Zheng, R.; He, Y.; Liu, X.; Yang, R. Realization of rectifying and resistive switching behaviors of TiO2 nanorod arrays for nonvolatile memory. Electrochem. Solid State Lett. 2011, 14, H422. [Google Scholar] [CrossRef]
  54. Park, J.; Heo, S.; Chung, J.; Kim, H.; Park, G.S. Bandgap measurement of dielectric thin films by using monochromated STEM-EELS. Microsc. Microanal. 2007, 13, 1306–1307. [Google Scholar] [CrossRef]
  55. Scott, J.; Thomas, P.J.; Mackenzie, M.; McFadzean, S.; Wilbrink, J.; Craven, A.J.; Nicholson, W.A. Near-simultaneous dual energy range EELS spectrum imaging. Ultramicroscopy 2008, 108, 1586–1594. [Google Scholar] [CrossRef] [PubMed]
  56. Egerton, R.F. Electron energy-loss spectroscopy in the TEM. Rep. Prog. Phys. 2009, 72, 16502–16525. [Google Scholar] [CrossRef]
  57. Tauc, J.; Grigorovici, R.; Vancu, A. Optical properties and electronic structure of amorphous germanium. Phys. Status Solidi B 1966, 15, 627–637. [Google Scholar] [CrossRef]
Figure 1. Scanning electron microscopy (SEM) images of nanowire (NW) arrays, which are (a) as-grown (ag), (b) annealed in air, and (c) annealed in N2. The insets show a high magnification SEM image of a single NW from the respective NW array. The scale bar of the inset is 50 nm.
Figure 1. Scanning electron microscopy (SEM) images of nanowire (NW) arrays, which are (a) as-grown (ag), (b) annealed in air, and (c) annealed in N2. The insets show a high magnification SEM image of a single NW from the respective NW array. The scale bar of the inset is 50 nm.
Nanomaterials 07 00289 g001
Figure 2. High-angle annular dark-field scanning transmission electron microscopy (STEM) image and a corresponding electron diffraction pattern (inset) for (a) an as-grown NW, (b) a NW annealed in air, and (c) a NW annealed in N2. All images show a representative area in the center of its respective NW and the diffraction patterns are taken from entire NWs.
Figure 2. High-angle annular dark-field scanning transmission electron microscopy (STEM) image and a corresponding electron diffraction pattern (inset) for (a) an as-grown NW, (b) a NW annealed in air, and (c) a NW annealed in N2. All images show a representative area in the center of its respective NW and the diffraction patterns are taken from entire NWs.
Nanomaterials 07 00289 g002

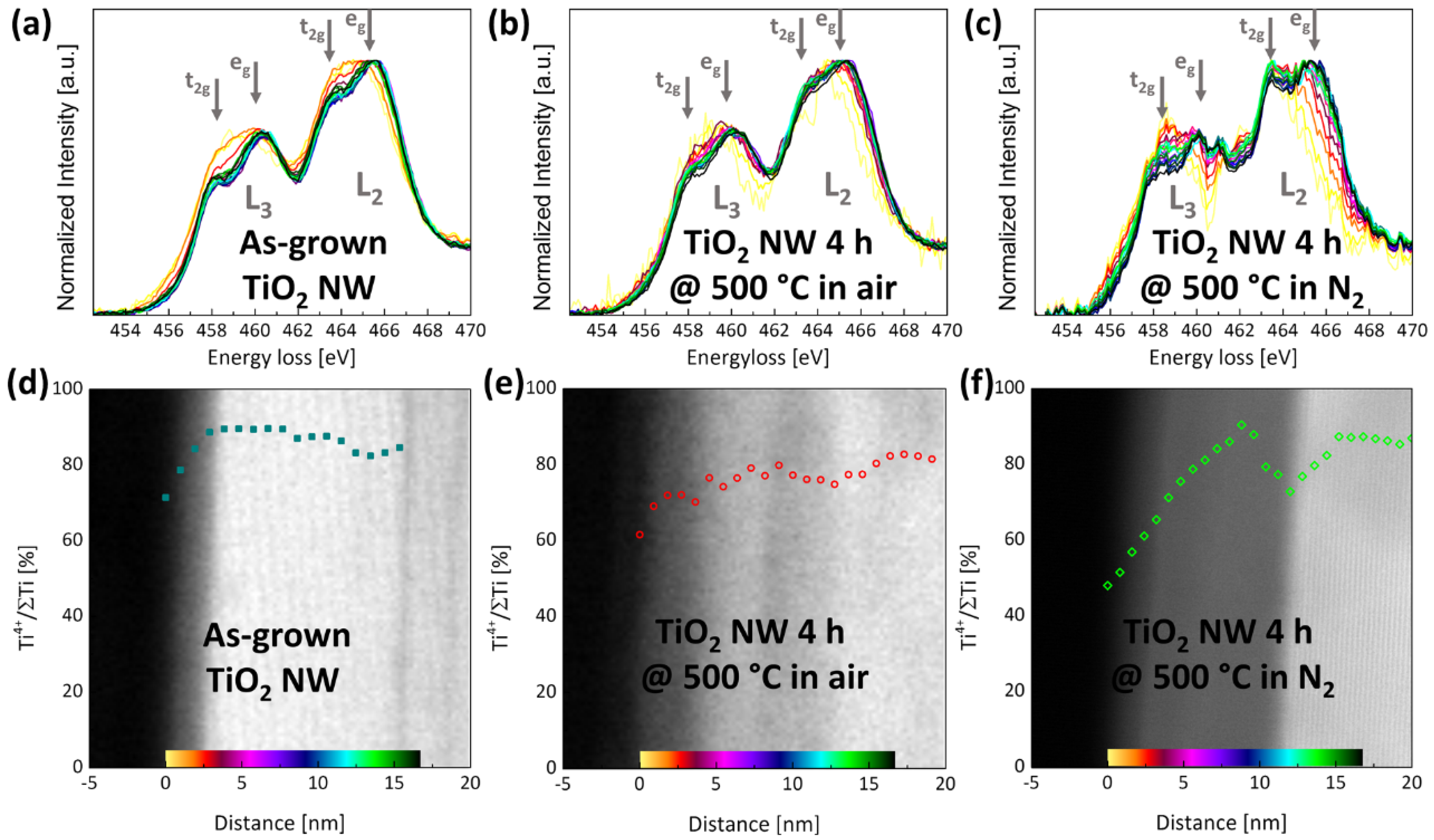

Figure 3. (ac) Position resolved electron energy loss (EEL) spectra of the Ti-L2,3 edge, for (a) an as-grown NW, (b) a NW annealed in air, and (c) a NW annealed in N2. The positions of the spectra are marked in the STEM images of (df) with a specific color, which is the same for the respective Ti-L2,3 edge (the color changes from the NW surface to the center (left to right) in the following order: yellow, orange, red, pink, purple, blue, cyan, green, black). In (df), the Ti4+ gradient is overlaid with the STEM image.
Figure 3. (ac) Position resolved electron energy loss (EEL) spectra of the Ti-L2,3 edge, for (a) an as-grown NW, (b) a NW annealed in air, and (c) a NW annealed in N2. The positions of the spectra are marked in the STEM images of (df) with a specific color, which is the same for the respective Ti-L2,3 edge (the color changes from the NW surface to the center (left to right) in the following order: yellow, orange, red, pink, purple, blue, cyan, green, black). In (df), the Ti4+ gradient is overlaid with the STEM image.
Nanomaterials 07 00289 g003
Figure 4. (a) High resolution (HR) transmission electron microscopy (TEM) image of a NW annealed in N2 showing the surface near region. (b) Annular bright field STEM image of the interface between the rutile TiO2 core and the TiO2−x shell. (c) Intensity line scan of (a) showing an out-of-plane periodicity in the disordered surface layer parallel to the [001] growth direction.
Figure 4. (a) High resolution (HR) transmission electron microscopy (TEM) image of a NW annealed in N2 showing the surface near region. (b) Annular bright field STEM image of the interface between the rutile TiO2 core and the TiO2−x shell. (c) Intensity line scan of (a) showing an out-of-plane periodicity in the disordered surface layer parallel to the [001] growth direction.
Nanomaterials 07 00289 g004

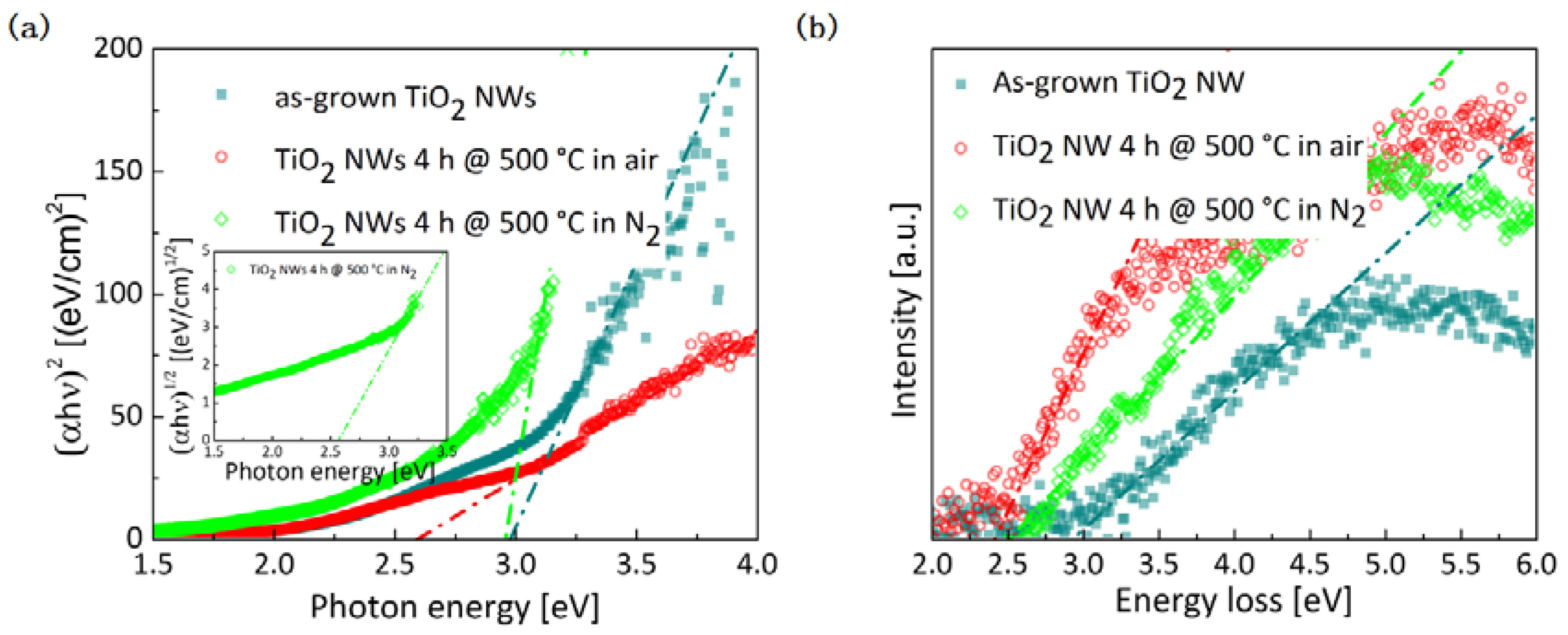

Figure 5. (a) Tauc plot for direct band gap and (b) zero-loss subtracted low-loss EEL spectra for NWs which are as-grown (petrol squares), annealed in air (red circles), and annealed in N2 (green lozenges). The inset in (a) shows the Tauc plot for an indirect band gap for the NW array annealed in N2.
Figure 5. (a) Tauc plot for direct band gap and (b) zero-loss subtracted low-loss EEL spectra for NWs which are as-grown (petrol squares), annealed in air (red circles), and annealed in N2 (green lozenges). The inset in (a) shows the Tauc plot for an indirect band gap for the NW array annealed in N2.
Nanomaterials 07 00289 g005

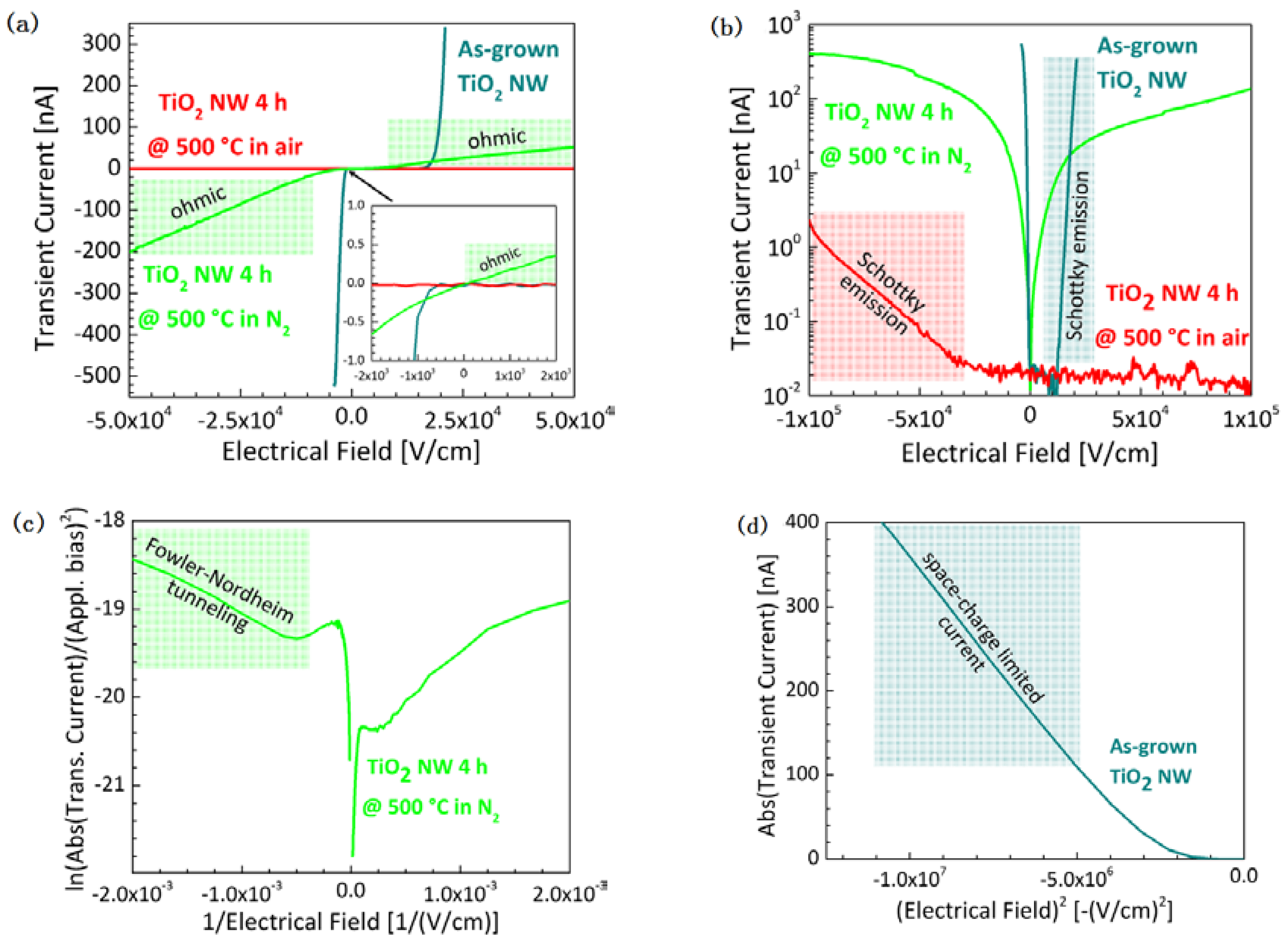

Figure 6. Transient current characteristics through as-grown NWs, NWs annealed in air, or in N2 that is measured between a PtIr top and an FTO bottom electrode. The different plots emphasize several conduction-limiting mechanisms: (a) Linear plot showing ohmic behavior and the inset is a zoom in on the point of origin, (b) Schottky plot, (c) Fowler–Nordheim plot and (d) space–charge-limited current plot [39].
Figure 6. Transient current characteristics through as-grown NWs, NWs annealed in air, or in N2 that is measured between a PtIr top and an FTO bottom electrode. The different plots emphasize several conduction-limiting mechanisms: (a) Linear plot showing ohmic behavior and the inset is a zoom in on the point of origin, (b) Schottky plot, (c) Fowler–Nordheim plot and (d) space–charge-limited current plot [39].
Nanomaterials 07 00289 g006
