Next Article in Journal
Next Article in Special Issue
Previous Article in Journal
Previous Article in Special Issue
Nanomaterials 2014, 4(1), 69-86; doi:10.3390/nano4010069
Article

One-Pot Solvothermal Synthesis of Highly Emissive, Sodium-Codoped, LaF3 and BaLaF5 Core-Shell Upconverting Nanocrystals

,
 and *
Received: 17 December 2013; in revised form: 2 January 2014 / Accepted: 2 January 2014 / Published: 8 January 2014
(This article belongs to the Special Issue Current Trends in Up-Converting Nanoparticles)
View Full-Text   |   Download PDF [1665 KB, uploaded 8 January 2014]   |   Browse Figures

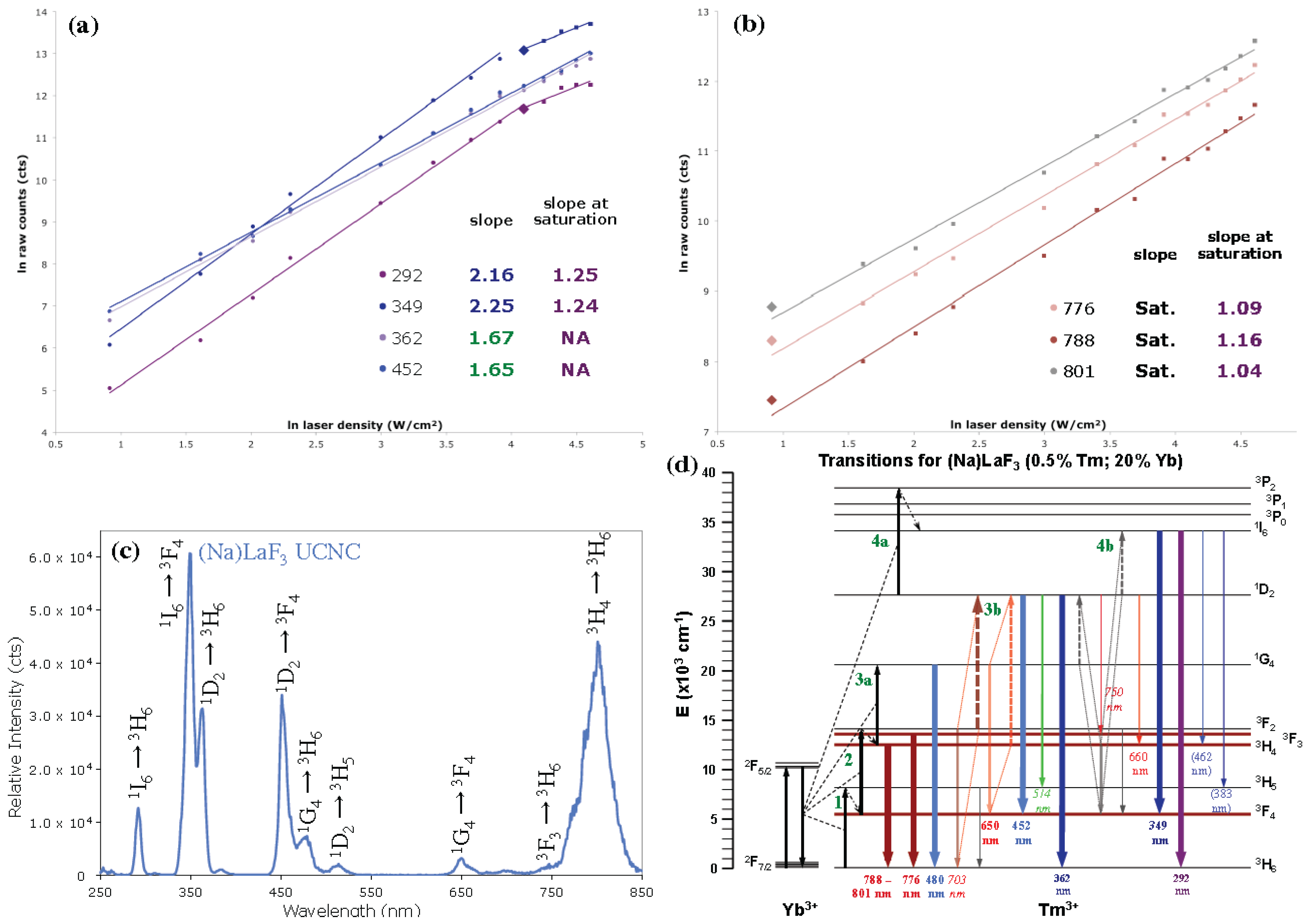

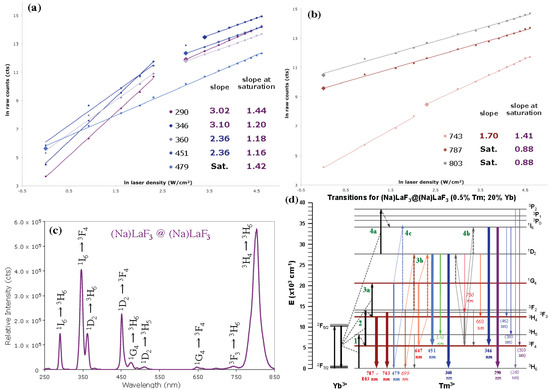

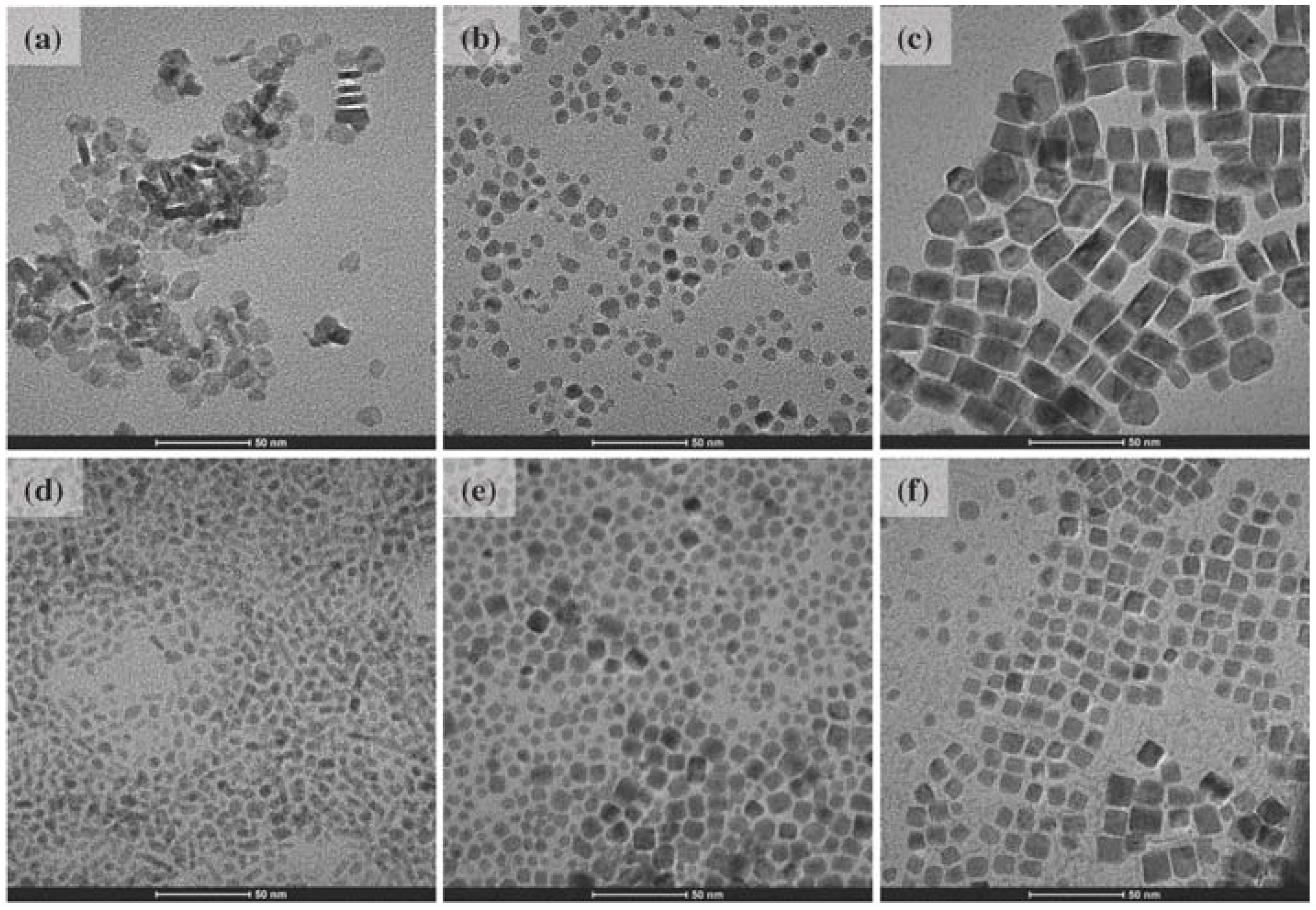

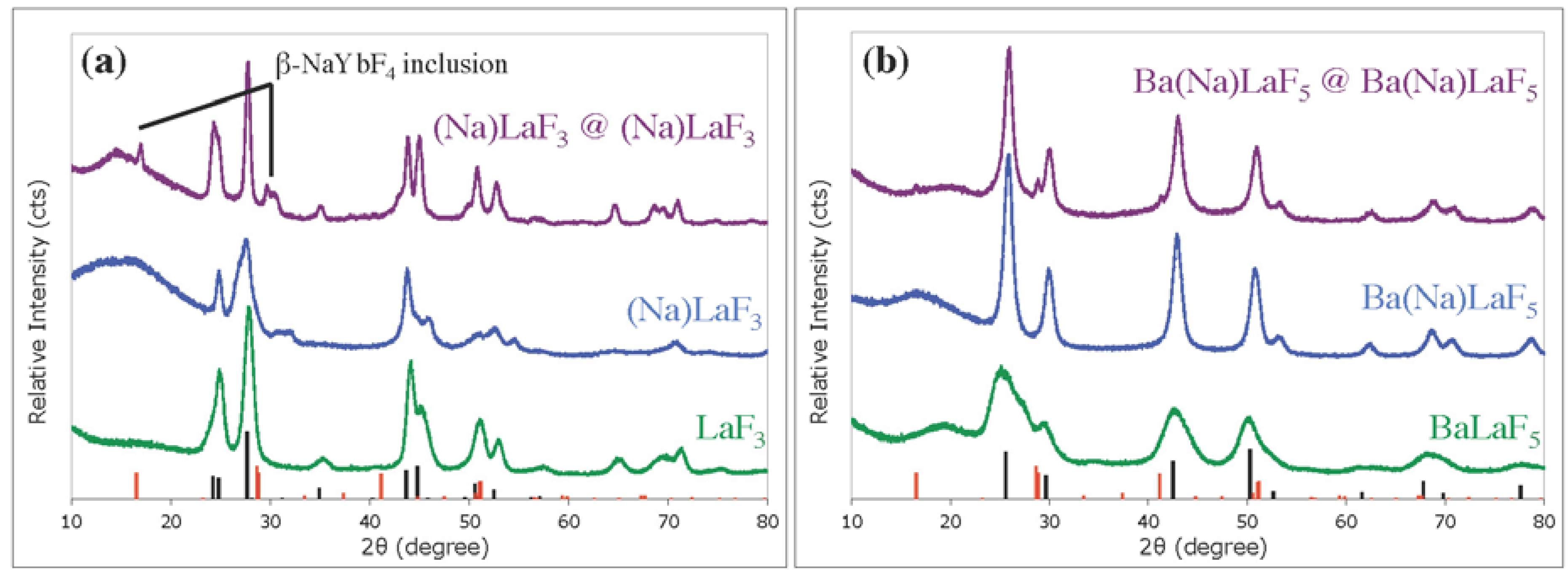

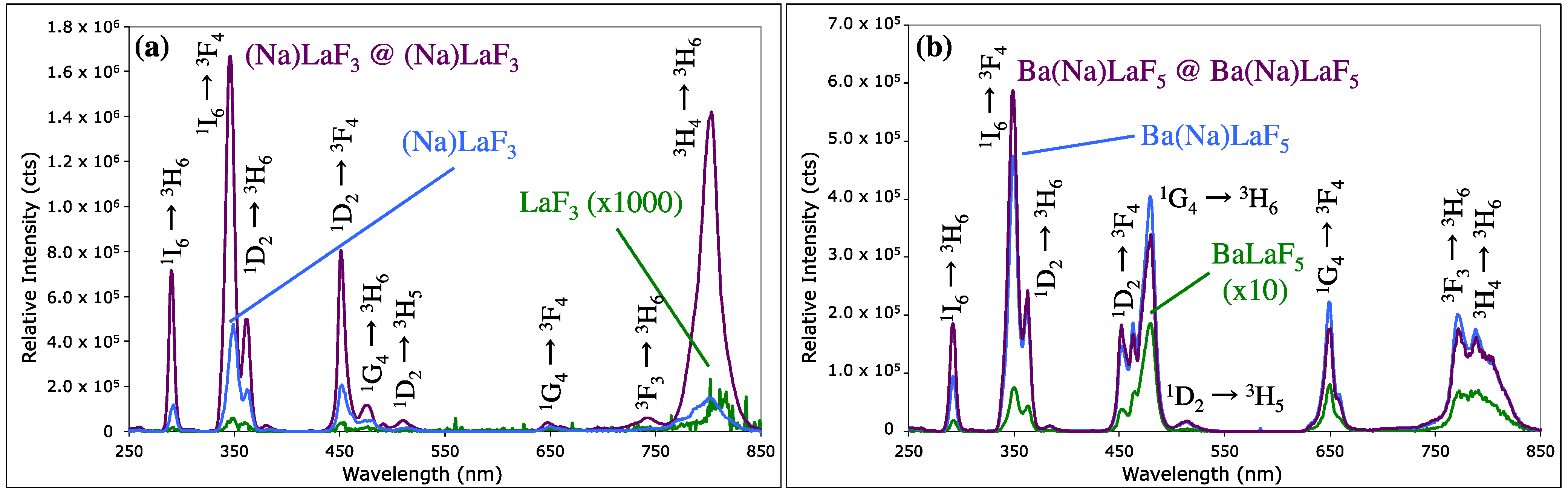

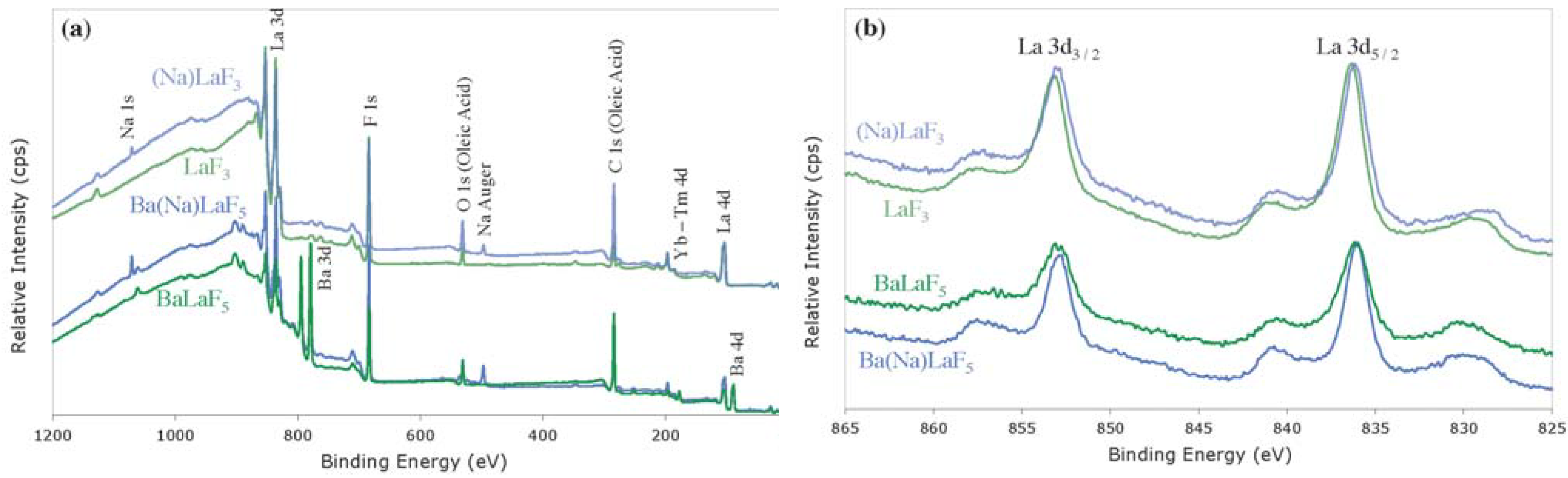

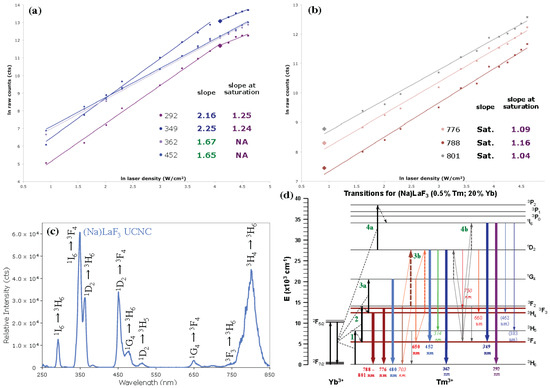

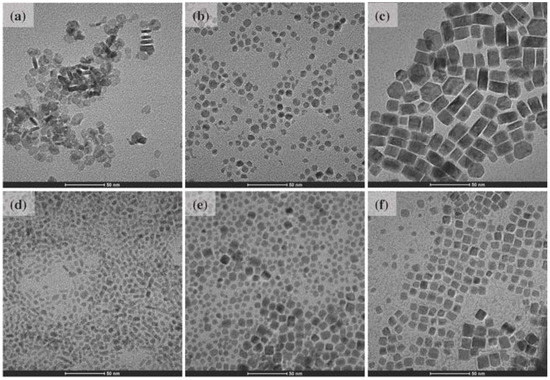

Abstract: We report a one-pot solvothermal synthesis of sub-10 nm, dominant ultraviolet (UV) emissive upconverting nanocrystals (UCNCs), based on sodium-codoped LaF3 and BaLaF5 (0.5%Tm; 20%Yb) and their corresponding core@shell derivatives. Elemental analysis shows a Na-codopant in these crystal systems of ~20% the total cation content; X-ray diffraction (XRD) data indicate a shift in unit cell dimensions consistent with these small codopant ions. Similarly, X-ray photoelectron spectroscopic (XPS) analysis reveals primarily substitution of Na+ for La3+ ions (97% of total Na+ codopant) in the crystal system, and interstitial Na+ (3% of detected Na+) and La3+ (3% of detected La3+) present in (Na)LaF3 and only direct substitution of Na+ for Ba2+ in Ba(Na)LaF5. In each case, XPS analysis of La 3d lines show a decrease in binding energy (0.08–0.25 eV) indicating a reduction in local crystal field symmetry surrounding rare earth (R.E.3+) ions, permitting otherwise disallowed R.E. UC transitions to be enhanced. Studies that examine the impact of laser excitation power upon luminescence intensity were conducted over 2.5–100 W/cm2 range to elucidate UC mechanisms that populate dominant UV emitting states. Low power saturation of Tm3+ 3F3 and 3H4 states was observed and noted as a key initial condition for effective population of the 1D2 and 1I6 UV emitting states, via Tm-Tm cross-relaxation.
Keywords: near-infrared to ultraviolet upconversion; photoluminescence; upconversion nanocrystals; impurity doping; lanthanide; LaF3; BaLaF5; core-shell near-infrared to ultraviolet upconversion; photoluminescence; upconversion nanocrystals; impurity doping; lanthanide; LaF3; BaLaF5; core-shell
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Stecher, J.T.; Rohlfing, A.B.; Therien, M.J. One-Pot Solvothermal Synthesis of Highly Emissive, Sodium-Codoped, LaF3 and BaLaF5 Core-Shell Upconverting Nanocrystals. Nanomaterials 2014, 4, 69-86.

AMA Style

Stecher JT, Rohlfing AB, Therien MJ. One-Pot Solvothermal Synthesis of Highly Emissive, Sodium-Codoped, LaF3 and BaLaF5 Core-Shell Upconverting Nanocrystals. Nanomaterials. 2014; 4(1):69-86.

Chicago/Turabian Style

Stecher, Joshua T.; Rohlfing, Anne B.; Therien, Michael J. 2014. "One-Pot Solvothermal Synthesis of Highly Emissive, Sodium-Codoped, LaF3 and BaLaF5 Core-Shell Upconverting Nanocrystals." Nanomaterials 4, no. 1: 69-86.


Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
