1. Introduction
With further improvements to the Chinese highway infrastructure, more and more highway engineering construction projects in mountainous areas will be carried out. In order to solve the problem of a shortage of subgrade filling materials in mountainous areas, it is urgent to study the engineering properties and applicability of special subgrade materials. In addition to stress-train nonlinear, elastic-plastic, dilatancy (shrinkage), and other properties, weathered granite, a type of special subgrade material, has its own unique engineering property, e.g., easy weathering and particle breakage. The different of weathering process determines the particle size distribution of the in-situ soils. Furthermore, the particle size distribution affects the particle breakage characteristics of soils. There are not many studies concerning the particle size distribution of natural weathered granite soil, but these types of studies are very important, because the particle size distribution has considerable influences upon engineering properties of weathered granite soil such as compatibilities, permeabilities, and strength-deformation characteristics [
1].
The characteristics of particle breakage are obviously affected by the weathering process [
1]. The structural failure or damage of soil particles caused by loading is the external cause of soil particle breakage. The internal causes of particle breakage in weathered granite are mainly microcracks (or voids) and fragile mineral components (e.g., biotite, feldspar, etc.) [
2]. Particle breakage can cause a change in the distribution of soil particles, and then the physical and mechanical properties of soil will be changed [
3,
4].
As early as the 20th century, some scholars discovered the phenomenon of soil particle breakage. However, because the number of construction projects was small and the experimental technology was backward at that time, the phenomenon of particle breakage of soil has not received sufficient attention for quite a long time [
5]. It was not until one-dimensional compression tests on sand subjected to high confining pressure (96.5 MPa) were carried out by Terzaghi and Peck [
6] and its particle breakage was discovered that particle breakage of geotechnical material was extensively studied in the field of engineering.
In the past, many methods and indexes were proposed to evaluate the degree of soil particle breakage [
7,
8,
9,
10]. Some measured the increase in percentage of particles passing a given sieve size, some measured the decrease in sieve size corresponding to a given percentage passing [
11], and some measured the changes in the overall particles [
12,
13,
14,
15,
16]. Among them, four measurement methods, proposed by Marsal [
10], Lee and Farhoomand [
11], Miura and O-Hara [
13], and Hardin [

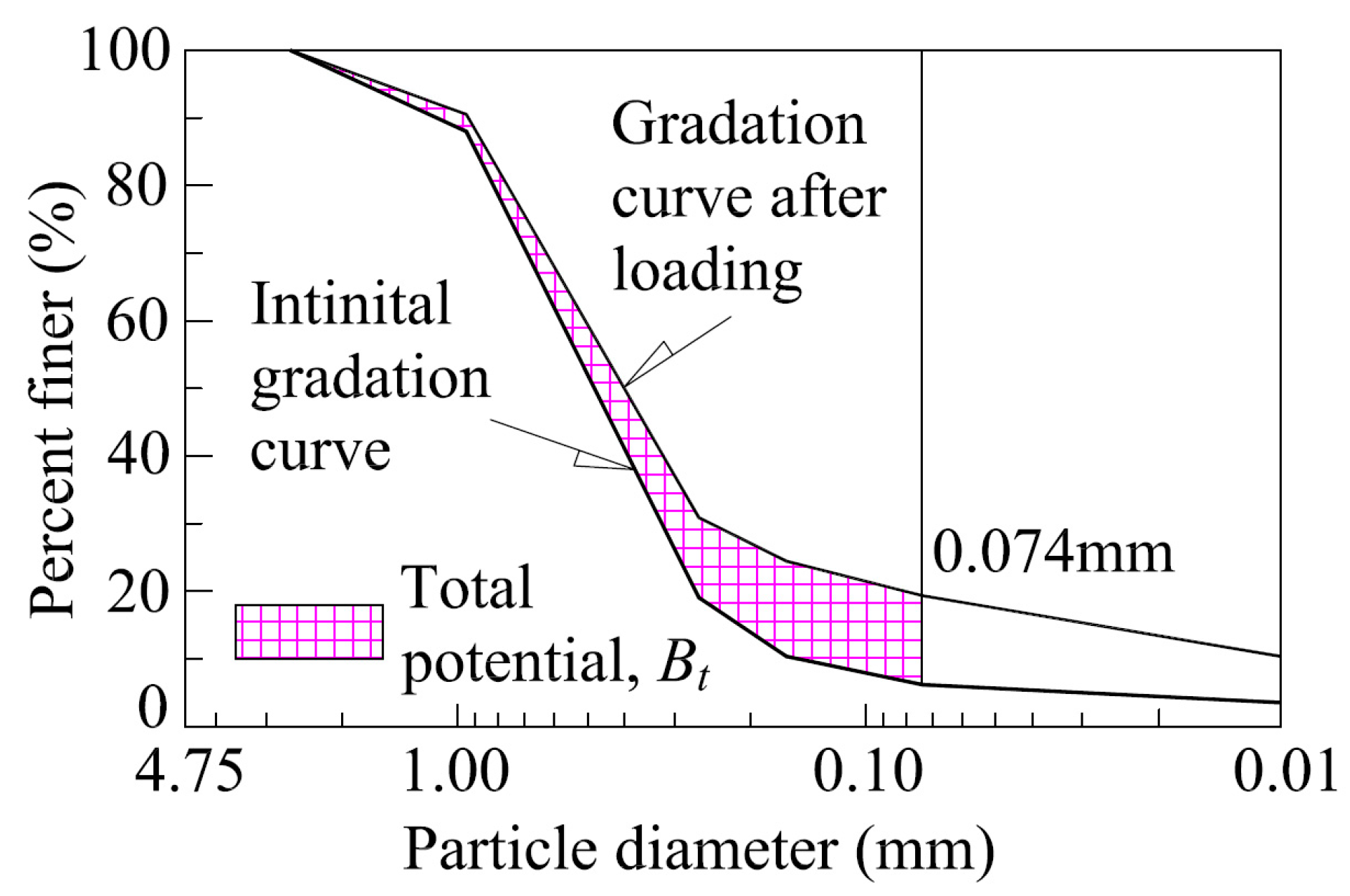

14], are widely used in engineering practice. Among these four methods, because the concept of breakage potential (

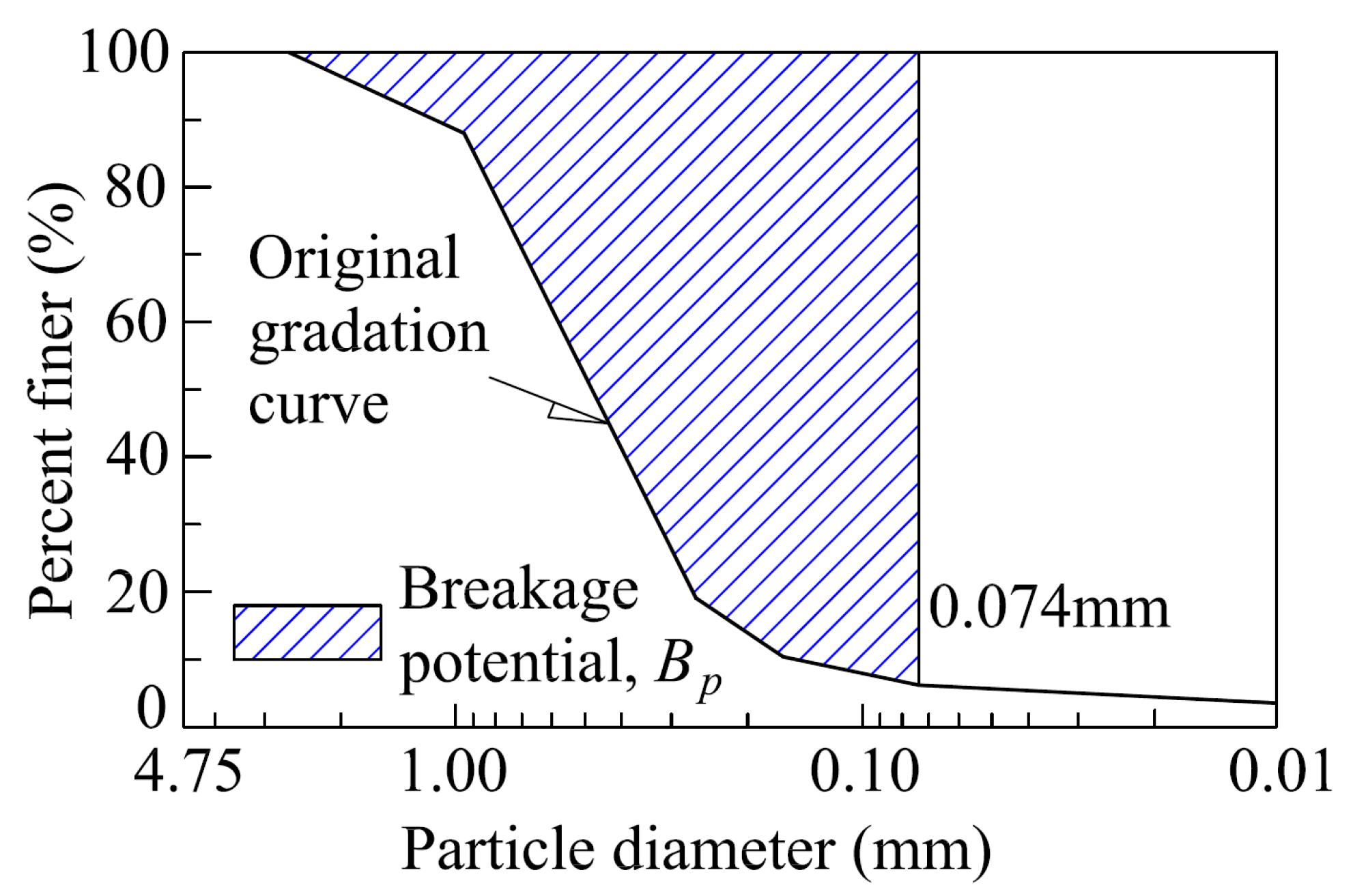

Bp) proposed by Hardin [
14] is more scientific and easier to measure, the relative breakage index
Br has been widely used in correlative fields.
The particle breakage of soils has been studied in previous research by using the proposed particle breakage indexes from different angles [
17], but most of these studies were qualitative, and few quantitative studies were carried out using the indexes, which can truly reflect the overall change in the particle size distribution of soil. The relationships between different factors and quantitative breakage indexes were also less studied.
The particle breakage properties of coarse-grained soil at high stress levels have been studied quantitatively [
18,
19,
20,
21], but less research has been done on geotechnical material (e.g., weathered granite) that can be crushed at low stress levels [
13].
Particle breakage of soil is influenced by several factors, such as initial void ratio, grain shape, grading curves, mineral composition, saturation, grain strength, load size, loading path, etc. [
22]. In order to explore the weathering process of in situ granite and the particle breakage characteristics of compacted weathered granite, the geological year’s parameter
m and geometric progression constants

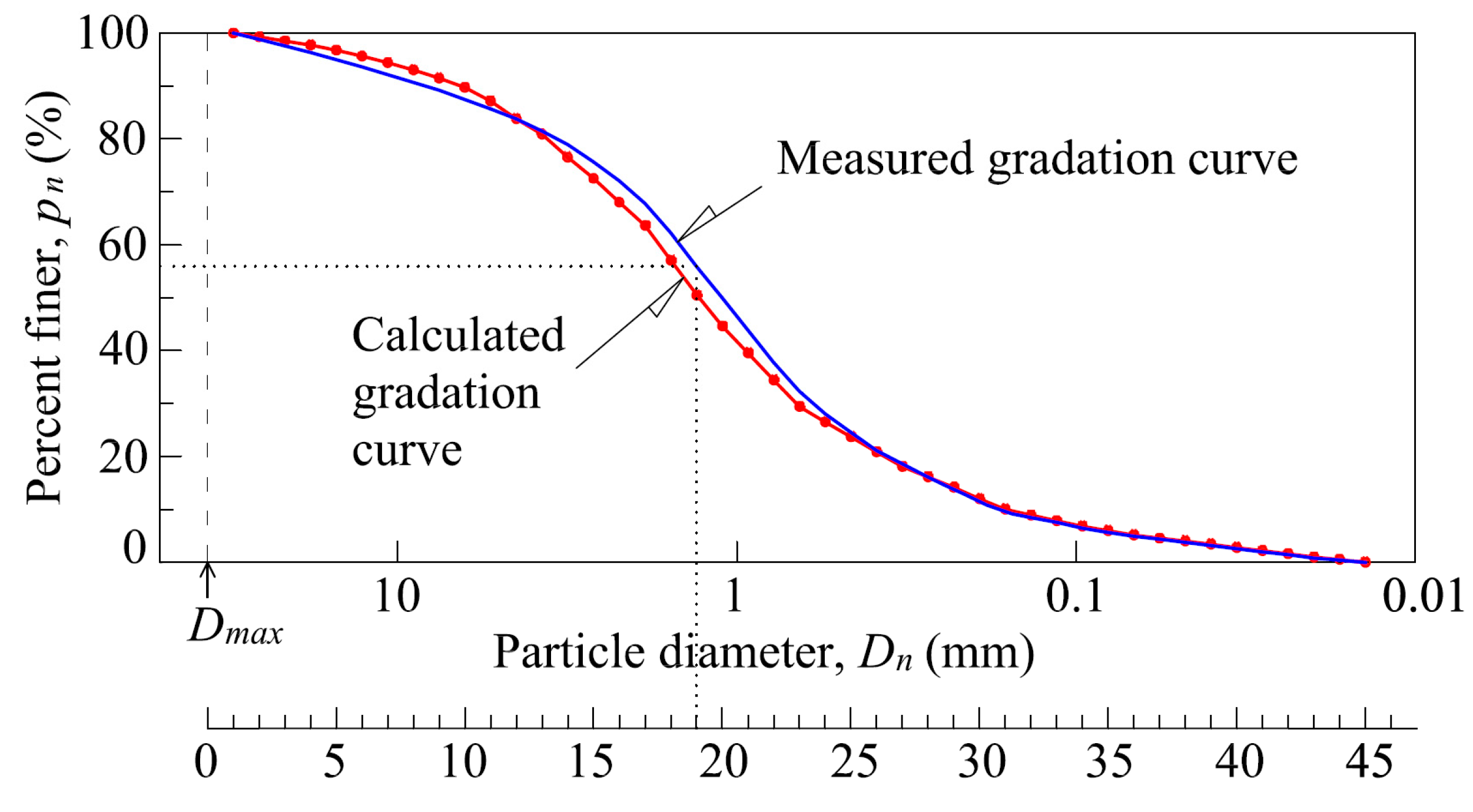

r of different depth granite samples were calculated by Fukumoto’s grading equation [
1] and a series of laboratory and field tests were performed—X-ray diffraction, sieving, heavy compaction, large-scale triaxial, and field compaction tests—to quantitatively discuss the particle breakage characteristics of compacted weathered granite using relative breakage [
14].
One of the purposes of this paper is to provide a theoretical basis for determining the grain distribution of weathered granite in different weathering processes (or in different depths of the mountain profile) and a reference for the selection of subgrade fillings by establishing a quantitative relationship between the depths of weathered mountain profile and the weathering process of weathered granite. Another purpose is to break through the limitation of cognition in previous research on the particle breakage characteristics of soils at high stress levels by means of the large-scale triaxial test of weathered granite at low stress levels.
3. Specimen Preparation and Test Methods

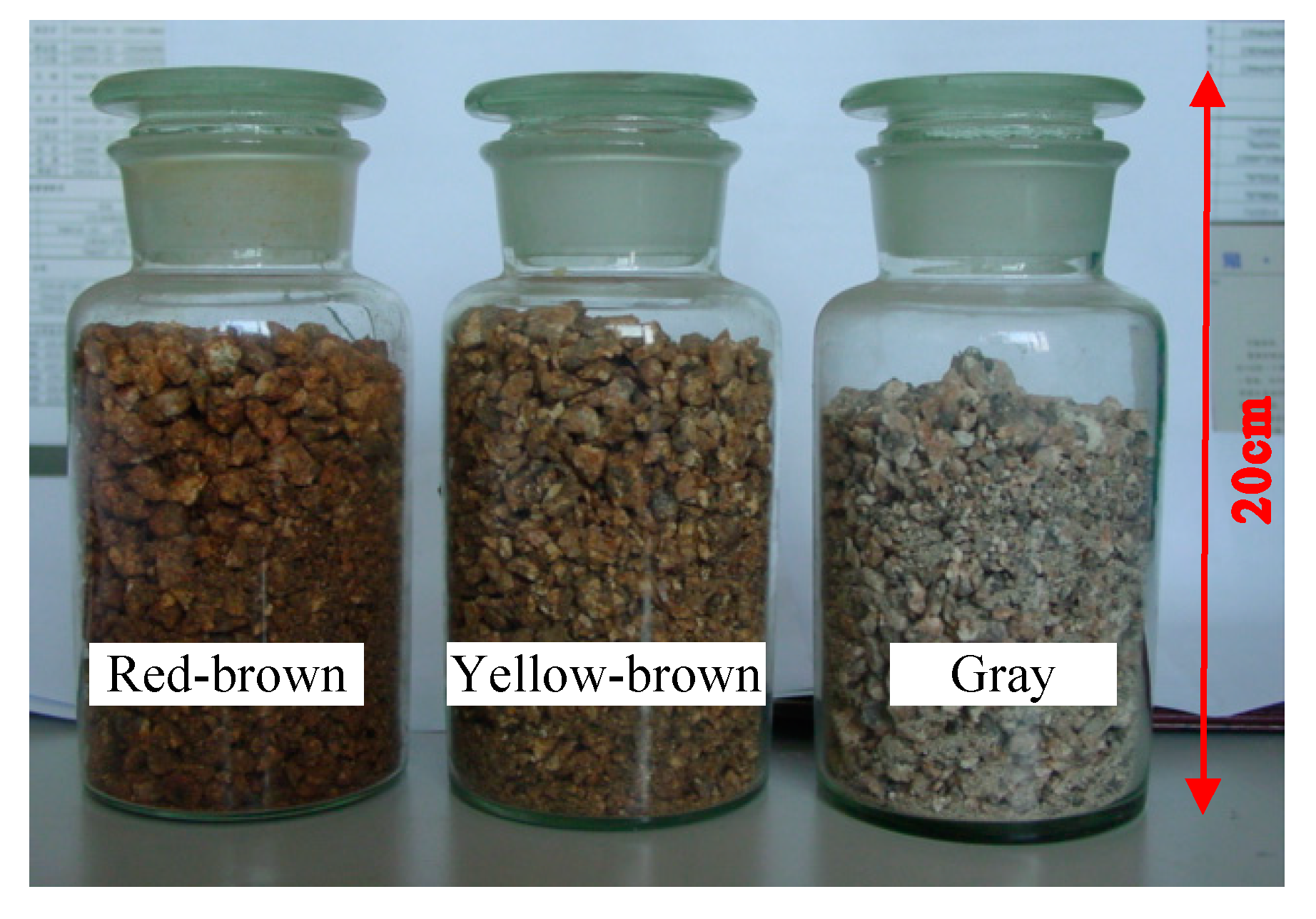

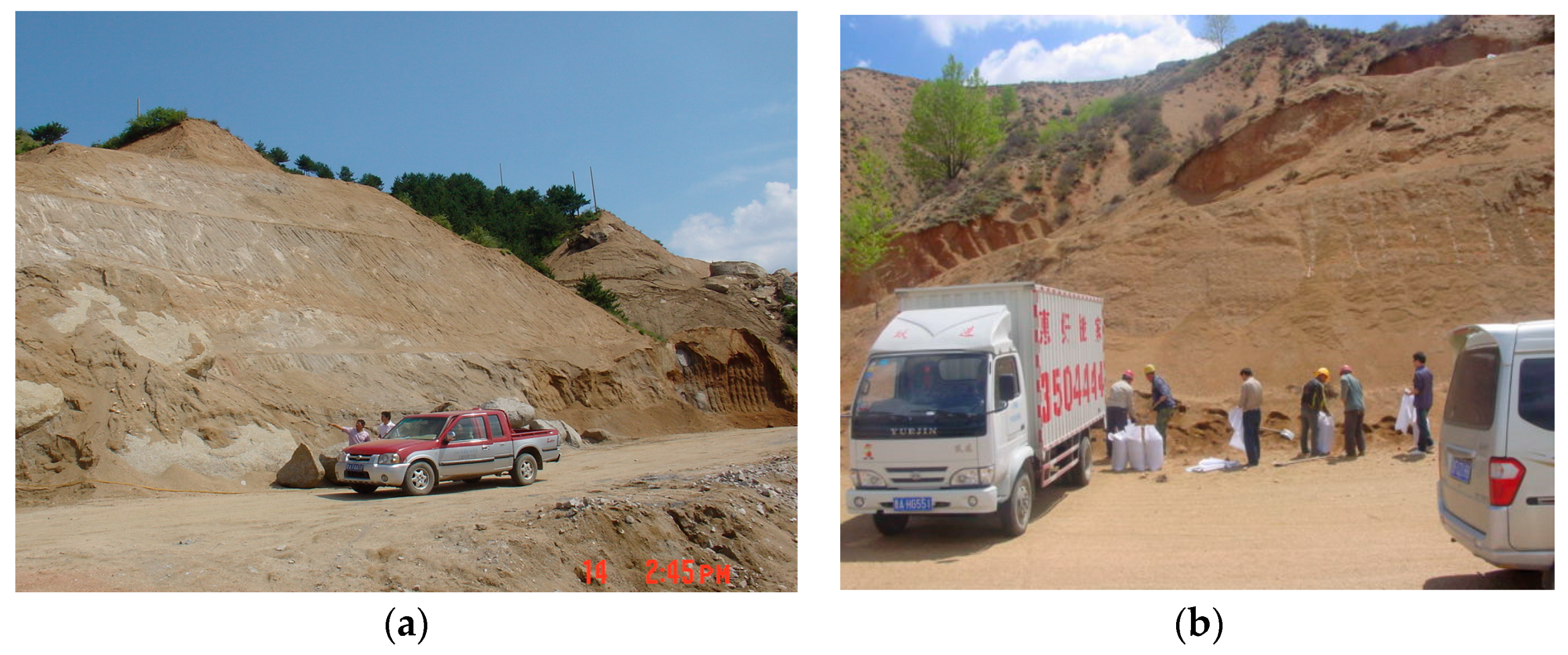

The weathered granite soils used in this research were sampled from a site near Mount Yunzhong (shown in
Figure 4), a branch of the Luliang Mountains, on the eastern outskirts of Xinzhou City, Shanxi Province, China. These soils were used as part of the subgrade materials on Xinbao Highway (Xinzhou City to Baode City). There were three colors of weathered granite in the field, red-brown, yellow-brown, and gray, from the surface to the inside of the mount, as shown in
Figure 5. Most of the fillings used in the field embankment were obtained from the excavation range at a depth of about 10 m under the surface of the mount. The embankment is mainly filled with red-brown weathered granite, so parts of the tests in this paper were mainly aimed at red-brown samples.
In order to evaluate the weathering process of granite, Fukumoto’s weathering model was used in this research. Based on the thorough investigation on the distribution of weathered granite in the field, a series of sieving testes were made on a large number of granite samples obtained from two typical sections, as shown in
Figure 4a,b, and geological year’s parameter
m and geometric progression constants
r of granite samples at different depths were calculated by using Fukumoto’s grading equation. In addition, in order to research the particle breakage characteristics of compacted weathered granite, the experimental procedures involved in this study were X-ray diffraction, sieving, heavy compaction, large-scale triaxial, and field compaction tests.
3.1. X-ray Diffraction Test
The X-ray diffraction test is a principal method for analyzing the mineral composition of geotechnical materials. The success of a diffraction experiment will often depend on the correct choice of preparation method for the sample being analyzed and for the instrument being used in the analysis. The samples for X-ray diffraction test in this study were prepared strictly in accordance with the methods of the Joint Committee on Powder Diffraction Standards (JCPDS) (e.g., quantitative phase analysis and strength contrast method). Before the formal test, three basic samples were first ground grind separately by the continuous vibration cup mill. The X-ray diffraction equipment used to analyze the primary mineral composition of the weathered granite samples in this research belongs to Scientific Instrument Center of Shanxi University (Model No.: D/MAX2500, shown in

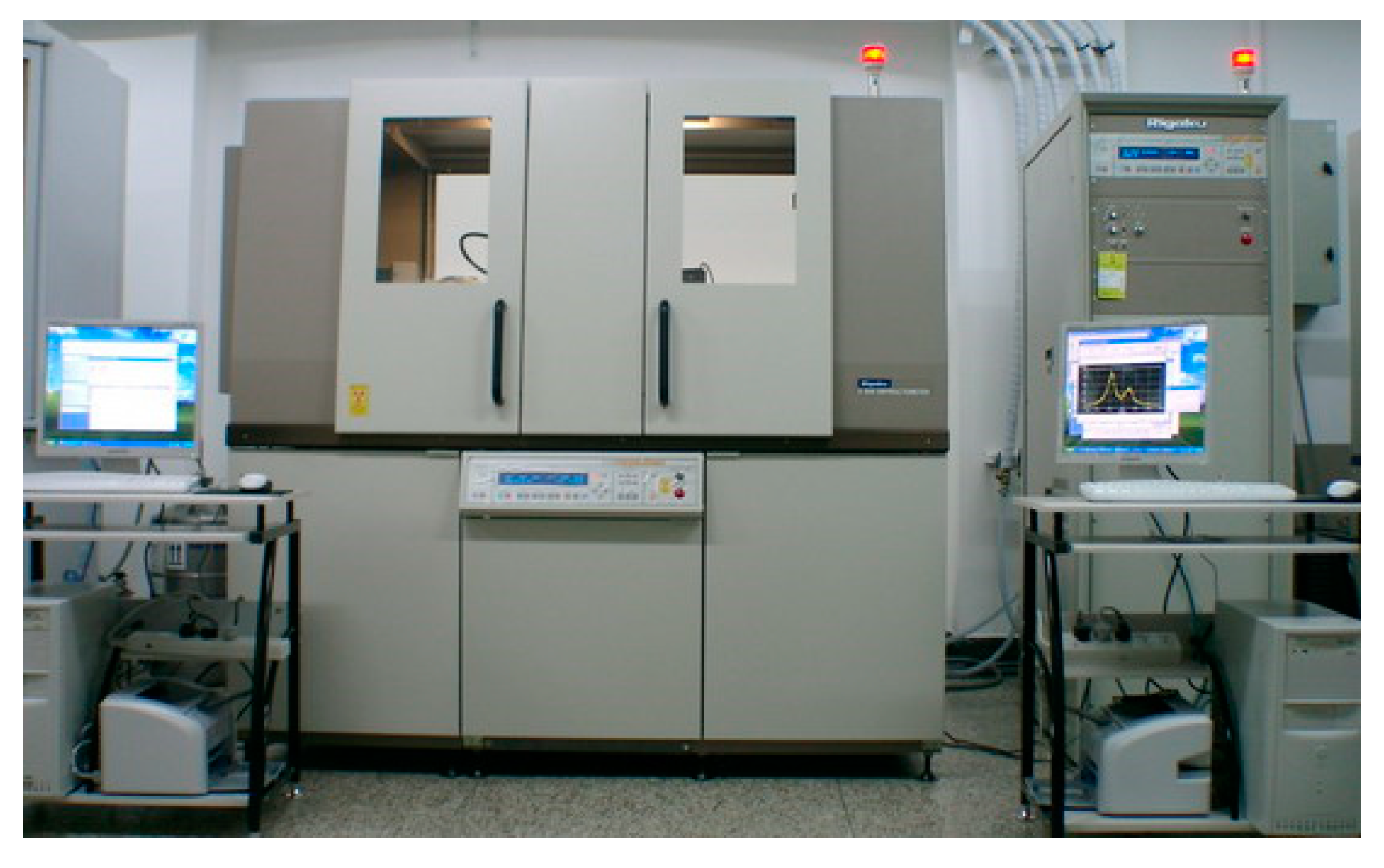

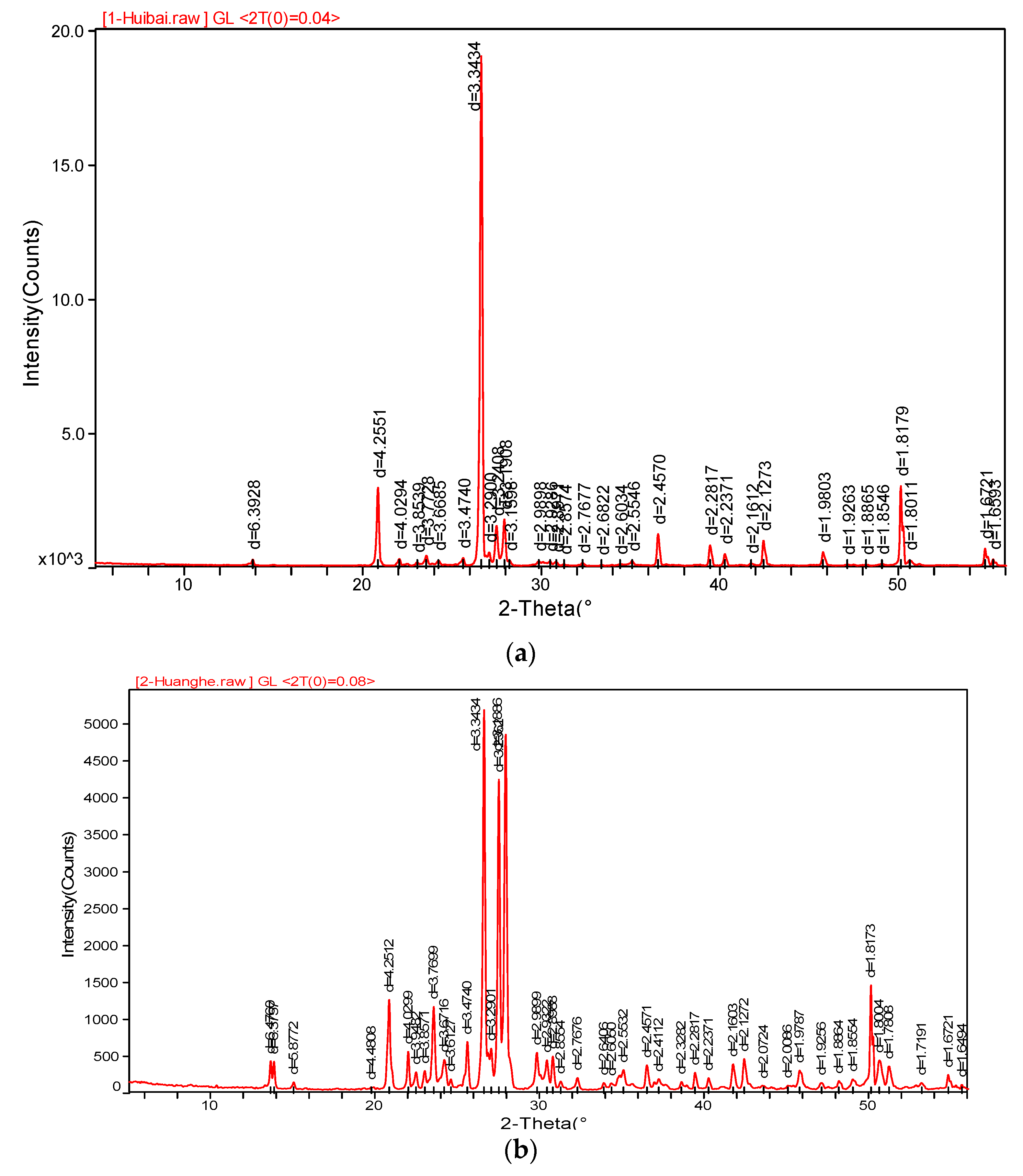

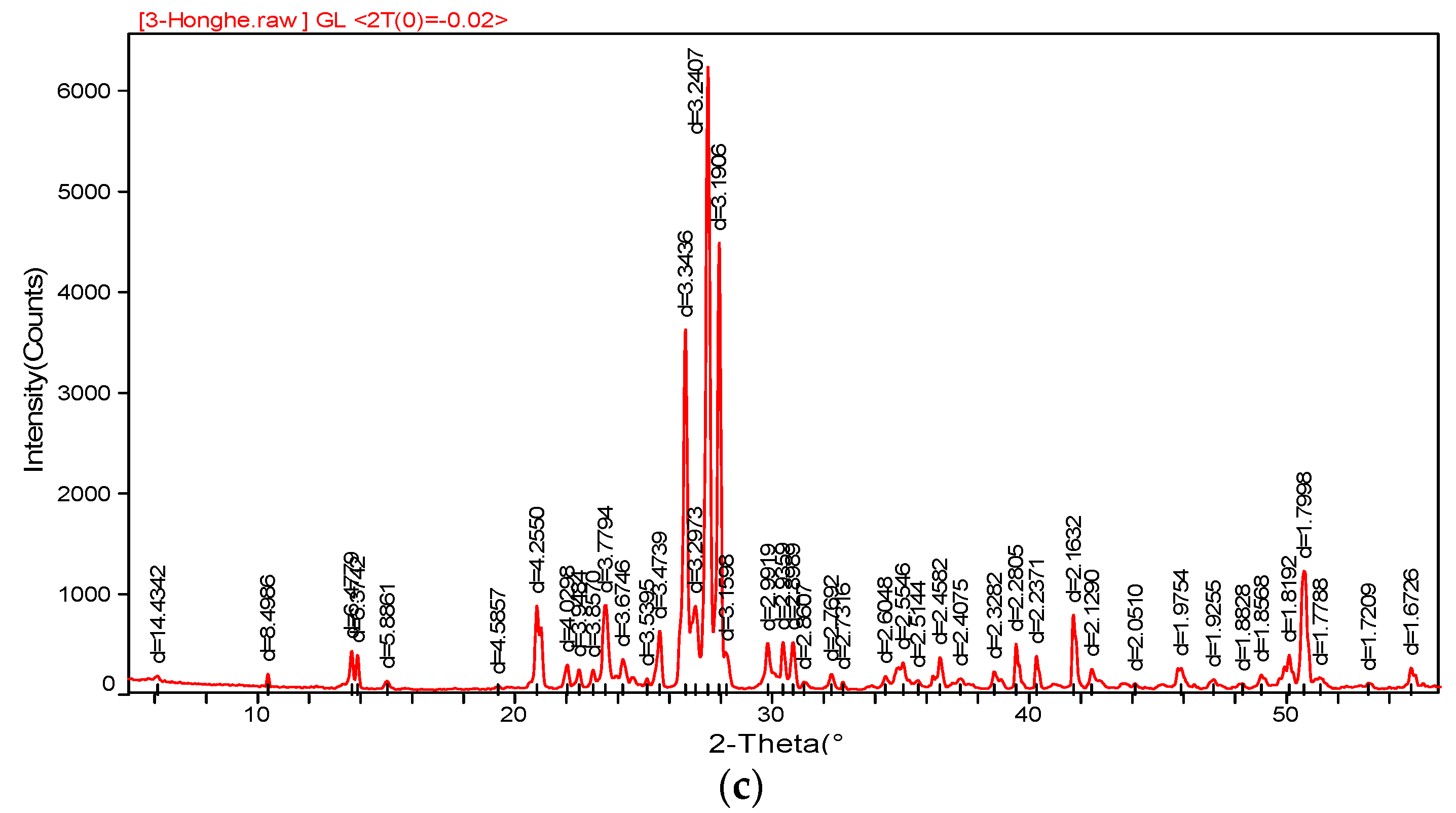

Figure 6). According to the methods of the JCPDS, the X-ray diffraction curves (shown in
Figure 7) were obtained. A diffraction curves contains three types of useful information: the positions of the diffraction maxima, the peak intensities, and the intensity distribution as a function of diffraction angle.
Test results (
Table 1) show that quartz and feldspar (including plagioclase and potash feldspar) were the main mineral components of the soil samples, with contents of 12–77% and 11–36%, respectively. The samples contained a small amount of mica, hematite, and hornblende (1–4%). According to Wang et al. [
23], the hornblende and biotite in Mount Yunzhong are blue-green and yellow-brown, respectively. The color of weathered granite is mainly controlled by the content of quartz, feldspar, hornblende, and mica.
3.2. Sieving Test and Specific Gravity Test

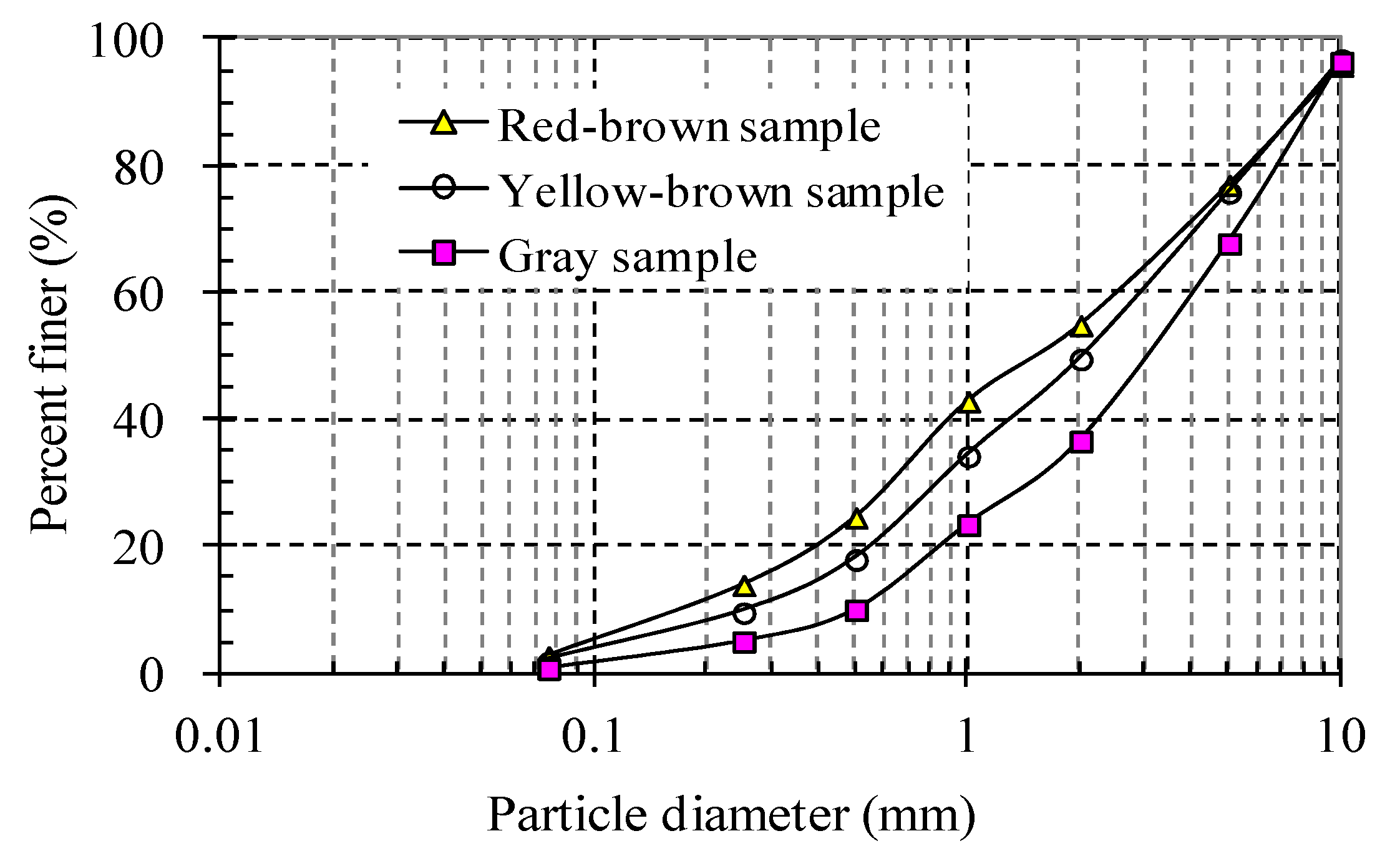

The main purpose of the sieving test is to investigate the change in particle size distribute of weathered granite samples under the action of different weathering process and in particle breakage of weathered granite samples under the action of different factors. The particle distribution curves of typical original samples in this research are shown in
Figure 8. The Gravity Bottle Method (T0112-1993, Test Methods of Soils for Highway Engineering) [
24] was used to acquire the specific gravities of weathered granite samples. It was found that the specific gravities of red-brown, yellow-brown, and gray granite samples were 2602 g/cm
3, 2636 g/cm
3, and 2609 g/cm
3, respectively.
3.3. Heavy Compaction Test
The heavy compaction test [
24] was used to prepare standard samples for investigation of the influence of particle gradation, mineral composition, and stress level on particle breakage of weathered granite. In addition, it was used to study the influence of the compaction effect (compaction degree) on particle breakage.
The apparatus for standard heavy compaction test in this paper was a multifunctional electric compaction instrument (Model No.: TDJ-III). The compaction testes were carried out in accordance with current Chinese code. Parameters of standard heavy compaction test are shown in
Table 2. In the later analysis of the effect of blows per layer on particle breakage in
Section 4.2.3, except for number of blows per layer, the other parameters are consistent with the standard heavy compaction test in
Table 2.
According to the standard heavy compaction method [
24], the maximum dry densities of red-brown, yellow-brown, and gray samples were 2.13, 2.25, and 2.18 g/cm
3, respectively, and the optimum moisture contents were 6.1%, 6.2%, and 5.9%, respectively. The maximum dry density of finer red-brown and coarser gray soil samples was smaller than that of yellow-brown samples. This is because the compaction of weathered granite is synthetically affected by the particle size distribution of soils, the hardness degree of rocks, and the degree of weathering.
3.4. Large-Scale Triaxial Test
According to T0147-1993 [
24], coarse-grained soil samples should not be saturated, consolidated, and drained during the triaxial compression test. However, in actual situations, coarse-grained soil is often consolidated and drained as subgrade filling [
25]. In this case, the weathered granite soil samples were tested after consolidation and drainage, which was different from T0147-1993 requirements. With reference to the triaxial shear test in the Code for Coarse-Grained Soil Tests for Hydropower and Water Conservancy Engineering [
26], large-scale triaxial shear tests (consolidated drained triaxial test; CD test) were conducted on the red-brown samples of weathered granite soil after consolidation and drainage. Large-scale triaxial Test System Based on Stress Path (YS30-3B), built at Experimental Demonstration Center, Department of Civil Engineering, Shanxi University, was used for CD test in this research, as shown in

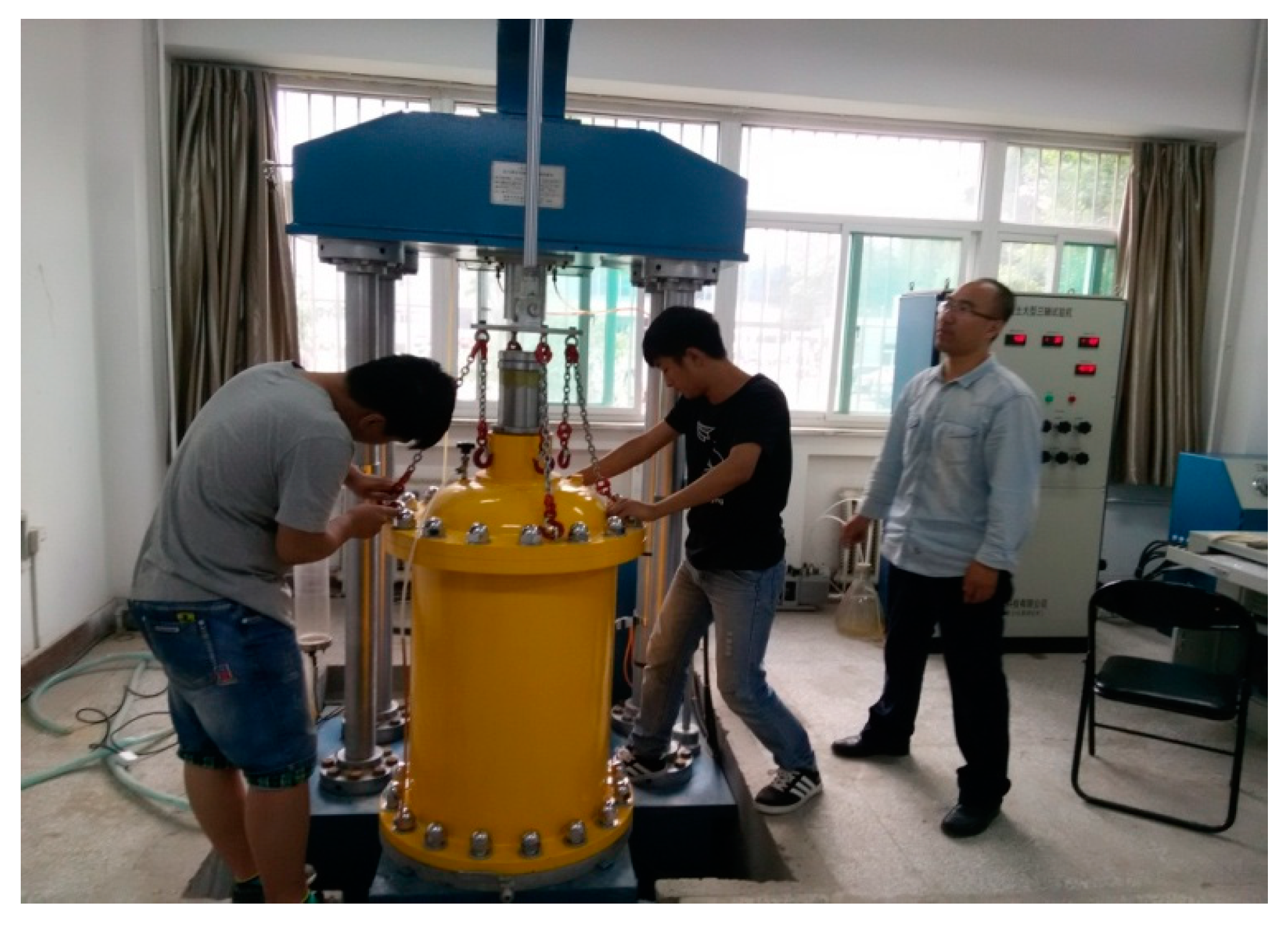

Figure 9. Using the surface vibration method, the soil specimens were prepared at the optimum water ratio of 6.1% and compactness of 93%. The diameter and height of the specimens was 300 mm and 600 mm, respectively. The specimens were sheared after effective confining pressures of 100, 200, 300, and 400 kPa.

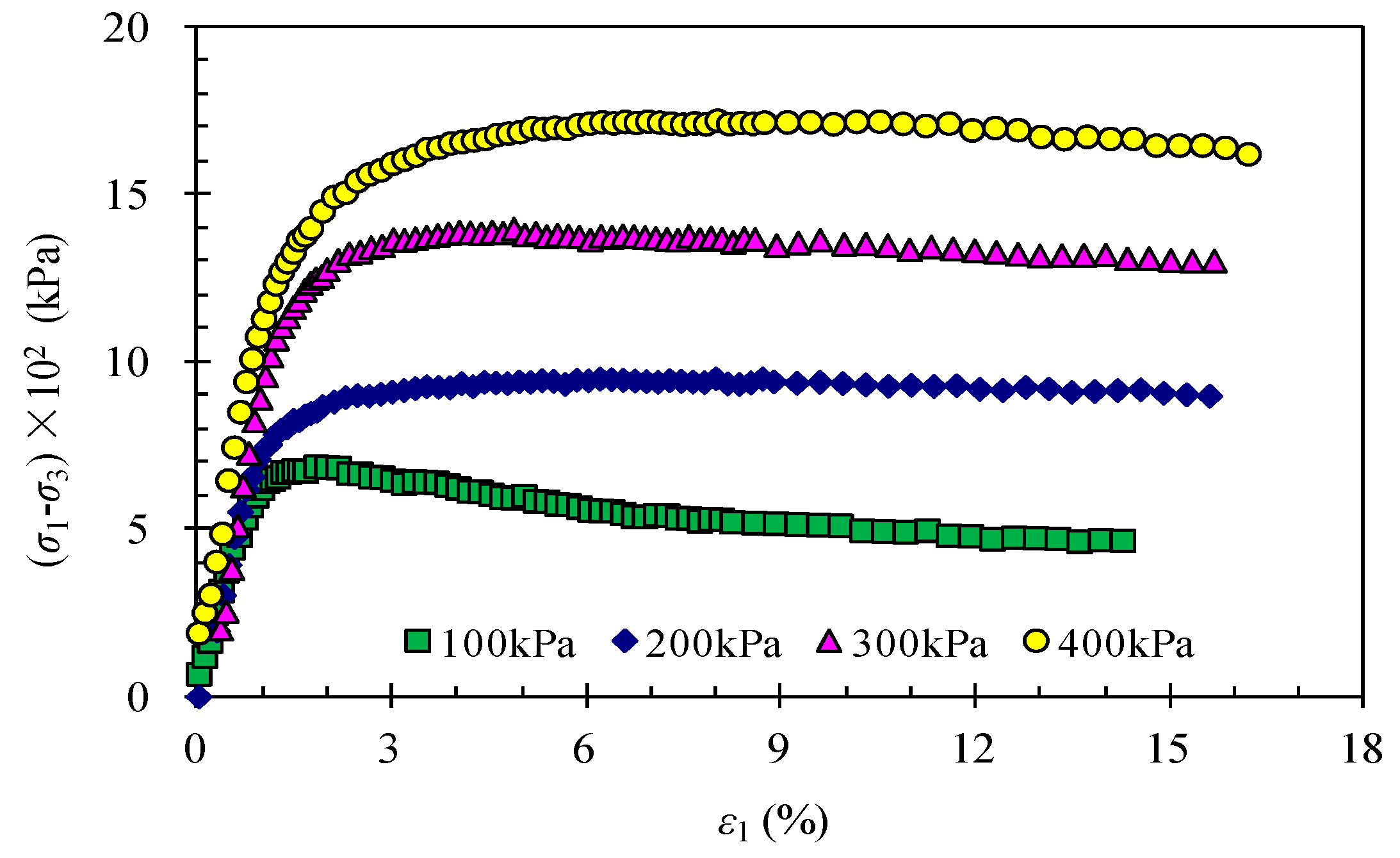

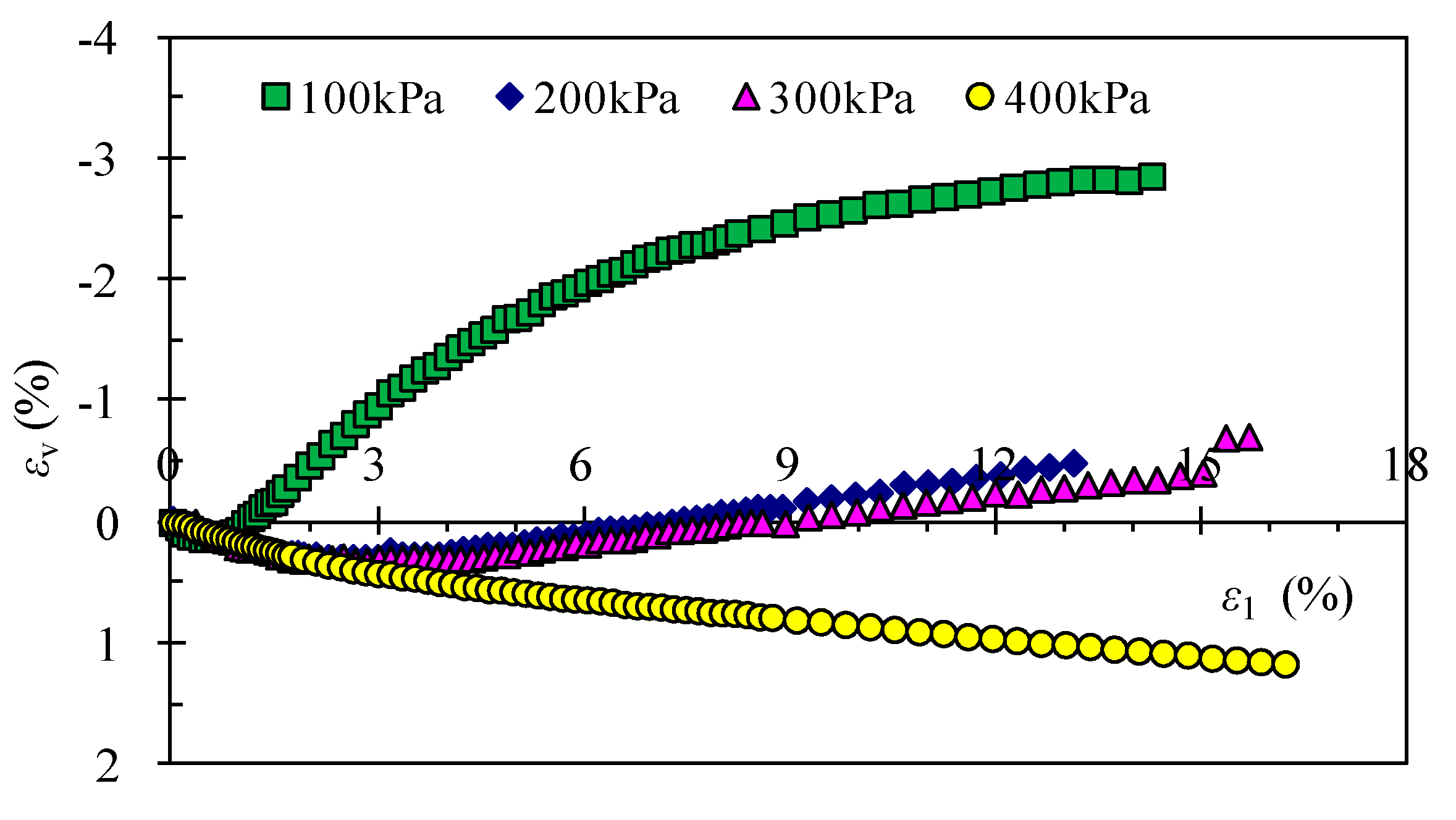

Figure 10 and
Figure 11 show the typical stress-strain relationship and
εv-
ε1 relationship of the CD tests on four representative red-brown weathered granite samples under four confining pressures, where
σ1 is the axial stress,
σ3 is confining pressure,
ε1 is the axial strain, and
εv is the volumetric strain.
3.5. Field Compaction Test
In order to explore the effect of an in situ embankment compaction on particle breakage of weathered granite fillings, a subgrade test section 300 m in length was constructed on the site of the project (shown in

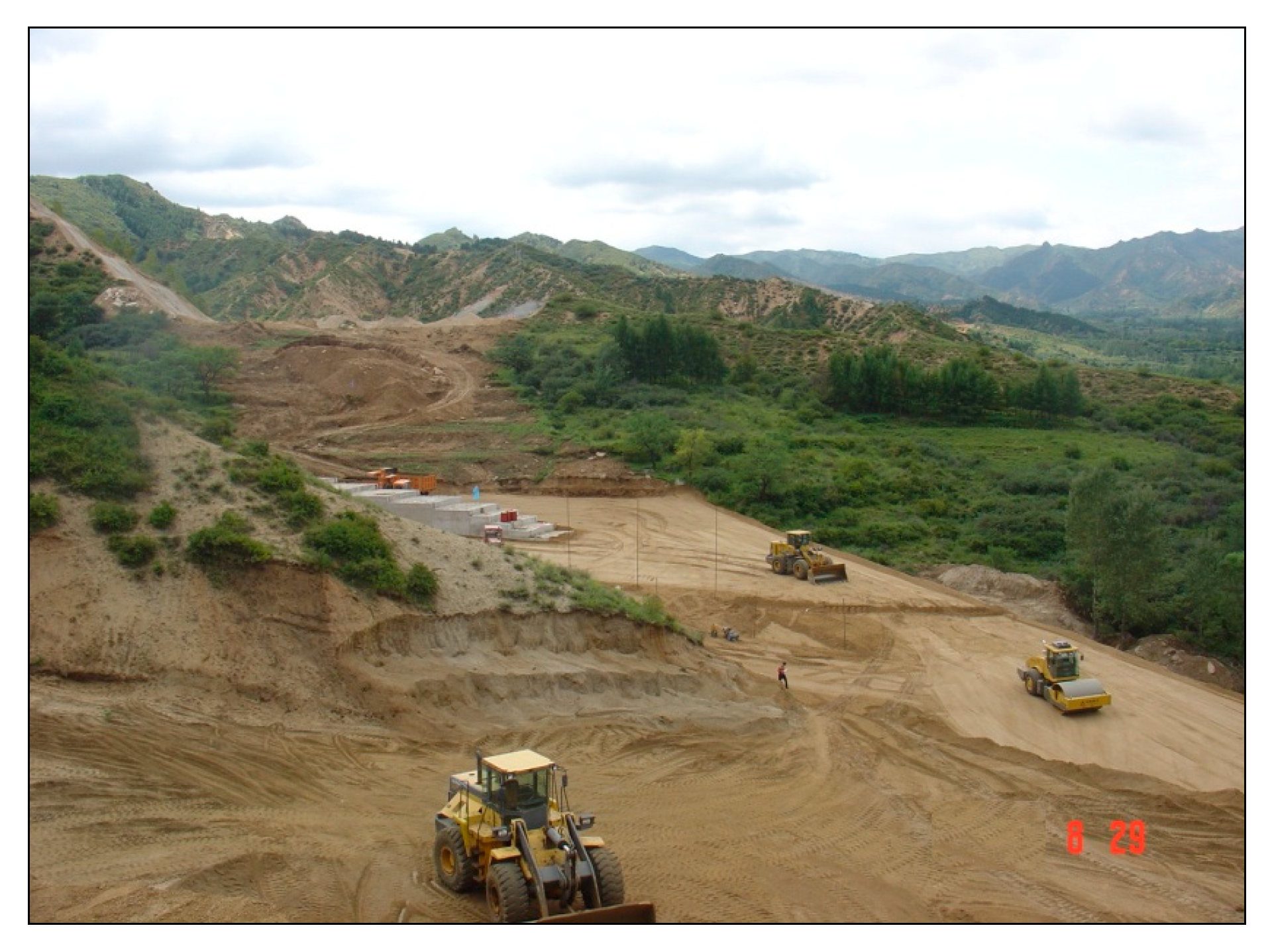

Figure 12).
Because the red-brown weathered granite was the most widely distributed in the field, the subgrade test section was filled with red-brown weathered granite. Field compaction tests with different thicknesses of loose paving layer (TLPL) were conducted by using the vibratory roller, a full hydraulic single-drive, single-wheel roller (Model No.: SSR200AC-8). The technical parameters of vibratory roller are shown in
Table 3. Before vibration compaction, each loose paving layer must be compacted in static. The number of static rolling passes of each loose paving layer is 2. The static rolling speed was 2 km/h and the vibration rolling speed was 5 km/h.
The relationships among the thicknesses of loose paving layers, the number of rolling passes, and the degree of compaction were examined. The degree of compaction of paving layers was measured by using the method of sand replacement [
27].
4. Test Results and Discussion
4.1. Weathering Process

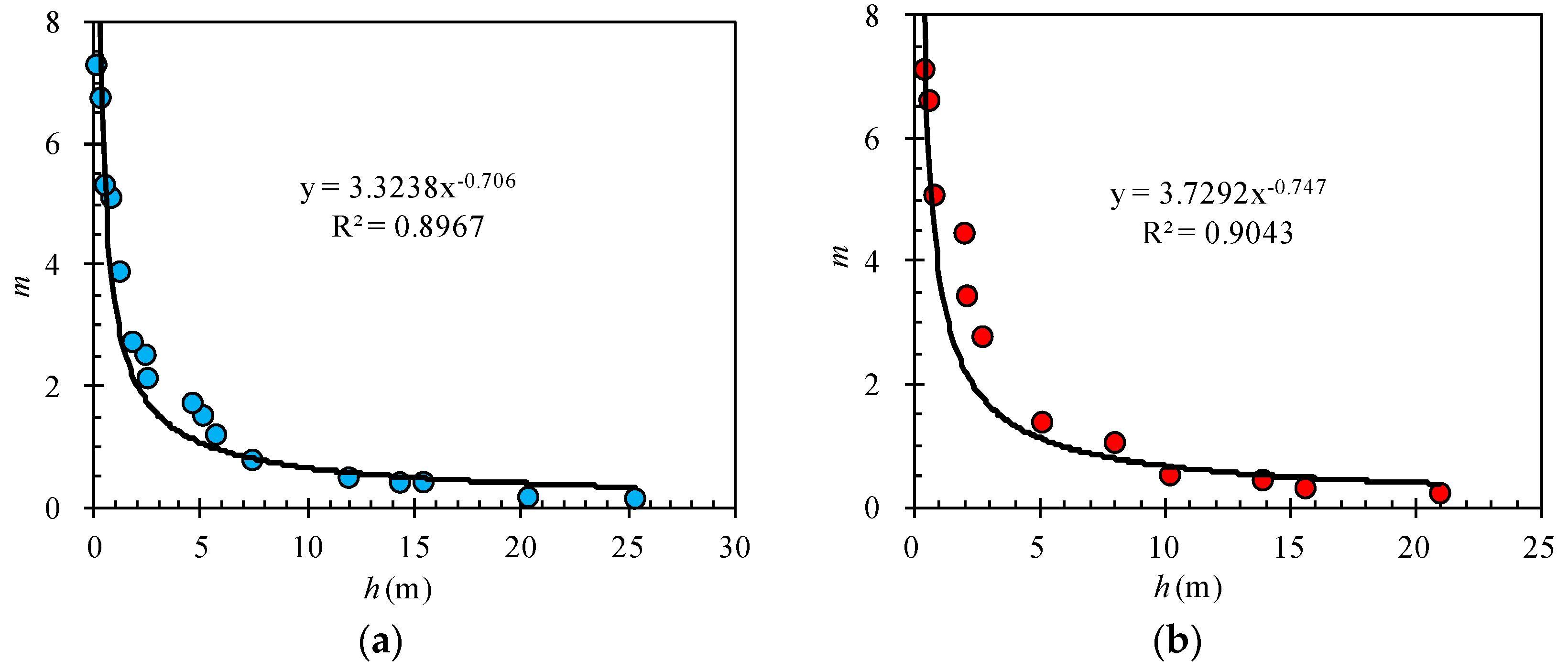

Figure 13 and

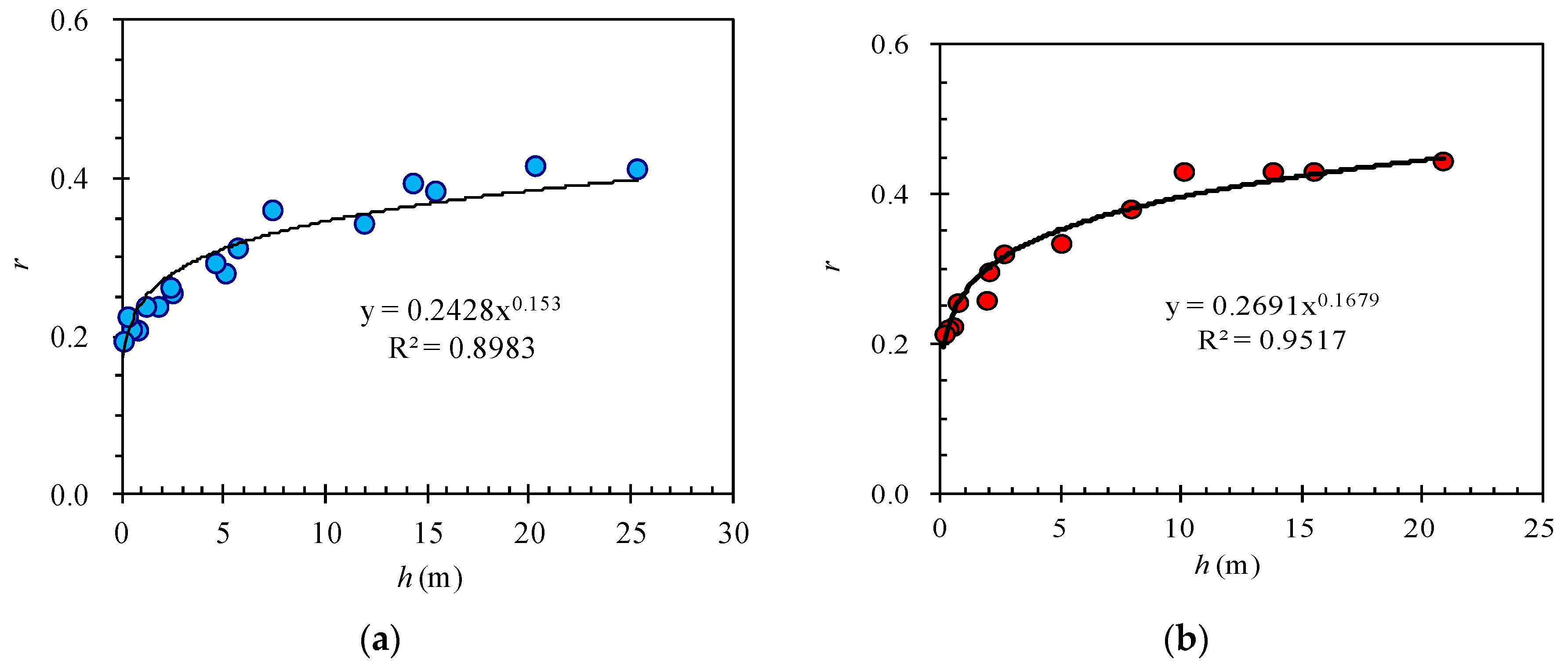

Figure 14, respectively, show changes of parameters
m and
r for the samples at different depths of mountain profile,
h.
The results of statistical analysis indicate an approximately power function relationship between
h and
m (or
r), and the correlation of relationship was relatively good. The power function relationships in section A are showed as follows:
where
h is the depth of granite samples, which was measured from the surface of mount;
mA and
rA is geological year’s parameter and geometric progression constant in section A, respectively.
The power function relationships in section B are showed as follows:
where
mB and
rB is geological year’s parameter and geometric progression constant in section B, respectively.
In fact, the geological year’s parameter, m, represents the degree of geological actions (including physical actions and chemical actions). The deeper the granite is buried, the less the geological action will affect it. The above experimental results show that the geological year’s parameter, m, was close to zero at a depth of 20–25 m under the surface of the mount, indicating that the geological action on the granite was negligible at this depth. The geometric progression constant, r, actually reflects the integrality of rock. For the mountains studied in this paper, the geometric progression constant of section A and section B was close to a certain value at a depth of 25 m and 20 m, respectively, indicating that the granite in the mountains studied in this paper was close to the complete unaltered state at a depth of 20–25 m.
The test results show that the m of section A was larger than that of section B at the same depth, which illustrates that the ability of section A to resist geological and climatic environment was worse than that of section B. By contrast, the r of section A was smaller than that of section B at the same depth, which indicates that the integrality of granite in section A was worse than that in section B. Under the same geological and climatic environment, the main reason for the difference in m and r between section A and section B was the difference in internal properties (such as the mineral composition of rocks) between these two sections. In other words, it may be due to the fact that the content of weathering resistant minerals (such as quartz) in Section A are smaller than those in Section B. Of course, some external factors could not be excluded, for example, the probability of fracture distribution of section A is larger than that of Section B.
4.2. Particle Breakage Characteristics
The characteristics of particle breakage of compacted weathered granite are influenced by many aspects, such as particle gradation, mineral composition, blows per layer, stress level, number of rolling passes, etc.
4.2.1. Particle Gradation
Standard heavy compaction tests on eight weathered granite samples with different gradations (four red-brown samples and four gray samples) were carried out under optimum moisture content conditions. Sieving tests were implemented on the samples before and after compaction, and the uniformity coefficient (
Cu =
d60/
d10) and relative breakage (
Br) of the samples before and after the compaction test were calculated. The relationship between the uniformity coefficient and the relative breakage is shown in
Figure 15. It can be seen from the figure that the relative breakage of the samples decreased with the increase of the uniformity coefficient, indicating that as the uniformity coefficient of weathered granite increased, the degree of particle breakage was reduced because of the enhancement of the intergranular locking effect. When the uniformity coefficient was small, the contact area among particles was smaller, and the stress concentration among particles was easy to be produced in the process of compaction, which leaded to the particle being crushed easily. For the sample with a high uniformity coefficient, due to the good intergranular locking structure and the larger contact area among particles, there was no excessive stress concentration during compaction, and the probability of particle breakage was small because the particles might undergo moved, approached and overturned processes in the process of compaction. In addition, it can be seen that the rate of decrease of relative breakage of the red-brown sample was higher than that of the gray sample, reflecting that because the degree of weathering of red-brown weathered granite is higher than that of gray weathered granite, the strength of the red-brown sample was less than that of the gray sample. This shows that the sensitivity of the red-brown sample to particle heterogeneity was greater than that of the gray sample.
4.2.2. Mineral Content (Quartz and Feldspar)

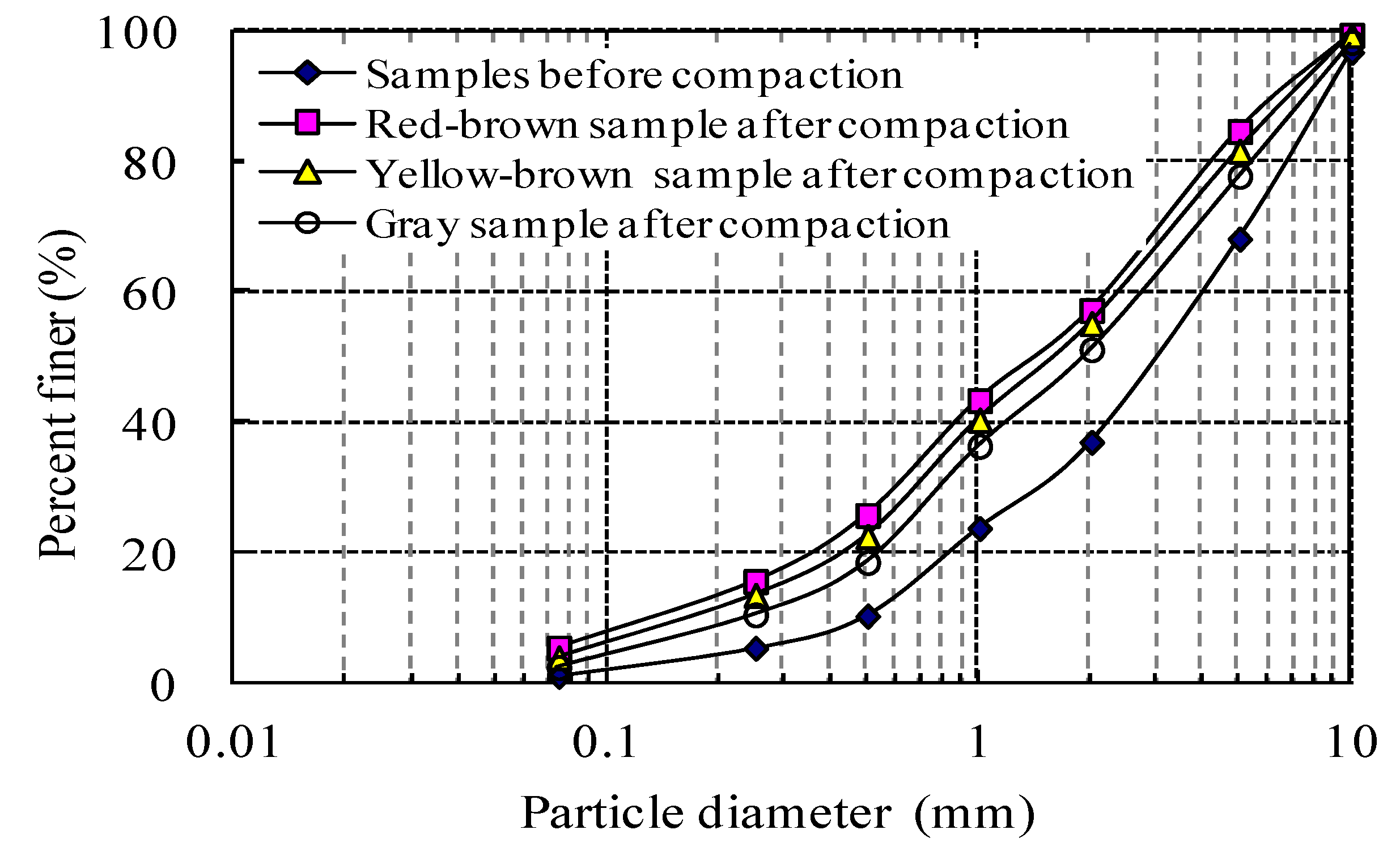

The red-brown, yellow-brown, and gray weathered granite samples were prepared with approximately the same particle size distribution. Standard heavy compaction tests were performed on the samples under optimum moisture content conditions. The results of sieving before and after the test are shown in
Figure 16.
The relationship between relative breakage and quartz (or feldspar) content was analyzed by calculating the relative breakage of different samples before and after the standard compaction test.

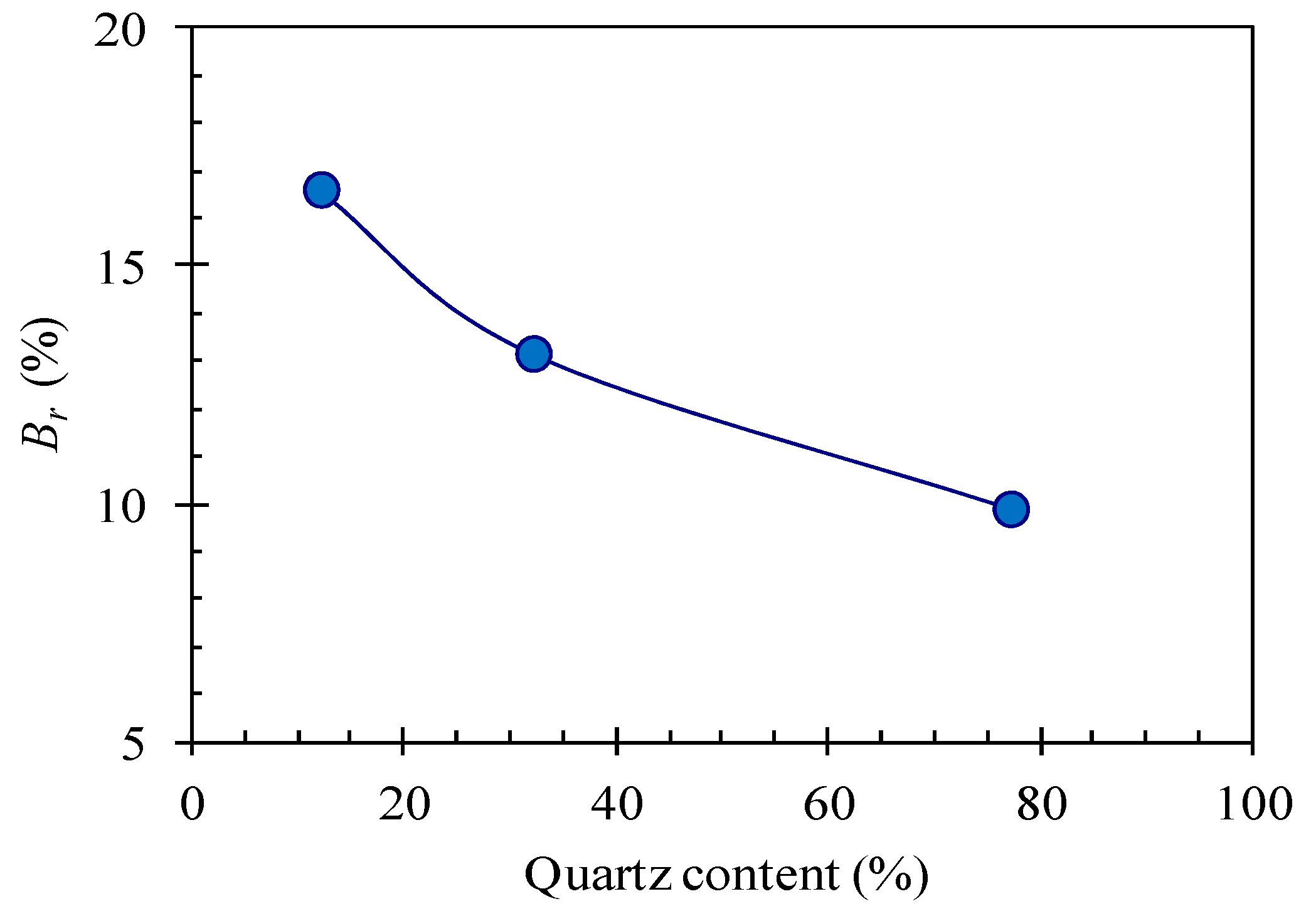

Figure 17 and

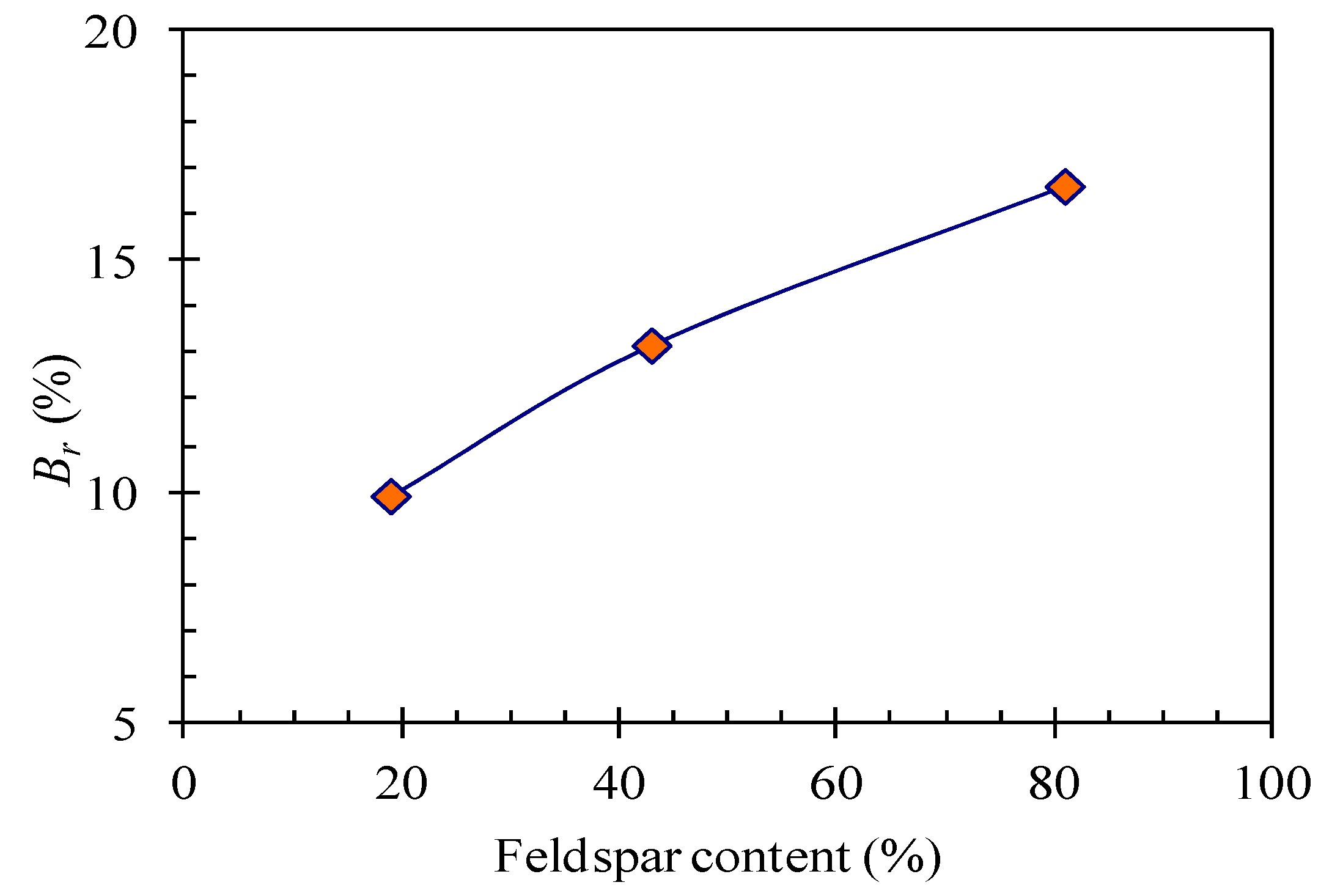

Figure 18 show the relationship between relative breakage and quartz (or feldspar) content. It can be seen from the figures that
Br decreased with the increase of quartz content, while
Br increased with the increase of feldspar (=plagioclase feldspar + potassium feldspar). The results show that quartz and feldspar content have an obvious effect on the particle breakage characteristics of weathered granite.
The main reasons that the Br of samples with high quartz content after compaction test was small are as follows: (1) The probability of breakage of samples with more quartz content is small because quartz has a high strength; (2) samples with high quartz content have strong ability to resist being weathered; and (3) there are few microcracks in samples with high quartz content. On the contrary, feldspar has little strength and is easy being weathered, so the samples with higher feldspar content showed obvious particle breakage characteristics.
The above conclusions were obtained under the same initial gradation. If the initial gradation changes, the increasing or decreasing trend of relative breakage will change.
4.2.3. Blows per Layer (Compaction Degree)
In order to analyze the effect of blows per layer of samples on the particle breakage properties of weathered granite, four red-brown weathered granite samples with the same initial particle size distribution were prepared, and four different heavy compaction tests were conducted, with blows per layer (BPL) of 30, 50, 75, and 98. The sieving results before and after the tests are shown in

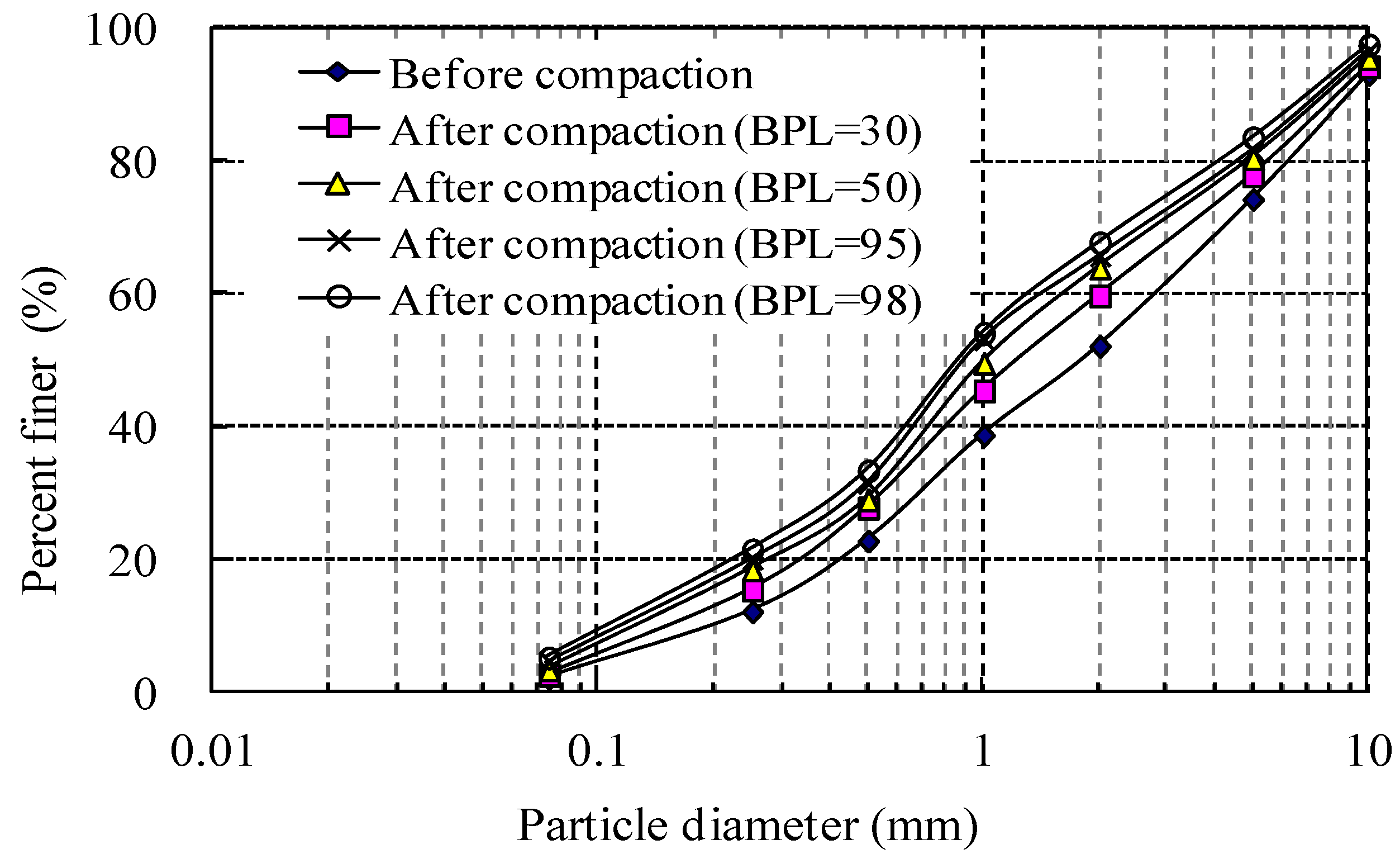

Figure 19.
As shown in
Figure 20, the relative breakage increased with an increase in blows per layer, but the increasing level of relative breakage decreased. Furthermore, with the further increase of blows,
Br tended toward a certain limit value. Considering the engineering practice, the compaction degree of samples was analyzed, and the compaction degrees of samples and corresponding relative breakage are depicted in
Figure 21. It can be concluded from this figure that there is an approximate linear growth relationship between compaction degree and
Br. It can be found that, for the same weathered granite fillings, relative breakage can be used to reflect the compaction performance indirectly on the basis of the relationship between compaction effect and compaction performance. Excessive compaction may lead to excessive particle breakage of soils and is not conducive to the long-term stability of subgrade.
4.2.4. Stress Level
The breakage of soil particles in a sample of rockfill under moderate stress will be quite evident [
14]. For the purpose of studying the particle breakage characteristics of compacted weathered granite soil under different stress levels, particle size analysis tests were conducted on the samples before and after consolidated drained large-scale triaxial tests, and the relationship between relative breakage and confining pressure (or stress ratio,
q/
p) was analyzed.
Because specimens for the triaxial test must be prepared by the vibrating forming method, particles of the specimens may be partially crushed. In order to improve the accuracy of the experiment, two specimens for the large-scale triaxial test under the same confining pressure were artificially prepared with approximately the same particle size distribution before vibrating compaction. One of the samples was sieved after vibrating compaction and before the triaxial test. The results of the sieving test for this sample were used as the initial gradation of the other sample for the triaxial test.
From the stress–strain curve of samples in this study, it can be seen that when the axial strain reached 15%, the residual strength of the specimen under different confining pressures reached its constant value. Therefore, when the axial strain reached 15%, the triaxial tests were forced to stop, and then the sieving tests were performed.
Figure 22 and
Figure 23, respectively, show variations in relative breakage (
Br) with confining pressure (
σ3) and stress ratio (
q/
p).
As indicated in

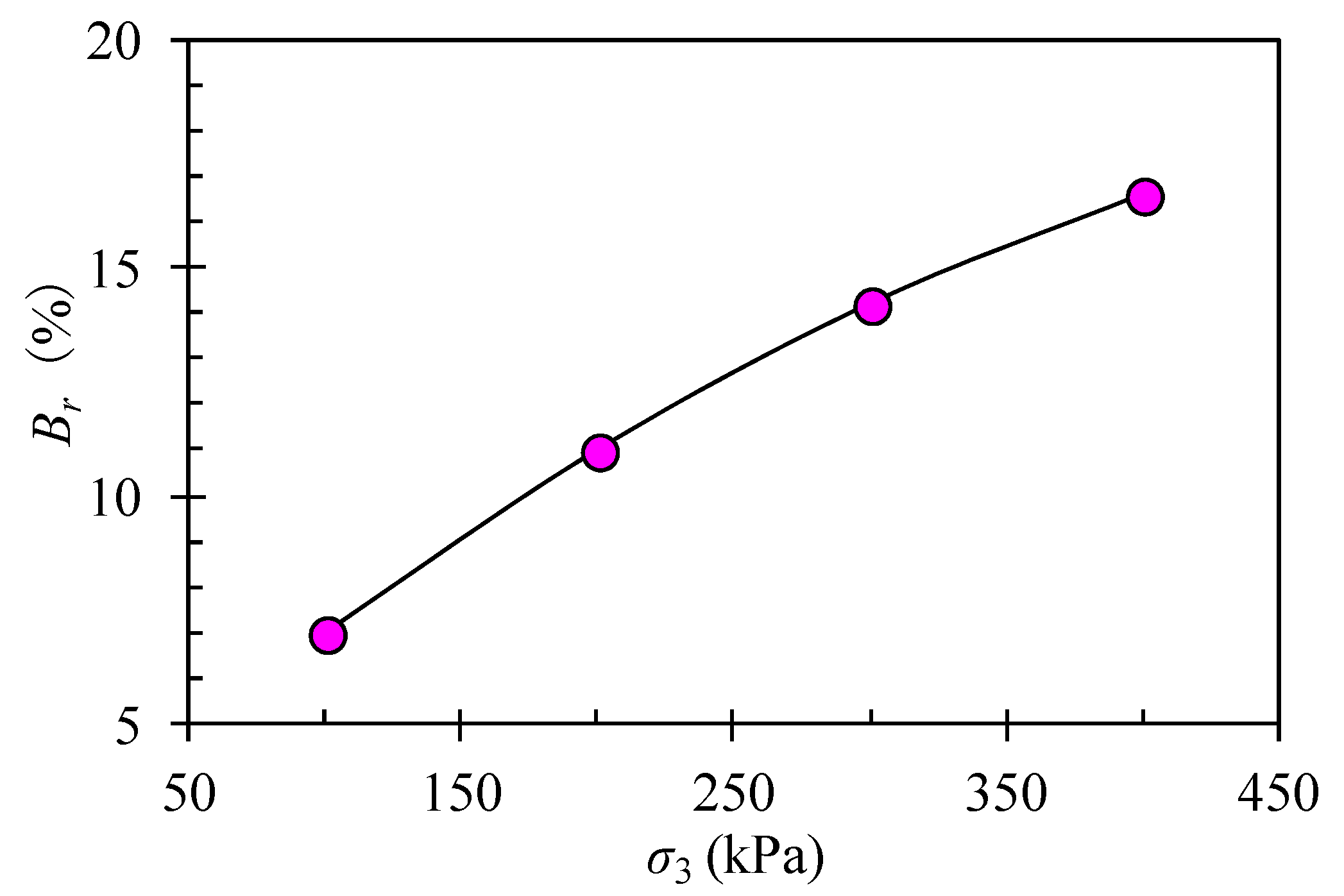

Figure 22, at the end of the triaxial test, the relative breakage of samples increased with the increase of confining pressure, while the increasing amplitude of relative breakage decreased slightly with the increase of confining pressure. It can be considered that the higher confining pressure limited the further compaction and movement of soil particles in soil samples and result in the produce of microcracks and fracture within a single particle. The data in
Figure 23 illustrate that at the end of the experiment (
ε1 = 15%), both relative breakage
Br and the amplitude of
Br increased with the increase of the stress ratio
q/
p. These results indicate that under the same axial strain conditions, more particles were broken due to the increased strain confinement caused by higher confining pressure.
4.2.5. Rolling Passes of Field Vibration Compaction

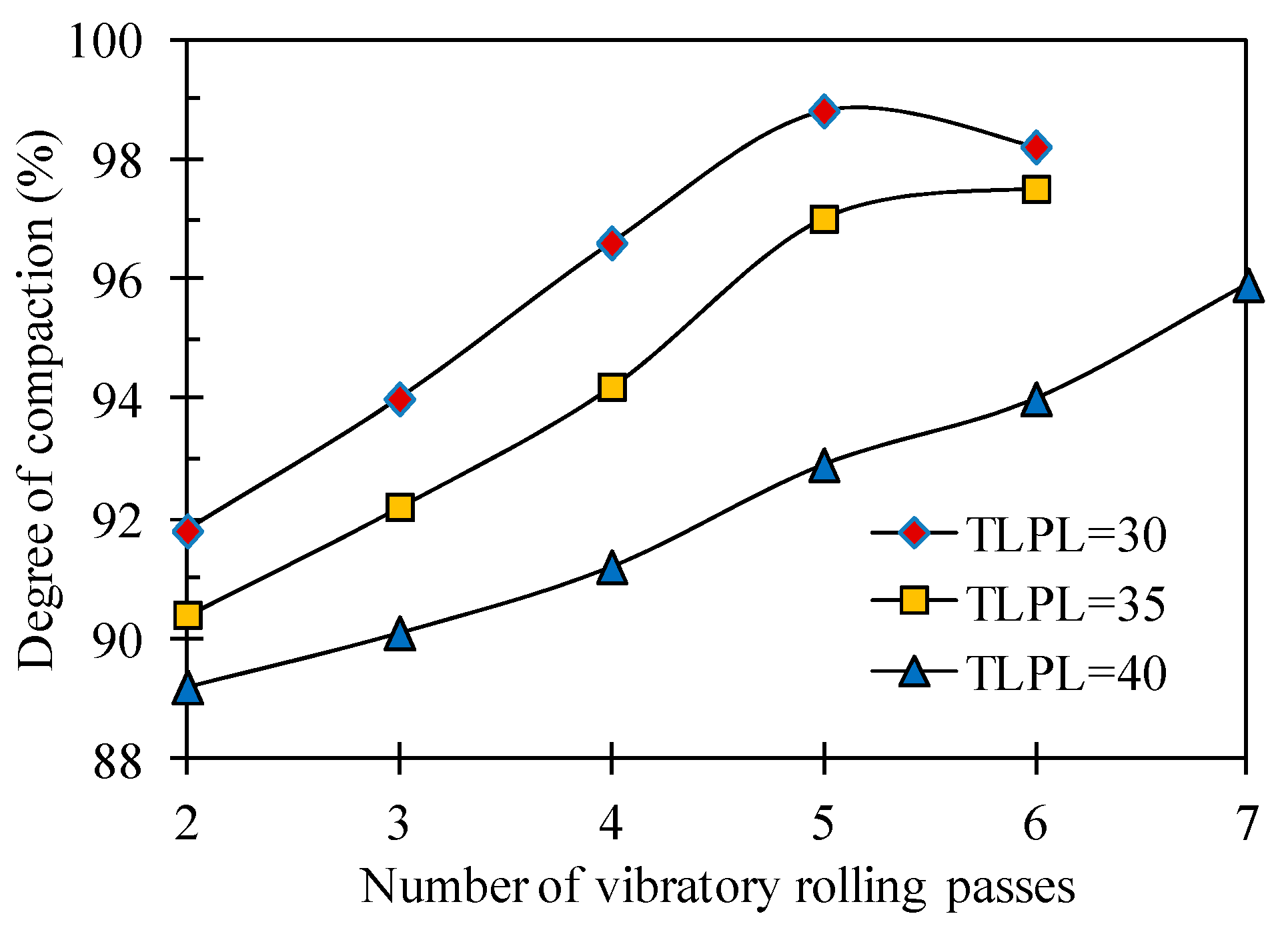

Figure 24 shows the variations of compaction degree of different paving layer thicknesses with number of rolling passes of vibratory compaction. It can be seen from the graphs that the compaction degree increased with the increased number of rolling passes, but when compaction degree was close to about 97%, the increase slowed down. Especially in the case where the thickness of the loose paving layer was 30 cm, the compaction degree tended to decrease when the number of rolling passes was >5. However, this is not limitless, which indicates that excessive compaction may cause the degree of compaction of the thinner paving layer to decrease. This phenomenon shows that the initial vibration compaction can make the fine particles fill the voids of coarse particles and be further compacted. When the number of rolling passes of vibration compaction exceeds a certain limit, the fine particles will be further increased due to particle breakage. Thus, compacted weathered granite will show partial compaction properties similar to those of eolian sand, which has a decreased degree of compaction when over-compacted [
28]. It can also be seen from
Figure 24 that the growth rate of the degree of compaction, which increased with the number of rolling passes of vibratory compaction, slowed down with decreased thickness of the loose paving layer. As previously mentioned, in short, the thickness of loose paving layers of weathered granite filling has an obvious influence on the compaction outcome.
In view of the characteristics of particle breakage of strongly weathered granite, the relative breakage
Br of strongly weathered granite fillings with different thicknesses of loose paving layer (30 cm, 35 cm, and 40 cm) and numbers of rolling passes of vibration compaction were measured. The results are shown in

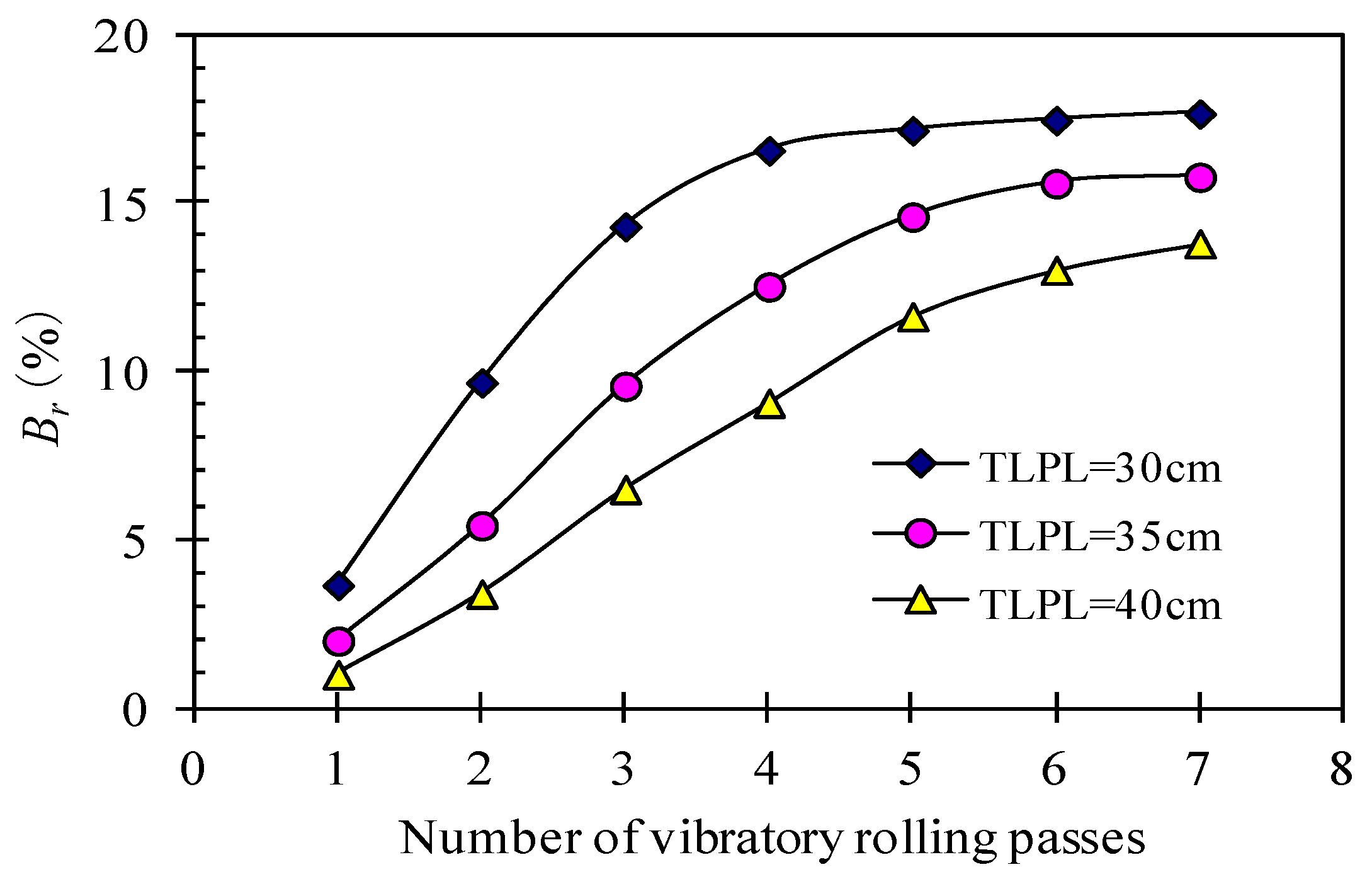

Figure 25.
Before compaction, three different specimens from the same roller track were selected for the sieving test. After compaction, to determine the degree of compaction of loose paving layers under a certain number of rolling passes, the average of three measurements of degree of compaction near the three points mentioned above in the same roller track was used as the degree of compaction for each number of rolling passes. The average value of relative breakage of the three points where degree of compaction was tested was calculated through sieving tests as the relative breaking Br under each number of rolling passes.
As can be seen from
Figure 25, with the increased number of rolling passes of vibratory compaction, the relative breakage of a given thickness of loose paving layer tended to a certain value. When the number of rolling passes was 7, the relative breakage of loose paving layers 30 cm, 35 cm, and 40 cm thick was 17.6%, 15.8%, and 13.8%, respectively. This shows that the relative breakage decreased with increased loose paving thickness. For the loose paving layer 30 cm thick, the increasing range of
Br tended to decrease when the number of rolling passes of vibratory compaction was >4. For the loose paving layer 35 cm thick, the relative breakage began to increase by a small margin when the number of rolling passes was 5, and for the loose paving layer 40 cm thick, it was 7. It can be deduced that the number of rolling passes in the situation where the increasing trend began to slow down decreased with increased loose paving layer thickness.
