Article

Intrinsic Magnetic Properties of Ce2Fe14B Modified by Al, Ni, or Si

by
Kayode Orimoloye
1,
Dominic H. Ryan
2,
Frederick E. Pinkerton
3 and
Mamoun Medraj
1,*
1
Department of Mechanical, Industrial and Aerospace Engineering, Concordia University, Montreal, QC H3G 1M8, Canada
2
Physics Department and Centre for the Physics of Materials, McGill University, Montreal, QC H3A 2T8, Canada
3
Chemical and Materials Systems Lab, General Motors R&D Center, 30500 Mound Rd., Warren, MI 48090, USA
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(2), 205; https://doi.org/10.3390/app8020205
Submission received: 13 November 2017 / Revised: 12 January 2018 / Accepted: 26 January 2018 / Published: 30 January 2018
(This article belongs to the Section Materials Science and Engineering)
Browse Figures
Versions Notes

Abstract

Featured Application

This is a contribution towards developing low-cost Fe-based permanent magnets that are suitable for the automobile industry.

Abstract

Intrinsic magnetic properties (saturation magnetization, anisotropy fields, and Curie temperatures) of Ce2Fe14B doped with Al, Ni, and Si are presented. Substitution for Fe by these elements leads to the formation of solid solutions that crystallize in the tetragonal Nd2Fe14B structure. Substituting Al, Ni, or Si for Fe leads to a decrease in both the saturation magnetization and the anisotropy field of Ce2Fe14B. Ni and Si increase the Curie temperature of Ce2Fe14B while Al reduces it. While, for the Ce2(Fe14−xTx)B containing Ni, a maximum Curie temperature of 210 °C was observed at 9 atom % Ni (x = 1.45), the highest value of 252 °C was found for the Ce2Fe14B containing 14 atom % Si (x = 2.26).

1. Introduction

The demand for Nd–Fe–B permanent magnets continues to increase due to their superior magnetic properties, despite the relatively high price of Nd and its restricted supply [1,2,3,4,5,6,7]. The low cost and availability of Ce have driven interest in developing Ce-based permanent magnets to replace expensive Nd2Fe14B magnets in certain applications [7,8,9,10,11,12,13,14,15,16,17,18,19]. This has resulted in investigation of Ce2Fe14B and its alloys [20,21,22,23,24,25,26]. Ce2Fe14B has intrinsic magnetic properties [3,4,5,6,7] that are inferior to those observed for the Nd2Fe14B [4,6,7], but they can be improved using a fourth element to replace some of the Fe in Ce2Fe14B. Studies of Nd2(Fe14−xTx)B, where T = Al, Ni, and Si have shown that Ni and Si increase the Curie temperature (TC) and Al significantly increases coercivity [27,28,29,30,31]. Homogeneity ranges for Ce2(Fe14−xNix)B, Ce2(Fe14−xSix)B, and Ce2(Fe14−xAlx)B solid solutions have been found to be (0 ≤ xNi ≤ 1.5), (0 ≤ xSi ≤ 2.33), and (0 ≤ xAl ≤ 2.5), respectively, at 900 °C, and the details of the phase equilibria in these systems are reported elsewhere [32]. The dopant concentrations used throughout this paper are the actual values substituting for Fe in the Ce2Fe14B phase as determined by scanning electron microscopy (SEM) combined with wavelength-dispersive X-ray spectroscopy (WDS). Ce2(Fe14−xTx)B solid solutions, where T = Al, Ni, and Si, show visible magnetic domains using magnetic force microscopy (MFM) analysis, and more details can be found in [32]. The aim of this work is to quantify the changes in the intrinsic magnetic properties of Ce2Fe14B when Fe is replaced by various amounts of Al, Ni, and Si.

2. Materials and Methods

The starting materials were Al (99.7 wt %), B (99.5 wt %), Ce (99.9 wt %), Fe (99.99 wt %), Si (99.9999 wt %), and Ni (99.99 wt %). An argon-arc furnace, equipped with a water-cooled copper crucible and a non-consumable tungsten electrode, was used to prepare the samples. After samples were melted three times to ensure homogeneity, they were sealed in an evacuated quartz tube and annealed at 900 °C for 21 days. These annealing temperature and time were chosen so as to grow high volume percentage of the Ce2(Fe14−xTx)B solid solution in each sample. Hitachi S-3400N Scanning Electron Microscopy (SEM) (Hitachi, Tokyo, Japan), combined with wavelength-dispersive X-ray spectroscopy (WDS), was used to analyze compositions, morphologies, and homogeneity ranges of the constituent phases observed in the alloys. X-ray diffraction (XRD) patterns were obtained using a PANanalytical Xpert Pro powder X-ray diffractometer (PANAnalytical, Almelo, The Netherland) with Cu Kα radiation at 45 kV and 40 mA from 20 to 90° 2θ with a 0.02° step size. XRD study of the alloys was carried out using X’Pert HighScore Plus Rietveld analysis software (PANAnalytical, Almelo, The Netherland). Pearson’s crystal structure database [33] was used to export the crystallographic data so as to identify the known phases in the samples. Saturation magnetizations (MS) and anisotropy fields (HA) were measured using a Quantum Design physical property measurement system (PPMS-9T). The demagnetization data were taken on bulk samples in external fields of up to 50 kOe at 25 °C. HA was determined by the singular point detection (SPD) method, using second derivative of magnetization (d2M/dH2) [34,35,36,37]. A Perkin-Elmer 7 Series thermogravimetric analyzer (TGA) was used to determine the Curie temperatures (TC) of the materials by observing the temperature dependence of the force exerted on the sample in a small magnetic field gradient provided by a permanent magnet placed close to the sample. A nickel metal standard was used to give a transition point reference, and TC was taken as the point where the magnetization due to the Ce2(Fe14−xTx)B vanishes [17,24].

3. Results and Discussion

In this work, the predominant phases observed in the alloys are α-Fe, Ce1.1Fe4B4, Ce2(Fe17−xTx), and Ce2(Fe14−xTx)B. Annealing at 900 °C increases the growth of Ce2(Fe14−xTx)B to above 70%, reducing other phases to insignificant amount as shown in Table 1. Ce2(Fe14−xTx)B solid solutions crystallize in the tetragonal Nd2Fe14B-type structure (P42/mnm, #136 space group). As can be seen in Figure 1, substitution of Fe by Ni and Si, which have smaller atomic radii to Fe, decreases the lattice volumes of the Ce2Fe14B, shifting its peaks positions to higher diffraction angles, whereas Al substitution increases lattice volume of the Ce2Fe14B, shifting its peak positions to lower angles. The measured unit cell parameters and lattice volume of the Ce2Fe14B used in Figure 1 are in agreement with literature values [4]. The linear relations between lattice parameter c and lattice volume V versus T concentrations in the Ce2(Fe14−xTx)B solid solutions are consistent with Vegard’s law [38] as shown in Figure 1. The dashed red line in Figure 2 demonstrates the shift in the (140) peak due to substitution of Fe in Ce2Fe14B by Si, Ni, and Al. This confirms that these elements replace Fe in the Ce2Fe14B to form solid solutions. Rietveld analysis was carried out on the XRD patterns obtained for all the samples and the relative amount of the Ce2(Fe14−xTx)B solid solution is listed in Table 1.
In this work, MS of Ce2Fe14B at 25 °C was determined as 130 emu/g, and this is approximately 997.1 kA/m using the density of Ce2Fe14B reported in [4]. This value is somewhat higher than the 931.1 kA/m at 22 °C that was reported for a Ce2Fe14B single crystal [3,4]. Our value of 28.1 kOe for HA at 25 °C is also higher than the 26.4 kOe previously reported [5,37] using the same SPD method. This might be due to the presence of other secondary phases, such as iron. This was evident during TGA experiments when the curve did not reach zero force after passing TC of the Ce2Fe14B compounds. In addition, the deviation from the single crystal data might be due to the fact that grain size, texture, defects, and precipitates affect many magnetic properties of bulk alloys [39]. The grain boundary increases as the grain size reduces, and increasing or decreasing grain boundaries can either improve or worsen magnetic properties of a material [39,40,41]. In this work, the annealing conditions were high enough to produce a high volume of Ce2(Fe14−xTx)14B, and other phases were reduced to minimum amounts. However, grain boundaries were still present in the current samples, and it is expected that the single crystal sample would have had a higher MS value if the contribution of the secondary phases was ignored. Therefore, the improvement in MS in this study is presumably attributed to the contributions of the secondary phases. The intrinsic magnetic properties of the Ce2(Fe14−xTx)14B solid solutions reported here, where T = Al, Ni, or Si, are limited to the homogeneity ranges, which were determined by diffusion couple and other key alloys techniques described in [32]. Table 1 shows the magnetic properties of these solid solutions in relation to the undoped Ce2Fe14B. The estimated maximum errors in MS, HA, and TC measurements are ±1.4 emu/g, ±2.0 kOe, and ±0.9 °C, respectively.
Figure 3 shows the composition dependence of MS for the Ce2(Fe14−xTx)B solid solutions, (T = Al, Ni, or Si). As expected, MS decreases in all cases as the elements replacing the iron are either non-magnetic (Al and Si) or weakly magnetic (Ni). This behaviour is in agreement with that reported for RE2Fe14B (RE = rare earth) [27,28,29,30,31,42,43,44,45,46,47]. The higher apparent MS value at 3.85 atom % (x = 0.64) of Al substituting for Fe in Ce2Fe14B is due to an α-Fe impurity. This data point was retained as this impurity does not affect the determination of either TC or HA. Saturation magnetization shows a decrease of about 6.2, 2.5, and 2.6 emu/g for Al, Ni, and Si, substituting 1 atom % Fe (x = 0.17) in the Ce2Fe14B compound.
Figure 4 shows the composition dependence of HA for the Ce2(Fe14−xTx)B solid solutions, (T = Al, Ni, Si). The anisotropy field generally decreases with increasing Al, Ni, or Si substitution, unlike the work of Jurczyk [43] on the magnetic behaviour of Nd2(Fe12−xAlx)Co2B, which showed a maximum HA of 85 kOe at x = 0.10 and 0.30. No such maximum was observed here for Ce2(Fe14−xAlx)B. Increasing Ni substitution for Fe in Ce2Fe14B decreased HA by 0.5(1) kOe for each x = 0.17 (1 atom %) substitution of Fe by Ni. Si substitution initially left HA unchanged at around 26 kOe; however, beyond x = 0.63, HA decreased rapidly. The trend of the plot of HA for Ce2(Fe14−xSix)B at 25 °C found here differs from that reported for Nd2(Fe14−xSix)B at 22 °C [30], where a maximum was observed at x = 0.5 (3 atom % Si). Meanwhile, no maximum was observed here for Ce2(Fe14−xSix)B. In general, Ni substitution for Fe in Ce2Fe14B results in a small overall reduction in HA, while Al and Si substitutions showed larger reductions.
Figure 5 shows composition dependence of TC for Ce2(Fe14−xTx)B, (T = Al, Ni, and Si). Replacement of Fe by Al leads to an increase in lattice constant, c, and lattice volume, consequently increasing the distances between Fe sites. This likely leads to a weakening of the Fe–Fe magnetic interactions and TC falls as the concentration of Al increases. This behaviour is in agreement with previous studies on the effect of Al on other RE2Fe14B discussed in the literature [29,43]. Ni prefers to substitute for Fe in the 16k2 and 8j2 sites, and Si prefers 16k2 and 8j2 sites in RE2Fe14B [48,49,50]. Fe substitution by both Ni and Si in Ce2Fe14B leads to decreases in the lattice constant, c, and the lattice volume. This reduces the distances between the Fe sites, strengthening the magnetic interactions and leading to increases in TC. At a maximum solubility of 9 atom % Ni (x = 1.45), a TC of 210 °C was measured. We found that Ni substitution leads to an increase of about 7.5 °C per x = 0.17 (1 atom % Ni). Increasing Si substitution for Fe in the Ce2Fe14B compound also increases the TC almost linearly (about 7.2 °C per x = 0.17 (1 atom % Si)) and a TC of 252 °C was measured in the composition containing the maximum solubility of Si.

4. Conclusions

The influence of Al, Ni, and Si substitutions on the intrinsic magnetic properties of Ce2Fe14B was studied. We observed that increasing the concentration of Al, Ni, or Si substituting for Fe in Ce2Fe14B reduces MS and HA. Ni or Si substitution increases TC, while Al reduces it. For Ce2Fe14B containing Ni, a maximum TC of 210 °C at x = 1.45 (8.71 atom % Ni) was observed, while a higher value of 252 °C was found for Ce2Fe14B containing x = 2.26 (13.60 atom % Si). The lowest value of 46 °C was found for Ce2Fe14B containing x = 2.04 (12.22 atom %) Al. The maximum TC of 252 °C observed at x = 2.26 Si (14 atom %) in the Ce2(Fe14−xSix)B solid solution makes it more promising as a lower cost PM material than the undoped Ce2Fe14B compound (TC = 152 °C). However, in reality, this might not be the case since the MS and HA both decrease with increasing Si content. Therefore, an intermediate composition, with a compromised TC but with better MS and HA might be the most promising Ce–Fe–B magnets containing Ni or Si. Al doping is not recommended because it diminishes all of the studied intrinsic magnetic properties.

Acknowledgments

The authors gratefully acknowledge financial support from NSERC and General Motors. The authors wish to thank Ahmad Mostafa and Tian Wang for their assistance in carrying out this research.

Author Contributions

M.M. and F.E.P. conceived the project; M.M. and D.H.R. designed the experiments; K.O. and D.H.R. performed the experiments; K.O., M.M., F.E.P., and D.H.R. analyzed the data; K.O. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hisyam, A.; Ismail, N.A.; Taib, M.K.A.M.; Shariff, S. Leaching study of precious metal recovery from ferric permanent magnet waste. ARPN J. Eng. Appl. Sci. 2016, 11, 9981–9984. [Google Scholar]
  2. Dupont, D.; Binnemans, K. Recycling of rare earths from NdFeB magnets using a combined leaching/extraction system based on the acidity and thermomorphism of the ionic liquid [Hbet][Tf2N]. Green Chem. 2015, 17, 2150–2163. [Google Scholar] [CrossRef]
  3. Herbst, J.F.; Meyer, M.S.; Pinkerton, F.E. Magnetic hardening of Ce2Fe14B. J. Appl. Phys. 2012, 111, 07A718. [Google Scholar] [CrossRef]
  4. Herbst, J. R2Fe14B materials: Intrinsic properties and technological aspects. Rev. Mod. Phys. 1991, 63, 819–898. [Google Scholar] [CrossRef]
  5. Grössinger, R.; Sun, X.K.; Eibler, R.; Buschow, K.H.J.; Kirchmayr, H.R. The temperature dependence of the anisotropy field in R2Fe14B compounds (R = Y, La, Ce, Pr, Nd, Gd, Ho, Lu). Le J. Phys. Colloq. 1985, 46, C6-221–C6-224. [Google Scholar] [CrossRef]
  6. Herbst, J.F.; Croat, J.J. Neodymium-iron-boron permanent magnets. J. Magn. Magn. Mater. 1991, 100, 57–78. [Google Scholar] [CrossRef]
  7. Sinnema, S.; Radwanski, R.J.; Franse, J.J.M.; de Mooij, D.B.; Buschow, K.H.J. Magnetic properties of ternary rare-earth compounds of the type R2Fe14B. J. Magn. Magn. Mater. 1984, 44, 333–341. [Google Scholar] [CrossRef]
  8. Alam, A.; Johnson, D.D. Mixed valency and site-preference chemistry for cerium and its compounds: A predictive density-functional theory study. Phys. Rev. B 2014, 89, 235126. [Google Scholar] [CrossRef]
  9. Pathak, A.K.; Khan, M.; Gschneidner, K.A., Jr.; Mccallum, R.W.; Zhou, L.; Sun, K.; Dennis, K.W.; Zhou, C.; Pinkerton, F.E.; Kramer, M.J.; et al. Cerium: An unlikely replacement of Dysprosium in high performance Nd–Fe–B permanent magnets. Adv. Mater. 2015, 27, 2663–2667. [Google Scholar] [CrossRef] [PubMed]
  10. Alam, A.; Khan, M.; Mccallum, R.W.; Johnson, D.D. Site-preference and valency for rare-earth sites in (R-Ce)2Fe14B magnets. Appl. Phys. Lett. 2013, 102, 42402. [Google Scholar] [CrossRef]
  11. Pathak, A.K.; Khan, M.; Gschneidner, K.A., Jr.; Mccallum, R.W.; Zhou, L.; Sun, K.; Kramer, M.J.; Pecharsky, V.K. Magnetic properties of bulk, and rapidly solidified nanostructured (Nd1−xCex)2Fe14−yCoyB ribbons. Acta Mater. 2016, 103, 211–216. [Google Scholar] [CrossRef]
  12. Pathak, A.K.; Gschneidner, K.A., Jr.; Khan, M.; Mccallum, R.W.; Pecharsky, V.K. High performance Nd–Fe–B permanent magnets without critical elements. J. Alloys Compd. 2016, 668, 80–86. [Google Scholar] [CrossRef]
  13. Li, Z.B.; Shen, B.G.; Zhang, M.; Hu, F.X.; Sun, J.R. Substitution of Ce for Nd in preparing R2Fe14B nanocrystalline magnets. J. Alloys Compd. 2015, 628, 325–328. [Google Scholar] [CrossRef]
  14. Yan, C.; Guo, S.; Chen, R.; Lee, D.; Yan, A. Effect of Ce on the magnetic properties and microstructure of sintered Didymium–Fe–B magnets. IEEE Trans. Magn. 2014, 50, 2102605. [Google Scholar] [CrossRef]
  15. Zhou, C.; Haddad, D.; Kukreja, R.S.; Pinkerton, F.E.; Sun, K.; Kramer, M.J. Magnetic hardening of CeFe11Ti and the effect of TiC addition. IEEE Trans. Magn. 2015, 51, 2100104. [Google Scholar] [CrossRef]
  16. Zhou, C.; Pinkerton, F.E.; Herbst, J.F. Magnetic properties of CeFe11−xCoxTi with ThMn12 structure. J. Appl. Phys. 2014, 115, 17C716. [Google Scholar] [CrossRef]
  17. Zhou, C.; Pinkerton, F.E.; Herbst, J.F. High Curie temperature of Ce–Fe–Si compounds with ThMn12 structure. Scr. Mater. 2015, 95, 66–69. [Google Scholar] [CrossRef]
  18. Zhou, C.; Tessema, M.; Meyer, M.S.; Pinkerton, F.E. Synthesis of CeFe10.5Mo1.5 with ThMn12-type structure by melt spinning. J. Magn. Magn. Mater. 2013, 336, 26–28. [Google Scholar] [CrossRef]
  19. Zhou, C.; Pinkerton, F.E. Magnetic hardening of CeFe12−xMox and the effect of nitrogenation. J. Alloys Compd. 2014, 583, 345–350. [Google Scholar] [CrossRef]
  20. Wang, R.; Shen, X.; Liu, Y.; Li, J. Effects of Ga addition on the formability of main phase and microstructure of hot-deformed Ce–Fe–B Magnets. IEEE Trans. Magn. 2016, 52, 2101806. [Google Scholar] [CrossRef]
  21. Chang-Jiang, Y.; Shuai, G.; Ren-Jie, C.; Dong, L.; A-Ru, Y. Phase constitution and microstructure of Ce–Fe–B strip-casting alloy. Chin. Phys. B 2014, 23, 107501. [Google Scholar]
  22. Hirosawa, S.; Matsuura, Y.; Yamamoto, H.; Fujimura, S.; Sagawa, M.; Yamauchi, H. Magnetization and magnetic anisotropy of R2Fe14B measured on single crystals. J. Appl. Phys. 1986, 59, 873–879. [Google Scholar] [CrossRef]
  23. Wang, X.; Zhu, M.; Li, W.; Zheng, L.; Zhao, D.; Du, X.; Du, A. The microstructure and magnetic properties of melt-spun CeFeB ribbons with varying Ce content. Electron. Mater. Lett. 2015, 11, 109–112. [Google Scholar] [CrossRef]
  24. Skoug, E.J.; Meyer, M.S.; Pinkerton, F.E.; Tessema, M.M.; Haddad, D.; Herbst, J.F. Crystal structure and magnetic properties of Ce2Fe14−xCoxB alloys. J. Alloys Compd. 2013, 574, 552–555. [Google Scholar] [CrossRef]
  25. Xing, M.; Han, J.; Lin, Z.; Wan, F.; Li, C.; Liu, S.; Wang, C.; Yang, J.; Yang, Y. Anisotropic ternary Ce13Fe80B7 powders prepared by hydrogenation–disproportionation–desorption–recombination process and the diffusion of Ce–Cu eutectic alloys. J. Magn. Magn. Mater. 2013, 331, 140–143. [Google Scholar] [CrossRef]
  26. Zhang, M.; Shen, B.; Hu, F.; Sun, J. The effect of Si substitution on structure and magnetic properties in Mischmetal–Fe–B ribbons. In Proceedings of the 2015 IEEE International Magnetics Conference (INTERMAG), Beijing, China, 11–15 May 2015. [Google Scholar]
  27. Hirosawa, S.; Yamaguchi, Y.; Tokuhara, K.; Yamamoto, H.; Fujimura, S.; Sagawa, M. Magnetic properties of Nd2(Fe1−xMx)14B measured on single crystals (M = Al, Cr, Mn and Co). IEEE Trans. Magn. 1987, 23, 2120–2122. [Google Scholar] [CrossRef]
  28. Kowalczyk, A.; Stefanski, P.; Wrzeciono, A.; Szlaferek, A. Structure and magnetic properties of R2Fe14−xNixB compounds (R = Nd and Gd). Phys. Status Solidi 1989, 114, 355–358. [Google Scholar] [CrossRef]
  29. Kou, X.C.; Sun, X.K.; Chuang, Y.C.; Zhao, T.S.; Grossinger, R.; Kirchmayr, H.R. Exchange interaction and magnetic anisotropy in Nd2(Fe13M)B compounds (M = Ga, Si, Al). J. Magn. Magn. Mater. 1989, 82, 327–334. [Google Scholar] [CrossRef]
  30. Jurczyk, M.; Kowalczyk, A.; Wrzeciono, A. Magnetic properties of Nd2Fe14−xSixB compounds. Phys. Status Solidi 1987, 101, K65. [Google Scholar] [CrossRef]
  31. Jurczyk, M.; Kowalczyk, A. Effect of silicon additions on the magnetic properties of Nd2Fe12Co2B alloy. J. Magn. Magn. Mater. 1987, 68, 331–334. [Google Scholar] [CrossRef]
  32. Orimoloye, K.; Kevorkov, D.; Medraj, M. Phase equilibria and magnetic phases in the Fe-rich regions of the Fe-Ce-{Ni, Si, Al}-B quaternary systems. J. Alloys Compd. 2017. submitted. [Google Scholar]
  33. Putz, H.; Brandenburg, K. Pearson’s Crystal Data. Crystal Structure Database for Inorganic Compounds; CD-ROM Software Version 1.3; ASM International: Materials Park, OH, USA, 2007. [Google Scholar]
  34. Asti, G.; Rinaldi, S. Nonaliticity of the magnetization curve: Application to the measurement of anisotropy in polycrystalline samples. Phys. Rev. Lett. 1972, 28, 1584–1586. [Google Scholar] [CrossRef]
  35. Asti, G.; Rinaldi, S. Singular points in the magnetization curve of a polycrystalline ferromagnet. J. Appl. Phys. 1974, 45, 3600–3610. [Google Scholar] [CrossRef]
  36. Liu, X.; Ryan, D.H.; Wang, M.; Lu, Q.; Zhang, H. Experimental and first-principles determination of the magnetocrystalline anisotropy in MnxGa. AIP Adv. 2017, 7, 56216. [Google Scholar] [CrossRef]
  37. Grossinger, R.; Sun, X.K.; Eibler, R.; Buschow, K.H.J.; Kirchmayr, H.R. Temperature dependence of anisotropy fields and initial susceptibilities in R2Fe14B compounds. J. Magn. Magn. Mater. 1986, 58, 55–60. [Google Scholar] [CrossRef]
  38. Denton, A.R.; Ashcroft, N.W. Vegard’s law. Phys. Rev. A 1991, 43, 3161–3164. [Google Scholar] [CrossRef] [PubMed]
  39. Yu, R.H.; Basu, S.; Zhang, Y.; Parvizi-Majidi, A.; Xiao, J.Q. Pinning effect of the grain boundaries on magnetic domain wall in FeCo-based magnetic alloys. J. Appl. Phys. 1999, 85, 6655–6659. [Google Scholar] [CrossRef]
  40. Landgraf, J.F.G.; Filipini da Silvera, J.R.; Rodrigues, D., Jr. Determining the effect of grain size and maximum induction upon coercive field of electrical steels. J. Magn. Magn. Mater. 2011, 323, 2335–2339. [Google Scholar] [CrossRef]
  41. Tong, H.Y.; Shi, F.G. Magnetic properties of polycrystalline FeBSi alloys with ultrafine grains. Scr. Mater. 1996, 34, 1887–1892. [Google Scholar] [CrossRef]
  42. Burzo, E.; Plugaru, N.; Pop, V.; Stanciu, L.; Wallace, W.E. Bulk magnetic properties of the Y2TxFe14−xB compounds, where T = Al, Ni, or Co. Solid State Commun. 1986, 58, 803–805. [Google Scholar] [CrossRef]
  43. Jurczyk, M. On the magnetic behaviour of Nd2Fe12−xTxCo2B compounds (T = Al, V, Cr). IEEE Trans. Magn. 1988, 24, 1942–1944. [Google Scholar] [CrossRef]
  44. Bolzoni, F.; Leccabue, F.; Moze, O.; Pareti, L.; Solzi, M. Magnetocrystalline anisotropy of Ni and Mn substituted Nd2Fe14B compounds. J. Magn. Magn. Mater. 1987, 67, 373–377. [Google Scholar] [CrossRef]
  45. Ku, H.C.; Yen, L.S. Magnetic properties of the new permanent magnet compounds Nd2(Fe0.9M0.1)14B (M = Sc, Ti, V, Cr, Mn, Co, Ni). J. Less Common Met. 1987, 127, 43–48. [Google Scholar] [CrossRef]
  46. Burzo, E.; Stanciu, L.; Wallace, W.E. On the magnetic behaviour of Y2Fe14−xNixB and Y2Fe14−xCoxB. J. Less Common Met. 1985, 111, 83–86. [Google Scholar] [CrossRef]
  47. Pedziwiatr, A.T.; Wallace, W.E.; Burzo, E.; Pop, V. Magnetic properties of Y2Fe14−xMxB compounds where M = Si or Cu. Solid State Commun. 1987, 61, 61–64. [Google Scholar] [CrossRef]
  48. Dai, S.; Morrish, A.H.; Zhou, X.Z.; Hu, B.P.; Zhang, S.G. Mossbauer study of the permanent magnet material Nd2(Fe1−xNix)14B. J. Appl. Phys. 1988, 63, 3722–3724. [Google Scholar] [CrossRef]
  49. Marasinghe, G.K.; Pringle, O.A.; Long, G.J.; Yelon, W.B.; Grandjean, F. A neutron diffraction and Mössbauer spectral study of the structure and magnetic properties of the Y2Fe14−xSixB solid solutions. J. Appl. Phys. 1994, 76, 2960–2968. [Google Scholar] [CrossRef]
  50. Marasinghe, G.K.; Pringle, O.A.; Long, G.J.; James, W.J.; Xie, D.; Li, J.; Yelon, W.B.; Grandjean, F. Neutron diffraction and Mössbauer effect study of the preferential silicon site occupation and magnetic structure of Nd2Fe14−xSixB. J. Appl. Phys. 1993, 74, 6798–6809. [Google Scholar] [CrossRef]
Applsci 08 00205 g001

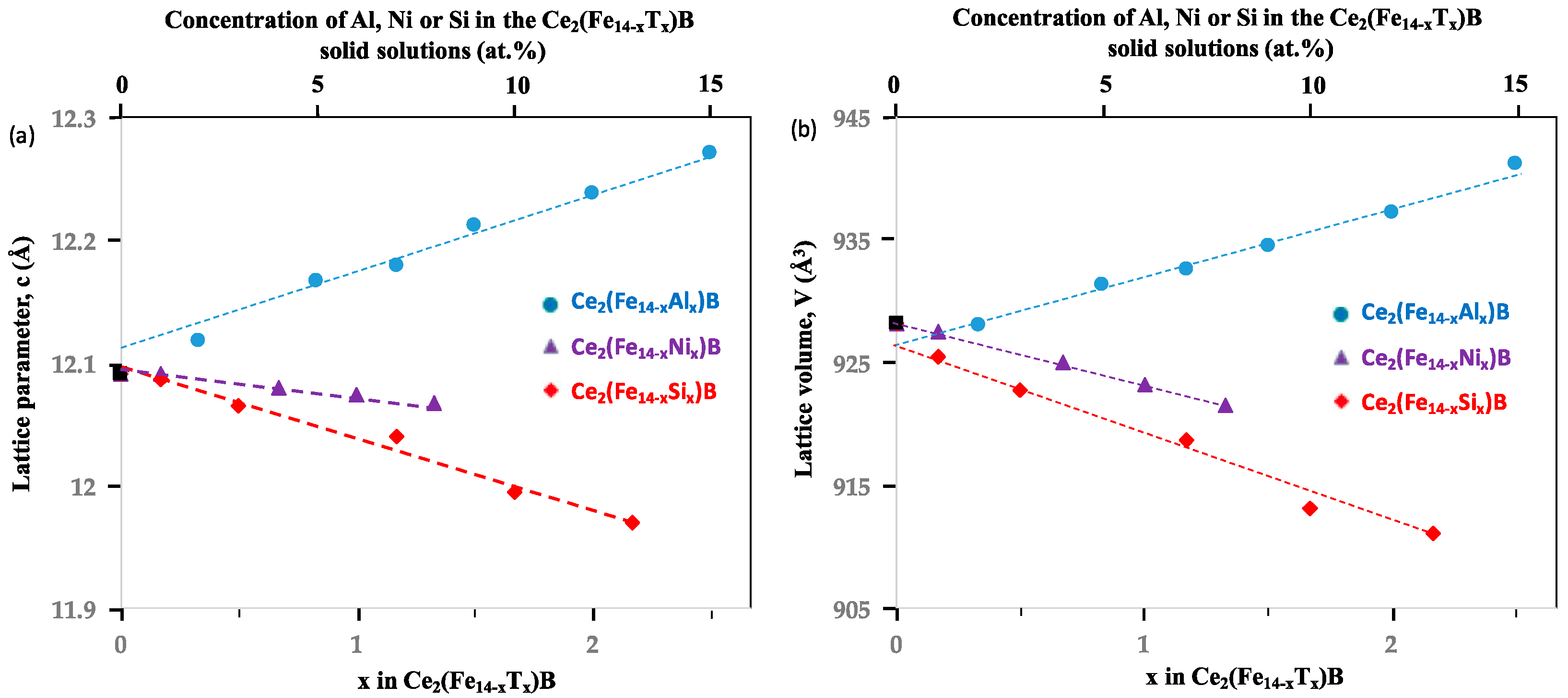

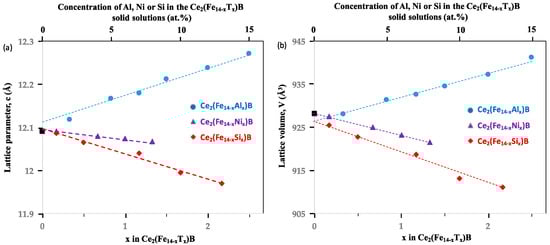

Figure 1. Plots of the (a) lattice parameter, c; and (b) lattice volume, V, with T content in the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, and Si). The uncertainties in lattice parameter and volume are smaller than the data points.
Figure 1. Plots of the (a) lattice parameter, c; and (b) lattice volume, V, with T content in the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, and Si). The uncertainties in lattice parameter and volume are smaller than the data points.
Applsci 08 00205 g001
Applsci 08 00205 g002

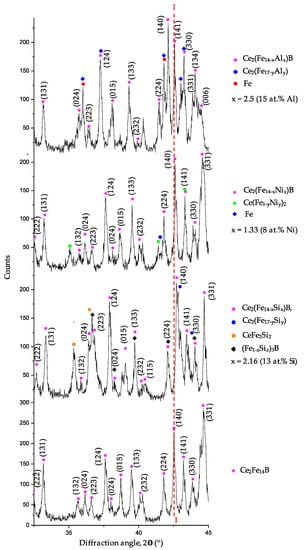

Figure 2. XRD patterns of the Ce2Fe14B base compound and Ce2(Fe14−xTx)B solid solutions. The labelled peaks are for the Ce2Fe14B and its solid solutions.
Figure 2. XRD patterns of the Ce2Fe14B base compound and Ce2(Fe14−xTx)B solid solutions. The labelled peaks are for the Ce2Fe14B and its solid solutions.
Applsci 08 00205 g002
Applsci 08 00205 g003

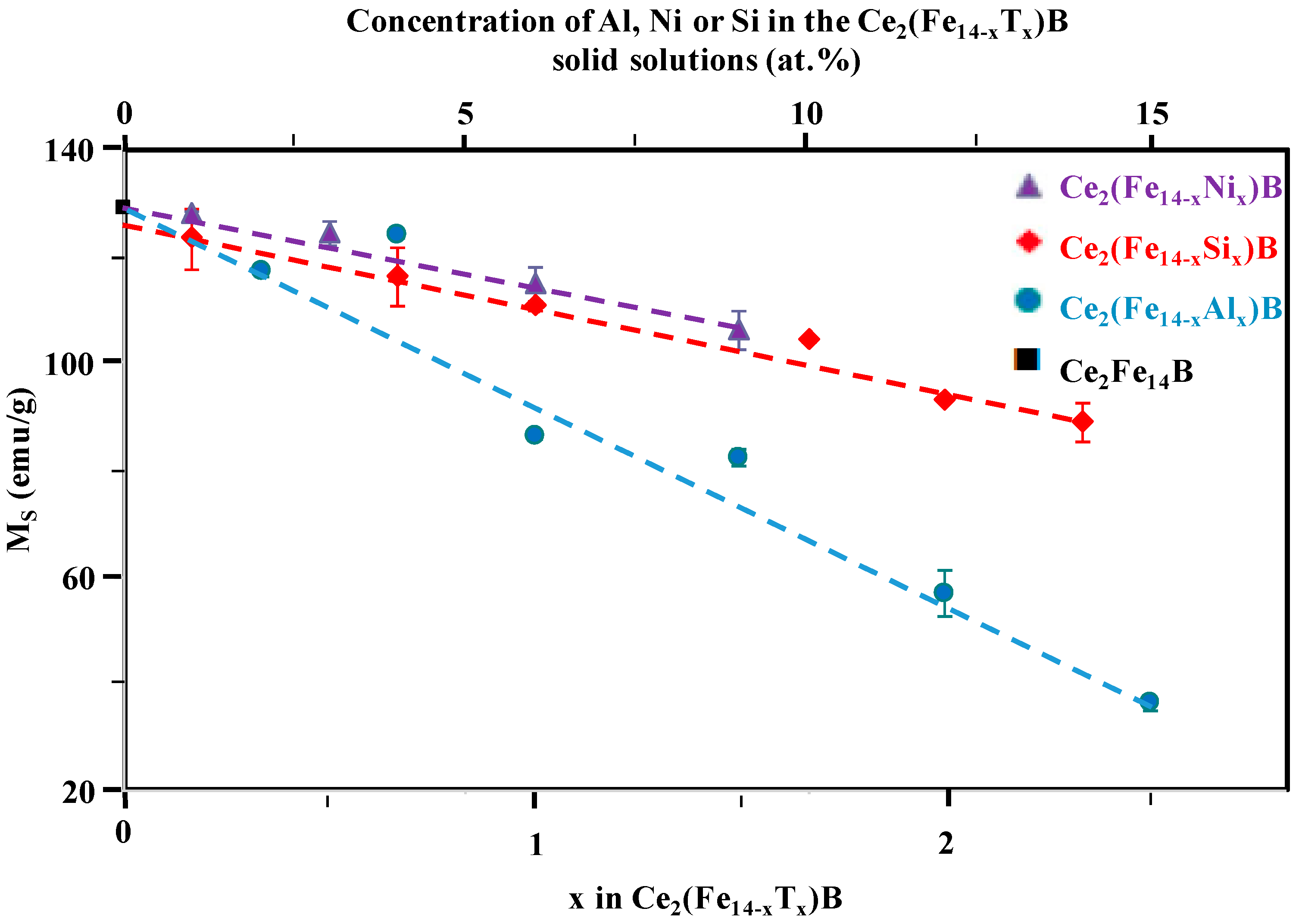

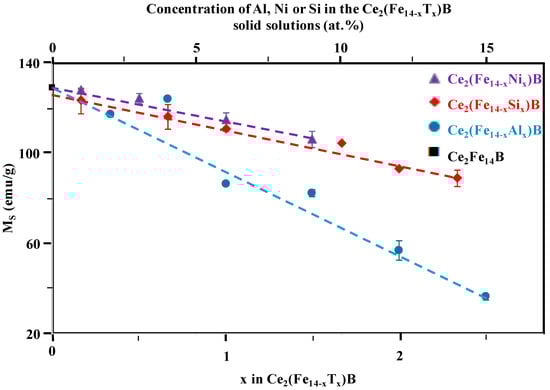

Figure 3. The composition dependence of the saturation magnetization (MS) for the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, Si) at 25 °C. Some error bars are not visible because they are smaller than the data points.
Figure 3. The composition dependence of the saturation magnetization (MS) for the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, Si) at 25 °C. Some error bars are not visible because they are smaller than the data points.
Applsci 08 00205 g003
Applsci 08 00205 g004

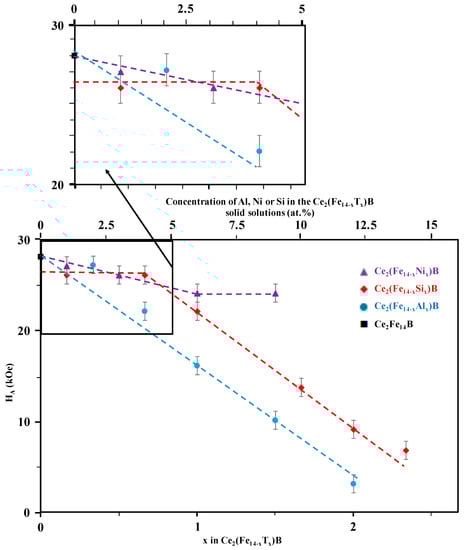

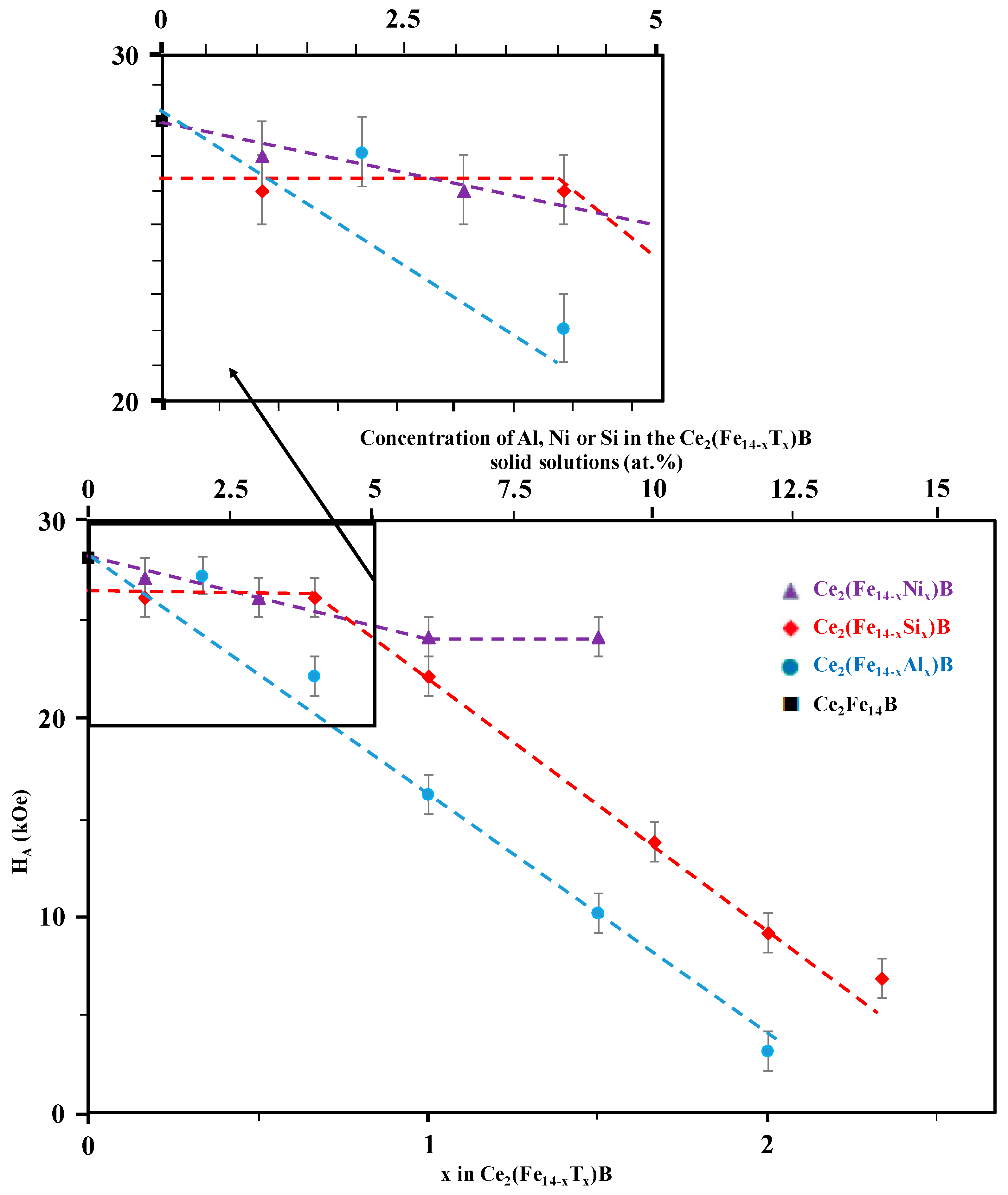

Figure 4. The composition dependence of the anisotropy fields (HA) for the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, and Si) at 25 °C.
Figure 4. The composition dependence of the anisotropy fields (HA) for the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, and Si) at 25 °C.
Applsci 08 00205 g004
Applsci 08 00205 g005

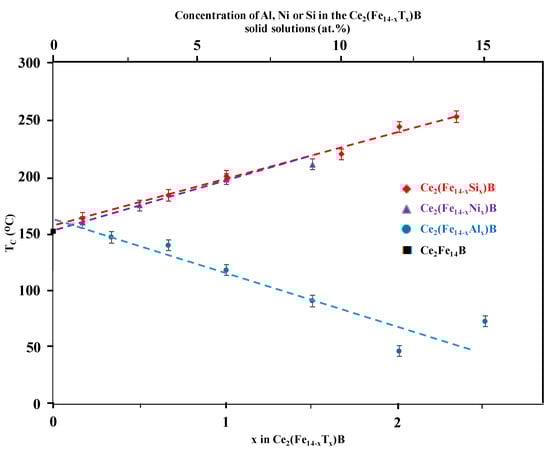

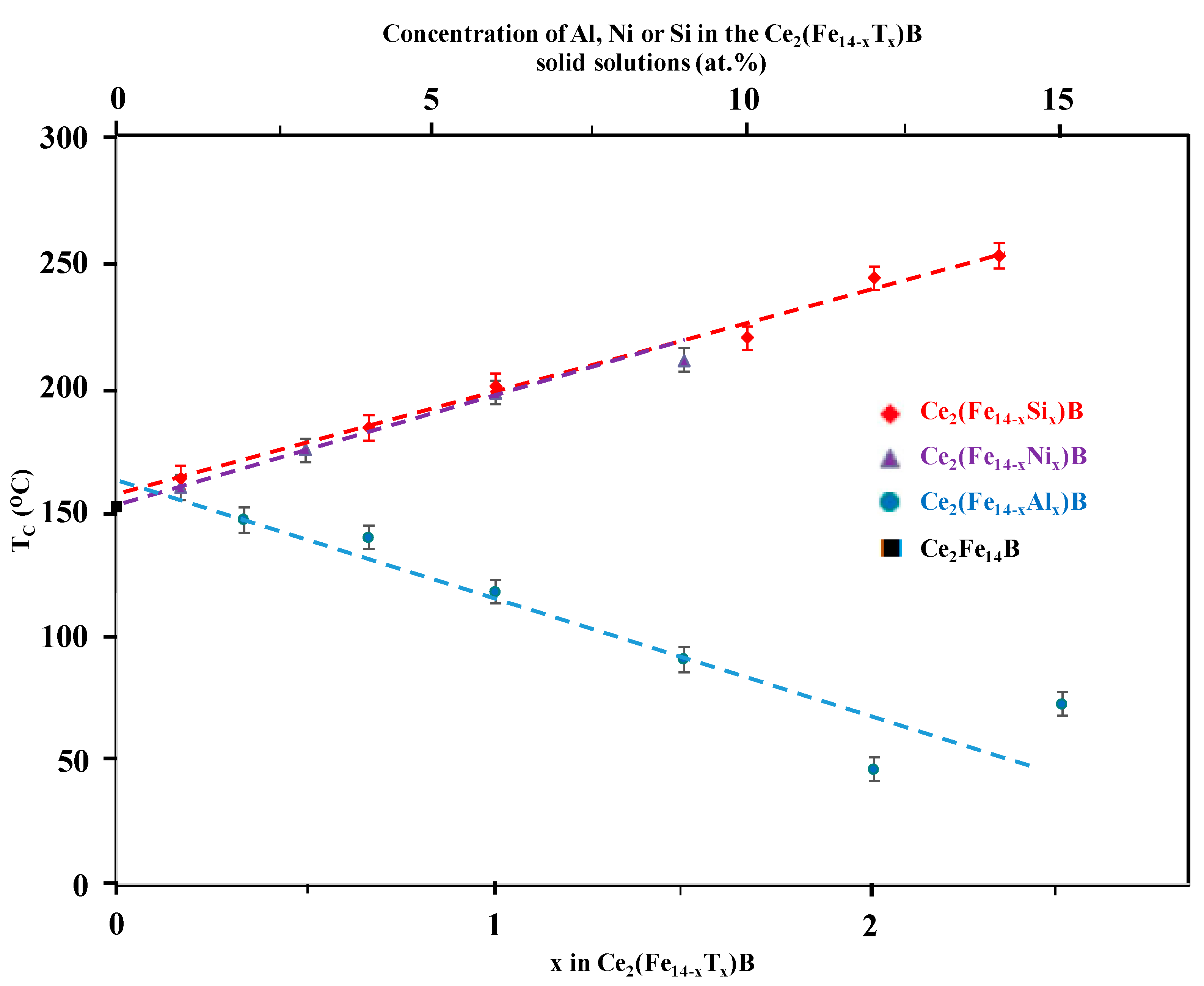

Figure 5. The composition dependence of the Curie temperatures (TC) for the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, and Si).
Figure 5. The composition dependence of the Curie temperatures (TC) for the Ce2(Fe14−xTx)B solid solutions (T = Al, Ni, and Si).
Applsci 08 00205 g005
Table 1. The magnetic properties of Ce2(Fe14−xTx)B solid solutions, where T = Al, Ni, or Si.
Table 1. The magnetic properties of Ce2(Fe14−xTx)B solid solutions, where T = Al, Ni, or Si.
Key Alloy NumberDopant Concentration in Ce2(Fe14−xTx)BRelative Amount of Ce2(Fe14−xTx)B (vol %)MS (emu/g) at 25 °CHA (kOe) at 25 °CTC (°C)
(Atom %)x
Ce–Fe–B system
00081.113028.1151
Ce–Fe–Al–B system
11.910.3282.1117.127.2146
23.850.6474.6123.622.1139
36.091.0295.086.016.1117
49.331.5688.082.310.190
512.222.0493.756.83.146
614.622.4464.036.1-*72
Ce–Fe–Ni–B system
11.050.1873.6127.927.1159
22.940.4994.2124.326.1174
36.171.0373.6114.824.1197
48.711.4588.4106.324.1210
Ce–Fe–Si–B system
11.300.2291.8123.126.1163
23.750.6384.2116.126.1183
36.621.183.9110.422.1200
410.041.6786.5104.213.7219
512.622.196.893.09.1243
613.602.2678.688.86.8252
* The measurement of HA was stopped at Sample #6 because the observed value is already too low for use in a permanent magnet material.

Share and Cite

MDPI and ACS Style

Orimoloye, K.; Ryan, D.H.; Pinkerton, F.E.; Medraj, M. Intrinsic Magnetic Properties of Ce2Fe14B Modified by Al, Ni, or Si. Appl. Sci. 2018, 8, 205. https://doi.org/10.3390/app8020205
