Development of an Ionic Liquid-Based Ultrasonic/Microwave-Assisted Simultaneous Distillation and Extraction Method for Separation of Camptothecin, 10-Hydroxycamptothecin, Vincoside-Lactam, and Essential Oils from the Fruits of Camptotheca acuminata Decne

Abstract

An ionic liquid-based ultrasonic/microwave-assisted simultaneous distillation and extraction (IL-UMASDE) method for isolating camptothecin (CPT), 10-hydroxycamptothecin (HCPT), vincoside-lactam (VCS-LT), and essential oils (EOs) from Camptotheca acuminata Decne fruits was developed. The important parameters were optimized using single-factor and central composite design experiments. The optimum conditions were 0.75 M 1-octyl-3-methylimidazolium ([C₈mim]Br) as the extraction solvent, a liquid–solid ratio of 13.7 mL/g, an extraction time of 33.2 min, a microwave power of 582 W, and a fixed ultrasonic power of 50 W. The yields of CPT, HCPT, and VCS-LT obtained under the optimum conditions were 2.463, 0.164, and 0.297 mg/g, respectively; these are 1.08-, 1.12-, and 1.04-fold higher, respectively, than those obtained by conventional 55% ethanol heat reflux extraction (HRE). The extraction time for the equilibrium yields of CPT, HCPT and VCS-LT using IL-UMASDE was 33.6%, 58.5%, 63.1%, and 66.8%, respectively, less than the corresponding times using IL-MASDE, IL-ultrasonic-assisted extraction (IL-UAE), 55% ethanol UAE and 55% ethanol HRE. The yield of EOs obtained using IL-UMASDE was 0.793 mg/g, i.e., 1.31-fold higher than that obtained by conventional hydrodistillation extraction (HDE). The components of the EOs obtained using IL-UMASDE and HDE were similar. The extraction time for the equilibrium yields of EOs using IL-UMASDE is 33.6%, 58.5%, 52.6%, and 72.3% lower than those for IL-MASDE, water-UMASDE, water-MASDE, and HDE, respectively. Compared with other extraction methods, IL-UMASDE gave the highest yields of CPT, HCPT, VCS-LT, and EOs and also had the shortest extraction time. IL-UMASDE is a potential green and highly efficient technique for the extraction of CPT, HCPT, VCS-LT, and EOs from Camptotheca acuminata Decne fruits.

1. Introduction

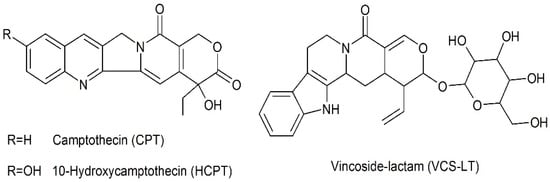

Camptotheca acuminata Decne is a member of the Nyssaceae family of plants, and is widely distributed in Asia, particularly southern China. The whole plant contains biologically active constituents such as alkaloids [1]. Possessing promising activity of anti-tumor, camptothecin (CPT) first attracted considerable attention globally [2,3,4]. In succession, a wide range of CPT derivatives have been identified and shown to be effective for the treatment of various cancers [5]. Among these derivatives, 10-hydroxycamptothecin (HCPT) is more potent and less toxic than CPT [6], and has been widely used in experimental and clinical studies [7,8]. In addition, vincoside-lactam (VCS-LT), which has potential antitumor activity [9] and inhibits lipopolysaccharide-induced NO release in primary cultured rat cortical tissue [10], has also been isolated from C. acuminata. The molecular structures of CPT, HCPT, and VCS-LT are shown in Figure 1.

Essential oils (EOs) from higher plants have attracted much attention because of their antibacterial, antifungal, antiviral, insecticidal, and antioxidant activities [11,12,13]. Recently, except for the alkaloid, essential oils were also found naturally in C. acuminata [14]. Because of the significant pharmacological activities of the alkaloids and EOs from C. acuminata, it is important to develop robust and efficient separation techniques to enable them to be studied in greater detail. However, there has been no report of the simultaneous extraction and separation of alkaloids and EOs from C. acuminata.

Non-volatile CPT, HCPT, and VCS-LT and volatile EOs are currently extracted using separate processes. Heat reflux extraction (HRE) [15], soxhlet extraction [16], homogenation [17], maceration [18], ultrasonic-assisted extraction (UAE), or microwave-assisted extraction (MAE) [19] have been used to extract CPT, HCPT, and VCS-LT. Except in the case of MAE, large amounts of organic, potentially toxic, solvents such as methanol, ethanol, and acetone are used in these extraction methods, resulting in atmospheric pollution and potential health hazards to operators [20]. Environmentally friendly and efficient extraction methods that do not have these disadvantages are therefore needed.

Ionic liquids (ILs) are excellent solvents and have shown great potential in replacing conventional organic solvents in many fields [21]. An IL consists of a large asymmetric organic cation and a smaller inorganic or organic anion. ILs are almost liquid salts at room temperature, and they have high extraction efficiencies. ILs have been widely studied as green, environmentally benign alternatives to traditional solvents [22]. They have high thermal stabilities, negligible vapor pressures, and wide liquid-temperature ranges and are good solvents for polar and non-polar compounds. IL-based UAE [23], MAE [24,25] and simultaneous ultrasonic/microwave-assisted extraction (UMAE) [26] are being increasingly used in separation technology.

Plant EOs can be isolated by traditional hydrodistillation extraction (HDE) [27] or steam distillation extraction [28,29]. However, the general application of these traditional techniques is limited because shortcomings such as long extraction times and poor recoveries make them particularly inefficient [30]. In recent days, the isolation of EOs from some plants using microwave-assisted HDE or steam distillation extraction has been investigated [31,32,33]. Simultaneous distillation extraction (SDE) using the Likens–Nickerson method effectively combines the advantages associated with liquid–liquid and steam distillation extractions and the extraction efficiency and recovery of volatile compounds are higher than those for traditional HRE and steam distillation extraction [34]. However, only EOs could be obtained using above methods.

Based on our previous work [26,35,36], and considering the advantages of ILs, SDE, and UMAE, we developed an IL-based ultrasonic/microwave-assisted simultaneous distillation and extraction (IL-UMASDE) method for synchronous extraction of CPT, HCPT, and VCS-LT and EOs from C. acuminata fruits. In this study, factors with important effects on the yields of CPT, HCPT, VCS-LT, and EOs, such as the IL concentration, liquid–solid ratio, extraction time, and microwave power were studied. Furthermore, the optimum conditions for IL-UMASDE were established using central composite design (CCD) combined with response surface methodology (RSM). The method was compared with conventional extraction methods and its advantages were identified.

2. Experimental

2.1. Plant Materials

C. acuminata fruits were harvested in Jintang county, Sichuan province, China. The fruits were dried in the shade at room temperature, comminuted using a disintegrator (HX-200A, Yongkang Hardware and Medical Instrument Plant, Yongkang, China), passed through a stainless-steel sieve (60–80 mesh), and stored in closed desiccators at 4 °C until use.

2.2. Chemicals

CPT (98%) and C₇–C₄₀ saturated alkane mixture standards were purchased from Sigma-Aldrich Inc. (Shanghai, China). An HCPT standard (98%) was purchased from Wako Pure Chemical Industries, Ltd. (Osaka, Japan). A VCS-LT standard (98%) was donated by Professor Weiguo Shi, Jiamusi University, China.

ILs ([C₂mim]Br, [C₄mim]Br, [C₆mim]Br, [C₈mim]Br, [C₁₀mim]Br, [C₄mim]BF₄, [C₄mim]HSO₄, [C₄mim]NO₃, [C₄mim]Cl, [C₄mim]ClO₄; C₂mim = 1-ethyl-3-methylimidazolium, C₄mim = 1-butyl-3-methylimidazolium, C₆mim = 1-hexyl-3-methylimidazolium, C₈mim = 1-octyl-3-methylimidazolium, C₁₀mim = 1-decyl-3-methylimidazolium) were purchased from the Chengjie Chemical Co., Ltd. (Shanghai, China). High-performance liquid chromatography (HPLC) grade acetonitrile was purchased from J&K Chemical Ltd. (Beijing, China). Deionized water for HPLC was purified using a Milli-Q Water Purification System (Millipore, Billerica, MA, USA). Other reagents were obtained from the Tianjin Kermel Chemical Reagent Co., Ltd. (Tianjin, China). All solutions and samples prepared for analysis were filtered through a 0.45 μm nylon membrane (Guangfu Chemical Reagents Co., Tianjin, China).

2.3. Apparatus

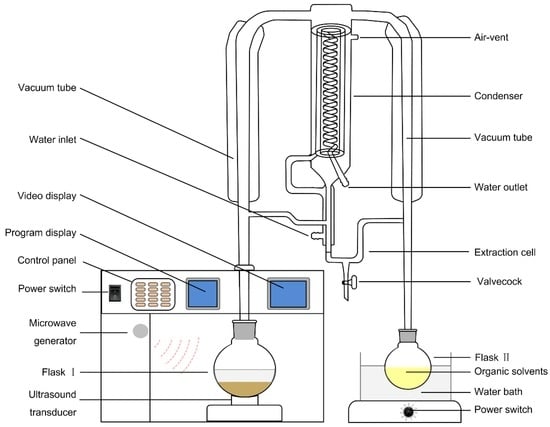

The UMASDE apparatus consisted of a UMAE system (CW-2000, Shanghai Xintuo Analytical Instrument Technology Co., Ltd., Shanghai, China) connected to a Likens–Nickerson SDE unit (Chaoyue Laboratory Instrument Works Co., Shanghai, China). A schematic diagram of the UMASDE apparatus is shown in Figure 2. The UMAE system can be operated in three modes, i.e., microwave, ultrasonic, and combined microwave/ultrasonic. The UMAE system was operated at a microwave irradiation frequency of 2450 MHz with an output power in the range 10–800 W and a fixed ultrasonic frequency of 40 kHz with an output power 50 W. The dimensions of the interior cavity of the oven were 430 × 512 × 510 mm; the oven was large enough to accommodate a 500 mL flask.

2.4. Extraction Procedure

2.4.1. Conventional HRE

A dried, powdered sample (20 g) was put in a round-bottomed flask and mixed with 55% ethanol (300 mL). The flask was placed in a water bath with a reflux device, and extraction was performed for 2 h at 85 °C.

2.4.2. UAE

A dried, powdered sample (20 g) was extracted with 55% ethanol (300 mL) in the ultrasonic extraction device (KQ-250DB, Kunshan Ultrasonic Instrument Company, Kunshan, China), followed by sonication for 1.5 h at 40 °C and 80 kHz.

2.4.3. Conventional HDE

A dried, powdered sample (20 g) and water (300 mL) were placed in a 500 mL flask connected to a Clevenger apparatus (Chaoyue Laboratory Instrument Works Co., Shanghai, China), for 3 h until no more EOs was obtained. The EOs were separated from the aqueous phase, dried using anhydrous sodium sulfate, and stored at 4 °C until analysis.

2.4.4. UMASDE

Extractions were performed using the UMASDE apparatus described in the 2.3 section (Figure 2) at combined ultrasonic/microwave operation mode. A powdered sample (20 g) was mixed with an IL or water in a 500 mL flask (I), and 50 mL of dichloromethane was put in a 100 mL flask (II). Flask I was subjected to ultrasonic/microwave treatment in the oven of the UMASDE apparatus and flask II was heated in a water bath at 45 °C. After the extraction, the mixture in flask I was rapidly cooled to room temperature using a cold bath and filtered through a 0.45 μm microporous membrane for subsequent HPLC analysis. The organic solvent in flask II was collected and dried using anhydrous sodium sulfate overnight. The solvent was removed under reduced pressure to provides the EOs, which were then stored at 4 °C in the dark until GC-MS analysis.

2.4.5. MASDE

Extractions were performed using the UMASDE apparatus at microwave operation mode. The procedure was as described in Section 2.4.4.

2.5. HPLC Determination of CPT, HCPT, and VCS-LT

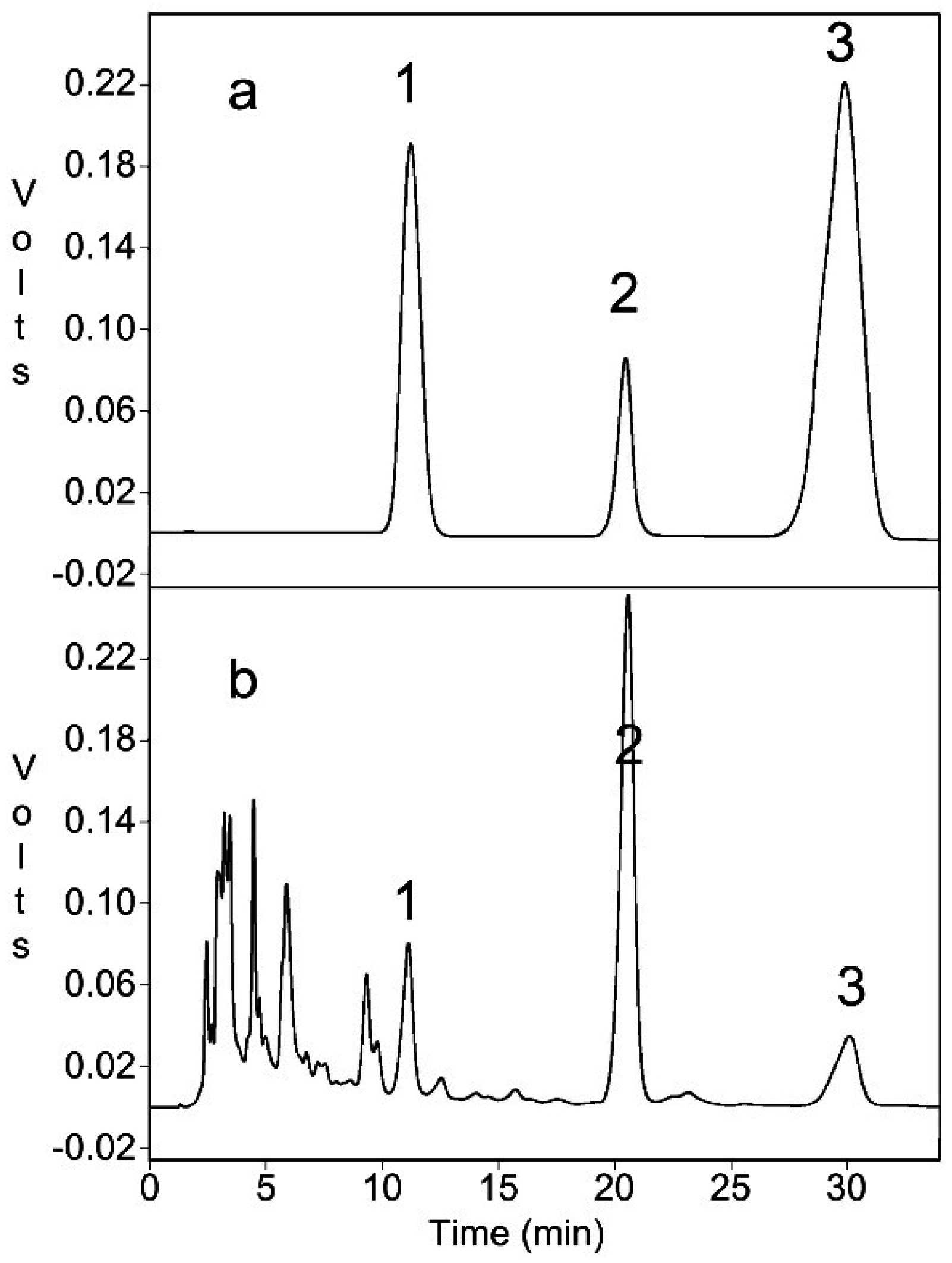

Quantification of for HCPT, CPT, and VCS-LT was performed using HPLC and the development of chromatographic method referred to the references [37,38]. The HPLC system consisted of a HiQ sil-C18 reversed-phase column (4.6 mm × 250 mm, 5 μm, KYA Technologies Corporation, Tokyo, Japan), a PU 980 pump and 1575 UV detector (Jasco, Tokyo, Japan). The HPLC conditions were as follows: the mobile phase was acetonitrile–water (25:75, v/v); the column temperature was maintained at 25 °C; the detection wavelength was 254 nm; the flow rate was 1.0 mL/min; the injection volume was 10 μL; and the run time was 35 min. Under these conditions, the retention times for HCPT, CPT, and VCS-LT were 10.9, 20.6, and 30.1 min, respectively; HPLC chromatograms of standards and sample are shown in Figure 3.

2.6. GC-MS Analysis of EOs

The EOs were analyzed using a gas chromatography-mass spectrometry (GC-MS) system consisting of an Agilent 7890A gas chromatograph (Agilent Technologies, Inc., Santa Clara, CA, USA)coupled with an Agilent 7000B mass spectrometer (Agilent Technologies, Inc., Santa Clara, CA, USA), with a VF-5MS capillary column (Agilent Technologies, Inc., Santa Clara, CA, USA) (30.0 m × 250 µm × 0.25 µm film thickness). The operating conditions were as follows: the injection volume was 1 µL at a flow rate of 1.0 mL/min; split ratio 40:1; the temperature of the injection port was 250 °C and Helium was used as the carrier gas; the initial column temperature was kept at 50 °C for 2 min, increased to 280 °C at a rate of 5 °C/min and held for 2 min; the GC-MSD connector temperature was kept at 270 °C; the ion source (E1) temperature was 230 °C; the electron energy was 70 eV and the scan scope was 10–600 amu. The percentage composition of the EOs was calculated, using a normalization method, from the GC peak areas. The EOs components were identified by comparing their retention indices and mass spectral fragmentation patterns with those of compounds in the National Institute of Standards and Technology mass spectral library, and comparison with MS data reported in the literature [39].

2.7. Experimental Design

2.7.1. IL-UMASDE Optimization Using RSM

To achieve efficient extraction of the target compounds, based on the single factor experiment, the interactions between factors were examined. We used 2³ factorial CCD followed by response contour analysis to optimize the IL-UMASDE operating parameters. Three main influencing factors were selected from the single-factor experiments as independent variables, i.e., the liquid–solid ratio (X₁), extraction time (X₂), and microwave power (X₃). The variables for each factor were set at five levels, i.e., low level (−1), central level (0), and high level (+1) and two outer points corresponding to −1.68 and +1.68 [40]. In the CCD tests, 20 stochastic experiments with six replicates at the center points were used to fit the full quadratic equation model. The general equation is as follows:

$$Y={\mathsf{\beta }}_0+{\displaystyle \sum _{i=1}^k{\mathsf{\beta }}_i{X}_i}+{\displaystyle \sum _{i=1}^k{\mathsf{\beta }}_{ii}{X_i}^2+{\displaystyle \sum _{\begin{array}{l}i=1\\ i<j\end{array}}^{k-1}}{\displaystyle \sum _{i=2}^k{\mathsf{\beta }}_{ij}{X}_i{X}_j}}(k=3)$$

(1)

where Y is the predicted response variable; β₀, β_j, β_ii, and β_ij are the regression coefficients for the intercept, linearity, square, and interaction terms, respectively; X_i and X_j are the independent coded variables influencing the response variable Y; and k represents the number of variables. The dependent variables are the yields of CPT, HCPT, and VCS-TL. The actual and coded levels of the independent variables used in the experimental design are shown in

Table 1. Experimental conditions used in the central composite design analysis and the corresponding measured responses.

Runs	Factors			Yields (mg/g)
	X1 (mL/g) a	X2 (min) b	X3 (W) c	CPT	HCPT	VCS-LT	EOs
1	1 (16)	−1 (20)	−1 (350)	1.267	0.115	0.181	0.423
2	−1 (8)	−1 (20)	1 (650)	1.303	0.091	0.192	0.405
3	−1 (8)	−1 (20)	−1 (350)	1.187	0.084	0.145	0.388
4	1 (16)	1 (40)	1 (650)	2.154	0.154	0.274	0.647
5	1 (16)	1 (40)	−1 (350)	1.328	0.108	0.186	0.415
6	−1 (8)	1 (40)	−1 (350)	1.099	0.062	0.167	0.361
7	0 (12)	0 (30)	0 (500)	2.445	0.160	0.292	0.841
8	1 (16)	−1 (20)	1 (650)	1.428	0.102	0.229	0.481
9	0 (12)	0 (30)	0 (500)	2.463	0.164	0.297	0.790
10	−1 (8)	1 (40)	1 (650)	1.532	0.084	0.236	0.459
11	0 (12)	0 (30)	0 (500)	2.353	0.157	0.286	0.805
12	0 (12)	0 (30)	0 (500)	2.286	0.153	0.281	0.738
13	−1.68 (5.27)	0 (30)	0 (500)	1.184	0.031	0.157	0.379
14	0 (12)	0 (30)	−1.68 (247.73)	1.221	0.117	0.142	0.392
15	0 (12)	−1.68 (13.18)	0 (500)	1.094	0.079	0.163	0.339
16	0 (12)	0 (30)	0 (500)	2.385	0.149	0.295	0.778
17	0 (12)	1.68 (46.82)	0 (500)	1.657	0.118	0.243	0.501
18	0 (12)	0 (30)	1.68 (752.27)	2.115	0.148	0.253	0.657
19	0 (12)	0 (30)	0 (500)	2.296	0.154	0.276	0.789
20	1.68 (18.73)	0 (30)	0 (500)	1.739	0.092	0.256	0.529

^a X₁ is the liquid-solid ratio (mL/g); ^b X₂ is the extraction time (min); ^c X₃ is the microwave power (W).

. All the experiments were repeated three times and the yields were given as average values.

2.7.2. Statistical Analysis

The experimental data from IL-UMASDE tests designed using CCD were analyzed statistically using a response surface analysis procedure (Design-Expert 7.0.0 Trial, State-Ease, Inc., Minneapolis, MN, USA) to determine and assess the statistical significance of the equations. The fit quality of the polynomial model equation was expressed by the regression coefficient (R²) and the lack of fit, the Fisher test value (F-value) and their interactions were estimated using analysis of variance (ANOVA). The adequacy of the fitted model was evaluated by comparing the actual and predicted values. The optimum values for three variables (liquid–solid ratio: 8–16 mL/g, extraction time: 20–40 min and microwave power: 350–650 W) were obtained by statistical analysis (DE software, 8.01 version, Stat-Ease, Inc., Minneapolis, MN, USA) [26].

3. Results and Discussion

3.1. Choosing an Appropriate IL

Previous studies on the use of ILs as solvents for biomaterials have shown that imidazolium ILs can dissolve various types of biomacromolecule [41]. It was also reported that imidazolium ILs containing a carboxylic acid anion have low melting points, low viscosities, and high hydrogen-bonding-acceptor abilities, and these properties increase the dissolution of plant matter [42]. The IL structure affects its physical and chemical properties, which might affect the extraction efficiencies of target analytes. The anion is considered to be the factor that most influences the properties of ILs [43]. 1-Butyl-3-methylimidazolium-based ILs with the same concentrations but with six different anions (Br⁻, Cl⁻, BF₄⁻, ClO₄⁻, HSO₄⁻, and NO₃⁻) were used in UMASDE to identify the best IL and assess its performance in the IL-UMASDE of CPT, HCPT, VCS-LT, and EOs from Camptotheca acuminata fruits. The results (Figure 4a) show that the yields of CPT, HCPT, and VCS-LT were anion-dependent and the yields obtained using [C₄mim]Br were higher than those using other ILs. The yield primarily depends on the ability of the IL to dissolve cellulose in plant cells. The ability of an IL to dissolve cellulose depends on its ability to disrupt the extensive network of inter- and intra-molecular hydrogen bonds and form new hydrogen bonds between carbohydrate hydroxyl protons and the IL anions; it also depends on the strengths of interactions such as π–π and ion/charge–charge interactions [44,45,46]. However, there were no significant differences among the EOs yields (p > 0.05). Br⁻ was therefore chosen as the IL anion for extracting CPT, HCPT, VCS-LT, and EOs from Camptotheca acuminata fruits.

The alkyl chain length affects the water miscibility of an IL, and this can affect the extraction efficiency [47]. 1-Alkyl-3-methylimidazolium ILs containing the same anion, i.e., Br⁻, but with alkyl chains of different lengths (ethyl to decyl) in the cation, were used in UMASDE to study the effect of the alkyl chain length. The results (Figure 4b) show that the cation alkyl chain length significantly affects the yields of the target compounds. This may be related to the solubilities of alkaloids and glycoside compounds in the extraction solvent. The yields of CPT and HCPT increased with increasing alkyl chain length from ethyl to octyl, but when the alkyl chain length was more than eight carbons, the yields of CPT and HCPT decreased. Thus, the highest yields of CPT and HCPT were obtained using [C₈mim]Br. The highest VCS-LT yield was obtained using [C₄mim]Br, but the yield was not significantly different from that using [C₈mim]Br (p > 0.05). In addition, the EOs yields were no significant differences (p > 0.05) using the ILs with alkyl chains of different lengths. Based on these results, [C₈mim]Br was considered to be the best IL for use in further experiments.

3.2. Optimization of IL Concentration

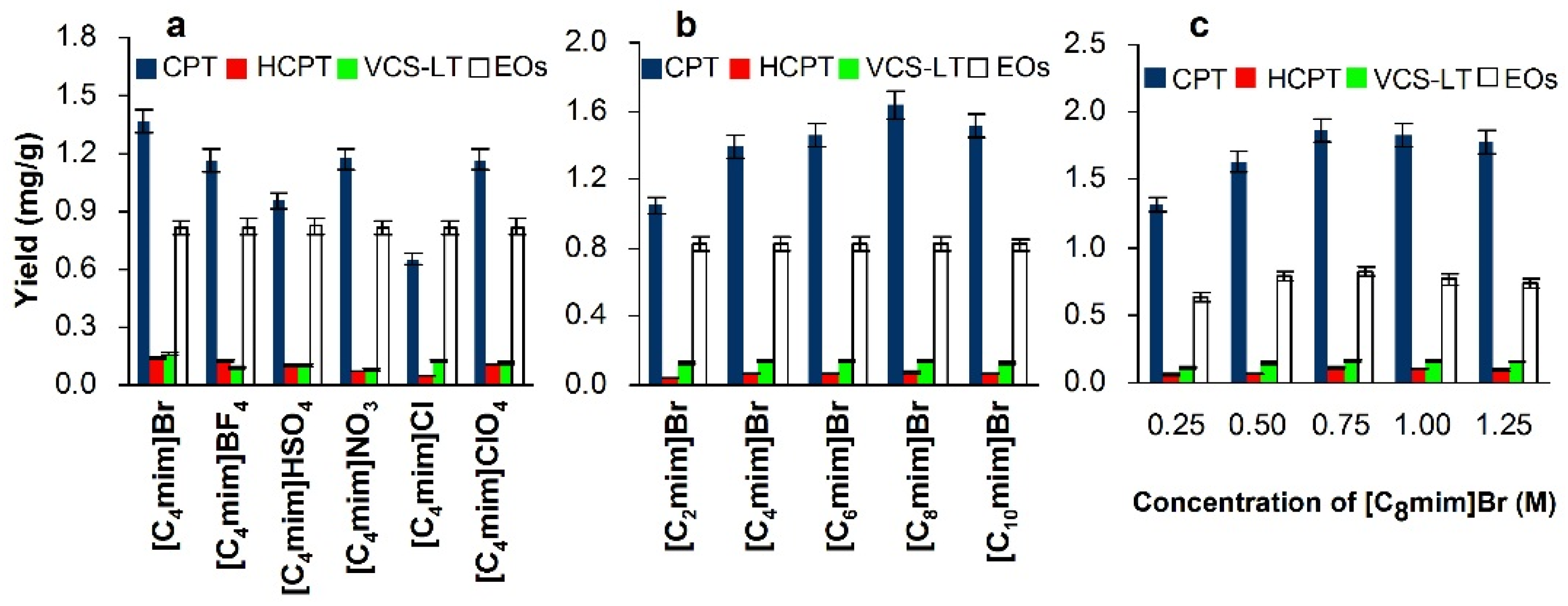

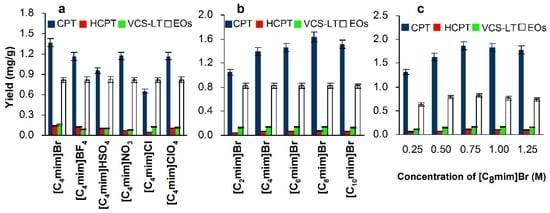

The effect of the [C₈mim]Br solution concentration (from 0.25 to 1.25 M) on the yields of target analytes was studied. The results are shown in Figure 4c. It can be clearly seen that the yields of CPT, HCPT, VCS-LT, and EOs increased greatly with increasing concentration from 0.25 to 0.75 M. This may be because the amount of dissolved cellulose increased with increasing of [C₈mim]Br concentration; this would enhance the penetrability of cell walls resulting in enhancement of the extraction capacity of the solvent. A higher IL concentration also enables efficient absorption and transfer of microwave energy [48], therefore microwave absorption and microwave conversion both increase, resulting in increased yields of CPT, HCPT, VCS-LT, and EOs. However, with further increases in the [C₈mim]Br solution from 0.75 to 1.25 M, slight decreases in the yields of CPT, HCPT, VCS-LT, and EOs were observed. This may be because the increasing viscosity of the IL solution with increasing concentration resulted in poor permeability and diffusion, making it difficult for the IL to infiltrate into the plant tissue, leading to lower yields of the target compounds. Based on all the above results, 0.75 M [C₈mim]Br was identified as the most appropriate solvent for use in subsequent experiments.

3.3. Optimization of Single Extraction Condition

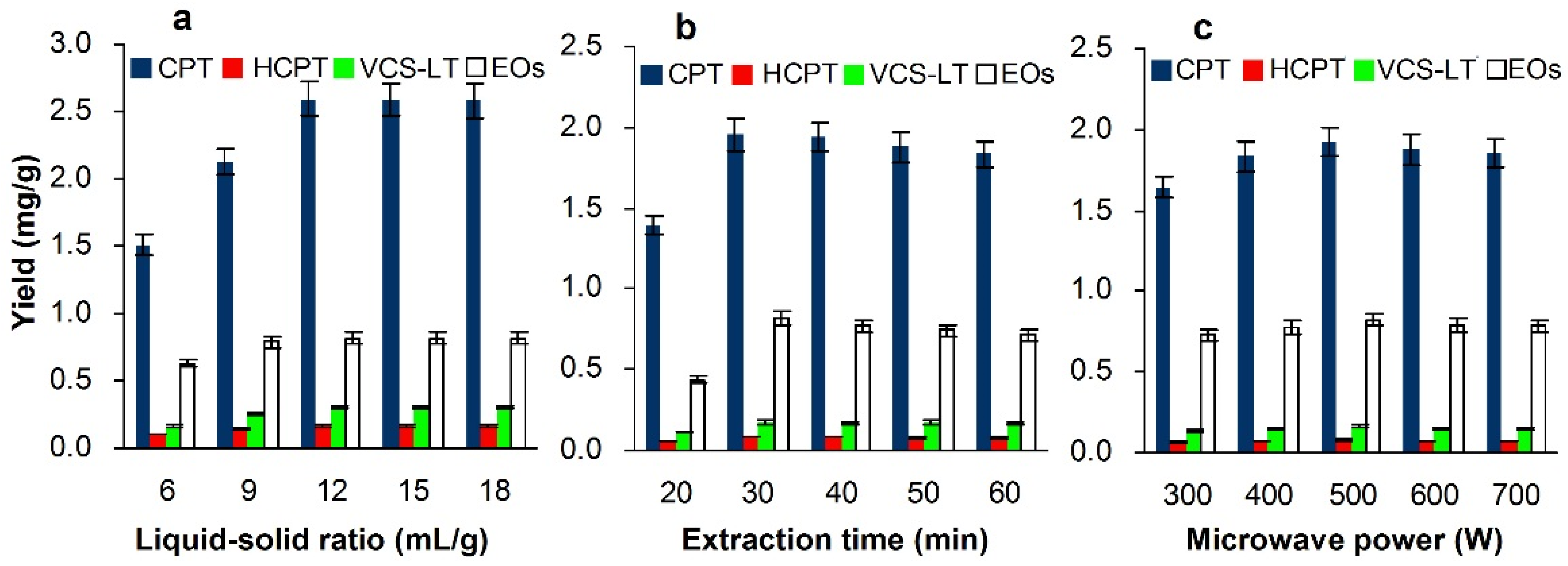

Single-factor experiments were performed in which one factor was changed, while the other factors were fixed. Many factors affect the yields of the target compounds, including the liquid–solid ratio, extraction time, and microwave power. The results of the single-factor experiments are shown in Figure 5.

3.3.1. Effect of Liquid–Solid Ratio

The liquid–solid ratio has an important effect on the yields of the target compounds. Excess solvent can complicate the experiment and produce unnecessary waste, but insufficient solvent results in incomplete extraction of the targets. Figure 5a shows that the yields of CPT, HCPT, VCS-LT, and EOs significantly increased with increasing liquid–solid ratio up to 12 mL/g. Within a certain range, increasing the liquid–solid ratio resulted in full immersion of the sample in the solvent; this increased mass transfer and higher yields of the target compounds were obtained. However, the yields of the target compounds did not improve greatly when the liquid–solid ratio was further increased. A liquid–solid ratio of 12 mL/g was therefore used for further optimization studies.

3.3.2. Effect of Extraction Time

From Figure 5b, when the extraction time was increased from 20 to 30 min, the yields of CPT, HCPT, VCS-LT, and EOs increased greatly. However, when the time was more than 30 min, the yields of CPT, HCPT, VCS-LT, and EOs decreased slightly. This is probably because prolonged heating leads to thermal decomposition of the three non-volatile target compounds and volatilization of the EOs, leading to the decreased yields [49]. Based on these results, 30 min was used for subsequent experiments.

3.3.3. Effect of Microwave Power

Optimization of the microwave power is crucial in ensuring efficient extraction, because the microwave energy significantly affects molecular interactions between the target compounds and ILs. Figure 5c shows that the yields of CPT, HCPT, VCS-LT, and EOs increased rapidly with increasing microwave power from 300 to 500 W. The yields of the target compounds decreased slightly at microwave powers higher than 500 W. A microwave power of 500 W was therefore used for further optimization experiments.

Based on the above experiments, the optimum IL-UMASDE conditions were 0.75 M [C₈mim]Br as the extraction solvent, a liquid–solid ratio of 12 mL/g, an extraction time of 30 min, and a microwave power of 500 W.

3.4. Optimization of IL-UMASDE

3.4.1. RSM and Model Fit

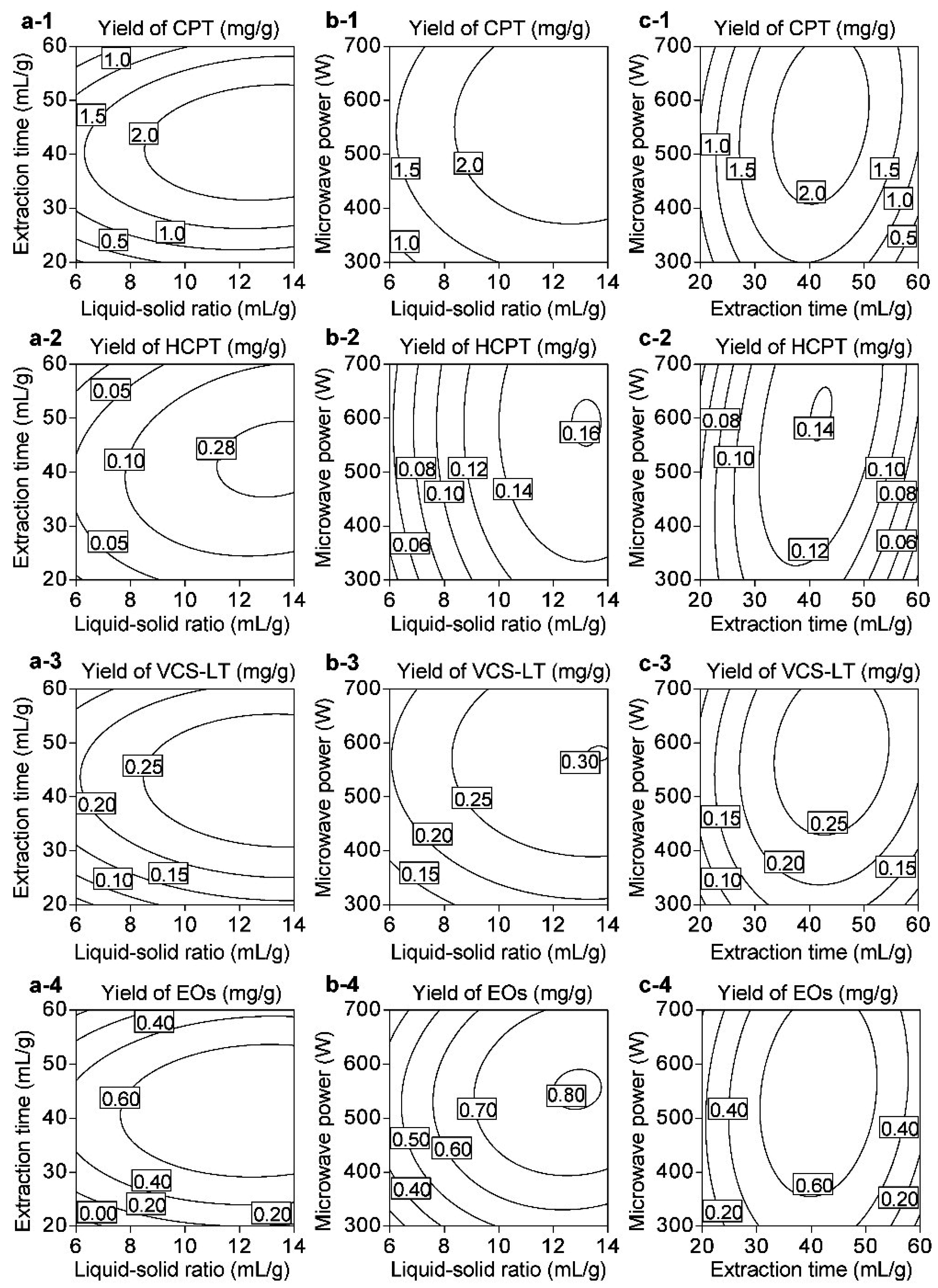

Based on the results of the single-factor experiments, the interactions among the liquid–solid ratio, extraction time, and microwave power were studied using CCD combined with RSM. The experimental conditions and yields of CPT, HCPT, VCS-LT, and EOs for each experiment are shown in Table 1. The contour plots for interactions among liquid–solid ratio, extraction time, and microwave power are shown in Figure 6.

The statistical significance of the model and factors were evaluated using ANOVA F-test at 99% confidence. The ANOVA results for the quadratic model are shown in

Table 2. ANOVA of the response surface quadratic model for the yields of CPT, HCPT, VCS-LT, and EOs.

Source a	DF	CPT				HCPT				VCS-LT				EO
		Sum of Square	Mean Aquare	F Value	p-Value b	Sum of Squares	Mean Aquare	F Value	p-Value b	Sum of Square	Mean Aquare	F Value	p-Value b	Sum of Square	Mean Aquare	F Value	p-Value b
Model	9	5.09	0.57	66.67	0.000 ++	2.63 × 10−2	2.93 × 10−3	41.03	0.000 ++	5.67 × 10−2	6.30 × 10−3	45.85	0.000 ++	0.59	6.57 × 10−2	51.89	0.000 ++
X1	1	1.58	1.58	186.56	0.000 ++	1.84 × 10−2	1.84 × 10−2	257.45	0.000 ++	1.72 × 10−2	1.72 × 10−2	125.24	0.000 ++	0.19	0.19	147.09	0.000 ++
X2	1	8.99 × 10−2	8.99 × 10−2	10.59	0.010	1.74 × 10−5	1.74 × 10−5	0.24	0.633	3.58 × 10−3	3.58 × 10−3	26.08	0.001 ++	6.16 × 10−3	6.16 × 10−3	4.87	0.055
X3	1	0.36	0.36	42.97	0.000 ++	6.29 × 10−4	6.29 × 10−4	8.82	0.016	9.12 × 10−3	9.12 × 10−3	66.42	0.000 ++	2.51 × 10−2	2.51 × 10−2	19.87	0.002 ++
X1X2	1	5.22 × 10−2	5.22 × 10−2	6.15	0.035	6.85 × 10−4	6.85 × 10−4	9.60	0.013	3.20 × 10−5	3.20 × 10−5	0.23	0.641	2.10 × 10−3	2.10 × 10−3	1.66	0.230
X1X3	1	2.40 × 10−2	2.40 × 10−2	2.83	0.127	2.00 × 10−6	2.00 × 10−6	0.03	0.871	5.00 × 10−5	5.00 × 10−5	0.36	0.561	3.84 × 10−3	3.84 × 10−3	3.04	0.115
X2X3	1	0.12	0.12	14.20	0.004 ++	6.85 × 10−4	6.85 × 10−4	9.60	0.013	4.81 × 10−4	4.81 × 10−4	3.50	0.094	8.17 × 10−3	8.17 × 10−3	6.46	0.032
X12	1	1.56	1.56	184.34	0.000 ++	1.48 × 10−2	1.48 × 10−2	208.01	0.000 ++	1.12 × 10−2	1.12 × 10−2	81.19	0.000 ++	0.20	0.20	160.19	0.000 ++
X22	1	1.87	1.87	219.92	0.000 ++	5.20 × 10−3	5.20 × 10−3	72.99	0.000 ++	1.22 × 10−2	1.22 × 10−2	88.57	0.000 ++	0.25	0.25	194.12	0.000 ++
X32	1	0.95	0.95	111.72	0.000 ++	7.04 × 10−4	7.04 × 10−4	9.87	0.012	1.38 × 10−2	1.38 × 10−2	100.82	0.000 ++	0.13	0.13	100.02	0.000 ++
Residual	9	7.64 × 10−2	8.49 × 10−3			6.42 × 10−4	7.13 × 10−5			1.24 × 10−3	1.37 × 10−4			1.14 × 10−2	1.27 × 10−3
Lack of Fit	5	5.19 × 10−2	1.04 × 10−2	1.70	0.314	5.64 × 10−4	1.13 × 10−4	5.82	0.057	9.10 × 10−4	1.82 × 10−4	2.23	0.229	5.79 × 10−3	1.16 × 10−3	0.83	0.589
Pure Error	4	2.45 × 10−2	6.11 × 10−3			7.75 × 10−5	1.94 × 10−5			3.27 × 10−4	8.16 × 10−5			5.60 × 10−3	1.40 × 10−3
Cor Total	19	5.17				2.73 × 10−2				5.82 × 10−2				0.60
R2		0.9852				0.9762				0.9787				0.9811

^a X₁ is the liquid-solid ratio (mL/g), X₂ is the extraction time (min), X₃ is the microwave power (W); ^{b ++} is expressed as significant at p < 0.01.

.

The data in Table 2 show that, according to the software analysis, acceptable determination coefficients (R² = 0.9852, 0.9762, 0.9787, and 0.9811 for CPT, HPCT, VCS-LT, and EOs, respectively), a high significance level for the model (p < 0.01) and an insignificant lack of fit (p > 0.01) were obtained. These results indicate that the model was precise and applicable to the yields of CPT, HCPT, VCS-LT and EOs using IL-UMASDE. The larger F-value and smaller p-value show that the corresponding model terms were more significant. The results from Table 2 also show the significance of the linear terms, quadratic terms, and interaction terms. A second-order polynomial model was used to express the yields of CPT, HCPT, VCS-LT, and EOs using the following equations:

Y_CPT = −5.773 + 0.425X₁ + 0.165X₂ + 9.338 × 10⁻³X₃ + 2.019 × 10⁻³X₁X₂ + 9.125 × 10⁻⁵X₁X₃ + 8.183 × 10⁻⁵X₂X₃ − 2.060X₁² − 3.600 × 10⁻³X₂² − 1.140X₃²

(2)

Y_HCPT = −0.305 + 4.555 × 10⁻²X₁ + 6.145 × 10⁻³X₂ + 1.714 × 10⁻⁴X₃ + 2.313 × 10⁻⁴X₁X₂ + 8.333 × 10⁻⁷X₁X₃ + 6.167 × 10⁻⁶X₂X₃ − 2.006 × 10⁻³X₁² − 1.901 × 10⁻⁴X₂² − 3.106 × 10⁻⁷X₃²

(3)

Y_VCS-LT = −0.712 + 4.659 × 10⁻²X₁ + 1.729 × 10⁻²X₂ + 1.387 × 10⁻³X₃ − 5.000 × 10⁻⁵X₁X₂ + 4.167 × 10⁻⁶X₁X₃ + 5.167 × 10⁻⁶X₂X₃ − 1.739 × 10⁻³X₁² − 2.907 × 10⁻⁴X₂² − 1.378 × 10⁻⁶X₃²

(4)

Y_EOs = −2.251 + 0.159X₁ + 6.620 × 10⁻²X₂ + 3.504 × 10⁻³X₃ + 4.054 × 10⁻⁴X₁X₂ + 3.654 × 10⁻⁵X₁X₃ + 2.130 × 10⁻⁵X₂X₃ − 7.415 × 10⁻³X₁² − 1.306 × 10⁻³X₂² − 4.167 × 10⁻⁶X₃²

(5)

where Y_CPT, Y_HCPT, Y_VCS-LT, and Y_EOs are yields of CPT, HCPT, VCS-LT, and EOs, respectively; X₁ is the liquid–solid ratio (mL/g), X₂ is the extraction time (min) and X₃ is the microwave power (W).

3.4.2. Validation of the Optimum Extraction Conditions

The optimum extraction conditions (independent variables) obtained using the DE software were as follows: 0.75 M [C₈mim]Br as extraction solvent, extraction time 33.2 min, liquid–solid ratio 13.7 mL/g and microwave power 582 W. The predicted yields under the above conditions were 2.475 mg/g for CPT, 0.163 mg/g for HCPT, 0.304 mg/g for VCS-LT, and 0.804 mg/g for EOs. The suitability of the model equations for predicting the response values was confirmed by performing a verification experiment under these optimized conditions. The actual yields of CPT, HCPT, VCS-LT, and EOs were 2.463, 0.164, 0.297, and 0.793 mg/g, respectively. The CPT, HCPT, VCS-LT, and EOs yields obtained using IL-UMASDE were close to the predicted values and showed low deviations (<1.2%), demonstrating the reliability of the RSM models.

3.5. Comparison of Different Extraction Methods

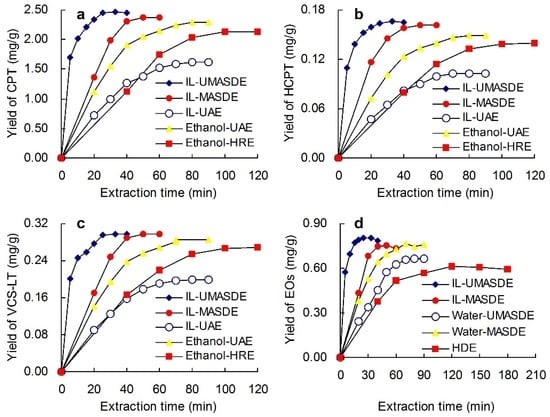

The effect of different extraction methods on the yields of CPT, HCPT, VCS-LT, and EOs are shown in Figure 7. From Figure 7a–c, it can be seen that IL-UMASDE is a better method than IL-MASDE, IL-UAE, 55% ethanol UAE and conventional 55% ethanol HRE techniques in terms of the CPT, HCPT, and VCS-LT yields and time consumption. The yields of CPT, HCPT, and VCS-LT obtained using IL-UMASDE were 1.08-, 1.12-, and 1.04-fold higher than those obtained using 55% ethanol HRE. The extraction time taken to reach the equilibrium yields of CPT, HCPT and VCS-LT using IL-UMASDE was only 33.2 min, which is 33.6%, 58.5%, 63.1%, and 66.8% lower than those for IL-MASDE, IL-UAE, 55% ethanol UAE and conventional 55% ethanol HRE, respectively. The yields obtained using IL-UMASDE are higher mainly because the IL dissolves the cellulose in the plant cell walls and the target compounds are highly soluble in the IL. In addition, the ultrasonic/microwave combination breaks the plant cells, which also accelerates the release of CPT, HCPT, and VCS-LT from the matrix; it also increases the molecular motion of the extraction solvent, which increases mass transfer, leading to higher yields of the target compounds.

The variations in the EOs yield with extraction time using different methods are shown in Figure 7d. The yield of EOs using IL-UMASDE was 0.793 mg/g, which is 1.07-, 1.21-, 1.05-, and 1.31-fold higher than those obtained using IL-MASDE, water-UMASDE, water-MASDE, and HDE, respectively. The extraction time (33.2 min) of EOs using IL-UMASDE is 33.6%, 58.5%, 52.6%, and 72.3% lower than those for IL-MASDE, water-UMASDE, water-MASDE, and HDE, respectively. The extraction efficiency of IL-UMASDE is higher mainly because the ultrasonic/microwave combination breaks the plant cells and the IL dissolves the cellulose in the plant cell walls, which accelerates the release of EOs from the matrix. GC-MS was used to identify the chemical compositions of EOs and the results are shown in

Table 3. Chemical composition of essential oils by GC-MS analysis.

No.	Retention Time (min)	Compounds	RI a	CAS Number	Molecular Formula	Relative Area Percentage (%)
						HDE	IL-UMASDE
1	7.334	Dodecanal	1408	112-54-9	C12H24O	7.10	6.52
2	8.575	Dihydro-β-ionone	1434	17283-81-7	C13H22O	3.09	2.74
3	8.761	4,6-Dimethyl-dodecane	1437	61141-72-8	C14H30	6.49	5.78
4	9.51	Geranylacetone	1454	3796-70-1	C13H22O	5.93	5.55
5	9.875	1-Dodecanol	1462	112-53-8	C12H26O	2.95	2.68
6	10.184	4-Decalactone	1468	706-14-9	C10H18O2	3.52	3.26
7	10.395	Allyl n-decanoate	1473	57856-81-2	C13H24O2	nd b	2.35
8	10.645	Trans-β-ionone	1478	79-77-6	C13H20O	5.31	5.12
9	11.156	2H-pyran-2-one	1489	705-86-2	C10H18O2	2.49	2.28
10	11.516	2-Tridecanone	1496	593-08-8	C13H26O	6.29	5.97
11	12.586	Tridecanal	1519	10486-19-8	C13H26O	4.24	3.74
12	13.322	3,5,9-undecatrien-2-one	1534	141-10-6	C13H20O	2.91	2.75
13	14.334	Nerolidol	1556	7212-44-4	C15H26O	5.95	5.43
14	14.767	Dodecanoic acid	1565	143-07-7	C12H24O2	3.92	3.57
15	15.87	Dodecanoic	1588	106-33-2	C14H28O2	4.29	3.84
16	18.691	β-Acorenol	1638	28400-11-5	C15H26O	3.02	2.86
17	20.125	Trans-Farnesol	1662	106-28-5	C15H26O	nd	2.71
18	20.304	Ar-Turmerone	1665	532-65-0	C15H20O	2.21	2.13
19	20.548	(E) 2-tetradecenal	1669	51534-36-2	C14H26O	3.70	3.51
20	21.035	γ-dodecalactone	1677	2305-5-7	C12H22O2	nd	1.83
21	21.967	2-pentadecanone	1693	2345-28-0	C15H30O	1.99	1.94
22	22.499	Pentadecane	1702	1921-70-6	C19H40	5.41	4.81
23	23.347	Farnesol	1716	4602-84-0	C15H26O	4.20	3.91
24	24.057	Methyl tetradecanoate	1728	124-10-7	C15H30O2	2.52	2.39
25	27.351	Ethyl myristate	1784	124-06-1	C16H32O2	2.51	2.44
		Total identified compounds	-	-	-	90.03	90.11

^a Retention indices relative to C₇–C₄₀ n-alkanes on the HP-5MS capillary column; ^b Not detected.

. 22 components from the EOs obtained using conventional HDE were identified, accounting for 90.03% of the total EOs constituents. 25 components from the EOs obtained using IL-UMASDE were identified, accounting for 90.11% of the total EOs constituents. Similarity of EOs constituents using above two methods is 95.3% by “Similarity Evaluation System for Chromatographic Fingerprint of TCM” software (Pharmacopoeia Commission of the People’s Republic of China, 2004). These results show that the ultrasonic/microwave combination accelerated the extraction process, but without greatly changing the EOs composition.

Compared with other extraction methods, IL-UMASDE gave the highest yields of CPT, HCPT, VCS-LT, EOs, and the shortest extraction time.

In order to provide valuable information for engineering analysis and scale-up, first order kinetic equations were used to fit the extraction process (see

Table 4. The reaction rate constants (K) and correlation coefficients (R²) of first order equations for different extraction methods.

Methods	CPT		HCPT		VCS-LT		EO
	K (min−1)	R2	K (min−1)	R2	K (min−1)	R2	K (min−1)	R2
IL-UMASDE	0.2187	0.9790	0.2111	0.9953	0.2033	0.9862	0.2397	0.9838
IL-MASDE	0.0403	0.9840	0.0620	0.9944	0.0402	0.9839	0.0369	0.9769
IL-UAE	0.0257	0.9967	0.0238	0.9964	0.0291	0.9983	-	-
Ethanol-UAE	0.0311	0.9969	0.0341	0.9975	0.0326	0.9972	-	-
Ethanol-HRE	0.0176	0.9816	0.0194	0.9908	0.0216	0.9963	-	-
Water-UMASDE	-	-	-	-	-	-	0.0160	0.9915
Water-MASDE	-	-	-	-	-	-	0.0311	0.9969
HDE	-	-	-	-	-	-	0.0245	0.9977

). From the Table 4, we can see that the first order kinetic equation can describe the extraction process well, and the correlation coefficient range is 0.9769–0.9983. From reaction rate constants (K), compared to other extraction methods, IL-UMASDE can achieve the shortest equilibrium time for extraction of CPT, HCPT, VCS-LT, and EOs.

Most of the traditional methods require organic solvents, which resulting environmental pollution and potential health hazards to operators. On the contrary, ionic liquid is used as extraction solvent in our IL-UMASDE, ionic liquid vapor pressure is very low, so it can reduce the environmental pollution and health hazards to operators caused by solvent evaporation [22]. The ionic liquids are so expensive that its application was limited. Thus, the development of cheaper ionic liquids is the future research direction.

4. Conclusions

An efficient IL-UMASDE method was developed for extracting CPT, HCPT, VCS-LT, and EOs from Camptotheca acuminata Decne fruits. ILs are environmentally friendly solvents and have been successfully used in the IL-UMASDE process. The development of this method enables the simultaneous extraction of non-volatile compounds (CPT, HCPT, and VCS-LT) and volatile compounds (EOs). Single-factor experiments and CCD tests show that the optimum parameters are as follows: extraction solvent 0.75 M [C₈mim]Br, extraction time 33.2 min, liquid–solid ratio 13.7 mL/g, and microwave power 582 W. Under the optimum conditions, the yields of CPT, HCPT, VCS-LT, and EOs were 2.463, 0.164, 0.297, and 0.793 mg/g, respectively. Compared with other methods, the proposed approach gives higher yields of target compounds and a significantly shorter extraction time. In addition, the developed method accelerates the isolation of EOs from C. acuminata fruits without causing major changes in the EOs composition. The proposed green and effective IL-UMASDE method is therefore a promising technique for the simultaneous extraction of non-volatile and volatile compounds from other plants.
