Appl. Sci. 2013, 3(4), 684-693; doi:10.3390/app3040684
Published: 4 December 2013
Abstract: A series of materials was prepared by curing acrylated epoxidized soybean oil (AESO) and dibutyl itaconate (DBI) or ethyl cinnamate (EC) comonomers to provide examples of thermosets with a high proportion of bio-based carbon, in accordance with the principles of green chemistry. The comonomers, representative of cellulose-derived (DBI) or potentially lignin-derived (EC) raw materials, were tested at levels of 25%, 33%, and 50% by mass and the resulting products were characterized by infrared spectroscopy, thermogravimetric analysis, and dynamic mechanical analysis. Both DBI and EC were incorporated into the thermosets to a high extent (>90%) at all concentrations tested. The AESO-DBI and AESO-EC blends showed substantial degradation at 390–400 °C, similar to pure AESO. Glass transition temperatures decreased as comonomer content increased; the highest Tg of 41.4 °C was observed for AESO-EC (3:1) and the lowest Tg of 1.4 °C was observed for AESO-DBI (1:1). Accordingly, at 30 °C the storage modulus values were highest for AESO-EC (3:1, 37.0 MPa) and lowest for AESO-DBI (1:1, 1.5 MPa).
The reactivity of olefins found in natural oils has been widely exploited as a means of preparing novel polymers with a high proportion of the carbon derived from renewable resources. Besides well-known drying oil technologies , various chemical modifications of triglycerides have been explored in order to improve reactivity and access a wider range of materials with desirable properties and functional performance. One strategy has been to apply catalytic isomerization to increase conjugation of polyunsaturated fatty chains. For example Larock et al. have developed a Rh-catalyzed process that yields raw materials that are well suited for free radical and ring-opening metathesis polymerizations [2,3]. Unsaturated fatty chains may also be converted to epoxides, which may be used in curing chemistries directly or further modified with reactive maleic or acrylic functionality . The latter, in the form of acrylated epoxidized soybean oil (AESO, representative structure shown in Figure 1A) has been extensively developed as the foundation for a range of bio-based polymer and composite materials: AESO has been copolymerized with numerous petroleum-derived monomers such as alkyl acrylates and methacrylates, vinyl alcohol, vinyl acetate, acrylic acid, and styrene, in thermosetting reactions promoted by free radical initiators. The resulting materials vary widely depending on the blending ratios, cure cycles, and properties of the comonomer . The 12 Principles of Green Chemistry call for use of renewable resources whenever practicable [6,7], therefore recent work has focused on maximizing the bio-based content in triglyceride-derived polymer systems. Prospective biorefinery products from carbohydrates [8,9] and lignin  are interesting as potential feedstocks for further development of AESO chemistry. For example, Wool et al. have shown that lignin model compounds with reactive functionality can provide similar properties and functional performance as styrene in thermosetting systems [11,12]. Rosin acids have also been explored as potential alternatives to styrene or divinylbenzene .

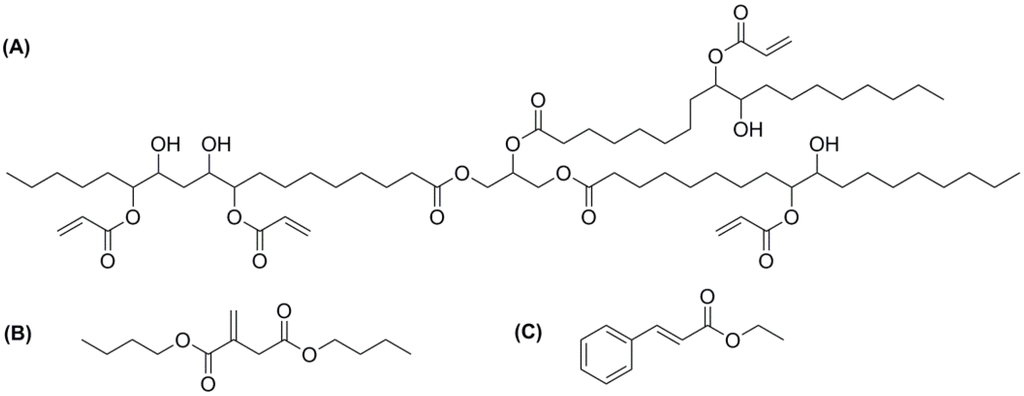

In this study, we polymerized AESO with bio-based comonomers to produce novel thermoset materials. Dibutyl itaconate (Figure 1B) was selected as one of the comonomers due to its structural similarity to acrylates and methacrylates, lower toxicity, and the status of itaconic acid as one of the US DOE “Top 10” chemical opportunities from biomass . As itaconic acid is readily derived from carbohydrates via fungal fermentation, it has been successfully used in a variety of polymer applications . These include as a dienophile for Diels-Alder chemistry in modification of fatty acids , grafting of polyitaconic acid onto other polymers , and incorporation into epoxy resins . We also studied ethyl cinnamate (Figure 1C) as a lignin model compound, to determine whether the cinnamyl moieties found in native or isolated lignins (and potentially in bio-oils as well) are reactive with AESO. Dibutyl itaconate and ethyl cinnamate were incorporated into thermoset materials with AESO at various ratios and we report the resulting spectral, thermal, and mechanical properties.
2. Experimental Section
Acrylated epoxidized soybean oil was purchased from Sigma-Aldrich (St. Louis, MO, USA) (3.4 acrylate groups per triglyceride, average molecular weight approx. 1200 g/mol). Dibutyl itaconate (>95%) was purchased from TCI America (Portland, OR, USA). Ethyl cinnamate (>98%) and tert-butyl peroxybenzoate (98%) was purchased from Alfa Aesar (Ward Hill, MA, USA). All chemicals were used as received. Gel permeation chromatography was performed using a Shimadzu Prominence Series HPLC (LC-20AD) system (Columbia, MD, USA) with column oven (CTO-20A) and refractive index detector (RID-10A) both maintained at 40 °C. Two Phenogel columns (Phenomenex, Torrance, CA, USA; 5 µm, 300 × 7.8 mm) were placed in series, one with 50 Å and one with 100 Å pore size. The system was calibrated with polystyrene standards purchased from Sigma-Aldrich (St. Louis, MO, USA). Chromatography was performed with injections on a 200 µL sample loop and 1 mL/min flow rate of tetrahydrofuran (Fisher Chemical, HPLC grade, Waltham, MA, USA). Infrared spectra were recorded using a Nicolet 6700 FT-IR spectrometer equipped with a diamond ATR accessory (Thermo Scientific, Waltham, MA, USA). Spectra were acquired in the range 500–4000 cm−1. Thermal analysis on pre-extracted samples (see Section 2.4 below) was performed with a Q500 thermogravimetric analyzer (TA Instruments, New Castle, DE, USA). The TGA samples were pre-dried in a vacuum oven at 45 °C for 24 h, and further exposed to a stream of dry N2 gas at 50 °C for 1 h prior to analysis (50–700 °C, 10 °C/min). Mechanical and viscoelastic properties were characterized with a Q800 dynamic mechanical analyzer (TA Instruments, New Castle, DE, USA).
2.2. Synthesis of Homopolymers
Poly(dibutyl itaconate) was prepared and purified based on a previously published procedure, which was modified to use t-butylperoxybenzoate as the initiator . Similarly, poly(ethyl cinnamate) was prepared and purified according to the literature but using the t-butylperoxybenzoate initiator .
2.3. Representative Procedure for Copolymerization of the Bio-Based Resins
AESO and comonomer in the desired ratio, with t-butyl peroxybenzoate initiator (2 wt. % of the total mixture) were mechanically blended for at least 5 min using an overhead stirrer. To prevent oxygen free radical inhibition, the mixture was then purged with nitrogen gas for 5 min and placed under vacuum to remove gas bubbles. The purge/vacuum cycle was repeated 3 times. The resin was then poured into a silicone mold between two steel plates and cured by the application of heat. The curing process for all resins was 90 °C for 2 h with postcure at 120 °C for 2 h based on previously demonstrated conditions for curing of AESO resins [20,21]. The polymer samples were allowed to cool to room temperature and were polished with fine sandpaper prior to further analysis.
2.4. Determination of Extractable Content in the Bio-Based Resins
Samples (1 g) were fragmented and extracted overnight in 15 mL dichloromethane. The insoluble material was placed in a dessicator under continuous vacuum for a further 24 h prior to weighing.
3. Results and Discussion
3.1. Degree of Incorporation of Bio-Based Monomers
Thermosets were prepared with AESO-DBI or AESO-EC mixtures with mass ratios of 3:1, 2:1, and 1:1 (for clarity, samples will be discussed according to these mass ratios unless otherwise noted). The corresponding molar ratios of reactive functionalities are 2.1:1, 1.4:1, and 0.7:1 for the DBI series and 1.5:1, 1.0:1, and 0.5:1, comparable to previous studies of comonomer blends. Initiator and thermal curing cycles were similarly based on earlier studies of AESO reactivity [5,20,21]. Extraction with dichloromethane gave >99% recovery of insoluble material for the AESO-DBI series. For the AESO-EC series, >99% recovery was obtained for the 3:1 blend but was 95% for the 2:1 ratio and 90% for the 1:1 ratio. Further exploration of initiator and curing conditions would be necessary to improve the incorporation levels of EC. The mass recovery observations were in good agreement with infrared spectroscopic analysis.
3.2. Infrared Spectroscopy
Infrared spectra were measured for each of the AESO-DBI and AESO-EC mixtures. A representative spectrum for AESO-DBI (1:1) is shown in Figure 2; the spectrum was not significantly different at lower levels of DBI. Pure AESO has a C=C stretch at 1635 cm−1, and pure DBI has a C=C stretch at 1642 cm−1; neither of these is apparent in the spectrum of the copolymer, indicating high degree of polymerization of the C=C functionality. The broad, strong C=O stretching frequencies centered around 1729 cm−1 are apparent, characteristic of fatty ester functionality in the triglyceride backbone as well as acrylate and itaconate ester moieties. Corresponding C–O stretches are observed at 1162 and 1062 cm−1.

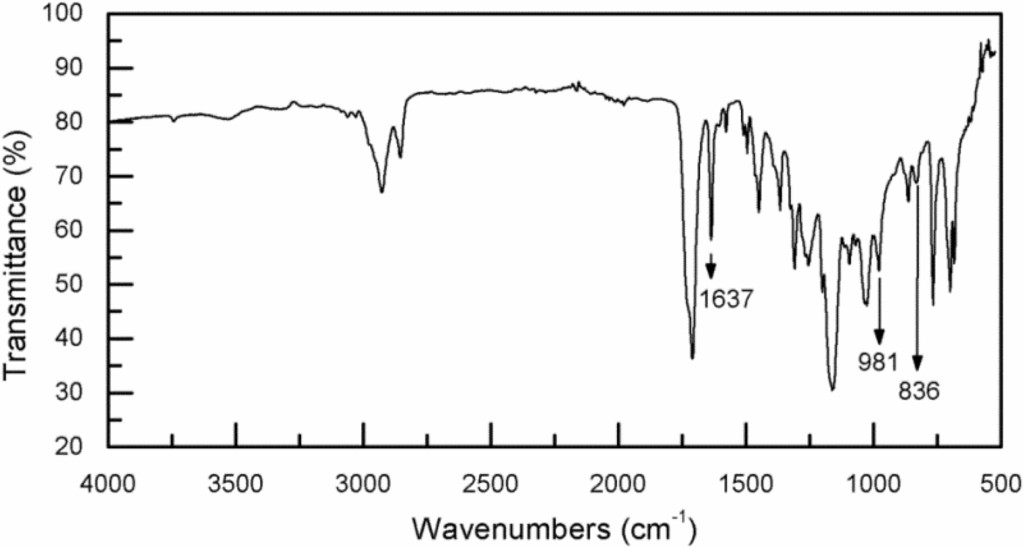

In contrast, the AESO-EC spectra showed evidence of unreacted starting material. Pure EC has a C=C stretch at 1639 cm−1 and the copolymer shows a distinct peak at 1637 cm−1 (Figure 3). Peaks seen at 981 and 836 cm−1 are also consistent with pure EC. Other signals are consistent with polymerized AESO as discussed above.
3.3. Thermal Stability

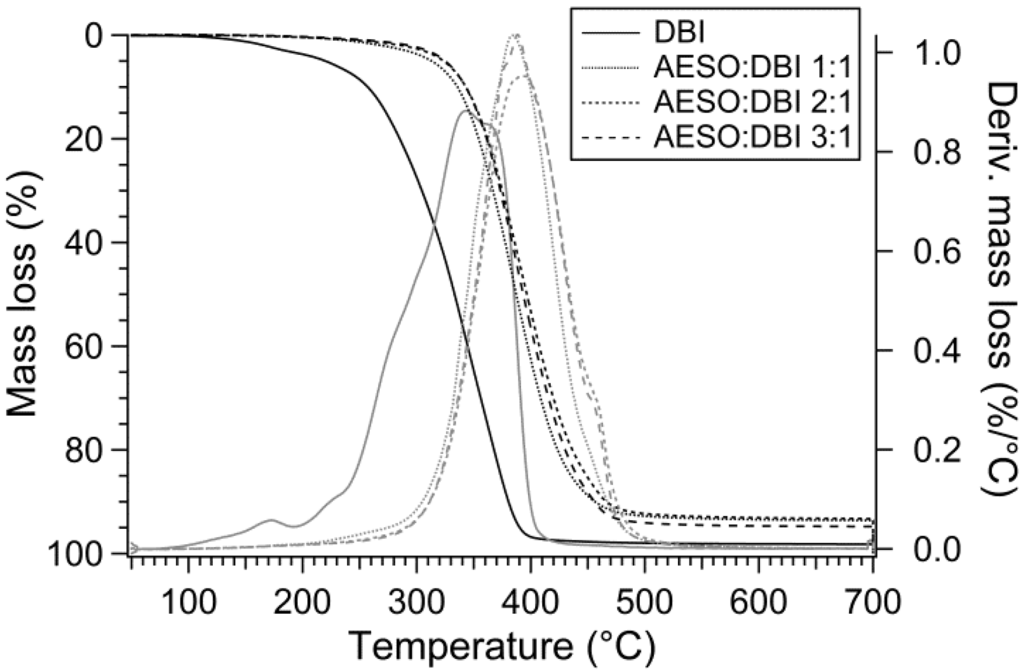

The thermal stability of the polymers was studied by thermogravimetric analysis (TGA). Results for DBI homopolymer and AESO-DBI thermosets are shown in Figure 4, and T5, T10, T50, and char yield values are shown in Table 1.
|Table 1. Thermogravimetric data for DBI and EC homopolymers, AESO-DBI, and AESO-EC resins. T5, T10, and T50 temperatures correspond to mass loss of 5%, 10%, and 50% respectively. Char yield is based on residue at 700 °C.|
|Sample||T5 (°C)||T10 (°C)||T50 (°C)||Char yield|
For the AESO-DBI blends, the TGA data show that the major degradation process has an onset around 300 °C, and the maximum rate of degradation occurs at 385–390 °C, apparently independent of the DBI content. The T50 values are very similar to that of pure AESO thermoset (398 °C) , for which the major thermal transformation is decomposition of the crosslinked polymer network and random scission of the linear chains . In the case of DBI homopolymer, the sample shows loss of mass in the 150–200 °C range. GPC data showed that the purified DBI homopolymer still contained residual DBI monomer (<5%), therefore we attribute the lower-temperature mass loss to the monomer, which was not present in the AESO resins.

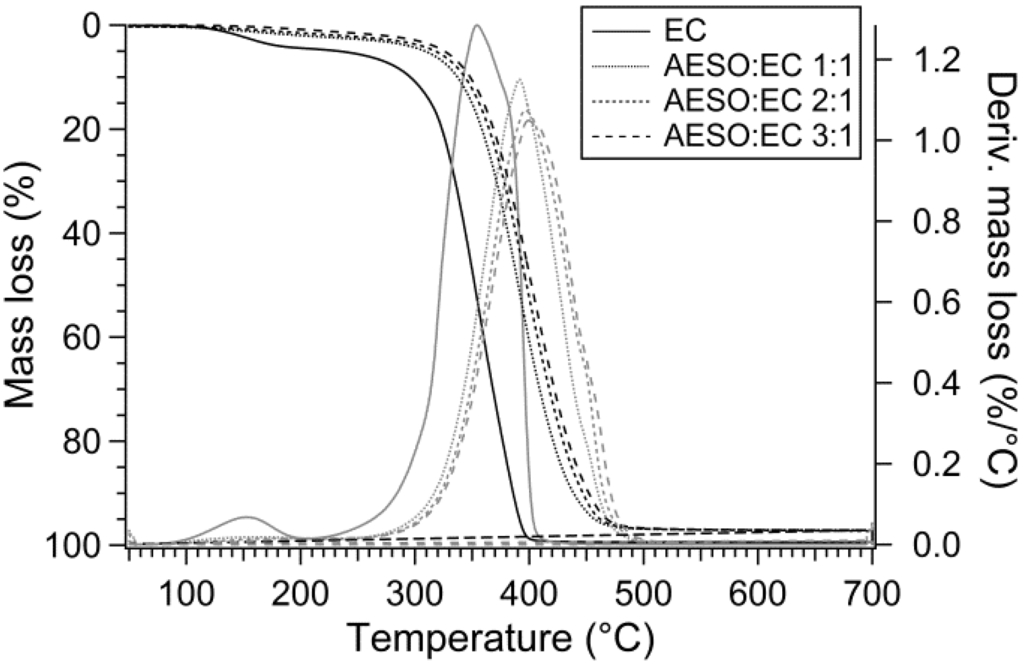

EC homopolymer (Figure 5) showed two major degradation stages centered at 153 °C and 355 °C. TGA of EC monomer showed sharp mass loss centered at 165 °C; therefore it is likely that the EC homopolymer contained a small amount of unreacted EC. The AESO-EC samples show that unreacted EC was removed by the solvent extraction pre-treatment. Consumption of EC via thermal [2 + 2] dimerization during the cure was not expected due to the higher temperatures (>200 °C) that would be required . T5, T10, and T50 values for the two series of thermosets are comparable. The values for AESO-EC are slightly higher than those for the DBI series, suggesting that the aromatic content in EC may provide limited stability, but in general the T50 values are not significantly different than the T50 of AESO alone. Char values are low for all materials tested, in agreement with the literature on thermal stability of AESO and AESO blends .

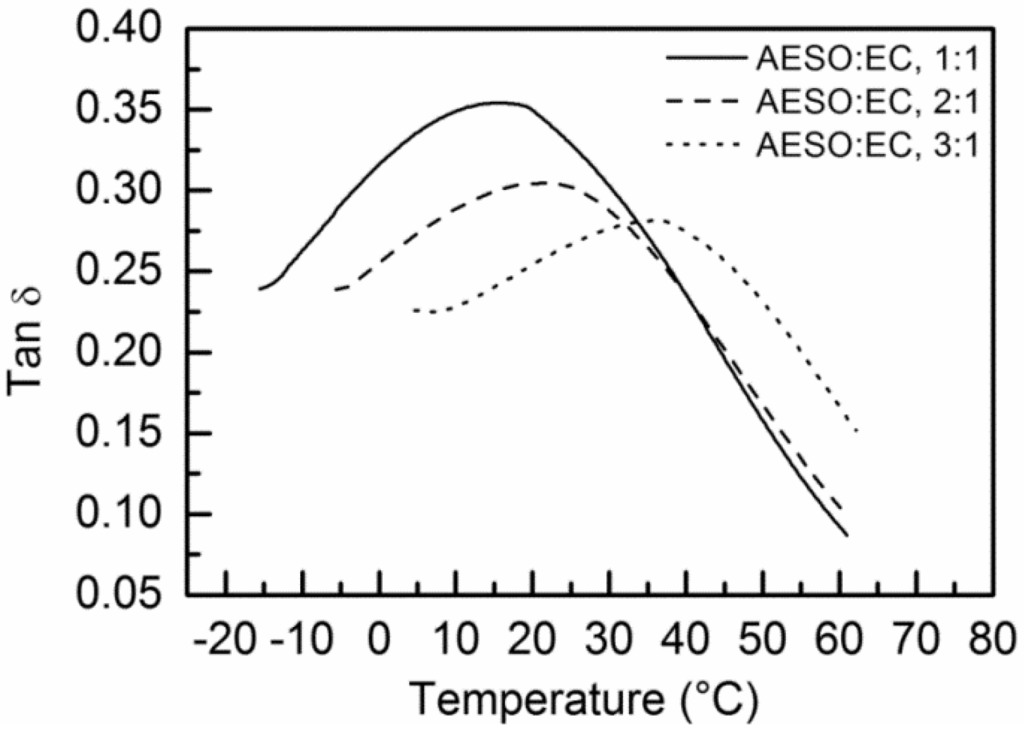

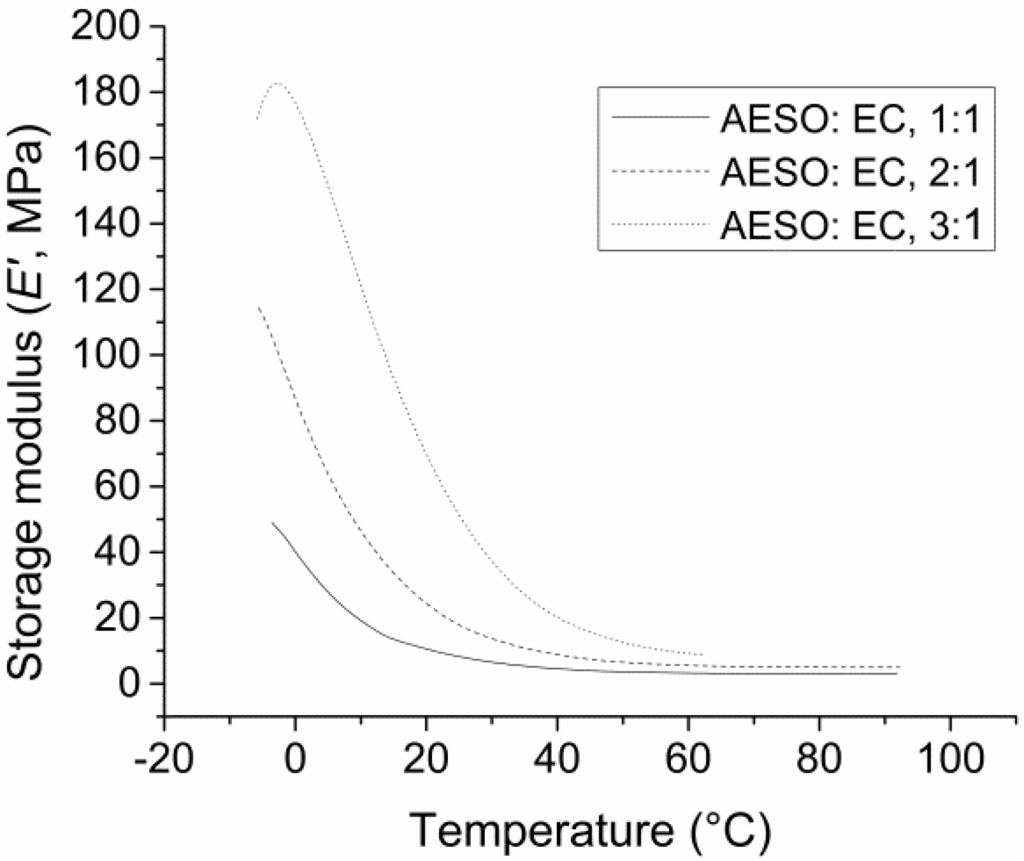

The AESO blends were further characterized by dynamic mechanical analysis (DMA). Representative traces of storage modulus as a function of temperature for AESO-EC blends are shown in Figure 6. Tan δ curves as a function of temperature (Figure 7 and Figure 8) were used to determine Tg for AESO-DBI and AESO-EC materials. The results are summarized in Table 2.
|Table 2. Glass transition and viscoelastic properties of AESO blends (Each measurement was made on two different samples).|
|Sample||AESO: EC, 1:1||AESO: EC, 2:1||AESO: EC, 3:1||AESO: DBI, 1:1||AESO: DBI, 2:1||AESO: DBI, 3:1|
|Tg (as Tan δ peak, °C)||14.2, 15.6||21.0, 21.1||41.4, 36.3||1.4, 2.5||18.4, 19.2||27.3, 25.4|
|Storage modulus E’ (at 30 °C, MPa)||6.5, 9.1||16.6, 13.7||35.2, 37.0||1.5, 1.6||6.6, 7.1||17.8, 10.2|
The Tg of AESO homopolymer depends on the degree of acrylation; a typical value is about 47 °C . In this study, lower values were observed as the amount of EC or DBI increases; this can be attributed to lower cross-link density as both DBI and EC can only serve as linear chain extenders. The Tg of DBI homopolymer is 14.7 °C . Since we observe Tg values as low as 1–2 °C for AESO-DBI polymers, lower than the Tg of DBI or AESO homopolymers, the copolymer shows a strong plasticizing effect. Interestingly, this is the opposite of the effect reported in an AESO-methyl methacrylate system . In the case of the 1:1 AESO-EC blend, the presence of unreacted liquid EC is likely reducing the glass transition temperature. However, in all cases the observed Tg values are slightly higher than those seen for the AESO-DBI blends, suggesting that the aromatic content of the copolymer provides some rigidity. The experimental results are in good agreement with the Twinkling Fractal Theory of the glass transition, which has been extensively used to model the properties of polymers based on acrylated oils [26,27].
Storage modulus (E’) values for both AESO-DBI and AESO-EC samples were substantially lower than that of pure AESO which is about 320 MPa at 30 °C. This is consistent with the rubbery nature of the materials which are above or near the glass transition point at room temperature. The modulus values decrease with decreasing AESO content due to the lower crosslink density. In other studies of AESO blends, decreased E’ values have been seen for comonomers such as methacrylated lauric acid (100 MPa at 30 °C), whereas styrene blends provide significant increases (typically >1 GPa at 30 °C) . Based on the known properties of related thermoset systems, triglyceride-based copolymers with DBI and EC could be obtained with higher Tg and modulus values through two strategies. First, increasing crosslink density could be achieved by working with starting oils having a higher degree of unsaturation (for example, linseed oil), leading to a higher proportion of reactive acrylate groups after derivatization. Crosslink density can also be increased through maleic anhydride modification of residual OH groups, so the resulting monomers (MAESO) have additional reactive sites . Second, incorporation of fibers into AESO-based resins is known to improve mechanical performance. Renewable resources such as keratin, chicken feathers, and sisal have been recently reported for such a purpose [28,29,30].
We have shown that DBI and EC can be copolymerized with AESO to produce thermoset materials. DBI is readily incorporated into the polymer matrix with AESO at levels of 25%–50% by mass. The glass transition temperature decreases rapidly with increasing amounts of DBI, decreasing below even the Tg for DBI homopolymer. Under the cure conditions investigated, unreacted EC was detected when the starting blend was 33%–50% EC by mass, although it is apparent that the major portion of the added EC did react with AESO. The thermal behavior of the systems are similar to poly(AESO) but the storage modulus is much lower, suggesting that alternative approaches such as fiber reinforcement might be necessary to provide performance comparable to petroleum-derived comonomer systems. Our findings suggest that itaconic acid, as a promising biomass platform chemical, may be interesting as a potential replacement for petroleum-based acrylates in AESO-comonomer systems. Also, since we have demonstrated that the cinnamate functionality is reactive, lignin-derived bio-oils containing high levels of cinnamate functionality may similarly be useful in thermosets. Altogether, this suggests directions for future development of bio-based thermoset systems based on modified triglycerides.
Conflicts of Interest
The authors declare no conflict of interest.
- Zoebelein, H. Dictionary of Renewable Resources, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2001. [Google Scholar]
- Quirino, R.L.; Larock, R.C. Bioplastics, Biocomposites, and Biocoatings from Natural Oils. In Renewable and Sustainable Polymers; American Chemical Society: Washington, DC, USA, 2011; Volume 1063, pp. 37–59. [Google Scholar]
- Xia, Y.; Quirino, R.L.; Larock, R.C. Bio-based thermosetting polymers from vegetable oils. J. Renew. Mat. 2013, 1, 3–27. [Google Scholar]
- Khot, S.N.; La Scala, J.J.; Can, E.; Morye, S.S.; Williams, G.I.; Palmese, G.R.; Kusefoglu, S.H.; Wool, R.P. Development and application of triglyceride-based polymers and composites. J. Appl. Polym. Sci. 2001, 82, 703–723. [Google Scholar] [CrossRef]
- Wool, R.P.; Sun, X.S. Bio-Based Polymers and Composites; Elsevier Academic Press: Boston, MA, USA, 2005. [Google Scholar]
- Anastas, P.T. The transformative innovations needed by green chemistry for sustainability. ChemSusChem 2009, 2, 391–392. [Google Scholar] [CrossRef]
- Beach, E.S.; Cui, Z.; Anastas, P.T. Green chemistry: A design framework for sustainability. Energ. Environ. Sci. 2009, 2, 1038–1049. [Google Scholar] [CrossRef]
- Werpy, T.; Petersen, G. Top Value Added Chemicals from Biomass, Volume I: Results of Screening for Potential Candidates from Sugars and Synthetic Gas; US Department of Energy: Oak Ridge, TN, USA, 2004. [Google Scholar]
- Bozell, J.J.; Petersen, G.R. Technology development for the production of biobased products from biorefinery carbohydrates—The US Department of Energy’s “Top 10” revisited. Green Chem. 2010, 12, 539. [Google Scholar]
- Holladay, J.E.; White, J.F.; Bozell, J.J.; Johnson, D. Top Value Added Chemicals from Biomass, Volume II: Results of Screening for Potential Candidates from Biorefinery Lignin; US Department of Energy: Oak Ridge, TN, USA, 2007. [Google Scholar]
- Stanzione, J.F.; Giangiulio, P.A.; Sadler, J.M.; La Scala, J.J.; Wool, R.P. Lignin-based bio-oil mimic as biobased resin for composite applications. ACS Sustain. Chem. Eng. 2013, 1, 419–426. [Google Scholar] [CrossRef]
- Stanzione, J.F.; Sadler, J.M.; La Scala, J.J.; Wool, R.P. Lignin model compounds as bio-based reactive diluents for liquid molding resins. ChemSusChem 2012, 5, 1291–1297. [Google Scholar] [CrossRef]
- Ma, Q.; Liu, X.; Zhang, R.; Zhu, J.; Jiang, Y. Synthesis and properties of full bio-based thermosetting resins from rosin acid and soybean oil: The role of rosin acid derivatives. Green Chem. 2013, 15, 1300. [Google Scholar] [CrossRef]
- Willke, T.; Vorlop, K.D. Biotechnological production of itaconic acid. Appl. Microbiol. Biotechnol. 2001, 56, 289–295. [Google Scholar] [CrossRef]
- Sastry, G.S.R.; Murthy, B.G.K.; Aggarwal, J.S. Diels-Alder adducts of safflower oil fatty acids. Itaconic acid as a dienophile. Farbe und Lack 1972, 78, 927–929. [Google Scholar]
- Sugama, T.; Cook, M. Poly(itaconic acid)-modified chitosan coatings for mitigating corrosion of aluminum substrates. Prog. Org. Coat. 2000, 38, 79–87. [Google Scholar] [CrossRef]
- Ma, S.; Liu, X.; Jiang, Y.; Tang, Z.; Zhang, C.; Zhu, J. Bio-based epoxy resin from itaconic acid and its thermosets cured with anhydride and comonomers. Green Chem. 2013, 15, 245–254. [Google Scholar] [CrossRef]
- Cowie, J.M.G.; Henshall, S.A.E.; McEwen, I.J.; Velickovic, J. Poly(alkyl itaconates). 4. Glass and sub-glass transitions in the di-alkyl ester series, methyl to hexyl. Polymer 1977, 18, 612–616. [Google Scholar] [CrossRef]
- Marvel, C.S.; McCain, G.H. Polymerization of esters of cinnamic acid. J. Am. Chem. Soc. 1953, 75, 3272–3273. [Google Scholar] [CrossRef]
- La Scala, J.; Wool, R.P. Rheology of chemically modified triglycerides. J. Appl. Polym. Sci. 2005, 95, 774–783. [Google Scholar] [CrossRef]
- Campanella, A.; La Scala, J.J.; Wool, R.P. Fatty acid-based comonomers as styrene replacements in soybean and castor oil-based thermosetting polymers. J. Appl. Polym. Sci. 2011, 119, 1000–1010. [Google Scholar] [CrossRef]
- Lu, J.; Wool, R.P. Novel thermosetting resins for smc applications from linseed oil: Synthesis, characterization, and properties. J. Appl. Polym. Sci. 2006, 99, 2481–2488. [Google Scholar] [CrossRef]
- Sung, S.-J.; Cho, K.-Y.; Hah, H.; Lee, S.; Park, J.-K. Effect of plasticization of poly(vinyl cinnamate) on liquid crystal orientation stability. Jpn. J. Appl. Phys. 2005, 44, L412–L415. [Google Scholar] [CrossRef]
- Fernández-García, M.; Madruga, E.L. Glass transitions in dimethyl and di-n-butyl poly(itaconate ester)s and their copolymers with methyl methacrylate. Polymer 1997, 38, 1367–1371. [Google Scholar] [CrossRef]
- La Scala, J. The Effects of Triglyceride Structure on the Properties of Plant Oil-Based Resins, Vol. 1. Ph.D. Thesis, University of Delaware, Newark, DE, USA, 2002. [Google Scholar]
- La Scala, J.; Wool, R.P. Fundamental thermo-mechanical property modeling of triglyceride-based thermosetting resins. J. Appl. Polym. Sci. 2013, 127, 1812–1826. [Google Scholar] [CrossRef]
- Wool, R.P. Twinkling fractal theory of the glass transition. J. Polym. Sci. B 2008, 46, 2765–2778. [Google Scholar] [CrossRef]
- Hong, C.K.; Wool, R.P. Development of a bio-based composite material from soybean oil and keratin fibers. J. Appl. Polym. Sci. 2005, 95, 1524–1538. [Google Scholar] [CrossRef]
- Senoz, E.; Stanzione, J.F.; Reno, K.H.; Wool, R.P.; Miller, M.E.N. Pyrolyzed chicken feather fibers for biobased composite reinforcement. J. Appl. Polym. Sci. 2013, 128, 983–989. [Google Scholar] [CrossRef]
- Lee, K.-Y.; Ho, K.K.C.; Schlufter, K.; Bismarck, A. Hierarchical composites reinforced with robust short sisal fibre preforms utilising bacterial cellulose as binder. Compos. Sci. Technol. 2012, 72, 1479–1486. [Google Scholar] [CrossRef]
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
