Appl. Sci. 2012, 2(4), 773-779; doi:10.3390/app2040773

Article
Host–Guest Complex of β-Cyclodextrin and Disulfide Form of 4-Aminothiophenol
Taylor A. Cappadona 1, Lee M. Daniels 2,* and Tasneem A. Siddiquee 1,*
1
Department of Chemistry, Boswell Science Complex, Tennessee State University, 3500 John A. Merritt Blvd, Nashville, TN 37209, USA; Email: tcappado@gmail.com
2
Rigaku Americas Corp., 9009 New Trails Dr., The Woodlands, TX 77381, USA
*
Authors to whom correspondence should be addressed; Email: lee.daniels@rigaku.com (L.M.D.); tsiddiqu@tnstate.edu (T.A.S.); Tel.: +1-615-963-5337 (T.A.S.); Fax: +1-615-963-5326 (T.A.S.).
Received: 21 September 2012; in revised form: 22 October 2012 / Accepted: 22 October 2012 /
Published: 25 October 2012

Abstract

: An inclusion complex of β-cyclodextrin and 4-aminothiophenol was assembled by hydrophobic interaction of the host (β-cyclodextrin) and guest (4-aminothiophenol). The complex was isolated as crystalline solid and studied by single crystal X-ray diffraction method along with NMR and IR spectroscopy. Two cyclodextrin rings each containing one disulfide form of 4-aminothiophenol were found to pair up by hydrogen bonding of the outer rim -OH groups. The phenyl disulfide moiety of 4-aminophenyl disulfide molecule was found in the core of β-cyclodextrin, while the amino functional groups were positioned to the exterior of the cyclodextrin ring. Phenyl rings of the guest molecule from each partner of the paired cyclodextrin complex were found parallel to each other, indicating possible π-π stacking interaction between them.
Keywords:
crystal structure; host–guest complex; inclusion complex; supramolecular interactions

1. Introduction

Cyclodextrins are the most popular host molecule for supramolecular complexation. This has much to do with their efficacy in complexation with hydrophobic host molecules. Cyclodextrins have a hydrophilic exterior and hydrophobic interior. They are also available in various sizes. Among the available size variety, β-cyclodextrins are of suitable size to encapsulate aromatic compounds. β-CD forms inclusion complexes usually as dimers, due to its affinity to self-associate [1]. The dimers form because of hydrogen bonding between the hydroxyl groups on the rims of these molecules (Figure 1) [2,3].

Applsci 02 00773 g001 1024

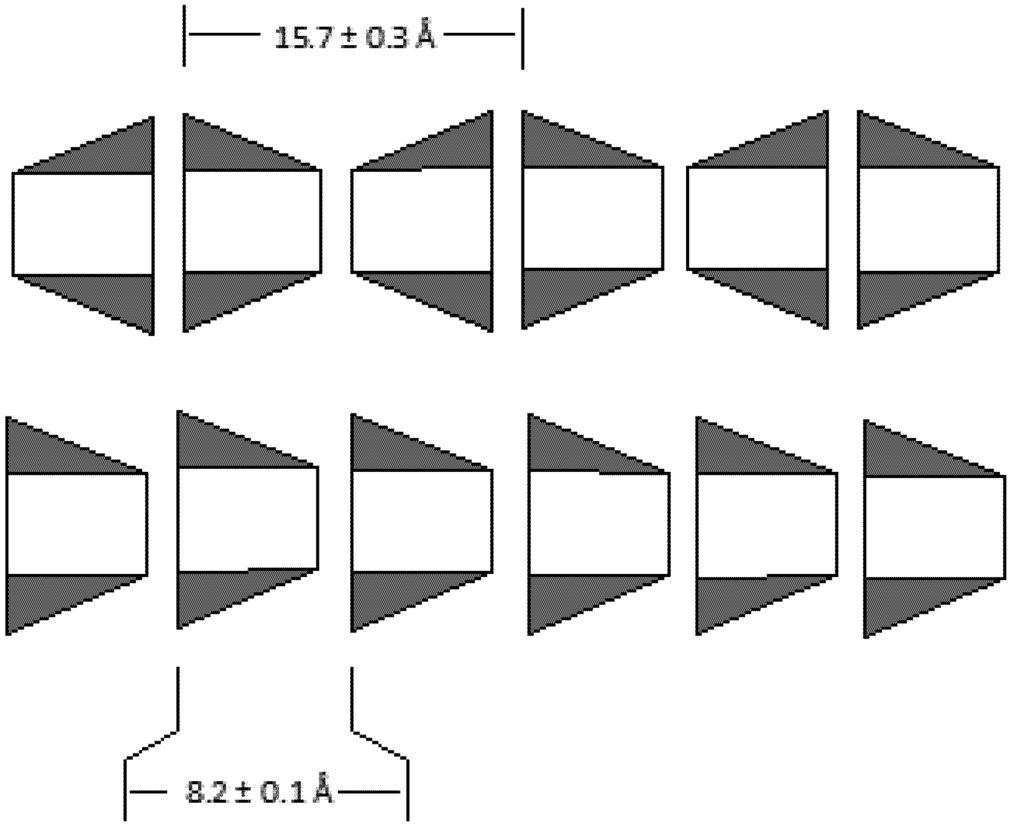

Figure 1. Hydrogen bonded assembly of cyclodextrins in solid state. Head-to-head assembly of β-CD with a repeat distance of 15.7 ± 0.3 Å (top) and head-to-tail assembly of α-CD with repeat distance of 8.2 ± 0.1 Å (bottom).

Click here to enlarge figure

Figure 1. Hydrogen bonded assembly of cyclodextrins in solid state. Head-to-head assembly of β-CD with a repeat distance of 15.7 ± 0.3 Å (top) and head-to-tail assembly of α-CD with repeat distance of 8.2 ± 0.1 Å (bottom).
Applsci 02 00773 g001 1024

Host–guest complexation with β-CD is commonly used in pharmaceuticals to solubilize water insoluble drugs [4]. Other uses for β-CD include the stabilization of gold nanoparticles and projects involving environmental remediation [5,6]. As an example of complexation of hydrophobic guest molecule pyrene and β-CD could be mentioned [6]. The solid state structure of this complex revealed that the pyrene molecule was positioned inside the cavity prepared by two cyclodextrin rings in a head-to-head fashion. The guest pyrene molecule was inside at the juncture of the two β-CD rings in a hydrophobic environment.

Thiols are a popular tool for the fabrication of nano-materials [7,8] as linkers and stabilizers. Aromatic bifunctional aminothiophenols have been employed for this purpose by making a host–guest complex with β-CD [5]. It is known that guest molecules may behave differently inside the host molecule [9,10,11,12,13,14,15]. For example, highly conjugated cyanine dyes get a boost in fluorescence response when complexed with cyclodextrins [10,11]. As most molecular properties depend on structural arrangements, it is important to learn about the structural arrangement of host–guest complexes. In this article, we report some structural aspects of such complexation between β-CD and 4-aminothiophenol (4-ATP).

2. Experimental Section

β-CD, 4-ATP and ethanol were purchased from Sigma Aldrich and used without further purification. IR spectra were recorded on a Perkin Elmer ATR-FTIR spectrometer, 1H NMR was recorded on a 300 MHz Varian spectrometer. Crystallographic data was collected on a Rigaku instrument at 100 (±2) K temperature.

Assembling β-Cyclodextrin4-ATPInclusionComplex

A clear saturated solution of β-CD was prepared by dissolving 0.567 g β-CD hydrate in 40 mL water. In a separate container, a clear solution of ATP was made by dissolving 0.0640 g (0.511 mmol) of ATP in 10 mL of ethanol. The ethanolic ATP solution was slowly added to the aqueous β-CD solution. This mixture was left in the container overnight until crystals of the inclusion complex were noticed. Solvent was removed. The solid remaining was then washed three times with acetone and dried under atmosphere. Suitable crystals for diffraction studies were isolated from this sample.

IR (ν, cm−1): 3253 (m, br), 2929 (w, br), 1623 (w, sh), 1596 (w, sh), 1494 (w, sh), 1413 (w, sh), 1370 (w, sh), 1330 (w, sh), 1297 (w, sh), 1205(w, sh), 1155 (m, sh), 1079 (s, sh), 1024 (s, sh), 1000 (s, sh).

1H NMR (D2O) δ (ppm): 0.94 (t), 2.0 (s), 6.6 (d) and 7.0 (d), region 4-5 was noisy and no signal was detectable. This is because of disordered water molecules in the matrix of the inclusion complex which is released in D2O upon dissolution.

3. Results and Discussion

Host–guest interaction was studied between β-CD and 4-aminothiophenol (4-ATP). The host–guest complex was assembled by hydrophobic interaction for each other. Structural analysis of the complex comprises of IR, 1H NMR and single crystal X-ray diffraction studies. The guest 4-ATP is insoluble in aqueous solution, while the host β-CD is soluble in water (1.08 mg/mL). The complexation was induced by mixing an ethanolic solution of 4-ATP in an aqueous solution of β-CD. IR spectrum of the complex preserves most features of β-CD, while the bands at 1623 (w, sh), 1596 (w, sh), 1494 (w, sh) were unique. These were assigned due to the N-H bending modes and C-C stretching frequency of the aromatic ring as part of 4-ATP. The NMR spectrum of the complex bears a stronger indication of complex formation. 1H NMR of the complex had two doublets at δ 6.6 and 7.0. These are signals from the aromatic guest molecule. The 1H NMR of β-CD and the complex were recorded in D2O. In D2O the guest molecule is not soluble and hence there was signal from the aromatic proton of the guest molecule in the inclusion complex. The NMR spectra recorded were very noisy in the δ3.5-5 region because of the water molecules in the hydrophilic region of the complex shadowing the signals from the β-CD ring.

It is a common practice to use thiols for the fabrication of nanomaterials [7,8,16] as linkers. In a separate study 4-ATP/β-CD complex was bonded to gold nanoparticles [5]. Thiols are known to oxidize to become disulfides. Evidently, previous reports ignored this common structural modification of the thiol molecules. Suitable crystals of the complex were isolated for single crystal X-ray diffraction studies. Scheme 1 illustrates the structural modification of 4-ATP to its disulfide form. The reason for oxidation was determined, though it was not measured if the oxidation of the guest molecule, 4-ATP, was accelerated in the β-CD environment. However, the suspected causes could be solely, or by a combination of, dissolved oxygen and atmospheric oxygen in the drying process.

Applsci 02 00773 g004 1024
Scheme 1. Modification of 4-ATP to 4,4'-diaminodiphenyl disulfide.

Click here to enlarge figure

Scheme 1. Modification of 4-ATP to 4,4'-diaminodiphenyl disulfide.
Applsci 02 00773 g004 1024

The solid-state structure of the complex demonstrated the host–guest interactions between the modified 4-ATP and β-CD (Figure 2). Each β-CD ring has one 4,4'-diaminodiphenyl disulfide guest molecule. Two of these complexes are in close proximity indicating noncovalent interactions. The β-CD rings maintain their preferred head-to-head interaction. Here, the hydrogen bonding is dominant between the –OH groups in the bigger rim of the cyclodextrin ring. It is also likely that there might be active π-π stacking interactions between the aromatic rings of two guest molecules from the neighboring complexes, as well. On average, a rough measurement of distance between such rings is 3.7(±4) Å. Usually, parallel aromatic rings separated by a distance less than 4 Å are considered to be involved in π-π stacking interactions. These rings are parallel but not completely superimposable to each other with a slight skid and twist away for carbon-to-carbon alignment of the two rings. Generally, the T-type π-π stacking is more stable than overlap-type π-π. In this situation, the π-π stacking interaction is a later type. This was probably due to the strong H-bonding of the cyclodextrin rim controlling the π-π stacking interaction. However, the guest molecule when crystallized by itself also demonstrates overlap-type π-π stacking interaction. The amine group of the guest molecules is positioned outside the β-CD ring. This perhaps contributes to the slight enhancement of the solubility of the complex (1.18 mg/mL) compared to the host β-CD (1.08 mg/mL). The crystal lattice had disordered water molecules (not shown in Figure 2).

Applsci 02 00773 g002 1024

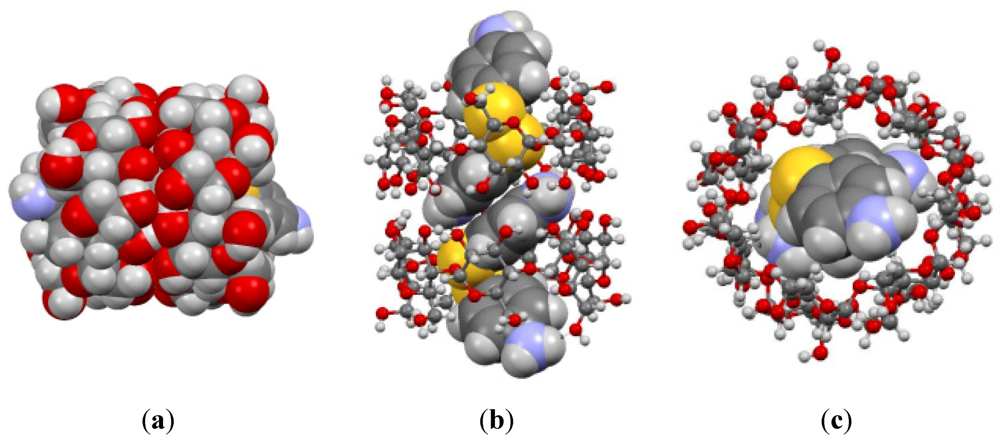

Figure 2. (a) Side view space filling model of the host–guest complex, (b) Side view space filling-ball stick (hybrid) model of the complex and (c) top view hybrid model of the complex.

Click here to enlarge figure

Figure 2. (a) Side view space filling model of the host–guest complex, (b) Side view space filling-ball stick (hybrid) model of the complex and (c) top view hybrid model of the complex.
Applsci 02 00773 g002 1024

The crystal structure of 4-ATP alone reveals no similar arrangements of the aromatic rings [17]. Figure 3 shows the packing diagram of pure 4-ATP crystal and the 4-ATP as guest molecule in the lattice of 4-ATP/β-CD complex. The cyclodextrin molecules have been eliminated for clarity.

Applsci 02 00773 g003 1024

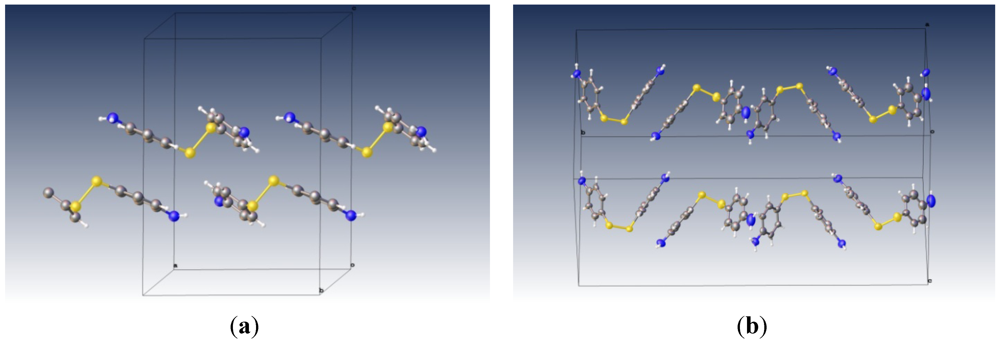

Figure 3. (a) The packing diagram of pure 4,4'-diaminodiphenyl disulfide molecule (view: slightly rotated from along b-axis); (b) The packing diagram of 4,4'-diaminodiphenyl disulfide inside the cavity of β-CD (with the cyclodextrin molecules removed). In this view, the crystallographic b-axis is horizontal.

Click here to enlarge figure

Figure 3. (a) The packing diagram of pure 4,4'-diaminodiphenyl disulfide molecule (view: slightly rotated from along b-axis); (b) The packing diagram of 4,4'-diaminodiphenyl disulfide inside the cavity of β-CD (with the cyclodextrin molecules removed). In this view, the crystallographic b-axis is horizontal.
Applsci 02 00773 g003 1024

The solid-state structural data has been submitted to the Cambridge Crystallographic Data Center. The structure deposition number is CCDC 879687. Crystallographic data table for the complex is provided in Table 1.

Table Table 1. Crystal data and structure refinement for 4-ATP/β-CD.

Click here to display table

Table 1. Crystal data and structure refinement for 4-ATP/β-CD.
ParameterCrystal Data
CCDC deposition number879687
Empirical formulaC54 H84 N2 O46.75 S2
Formula weight1,573.35
Temperature100 (±2) K
Wavelength1.54187 Å
Crystal systemMonoclinic
Space groupP21
Unit cell dimensionsa = 14.8541 (±3) Å α = 90°
b = 32.3999 (±6) Å β = 103.750(7)°
c = 15.7645 (±11) Å γ = 90°
Volume7369.6(±6) Å3
Z4
Density (calculated)1.418 Mg/m3
Absorption coefficient1.596 mm−1
F(000)3312
Crystal size0.09 × 0.07 × 0.05 mm3
Theta range for data collection2.73 to 68.23°
Index ranges−17 ≤ h ≤ 17, −38 ≤ k ≤ 38, −18 ≤ l ≤ 14
Reflections collected72735
Independent reflections25731 (R(int) = 0.0906)
Completeness to theta = 68.23°99.7%
Max. and min. transmission0.9245 and 0.8697
Refinement methodFull-matrix least-squares on F2
Data/restraints/parameters25731/1243/1908
Goodness-of-fit on F21.035
Final R indices (I > 2θ(I))R1 = 0.1128, wR2 = 0.2285
R indices (all data)R1 = 0.2441, wR2 = 0.3136
Absolute structure parameter0.01 (±4)
Extinction coefficient0.00061 (±7)
Largest diff. peak and hole0.964 and −0.458 e·Å3

4. Conclusions

The host–guest complex of 4-ATP and β-CD was studied for structural insight. 4-ATP was found to be converted to 4,4'-diaminodiphenyl disulfide. The β-CD units were found to be involved in hydrogen bonding via the –OH groups of the larger rims of cyclodextrins in a head-to-head fashion. The modified guest molecule, 4,4'-diaminodiphenyl disulfide from two neighboring complexes were found to be parallel to each other with an average distance of 3.7(±4) Å, thereby suggesting active π-π interaction. The amine terminal of the guest molecule is positioned outside the host cavity, indicating possible contribution towards the solubility of the complex in water.

Acknowledgments

TAS acknowledges the partial support of this work by a grant from the US DOE, fund number 222174-13407.

Conflict of Interest

The authors declare no conflict of interest.
