Geosciences 2013, 3(2), 311-330; doi:10.3390/geosciences3020311

Article
Geodynamic Reconstructions of the Australides—1: Palaeozoic
Christian Vérard and Gérard M. Stampfli *
Institute of Earth Science, University of Lausanne, Géopolis, Quartier Mouline, Lausanne CH–1015, Switzerland; E-Mail: xian_verard@hotmail.com
*
Author to whom correspondence should be addressed; E-Mail: gerard.stampfli@unil.ch; Tel.: +41-21-692-4306; Fax: +41-21-692-4305.
Received: 23 March 2013; in revised form: 29 April 2013 / Accepted: 13 May 2013 /
Published: 4 June 2013

Abstract

: A full global geodynamical reconstruction model has been developed at the University of Lausanne over the past 20 years, and is used herein to re-appraise the evolution of the Australides from 600 to 200 Ma. Geological information of geodynamical interest associated with constraints on tectonic plate driving forces allow us to propose a consistent scenario for the evolution of Australia–Antarctica–proto-Pacific system. According to our model, most geodynamic units (GDUs) of the Australides are exotic in origin, and many tectonic events of the Delamerian Cycle, Lachlan SuperCycle, and New England SuperCycle are regarded as occurring off-shore Gondwana.
Keywords:
Australia; Antarctica; Gondwana; Gondwanides; Australides; Palaeozoic; plate tectonics; geodynamic reconstructions

1. Introduction

The geodynamic history of the Australides (termed after [1]) throughout the Phanerozoic is a matter of debate, in particular concerning the origin of “terranes” (see, for instance, discussion from a palaeomagnetic point-of-view synthesized in [2]; and from a geological point-of-view synthesized in [3]), and therefore, the interaction between the East Gondwana margin and the vast realm often included under the name “Panthalassa Ocean” (e.g., [1]).

The present work aims to reappraise the geodynamic evolution of the East Australia–East Antarctica–Tasman Sea–New Zealand–proto-Pacific region for the Palaeozoic—and for the Mesozoic-Cainozoic in a companion paper [4]—from a full global reconstruction model. The model is merely a model, but uses strict plate tectonic rules and physically coherent hypotheses, deeply rooted on geological data. Although many hypotheses were tested during the development phase of the model, the degree of freedom is revealed to be low when the model must comply at global scale with all geological data, with plate kinematics and plate geometries, and with geodynamic scenarios. The model presented herein takes into account as many of these constraints as possible.

The discussed region is a key location for understanding the evolution of the Australides. Several excellent works have addressed the tectono-stratigraphic relationships between various provinces (e.g., [5,6,7,8,9,10,11]) and the palaeogeography of the region (e.g., [12,13,14,15] or [16]). Tectonic and geodynamic scenarios, however, have been proposed at relative local scale (in particular for the formation of the Lachlan Orogen; e.g., [17,18,19,20,21]) and the “Panthalassa realm” is often left blank.

2. Method

A full global, physically consistent, ArcGIS®-based geodynamical model covering over 600 million years (Ma) has been in development at the University of Lausanne for many years. The techniques and definitions used to create the model were partly presented in many publications (in particular [22,23] and [24,25]), and will be soon further detailed elsewhere. Here we summarize the key criteria:

(1) All tectonic plates are rigid to first order and must have closed boundaries, following the “dynamic plate boundaries approach” [22]. Synthetic ocean spreading axes, in particular, are reconstructed for time tA, and used as isochrons (or “synthetic magnetic anomalies”) at time tB. Where available (i.e., in particular not for the Palaeozoic), tectonic plates are positioned one relative to another using magnetic anomalies as defined by [26,27]. Isochrons (synthetic or not) are important features of the reconstructions since they constrain plate geometries, and therefore, plate kinematics. Plate velocity is defined as “acceptable” up to 22 cm/year (which correspond to the present-day rotation rate of the Rivera plate; 1.9781°/Ma or equatorial velocity of 21.99 cm/year after [28]).

(2) The model is “geodynamic” in the sense that it is kinematically constrained on the entire sphere in 2D, but also in 3D with scenarios accounting for forces acting at plate boundaries. These scenarios are validated a posteriori by numerical simulations (e.g., [29]), and independent datasets such as tomography images (e.g., [30,31]).

(3) Crustal fragments are defined as what we term GeoDynamical Units (GDUs) in the present-day configuration, in order to avoid misunderstanding with other terms such as continental blocks, microcontinents or terranes. GDUs are defined all over the globe (>1000 GDUs) as not deformable in order to enable geological information to be transferred back in the past, in its genuine configuration, and to test whether those data are compatible with what the model predicts ([24,25]). Consequently, non-rigid deformation such as geological bending, stretching or shortening is not corrected within a GDU, but tight/untight fits are used not to underestimate crustal extension/shortening.

(4) Differences between continental and oceanic region are related to the nature of the crust and not to shore line associated with sea-level. Present-day coast lines, of course, are shown as geographical references only.

(5) Reconstructions are global, and are made in a Europe fixed reference frame, using all possible data of geodynamical interest, which have been compiled in the PaleoDyn Database (see [24]). A palaeomagnetic grid is, however, shown on our maps, and the “pseudo-absolute” position is constrained using palaeomagnetic information and palaeoclimatic indicators. The apparent polar wander path (APWP) modified after [32], in particular, is used to define the “pseudo-absolute” reference frame over 600 Ma—named “pseudo” because APWPs give no constraint on palaeo-longitude. The model comprises 48 reconstructions over 600 Ma every 5 to 20 Ma.

3. Geodynamic Reconstructions

A “good” fit for Gondwana at about 200 Ma is a key feature for understanding both the Palaeozoic and Mesozoic-Cainozoic evolution of the Australides. The retained solutions for the “Gondwana best-fit” are given in [4]. The position of GDUs at 200 Ma has influence on our starting configuration at 600 Ma. Note that names of GDUs are provided on this configuration (Figure 1) for readers who are familiar with the region, but, for sake of clarity, only names of large scale terranes are shown in the reconstructions (Figure 2).

Among all the work on the Australides, nomenclature and GDU definition (Figure 1) refer largely to the thorough synthetic work of [3] and numerous references therein.

Geosciences 03 00311 g001 1024

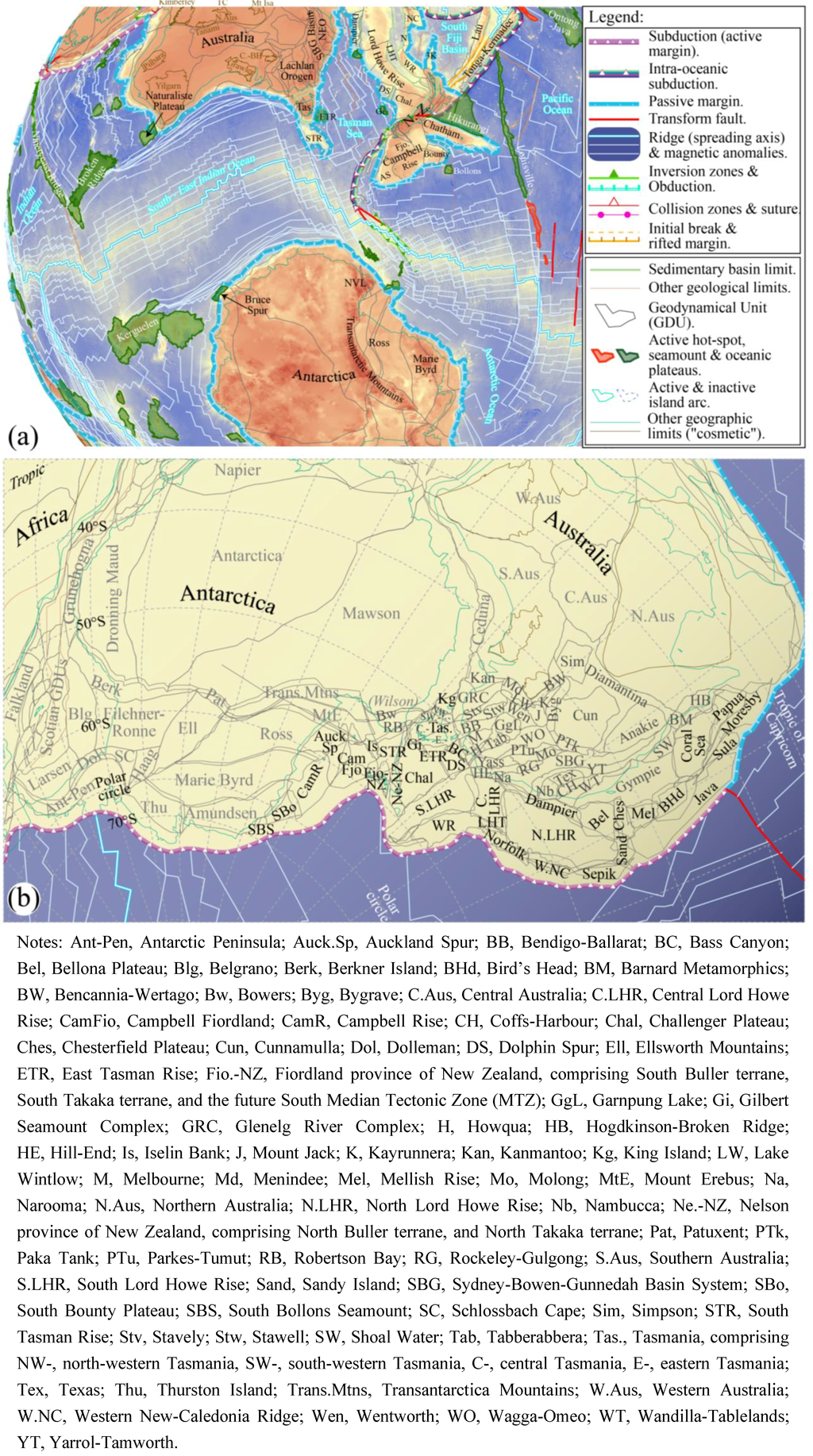

Figure 1. (a) Present-day configuration (000 Ma) showing GDUs with Etopo1 as background (topography/bathymetry of the bedrock (ice removed); [33]). Abbreviations are as in (b), except for: AS, Auckland Spur; Fio. and Rise, Campbell Fiordland and Campbell Rise; N, Norfolk Ridge; N.-Z., New Zealand; NC, New-Caledonia Ridge; NEO, New England Orogen; NVL, Northern Victoria Land. In Green are names of Australian cratons, with Yilgarn, Pilbara, Grawler, Curnamona-Broken Hill [C.-BH] and the North Australian [N.Aus] cratons (comprising Kimberley, Tanami, Mount Isa, Tennant Creek [TC], and Pine Creek cratons). (b) Reconstruction at 200 Ma (“Gondwana Fit”). Abbreviations are provided in the figure note. Orthographic projections; this figure is in part derivative from the Neftex Geodynamic Earth Model, © Neftex Petroleum Consultants Ltd. 2011.

Click here to enlarge figure

Figure 1. (a) Present-day configuration (000 Ma) showing GDUs with Etopo1 as background (topography/bathymetry of the bedrock (ice removed); [33]). Abbreviations are as in (b), except for: AS, Auckland Spur; Fio. and Rise, Campbell Fiordland and Campbell Rise; N, Norfolk Ridge; N.-Z., New Zealand; NC, New-Caledonia Ridge; NEO, New England Orogen; NVL, Northern Victoria Land. In Green are names of Australian cratons, with Yilgarn, Pilbara, Grawler, Curnamona-Broken Hill [C.-BH] and the North Australian [N.Aus] cratons (comprising Kimberley, Tanami, Mount Isa, Tennant Creek [TC], and Pine Creek cratons). (b) Reconstruction at 200 Ma (“Gondwana Fit”). Abbreviations are provided in the figure note. Orthographic projections; this figure is in part derivative from the Neftex Geodynamic Earth Model, © Neftex Petroleum Consultants Ltd. 2011.
Geosciences 03 00311 g001 1024
Geosciences 03 00311 g002 1024

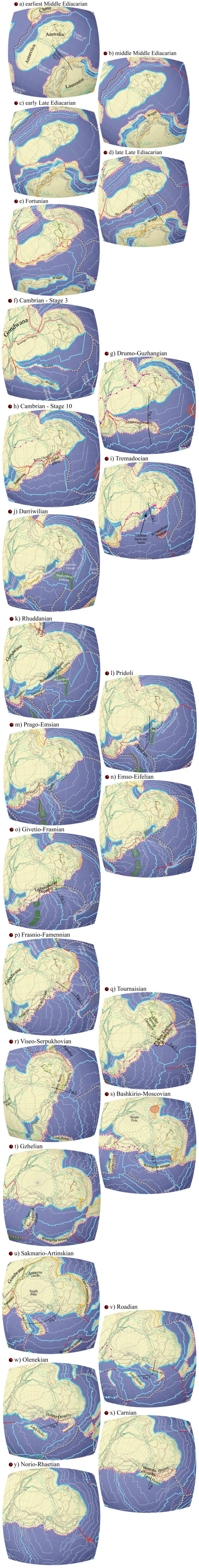

Figure 2. Geodynamic reconstructions from (a)–(e) Middle Ediacarian to Early Cambrian; (f)–(g) Middle Cambrian to Middle-Late Ordovician; (k)–(o) Early Silurian to Middle-Late Devonian; (p)–(t) Late Devonian to Late Carboniferous; (u)–(y) Early Permian to Late Triassic. Same legend as per Figure 1. Views from the present-day South Pole, with palaeomagnetic grid (grey dashed line, 10° spacing, modified after [31]). Approximate location of cross-sections of Figure 3 are shown for indication. Blue and brown background colors represent oceanic and continental lithosphere, and not the shore-line (no palaeo-geography). Present-day shore-line (turquoise) is shown as geographic indicator only. Orthographic projections; this figure is in part derivative from the Neftex Geodynamic Earth Model, © Neftex Petroleum Consultants Ltd. 2011. Chronostratigraphic terms after the International Chronostratigraphic Chart—version 2013/01 of the International Commission on Stratigraphy [34].

Click here to enlarge figure

Figure 2. Geodynamic reconstructions from (a)–(e) Middle Ediacarian to Early Cambrian; (f)–(g) Middle Cambrian to Middle-Late Ordovician; (k)–(o) Early Silurian to Middle-Late Devonian; (p)–(t) Late Devonian to Late Carboniferous; (u)–(y) Early Permian to Late Triassic. Same legend as per Figure 1. Views from the present-day South Pole, with palaeomagnetic grid (grey dashed line, 10° spacing, modified after [31]). Approximate location of cross-sections of Figure 3 are shown for indication. Blue and brown background colors represent oceanic and continental lithosphere, and not the shore-line (no palaeo-geography). Present-day shore-line (turquoise) is shown as geographic indicator only. Orthographic projections; this figure is in part derivative from the Neftex Geodynamic Earth Model, © Neftex Petroleum Consultants Ltd. 2011. Chronostratigraphic terms after the International Chronostratigraphic Chart—version 2013/01 of the International Commission on Stratigraphy [34].
Geosciences 03 00311 g002 1024

3.1. The Delamerian Cycle (Figure 2a–h)

In our reconstruction at 600 Ma, Australia-Antarctica faces Laurentia (Figure 2a), and both continents are located mainly according to palaeoclimatic and palaeomagnetic data. The eastern coast of Australia-Antarctica corresponds to a passive margin environment according to the Torrens Hinge Zone stratigraphy ([3] and references therein), which formed during the break-up of Rodinia (or Pannotia) ca. 750 Ma ago. Mafic igneous rocks (Koonenberry; Broken Hill area) east of the Curnamona Craton prove, however, that the passive margin turned into an active margin, with arc-related rocks dated at 526 Ma that [35] related to a basin-and-range setting. The west coast of Laurentia appears to record rift setting, in particular as indicated by subsidence curves ([36]; see also [37]).

We propose accordingly that a large terrane—the Patagonia-Wagga terrane—rifted off Laurentia at (or just prior to) 600 Ma (Figure 2a). However, a first magmatic arc – named herein Kayrunnera arc—detached from Laurentia, and collided diachronously with the Australia-Antarctica passive margin between 560 and 535 Ma (Figure 2c,d), converting the Australian passive margin into active margin by subduction reversal (Figure 3; see also [29] for discussion about subduction reversal processes). Thus by 526 Ma, the Australia-Antarctica active margin is established. Slab roll-back induces cordillera collapse (corresponding thus to the basin-and-range setting of [35]), rifting and finally back-arc spreading as suggested by the ca. 7–8 km thick sediments and mafic rocks of MORB chemistry in the Kanmantoo Trough (Broken Hill area; [3] and references therein). We choose that time to create the Diamantina rifting, which we associate with large scale stretching of the Simpson, Cunnamulla, and Anakie GDUs (see below). We name “Bowers arc” the “new” magmatic arc detaching from Antarctica-Australia and migrating toward the Patagonia-Wagga terrane, the ribbon continent which has been detached from Laurentia. Meanwhile, Gondwana underwent its final assembly—and therefore came only into existence around ~520 Ma—through the Damara–Kuunga–Pinjarra orogenies (e.g., [38]). Arc-continent collision occured off-shore Gondwana between 510 and 500 Ma (Figure 2g), and corresponds to the Delamerian Orogeny. Since the northern tail of the “Bowers arc” corresponds to intra-oceanic subduction in our model (plate boundary must be closed; Figure 2f), driving forces are considered large enough to trigger subduction propagation behind the accreted terrane after the Delamerian Orogeny. The oceanic plate—named Antoine plate in the model—is limited to the north by a transform fault (which allowed the terrane kinematics until accretion) and subduct beneath the newly created active margin. The collision (Delamerian Orogeny) also triggers the closure of the back-arc basin and finally a second collision (Figure 2h; Figure 3)—the Ross Orogeny—between the Patagonia-Wagga terrane and Gondwana. The hypothesis of a Delamerian Orogeny occurring “off-shore” Gondwana and followed shortly after by the Ross Orogeny is based on deformation ages clustering around 505 Ma and around 485 Ma in Australia (Broken Hill area, Mills, pers. com. [39]; [3] and references therein) and in Antarctica (Victoria Land; e.g., [40,41]), and the presence of two Cambrian volcanic belts predominantly observed in Victoria and in Tasmania. The change in directional trend of Cambrian Volcanics in Australia (from Stavely to Paka Tank GDUs) is explained by “oroclinal bending”. Orocline formation was facilitated by lithospheric thinning during Diamantina rifting which permitted subsequent westward migration of the upper plate arc over the thinned lithosphere, driving crustal buckling about a vertical axis of rotation.

The Delamerian and Ross sutures are, therefore, close in space and time (i.e., potentially difficult to discriminate in the field), and run from the Pampian–Goias suture (see [42] and references therein) in South America (for the Ross suture only), along the Transantarctic Mountains in Antarctica, in western Tasmania, along both side of the Stavely, Lake Wintlow, and Kayrunnera GDUs, and along the Bygrave and Paka Tank GDUs in Australia (Figure 2h).

Geosciences 03 00311 g003 1024
Figure 3. Schematic cross-section (not to scale horizontally) depicting the general geodynamical evolution of the Australides. (a) Cross-section from Middle Ediacarian to Late Cambrian (“Delamerian Cycle”); (b) Cross-section from Early Ordovician to Mid Carboniferous (“Tabberabberan Cycle” and “Kanimblan Cycle”); (c) Cross-section from Mid Carboniferous to Late Triassic (“Hunter-Bowen SuperCycle”).

Click here to enlarge figure

Figure 3. Schematic cross-section (not to scale horizontally) depicting the general geodynamical evolution of the Australides. (a) Cross-section from Middle Ediacarian to Late Cambrian (“Delamerian Cycle”); (b) Cross-section from Early Ordovician to Mid Carboniferous (“Tabberabberan Cycle” and “Kanimblan Cycle”); (c) Cross-section from Mid Carboniferous to Late Triassic (“Hunter-Bowen SuperCycle”).
Geosciences 03 00311 g003 1024

3.2. The Lachlan Cycle (Figure 2h–o)

Subsequent to the terminal Ross collision, the Antoine oceanic plate was subject to north–south shortening. As a response, the above mentioned transform plate boundary failed, and a new intra-oceanic subduction zone developed, facilitated by the growth of a new plate—named the Julia plate. The new Delamerian–Ross cordillera collapses due to roll-back of the Antoine plate, and the Macquarie arc (sensu largo) detaches and forms the Lachlan back-arc basin (Figure 3). We assume that the basement of the Tabberabbera, Garnpung Lake, Mount Jake, Wagga-Omeo, and Parkes-Tumut GDUs is stretched but remains (partly?) continental in nature, whereas other GDUs have oceanic basement, in order to account for differences in sedimentary facies (see “shelves and troughs” in [3]). The Lachlan basin is viewed to some extent here as an equivalent of the present-day Tasman Sea or Scotia Sea, where strongly stretched continental fragments are left over from the arc during basin opening. Such a configuration can account for the necessary continental components, and the numerous geophysical and geochemical studies (e.g., [3] and references therein) showing that the basin crust is largely oceanic in nature (largely oceanic, but remaining of unclear nature in localized zones; see [21] for similar interpretation).

The southern extent of the Lachlan back-arc basin is limited by a strike-slip fault placed against the Robertson Bay GDU, in order to explain the position of the Proterozoic Surgeon Island granite, which has affinities with the Mawson craton (e.g., [40] and references therein; [41]). With such configuration, the granite could have been displaced along the fault during back-arc opening, and pulled away from the craton.

The basin is filled up with a thick pile (over 3 km locally; [43]) of turbiditic sediments derived from the Delamerian–Ross Orogen [44,45,46]. The thick turbiditic series may partly explain why the back-arc did not close later on (see below).

Hot spot magmatism is inferred to characterize off-shore Gondwana (Figure 2i). Ridge jump potentially associated with the hot-spot leads to splitting of the intra-oceanic magmatic arc (on the Julia tectonic plate). The Julia abandoned arc separates the Antoine Ocean from the Julia Sea (Figure 2j). The resulting oceanic plateau—named herein the Benambran plateau—and seamount chain are involved in an “arc-plateau collision” that we link to the Benambran Orogeny in the Rhuddanian (see [3] for a synthesis of the definitions of the Benambran Orogeny; Figure 2k). No data were found to support a model of rifting, migration and subsequent continent-continent collision of any terrane, which could correspond to that Benambran orogenic event. With an “arc-plateau collision” model, the southern end of the Macquarie arc (s.l.) is pinned, whereas the northern end splits and forms the Tumut and Cowra Troughs (Figure 2l; [3] and references therein). The Macquarie arc (s.s.) is regarded as an intra-oceanic subduction-related arc, although it derives from a zone with a basement of continental nature in our reconstruction. A modern analogue of such configuration might be the Lau-Tonga-Kermadec arc (s.l.), which in part consists of an intra-oceanic arc, although it originates in our model from a continental area—the Lord Howe Rise [s.l.; stretched continental crust with shoal sedimentation, like the Wagga terrane (s.l.) in our model].

Following [42] (and references therein), terranes (in particular, Cuyana and Antofalla GDUs) are detached from Laurentia, and form an arc we refer to as the Yass magmatic arc, the tail of which corresponds to intra-oceanic subduction zone. Most of the GDUs from the eastern sub-province of the Lachlan Orogen belong to that arc, and move rather parallel to the Gondwana trench. However, oblique arc-continent collision explains the Shackleton Event in Antarctica ([47] and references therein; [40]). Local deformation events observed in the Lachlan Orogen (Quidongan Event, Bindi Event) are associated with arc-seamount or arc-abandoned arc collisions. Note that the Julia abandoned arc is well positioned to pin slab roll-back and stop or hamper the migration of the Macquarie arc further east (Figure 2l–m).

The subsequent collision of the far travelled and well developed Yass arc with the Macquarie arc (s.l.) corresponds to the Tabberabberan Orogeny at ca. 380 Ma (Figure 2o). The I–S line, a change in granitoidic rock chemistry ([48]; see also [49]), may reflect the two different origins of the arcs. In the model, we tentatively place the Rockeley–Gulgong GDU as part of the exotic (Yass) magmatic arc, although evidences are lacking. The Lachlan back-arc basin is shortened by thrusting, mimicking double (eastward and westward) subduction as postulated by [17] or [50], but the basin in-fill is probably too buoyant to permit total subduction. Note that exotic GDUs undergo large counter-clockwise rotations, as palaeomagnetically proposed by [2]. Note also that all GDUs on Figure 2o are regarded from now on as “continentalized” (i.e., as if they were continental in nature from now on).

3.3. The New England Cycle (Figure 2p–y)

Following the Tabberabberan Orogeny (Figure 3), subduction reversal occurs resulting in subduction beneath an active Gondwana margin. The Calliope magmatic arc (e.g., [49]) develops and starts rifting off (Figure 2p). Whether the back-arc basin becomes fully oceanic or not is unclear, but stretching related to slab roll-back was probably strong (see below). Note that the model predicts the position of oceanic spreading axis off-shore Tasmania and Challenger Plateau. The buoyancy of the spreading axis might explain why the Calliope back-arc basin did not extend further south. Another arc comprising, in particular, GDUs from the Wandilla–Tableland area (at present-day located in the New England orogen) migrates toward the Gondwana margin (Figure 2p). The arc is a remnant attributable to subduction that occurred along the Laurentia margin (the story of which will be detailed elsewhere). We have no direct link between the GDUs encompassed in the Wandilla arc and Laurentia. However, those GDUs are exotic in origin ([3] and references therein), and given the global configuration in the model, the location of those GDUs in our Laurentian Wandilla arc, can be traced to Laurentia. The Wandilla arc collides with the Calliope arc ca. 350 Ma ago ([3] and references therein). The Calliope back-arc must be strongly stretched or even oceanized at its southern end, because the overriding Wandilla arc can propagate inside and triggers oroclinal buckling of the New England Orogeny ([51] and discussion in [52]; [53,54]; see rounded arrows in Figure 2q).

Note that a “soft collision” occurs with South-East Asia [55,56] north of Australia, and is linked to the coeval Alice Spring Orogeny in Central Australia, and the potential activation of the Lachlan Transverse Zone of [57,58,59].

Again, subduction reversal occurs after the arc–continent collision (New England Orogeny; Figure 2q), causing the collapse of the cordillera, and explaining the extension that formed the Sydney–Bowen–Gunnedah Basin System (indicated as Sydney basin s.l. at ca. 330 Ma in Figure 2r). Within the Wandilla arc, we placed some GDUs now located in the Wrangellia area (North America). Wrangellia is an exotic terrane that crossed the Pacific. The reconstruction of the Pacific realm suggests a Gondwana origin for Wrangellia along the Australian margin [60,61,62]. The Sydney basin (s.l.) is regarded, therefore, as a rim basin, whereas rifting and sea-floor spreading occurred beyond (i.e., “east” of) the Wandilla–Tableland (s.l.) GDUs.

As the Wrangellia terrane drifted away from Gondwana, the Lord Howe terrane, which had previously detached from southern Laurentia, moves toward Australia (Figure 2s). The intra-oceanic subduction tail of the Wrangellia terrane collided with the Lord Howe terrane. Subduction reversal creates the Gympie magmatic arc ([49]; [3] and references therein), which then detaches from the Lord Howe terrane and moves toward Australia, while the Lord Howe terrane stays behind, as a “Madagascar-like microcontinent”. We choose to derive the Gympie arc from the Lord Howe terrane, since the drift of Wrangellia resulted in a passive margin setting along Gondwana (Figure 2u). Moreover, such configuration allows us to obtain the last two phases of the New England Cycle, namely the Hunter and Bowen orogenies. The Gympie arc is accreted diachronously from south to north between ca. 270 Ma and 240 Ma, in agreement with basin infill recording and magmatic activity ([3] and references therein). After subduction reversal along the Gondwana margin, the Lord Howe terrane collided in the Carnian (Late Triassic deformation at ca. 233 Ma after [63,64]).

4. Conclusions

Using strict plate tectonic rules and physically coherent hypotheses, the tectonic setting at 600 Ma can be constructed (Figure 2y) so as to permit the exact configuration required at 200 Ma (Figure 1).

The development of a fully global geodynamical model (Figure 2) rooted in the available geological data (Figure 3) allowed us to re-appraise the Palaeozoic evolution of the Australides. Contrary to many reconstructions proposed for the same region, numerous orogenic events now observed in Australia are inferred to have occurred off-shore Gondwana. All terranes of the Australides are regarded as exotic in nature at some time, which has some important implications for the apparent polar wander path deduced from palaeomagnetism, in particular. Constraints on older reconstructions (≥550–600 Ma), however, are rather poor, and the model needs to be refined, in particular for those periods.

Acknowledgments

We gratefully thank Cyril Hochard, Laurent Thum, Caroline Wilhem, Claire Gracia-Garay, Kennet Flores-Reyes, and all members of the Stampfli’s working group for sharing their data, ideas, and time with us. The Swiss National Fund (SNF) and Shell equally acknowledged for funding the present work. The work was carried out as part of the research program of the University of Lausanne on the “Stampfli geodynamic model”, which is now owned by Neftex Petroleum Consultants Ltd. and attached to the “Neftex Earth Model”. We are grateful to Neftex for allowing us to present in this publication some details from the geodynamic model obtained prior to 28 February 2010. We sincerely thank Stephen Johnston and two anonymous reviewers for their thorough and constructive comments.

Declare

Commercial re-use of the data and images copyright to Neftex Petroleum Consultants Ltd. is prohibited (Figure 1, Figure 2).
