Buildings 2013, 3(3), 545-569; doi:10.3390/buildings3030545

Article
Planning a Regional Energy System in Association with the Creation of Energy Performance Certificates (EPCs), Statistical Analysis and Energy Efficiency Measures: An Italian Case Study
Kristian Fabbri
Department of Architecture, University of Bologna, via Cavalcavia 55 47521 Cesena, Italy; E-Mail: kristian.fabbri@unibo.it
Received: 8 April 2013; in revised form: 19 July 2013 / Accepted: 22 July 2013 /
Published: 7 August 2013

Abstract

: Directive 2002/91/EC EPBD introduced the Energy Performance Certificate (EPC) as a tool to guide the real estate market in the creation of products (buildings) with improved energy performances. The EPC’s information could be useful in the determination of relevant policies and also in studying the characteristics of the building resources of the territory. This paper presents a case study related to the EPC Database of the Emilia-Romagna Region in mid-northern Italy. The case study shows a way of elaborating the EPC information in statistical analysis evaluations with aggregate data, in order to measure a territory and then direct energy policies toward energy efficiency. A statistical approach was used to define a characteristic statistical indicator index of the EPC database, and compare the energy index with the bottom-up and top-down methods, in order to identify some energy policy scenarios.
Keywords:
energy systems; planning; statistical analysis; energy efficiency measure; baseline energy consumption; quantification of energy saving

Nomenclature

SymbolNameDescription
(x)Sampling statistic averageAverage value of index EP
MedianNumerical value separating the higher half of sampling from the lower half
(δ)Standard deviation Dispersion from the average value
Confidence interval Actual value of any other data is not known, but an interval can in most cases be defined, that has a high probability (e.g., 95% or 99%) to contain the actual value
(μ)Expected value Random variable is the weighted average of all possible values that this random variable can take on
Indicator
(GFEC)Gross final regional energy consumption Estimated sum of total regional primary energy consumption
(GDSU)Gross dwelling net floor surfaceEstimated sum of dwelling urban units net floor surface, result of product from average urban units floor surface and number of dwellings
Index EPtot-Energy performance index EP, primary energy consumption, for heating (EPi) and DHW (EPacs), calculated for following standard UNITS 11300
(AIEP)Average Index EPAIEP (AIEP)Result of an average of Index EPtot for each building
(AAIEP)Aggregate Average Index EPAAIEP (AAIEP)Result of ratio between total energy consumption (kWh/year) and gross volume or units floor surface for residential buildings
Subscription
(RER)Value refers to the Region
(VER)Value refers to Verucchio
(corr)Value corrected by gap percentage
AverageAverage value
proProjection value
GSUGross urban units net floor surface
ASUAverage urban units net floor surface
SUUrban units net floor surface
EEnergy
DBpDATABASE projection
DBmDATABASE measured (by SACE)

1. Introduction

Directive 2002/91/EC (EPBD) [1] and Directive 2010/31/EU (EPBD-recast) [2] introduced the Energy Performance Certificate (EPC) in the European Union real estate market, and was adopted by each Member State in different ways [3,4,5,6]. The EPBD was endorsed in Italy by L. Decree 192/2005 [7] and M. Decree of 26 June 2009 [8], but on this matter the Italian Constitution authorized the Regions to make their own laws provided they respected the general and national norms established [9,10].

Each Region therefore adopted its own rules to define the EPC energy class ratings, to be cited on the certificate and also several EPC model certificates with their own list of certifiers (independent experts). The Italian case study presented in this paper could be applied in other European State Members [11,12,13,14,15,16]. The Emilia-Romagna region has adopted a specific discipline on matters of EPC and created an online Sistema Accreditamento Certificazione Energetica (SACE—System for the online issuance of Certificates) that can monitor the EPC trends. SACE is an Emilia-Romagna Region online application in order to submit official EPCs, and SACE is therefore a Regional EPC Database.

The EPC was introduced as an information tool for the EU real estate market. In Italy the EPC is required in the same cases and also for the sale or lease of a building or building units. The EPC thus contains sensitive information about a building, and is useful to the owner, buyer or the real estate market. The data also increases awareness of legislators or Public Administrators who may lay down energy policies and incentives on the basis of the energy performance features of their own building estates. This paper describe how the EPC can be used as an index to measure energy performance of buildings in a region and in relation to possible scenarios for energy policies, funding and incentives.

Energy performance evaluation processes are studied through statistical research using [17,18] the top down [19,20] or bottom up approach [21]. The top down method, also used in econometric studies, is based in national statistics of energy usage, related for example, to national (or regional) gas consumption [22], as referred to territorial indicators (such as homes or buildings) issued by ISTAT (Italian National Institute of Statistics) Census [23].

These methods are used in urban planning or energy scheduling on a large scale such as for the European Union and nations or regions, to support policy makers in determining the expected changes in customs or behavior based on certain indicators and corrective systems. For energy and environmental planning, the top-down methodology refers to energy-cumulative value (aggregates) composed of the sum of energy consumption obtained from several resources: institutional research centers, energy sales agencies or energy distributors, and energy buyers. These values are only cumulative because they are personally identifiable information, and are related to privacy norms and contracts between energy sales companies and customers.

The bottom-up approach is based on a hierarchy of disaggregated levels for each energy technology. The bottom-up evaluation in energy performance of buildings and of the energy performance certificate (EPC) may relate to only one building, taken as a representative element (reference building) and multiplied by the number of similar buildings, or could otherwise be related to existing building stocks. The building stock could be aggregated according to:

(a)

Continuity, (quarters, city districts);

(b)

Building types, (high-risers, villas, block buildings, housing estates, etc.);

(c)

Designated use (dwellings, schools, hospitals, etc.);

(d)

Adopting energy evaluation methods following the standards.

The top-down and bottom–up assessments are founded on two different data sets: in the top-down method the data set is related to boundary investigation, while in the bottom-up method the data set is related to the sampling of a single territory. This paper compares both methods:

(a)

The top-down by using the aggregate data set of all regions taken from ISTAT and databases of the Emilia-Romagna Region;

(b)

The bottom-up by using the single sampling statistic based on the EPC from SACE databases, where each EPC is related to a single urban unit.

For an in-depth view of the top-down and bottom-up methods, consult [24,25,26].

For example, the requirements for minimum renewable energy provided by Directive 2009/28/EC [27] for each EU Member State, are defined as the ratio between the sums of energy produced from renewable energy sources and the Gross Final Energy Consumption (GFEC).

Furthermore, the studies on energy performance of new and existing building stocks, are based on the statistical analysis of the aggregate database. Another approach is based on energy building performance (EBP) with the evaluation of exemplificative buildings, generally residential estates or the estimation of average transmittance incidences multiplied by the total number of buildings, or other statistical data [28].

2. Aim of Paper

This paper illustrates a specific case of the Energy Performance Certificate (EPC) database of a commune in the Italian Emilia-Romagna Region. The aims of the paper are:

(a)

To describe the EPC database, in order to define the statistical indicator index applied to the case study, and therefore only urban units equipped with an EPC, to be taken as a statistical sample representative of the whole municipal territory.

(b)

To compare the energy index between the bottom-up method, at town level, obtained by the sum of energy performances reported in the EPC database, and the top-down method, at regional level, obtained from the aggregate value supplied by energy distributors according to national statistics.

(c)

Once the criteria have been defined, passing from bottom-up to top-down scales, and vice versa, with the relative statistical error gaps, we will compare some simulation scenarios, each of which will have a different percentage distribution of energy class of the new EPC, in order to study the changes in the statistical energy index indicator. The criterion adopted is the following: if the value (x) percentage of certified buildings compared to the total of existing buildings in the territory, with a (y) distribution of energy class rating, have determined values of the energy index indicator in cases where a scenario changes with a (x + dx) percentage of EPC buildings and a (z) distribution of energy class rating, what changes will come about in the energyindexindicator? Can these changes be used to measure energy efficiency of the trends of energy policies or the real estate market?

(d)

To study future regional scenarios in order to schedule region energy policy decision;

(e)

To compare the EPC database results for 2010 with those for 2011 and to verify statistical data, as per point (c).

The study focuses on two scales:

  • On a large scale, related to the Emilia-Romagna Region, located in the center north of Italy;

  • On a small (or local) scale, related to Verucchio town (almost 10,000 population) located south-east of the Emilia-Romagna Region.

The databases and values used in this paper are:

  • ISTAT Database, for the number of buildings and territorial surfaces;

  • SACE Database, for EPC, energy index EPtot and Energy Class of Verucchio town.

In order to clarify the interpretation of the energy index, it is important to point out that this paper does not deal with the metering methods in calculating energy performance of a single building through software and dynamic simulations of building behavior, such as the Energyplus, TRNSYS, etc.). These simulations are generally used for single building scales to evaluate and compare the real energy consumption of some parameters of single buildings (energy temperature, radiating mean temperature, ventilation, etc.) with the calculation model.

In this paper, the index EPtot, in kWh/m2year of primary energy, is related to heating and Domestic Hot Water (DHW) energy consumption. The energy class rating depends on the EPtot range value. The independent expert records the EPC on the database, inserting the EPtot value, calculated following standards UNITS 11300 [29], which are the national application of EN ISO 13790 [30]. The calculation methodology is based on the building’s energy balance.

This paper makes a statistical study of the index EPtot, value taken as such from the SACE Database-using the top-down method, and the single values of the EPtot index indicator aggregates. The evaluations are based solely on the EPC Database values which are obviously the tools used to acquire the energy performance values of buildings on a large-scale. Not knowing the real energy behavior of all the buildings, or their geometries or any other kind of thermo-physics parameters, the assessment of energy behavior of the buildings is like a black box where we adopt the EPC value registered in the SACE database by independent experts.

The aggregate energy value refers to a percentage of total buildings in Verucchio, that acts as sampling statistics from which we have adopted two pathways:

  • The bottom-up (EPC value) approach to top-down values: the aggregate value of Verucchio and the Region’s energy index are determined from the aggregate statistical energy index of the SACE database;

  • The top-down approach to bottom-up values: the aggregate statistical energy index of the SACE is verified from the total regional energy consumption (in MWh/year). The assessment described in this paper is based on basic statistical tools such as the following data input: Territory surface size km2; dwelling apartments (by ISTAT); number of apartments per building; Apartment/km2 (dwelling density); total floor net surface (m2); average floor surface SU (m2) of dwellings in pursuit of energy territorial indices to measure energy status and scenarios.

3. Energy Performance Certificate (EPC) in the Emilia-Romagna Region

Emilia-Romagna is a Region located in mid-northern Italy, which has adopted a specific law and discipline governing the implementation of the EPBD. The differences between regional provisions regard energy class ratings and accreditation of independent certification experts, without considering differences between energy evaluation calculation methodologies. The Emilia-Romagna Region has approved the DAL 156/2008 and DGR 1366/2011 [31] laws, which define minimum energy performance requirements, energy performance certificates and independent certification experts. The DAL 156/2008 created an online procedure for the issuance of EPCs called SACE [32]. The Accredited Energy Certifiers record all the information of the buildings for which they have to issue the certificates, to be subsequently sent to the regional database, with an assigned unique identification code number.

The Emilia-Romagna Region activated the online service on 1 January 2009 for the compilation, issuance and dispatch of Certificates as per DAL156/2008 [31]. The online application can be accessed by every Independent Expert (Certifier) through their User IDs and passwords. The software SACE Sistema Accreditamento Certificatori Energetici version 2.2© 2010 was developed by CERMET certification and research for quality [33], and the new 2.2 version was made available online on 5 October 2010. The procedure provides for the registration of cadastral data, floor plans, energy performance indices, HVAC plant efficiency and instructions for the improvement of energy performance.

3.1. The SACE Database

The SACE is the regional database where all EPC data are archived. Also the energy information in EPC and in SACE are recorded by each independent expert and calculated following standard UNITS 11,300, for which each independent expert is held liable under the law’s Penal Code in case of errors or false statements. In drafting the EPC evaluation for each building, the independent expert will follow standard UNITS 11,300, independently obtaining the data for input values, floor plans, and thermo-physics and inserts the results in the SACE database in order to issue the EPC. In the Emilia-Romagna region as of April 30 2011, 198,839 EPCs have been issued, of which 43,811 were related to new or retrofit urban units (22.03%). The number of EPCs for dwellings are 163,885 of which 39,393 are related to new or retrofit urban units (24.04%). Most of the EPC buildings are in the energy Class G, with an energy performance index of more than 210 kWh/m2year, (about 30.82% equal to 61,272 EPCs), whereas most of the new EPC buildings are in energy Class C, with energy performance index between 60 and 90 kWh/m2year, (about 31.90% of new or retrofit buildings are equal to 13,976 EPCs).

The number of existing dwelling units in the Emilia-Romagna region is at 1,969,235 following the ISTAT 2001 Census, and 10.10% of these as of April 2011, were certified.

So this means that the reference sample statistics represent 10.10% of the total regional real estate resources, and based on that representative percentage, the regional energy indicators are determined. Out of 10.10% of buildings certified with EPC, 30% are new buildings or subject to interventions, and 85% are dwelling units. Therefore, nearly 10% of urban units are certified and from the statistical viewpoint this 10% could be considered an important sample.

In order to study the SACE database we had to recall sampling error margins due to the fact that:

  • The EPCs are related to urban units and not to apartment buildings, but in the case of centralized plants where heating is not metered and therefore without the possibility of distinguishing between single units or apartment buildings, an EPC for every unit is considered (though there could be more);

  • The energy evaluation standard UNITS 11,300 used to calculate energy performance index EP, have a ±5% range of errors;

  • The energy evaluation refers to a standard use of a steady-state procedure (24 on 24 h) with regulation activity, and standard climate data required by standard UNI 10349 [34];

  • Last but not least, each EPC and energy index value is registered by each independent expert, and therefore may contain subjective negligence, errors or inaccuracies, though considering the expertise of the Independent Certifiers, and the EPC as a legal document, these errors could be considered marginal.

3.2. Energy Performance Scale

In Emilia-Romagna, the energy performance scale of buildings is determined on the basis of the total energy performance index EPtot, expressed in kWh/m2 year of primary energy. The EP Index includes heating and domestic Hot Water (DHW) standard consumption calculated following standard UNITS 11,300. The scales do not take into account the climate or pattern variations. Table 1 shows the energy performance scale.

Table 1. Emilia-Romagna Region: Energy class performance—DAL 156/2008 Annex 9.

Click here to display table

Table 1. Emilia-Romagna Region: Energy class performance—DAL 156/2008 Annex 9.
EPtot valueEnergy class residential buildingskWh/m2yearEPtot valueEnergy class non-residential buildingskWh/m3year
-A+EPtot < 25---
EPtot > 25AEPtot < 40-AEPtot < 8
EPtot > 40BEPtot < 60EPtot > 8BEPtot < 16
EPtot > 60CEPtot < 90EPtot > 16CEPtot < 30
EPtot > 90DEPtot < 130EPtot > 30DEPtot < 44
EPtot > 139EEPtot < 170EPtot > 4EEPtot < 60
EPtot > 170FEPtot < 210EPtot > 60FEPtot < 80
-GEPtot > 210-GEPtot > 80

4. Case Study: Verucchio Town’s Database

The SACE database was studied in August 2010 and regards the EPCs of the little town of Verucchio in mid-northern Italy (and in the southeastern region of Emilia-Romagna in the Rimini hinterlands).

The Commune of Verucchio measures 27 km2, with 1735 residential buildings, and 4509 urban dwelling units (ISTAT Census 2001).

The data analysis arouses interest because it is a large-scale top down description (aerial assessment) with the relevant marginal errors.

As of 2010, the number of EPCs was 257 for new and existing buildings, of which 200 were regarded as dwelling urban units, equal to 4.44% of all the residential buildings in Verucchio.

The percentage of EPCs issued gives an initial description of energy indicators of the commune’s building stock, and helps to verify whether, from the statistical viewpoint, the evaluations of the data in the database convey an idea of the actual state and allow for possible simulations.

The distribution of the energy use of the certified buildings are: 77.82% of EPCs are dwelling units (E.1); 7.39% are designated as office units (E.2); 3.11% are for recreational activity, for example bars, pubs, restaurants (E.4); 5.06% are market units and include shopping centers (E.5); 3.50% are for school activities (E.7) and only 1.95% are for production activities (E.8). Hospitals are not present.

The gross volume percentage distribution highlights how the percentages of residential buildings are only 3.56%, and 68.82% of gross volume are for shopping centers. This is because in such a small territory, the presence of one big shopping center (E.5) distorts the data.

The Energy Class distribution show that only 1.56% of EPCs belong to Energy Class A, 9.73% to Class B, and 22.18% to Class C. These rates presumably refer to new or retrofit buildings. To continue, 16.73% belong to Class D, 10.51% to Class E, 7.00% to Class F, and 13.23% to Class G.

The percentages of worse energy Classes F and G are lower than the regional value. The number of buildings without EPCs due to the lack of heating plants or for other reasons is 19.07%, which is a significant rate. The uncertified buildings are those without heating systems or those having less than 15 kW rated power.

The energy index drawn from the database is called energy performance index EPtot (or Index EPtot) of primary energy, measured in (kWh/m2 year), for dwellings, or in (kWh/m3 year) for other buildings. The energy consumption for each building, is expressed in kWh/year of primary energy, and this is achieved by multiplying the Index EPtot by the gross volume and in the case of non-residential buildings, the volume is divided by 2.70 m average height presumed for dwelling units.

Table 2 shows the total sums of energy consumption for each building according to assigned usage. In this case the bigger consumption is related to shopping centers (E.5), with bigger volumes, followed by school buildings (E.7). The energy performance index of dwellings is 24%, without considering the shopping centers (which are an exception). The incidence of dwellings is 37.91% (Figure 1).

Table 2. Verucchio Energy Performance Certificate (EPC) Database–Volume, number energy and energy Index EPtot.

Click here to display table

Table 2. Verucchio Energy Performance Certificate (EPC) Database–Volume, number energy and energy Index EPtot.
Building tippologyVolume (m3)NumbersEnergy (MWh)AAI EPtotAI EPtotGap (%) ***
E.1 Dwellings7195.11 **2083,092.87159.21 ****114.50 ****±28.08%
E.2 Offices3101.9419300.8535.9235.80±0.33%
E.3 Hospitals00000±0.00%
E.4 Recreational activities3997.128561.7152.0555.87±7.34%
E.5 Markets/shopping centers138,561.85134730.5212.6438.52±204.61%
E.6 Sport buildings7258.003514.3226.2527.38±4.34%
E.7 School activities24,586.8192102.7031.6736.48±15.58%
E.8 Production activities17,220.3651582.0534.0339.50±16.10%
TOTAL201,921.2025712,885.0031.44 *34.49 *±9.71%

Notes: *: Average Index EPtot based on value express in kWh/m3year; **: Floor Surface = 39,983.17 m2; ***: Gap between (AAI EPtot)/(AI EPtot); ****: Values in kWh/m2year.

Buildings 03 00545 g001 200
Figure 1. Primary energy by building energy use, excluding E:5 shopping center.

Click here to enlarge figure

Figure 1. Primary energy by building energy use, excluding E:5 shopping center.
Buildings 03 00545 g001 1024

The Average Index EPAIEP (AIEP) is the result of an average of Index EP for each building. On the other hand the Aggregate Average Index EPAAIEP (AAIEP) results from the ratio between total energy consumption (kWh/year) and gross volume or floor surface units according to the assigned usage. The AIEP and AAIEP values do not concur; the gap depends on the assigned use of the building and the number of certified buildings. The greater the number of buildings (residential) or the size variables (shopping centers), the greater will be the gap between the mean value and the mean aggregate value. Figure 2 shows the energy consumption (MWh) according to the assigned use of the buildings, the number of EPC certificates issued, the EP index average (AIEP) and EP mean aggregate (AAIEP). The figure shows the non-uniformity of the relationships between the number, energy performance and consumption demand, especially in cases of buildings where the variable volume has an impact on energy consumption particularly regarding ventilation and bigger plants, as seen in the assigned uses, such as shopping centers (E.5) and schools (E.7).

Figure 2 highlights the relation between energy performance and gross volume. In fact, the incidence of the variability of the air-conditioned volume between the assigned usages, is greater compared to that of the energy. Of 257 certificates issued, 209 have an EPtot, index. The other 48 regard buildings without heating plants, equal to 18.86%, and also this is anomalous. Of the 209 certified, 25 have an EP index greater than 250 kWh/m2 year, and the anomalous incidence is at 11.96%.

Buildings 03 00545 g002 200

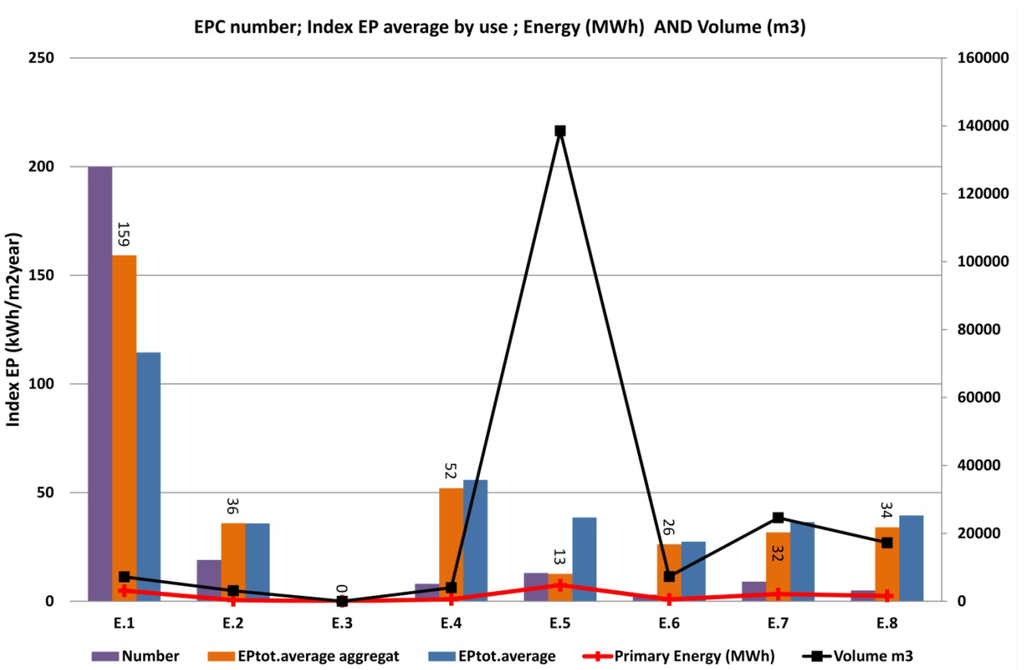

Figure 2. Comparison between number of building, AIEPtot, primary energy (MWh) and gross volume.

Click here to enlarge figure

Figure 2. Comparison between number of building, AIEPtot, primary energy (MWh) and gross volume.
Buildings 03 00545 g002 1024

5. Statistical Analysis of SACE Database 2010

The statistical analysis of the Database results was performed on index EP, EPi and EPacs, registered on the EPC. Furthermore, each of these indices has a confidence interval range of ±5%. This confidence interval range depends on the Thermo-technical software certified by CTI (Comitato Termotecnico Italiano—Italian Thermo technical Committee), in addition to the expertise of the single independent expert in performing the calculations and gathering the input data.

Generally speaking, we can say that the energy performance index EP for energy Class A, B or C related to new buildings, calculated with certified software, with data input taken from building plans as is, are more precise with respect to the index values higher than those of the existing Class E, F or G buildings.

The sampling statistic average is described as the mean value of the index EP of 257 EPCs, of which 208 EPCs are regarded as residential buildings (77.82%). The sampling statistic average for 208 dwellings is 114.50 kWh/m2 year; this value is a territorial energy indicator. In this case the median value of the EP is 87.79 kWh/m2 year. The comparison between statistic average and median shows a high impact of the greater index EP over the average value. If we excluded EPCs without the EP index due to the lack of heating plants, the number of samples would fall to 154 EPCs (77% of total dwellings) where:

  • The territorial energy marker is 149.30 kWh/m2 year;

  • The median is 121.86 kWh/m2 year;

  • The standard deviation (δ) is 108.72 kWh/m2 year, with more unevenness referring to average value of EPtot 149.30 kWh/m2 year.

The Gaussian function of residential buildings with EPCs show a large normal distribution of values (Figure 3).

Buildings 03 00545 g003 200

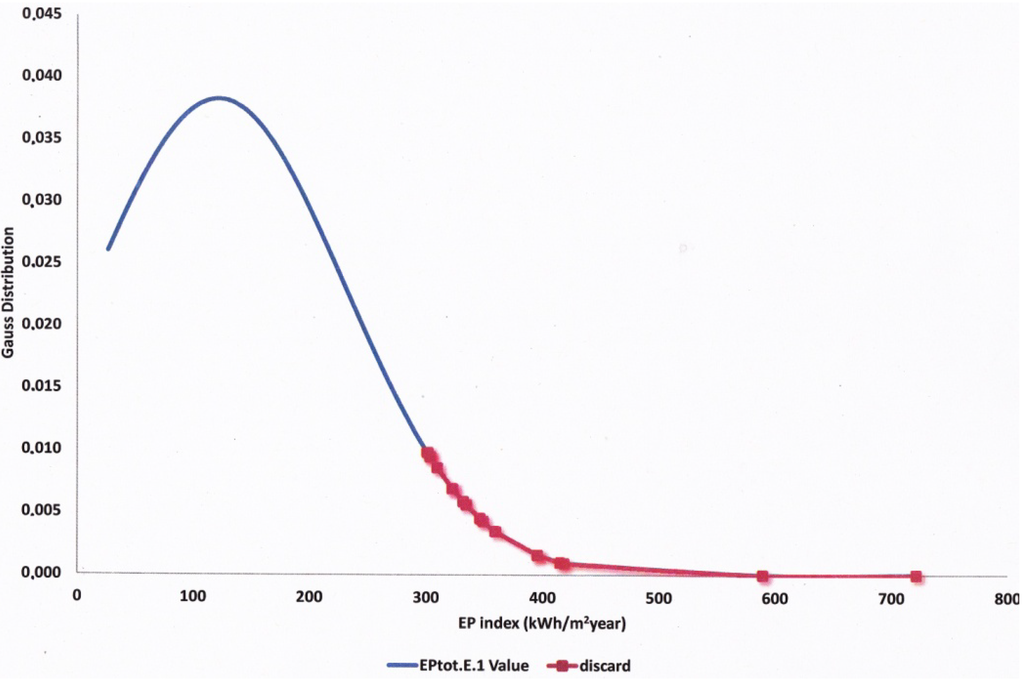

Figure 3. Gauss function of dwelling EPC.

Click here to enlarge figure

Figure 3. Gauss function of dwelling EPC.
Buildings 03 00545 g003 1024

6. Comparison between Bottom-Up and Top-Down Evaluations and Scenario Simulation

The database analysis of the EPCs issued for the single commune of Verucchio must be compared with energy and settlement data at regional level. This is a matter of comparing the top-down (regional data) with the bottom-up (EPC data) evaluations.

The first step is to verify whether the Verucchio sample can act as a representative model. The extent of the Verucchio commune represents 0.12% of the total regional territory, and 0.18% of the total regional dwelling units.

In the Regional Energy Actual Program 2011–2013, the energy consumption related to residential buildings is 2851 ktoe (based on ENEA [35] and REA 2007 [36]), equal to 33,150.79 GWh/year of primary energy. The energy incidence for Verucchio is 58,297.35 MWh/year (0.18% of regional dwellings).

The sample of 208 certificates is at 6.01%, with an energy demand percentage attributable to the sample, equal to 3501.55 MWh/year, to compare with the bottom-up value. Thus a top-down value of 501.55 MWh/year must be compared with the bottom-up value gathered from the regional database (bottom upTable 3) equivalent to 3,092.87 MWh/year. Therefore, there is a gap between top-down and bottom-up values, of 11.67%. Firstly, the database value could be compared with the regional value with just an 11.67% gap.

The regional index EPAAIEP,RER of 175.31 kWh/m2 year, is the result of the ratio between (GFEC) gross final regional energy consumption and (GDSU) gross dwelling net floor surface. This value must be compared with the sampling statistics average of 114.50 kWh/m2year (Table 3) with a gap of 34.06%. In this case, the comparison between top-down (top-downTable 4 and Regional indexes value in Table 5) and bottom-up values shows a great confidence interval.

Table 3. Statistical data. SACE database 2010.

Click here to display table

Table 3. Statistical data. SACE database 2010.
EP indexesEPtotEPinvEPacs
Dwellings including those with EPC with Energy Class not determinable (ND)
Number of simple samples208208208
Index EPAIEP—Sampling statistic average114.50103.4511.05
Index EP—Sampling Median 87.7972.545.83
Index EP—Standard deviation (δ)114.72109.9412.55
Dwellings only with EPC with Energy Class
Number of simple samples154154154
Index EPAIEP—Sampling statistic average149.30134.6514.65
Index EP—Sampling Median121.86105.6516.49
Index EP—Standard deviation (δ)108.72107.0612.17
Table 4. Statistical data of Emilia-Romagna Region and Verucchio town.

Click here to display table

Table 4. Statistical data of Emilia-Romagna Region and Verucchio town.
EP indexes[RER] Emilia Romagna[VER] VerucchioGap, ratio between [VER]/[RER]
Territory surface size km2 (by ISTAT)22,123.0927.070.12%
Dwelling average floor surface SU—m2 (by ISTAT)96.95104.06107.33%
Residential buildings (by ISTAT)735,06617350.24%
Apartments (by ISTAT)1,969,23534630.18%
Number of apartments per building2.682.00-
Total floor net surface–m2190,917,333.25 a360,359.78 b-
MWh/km21,498.472,153.58-
kWh/m2 of territory1.502.15-
Apartments/km2 (Dwelling density)89.01127.93-

Notes: a: Gross RER urban units net surface GSURER = number of RER buildings * SUaverage; b: Gross VER urban units net surface GSUVER = number of VER building * SUaverage.

Table 5. Verucchio: ISTAT Data, SACE Database and simulation data.

Click here to display table

Table 5. Verucchio: ISTAT Data, SACE Database and simulation data.
IndicatorsNumber of buildingIncidence Database/ISTAT
Urban units by ISTAT3,463-
Urban units by SACE Database2577.42%
Residential urban units by SACE Database2086.01%
Residential urban units by SACE Database exclude EPC without energy rating1544.45%
New residential urban units simulation2386.87%
Floor average surface for dwelling—simulation (m2/apartment)80-
New floor surface–simulation (m2)2400-

The Verucchio town index EPAAIEP,VER of 161.78 kWh/m2 year, is the result of the ratio between gross final Verucchio energy consumption (58.297.36 MWh/year) and gross dwelling net floor surface (3463 dwellings for 104.06 m2 average unit floor surface). If we compare the same bottom-up value with these top-down values, the confidence interval is at 29.22%. The comparison between top-down and bottom-up EPAAIEP value shows a high confidence interval gap (≈30%). This may be due to the ratio numerator and denominator and the uncertainty of the total gross floor surface.

As matter of a fact, the value of the total floor surface of the units of the sample of 208 certificates, with average floor surface of 104.06 m2 × 208 samples is 21,644.48 m2 whereas the database value is 19,416.81. There is a gap of 10.29% (10,416.81 m2), in value of the useful surface area of the Database projection. The comparison between index EPAIEP,DB 159.29 kWh/m2year of Database and EPAAIEP,VER 161.78 for the entire Verucchio town (see below) is at 1.54%. In the same way if we proceeded inversely, from index EP to energy consumption (Table 6) the steps are:

  • EPAIEP 11,450 kWh/m2year (Table 3);

  • EPAIEP,corr 11,626 kWh/m2year corrected with 1.54% confidence intervals;

  • The total energy consumption of Verucchio is 41,895.55 MWh/year, the result of the multiplication of total gross floor surface (19,416.81 m2) by the number of dwellings (3463) and index EPAIEP,vorr 116.26 kWh/m2 year.

Table 6. Top-down to bottom-up evaluation.

Click here to display table

Table 6. Top-down to bottom-up evaluation.
Units[RER] Emilia Romagna[VER] Verucchio[DBp] DATABASE projection[DBm] DATABASE measuredGap DBm/DBp
---
[E] Energy2851 (ktoe) a----
-119,342,860 (GJ)----
[E] Energy (MWh)33,150,794.4458,297.36 b3501.55 c3092.8711.67%
[GSU] Floor units surface190,917,333.25360,359.7821,644.48 c19,416.81 d10.29%
Index EPAAIEP173.64 e161.78 e161.78 e159.29 e1.54%
-Gap [VER]/[RER]:6.83%---
Index EPAIEP114.50 d-
Correction factor (by 6.01% building with EPC)EPAIEP/EPAAIEP: 28.12%-
Correct EPAAIEP,corr124.20 f116.26 g116.26 g114.50 d-

Notes: a: according to Regional Energy Plan 2011–2013; b: [EVER] = [ERER] × 0.18% incidence of Verucchio apartment with respect to Region; c: [EDBp] = [EVe] × 6.01% incidence of SACE Database numero respect to Verucchio; d: [DBm] value refer to SACE database (average index EP); e: EPmedio = [E]/SU; f: EPaverage,sampling.corr = EPaverage,sampling,VE; (1 + 6.83%); g: EPaverage,sampling.corr. = EPaverage,sampling,DBm/(1 + 1.54%).

The gap between 41,895.55 MWh/year and the Verucchio total energy consumption of 58,297.36 MWh/ year, is ±28.13 coinciding with the same gap value between EPAAIEP and EPAIEP.

The index EPAAIEP over 154 EPCs of the database with values excluding those certified with ND (Not Determinable) is equal to index EPaverage,sampling at 149.30 kWh/m2 year, with a gap of 23.31% compared to the mean sample value including the NDs at 6.27% compared to index EPaverage value of 159.29 kWh/m2 year. Table 7 shows that the path followed in gathering the database values (bottom-up) generally had a reduced error margin.

Table 7. Bottom-up to top-down evaluation.

Click here to display table

Table 7. Bottom-up to top-down evaluation.
Indicator units[RER] Emilia Romagna[Ve] Verucchio[DBp] database projection[DBm] database measured
[E] Energy (MWh)33,150,794.4458,297.363501.553092.87
[SU] Floor Units Surface (m2)190,917,333.25360,359.7821,644.4819,416.81
Index EPAIEP173.64161.78161.78159.29
Index EPAAIEP---114.50
Correction factor (by 6,01% building with EPC)---EPAIEP/EPAAIEP = 28.12%
--
[Epro] Energy consumption–projection (MWh) da EPAAIEP DBm23,712,686.12 c41,895.55 b-2,223.22 a
[Epro] Energy consumption–projection (MWh) with correction factor32,988,232.89 g58,283.58 f3,500.72 e3,092.87 d
Gap between tra [E] and [Epro,cor]0.49% h0.02% h0.02% h0.00% h
[Epro] Energy consumption–simple proposition projection (MWh)29,281,672.38 l51,493.31 (i)-3092.87

Notes: a: [Epro] = EPAAIEP × [SUDBm]; b: [Epro] = EPAAIEP (116,26) × ASU [VER]; c: [Epro] EPAAIEP (124,20) × ASU [RER]; d: [Epro,cor,DBm] = [Eric,,DBm]/(1 – 28.12%); e: [Epro,cor,DBp] = [Eric,DBp]/(1 – 28.12%); f: [Epro,corr,Ve] = [Eric,Ve]/(1 – 28.12%); g: [Epro,corr,RER]/(1 – 28.12%); h: Gap = [E]/[Eric,cor]; i: [Epro,Ve] = EDBm/6.87% (Incidence Database/ISTAT Dwelling urban units by SACE Database); l: [Epro,RER] = [Epro,Ve]/0.18% (Dwelling apartment (by ISTAT) Gap, ratio between [RER]/[VER]).

Table 6, from top-down to bottom-up, shows the path proceeding from the Regional value, accepted data equal to 33,150.80 GWh, and the projection of this value related to the percentage of buildings with EPCs in Verucchio, equal to 3501.55 MWh. The same value measured from the SACE Database is 3092.87 MWh, with a 11.67% error-gap, whereas the 1.54% error gap refers to the EPAAIEP index. The index EPtot for each building is the ratio between primary energy consumption in a year, and the surface area, expressed in kWh/m2 year. The EPAAIEP Index considers the energy performance index EPtot as if it referred to a single large building with a primary energy consumption and floor surface area composed of the sum of the total demands and floor surfaces of the certified buildings. The ratio between index EPAIEP and EPAAIEP is 28.12%. This value represents the ratio between index EPtot taken from the average value of EPtot for each building, compared to the value of index EPtot data taken as the sum of all the buildings as one. This gap shows how the average value of EPtot of the buildings is better than the sum of all the demands together.

Table 7 (from bottom-up to top-down) shows the path proceeding from the value measured (from the SACE Database) equal to 3092.87 MWh, and the projection of that value related to the value of the entire Emilia-Romagna Region (projection). This value, equal to 29,281.67 GWh must be corrected by 28.12%, a ratio between the EPAIEP and EPAAIEP indices. Therefore the projection of the Regional value of consumption is equal to 32,988.23 GWh, with a gap of 0.49%.

The next data elaboration step is to simulate five scenarios to verify which statistical analysis values could be used to measure real estate energy savings and characteristics.

The five scenarios described in Table 8 are as follows:

  • scenario 1: new EPCs having the same energy class percentage distribution as the existing database;

  • scenario 2: casual subdivision of energy classes;

  • scenario 3: equal energy class distribution;

  • scenario 4: worst situation, all new EPCs belonging to energy classes E, F, G or ND;

  • scenario 4: best situation, all new EPCs belonging to energy classes A, B or C.

Table 8. Scenarios sharing new EPC divided by number of EPCs and energy class, in percentage.

Click here to display table

Table 8. Scenarios sharing new EPC divided by number of EPCs and energy class, in percentage.
ScenarioClass AClass BClass CClass DClass EClass FClass GNDTotal
Scenario 13.33%10.00%20.00%16.67%6.67%10.00%13.33%20.00%100%
Scenario 210.00%13.33%20.00%13.33%6.67%10.00%13.33%13.33%100%
Scenario 313.33%13.33%13.33%13.33%13.33%13.33%13.33%13.33%100%
Scenario 40.00%0.00%0.00%0.00%26.67%26.67%26.67%20.00%100%
Scenario 540.00%40.00%20.00%0.00%0.00%0.00%0.00%0.00%100%
Index EP kWh/m2 year3050701101501802500-

The statistical analysis value for each scenario is shown in Table 9 and Table 10.

Table 9. Statistical analysis indicator and scenarios.

Click here to display table

Table 9. Statistical analysis indicator and scenarios.
lettersIndicator unitsActual dataScenario 1Scenario 2Scenario 3Scenario 4Scenario 5
(A)n.° of total building in Verucchio by ISTAT Census346334633463346334633463
(B)Number of EPC sampling208230230230230230
(C) = A/BSampling incidence (A/B)5.78%6.64%6.64%6.64%6.64%6.64%
(D)Sampling increase percentage-13.04%13.04%13.04%13.04%13.04%
(E)Index EPAAIEP Sampling statistic average (x)121.31121.65120.61121.16128.76113.33
(F)Index EP Median 87.6188.3387.6188.3398.4275.88
(G)Standard deviation (δ)106.23103.07103.08102.81103.81103.23
(H)Expected value (μ)213.88208.69208.39208.06212.19206.96

The sampling statistic average value is very variable: increased in the worst case scenario 4 and decreased in the best case scenario 5. In other scenarios this value has a variability of about 1.00%, and is insignificant. The median value has the same trend as the sampling statistic average, with more differences between the worst and best case scenarios.

This distribution is shown in Table 11 and the confidence interval in Table 12. It evidences how the best case scenario 5 has a greater number of EPCs (63.03%) with a sampling statistic average EP index smaller than EPAIEP, whereas in the worst case scenario 4, it is smaller, at 59.48%. As confirmation one can note how the same difference is found in the median value.

Table 10. Energy and statistical indicator for each of the scenarios.

Click here to display table

Table 10. Energy and statistical indicator for each of the scenarios.
Indicator units[RER] Emilia Romagna[VER] Verucchio[DBp] database projection[DBm] database measured
[E] Energy (MWh)33,150,794.4458,297.363501.553092.87 c
[GSU] Gross units floor surface (m2) estimation190,917,333.25360,359.7821,644.4819,416.81
[Epro] Energy—Projection (MWh)31,072,054.0154,641.793281.982898.93
[GSUpro] Total units floor surface (m2) estimation211,919,560.42 b400,001.85 b24,025.52 b21,816.81 a 10.29% d
EPAAIEP [Scenario-1]---121.65 e
Index EPAAIEP,pro163.20 f152.05 f173.98 f169.24 f
[Epro,DBm] Energy database projection---2362.05 g
[Epro,corr] Energy projection correct34,585,998.12 h60,821.24 i4180.03 m3692.17 l
Difference (MWh)1,435,203.68 n2523.88 n678.49 n
Gap (%)4.15%4.15%16.23% °
EPAAIEP [Scenario-2]---120.61
Index EPAAIEP,pro161.81150.75172.50167.79
[Epro,DBm] Energy database projection---2,631.33
[Epro,corr] Energy projection correct34,290,318.4060,301.274,144.303660.60
Difference (MWh)1,139,523.962,003.91642.75-
Gap (%)+3.32%+3.32%+15.51%-
EPAAIEP [Scenario-3]---121.16
Index EPAAIEP,pro161.81151.44173.28168.55
[Epro,DBm] Energy database projection---2643.31
[Epro,corr] Energy projection correct34,290,687.4860,576.254163.203677.30
Difference (MWh)1,295,893.042,278.89661.65-
Gap (%)+3.76%+3.76%+15.89%-
EPAAIEP [Scenario-4]---128.75
Index EPAAIEP,pro172.73151.44184.14159.41
[Epro,DBm] Energy database projection---2499.91
[Epro,corr] Energy projection correct36,604,580.8360,576.254,163.203477.79
Difference (MWh)3,453,786.392,278.89661.65-
Gap (%)+9.44%+9.44%+15.89%-
EPAAIEP [Scenario-5]---113.33
Index EPAAIEP,pro152.04141.65162.08157.66
[Epro,DBm] Energy database projection---2472.50
[Epro,corr] Energy projection correct32,220,560.3556,661.503894.153439.65
Difference (MWh)−930,234.09−1,635.86392.60-
Gap (%)−2.89%−2.89%+10.08%-

Notes: a: The gross units floor surface project [GSUpro] include the additional surface for the new 30 EPC supposedly 80 m2 each. Therefore the increase of total units floor surface project is 2400 m2 [SUpro] = [SU] + 2400 = 21.81681 m2 of sampling, equal to an increase of 11.00%; b: [SUpro] = [SU] + 11%; c: Ratio:[DBp/DBm]; d: Ratio SU DBm/DBp; e: Value from Table 11; f: EPmedio,pro = [Epro]/[SUpro]; g: [EDBm] = EPmedia,camp * [SUpro]; h: [Epro,corr] = [Epro,corr,Ve]/0.18%; i: [Epro,corr,Ve] = [Epro,corr,DBp]/6.01%; l: Correct value [EPpro,corr] = [EDBm]/(1 – 28.12%); m: [Epro,corr,DMp] = [Epro,corr,DBm]/(1 – 11.67%); n: Gap between [Epro,corr] and [E]; o: Ratio between [Epro,corr]/[E].

Table 11. Statistical analysis indicator and scenarios: percentage increase.

Click here to display table

Table 11. Statistical analysis indicator and scenarios: percentage increase.
LettersIndicator unitsActual dataScenario 1Scenario 2Scenario 3Scenario 4Scenario 5
(E)Index EPAAIEP Sampling statistic average (x)0.00%0.28%−0.58%−0.13%6.14%−6.58%
(F)Index EP Median 0.00%0.82%0.00%0.82%12.35%−13.39%
(G)Standard deviation (δ)0.00%−2.97%−2.97%−3.22%−2.27%−2.82%
(H)Expected mean value (μ)0.00%−3.24%−2.40%−3.09%−7.93%4.02%
Table 12. Scenarios confidence interval of statistical index.

Click here to display table

Table 12. Scenarios confidence interval of statistical index.
Sampling statistic average (x)Actual dataScenario 1Scenario 2Scenario 3Scenario 4Scenario 5
Confidence interval (+)133.67132.83131.79132.31140.02124.53
Confidence interval (−)108.96110.47109.43110.01117.50102.14
Gap24.7122.3622.3622.3022.5222.39

7. Results of the SACE Database as of 2011 and Verification

On 20 June 2011 there was another survey on the SACE Database for Verucchio to check the progress of the EPCs.

7.1. SACE Database 2011: Statistical Analysis

The comparison between the 2010 and 2011 SACE databases revealed some surprises. Firstly, the EPC trends saw a bigger increase of +40.09% (Table 13). This growth may depend on the obligation to issue EPCs when apartments are rented out and not only when sold or purchased, thus the increase of buildings with bad energy performances.

Table 13. Verucchio EPC Database—Gab between 2010 and 2011 value of Volume, number energy and Index EPtot.

Click here to display table

Table 13. Verucchio EPC Database—Gab between 2010 and 2011 value of Volume, number energy and Index EPtot.
Building tipologyVolume (m3)Numbers Energy (MWh)AAI EPtotAI EPtot
E.1 Dwellings48.59%41.24%55.41%−10.90%34.00%
E.2 Offices7.37%5.00%4.04%−2.72%−3.23%
E.3 Hospitals-----
E.4 Recreational activities29.41%33.33%40.74%17.86%9.87%
E.5 Markets/shopping centers0.84%35.00%2.96%71.35%−198.14%
E.6 Sport building0.00%0.00%0.00%4.13%−4.30%
E.7 School activities0.00%0.00%0.00%13.19%−15.19%
E.8 Production activities21.85%54.55%37.75%24.12%7.54%
TOTAL7.14%40.09%29.33%17.35%−0.52%

Table 14 shows the percentage distribution of scenario 4 as being similar to that of the 2011 SACE Database.

In comparing Table 6 (from top-down to bottom-up values) we have a more accurate view of the detailed sampling statistics, and the gap between the values of index EPAAIEP and Index EPAIEP decreases from 28.12% to 18.95%. Thus the average value of index EPtot calculated with the top-down methodology is more accurate. In comparing Table 7 (from bottom-up to top-down value) we observe how the regional energy consumption projections are more accurate if we use the index of energy consumption projection [Epro] instead of the index of energy consumption projection with the correction factor [Epro,corr].

Table 14. Energy Class distribution confrontation between database 2010, Scenario 4 and database 2011.

Click here to display table

Table 14. Energy Class distribution confrontation between database 2010, Scenario 4 and database 2011.
Database and scenariosClass AClass BClass CClass DClass EClass FClass GNDTotal
Database 2010425574327183449257
Scenario 4 increase0000888630
Scenario 4425574335264255287
Database 2011429827750408760429
Scenario 4 percentage distribution1.39%8.71%19.86%14.98%12.20%9.06%14.63%19.16%100.00%
Database 2011 percentage distribution0.93%6.76%19.11%17.95%11.66%9.32%20.28%13.99%100.00%
[A] Gap 2010/Scenario 40.00%0.00%0.00%0.00%22.86%30.77%19.05%10.91%-
[B] Gap 2010/20110.00%13.79%30.49%44.16%46.00%55.00%60.92%18.33%-
[C] Gap Scenario 4/20110.00%13.79%30.49%44.16%30.00%35.00%51.72%8.33%-
Gap [A]/[B]0.00%0.00%0.00%0.00%49.69%55.94%31.27%49.40%-

The comparison also shows the increase by 7% of the certified volume, compared to the increase of 48.59% only for the residential units, whereas from the viewpoint of energy consumption (MWh), there was an increase of 29.33%, with an increase of 55.41% for dwellings. This confirms a lower incidence of energy performance of dwellings in the total buildings, but not in energy consumption. The Average Index EPAIEP (AIEPtot) shows an increase in cases of dwellings (+34.00%) and a smaller reduction for total buildings (−0.52%).

The Aggregate Average Index EPAAIEP (AAIEP) showed a decrease in cases of dwellings (−10.90%) and an increase for total buildings (+17.35%). This means that dwellings register an increase of total energy performance (AAIEPtot) but not for single buildings (AIEPtot), or rather some dwellings have such a high single index EPtot as to alter the average index EPtot value.

On the other hand, compared to the total buildings the single index EPs (expressed in kWh/m3year) remain unchanged, but the AAIEP index worsens, and proves the impact of the heating of buildings with big volumes. Among the simulation scenarios in Table 9, the final result resembles that of Scenario 4: the worst case. Table 15 shows how, compared to the gap foreseen for 2010/Scenario 4, the real gap for 2010/2011 for classes E, F, G and ND has an increased percentage, ranging between 31.27% and 55.94%. Of the EPAAIEP,pro index indicators the situation of Scenario 4 is the worst, due to the fact that the increase is caused by the obligation to issue the EPCs in cases of lease and these refer above all to the existing buildings. The results confirm the fact that specific energy policies have not been adopted.

Table 15. Statistical data for database 2011 and gap between 2010 and 2011 database.

Click here to display table

Table 15. Statistical data for database 2011 and gap between 2010 and 2011 database.
Dwelling enclosed EPC with energy class not determinable (ND)EPtotEPinvEPacs
IndexesvalueGap 2010/2011valueGap 2010/2011valueGap 2010/2011
Dwelling including those with EPC with Energy Class not determinable (ND)
Number of simple samples346+39.88%346+39.88%346+39.88%
Index EPAIEP—Sampling statistic average140.61+18.57%133.95+22.77%6.66−65.92%
Index EP—Sampling Median120.50+27.15%105.51+31.25%0.00-
Index EP—Standard deviation (δ)120.06+4.45%118.80+7.46%11.61−8.10%
Dwelling only EPC with Energy Class
Number of simple samples291+47.08%291+47.08%291+47.08%
Index EPAIEP—Sampling statistic average167.57+10.90%159.46+15.56%8.11−80.64%
Index EP—Sampling Median129.88+6.17%124.94+15.44%0.00-
Index EP—Standard deviation (δ)112.08+3.00%112.62+4.94%11.61−4.82%

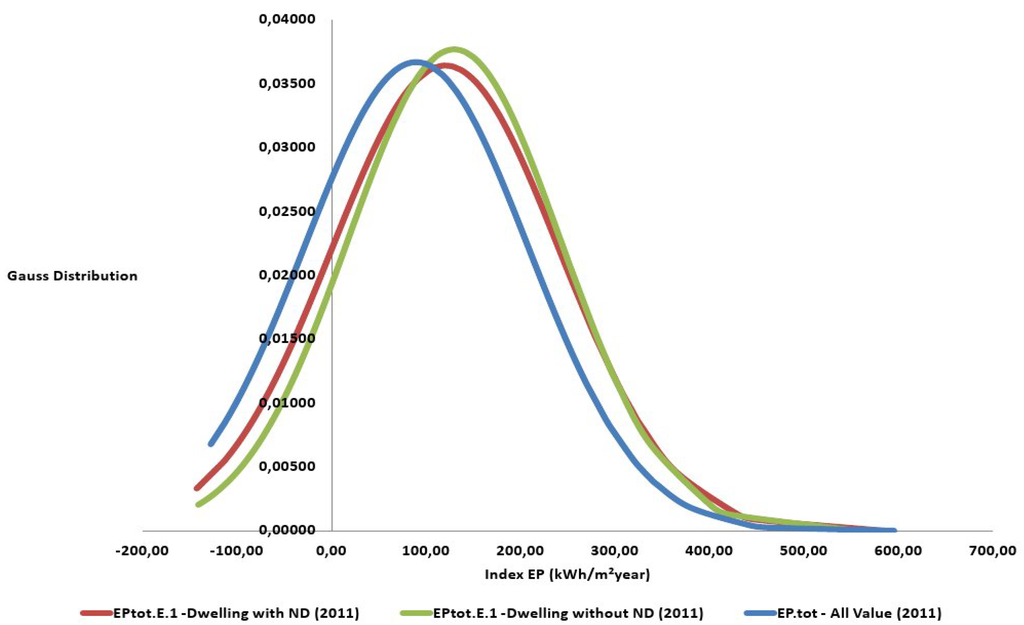

Figure 4 shows the Gaussian curve for Database 2010 and 2011, evidencing that the curve for EPC dwellings without ND is higher and narrower compared to the total value, reducing the error of single EPCs.

Buildings 03 00545 g004 200
Figure 4. Indexes EP 2010 and 2011 comparison of Gaussian distribution.

Click here to enlarge figure

Figure 4. Indexes EP 2010 and 2011 comparison of Gaussian distribution.
Buildings 03 00545 g004 1024

7.2. Comparison between Bottom-Up and Top-Down Evaluation for Database 2011

The comparison between bottom-up and top-down evaluation for database 2011 (Table 16) reports an increase of the incidence of urban units and dwellings (with EPC values). The incidence of urban units with EPC with respect to the total number in Verucchio (sampling) increased from 7.42% to 12.39% for all buildings, and from 4.45% at 8.40% for dwelling units with EPC values.

The incidence of buildings with EPCs is at 12.39% of the total and 8.40% for dwellings, and these values are representative of the single commune. On the other hand, Verucchio has a smaller incidence compared to the Emilia-Romagna Region: 0.12% of the territory and 0.18% of dwelling apartments. The reduction of this representative model is reflected in the error between bottom-up and top-down methods.

Table 17 reports the evaluation of the Top-down to Bottom-up method. The energy consumption measured by the SACE Database (DBm = 6936.70 MWh) is greater than the projection (DBp = 5824.69 MWh) and the gap DBm/DBp is −19.09%. The energy consumption projection from top-down to bottom-up value is underestimated with respect to the real measurements performed by the Database 2011. This error depended on the fact that the GSU projection was lower than the GSU measured (−11.05%), and also because the average urban units surface of Verucchio is estimated at 104.96 m2, but the measured value is 115.56 m2. Therefore, the Database projection value [DBm] is lower than the Database measured [DBm]. Therefore to compare with Table 7, the gap between the 2010 and 2011 index EPAIEP is smaller than the index EPAAIEP,corr, corrected by ratio coefficient: EPAIEP/EPAAIEP. (18.95%).

Table 16. Verucchio: ISTAT Data and SACE Database 2011.

Click here to display table

Table 16. Verucchio: ISTAT Data and SACE Database 2011.
Urban unitsNumber of buildingsIncidence database/ISTAT
Urban units by ISTAT3,463-
Urban units by SACE Database42912.39%
Residential urban units by SACE Database3469.99%
Residential urban units by SACE Database exclude EPC without energy rating2918.40%
Table 17. Database 2011: top-down to bottom-up evaluation.

Click here to display table

Table 17. Database 2011: top-down to bottom-up evaluation.
Indexes[RER] Emilia Romagna[VER] Verucchio[DBp] database projection[DBm] database measuredGap DBm/DBp a
Flow chart--
[E] Energy (MWh)33,150,794.4458,297.36 b5824.69 c6936.7019.09%
[GSU] Floor units surface190,917,333.25360,359.78 36,004.76 c39,983.17 d−11.05%
Index EPAAIEP173.64 e161.78 e161.78 e173.49 e−7.24%
-Gap [VER]/[RER]: 6.83%---
Index EPAIEP140.61 d-
Correction factor (by 8.40% building with EPC)EPAIEP/EPAAIEP: 18.95%-
---
Correct EPAAIEP,corr161.10 f150.80 g150.80 g140.61 d-

Notes: a: by Regional Energy Plan 2011–2013; b: [EVER] = [ERER] × 0.18% incidence of Verucchio apartment respect to Region; c: [EDBp] = [EVe] × 9.99% incidence of SACE Database number respect to Verucchio; d: [DBm] value refer to SACE database (average index EP); e: EPmedio = [E]/SU; f: EPaverage,sampling.corr = EPaverage,sampling,VE/(1 + 6.83%); g: EPaverage,sampling.corr = EPaverage,sampling,DBm/(1 + 7.24%).

Table 18 gives the evaluation from the Bottom-up to Top-down method. In this case the energy consumption projection [Epro] has a gap of +7.22%. The result of the projection of energy consumption from Database values measured (6,983.70 MWh), is higher than the Regional Energy Actual Program 2011–2013: Epro,corr = 37,947,956.37 (MWh) in comparison to the Regional value E = 33,150,794.44 (MWh) with a gap of 14.47%. The same error occurs also when adopting a simple proposition compared to the incidence of the sample and the territory (19.09%). The error gap (7.22% or 19.09%) projected for both assessments cannot depend on the difference between the estimated GSU and the real one, given that the Database project 2011 has a gap of −11.05% whereas for Database 2010 the gap is at 10.29% (Table 7). In reality, what was called the error gap (7.22% or –19.09%) projected must be considered as an increase of energy consumption [E], from 33,150 GWh to 37.947 GWh or 39,379 GWh, during the years 2007–2011. The lack of feedback from the current consumption at 2011 has been verified.

Table 18. Database 2011: bottom-up to top-down evaluation.

Click here to display table

Table 18. Database 2011: bottom-up to top-down evaluation.
Indexes[RER] Emilia Romagna[Ve] Verucchio[DBp] database projection[DBm] database measured
[E] Energy (MWh)33,150,794.4458,297.363501.553092.87
[SU] Floor Units Surface (m2)190,917,333.25360,359.78 36,004.7639,983.17
Index EPAIEP173.64161.78161.78173.49
Index EPAAIEP140.61
Correction factor (by 8.40% building with EPC)EPAIEP/EPAAIEP = 18.95%
-
[Epro] Energy consumption—projection (MWh) from EPAAIEP DBm30,756,549.85 c54,340.64 b5622.15 a
-Gap between [E]/[Epro]: 7.22%
[Epro,corr] Energy consumption—projection (MWh) with corr. factor37,947,956.37 g67,046.42 f6698.83 e6983.70 d
Gap between [E]/[Epro,cor]−14.47% h−14.47% h−15.01% h
-
[Epro,simple-prop] Energy consumption—simple proposition (MWh)39,479,763.78 l69,427.17 i-6936.70
-Gap between [E]/[Epro,simple-prop]: −19.09%--

Notes: a: [Epro] = EPAAIEP × [SUDBm]; b: [Epro] =EPAAIEP (116,26) × ASU [VER]; c: [Epro] EPAAIEP (124,20) × ASU [RER]; d: [Epro,cor,DBm] = [Eric,,DBm]/(1 – 18.95%); e: [Epro,cor,DBp] = [Eric,DBp]/(1 – 18.95%); f: [Epro,corr,Ve] =[Eric,Ve]/(1 – 18.95%); g: [Epro,corr,RER]/(1 – 18.95%); h: Gap = [E]/[Eric,cor]; i: [Epro,Ve] = EDBm/6.01% (Incidence Database/ISTAT Dwelling urban units by SACE Database); l: [Epro,RER] = [Epro,Ve]/0.18% (Dwelling apartment (by ISTAT) Gap, ratio between [RER]/[VER]).

8. Conclusions

Before drawing a conclusion, we would like to make an analogy between energy consumption in the foregoing with that in the transport sector.

The energy consumption in the transport sector depends on the energy performance of the single means of transport (car, bus, van, etc.). The approach used to study a solution for the reduction of energy consumption could concern a single means of transport, such as engine efficiency, or the use of a different kind of fuel (gasoline, GPL, natural gas, fuel cell) or hybrid systems. On the other hand, a second approach to be used to study reduction of energy consumption in transport could concern land settlement and focus on the route taken by each vehicle, that is, road traffic. Efficient as the single vehicles may be, either petrol consumption is stopped or else they have to use fuel from 100% renewable energy resources. However, even if energy consumption can be reduced, it depends on the length of the route, and therefore, on traffic. Therefore, to reduce energy consumption in the traffic sector we must work on the flow of traffic, the route and length, and amplify the approach from the single vehicle to the territorial settlement.

This uncommon analogy allows us to clarify the approach adopted in this paper, since it could be transferred to the building sector where the single item is a building (or urban units), already subjected to several studies, and a settlement area is a town or region. In this paper we studied a statistical energy index and energy benchmarking which could pinpoint a territory for energy planning. If we would like to reduce energy consumption, we must act on all the players involved in the building process: designers, contractors, builders, etc. and also policymakers, and regarding the latter, offer a tool that can measure the effectiveness of energy policy decisions.

To conclude:

  • The EPC database allows us to gather data on the actual situation with the AAIEP and AIEP indices (although consideringthe error due to the independent experts) as well as energy class percentage distribution which, if expressed in percentage, only measures the characteristics of buildings. As a matter of fact, in 2011 energy distribution worsened compared to 2010, since only the EPCs of existing buildings increased (we thus excluded the error of independent experts since this was aggregate data, and with the possibility of fraud).

  • We could avail of statistical indicators, that can help monitor the trend; as seen, the median or standard deviation (δ) allowed us to avoid misconstructions due to the excessive increase in the database 2011.

  • The comparison between top-down to bottom-up evaluation methodologies and vice versa, should be refined with statistical and poll surveys. In any case it is evident that the relation between the geometry (territorial extension or GSU) and energy consumption is not linear, and the error gap may also reach 20%. However, the comparison between both top-down and bottom-up methods is able to identify the error gap, in this case, between ±14.47% and ±19.09%.

  • The Scenarios could be useful tools in choosing energy options, as long as they elaborate a statistical index to measure top-down and bottom-up results, and their error gaps.

This approach could be repeated in other situations, also without the SACE database, if we adopted other kinds of energy databases as long as the data are related to the single urban units or single buildings: e.g., the databases of energy distributors or retail energy sales companies.

Acknowledgements

The author wishes to thank Stefano Stefani, Francesco Terranova, the Emilia-Romagna Region and CERMET for the Databases and Yolanda Rillorta.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. DIRECTIVE 2002/91/EC of the European Parliament and of the Council of 16 December 2002 on the Energy Performance of Buildings. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=CELEX:32002L0091:en:HTML (accessed on 25 July 2013).
  2. DIRECTIVE 2010/31/EC of the European Parliament and of the Council of 19 May 2010 on the Energy Performance of Buildings. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=CELEX:32010L0031:EN:NOT (accessed on 25 July 2013).
  3. Tronchin, L.; Fabbri, K. A Round Robin Test for buildings energy performance in Italy. Energy Build. 2010, 42, 1862–1877, doi:10.1016/j.enbuild.2010.05.022.
  4. Dineen, D.; Ó Gallachóir, B.P. Modelling the impacts of building regulations and a property bubble on residential space and water heating. Energy Build. 2011, 43, 166–178, doi:10.1016/j.enbuild.2010.09.004.
  5. Heiple, S.; David, J. Sailor using building energy simulation and geospatial modeling techniques to determine high resolution building sector energy consumption profiles. Energy Build. 2008, 40, 1426–1436, doi:10.1016/j.enbuild.2008.01.005.
  6. Li, Y.P.; Huang, G.H.; Chen, X. Planning regional energy system in association with greenhouse gas mitigation under uncertainty. Appl. Energy 2011, 88, 599–611, doi:10.1016/j.apenergy.2010.07.037.
  7. Attuazione Della Direttiva 2002/91/CE Relativa al Rendimento Energetico Nell’Edilizia (in Italian). Available online: http://www.camera.it/parlam/leggi/deleghe/05192dl.htm (accessed on 25 July 2013).
  8. DM 26/06/2009 DM 26 Giugno 2009 Linee Guida Nazionali per la Certificazione Energetica Degli Edifici (in Italian). Available online: http://www.bosettiegatti.eu/info/norme/statali/2009_dm2606.htm (accessed on 25 July 2013).
  9. Ballarini, I.; Corrado, V. Application of energy rating methods to the existing building stock: Analysis of some residential buildings in Turin. Energy Build. 2009, 41, 790–800, doi:10.1016/j.enbuild.2009.02.009.
  10. Corgnati, S.P.; Corrado, V.; Filippi, M. A method for heating consumption assessment in existing buildings: A field survey concerning 120 Italian schools. Energy Build. 2008, 40, 801–809, doi:10.1016/j.enbuild.2007.05.011.
  11. Asdrubali, F.M.B.; Battisti, M.; Venegas, M. Comparative study of energy regulations for building in Italy and Spain. Energy Build. 2008, 40, 1805–1815, doi:10.1016/j.enbuild.2008.03.007.
  12. Karkanias, C.; Boemi, S.N.; Papadopoulos, A.M.; Tsoutsos, T.D.; Karagiannidis, A. Energy efficiency in the Hellenic building sector: An assessment of the restrictions and perspectives of the market. Energy Policy 2010, 38, 2776–2784, doi:10.1016/j.enpol.2010.01.009.
  13. Santamouris, M.M.; Patargias, P.; Gaitani, N.; Sfakianaki, K.; Papaglastra, M.; Pavlou, C.; Doukas, P.; Primikiri, E.; Geros, V.; Assimakopoulos, M.N.; et al. Using intelligent clustering techniques to classify the energy performance of school buildings. Energy Build. 2007, 39, 45–51, doi:10.1016/j.enbuild.2006.04.018.
  14. Neij, L.; Astrand, K. Outcome indicators for the evaluation of energy policy instruments and technical change. Energy Policy 2006, 34, 2662–2676, doi:10.1016/j.enpol.2005.03.012.
  15. Gillingham, K.; Newell, R.; Palmer, K. Energy efficiency policies: A retrospective examination. Annu. Rev. Environ. Resour. 2006, 31, 161–192, doi:10.1146/annurev.energy.31.020105.100157.
  16. Fracastoro, G.V.; Serraino, M. A methodology for assessing the energy performance of large scale building stocks and possible applications. Energy Build. 2011, 43, 844–852, doi:10.1016/j.enbuild.2010.12.004.
  17. Perez-Lombard, L.; Ortiz, J.; Gonzalez, R.; Maestre, I.R. A review of benchmarking, rating and labelling concepts within the framework of building energy certification schemes. Energy Build. 2009, 41, 272–278, doi:10.1016/j.enbuild.2008.10.004.
  18. Lahdelma, R.; Salminen, P.; Hokkanen, J. Using multi-criteria methods in environmental planning and management. Environ. Manag. 2000, 26, 595–605, doi:10.1007/s002670010118.
  19. Van Vuuren, D.P.; Hoogwijk, M.; Barker, T.; Riahi, K.; Boeters, S.; Chateau, J.; Scrieciu, S.; Vliet, J.; Masui, T.; Kornelis Blok, E.; et al. Comparison of top-down and bottom-up estimates of sectoral and regional greenhouse gas emission reduction potentials. Energy Policy 2009, 37, 5125–5139, doi:10.1016/j.enpol.2009.07.024.
  20. Kavgic, M.; Mavrogianni, A.; Mumovic, D.; Summerfield, A.; Stevanovic, Z.; Djurovic-Petrovic, M. A review of bottom-up building stock models for energy consumption in the residential sector. Build. Environ. 2010, 45, 1683–1697, doi:10.1016/j.buildenv.2010.01.021.
  21. Bohringer, C.; Rutherford, T.F. Combining bottom-up and top-down. Energy Econ. 2008, 30, 574–596, doi:10.1016/j.eneco.2007.03.004.
  22. ENEA–FINCO Libro Bianco Energia Ambiente Edificio (in Italian). Available online: http://www.edilportale.com/csmartnews/finco.asp (accessed on 26 July 2013).
  23. ISTAT. Available online: http://www.istat.it (accessed on 26 July 2013).
  24. Swan, L.G.; Ugursal, V.I. Modeling of end-use energy consumption in the residential sector a review of modeling techniques. Renew. Sustain. Energy Rev. 2009, 13, 1819–1835, doi:10.1016/j.rser.2008.09.033.
  25. Integrating Top-Down and Bottom-Up Modeling. Available online: http://www.iea-etsap.org/web/News/etsap%20news%208-1.pdf (accessed on 29 July 2013).
  26. Wilson, D.; Swisher, J. Exploring the gap: Top down versus bottom up analyses of cost of mitigating global warming. Energy Policy 1993, 21, 249–263, doi:10.1016/0301-4215(93)90247-D.
  27. Directive 2009/28/CE of the European Parliament and of the Council of 23 April 2009 on the promotion of the use of energy from renewable sources and amending and subsequently repealing Directive 2001/77/EC and 2003/30/EC. Available online: http://eur-lex.europa.eu/Notice.do?val=496661:cs&lang=en&list=506182:cs,503937:cs,497602:cs,496661:cs,486724:cs,486634:cs,&pos=4&page=1&nbl=6&pgs=10&hwords= (accessed on 26 July 2013).
  28. Shorrock, L.D.; Mac Millian, S.; Clark, J.; Moor, G. BREDEM 8, a Monthly Calculation of Method for Energy Use in Dwellings: Testing and Development. In Proceedings of the Building Environmental Performance, London, UK, 10–11 April 1991.
  29. Standard UNI TS 11300 parte 1 Energy Performance of Buildings—Part 1 Calculation of Energy Use for Space Heating and Cooling; UNI TS 11300 Parte 2 Energy Performance of Buildings—Part 2 Calculation of Energy Primary and Energy Performance for Heating Plant and Domestic Hot Water Production. Available online: http://11300.cti2000.it/ (accessed on 29 July 2013).
  30. Standard UNI EN ISO 13790: 2008 Energy Performance of Buildings—Calculation of Energy Use for Space Heating and Cooling; ISO: Geneva 20, Switzerland, 2008. Available online: http://www.iso.org/iso/catalogue_detail.htm%3Fcsnumber=41974 (accessed on 26 July 2013).
  31. Emilia Romagna Legislative Assembly Deliberation: D.A.L. 156/2008, Modify by DGR 1362/2011 and DGR 1366/2011Atto di Indirizzo e Coordinamento Sui Requisiti di Rendimento Energetico e Sulle Procedure di Certificazione Energetica Degli (in Italian). Available online: http://demetra.regione.emilia-romagna.it/al/monitor.php?urn=er:assemblealegislativa:delibera:2008;156 (accessed on 29 July 2013).
  32. SACE—Sistema Accreditamento Certificatori Energetici vers.2.2© 2010 (in Italian). Available online: http://energia.si-impresa.it/Login.aspx (accessed on 29 July 2013).
  33. CERMET. Available online: http://www.cermet.it (accessed on 26 July 2013).
  34. Standard UNI 10349:1994 Riscaldamento e Raffrescamento Degli Edifici. Dati Climatic (in Italian). Available online: http://store.uni.com/magento-1.4.0.1/index.php/ec-2-2012-uni-10349-1994.html (accessed on 29 July 2013).
  35. ENEA (Italian National Agency for New Technologies, Energy and Sustainable Economic Development). Available online: http://old.enea.it/com/ingl/ (accessed on 26 July 2013).
  36. REA 2007 Rapporto Energia ed Ambiente—Energy and Environmental Report 2007 by ENEA. Available online: http://old.enea.it/produzione_scientifica/volumi/REA_2007/REA2007_Dati_Prima.html (accessed on 29 July 2013).
Buildings EISSN 2075-5309 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
