Buildings 2013, 3(1), 220-244; doi:10.3390/buildings3010220

Article
The Eco-Refurbishment of a 19th Century Terraced House: Energy and Cost Performance for Current and Future UK Climates
Haniyeh Mohammadpourkarbasi and Steve Sharples *
School of Architecture, University of Liverpool, Abercromby Square, Liverpool L69 7ZN, UK; E-Mail: hanimpk@liverpool.ac.uk
*
Author to whom correspondence should be addressed; E-Mail: steve.sharples@liverpool.ac.uk; Tel.: +44-0151-794-2607.
Received: 20 December 2012; in revised form: 25 January 2013 / Accepted: 30 January 2013 /
Published: 21 February 2013

Abstract

: The UK government, responding to concerns over climate change impacts, has undertaken to reduce CO2 emissions to 80% of 1990 levels by 2050. This scale of reduction will require major improvements in the energy efficiency of the existing UK building stock, which is the dominant consumer of fossil fuel-generated energy. Housing is a key sector, and since 70% of all current homes in the UK will still exist in 2050 then low carbon refurbishment is critical if CO2 reduction goals are to be met. This paper uses computer modeling to examine the annual operational energy performance, long term energy cost savings and internal thermal conditions for a 19th century terraced house that was eco-refurbished to near a Passivhaus standard. The dwelling was modeled for three locations (Edinburgh, Manchester and London) using current and future climate scenarios (2020s and 2050s under high carbon emission scenarios). Simulation results suggest that there would be very little diminution in heating demand in the future for the house with no refurbishment, whilst the eco-refurbishment produced a significant reduction in energy demand and CO2 emissions. Analysis of the payback period and net present value indicate that the economic optimum varies according to energy prices and that the high construction costs incurred for an eco-refurbishment to a near Passivhaus standard could not be justified in terms of a cost/benefit analysis.
Keywords:
climate change; low carbon housing refurbishment; 19th century house

1. Introduction

1.1. Climate Change and the UK Housing Stock

Fossil reserves are limited and finite and dependence on fossil-based energy should be minimized. In addition, recent climate change and global warming trends are believed to be due to the anthropogenic burning of fossil fuels. The target is to limit global warming to 2 °C above pre-industrial levels by 2050 and this requires keeping the concentration of CO2 below 400 parts per million. To achieve this an 80% reduction in emissions is needed [1]. According to the UK government’s Department of Energy and Climate Change (DECC), in 2009, the residential sector accounted for 27% of final-user emissions. In order to meet the national target of 80% CO2 reductions by 2050, and to react to higher energy prices, it is critical that energy conservation in dwellings is a major performance objective in the design or rehabilitation of buildings. One step towards this objective in the UK is the requirement that from 2016 all new dwellings will have to be “zero carbon”. Due to the very low numbers of new dwellings that are built each year the impact of this requirement will be incremental rather than immediately significant. Since 70% of all current homes in the UK will still exist in 2050, the drive to reduce carbon emissions from housing has shifted from new-build to retrofit. As a result, eco-refurbishment is critical if reduction goals are to be met [2].

This study considers the eco-refurbishment of a 19th century solid wall end-terraced house. The aim of the eco-refurbishment was to go beyond current UK thermal building regulations criteria and to try and achieve the more exacting German Passivhaus standard. This standard sets strict limits on the overall U-value of the external envelope (≤ 0.15 W/m2K); airtightness@50Pa (≤ 0.6 air changes per hour@50Pa and the use of mechanical ventilation with heat recovery); the elimination of cold bridges and the overall energy use for space heating (≤ 15 kWh/m2 of floor area per year). Compliance with the Passivhaus standard is checked by assessing the building using the Passivhaus Planning Package (PHPP) [3]. It is has been estimated that applying the Passivhaus standard to a typical UK building would reduce overall CO2 emissions by approximately 80% [4].

1.2. Eco-Refurbishment

In the context of carbon reduction, eco-refurbishment is about making buildings more thermally efficient and sustainable. The emphasis is on energy services, rather than energy purchase. It is about shifting the debate on to demand reduction rather than energy supply. As with the Passivhaus standard, eco-refurbishment also concentrates on three areas: improving the air-tightness of the house, reducing heat bridges, and, to a lesser extent, considering heat gain from the sun. In addition, eco-refurbishment means having energy services that use fuels with low carbon intensity and incorporating building integrated renewable energy systems. Essentially, a typical eco-refurbished house is air-tight and super-insulated, with mechanical ventilation and heat recovery (MVHR) to solve the issue of internal air quality and with a small heating element within the ventilation system. In addition, generally, windows are triple glazed [5]. The overall aim of eco-refurbishment is to find methods by which the UK government’s commitment to an 80% reduction in CO2 emissions by 2050 (compared to 1990 levels) might be met within the existing housing stock.

1.3. Case Study

The dwelling used for the eco-refurbishment study was a solid wall, 19th century terraced house in Liverpool. In March 2009 the UK’s Technology Strategy Board (TSB) launched a competition, Retrofit for the Future, to encourage and enable building and renovation companies to retrofit and refurbish existing housing to make deep cuts in carbon emissions [6]. The Retrofit for the Future targets were linked to the Climate Change Act and, for the purpose of the competition, the following targets were set:

  • Maximum CO2 emissions—17 kg/m2yr;

  • Maximum primary energy use—115 kWh/m2yr.

The primary energy consumption figure includes all the energy used in the house, including that for appliances (white goods) and consumer electronics [6]. The Retrofit for the Future competition was looking for creativity in developing 100 “exemplar” retrofit projects across the UK. The TSB offered 100% funding to each proposal and eventually 87 schemes were approved. Six were in the North West of England, including the terraced house, which was chosen as the case study for this research project [7]. Figure 1, Figure 2 show the selected case study which was refurbished by the Plus Dane Group with the aim of achieving Passivhaus standards as far as possible by applying 21st century solutions to a 19th century end terraced house. Passivhaus and/or sustainability principles were introduced in the demonstration project. The retrofit of the building included: very high levels of insulation, timber framed triple glazed windows, very high levels of airtightness@50Pa (1.0 ACH@50Pa), mechanical ventilation with heat recovery, solar gain via a new conservatory, LED lighting in the kitchen and bathroom, and A-rated low energy appliances [7].

Buildings 03 00220 g001 1024

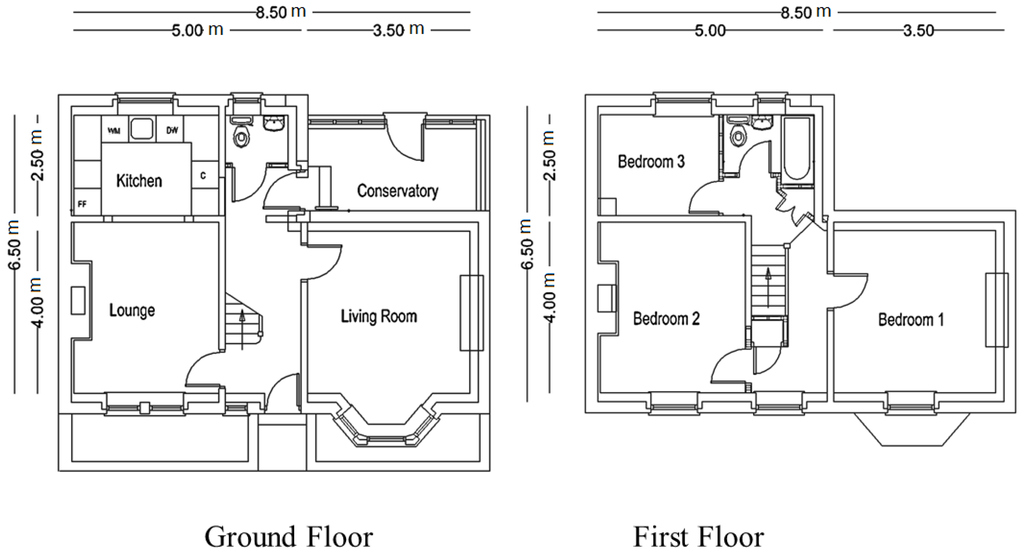

Figure 1. Terraced house plans.

Click here to enlarge figure

Figure 1. Terraced house plans.
Buildings 03 00220 g001 1024
Buildings 03 00220 g002 1024
Figure 2. Terraced house after refurbishment.

Click here to enlarge figure

Figure 2. Terraced house after refurbishment.
Buildings 03 00220 g002 1024

There were several reasons for choosing this 19th century terraced house as a case study of the feasibility of eco-refurbishment to a Passivhaus standard. Firstly, although over 20,000 Passivhaus accredited properties exist, the UK has only three of them. Secondly, Passivhaus refurbishment has not been tried before in the UK on an old terraced house. Thirdly, virtually all old terraced housing has a single skin, uninsulated solid wall structure, making them hard and expensive to treat and therefore not many have been subject to major refurbishment [8]. Finally, with more than 6 million 19th century terrace houses in the UK, they represent an important part of the country’s housing resource and architectural heritage. Consequently, research on the experience of Passivhaus and low energy retrofit of such buildings can examine the challenges and opportunities of significant retrofits in conservation areas.

1.4. Research Objectives

The primary objective of this paper was to evaluate the benefits of sustainable refurbishment on the energy performance of 19th century type end-terrace houses under current and future climates. To do so a regional approach was adopted to assess innovations in the eco-refurbishment agenda. Locally and regionally, UK housing has quite different characteristics. There is also a geographical diversity, which causes different energy demands in different parts of the UK. Heating demand is typically higher in Scottish cities than in, say, Manchester, whilst the changing climate may lead to a significant increase in demand for summer cooling in London and the south east of the UK, but not necessarily elsewhere. A second objective of this study was to consider how to apply the knowledge and technologies of eco-refurbishment in the context of future climates and to make well-founded decisions based on these considerations. A final objective was to see how savings (which are increased by reusing and refurbishing an existing building) might relate to the operational costs during the building’s life cycle.

2. Methodology

2.1. Modelling

The 19th century type end-terraced house was modeled (before and after refurbishment) using the advanced thermal simulation package DesignBuilder. As there was not enough information about the previous condition of the house the characteristics of the typical terraced houses in the neighborhood were studied to create a pre-refurbishment model of the existing house in the chosen software (DesignBuilder). Table 1, Table 2 compare the pre and post refurbishment thermal features of the house. The occupancy densities and occupied period profiles were selected based on the real house schedules obtained from monitoring results for a family of four (two adults and two children). In addition, internal heat gain allowances were selected according to the activity of each zone in the building. Then, simulations were carried out with all treated zones assumed to be kept to a nominal set point temperature of 21 °C and heated to set points of between 19 °C and 21 °C (depending on the nature of usage). Current weather data for Liverpool were used to evaluate the effect of eco-refurbishment on energy consumption and CO2 emissions.

Table Table 1. Pre-refurbishment thermal features of a 19th century terraced house [9].

Click here to display table

Table 1. Pre-refurbishment thermal features of a 19th century terraced house [9].
ElementFabric U-value
Insulated roof-100mm mineral wool0.40 W/m2K
Solid Walls-215mm thick brick work2.10 W/m2K
Typical existing constructionUninsulated suspended timber floor0.50 W/m2K
Windows-single glazed timber frames4.80 W/m2K
Doors-unglazed solid timber3.00 W/m2K
Table Table 2. Post-refurbishment thermal features of the terraced house [10].

Click here to display table

Table 2. Post-refurbishment thermal features of the terraced house [10].
ElementFabric U-value
Insulated roof-400mm Rockwool0.15 W/m2K
Solid wall-internal insulation (using Supa Wall)0.11 W/m2K
Upgraded fabric constructionConcrete floor slab, Supa floor panels0.12 W/m2K
Windows-triple glazed0.78 W/m2K
FD20 rated fire doors in frames containing intumescent seals1.00 W/m2K

In addition, the energy and CO2 performances of the same pre and post refurbishment dwellings were examined for current and future climates at three other cities across the UK.

2.2. Weather Data for Simulation

The Intergovernmental Panel on Climate Change (IPCC) stated in its Technical Summary for their Fourth Assessment Report that an increase in global average surface temperature would occur towards the end of the 21 century [11]. For UK specific climate projections the UK Climate Impacts Programme (UKCIP), a UK based agency, in conjunction with the UK’s Meteorological Office’s Hadley Centre, published its first climate change projections in 1998, which were substantially updated in 2002 and again in 2009. For the purpose of this research climate change scenarios and future hourly weather data released by the UK’s Charted Institution of Building Services Engineers (CIBSE), which incorporated the UKCIP02 projections for three timelines (2020s, 2050s, 2080s) and four carbon emissions scenarios (low, medium-low, medium-high and high), have been used. These data are in TRY (Test Reference Year) format but need to be generated in the EPW (EnergyPlus Weather) format to be readable in DesignBuilder. No TRY files existed for Liverpool at the time of this study and only current weather data in the EPW format were available. However, current TRY weather data were available for three UK locations (Edinburgh, Manchester and London). These TRY files were morphed in to future weather data using the software CCWeatherGen [12] (time slices: 2020s, 2050s, 2080s; carbon emission scenarios: low, medium and high). Therefore, the same dwelling was assumed to be located in these three cities and simulated using these weather data to model the effect of climate change and geographical diversity on CO2 emissions, heating and cooling energy usage. In this paper only the results from 2020 to 2050 high emission scenarios will be presented.

CCWeatherGen transforms CIBSE/Met Office TRY/DSY weather files into future EPW weather files [12]. UKCIP02 data were used for this research because, at the time of the analysis, CCWeatherGen used the UKCIP2002 climate change scenario predictions to generate future weather files that were ready to use in building performance simulation programs (i.e., in EPW format). The PROMETHEUS project in Exeter University has recently produced a number of EPW future weather files using the UKCP09 weather generator, which can be used to “future-proof” buildings against predicted climate change. The key difference between UKCP02 and UKCP09 is the use of probabilistic information within UKCP09, which represents a random sampling of a probability distribution function and hence the probability of a particular level of climate change [13].

2.3. Model Validation

Simulation software is a useful tool to study the impact of climate change on building energy performance. However, it is important to validate the results from simulation to ensure confidence in the results. The Plus Dane Group used the Passive House Planning Package (PHPP) for its simulation of the terraced house (Table 3). Their predicted results were used for initial validation of the model created in DesignBuilder. This preliminary comparison showed a small percentage difference between the PHPP and DesignBuilder outcomes.

Table Table 3. Comparison of PHPP results with DesignBuilder for terraced house pre-refurbishment.

Click here to display table

Table 3. Comparison of PHPP results with DesignBuilder for terraced house pre-refurbishment.
MeasuresPHPPDesignBuilder
Annual CO2 emissions (kg CO2/m2yr)7772
Primary energy requirement (kWh/m2yr)380320

In addition, the Plus Dane Group has been monitoring many parameters in the house at five minute intervals since it was first occupied after refurbishment in November 2010. Large amounts of data have been measured such as internal carbon dioxide levels, floor, wall and ceiling surface temperatures, external air temperatures and electricity, water and gas consumption. One complete year of monitored data was made available for this study. These data were compared with the DesignBuilder simulations as part of the validation procedure. To start the validation a comparison of the weather data was necessary. DesignBuilder simulation results were based on 2002 CIBSE weather data whilst the monitoring was carried out between November 2010 and October 2011. Figure 3 shows 2002 (CIBSE) average monthly external air temperatures with 2010 (measured) weather data for Liverpool. There is generally reasonable agreement but it can be seen that the average temperatures generally increased over the period.

Buildings 03 00220 g003 1024

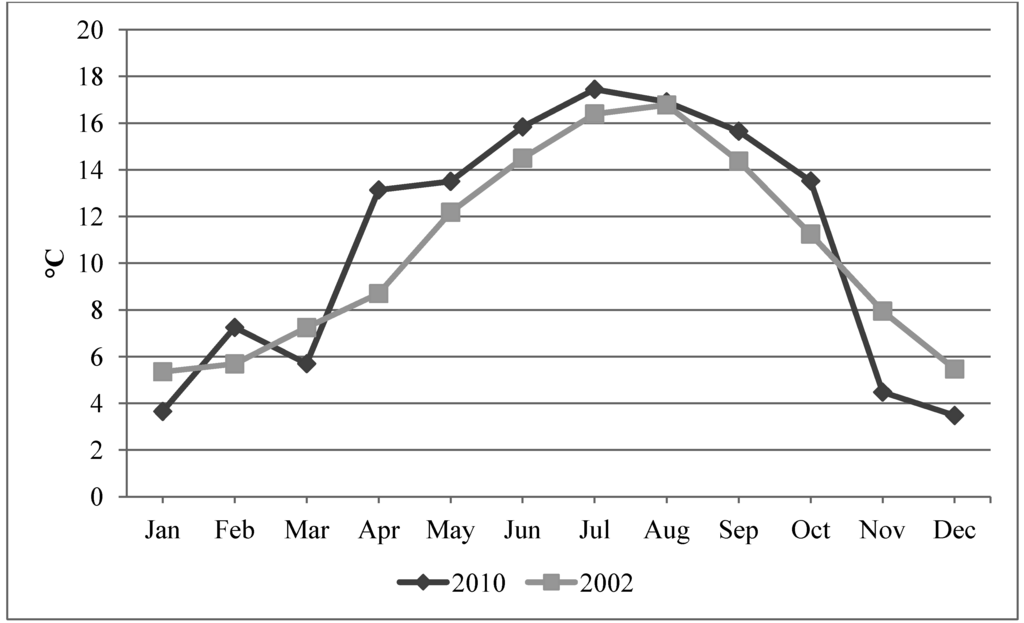

Figure 3. Comparison of 2002 (CIBSE) weather data (external air temperature in °C) with 2010 (monitored results) weather data for Liverpool, UK.

Click here to enlarge figure

Figure 3. Comparison of 2002 (CIBSE) weather data (external air temperature in °C) with 2010 (monitored results) weather data for Liverpool, UK.
Buildings 03 00220 g003 1024

A comparison of monitored and predicted annual CO2 emissions and primary energy requirements can be seen in Table 4. There are small differences between the results, which could be attributed to the small differences in the weather data.

Table Table 4. Monitored results and DesignBuilder predictions for the refurbished terraced house.

Click here to display table

Table 4. Monitored results and DesignBuilder predictions for the refurbished terraced house.
Measures MonitoredDesignBuilder
Annual CO2 emissions (kg CO2/m2yr)1618
Primary energy requirement (kWh/m2yr)105119

Having validated the program made it possible to investigate how the same refurbished terraced house might perform in different current and future climate scenarios.

2.4. Whole Life-Cycle Costing

In the process of fulfilling an 80% reduction goal and meeting eco-refurbishment benchmarks, one of the most important questions is that of economic feasibility. The question arises due to several potential alternative investment options and the importance of finding the most economical choice in the long term. In this paper a Whole Life Cycle Costing (WLCC) technique has been used for comparative cost assessments over a 40 year period of time, taking into account the present value of initial capital costs, future operational costs and savings from this type of eco-refurbishment.

2.4.1. Definition

Whole Life Cycle Costs consider the total expense of a project over the six stages of Non-Construction Costs, Construction Costs, Operation Costs (including energy expenditures), Maintenance Costs, Replacement Costs and Disposal Costs. For the purpose of this paper the effects and savings on heating consumption from improving construction have been evaluated. The WLCC of fitting wall and roof insulation and replacing windows and doors has been assessed. The cost and effect of improvement and replacement of lighting and mechanical equipment are not considered in this part of the analysis.

Whole Life Cycle Cost is defined as [14]:

Buildings 03 00220 i001
where WLCC = Whole Life Cycle Cost (£); IC = Total Initial Cost (£); ∑ = Sum over the lifetime from year 1 to year N, where N = lifetime of appliance (years); OCt = Operating Cost (£); r = Discount rate; t = Year for which operating cost is being determined.

2.4.2. Total Initial Costs Inputs

For the purpose of this study, the initial cost of the project consists of the cost of new construction materials and labor. Table 5 shows the total initial outlay and capital cost of the construction improvement and replacement for the terraced house. All doors and windows were replaced.

Table Table 5. Cost breakdown for the terraced house’s refurbishment.

Click here to display table

Table 5. Cost breakdown for the terraced house’s refurbishment.
ItemMaterialLaborTotal
Insulation£ 12,000£ 7,000£ 19,000
New roof£ 1,950£ 2,000£ 3,950
Triple glazing and doors£ 18,200£ 2,000£ 20,200
Total initial cost of construction--£ 43,150

2.4.3. Operating Cost Inputs

Energy expenditure, repair costs and maintenance costs all together are defined as the operating cost. The processes during the in-use life phase are an important factor as a significant proportion of the impact of the building occurs after construction and installation of systems. In this study, it is assumed that the life of the construction in this refurbished property will be more than 40 years. Any recurring impact (repair and maintenance costs) is not considered as the building was refurbished to have a very low maintenance cost. However, the maintenance costs of a building can contribute significantly to the total cost of it [15]. Required inputs for calculating operating costs are: energy consumption, energy cost savings, gas prices (the refurbished house is heated by gas), predicted gas price trends in the future and assumed discount rate.

2.4.4. Heating Energy Savings

The total annual heating energy saving is the difference between the heating consumptions of the original house and the retrofit house, and results from the lower gas heating consumption arising from a more efficient construction and lower heat losses through the insulation and triple-glazed windows.

2.4.4.1. Effect of Climate Change on Annual Savings

It is not only regional weather differences but also climate change that will impact upon heating consumption in the pre and post-refurbished house. Accordingly, the annual savings change for different climate scenarios have been considered and predicted by running simulations for different types of weather scenarios (see Section 2.2).

2.4.4.2. Instability of Future Gas Price and Annual Savings

Experts in the field of energy economics believe that the main question about future gas prices is not “will prices rise?” but “by how much?” Figure 4 compares gas price projections from eight different sources [16].

Five elements that contribute to a consumer’s energy bill are the wholesale cost of fuel, the cost of supply transmission, distribution and metering, the costs of Government/EU policy, VAT and supplier margins. Ofgem estimates shown in Table 6 confirm that wholesale fuel costs and the costs of supply are the largest elements effecting gas prices; incidentally, VAT has remained at 5% since 1997 [17]. Therefore, less dependence on imports, more domestic production and the extent to which the technology is increasing, will have a big impact on gas prices. Shale gas, and in particular the process of “fracking” which is used to extract it, can be a solution for the first concern. In the USA a rapid revolution in gas production from “unconventional” sources—in particular shale and coal bed gas—has transformed the market. The USA is now self-sufficient in gas. Some analysts claim that this could also eventually happen in the UK [17].

Buildings 03 00220 g004 1024

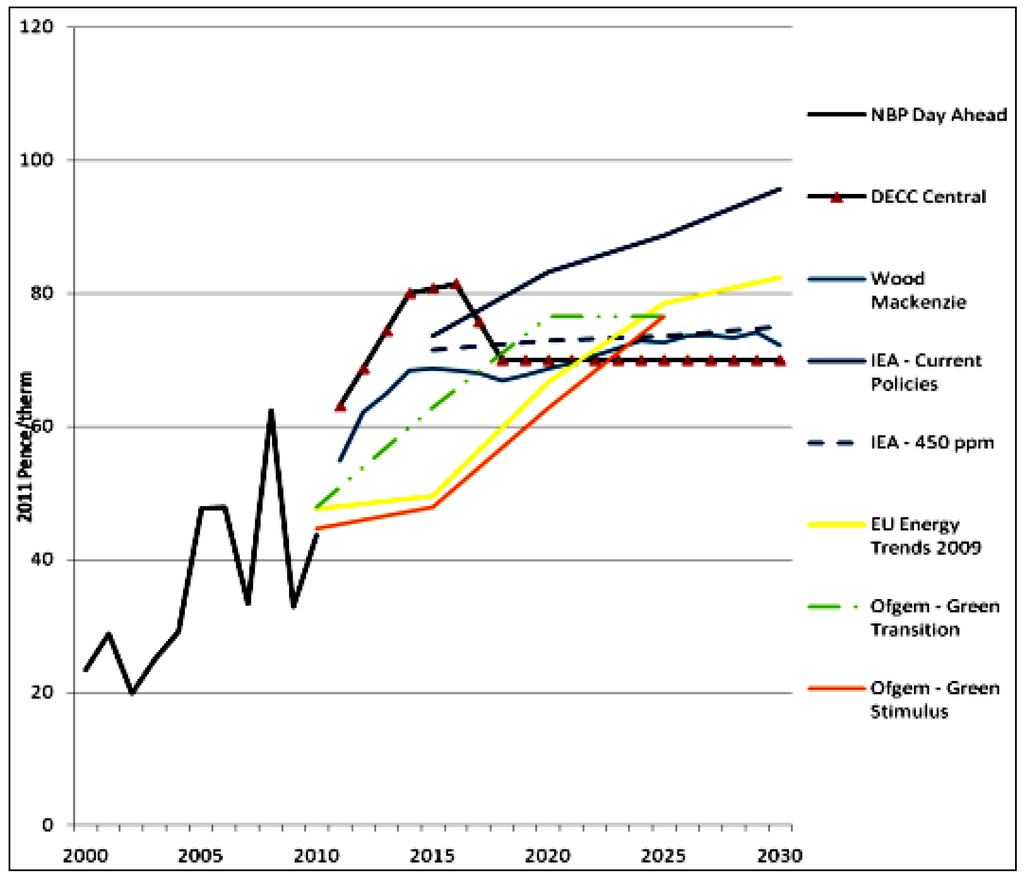

Figure 4. DECC gas price projections, October 2011 [16].

Click here to enlarge figure

Figure 4. DECC gas price projections, October 2011 [16].
Buildings 03 00220 g004 1024
Table Table 6. Estimated contributory factors to domestic energy price rise February 2004 to January 2011.

Click here to display table

Table 6. Estimated contributory factors to domestic energy price rise February 2004 to January 2011.
Increase in unit costs due to Gas%
Whole sale energy66
Transmission, distribution and metering20
Carbon price-
Estimated increase in annual billRenewables-
Energy efficiency funding7
VAT5
Overall price increase121
Estimated increase in annual bill (2004 to 2010)£295

Energy prices will not remain constant in real terms over time but, by using historic data, it is possible to predict the range of probable future prices and have some idea of which prices are more likely to occur [18]. Figure 5 (which illustrates the average annual standard gas bills for a typical residential gas consumer for 16 years since 1996) shows that the price of gas is unstable in the UK and there is uncertainty in any assumption about constant or future gas prices [19]. Three “waves” of rising, falling and steady domestic gas prices since the late 1996s show that a rising price for gas is not the only possibility.

Buildings 03 00220 g005 1024
Figure 5. Average annual standard gas bills for a typical residential gas consumer since 1996.

Click here to enlarge figure

Figure 5. Average annual standard gas bills for a typical residential gas consumer since 1996.
Buildings 03 00220 g005 1024

2.4.5. Standard Deviation and Binomial Tree

The amount of uncertainty in the future price of a commodity such as gas can be calculated by drawing a binomial tree. In this study, 16 years of gas price datasets were used to adjust the projection of future uncertainty, predict future gas prices and find the future outcomes. The instability of a data series is measured by its standard deviation(s), which can be used to indicate the rising and falling values by means of a binomial tree [18]. Drawing a binomial tree (Figure 6) helps to predict the expected future gas prices and related savings. The expected value in each year is the average of all possible outcomes, weighted by their probability.

Buildings 03 00220 g006 1024

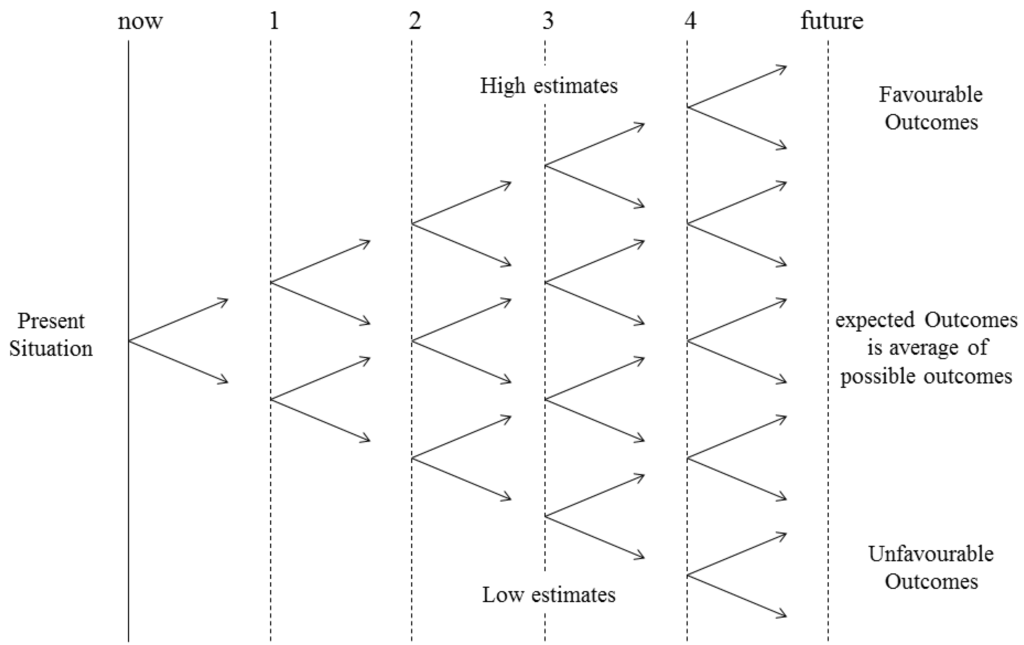

Figure 6. Binomial tree.

Click here to enlarge figure

Figure 6. Binomial tree.
Buildings 03 00220 g006 1024

2.4.6. Time Preference, Discount Rate and Net Present Value

The discount rate r is the rate at which future expenditures are discounted to establish their present value. It is defined as the value society attaches to present, as opposed to future, consumption [20]. This rate is needed to put the costs of paying future liabilities in to present-day terms, a parameter called the net present value (NPV) [18]. A discount rate of 3.5% has been chosen as this is used by the UK Government for economic decision making. Inflation has not been taken into account in this research [21]. Applying this 3.5% discount rate to the savings enabled the NPV of the savings to be calculated. If all the expenditures and incomes in a cash flow (v0, v1, v2,…,vn) are discounted to their present values using the chosen discount rate and then summed, the result is the net present value of the cash flow and will be given by [18]:

Buildings 03 00220 i002

2.4.7. Payback Period

The payback period is calculated by deducting the fuel cost saved each year from the capital cost of the energy saving measures.

3. Results and Discussion

3.1. Effect of the Terraced House’s Eco-Refurbishment on Heating Consumption and CO2 Emissions for Current and Future Weather Conditions

Pre and post-refurbished houses in different cities under current and future weather condition and different scenarios were simulated to see if the UK’s 80% carbon reduction target was achievable by refurbishment. Simulation results given in Figure 7 show the annual heating demand for the pre and post-refurbished houses in different cities and different scenarios. Significant heating demand reductions can be seen after refurbishment in all four cities. Figure 7 also confirms that, despite the fact that heating energy consumptions are affected by climate change, there is very little decline in future heating demand for the house with no refurbishment, while the eco-refurbished dwelling shows a sharp reduction of more than 70% in energy demand.

Changes of CO2 emissions in London, Liverpool, Manchester and Edinburgh for pre and post-refurbished house are shown in Figure 8. It can be seen that there is a large reduction of around 83% for the house when located in Liverpool and London and 80% reduction in CO2 emissions for the house in Manchester and Edinburgh following refurbishment. CO2 emissions are affected by climate change and show a slight downward trend for the house with no refurbishment, but the eco-refurbished dwellings show sharp reduction in CO2 emissions.

Buildings 03 00220 g007 1024

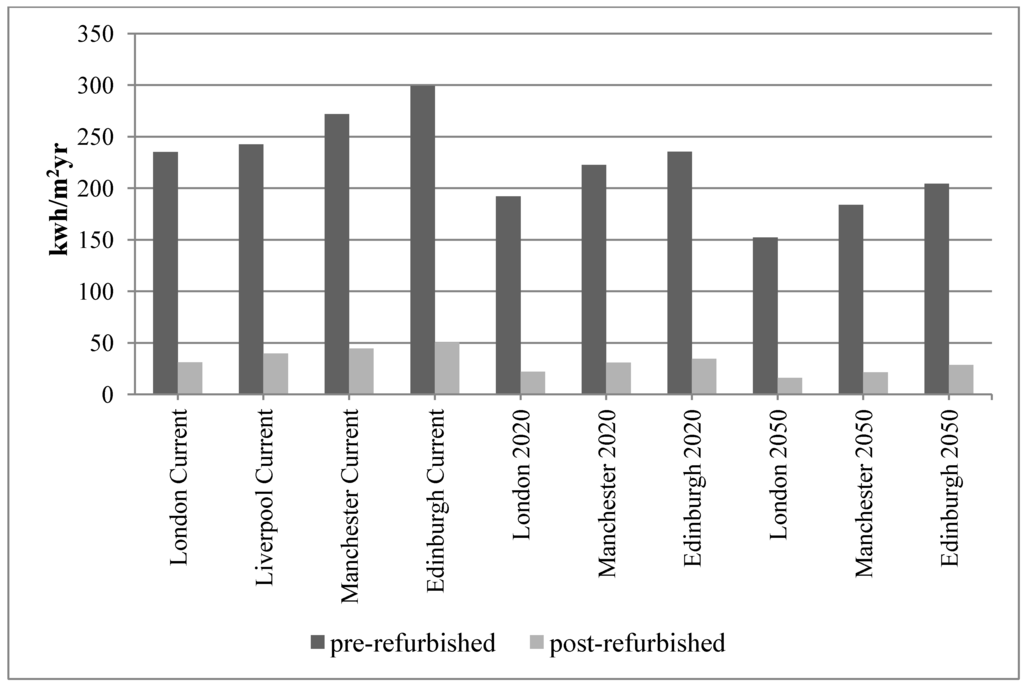

Figure 7. Annual heating demand for the pre and post-refurbished terrace house in different cities for current and future weather data.

Click here to enlarge figure

Figure 7. Annual heating demand for the pre and post-refurbished terrace house in different cities for current and future weather data.
Buildings 03 00220 g007 1024
Buildings 03 00220 g008 1024

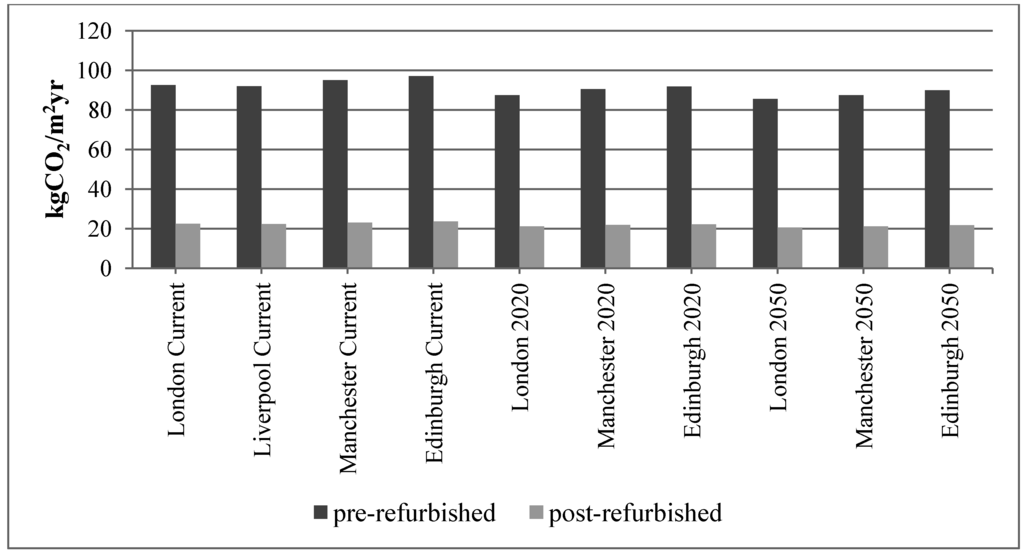

Figure 8. Annual CO2 emissions (kgCO2/m2yr) from pre and post-refurbished house in different cities under current and future weather conditions.

Click here to enlarge figure

Figure 8. Annual CO2 emissions (kgCO2/m2yr) from pre and post-refurbished house in different cities under current and future weather conditions.
Buildings 03 00220 g008 1024

3.2. Summer and Winter Discomfort Hours

Figure 9 compares the operative temperature (the average of the internal air and mean radiant temperatures) of the post and pre refurbished house with natural ventilation. It can be concluded from the results that during the summer months the mean peak operative temperature may exceed 25 °C after refurbishment and so there could be a risk of thermal discomfort if no adaptive measures were taken. However, for most of the year the refurbishment is greatly enhancing thermal comfort in the house. There is a suggestion from Figure 9 that some take-back could occur in the refurbished house i.e., occupants enjoying a higher internal temperature in the heating season than they might have experienced in the pre refurbished house.

Buildings 03 00220 g009 1024

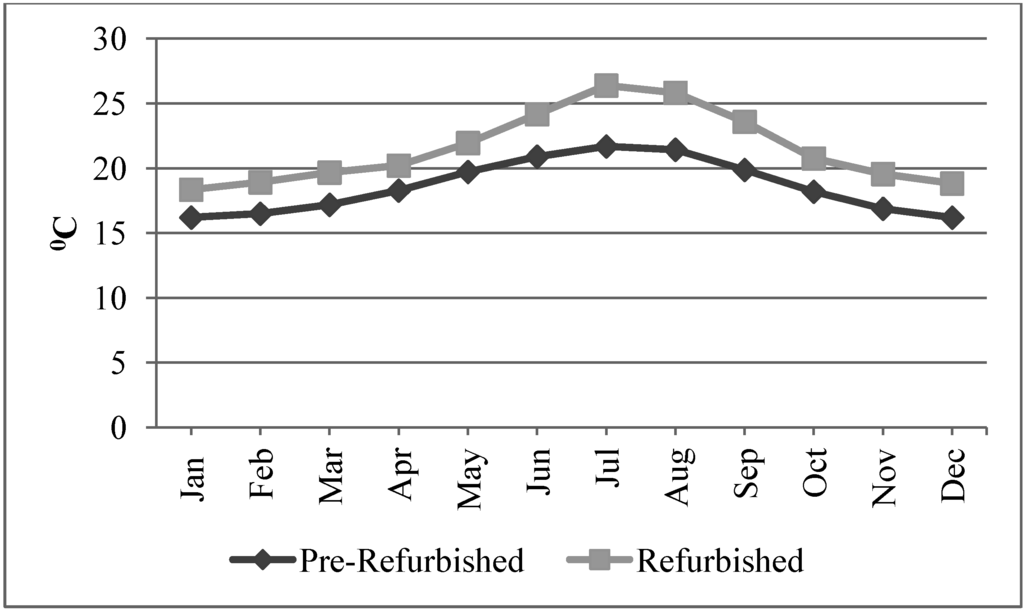

Figure 9. Monthly mean operative temperature (°C) from pre and post-refurbished house under current weather conditions (Liverpool).

Click here to enlarge figure

Figure 9. Monthly mean operative temperature (°C) from pre and post-refurbished house under current weather conditions (Liverpool).
Buildings 03 00220 g009 1024

3.3. Efficiency of Various Technologies in Reducing Carbon Emission and Costs in the Terraced House

Although results indicate that an 80% reduction in CO2 emissions is achievable by refurbishment, it is important to consider the time and costs required to reach that target. Figure 10 illustrates typical heat losses from each major construction element in the terraced house, with the main sources of heat loss being the walls and loft. Consequently, improving wall and loft insulation levels can be the most effective way of improving the energy performance of buildings. Therefore, it would useful to also look at the economic performance of these components. Figure 11 indicates the cost of applying each technology.

Buildings 03 00220 g010 1024
Figure 10. Typical heat losses from pre and post refurbished building envelope components of the terraced house, showing % reduction.

Click here to enlarge figure

Figure 10. Typical heat losses from pre and post refurbished building envelope components of the terraced house, showing % reduction.
Buildings 03 00220 g010 1024
Buildings 03 00220 g011 1024
Figure 11. Cost of various low carbon technologies for the terraced house.

Click here to enlarge figure

Figure 11. Cost of various low carbon technologies for the terraced house.
Buildings 03 00220 g011 1024

3.4. Annual Savings for the Terraced House, Liverpool

Energy savings cost is the difference between DesignBuilder simulation results for the heating consumption of the existing house and the retrofit house. Table 7 illustrates the average internal temperature of the living room during the heating season (December, January, February) as modeled by DesignBuilder(DB) for pre and post refurbished house compared to monitoring results.

Table Table 7. Average internal temperature of living room during the heating season—Liverpool current weather data.

Click here to display table

Table 7. Average internal temperature of living room during the heating season—Liverpool current weather data.
MeasuresOperative temperature °C
DB Pre-Refurbished16.3
Average internal temperatureDB Refurbished19.6
Monitoring25.4

As gas is the primary energy source for heating in this case study, the energy cost is calculated by use of a mean gas price of 0.0475 £/kWh. The annual benefit (the financial saving) is calculated by multiplying energy saving by current gas price of 0.0475 £/kWh for the first year in the cash flow. The numerical results for different cities are listed in Table 8.

Table Table 8. Annual savings from lower gas consumption for heating—current weather data.

Click here to display table

Table 8. Annual savings from lower gas consumption for heating—current weather data.
Climate scenariosEstimated annual heating load for existing house (kWh)Estimated annual heating load for refurbished house (kWh)Heating reduction (kWh)Annual energy cost savings (£) for a gas price of 0.0475 £/kWh
London-Current12,33625279808466
Liverpool-Current12,628258710,041477
Manchester-Current13,500287810,622505
Edinburgh-Current15,200311412,086574

To calculate the future annual savings three factors must be considered: effect of climate change on annual savings, instability of future gas prices and time preference and discount rate.

3.5. Future Climate Change and Annual Savings

Climate change affects heating consumption and accordingly the annual energy savings. Table 9 shows the reduction of heating consumption for different climate scenarios and different cities.

Table Table 9. Annual energy savings for future climate scenarios.

Click here to display table

Table 9. Annual energy savings for future climate scenarios.
Climate scenariosEstimated annual heating load for existing house (kWh)Estimated annual heating load for refurbished house (kWh)Reduction (kWh) (%)
London 202011,41919089511 (83%)
Edinburgh 202012,18824979691 (80%)
Manchester 202010,67521688507 (80%)
London 2050814816696479 (80%)
Edinburgh 205010,76222058557 (80%)
Manchester 2050948318337650 (81%)

3.6. Future Gas Prices and Annual Savings

As any cost benefit analysis is performed over the lifetime of a house, a changing rate has to be introduced in the cost calculations to correspond with reality. Looking at historical data suggests that not only will energy prices not remain constant but that there is also a possibility of both downward and upward trends as well. Therefore, different scenarios should be investigated that take in to account different trends. To measure the amount of uncertainty and to predict gas price trends 16 years of gas price datasets were used and the change over time (standard deviation) was calculated (Table 10). The instability of the annual variation was calculated in this case to be 8.6% (see Equation 3).

Table Table 10. Average annual standard credit bills (£) for a typical residential gas consumer for 16 years since 1996 source [19].

Click here to display table

Table 10. Average annual standard credit bills (£) for a typical residential gas consumer for 16 years since 1996 source [19].
YearGas prices in real terms(£)Annual % variationInstability
1996330--
1997329−0.3−6.3
1998320−2.7−8.8
1999316−1.2−7.3
2000309−2.2−8.3
2001308−0.3−6.4
20023265.8−0.2
20033352.7−3.3
20043442.6−3.4
200540216.810.8
200651026.820.8
20075456.80.8
200862514.68.7
200971514.48.3
2010689−3.6−9.7
201176210.64.5
Average-6.07-

Buildings 03 00220 i003

Finding the ratio that controls the rising and falling values allows a binomial tree of gas price trends to be constructed for the next 16 years. To predict the gas prices for year 16–40 the standard deviation was calculated again using years 1 to 16 predicted gas prices and was found to be 23%.

Figure 12 illustrates the predicted different possible gas prices in each year. The expected gas price in each year is the sum of all possibilities weighted by their probabilities. The right vertical axis shows the predicted prices for an upward trend and the left vertical axis illustrates the projected gas prices for a downward and current trend. After each 16 years, the previous 16 years of data were used to predict the new gas prices. For a better comparison, a different scale has been chosen on the right hand side for the upward trend. Expected gas prices in the next 40 years can be seen in Table 11.

Buildings 03 00220 g012 1024
Figure 12. Predicted possible Index upwards or downwards prices for gas.

Click here to enlarge figure

Figure 12. Predicted possible Index upwards or downwards prices for gas.
Buildings 03 00220 g012 1024
Table Table 11. Future energy saving costs for constant prices in London for 2010–2020.

Click here to display table

Table 11. Future energy saving costs for constant prices in London for 2010–2020.
yearRefurbished annual heating load (kWh)Existing annual heating load (kWh)Gas prices (p/kWh)Refurbished annual heating cost (£)Existing annual heating cost (£) Annual savings (£)Annual savings, NPV at 3.5%/3% discount
20102527123364.75120.03585.94465.91465.91
20112458122364.76117.01582.33465.32449.58
20122389121323.2076.46388.22311.76291.03
20132321120304.80111.40577.45466.05420.35
20142252119283.9087.83465.21377.37328.86
20152183118274.83105.46571.23465.76392.16
20162115117253.9683.74464.30380.56309.58
20172046116234.8599.23563.72464.48365.08
20181977115213.9678.30456.24377.94287.01
20191909114194.8792.95556.12463.17339.84
20201908114193.9775.74453.33377.58267.68

3.7. Future Energy Saving Costs

Estimating future gas prices makes it possible to calculate savings for the building’s energy expenditure. As these savings happen for different operations taking place at different times, it is essential to convert to current costs using a discounted cash flow method that incorporates the discount rate of 3.5% for the first 30 years and 3% thereafter (Table 11 shows the values for London for the period 2010–2020).

3.8. Whole Life Cycle Costing

Discounted accumulated whole life cycle costs over 40 years for three gas prices and three weather scenarios are shown in Figure 13, Figure 14, Figure 15 for the terraced house located in London, Manchester and Edinburgh. A comparison of WLCC for all cities shows that this type of refurbishment is economically attractive only with the rising gas prices scenario. Clearly, adding the maintenance and replacement costs to the analysis will change these findings dramatically in favor of the refurbished house’s WLCC.

Comparing the most favorable outcomes (with upward prices) for all three cities it can be seen in Figure 16 that the total present value for Edinburgh is the most beneficial option over 40 years (£ 178,752 savings), before Manchester (£ 154,208 savings) and London (£ 138,090 savings), for the given conditions (3% discount rate, 8.6% yearly increase in energy costs for the first 16 years and 23% increase in energy costs after that).

Buildings 03 00220 g013 1024

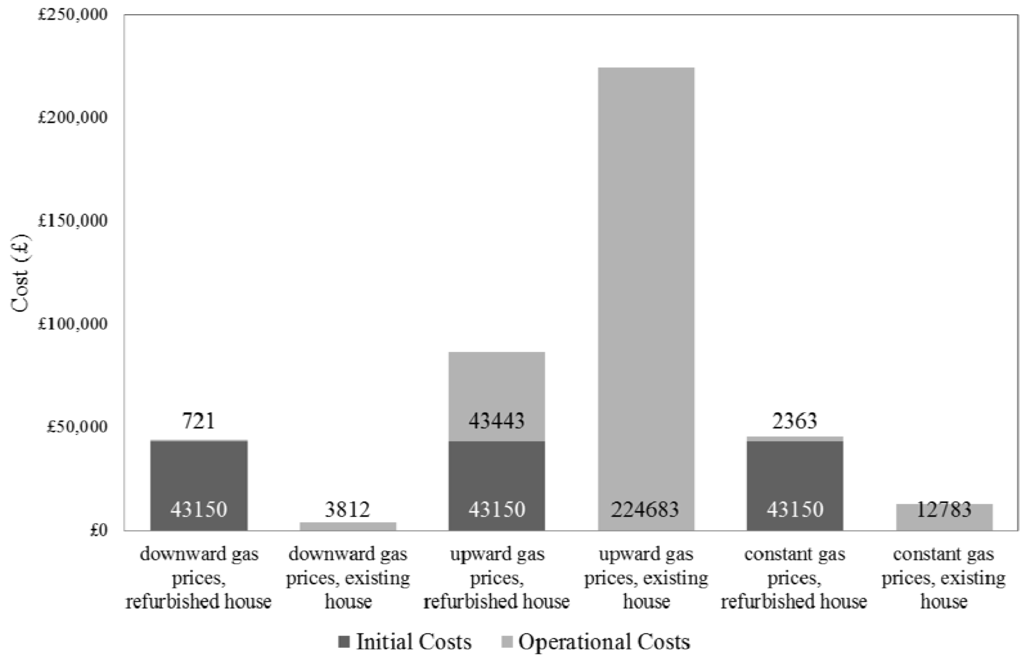

Figure 13. Whole Life Cycle Cost (WLCC) of the pre and post refurbished house for current and future London weather data over 40 years for different gas price trends.

Click here to enlarge figure

Figure 13. Whole Life Cycle Cost (WLCC) of the pre and post refurbished house for current and future London weather data over 40 years for different gas price trends.
Buildings 03 00220 g013 1024
Buildings 03 00220 g014 1024

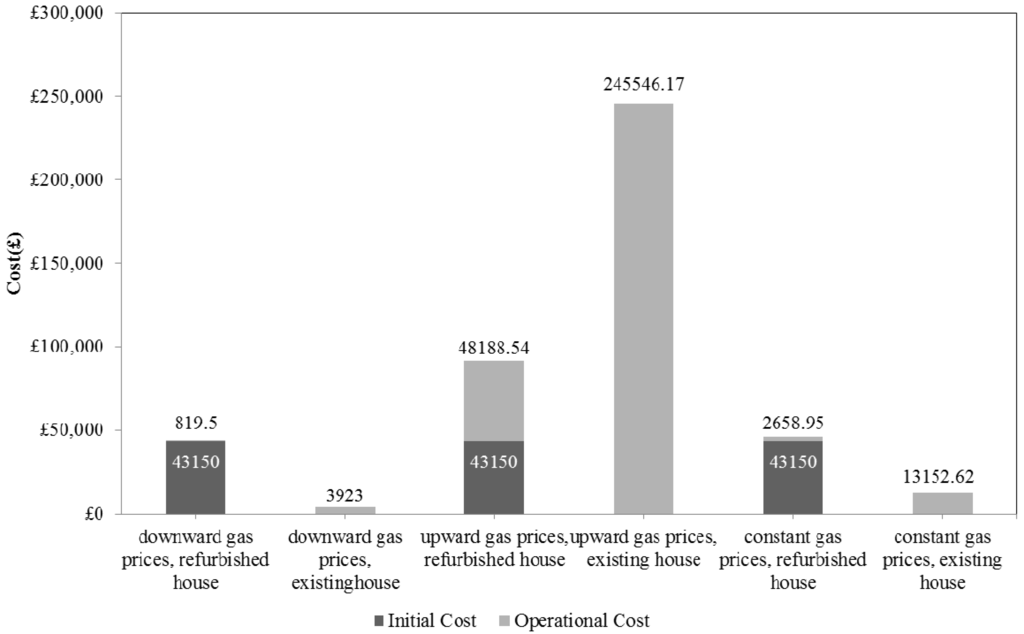

Figure 14. Whole Life Cycle Cost (WLCC) of the post and pre refurbished house for current and future Manchester weather data over 40 years for different gas price trends.

Click here to enlarge figure

Figure 14. Whole Life Cycle Cost (WLCC) of the post and pre refurbished house for current and future Manchester weather data over 40 years for different gas price trends.
Buildings 03 00220 g014 1024
Buildings 03 00220 g015 1024

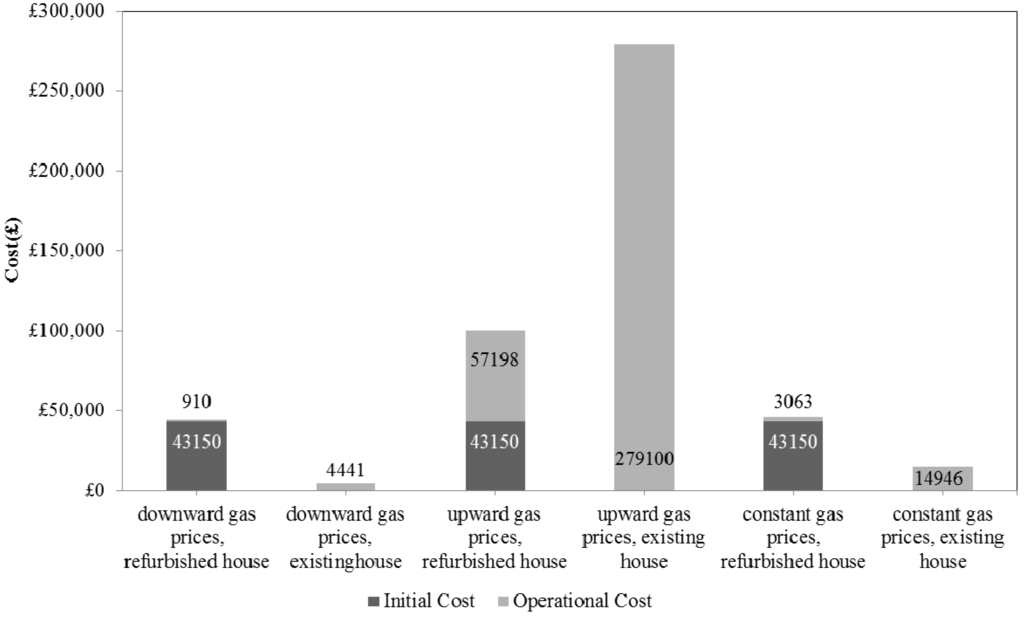

Figure 15. Whole Life Cycle Cost (WLCC) of the post and pre refurbished house for current and future Edinburgh weather data over 40 years for different gas price trends.

Click here to enlarge figure

Figure 15. Whole Life Cycle Cost (WLCC) of the post and pre refurbished house for current and future Edinburgh weather data over 40 years for different gas price trends.
Buildings 03 00220 g015 1024
Buildings 03 00220 g016 1024

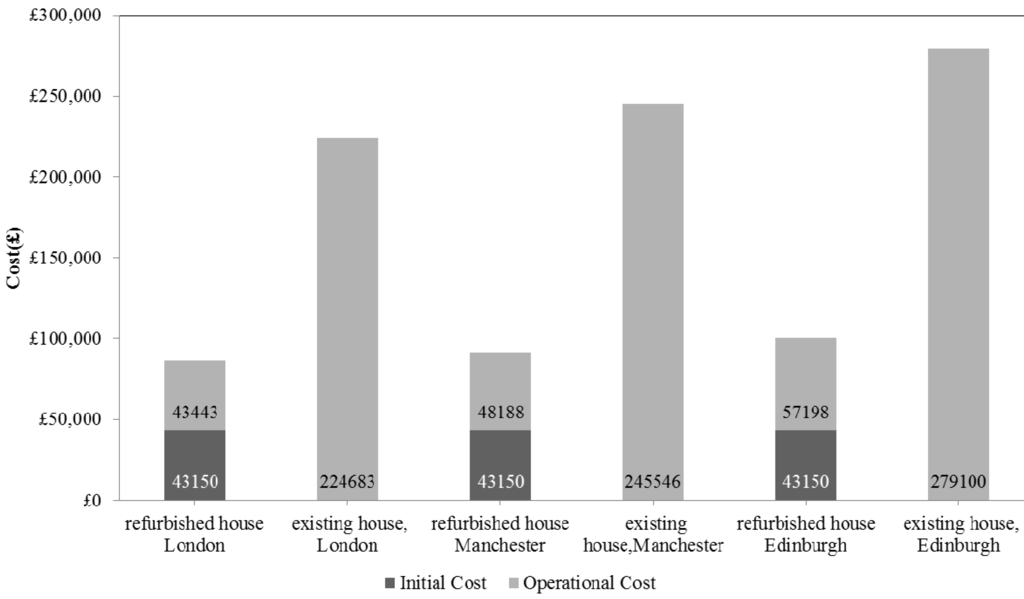

Figure 16. Whole Life Cycle Cost (WLCC) of the post and pre refurbished house for current and future weather data of London, Edinburgh and Manchester over 40 years for upward gas price trends.

Click here to enlarge figure

Figure 16. Whole Life Cycle Cost (WLCC) of the post and pre refurbished house for current and future weather data of London, Edinburgh and Manchester over 40 years for upward gas price trends.
Buildings 03 00220 g016 1024

3.9. Payback Period

3.9.1. London

Figure 17 showing the time needed to recover the initial costs of eco-refurbishment with constant, growing and decreasing energy prices. The figure of—£ 43,150 shows the initial cost of construction with the amount of corresponding discounted saving costs added every year. The cumulative cash flow of the refurbished house for various trends shows that the payback time from heating saved by improving wall and roof insulation, glazing and doors to near Passivhaus standards for a 19th century terraced house in London will be 27 years with upward prices and may never realistically pay back if prices fall or remain constant. Figure 18 shows the evolution of the energy costs over 40 years for upward gas prices. If the energy cost grows annually at 8.6% per year in the first 16 years and at 23% per year in the second 16 years then after 27 years, the refurbished house will have recovered the cost of the refurbishment.

Buildings 03 00220 g017 1024

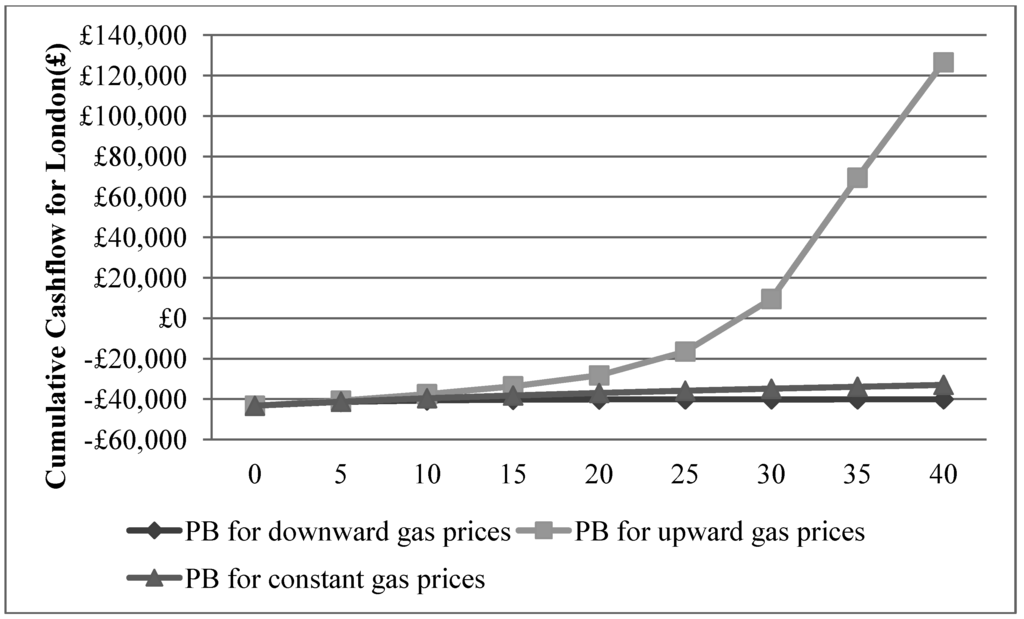

Figure 17. Cumulative cash flow of the refurbished house for current and future London weather data over 40 years for different gas price trends.

Click here to enlarge figure

Figure 17. Cumulative cash flow of the refurbished house for current and future London weather data over 40 years for different gas price trends.
Buildings 03 00220 g017 1024
Buildings 03 00220 g018 1024

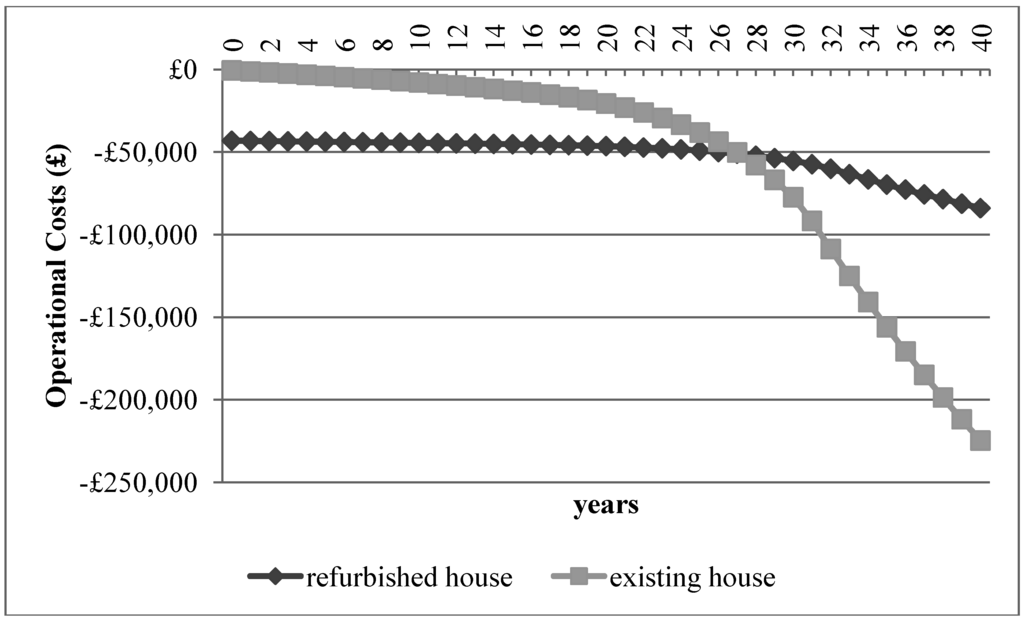

Figure 18. Comparison of the pre and post refurbished house’s cumulative discounted operational costs for London current and future weather data over 40 years imposing an upward gas price trend.

Click here to enlarge figure

Figure 18. Comparison of the pre and post refurbished house’s cumulative discounted operational costs for London current and future weather data over 40 years imposing an upward gas price trend.
Buildings 03 00220 g018 1024

3.9.2. Manchester

The same assumptions for gas prices were made to observe the cost benefit of refurbishment in Manchester. It is apparent from Figure 19 that the discounted payback period will be 29 years with upward prices and again, realistically, may never pay back if the prices fall or remain constant. In the case of an increase in energy prices, in year 29 the difference between the non-retrofitted and house will be £ 1,885.57 in favor of the refurbished house (see Figure 20).

Buildings 03 00220 g019 1024

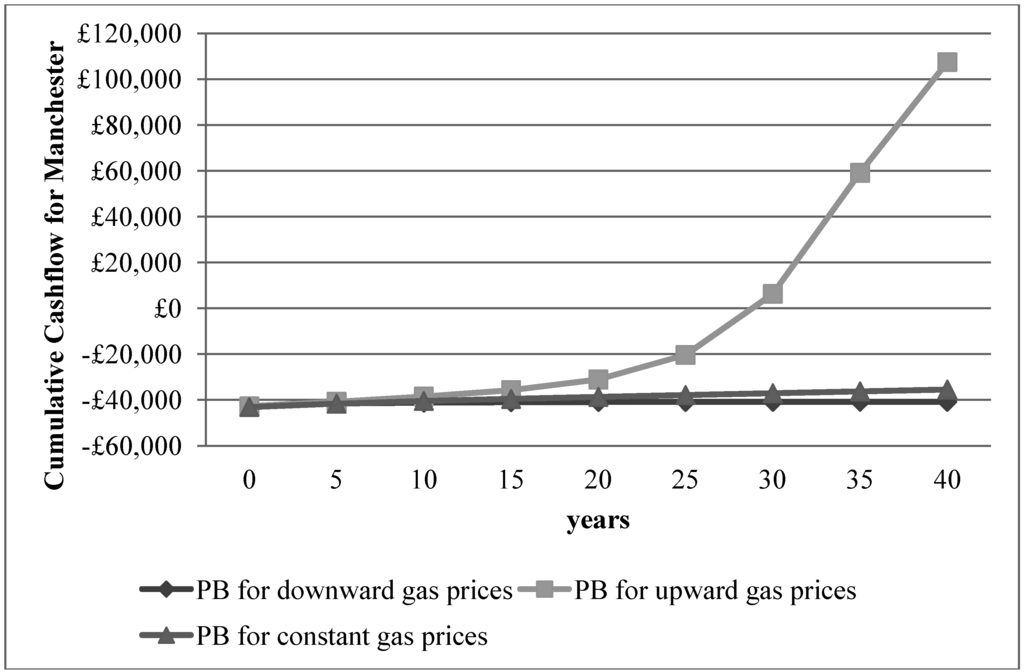

Figure 19. Cumulative cash flow of the refurbished house for current and future Manchester weather data over 40 years for different gas price trends.

Click here to enlarge figure

Figure 19. Cumulative cash flow of the refurbished house for current and future Manchester weather data over 40 years for different gas price trends.
Buildings 03 00220 g019 1024
Buildings 03 00220 g020 1024

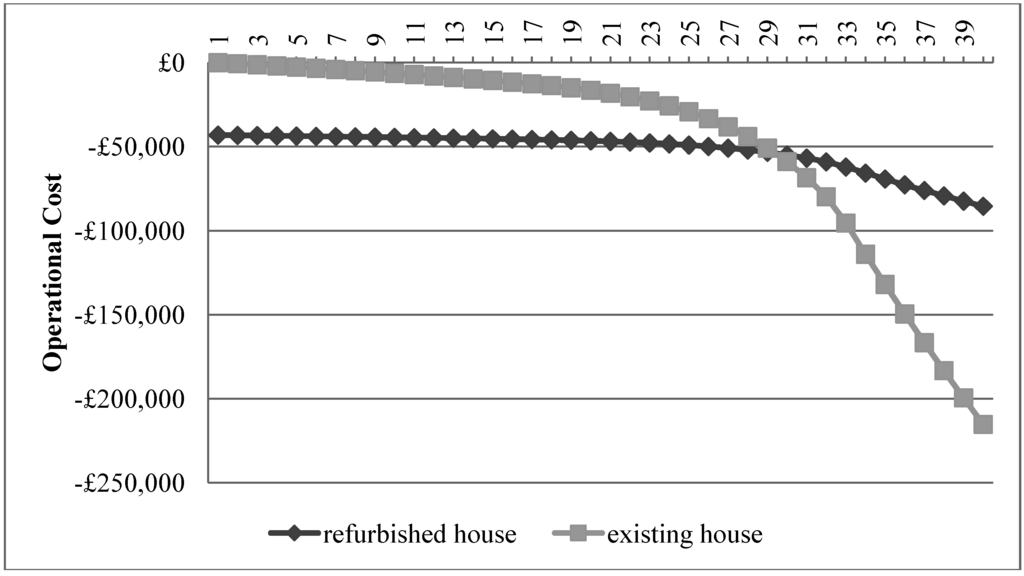

Figure 20. Comparison of the pre and post refurbished house’s cumulative discounted operational costs for Manchester current and future weather data over 40 years imposing an upward gas price trend.

Click here to enlarge figure

Figure 20. Comparison of the pre and post refurbished house’s cumulative discounted operational costs for Manchester current and future weather data over 40 years imposing an upward gas price trend.
Buildings 03 00220 g020 1024

3.9.3. Edinburgh

Comparison of net present value cash flow of the refurbished house for different gas price trends for Edinburgh weather data can be seen in Figure 21. Figure 22 shows that for this case the time needed to recover the construction cost of refurbishing to near Passivhaus standards is 28 years and, as a result, a positive impact on the annual budget will happen after 28 years.

Buildings 03 00220 g021 1024

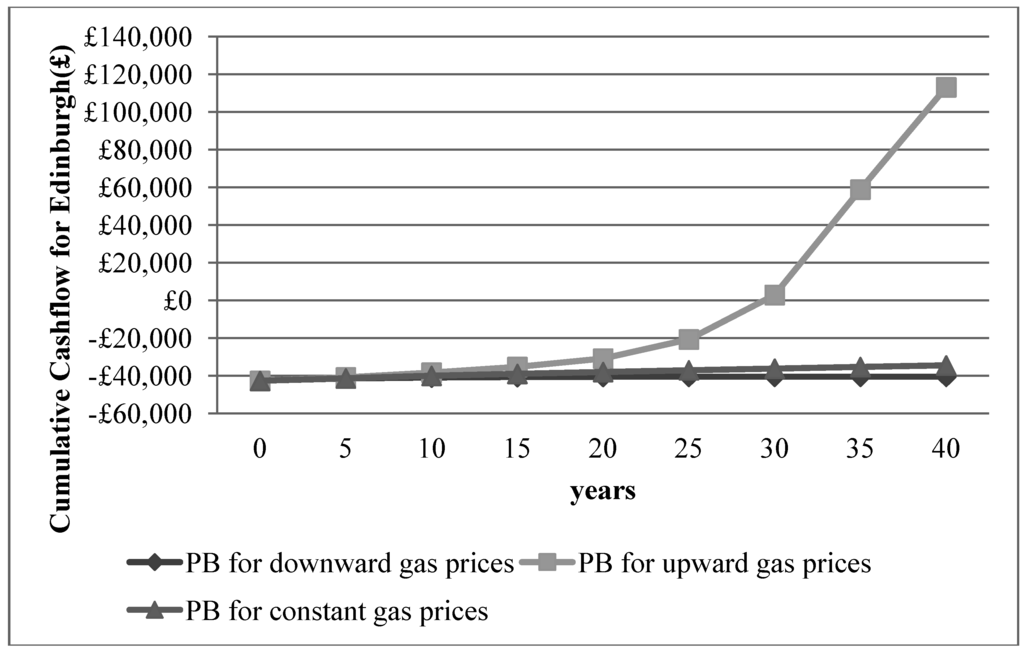

Figure 21. Cumulative cash flow of the refurbished house for current and future Edinburgh weather data over 40 years for different gas price trends.

Click here to enlarge figure

Figure 21. Cumulative cash flow of the refurbished house for current and future Edinburgh weather data over 40 years for different gas price trends.
Buildings 03 00220 g021 1024
Buildings 03 00220 g022 1024

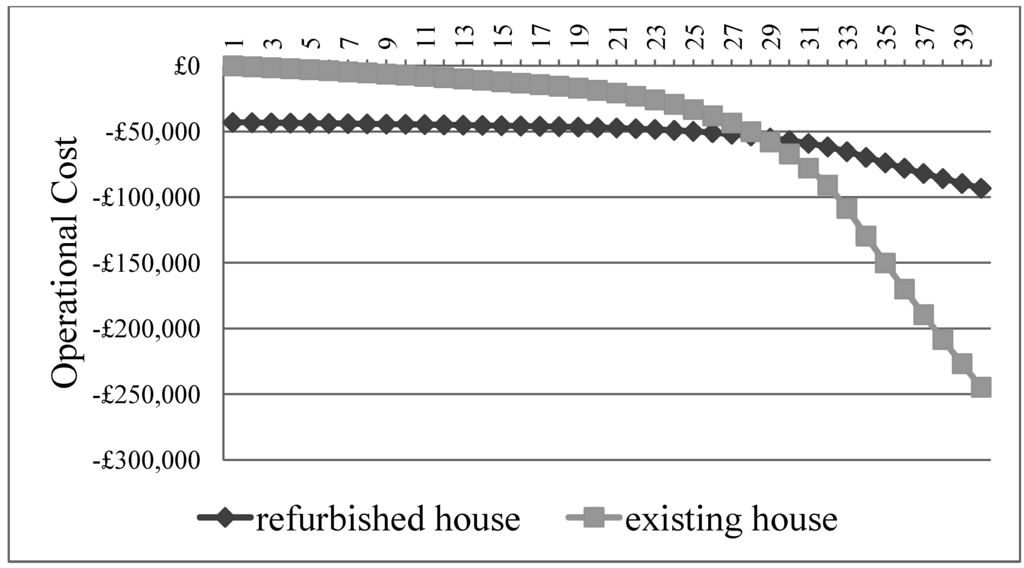

Figure 22. Comparison of the pre and post refurbished house’s cumulative discounted operational costs for Edinburgh current and future weather data over 40 years imposing an upward gas price trend.

Click here to enlarge figure

Figure 22. Comparison of the pre and post refurbished house’s cumulative discounted operational costs for Edinburgh current and future weather data over 40 years imposing an upward gas price trend.
Buildings 03 00220 g022 1024

4. Conclusions

This analysis of a 19th century terraced house refurbished to near Passivhaus standards has been divided into two stages: first, the energy consumption and CO2 emission were determined and, second, a cost analysis of the construction type (improving the glazing type, wall and loft insulation) was undertaken. In the first step, applying all strategies were studied to determine the possibility of reaching an 80% emissions reduction by eco-refurbishment. Results indicate that energy demands and CO2 emissions experience a sharp decline following eco-refurbishment. Comparing the cost of this type of refurbishment shows that the most efficient measures are also the most costly ones as well. Accordingly, based on the different future gas prices, energy costs were calculated for the house in different cities. From the second stage of this study, it can be concluded that the payback time and WLCC of this type of refurbishment is very dependent on the growth of the energy prices and that energy prices are unpredictable. The most favorable energy bill savings occurred by imposing the rising prices - this gave a payback time of less than 30 years for all cities.

Acknowledgments

This paper builds on work carried out as part of TSB’s Retrofit for the Future programme. Martin Gladwin, project leader at the Plus Dane Group for the terraced house refurbishment, kindly shared his experiences and monitored data, and the authors gratefully acknowledge his support,

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Building a Greener Britain. Available online: http://www.fmb.org.uk/news/campaigns/building-a-greener-britain/ (accessed on 11 November 2012).
  2. Department of Energy and Climate Change. Available online: http://www.decc.gov.uk./decc/What%20we%20do/A%20low%20carbon%20UK/1358-the-carbon-plan.pdf (accessed on 11 November 2012).
  3. PASSIVHAUS. Available online: http://www.passivhaus.org.uk/standard.jsp?id=122 (accessed on 31 October 2012).
  4. AECB, Carbon Lite. Available online: http://www.carbonlite.org.uk/carbonlite/passivhaus.php (accessed on 31 October 2012).
  5. Trafford Eco House. Available online: http://traffordecohouse.wordpress.com/2009/01/03/a-passivhaus-passive-house-renovation/ (accessed on 19 September 2012).
  6. Technology Strategy Board. Available online: http://www.innovateuk.org/ourstrategy/innovationplatforms/lowimpactbuilding/retrofit-.ashx (accessed on 11 November 2012).
  7. Plus Dane Group. Available online: http://www.plusgroupltd.org.uk/article.asp?id=389 (accessed on 25 September 2012).
  8. Bonfield, P. Rising to the refurbishment challenge. Green Build, 4 July 2012. Available online: http://www.environmentmagazine.co.uk/features/green-build/760-rising-to-the-refurbishment-challenge (accessed on 25 September 2012). [Google Scholar]
  9. Appendix S: Reduced Data SAP for existing dwellings. Available online: http://www.bre.co.uk/filelibrary/accreditation/scheme_standards/SAP_2009_9-91_Appendix_S_January_2012.pdf (accessed on 18 December 2012).
  10. Low Energy Building Database. Available online: http://retrofitforthefuture.org/projectPDF.php?id=77 (accessed on 18 December 2012).
  11. IPCC (Intergovernmental Panel on Climate Change). The Physical Science Basis: Contribution of Working Group I 2007; Cambridge University Press: Cambridge, UK, 2007.
  12. University of Southampton, Sustainable Energy Research Group. Available online: http://www.serg.soton.ac.uk/ccweathergen/ (accessed on 19 September 2012).
  13. Eames, M.; Kershaw, T.; Coley, D. On the creation of future probabilistic design weather years from UKCP09. Build. Serv. Eng. 2010, 32, 127–142. [Google Scholar] [CrossRef]
  14. ISO (International Organization for Standardization). Task Group 4: Life Cycle Costs in Construction. LCC as a contribution to sustainable construction—Final; David Langdon Management Consulting: London, UK, 2003. Available online: www.ceetb.eu/docs/Reports/LCC FINAL REPORT-2.pdf (accessed on 15 February 2013).
  15. Sodagar, B.; Rai, D.; Murphy, J.; Altan, H. The role of eco-refurbishment in sustainable construction and built environment. In Proceedings of the 3rd CIB International Conference on Smart and Sustainable Built Environments, Delft, The Netherlands, 15–19 June 2009.
  16. Bolton, P. Energy Price Rises and Their Impact on Demand—Commons Library Standard Note. Available online: http://www.parliament.uk/briefing-papers/SN04850 (accessed on 19 September 2012).
  17. Friends of the Earth. Available online: http://www.foe.co.uk/resource/briefings/gas_price_briefing.pdf (accessed on 19 September 2012).
  18. Ellingham, I.; Fawcett, W. The option to refurbish. In New Generation of Whole-Life Costing: Property and Construction Decision-Making under Uncertainty; Taylor & Francis: New York, NY, USA, 2006; pp. 140–141. [Google Scholar]
  19. DECC (Department of Energy and Climate Change). Available online: http://www.decc.gov.uk/en/content/cms/statistics/energy_stats/prices/prices.aspx (accessed on 19 September 2012).
  20. Hanton, A. Small Number with Surprisingly Large Consequences—Why the Government Choice of Discount Rate Should Interest Everyone. Available online: http://www.storage.co.uk/downloads/a-small-number.pdf (accessed on 10 Aug 2012).
  21. Green Book. Available online: http://www.hm-treasury.gov.uk/d/green_book_complete.pdf (accessed on 19 September 2012).
Buildings EISSN 2075-5309 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
