Finite Element Analysis on a Newly-Modified Method for the Taylor Impact Test to Measure the Stress-Strain Curve by the Only Single Test Using Pure Aluminum
Abstract
:1. Introduction
2. Experimental Principle

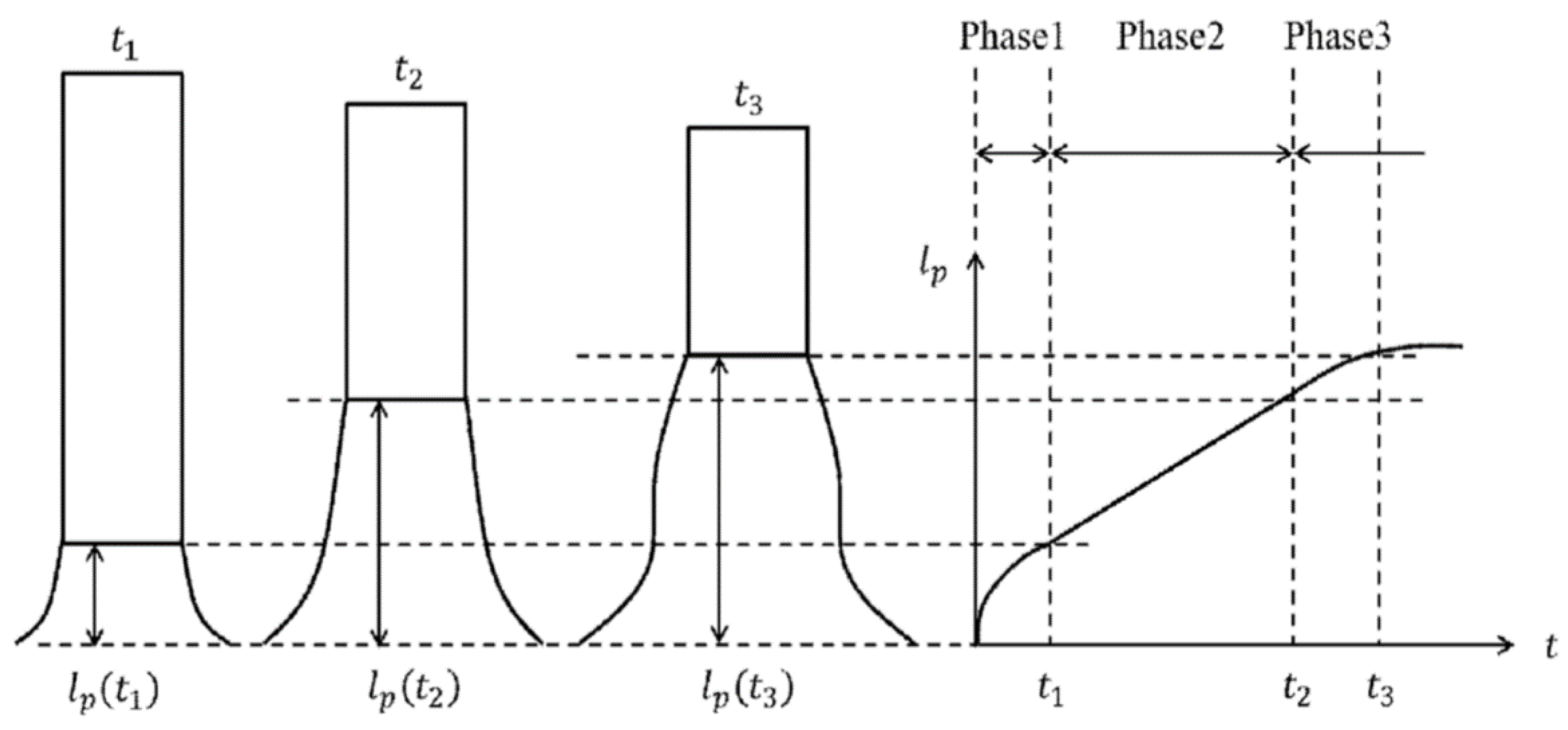

2.1. A Proposition of a Modified Taylor Impact Test
2.2. The Hardening Law to Nonlinear Strain Rate Sensitivity for the Finite Element Simulation

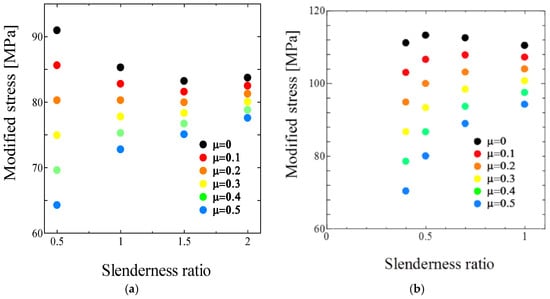

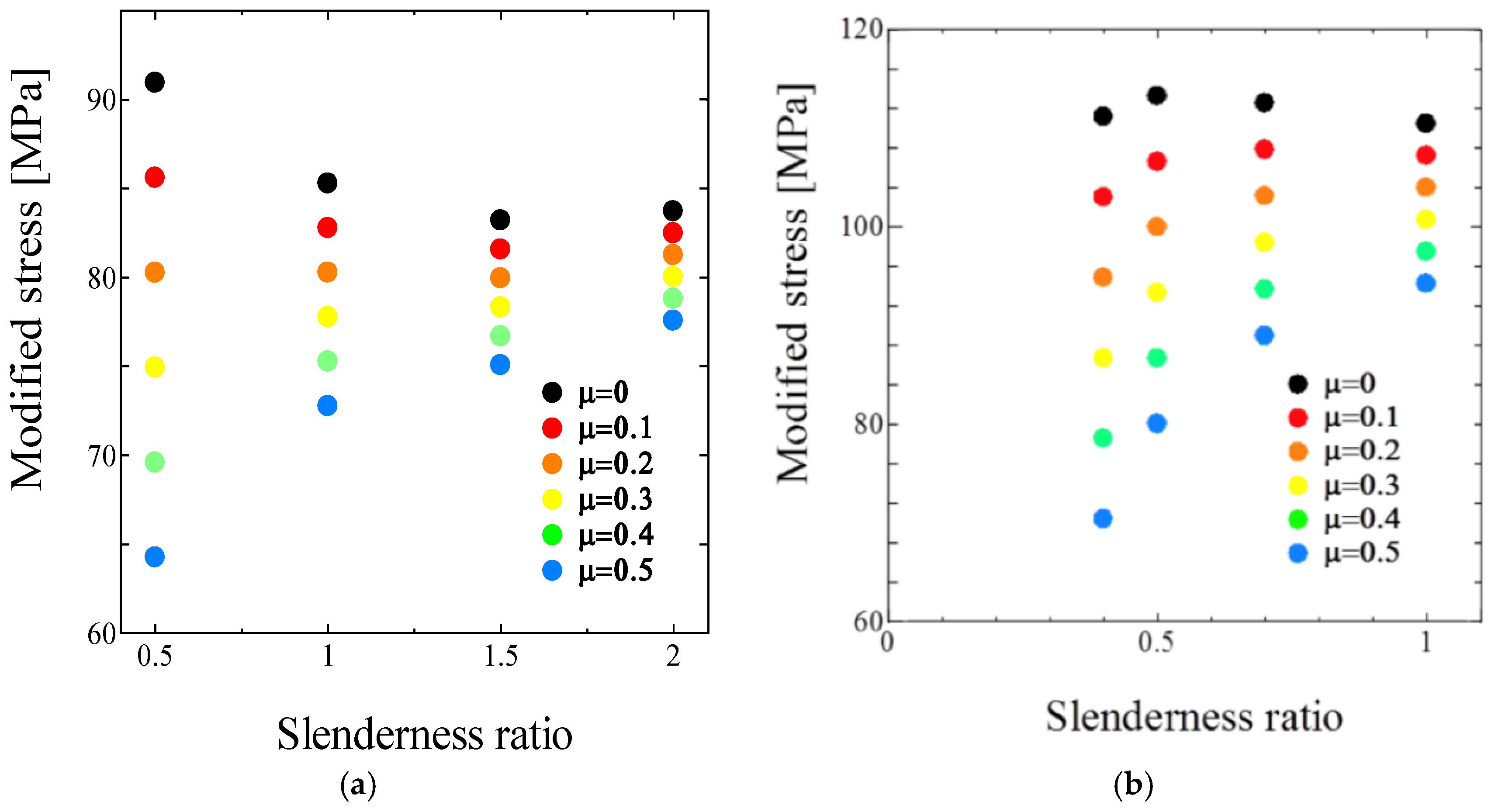

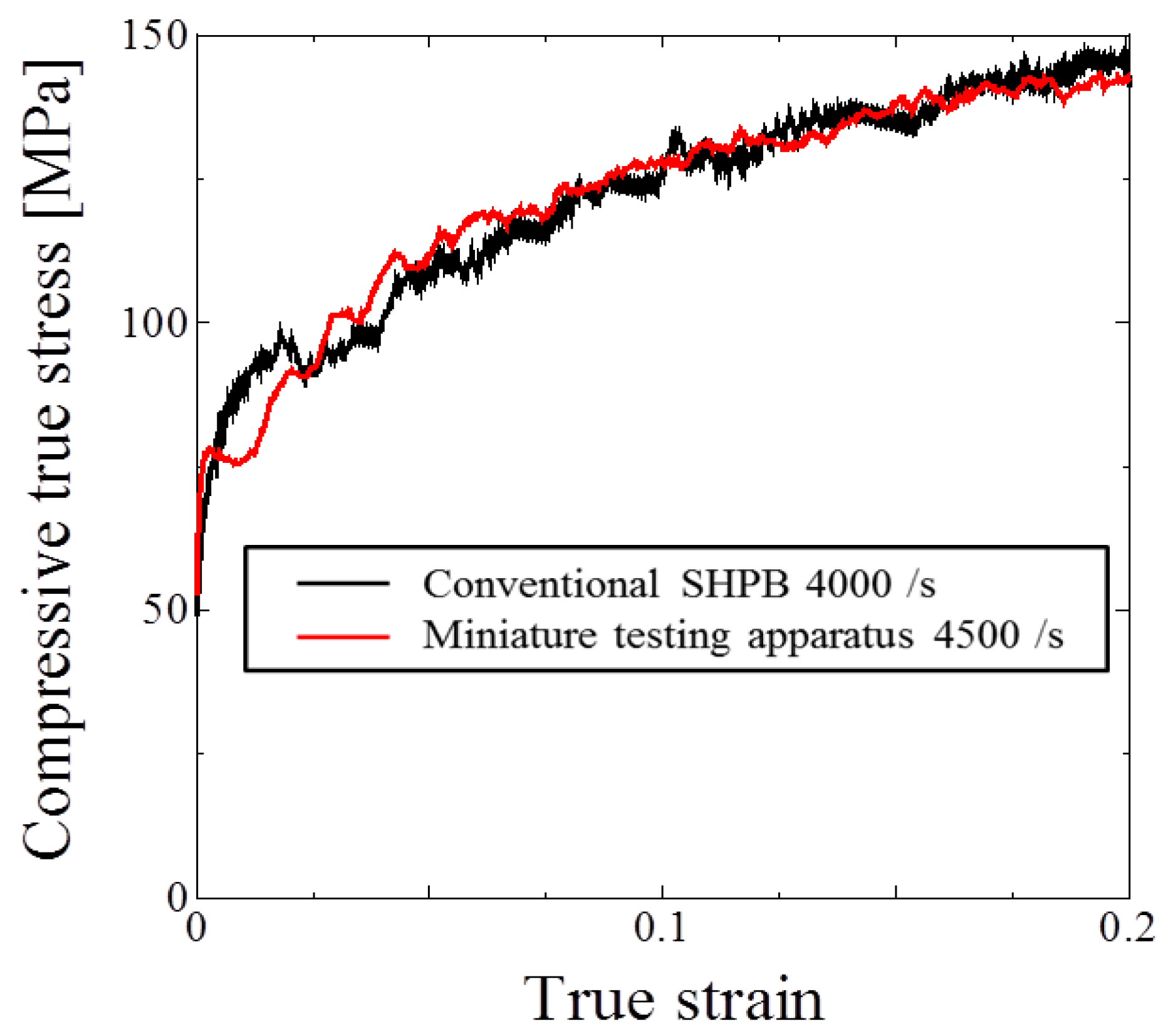

2.3. A Removing Method of the Frictional Effect in Impact Compressive Tests Based on the SHPB Technique
3. Experimental Methods
3.1. Material and Specimen

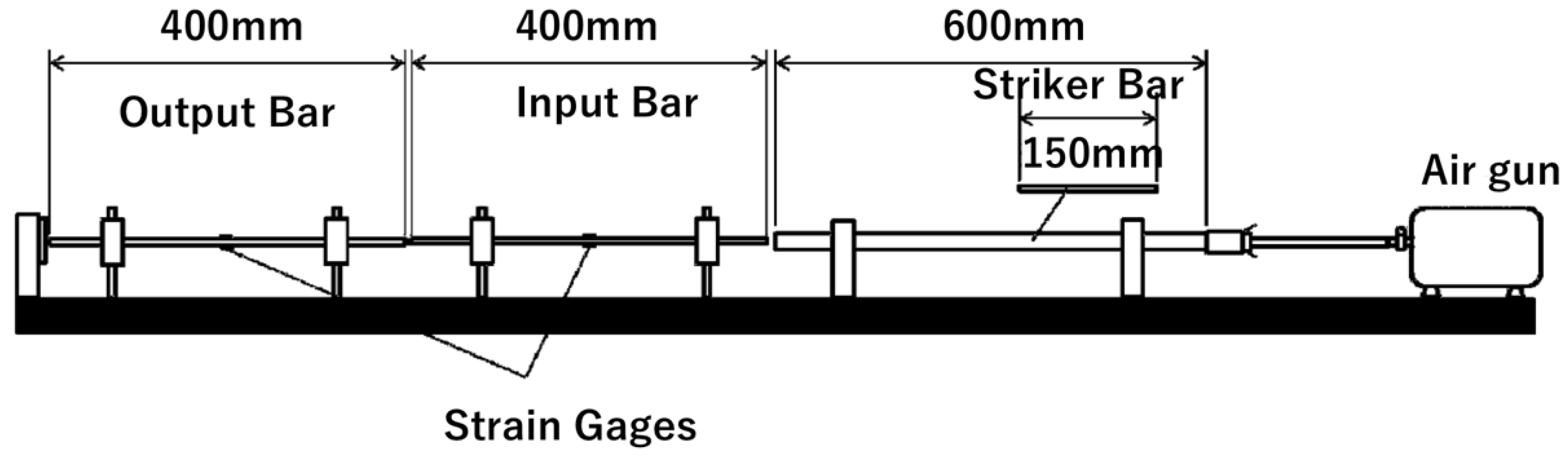

3.2. Quasi-Static and Impact Compressive Tests at Different Strain Rates and Temperatures

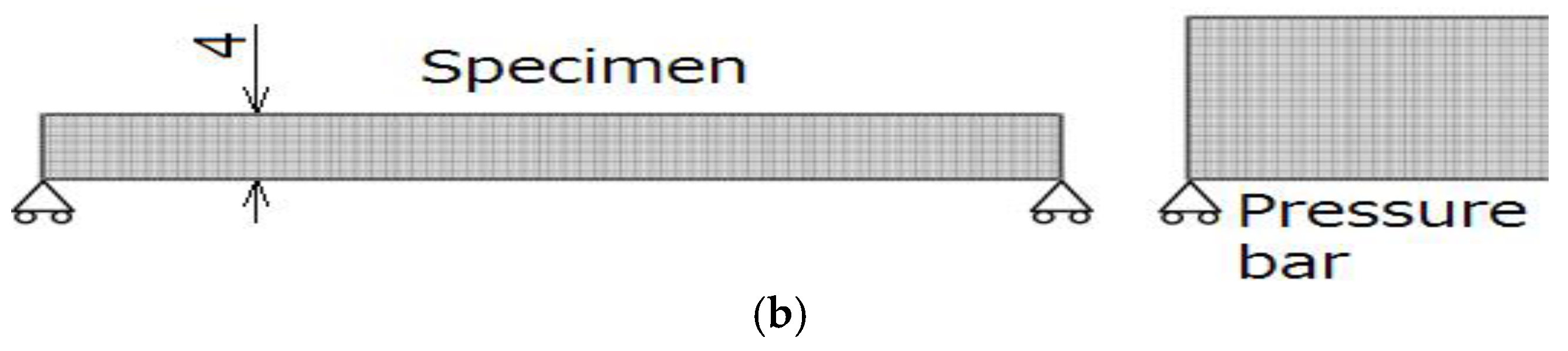

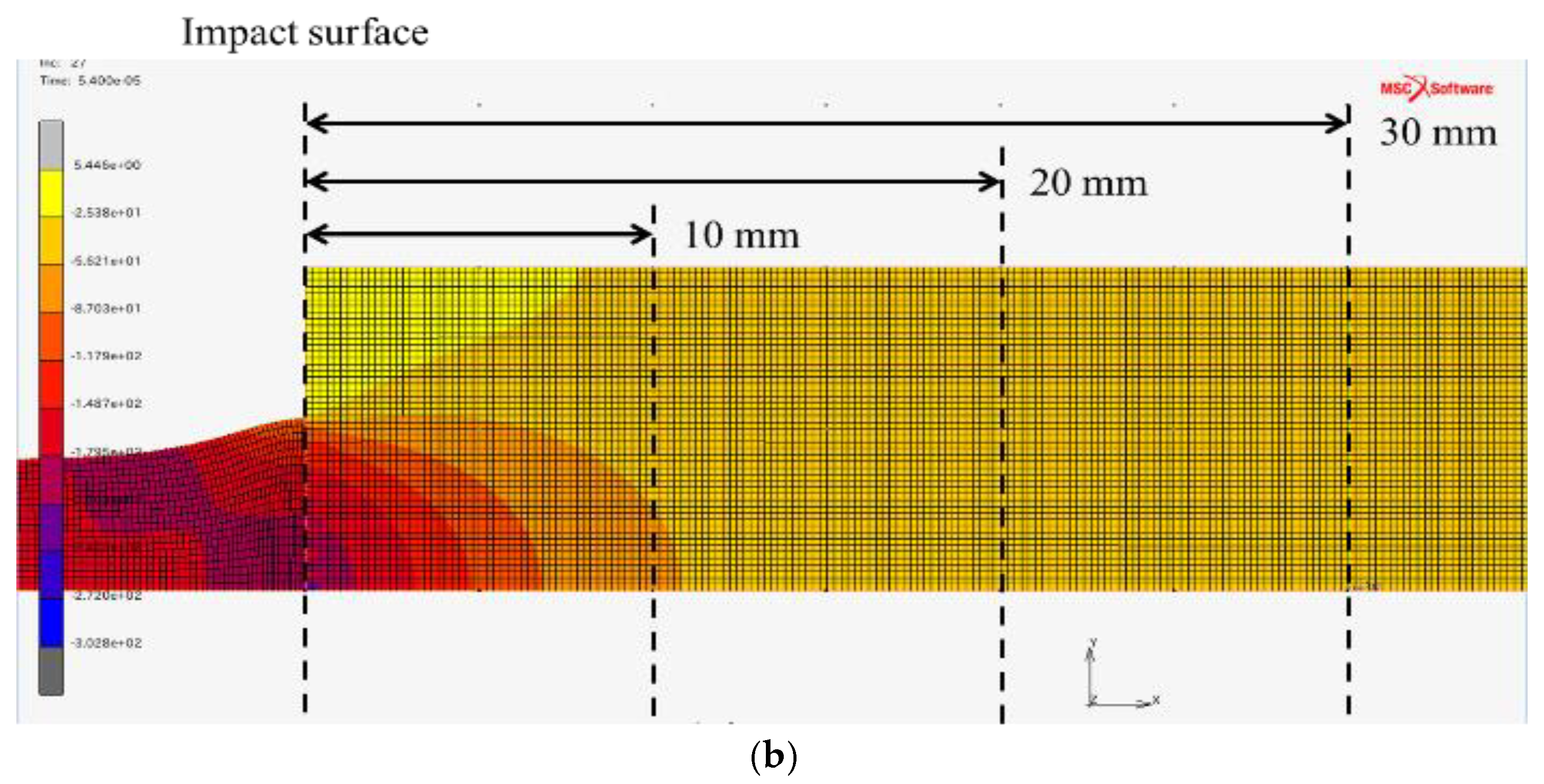

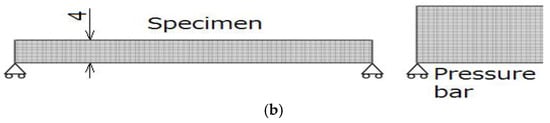

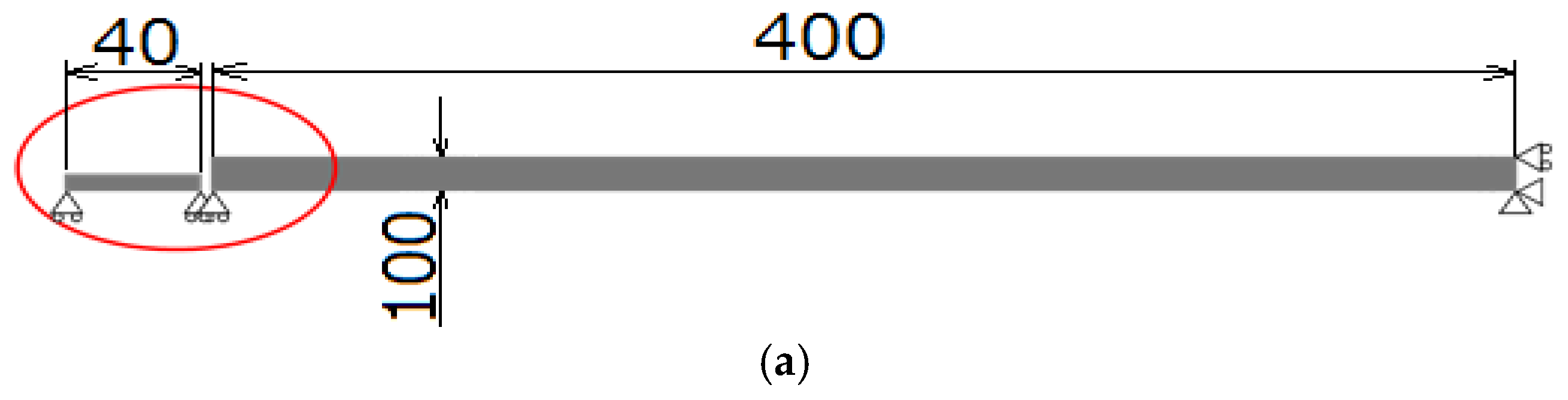

4. Finite Element Simulation of the Modified Taylor Impact Test
5. Results and Discussions

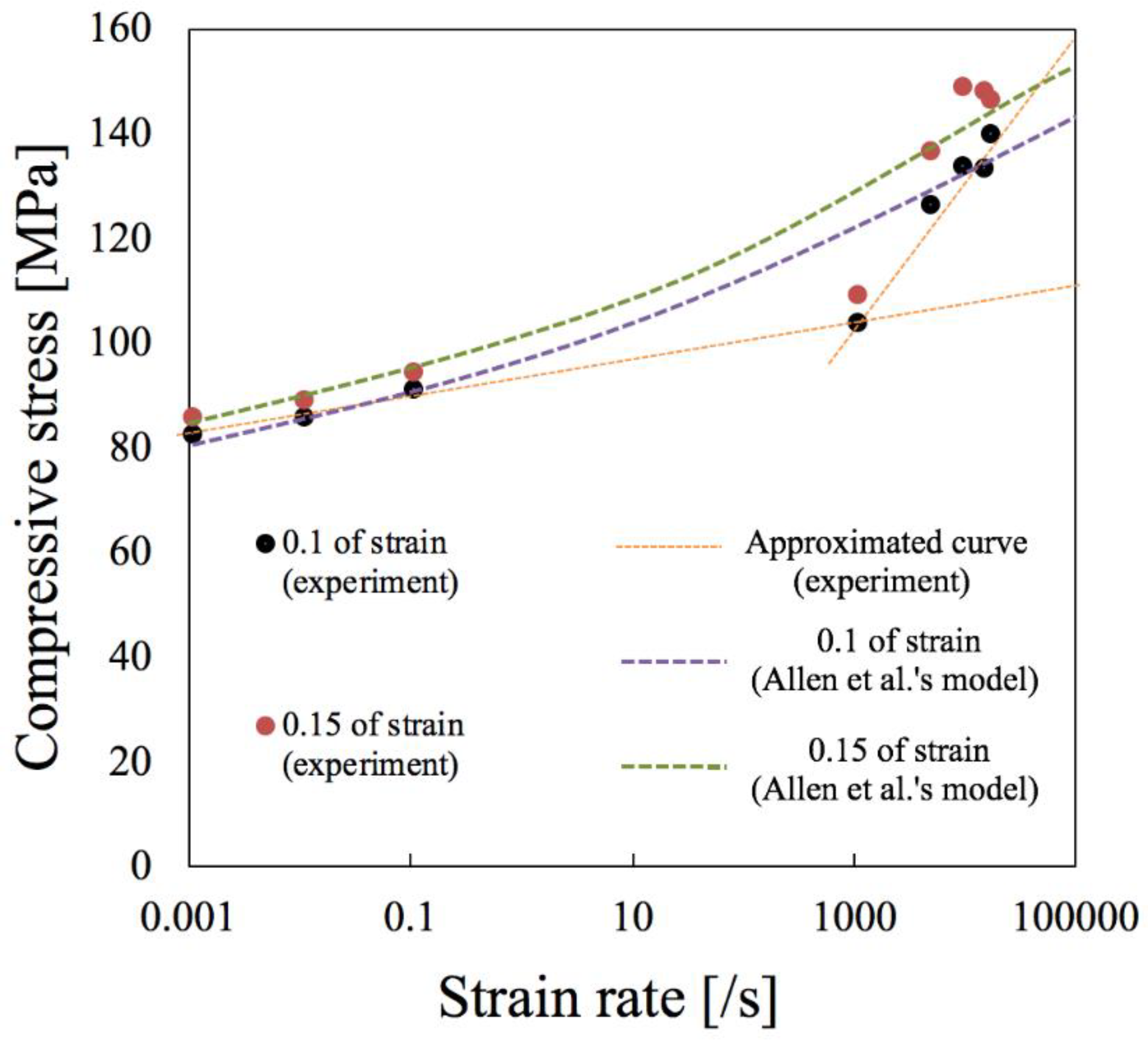

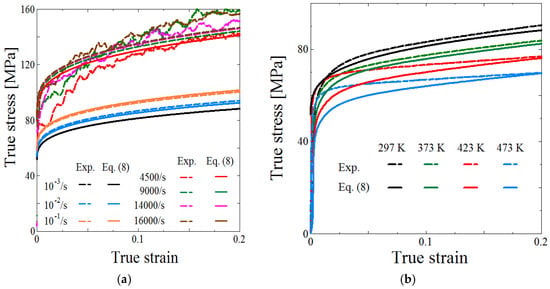

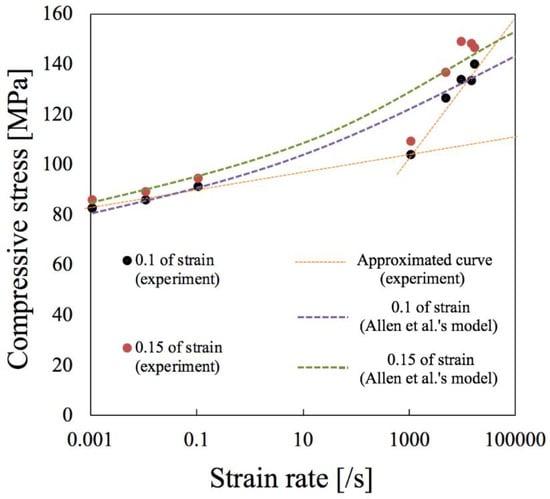

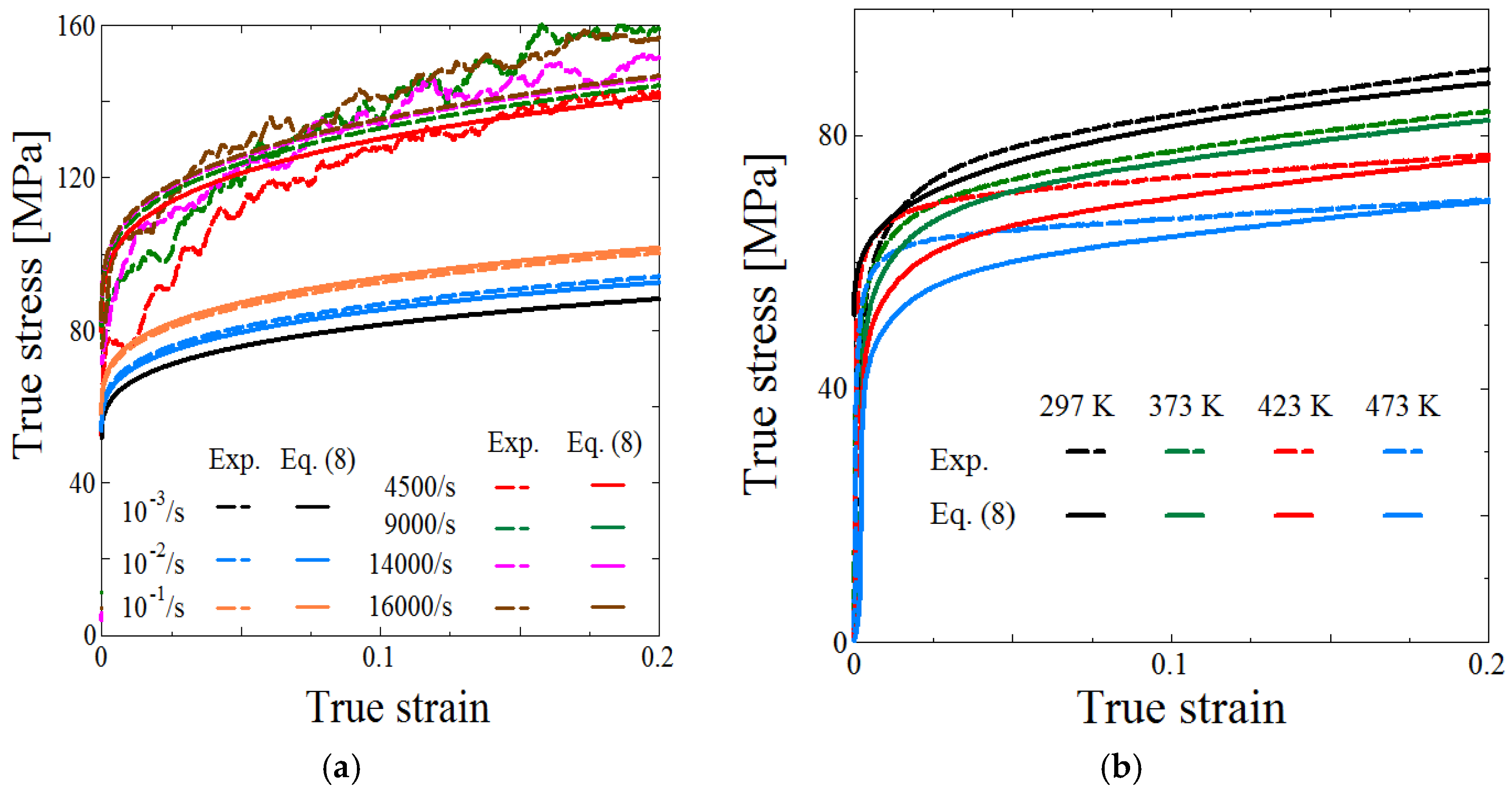

5.1. Compressive Test from Quasi-Static to Impact Range

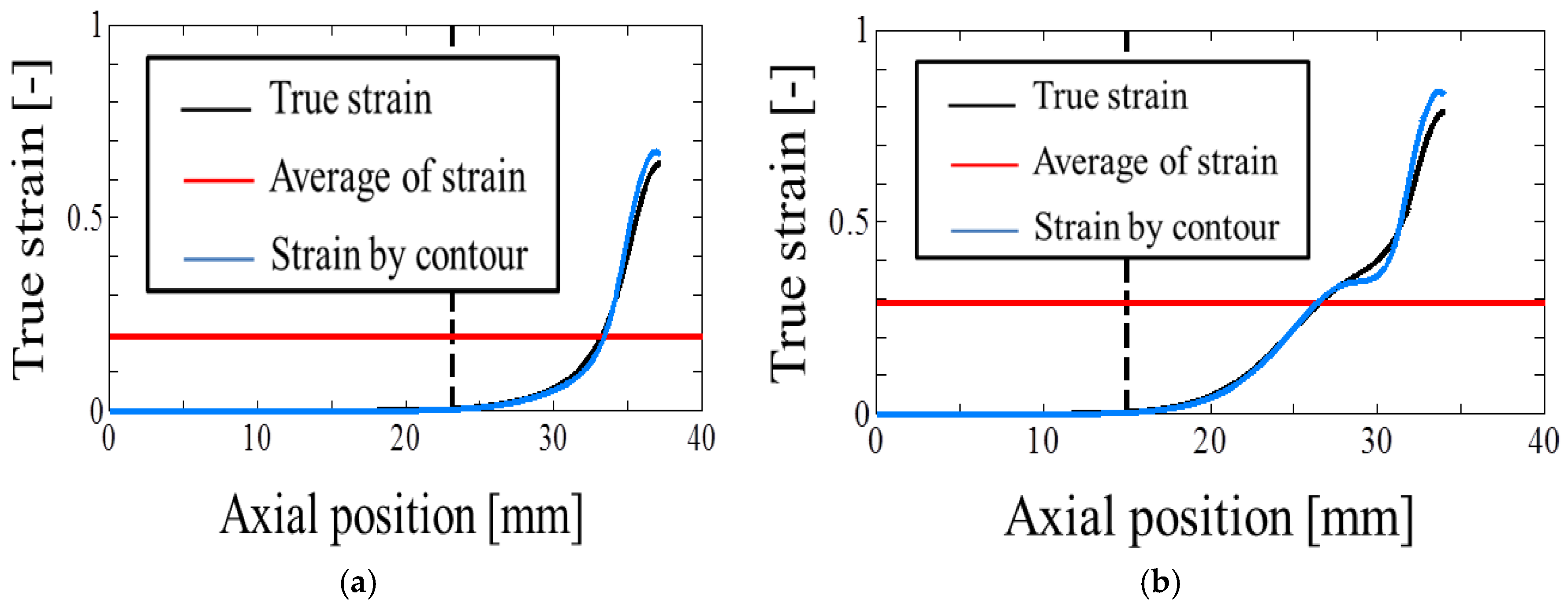

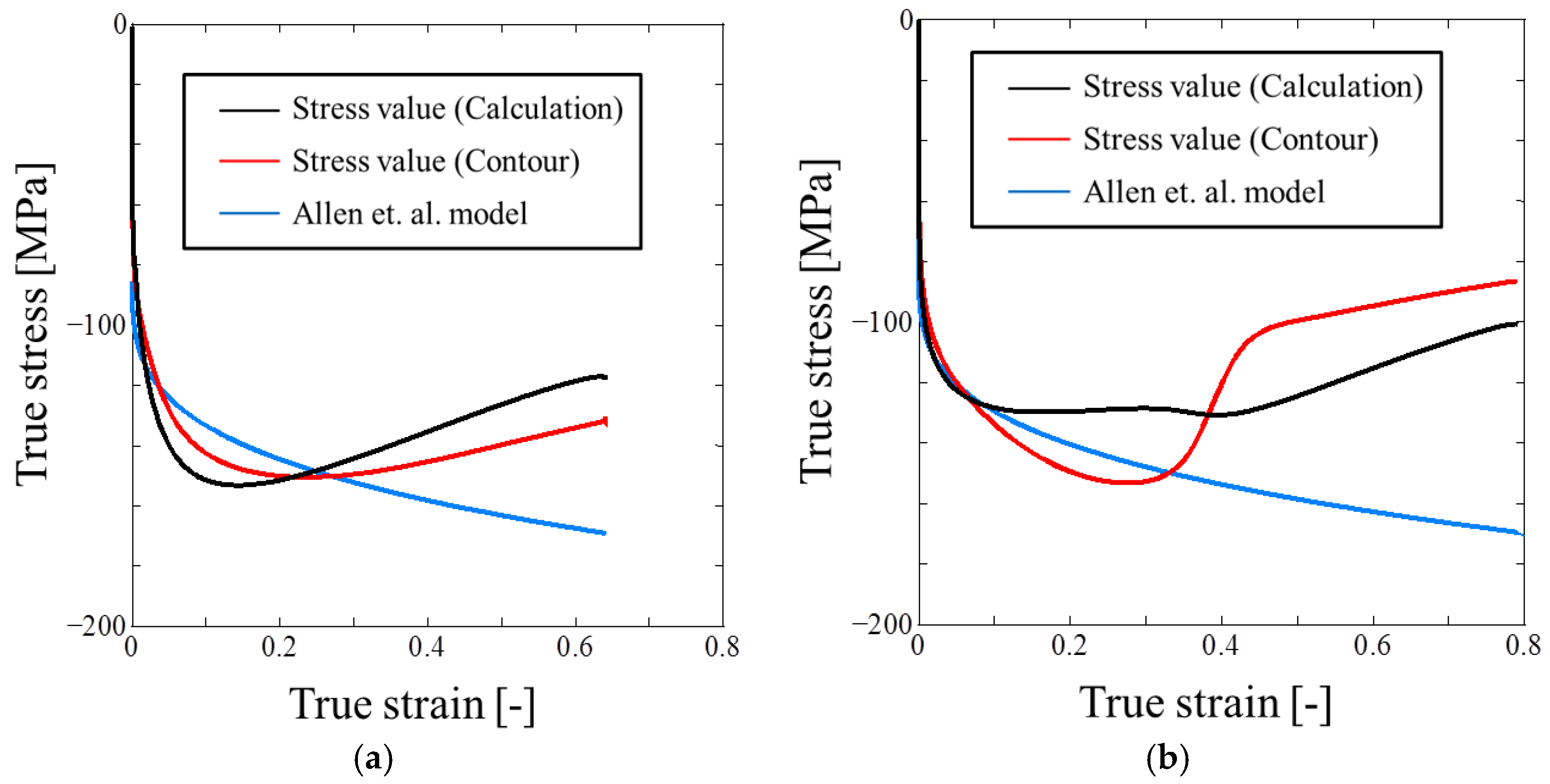

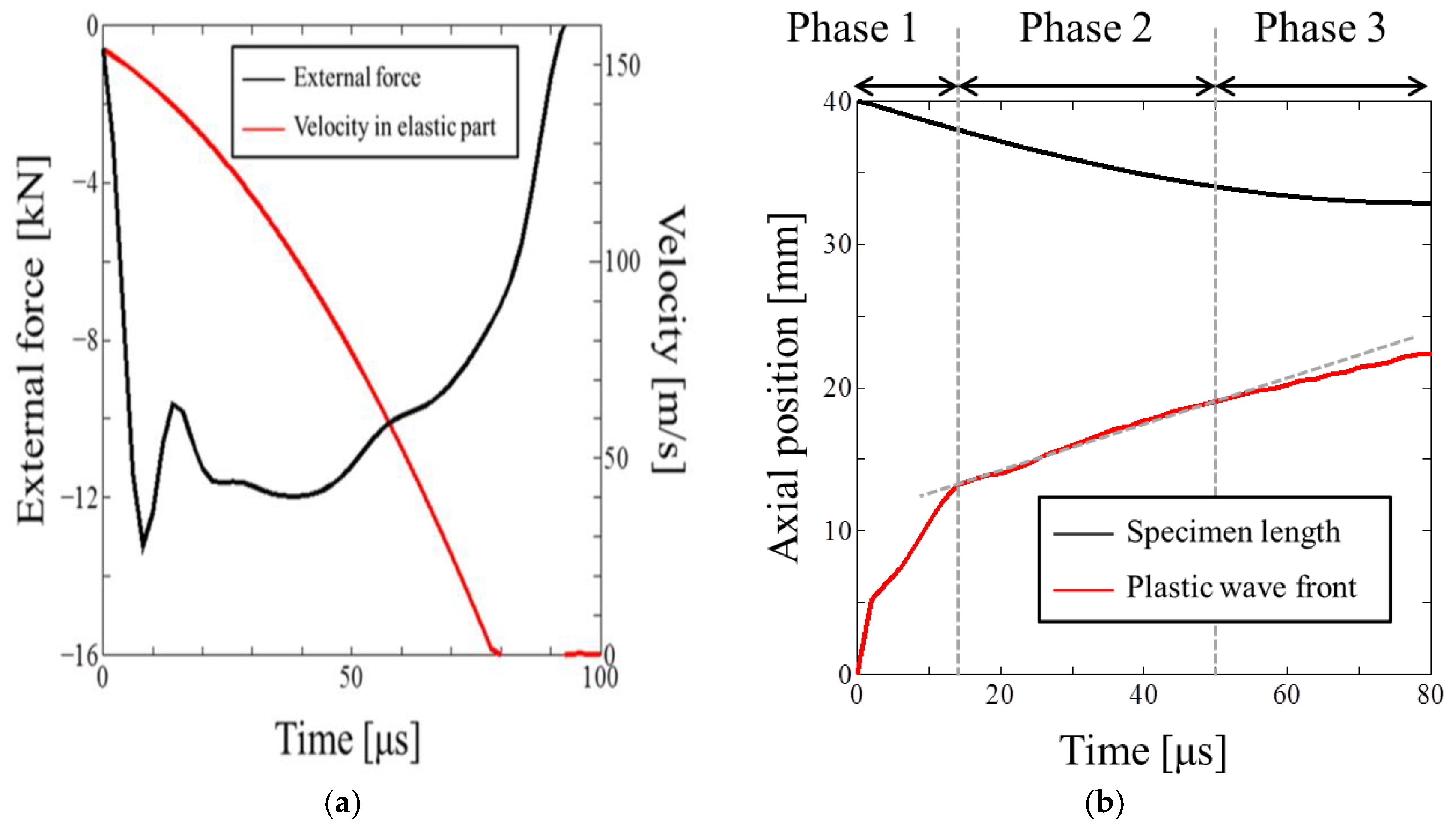

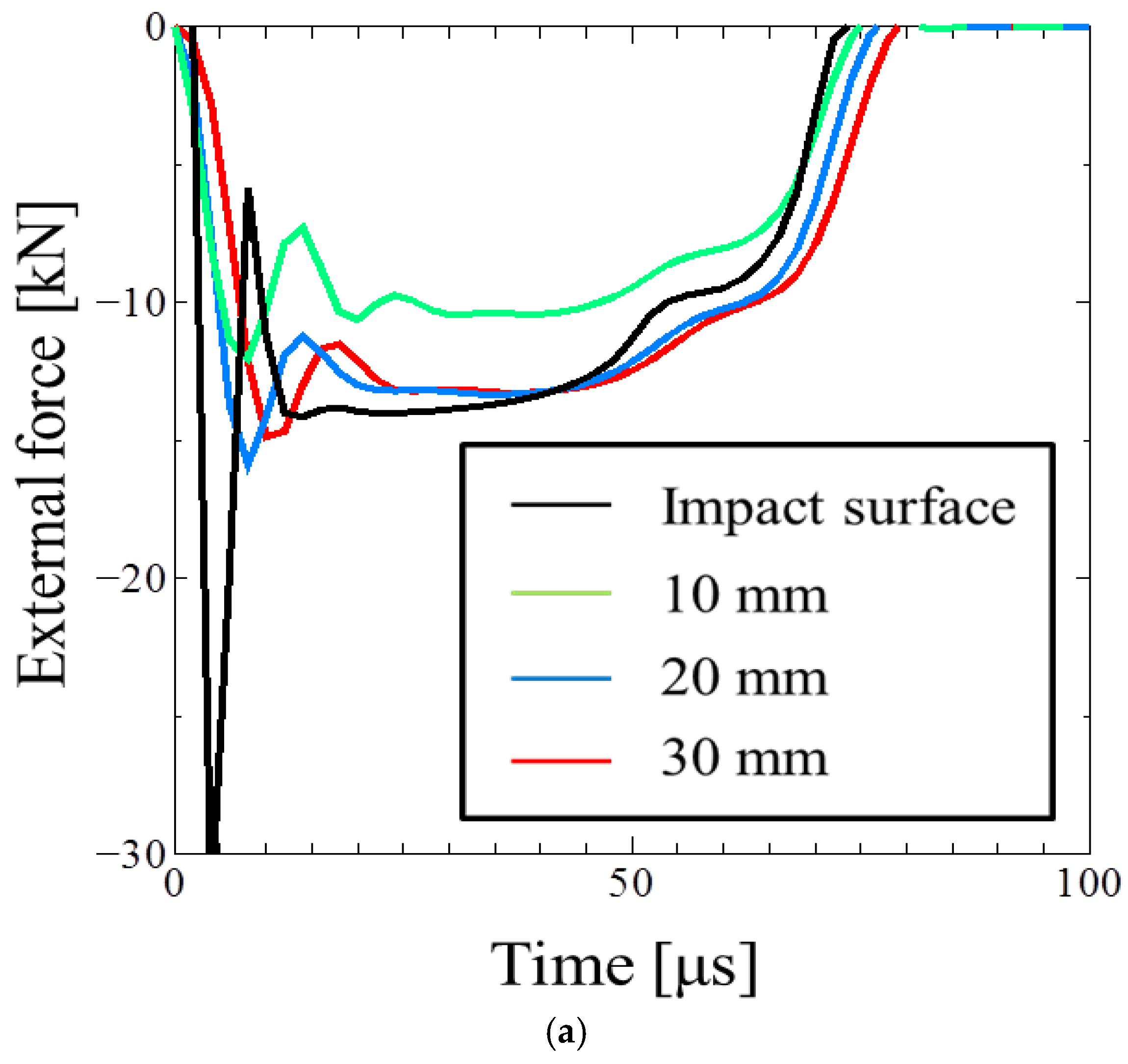

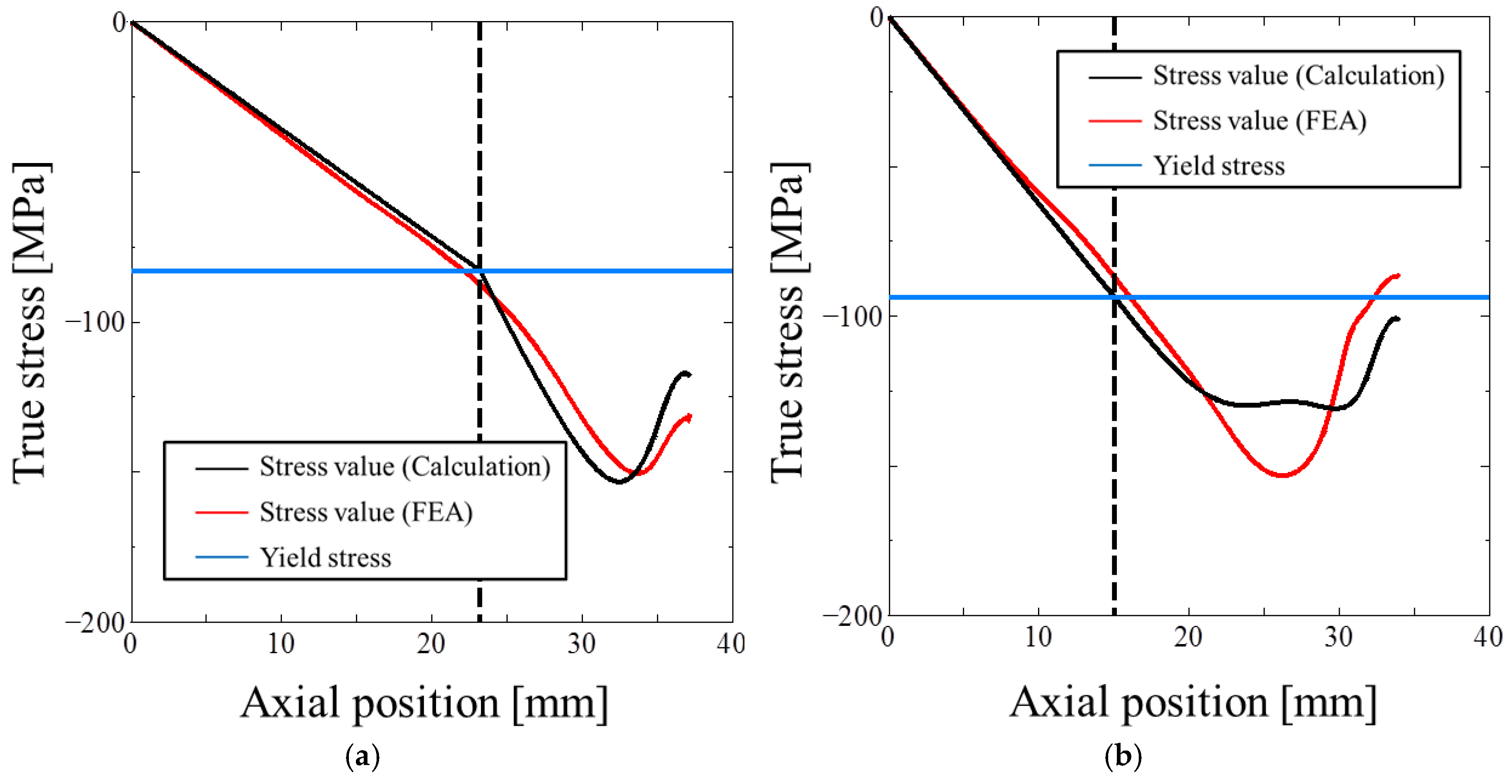

5.2. Computation of the Modified Taylor Impact Test by FEM
6. Concluding Remarks
- It is possible to obtain a valid stress-strain curve at only one single trial of the Taylor impact test.

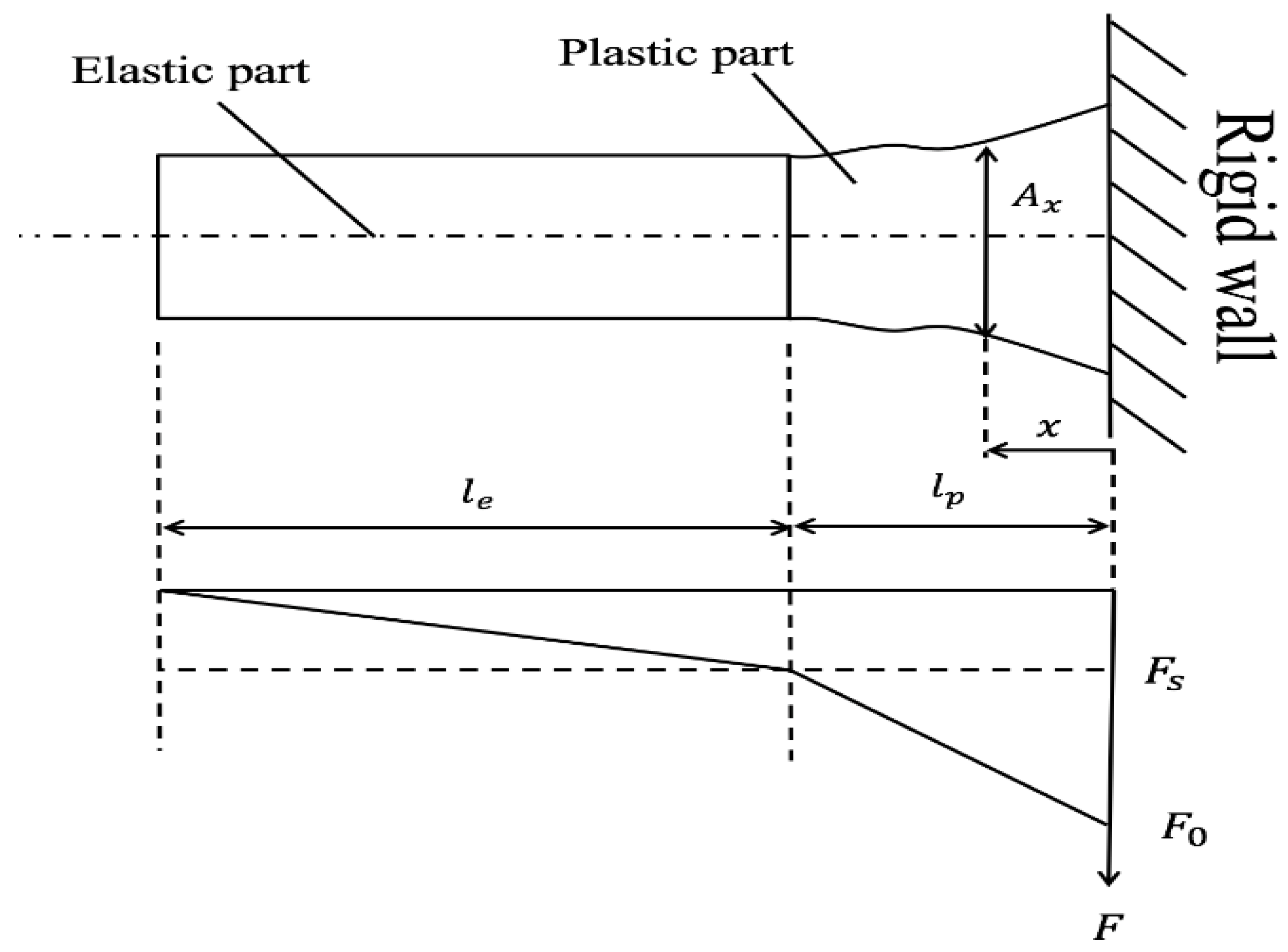

- In the Phase 2, the distribution of the axial internal force can be approximated bi-linearly with respect to the axial position of the specimen.
- It can be observed that the axial stress decreases mainly in the region of higher strain.
- The choice of elapsed time during Phase 2 is quite important, in order to obtain the correct stress-strain curve.
