Metals 2016, 6(3), 57; doi:10.3390/met6030057

Upgrading of High-Aluminum Hematite-Limonite Ore by High Temperature Reduction-Wet Magnetic Separation Process

School of Mineral Processing and Bioengineering, Central South University, Changsha 410083, China
*
Author to whom correspondence should be addressed.
Academic Editor: Hugo F. Lopez
Received: 8 January 2016 / Revised: 22 February 2016 / Accepted: 3 March 2016 / Published: 8 March 2016
(This article belongs to the Special Issue Recycling of Metals)
View Full-Text   |   Download PDF [4040 KB, uploaded 8 March 2016]   |

Abstract

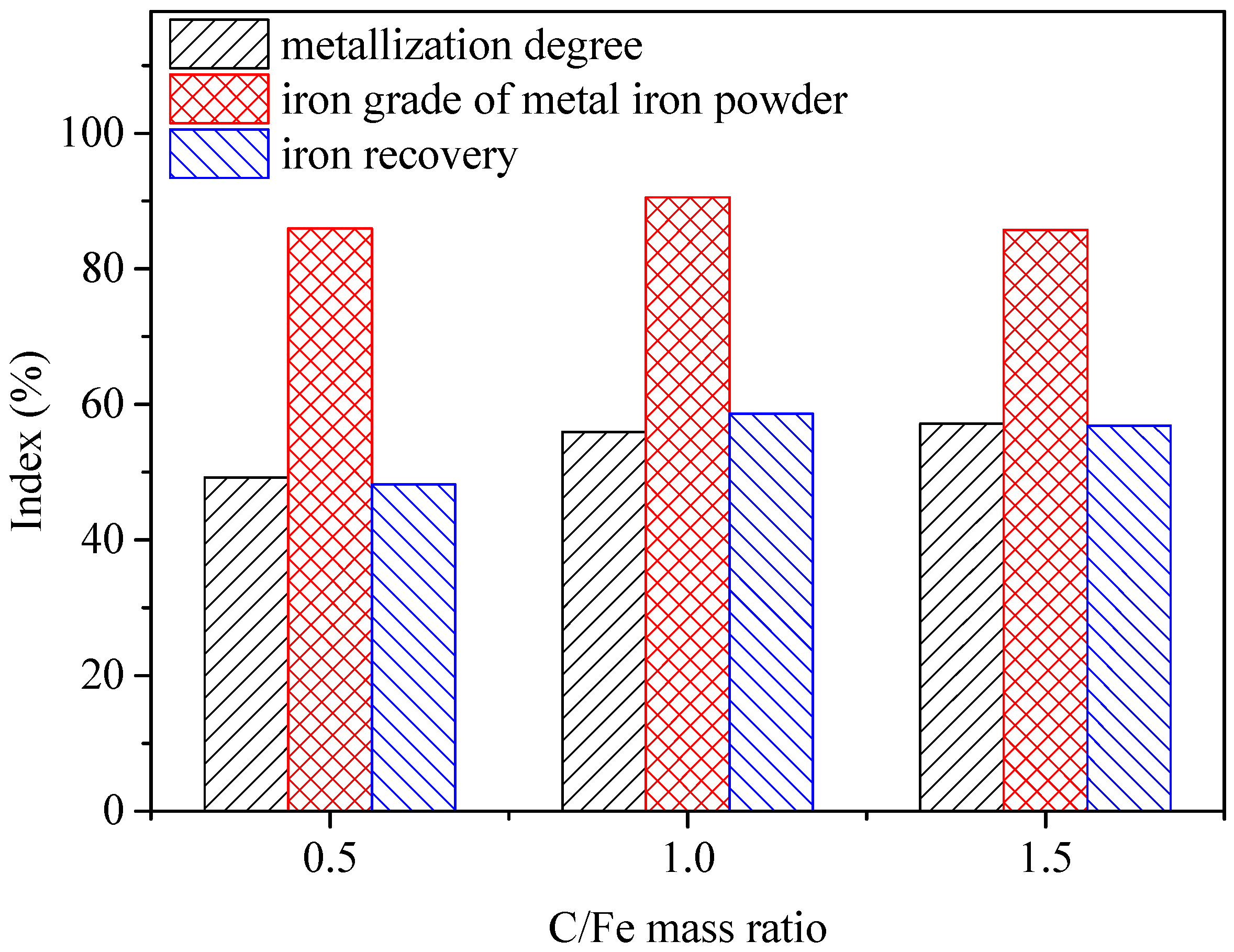

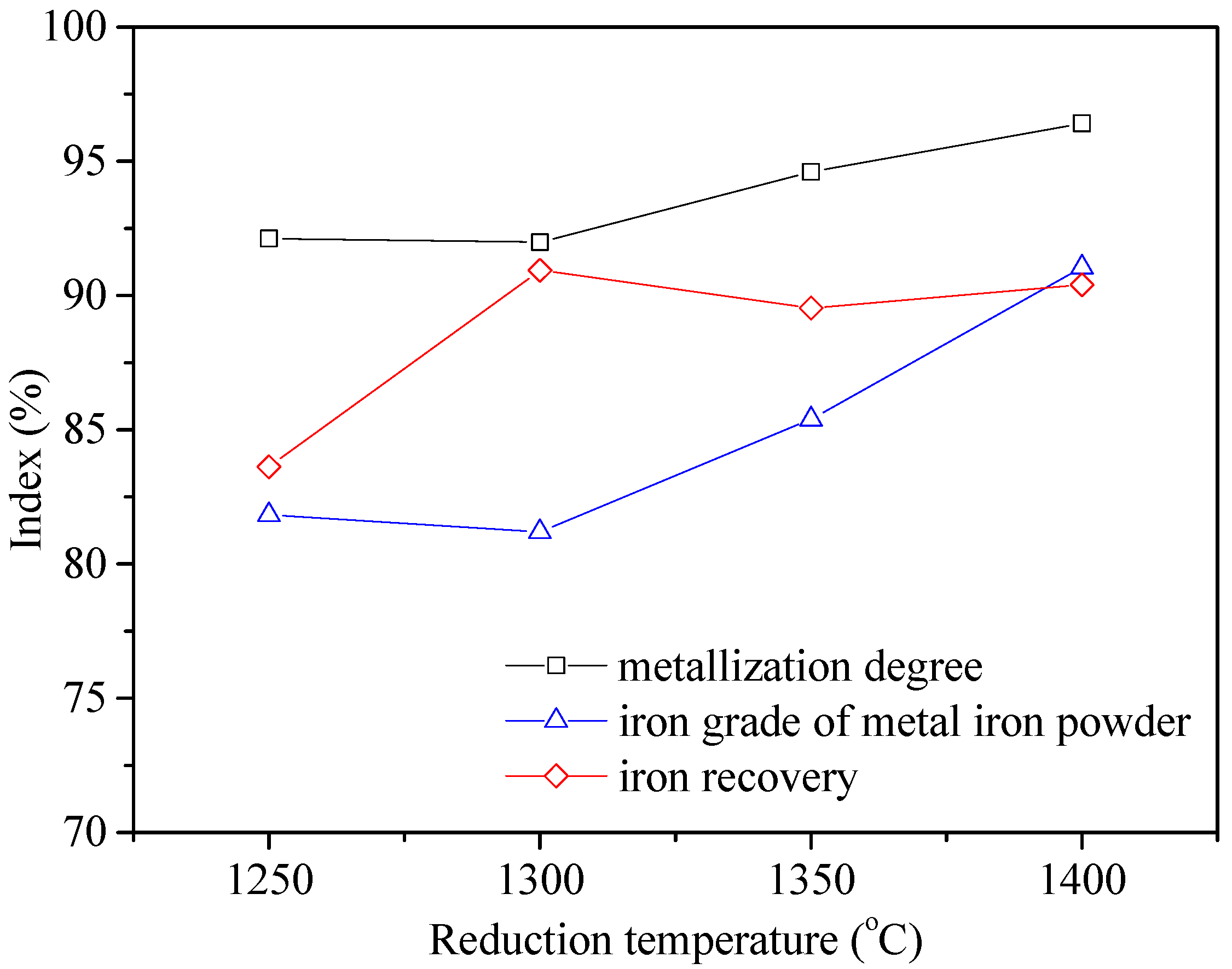

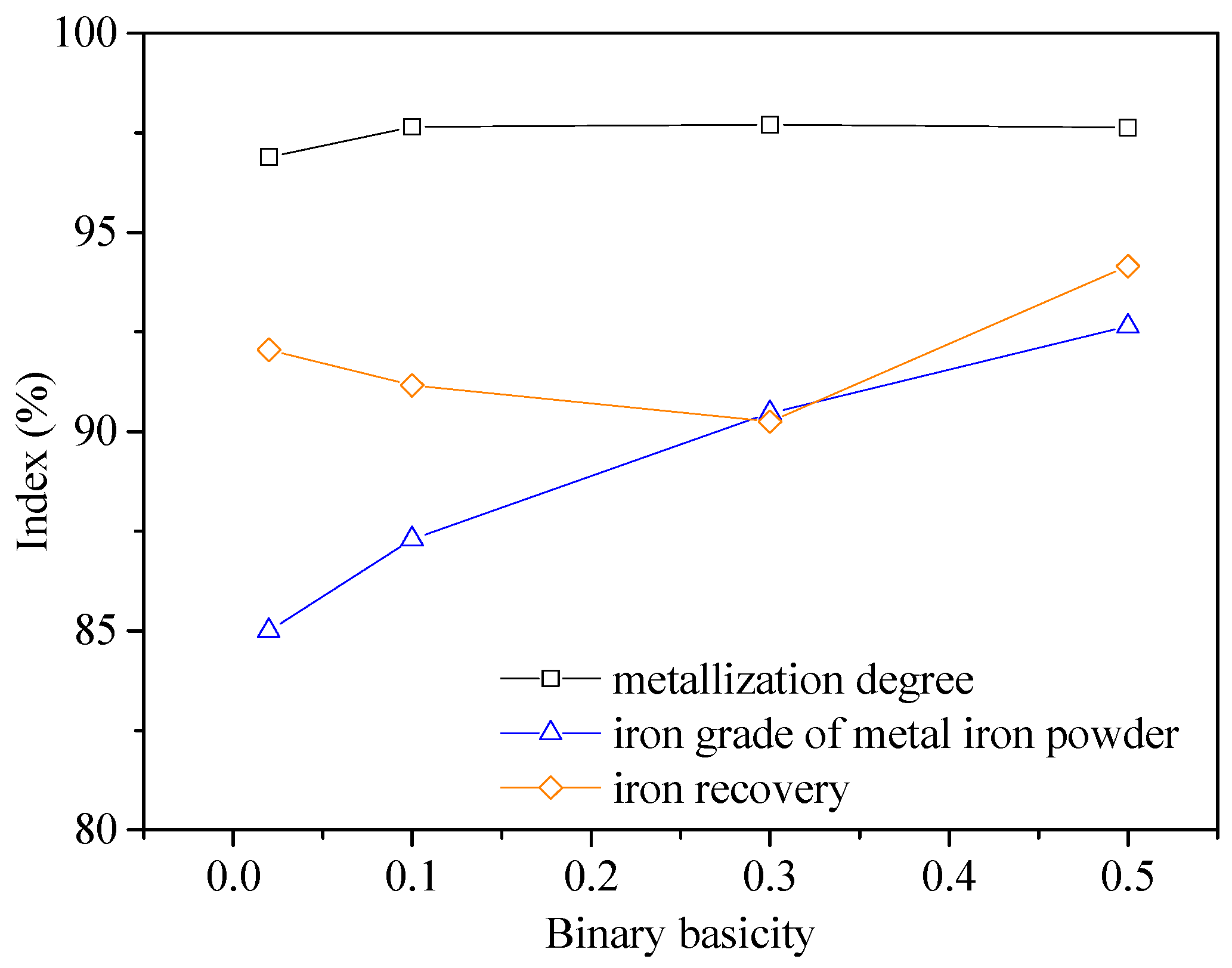

The huge consumption of iron ores in China has attracted much attention to utilizing low grade complex iron resources, such as high-aluminum hematite-limonite ore, which is a refractory resource and difficult to upgrade by traditional physical concentration processes due to the superfine size and close dissemination of iron minerals with gangue minerals. An innovative technology for a high temperature reduction-magnetic separation process was studied to upgrade a high-aluminum iron ore assaying 41.92% Fetotal, 13.74% Al2O3 and 13.96% SiO2. The optimized results show that the final metal iron powder, assaying 90.46% Fetotal, was manufactured at an overall iron recovery of 90.25% under conditions as follows: balling the high aluminum iron ore with 15% coal blended and at 0.3 basicity, reducing the dried pellets at 1350 °C for 25 min with a total C/Fe mass ratio of 1.0, grinding the reduced pellets up to 95%, passing at 0.074 mm and magnetically separating the ground product in a Davis Tube at a 0.10-T magnetic field intensity. The metal iron powder can be used as the burden for an electric arc furnace (EAF). Meanwhile, the nonmagnetic tailing is suitable to produce ceramic, which mainly consists of anorthite and corundum. An efficient way has been found to utilize high-aluminum iron resources. View Full-Text
Keywords: high-aluminum hematite-limonite ore; aluminum-iron separation; high temperature reduction; wet magnetic separation high-aluminum hematite-limonite ore; aluminum-iron separation; high temperature reduction; wet magnetic separation
