Open AccessFeature PaperArticle
Metals 2016, 6(11), 258; doi:10.3390/met6110258

Transmission Electron Microscopy of a CMSX-4 Ni-Base Superalloy Produced by Selective Electron Beam Melting

1
Institut für Werkstoffe, Ruhr-Universität Bochum, Universitätsstr. 150, Bochum 44801, Germany
2
Lehrstuhl WTM, Friedrich-Alexander-Universität Erlangen-Nürnberg, Martensstr. 5, Erlangen 91058, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Jonathan Cormier
Received: 12 September 2016 / Revised: 16 October 2016 / Accepted: 21 October 2016 / Published: 28 October 2016
(This article belongs to the Special Issue Ni- and Co-Based Superalloys and Their Coatings)
View Full-Text   |   Download PDF [6662 KB, uploaded 28 October 2016]   |

Abstract

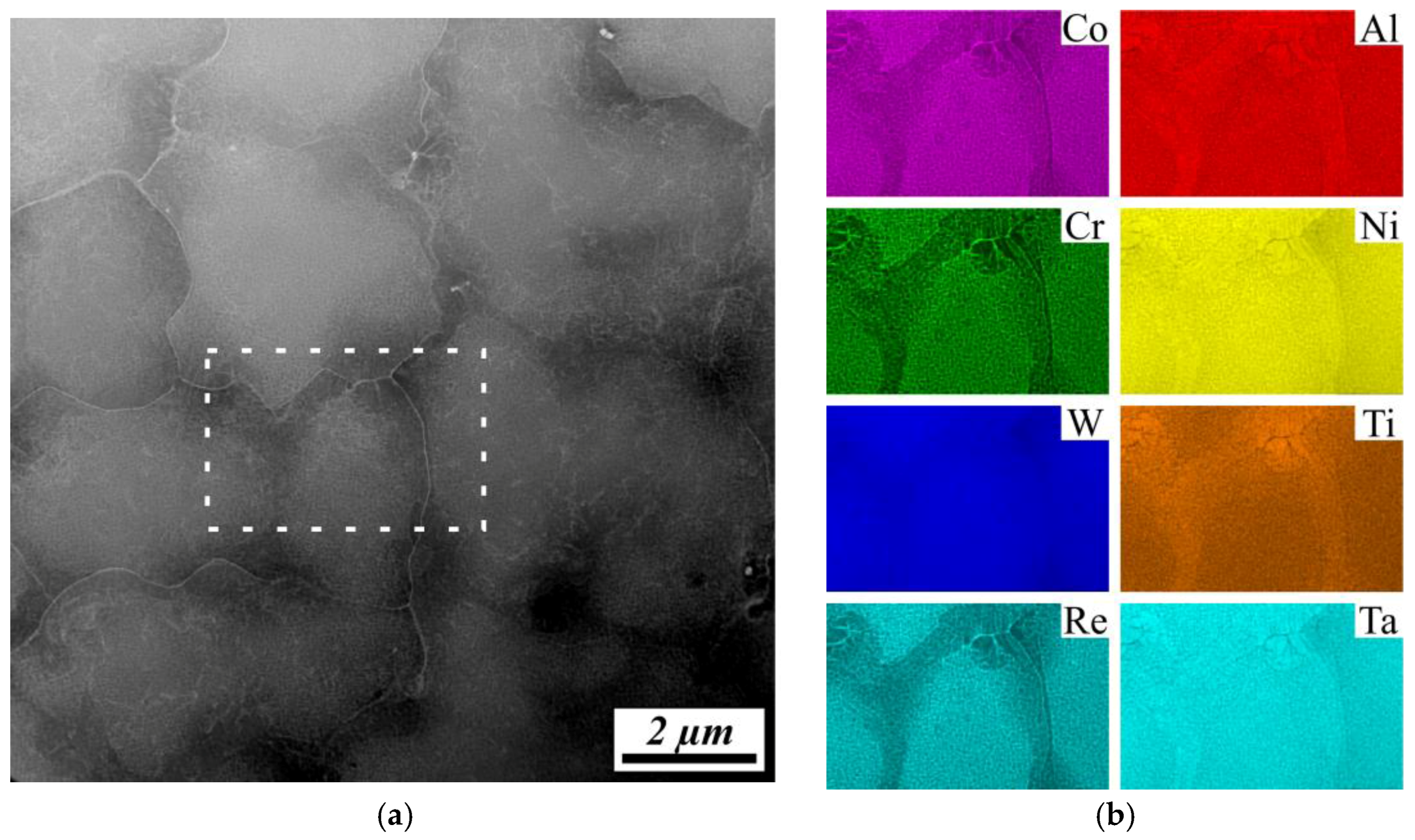

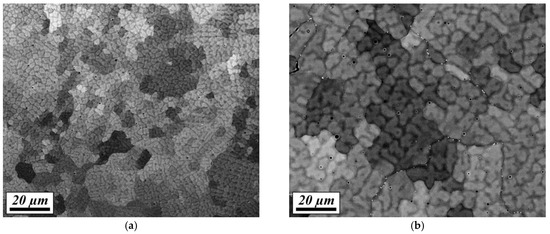

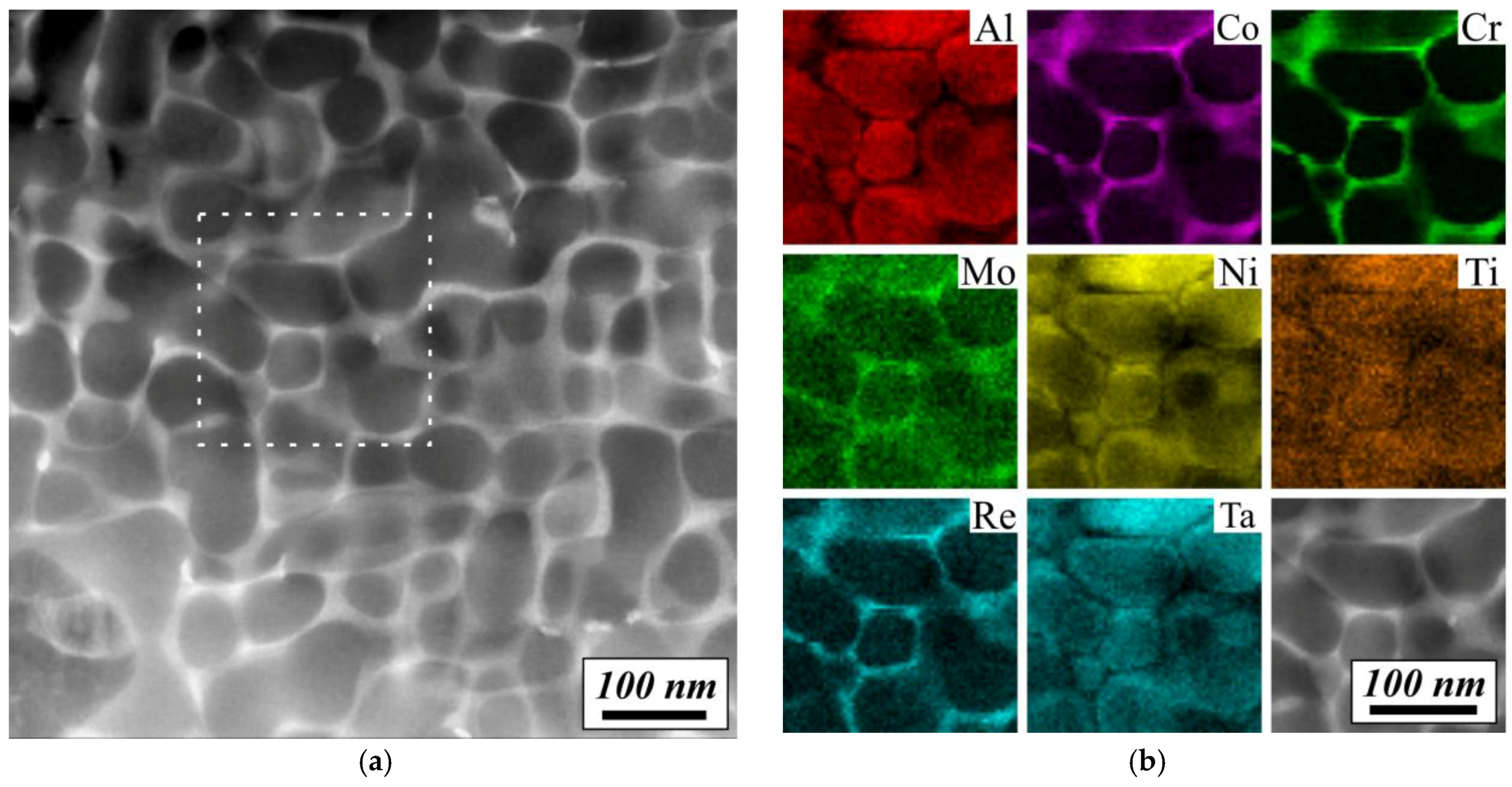

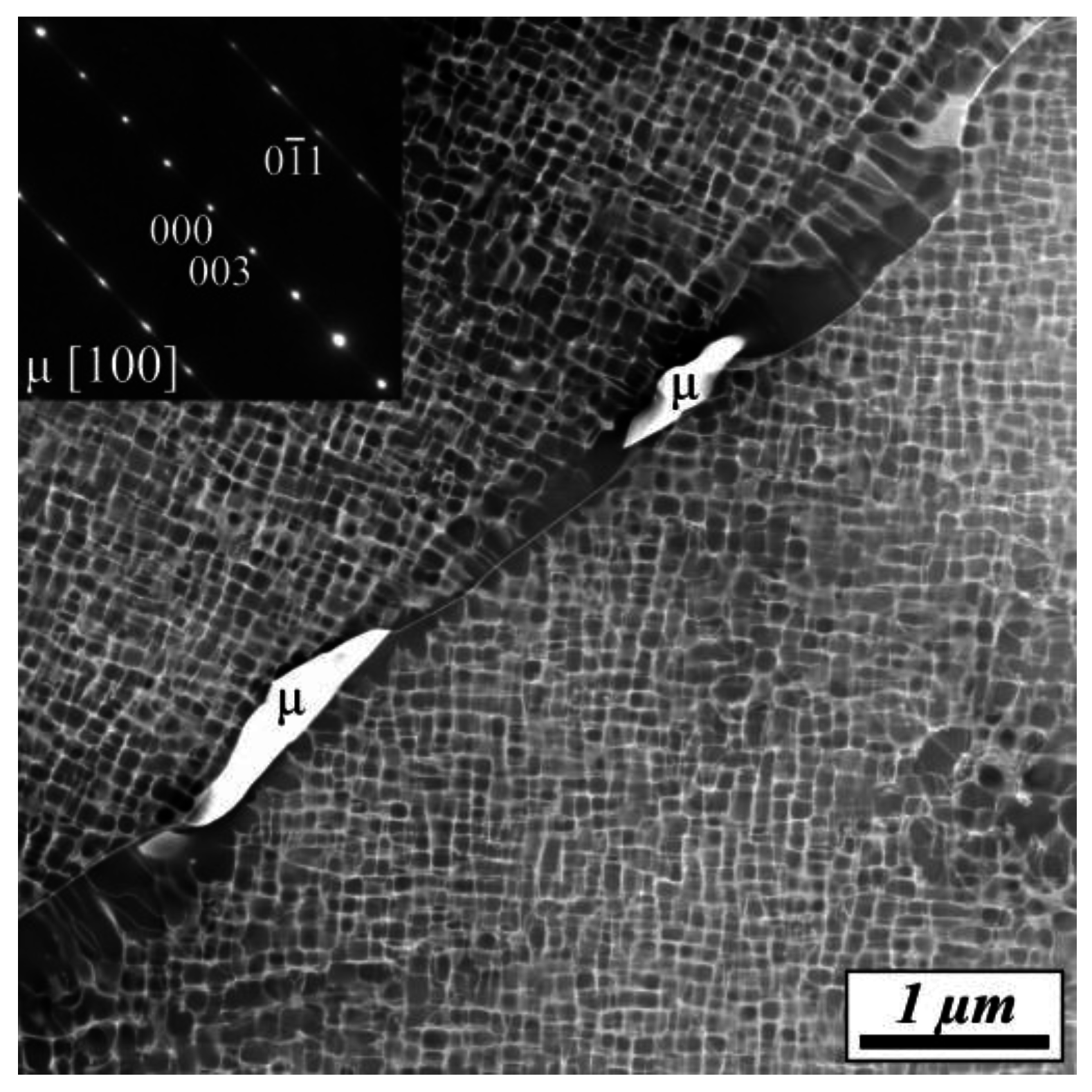

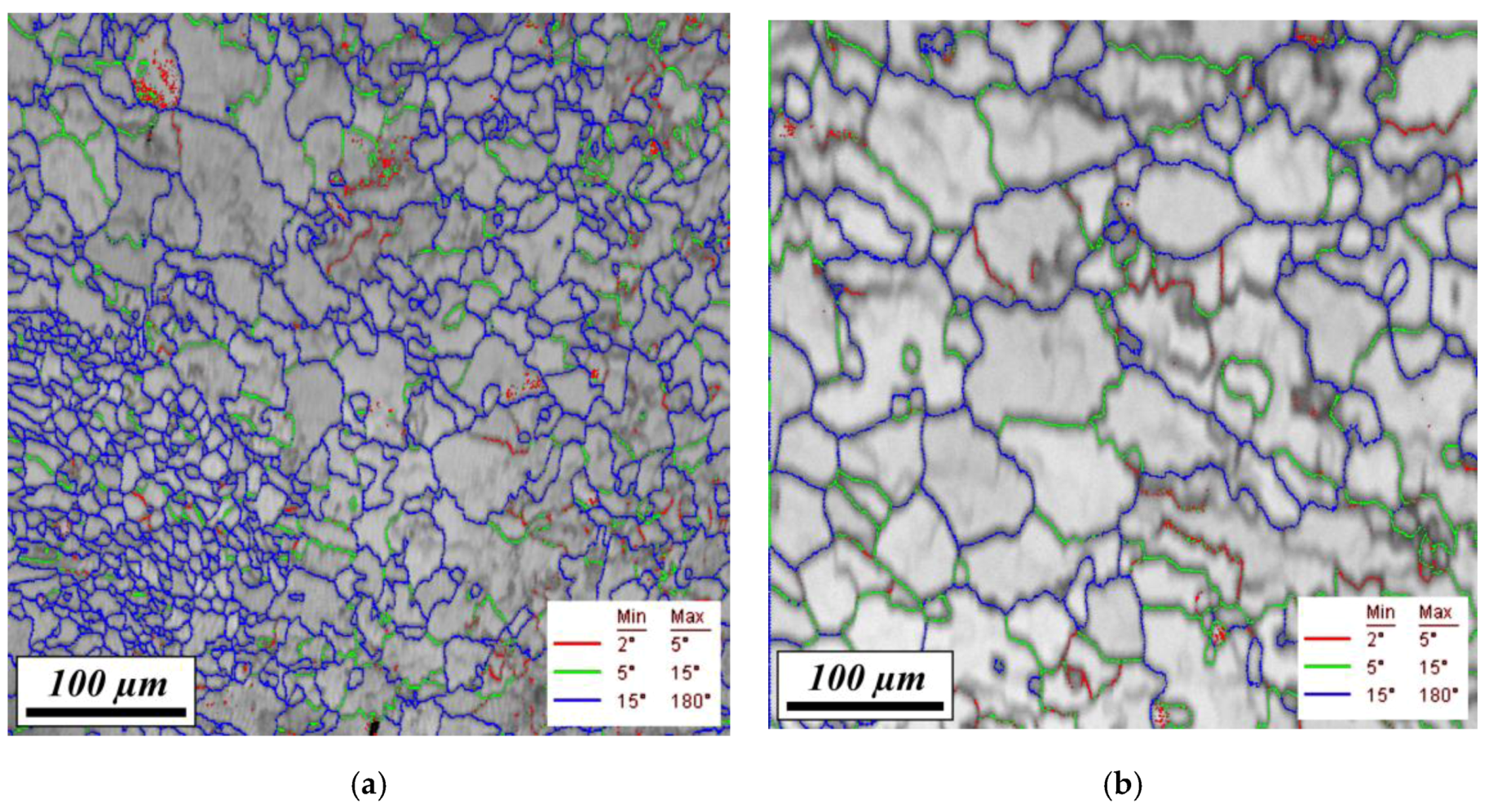

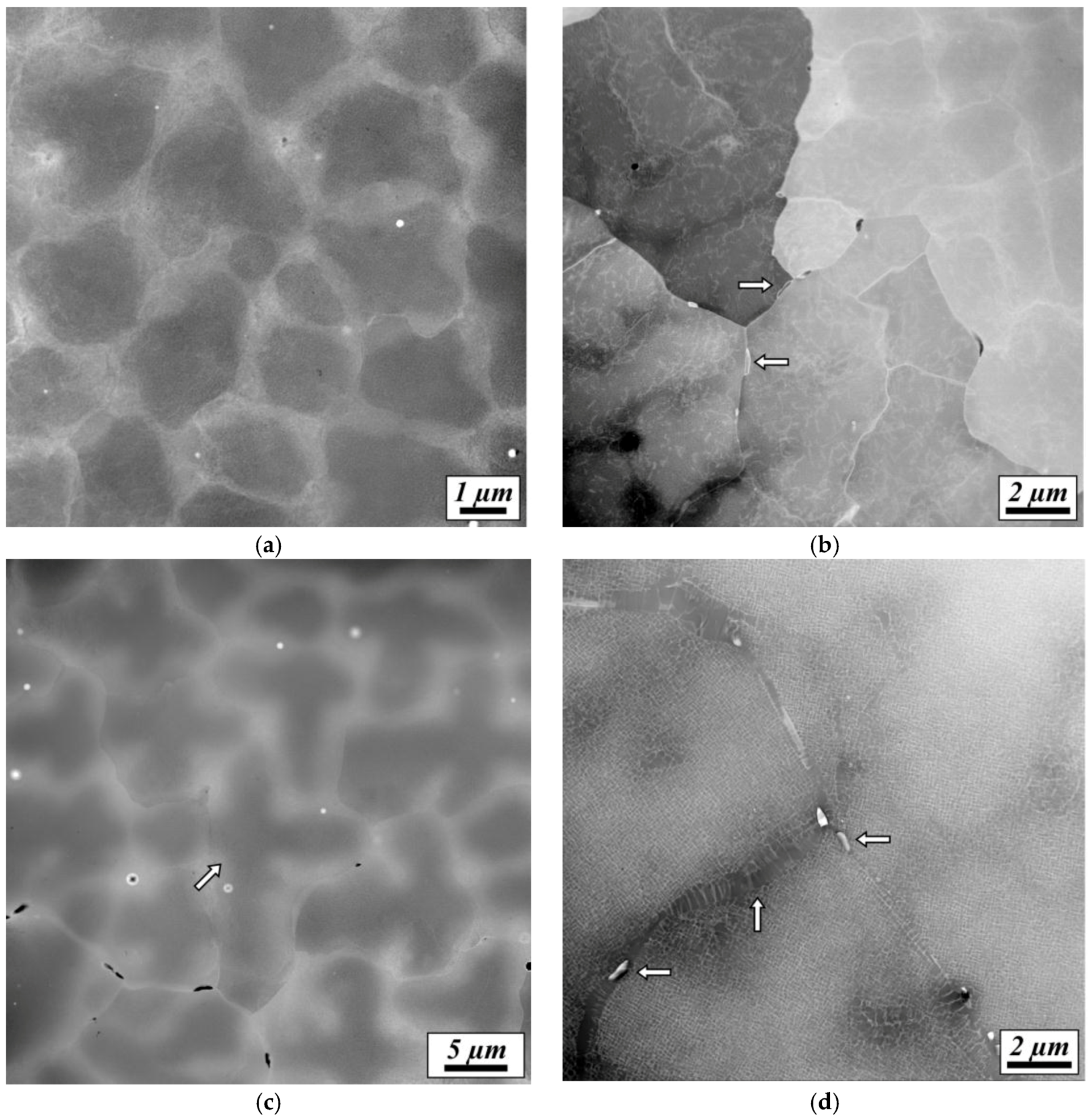

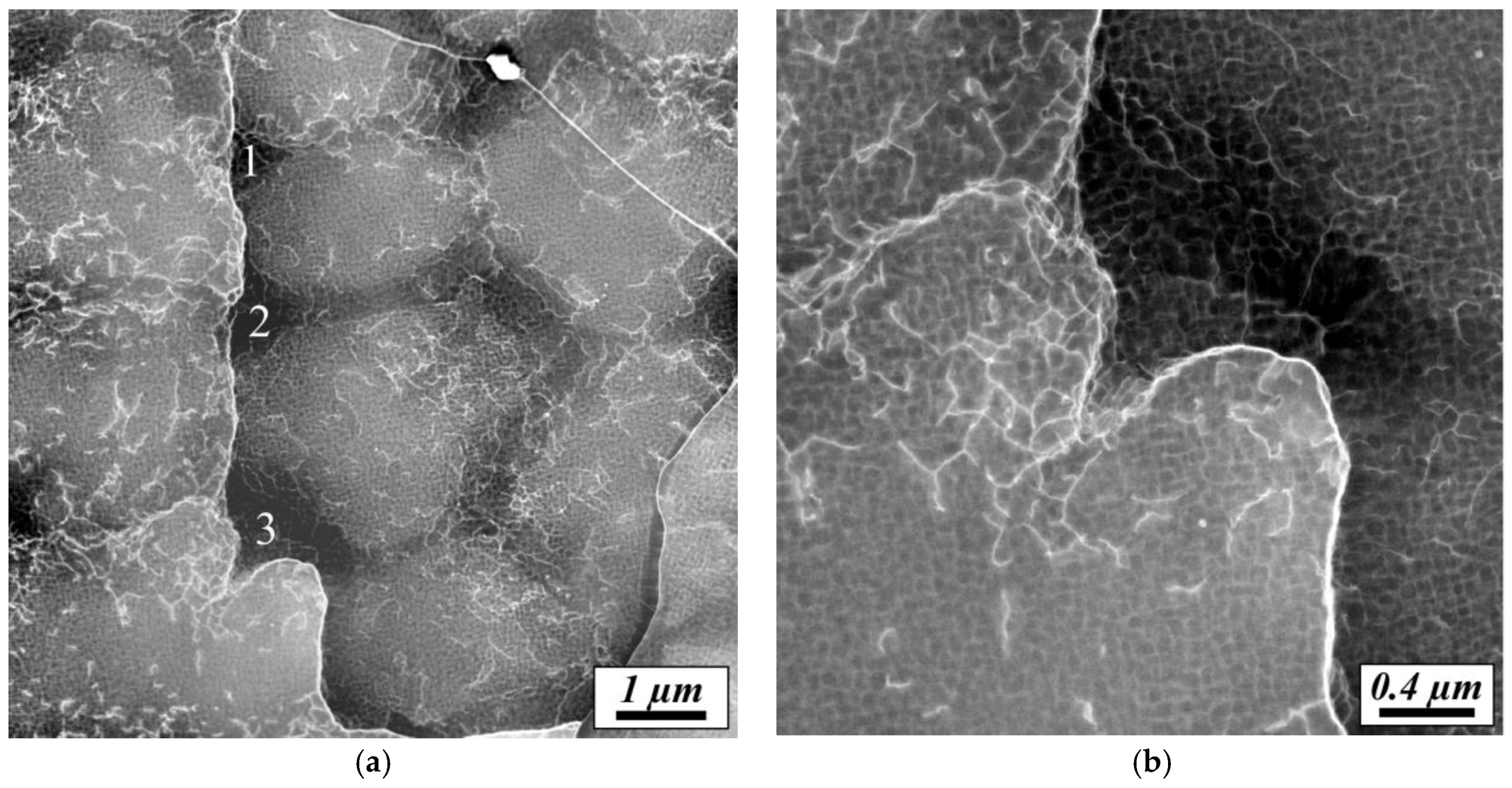

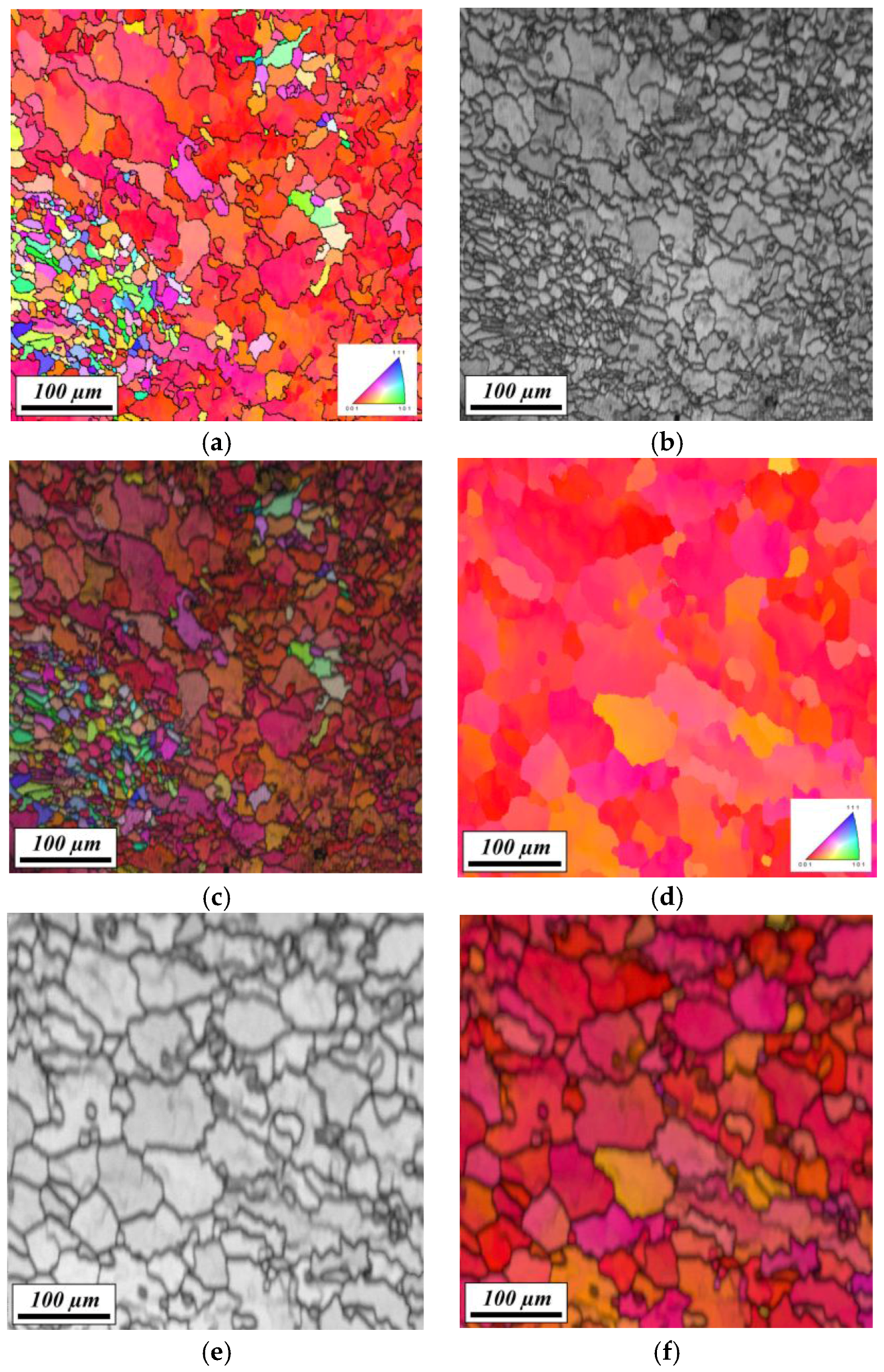

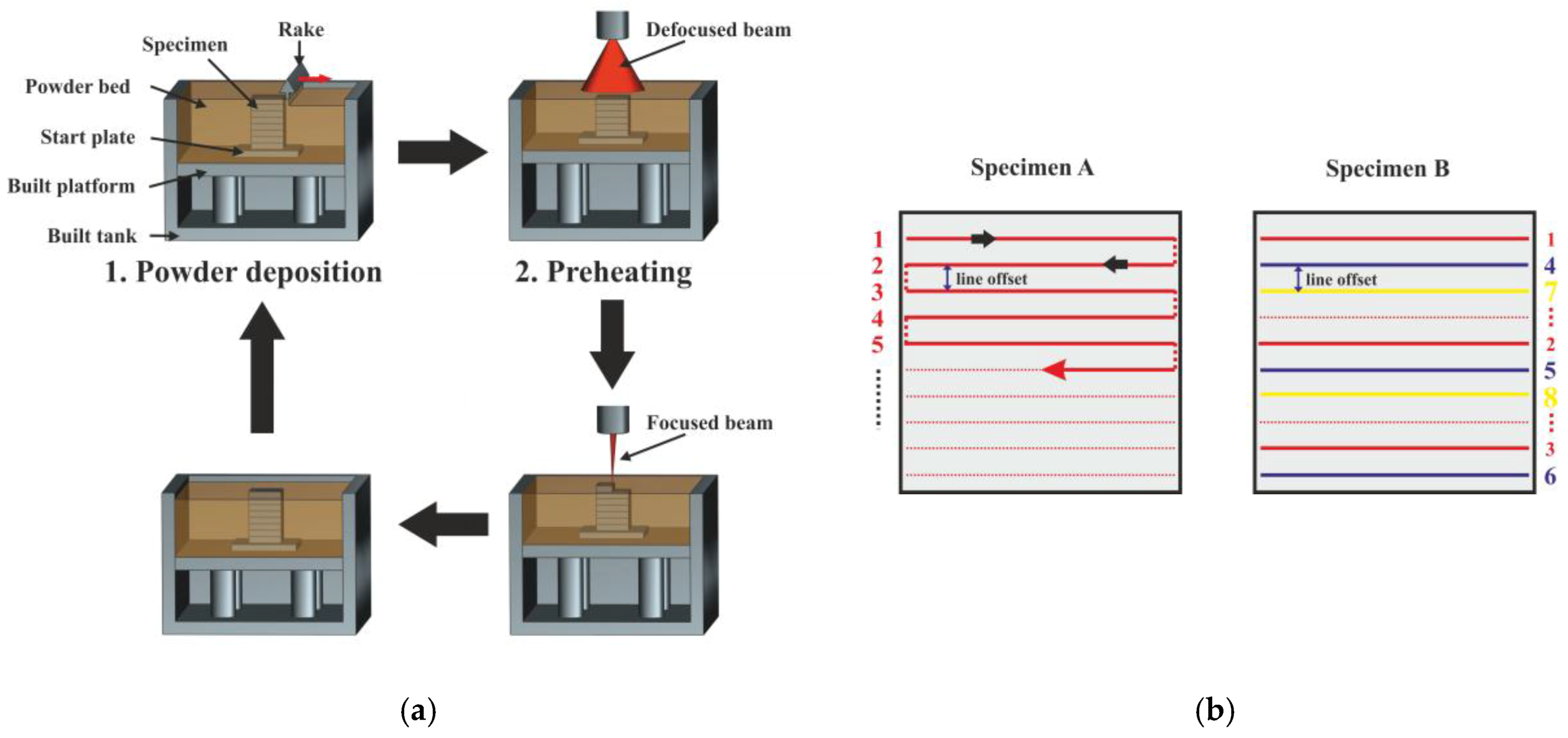

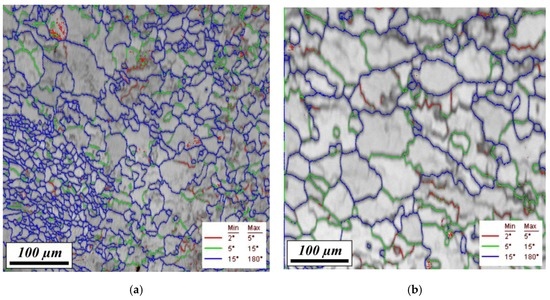

In this work, the microstructures of superalloy specimens produced using selective electron beam melting additive manufacturing were characterized. The materials were produced using a CMSX-4 powder. Two selective electron beam melting processing strategies, which result in higher and lower effective cooling rates, are described. Orientation imaging microscopy, scanning transmission electron microscopy and conventional high resolution transmission electron microscopy are used to investigate the microstructures. Our results suggest that selective electron beam melting processing results in near equilibrium microstructures, as far as γ′ volume fractions, the formation of small amounts of TCP phases and the partitioning behavior of the alloy elements are concerned. As expected, higher cooling rates result in smaller dendrite spacings, which are two orders of magnitude smaller than observed during conventional single crystal casting. During processing, columnar grains grow in <100> directions, which are rotated with respect to each other. There are coarse γ/γ′ microstructures in high angle boundary regions. Dislocation networks form low angle boundaries. A striking feature of the as processed selective electron beam melting specimens is their high dislocation density. From a fundamental point of view, this opens new possibilities for the investigation of elementary dislocation processes which accompany solidification. View Full-Text
Keywords: Ni-base superalloy; selective electron beam melting; evolution of microstructure; transmission electron microscopy; ingrown dislocations Ni-base superalloy; selective electron beam melting; evolution of microstructure; transmission electron microscopy; ingrown dislocations
