Next Article in Journal
On the Step Cooling Treatment for the Assessment of Temper Embrittlement Susceptibility of Heavy Forgings in Superclean Steels
Next Article in Special Issue
Transmission Electron Microscopy of a CMSX-4 Ni-Base Superalloy Produced by Selective Electron Beam Melting
Previous Article in Journal
The Effects of Pulse Parameters on Weld Geometry and Microstructure of a Pulsed Laser Welding Ni-Base Alloy Thin Sheet with Filler Wire
Previous Article in Special Issue
Constitutive Model Based on Dynamic Recrystallization Behavior during Thermal Deformation of a Nickel-Based Superalloy
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(10), 238; doi:10.3390/met6100238

Effects of the Hot Isostatic Pressing Process on Crack Healing of the Laser Repair-Welded CM247LC Superalloy

Department of Materials Science and Engineering, I-Shou University, Kaohsiung 84001, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Jonathan Cormier
Received: 30 July 2016 / Revised: 28 September 2016 / Accepted: 29 September 2016 / Published: 10 October 2016
(This article belongs to the Special Issue Ni- and Co-Based Superalloys and Their Coatings)
View Full-Text   |   Download PDF [3117 KB, uploaded 10 October 2016]   |

Abstract

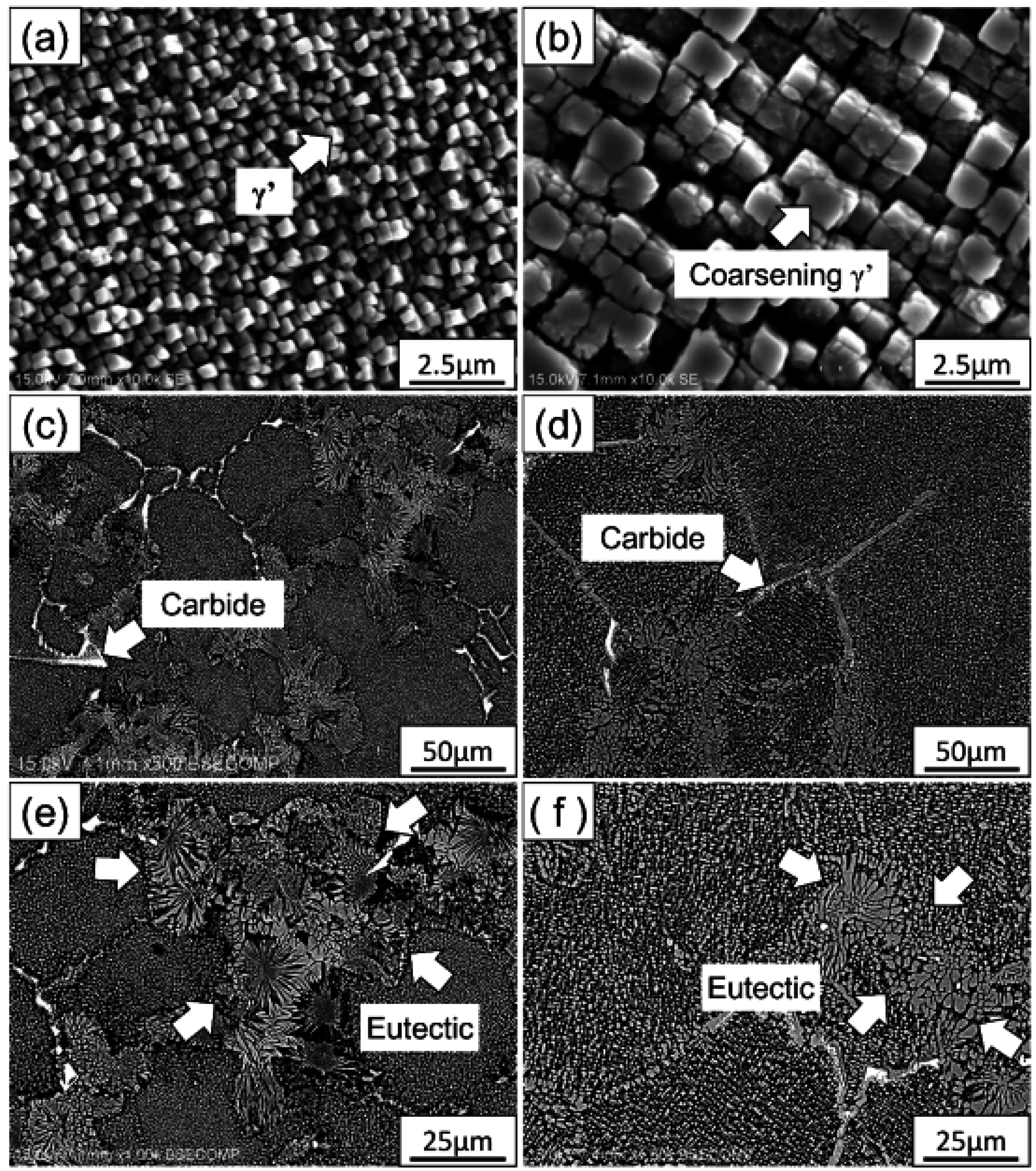

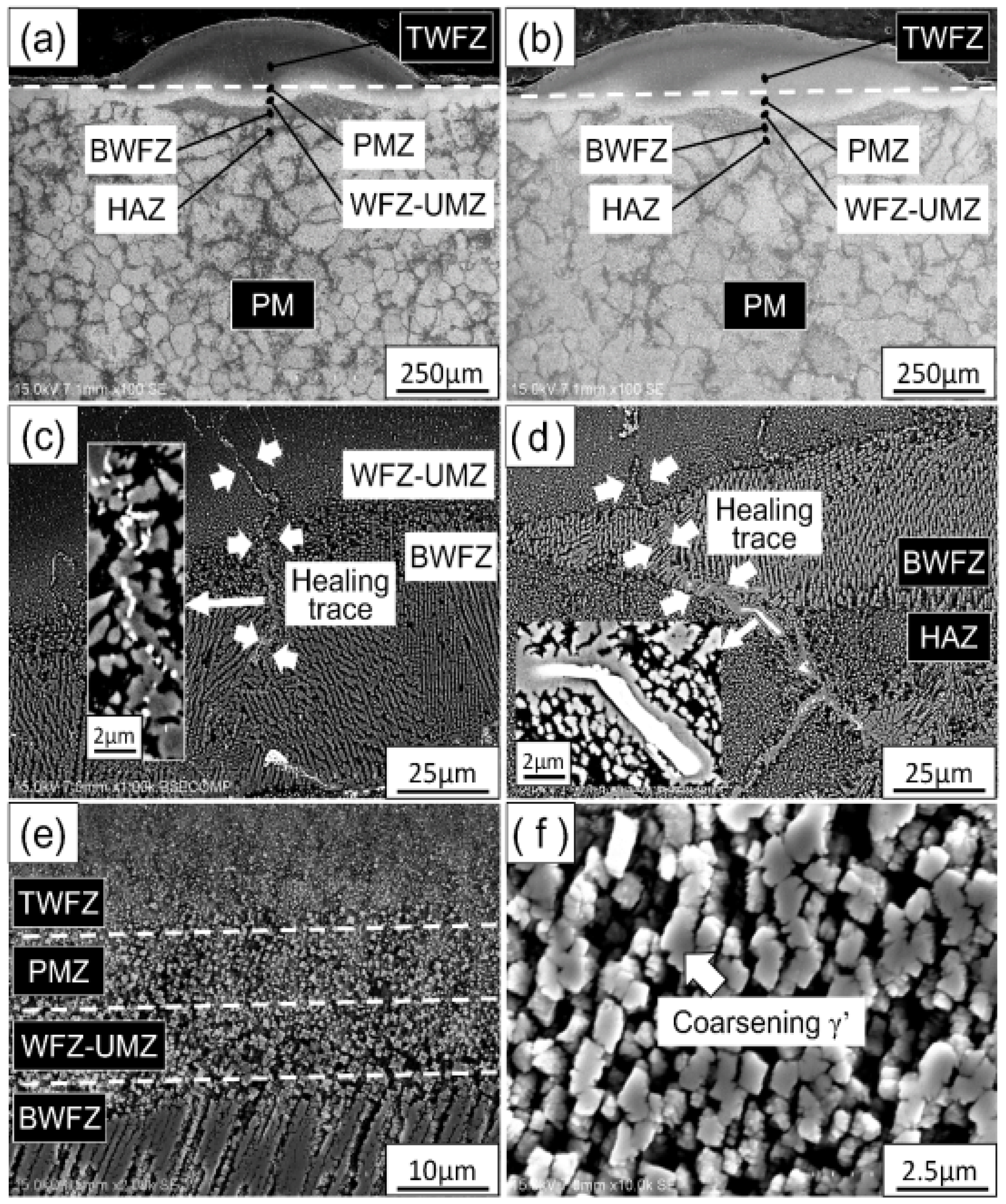

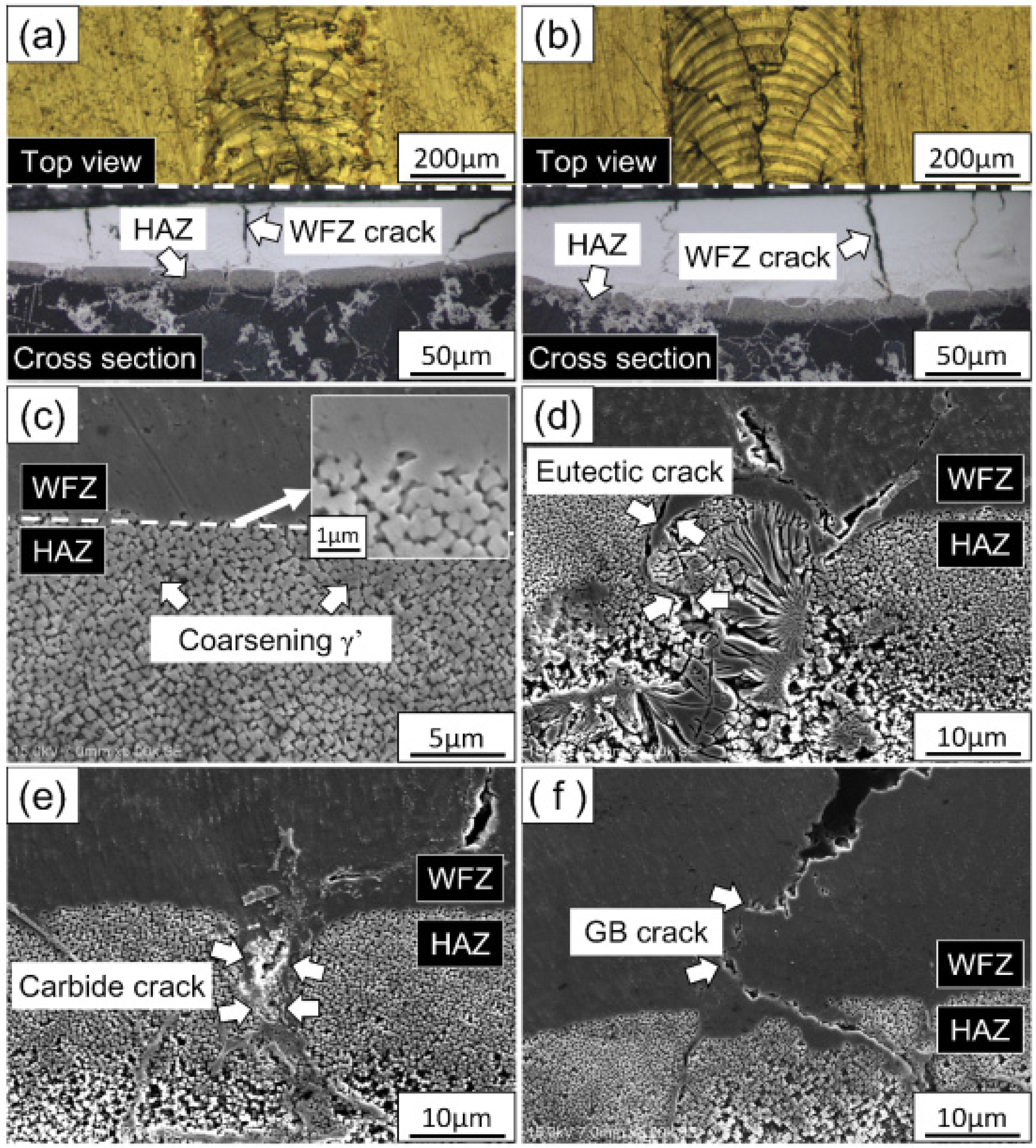

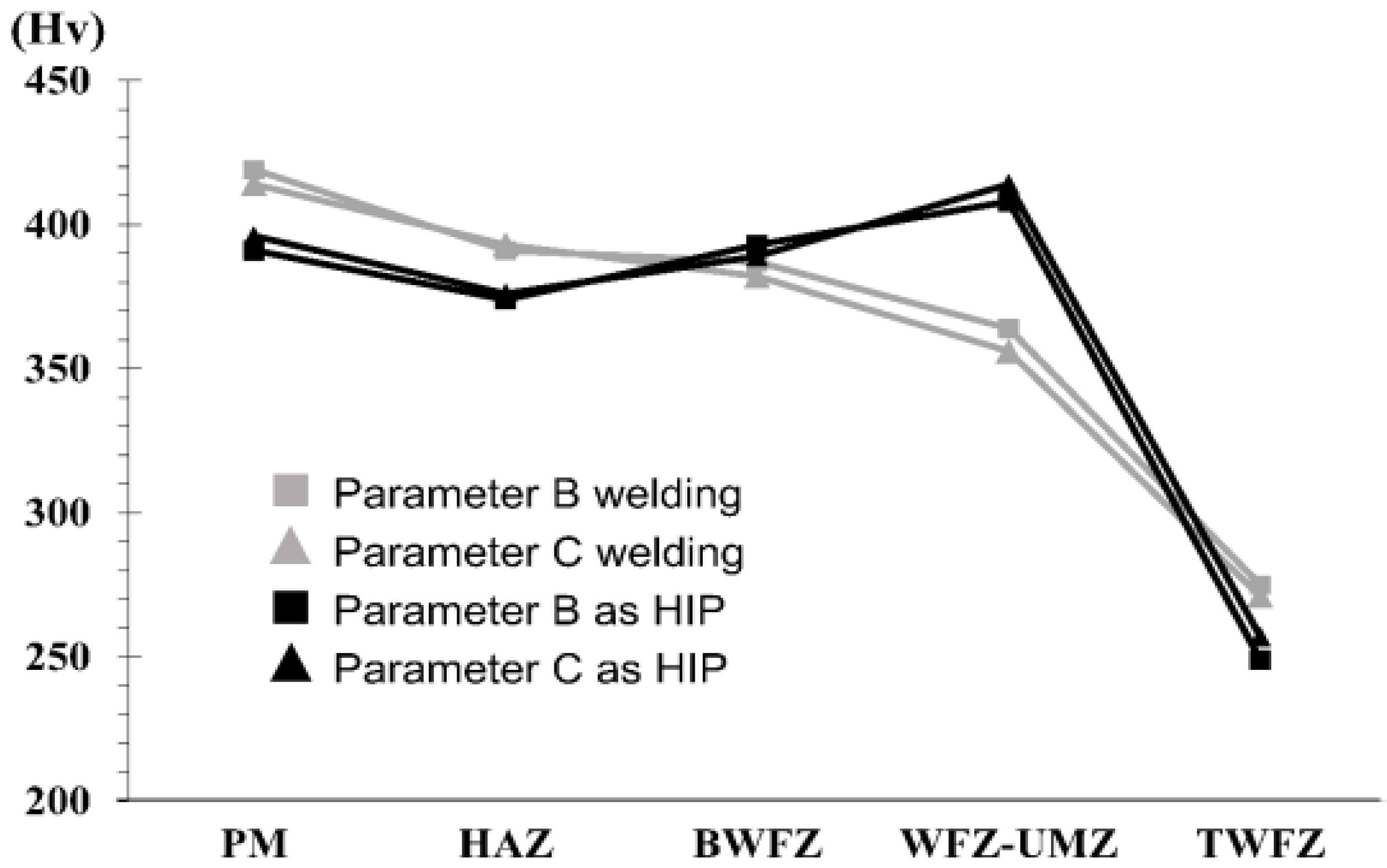

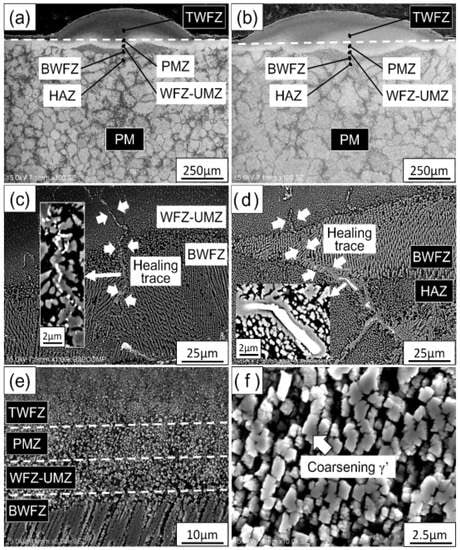

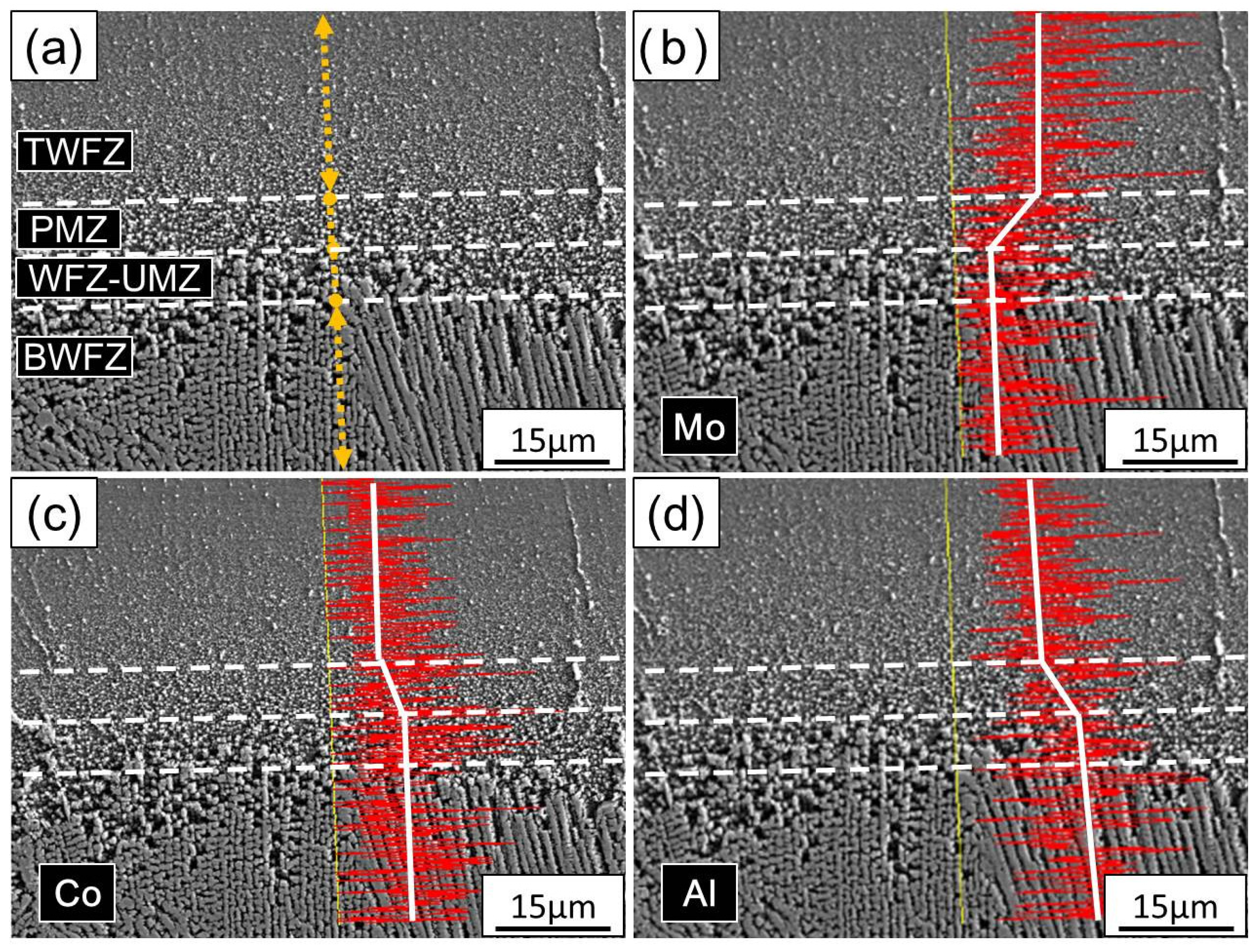

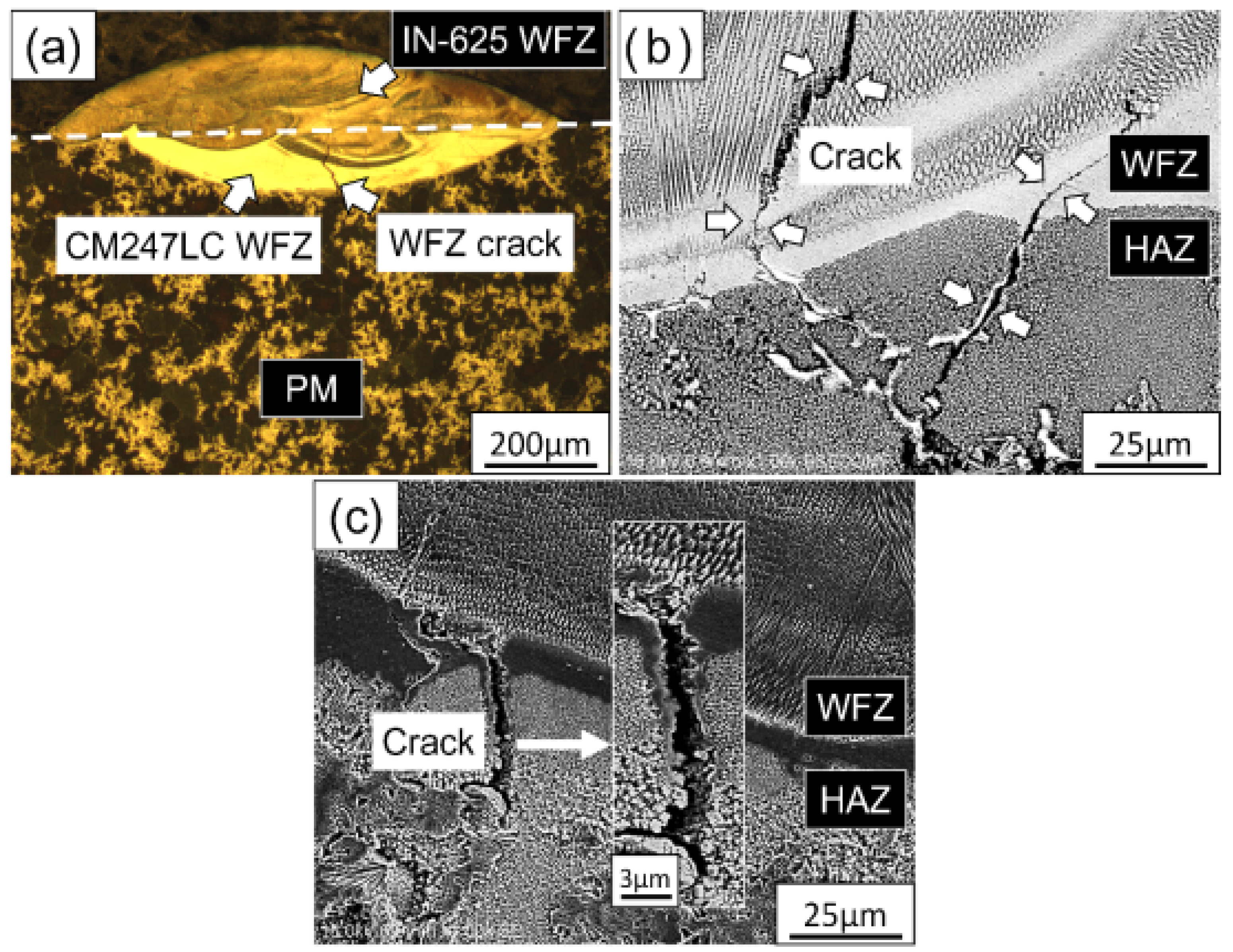

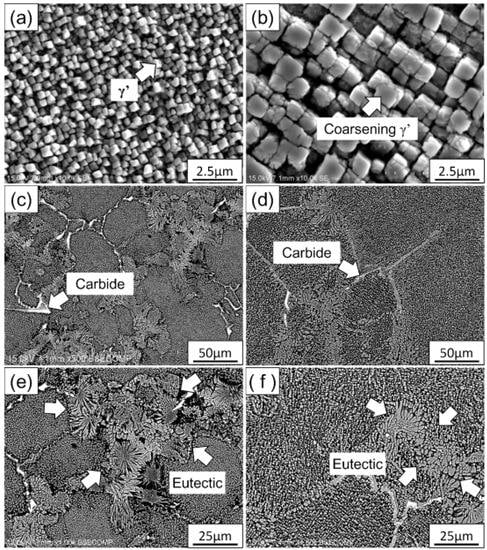

This study investigated the effects of the hot isostatic pressing process on the crack healing, microstructure, and mechanical properties of the laser repair-welded CM247LC precipitation-hardened superalloy. To ensure the strength of the repair-welded area, this study used the direct re-melting approach, and simulated the repair welding with the filler addition, which has a chemical composition matching that of the base superalloy. As expected, different types of cracks, including the solidification crack in the weld fusion zone and various types of liquidation cracks in the heat-affected zone, were observed. Through a proper hot isostatic pressing healing process, all cracks in the weld fusion zone and the heat-affected zone of the repair-welded pieces were healed. At the same time, some nano- and micro-sized carbides tended to form discontinuously along the healed crack trace. A micro-hardness test was conducted in the repair-welded area, and the results were similar to that of the as-cast material. View Full-Text
Keywords: laser repair welded; hot isostatic pressing; nickel base superalloy laser repair welded; hot isostatic pressing; nickel base superalloy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Hsu, K.-T.; Wang, H.-S.; Chen, H.-G.; Chen, P.-C. Effects of the Hot Isostatic Pressing Process on Crack Healing of the Laser Repair-Welded CM247LC Superalloy. Metals 2016, 6, 238.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
