Open AccessArticle
Lubricants 2017, 5(4), 39; doi:10.3390/lubricants5040039

Enhanced Growth of ZDDP-Based Tribofilms on Laser-Interference Patterned Cylinder Roller Bearings

1
Chair of Functional Materials, Saarland University, 66123 Saarbrücken, Germany
2
Institute for Machine Elements and Machine Design, 52062 RWTH Aachen, Aachen, Germany
3
Center for Memory and Recording Research, University of California, San Diego, La Jolla, CA 92093, USA
4
Institute for Engineering Design and Logistics Engineering, TU Wien,1060 Vienna, Austria
*
Author to whom correspondence should be addressed.
Received: 26 August 2017 / Revised: 11 September 2017 / Accepted: 13 September 2017 / Published: 25 September 2017
(This article belongs to the Special Issue Improvement of Friction and Wear by Laser Surface Texturing)
View Full-Text   |   Download PDF [5502 KB, uploaded 25 September 2017]   |

Abstract

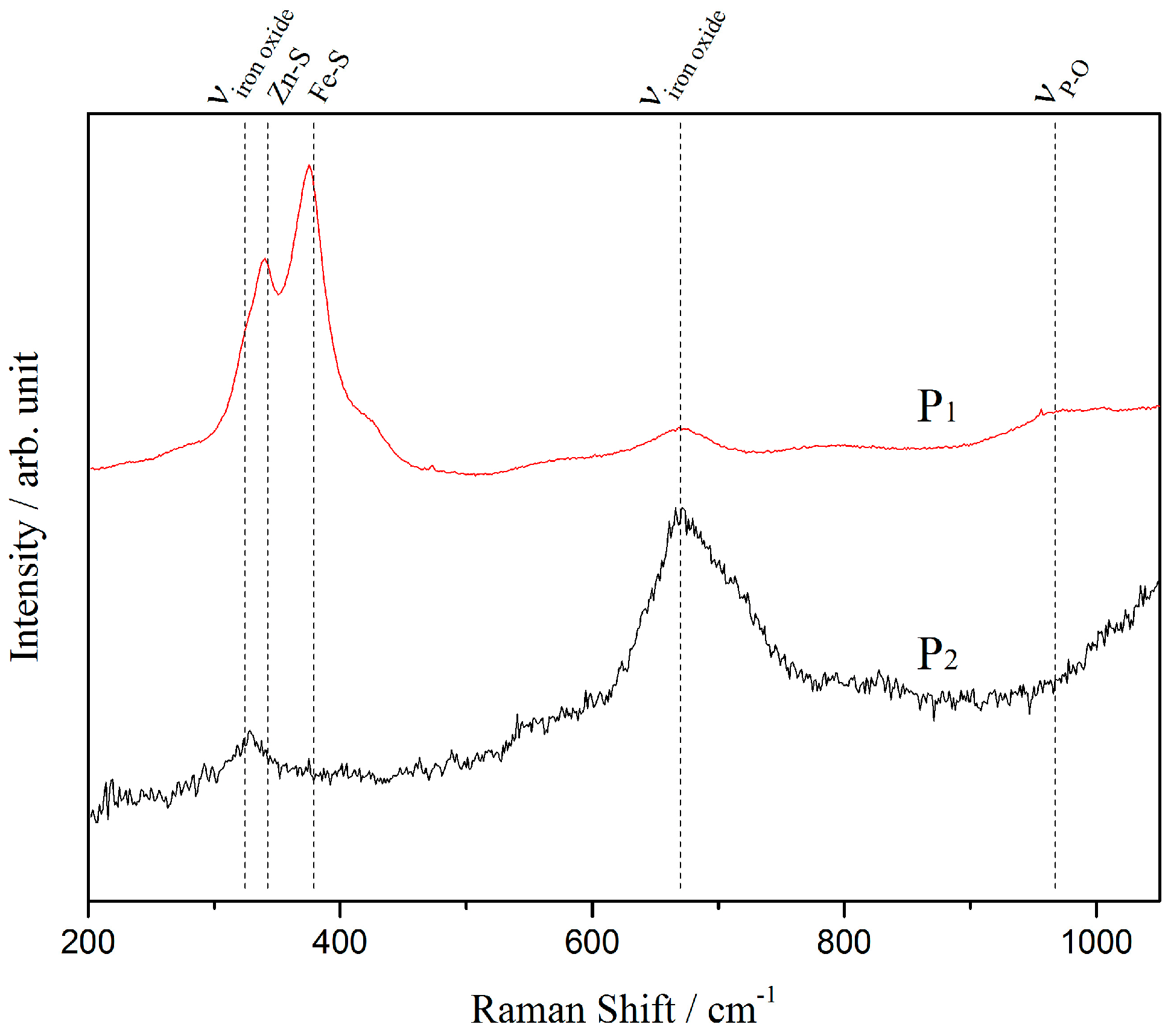

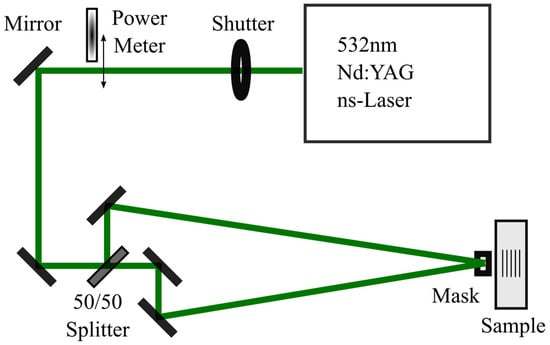

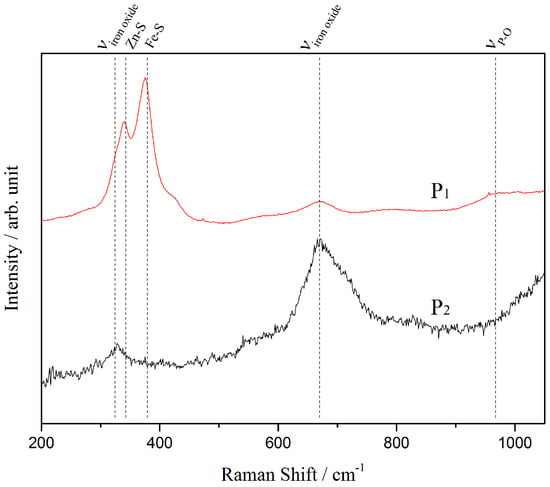

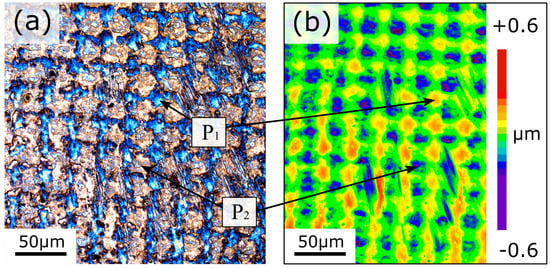

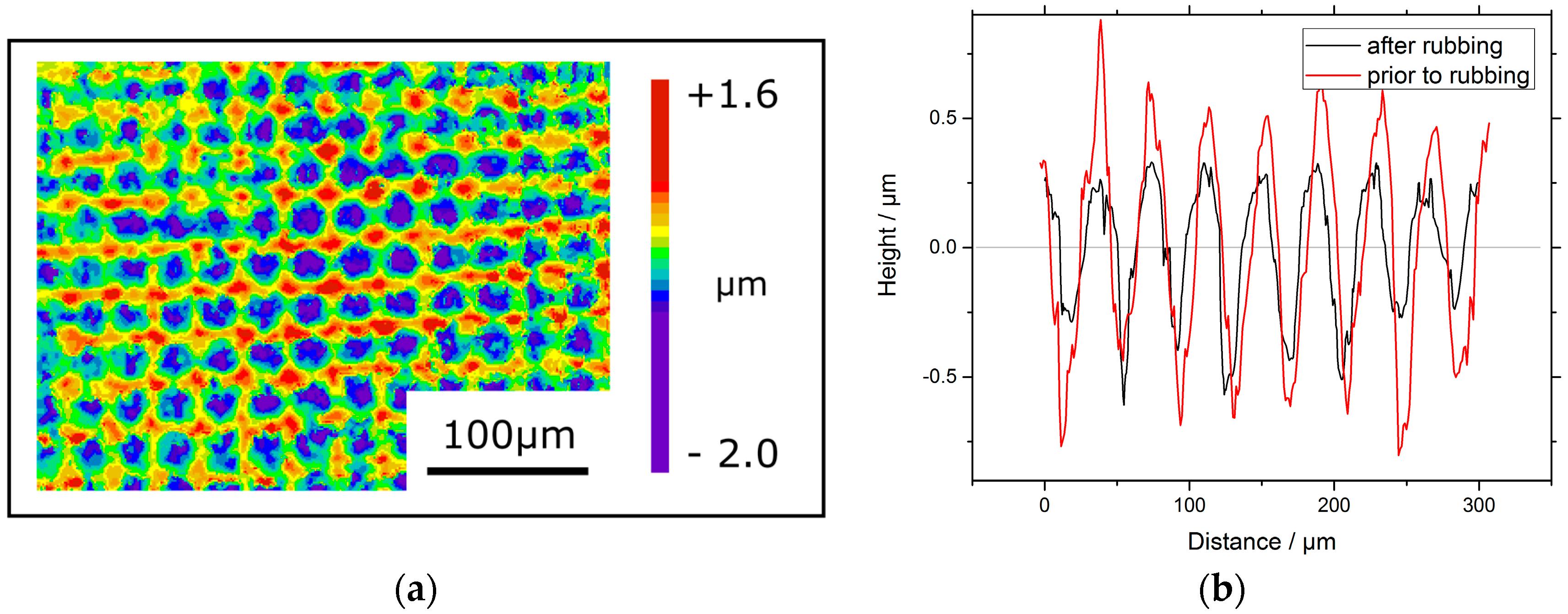

Laser surface texturing has been successfully applied in the past to various machine elements in order to improve their tribological performance. In this study, direct laser interference patterning was used to produce periodic cross-like surface patterns on commercial cylinder roller bearings. The wear behavior of as-patterned bearings was studied by a modified FE8 test rig under boundary lubrication. A mineral oil (ISO VG 100) as a base oil additivated with 0.02 wt % zinc dialkyldithiophosphate (ZDDP) was used for the tribological tests which were performed under a Hertzian pressure of 1.92 GPa and maintained at 80 °C and 20 rpm for 2 h. The laser-patterned bearings showed a significantly reduced mass loss by two orders of magnitude compared to the unpatterned reference bearings. A closer look at the samples proved the formation of the characteristic blue-colored ZDDP tribofilm on top of the laser-induced topography maximum positions. Due to the higher contact pressure at the laser-induced peaks, the tribofilm formation was preferable at those positions thus protecting against wear. The laser patterns nearly remained unworn compared to the reference samples. A subsequent Raman analysis of the laser-patterned bearings clearly revealed the formation of zinc and iron sulfides as well as phosphates at the peak points. View Full-Text
Keywords: laser surface treatment; direct laser interference patterning; boundary lubrication; ZDDP; roller bearings laser surface treatment; direct laser interference patterning; boundary lubrication; ZDDP; roller bearings
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Hsu, C.-J.; Stratmann, A.; Rosenkranz, A.; Gachot, C. Enhanced Growth of ZDDP-Based Tribofilms on Laser-Interference Patterned Cylinder Roller Bearings. Lubricants 2017, 5, 39.
