Thirty Years of Land Use/Land Cover Changes and Their Impact on Urban Climate: A Study of Kano Metropolis, Nigeria

Abstract

Rapid urban expansion and the alteration of global land use/land cover (LULC) patterns have contributed substantially to the modification of urban climate, due to variations in Land Surface Temperature (LST). In this study, the LULC change dynamics of Kano metropolis, Nigeria, were analysed over the last three decades, i.e., 1990–2020, using multispectral satellite data to understand the impact of urbanization on LST in the study area. The Maximum Likelihood classification method and the Mono-window algorithm were utilised in classifying land uses and retrieving LST data. Spectral indices comprising the Normalized Difference Vegetation Index (NDVI) and Normalized Difference Built-up Index (NDBI) were also computed. A linear regression analysis was employed in order to examine the correlation between land surface temperature and the various spectral indices. The results indicate significant LULC changes and urban expansion of 152.55 sq. km from 1991 to 2020. During the study period, the city’s barren land and water bodies declined by approximately 172.58 sq. km and 26.55 sq. km, respectively, while vegetation increased slightly by 46.58 sq. km. Further analysis showed a negative correlation between NDVI and LST with a Pearson determination coefficient (R²) of 0.6145, 0.5644, 0.5402, and 0.5184 in 1991, 2000, 2010, and 2020 respectively. NDBI correlated positively with LST, having an R² of 0.4132 in 1991, 0.3965 in 2000, 0.3907 in 2010, and 0.3300 in 2020. The findings of this study provide critical climatic data useful to policy- and decision-makers in optimizing land use and mitigating the impact of urban heat through sustainable urban development.

1. Introduction

The rapid increase in the global rate of urbanisation and subsequent changes in the land use/land covers (LULC) of different cities have substantially influenced the conditions of urban environments [1,2,3,4,5,6]. The various changes in land use attributed to the remarkable growth and expansion of urban areas have continuously attracted widespread global concern, especially in cities of the developed and developing countries, mainly as a result of the massive reduction in biodiversity, alteration of local climatic conditions, and development of surface urban heat islands (UHI) [7,8,9]. The consequences of these trends have led to a decrease in air quality, compromised water resources [10], increased energy consumption [11,12], and damage to human health due to the higher heat stress associated with increased land temperatures in urban centers [13,14,15]. Other environmental consequences of land-use changes include the breakdown of ecological cycles and an increase in greenhouse gas emissions that contribute to climate change [16,17,18]. Therefore, it is evident that urban expansion due to population growth has contributed significantly to the transformation of urban climate.

Globally, the urban population has increased rapidly over the last few decades, from only 30% in 1950 to over 55% in 2018 [19]. United Nations estimates indicate that in the next 29 years, i.e., in 2050, the global urban population can be expected to rise above 68%. The highest growth is anticipated to occur predominantly in Asia and Africa. Countries like India, China, and Nigeria will have an estimated urban population of approximately 416 million, 255 million, and 189 million, respectively [20]. This growth could increase land surface temperatures, leading to the development of Urban Heat Islands (UHI) in these geographical areas [21]. The emergence of urban heat islands that influence urban climate can be attributed to the transformation of land uses and the rapid urbanisation of cities [22,23,24,25]. Urban Heat Islands have gradually become a common global theme, with LST increasing faster in urban centers than in rural areas [26,27,28,29,30]. This phenomenon mainly results from the transition of vegetated lands into impervious surfaces covered by buildings, roads, and other infrastructural facilities [31]. The generation of anthropogenic heat from industrial plants, automobile exhaust, and other urban heating and cooling facilities has also contributed to the development of UHI effects [32,33,34]. The consequences have influenced the urban environment and quality of life [35,36].

Therefore, studies on urban climatic management have become imperative, particularly in rapidly growing cities seeking to mitigate climate change and achieve sustainable urban development. Some studies have monitored the impact of land-use alterations on urban climatic conditions, employing LST data and spectral indices that include NDVI, NDBI, and many others. In a study conducted in Noida city, India, the connection between land cover changes and UHI was assessed using a statistical Pearson correlation of LST against NDVI, NDBI, Albedo, and Emissivity [30]. The study’s result revealed that the change in Nodia City’s temperature were mainly attributed to the increase in the city’s impervious areas. Similarly, the spatio-temporal effect of LULC alterations on the surface UHI of Kandy City, Sri Lanka, was monitored between 1996 and 2017 [37]. The result revealed a persistent increase in impervious surfaces and a decreasing trend in the spatial extent of forest areas that contributed to the mean LST increase of the study. In Odisha City, India, 25–50% of the overall warming observed between 1981 and 2010 was attributed to changes in land uses, with vegetational decrease contributing significantly to human-induced warming [38]. The micro-climate of the Bangkok metropolitan region in Thailand was recently estimated relative to the city’s future expansion [39]. The results showed that modification of the vegetated areas in the city’s western region with low-rise and mid-rise buildings would increase the future surface temperature of the region by approximately 1 to 2 °C. Other studies conducted in Nigeria’s cities of Abuja [21] and Potiskum [40], China’s urban area of Shenzhen [41], Turkey’s Sivas City [23], and five coastal cities in Pakistan [42] have demonstrated the relationship between LULC changes and LST using various satellite data and GIS techniques. However, comprehensive studies of cities in developing countries such as Nigeria are still limited. Urban centres such as Kano Metropolis lack up to date studies on the growing influence of land use/land cover changes to the local climate. Kano, the economic, commercial, and agriculture hub of Northern Nigeria, has been growing rapidly and experienced one of the highest urbanisation rates in Africa’s most populous country. The metropolis has seen its population increase by about 1.98 million inhabitants over the last three decades, leading to various land use alterations. Therefore, this study analyses thirty years of LULC changes and their impact on urban climate using remotely sensed data. The study aims to monitor the influence of LULC changes on the LST of Kano metropolis between 1990 and 2020. The study will achieve this through the following objectives: (i) analysing the changes in LULC over the last thirty years; (ii) estimating the multi-temporal changes in NDVI, NDBI, and LST; (iii) examining LST variation as it relates NDVI and NDBI.

The study is structured into five sections: the first section discusses the theoretical background; the second section explains the satellite data and methods utilised; the third section analyses the decadal changes in LULC, and LST and the various spectral indices comprising NDVI and NDBI; the fourth section discusses the implications of land cover changes on the urban climate; finally, the fifth section presents the study’s conclusion.

2. Research Data and Methods

2.1. Study Area: Kano Metropolis, Nigeria

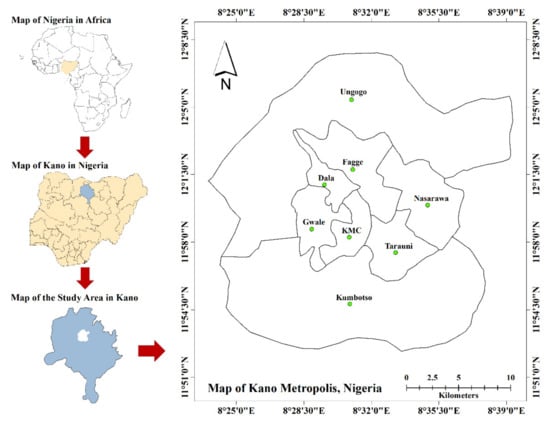

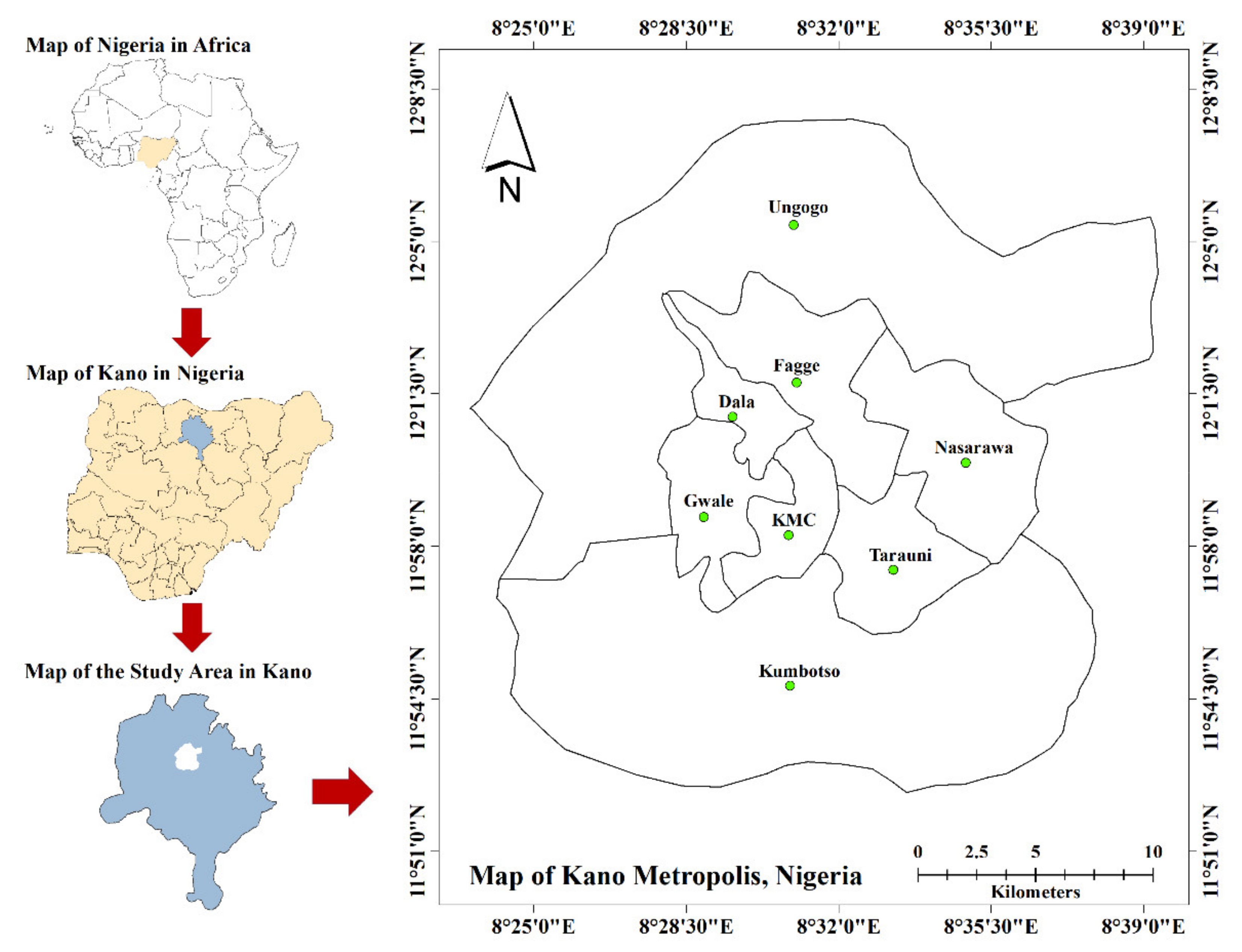

Kano Metropolis is located between latitudes 11° 51′ to 12° 08′ North and longitudes 8° 25′ to 8° 39′ East at an average altitude of approximately 472 m above sea level [43]. It is situated centrally in Nigeria’s Northern region, about 900 kilometres from the edge of the Sahara desert and approximately 1140 kilometres away from the Atlantic Ocean within the Sudano-Sahelian Ecological Zone (SSEZ) of Nigeria [44]. The metropolis comprises eight Local Government Areas, as shown in Figure 1. The city’s climatic condition is characterised as a tropical wet and dry savannah, coded ‘Aw’ according to Koppen’s climatic classification. The city’s seasonal changes occur between the wet and dry tropical air masses, referred to as Inter-Tropical Discontinuity (ITD), which results in two distinctive seasons [45]. The wet season often begins in June and ends around September annually, while the dry season typically commences in October and ends around May. As such, the climatic features of the city are similar to West Africa’s savannah region. The mean annual temperature and rainfall data of the study area were obtained from the Automated Weather Observation Station (AWOS) of the Nigerian Metrological Agency (

Table A1. Annual Mean Temperature (°C) and Rainfall (mm) Data for the study periods.

S/ No	Study Year	Temperature (min.)	Temperature (max.)	Average Temperature	Rainfall (mm)
1.	1991	19.88	33.20	26.54	1087.40
2.	2000	19.63	33.41	26.52	1109.00
3.	2010	20.84	34.37	27.61	1080.50
4.	2020	22.99	34.08	28.54	1050.90

Note: min. = minimum and max. = maximum. Source: Nigerian Meteorological Agency (NIMET).

). The data indicated the yearly mean temperature to be between 26 °C to 28 °C for the study period. The vegetation is categorised under the Sahel, Sudan, and Guinea savannah types due to the natural surroundings and human activities [46]. Kano has a vast amount of fertile agricultural land that supports numerous food and cash crops such as millet, rice, sorghum, wheat, cowpeas, groundnut, and other vegetables. The metropolis is one of Nigeria’s fastest-growing urban centres and has continuously attracted population due to the city’s commercial and agricultural activities.

2.2. Satellite Data

The study was conducted using Landsat data, an archive containing satellite images of continuous earth observation. Images from four different epochs were acquired freely from the earth explorer portal (https://earthexplorer.usgs.gov/accessed on 5 June 2021) of the United States Geological Survey (USGS) using a decadal interval, i.e., 1990, 2000, 2010, and 2020. However, the unavailability of the satellite image for 1990 led to the study utilizing the subsequent year’s image, i.e., 1991. The study considered ten year intervals due to the considerable growth and expansion of Nigeria’s urban centres over the study period [47]. The images were obtained from Landsat 5 TM, Landsat 7 ETM+, and Landsat 8 OLI using Path 188, Row 52. Cloud-free images were downloaded, with a high spatial resolution of 30 × 30 m and a swath width of 185 × 185 km. The images were georeferenced to the Universal Transverse Mercator (UTM) projection zone 32 N based on the location of the study area according to the World Geodetic System 1984 (WGS84). In the image pre-processing operations, multispectral bands of the various satellite images were stacked and clipped into the boundary of the study area. The specifications of the datasets used are presented in

Table 1. Satellite Dataset used in the study.

Acquisition Date	Satellite Name	Sensor Type	Path/ Row	Cloud Cover	Time (GMT)	No. of Bands	Sun Elevation	Sun Azimuth
7 January 1991	Landsat 4	TM	188/052	0.00	09:07:30	7	41.2293	134.1903
4 March 2000	Landsat 7	ETM	188/052	0.00	09:35:35	8	55.2275	119.3095
28 February 2010	Landsat 7	ETM	188/052	0.00	09:35:00	8	53.9963	121.4230
16 February 2020	Landsat 8	OLI/TIRS	188/052	0.21	09:42:58	11	52.7192	129.2164

. In addition,

Table 2. Spectral information of satellite images.

i. Landsat 5 TM Spectral Bands
Band Number	Band Name	Spatial Resolution (m)	Spectral Range (µm)
1	Blue	30 m	0.45–0.52
2	Green	30 m	0.52–0.60
3	Red	30 m	0.63–0.69
4	NIR	30 m	0.76–0.90
5	MIR	30 m	1.55–1.75
6	TIR (Thermal)	120 m	10.41–12.50
7	MIR	30 m	2.08–2.35
ii. Landsat 7 ETM+ Spectral Bands
Band Number	Band Name	Spatial Resolution (m)	Spectral Range (µm)
1	Blue	30 m	0.441–0.514
2	Green	30 m	0.519–0.601
3	Red	30 m	0.631–0.692
4	NIR	30 m	0.772–0.898
5	SWIR	30 m	1.547–1.749
6	TIR (Thermal)	60 m	10.31–12.36
7	SWIR	30 m	2.064–2.345
8	Pan	15 m	0.515–0.89
iii. Landsat 8 OLI and TIRS Spectral Bands
Band Number	Band Name	Spatial Resolution (m)	Spectral Range (µm)
1	Coastal/Aerosol	30 m	0.435–0.451
2	Blue	30 m	0.452–0.512
3	Green	30 m	0.533–0.590
4	Red	30 m	0.636–0.673
5	NIR	30 m	0.851–0.879
6	SWIR-1	30 m	1.566–1.651
7	SWIR-2	30 m	2.107–2.294
8	Pan	15 m	0.503–0.676
9	Cirrus	30 m	1.363–1.384
10	TIR-1 (Thermal)	100 m	10.60–11.19
11	TIR-2 (Thermal)	100 m	11.50–12.51

Source: Landsat Data Users Handbook (https://landsat.gsfc.nasa.gov/accessed on 11 November 2020).

presents the spectral bands used to retrieve the study’s land surface temperature.

2.3. Methods

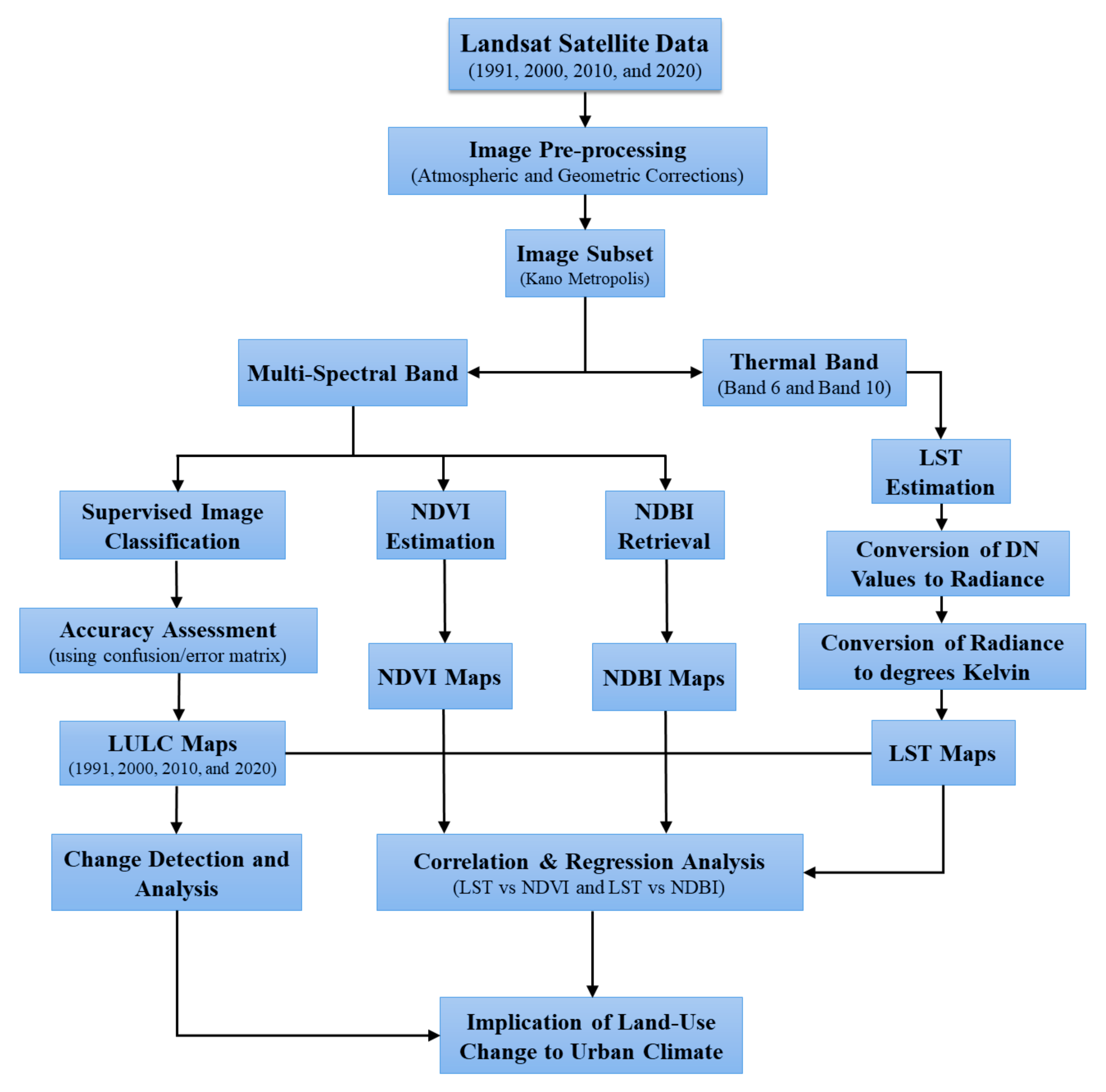

The methodology adopted involved three main procedures: image pre-processing (i.e., radiometric and atmospheric correction, layer stacking, and composite band selection,), image classification, and accuracy assessment. The processes were carried out using ENVI 5.3 image-processing software. A change detection analysis involving deriving the decadal LULC maps and a change analysis was also executed using ArcMap 10.7.1 software. The NDVI, NDBI, and LST maps of the study area were further retrieved to analyse the influence of urban expansion and LULC changes on urban climate. Finally, the implications of the study’s results were highlighted.

2.3.1. Classification of Satellite Images

The radiometric and atmospheric corrected images were classified into four LULC categories using a false colour band combination, i.e., bands 7, 5, and 3 for Landsat TM and ETM+ and bands 7, 6, and 4 for Landsat OLI. These land cover classes comprise barren land, built-up areas, vegetation, and water bodies, as described in

Table 3. Description of the study’s LULC classes.

S/No	LULC Classes	Description
1.	Barren land	Mainly comprises gravel pits, construction sites, and other degraded soils that are not fertile for vegetation growth.
2.	Built-up areas	Includes areas dominated by human settlements containing residential, commercial, industrial, and other infrastructural facilities.
3.	Vegetation	Includes areas comprising grasses, low vegetated lands, trees, scrublands, and agricultural land having food and cash crops.
4.	Waterbodies	Comprises rivers, streams, lakes, reservoirs, and ponds

. The changes in LULC of an urban area can be attributed to various human activities and urbanization. This change can be obtained by classifying satellite data through remote sensing and GIS techniques that categorise image pixels into different LULC types. The classification of satellite images helps in producing thematic maps at a specified period. Several classification algorithms have been utilised previously by [48,49,50,51,52]. The spatial and quantitative information in this study was retrieved using the supervised classification algorithm. The Maximum Likelihood Classifier (MLC) was identified as the most prominent and robust classification technique that relies on pixel spectral information for accurate and precise land use/land classification [53,54]. Therefore, the study employed pixel-based maximum likelihood supervised classification to analyse the study area’s land cover changes. The available satellite image for 1991 was used as the starting point, while 2020 was the final year, covering approximately 30 years. A minimum of 100 training samples was generated for each LULC category in order to train the Maximum Likelihood Classifier. The algorithm was applied to the datasets, and thematic LULC maps were produced for 1991, 2000, 2010, and 2020. Post-Classification Comparison (PCC) was carried out using the procedures described in the literature for determining the quantitative changes in the individual land-use/land cover categories [55,56,57].

2.3.2. Accuracy Assessment of LULC Classification

The accuracy of the classified images was assessed using the confusion/error matrix approach [58,59]. An equalised random sampling method was employed for an accurate and unbiased assessment. Fifty stratified random points were created for each LULC class in order to validate the study’s classified land cover distribution. Historical Google Earth images were used for validating the actual ground truth conditions of the different land uses in the study area. The accuracy of the land cover classification was assessed using producer accuracy, user accuracy, overall accuracy, and the Kappa index of Agreement, i.e., Kappa coefficient. The producer’s accuracy is calculated as the sum of the total classified pixels in the error/confusion matrix diagonals divided by the total classified pixels in the column category. User’s accuracy is calculated by dividing the total sum of the correctly classified pixels in error matrix diagonals by the total sum of classified pixels in the row category. The overall accuracy is the ratio of the total correctly classified pixels by the total sum of pixels in the error matrix. As discussed in previous studies, the Kappa coefficient is the extent to which the reference data corresponds to the classified images [60]. The overall accuracy and kappa coefficient were computed in this study using Equations (1) and (2).

$$\mathrm{Overall} \mathrm{Accuracy} \left(\mathrm{OA}\right)=\frac{{{\displaystyle \sum }}_{\mathrm{i}}^{\mathrm{r}}{x}_{ii}}{x}$$

(1)

where, $x_{ii}$ are the diagonal samples of the error matrix, $x$ is the total pixels in the error matrix

$$\mathrm{Kappa} \mathrm{Coefficient}=\frac{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{r}}{x}_{ii}-{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{r}}{x}_{i+}{x}_{+1}}{n^2-{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{r}}{x}_{i+}{x}_{+1}}$$

(2)

where $\mathrm{r}$ is the number of rows in the error matrix, $x_{ii}$ are the observed number in row $i$ and column $i$, $x_{i+}$ and $x_{+1}$are the marginal sum of row $i$ and column $i$, respectively, while $n$ is the total sum of pixels in the error matrix.

2.3.3. Normalised Difference Vegetation Index (NDVI)

The study employed the Normalised Difference Vegetation Index (NDVI) as an indicator to evaluate the vegetation cover or amount of greenness in satellite images using the red and near-infrared bands [61]. The NDVI usually varies between −1 and 1. Negative values of NDVI signify non-vegetated, while positive values of NDVI represent areas having vegetation cover [62]. The standard formula for retrieving NDVI was utilised in estimating the study area’s vegetational cover, and was computed using Equation (3) [63].

$$\mathrm{NDVI}=\frac{\left(\mathrm{NIR} - \mathrm{RED}\right)}{\left(\mathrm{NIR} + \mathrm{RED}\right)}$$

(3)

where NIR is the Near-Infrared Band (i.e., 0.76–0.90 μm for Landsat TM, 0.772–0.898 μm for Landsat ETM+ and 0.851–0.879 μm for Landsat OLI) and RED is the Red Band (i.e., 0.63–0.69 μm for Landsat TM, 0.631–0.692 μm for Landsat ETM+ and 0.636–0.673μm for Landsat OLI). The NDVI value usually ranges from −1 to 1. Low NDVI values signify non-vegetated areas, while high NDVI values represent dense vegetation.

2.3.4. Normalized Difference Built-Up Index (NDBI)

The Normalized Difference Built-up Index (NDBI) extracted the study’s built-up areas, as employed in previous literature [64,65,66]. The NDBI was calculated using Equation (4).

$$\mathrm{NDBI}=\frac{\left(\mathrm{MIR} - \mathrm{NIR}\right)}{\left(\mathrm{MIR} + \mathrm{NIR}\right)}$$

(4)

where MIR is the Mid-Infrared Band (i.e., 1.55–1.75 μm for Landsat TM, 1.547–1.749 μm for Landsat ETM+ and 1.566–1.651μm for Landsat OLI) and NIR is the Near-Infrared Band of Landsat TM (0.76–0.90 μm), Landsat ETM+ (0.772–0.898 μm) and Landsat OLI (0.851–0.879 μm). The NDBI values range between −1 and 1, where negative values signify waterbodies and positive values represent built-up/developed urban areas. Low NDBI values usually denote vegetation cover.

2.3.5. Land Surface Temperature (LST)

The study employed the thermal infrared bands of the different satellite images as established by Qin, et al. [67] to derive LST. The earth’s surface radiation was observed using spectral reflectance ranging between 10.4 to 12.5 µm. The LST retrieval procedures involved four major steps [68,69].

• Conversion of Digital Number values to Spectral Radiance

The digital numbers, i.e., the satellite images’ pixel values, were converted using the scaling method into spectral radiance as presented in Equation (5) for Landsat TM and ETM+ and Equation (6) for Landsat OLI.

$$L_{\lambda }=\left(\frac{L_{Max.\lambda }-L_{Min.\lambda }}{Q_{Cal.Max}-Q_{Cal.Min}}\right)\times \left(Q_{Cal}-Q_{Cal.Min}\right)+L_{Min.\lambda }$$

(5)

$$L_{\lambda }=M_L\times Q_{Cal}+{\Delta }_L$$

(6)

where $L_{\lambda }=$ Spectral radiance (w·sr⁻¹·m⁻³), $L_{Max.\lambda }=$ Spectral radiance scaled to $Q_{Cal.Max}$ i.e., DN value 255, $L_{Min. \lambda }=$Spectral radiance scaled to $Q_{Cal.Min}$ i.e., DN value 1, $Q_{Cal}=$ Pixel values of satellite images (Digital Number), $Q_{Cal.Max}=$ Quantitized and calibrated maximum pixel value that corresponds to $L_{Max.\lambda }$, $Q_{Cal.Min}=$ Quantitized and calibrated minimum pixel value that corresponds to $L_{Min. \lambda }$, $M_L=$ Multiplicative scaling factor for the radiance of the specific spectral band (x) obtained from the metadata of the dataset (i.e., RADIANCE_MULT_BAND_x), and ${\Delta }_L=$ additive scaling factor for the radiance of the spectral band (x) retrieved from the image’s dataset (i.e., RADIANCE_ADD_BAND_x).

• Conversion of Spectral Radiance to Temperature (in Kelvin)

This step involves the conversion of spectral radiance into brightness temperature$\left({\mathrm{T}}_{\mathrm{B}}\right)$i.e., the top of the atmosphere (TOA), using Planck’s Radiance Function. The brightness temperature $\left({\mathrm{T}}_{\mathrm{B}}\right)$ also corresponds to the apparent surface temperature reaching the satellite sensor, and is calculated using the standard formula presented in Equation (7) [69]:

$${\mathrm{T}}_{\mathrm{B}}=\frac{{\mathrm{K}}_2}{\mathrm{Log}\left(\frac{{\mathrm{K}}_1 }{L_{\lambda }}+1\right)}$$

(7)

where K₁ and K₂ = Calibration constants of thermal bands obtained from the image’s metadata (

Table 4. Landsat Thermal Band Calibration Constant.

S/No.	Satellite	Thermal Band	K1 (W·m−2·sr−1·μm−1)	K2 (Kelvin)
1.	Landsat 4 TM	Band 6	671.62	1284.30
2.	Landsat 7 ETM+	Band 6	666.09	1282.71
3.	Landsat 8 OLI	Band 10	774.89	1321.08
4.	Landsat 8 OLI	Band 11	480.89	1201.14

), $L_{\lambda }$ = Spectral radiance (w·sr⁻¹·m⁻³), and ${\mathrm{T}}_{\mathrm{B}}$ = Brightness Temperature (in Kelvin).

• Conversion of Temperature (in Kelvin) to Degrees Celsius

This step involves converting surface temperature from degrees Kelvin (°K) to degrees Celsius (°C) using Equation (8).

$${\mathrm{T}}_{\mathrm{B} \left( °\mathrm{C}\right)}={\mathrm{T}}_{\mathrm{B}\left(\mathrm{in} \mathrm{Kelvin}\right)}-273.15$$

(8)

• Estimation of Land Surface Temperature (LST)

The study’s LST was computed from the at-sensor brightness temperature using Equation (9):

$${\mathrm{LST}}_{\left( °\mathrm{C}\right)}=\frac{{\mathrm{T}}_{\mathrm{B}}}{1+\left(\lambda \times \frac{{\mathrm{T}}_{\mathrm{B}}}{\rho }\right)\times \mathrm{Ln} \left(\mathsf{\epsilon }\right)}$$

(9)

where, ${\mathrm{T}}_{\mathrm{B}}$ = at sensor brightness Temperature, $\lambda$ = emitted radiance wavelength (11.5 μm), $\rho$ = $h\times \left(\mathrm{c}/\mathsf{\sigma }\right)=1.438\times 10{¯}^{2 } \mathrm{m}$k ($h=$ Planck’s constant ($6.626\times 10{¯}^{34 }\mathrm{JS})$, $\mathrm{c}=$ velocity of light $\left(2.998\times {10}^8\mathrm{m}/\mathrm{s}\right)$ and $\mathsf{\sigma }=$ Boltzmann constant $(1.38\times 10{¯}^{23}$J/k) and $\mathsf{\epsilon }$ is the surface emissivity calculated using Equation (10).

$$\mathrm{Surface} \mathrm{emissivity} (\mathsf{\epsilon })=0.004 \left(\mathrm{Pv}\right)+0.986$$

(10)

where Pv is the proportion of vegetation retrieved using Equation (11).

$$\mathrm{Pv}={\left[\frac{\left(\mathrm{NDVI}-{\mathrm{NDVI}}_{\min }\right)}{\left({\mathrm{NDVI}}_{\max }-{\mathrm{NDVI}}_{min}\right)}\right]}^2$$

(11)

where NDVI = Normalised Difference Vegetation Index, NDVI_min is the minimum value of NDVI, and NDVI_max is the maximum value of NDVI.

2.3.6. Correlation and Regression Analyses

A linear correlation (Pearson) analysis [70] was then performed in order to evaluate the correlation between the LST component of urban climate and spectral indices that include NDVI and NDBI. The LST values for the four time epochs under consideration were extracted from each year’s image pixel at the individual points of the various spectral indices. These points were then used as input data for the study’s model, and the relationship between LST and land cover change dynamics was analysed. The methodological procedures adopted for achieving the study’s objectives are summarised in Figure 2, which shows the flowchart of the study.

3. Results and Discussion

3.1. Spatial Distribution of LULC Classes, Decadal Changes and Transitions

The distribution of land uses extracted using the supervised classification algorithm indicates the land features during the different periods under the study to include barren lands, built-up areas, vegetation, and water bodies, as illustrated in Figure 3. The results presented in

Table 5. Statistical Data of the LULC classes.

LULC Classes	1991 Area		2000 Area		2010 Area		2020 Area
	Sq.km	Percent	Sq.km	Percent	Sq.km	Percent	Sq.km	Percent
Barren Land	413.47	71.88	410.26	71.32	355.78	61.85	240.89	41.88
Built-up Areas	66.16	11.50	96.51	16.78	139.26	24.21	218.71	38.02
Vegetation	63.68	11.07	56.23	9.77	74.78	13.00	110.25	19.17
Water Bodies	31.93	5.55	12.24	2.13	5.42	0.94	5.38	0.93
Total	575.24	100.00	575.24	100.00	575.24	100.00	575.24	100.00

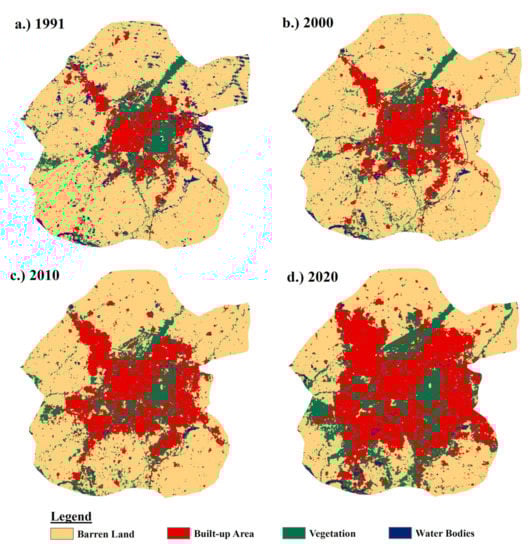

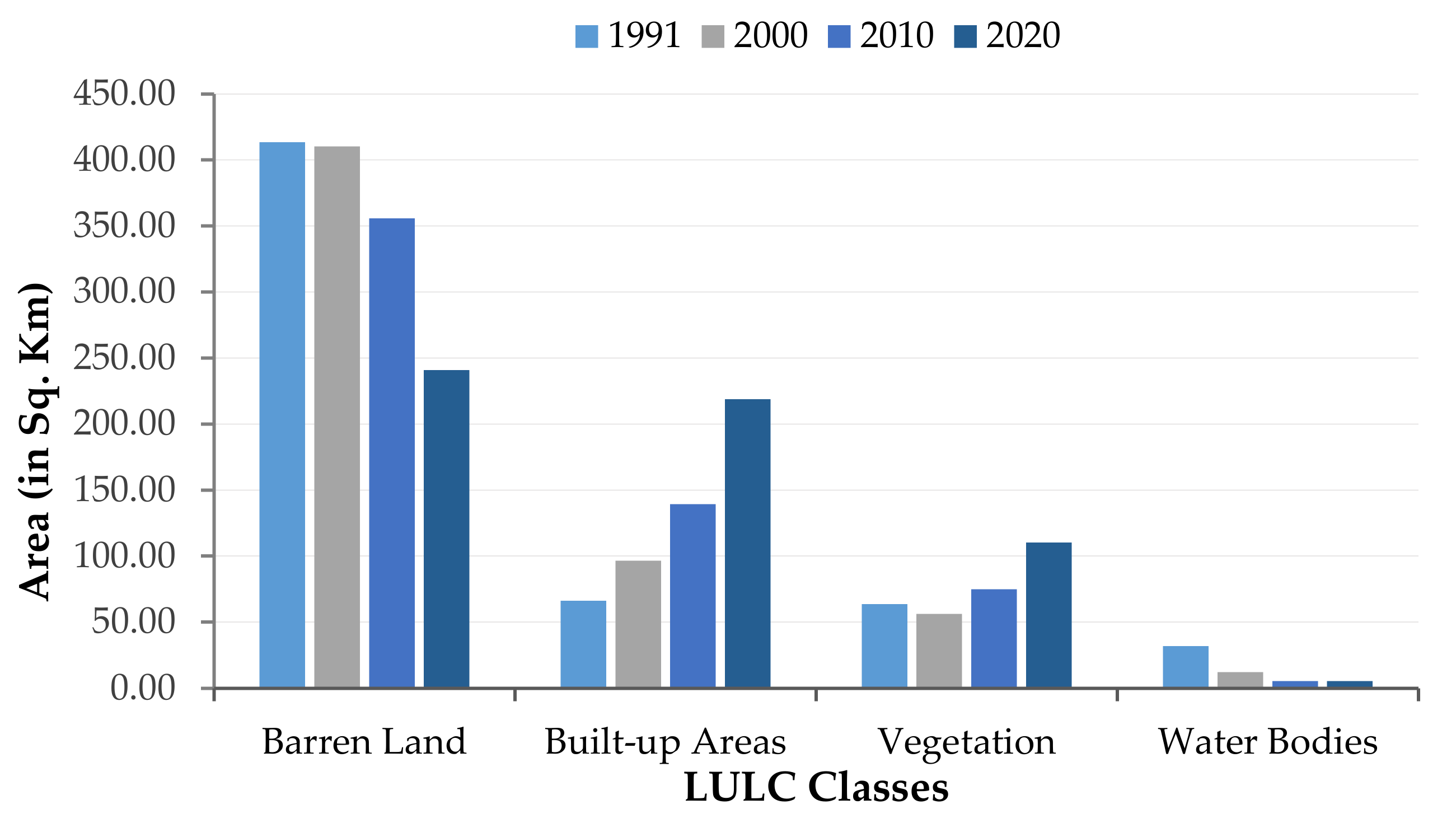

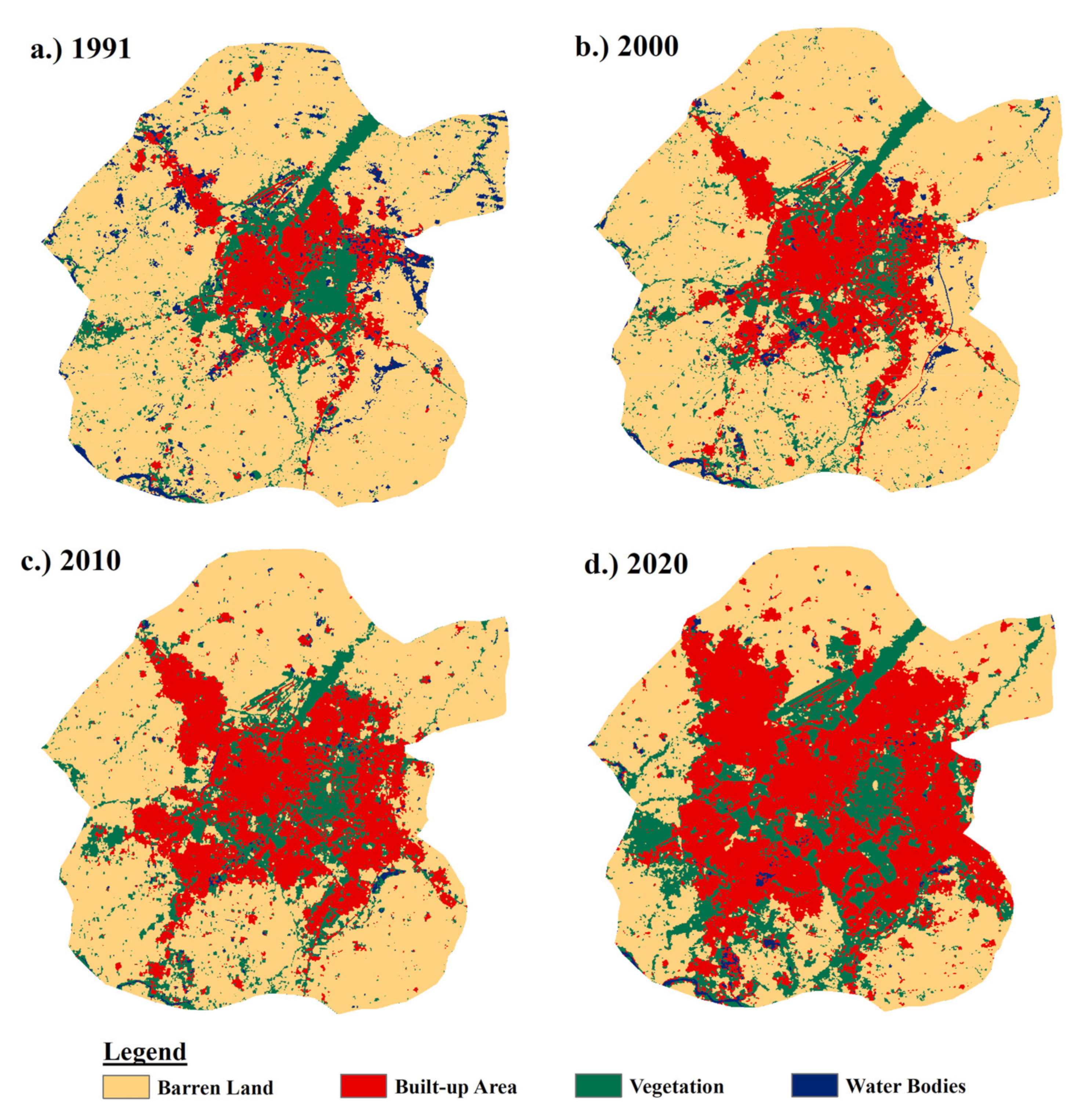

and Figure 4 show the LULC classes and their statistical distribution. In 1991, barren land occupied the most extensive area, having approximately 413.47 sq. km (71.88%), followed by built-up areas with an area of 66.16 sq. km (11.50%) and closely vegetated lands having an area of 63.68 sq. km (11.07%), respectively. Water bodies covered 31.93 sq. km, representing 5.55% of the city’s landmass. In 2000, barren land covered approximately 71.32% of the study area’s landmass, followed by built-up areas, vegetation, and water bodies having 16.78%, 9.77%, and 2.33%, respectively. This trend of LULC pattern continued from 2010 to 2020 with a significant increase in built-up areas, from 139.26 sq. km (24.21%) to 218.71 sq. km (38.02%) and a decrease in barren land, from 355.78 sq. km (61.85%) to 240.89 sq. km (41.88%). Vegetation showed an inverse trend during this period, increasing from 74.78 sq. km (13.00%) in 2010 to 110.25 sq. km (19.17%) in 2020. This increase can be associated with the enormous investment in agricultural activities over the last ten years, which contributed significantly to the alteration of land use.

The results of the decadal changes in land uses are shown in

Table 6. Decadal Net Changes of LULC classes.

LULC Classes	1991–2000		2000–2010		2010–2020		1991–2020
	Area (km2)	% Change	Area (km2)	% Change	Area (km2)	% Change	Area (km2)	% Change
Barren Land	−3.20	−0.78	−54.49	−15.31	−114.89	−47.69	−172.58	−71.64
Built-up Areas	30.34	31.44	42.76	30.70	79.45	36.33	152.55	69.75
Vegetation	−7.45	−13.24	18.55	24.81	35.47	32.17	46.58	42.25
Water Bodies	−19.69	−160.89	−6.82	−126.05	−0.04	−0.67	−26.55	−493.67

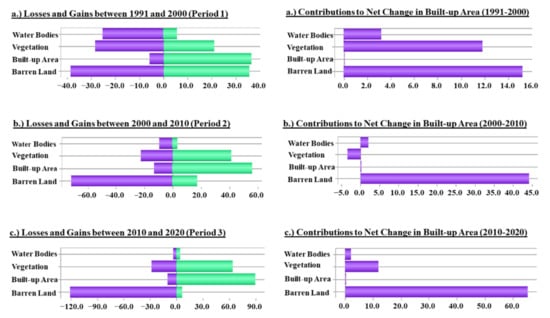

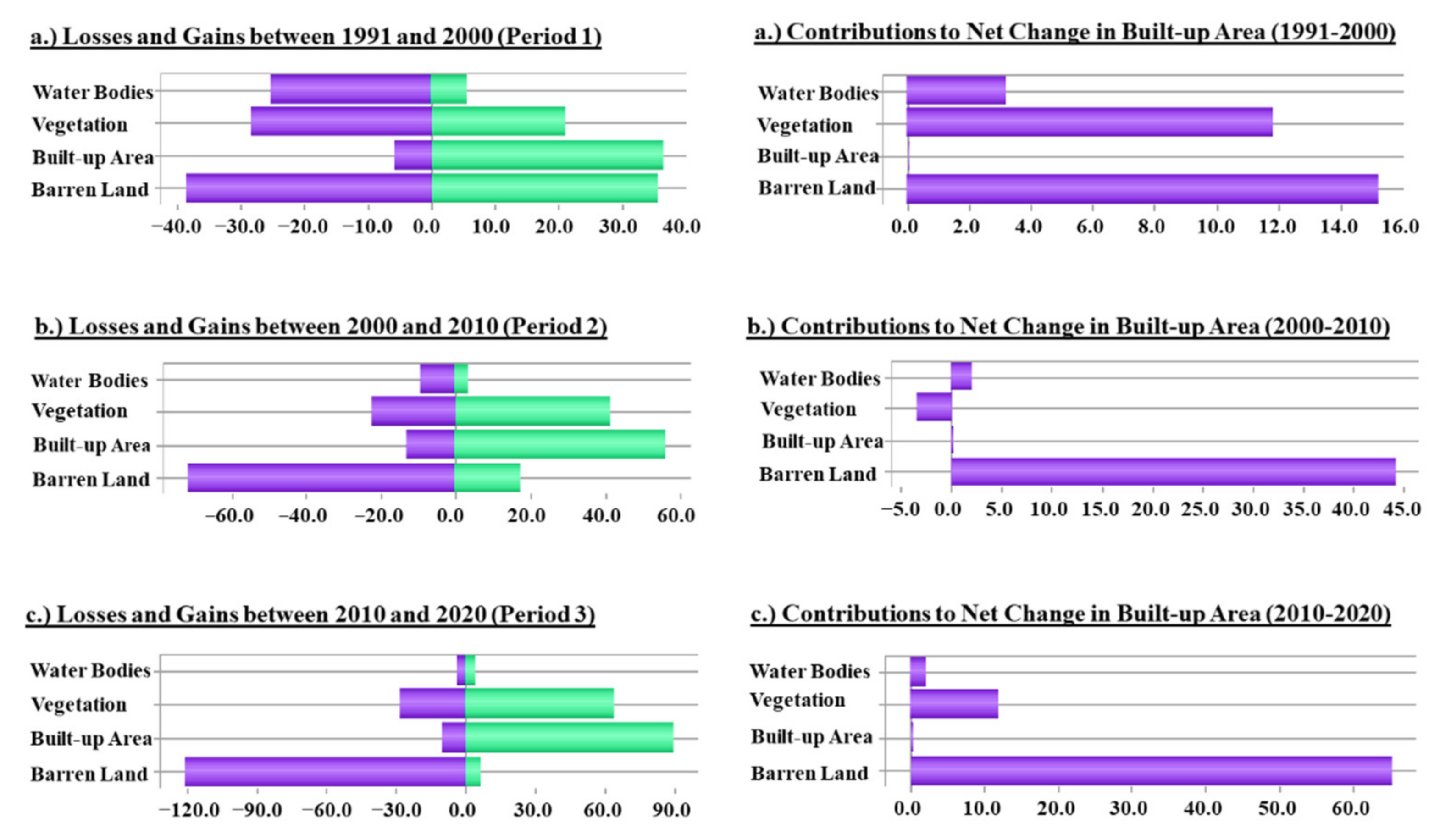

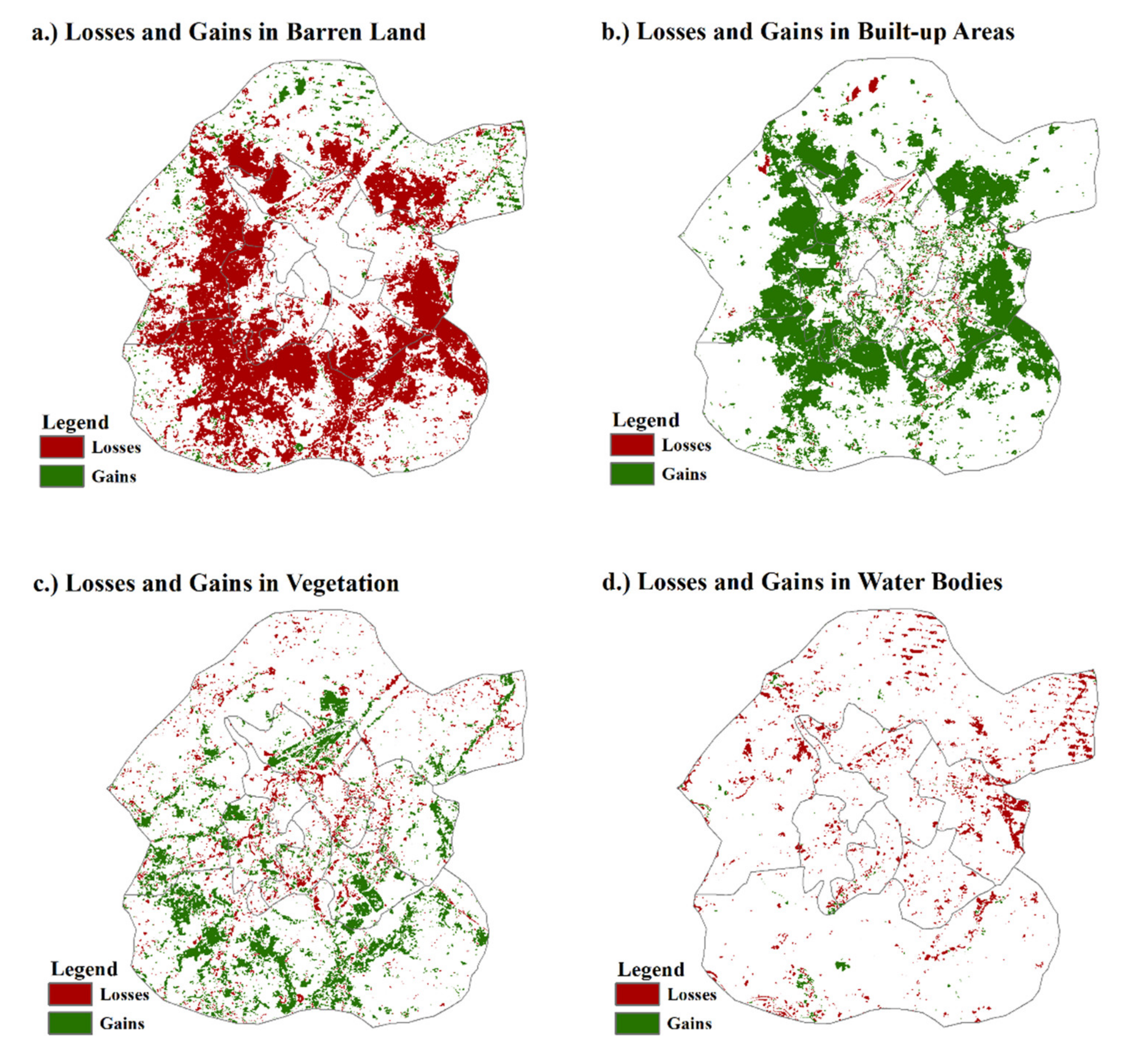

. In addition, the losses and gains of the four LULC classes, alongside their net contributions to the expansion of built-up areas, are illustrated in Figure 5.

The study results reveal that during period one, between 1991–2000, the city’s water bodies saw the most significant net change, −19.69 sq. km (−160.89%), which comprises an area loss of −25.38 sq. km (−79.49%) and a gain of 5.69 sq. km (46.48%). Vegetated land saw a net change of −7.45 sq. km (−13.24%), which comprises an area loss of −28.4 sq. km (−44.67%) and a gain of 21.00 sq. km (37.34%). Built-up areas saw a net change of 30.34 sq. km (31.44%), which comprises an area loss of −5.99 sq. km (−9.05%) and a gain of 36.33 sq. km (37.65%). Barren land witnessed a net change of −3.20 sq. km (−0.78%), which comprises an area loss of 38.78 sq. km (9.38%) and a gain of 35.57 sq. km (8.67%). These findings suggest the built-up areas have experienced the most significant increase among the four land uses between 1991 and 2000, with barren land, vegetation, and water bodies contributing 15.26 sq. km, 11.84 sq. km, and 3.24 sq. km, respectively.

During period two, between 2000 and 2010, water bodies observed a net change of −6.82 sq. km (−126.05%), comprising of an area loss of −10.03 sq. km (−81.95%) and a gain of 3.20 sq. km (59.19%). Vegetated land witnessed a decline of −22.48 sq. km (−39.98%) and an increase of 41.03 sq. km (54.87%), a net increase of 18.55 sq. km (24.81%). The city’s built-up areas witnessed a net increase of 42.76 sq. km (30.70%), comprising an area decrease of −13.46 sq. km (−13.95%) and an increase of 56.22 sq. km (40.37%). Barren land experienced a net change of −54.49 sq. km (−15.31%), comprising an area loss of −71.69 sq. km (−17.47%) and a gain of 17.21 sq. km (4.84%). The trend of the city’s built-up areas witnessing the most substantial growth continued during this period, with barren lands and water bodies declining. This led to the increase in built-up areas and the transformation of 44.06 sq. km of barren land and 2.21 sq. km of water bodies into urban areas.

In the third period, the city’s water bodies observed a slight net change of −0.04 sq. km (−0.67%), comprising a decrease of −4.15 sq. km (−76.65%) and an increase of 4.11 sq. km (76.49%). Vegetated land saw a loss of −28.52 sq. km (−38.14%) and a gain of 63.99 sq. km (58.04%), resulting in a net increase of 35.47 sq. km (32.17%). The built-up areas saw a net increase of 79.45 sq. km (36.33%), comprising an area decline of −10.02 sq. km (−7.20%) and a gain of 89.47 sq. km (40.91%). Barren land witnessed a net change of −114.89 sq. km (−47.69%), comprising an area loss of −120.91 sq. km (−33.98%) and a gain of 6.02 sq. km (2.50%). Between 2010 and 2020, Barren land, vegetation, and water bodies contributed 65.14 sq. km, 12.14 sq. km, and 2.18 sq. km, respectively, to the growth and expansion of the city’s built-up area.

The land cover distribution between 1991 and 2020 showed various losses and gains during the study period, as illustrated in Figure 6. It indicates a −190.93 sq.km (−46.18%) loss in barren land and a gain of 18.36 sq.km (7.62%). The city’s built-up area lost −6.52 sq. km (−9.86%) and gained 159.07 sq. km (72.73%). Vegetation saw a loss of −25.66 sq. km (−40.30%) and a gain of 72.24 sq.km (65.52%), while water bodies lost −29.50 sq. km (−92.40%) and gained 2.95 sq.km (54.85%). Therefore, it is evident that built-up areas experienced the most significant increase from 1991 to 2020, having 152.55 sq. km urban growth. Barren land, vegetation, and water bodies contributed 126.99 sq. km, 12.83 sq. km, and 12.73 sq. km, respectively, to this expansion of built-up areas between 1991 and 2020. This development is attributed to the city’s rapid urbanization, and aligns with previous studies which highlight the environmental challenge of urban modification, i.e., increased land surface temperature due to LULC alterations [40,61,66,71].

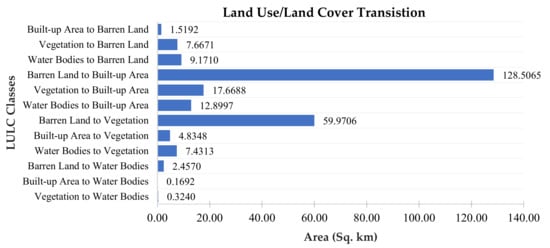

These results demonstrate the various transitions of land uses from one class to another, as presented in Figure 7. The most significant alteration is the transformation of approximately 128.51 sq. km of barren land into built-up areas. This alteration could be associated with the city’s population growth, which has contributed to massive infrastructural, residential, commercial, and industrial development. In addition, the enormous investment in agricultural activities over the last 30 years in Kano Metropolis has contributed substantially to the conversion of 59.97 sq. km of barren land into vegetated areas with trees, shrubs, and agricultural land for the cultivation of various food and cash crops such as groundnuts, rice, millet, maize, sorghum, wheat, etc. Other transitions in land uses include the conversion of 17.69 sq. km of vegetation into built-up areas, the transformation of 12.90 sq. km of water bodies into impervious surfaces of these built-up areas, and the conversion of 9.17 sq. km of water bodies into barren lands.

3.2. Accuracy Assessment of Land Uses

The classified LULC maps were derived using the error/confusion matrix, as presented in

Table 7. Accuracy Assessment of classified LULC maps.

LULC Classes	1991		2000		2010		2020
	Prod Ac.	User Ac.	Prod Ac.	User Ac.	Prod Ac.	User Ac.	Prod Ac.	User Ac.
	Percent (%)		Percent (%)		Percent (%)		Percent (%)
Barren Land	90.93	92.14	92.20	97.27	99.81	98.80	99.82	96.15
Built-up Areas	89.36	83.96	90.66	98.82	88.48	99.97	93.27	98.97
Vegetation	79.28	89.77	91.85	65.63	97.87	59.77	94.84	80.83
Water Bodies	77.91	87.58	91.85	67.81	98.04	38.61	92.25	96.75
Overall Accuracy	88.53%		91.71%		93.54%		95.24%
Kappa Coefficient	0.8137		0.8652		0.8891		0.9190

Note: Ac. = Accuracy.

. It shows the three accuracies and the Kappa coefficients for 1991, 2000, 2010, and 2020. Producer accuracy indicated the likelihood of reference image pixels being correctly classified. User accuracy measured the probability of the classified image pixels representing actual condition of the earth’s surface [58,72]. An overall accuracy above 85% suggests a satisfactory land cover classification. In this study, producer and user accuracy improved for the different land uses, with the overall accuracy increasing from 88% in 1991 to 95% in 2020, indicating a good LULC classification. The artifacts observed in the classified image of 1991 could be attributed to an image error that occurred during the overpassing of satellite. However, the results of the overall accuracies are all above satisfactory, implying that any such error could be neglected. The Kappa coefficients were also found to be 0.8137 in 1991, 0.8652 in 2000, 0.8891 in 2010, and 0.9190 in 2020, signifying good agreement between classified maps and the actual ground conditions.

3.3. Urban Expansion of Kano Metropolis

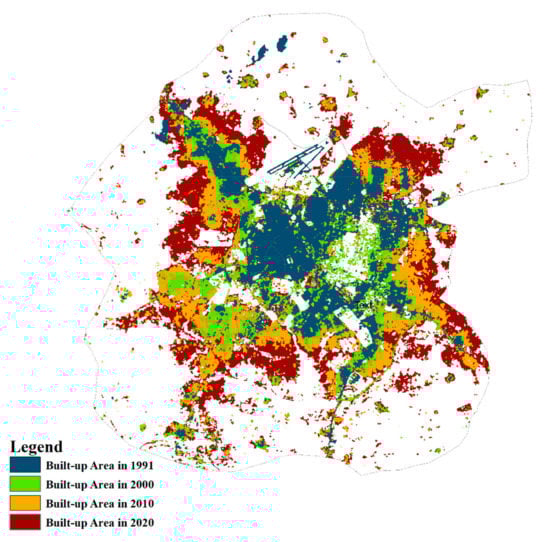

The built-up area development illustrated in Figure 8 indicates the study’s urban expansion over the last 29 years. It shows an outward growth from the city’s central core to the western, eastern, and southern parts of the metropolis, with the northern region having developed the least. Generally, the urban area witnessed expansion in all directions over the period between 1991 and 2020. The city’s built-up area covered a landmass of approximately 66.16 sq. km in 1991, 96.51 sq. km in 2000, 139.26 sq. km in 2010, and 218.71 sq. km in 2020, respectively. Analysis of these results indicates that between 1991 and 2000, built-up area increased by approximately 30.34 sq. km, an increase of 3.37 sq. km per annum. The city experienced a 42.76 sq. km increase in built-up areas between 2000 and 2010, resulting in 4.28 sq. km annual urban expansion. This further increased to 7.95 sq. km per annum between 2010 and 2020. These results clearly show that the yearly increase in built-up area from 2010–2020 is more than twice the annual urban growth from 1991–2000. Hence, these findings imply slow urbanization within the first decade (i.e., 1991–2000) compared to the last decade (i.e., 2010–2020). The main push and pull factors responsible for this growth are related to the city’s commercial and agricultural activities.

3.4. Normalised Difference Vegetation Index

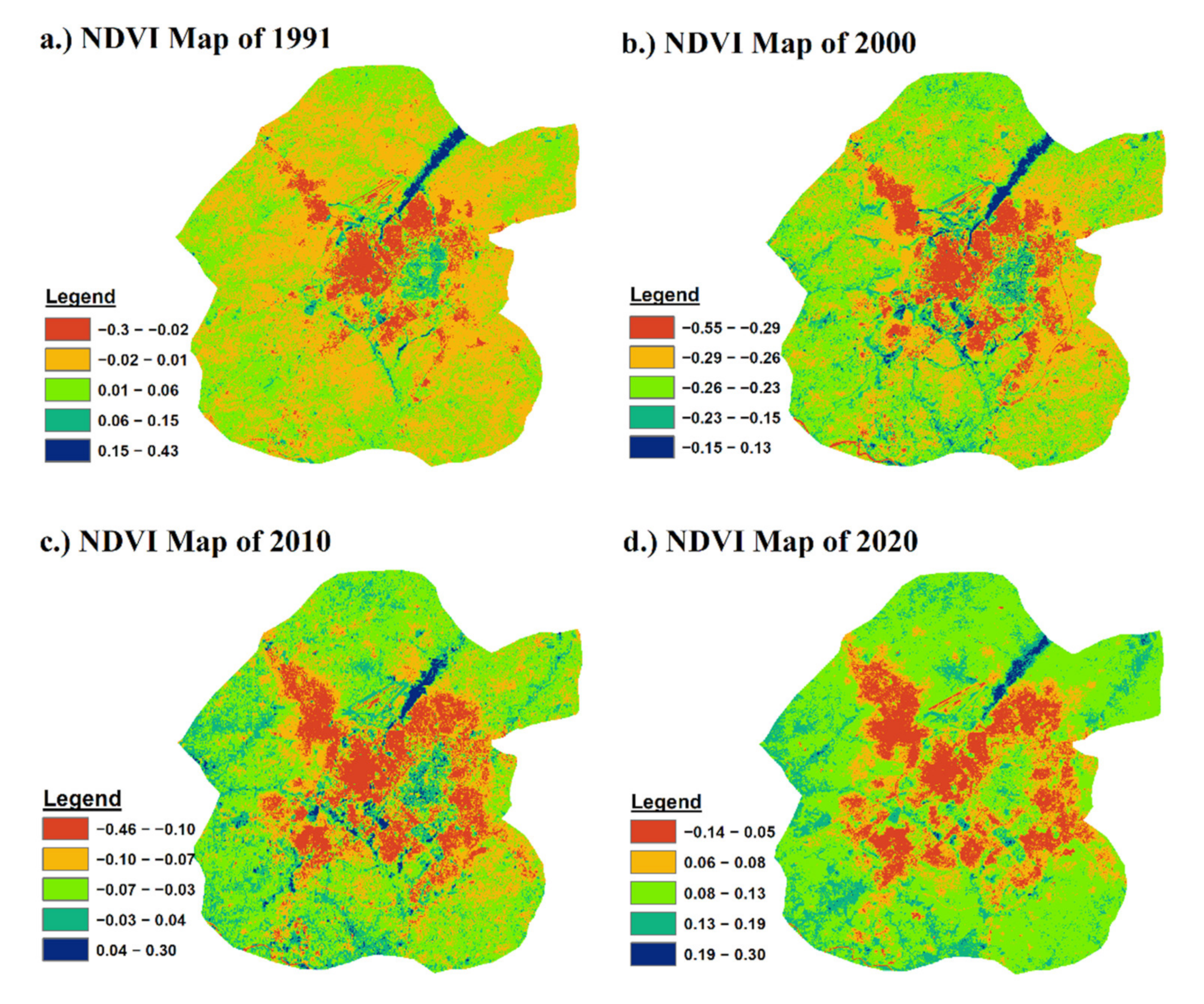

The NDVI maps derived using the satellite data of 1991–2020 are presented in Figure 9. The results reveal a mean NDVI value of approximately 0.01, −0.25, −0.06, and 0.10 in 1991, 2000, 2010, and 2020, respectively. The study results indicate the NDVI values to be between −0.30 and +0.43 in 1991. The NDVI values changed to −0.55 and +0.13 in 2000, while in 2010, the minimum and maximum NDVI values were −0.46 and +0.30. The study further witnessed an alteration of NDVI in 2020 with minimum and maximum values of −0.14 and +0.30, respectively. Previous studies indicate that areas with higher NDVI values signify forest and vegetated lands having agricultural farms, while lower NDVI values represent built-up areas and other land uses such as barren land and water bodies [61,73]. The NDVI maps showed a substantial decrease in vegetation cover, with lower NDVI values from 1991 to 2020. Built-up areas showed lower NDVI values than other LULC classes during the study period. Therefore, the alteration of land uses may have influenced the city’s vegetation cover. This aligns with a recent study that suggests a continuous decline in NDVI with increased urban expansion [40].

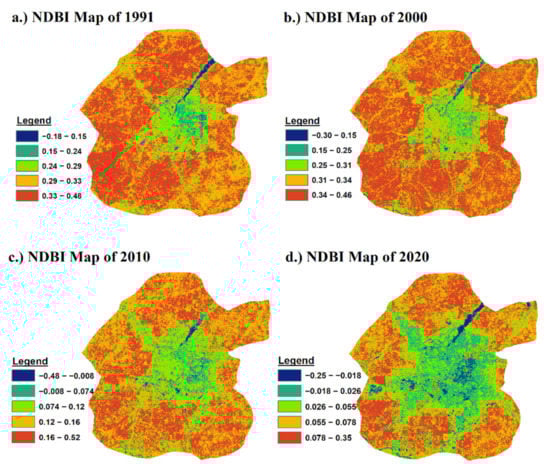

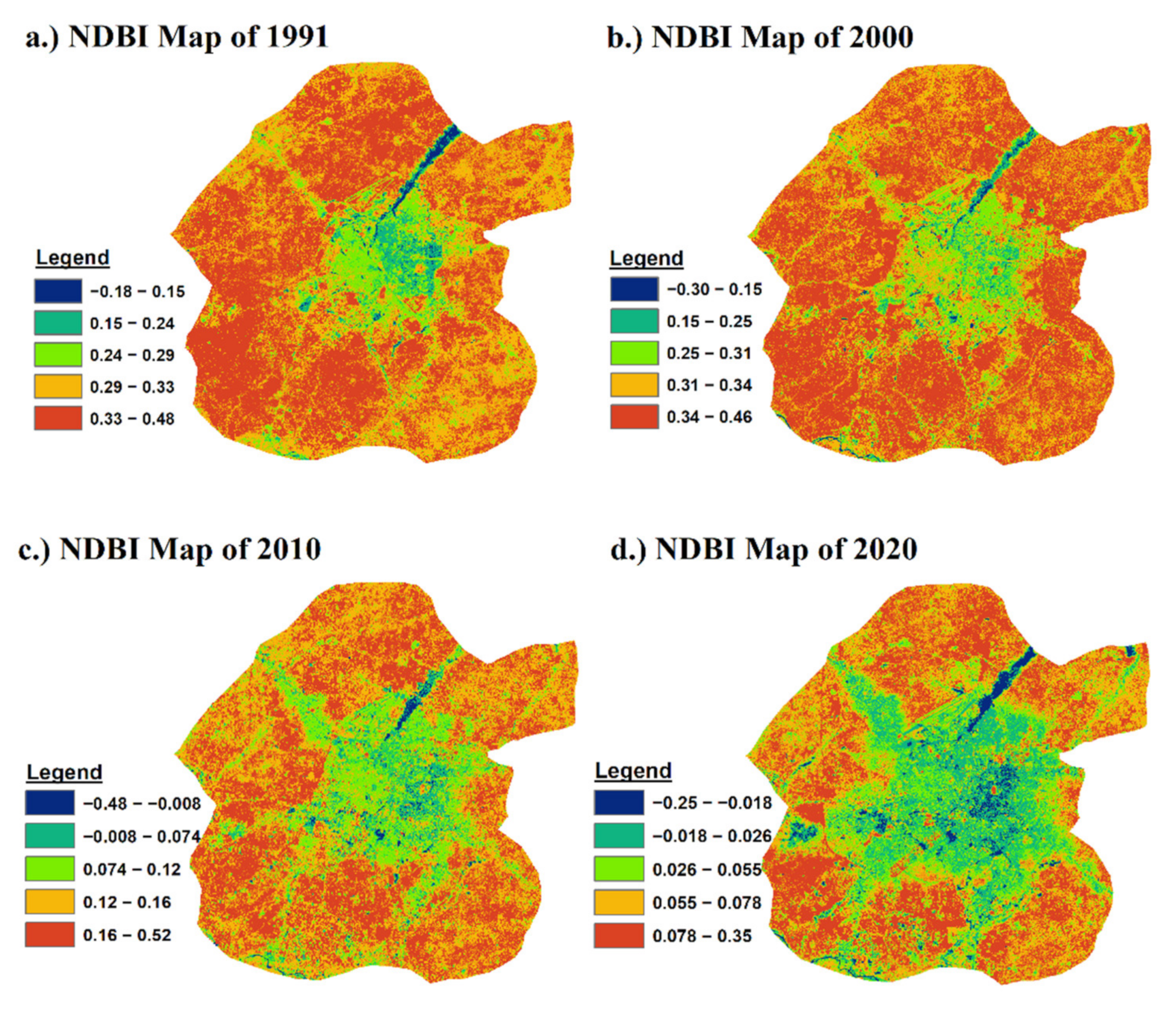

3.5. Normalized Difference Built-Up Index

The spectral index of the built-up area extraction was performed using NDBI and presented in Figure 10, which shows the NDBI maps for 1991, 2000, 2010, and 2020. The results indicate that NDBI values ranged from approximately −0.18 to +0.48 in 1991. In 2000, the lowest and highest NDBI values were −0.30 and +0.46, respectively. The varying trend of NDBI continued in 2010 with minimum and maximum values of −0.48 and +0.52, respectively. In 2020, the study area witnessed an NDBI value ranging between −0.25 and +0.35. Furthermore, the results revealed a mean NDBI of 0.32 in 1991, 0.33 in 2000, 0.14 in 2010, and 0.06 in 2020. Therefore, the increase in the spatial coverage of built-up areas observed around the city’s central core could be attributed to the outward growth and development of settlements.

3.6. Land Surface Temperature

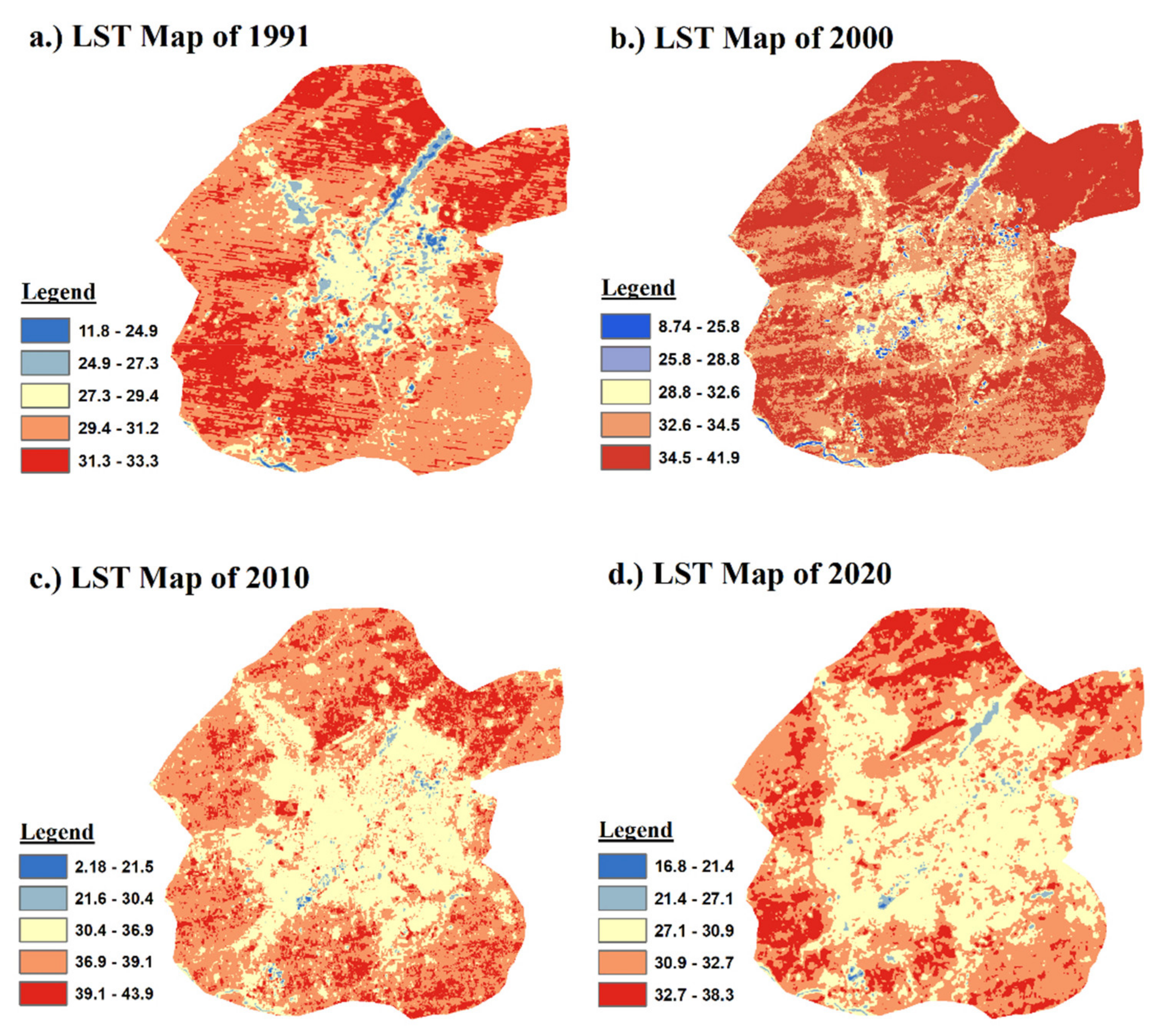

The results of the study’s LST, retrieved using the mono-window algorithm, is illustrated in Figure 11. It shows the variation of LST across Kano metropolis to be between 11.84 °C and 33.30 °C in 1991. In 2000, the LST values varied between 8.74 °C and 41.79 °C, while in 2010, they ranged from 2.18 °C to 43.98° and, finally, were between 16.77 °C and 38.27 °C in 2020. These results indicate an increase in the city’s minimum and maximum LST over the last three decades by approximately 4.93 °C and 4.97 °C, respectively. It further reveals the mean LST of the study area to be about 30.32 °C, 33.96 °C, 37.30 °C, and 31.24 °C in 1991, 2000, 2010, and 2020, respectively.

4. Implications of Land-Use Changes for Urban Climate

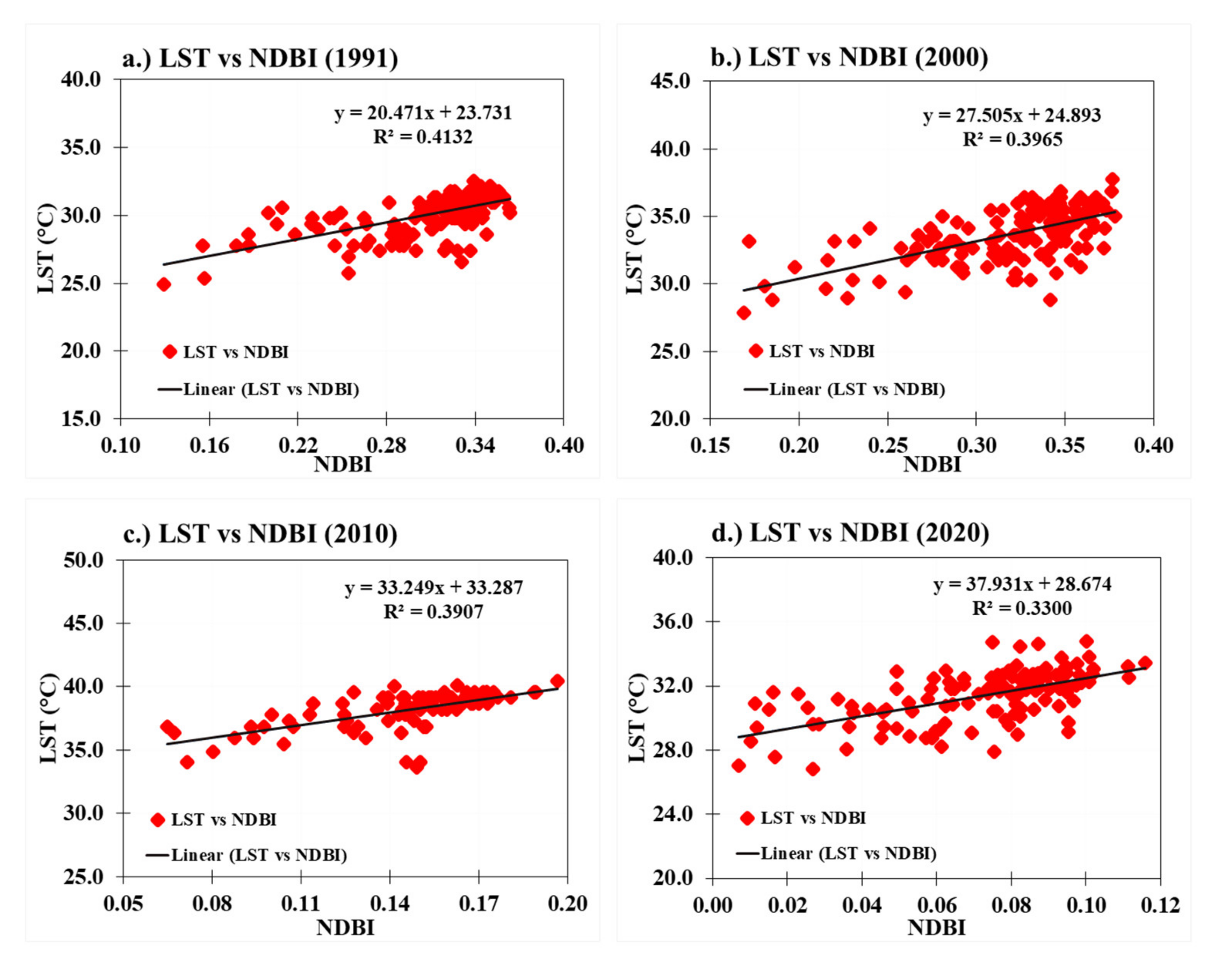

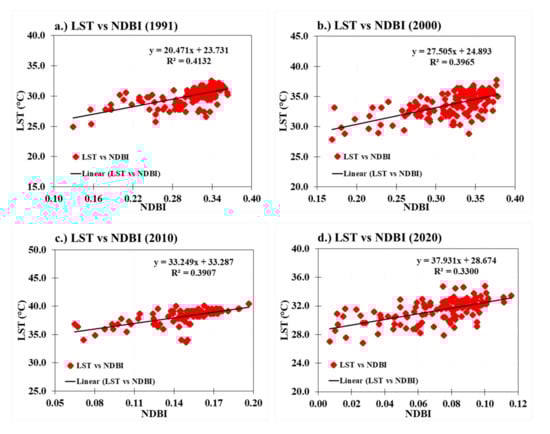

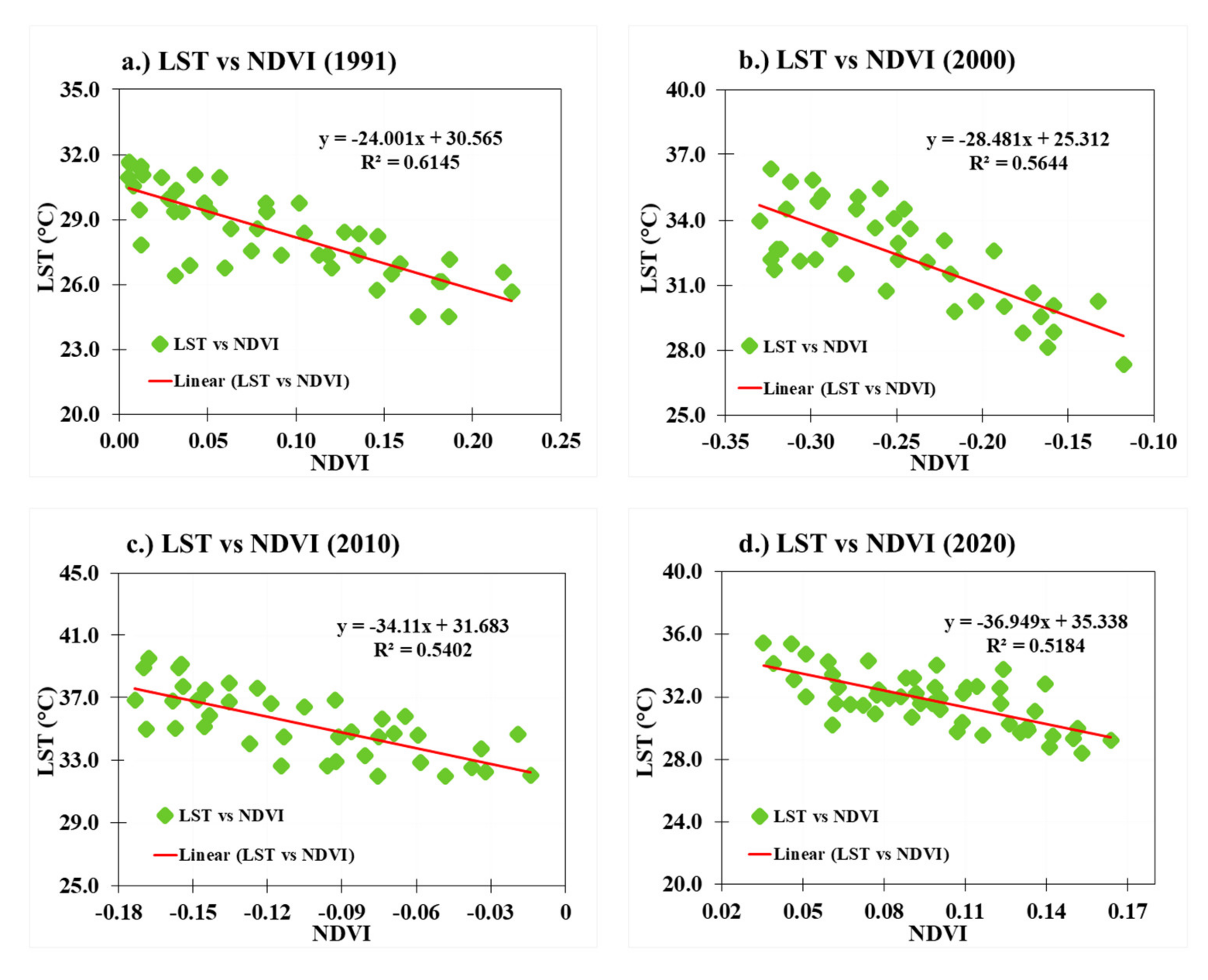

To examine the influence of urbanization and LULC changes on the LST component of urban climate, thermal signatures of land use/land cover using spectral indices are essential [74]. Therefore, this study employed various sampling points to compare the relationship between LST and land spectral indices that include NDVI and NDBI. The correlation and regression coefficients were determined by considering the study area’s land surface temperature as the dependent variable and the two spectral indices as the independent variable, i.e., vegetation cover index and built-up area index. The results of the linear correlation between LST and the land spectral indices, i.e., NDVI and NDBI, for the different years under consideration are presented in Figure 12 and Figure 13. The Pearson’s correlation clearly shows that LST is inversely related to NDVI and positively related to NDBI. These results indicate a negative relationship between the city’s surface temperature (LST) and its vegetation index (NDVI), having a determination coefficient (R²) of 0.6145 in 1991, 0.5644 in 2000, 0.5402 in 2010, and 0.5184 in 2020. The analysis of the linear regression line suggests that higher land surface temperatures were associated with areas of low vegetation cover, while lower land surface temperatures were observed in vegetated areas with high NDVI. The result further revealed a positive correlation between LST and NDBI, presenting a determination coefficient (R²) of 0.4132, 0.3965, 0.3907, and 0.3300 in 1991, 2000, 2010, and 2020.

These findings align with previous studies in some geographical regions that presented higher land surface temperatures in urban areas with impervious surfaces and lower temperatures in water bodies and agricultural lands [40,66,75]. The results of these studies revealed that urban expansion has led to the continuous loss of vegetated lands and the development of impervious surfaces. This has contributed to the higher LST experienced in some urban centers and cities due to the increased absorption of solar radiation and its conversion into heat [74,76]. The consequence of this development is the creation of urban heat islands that negatively affect urban dwellers. Therefore, the findings of this study, alongside the result of Figure 9, Figure 10 and Figure 11, could help mitigate the effect of urban heat islands in Kano metropolis by identifying areas having a higher LST. A statistical test for significance level (alpha) was also conducted, which generally involved the setting of the null hypothesis (H₀) and an alternative hypothesis (H₁). In this study, the null hypothesis was the hypothesis of no correlation between the study’s variables. It signifies the non-linear relationship between land surface temperature values and spectral indices, i.e., NDVI and NDBI. The alternative hypothesis indicates the linear relationship between LST values and spectral indices. The null hypothesis is rejected when the p-value is less than or equal to 0.001 (p ≤ 0.001) [77]. The regression result indicates the p-values during the different study periods to be less than 0.001 (

Table A2. Regression Statistics between LST and NDVI for 1991.

(i) Regression Statistics
Multiple R	0.783869
R Square	0.61445
Adjusted R Square	0.606069
Standard Error	1.22293
Observations	48
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	109.6396	109.6396	73.31015	4.45 × 10−11
Residual	46	68.79567	1.495558
Total	47	178.4353
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	30.56512	0.296372	103.1308	4.5 × 10−56	29.96855	31.16168	29.96855	31.16168
0.011494	−24.0009	2.803144	−8.56213	4.45 × 10−11	−29.6433	−18.3585	−29.6433	−18.3585

,

Table A3. Regression Statistics between LST and NDVI for 2000.

(i) Regression Statistics
Multiple R	0.75125
R Square	0.564377
Adjusted R Square	0.552913
Standard Error	1.532181
Observations	40
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	115.5745	115.5745	49.23135	2.34 × 10−8
Residual	38	89.20803	2.34758
Total	39	204.7826
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	25.31217	1.033444	24.49302	7.04 × 10−25	23.22007	27.40426	23.22007	27.40426
−0.251852	−28.4807	4.059099	−7.01651	2.34 × 10−8	−36.6979	−20.2635	−36.6979	−20.2635

,

Table A4. Regression Statistics between LST and NDVI for 2010.

(i) Regression Statistics
Multiple R	0.734998
R Square	0.540223
Adjusted R Square	0.527796
Standard Error	1.504349
Observations	39
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	98.38396	98.38396	43.47373	9.92 × 10−8
Residual	37	83.73347	2.263067
Total	38	182.1174
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	31.68284	0.597515	53.02434	1.65 × 10−36	30.47216	32.89352	30.47216	32.89352
−0.09278	−34.1102	5.173338	−6.59346	9.92 × 10−8	−44.5924	−23.628	−44.5924	−23.628

,

Table A5. Regression Statistics between LST and NDVI for 2020.

(i) Regression Statistics
Multiple R	0.720013
R Square	0.518419
Adjusted R Square	0.508173
Standard Error	1.211811
Observations	49
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	74.29841	74.29841	50.59529	5.51 × 10−9
Residual	47	69.01878	1.468485
Total	48	143.3172
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	35.33758	0.533072	66.29044	4.4 × 10−48	34.26517	36.40998	34.26517	36.40998
0.124093	−36.9493	5.194582	−7.11304	5.51 × 10−9	−47.3994	−26.4991	−47.3994	−26.4991

,

Table A6. Regression Statistics between LST and NDBI for 1991.

(i) Regression Statistics
Multiple R	0.642842
R Square	0.413246
Adjusted R Square	0.409334
Standard Error	1.127524
Observations	152
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	134.3058	134.3058	105.6437	4.32 × 10−19
Residual	150	190.6965	1.27131
Total	151	325.0023
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	23.731	0.620979	38.21546	3.32 × 10−79	22.50401	24.958	22.50401	24.958
0.305439	20.47092	1.991662	10.27831	4.32 × 10−19	16.53558	24.40626	16.53558	24.40626

,

Table A7. Regression Statistics between LST and NDBI for 2000.

(i) Regression Statistics
Multiple R	0.629694
R Square	0.396514
Adjusted R Square	0.392789
Standard Error	1.5119
Observations	164
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	243.3059	243.3059	106.4404	1.69 × 10−19
Residual	162	370.3064	2.285842
Total	163	613.6122
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	24.89345	0.865602	28.75855	1.56 × 10−65	23.18413	26.60277	23.18413	26.60277
0.309524	27.50474	2.665964	10.31699	1.69 × 10−19	22.24022	32.76926	22.24022	32.76926

,

Table A8. Regression Statistics between LST and NDBI for 2010.

(i) Regression Statistics
Multiple R	0.625042
R Square	0.390677
Adjusted R Square	0.383246
Standard Error	1.168795
Observations	84
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	71.8226	71.8226	52.57559	2.08 × 10−10
Residual	82	112.0188	1.366083
Total	83	183.8414
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	33.28701	0.671995	49.53458	7.07 × 10−63	31.9502	34.62382	31.9502	34.62382
0.142857	33.24926	4.585534	7.250902	2.08 × 10−10	24.12717	42.37134	24.12717	42.37134

and

Table A9. Regression Statistics between LST and NDBI for 2020.

(i) Regression Statistics
Multiple R	0.574441
R Square	0.329983
Adjusted R Square	0.324536
Standard Error	1.295586
Observations	125
(ii) ANOVA
	df	SS	MS	F	Significance F
Regression	1	101.6817	101.6817	60.5774	2.48 × 10−12
Residual	123	206.4607	1.678542
Total	124	308.1424
	Coefficients	Standard Error	t Stat	p-value	Lower 95%	Upper 95%	Lower 95.0%	Upper 95.0%
Intercept	28.6737	0.368658	77.77867	1.9 × 10−106	27.94397	29.40344	27.94397	29.40344
0.006878	37.93102	4.87348	7.783149	2.48 × 10−12	28.28426	47.57777	28.28426	47.57777

), suggesting a linear relationship between the study’s variables and strong evidence against the null hypothesis. Therefore, NDVI and NDBI are statistically significant variables that influenced the LST of the Kano metropolis over the last three decades. The areas around the city’s central core with built-up areas and urban facilities have higher LST due to the impervious surfaces that expose such areas to greater solar radiation. The findings align with recent studies which have opined that the modification of land use due to various socio-economic factors has influenced local climatic condition in urban areas [6,73,78]. Additional studies are therefore needed in order to forecast and mitigate the environmental consequences of such changes.

5. Conclusions

This study analysed the influence of rapid urbanization and the decadal changes in land uses on the urban climate of Kano Metropolis using satellite images from 1991, 2000, 2010, and 2020. The expansion of urban areas and the alteration of land uses were monitored from 1991 to 2020. The relationship between LULC classes and land surface temperature was evaluated using spectral indices such as NDVI and NDBI. The study area witnessed substantial changes in the city’s barren lands, built-up areas, vegetation, and water bodies due to the different push and pull factors that contributed to the urban expansion and socio-development of the city. The LULC change detection results for the last three decades revealed the city’s built-up areas and vegetation to have increased by 18.59% and 5.67%, respectively, while barren land and water bodies declined by 21.03% and 3.23%, respectively. The spectral indices indicated higher NDVI in vegetated areas and lower NDVI in built-up areas and barren lands. The results also indicated an increase in the study area’s land surface temperature, which could be attributed to the changes in land uses. Higher surface temperature values were witnessed in built-up areas and barren land, mainly due to the city’s urban expansion and socio-economic development, which altered the study area’s surface radiative properties. This phenomenon could also be attributed to the growing influence of climate change. However, further research is necessary to confirm this. The relationship between the LST component of urban climate and the thermal signature of land uses revealed a negative correlation between LST and NDVI values and a positive relationship between LST and NDBI values. High land surface temperatures were observed in areas with low vegetation cover and high urban development. Therefore, land surface temperature as an essential factor in urban climate are greatly influenced by the change dynamics of LULC. The study’s findings would be of great use to urban planners and decision-makers in undertaking comprehensive measures aimed at planning urban growth in a rapidly growing metropolis. It will also assist in managing land uses by adopting sustainable and heat-resilient strategies that seek to mitigate the environmental challenges associated with urban climate.
