Water 2017, 9(4), 274; doi:10.3390/w9040274

Experimental Investigation on Air-Water Interaction in a Hydropower Station Combining a Diversion Tunnel with a Tailrace Tunnel

College of Water Conservancy and Hydropower Engineering, Hohai University, Nanjing 210098, China
*
Author to whom correspondence should be addressed.
Academic Editor: Michele Mossa
Received: 18 February 2017 / Revised: 30 March 2017 / Accepted: 6 April 2017 / Published: 13 April 2017
View Full-Text   |   Download PDF [3539 KB, uploaded 13 April 2017]   |

Abstract

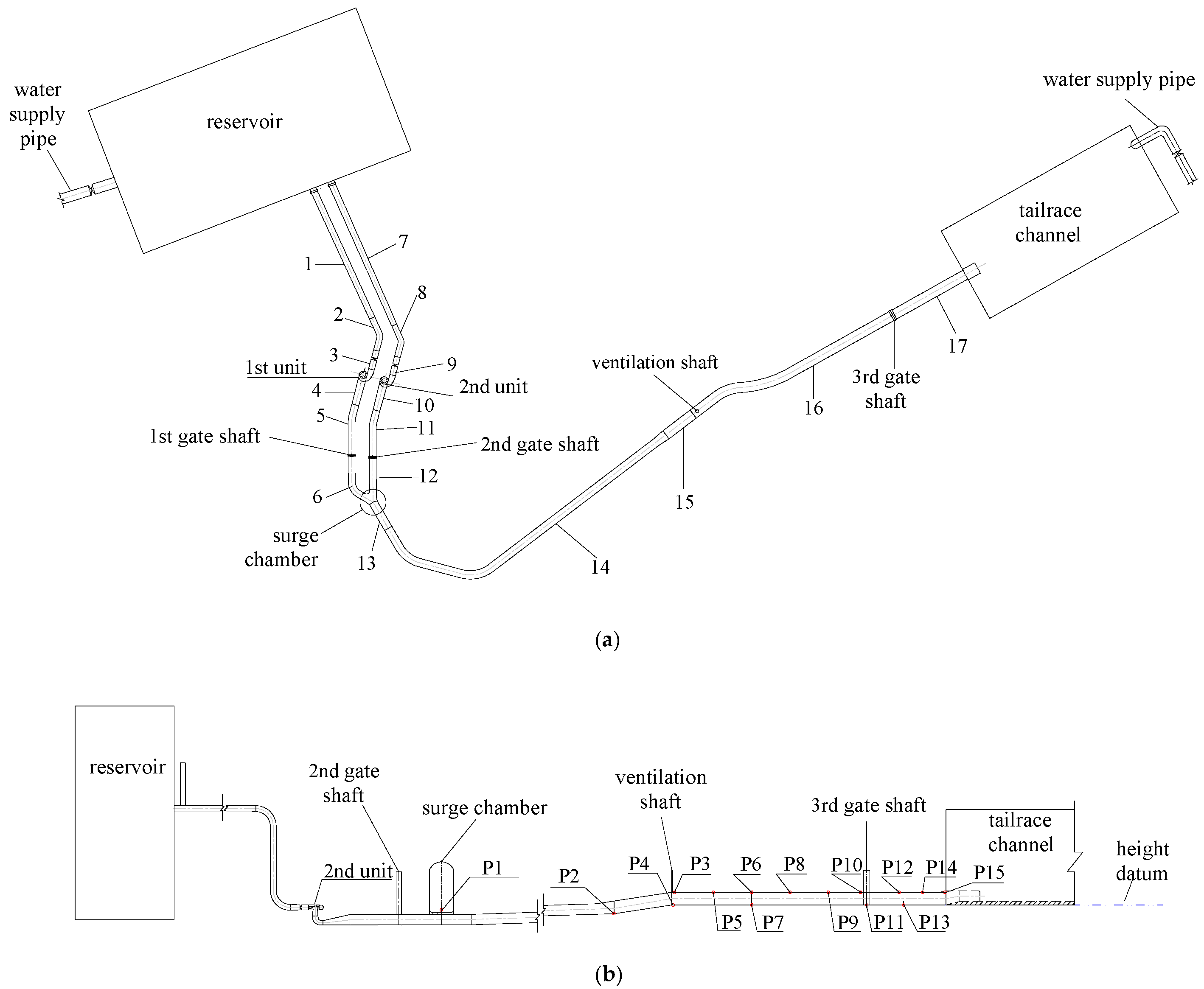

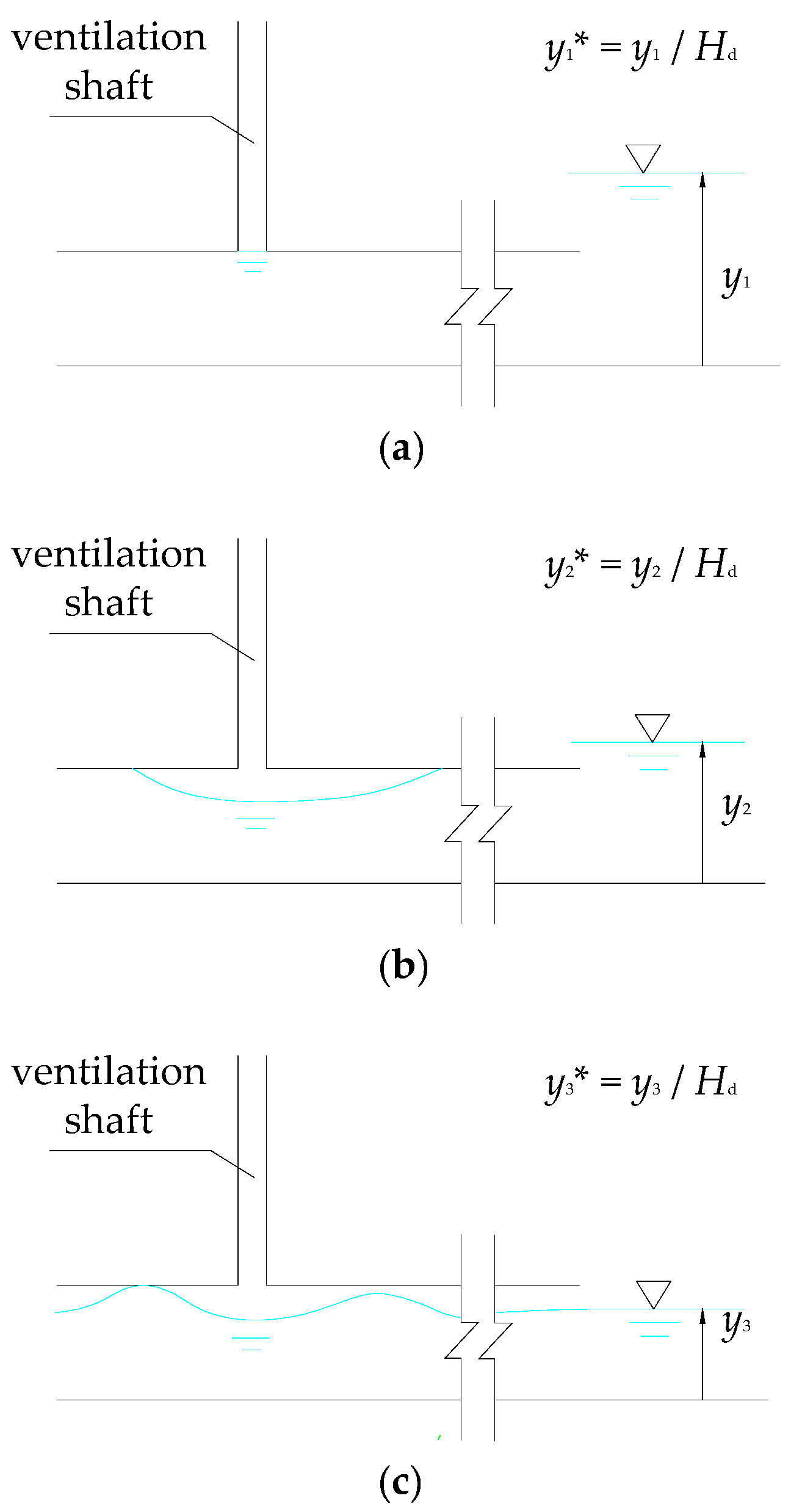

Diversion tunnels are often used as tailrace tunnels in underground hydropower stations. The special layout results in complex flow regimes, including air-water two-phase flow. A set of experiments is conducted based on the model of a hydropower station which combines partial diversion tunnels with tailrace tunnels to investigate the interactions between the air and water phases in the combined diversion tunnels. Interactions between the air and water phases observed in the combined diversion tunnel significantly alter flow dynamics, and are classified into four types according to the initial tail water level. There is a range of initial tail water levels in which the interaction between the air and water phases cannot be neglected, and the range becomes greater when the change in flow rate increases. Such interactions may cause a pressure surge and the pressure surge reaches the maximum when the initial tail water level is approximately equal to the crown of the tunnel. The surge pressures do harm to the safety and stability of hydropower stations, so the condition should be considered and controlled. View Full-Text
Keywords: air-water interaction; hydropower station; tailrace tunnel combined with diversion tunnel; transient flow; pressure oscillation patterns air-water interaction; hydropower station; tailrace tunnel combined with diversion tunnel; transient flow; pressure oscillation patterns
