1. Introduction
Playas, also named pans, are defined as closed, shallow, terrestrial depressions, characterized by flat and smooth surfaces [
1]. Aridity is a determinant factor for their development and dynamics over time [
2]. This type of landform occurs where stream channels drain into endorheic (internal) basins, where the water accumulates. Beds of these depressions are dominated by clastic materials, which are deposited from suspension during inundation. The playas, occupying ~1% of the globe’s terrestrial area [
3], vary in size from very small depressions of a few tens of square meters, to massive tectonic basins, which may exceed 10,000 km
2. For inland playas, catchment lithology and weathering processes are the main determinants of salts precipitated in their beds. Unlike coastal depressions, in inland depressions, airborne dust deposition only encompasses a secondary source of salts [
3,
4].
Both the water input and water on the playa’s floor are ephemeral in nature [
5,
6], resulting in a negative balance between input (through direct rainfall and runoff accumulation) and output (evaporation and deep seepage) of water [
3,
4]. The extent, frequency and length of inundation are dependent on climatic, hydrologic, geologic and pedogenic conditions [
6]. Depending on the position of the piezometric level, a playa can recharge the underlying aquifer or can be a discharge area for ground water [
7]. In the event of the aquifer’s shallow depth, discharge playas may be formed, where the underground water’s capillary rise results in the salt accumulation at the ground surface. Such playas, also known as salt pans, salars (in South America) or sabkhas (in the Middle East), are frequently covered with salt crusts and displacive evaporites [
4,
8] and are usually devoid of vegetation [
3]. Where deep aquifers occur, with little interaction between the surface and groundwater, recharge playas, also known as pans, clay pans or flat pans, may be formed, with non-saline, clayey and possibly vegetated surfaces [
1,
3,
7]. A range of ecological goods and services can be provided by the playas, including flood prevention and sediment retention [
7], as well as salt harvest for human use [
3] and water extraction for irrigation [
7].
Despite the extensive research on recharge playas around the world, no direct information is available on the topic of ancient, past, or recent-past runoff agriculture (or runoff harvesting agriculture) in such landscape formations, and particularly in hyper-arid regions. A rare example for agricultural land use is the Early Neolithic (~10,000 years BC) site in the Nabta Playa in southern Egypt, where farming activities were dominated by livestock husbandry for the production of milk, blood, and meat [
9,
10]. In addition, paleobotanic remains of edible plants such as wild millets, sorghum, legumes, tubers and fruits were found at this site, indicating their local consumption during this ancient age [
10], but the question of on-site versus off-site growing of these crops still remains open. At the same time, despite not being very common, contemporary farming practices take place in playas. For example, modern agricultural land use was reported for at least five different playas in the semi-arid areas of southern Spain [
7].

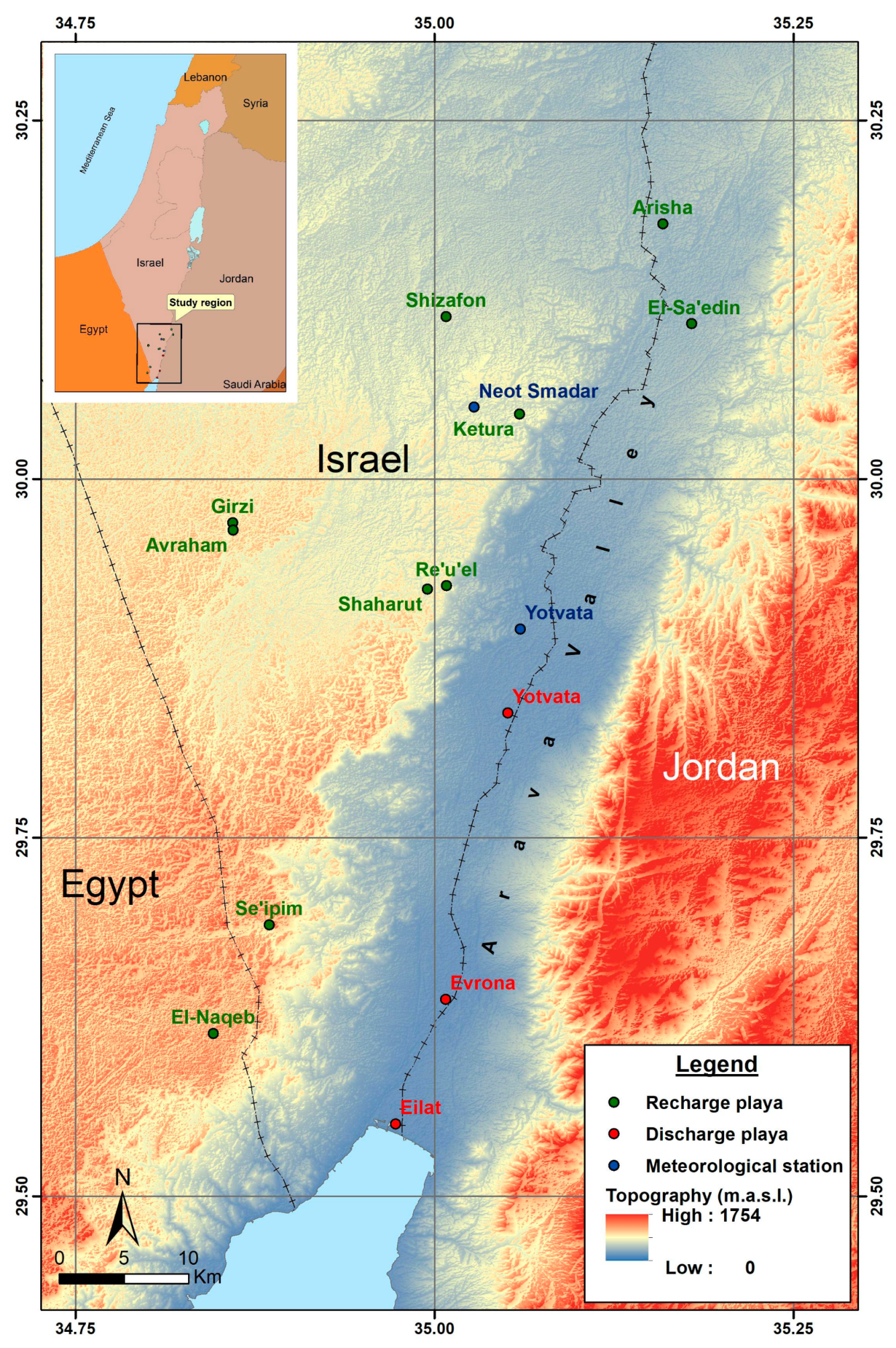

In the Israeli hyper-arid southern Negev and Arava Valley, several recharge playas and two discharge playas exist (at present, and with a third discharge playa in the upper Gulf of Aqaba, which has been destroyed following urban development of the city of Eilat since the 1960s). Sporadic observations in some of the recharge playas suggested the potential for considerable vegetative productivity. This has been indicated by observing substantial germination and growth of herbaceous vegetation after inundation in the beds of some playas. Furthermore, this accords with testimonies by local inhabitants, revealing the agricultural land use of one of the recharge playas by Bedouin populations up to the mid-1990s, for barley (Hordeum vulgare L.) and wheat (Triticum aestivum L.) production. This also consists with archaeological remains of stone terraces in another recharge playa, indicating runoff harvesting agricultural practice during ancient times.
This study was based on the assumption that in ancient times to the recent-past, local inhabitants practiced agricultural/farming activities wherever possible in this harsh environment. Therefore, the main objective of the study was to assess the concept of runoff agricultural practice in the recharge playas, by studying their hydrological conditions. A secondary objective was to assess the potential for runoff agricultural practices in the recharge playas under current climatic conditions. The study’s major hypothesis was that the physical settings for some of the recharge playas have enabled the practicing of runoff agriculture between ancient times and the recent-past. Yet, the secondary hypothesis was that due to very recent regional aridification, which has particularly imposed decreased rates of rainfall and floods during the last few decades, no agronomic potential exists for these playas at present.
3. Results and Discussion
3.1. The Features of Recharge Playas
Our observations at the study sites revealed that contrary the common characterization of playas as closed depressions with no surface outlet [
3,
5,
7], only two (Se’ipim and Re’u’el) of the studied playas are terminal. At the same time, the remainder of the playas, including El-Sa’edin, Shizafon, Shaharut and Girzi, are not absolutely terminal. This feature is attributed to extreme floods, which result in the playa’s lowest rim breaking out, allowing water overland flow to drain into the wadis of Sha’alab, Shizafon, Shaharut and Girzi, respectively. The non-terminal nature of these playas means they are controlled not only by ponding processes, but also by erosional processes. Therefore, unlike the unidirectional aggradation of playas [
3], a large number of our playas has experienced aggradation-subsidence cycles over time, which keep their evolution rather dynamic and bi-directional.

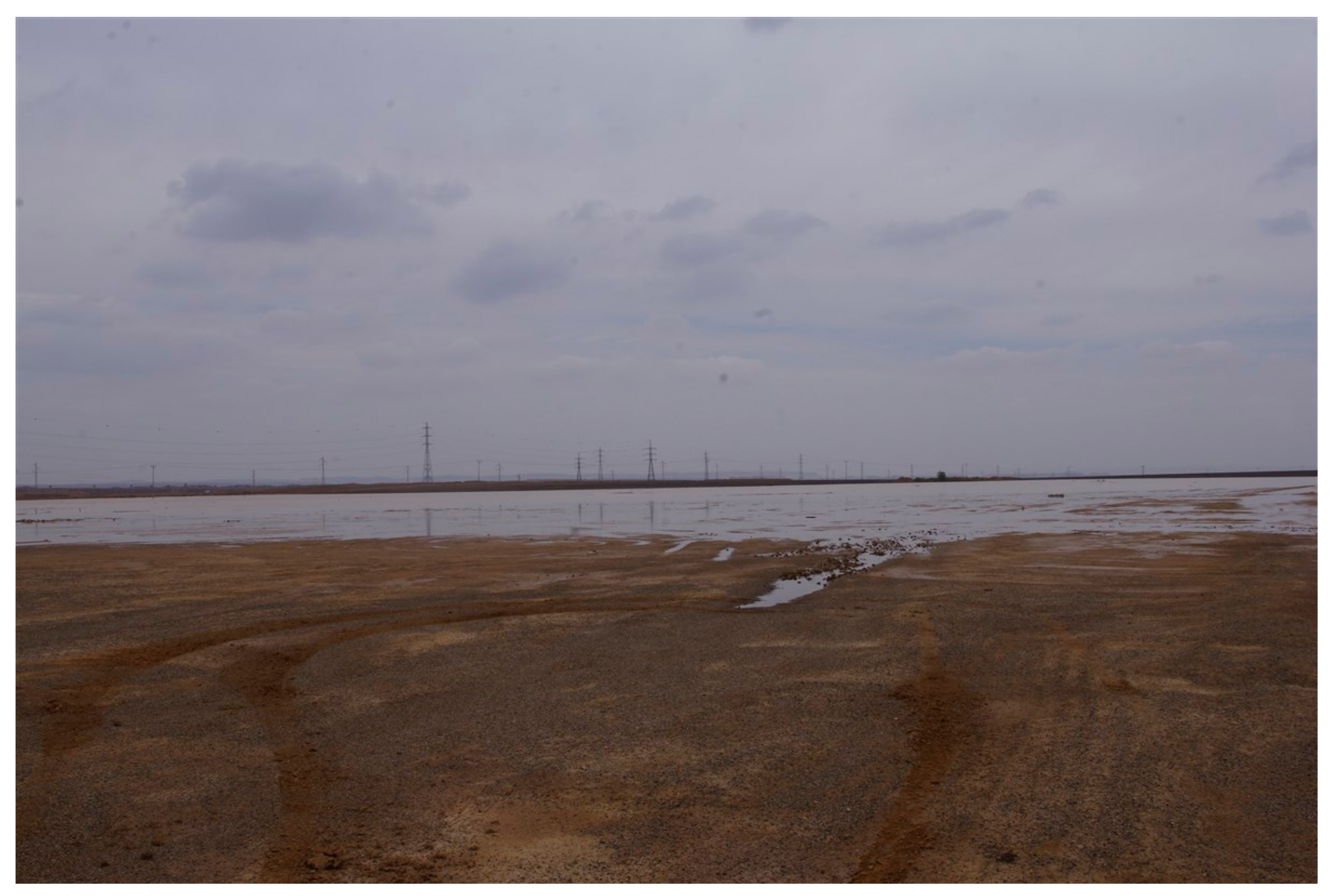

The Shizafon Playa (Qa Shizafon) encompasses a flat, extensive area of deep clay deposit. Despite recent extensive earthworks on the playa’s surroundings and a modern road paved on its lowermost edge, the playa’s hydraulic functioning seems to be generally undisturbed, allowing its inundation (
Figure 3), as well as its drainage to the Wadi Shizafon.

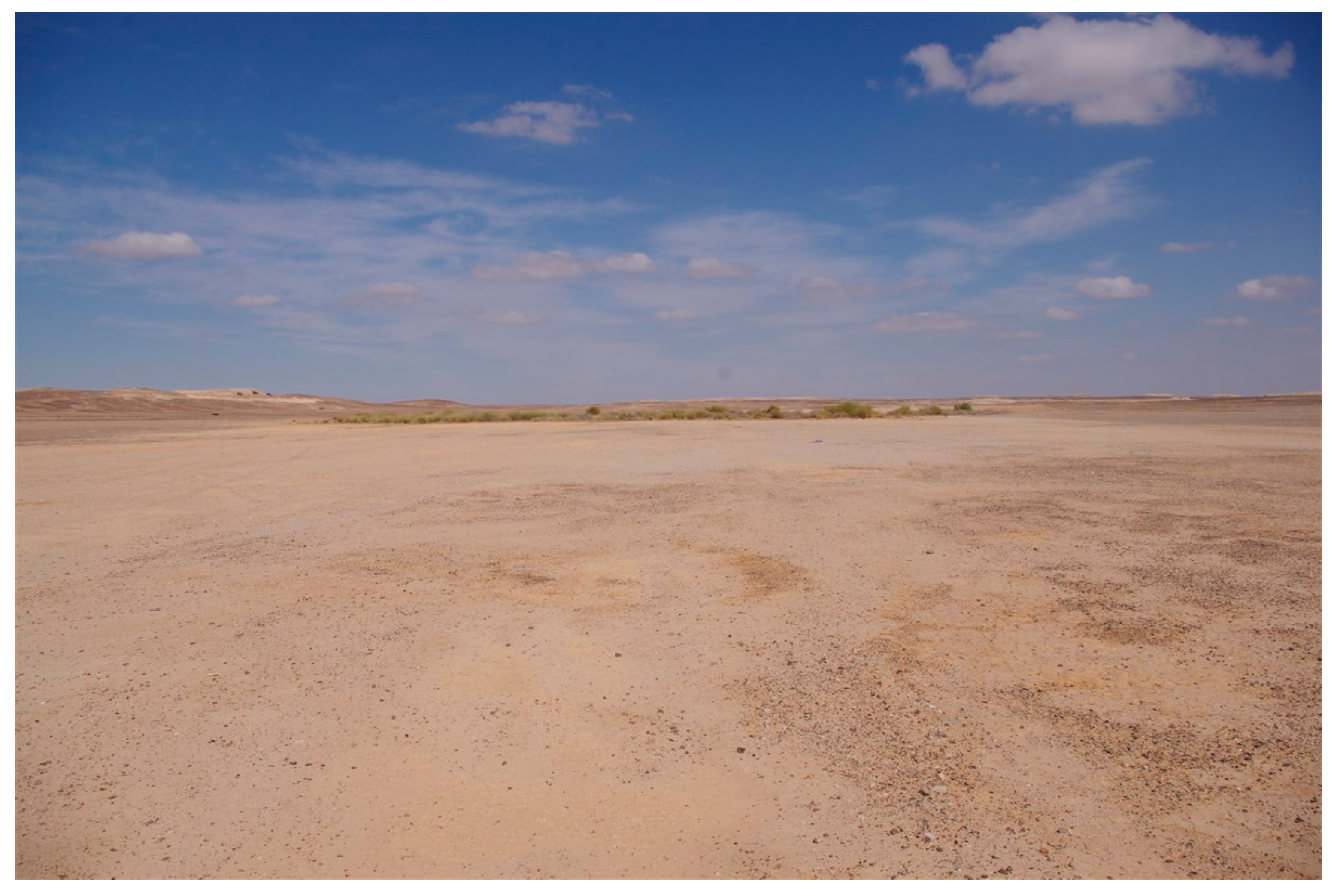

While monitoring the Girzi Playa’s (Qa Girzi) boundaries in the field, we noticed the location of two bottoms, one at its northernmost edge and another at its southernmost edge. A water divide, stretching approximately on an east-west axis, was found to separate the two depressions. This was confirmed by measurements with a high resolution (dm-scale) GPS, revealing a vertical difference of 0.5 m between the water divide (580.5 m a.s.l.) and the bottom of the northern basin (580.0 m a.s.l.) and 0.1 m between the water divide and the bottom of the southern basin (580.4 m a.s.l.). The northern basin (Girzi Playa:

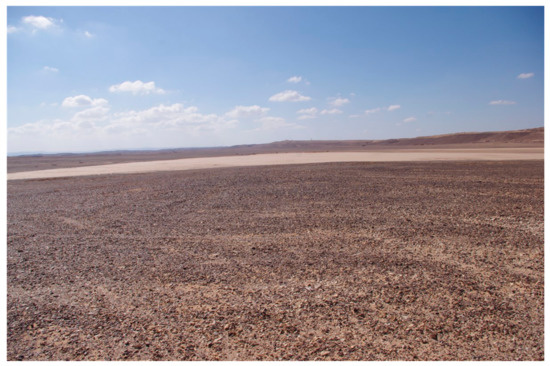

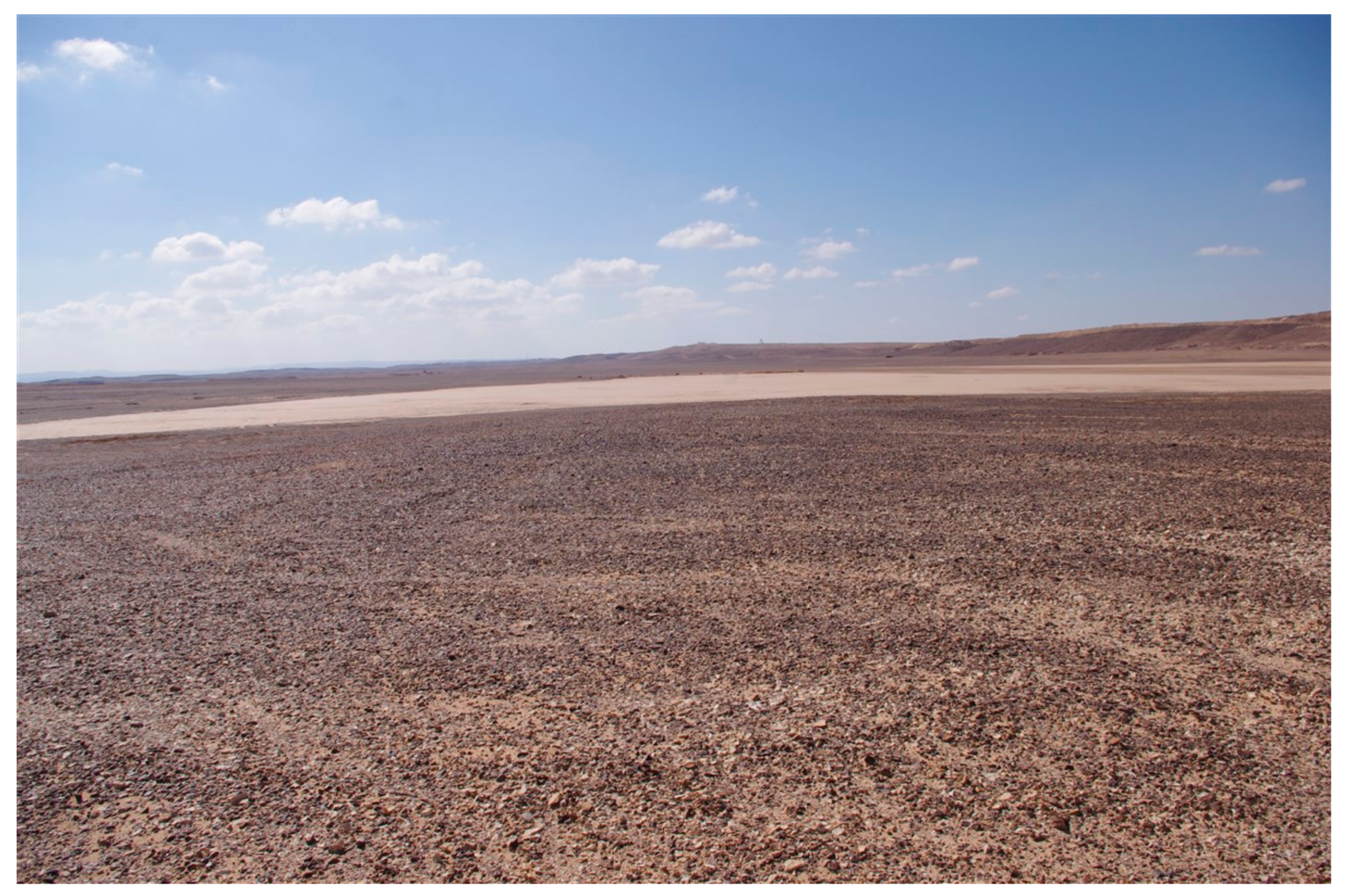

Figure 4) was found to be non-terminal, with an outlet to the Wadi Girzi. At the same time, the southern basin (
Figure 5) was found to be terminal. We named this basin “Avraham Playa”, adopting the name of an old, non-paved airfield, which was operated nearby in the mid-twentieth century.
The fieldwork at the Girzi and Avraham playas was conducted in early November 2016, eight days after a substantial rainstorm derived from a Sudanese sub-tropical high pressure cell, which resulted in the inundation of both of the playas. Due to the very erratic rainstorms and floods during the study year, the specific moisture conditions of soil were not measured. Yet, qualitative observations suggested that this rainstorm caused the considerable wetting of these playas’ beds. Furthermore, qualitative observations in the Girzi Playa’s bottom revealed that compared to the surrounding wadis, the shrubby and chamaephyte vegetation, dominated by Ochradenus baccatus Delile, Pituranthos triradiatus Hochst. ex Boiss., Artemisia sieberi Besser, Moricandia nitens (Viv.) E.A. Durand & Barratte, Zilla spinosa (L.) Prantl, Asteriscus graveolens (Forssk.) Less. and Astragalus spinosus (Forssk.) Muschl., had a fresh-green appearance. Further, dense germination of herbaceous vegetation was observed at the bottom of this playa. At the same time, no wetting, greening of shrubby plants, nor germination of herbaceous vegetation were observed for the Wadi Girzi floor, indicating the playa’s lower edge had not been broken by the inundated water of this rainstorm. Rain gauges distributed across the region revealed a rainfall depth of 5–10 mm for this storm. This accords with our interpretation for some of the recharge playas of our study region as terminal for relatively light-to-moderate rainstorms and non-terminal for heavy rainstorms.

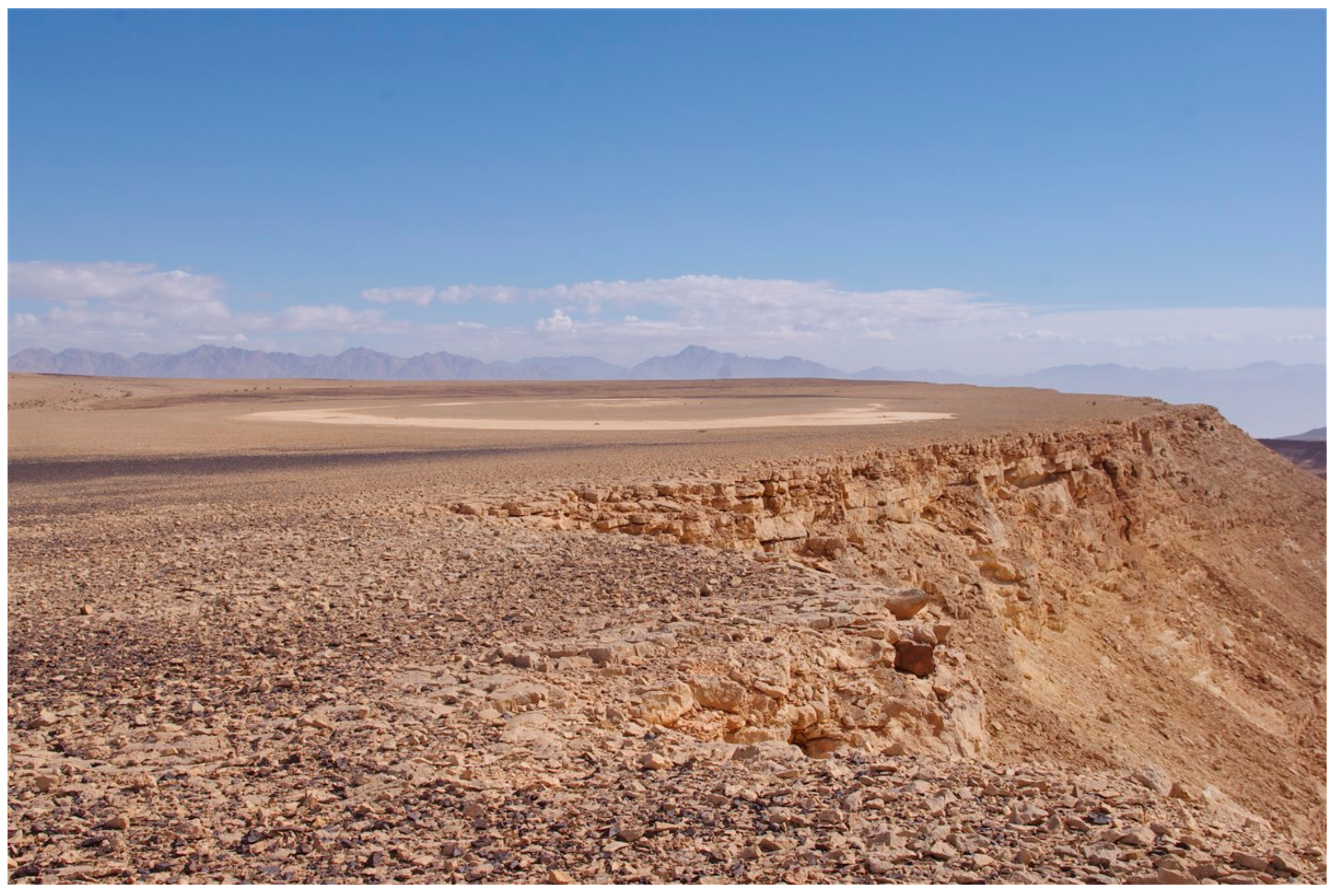

The Se’ipim Playa (Qa Se’ipim:
Figure 6) was found to be terminal and of a crescent shape. The substantially small area of this playa compared with the other playas is determined by the location on a highland plateau, with a limited-sized drainage basin. This also explains the far shallower depth (0.4–0.5 m) of its bed compared to that of the other playas. Probably, these features of the Se’ipim Playa have limited water availability in its bed. This was also consistent with the complete exposure of the bed surface from any vegetation. Regardless, the remains of two recent-past (Bedouin) cistern-like pits dug in the playa’s bed (~2 m diameter each:
Figure 7) were found. The pits were fully covered with sediments, which penetrated through an inlet in a surrounding earth embankment of approximately 0.5 m thick.

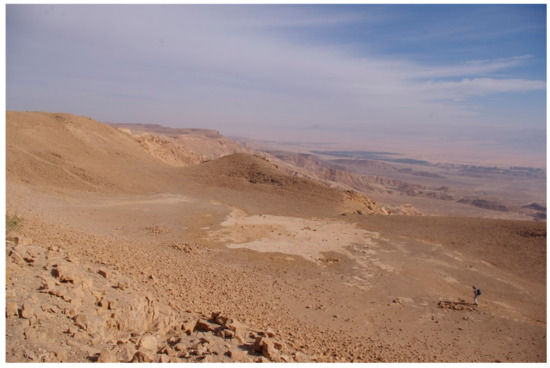

The Re’u’el Playa (Qa Re’u’el:
Figure 8) was found to be even smaller than the Se’ipim Playa. This playa is terminal and located at a distance of approximately five meters from the Shaharut Cliff. Maximal soil depth at this playa ranges between 0.3 m and 0.4 m. Despite the shallow depth of soil, in a visit in January 2017, the playa bed had a sparse vegetation cover. This included the shrub species of
Zygophyllum dumosum Boiss. and several chamaephyte species, including
Asteriscus graveolens (Forssk.) Less.,
Diplotaxis acris (Forssk.) Boiss.,
Fagonia sinaica Boiss. and
Trigonella stellata Forssk. Several archaeological sites located close to the playa have been recorded by Avner [
20] and dated to the Bronze Age.
Overall, lithology, areal bed cover and basin size of the studied recharge playas were found to vary greatly (
Table 1). Depth of the bed for all of the playas except for Se’ipim and Re’u’el was found to exceed 1 m. Monitoring of the Ketura Playa was negated due to security regulations.
3.2. Indicators of Ancient to Recent-Past Runoff Agriculture

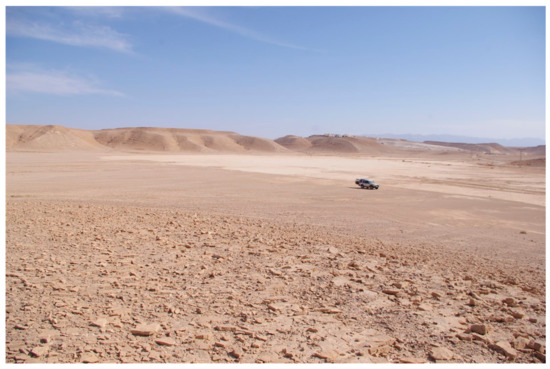

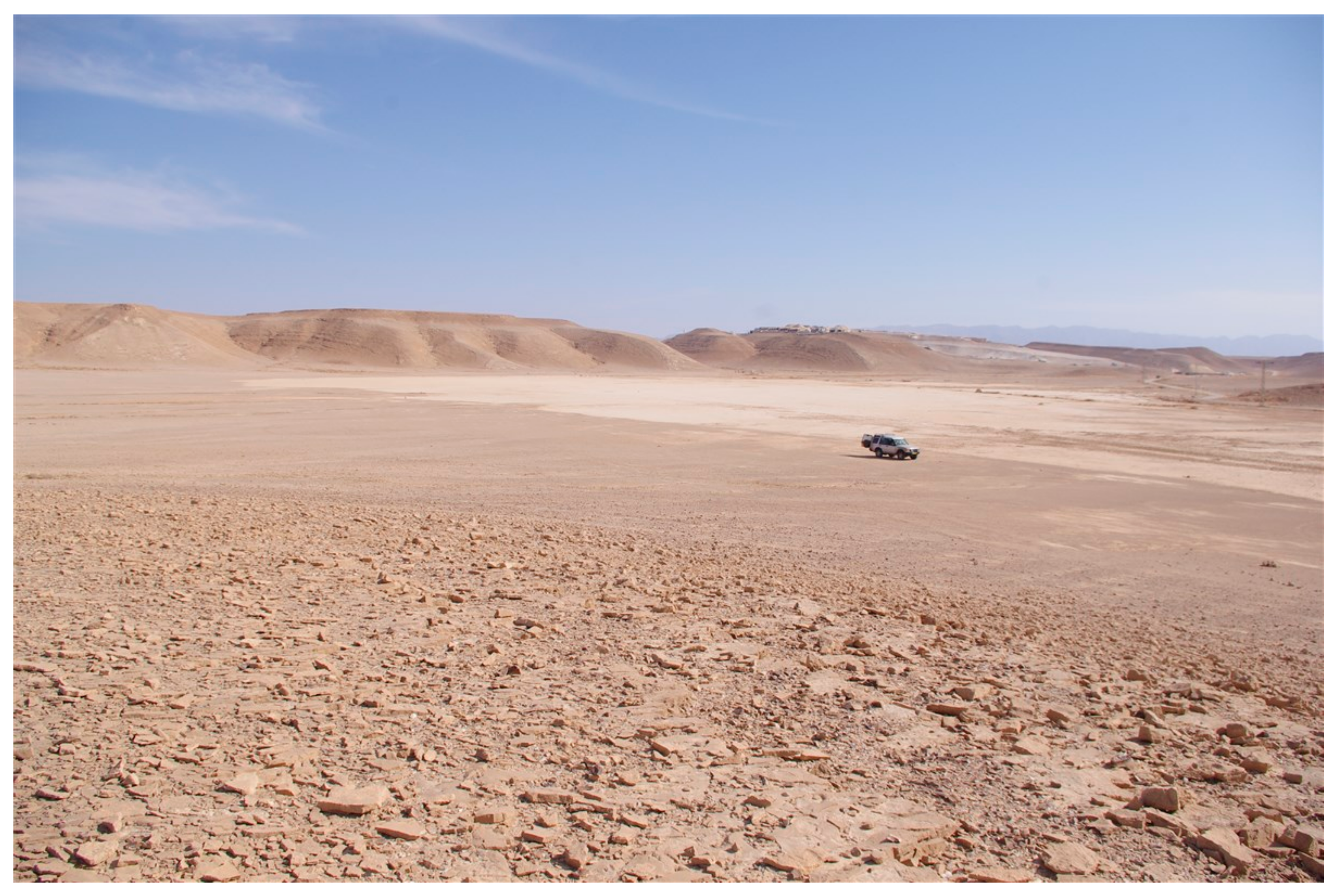

In the Shaharut Playa (Qa Shaharut:
Figure 9), ancient farming land use was indicated by the remains of seven stone terraces across its lower part, revealing the practicing of runoff harvesting agriculture. It is suggested that the purpose of the terraces was to spread runoff water widthwise the playa bed, allowing a wider area to be exposed to considerable wetting. Furthermore, in extreme floods, runoff harvested in these terraces would be protected from becoming drained to the downstream Wadi Shaharut. Structural characteristics of these terraces are similar to those of many agricultural runoff harvesting infrastructures that were located in many ephemeral stream channels across southern Israel and dated to the Byzantine Age (fourth to seventh century AD) [
21,
22,
23]. As elsewhere, agricultural utilization of Byzantine runoff harvesting infrastructures during later ages is very probable [
22,
23]. For example, evidence for modern agricultural land use was provided for terraced lands in some wadis across the central Arava Valley by the location of tillage-induced shallow soil furrows, which indicate recent (decades old) tillage by Bedouins [
24]. This was further indicated by the on-site location of several characterizing metal duck-foot plow tips and related wooden frames [
25,
26]. Furthermore, this was evidenced through testimonies by key Bedouin informants, who pointed out agricultural practice in some of the terraced wadis across the central Arava Valley and the Uvda Valley until the mid-twentieth century (personal communications with Gidon Ragolsky and Uzi Avner). It is acknowledged that Bedouin populations across the region have not established agricultural runoff harvesting systems [
26]. At the same time, it is also acknowledged that the Bedouin invested in the maintenance of such ancient systems (personal communication with Uzi Avner). Historical human activities across the site were indicated by the many pottery fragments dated to the Byzantine, Nabatean, and Islamic ages, which were found in the Shaharut Playa and its vicinities. Furthermore, the findings of flint stone adzes and sickle blades in the vicinities of this site indicate agricultural activities as early as the Late Neolithic age (6450–4550 BC) [
27].

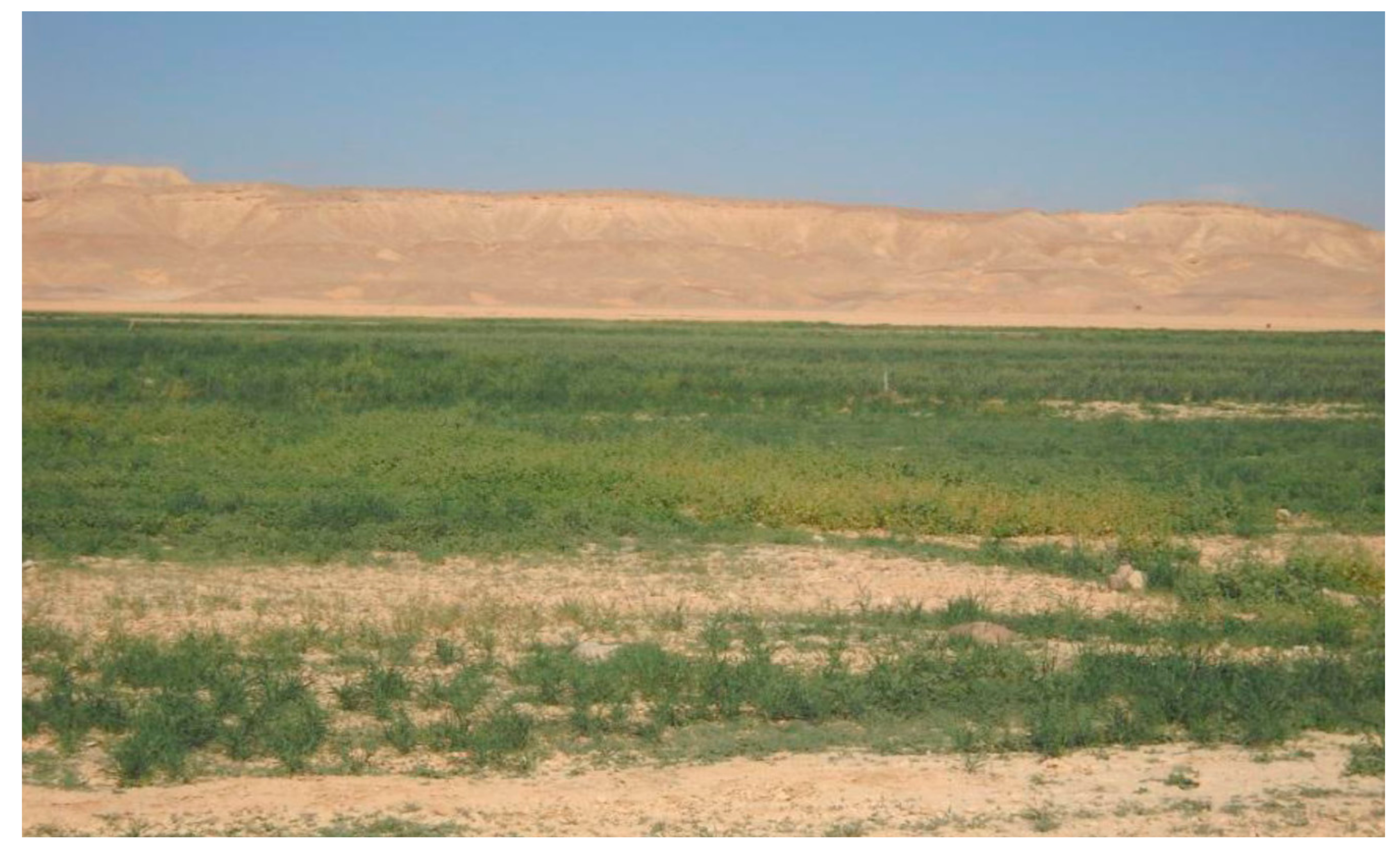

The dense cover of herbaceous vegetation in the El-Sa’edin Playa (Qa el-Sa’edin) after inundation (
Figure 10) indicates high production capacity. This accords with a visit to this playa at the end of the 2016 dry season, which revealed extensive vegetation patches, comprised of annual grasses and forbs, as well as dense shrubby vegetation, dominated by
Salsola tetrandra Forssk.,
Anabasis articulata (Forssk.) Moq. and
Haloxylon persicum Bunge. This could also suggest a potential use for runoff agriculture in the ancient to recent past. This suggestion consists with rare bibliographic sources, recording the tillage of the El-Sa’edin Playa by Bedouin populations in the 1930s and 1940s [
28,
29]. In his essay, Breslavi [
29] mentioned that in this playa, in addition to barley and wheat, the local Bedouin used to grow summer cultivars, such as sorghum (
Sorghum bicolor (L.) Moench) and other hybrids of the subfamily of Panicoideae. In order to produce fair yields, the growing of such summer crops requires a considerable amount of late-season rains [
30]. Further, local key informants provided testimonies for a later agricultural land use in this playa, indicating cereal cropping by Jordanian Bedouin in extremely rainy years up to the mid-1990s (personal communication with Gidon Ragolsky). Regardless, the location of many pottery fragments, dated to the Roman (63 BC–324 AD), Byzantine (324–638 AD), Early Islamic (638–1099 AD), Late Islamic (1099–1516 AD), Ottoman (1516–1917 AD) and modern (1917 AD to the mid-twentieth century) ages in the surroundings of this playa indicates a wealth of human activities throughout history.
3.3. Evaluating Meteorological Conditions and Agronomic Potential
The generation of Hortonian overland flow has been primarily attributed to rainstorm intensity [
31]. Effective rains, i.e., rainstorms that generate water overland flow, were determined for the hyper-arid southern Israel to be those >6 mm of rainfall in a day [
32]. On a 17-year basis (2000/01–2016/17), for the Neot Smadar meteorological station (pertaining to all of the studied playas except El-Sa’edin), effective rains were reported three times (18%) for October, none (0%) for November, four times (24%) for December, twice (12%) for each of the months of January–March and three times (18%) for April. For the Yotvata meteorological station (pertaining to the El-Sa’edin Playa), processing of rainfall data revealed that on a 14-year basis (2000/01–2013/14), effective rains occurred only for December (three times: 21%), January (once: 7%) and February (three times: 21%). For both of the meteorological stations, no more than a single effective rainstorm per month occurred during this 17- or 14-year period. Long-term, seasonal mean depth of effective rain events was 11.7 mm for Neot Smadar and 7.2 mm for Yotvata. For Neot Smadar, out of the effective rainstorms, only a few had a depth of 10–20 mm (a total of six events), 20–30 mm (two events) and >30 mm (no events). The corresponding values for Yotvata are five, one and zero (
Table 2).
Calculation of the depth of the water column at the bed of each of the playas, due to runoff generated from the catchment excluding that from adjacent hillslopes, revealed very few scenarios of >200 mm, of which most (4/5 of possible scenarios) were generated under 30 mm rainstorms and high (0.30)
Cr. Furthermore, more than half (3/5) of the possible scenarios are relevant for the Re’u’el Playa (
Table 3). Calculating the water column depth at the playa bed due to runoff generated from adjacent hillslopes revealed a generally similar state, for which most (3/4) relevant scenarios are generated under 30-mm rainstorms and high (0.55)
Cr, and pertaining to the Re’u’el Playa (
Table 4). Adding together the runoff generated from the entire catchment and adjacent hillslopes yielded a >200-mm water column at the bed of El-Sa’edin (for the combination of 20 mm rainstorms or more and highest-to-mid
Cr, respectively), Shaharut, Se’ipim (for the combination of 30-mm rainstorms and high
Cr), Avraham (for 30-mm rainstorms and under almost the entire range of
Cr) and Re’u’el (for the combination of 10-mm rainstorms and high
Cr and for 20-mm or more rainstorms under the entire range of
Cr) (
Table 5).
Stavi et al. [
17] calculated that early-season (October) rainstorms that generate a 200-mm run-on column depth at sink sites could hardly support the successful production of barley or wheat in the southern Negev highlands. At the same time, they calculated that early-season rains, which generate a 300-mm run-on column depth or more, would certainly support crop production. Furthermore, they calculated that if the first rainstorm occurs on mid-season (December), hardly any successful crop could emerge under a 300-mm run-on column depth, while a successful yield is promised under a 400-mm run-on column depth. Additionally, Stavi et al. [
17] showed that, for any run-on column depth at sink sites, no successful cropping is possible if the first rainstorm occurs in late January or later. Therefore, of the total eight rainy years for Neot Smadar during the 17-year period between 2000/01 and 2016/17, only six could be relevant in agronomic terms. Similarly, for the total of four rainy years for Yotvata during the 14-year period between 2000/01 and 2013/14, only three could have had agronomic relevance.
For the southern Arava Valley, calculated
ETc seasonal for barley or wheat is presented in
Table 6. Overall, values for
ETc seasonal in this table are comparatively greater than those for the southern Negev highlands (see [
17]). The difference between the two regions is attributed to the 14% greater
ETo in the southern Arava Valley (1990-mm yearly average for 2005–2015: [
14]) than that in the southern Negev highlands (1750-mm yearly average for 2007–2015: [
14]). Calculation of D revealed crop water deficit for 200 mm run-on column depth at sink sites under all combinations of crop × sowing date × growing season length ×
ETc. Under a 300-mm run-on column depth generated by early-season (October) rainstorms, crop water surplus allows the successful production of barley or wheat. Over the long run, the absence of rainfall in November (
Table 2) negates the sowing of crops in mid-season (December). Late-season (January) rainstorms generating a 300-mm run-on column depth would cause crop water deficit under all possible combinations. Early-season rainstorms generating a 400-mm run-on column depth would yield crop water surplus under all possible combinations. Mid-season rainstorms generating a 400-mm run-on depth would allow successful production of either barley or wheat, if the length of the growing season is 120 days only (
Table 6). However, as shown in
Table 5, the maximum potential water column depth in the El-Sa’edin Playa (which pertains to the southern Arava Valley’s climatic conditions) is 310 mm.
Regardless, considering the dependence of water storage on the soil layer thickness at the sink sites, it is expected that for most of the recharge playas across the study region, soil-water could be extracted by deep-rooted crops. Notable among these crops are barley and wheat, of which their root system can easily reach down to a depth of between one meter [
18] and two meters [
33]. At the same time, the shallow soil depth in the playas of Se’ipim and Re’u’el is expected to limit the storage of soil-water, reducing the potential agronomic productivity.
3.4. Data Integration and Implications
Results of this study show the highest potential for considerable run-on accumulation in the Re’u’el Playa. However, the very small dimensions and relatively shallow soil depth in this playa are assumed to negate agricultural practice in its bed during ancient times up to the recent past. Furthermore, the results show the potential for considerable run-on accumulation in the El-Sa’edin Playa. However, due to the comparatively inferior climatic conditions across the southern Arava Valley, the only relevant scenario is the combination of a 30-mm rainstorm occurring in the early season and assuming a high runoff coefficient for both the adjacent hillslopes and the entire catchment. In this regards, large-scale rainstorms that could at present cover the entire catchment of this mega-playa are unlikely. Yet, as shown by Tubi and Dayan [
34], occasional storms created by synoptic conditions of tropical plumes can potentially cover extensive areas and generate intense and long-lasting rainstorms.
Under very intense rainstorms (>30 mm) and considering the high runoff coefficient, cereal productivity could also be viable for two additional playas, including the Shaharut and Avraham. Despite accumulating potentially sufficient run-on under such conditions, the relatively small size and shallow soil depth of the Se’ipim Playa have probably prevented agricultural practice in its bed during ancient times, up to the recent past.
Overall, this study shows that assuming a sufficient source:sink ratio (runoff contributing area:run-on accumulating area), the cropping of cereals in recharge playas could be viable, even in such harsh environments. Yet, due to the erratic climate, with the extremely high inter-annual variability of rainfall in this hyper-arid region, this practice may not be able to take place on an annual basis, but rather on an episodic basis. One way or another, the obtained results accord with the study hypotheses, indicating agricultural practicing between ancient times and the recent-past, at least in some of the playas, and at the same time, show no potential for sustaining runoff agriculture under current climatic conditions. Regardless, this study demonstrates the profound environmental comprehension by the ancient to recent-past local inhabitants.
Furthermore, the results of this study accord with previous studies, which revealed the region’s drier climatic conditions at present compared to those during most of the Holocene [
35], the preindustrial era, modern times [
36] and even during the mid-1990s [
37]. Additional research is needed to date sediments trapped in the upstream of the Shaharut Playa’s stone terraces. Furthermore, further research is needed to search for indications of agricultural practices in additional recharge playas, both across the Middle East and in other dryland regions around the world.
