Against a backdrop of climate change, population growth and urbanisation, scholars past and present have and are examining the ways in which complex systems cope, or change and adapt to survive [1
]. The way in which water is provided and used can be regarded as a complex system, due to the interlinked and interactive nature of social, ecological and technical systems [3
]. In order to become more sustainable and resilient, a range of scholars argue that the water ‘system’ must undergo a transition or paradigm shift or that radical change must be able to occur within the existing regime [4
In order to successfully model these transitions and shifts, a more integrated consideration of water supply and drainage systems, as well as social, ecological and technical systems is required; segmentation fails to recognise interactions and complexities [7
]. To model components of the water sector, coupled models of natural and human water infrastructures have emerged [8
], as have models to integrate urban growth and water infrastructure [11
] and to assess the relative merits of green versus grey infrastructures [13
]. High-level socio-technical models that aim to better represent decentralised and alternative water supply systems (AWSS) and decision-making in the water infrastructure selection and transition process have also been forthcoming [2
However, the high-level nature of these models can result in poor representation of the complexities between infrastructure (technologies) and organisations (social networks) across the multiple levels operating within a sector. Using influences from transition studies, specifically the multi-level perspective (MLP) [17
] and technological innovation systems (TIS) [18
], the authors define and summarise the relationship between the different levels operating in the water MLP in Figure 1
. The MLP comprises the landscape, regime and niche and represents interactions between individuals, organisations, sectors and societies, asserting that on the journey of increasing sustainability and resilience in the water sector the regime and landscape change in response to niche innovations, usually in relation to a crisis (for example, climate change or population growth).
Within the MLP, socio-technical niches (in this case incumbent or alternative techniques such as water efficiency or rainwater harvesting (RWH), respectively) represent innovative bottom-up experiments that challenge incumbent regime-level practices (in this case not using water efficiently or using potable water for non-potable end-uses). Where such challenges are successful and practices change, steps are achieved towards a transition or shift [19
]. This is perhaps evident in the case of water efficiency where the majority of water-saving practices (e.g., showering instead of taking a bath) are becoming social norms (in the UK at least), even if approaches to behaviour change are contested [21
]. Recent research has focused on the niche level, including advancing the understanding of firm/company-level contributions to sustainability transitions and suggesting approaches to strategic, conceptual and social niche management [22
]. Additionally, recent research on niche interactions using agent-based models showed that infrastructure-organisation interactions were critical for niche formation, technology adoption and transitions relating to infrastructure [26
In parallel to the development of a range of niche management approaches and to reflect on the outcomes of niche experimentation, the concept of open and dynamic societal networks of innovation or ‘transition arenas’ (TAs) emerged to facilitate interaction, knowledge exchange and learning [27
]. Comprised of a small network of frontrunners (around a dozen individuals, not organisations), TAs represent a range of backgrounds and interpretations of particular transition issues. Frontrunners may be non-experts or opinion leaders, but should represent a range of organisational levels from the public, private and third sectors, as well as intermediaries. In considering each experiment taking place within a niche, the frontrunners aim to reach a consensus on the problem, develop a vision and then move forward on a transition path [29
However, there has been criticism of this approach as being technocratic, with doubt placed on the abilities of niches and TAs to fully lead, vision and drive change in regimes from the bottom-up, where the issue may really be that of broader reflexive governance in political and economic circles [31
]. Also using the MLP, Nastar [32
] highlights interactions between actors in the water regime and niche experiments relating to rainwater harvesting (RWH) in Hyderabad, demonstrating the need for socio-technical and socio-political innovations to be combined. Integration of infrastructures and organisations in this way, would enable a new vision to replace the old (in that case representing a regime imposed by international aid). Whilst using the MLP, the analysis follows a narrative analytical framework, limiting visualisation of the interactions described and analysed. Wen et al. [33
], in their work on international, interdisciplinary and intersectoral modelling for urban water management, further develop the case for the use of quantitative social science modelling techniques such as social network analysis (SNA), initiated by Binz and Truffer [18
]. Conventional SNA has been utilised to examine social networks in economic geography [34
], innovation studies and energy sector innovation [35
], renewable energy supplies such as biofuels [36
] and for the water management sector, membrane bioreactors at a global scale [18
]. However, SNA has yet to be applied at the national niche scale for water infrastructure, such as AWSS or RWH. Modelling and visualisation of niche-level infrastructure and organisation interactions could be a useful approach to improve visioning and transitioning in a sector that has been criticised for lacking innovation in a world of global challenges where the innovation agenda is key [37
]. As the regime and landscape change in response to niche innovations and RWH is a niche innovation, it is therefore fundamental to examine how the network representing the niche operates and is governed in order to ascertain the directionality of influences to and from the regime and landscape. Social network analysis thus comprises a valuable, but challenging, research method to examine the RWH network.
In addition to the innovation agenda and the well-established sustainability agenda, a recent agenda to emerge in the water sector (following its embedding in other sectors and fields), is that of the resilience agenda. A range of organisations have acknowledged the significance of water resource, supply and sanitation resilience in the face of challenges or threats (such as climate change, population growth and urbanisation) and advocated developing long-term resilience through strengthening infrastructure and organisations [38
]. As with most concepts, contestation over definitions and operationalisation of resilience exists, as does debate over suitable indicators and metrics through which to measure resilience, particularly within the water sector [4
]. Continuation of that debate is beyond the scope of this paper, instead this paper focuses on the definitions of resilience and sustainability advocated in Butler et al. [4
] as part of the reliable, resilient and sustainable framework—or ‘Safe and SuRe’ framework for short (safe taken as representing reliable and SuRe representing sustainable and resilient, respectively).
Within the Safe and SuRe framework, resilience is defined as:
“the degree to which the system minimises level of service failure magnitude and duration over its design life when subject to exceptional conditions”.
Essentially, this is a measure of system performance in relation to threats that place stresses on a system (social, ecological, technical or otherwise) causing it to strain. In this way, the definition echoes references to bounce-back-ability, rapid recovery and adaptation in relation to failures inherent in many other resilience definitions [42
Sustainability is taken as being:
“the degree to which the system maintains levels of service in the long-term whilst maximising social, economic and environmental goals”.
Again, this reflects the conventional three pillars of sustainability that are to be maintained or enhanced for future generations. To apply these definitions, the Safe and SuRe framework supports four types of evaluation (top-down, bottom-up, middle-based and circular) across modules representing threats, systems, impacts (on system performance) and consequences (for society, economy and environment). By identifying multiple opportunities for intervention between these modules, mitigation, adaptation, coping and learning for reliability, resilience and sustainability can be undertaken. In earlier work, the framework was applied to primarily incumbent urban water infrastructures such as wastewater treatment works and urban drainage systems [43
This paper presents a UK-based pilot study into the use of a modified participatory SNA method to model and visualise the interactions between RWH infrastructure innovators (technologies) and other organisations to examine how resilience and sustainability feature within niche and TA processes. First, a social network model representing RWH infrastructure innovator and organisation interactions is constructed. Second, SNA is undertaken using appropriate metrics to visualise and interrogate interactions. Third, an analytical framework comprised of MLP niche management perspectives and the Safe and SuRe approach is utilised to identify features of innovation, resilience and sustainability within modelled RWH infrastructure-organisation interactions. A final discussion and conclusion section triangulates and recontextualises the outcomes of the study, providing decision and policy makers with reflective insights on implications for the future of the RWH sector.
The methodology for the pilot study comprised three parts. First, the construction of a social network model representing the infrastructures and organisations operating in the UK RWH niche and TA was undertaken using a modified participatory approach. Second, the application of SNA using a proprietary software tool. Third, the application of an analytical framework consisting of niche management elements of the MLP and definitions of resilience and sustainability from the Safe and SuRe framework. The first two parts are described together in the next section and the third part is described in the subsequent section.
2.1. Social Network Construction and Analysis
Social networks map the relationships between actors and consideration of such maps gave rise to the development and application of SNA, emphasizing the importance of patterns of interaction [45
]. The primary focus of SNA is relational data and its analysis, based on the construction of a social network. SNA enables investigators to look beyond individuals’ attributes to reflect on overall network patterns (actor positions, relations and structures) and thus the inclusion of formal and informal actors can be crucial [46
]. A limitation of its conventional utilisation is the requirement for matrices of bibliometric or citation data that catalogue the interactions between different entities. SNA tools are then used to evaluate different network properties such as centrality, connectivity, and clusterability, each of which pertain to particular dimensions of the network [47
]. The bibliometric approach used by [18
] would not easily translate to other contexts where a number of actors or actor categories (for example a wide range of organisations) may be located outside of the formal publications sphere. Additionally, the lag time between action in practice and eventual publication means that the dynamic real-time development of a network, niche or TA could be overlooked.
An alternative to the bibliometric approach is that of participatory SNA (PSNA), which is gaining popularity in research areas where quantitative data matrices may be less easily obtainable [47
]. PSNA engages actors (who may represent organisations) in workshops to co-create a representation of a network (for example by drawing symbols or writing names on paper and then connecting them using lines) and has been widely used in relation to health service issues and natural resource utilisation and management [46
]. PSNA can increase the understanding of a social network beyond that of purely structure-driven aspects, to include relationships between incumbent actors (in the case presented here, water infrastructure providers such as water companies) and new entrants (in this case of RWH infrastructure innovators), as well as the plethora of other organisations that may constitute a network. Despite its emergence as a sophisticated tool for modelling cross-system interactions and its advantages over conventional SNA, PSNA presents some major disadvantages. One is the time and resources required to identify participants and undertake interviews or facilitate focus groups and workshops. Additionally, issues of power or influence and pre-existing conflicts between actors may threaten or bias participation in the process.
Consequently, to construct a social network, the authors used a modified participatory approach to draw on the existing expertise and experience of individuals through the use of a reflexive autobiographical sketch. The focus of such an autobiographical sketch is the mapping and logging of a range of experiences, media and other evidence, which is in line with the methodology described and applied by Nastar [32
] and comprising a personal triangulation of policy and document/media analysis, extracts from questionnaire and interview databases and intensive fieldwork. Triangulation of multiple sources of information or multiple representations of the interactions of a group of organisations is a standard approach in PSNA [52
In the pilot study presented here, the lead author created an autobiographical sketch that triangulated roles and activities of relevance to RWH, including research undertaken (questionnaires and interviews with RWH users and manufacturers, system testing), contacts made within the sector, membership of relevant organisations/networks (for example the UK Rainwater Management Association), professional interactions (RWH conferences, seminars, meetings and events) and publications completed (academic and grey). Readers are referred to Ward et al. [53
] and Melville-Shreeve et al. [54
] for a more detailed insight into the type of research, contacts and organisations engaged. However, it should be noted that whilst a range of organisations are referred to in these previous papers, they do not comprehensively address all of the organisations included in the present paper. This does not mean the organisations that are not included have received unequal treatment, rather that other observations and implicit knowledge generated from other interactions has been drawn upon to represent their position. Reflection on these experiences and interactions enabled the relationships between different RWH innovators operating in the niche and other individuals and groups undertaking activity on RWH to be identified. Mapping these relationships on paper snowballed the identification of other organisations and the representation of the social network expanded. Once the lead author had finished developing the representation of the RWH network, two colleagues with equal knowledge of and engagement with the RWH niche and water management sector thoroughly reviewed it to verify the information represented (to achieve a basic level of inter-rater reliability), by systematically checking each organisation and relationship included and commenting on any required revisions.
Whilst the colleagues agreed that the generated network adequately represented organisations operating in the UK RWH sector, it should be acknowledged it originates from their personal beliefs, experiences, understandings and subjective biases as participants within the RWH network and is time-specific i.e., based on information up to August 2014. This of course means the analysis does not capture, nor does it aspire to provide, a complete picture, but rather it seeks to be grounded on a specific and informed standpoint. As the compiler of the network is a researcher bound by academic and professional ethics, unlike the participants of a traditional PSNA, it could be argued that it is therefore more robust and separated from issues of power, influence and pre-existing conflicts. As Roex and Degryse [55
] argued in other contexts, the recognition of personal interactions and narratives, self-analysis, reflection and action can enhance learning and considerably enriches traditional SNA approaches to understanding social networks. Consequently, the network generated articulates a specific viewpoint at a certain point in time, which may or may not represent the entire network under observation. The authors believe the method provides access to a source of data hitherto neglected in circles responsible for managing change in the water sector. Additionally, the work represents a pilot study, which could be expanded in further work by undertaking a more conventional PSNA with multiple participants in several workshops—including with those actors represented in the resulting social network.

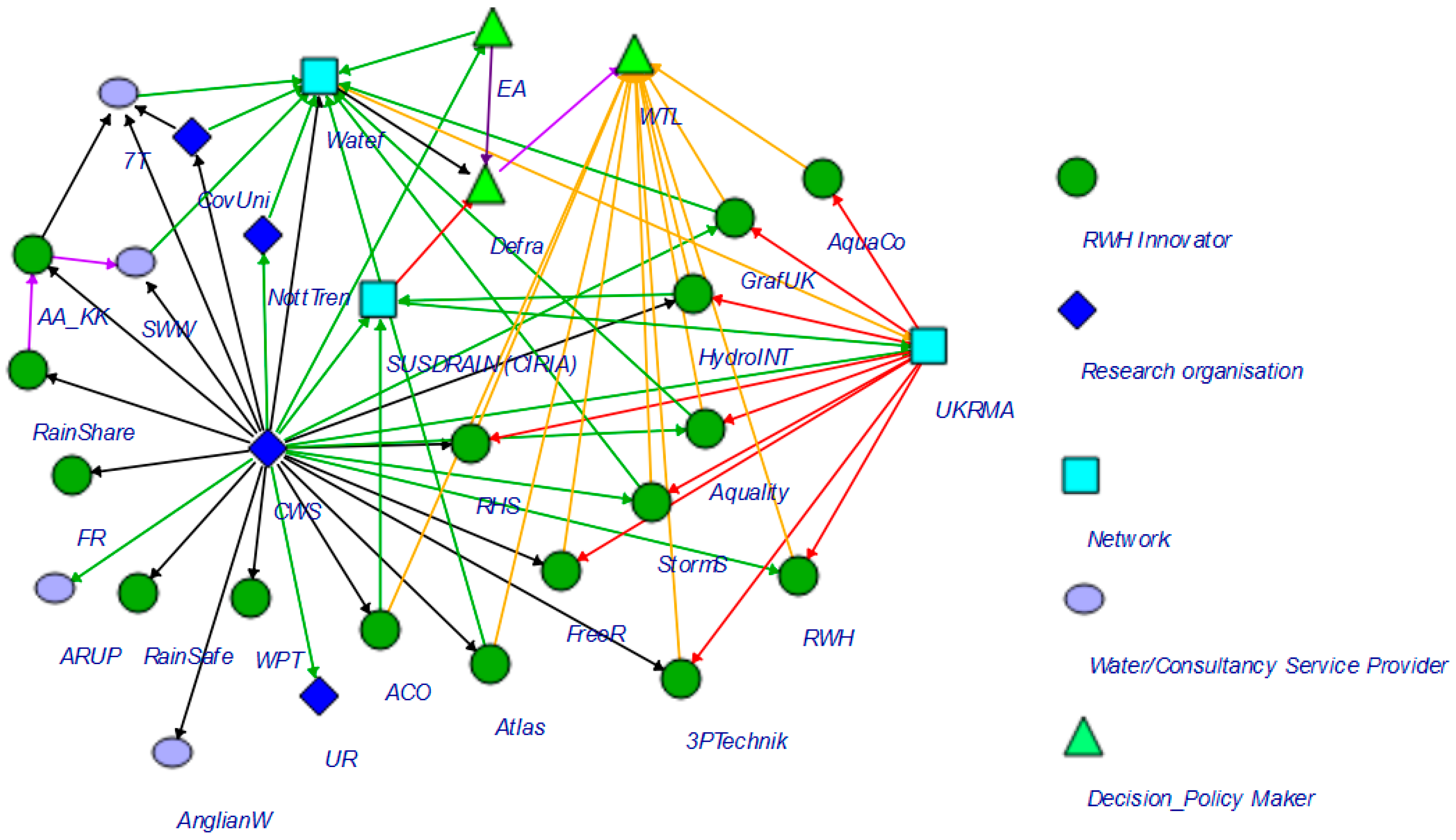

The RWH innovators (taken in this analysis as representing RWH infrastructures/technologies) and other organisations dealing with RWH identified through the autobiographical sketch and network mapping exercise are summarised in Table 1
. The relationships between these actors were used as a starting point to create a formalised model of the RWH social network. Visualising the relationships between the organisations through text has limitations. Consequently, a social network model (diagrammatic representation) was generated through which to analyse the identified relationships via SNA. Infrastructure components (nodes) of the model are represented by RWH infrastructure innovators, as these are responsible for designing, developing and manufacturing the actual physical RWH systems. All other nodes represent organisations that are either responsible for connecting RWH innovators to the incumbent regime, undertaking research on RWH or transferring knowledge on RWH through formal networks. Edges were added to represent relationships between the nodes (infrastructure and organisations). As well as the autobiographical sketch, the websites of the UK Rainwater Management Association and the Water Technology List (WTL) were used to contribute information in the development of the social network model, as they provide a list of their members. The Social Networks Visualizer, ‘SocNetV’ [56

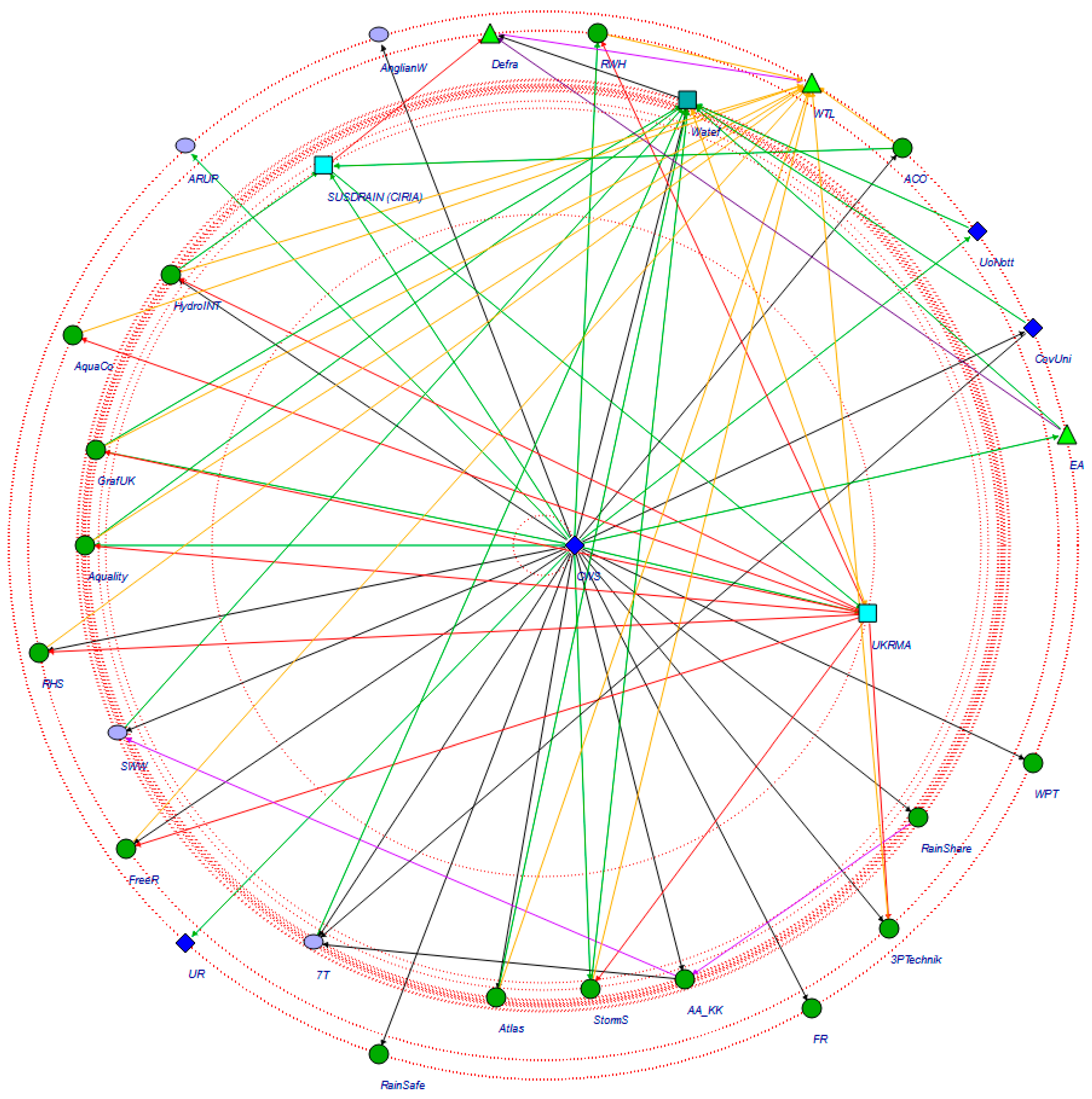

], cross-platform was used to generate the network model and perform analyses. Standard properties of the network model, such as density, diameter, connectedness and centralities [57
], were then interrogated and are described in Section 3.1
The RWH network model generated does not represent relationships between infrastructures or organisations in the wider water sector, a necessity in order to keep the boundaries of the analysis manageable during this pilot application. Furthermore, the focus was on RWH infrastructure innovators deemed to be innovative; that is actively developing new methods, products, processes, services or other provisions to enable the RWH sector to adapt and respond to the needs of markets, the regime and landscape (both RWH incumbents and new entrants are included). Finally, only organisations that are formal entities were included, that is, they are registered as a sole trader, company or similar.
A limitation of the generated network model is that it is not weighted. This would be where a weighting is placed on each of the relationships indicating the quality of the relationship, such as how often interactions occur, the nature of the interaction and so on. This information was not available in this case therefore it is not possible to consider the frequency or quality of interactions or interrogate factors such as how quickly information travels around the model. The information required to create a weighted network (meeting dates, durations, nature of discussions, outcomes etc.) could be gathered in future research, by integrating this analysis with a more extensive PSNA.
2.2. Analytical Framework
The visualisation and interrogation of RWH infrastructure-organisational interactions is enabled through the PSNA described in the previous section. However, to further extend the interrogation, it is important to recontextualise the quantitative SNA within a more qualitative narrative, particularly as niche management, innovation, resilience and sustainability agendas are of interest in this pilot study. Consequently, within this work, we have constructed an analytical framework comprised of aspects of the MLP and Safe and SuRe frameworks, that will be used to further analyse the RWH SNA.
There is a tendency in transition studies/MLP papers to reproduce and justify the fundamental aspects of the framework and there is criticism of and ongoing debate around the approach [31
]. Whilst the scope of this paper does not allow such an extended account or direct addressing of this debate, it is important to identify and justify the use of the MLP in the pilot study. Firstly, as an analytical tool operating at multiple levels, it provides a useful set of concepts through which to categorise and understand system change processes at each of the levels. For example, niche management features include learning, networking, expectations, defining concepts, exploring social embedding, new partnership formation, experimentation, evaluation, identifying values, existence in the social economy, pluralism of resource base, presence of communities and enabling of conventional and alternative combinations. These features provide a frame through which to interrogate the interactions between infrastructure and organisations in the UK RWH SNA. Secondly, framing the results using niche management features from the MLP enables detailed discussion of social, technical and potentially political perspectives emerging within the RWH sector in the UK. This enables dissonance in perceptions, ambitions, visions and actions to be identified, elaborated and discussed in relation to their implications for the future of the sector. Whilst these features underpin the utility of the MLP in the present study, they also highlight gaps, specifically in relation to agendas beyond innovation and sustainability, most noticeably that of resilience.
To bridge this gap and strengthen the analytical framework, features from the previously mentioned Safe and SuRe framework are also utilised [4
]. The basic definitions of resilience and sustainability, as well as some key terms (threats, systems, impacts, consequences etc.) adopted by the framework were outlined at the end of Section 1
. As an emerging framework that is nascent in its application, it is not possible or appropriate to debate or criticise the use of the Safe and SuRe framework within this paper, but as with the MLP, its use requires justification. Firstly, the definitions of resilience and sustainability place emphasis on a service level, thereby specifying and emphasizing the performance
of a system (in relation to resilience and sustainability), but not the properties
that a system must have in order to achieve that level of performance. As such, the framework is flexible in its identification of the characteristics of a system that might result in resilience and sustainability. This is in contrast to the MLP, which assumes that to be successful, to destabilise the regime or to contribute to sustainability transitions, a niche or TA must exhibit certain characteristics. Whilst the Safe and SuRe framework focuses on performance rather than properties, it may be pertinent in the pilot study to use both aspects in order to highlight where service levels (in relation to RWH infrastructures and organisations) are overlooked or missing and where certain characteristics may be crucial for system (RWH niche) function. Secondly, categories are used within the framework to offer a unique view on different threats, middle states (or failure states, where an effect is observed in a system but its cause is unknown), impacts and consequences that may affect the niche, regime or landscape. These include internal (occurring within a system), external (occurring outside a system), chronic (occurring gradually), acute (rapid and/or unpredicted), functional (affecting operations), structural (affecting properties), tangibility (ease of assessment) and directness (direct or indirect effects). Finally, the framework suggests interventions at the intersects between threats, systems, impacts and consequence, which are mitigation, adaptation, coping and learning, respectively. These interventions indicate that resilience and sustainability are built in different ways at different points in the process from threat to consequence and either reduce negative consequences or increase positive consequences. This has applicability when interrogating how UK RWH infrastructures and organisations interact and the effect those interactions have on niche properties and performance.
By using this MLP/niche management-Safe and SuRe combination, it is anticipated that a deeper analysis will be facilitated and a more comprehensive interrogation of the interactions of the RWH infrastructure innovators and organisations achieved. This analysis is presented in the following section.
In order to become more sustainable and resilient, the water system must undergo a transition or paradigm shift, or a radical change must be able to occur within the existing regime. To explore these transitions, shifts and changes and the processes that operate within and upon them, a range of models integrated across different components of the system and at different scales is required. This paper contributes a model that represents the network interactions of rainwater harvesting infrastructure innovators and other organisations in the RWH niche operating in the UK, to identify how resilience and sustainability feature within the niche-network. The RWH network interaction model was constructed using a modified participatory social network analysis (SNA). The SNA was then taken further through the application of a two-part analytical framework based on niche management literature (from the multi-level perspective) and the concepts and definitions of the Safe and SuRe framework.
The SNA identified that some RWH infrastructure innovators have limited direct interaction with higher-level organisations and therefore have a weak influence, instead relying on persuasive intermediaries to influence the regime. Two higher level organisations and two emerging RWH infrastructure innovators were the most reachable actors in the network, highlighting their role as resilient innovators that respond to regime and landscape-level threats such as changes in regulation and market demand, as well as failures in centralised support. The clusterability of the network was zero, resulting in a large number of members participating in the same knowledge networks, which could be problematic for the resilience of the network, its influence on the regime and landscape and ultimately water sector sustainability transitions. This was reinforced by the limited presence of decision/policy-makers and end-users in the RWH network interaction model, indicating that policy and decision makers should reconsider their involvement in and contribution to the niche, if the regime and landscape-level journey towards resilient and sustainable water management is to be enhanced. Added value could be gained through a coordinated effort to include end-users and decision-makers more explicitly in the RWH network interactions to facilitate greater inclusion of their perspectives, needs and priorities in future water sector resilience and sustainability. Further research is needed to undertake a full PSNA of the RWH network at a different point in time to explore whether representation of end-users and decision-makers changes or is more subtle than was observed in the present study.
By taking the SNA further, through the application of the two-part analytical framework, additional insights were gained. In the case of niche management, features from niche creation and strategic, conceptual and social niche management were exhibited by the RWH network interaction model. For example, from strategic niche management, learning and networks were well expressed, but expectations of the RWH infrastructure innovators and organisations were actually unconverged (the former focused on meeting drivers set by the latter, but without any criteria or targets with which to work), indicating the regime may not be committed to the RWH infrastructure innovators because it does not know what to expect in the future. Despite this lack of converged expectations, the interactions that have occurred have resulted in a highly functioning network, indicating some aspects of resilience. Features from conceptual and social niche management were also present, though some were not well developed. For example, non-technological concepts such as service innovation and social enterprise are emerging, which highlights that the RWH niche is developing to fit the social as well as market economy and is diversifying its appeal.
In the case of the Safe and SuRe part of the analytical framework, by applying the concepts and definitions of the project it was possible to identify features additional to those in existing niche management literature. This is demonstrated by taking further the previously mentioned example regarding the RWH network being highly functioning despite the unconverged and poorly articulated expectations. The interactions that exist within the network have still resulted in the ability to meet the needs (levels of service) required by both the regime and end-users, though they are not explicity included in the network. This aligns to the Safe and SuRe concept of resilience, demonstrating that the RWH network shows an element of resilience. Without targets or criteria to fully define the magnitude and duration of meeting those levels of service, however, the network may not be able to fulfil the Safe and SuRe definition of resilience.
Through the analysis, seven additional niche governance features were identified including diverse innovation, responsivity, no protection, unconverged expectations, primary influencers, polycentric or adaptive governance and multiple learning-types. These features are at varying stages of emergence and indeed, some could be greatly improved, for example, by engaging end-users. Finally, the analysis presented only relates to the RWH network interaction model; further research on other AWSS or in other infrastructure sectors would be useful to verify and validate observation of the seven features. However, the features provide a useful contribution to governance of the RWH niche, enabling RWH infrastructure innovators and organisations to reflect on how to improve and develop the interactions operating within the niche-network.
