Comparing Two Operating Configurations in a Full-Scale Arsenic Removal Plant. Case Study: Guatemala
Sofía E. Garrido Hoyos 1,*, Martha Avilés Flores 1, A. Ramírez Gonzalez 1, Celia Grajeda Fajardo 2, Saúl Cardoso Zoloeta 2 and Hayron Velásquez Orozco 3
1
Water Treatment and Quality Department, Mexican Institute of Water Technology (IMTA), Paseo Cuauhnáhuac 8532, Col Progreso, Jiutepec C.P.62550, Mexico; E-Mails: maviles@tlaloc.imta.mx (M.A.F.); tramirez@tlaloc.imta.mx (A.R.G.)
2
Río Azul Company, 16 Calle 9-60, Condado El Naranjo, Mixco, Guatemala; E-Mails: cgrajeda@condadonaranjo.com (C.G.F.); cardoso@condadonaranjo.com (S.C.Z.)
3
ECO-TEC Company, Carretera a El Salvador km 26.5. Cruce a Santa Elena Barilas, Guatemala City, Guatemala; E-Mail: hvelasquez@ecotec-centroamerica.com
*
Author to whom correspondence should be addressed; E-Mail: sgarrido@tlaloc.imta.mx; Tel.: +52-777-329-3662; Fax: +52-777-319-4381.
Received: 10 April 2013; in revised form: 24 May 2013 / Accepted: 29 May 2013 /
Published: 21 June 2013

Abstract

: The present study was conducted in Naranjo County located in the municipality of Mixco, Guatemala. The water supply source comes from two wells with a maximum flow of 25.24 and 33.44 L·s−1. The main problem with this source is the high arsenic concentration—between 0.1341 and 0.1671 mg·L−1. The aim of this study was to conduct laboratory tests, basic engineering and supervision of the construction and evaluation of an operations plant using two configurations, A (low-rate sedimentation and ceramic filter) and B (high-rate sedimentation and clinoptilolite filter), to remove arsenic present in water for human use and consumption. This plant supplies water to Naranjo County in Mixco, Guatemala (5000 inhabitants). First, a laboratory Jar Test was performed to evaluate arsenic removal efficiency. And second, a conventional clarification plant was then built (design flow: 25.24 L·s−1). The best results were achieved with configuration B, with the following reagents and dosage as defined by the laboratory tests: 10 mg L−1 ferric chloride as coagulant; 1.8 mg·L−1 CH-polyfocal as flocculant and 0.4 mg L−1 MIT03 as color removal; 1 mg L−1 sodium hypochlorite as oxidant and adjusting pH to ≈7.0 with sodium hydroxide. Once the plant began operating, the efficiency of the treatment process was evaluated. The maximum elimination efficiencies were obtained 100% for turbidity (0 UTN), 89.54% (3.66 UPt-Co) for color and 96.80% (0.005 mg L−1) for arsenic, values that comply with Guatemalan standards. For this case, the relation between Fe(III) dosage/mg and As(V) removal was 1:46.
Keywords:
arsenic removal; media filters; treatment plant; water supply

1. Introduction

The natural origin of arsenic in groundwater is linked to the lithology of the geological materials that compose the aquifer and the oxidation-reduction processes that affect this element. Other origins are related to anthropogenic factors, such as the leaching of mine waste and the use of pesticides.

Toxicity from arsenic is well known and can occur in two ways: acute and chronic. Acute toxicity results from the ingestion of high concentrations of arsenic over a short period of time, whereas chronic toxicity is the result of the ingestion of small arsenic amounts over an extended period. Arsine is considered the most toxic form, followed by arsenite, arsenate, and organic compounds that contain this element [1].

Ingestion and inhalation are the main routes of exposure to arsenic in humans. Arsenic accumulates in the body due to chronic exposure, when exceeding certain concentration levels. It can cause infection (such as skin lesions), peripheral vascular diseases (“black foot” disease), respiratory illnesses, neurological (peripheral neuropathies) and cardiovascular diseases and different types of cancer (lung, kidney, liver, bladder and skin). Humans who ingest inorganic arsenic through water over long time periods can exhibit palmoplantar hyperkeratosis, which mainly manifests as skin pigmentation and callosities on the hands and feet [2]. This has generated growing interest in public health regarding chronic exposure to arsenic in water for human use and consumption.

More than 4 million people depend on water containing high concentrations of arsenic (>0.05 mg L−1) in Argentina, Chile, Bolivia, Peru, Ecuador and Mexico, where arsenic has natural or anthropic origins, such as mining activities [3]. In recent years, great importance has been given to arsenic in water for use and human consumption. To protect the public’s health, the maximum permissible limit has decreased from 50 to 10 mg L−1 [4]. This influences treatment processes and the selection of alternatives to attain the best solution, which depends on numerous factors, such as: the size of the treatment device, arsenic concentration and distribution of species, chemical composition and degree of mineralization of raw water, guidelines for the residual arsenic concentration, economic constraints and investment, operations and maintenance concerns, among others [5].

Most methods for arsenic removal are effective, including: conventional clarification (coagulation-flocculation-sedimentation-filtration), activated alumina, ionic exchange, adsorption and capacitive deionization membranes [6,7,8]. Many authors have reported obtaining the best removal performance with As(V) than As(III); therefore arsenic can be pre-oxidized using chlorine and potassium permanganate as oxidizers [9].

The elimination of arsenic through conventional methods, using coagulants followed by filtration, is an effective process for the elimination of As(V). According to tests conducted in the laboratory and in pilot plants, it was determined that FeCl3·6H2O as a coagulant is more efficient for eliminating arsenic than Al2(SO4)3—96% and 85%, respectively. Ahmed [10] obtained 91% removal of As(V) with FeCl3 at a pH of 7, an important factor that must be considered for water; there is greater solubility for iron salts at a pH of 6.5 to 7.5 and for aluminum sulphate at 6.0 to 6.5 [11,12,13].

Shen [9] compared the ability of 20 mg L−1 doses of alum, lime, ferrous sulfate and ferric chloride to remove arsenic from well water (pH 6.8 and 1.0 mg L−1 arsenic) in bench-scale tests, for which arsenic removals of 32%, 20%, 24% and 82% were achieved with the respective coagulants. Because As(III) is most likely to be found in anaerobic groundwater, it is likely that the well water treated in Shen’s study contained As(III). Pre-treatment with chlorine—presumably oxidizing As(III) to As(V)—enhanced the ability of the ferric chloride to remove arsenic; Shen reported removals from 82.5% to approximately 100% with 50 mg L−1 (ratio 1:50).

In another bench-scale study, Gulledge and O’Connor [14] analyzed water spiked with As(V) and tested 10 to 50 mg L−1 alum and ferric sulfate at a pH of 5.0 to 8.0. The ferric sulfate achieved better removal than the alum (88.6%–99.0% versus 18.5%–93.6%) and was less sensitive to increases in pH. Sorg and Logsdon [15] reported comparable findings in their pilot-scale study—i.e., significant removal of arsenic with conventional treatment and superior performance by the ferric coagulant. Similar results are also cited from an earlier bench-scale evaluation conducted by Logsdon et al. [16].

Additionally, the volume, handling and final disposal of generated wastes should be considered, since the previously-mentioned methods generate relatively high volumes of sludge contaminated with arsenic.

The aim of this study was to conduct treatability tests, basic engineering and supervision of the construction and evaluation of an operations plant with two configurations to remove arsenic present in water for human use and consumption. This plant supplies water to Naranjo County in Mixco, Guatemala.

2. Experimental Section

2.1. Study Area

The present study was conducted in Naranjo County, located in the municipality of Mixco, Guatemala (Figure 1), 29 km west of the capital city of Guatemala, with an elevation of roughly 1650 meter above sea level (m.a.s.l). It has a total population of 5000 inhabitants, according to the National Statistics Institute of Guatemala [17].

The water supply source comes from two wells (Well No. 1 and Well No. 2) with a maximum flow of 25.24 and 33.44 L·s−1, respectively.

2.2. Water Quality

Raw water from Wells No. 1 and No. 2 was analyzed according to parameters established by the Guatemalan standards for drinking water, COGUANOR NTG 29 001. Table 1 shows the values of some of the parameters analyzed.

The quality of the raw water complies with the standards, except for pH with a value of 6.61 (maximum acceptable limit (MAL) = 7.0–7.5) and total arsenic with values of 0.1341 mg L−1 for Well No. 1 and 0.1671 mg L−1 for Well No. 2 (13 and 16 times above the standard value of 0.010 mg L−1, respectively). In addition, the water is considered to be moderately hard (75–150 mg L−1).

According to the speciation diagram for arsenic present in untreated water from Wells No. 1 and No. 2, the predominant species is the anionic forms H2AsO4 and H2AsO42− with oxidation state (V) (Figure 2, Figure 3). Cebrian [18] have reported the approximate ratio of As(III):As(V) in groundwater as 70:30.

Water 05 00834 g001 200
Figure 1. Study area: Naranjo County, Mixco, Guatemala (NCMG).

Click here to enlarge figure

Figure 1. Study area: Naranjo County, Mixco, Guatemala (NCMG).
Water 05 00834 g001 1024
Table 1. Physicochemical characterization of raw water.

Click here to display table

Table 1. Physicochemical characterization of raw water.
ParameterWell No. 1Well No. 2COGUANOR NTG 29 001
MALMPL
Physical
True Color (Pt-Co Units)<2.010535
Turbidity (NTU)0.0920515
Total dissolved solids 12062335001000
Chemical
pH6.617.147.0–7.56.5–8.5
Alkalinity 1128134--
Hardnesstotal 1 (CaCO3)96.867.1100500
Chlorides 15.543.02100250
Sulphates 18.2428100250
Nitrates 11.023<0.093-10
Fluorides 10.3220.295-1.7
Iron 1<0.05<0.050.11.0
Manganese 1<0.05<0.050.050.5
Arsenic 10.13410.1671-0.010

Notes: 1 Units in mg L−1; MAL: Maximum acceptable limit; MPL: Maximum permissible limit.

Water 05 00834 g002 200
Figure 2. Eh-pH diagram for predominant arsenic species in equilibrium in raw water from Well No. 1 (Initial 0.134 mg As·L−1; pH 6.61, Eh 0.16 V) at 25 °C and 1 atm.

Click here to enlarge figure

Figure 2. Eh-pH diagram for predominant arsenic species in equilibrium in raw water from Well No. 1 (Initial 0.134 mg As·L−1; pH 6.61, Eh 0.16 V) at 25 °C and 1 atm.
Water 05 00834 g002 1024
Water 05 00834 g003 200
Figure 3. Eh-pH diagram for predominant arsenic species in equilibrium in raw water from Well No. 2 (Initial 0.167 mg As·L−1; pH 7.14, Eh 0.23 V) at 25 °C and 1 atm.

Click here to enlarge figure

Figure 3. Eh-pH diagram for predominant arsenic species in equilibrium in raw water from Well No. 2 (Initial 0.167 mg As·L−1; pH 7.14, Eh 0.23 V) at 25 °C and 1 atm.
Water 05 00834 g003 1024

2.3. Laboratory Tests

A Jar Test was performed in the laboratory to evaluate arsenic removal efficiency. Five experiments were conducted with water from Well No. 1 (Table 2). Sodium hypochlorite (NaOCl—6%) was used as an oxidizing agent, with dosages of 0.5 and 1 mg L−1. Liquid ferric chloride (FeCl3 40%) was used as a coagulant, with dosages of 4, 8, 12, 16 and 20 mg L−1 (24.7, 49.3, 74.0, 98.6 and 123.3 µmol Fe3+ L−1, respectively). Red clay was used to increase the turbidity, with an amount of 0.05 and 0.10 mg·L−1 and pH was regulated with NaOH or HCl 0.1 N, depending on the case. The Jar Test operation was conducted according to ASTM D 2035-80 (ASTM Committee, 1995) [19]; the test’s operating conditions are shown in Table 3. The floc size was determined according to Willcomb’s Index and the Water Research Institute of England [20].

In the preliminary laboratory experiments, the flocs were removed by filtration through 0.45 µm membrane filters, which is a very efficient solid/liquid phase separation technique. In order to follow-up on simulation processes for coagulation, flocculation and sedimentation, physical determinations were made, such as temperature, turbidity and apparent color; chemical determinations included pH, iron and total arsenic.

Table 2. Configuration of Jar Test experiments.

Click here to display table

Table 2. Configuration of Jar Test experiments.
Experiment No.pH AdjustmentDose (mg L−1)
NaOClClay
16.2 to 71.0-
2None0.5-
36.51.00.10
4None0.50.05
5None0.50.10
Table 3. Jar Test operating conditions.

Click here to display table

Table 3. Jar Test operating conditions.
ProcessMixer (rpm)TimeGradient (s−1)
Fast mixing3005–15 s600
Flocculation (min)
First stage70580
Second stage60560
Third stage44540
Fourth stage33527
Sedimentation015-

2.4. Full-Scale Water Plant

The optimum values obtained by laboratory tests were used to design and build a conventional clarification plant in NCMG for arsenic removal from Wells No. 1 and No. 2. The design flow is 25.24 L·s−1. This plant has the following units: pre-oxidation, regulation of pH, one fast mix unit, four flocculators, two sedimentation basins, four pressure filter units, and finally, treated water is disinfected with hypochloride sodium and stored in two 1000 m3 tanks. Figure 4 shows a diagram of the processing units at the arsenic removal plant.

Water 05 00834 g004 200

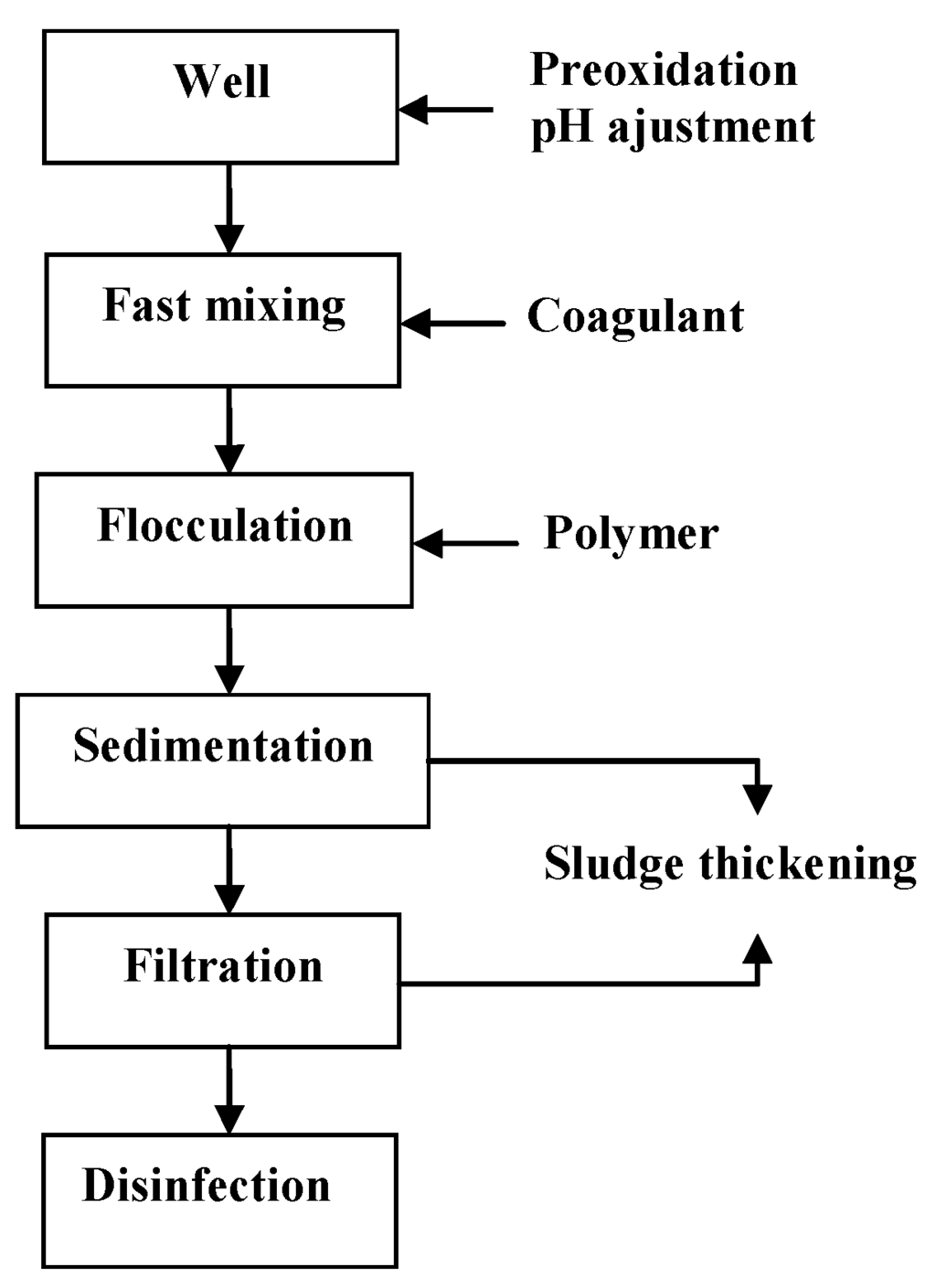

Figure 4. Flow diagram of the arsenic removal plant, Mixco, Guatemala.

Click here to enlarge figure

Figure 4. Flow diagram of the arsenic removal plant, Mixco, Guatemala.
Water 05 00834 g004 1024

Table 4 shows the operating conditions for the units with the two filter media configurations: (A) Microlite-KINETICO®—a synthetic ceramic media [21] and (B) TurbidexTM—clinoptilolite zeolite/potassium, calcium and sodium aluminosilicate. The sedimentation basin for the ceramic filter media did not contain laminar flow devices, whereas for the clinoptilolite filter media there were laminar flow devices. Table 5 shows the physical characteristics for both filter media. In addition, configuration (A) contained raw water from Well No. 1 (pre-oxidation 2.7 mg·L−1) and configuration (B) contained raw water from Wells No. 1 and No. 2 (pre-oxidation 4.95 mg·L−1).

Table 4. Operating conditions of the two configurations.

Click here to display table

Table 4. Operating conditions of the two configurations.
Process UnitCeramic Filter Configuration (A)Clinoptilolite Filter Configuration (B)
Pre-oxidationNaOCl: 2.7 mg L−1NaOCl: 4.95 mg L−1
CoagulationNaOH: 22.78 mg L−1
FeCl3: 12 mg L−1 (74 µmol·L−1)
Poliflocal-CH: 1.0 mg L−1
Velocity gradient, G: 1198 s−1
pH coagulation: 7.23 Hydraulic detention time, t: 10 s
NaOH: 13.90 mg L−1
FeCl3: 10 mg L−1 (61.7 µmol·L−1)
Poliflocal-CH: 1.8 mg L−1
MIT03: 0.4 mg L−1
G: 1198 s−1
pH coagulation: 6.98 t: 10 s
Flocculation G: 200-38-26-9 s−1
Hydraulic detention time, t: 20.73 min
G: 187-65-27-7 s−1
t: 20.73 min
SedimentationWithout laminar-flow devices.
Surface loading rate, SLR: 72.2 m3·m−2·d−1
Weir loading rate: 199.71 m3·m−1·day−1
Hydraulic detention time, t: 30.51 min
With laminar-flow devices
SRL: 150 m3·m−2·day−1
Weir loading rate : 316.97 m3·m−1·day−1 t: 30.51 min
Filtration Pressure filtersCeramic media
Area, A: 0.899 m2
Flow for each filter, Q: 6.31 L·s−1
Hydraulic loading rate, v: 25.27 m3·m−2·h−1
Contact time, t: 2.12 min Backwash rate, Ub: 18.95 m3·m−2·h−1
Clinoptilolite media
Area, A: 0.899 m2
Q: 5.89 L·s−1
v: 23.59 m3·m−2·h−1
t: 2.12 min Ub: 16.42 m3·m−2·h−1
Table 5. Physical characteristics of media.

Click here to display table

Table 5. Physical characteristics of media.
MediaPhysical Characteristics
Surface Area (m2 g−1)Particle Size (mm)Uniformity CoefficientBed Depth (m)
Ceramic5–140.25–0.431.500.86
Clinoptilolite14–250.6–1.401.640.85

The dimensional layout took into account the purposes, performance and final dimensions of the units that compose the arsenic removal plant, as well as the geometry, extension and topography of the terrain and the existing infrastructure to be included in the plant. In particular, the layout was determined based on the following criteria:

(a)

Existing infrastructure was considered, such as the water transportation system from the wells to the tanks, filters (included ceramic media) and pumping, and the water treatment plant’s electromechanical equipment located in NCMG.

(b)

The topographic slope was used for gravity flow, as well as to save energy and avoid the use of pumping equipment and prevent large volumes of soil movement.

(c)

It was attempted to avoid separation between structures so as to reduce the length of the interconnection lines (as well as hydraulic head loss), leaving enough space for the installation of piping, meters, platforms and access stairs to elevated structures.

(d)

The pipes were situated in order to not unnecessarily increase their lengths and so that deflections, due to changes in direction, corresponded to angles for which special commercial parts are available.

(e)

Treated water from the arsenic removal plant was directed toward the property’s low area, from where it flowed by gravity to four storage cisterns.

(f)

A booth was situated for the placement of pH control panels, dispensers for sodium hydroxide, ferric chloride and polymer, and variable-frequency drives to set the rotational speed of the agitators to fast and slow mixing.

During the days on which the plant evaluation was conducted, the necessary adjustments for good operations were made, and so variations were observed in the values obtained for the different control parameters, including: temperature, turbidity, apparent color, pH, iron and total arsenic.

2.5. Analytical Methods

The quality of raw water from Wells No. 1 and No. 2 and treated water was analyzed according to Standard Methods [22] and Hach methods [23].

Total arsenic was determined using two methods: the Wagtech Arsenator® field kit (London, UK) and atomic absorption spectrophotometer (AAS) to verify arsenic values from the field kit. The Wagtech Arsenator field kit uses a battery-operated handheld photometer to read the color stain, for better accuracy and precision. This kit continues to be used by UNICEF to test wells in Bangladesh [24]. It is the lowest cost and most portable and accurate method to determine safe limits of arsenic (WHO guidelines: 0.010 mg·L−1). The AAS used was the Perkin Elmer Model 3100, equipped with a Perkin Elmer Model MHF-10 hydride generator (IMTA, Jiutepec, Mexico). The line source was an arsenic electrodeless discharge lamp at 193.7 nm.

3. Results and Discussion

3.1. Laboratory Test

3.1.1. Optimum Dose

Average temperature among the five experiments varied slightly, from 24 to 26 °C. Figure 5 shows the effect of the dosage of ferric chloride on arsenic removal, with an initial arsenic concentration of 0.11–0.120 mg·L−1. A trend can be observed, in which the higher the dosage of the coagulant, the lower the concentration of total arsenic in the treated water. Nevertheless, the variation in the percentage of arsenic removal with a dosage of 12 to 20 mg·L−1 is not significant.

Water 05 00834 g005 200

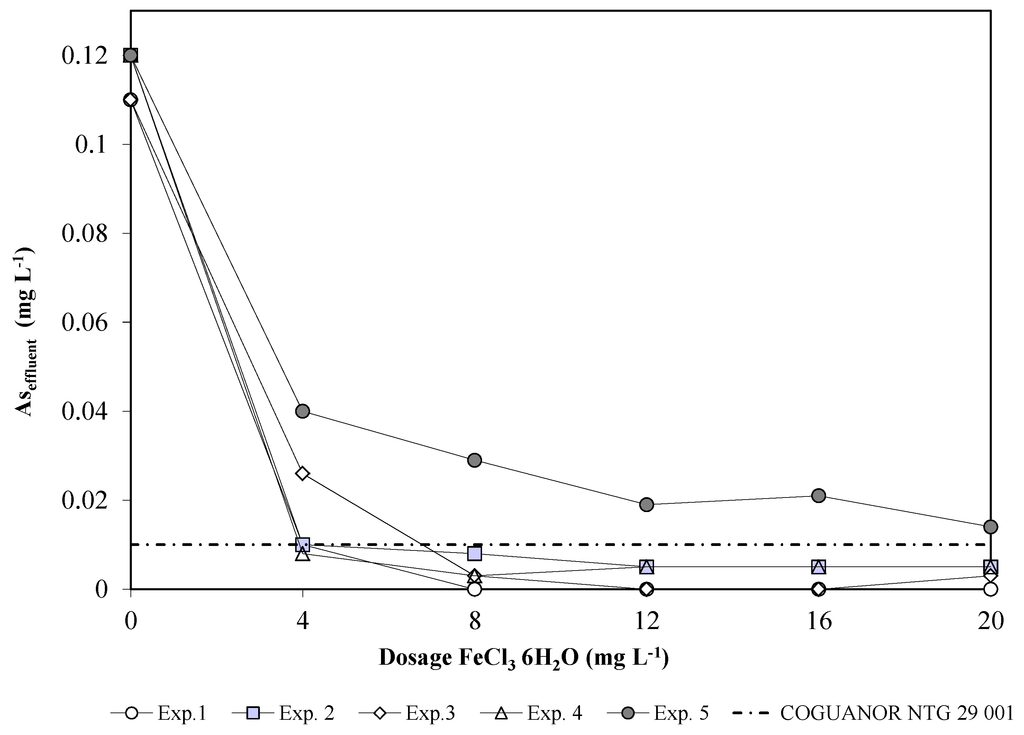

Figure 5. Influence of FeCl3 6H2O dosage on total arsenic removal. Initial arsenic concentration 0.11–0.12 mg·L−1 (n = 3).

Click here to enlarge figure

Figure 5. Influence of FeCl3 6H2O dosage on total arsenic removal. Initial arsenic concentration 0.11–0.12 mg·L−1 (n = 3).
Water 05 00834 g005 1024

Previous studies have shown that the percentage of arsenic removed using alum and ferric chloride coagulation is independent of initial arsenic (V) concentration for a wide range of conditions. Scott [25] showed nearly constant arsenic removal percentages, 82%–96%, when using 3–10 mg·L−1 ferric chloride. Cheng [26] also showed nearly constant arsenic removal percentages while varying the initial arsenic (V) concentration from 0.0022 to 0.128 mg·L−1 and treating with 20 mg L−1 alum and 30 mg·L−1 ferric chloride. Hearing [27] reported comparable findings, in which arsenic removal percentages remained nearly constant with 4.9 mg·L−1 ferric chloride and raw arsenic concentration varying from 0.002 to 0.100 mg·L−1.

The experiments that obtained the best arsenic removal results were 3 and 5—with and without pH adjustment, respectively, and the addition of clay of 0.1 mg L−1. Removal values obtained with 12 and 20 mg·L−1 dosages were 90.91% and 88.18% for experiment 3% and 84.17% and 88.33% for experiment 5, respectively (Figure 6). Arsenic and iron concentration in the treated water for all the experiments comply with Guatemalan standard COGUANOR NTG 29 001.

Water 05 00834 g006 200

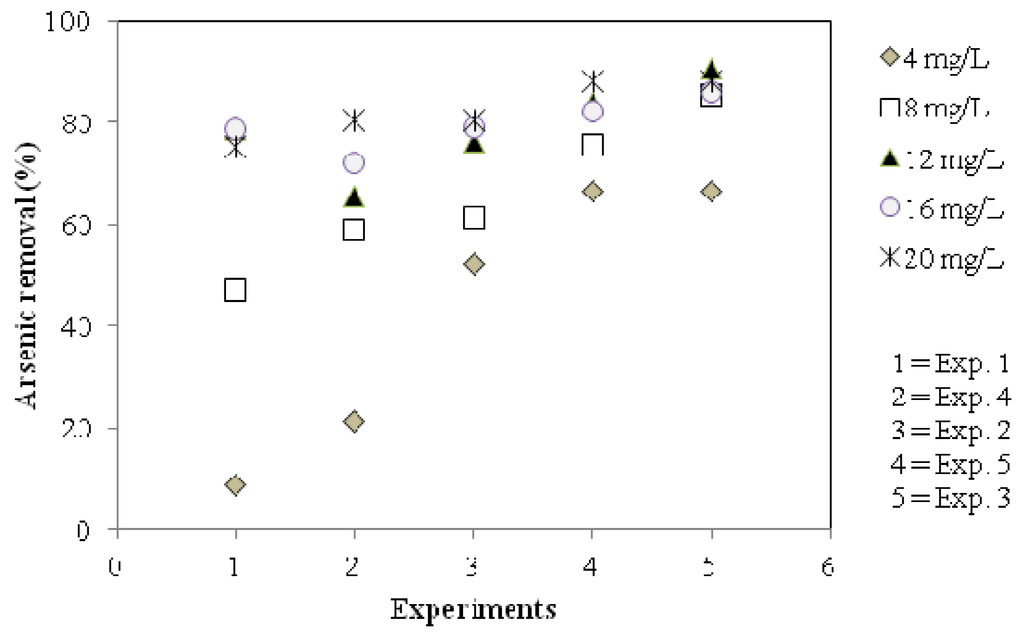

Figure 6. Total arsenic removal percentage for different ferric chloride dosages.

Click here to enlarge figure

Figure 6. Total arsenic removal percentage for different ferric chloride dosages.
Water 05 00834 g006 1024

In all experiments, 100% turbidity removal was obtained with all dosages (4–20 mg L−1). The apparent color of treated water was reduced for concentrations of 12–20 mg L−1, and values of 2 Pt-Co units were obtained for experiment 3. This color behavior is related to the coagulation-flocculation process for dosages >12 mg L−1; destabilization is achieved by adsorption and neutralization of charges. In addition, a sweeping mechanism can occur, in which the floc precipitates, removing the water’s color and thereby making the process more efficient. Other important factors in color removal were pre-oxidation and the addition of clay to increase colloid concentration and interparticle contact (experiments 3–5).

3.1.2. Qualitative Evaluation (Floc Size and Formation Time)

Floc size was determined by Willcomb’s Index and with the comparator developed by the Water Research Institute of England [20]. For low dosages of 4–8 mg·L−1, Willcomb’s index varied between 2 and 6, the flocs were dispersed and small. With dosages of 12–20 mg·L−1, the flocs were relatively large, good and easily precipitated (Willcomb’s Index 6 and 8). Experiment 5 showed larger flocs, between 1.5 and 2.25 mm, with floc formation times of less than 100 s (Figure 7).

Water 05 00834 g007 200

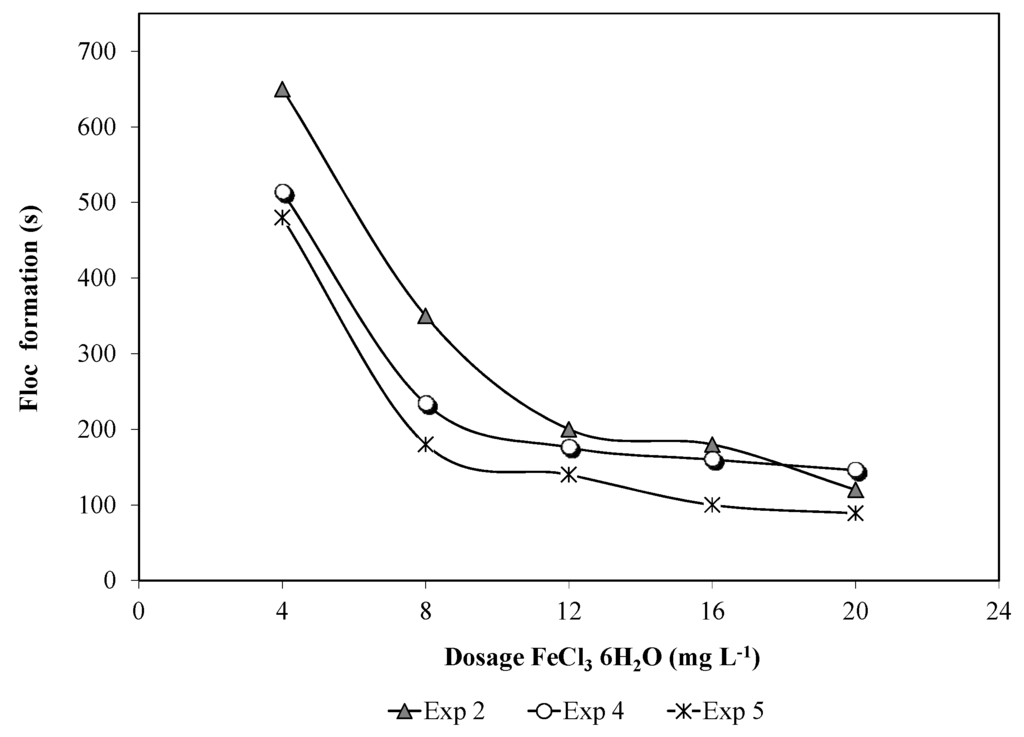

Figure 7. Influence of FeCl3·6H2O dosage on initial floc formation time in flocculation: Exp 2, 4 and 5 (n = 3).

Click here to enlarge figure

Figure 7. Influence of FeCl3·6H2O dosage on initial floc formation time in flocculation: Exp 2, 4 and 5 (n = 3).
Water 05 00834 g007 1024

3.1.3. Optimum pH

In primary laboratory test, the best results were obtained in the range of 10–20 mg·L−1 ferric chloride dosage (84.55%) and pH between 6.0 and 7.0, that is fit with the pH of untreated water for the two wells, and on the other hand the predominant anionic species of arsenic were presented at this pH (Figure 2, Figure 3).

The best results were obtained for experiments 3 and 5 (adding clay, with and without pH adjustment and with a ferric chloride dosage of 12 mg·L−1) with an arsenic removal of 90.91% and 84.17% and pH values of 6.51 and 6.54, respectively, which comply with the Guatemala Standards. Studies conducted by Ahmed [10] on the influence of pH on coagulation with ferric chloride (200 mg·L−1 dosage) found that 91% of arsenic is removed (V) at a pH between 6.0 and 7.0.

Although the pH value of water has a large influence on arsenic removal if a wide pH range is examined, the effect of pH on arsenic removal under more realistic conditions is not that significant [28]. Figure 8 shows an evolution of the pH with arsenic removal for a ferric dosage of 12 mg·L−1, were at higher pH 6.6 it is not a significance arsenic removal ≈80%.

Water 05 00834 g008 200

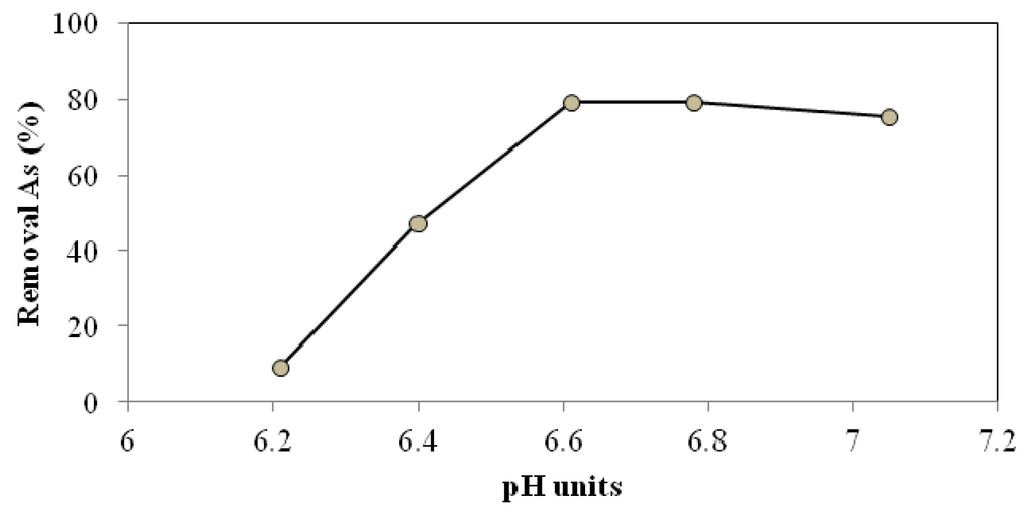

Figure 8. pH Variation for 12 mg·L−1 of FeCl3 6H2O dosage.

Click here to enlarge figure

Figure 8. pH Variation for 12 mg·L−1 of FeCl3 6H2O dosage.
Water 05 00834 g008 1024

3.2. Evaluation of Plant Performance Using Two Configurations to Remove Arsenic

After the plant was built, with two units of 25.24 L·s−1 each, the company ECO-TEC, Water Treatment Systems of Guatemala, Guatemala, operated the treatment process. The evaluation of the plant operation was conducted by the Mexican Institute of Water Technology (IMTA) during two 10-day periods. The water wells’ quality was the same for these two periods. The first evaluation period took place in 2008 with ceramic filter media and horizontal flow sedimentation (configuration A [29]), and the second in 2010 with clinoptilolite filter media and high-rate sedimentation (configuration B [30]). Based on the Jar Test, the operational conditions related to the highest arsenic removal were selected: pre-oxidation with NaOCl (dosage of 4.95 mg·L−1 to maintain a free chlorine residual of approximately 1.0 mg·L−1 for the plant’s treated water), ferric chloride dosage of 10–12 mg·L−1 (61.7–74.0 µmol·L−1), pH adjustment of ~6.6–7.0 and without clay.

Table 6 presents the average values for pH, true color, iron and arsenic (V) resulting from the arsenic removal process. The operating conditions of configurations A and B were described in Table 3, Table 4 of the methodology. The pH was maintained at a level between 6.84 and 7.23 for both configurations. True color removal was 77.53% for configuration A and 89.54% for configuration B, due to the dosage of MIT3 polymer.

Table 6. Results of the evaluation of the NCMG plant.

Click here to display table

Table 6. Results of the evaluation of the NCMG plant.
Process WaterConfiguration A, Ceramic FilterConfiguration B, Clinoptilolite Filter
pHColor (UPt-Co)Fetotal (mg L−1)As(V) (mg·L−1)pHColor (UPt-Co)Fetotal (mg·L−1)As(V) (mg·L−1)
Raw water7.2317.80.720.0926.9835.01.480.171
Raw water + Fe(III) dosage--2.78---3.96-
Settled water7.0837.81.960.0386.846.330.750.028
Unfiltered water7.1355.42.180.0687.1012.330.880.019
Filtered water7.224.00.560.0267.123.660.350.015

Average treated water turbidity varied between 0.23 and 1.38 NTU because the well pumps were regulated by the water levels in the storage tanks, which depended on household consumption. Therefore, the pumps stopped working 4 h per day, producing an accumulation of solids in the water tanks’ reservoirs and, thus, producing variations in turbidity. Filtered water turbidity in the filters was below 1 NTU, which complies with the standard. The manganese concentration in the treated water was <0.05 mg·L−1 and total and fecael coliforms were absent.

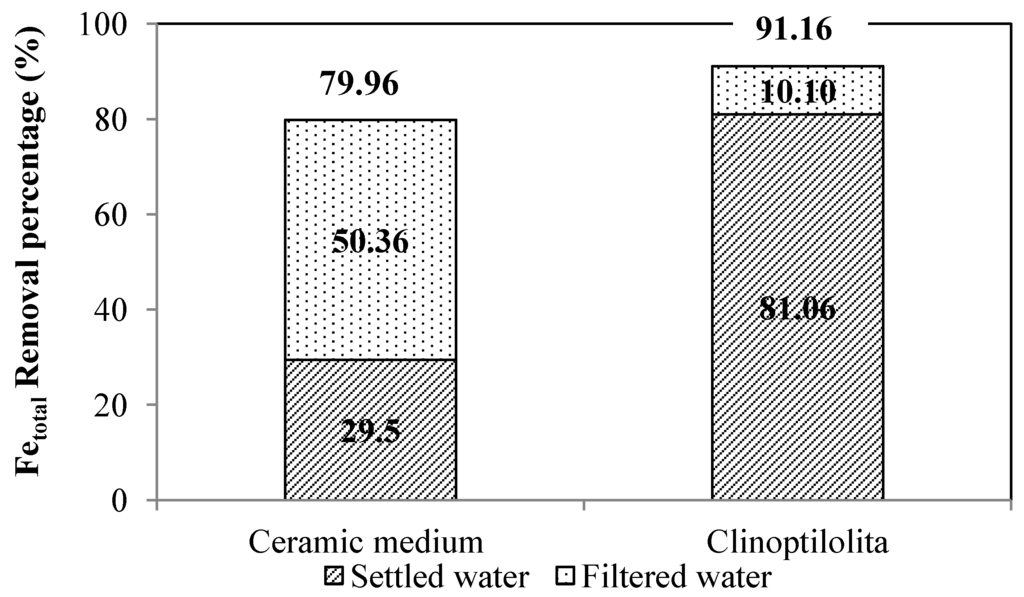

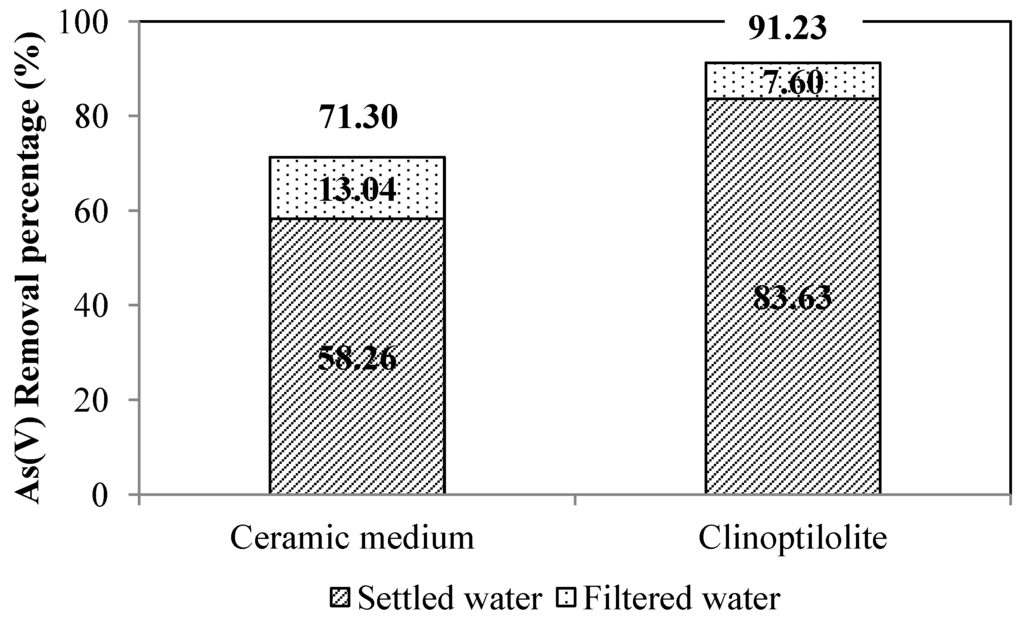

Figure 9, Figure 10 show the removal of iron and arsenic for configurations A and B. The best results were obtained with configuration B, in which the dosage of NaOH decreased from 22.78 to 13.90 mg·L−1, resulting in a decrease in raw water pH from 7.23 to 6.98, for a better coagulation and flocculation process. The pH was relatively stable during operations, between 6.84 and 7.22. A second polymer was dosed, MIT03, to remove color that appeared due to the dosage of ferric chloride; 81.91% was removed in the settled water. Finally, CH-polyfocal coagulant was dosed at 1.8 mg·L−1 to form flocs, with better sedimentation characteristics.

Water 05 00834 g009 200
Figure 9. Iron removal in full-scale NCMG plant for configurations A and B.

Click here to enlarge figure

Figure 9. Iron removal in full-scale NCMG plant for configurations A and B.
Water 05 00834 g009 1024
Water 05 00834 g010 200
Figure 10. Arsenic (V) removal in full scale NCMG plant with ferric chloride for configurations A and B.

Click here to enlarge figure

Figure 10. Arsenic (V) removal in full scale NCMG plant with ferric chloride for configurations A and B.
Water 05 00834 g010 1024

The increased surface charge from 72.2 m3·m−2·day−1 (configuration A) to 150 m3·m−2·day−1 (configuration B) and the load on the overflow from 2.31 to 3.67 L·m−1·s−1 resulted in a greater efficiency in the removal of iron and arsenic (V) in the settled water, from 29.5% to 81.06% and from 58.26% to 83.63%, respectively (Figure 9, Figure 10). In respect to the iron removal in the filtered water, 50.36% is observed in the ceramic filter (Figure 9), which is higher than the 10.10% obtained with the clinoptilolite filter. The first high value was due to a low iron removal in the low-rate sedimentation basin for configuration A. This same behavior was reflected in the removal of arsenic (V) 13.04% for the ceramic and 7.60% for clinoptilolite media.

The loading capacity of the medium for clinoptilolite is up to 1.5 times greater than that (ceramic synthetic media) and up to 2.8 times greater than the capacity of sand filters. This results in longer run times with less frequent backwashing, providing significant water savings. The filters were backwashed when the first of the following occurred: filter head loss reached approximately 50 psi of pression, the filtered water turbidity reached approximately 2.5 NTU or the filter length of run approached 16 h.

In addition to being a filter media, clinoptilolite is an adsorbent and ion exchanger. An example of zeolites is greensand, which is a granular material composed of mineral glauconite. It has been coated with manganese oxide. Studies by Garrido [31] with a full-scale filter, flow of 15 L·s−1, a filtration rate of 21 m3·m−2·h−1, contact time of 2.54 min and Fe(III) dosing of 15.99 mg·L−1 (286.24 mol·L−1) resulted in 84.3%–87.0% removal of As(V), with an initial concentration of arsenic between 0.070 and 0.085 mg·L−1.

In practice, removal efficiency can depend on the efficiency of the solid-liquid separation process. Filtration must be effective so as to avoid increased arsenic concentrations in treated water caused by the breaking up of colloidal particles, which may be associated with arsenic.

In addition to the factors influencing the efficient removal of arsenic from water by iron hydroxides, the ratio of Fe-As must be taken into account.

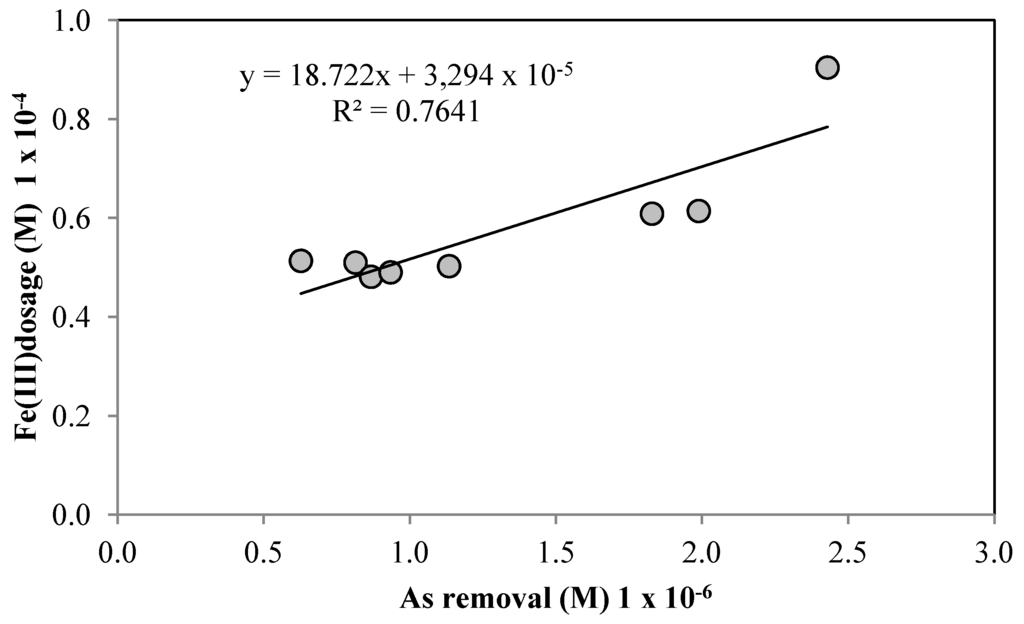

Figure 11 shows a plot of the Fe-As ratio, where a good correlation with plant operations can be seen. Results show that, most of the time, operations can lower the NCMG average arsenic content of the water in the wells 80.96%, to 1:46 of the original concentrations (Figure 11, Figure 12). A general guideline is 1 mg·L−1 of ferric chloride to remove 0.020 mg·L−1 of arsenic (ratio 1:50). This can vary greatly depending on pH, silica and other competing ions in the water.

Studies by Dahi and Liang [32] about the use of naturally occurring iron precipitates in ground water in Bangladesh have demonstrated that 65% of the hand tubewell water contains iron in excess of 2 mg·L−1, and in many areas with acute problems with iron, the concentration of dissolved iron is higher than 15 mg·L−1. Although no good correlation between concentrations of iron and arsenic has been determined, iron and arsenic have been found to co-exist in ground water.

Water 05 00834 g011 200
Figure 11. Correlation between Fe doses and As removal in full-scale NCMG plant.

Click here to enlarge figure

Figure 11. Correlation between Fe doses and As removal in full-scale NCMG plant.
Water 05 00834 g011 1024
Water 05 00834 g012 200

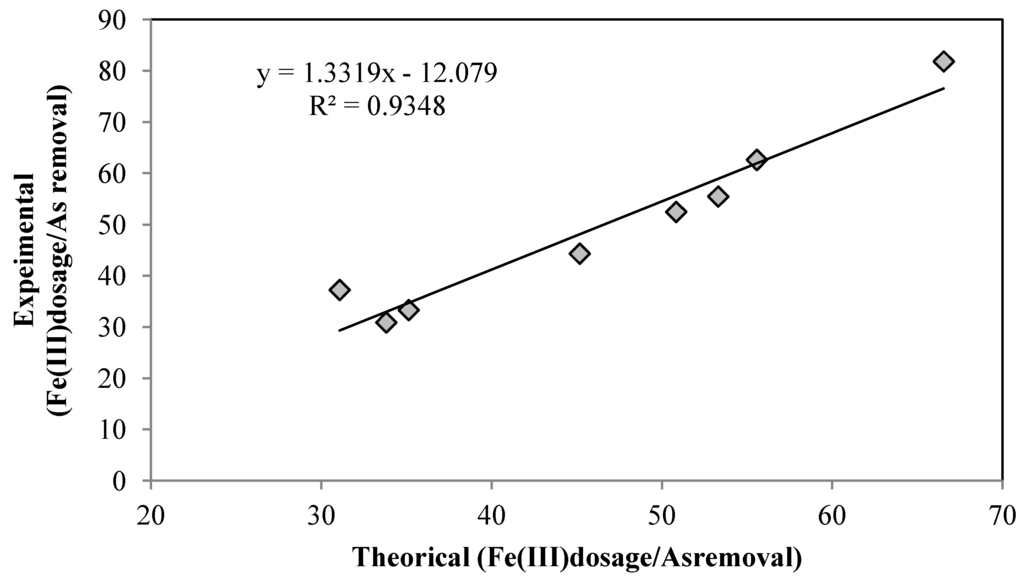

Figure 12. Correlation between experimental and theoretical Fe(III) and As removal in full-scale NCMG plant.

Click here to enlarge figure

Figure 12. Correlation between experimental and theoretical Fe(III) and As removal in full-scale NCMG plant.
Water 05 00834 g012 1024

By simplifying the linear isotherm [Equation (1)], the removal of As(V) by adsorption-coprecipitation on iron hydroxides in the coagulation treatment plants can be described as:

Water 05 00834 i001
where As adsorbed %: Arsenate removed from the solution by iron hydroxide; [Fe]: Concentration of iron hydroxide formed (mM); K: Cte adsorption characteristic, having a value of K = 78 mM−1 for coagulation treatment plants; As adsorbed for configuration A: 56.37%; As adsorbed for configuration B: 77.10%; It is assumed that all dosed iron becomes an insoluble precipitate.

In addition, the Environmental Protection Agency (EPA) has developed a toxic characteristic leaching procedure (TCLP) test to identify wastes likely to leach toxic chemicals into groundwater [33]. The permissible level for TCLP leachate is generally 100 times higher than the maximum contaminant level for drinking water. In this study, 6.6–15.6 mg·L−1 was found for leached arsenic, whereas the acceptable Guatemalan level in drinking water is 0.010 mg·L−1. Sludge leaching more than 5 mg·L−1 of arsenic would be considered hazardous and would require disposal in a special hazardous waste landfill. The sludge produced in the NCMG plant is disposed of in special confinement.

Finally, the cost of treatment for arsenic removal at the NCMG plant was calculated, taking into account the quantity of treated water, reactive, use per day and power per day. Total cost of treatment was USD 0.16 m−3 for configuration A and USD 0.113·m−3 for configuration B.

4. Conclusions

International concern has been focused on the problem of arsenic in groundwater in developing countries because of large populations that are adversely affected by high arsenic concentrations. Arsenic removal studies conducted at the full-scale NCMG plant demonstrated that the best results were obtained for configuration B (clinoptilolite filter), with 96.80% arsenic removal from treated water, resulting in 0.005 mg·L−1, a value which complies with Guatemala’s water quality standard COGUANOR NGO 29 001:99 (0.010 mg·L−1). The factors that influence the effective removal of arsenic by iron hydroxides are the hydraulic configuration of the processing units, type of filter media and dosage of reagents at a suitable Fe-As ratio. The efficiency of arsenic removal can be increased by increasing the dosage of the coagulant and the addition of polymer. Comparable trends observed in studies of arsenic adsorption on hydrous metal oxides confirm that adsorption is an important (though not sole) process in arsenic removal during coagulation. For clinoptilolite, filtration is the principal process used in the removal of arsenic because of higher adsorption-coprecipitation for arsenic removal by iron hydroxides (70.68%–77.10%) with the coagulation process.

References

  1. Tseng, W. Effects and dosage-response relationships of skin cancer and blackfoot disease with arsenic. Environ. Health Perspect. 1977, 19, 109–119, doi:10.1289/ehp.7719109.
  2. Kumar-Mandal, B.; Suzuki, T. Arsenic round the world: A review. Talanta 2002, 58, 201–235, doi:10.1016/S0039-9140(02)00268-0.
  3. Farias, S.; Casa, V.; Vazquez, C.; Ferpozzi, L.; Pucci, G.; Cohen, I. Natural contamination with arsenic and other trace elements in ground waters of Argentine Pampean Plain. Sci. Total Environ. 2003, 309, 187–199, doi:10.1016/S0048-9697(03)00056-1.
  4. World Health Organization (WHO). Verification of Arsenic Mitigation Technologies and Field Test Methods. In Proceedings of Intercountry Consultation, Kolkata, India, 9–12 December 2002; WHO Regional Office for South-East Asia: New Delhi, India, 2004.
  5. Bundschuh, J.; Litter, M.; Ciminelli, V.S.T.; Morgada, M.E.; Cornejo, L.; Hoyos, S.G.; Hoinkis, J.; Alarcon-Herrera, M.T.; Armienta, M.A.; Bhattacharya, P. Emerging mitigation needs and sustainable options for solving the arsenic problems of rural and isolated urban areas in Latin America—A critical analysis. Water Res. 2010, 44, 5828–5845, doi:10.1016/j.watres.2010.04.001.
  6. Garrido, S.; Avilés, M.; Ramírez, A.; Calderón, C.; Ramírez-Orozco, A.; Nieto, A.; Shelp, G.; Seed, L.; Cebrian, M.; Vera, E. Arsenic Removal from Water of Huautla, Morelos, Mexico Using Capacitive Deionization. In Proceedings of the International Congress on Natural Arsenic in Groundwaters of Latin America, Mexico City, Mexico, 20–24 June 2006; pp. 665–676.
  7. Amy, G.; Edwards, M.; Brandhuber, P.; McNeill, L.; Benjamin, M.; Vagliasindi, F.; Carlson, K.; Chwirka, J. Arsenic Treatability Options and Evaluation of Residuals Management Issues. 90771; American Water Works Association: Denver, CO, USA, 1999.
  8. >Environmental Protection Agency (EPA). Technologies and Costs for Removal of Arsenic from Drinking Water; EPA 815-R-00-028; Environmental Protection Agency: Washington, DC, USA, 2000.
  9. Shen, Y.S. Study of arsenic removal from drinking water. J. Am. Water Works Assoc. 1973, 65, 543–547.
  10. Ahmed, K.; Bhattacharya, P.; Hasan, M.; Akhter, S.; Alam, S.M.; Bhuyian, M.A.; Imam, M.B.; Khan, A.; Sracek, O. Arsenic enrichment in groundwater of the alluvial aquifers in Bangladesh: An overview. Appl. Geochem. 2004, 19, 181–200, doi:10.1016/j.apgeochem.2003.09.006.
  11. Pande, S.P.; Deshpande, L.S.; Patni, P.M. Arsenic removal studies in some ground waters of West Bengal, India. J. Environ. Sci. Health 1997, A32, 1981–1987.
  12. Petkova, V.; Rivera, L.; Aviles, M.; Piña, M.; Martin, A. Remoción de Arsénico de Agua Para Consumo Humano. Reporte final; Instituto Mexicano de Tecnología del Agua: Jiutepec, Mexico, 1997.
  13. Ngo, H.; Vigneswaran, S.; Hu, J.; Thirunavukkarasu, O.; Viraraghavan, T. A comparison of conventional and non-conventional treatment technologies on arsenic removal from water. Water Sci. Technol. Water Supply. 2002, 2, 119–125.
  14. Gulledge, J.H.; O’Connor, J.T. Removal of arsenic(V) from water by adsorption on aluminum and ferric hydroxides. J. Am. Water Works Assoc. 1973, 65, 548–552.
  15. Sorg, T.J.; Logsdon, G.S. Treatment technology to meet the interin primary drinking water regulations for inorganics: Part 2. J. Am. Water Works Assoc. 1978, 70, 379–393.
  16. Logsdon, G.S.; Sorg, T.J.; Symons, M. Removal of Heavy Metals by Conventional Treatment. In Proceedings of the 16th Water Quality Conference, College of Engineering, University of Illinois, Urbana-Champaign, IL, USA, 12–13 February 1974; Volume 71. No. 108, pp. 111–133.
  17. Instituto Nacional de Estadística (INE). Anuario Estadístico de Guatemala; Instituto Nacional de Estadística: Guatemala, Guatemala, 2002.
  18. Cebrián, M.E.; Albores, A.; García-Vargas, G.; Del Razo, L.M. Chronic Arsenic Poisoning in Humans: The Case of Mexico. In Arsenic in the Environment. Part II: Human Health and Ecosystem Effects; Wiley Interscience: New York, NY, USA, 1994; pp. 94–97.
  19. American Society for Testing and Materials (ASTM). Standard Practice for Coagulation-Flocculation Jar Test of Water E1-1994 R(1995), D 2035-80. Annual book of ASTM standards; ASTM International: Whashington, DC, USA, 1995; Volume 11.02.
  20. Arboleda, J. Teoría y Práctica de la Purificación del Agua, 3th ed.; Arboleda Valencia, J., Ed.; Mac Graw Hill.: Bogotá, Colombia, 2000; pp. 169–170.
  21. Environmental Protection Agency (EPA). . Environmental Technology Verification Report; Environmental Protection Agency: Washington, DC, USA, 2001.
  22. Standard Methods for Examination of Water and Waste Water, 20th ed. ed.; American Public Health Association: New York, NY, USA, 1998.
  23. HACH™ Company. Procedures Manual DR/2010, Spectrophotometer; HACH Company: Loveland, CO, USA, 1998.
  24. Erickson, B.E. Fields kits fail to provide accurate measure of arsenic in groundwater. Environ. Sci. Technol. 2003, 1, 35–38, doi:10.1021/es0323289.
  25. Scott, K.N.; Green, J.F.; Do, H.D.; McLean, S.J. Arsenic removal by coagulation. J. Am. Water Works Assoc. 1995, 87, 114–126.
  26. Chen, H.W.; Frey, M.M.; Clifford, D.; McNeill, L.S.; Edwards, M. Arsenic treatment considerations. J. Am. Water Works Assoc. 1999, 91, 74–85.
  27. Hering, J.G.; Chen, P.Y.; Wilkie, J.A.; Elimelech, M. Arsenic removal from drinking water during coagulation. ASCE J. Environ. Eng. 1997, 123, 800–807.
  28. Laky, D.; László, B.; Licskó, I. Effects of several water quality parameters on arsenic removal by coagulation: Laboratory experiments and a pilot-scale study. Water Pract. Tecnol. 2008, 3, 1–8.
  29. Garrido Hoyos, S.E. Análisis de la información técnica y evaluación del funcionamiento de la planta para remover arsénico, Mixco, Guatemala. Informe final; Instituto Mexicano de Tecnología del Agua: Jiutepec, México, 2008; p. 125.
  30. Garrido Hoyos, S.E. Seguimiento del funcionamiento de la planta convencional con filtración kinetico para remoción de arsénico y capacitación de personal en el funcionamiento de la planta, Mixco, Guatemala. Reporte final; Instituto Mexicano de Tecnología del Agua: Jiutepec, México, 2010; p. 72.
  31. Garrido, S.; Piña, M.; López, I.; De La O, D.; Rodríguez, R. Behavior of two filters media for to remove arsenic from drinking water. Filtration 2013, 13, 21–26.
  32. Dahi, E.; Liang, Q. Arsenic Removal in Hand Pump Connected Iron Removal Plants in Noakhali, Bangladesh. In Proceedings of the International Conference on Arsenic Pollution of Ground Water in Bangaldesh: Causes, Effect and Remedies, Dhaka, Bangladesh, 8–12 February 1998.
  33. Eriksen-Hamel, N.; Zinia, K.N. A Study of Arsenic Treatment Technologies and Leaching Characteristics of Arsenic Contaminated Sludge. In Technologies for Arsenic Removal from Drinking Water; Ahmed, M.F., Ali, M.A., Adeel, Z., Eds.; Bangladesh University of Engineering & Technology and United Nations University: Dhaka, Bangladesh, 2001; pp. 207–213.
Water EISSN 2073-4441 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
