Improvement of Deep Learning Models for River Water Level Prediction Using Complex Network Method
Abstract
:1. Introduction
2. Methodology and Material

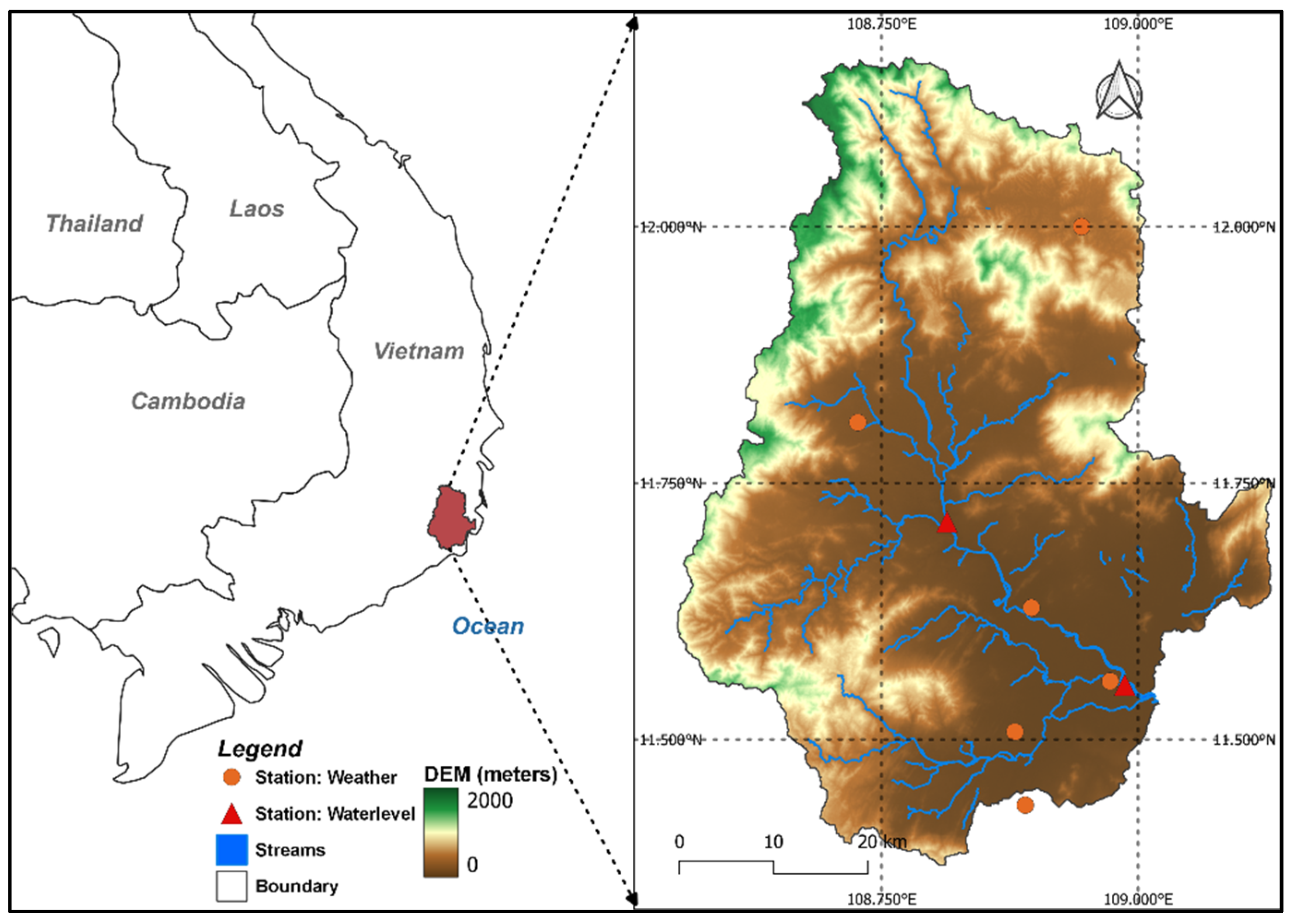

2.1. Study Area

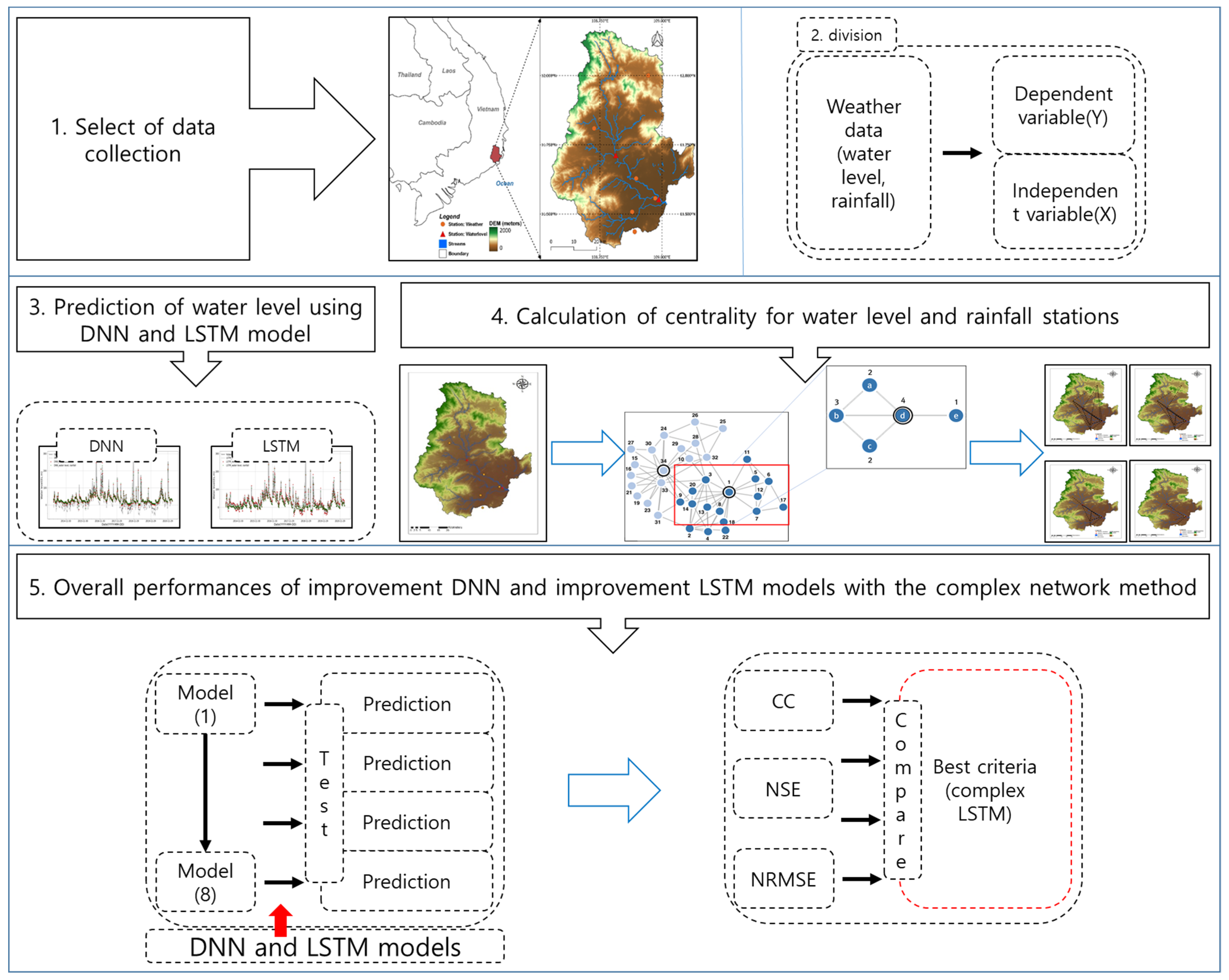

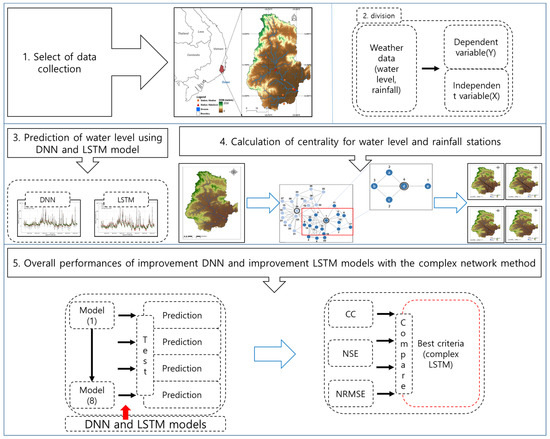

2.2. Flowchart
2.3. Data Description

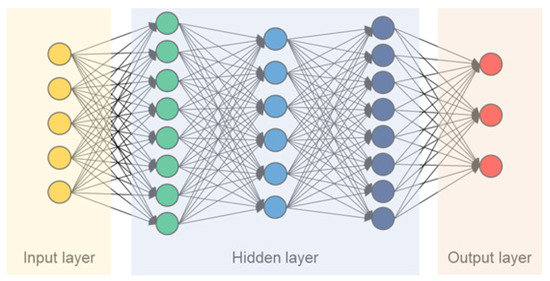

2.4. DNN

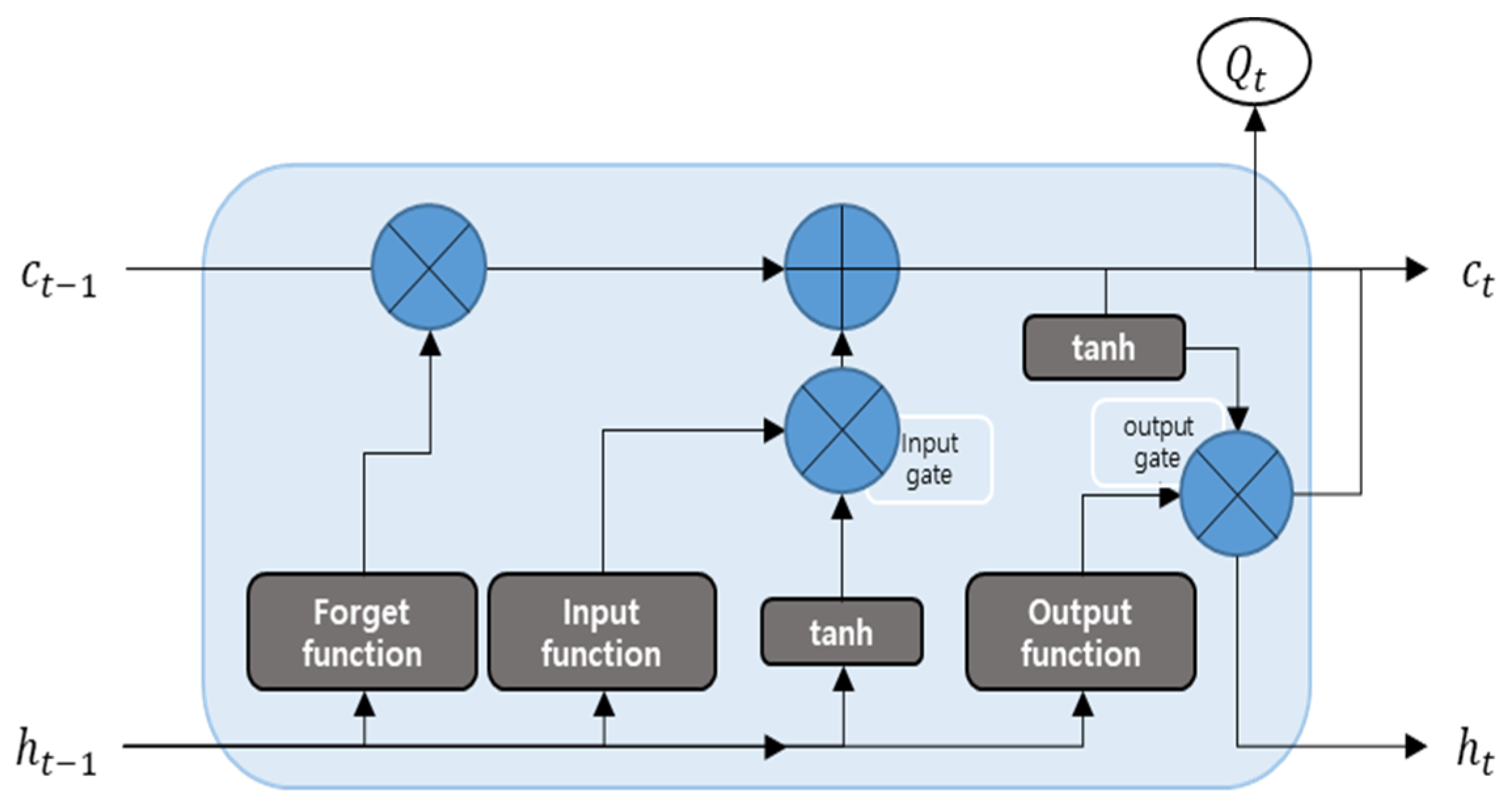

2.5. LSTM

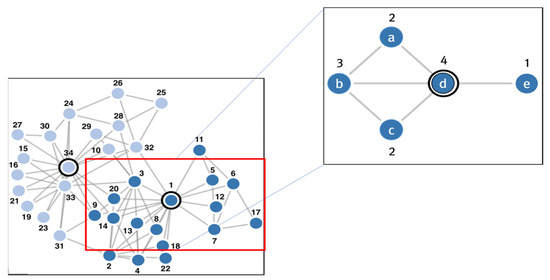

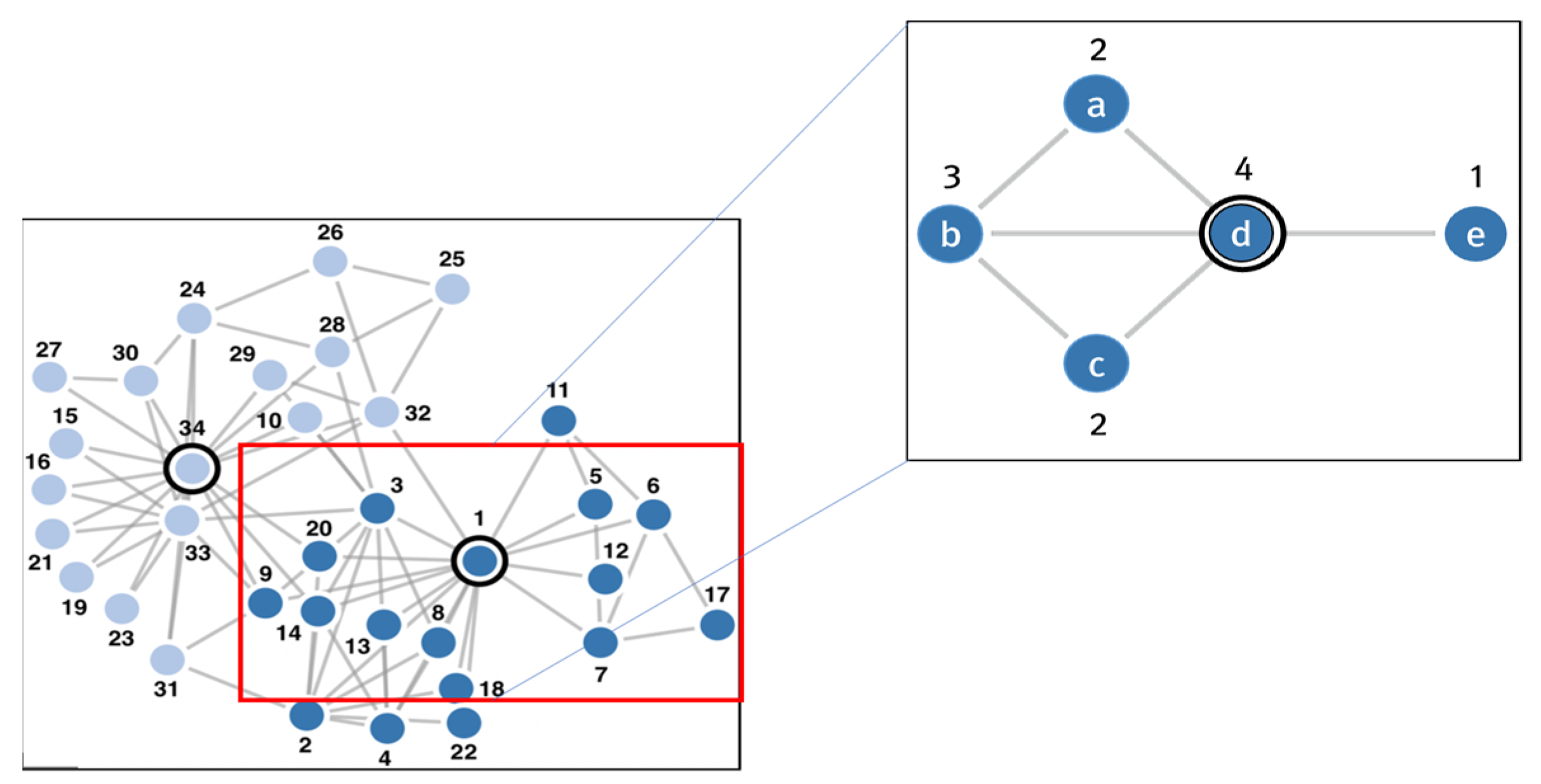

2.6. Complex Network
2.7. Evaluation of the Predictive Power
3. Results
3.1. Overall Performances of the DNN and the LSTM Models

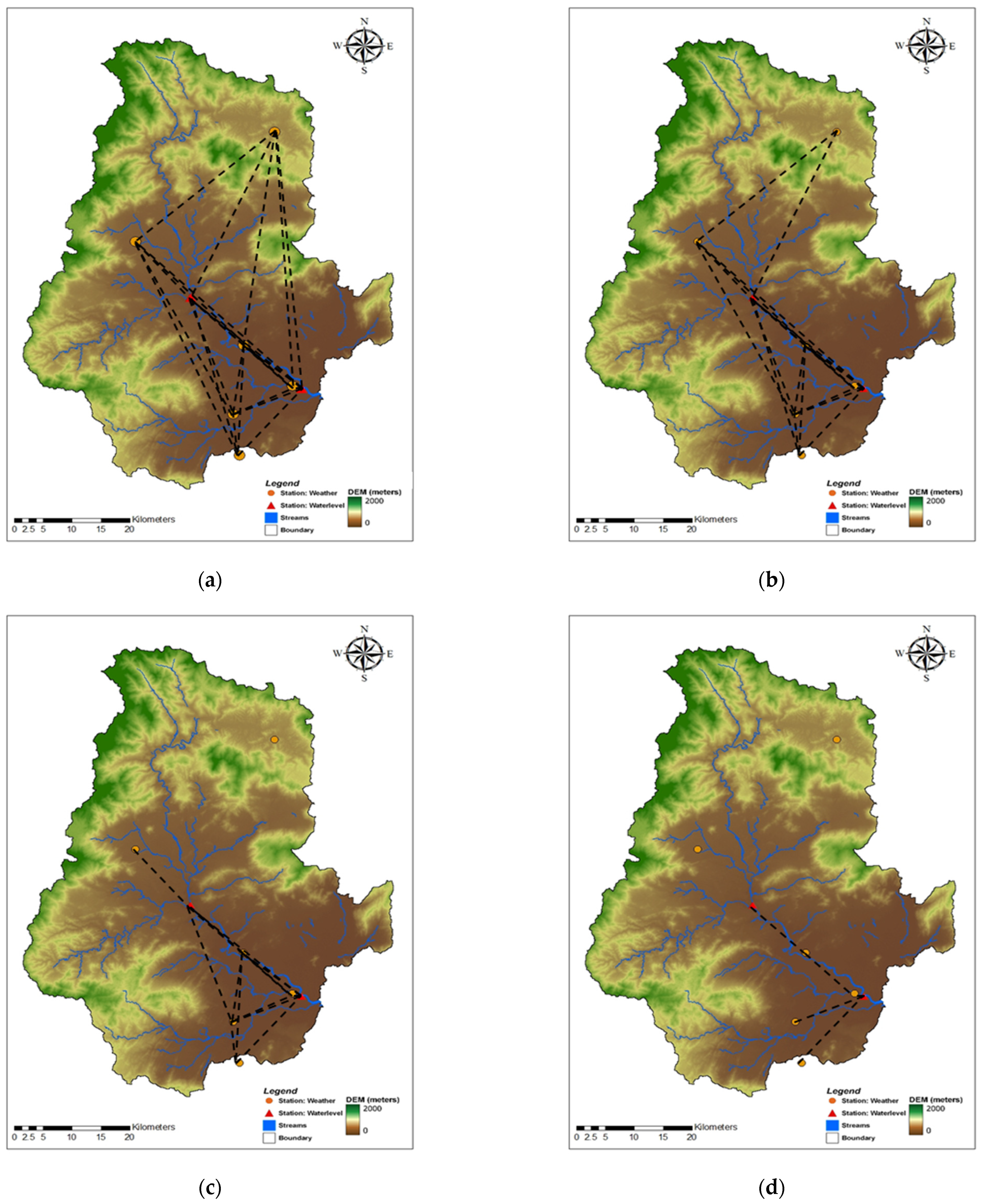

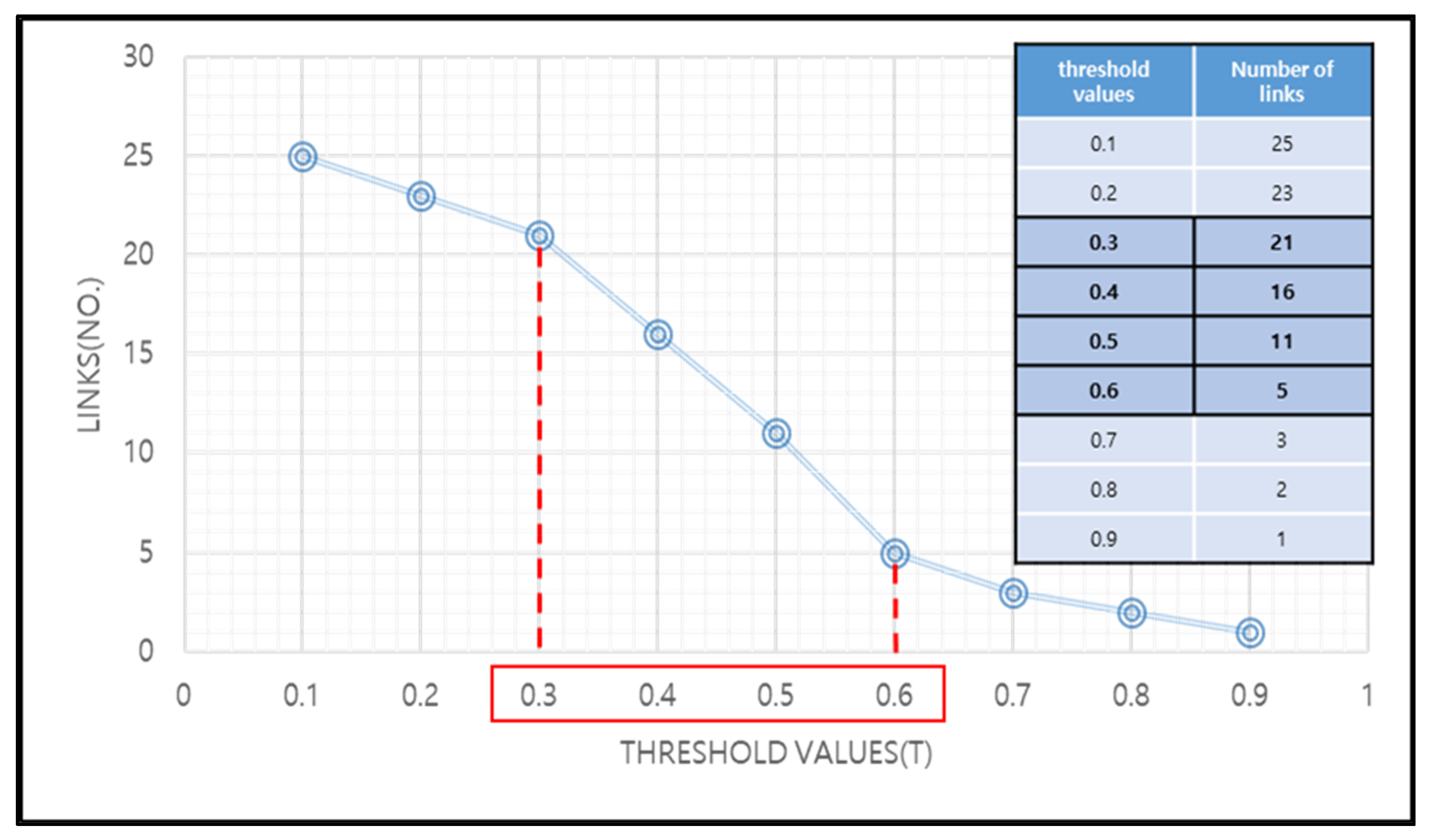

3.2. Calculation of Centrality for the Water Level and Rainfall Stations
3.3. Development of the Water Level Prediction Model Using the Complex Network
4. Conclusions
5. Discussions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Kim, D.; Kim, J.; Kwak, J.; Necesito, I.V.; Kim, J.; Kim, H.S. Development of water level prediction models using deep neural network in mountain wetlands. J. Wetl. Res. 2020, 22, 106–112. [Google Scholar]
- Choi, C.; Kim, J.; Han, H.; Han, D.; Kim, H.S. Development of water level prediction models using machine learning in wetlands: A case study of Upo wetland in South Korea. Water 2020, 12, 93. [Google Scholar] [CrossRef] [Green Version]
- Wang, Q.; Wang, S. Machine learning-based water level prediction in Lake Erie. Water 2020, 12, 2654. [Google Scholar] [CrossRef]
- Olsen, N.R.; Kjellesvig, H.M. Three-dimensional numerical flow modelling for estimation of spillway capacity. J. Hydraul. Res. 1998, 36, 775–784. [Google Scholar] [CrossRef]
- Liao, J.; Gao, L.; Wang, X. Numerical simulation and forecasting of water level for Qinghai Lake using multi-altimeter data between 2002 and 2012. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2014, 7, 609–622. [Google Scholar] [CrossRef]
- Reinking, J. GNSS-SNR water level estimation using global optimization based on interval analysis. J. Geod. Sci. 2016, 6, 80–92. [Google Scholar] [CrossRef]
- Hostache, R.; Matgen, P.; Schumann, G.; Puech, C.; Hoffmann, L.; Pfister, L. Water level estimation and reduction of hydraulic model calibration uncertainties using satellite SAR images of floods. IEEE Trans. Geosci. Remote Sens. 2009, 47, 431–441. [Google Scholar] [CrossRef]
- Velpuri, N.M.; Senay, G.B.; Asante, K.O. A multi-source satellite data approach for modelling Lake Turkana water level: Calibration and validation using satellite altimetry data. Hydrol. Earth Syst. Sci. 2012, 16, 1–18. [Google Scholar] [CrossRef]
- Schwatke, C.; Dettmering, D.; Bosch, W.; Seitz, F. DAHITI–an innovative approach for estimating water level time series over inland waters using multi-mission satellite altimetry. Hydrol. Earth Syst. Sci. 2015, 19, 4345–4364. [Google Scholar] [CrossRef] [Green Version]
- Tourian, M.J.; Tarpanelli, A.; Elmi, O.; Qin, T.; Brocca, L.; Moramarco, T.; Sneeuw, N. Spatiotemporal densification of river water level time series by multimission satellite altimetry. Water Resour. Res. 2016, 52, 1140–1159. [Google Scholar] [CrossRef] [Green Version]
- Rulent, J.; Mir Calafat, F.; Banks, C.J.; Bricheno, L.; Gommenginger, C.; Green, M.; Haigh, I.D.; Lewis, H.; Martin, A. Comparing Water Level Estimation In Coastal And Shelf Seas From Satellite Altimetry And Numerical Models. Front. Mar. Sci. 2020, 7, 919. [Google Scholar] [CrossRef]
- Mosavi, A.; Ozturk, P.; Chau, K.W. Flood prediction using machine learning models: Literature review. Water 2018, 10, 1536. [Google Scholar] [CrossRef] [Green Version]
- Solomatine, D.P.; Ostfeld, A. Data-driven modelling: Some past experiences and new approaches. J. Hydroinf. 2008, 10, 3–22. [Google Scholar] [CrossRef] [Green Version]
- Kratzert, F.; Klotz, D.; Brenner, C.; Schulz, K.; Herrnegger, M. Rainfall–runoff modelling using long short-term memory (LSTM) networks. Hydrol. Earth Syst. Sci. 2018, 22, 6005–6022. [Google Scholar] [CrossRef] [Green Version]
- Xiang, Z.; Yan, J.; Demir, I. A rainfall-runoff model with LSTM-based sequence-to-sequence learning. Water Resour. Res. 2020, 56, e2019WR025326. [Google Scholar] [CrossRef]
- Han, H.; Choi, C.; Jung, J.; Kim, H.S. Deep Learning with Long Short Term Memory Based Sequence-to-Sequence Model for Rainfall-Runoff Simulation. Water 2021, 13, 437. [Google Scholar] [CrossRef]
- Xingjian SH, I.; Chen, Z.; Wang, H.; Yeung, D.Y.; Wong, W.K.; Woo, W.C. Convolutional LSTM network: A machine learning approach for precipitation nowcasting. Adv. Neural Inf. Processing Syst. 2015, 28, 802–810. [Google Scholar]
- Wu, X.; Zhou, J.; Yu, H.; Liu, D.; Xie, K.; Chen, Y.; Hu, J.; Sun, H.; Xing, F. The Development of a Hybrid Wavelet-ARIMA-LSTM Model for Precipitation Amounts and Drought Analysis. Atmosphere 2021, 12, 74. [Google Scholar] [CrossRef]
- Sahoo, S.; Russo, T.A.; Elliott, J.; Foster, I. Machine learning algorithm s for modeling groundwater level changes in agricultural regions of the US. Water Resour. Res. 2017, 53, 3878–3895. [Google Scholar] [CrossRef]
- Poornima, S.; Pushpalatha, M. Drought prediction based on SPI and SPEI with varying timescales using LSTM recurrent neural network. Soft Comput. 2019, 23, 8399–8412. [Google Scholar] [CrossRef]
- Feng, Y.; Cui, N.; Hao, W.; Gao, L.; Gong, D. Estimation of soil temperature from meteorological data using different machine learning models. Geoderma 2020, 338, 67–77. [Google Scholar] [CrossRef]
- Jung, S.; Cho, H.; Kim, J.; Lee, G. Prediction of water level in a tidal river using a deep-learning based LSTM model. J. Korea Water Resour. Assoc. 2018, 51, 1207–1216. [Google Scholar]
- Baek, Y.; Kim, H.Y. ModAugNet: A new forecasting framework for stock market index value with an overfitting prevention LSTM module and a prediction LSTM module. Expert Syst. Appl. 2018, 113, 457–480. [Google Scholar] [CrossRef]
- Tran, Q.K.; Song, S.K. Water level forecasting based on deep learning: A use case of Trinity River-Texas-The United States. J. KIISE 2017, 44, 607–612. [Google Scholar] [CrossRef]
- Abebe, A.J.; Price, R.K. Managing uncertainty in hydrological models using complementary models. Hydrol. Sci. J. 2003, 48, 679–692. [Google Scholar] [CrossRef]
- Albert, R.; Barabási, A.L. Statistical mechanics of complex networks. Rev. Mod. Phys. 2002, 74, 47. [Google Scholar] [CrossRef] [Green Version]
- Cohen, R.; Havlin, S. Complex Networks: Structure, Robustness and Function; United Kingdom at the University Press: Cambridge, UK, 2010. [Google Scholar] [CrossRef] [Green Version]
- Sivakumar, B.; Woldemeskel, F.M. Complex networks for streamflow dynamics. Hydrol. Earth Syst. Sci. 2014, 18, 4565–4578. [Google Scholar] [CrossRef] [Green Version]
- Yasmin, N.; Sivakumar, B. Temporal streamflow analysis: Coupling nonlinear dynamics with complex networks. J. Hydrol. 2018, 564, 59–67. [Google Scholar] [CrossRef]
- Jha, S.K.; Sivakumar, B. Complex networks for rainfall modeling: Spatial connections, temporal scale, and network size. J. Hydrol. 2017, 554, 482–489. [Google Scholar] [CrossRef]
- Decision No. 339/QD-UBND Dated 26 February 2020 of the Chairman of Ninh Thuan Provincial People’s Committee, on the Promulgation of the Plan for Natural Disaster Prevention and Control for the Period of 2021–2025 in Ninh Thuan Province. Available online: https://vanbanphapluat.co/ (accessed on 26 February 2020).
- Ninh Thuan Provincial Commanding Committee of Natural Disaster Prevention and Control, Search and Rescue, Summary of Flood Prevention and Search and Rescue (2016–2020). Available online: https://vanbanphapluat.co/ (accessed on 6 March 2021).
- Decision No. 03/2020/QD-TTg Dated 13 January 2020 of the Prime Minister on Regulations on Forecasting, Warning and Communicating of Natural Disasters. Available online: https://vanbanphapluat.co/ (accessed on 13 January 2020).
- Decision No. 05/2020/QD-TTg Dated 31 January 2020 of the Prime Minister on Regulations on Water Levels Corresponding to Flood Alarming Levels on Rivers Nationwide. Available online: https://vanbanphapluat.co/ (accessed on 31 January 2020).
- Bengio, Y. Learning Deep Architectures for AI; Now Publishers Inc.: Delft, The Netherlands, 2009. [Google Scholar]
- Szegedy, C.; Toshev, A.; Erhan, D. Deep Neural Networks for Object Detection. Available online: https://storage.googleapis.com/pub-tools-public-publication-data/pdf/41457.pdf (accessed on 26 September 2013).
- Donges, J.F.; Zou, Y.; Marwan, N.; Kurths, J. Complex networks in climate dynamics. Eur. Phys. J. Spec. Top. 2009, 174, 157–179. [Google Scholar] [CrossRef] [Green Version]
- Choi, C.; Kim, J.; Kim, J.; Kim, D.; Bae, Y.; Kim, H.S. Development of heavy rain damage prediction model using machine learning based on big data. Adv. Meteorol. 2018, 2018, 5024930. [Google Scholar] [CrossRef] [Green Version]
- Choi, C.H.; Kim, J.S.; Kim, J.H.; Kim, H.Y.; Lee, W.J.; Kim, H.S. Development of Heavy Rain Damage Prediction Function Using Statistical Methodology. J. Korean Soc. Hazard Mitig. 2017, 17, 604–612. [Google Scholar] [CrossRef]
- Kim, J.S.; Choi, C.H.; Lee, J.S.; Kim, H.S. Damage Prediction Using Heavy Rain Risk Assessment: (2) Development of Heavy Rain Damage Prediction Function. J. Korean Soc. Hazard Mitig. 2017, 17, 371–379. [Google Scholar] [CrossRef]
- Lee, J.S. Development and Application of Artifacts Foundation Model for Real Time Flood Forecasting. Ph.D. Thesis, Inha University Graduate School, Incheon, Korea, 2021. [Google Scholar]
- Schmidhuber, J. Deep learning in neural networks: An overview. Neural Netw. 2015, 61, 85–117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hu, C.; Wu, Q.; Li, H.; Jian, S.; Li, N.; Lou, Z. Deep learning with a long short-term memory networks approach for rainfall-runoff simulation. Water 2018, 10, 1543. [Google Scholar] [CrossRef] [Green Version]
- Fan, H.; Jiang, M.; Xu, L.; Zhu, H.; Cheng, J.; Jiang, J. Comparison of Long Short Term Memory Networks and the Hydrological Model in Runoff Simulation. Water 2020, 12, 175. [Google Scholar] [CrossRef] [Green Version]
- Kim, K.; Joo, H.; Han, D.; Kim, S.; Lee, T.; Kim, H.S. On complex network construction of rain gauge stations considering nonlinearity of observed daily rainfall data. Water 2019, 11, 1578. [Google Scholar] [CrossRef] [Green Version]
- Joo, H.; Kim, H.S.; Kim, S.; Sivakumar, B. Complex networks and integrated centrality measure to assess the importance of streamflow stations in a River basin. J. Hydrol. 2021, 598, 126280. [Google Scholar] [CrossRef]
- Estrada, E. The Structure of Complex Networks: Theory and Applications; Oxford University Press: Oxford, UK, 2012. [Google Scholar]
- Newman, M. Networks; Oxford University Press: Oxford, UK, 2018. [Google Scholar]
Classification (Stations) | Unit | Max | Min | Mean | Standard Deviation | Coefficient of Variation |
---|---|---|---|---|---|---|
Daolong | H (EL·m) | 385.85 | −37.86 | 32.23 | 41.72 | 1.29 |
Tanmy | H (EL·m) | 3832.00 | 3362.00 | 3439.75 | 46.28 | 0.01 |
Tanmy | R (mm) | 325.20 | 0.00 | 5.64 | 18.65 | 3.31 |
Phan Rang | R (mm) | 321.80 | 0.00 | 4.95 | 16.58 | 3.35 |
Nhaho | R (mm) | 259.00 | 0.00 | 2.56 | 11.94 | 4.67 |
Khanh Son | R (mm) | 373.40 | 0.00 | 5.90 | 18.31 | 3.10 |
Songha | R (mm) | 205.00 | 0.00 | 7.75 | 19.53 | 2.52 |
Nhiha | R (mm) | 280.40 | 0.00 | 3.63 | 13.92 | 3.83 |
Quanthe | R (mm) | 272.60 | 0.00 | 4.06 | 14.87 | 3.66 |
Hyper-Parameter | Value (Model (1)) | Value (Model (2)) | Value (Model (3)) |
---|---|---|---|
Learning rate | 0.1 | 0.1 | 0.1 |
Hidden layer | 3 | 4 | 3 |
Hidden nodes | 5 | 8 | 4 |
Dropout | 0.5 | 0.5 | 0.5 |
Epoch | 67 | 48 | 55 |
Batch size | 10 | 10 | 8 |
Optimizer | Adam | Adam | Adam |
Activation | ReLU | ReLU | ReLU |
Parameter | Values (Model (4)) | Value (Model (5)) | Values (Model (6)) |
---|---|---|---|
Activation | Relu | Relu | Relu |
Epoch | 47 | 34 | 41 |
Otimizer | Adam | Adam | Adam |
Learning rate | 0.01 | 0.01 | 0.01 |
Loss | Mean squared error | Mean squared error | Mean squared error |
Classification | CC | NSE | NRMSE (%) |
---|---|---|---|

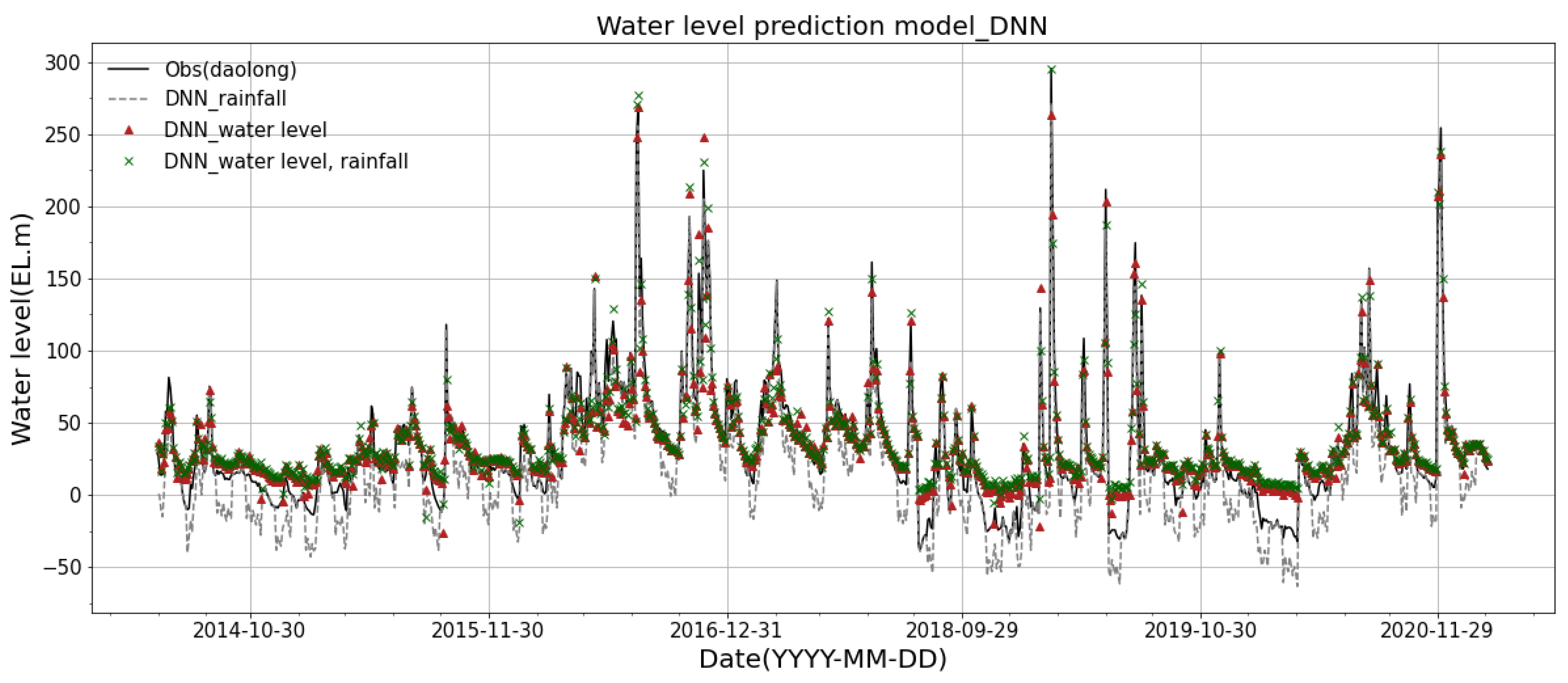

Model (1)_DNN (rainfall) | 0.90 | 0.80 | 30.4 |
Model (2)_DNN (water level) | 0.91 | 0.89 | 16.75 |
Model (3)_DNN (water level and rainfall) | 0.92 | 0.88 | 15.22 |

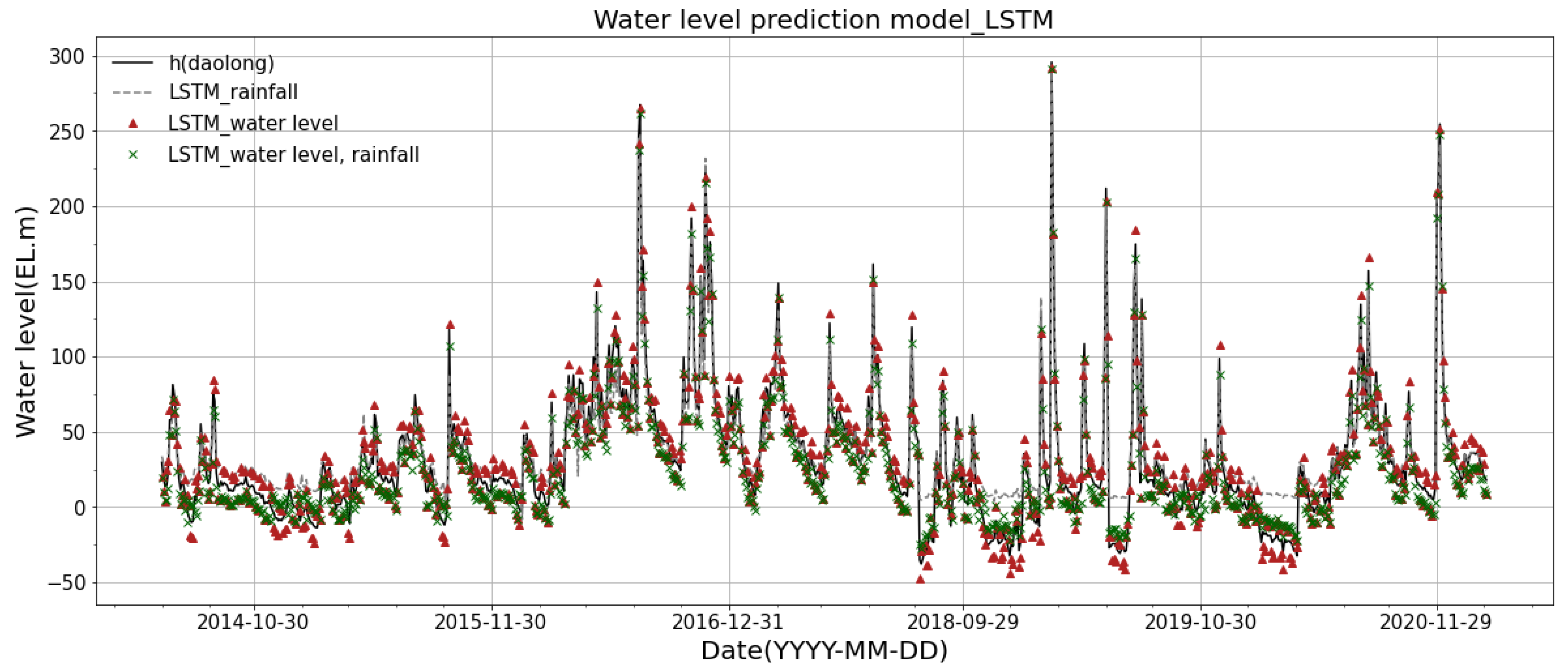

Model (4)_LSTM (rainfall) | 0.94 | 0.93 | 10.41 |
Model (5)_LSTM (water level) | 0.95 | 0.95 | 9.82 |
Model (6)_LSTM (water level and rainfall) | 0.95 | 0.94 | 9.93 |
Hyper-Parameter | Values (Model (7)) | Parameter | Values (Model (8)) |
---|---|---|---|
Learning rate | 0.1 | Activation | ReLU |
Hidden layer | 3 | Epoch | 53 |
Hidden nodes | 3 | Otimizer | Adam |
Dropout | 0.5 | Learning rate | 0.01 |
Epoch | 81 | Loss | Mean squared error |
Batch size | 7 | ||
Optimizer | Adam | ||
Activation | ReLU |
Classification | CC | NSE | NRMSE (%) |
---|---|---|---|
Model (1)_DNN (rainfall) | 0.90 | 0.80 | 30.4 |
Model (2)_DNN (water level) | 0.91 | 0.89 | 16.75 |
Model (3)_DNN (water level and rainfall) | 0.92 | 0.88 | 15.22 |
Model (4)_LSTM (rainfall) | 0.94 | 0.93 | 10.41 |
Model (5)_LSTM (water level) | 0.95 | 0.95 | 9.82 |
Model (6)_LSTM (water level and rainfall) | 0.95 | 0.94 | 9.93 |

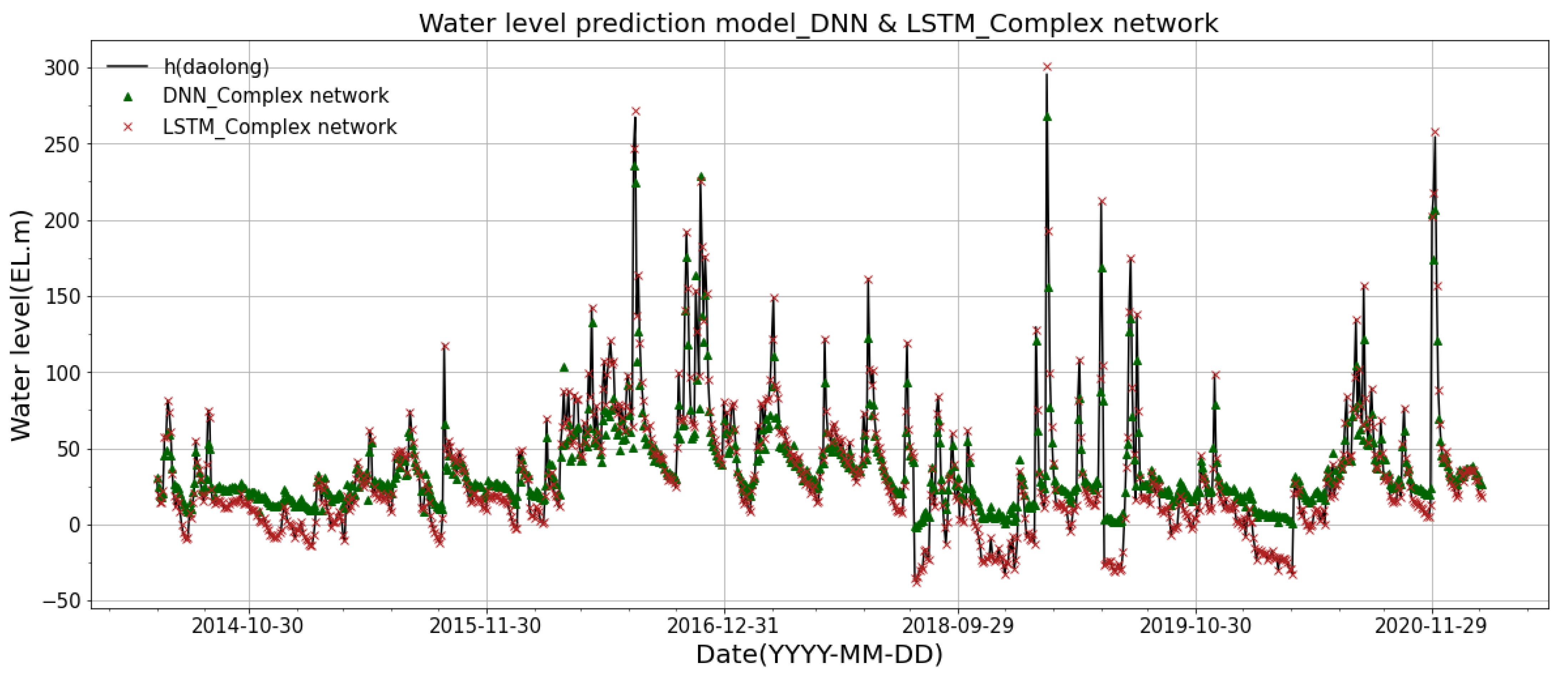

Model (7)_Complex network_DNN (water level and rainfall) | 0.95 | 0.89 | 4.41 |
Model (8)_Complex network_LSTM (water level and rainfall) | 0.99 | 0.99 | 0.17 |
