Next Article in Journal
Crystal Growth of High-Quality Protein Crystals under the Presence of an Alternant Electric Field in Pulse-Wave Mode, and a Strong Magnetic Field with Radio Frequency Pulses Characterized by X-ray Diffraction
Next Article in Special Issue
Heterojunctions Based on II-VI Compound Semiconductor One-Dimensional Nanostructures and Their Optoelectronic Applications
Previous Article in Journal
Synthesis and Characterization of a New Cobaloxime-Terpyridine Compound
Previous Article in Special Issue
Epitaxial Defects in Nanoscale InP Fin Structures Revealed by Wet-Chemical Etching
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle
Crystals 2017, 7(6), 177;

The Role of III-V Substrate Roughness and Deoxidation Induced by Digital Etch in Achieving Low Resistance Metal Contacts

Department of Mechanical & Materials Science and Electrical Engineering & Computer Science, Masdar Institute of Science and Technology, A part of Khalifa University of Science and Technology, P.O. Box 54224, Abu Dhabi 54224, UAE
Author to whom correspondence should be addressed.
Academic Editor: Shujun Zhang
Received: 2 May 2017 / Revised: 2 June 2017 / Accepted: 13 June 2017 / Published: 19 June 2017
View Full-Text   |   Download PDF [2345 KB, uploaded 19 June 2017]   |

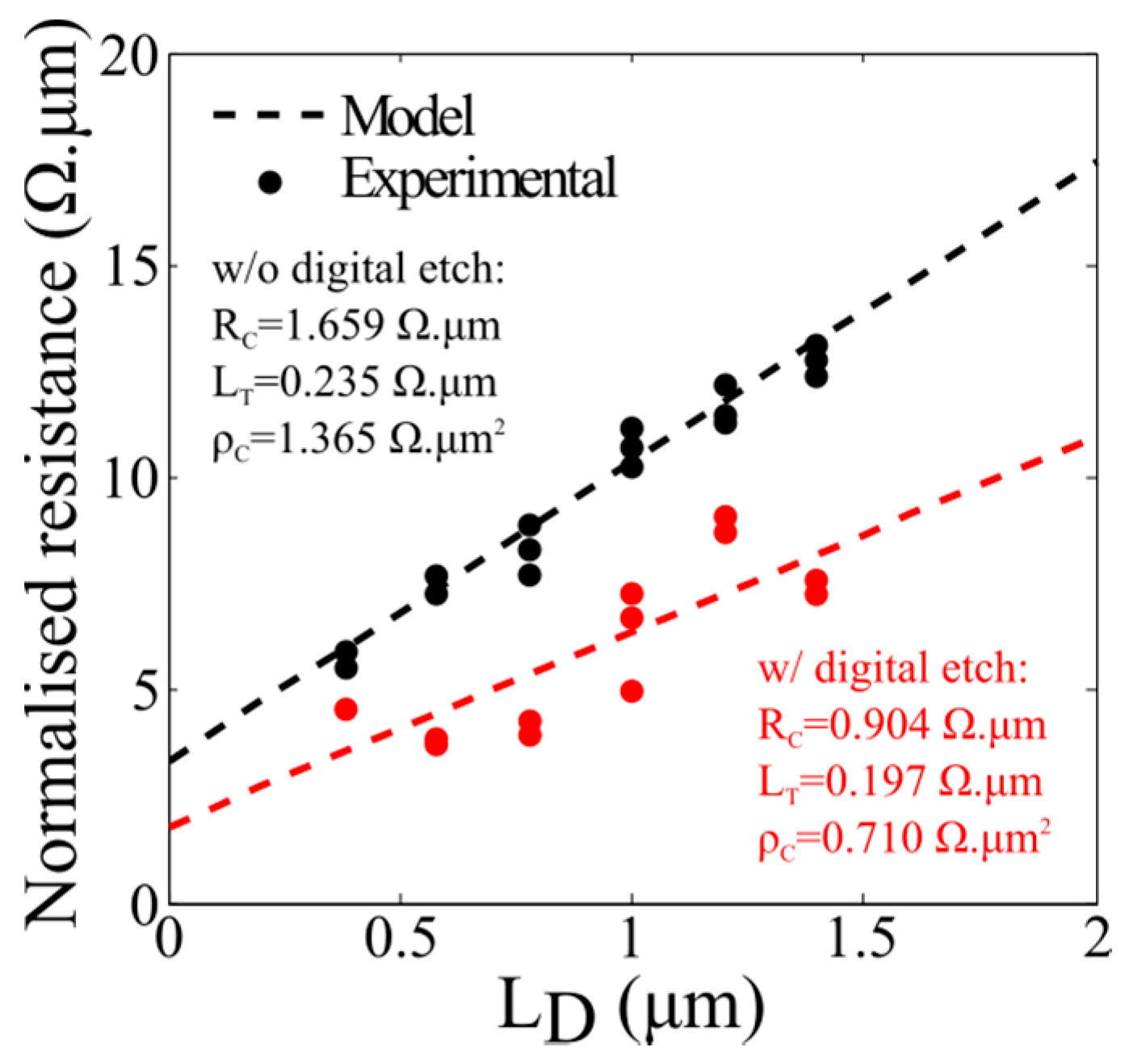

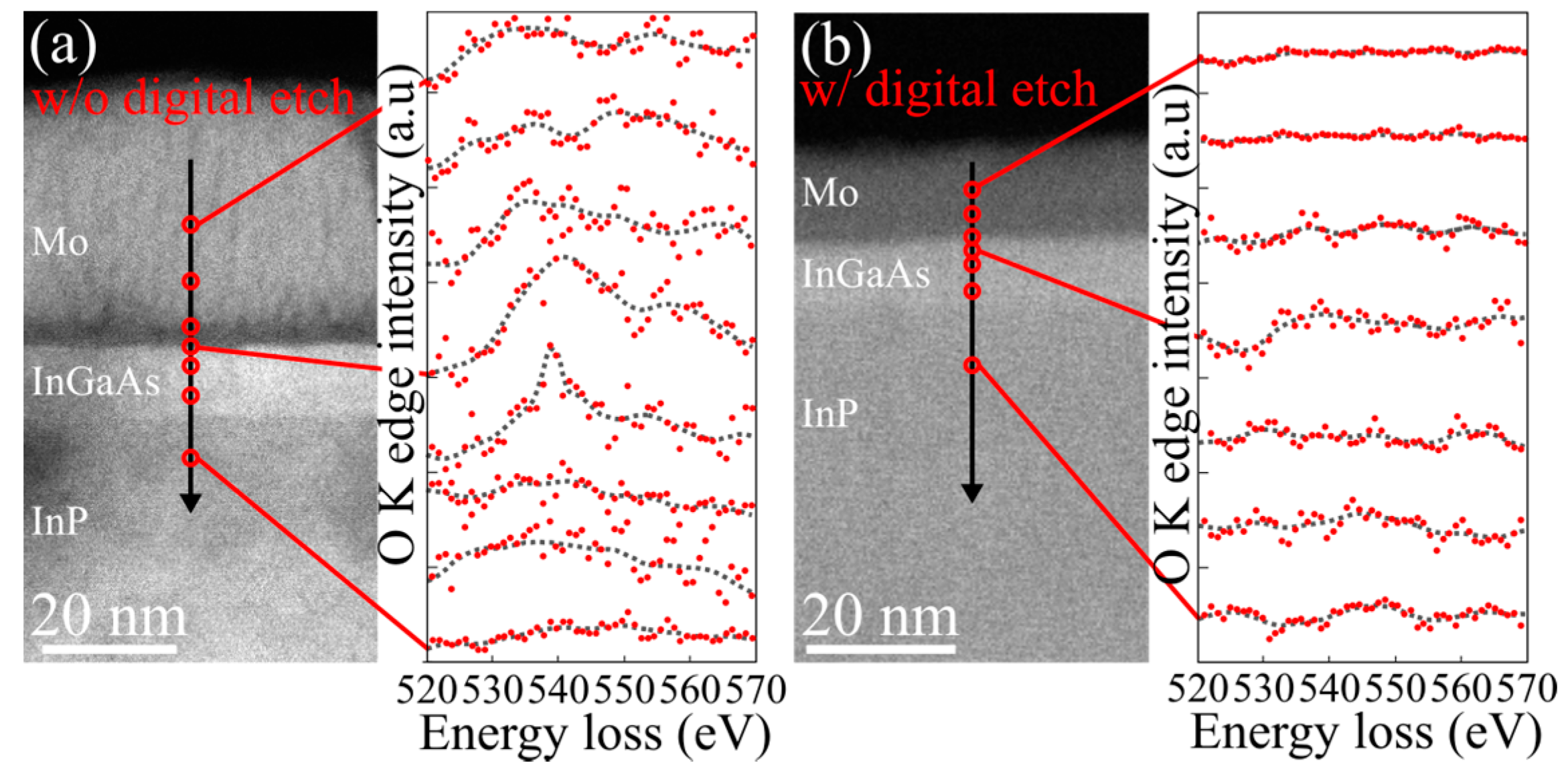

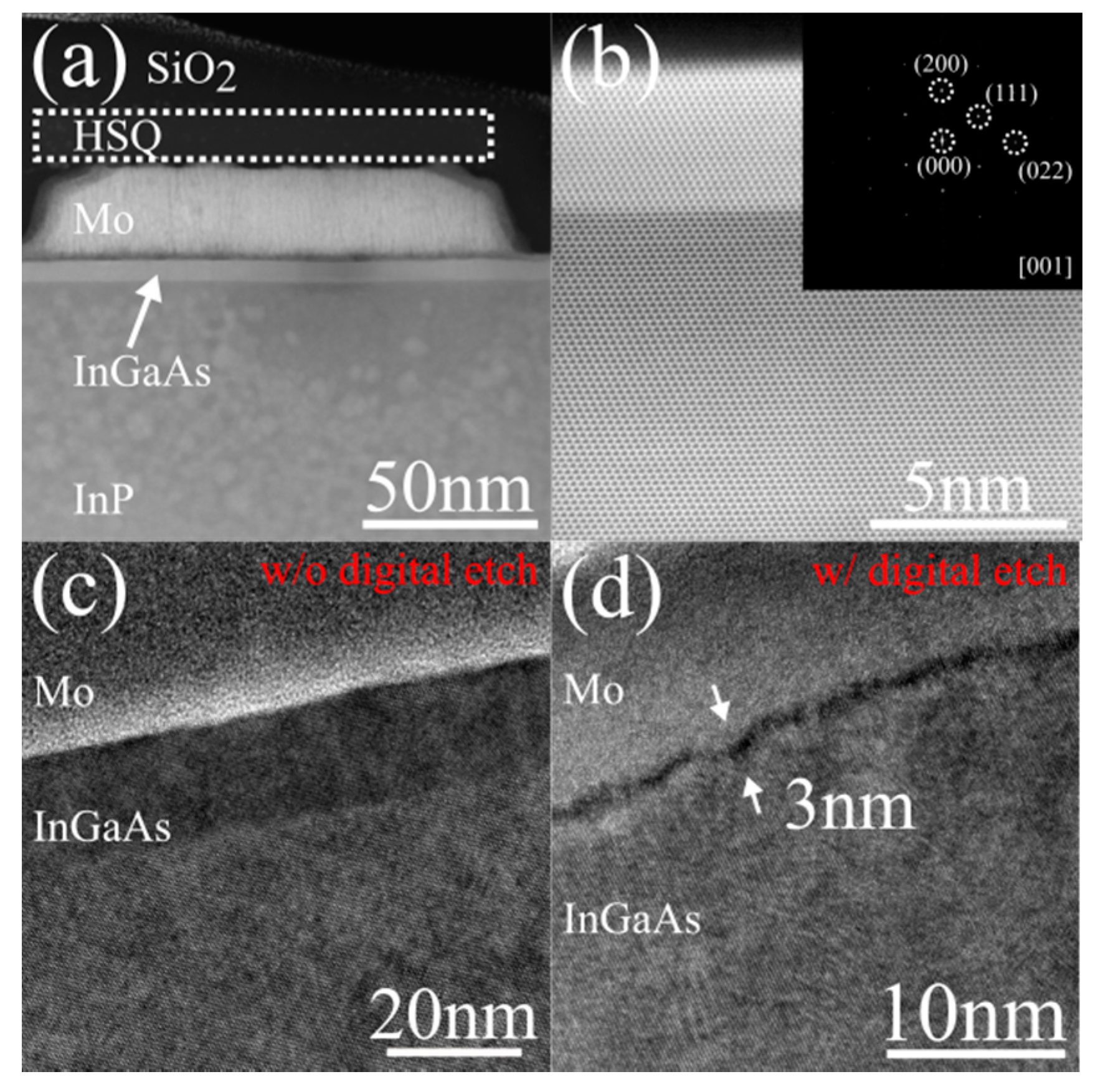

To achieve low contact resistance between metal and III-V material, transmission-line-model (TLM) structures of molybdenum (Mo) were fabricated on indium phosphide (InP) substrate on the top of an indium gallium arsenide (InGaAs) layer grown by molecular beam epitaxy. The contact layer was prepared using a digital etch procedure before metal deposition. The contact resistivity was found to decrease significantly with the cleaning process. High Resolution Transmission & Scanning Electron Microscopy (HRTEM & HRSTEM) investigations revealed that the surface roughness of treated samples was increased. Further analysis of the metal-semiconductor interface using Energy Electron Loss Spectroscopy (EELS) showed that the amount of oxides (InxOy, GaxOy or AsxOy) was significantly decreased for the etched samples. These results suggest that the low contact resistance obtained after digital etching is attributed to the combined effects of the induced surface roughness and oxides removal during the digital etch process. View Full-Text
Keywords: III-V materials; digital etch; low contact resistance; HRTEM; EELS III-V materials; digital etch; low contact resistance; HRTEM; EELS

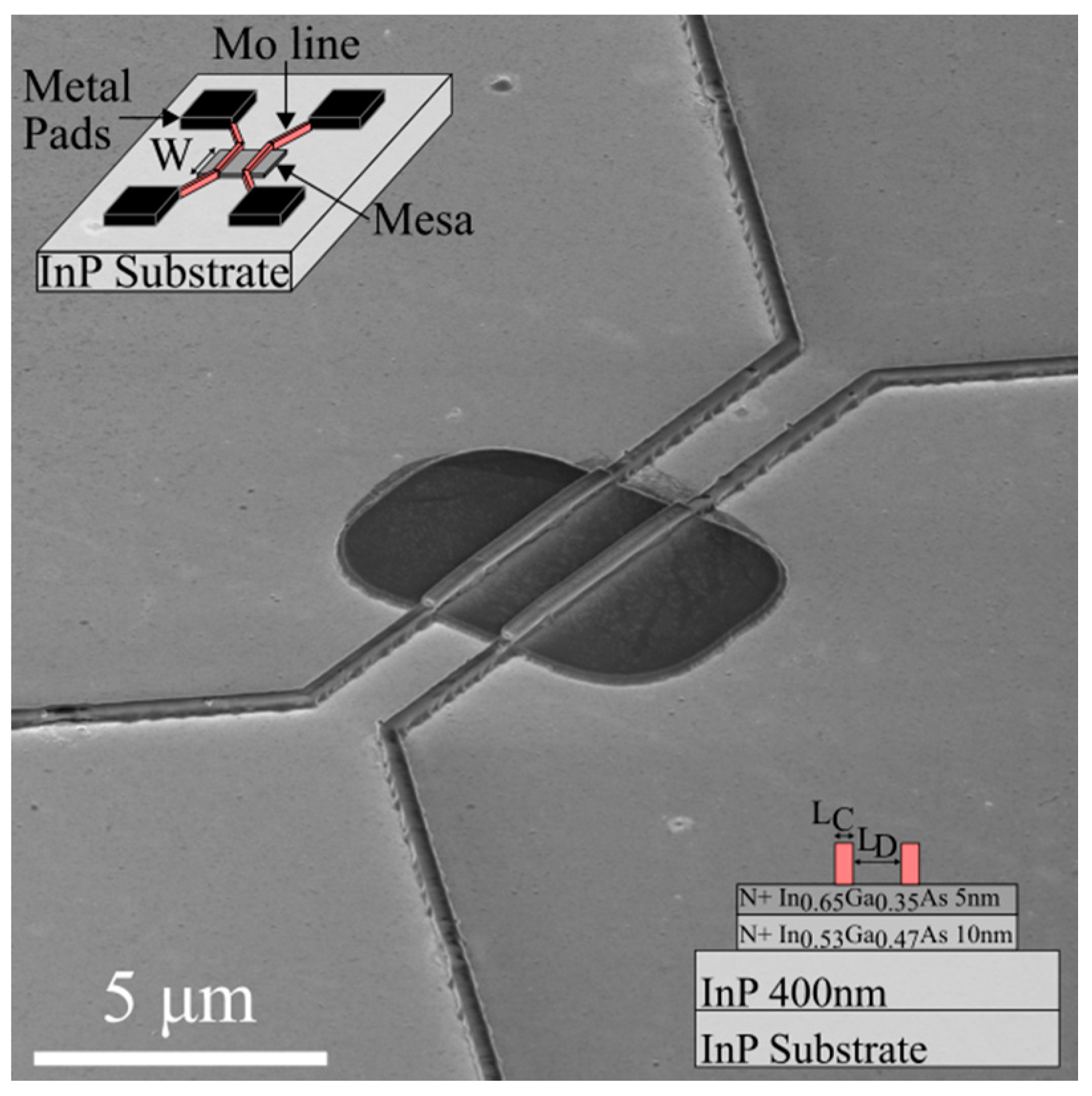

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ravaux, F.; Saadat, I.; Jouiad, M. The Role of III-V Substrate Roughness and Deoxidation Induced by Digital Etch in Achieving Low Resistance Metal Contacts. Crystals 2017, 7, 177.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
